USER MANUAL FX-SH1 Fuxtec

1. Introduction and safety 16
2. Note on safe use 17
3. Symbols on the product and in the manual. 18
4. Assembly instructions 18
5. Operation 19
6. maintenance 20
7. accessories and spare parts 20
8. General description 20
9. Scope of delivery 21
10. Warranty 23
11. Disposal 23
12. Customer Service 23
13. Copyright protection 23

14. INTRODUCTION AND SAFETY

General Information

Read this original operating manual carefully before using the product for the first time and follow all instructions. Keep the document in a safe place for future reference or for subsequent owners. Familiarize yourself with the functions and proper use of the product. Observe all safety instructions listed in the service manual. Always act responsibly and considerably towards third parties. The operator is responsible for accidents or hazards caused to third parties.

Intended use

The product may only be used for its intended purpose. Any other use is considered improper. The user or operator is solely liable for any resulting damage or injury of any kind; the manufacturer accepts no responsibility for this. Please note that the product is not designed for commercial, craft, or industrial use. Any warranty or liability is excluded if the product is used in such areas of application or comparable activities.

Do not allow anyone who has not read and understood these instructions in full to assemble, commission, adjust, or operate the product. This product is intended exclusively for well-insulated rooms or for non-permanent use.

Safety instructions

Read all safety instructions, operating instructions, illustrations, and technical information supplied with the product. Failure to follow these instructions may result in serious injury or damage. The operator is obliged to use the product as intended, to pay attention to the environment, and to take special care of other people, especially children. Always adhere to the specified safety guidelines.

15. NOTE ON SAFE USE

Safe working practices

1. Place the wood on the saw table so that the end rests against the measuring stick. Hold the wood firmly with your left hand and lower the chainsaw to cut. Be sure to watch your hands to avoid injury.
2. The saw block table is designed to accommodate logs up to a maximum length of 1.80m and a maximum diameter of 20 cm. The maximum permissible load on the saw block is 120kg .
3. The chain guard of the saw block is designed for chainsaws with a blade length of up to 45~cm . A chainsaw with a longer blade (which protrudes beyond the chain guard) is not recommended.
4. If you use the chainsaw separately from the saw block, you must remove the swivel clamp and the guard.
5. The swivel clamp and the holder must be well lubricated.
6. The saw block may only be used on flat surfaces.
7. Ensure that the screws and nuts on the swivel clamp and protective device are always tightened securely. When using a chainsaw with the sawing block, it is important that all safety regulations and practices of the chainsaw manufacturer and the occupational safety officer are fully observed.

16. SYMBOLS ON THE PRODUCT AND IN THE MANUAL

Symbols are used in this manual and on the product itself to indicate potential hazards. These safety symbols and their explanations must be fully understood. Please note: The warnings alone do not eliminate hazards and do not replace the necessary safety measures to prevent accidents.

Read this instruction manual carefully before using the product and keep it in a safe place for future reference.

CE mark

The product complies with the requirements and regulations of the European Community.

17. ASSEMBLY INSTRUCTIONS

Assembling the saw block with chainsaw holder

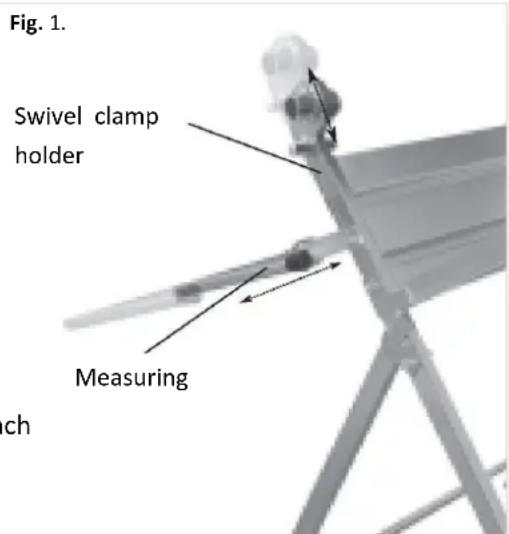

Swivel clamp mount and measuring rod (Fig. 1)

Insert the swivel clamp holder (vertically adjustable) with the measuring rod holder (horizontally adjustable) into the saw table using the screw and washer supplied. The vertical adjustment of the swivel clamp holder is used to adapt to different blade sizes – the larger and longer the blade, the higher the swivel clamp holder should be mounted. Adjust it so that the tip of the blade protrudes beyond the table so that it can cut through a log completely.

The measuring rod can be adjusted horizontally so that each log can be cut to the desired length.

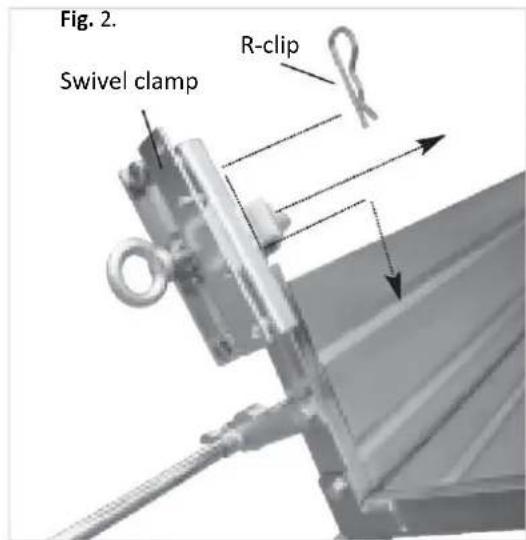

Swivel clamp (Fig. 2)

Insert the male rod of the swivel clamp into the female cylinder on the swivel clamp and secure it with the R-clip.

18. OPERATION

Commissioning

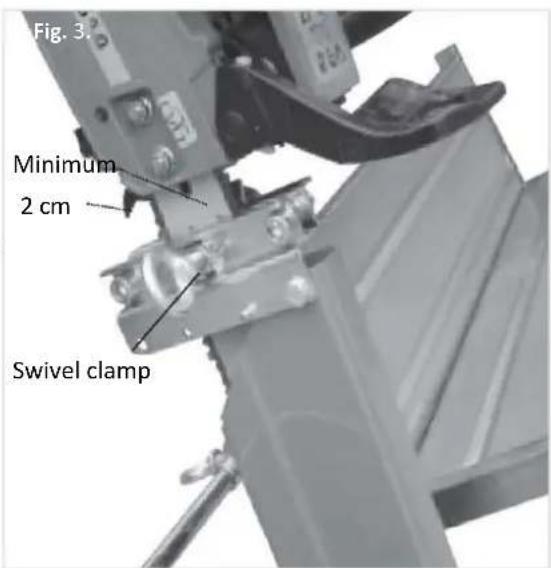

Fig. 3

Carefully lower the saw blade into position between the two solid blocks in the swivel clamp, ensuring there is a gap of 2 cm between the body of the chainsaw and the clamp. Make sure that the blade is at an angle of approximately 90 degrees to the clamp and that there is sufficient clearance from the chain before tightening the screw. After tightening, test the travel distance to ensure that the blade does not touch the saw bench

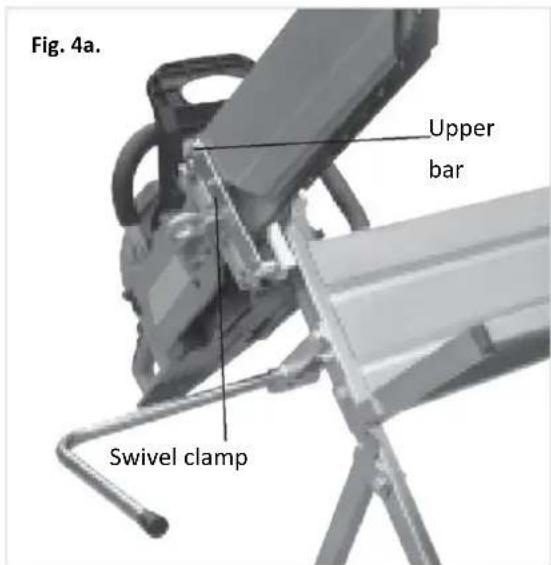

Fig. 4a

Place the chain guard around the upper bar of the swivel clamp. Secure the chain guard with the screw and nut provided.

Move the chain guard back and forth as needed, ensuring that there is sufficient clearance from the chain. Tighten the screw.

Check again that there is sufficient clearance from the chain.

The saw block is now ready for use.

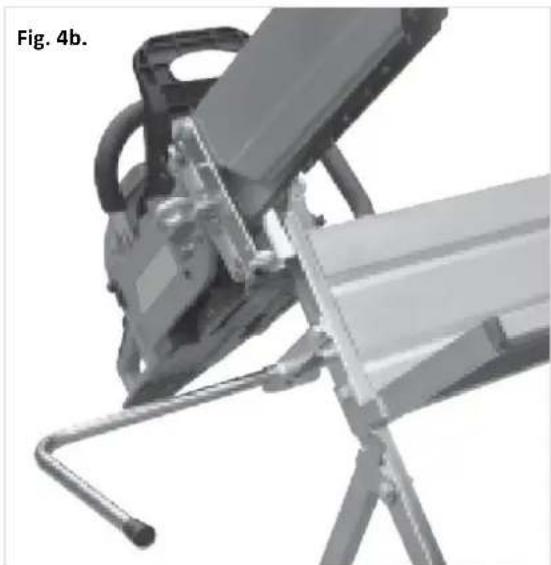

Fig. 4b

19. MAINTENANCE

Only use original accessories and original spare parts.

Only a regularly maintained and serviced device can serve as a satisfactory aid.

Inadequate maintenance and care can lead to unforeseen accidents and injuries.

20. ACCESSORIES AND SPARE PARTS

Only use original accessories and spare parts to ensure the safety and proper functioning of the device. For more information, visit www.FUXTEC.com.

21. GENERAL DESCRIPTION

Item number: FX-SH1

Item description: FUXTEC sawhorse with chain saw holder FX-SH1

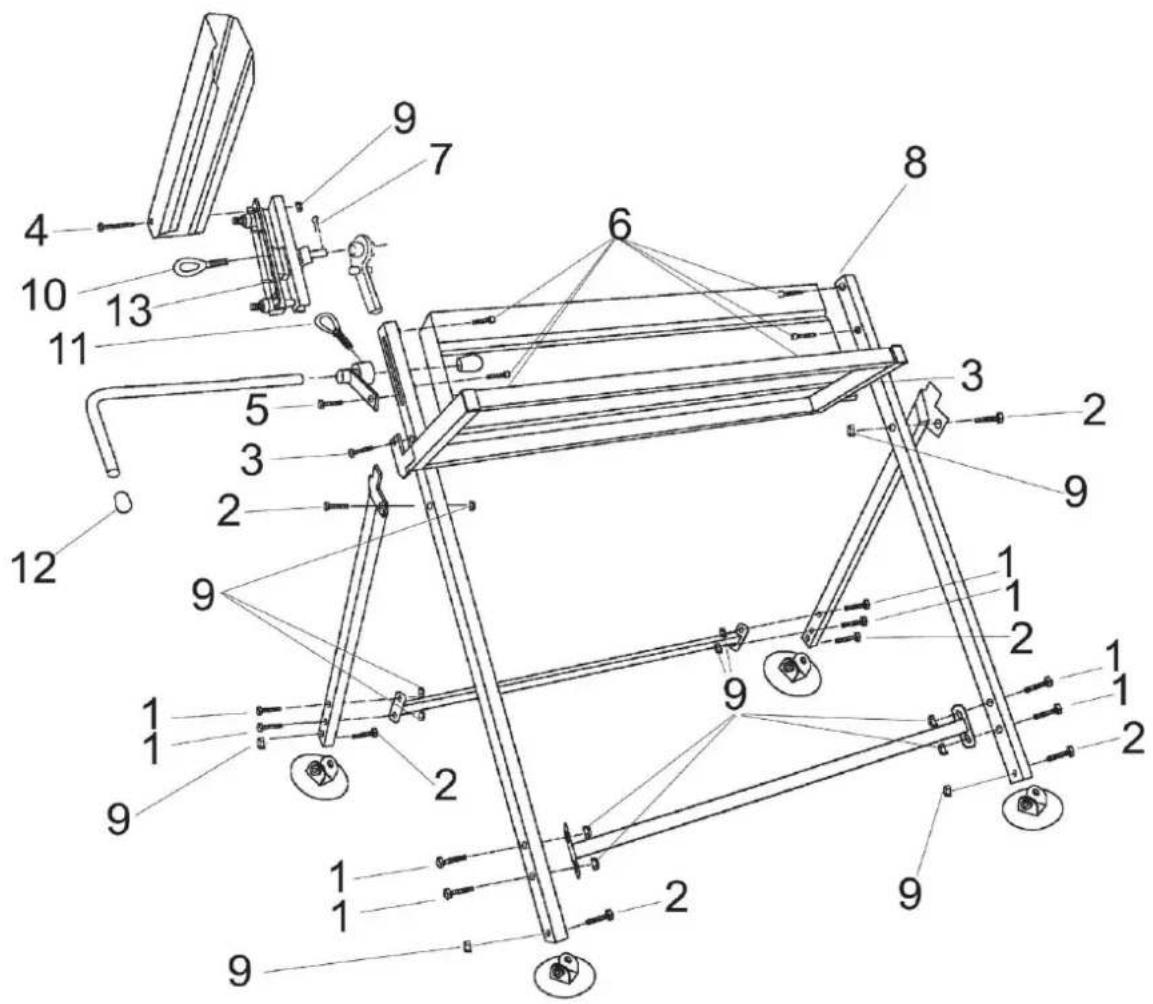

22. SCOPE OF DELIVERY

Please check that the item is complete according to the description of the scope of delivery. If any parts are defective, please contact our FUXTEC customer service.

1	8x30 mm	8x
2	8x35 mm	6x
3	8x45 mm	2x
4	8x70 mm	1x
5	10x20 mm	1
6	8x12 mm	6x
7	3 mm	1
8		1
9	m8	17
10	12x30 mm	1x
11	10x20 mm	1x
12	φ 16 mm	2
13	5x10 mm	2

23. WARRANTY

The warranty period begins on the date of purchase. Please keep your proof of purchase in a safe place. The warranty does not cover wear parts and does not apply to damage caused by improper use, improper handling, use of force, technical modifications, the use of unauthorized accessories or spare parts, or repair attempts by unauthorized persons. Warranty work may only be carried out by authorized specialist companies or service partners. These conditions apply in addition to the statutory warranty rights, which may vary from country to country.

24. DISPOSAL

The packaging material consists mainly of recyclable materials. Please dispose of all packaging components in accordance with local waste separation regulations. By recycling the packaging, you are making a valuable contribution to environmental protection and the sustainable use of resources.

This product must not be disposed of with normal household waste. In accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), the device must be taken to an approved collection point for waste electrical and electronic equipment at the end of its service life.

Proper disposal and recycling of materials helps protect the environment and human health. For more information on return and disposal, please contact your local waste authority or the retailer where you purchased the product.

25. CUSTOMER SERVICE

If you have any questions about warranty, repairs, or replacement parts, please contact:

FUXTEC GmbH

Kappstraße 69

71083 Herrenberg

Germany

Phone: [phone]

Email: [e-mail]

Note: Please do not send any returns or repairs to this address. For returns under warranty, please contact our customer service department.

26. COPYRIGHT PROTECTION

All rights reserved. The contents of this manual are protected by copyright. Their use is permitted within the scope of operation. Any use or reproduction beyond this is not permitted without the written consent of FUXTEC GmbH. FUXTEC GmbH reserves the right to make changes to this operating manual without prior notice.
