USER MANUAL FX-RM5170ZK Fuxtec

Illustration of a yellow-handled lawn mower with 'FUXTEV' branding, shown against black background (no text or symbols on the device itself)

Line drawing of a yellow lawn mower on a black background (no text or symbols)

Orange icon of a person reading a book on black background (no text or symbols)

Inhalt

DEUTSCHE VERSION 7

ENGLISH VERSION....34

VERSION FRANCAISE 61

POLSKA WERSJA JEZYKOWA 224

Inhalt

DEUTSCHE VERSION 7

1. Introduction and safety.... 34
2. Safety instructions for lawnmowers 35
3. Information and warnings.... 37
4. Assembly.... 38
5. Before the first use.... 45
6. Working with the mower 48
7. Maintenance work 51
8. Safety instructions....56
9. Storage 58
10. Disposal 58
11. Technical data....59
12. EU Konformitätserklärung / Declaration of Conformity 60

VERSION FRANCAISE 61

POLSKA WERSJA JEZYKOWA 224

FUXTEC 170cc OHV

1.0 L TANK USE UNLEAD FUEL

DO NOT USE MOWER WITHOUT ENTIRE GRASS CATCHER OR DEFLECTOR IN PLACE DANGER KEEP HANDS AND FEET AWAY

CAUTION BAL ON CHENSIVE EQUISITION ENGINE SHIPPED WITHOUT OIL. CHECK ENGINE OIL LEVEL.

	Hinweise zur Nutzung der Primerpumpe bei einem Kaltstart!
	Zum Stoppen des Motors lassen Sie den Gashebel los!
	Angaben zur Starterbatterie (nur bei einem eS-Modell).
Lithium battery pack storage specification1. Lithium battery pack is not used for a short period of time (within 6 months). When the battery is charged, the battery is stored in a dry, non-corrosive gas. The temperature is between -20°C and 40°C and the humidity is between 65±20%. If it is higher or lower than this temperature, the battery metal will not rust or the battery will leak.2. When the lithium battery pack is not used for a long time (more than 6 months), it should be charged with 50%-70% of electricity (charged with the charger for 1 hour). Store in a dry and cool environment, charge once every 3 months, so as not to store too long, the battery is too low due to self-discharge, resulting in irreversible capacity loss.	Hinweise für die Starterbatterie bei längerer Nichtbenutzung bzw. Lagerung (nur bei einem eS-Modell).

Lithium battery pack storage specification

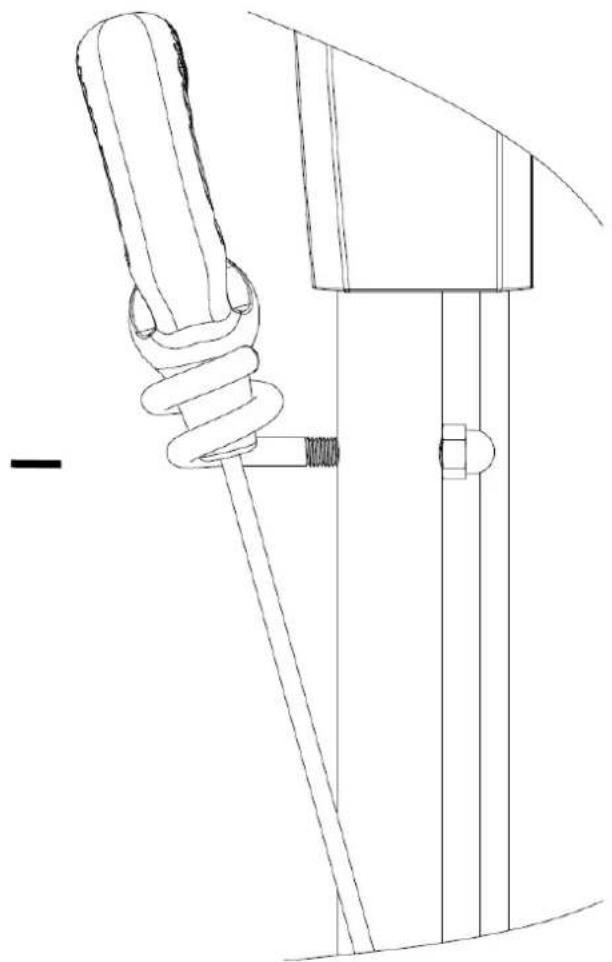

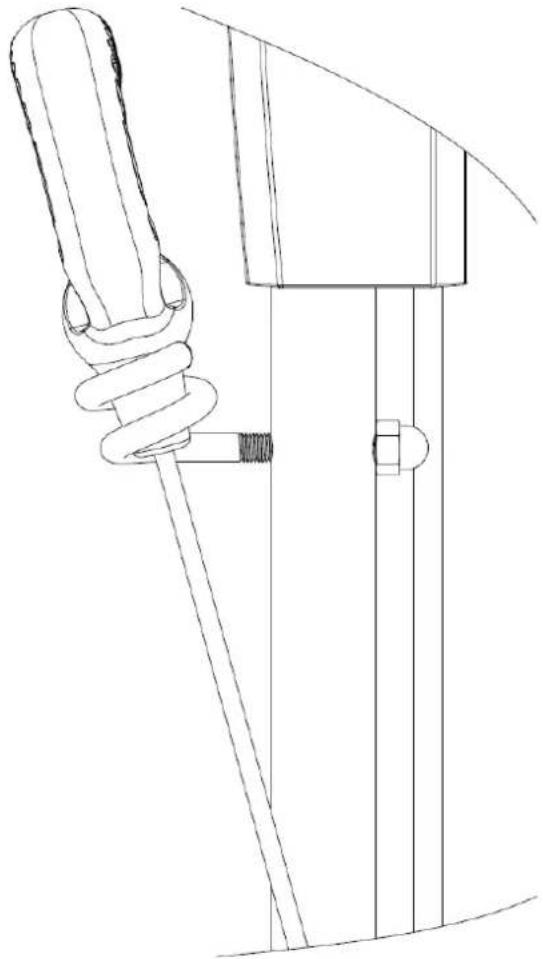

4. Montage

Technical line drawing of a mechanical assembly with two views: top shows a pipe system and bottom shows a wheel assembly (no text or symbols)

Technical line drawing of a rope knot and mechanical component (no text or symbols)

Technical line drawing of a mechanical device frame with no visible text or symbols

Montage des Grasfangkorbes

Technical line drawing of a mechanical device with green arrows indicating motion or assembly (no text or symbols)

Medical illustration showing hands operating a device with arrows indicating motion (no text or symbols)

Mulchkit

Technical line drawing of a tracked vehicle showing front wheel, rear wheels, and control panel (no text or symbols)

Technical line drawing of a tracked vehicle with labeled parts and an inset showing a component detail.

Technical line drawing of a vehicle's internal components including wheels, hoses, and a green safety device (no text or symbols)

WICHTIGE HINWEISE:

Line drawing of hands operating a fuel can on a mechanical device with water level indicator (no text or symbols)

Maximal Füllhöhe

Tankdeckel

Diagram of a car wheel with a green triangular component and diagonal lines, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a person using a mechanical clamp or lever mechanism (no text or symbols)

Diagram of a car interior showing a green power button with an arrow pointing to it (no text or symbols present)

7. Wartungsarbeiten

Technical line drawing of a mechanical component with green cylindrical parts and circular features (no text or symbols)

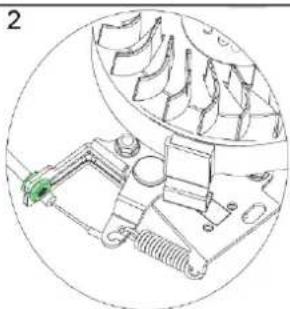

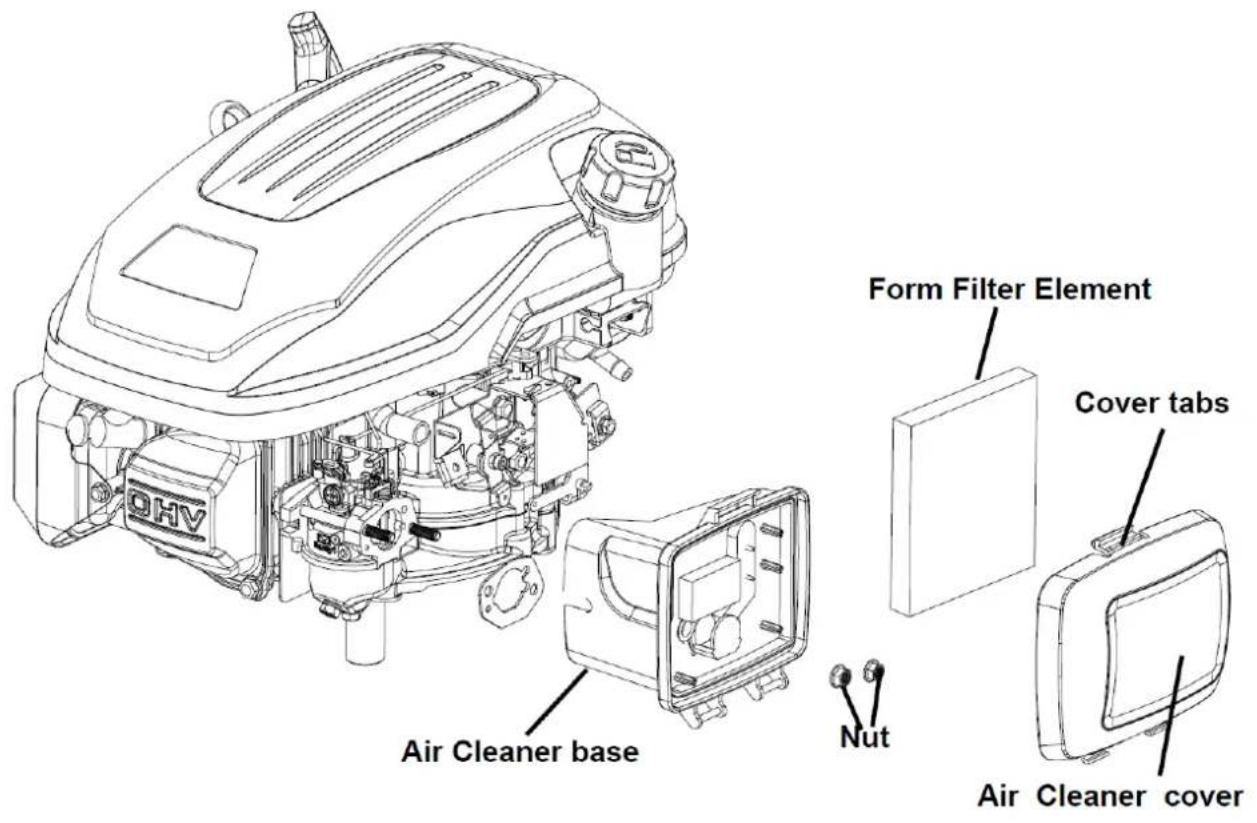

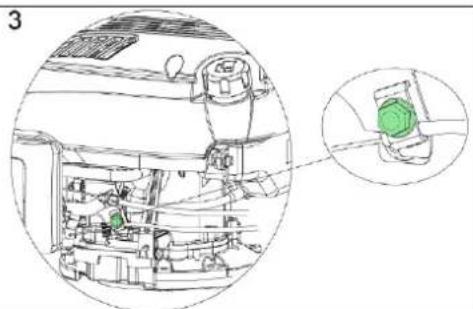

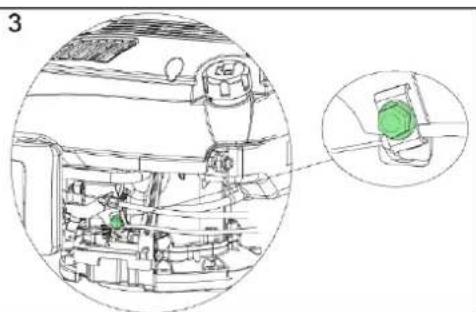

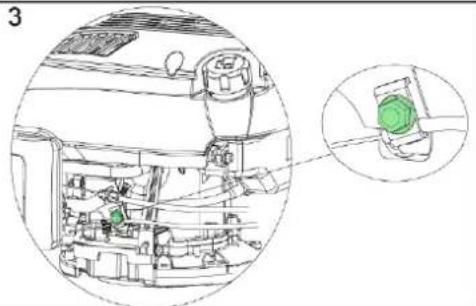

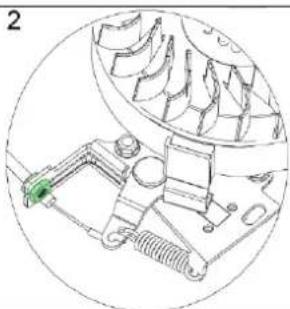

Luftfilter

Pure mechanical diagram showing a green component inserted into a vertical shaft, enclosed in a circle (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Interior view of a vehicle dashboard with a highlighted green component (no text or symbols visible)

Recycling raw materials instead of waste disposal.

Hereby we declare that the above mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

13. Introduction and safety

Never allow children or persons unfamiliar with these instructions to use the garden tool. Children should be supervised to ensure they do not play with the device.

Intended use

This device is intended exclusively for mowing lawns in private areas.

The device must be operated according to the descriptions and safety instructions. Only operate the device in the technical condition prescribed and delivered by the manufacturer. Any other use is not in accordance with the intended use. Use not in accordance with the intended use will result in the forfeiture of the warranty and the rejection of any responsibility on the part of the manufacturer. The user is liable for all damage to third parties and their property. Unauthorised modifications to the device exclude the manufacturer's liability for any resulting damage.

Vibration and noise reduction

To reduce the impact of vibration and noise, limit working time, use lower vibration and noise settings and wear personal protective equipment.

Observe the following points to keep vibration and noise pollution low:

• Only use the product as intended in accordance with the design and instructions.
• Make sure that the product is in perfect condition and well-maintained.
• Use the right accessories and make sure they are in good condition.
• Hold the product firmly but not tensely by the handles provided.
• Maintain the product according to these instructions and keep it well-lubricated.
• Plan your working hours according to these instructions to spread a higher workload over a more extended period.

Emergency

• Familiarise yourself with the use of the product by reading the operating instructions thoroughly. Memorise the safety instructions and follow them carefully. That will help you to avoid risks and hazards.
• Always be alert when using the product to identify and respond to hazards early. Quick action can prevent serious injury and property damage.

Residual risks

Even if you operate this lawnmower as instructed, there will always be residual risks. The following hazards may occur in connection with the design and construction of this lawnmower:

d) Injuries and property damage caused by flying parts.
e) Hearing impairment if you do not wear suitable hearing protection or use the lawnmower for an extended period.
f) Damage to health results from hand-arm vibrations if the lawnmower is used for a long time or is not guided correctly and maintained.

14. Safety instructions for lawnmowers

General safety instructions

• For your safety and the safety of others, read this instruction manual and its safety instructions before using the device. Please keep the operating instructions and safely store their safety instructions for later use and keep these for ready to hand for every use.
• Pass on the operating instructions with the device if there is a change of ownership.
• Persons operating the device must not be under the influence of intoxicants (e.g. alcohol, drugs or medication).
• Operate the device only in the technical condition prescribed and supplied by the manufacturer. Unauthorised modifications to the device exclude the manufacturer's liability for any resulting damage.
• Use the device only in daylight or under good artificial lighting.
• Use the device only in dry weather conditions. Please keep it away from rain or wet conditions. The ingress of water into the device increases the risk of electric shock.
• Switch off the device and remove the battery in the following conditions:

♦ if the device is left unattended
- if the device starts to vibrate excessively.

Before use

• Before starting work, familiarise yourself with the device and its functions and controls.
• Check the device for signs of wear or damage before commissioning and after an impact.
• Do not use a device whose switch is defective and can no longer be switched on or off.
• Check that all nuts, bolts and screws are tight to ensure that the device is operated safely.
• Never use a device with damaged or missing parts. Have them repaired or, if necessary, replaced by a qualified specialist or specialist workshop.

- Always wear sturdy shoes, long trousers and the appropriate personal protective equipment (safety goggles, ear protectors, work gloves with a good grip, etc.) when working with or on the device. Wearing personal protective equipment reduces the risk of injury.

During use

Do not switch on the device when people (especially children) or animals are in the immediate vicinity. Make sure that children do not play with the device.

Stop work if you notice that people (especially children) or pets are nearby.

Working on steep slopes can be dangerous. Make sure you have a firm footing and mow slowly.

Always mow across the slope and not up and down. Be especially careful when changing direction. There is a risk of tipping over!

Do not mow on steep slopes. Be especially careful when mowing backwards and pulling the mower on yourself.

Do not tilt the mower when starting the engine.

Keep a safe distance as indicated by the handle frame.

Do not switch on the engine until your feet are safe from the cutting blade. Be careful and do not reach into the rotating cutting blade. Never drive over gravel while the engine is running. There is a risk of being hit by stones! Switch off the lawnmower before tipping or transporting it, e.g., from / to lawns or over paths.

Before lifting or transporting the lawnmower, switch off the engine

until the cutting blade has come to a standstill. Do not adjust the cutting height until the engine is switched off and the cutting blade has stopped. Never open the discharge flap while the engine is running. Before removing the grass collector, switch off the engine and wait until the cutting blade has stopped. After emptying the grass collector, carefully reattach it and ensure it is securely fastened to the lawnmower. If possible, do not mow wet grass. Do not use the garden tool in an explosive environment with flammable liquids, gases or dust. When you stop work, never leave the device unattended and keep it in a safe place.

After use

Switch off the device, and only then put the device in a safe place.

Do not store the device within reach of children. Make sure that the ventilation slots in the device are clean.

Keep all nuts, bolts and screws tightened to ensure the mower is in safe working condition.

Check the grass collector frequently for wear or damage.

Only use a cutting blade designed for this lawnmower.

Please follow the installation instructions and remove the battery beforehand (only for an eS model).

Only have repairs carried out by a qualified technician or service centre.

15. Information and warnings

	Engine capacity: 170 cm3
	Please only fill with regular petrol with an octane rating of at least 95. The maximum tank capacity is 1.0l.
	Risk of injury: keep your hands and feet away!
	Attention: please read the instruction manual carefully! The mower is delivered without oil!
	Mower sound power level: 98dB
	Notes on using the primer pump during a cold start!
	To stop the engine, release the throttle!
	Details of the starter battery (only for an eS model).
Lithium battery pack storage specification1. Lithium battery pack is not used for a short period of time (within 6 months). When the battery is charged, the battery is stored in a dry, non-corrosive gas. The temperature is between -20°C and 40°C and the humidity is between 65±20%. If it is higher or lower than this temperature, the battery metal will not rust or the battery will leak.2. When the lithium battery pack is not used for a long time (more than 6 months), it should be charged with 50%-70% of electricity (charged with the charger for 1 hour). Store in a dry and cool environment, charge once every 3 months, so as not to store too long, the battery is too low due to self-discharge, resulting in irreversible capacity loss.	Notes for the starter battery in case of prolonged non-use or storage (only for an eS model).

Lithium battery pack storage specification

16. Assembly

Essential instructions for assembling the mower

Before assembling and operating the petrol lawnmower, please read the full user manual and the instructions.

IMPORTANT INFORMATION: The lawnmower is supplied WITHOUT FUEL AND OIL in the engine.

Your new lawnmower has been tested in the production facility, i.e. there may be a small amount of residual oil in the engine or visible on the dipstick!

Remove the lawnmower from the cardboard packaging and check that no loose parts remain in the packaging.

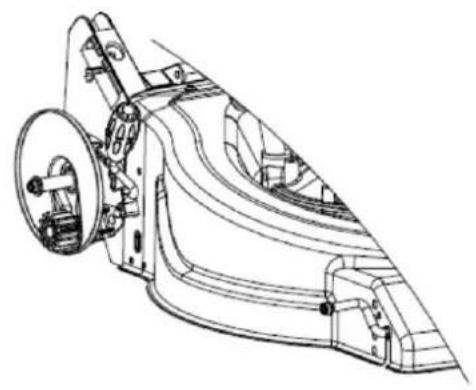

Afterwards, please mount the wheels as described:

Technical line drawing of a car body frame with internal components and mounting brackets (no text or symbols)

Take out four bolts from four axles by M10 wrench.

Technical line drawing of a mechanical vehicle showing two views: front and side assembly (no text or symbols)

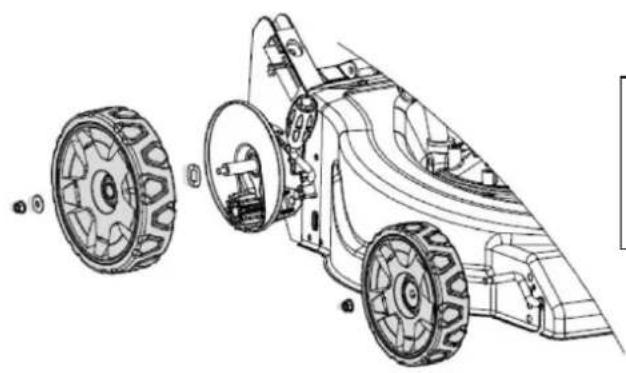

Mount the two front wheels and two rear wheels as shown in the illustration. Then fix the four bolts by M10 wrench.

Technical line drawing of a robotic car with three circular components, no text or symbols present

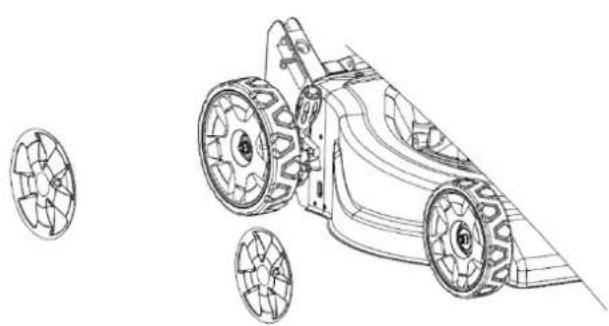

Mount the two front wheel covers and two rear wheel covers as shown in the illustration.

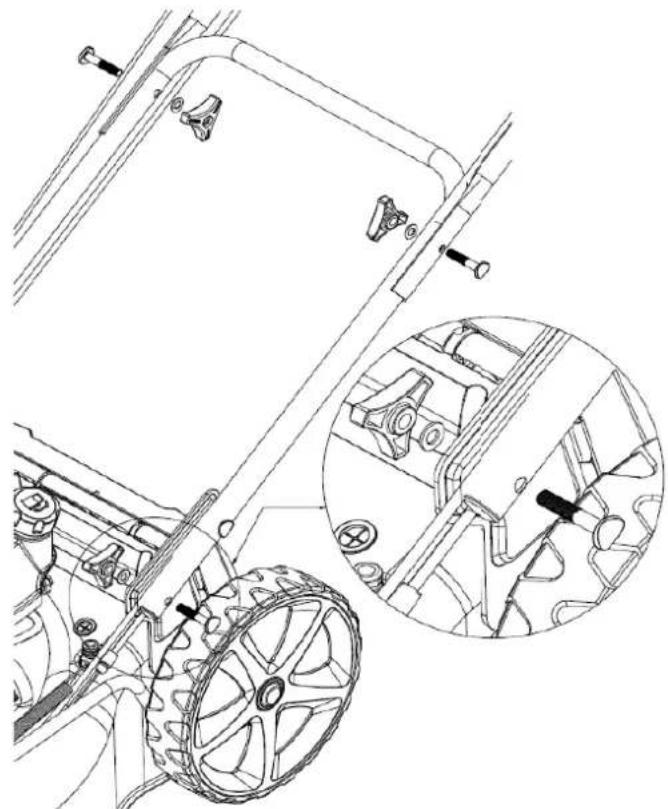

Assembly upper and lower tie bar

Carefully unfold the lawnmower handle, not pinching or damaging the lawnmower control cables.

Open the handle and tighten the handle parts with the four wing nuts, one washer each and the screws, as shown below. Insert the starter cable on the right side of the handle and secure it with the plastic handle (see the following pictures).

Technical line drawing of a mechanical tool with multiple views (top and side), no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

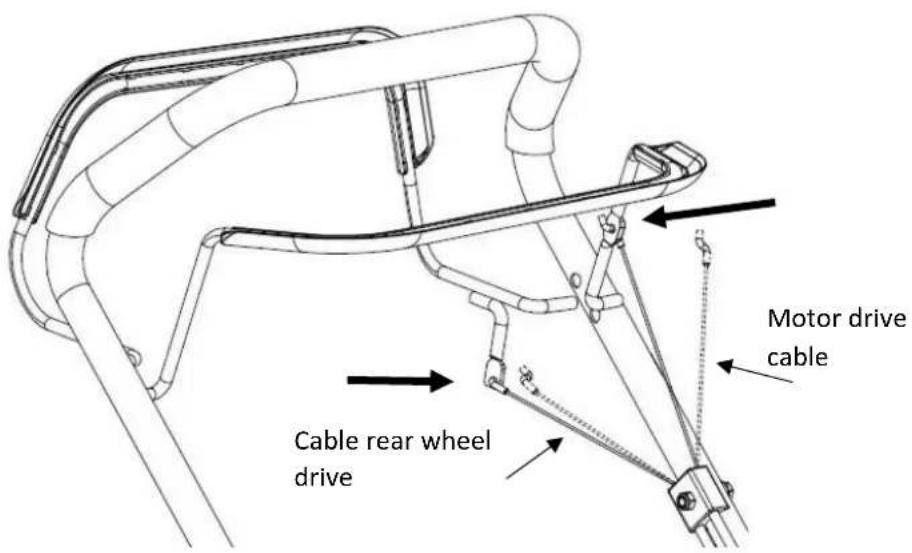

Insert the engine drive and rear-wheel drive cable into the hole of the corresponding lever. See the illustration below. The arrow shows where the cable should be hooked.

Motor drive cable Cable rear wheel drive

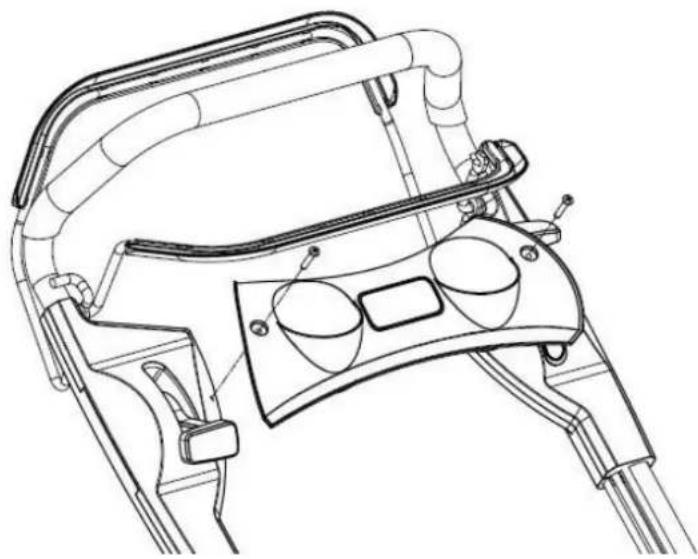

Mounting the control panel (FX-RM5170eS)

Take the control panel out of the box and fix it with the two screws supplied (see the following picture).

Technical line drawing of a mechanical device frame with no visible text or symbols

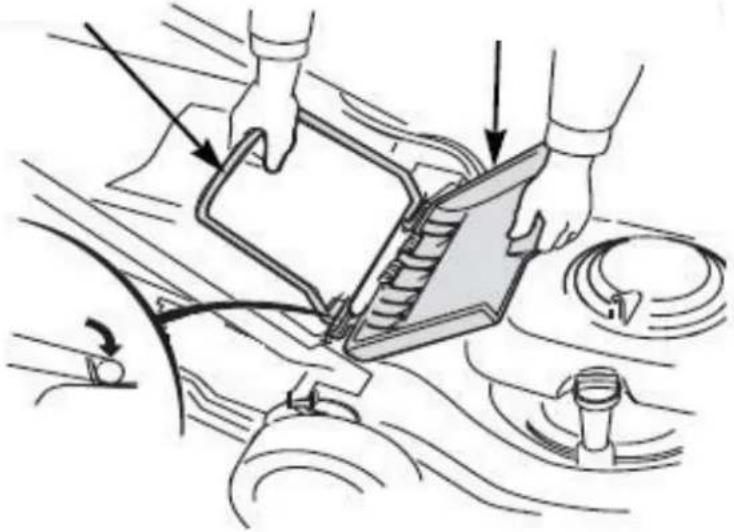

Mounting the grass collector

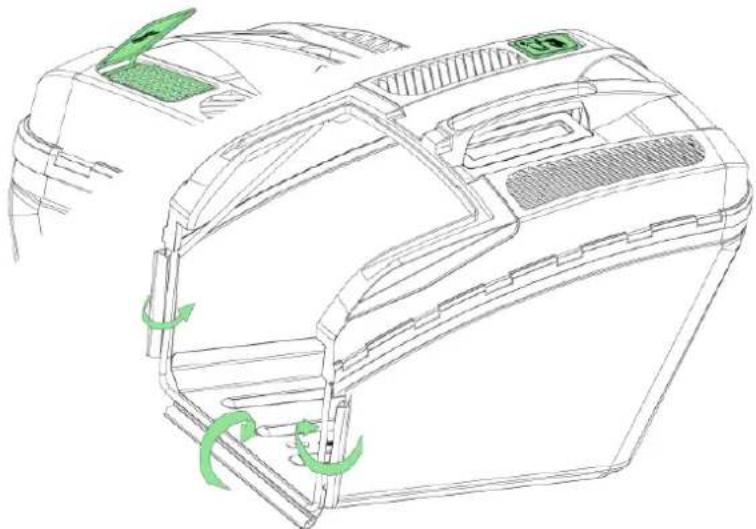

Put the plastic edges of the basket on the frame and fix the clips, as shown below.

The grass collector box contains a level indicator that shows whether the container is full of grass and needs to be emptied (see the following picture).

Line drawing of a device casing with green arrows indicating motion or rotation, no text or symbols present

Lift the rear ejector guard, remove the mulch kit and insert the grass collector box (see the following picture).

Grass catcher handle

Tailgate

Medical illustration showing hands operating a device with a cable and switch (no text or symbols)

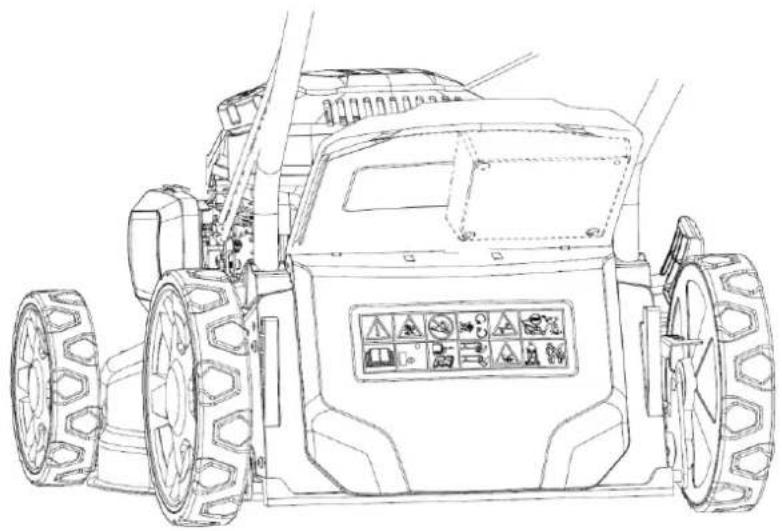

Mulch kit

The mulching kit is integrated into the rear cover. When the rear cover is folded down, the mulching kit blocks the rear discharge opening and fulfils its purpose. The grass is not collected and is further shredded by the rotation of the blade!

Technical line drawing of a tracked vehicle with visible tire, wheels, and control panel (no text or symbols)

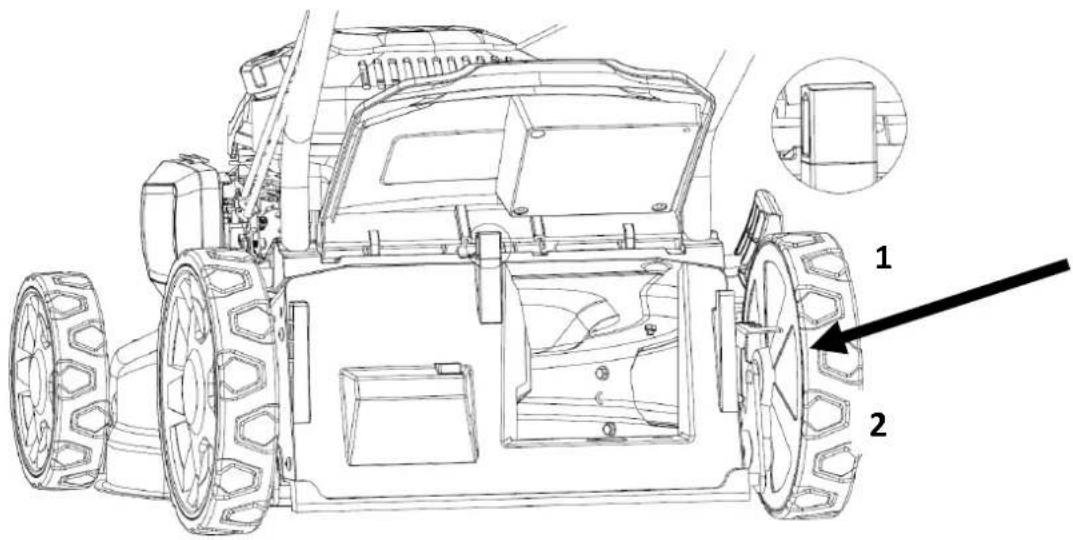

Remove a bracket from position 1 and insert it in position 2. Lift the rear ejector guard and install the frame that holds the rear ejector guard can.

Supports/wedge for lifting and holding the tailgate

Remove the wedge/support from position 1 and install it in position 2.

Raise the rear ejector guard and install the support/wedge to hold the tailgate higher on the ejector guard.

With the help of the support/wedge, heavy, damp grass can be ejected more efficiently from the cutting area to the rear.

Technical line drawing of a tracked vehicle with labeled parts and an inset detail view

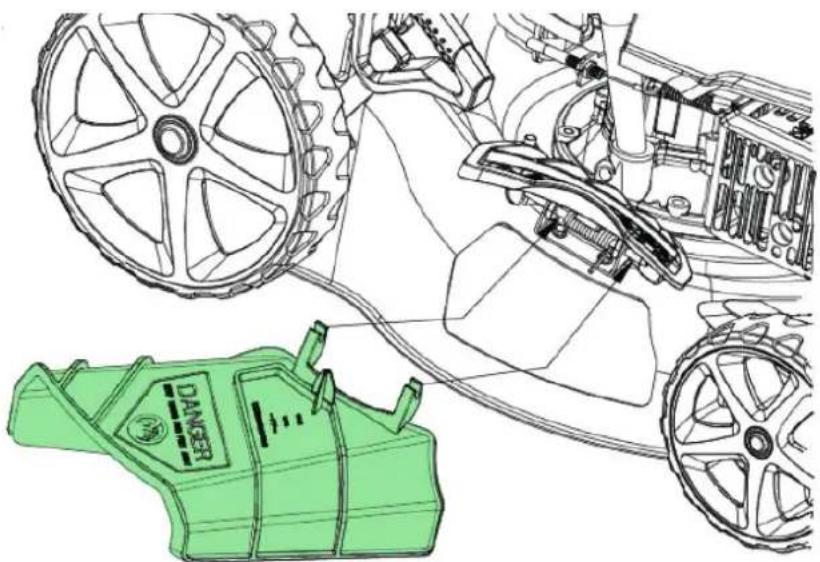

Side ejection chute

To use the side discharge, lift the cover and hook in the side discharge chute (see picture).

Technical line drawing of a vehicle's internal components including wheels, hoses, and a green safety device (no text or symbols)

IMPORTANT NOTES:

Not every model has a side discharge.

If you want to mulch, the side discharge must be uninstalled beforehand.

17. Before the first use

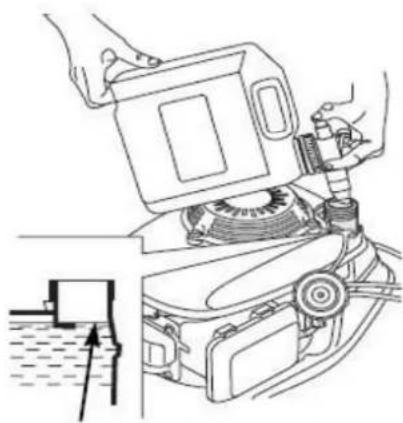

Fill with oil

ATTENTION: The mower is delivered without oil in the engine.

All engines are tested at the factory before packing. Most of the oil is removed before shipping; however, a small amount remains in the engine. During transport, the oil moves around in the engine compartment. Therefore, you may see a sufficient amount of oil indicated on the dipstick. However, this is not the case!

Therefore, please top up with enough oil, so the oil level is between the upper and lower marks on the dipstick (see illustration). Do not overfill the engine with oil.

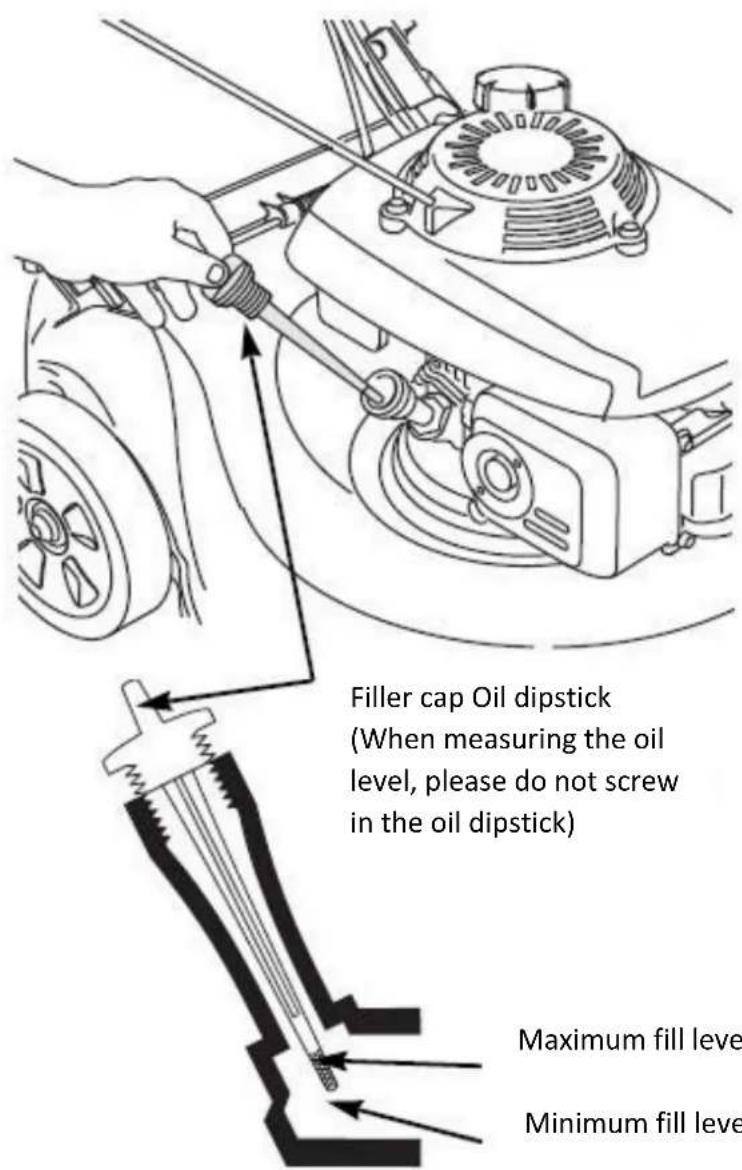

Filler cap Oil dipstick (When measuring the oil level, please do not screw in the oil dipstick) Maximum fill level Minimum fill level

Maximum fill level

Minimum fill level

Fill with petrol

Line drawing of hands operating a fuel can on a mechanical device with water level indicator (no text or symbols)

Maximum fill level

Fuel filler cap

The engine is delivered without petrol. Fill up with 1.0 litre of petrol before starting the engine.

• Remove the fuel filler cap
  Fill with fuel to the lower edge of the fill level limit in the neck of the fuel tank. Do not overfill. Wipe up spilt fuel before starting the engine.
• Tighten the fuel filler cap.

Use extreme caution when handling petrol. Petrol is highly flammable; petrol vapours can explode and cause severe injury or death. Keep it out of the reach of children.

Refuel in a well-ventilated area with the engine off. Avoid repeated or prolonged contact with skin or inhalation of vapours. Do not smoke or allow flames or sparks in the area where the engine is being refuelled or where petrol is stored.

After refuelling, tighten the fuel filler cap securely. If fuel has been spilt, ensure the area is dry before starting the engine.

Charging the starter battery (only for an eS model)

Charge the battery for approx. 5 hours before first use. To do this, insert the charger's plug into the opening provided on the battery and connect the charger to a power supply (see the following diagram).

Line drawing of a mechanical assembly with diagonal lines and a green component (no text or symbols)

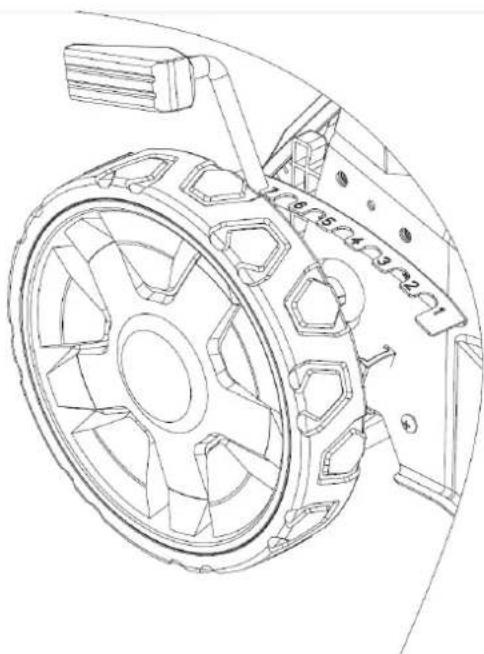

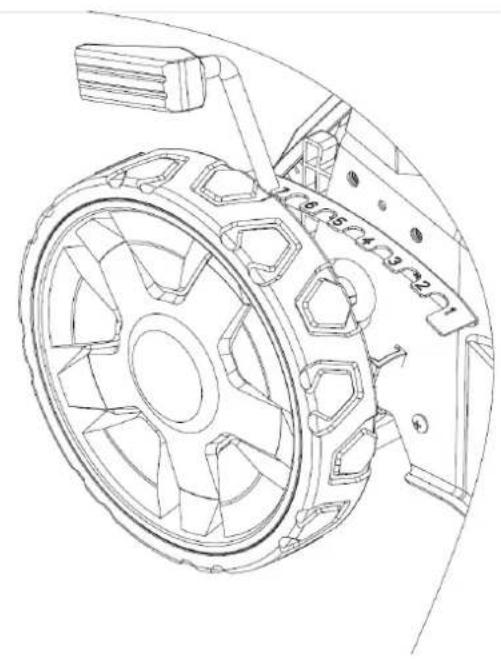

Cutting height adjustment

Technical line drawing of a mechanical component with no visible text or symbols

Use the cutting height adjustment lever to set the desired height to which the grass should be cut. Caution: There is a considerable risk of injury. Therefore, please only carry out this operation when the engine is switched off, and the cutting blade is stationary.

18. Working with the mower

Starting/stopping the engine

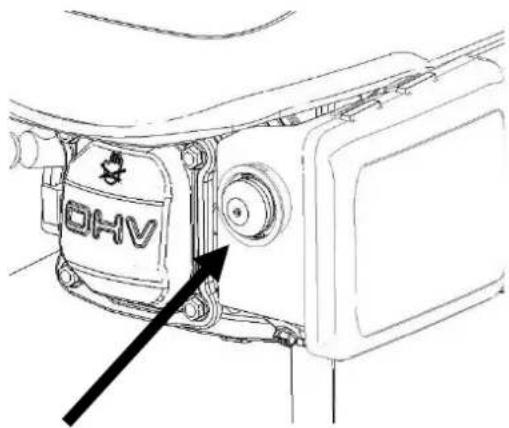

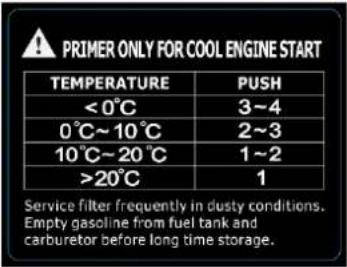

When cold starting, first press the primer pump before tightening the throttle grip on the upper spar.

OHV

Temperature	Pressing the primer pump
<0°C	3x - 4x
0°C - 10°C	2x - 3x
10°C - 20°C	1x - 2x
>20°C	1x

Important note: not every model is equipped with a primer pump.

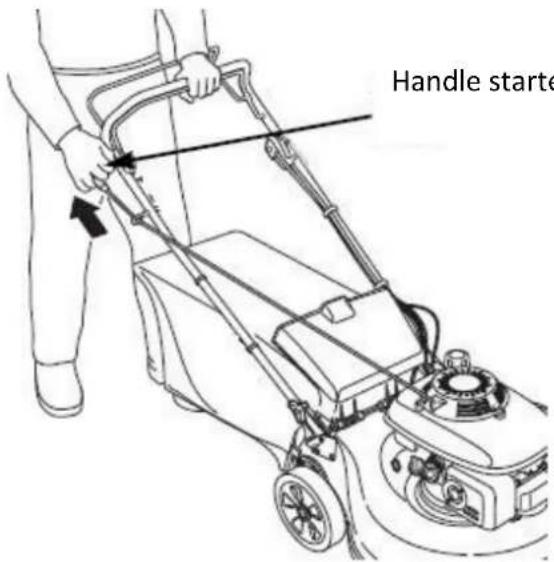

To start the engine, tighten the handle for the engine cable to the handle of the upper spar. If your model has rear-wheel drive, you should not

hold the handle for the rear-wheel drive during the starting process. Otherwise, the rear wheels will start moving immediately.

Line drawing of a hand gripping a mechanical clamp or bracket (no text or symbols)

Then pull carefully on the handle of the starter cable until you feel a slight resistance. Now pull the starter rope with momentum to start the engine. With a cold start, you may need 2-3 attempts until the engine runs.

Handle starter

To stop the engine again, release the handle with the engine cable. The engine stops, and the knife turns a few more rounds until it stops completely.

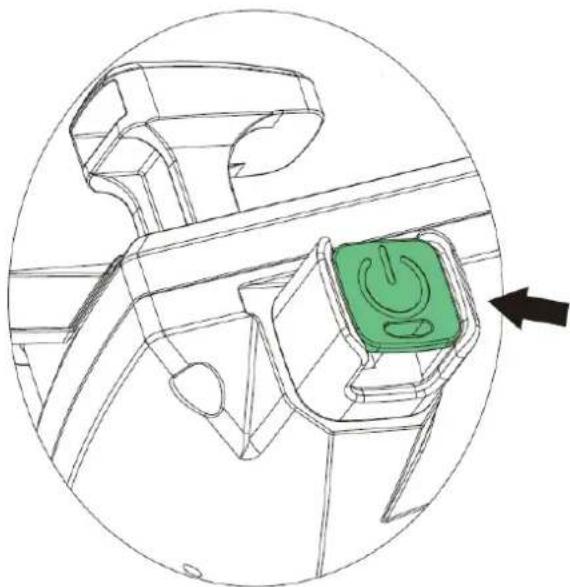

If you have a model with an eStart, follow the same steps. Only press the start button on your mower to start it. Please make sure that the battery is charged.

Technical line drawing of a mechanical component with a green power button symbol and an arrow pointing to it (no text or labels present)

19. Maintenance work

General maintenance instructions:

All nuts, bolts and screws must be properly tightened to ensure that the device is safe and operational. Regular maintenance is essential for the user's safety, maintaining the operating condition and performance of the mower.

Never store a device with petrol in the tank in a building where the fumes could come into contact with open fire, sparks or high temperatures.

Allow the engine to cool down before storing it in an enclosed space.

To reduce the risk of fire, ensure that the lawnmower, especially the engine, the muffler and where the replacement fuel is stored, are free from grass, leaves or excessive amounts of lubricants.

Regularly check the condition of the collector cover and the grass collector and replace them if damaged.

Drain the fuel in a well-ventilated area when the engine has cooled down.

Use thick work gloves when removing and installing the cutting blade.

ATTENTION:

Before doing maintenance or repair work, switch off the engine and remove the spark plug.

Check the mower regularly and ensure that all grass deposits on the underside of the chassis are removed.

Lubricate the axle of the chassis and the bearings regularly with a suitable lubricant.

Regularly check the condition of the blades, as they have a significant impact on the performance of the lawnmower. The blades should always be sharp and balanced.

Check at regular intervals that all bolts and nuts are tight. Worn or incorrectly tightened bolts and nuts can cause severe damage to the engine or frame.

If the blade hits an obstacle hard, stop the lawnmower and contact FUXTEC Customer Service.

The cutting blade is made of pressed steel. For optimum mowing results, sharpen the blade regularly, approximately every 25 operating hours. Check that the blade is always properly balanced. To do this, insert a steel axle (with a diameter of 2-3 mm) into the centre hole. If the axle is aligned correctly, it will stay in the horizontal position.

If the knife does not stay in the horizontal position, replace it.

When removing the knife, unscrew the bolt and check the knife holder. If the parts are worn or damaged, replace them.

ATTENTION:

Always use original spare parts. Low-quality spare parts can seriously damage the lawnmower and pose a safety risk.

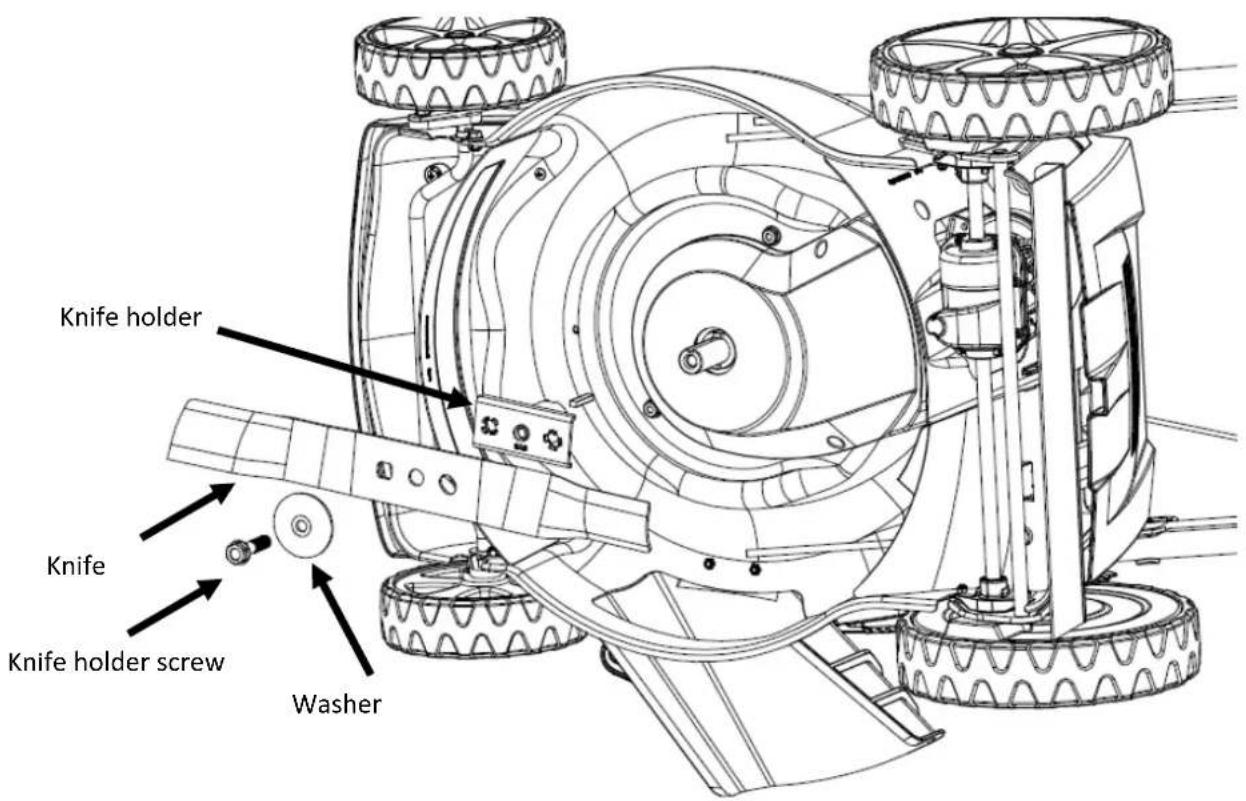

Changing the cutting blade

Tilt the mower to the right, so the air filter side faces up. That prevents fuel from leaking out and the mower from starting with difficulty.

Inspect the blade for damage, cracks and excessive rust or corrosion.

A dull blade can be sharpened, but a blade that is excessively worn, bent, cracked or otherwise damaged must be replaced.

Always use a torque spanner when installing the blade.

Check that the blade screws are tight.

If you remove the blade for sharpening or replacement, you will need a torque spanner for installation. Wear suitable work gloves to protect your hands.

• Remove the screw with a socket spanner. Then remove the blade. Use a wooden block to prevent the blade from turning when removing the screw.
• Mount the blade with the blade screw and the special washers. Make sure to install the special washers with the concave side towards the blade and the convex side towards the screw.
• Tighten the blade screw with a torque spanner. Use a wooden block to prevent the blade from turning when tightening the screw.

Knife holder Knife Knife holder screw Washer

Using the Easy Clean function

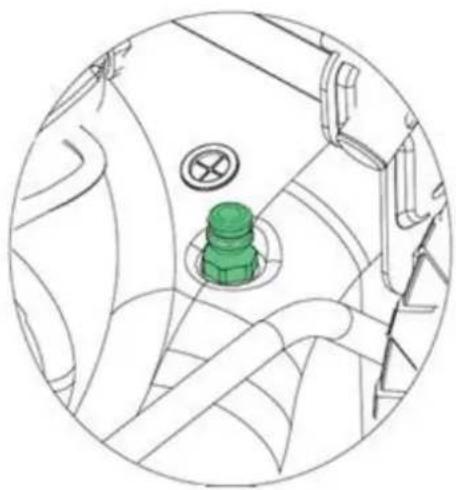

On the left side of the mower, you will find a water connection for washing the mower on some models.

When using the water connection, the device must be in the lowest height position on the lawn. That ensures that the water remains under the mower during cleaning.

• Connect a hose to the nozzle.
• Turn on the water and start the engine.
  • The rotations of the blades ensure that the water cleans the underside of the mower.

Technical line drawing of a mechanical component with green cylindrical part and circular features (no text or symbols)

Air filter

If the engine is operated without an air filter or a damaged air filter, dirt can get into the engine, causing rapid wear.

• Press the cover tabs down and remove the cover.
• Remove the filter from the air filter base.
• Check the filter and foam elements and replace them if damaged.
• Clean the filter by tapping it several times on a hard surface to remove dirt or blow compressed air through the air filter from the inside. Never try to brush off the dirt; brushing will push the dirt into the fibres.
• Wipe the dirt off the inside of the air filter housing and cover it with a damp cloth. Ensure no dirt gets into the air duct leading to the carburettor.
• Replace the filter and the cover.

QHV Air Cleaner base Form Filter Element Cover tabs Nut Air Cleaner cover

Spark plug

The spark plug must have a correct gap and be free of deposits to achieve good performance. To maintain the spark plug, proceed as follows:

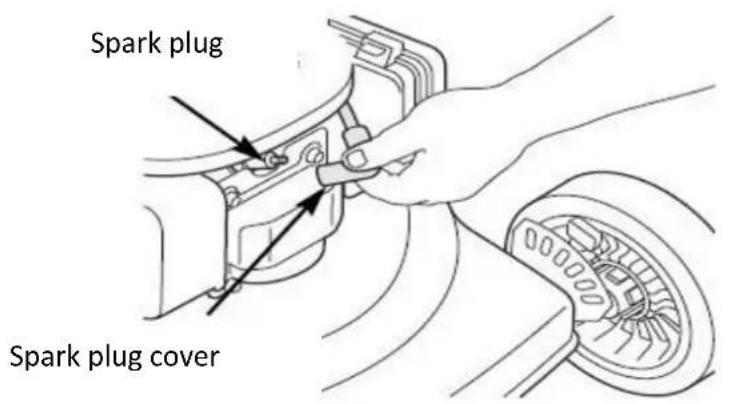

- Disconnect the spark plug cap and remove any dirt in the area of the spark plug.

Spark plug Spark plug cover

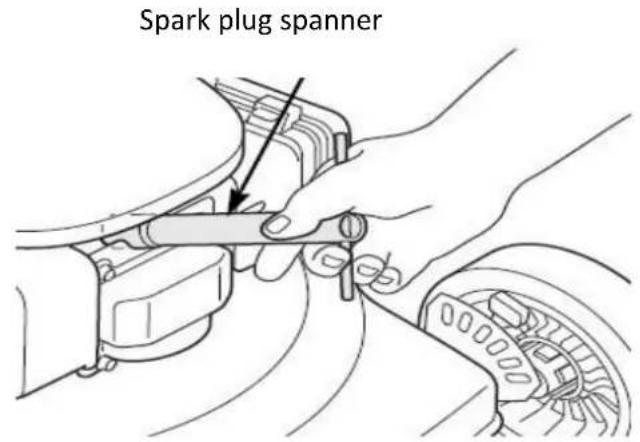

- Remove the spark plug with a spark plug spanner.

Spark plug spanner

Important: A spark plug spanner is not included in the scope of delivery

• Check the spark plug. Replace it if the electrodes are worn, or the insulator is cracked or fissured.

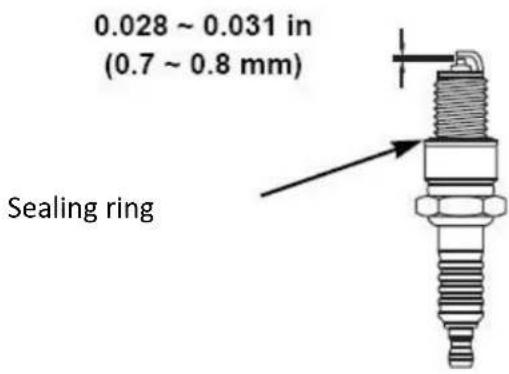

• Measure the spark plug electrode gap with a suitable gauge. Correct the space by carefully bending the side electrode with a suitable tool if necessary. The distance should be 0.028 \~ 0.031 inch (0.7 \~ 0.8 mm).

0.028 ~ 0.031 in (0.7 ~ 0.8 mm) Sealing ring

• Insert the spark plug carefully by hand to avoid overtightening.
• Place the spark plug cap on the spark plug.

Caution: A loose spark plug can overheat and damage the engine. Tightening the spark plug too tightly can damage the thread in the cylinder head.

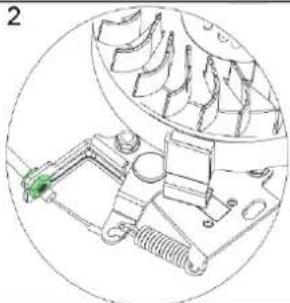

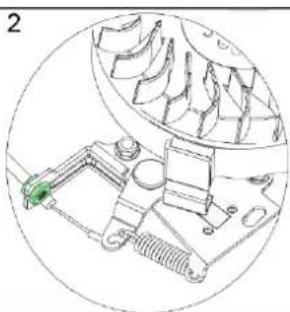

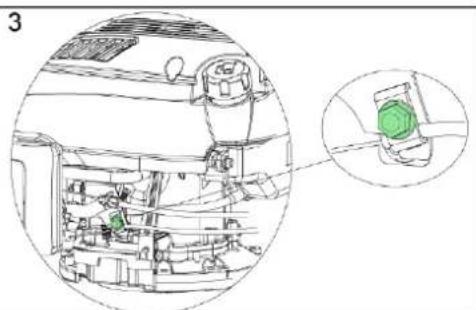

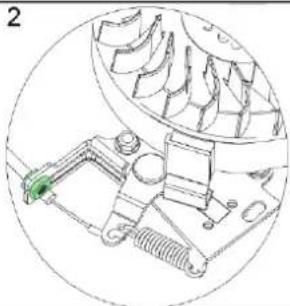

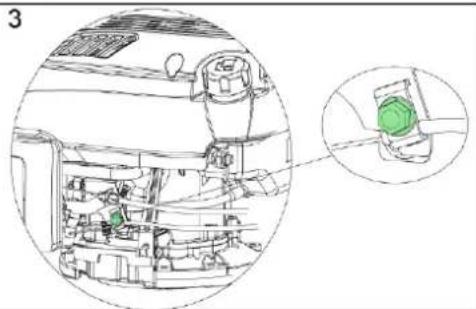

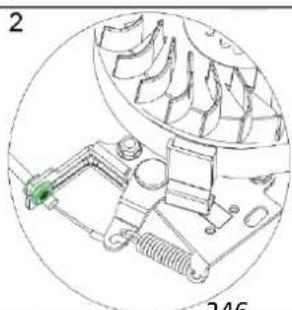

Adjusting the cables

Before the device is put into operation, the rope setting should always be checked.

The cables can be checked by fully operating the handles and checking that the cable is taut. If it is not, it must be tightened. The cable should be loosened if the handle cannot easily be entirely operated.

After the first season, expect to adjust the cables for optimal activation, as the cables may stretch with use.

Readjustment may be necessary for the following cables:

1. cable for the drive
2. cable for the engine brake
3. cable for the throttle cable

Pure mechanical component diagram without any text, numbers, or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Interior view of a car showing dashboard, steering wheel, and hand valve (no text or symbols)

20. Safety instructions

GENERAL SAFETY INSTRUCTIONS

• This product is intended for mowing only. Please do not use it for purposes other than those it is intended for. Otherwise, there is a risk that it will be damaged or cause injury.
• Never allow children or persons unfamiliar with the contents of these operating instructions to work with the device.
  • The person operating the mower is responsible for the safety of persons in the work area.
  • Never operate the lawnmower near other people, children or free-roaming animals.
• Before starting to mow, check the terrain where the mower is to be used and remove stones, wires, sticks, splinters, bones and other foreign objects that could get caught or deflected and cause injury.

INSTRUCTIONS FOR USE

• All nuts, pins and bolts must be properly tightened to ensure that the device is in good working order and ready for use.
  • Never use the lawnmower without the protective cover.
• Never use the lawnmower with a loose cutting blade. Always check that all associated bolts are tight.
• Blunt blades should be replaced.

• When working with lawnmowers, they must ensure that they stand securely.

• Never store the lawnmower in closed or poorly ventilated areas where fumes could accumulate. Exhaust fumes from the engine contain carbon monoxide, which is dangerous to life.

• Only work in sufficient light conditions (in twilight or with adequate artificial lighting).
• Please do not use the lawnmower when it is raining or when the grass is wet.
• Take extra care when mowing in elevated terrain (on slopes). Always mow perpendicular to the slope, parallel to the contour and not directly uphill/downhill.
• Never leave the lawnmower running unattended; if you leave the lawnmower running, switch off the engine.
• Never lift the rear of the mower when you park it and do not hold your limbs near the mowing deck or rear discharge chute when the engine is running.
  • Never change the speed setting of the engine.
  • Never transport the lawnmower with the engine running.
• Stop the engine and disconnect the ignition plug in the following cases:
• When carrying out work under the mower deck or in the discharge chute.
• When carrying out maintenance, repairs or inspections on the device.
  Before carrying, lifting or transporting the lawnmower.
• When you leave the lawnmower unattended or want to adjust the cutting height.
  Before removing and emptying the coarse discharge chute.
• Stop the engine and check thoroughly for damage if a foreign object is encountered. In case of damage, take the lawnmower to a specialised service centre for repair.

ATTENTION:

The mower fan continues to rotate for a few seconds after the engine is switched off.

If the mower vibrates abnormally, stop the engine immediately. To ensure safe operation, regularly check that the lawnmower's bolts, screws and nuts are tight.

CAUTION: FUEL IS A HIGHLY FLAMMABLE LIQUID.

• Store the fuel in a suitable container.
• Fill fuel only in an open and well-ventilated place. Do not smoke or use a mobile phone when handling fuel.
• Only fill with fuel when the engine is switched off. Never open the fuel tank; do not fill the fuel when the engine is hot or running.
• If fuel has been spilt, do not start the engine. Move the mower away from where the fuel was spilt, avoiding possible ignition. Do not resume work until the spilt fuel has evaporated and the fuel vapours have dissipated.
  • After filling the fuel, tighten the fuel filler cap and the fuel canister cap securely.

ATTENTION:

Before doing maintenance or repair work, switch off the engine and remove the spark plug.

21. Storage

If you do not use the device for an extended period, you should store it according to the following instructions. That will prolong the life of the device.

• The same petrol must not remain in the tank for more than one month.
• Clean the mower thoroughly and store it in a dry room.
• Never store the lawnmower with fuel in the tank in a building where an open flame or spark may occur.
• To reduce the fire risk, keep the engine, muffler, battery compartment and fuel storage area free of grass, leaves or excessive grease.
  • This should be done outdoors if the fuel tank needs to be emptied.
• When adjusting the device, take care not to trap your fingers between the moving blade and the fixed parts of the device.
• Allow the product to cool for at least 30 minutes before storing.

22. Disposal

i NOTE

Please get in touch with your local authority/city for information on disposal options,

Recycling raw materials instead of waste disposal.

23. Technical data

Engine	OHV, air cooled, 4-Takt
Nominal power	2,9 kW
Engine speed	2800 U/pro Minute
Displacement	170 cm3
Starter	Seilzug / eStart (nur bei eS-Modell)
Tank volume	1,0l
Oil tank volume	0,5l
Cutting heights	25mm-75mm
Cutting width	508 mm
Diameter wheels	7 inch front / 9inch rear
Grass collector volume	60l
Sound power level	98dB
Vibration	3,64 km/h
Weight	28kg (FX-RM5170) / 29,5kg (FX-RM5170eS)

Manufacturer / Producer FUXTEC GmbH

Kappstraße 69, 71083 Herrenberg Germany / Germany

Email: [e-mail] Web: www.fuxtec.de

Designation/name Petrol Lawnmower FX-RM5170 + RM5170 eS

Petrol Lawnmower FX-RM5170 + RM5170eS

EC Directive / EC directive 2006 42 EC

2014/30/EU

200/14/EC amended by

2005/88/EC Annex IV

Applicable standards

EN ISO 5395-1:2013

EN ISO 5395-2:2013+A1+A2

EN ISO 14982:2009

We, with this, declare that, due to its design, the device mentioned above in the version placed on the market by us complies with the basic safety and health requirements of the listed EC directive. Any manipulation or modification of the device not expressly approved by us will render this document null and void.

We declare that the device mentioned above meets the above-stated EC directives' essential safety and health requirements. Any manipulation or change of the device not being explicitly authorised by us in advance renders this document null and void.

Custody of technical documents: FUXTEC GmbH ● Kappstraße 69 ● 71083 Herrenberg ● Germany, L. Zirkler, Management Board

Herrenberg, November the 07 ^th , 2023

Lithium battery pack storage specification

28. Montage

Technical line drawing of a mechanical pump assembly with two views (top and side), no text or symbols present.

Technical line drawing of a rope knot and mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with green arrows indicating motion or rotation, no text or symbols present

Illustration of a car seatbelt switch mechanism with hands and arrows indicating movement (no text or symbols)

Kit de Mulching

Technical line drawing of a tracked vehicle showing front wheel, rear wheels, and control panel (no text or symbols)

Technical diagram of a tracked vehicle showing labeled parts and a close-up inset view with annotation arrows.

Technical line drawing of a vehicle's internal components including wheels, hoses, and a green safety device (no text or symbols)

REMARQUES IMPORTANTES :

Illustration of hands operating a fuel pump with a valve and water tank (no text or symbols)

Technical line drawing of a mechanical device with green wiring and a power outlet (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a person using a mechanical clamp or lever device (no text or symbols present)

Technical line drawing of a mechanical component with a green power button symbol (no text or labels)

Technical line drawing of a mechanical component with green cylindrical parts and circular features (no text or symbols)

Filtre

Line drawing of a tractor's front wheel and side arm (no text or symbols)

Insert en mousse

Pure mechanical assembly diagram showing a green component inserted into a shaft, enclosed in a circle (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Interior view of a car dashboard with a green-labeled sensor or connector (no text or symbols visible)

Simple line drawing of a lawn mower (no text or symbols)

ÉLÉMENTS D'EMBALLAGE À SÉPARER ET À DÉPOSER DANS LE BAC DE TRI

1. Données techniques

Fabricant / Producer FUXTEC GmbH

Kappstraße 69, 71083 Herrenberg Allemagne / Germany

Tel.: [phone]

Fax: [phone]

Email: [e-mail] Web: www.fuxtec.de

Directives CE / EC directive 2006 42 EC

2014/30/EU

Hereby we declare that the above mentioned machine meet the essential safety and health

requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

Conservation des documents techniques : FUXTEC GmbH • Kappstraße 69 •

71083 Herrenberg ● Germany, L. Zirkler, Direction

Herrenberg, 07.11.2023

C. Jille

Lithium battery pack storage specification

40. Montaggio

Technical line drawings of a lawn mower system showing three views: top, front, and side (no text or labels)

Technical line drawing of a mechanical trawler assembly with close-up insets showing internal components (no text or symbols)

Manual_FX-RM5170_FX-RM5170eS_Int24_rev3

Technical line drawing of a mechanical clamp or hook assembly (no text or symbols)

Technical line drawing of a mechanical device frame with no visible text or symbols

Line drawing of a mechanical device with green arrows indicating motion or rotation, no text or symbols present

Simple line drawing of a bottle with a handle and two lines, no text or symbols present

Kit mulching

Technical line drawing of a tracked vehicle with visible tire, wheel, and control panel (no text or symbols)

Technical line drawing of a vehicle's internal components including wheels, hoses, and a green safety device (no text or symbols)

NOTA BENE:

Line drawing of a mechanical device with hands operating it, showing internal components and a water level indicator (no text or symbols)

Livello massimo

Tappo serbatoio

Technical line drawing of a mechanical assembly with green components and wiring, no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a person using a mechanical clamp or lever (no text or symbols present)

Line drawing of a person using a cable to lift a car, with no visible text or symbols

Technical line drawing of a mechanical component with a green power button symbol (no text or labels)

Technical line drawing of a mechanical component with green cylindrical parts and circular features (no text or symbols)

Filtro dell'aria

Line drawing of a tractor's front wheel and side-mounted intake manifold (no text or symbols)

Inserto in schiuma

Pure mechanical diagram showing a green component inserted into a vertical shaft within a circular boundary (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Interior view of a car showing dashboard, steering wheel, and hand valve (no text or symbols)

Norme applicate / applicable standards

EN ISO 5395-1:2013

EN ISO 5395-2:2013+A1+A2

EN ISO 14982:2009

Hereby we declare that the above mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

Lithium battery pack storage specification

52. Ensamblaje

Technical line drawing of a mechanical trawler assembly with two inset views showing internal components (no text or symbols)

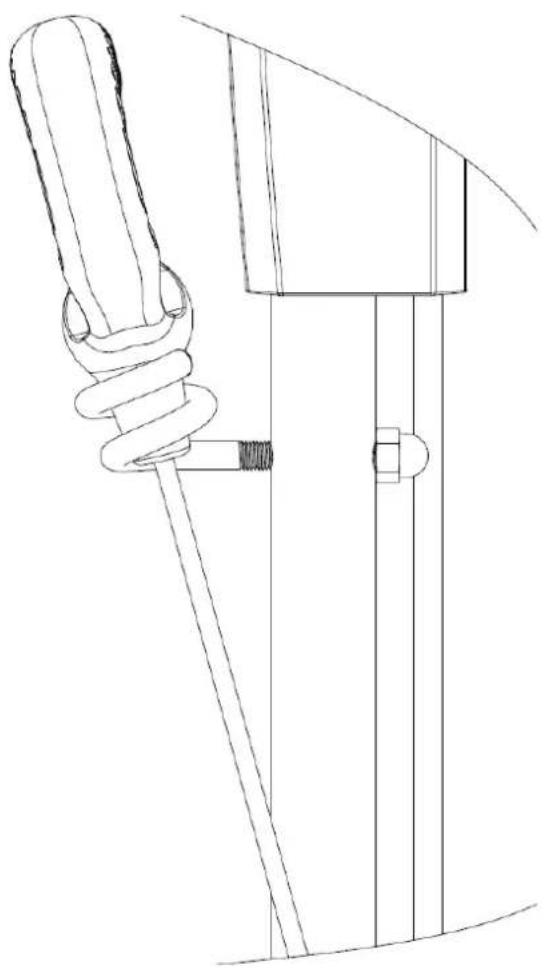

Technical line drawing of a mechanical assembly with rope and bracket (no text or symbols)

Technical line drawing of a mechanical device frame with no visible text or symbols

Line drawing of a mechanical device with green arrows indicating motion or rotation, no text or symbols present

Technical line drawing of a tracked vehicle with visible tire, dashboard, and control panel (no text or symbols)

Technical line drawing of a vehicle's internal components including wheels, suspension, and a green safety device (no text or symbols)

TENGA EN CUENTA:

Illustration of hands operating a container with a mechanical device, showing internal components and a water level indicator (no text or symbols)

Nivel máximo

Tapón del tanque

Technical line drawing of a tractor's wheel assembly with green wiring and a power outlet (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a person using a mechanical clamp or crimping tool (no text or symbols present)

Diagram of a car interior showing a green power button with an arrow pointing to it (no text or symbols present)

Technical line drawing of a mechanical component with green cylindrical parts and circular features (no text or symbols)

Filtro de aire

Technical diagram of a mechanical assembly with green components and a central shaft (no text or labels)

Technical line drawing of a mechanical assembly with gears and springs (no text or symbols)

Diagram of a car interior showing engine compartment and a close-up of the engine component (no text or labels)

Fabricante / Producer FUXTEC GmbH

Directiva CE / EC directive 2006/42/CE

2014/30/UE

Hereby we declare that the above mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

Lithium battery pack storage specification

1. Lithium battery pack is not used for a short period of time (within 6 months). When the battery is charged, the battery is stored in a dry, non-corrosive gas. The temperature is between -20°C and 40°C and the humidity is between 65–20%. If it is higher or lower than this temperature, the battery metal will not rust or the battery will leak.
2. When the lithium battery pack is not used for a long time (more than 6 months), it should be charged with 50% -70% of electricity (charged with the charger for 1 hour). Store in a dry and cool environment, charge once every 3 months, so as not to store too long, the battery is too low due to self-discharge, resulting in irreversible capacity loss.

64. Montagem

Technical line drawing of a mechanical assembly with no visible text or symbols

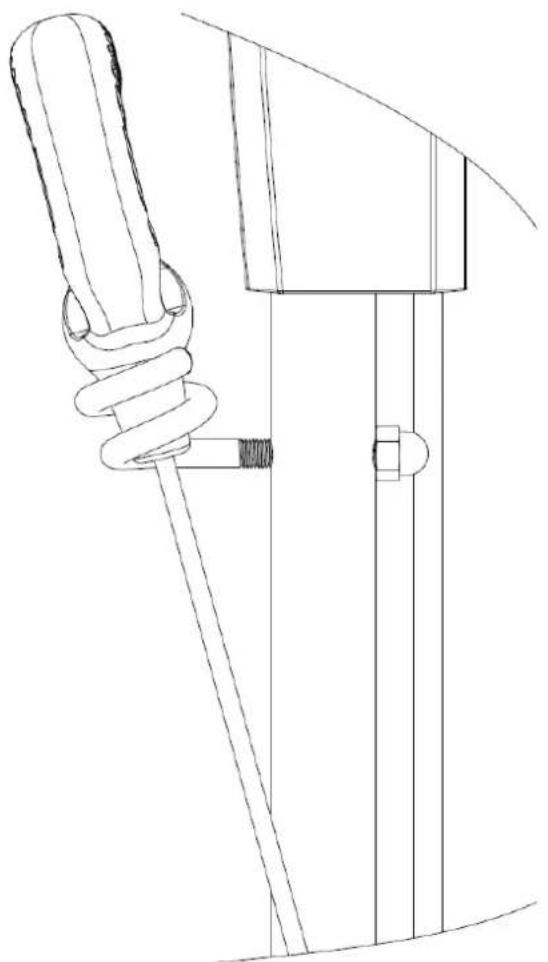

Technical line drawing of a mechanical vehicle showing two wheels and a brake assembly (no text or symbols)

Line drawing of a tracked robotic vehicle with visible wheels and a separate circular component (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows a bracket and wheel assembly, bottom shows internal gear mechanism (no text or symbols)

Technical line drawing of a mechanical clamp or hook assembly (no text or symbols)

Technical line drawing of a mechanical device frame with no visible text or symbols

Technical line drawing of a mechanical device with green arrows indicating motion or assembly (no text or symbols)

Technical line drawing of a tracked vehicle with visible tire, wheels, and control panel (no text or symbols)

Illustration of hands operating a container with a pump and mechanical components, no text or symbols present

Nível máximo de

Technical line drawing of a mechanical device with green wiring and a power outlet (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a person using a mechanical clamp or lever (no text or symbols present)

Diagram of a car interior showing a green power button with an arrow pointing to it (no text or symbols present)

Technical line drawing of a mechanical component with green cylindrical parts and circular features (no text or symbols)

Filtro de ar

Pure mechanical component diagram without any text, numbers, or symbols

Technical line drawing of a mechanical component with no visible text or symbols

3

Lithium battery pack storage specification

76. Montage

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical vehicle showing two wheels and a brake assembly (no text or symbols)

Line drawing of a wheeled vehicle with two wheels and a detached wheel (no text or symbols)

Technical line drawing of a mechanical trawler assembly with two inset views showing internal components (no text or symbols)

Manual_FX-RM5170_FX-RM5170eS_Int24_rev3

Technical line drawing of a mechanical clamp or hook assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

De grasvanger monteren

Technical line drawing of a mechanical device with green arrows indicating rotational or movement paths (no text or symbols)

Medical illustration showing hands operating a device with arrows indicating motion (no text or symbols present)

Mulch kit

Technical line drawing of a tracked vehicle showing front wheel, rear wheels, and control panel (no text or symbols)

Technical diagram of a tracked vehicle showing labeled parts and a close-up inset view with annotation arrow

Zij-uitworpgoot

Technical line drawing of a vehicle's internal components including wheels, hoses, and a green safety device (no text or symbols)

BELANGRIJKE OPMERKINGEN:

Illustration of hands operating a fuel pump in a water tank (no text or symbols visible)

Maximaal vulniveau

Tankdop

Illustration of a person using a mechanical clamp or lever device (no text or symbols present)

Technical line drawing of a mechanical component with a green power button symbol (no text or labels)

79. Onderhoudswerk

Technical line drawing of a mechanical component with green cylindrical parts and circular features (no text or symbols)

Luchtfilter

Pure mechanical assembly diagram showing a green component inserted into a shaft, enclosed in a circle (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Interior view of a vehicle showing dashboard and steering wheel (no text or symbols)

FUXTEC 170cc OHV

Diagram showing three labeled components with icons and symbols, likely representing a mechanical or electrical assembly.

Technical line drawing of a car body panel assembly (no text or symbols)

Technical line drawing of a mechanical vehicle showing two wheels and a brake assembly (no text or symbols)

Line drawing of a grass law dog with visible wheels and a small inset showing a gear (no text or symbols)

Technical line drawing of a mechanical assembly with two views: top shows a bracket and wheel, bottom shows internal components (no text or symbols)

Technical line drawing of a mechanical device with attached tubing and a vertical component (no text or symbols)

Manual_FX-RM5170_FX-RM5170eS_Int24_rev3

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a car interior with green indicator lights (no text or symbols)

Diagram of a car seatbelt switch mechanism with hands and arrows indicating movement (no text or symbols)

Mulch-kit

Technical diagram of a tracked vehicle showing labeled parts and a close-up inset view with annotation arrows.

Technical line drawing of a vehicle's internal components including wheels, hoses, and a green safety device (no text or symbols)

VIKTIGA ANMÄRKNINGAR:

Illustration of hands operating a fuel pump in a water tank (no text or symbols visible)

Technical line drawing of a mechanical assembly with green wiring and a power outlet (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a person using a mechanical clamp or lever device (no text or symbols present)

Technical line drawing of a mechanical component with a green power button symbol (no text or labels)

Technical line drawing of a mechanical component with green cylindrical parts and circular features (no text or symbols)

Luftfilter

Pure mechanical assembly diagram showing a green component inserted into a shaft, enclosed in a circle (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a car interior showing engine compartment and dashboard, with an inset close-up of a green mechanical component (no text or symbols)

92. Säkerhetsinstruktioner

ALLMÄNNA SÄKERHETSANVISNINGAR

POLSKA WERSJA JEZYKOWA

Technical line drawings of a grass lawn cutter assembly, showing exploded and assembled views (no text or labels)

Technical line drawing of a mechanical device with attached components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical device frame with no visible text or symbols

Technical line drawing of a mechanical device with green arrows indicating motion or rotation (no text or symbols)

Illustration of a car seatbelt switch with hands holding a tablet and cable, no text or symbols present

Technical line drawing of a tracked vehicle showing front wheel, rear wheels, and internal components (no text or symbols)

Technical line drawing of a vehicle's internal components including wheels, suspension, and a green safety device (no text or symbols)

WAŻNE UWAGI:

Line drawing of hands operating a fuel can into a tank with a water outlet (no text or symbols)

Maksymalny poziom

Korek wlewu paliwa

Line drawing of a mechanical assembly with diagonal lines and a green component (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand using a tool to lift a cable or cable (no text or symbols present)

Diagram of a car interior showing a green power button with an arrow pointing to it (no text or symbols present)

Diagram of a vehicle's wheel assembly with green components and a cross symbol (no text or labels)

Filtr powietrza

Pure mechanical assembly diagram without any text, numbers, or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Interior view of a car showing dashboard, steering wheel, and hand-in-hand tool (no text or symbols visible)
