USER MANUAL FX-RM4646PE Fuxtec

Line drawing of a Fuxiec lawn mower on a black background (no text or symbols)

Orange icon of a person reading a book on black background (no text or symbols)

Icon of a hand pointing at an open book with horizontal lines representing text (no actual text or symbols)

Inhalt

POLSKA WERSJA JĘZYKOWA 286

Inhalt

POLSKA WERSJA JĘZYKOWA 286

1. PRZEZNACZENIE 287
2. SPECYFIKACJA PRODUKTU 289
3. URZĄDZENIE W SKRÓCIE 292
4. PRZEDMOWA I PRZYGOTOWANIE 294
5. OPIS SYMBOLI BEZPIECZEŃSTWA 297
6. OGÓLNE INSTRUKCJE OBSŁUGI I BEZPIECZEŃSTWA 298
7. MONTAŻ / USTAWIENIA WSTĘPNE 300
8. URUCHAMIANIE/WYŁĄCZANIE SILNIKA 308
9. INSTRUKCJA OBSŁUGI KOSIARKI DO TRAWY 309
10. KONSERWACJA I CZYSZCZENIE (EASY CLEAN) 312
11. PIELEGNACJA, KONSERWACJA I PRZECHOWYWANIE 314
12. GWARANCJA 319
13. INSTRUKCJE DOTYCZĄCE UTYLIZACJI 319
14. CZĘŚCI ZAMIENNE 320
15. DEKLARACJA ZGODNOŚCI UE 321

DEUTSCHE VERSION

Exterior view of a black and orange LVM 4 lawn mower with visible blades and control panel (no text or symbols)

FUXTEC GmbH

Kappstraße 69, 71083 Herrenberg-Gültstein, Germany

Achtung

Yellow sign with black line drawings of two mechanical components (no text or symbols)

Prohibition sign with pictogram of person using a cart and no text, indicating no illegal activity or violation

Safety warning sign with pictogram and crossed-out red X symbol indicating no crossing

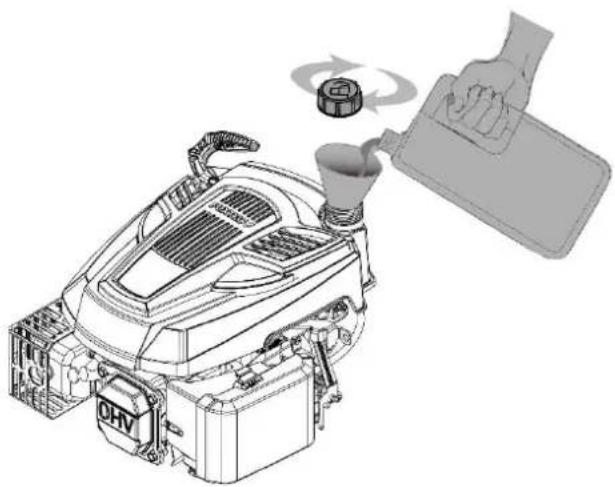

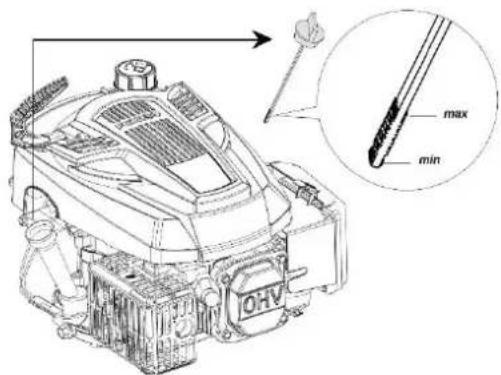

Diagram of a car engine with a hand pouring liquid into a container, showing mechanical components and a rotary knob (no text or symbols)

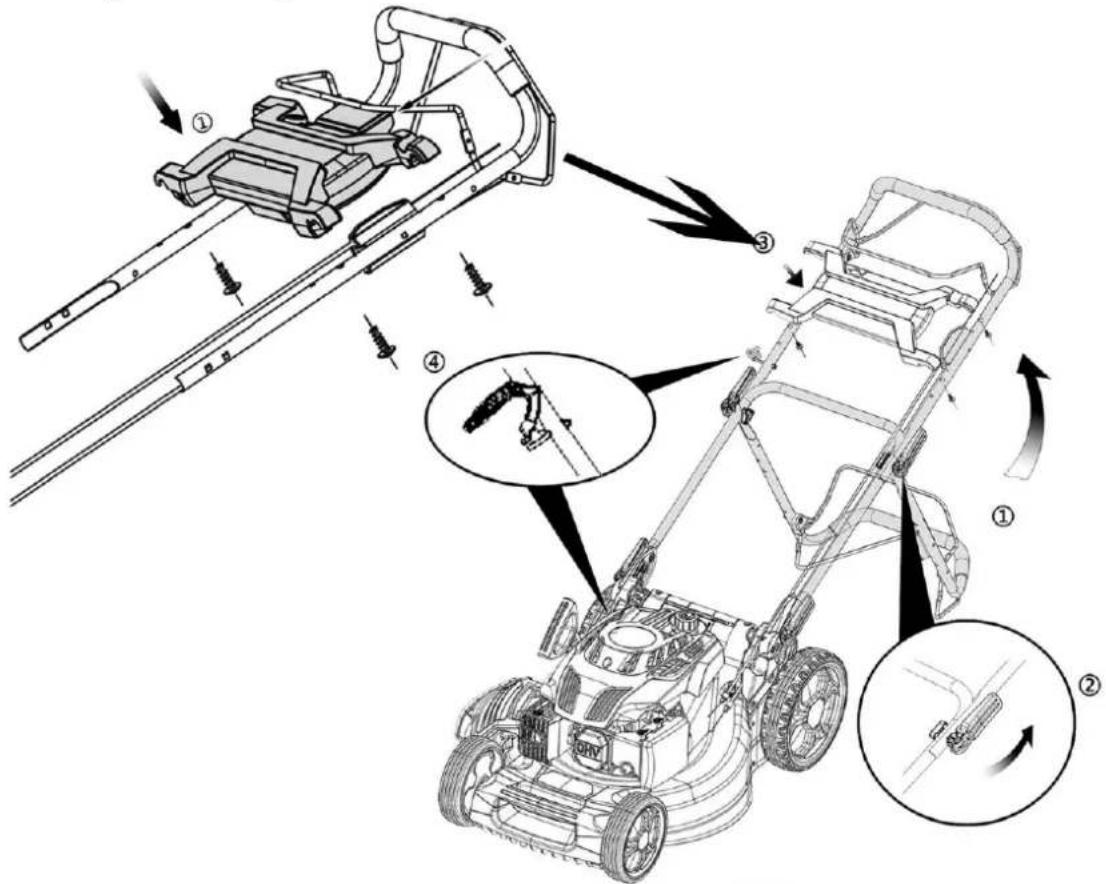

Technical diagram illustrating the assembly of a lawn mower with numbered steps and component details.

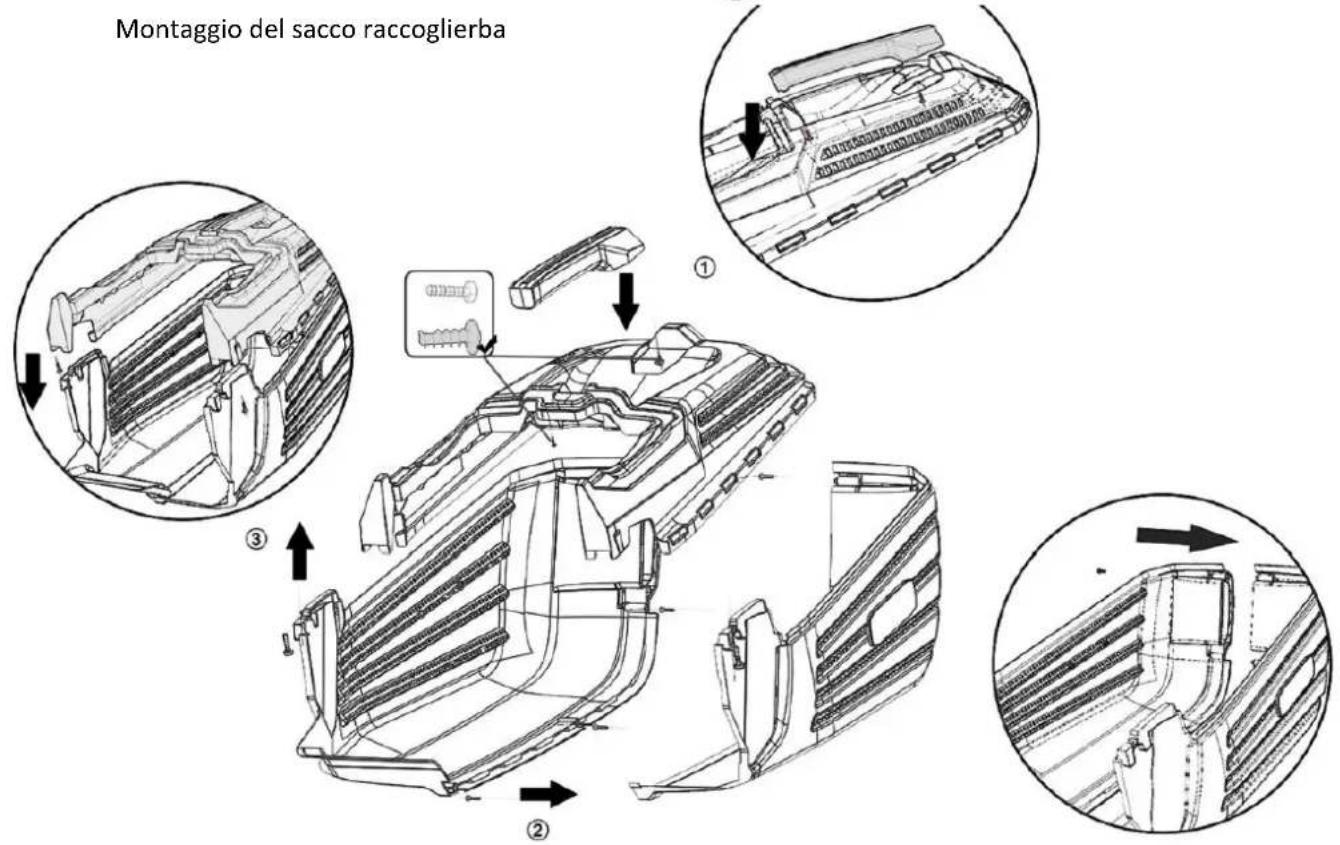

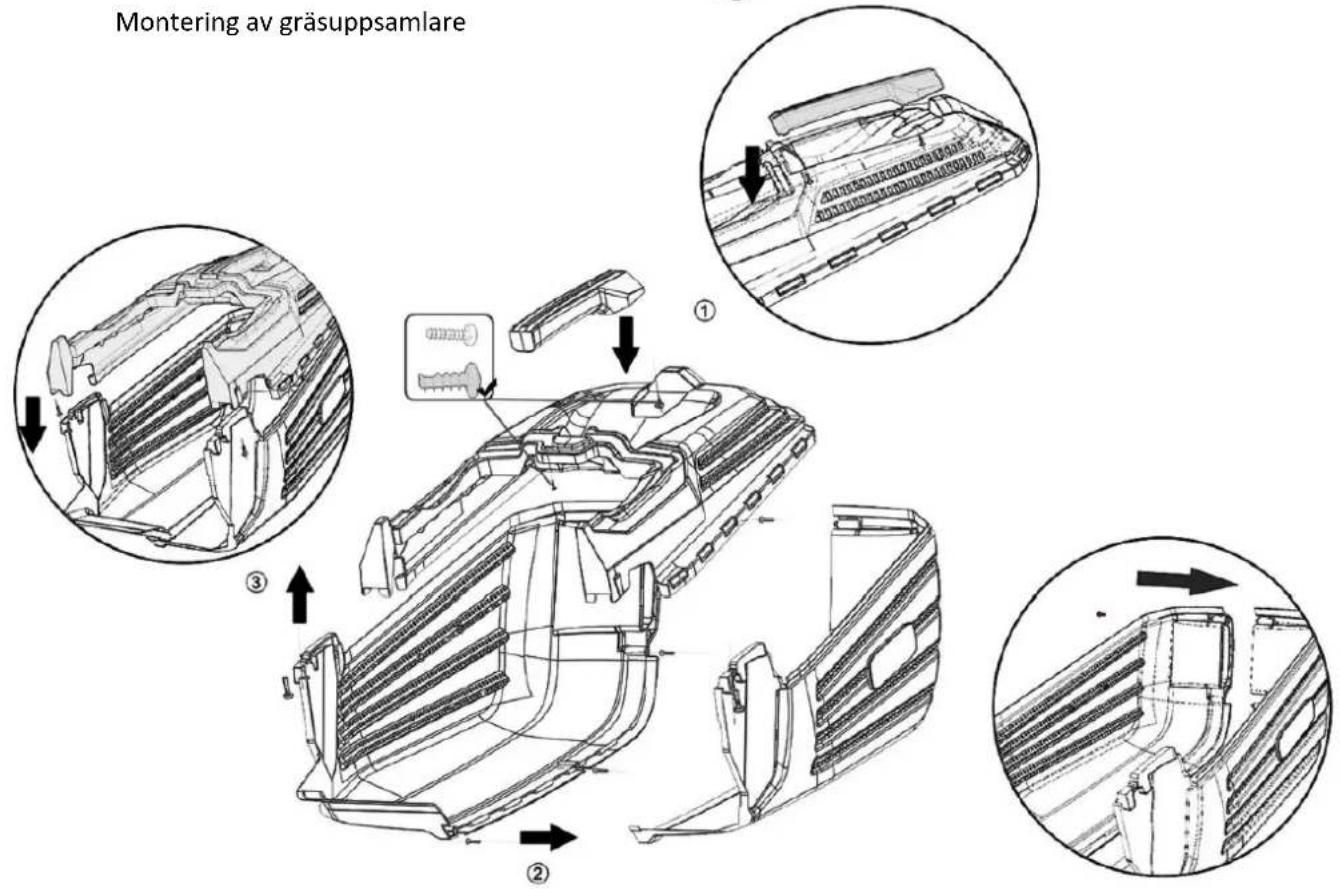

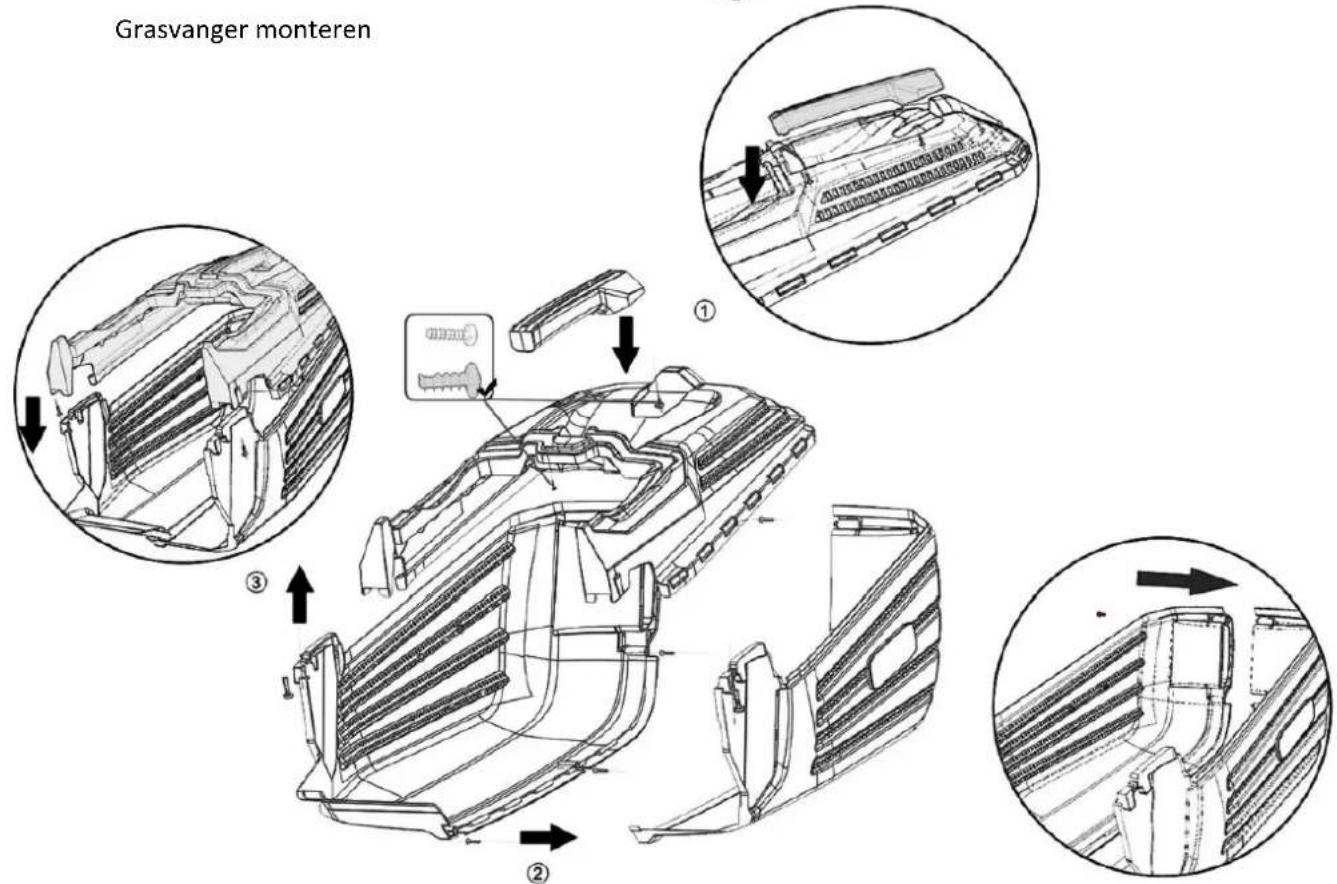

Montage Grasfangkorb ① ② ③

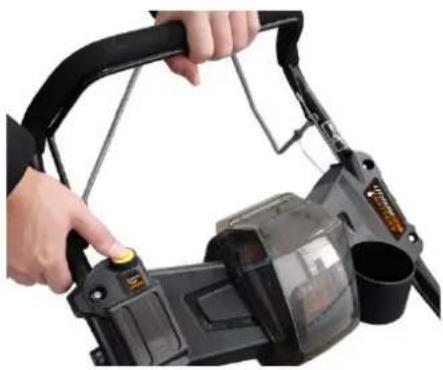

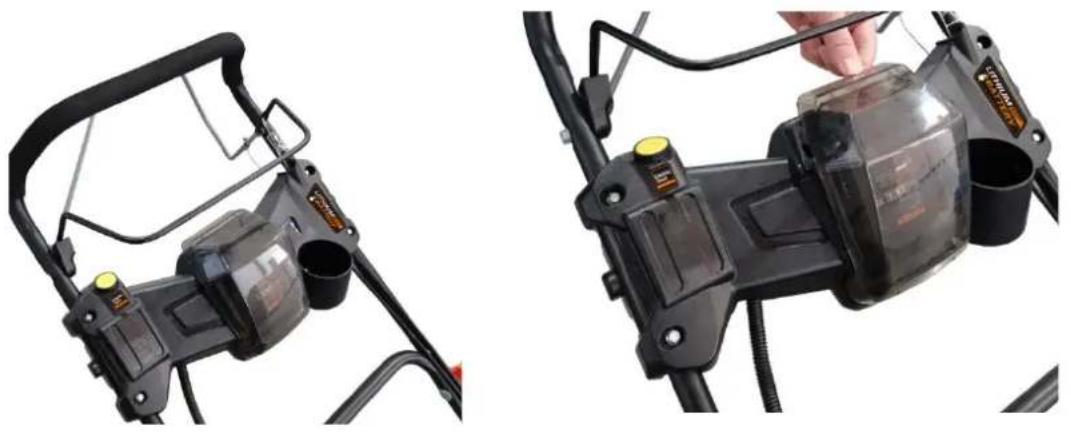

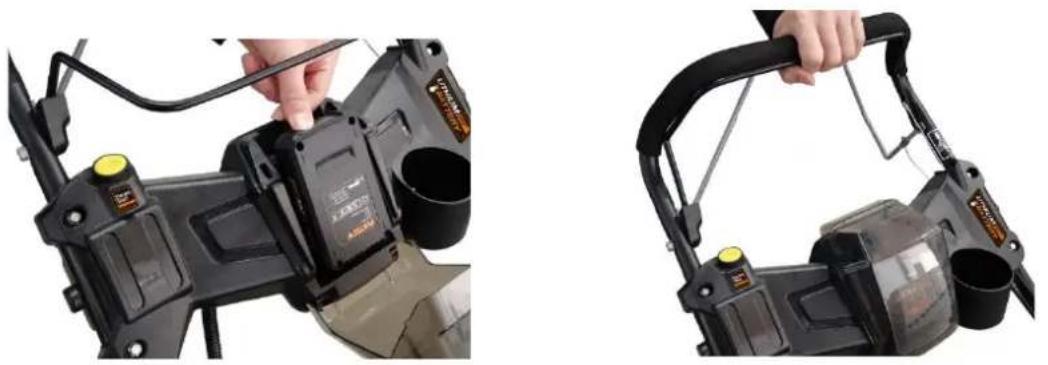

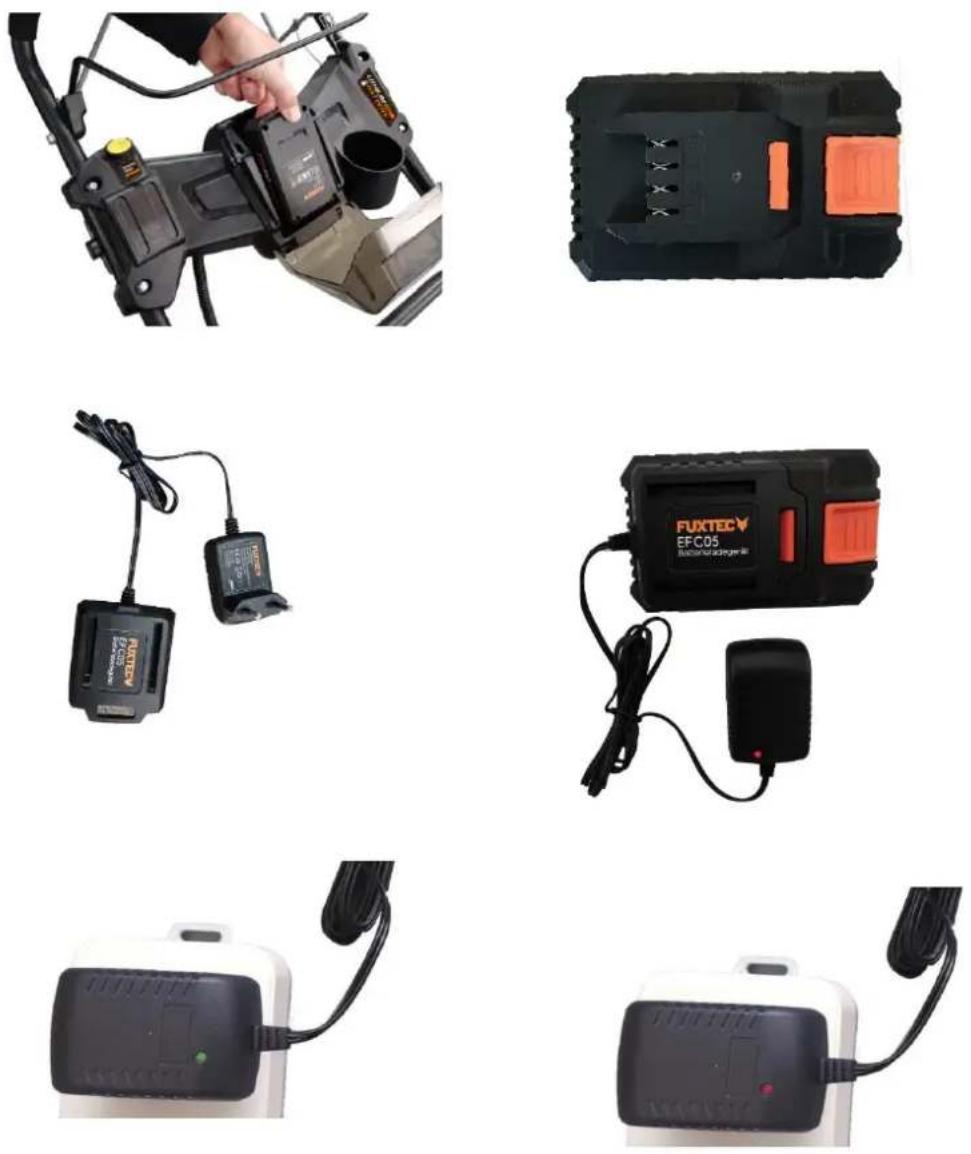

Batteriemontage Modell FX-RM5196eS, FX-RM5196eSPRO, FX-RM5396eSPRO

Two views of a black automotive motor assembly with attached motors and wiring (no visible text or symbols)

Two views of a black industrial machine with attached components, one being handled and the other holding a handle (no visible text or symbols)

Close-up of hands operating a black digital camera with a rotary knob (no visible text or symbols)

Close-up of a black electronic device with an orange top and blue indicator light (no visible text or symbols)

Close-up of a hand holding a black handheld device with an orange tab and three colored buttons (blue, yellow, green) on its screen.

Close-up of a blue circular button with a red square on a dark background (no text or symbols visible)

Close-up of a blue circular button with three colored squares (red, yellow, green) on a dark background, no text or symbols visible.

Close-up of a control panel with a blue circular indicator and three colored squares (red, yellow, green) on a dark background.

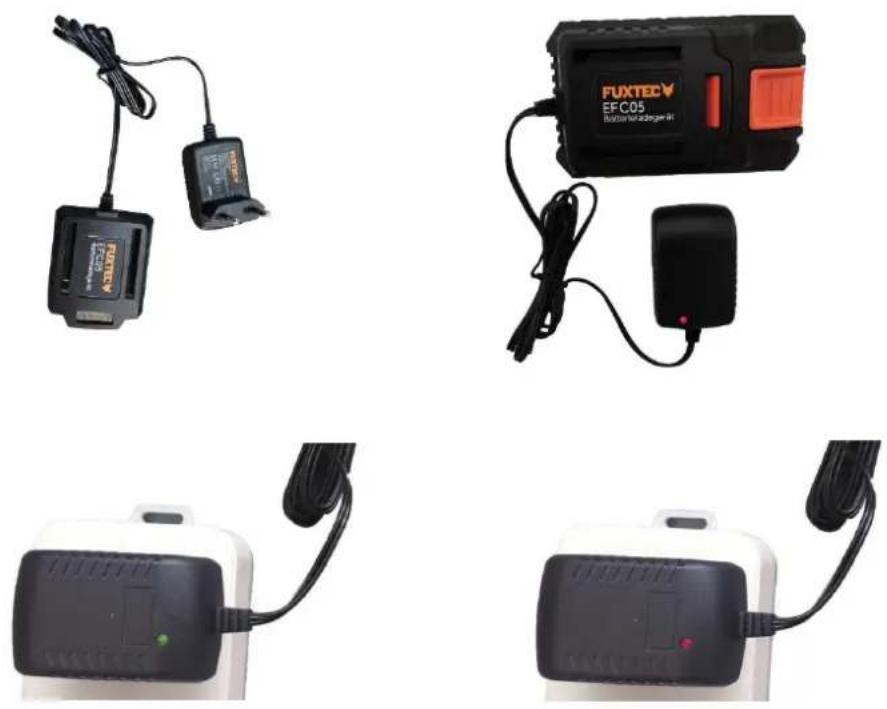

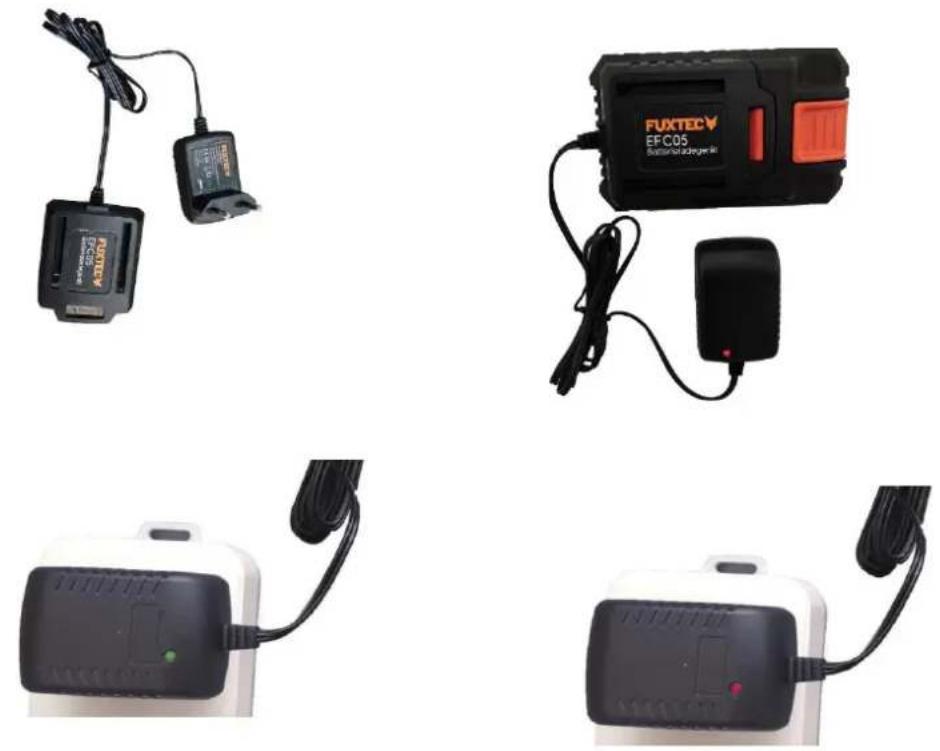

Max to °C Li-ion Charging before storage

Close-up of a lawn mower with orange and black wheels, hands adjusting the blade (no visible text or symbols)

Black plastic electrical connector housing with internal grid lines (no visible text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

3D rendering of a mechanical component with no visible text or symbols

3D mechanical assembly diagram showing internal components with orange and black parts, no visible text or symbols

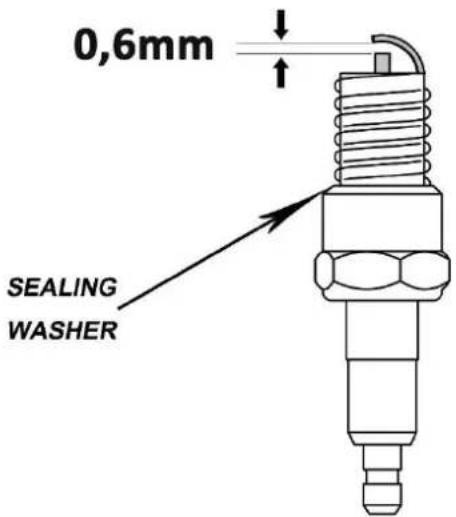

0,6mm SEALING WASHER

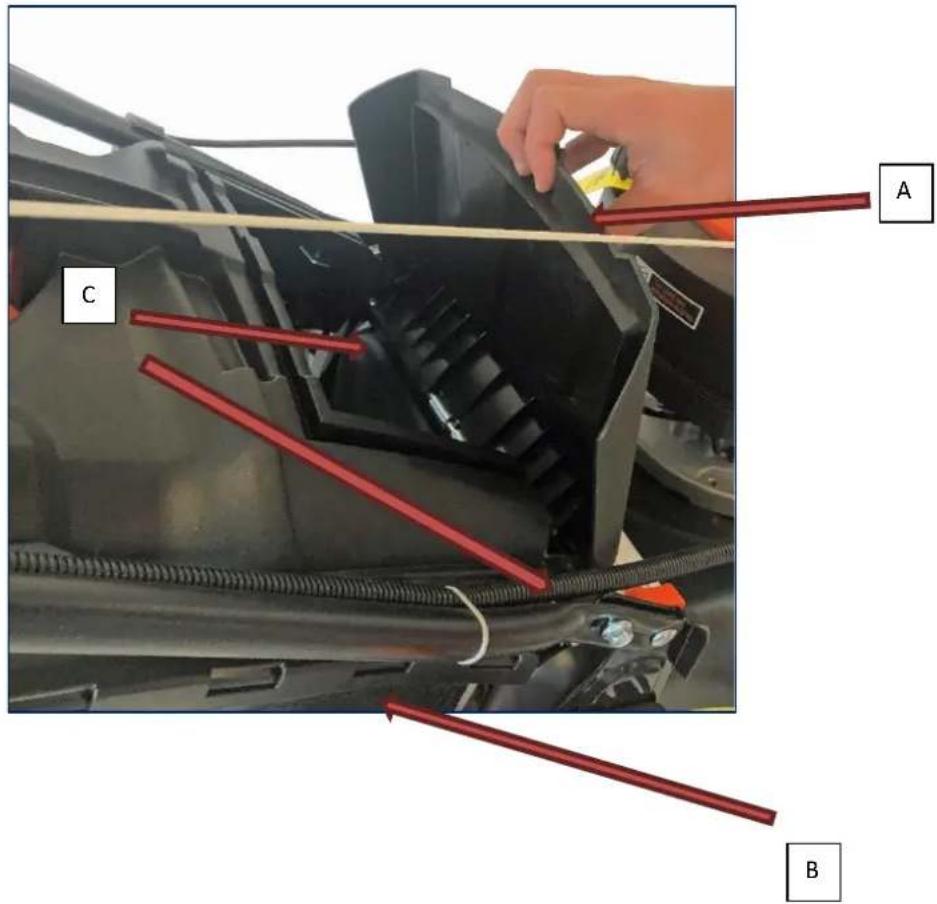

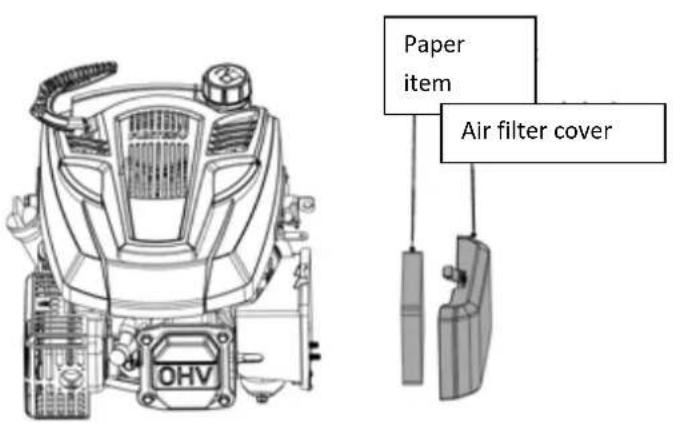

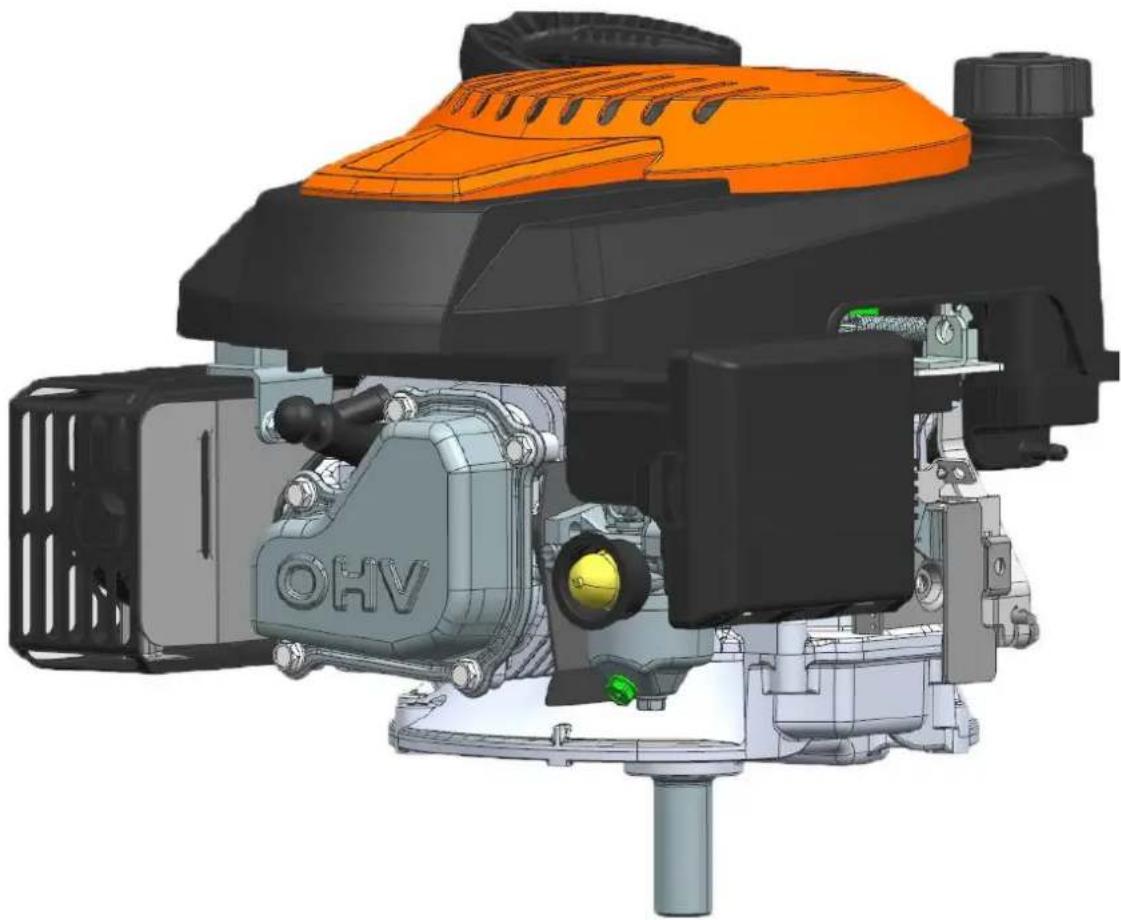

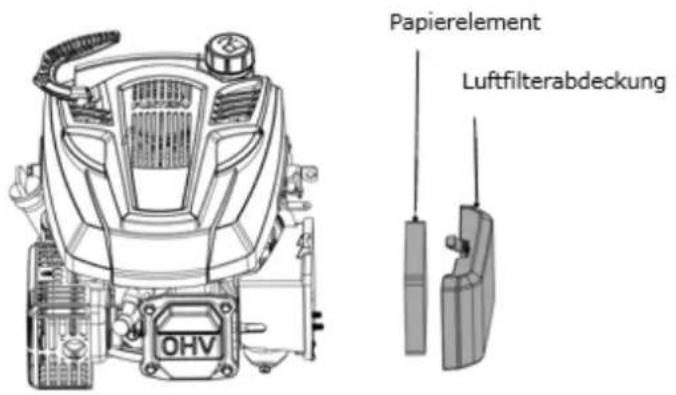

Luftfilter

3D technical illustration of a mechanical device with orange and black components, no visible text or symbols

We are pleased with your trust!

Please read these instructions for use before the first use and before every use!

Here you will find all the information you need for safe use and long service life of the device. It is imperative that you observe all safety instructions in this manual!

Please keep this manual always together with the device, so that you still have it at hand in case of doubt.

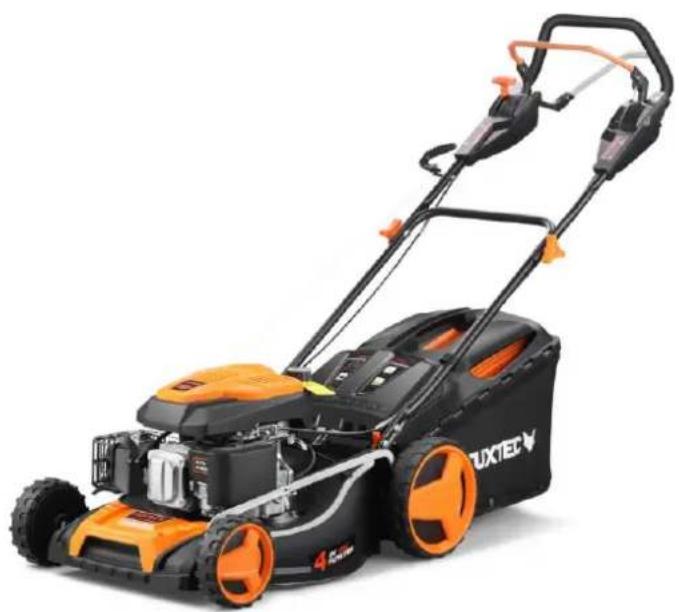

Exterior view of a black and orange Juxtec lawn mower (no text or symbols visible)

FUXTEC GmbH

Kappstraße 69, 71083 Herrenberg-Gültstein, Germany

Attention Read carefully and understand the instructions of this manual. Always keep the user manual handy when working.

CE

18. Intended use

The intended use of this device includes

- Mowing lawns

The device must not

• be used in any other way than described in this manual.
• be used in commercial applications.
• be used with accessories other than those specified by the manufacturer.
• be changed, modified, or operated in any other way than according to the manufacturer's specifications.

Observance of these user manuals is essential for safe assembly and use. This device is exclusively for private domestic use according to the specified intended use. All other applications are excluded.

Vibration and noise reduction

To reduce the effects of vibration and noise, limit working hours, use settings for lower vibration and noise emissions, and wear personal protective equipment.

Observe the following points to keep vibration and noise levels low:

Use the product only as intended according to its design and instructions.

Ensure that the product is in perfect condition and well maintained.

Use the right accessories and ensure that it is in good condition.

Hold the product firmly but not cramped by the handles provided.

Maintain the product according to this manual and keep it well lubricated.

Plan your working hours according to this manual to spread a higher load over a more extended period.

Emergency

Familiarize yourself with the use of the product by reading the user manual thoroughly.

Remember the safety instructions and follow them carefully. This will help you to avoid risks and dangers.

Always be attentive when using the product so that you can recognize dangers early and react to them. Rapid intervention can prevent severe injury and damage to property.

Turn off the product and disconnect the cordless high hedge trimmer, depending on the model.

Have the product repaired by a qualified expert, if necessary, before using the product again.

Residual risks

Even if you operate this lawnmower according to the instructions, there will always be residual risks. The following hazards can occur in connection with the design and construction of this lawnmower:

1. Injuries and damage to property caused by flying parts.
2. Hearing damage if you do not wear suitable hearing protection or use the lawnmower for an extended period.

3. Damage to health resulting from hand-arm vibrations if the lawnmower is used for an extended period or is not guided correctly and maintained.

4. Product Specifications

Model type	RM4346 ECO	RM4346	RM4646 ECO	RM4646	RM5196	RM5196eS	RM5196 PRO
Engine type	OHV 4-Takt	OHV 4-Takt	OHV 4-Takt	OHV 4-Takt	OHV 4-Takt	OHV 4-Takt	OHV 4-Takt
Cutting width (mm)	420	420	457	457	501	501	501
Adjustable cutting height (mm)	25 - 70	25 - 70	25 - 75	25 - 75	25 - 75	25 - 75	25 - 75
Trimmings collection capacity (l)	40	40	50	50	60	60	60
Tank (l)	0.8	0.8	0,8	0,8	0,8	0,8	0,8
Oil capacity (l)	0.5	0.5	0,5	0,5	0,6	0,6	0,6
Displacement (cm3)	146	146	146	146	196	196	196
Nominal speed (rpm)	3,000	3,000	3.000	3.000	2.800	2.800	2.800
Unit power (KW) at rated speed	2.2	2.2	2,2	2,2	3,9	3,9	3,9
max. engine power (KW)	2.6	2.6	2,6	2,6	4,4	4,4	4,4
Petrol type	Lead-free gasoline	Lead-free gasoline	Lead-free gasoline	Lead-free gasoline	Lead-free gasoline	Lead-free gasoline	Lead-free gasoline
Sound pressure level (dB(A))	81.5 (k=3)	81.5 (k=3)	83.1 (k=3)	83.1 (k=3)	83.2 (k=2.5)	83.2 (k=2.5)	83.2 (k=2.5)
Sound power level (dB(A))			95.05 (k=0.47)	95.05 (k=0.47)	95.9 (k=0.61)	95.9 (k=0.61)	95.9 (k=0.61)
Guaranteed sound power level (db(A))	96	96	96	96	98	98	98
Vibrations (m/s2)	6.52m/s2 (K=1.5m)	6.52m/s2 (K=1.5m)	5.856m/s2 (K=1.5m)	5.856m/s2 (K=1.5m)	6.36m/s2 (k=1.5)	6.36m/s2 (k=1.5)	6.36m/s2 (k=1.5)
Rear-wheel drive		●		●	●	●	●
FlexSpeed drive							●
Rear ejection	●	●	●	●	●	●	●
Side ejection				●	●	●	●
Mulching function		●	●	●	●	●	●
Electric start						●
Net weight (kg)	25	27	27	31	39	40	40

Model type	RM5396	RM5396esPRO	RM5196eSPRO
Engine type	OHV 4-Stroke	OHV 4-Stroke	OHV 4-Stroke
Cutting width (mm)	525	525	501
Adjustable cutting height (mm)	25 - 75	25 - 75	25 - 75
Trimmings collection capacity (l)	70	70	60
Tank (l)	0,8	0,8	0,8
Oil capacity (l)	0,6	0,6	0,6
Displacement (cm3)	196	196	196
Nominal speed (rpm)	2.800	2.800	2.800
Unit power (KW) at rated speed	3,9	3,9	3,9
max. engine power (KW)	4,4	4,4	4,4
Petrol type	Lead-free gasoline	Lead-free gasoline	Lead-free gasoline
Sound pressure level (dB(A))	84.8(k=2.5)	84.8(k=2.5)	83.2(k=2.5)
Sound power level (dB(A))	96.12(k=0.47)	96.12(k=0.47)	95.9 (k=0.61)
Guaranteed sound power level (db(A))	98	98	98
Vibrations (m/s2)	7.375m/s2 (k=1.5)	7.375m/s2 (k=1.5)	6.36m/s2 (K=1.5)
Rear-wheel drive	●	●	●
FlexSpeed drive		●	●
Rear ejection	●	●	●
Side ejection	●	●	●
Mulching function	●	●	●
Electric start		●	●
Net weight (kg)	39,5	41,5	41

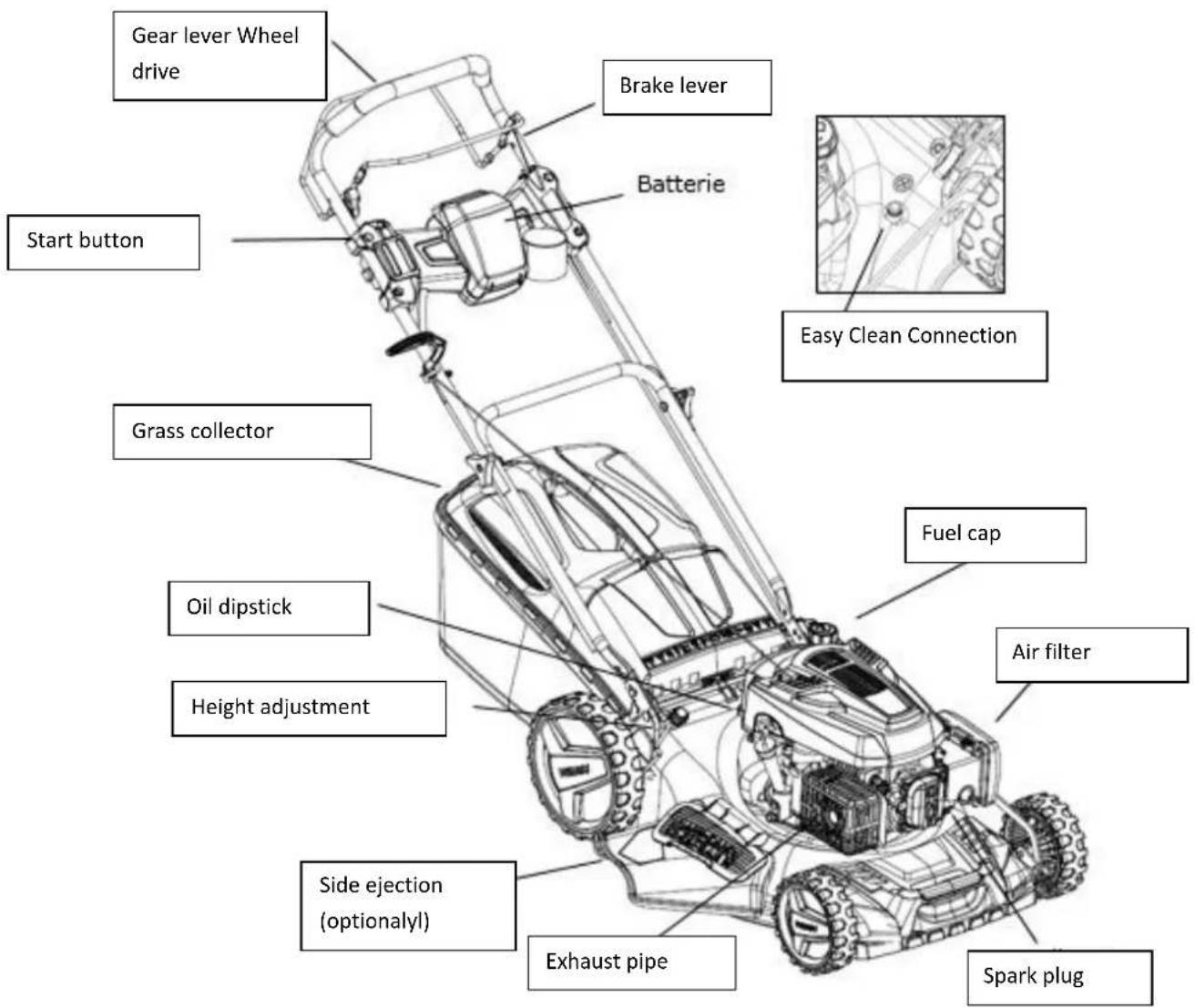

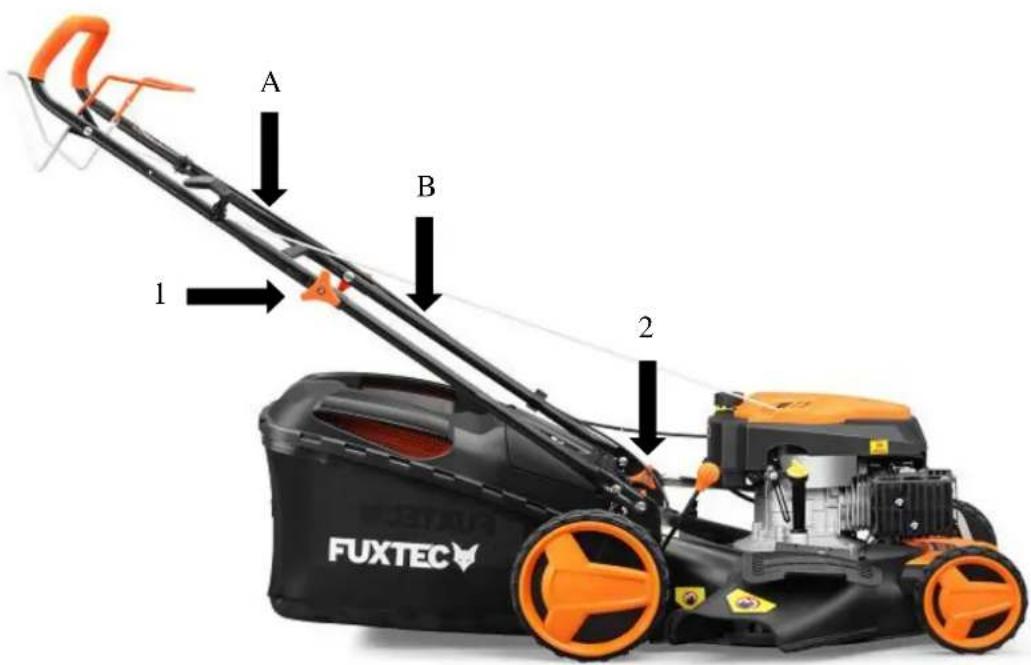

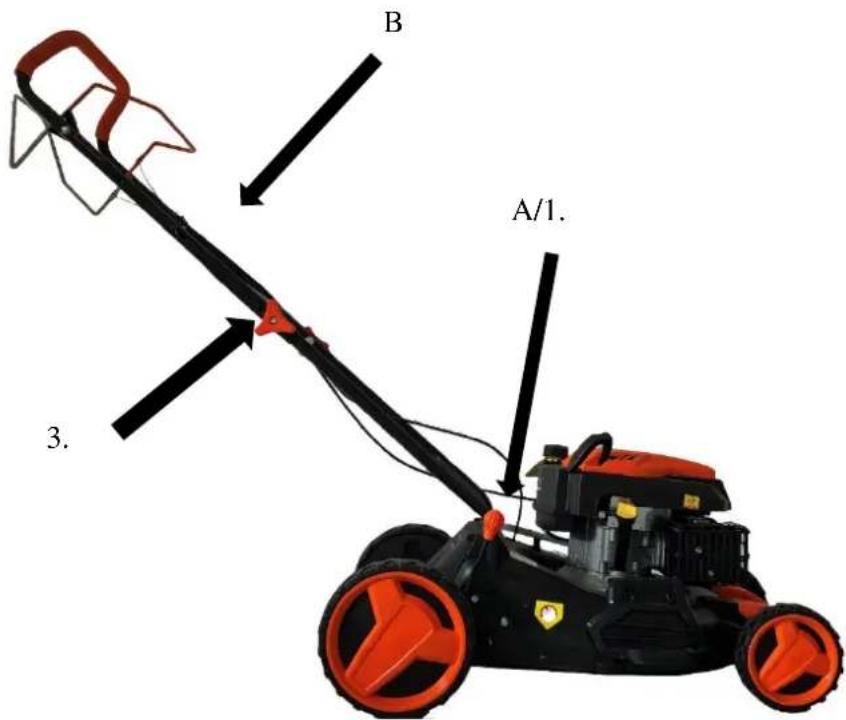

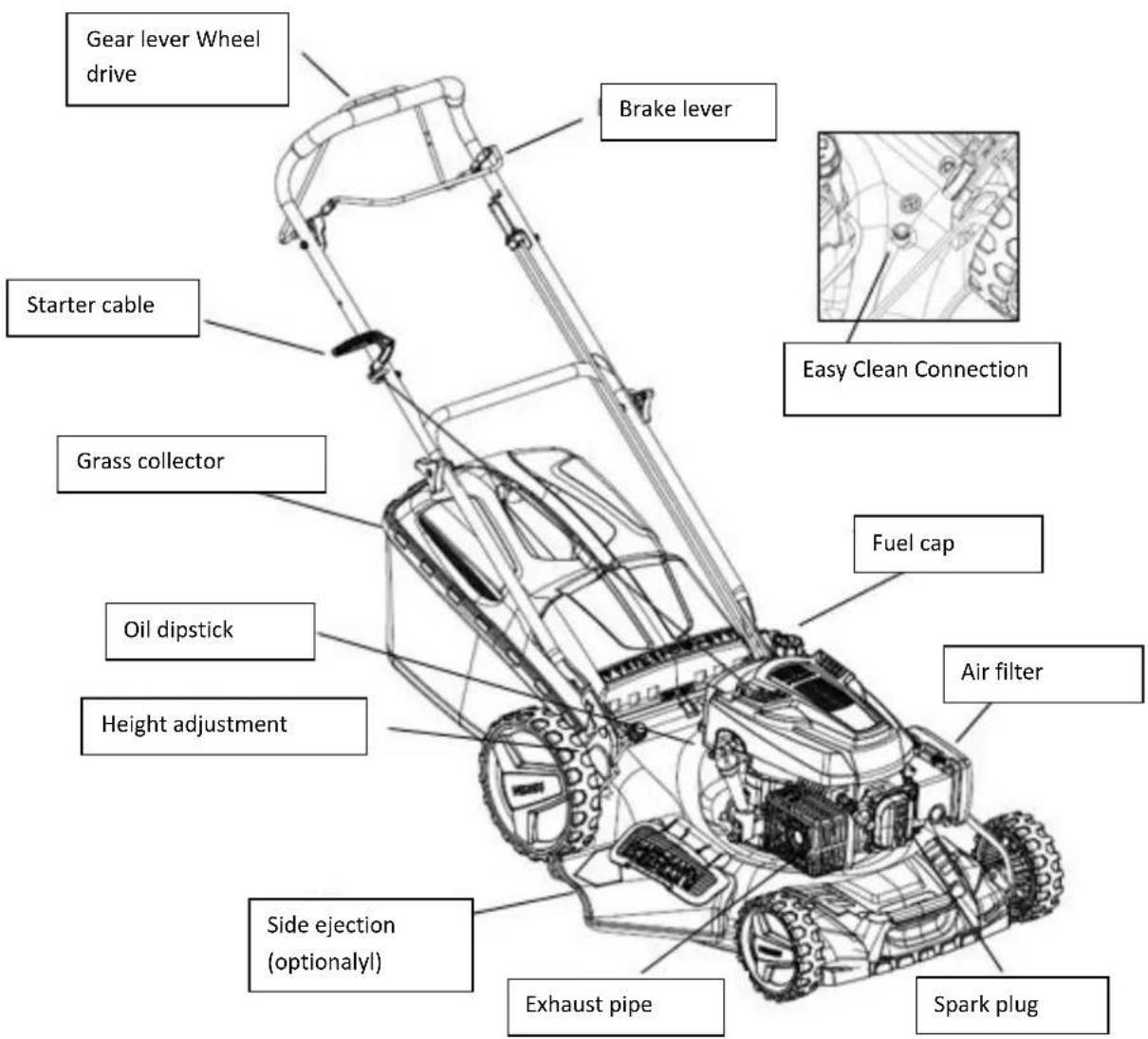

20. Your device at a glance

Except FX-RM5196eS, FX-RM5196eSPRO, FX-RM5396eSPRO (see next page)

Gear lever Wheel drive Starter cable Grass collector Oil dipstick Height adjustment Side ejection (optionallyl) Brake lever Easy Clean Connection Fuel cap Air filter Exhaust pipe Spark plug

Model FX-RM5196eS

Gear lever Wheel drive Start button Grass collector Oil dipstick Height adjustment Side ejection (optionallyl) Exhaust pipe Brake lever Batterie Easy Clean Connection Fuel cap Air filter Spark plug

21. Preface and preparation

Foreword

• Read the instructions carefully. Familiarize yourself with the operating elements and the proper use of the device.
• Never allow children or other persons who are not familiar with the use of the device to use the mower. Local regulations may limit the age of the operator.
• Never mow when persons, especially children or pets, are nearby.
• Remember that the user is responsible for accidents and damage to other people or property.

Preparation

a) Always wear sturdy shoes and long pants when mowing. Do not operate the device if you are barefoot or wearing sandals
b) Thoroughly check the areas where the device is to be used and remove all objects that could be whirled up by the device
c) WARNING - Fuel is highly flammable
- Store the oil in appropriate and designated containers
- Only fill the tank outdoors and never smoke when filling the device
- Fill up with fuel before starting the device. Never remove the cap of the fuel tank or fill it up while the engine is still running
- If fuel is spilled, do not attempt to start the engine under any circumstances, but move the device away from this location. Do not start the engine until the fuel vapors have evaporated.
- Close all fuel tanks and container caps securely.
d) Replace defective mufflers.
e) Visually inspect the device before use to check that the blades, bolts, and blade holders are not worn or damaged. Replace worn or damaged bolts and blades in sets.

22. Safety Instructions

1. Do not use the device in an enclosed space where dangerous carbon monoxide can accumulate.

2. Mow only in daylight or under good artificial light.

3. If possible, avoid using the device in humid conditions.

4. Make sure that you have a firm stand on hangers.

5. Never run with the device, but walk.

6. Always mow crossways with the device on slopes and not up and down.

7. Be especially careful when changing direction.

8. Do not mow excessively steep slopes.

9. Be especially careful when mowing backward or in your direction.

10. Turn off the engine if the mower needs to be tilted due to transportation to move it to another mowing area.

11. Never use the device with defective protective shields or without protective devices, such as slipped discharge chutes or cuttings catcher.

12. Do not change the engine settings or increase the speed.

13. Disconnect the blades and tighten the starter cord slightly before starting the engine.

14. Start or start the engine carefully according to the instructions. Keep your feet away from the blades.

15. Do not tilt the mower when starting the engine unless the device needs to be inclined to start. In this case, do not tilt the device more than necessary and only lift the part of the device that is away from the user.

16. Do not start the engine when someone is standing in front of the exhaust port.

17. Do not place your hands or feet near the rotating parts. Stay away from the exhaust ports at all times.

18. Never lift or transport the mower while it is still in operation.

19. Stop the engine and remove the spark plug connector from the spark plug:

a. Before cleaning a blockage or clogged pipes

b. Before you check, clean, or perform any work on the device.

c. After you have collided with a foreign object. Check

1. the device for damage and repair it before put the device back into operation. If the lawnmower vibrates excessively, check this immediately.

21. Stop the engine:

a. When you leave the mower/ Before refilling

23. Maintenance and Care

a) Make sure that all nuts, screws, and bolts are tight so that the device can work safely
b) Never store the device with fuel in the tank in buildings where vapors of open flames or sparks can be generated
c) Let the engine cool down completely before storing the device in closed rooms
d) Keep the engine, silencer, battery compartment, and fuel tank free of grass clippings, leaves, and grease to reduce the risk of fire
e) Check the grass catcher regularly for wear or loss of functionality
f) Always replace worn or damaged parts for safety reasons
g) If the fuel tank has to be emptied, this should be done outdoors

24. Description of security symbols

The following icons are found on the device to remind you of the care and warnings that are required. The meaning of the symbols:

Yellow background with black line drawings of two mechanical components (no text or symbols)

Prohibition sign with pictogram of a person using a cart and no sign, indicating no litter or trash.

Yellow traffic sign indicating a vehicle stop and a red 'No' symbol crossed out by a group of people.

IMPORTANT: This device could amputate hands and feet and throw objects. Failure to observe the following safety instructions may result in severe injury or even death.

WARNING : Always remove the spark plug connector from the spark plug to prevent accidental operation of the device when adjusting, transporting, or repairing it.

WARNING: Engine exhaust fumes, some of its components contain or emit carcinogenic and harmful chemicals.

ATTENTION : The exhaust muffler and other parts of the engine become very hot during the use of the device and remain hot for some time after the device is turned off. Stay away from the hot parts of the appliance to avoid burns from contact with the parts.

25. General operating and safety instructions

• Please read the user manual carefully. Familiarize yourself with the control elements and the proper use of the device.
• Never place your hands and feet near the rotating parts of the device. Stay away from the outlet opening at all times
• Let only responsible users who are familiar with the operation of the device use this device.
• Thoroughly check the area where the device is to be used and remove all objects that could be thrown around by the device.
• Never use the device when persons, especially children or pets, are nearby.
• Always wear sturdy shoes and long pants when using the device. Do not operate the device if you are barefoot or wearing open sandals.
• Do not pull the device backward unless necessary. Always look down and behind you before and while moving the device backward.
• Never operate the mower with defective or unprotected guards, such as improperly installed deflectors and clippings.
• Use only accessories recommended by the manufacturer
• Stop the knives when crossing gravel driveways, paths, or roads.
• Stop the engine and disconnect the spark plug connector from the spark plug,
• before you remove blockages and clear the cutting channel.
• before you check, clean, or carry out any work on the device.
• after you have detected a foreign object, check the device for damage and repair it before you put the lawnmower back into operation.
• if the lawn mower vibrates unusually strongly, you should check it immediately
• Turn off the engine and wait until the blades have come to a complete stop before removing the clippings.
• Use the device only in daylight or in areas that are well lit with artificial light.
• Do not operate the device if you are under the influence of alcohol or drugs.
• Never use the device on wet grass. An unstable stand can lead to slipping. Hold the handles firmly while mowing. Never run when using the device.
• Release the self-propelled mechanism before starting the engine
• Replace defective silencers.
• Always wear safety glasses or safety goggles with side shields when using the mower
• Remove obstacles like stones, and the tree remains, etc.
• Watch out for pits, furrows, or bumps. Tall grass can hide foreign objects.
• Do not mow at differences in height, ditches, or dams. The user of the device may lose his footing and balance
• Do not mow on excessively steep slopes.
• Note that the user of the device is responsible for accidents or injuries to other people or property
• Be alert and switch off the device when children enter the work area.
• With rotating devices, you should mow horizontally and not vertically over the slope.
• Never allow children or persons not familiar with the operation of this lawnmower. Local regulations may limit the age of the user.
• WARNING - Gasoline is extremely flammable.
• Store gasoline in containers designed for this purpose.
• Fill the tank outdoors only. Never smoke while filling the tank.
• Add gasoline before starting the engine. Never remove the filler cap or fill the tank with gasoline while the engine is running or still hot.

• Never start the engine if the oil is spilled. Move the device to another location. Avoid any kind of ignition or sparking until the petrol fumes are entirely removed.

• Carefully replace all fuel tank and container caps

• Inspect the blades, bolts, and cutters for visible wear and damage before using the device. Replace worn or damaged blades and bolts in sets to avoid imbalance.
• Never change the safety devices. Check their proper function regularly.
• Keep the device free from grass, leaves, and other residues. Remove any oil or fuel residues. Let the device cool down before storing it.
• Be incredibly attentive when changing the mowing direction on slopes.
• Never attempt to adjust the cutting height while the engine is running.
• The crop catcher and its parts are subject to wear, damage, and abrasion, which could expose rotating parts. This can lead to objects being thrown. Check the individual parts regularly and, if necessary, replace them with original spare parts recommended by the manufacturer.
• The blades are sharp and cut precisely. Be careful when servicing the blades. Wrap the blades in a cloth or wear protective gloves.
• Do not change the engine speed controller and do not overload the motor
• Be especially careful when moving the mower backward or towards you.
• Stop the blades when the mower needs to be tilted for transport, especially when crossing surfaces other than grass.
• Disconnect all blades and control clutches before starting the engine.
• Start the engine carefully as described in the instructions, keeping your feet away from the blades
• Do not tilt the lawnmower when you turn on the engine, except when the lawnmower needs to be inclined to start. In this case, you should not tilt it more than necessary. Only lift the part that is away from the user.
• Do not start the engine if you are standing in front of the outlet duct
• Never transport or carry a lawnmower while the engine is still running.
• Reduce the brake setting while turning off the engine and if the engine is equipped with a shut-off valve. Turn off the fuel supply at the end of the mowing operation. Go slowly when using a transport device.

26. Installation / Presettings

Read this manual thoroughly and carefully before installing and using your lawnmower.

IMPORTANT : The lawnmower is sold WITHOUT OIL OR FUEL. Your new lawnmower has been assembled and tested at the factory.

REMOVE ANY CARDBOARD PARTS FROM THE LAWNMOWER

Remove the device from the box and check the entire packaging thoroughly for loose parts.

IMPORTANT: For assembly steps 1-3, depending on the model, your lawnmower will be delivered entirely pre-assembled (assembly variant 1) or in two packages (assembly variant 2). We, therefore, ask you to consider two assembly variants in the following. Assembly step 4 is the same for all variants.

B A/1. 3.

Body version 1 (46s models)

1. Remove the lawnmower from the packaging
2. Insert the lower spar (A) into the body and mount it laterally on the right and left with a screw.
3. Insert upper spar (B) and tighten with orange wing nut, then tighten screws + nuts on both sides.

Body version 2 (51+53 models)

1. Remove the lawnmower from the packaging
2. Remove the lower spar (B) from the accessory pack (or main pack) and screw it to the central unit (upper hole) with screws + nuts (2)
3. Screw upper spar (A) to mounted lower spar (B) using orange wing nuts + screws (1).

A B 1 2 FUXTEC

Important : On some models, the front wheels are removed to prevent damage to the axle during shipping. The wheels are simply screwed onto the axle with the nuts supplied.

ADJUSTING THE CUTTING HEIGHT

Raise the wheels for low cutting height and lower the wheels for high cutting height. Adjust the cutting height according to your needs centrally using the height adjustment handle (see illustration on page 2). The middle position is the most suitable position for most lawns.

FILL OIL BEFORE STARTING THE ENGINE

Before each subsequent use, check the oil level and, if necessary, top up with SAE30 engine oil. Refer to the table in Chapter 1 Product Specification for the filling quantity.

max min

Your lawnmower is delivered to you without 4-stroke oil.

ATTENTION : DO NOT overfill the engine with oil. It could lead to the smoke formation in the

muffler when starting.

1. Make sure that the lawnmower is level

2. Remove the dipstick from the oil filler tube

3. Insert the dipstick and pull it out slowly to check the oil level

IMPORTANT:

• Check the oil level before each use. Add oil if necessary. Fill up to the oil gauge on the dipstick.
• Change the oil every 25 working hours or every season. You will likely need to change the oil more often in dusty and dirty conditions. Refer to chapter 10 "Changing the oil."

Refuel with SUPER GASOLINE 95 octane (no mixture)

Fill the fuel tank to the bottom of the filler neck. Do not overfill the tank. Use fresh, clean unleaded fuel. Never mix oil with gasoline. Purchase fuel in quantities that can be used within 30 days to guarantee the freshness of the fuel.

Prolonged storage of the lawnmower will change the chemical composition of the gasoline, which can cause starting difficulties and unsteady running of the engine.

ATTENTION : Remove any oil or gasoline residue. Do not store, spill, or use gasoline near naked flames.

Line drawing of a robotic car with a hand pouring liquid into a container (no text or symbols)

ATTENTION: Fuels mixed with alcohol (called gasohol) or the use of ethanol or methane can attract moisture, causing separation and formation of acid during storage. Acidic gases can damage the engine's fuel system while the device is in storage. Drain the tank system if the device is stored for more than 30 days to avoid damage to the motor. Empty the fuel tank, start the engine and let it run until the fuel line and carburetor are empty. Use fresh gasoline the next time you use the device. Never use engine or carburetor cleaning agents inside the fuel tank. This can lead to permanent damage.

Mounting the tie bar apparatus

Technical diagram illustrating the assembly of a lawn mower with numbered steps and component details.

Mounting grass catcher bag

Mounting grass catcher bag ① ② ③

Battery Mount Model FX-RM5196eS FX-RM5196eSPRO, FX-RM5396eSPRO

Two black automotive motor components with attached wiring and connectors, shown from different angles (no text or symbols visible)

Two black industrial robotic devices with attached components, one being handled and the other holding a handle (no visible text or symbols)

Close-up of hands operating a black electronic device with a yellow button, no visible text or symbols

1. fill fuel and oil after assembling the machine. Make sure that the brake lever and the self-propelled lever are released. (Fig.1)

Open the battery cover and check that the battery is inserted correctly. (Fig.2)

Press the battery button to display the power status.

Check if the remaining power is sufficient (at least 2 lights should be on). (Fig.3)

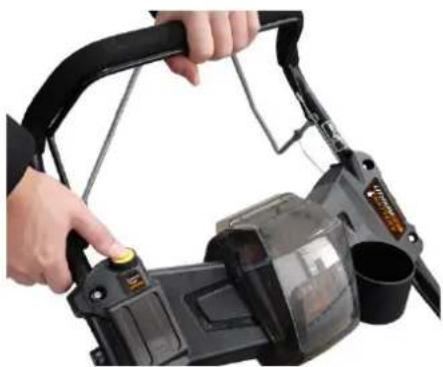

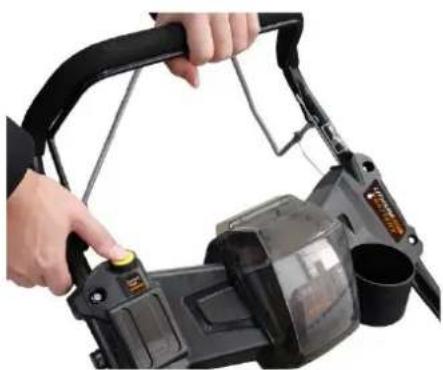

1. hold the brake lever with your left hand. (Fig.4)
2. press the start button with your right hand. (Fig.5)

Power supply status: LED indicator

LED light indicates operating status (undervoltage / sufficient / full)

Close-up of a black electronic device with an orange top and blue indicator light (no visible text or symbols)

Hand holding a black device with a red and orange button, displaying three colored lights (blue, yellow, green) on its screen.

Close-up of a blue circular button with a red square on a dark background (no text or symbols visible)

Close-up of a control panel with a blue circular indicator and two colored squares (red and yellow) on a dark background.

Close-up of a control panel with a blue circular indicator and three colored squares (red, yellow, green) on a dark background (no text or symbols)

1 bar: Red LED light - battery indicates low voltage alarm.
2 bars: Red and orange LED light - battery indicates sufficient voltage
3 bars: Red, orange and green LED light - battery indicates full voltage

Important:

The removable battery is considered a removable key or device and is marked accordingly

Charging before storage

The starter battery should be stored in a dry room at a minimum of 10^ Celsius and a maximum of 25^ Celsius when not in use for a longer period of time. If stored for several months, you should fully charge the battery every 6 months (see the following notes on charging).

Please remove the battery from the console if the remaining electricity is no longer sufficient. Connect the battery to the charger and connect the charger to the mains.

Caution. Before removing the battery, make sure that the brake lever is released and the machine is stopped.

- LED indicator on the charger:

Green LED steady light: The battery is fully charged and can be removed.

Red LED steady light: The battery is being charged.

27. Starting / stopping the engine

Start (except FX-RM5196eS, FX-RM5196eSPRO, FX-RM5396PeSPROsee previous pages)

Make sure that the engine is filled with sufficient oil and gasoline before you start it.

Pull the brake lever (upper lever) against the handle and pull the starter cable slightly until resistance is felt. Then pull the starter cable smoothly until the engine starts. On the 4646eco model, please press the primer pump 3-5 times before pulling the starter cable to fill the carburetor with gasoline.

NOTE:

Do not operate the wheel drive lever at the same time. Only when the engine has started, and you want to use the self-propulsion do you operate the lower lever.

Due to a protective layer on the engine, a slight smoke may be produced when you use the device for the first time. This is a standard procedure. Pull the brake lever towards the push handle. Do not let the pull starter snapback.

Stop

Release the brake lever to stop the motor.

WARNING: The blade will continue to rotate for a few seconds after the engine is turned off.

Unplug the spark plug connector when leaving the mower unattended.

MOWING INSTRUCTIONS

• In certain circumstances, such as high grass, it may be necessary to raise the cutting height to reduce the thrust and engine load, which can also lead to grass residue. It may also be required to reduce the basic speed and push the mower twice over this area
• Reduce the cutting width by covering the previous cut again to perform heavy cutting work
• The pores in the grass catcher bag can become clogged with dirt and dust, which means that the catcher can pick up fewer cuttings. To avoid this, you should regularly wash the catcher with a water hose and let it dry completely before reusing it.
• Keep the upper part of the engine around the starter free of grass and chopped grass clippings. This will improve engine airflow and prolong engine life.

28. Operating instructions for the lawn mower

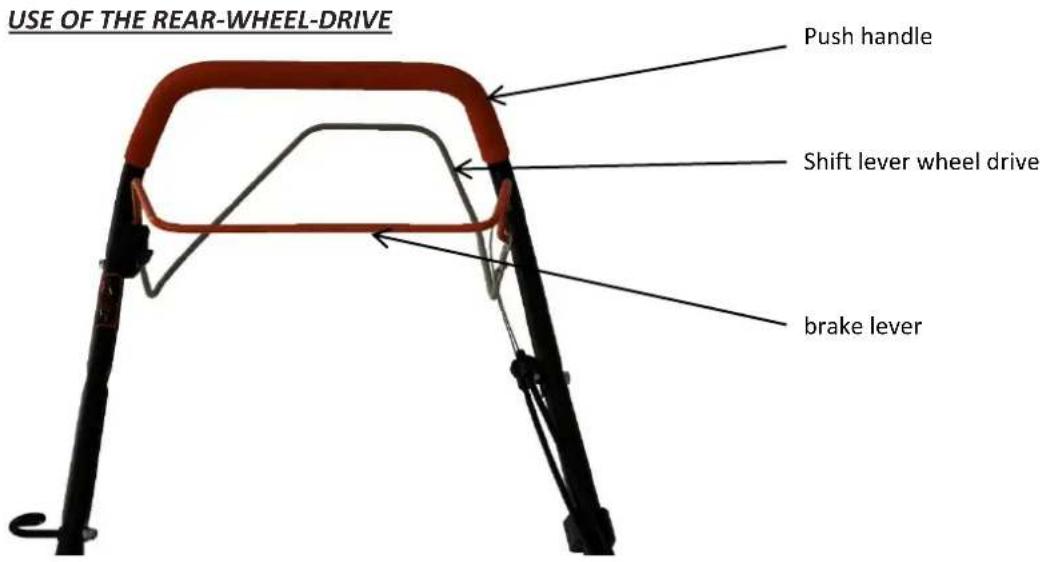

USE OF THE REAR-WHEEL-DRIVE Push handle Shift lever wheel drive brake lever

ATTENTION: The brake lever must be pulled when starting the engine.

Release it to stop the engine.

Wheel drive shifts lever - To engage the powered forward movement of the device.

USING THE LAWNMOWER ENGINE SPEED

The engine speed has been preset by the manufacturer to ensure that the device delivers maximum performance. On some models, you can set a variable speed by a lever on the handlebar. Please operate this lever only when the device is in drive mode.

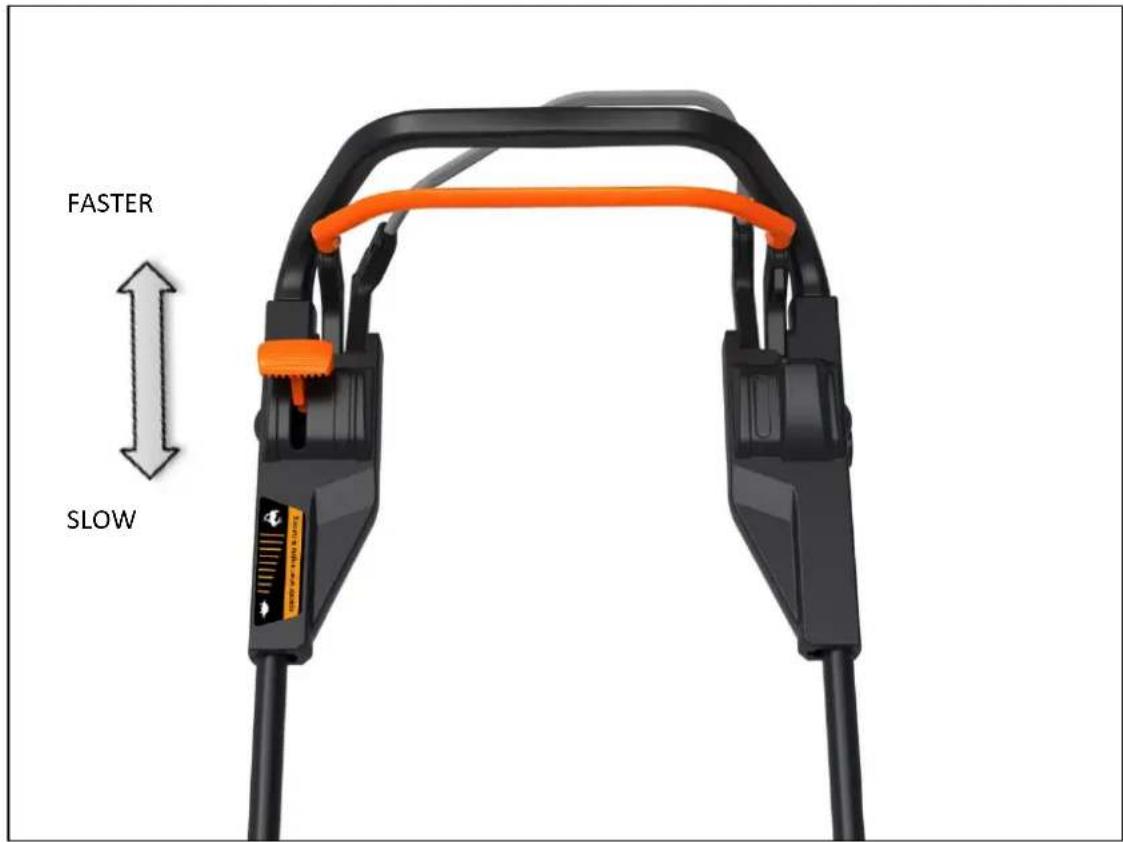

FlexSpeed drive (RM5196PRO, FX-RM5196eSPRO, FX-RM5396PeSPRO)

The speed control of the FlexSpeed transmission is located on the upper bracket. This option gives you the possibility to adjust the speed of the rear-wheel-drive differently.

If you push the lever forward in the direction of the engine, the forward motion slows down. This is especially advisable on uneven terrain.

If you pull the lever towards your body, the speed increases, and the mower moves forward faster. Use this option only on large flat areas without obstacles in your mowing area.

FASTER SLOW

Important: The speed of the FlexSpeed gear unit may only be controlled while the engine is running! Otherwise, the gear unit may be damaged.

Using the grass catcher box

Open and hold the rear flap (A), then take the grass catcher bag (B) and hook it in (C)

A C B

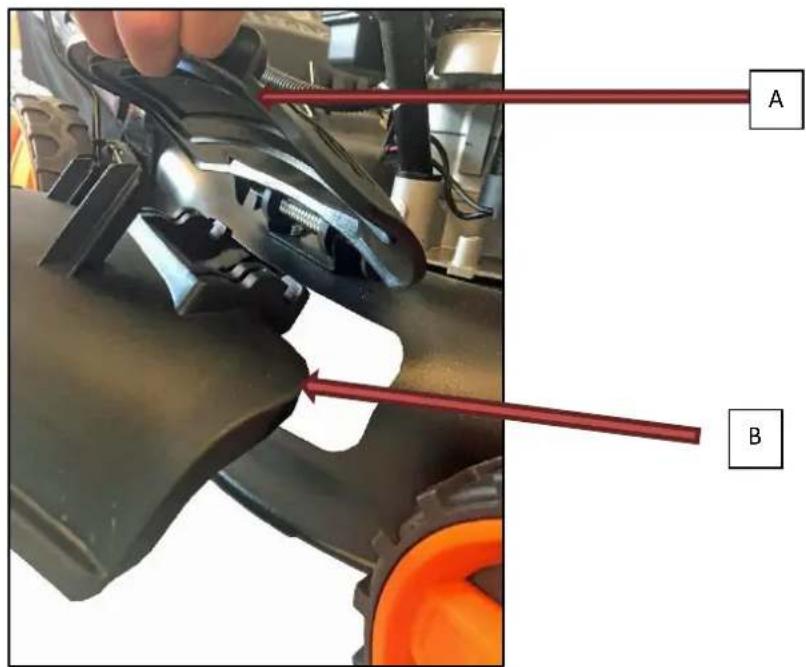

Using the side ejector

Open and hold side ejection flap (A). Take side ejector (B) and chop

A B

Using the Mulch kit

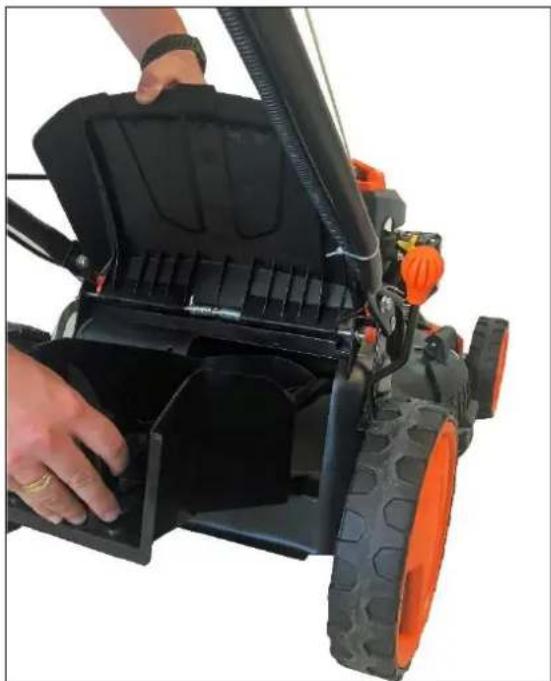

Open and hold rear flap (A), then insert mulch kit (B) into the opening provided. Close rear flap (A) - Ready

Note: A mulching blade is already mounted and does NOT need to be mounted additionally.

Close-up of a person using a black lawn mower with orange wheels and handlebars (no visible text or symbols)

Black plastic enclosure with internal compartments and mounting holes (no text or symbols visible)

The mulching inserts (or also called mulching kit) shown here depend on the model and may differ from the illustrations.

29. Maintenance and cleaning (EASY CLEAN)

IMPORTANT- regular, careful maintenance is necessary to ensure that the safety level and performance of the device remain unchanged.

1) Keep all nuts, screws, and bolts tightened to ensure that the device is in perfect working condition. Regular maintenance is necessary for the safety and performance of the device
2) Never store the device with the tank still full in a building where escaping vapors can reach a flame, spark, or heat source.

3) Let the engine cool down completely before storing the device in closed rooms.

4) Keep the engine, exhaust silencer, and fuel tank free of grass, leaves, or excess grease. Never leave containers with cuttings in rooms.

5) For safety reasons, do not use the device when parts are worn or damaged. Parts should be replaced. Repairing damaged parts is not sufficient. Use original spare parts. Parts that are not of the same quality can damage the device and endanger your safety.

6) If the fuel tank needs to be emptied, you should do this outdoors and with the engine cold.

7) Wear solid working gloves when removing or reattaching the blade.

8) Check that the blades are firmly and evenly seated after sharpening.

9) Regularly check the self-closing protective shield and grass catcher bag for wear and tear.

10) When operating, transporting, or tilting the device, please observe the following:

- Wear solid working gloves;

- Hold the device in places that provide a firm grip. Pay attention to weight distribution.

CLEANING (EASY CLEAN function)

Clean the device carefully with water after each cutting operation. Remove the grass and mud deposits that have accumulated inside the undercarriage. This will avoid drying out and possible difficulties when starting the engine again.

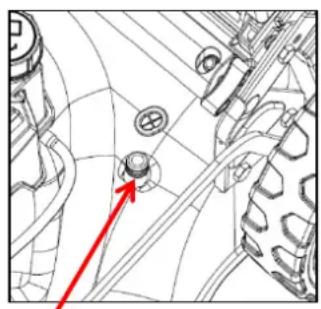

You can use the EASY CLEAN connection to clean the inner housing (cutting unit). Simply connect a water hose to the connection on the top of the housing and slowly turn on the water while the cutting mechanism is running. The rotation of the cutting mechanism distributes the water evenly in the inner housing and can thus flush away dirt residues.

Technical diagram of a vehicle's wheel and gear assembly with a red arrow pointing to a component (no text or labels)

Easy Clean

The paint on the inner side of the undercarriage may flake off over time due to aggressive operations. In this case, you should paint over resistant paint to protect the undercarriage from the corrosion of the metal.

Check the V-belt 1-2 times a year and remove any cuttings from it.

Once a year, the drive wheels should be cleaned inside.

Remove both wheels. Use a brush or compressed air to remove grass and dirt from the gear wheel and gear rim.

30. Care, maintenance, and storage

CHANGING THE CUTTING BLADES

Remove the screw to replace the blade. Empty the fuel tank before removing the blade.

Pure mechanical component diagram without any text, numbers, or symbols

Replace everything, as shown. Fasten the screw properly. The fastening torque is 45Nm. Also, replace the blade screw when replacing the blade.

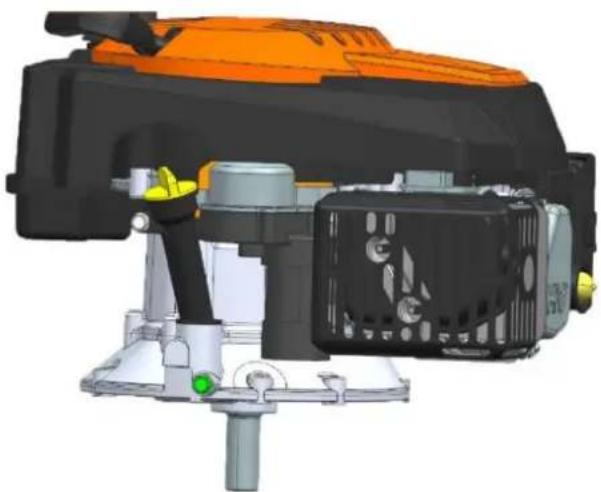

OIL CHANGE

3D mechanical assembly diagram showing internal components with orange and black parts, no visible text or symbols

WARNING: Avoid skin contact with the oil. Wash your hands thoroughly with soap and water after changing the oil.

ATTENTION: Used oil is a hazardous waste product. We recommend that you take used oil to your local disposal center for proper disposal. Do not dispose of the device with household waste

1. Switch off the engine and let it stop completely.
2. Disconnect the spark plug cable and keep it away from the spark plug.
3. Empty the oil into a suitable container. Tilt the lawnmower by 45 degrees and use a FUXTEC suction pump to suck off the oil through the filler neck. Alternatively, you can tilt the mower more to drain the oil through the filler neck.
4. Keep the engine balanced. Remove the dipstick. Slowly add approximately 0.5L of new recommended oil (FUXTEC 4MAX 4 stroke oil) into the container until the dipstick reads the top of the container. Do not overfill the container.
5. Check the level with the dipstick

Spark plug

Remove the spark plug and clean it with a wire brush after the engine has cooled down sufficiently. Using a feeler gauge, set the gap to 0.6 mm. Replace the spark plug, and be careful not to overtighten it.

0,6mm SEALING WASHER

Air Filter

Disconnect the air filter cover. Replace the air filter when dirty to prevent objects from entering the air intake.

Paper item Air filter cover OHV

Emptying the fuel tank and carburetor

Option A (Recommended):

Use a FUXTEC suction pump to suck the gasoline out of the tank or let the mower run empty. Option B:

1. Place a manufacturer's recommended gasoline canister under the carburetor and use a funnel to avoid spills. Tilt the lawnmower forward to prevent spillage.
2. Loosen the drain plug (GREEN in the illustration) and drain the gasoline through a funnel.
3. Tighten the drain plug after all gasoline has drained into the canister. Fasten the drain plug securely.

3D technical illustration of a mechanical engine assembly with orange and black components, no visible text or symbols

Note: We also offer different suction pumps to pump the fuel directly from the tank and even with the electric pump with which you can refuel.

Maintenance schedule

Regular maintenance	Before each use	First month or 5 operating hours	Every 3 months or 25 operating hours	Every 6 months or 50 operating hours	Once a year or 100 operating hours	Every 2 years or 250 operating hours
Engine oil	Check	*
	Change		*	*
Air filter	Check	*
	Change
Spark plug	Check
	Change					*
Fuel tank and filter	Check
	Change
Valve clearance	Check				*
	Change				*
Combustion chamber
	clean	After 200 operating hours

Troubleshooting

The engine does not start	Possible causes	Troubleshooting
1. Check fuel level	No more fuel in the tank	Refill
	Impure gasoline: Engine stored without care, proper emptying of the tank or filled with contaminated gasoline	Empty the tank and the carburetor.Fill up with new fuel (super unleaded)
2. Remove and check the spark plug	Spark plug defective, dirty, or incorrectly attached	Replace the spark plug
	Spark plug flooded with gasoline	Dry and reinstall properly
3. User errors	forgotten to operate the brake lever at start	While the starter is pulled, the upper lever must be pulled to the handle
4. Impurities	Fuel filter or carburetor contaminated	Replace or clean the components
5. Electrical contact	When tightening the engine brake lever, the contact plate at the end of the Bowden cable does not close	Bend back the holder to create the electrical contact

Item	Specification	Maintenance
Spark plug gauge	0,6mm	Check page 69
Valve clearance (cold)	INSIDE: 0,06mm +/- 0,02mmOUTSIDE: 0,08mm +/- 0,02mm	Please contact FUXTEC customer service

STORAGE

The gasoline should not remain in the tank for more than a month. Clean the mower thoroughly and store it in a dry place in the house.

THE ENVIRONMENT

To protect our environment, we recommend that you observe the following points and instructions:

• Always use unleaded gasoline
• Always use a funnel and a fuel canister with a liquid level indicator to avoid spilling fuel during refilling
• Do not fill the tank completely
• Do not overfill the device with engine oil
• When changing the oil, make sure that the used oil is completely collected. Avoid spilling. Take the used oil to a recycling station
• Replace the silencer if it is defective. Only use original spare parts when carrying out repairs
• Seek professional help if the carburetor requires corrections
• Clean the air filter according to the instructions

CUSTOMER SERVICE

FUXTEC provides original spare parts. We recommend that you take the device to an authorized service center for annual maintenance and inspection of the protective devices. For more information about service and spare parts, please contact FUXTEC Customer Service.

31. Warranty

The warranty period is 24 months from the date of purchase. Please keep your proof of purchase in a safe place. Excluded from the warranty are wearing parts and damage caused by improper use, use of force, technical modifications, use of wrong accessories or non-original spare parts, and repair attempts by non-qualified personnel. Authorized dealers may only carry out repairs.

32. Disposal note

The device is in packaging to avoid transport damages. This packaging is raw material and can therefore be reused or returned to the raw material cycle. The device and its accessories consist of different materials, such as metal and plastic. Dispose of defective components in hazardous waste disposal. Ask your local dealer or the municipal administration.

1. Spare parts

Spare parts	Model	Artikelnummer	EAN
Carbuator	4839P From year of manufacture 2018	10002250	4260449128505
	4646,4839P	10002625	4260586991840
	4646ECO,4346,4346ECO	10003007	4260586994872
	FX-RM5196/FX-RM5196PRO/FX-RM5196eS/5396P From year of manufacture 2021,2022,FX-RM5196eSPRO,FX-RM5396PeSPRO	10003361	4260586997378
	5196/5196PRO/5196eS/5396P	10002614	4260586991802
Air filter	FX-RM4646,4646ECO,4839P, 4346, 4346ECO	10002618	4260586991840
	FX-RM5196/FX-RM5196PRO/FX-RM5196eS/5396P/5196eSPRO/5396PeSPRO	10000437	4260449123883
Blade	FX-RM4346,4346ECO
	4646,4646ECO	10002252	4260449128529
	4839P	10002253	4260449128536
	FX-RM5196 /RM5196PRO /RM5196eS /5196eSPRO	10000713	4260249446069
	5396P/FX-RM5396PeSPRO	10002254	4260449128543
Blade holder	FX-RM4346,4346ECO
	FX-RM4646	10002255	4260449128550
	FX-RM4646ECO	10002256	4260449128567
	FX-RM5196/FX-RM5196eS	10001385	4260449121445
	FX-RM51BS675IS	10002628	4260586991925
	FX-RM4839P,5396P	10002257	4260449128574
	FX-RM5396PeSPRO
	FX-RM5196PRO/5196eSPRO	10000738	4260249448254
Recoil starter	all models	10000233	4260249447974
Spark plug	all models	10000250	4260249447868
Driving belt	FX-RM4346
	FX-RM4646	10002260	4260449128604
	FX-RM5196/FX-RM5196eS (Until construction year 2022)	10000712	4260249446151
	FX-RM5196/FX-RM5196eS (From year of construction 2023)
	FX-RM5196PRO/5196eSPRO	10002261	4260449128611
	4839P	10002262	4260449128628
	FX-RM5396PeSPRO
	5396P	10002263	4260449128635

34. EU Declaration of Conformity

Herewith we

FUXTEC GmbH

Kappstrasse69, 71083 Herrenberg-Gültstein - Germany

declare that the device designated below

Engine Lawn Mower, FX-RM5196, FX-RM5196PRO, FX-RM5196eS, FX-RM5396P, FX-5396PeSPRO, FX-RM4646, FX-RM4646ECO, RM4346ECO, RM4346, RM4646, RM5196eSPRO To which this declaration refers, complies with the relevant essential health and safety requirements of the applicable EC Directives 2006/42/EC. This declaration refers only to the device in the condition in which it was placed on the market. Parts added and interventions carried out subsequently by the end-user are not considered.

Relevant EC directives: Devicery Directive 2006/42/EC (Annex I)

Harmonized standards applied: EN ISO 5395-1:2013+A1

EN ISO 5395-2:2013+A1+A2

EU directives also applied:

Emission of gaseous and particulate pollutants from internal combustion engines for non-road mobile devicery and devices

EMC Directive 2014/30/EC

Noise emission directive 2000/14/EC for devices and devices intended for outdoor use

Herrenberg, June 16th, 2023

C. Jille

Leonhard Zirkler

(CEO)

Manufacturer:

FUXTEC GmbH

KAPPSTRASSE 69

71083 HERRENBERG-GÜLTSTEIN

GERMANY

torage of the technical documentation:

FUXTEC GmbH ● Kappstrasse 69 ● 71083 Herrenberg-Gültstein ● Germany

Leonhard Zirkler, CEO

VERSION FRANCAISE

Chère cliente, cher client,

Exterior view of a Juxtec lawn mower with black and orange body (no signage or text visible)

FUXTEC GmbH

Yellow background with black line drawings of two mechanical devices (no text or symbols)

Prohibition sign with pictogram of a person pulling a vehicle, indicating no illegal or passive transport

Safety warning sign with pictogram and crossed-out red X symbol indicating blocked groups

Diagram of a car engine with a hand pouring liquid into a container, showing mechanical components and a rotary knob (no text or symbols)

Technical diagram illustrating the assembly of a lawn mower with numbered steps and component details.

Close-up of hands operating a black digital camera with a yellow sensor on the handle (no visible text or symbols)

Close-up of a black electronic device with an orange top and blue indicator light (no visible text or symbols)

Hand holding a black device with a red and orange panel, displaying three colored buttons (blue, yellow, green) on its screen.

Close-up of a blue circular button with a red square on a dark background (no text or symbols visible)

Close-up of a control panel with a blue circular indicator and three colored squares (red, yellow, black) on a dark background (no text or symbols visible)

Close-up of a control panel with a blue circular indicator and three colored square buttons (red, yellow, green) on a dark background.

Max in °C Li-ion Charging before storage

Close-up of a hand operating a black mechanical device with a cup and cable (no visible text or symbols)

Top-down view of a black plastic component with an orange rectangular block on the right side (no text or symbols visible)

Close-up photo of a mechanical component with labeled parts A and B, showing red tool tips and a close-up view.

Close-up of a person using a black lawn mower with orange wheels and handlebars (no visible text or symbols)

Black plastic enclosure with internal compartments and mounting holes (no text or symbols visible)

Technical diagram of a mechanical assembly with no visible text or symbols

Raccord Easy Clean

Mechanical component diagram showing a fan blade with a central hub and a pointer, no text or symbols present.

3D mechanical assembly diagram showing orange and black components mounted on a base (no visible text or symbols)

0,6mm SEALING WASHER

3D technical illustration of a hybrid electric vehicle engine assembly (no visible text or symbols)

Exterior view of a black and orange LVM 400 lawn mower with attached circuit breakers (no text or symbols visible)

FUXTEC GmbH

Kappstraße 69, 71083 Herrenberg-Gültstein, Germania

Attenzione

Yellow warning sign with black pictograms of a hand holding a tool, no text or symbols present

Prohibition sign with pictogram of a person pulling a vehicle, no text present

Safety warning sign with pictograms and crossed-out red X symbols indicating blocked or invalid conditions

Line drawing of a robotic car with a hand pouring liquid into a container (no text or symbols)

Technical diagram illustrating the assembly of a lawn mower with labeled parts and motion arrows

Two black automotive motor components with attached wiring and connectors, shown from different angles (no text or symbols visible)

Two views of a black industrial machine with attached components, one being handled and the other holding a handle (no visible text or symbols)

Close-up of hands operating a black digital camera with a rotary dial and handle (no visible text or symbols)

Close-up of a black electronic device with an orange top and blue control knob (no visible text or symbols)

Hand holding a black electronic device with a control panel and three colored buttons (blue, yellow, green) on its screen.

Close-up of a blue circular button with a red square on a dark background (no text or symbols visible)

Close-up of a control panel with a blue circular indicator and two colored squares (red and yellow) on a dark background.

Close-up of a control panel with four colored buttons (blue, red, yellow, green) on a dark background, no visible text or symbols.

Max Li-ion Charging before storage

Close-up photo of a mechanical component with labeled parts A and B, showing tool and assembly details.

Close-up of hands operating a lawn mower with orange and black wheels (no visible text or symbols)

Black plastic enclosure with internal compartments and ventilation slots (no text or symbols visible)

3D rendering of a mechanical component with no visible text or symbols

3D mechanical assembly diagram showing orange and black components mounted on a base (no visible text or symbols)

0,6mm SEALING WASHER

Filtro dell'aria

3D technical illustration of a mechanical engine assembly with orange and black components, no visible text or symbols

Black and orange LOPM lawn mower with visible branding (no text or symbols on the motor body)

FUXTEC GmbH

Kappstraße 69, 71083 Herrenberg-Gültstein, Alemania

Technical diagram of a vehicle engine component with labeled parts and an inset magnified view showing max/min dimensions.

Diagram of a robotic vacuum cleaner with a hand pouring liquid into it, showing mechanical components and a rotary knob (no text or symbols)

Close-up of a black electronic device with an orange button and three control buttons (no visible text or symbols)

Hand holding a black device with a blue control knob and three colored buttons (red, yellow, green) on its side (no visible text or symbols)

Close-up of a blue circular button with a red square on a dark background (no text or symbols visible)

Close-up of a blue circular button with three colored squares (red, yellow, green) on a dark background, no text or symbols visible.

Close-up of a control panel with a blue circular indicator and three colored square buttons (red, yellow, green) on a dark background.

Charging before storage

Close-up of a hand adjusting a black mechanical component with wires and a cylindrical tank (no visible text or symbols)

Top-down view of a black plastic electronic component with an orange rectangular slot (no text or symbols visible)

Diagram of a mechanical lever structure with red and black components, no text or symbols present

Technical diagram showing mechanical assembly with labeled parts A and B, highlighting a red tool path.

Close-up of a person using a black lawn mower with orange wheels and handlebars (no visible text or symbols)

Black plastic enclosure with internal compartments and mounting holes (no text or symbols visible)

Collegamento Easy Clean

3D rendering of a mechanical component with no visible text or symbols

3D mechanical assembly diagram showing internal components with orange and black parts, no visible text or symbols

3D technical illustration of a hybrid electric vehicle (no text or symbols visible)

Leonhard Zirkler (Director General)

Fabricante:

FUXTEC GmbH KAPPSTRASSE 69

71083 HERRENBERG-GÜLTSTEIN ALEMANIA

Exterior view of a black and orange L4 lawn mower with visible branding (no text or symbols on the main body)

FUXTEC GmbH

Kappstraße 69, 71083 Herrenberg-Gültstein, Alemanha

Achtung

Yellow background with black line drawings of two mechanical components (no text or symbols)

Prohibition sign with pictogram of a person using a cart and no sign, indicating no illegal transport or disposal.

Safety warning sign with pictograms and crossed-out red cross symbol

Diagram of a car engine with a hand pouring liquid into a container, showing mechanical components and a rotary knob (no text or symbols)

Technical diagram illustrating the assembly of a lawn mower with labeled parts and motion arrows

Two black automotive motor components with attached wiring and connectors, shown from different angles (no text or symbols visible)

Two views of a black industrial machine with attached control panel and yellow buttons, no visible text or symbols.

Close-up of hands operating a black digital camera with a rotary knob (no visible text or symbols)

Close-up of a black electronic device with an orange top and blue indicator light (no visible text or symbols)

Close-up of a hand holding a black electronic device with a red and orange screen, showing a finger pressing the button (no visible text or symbols)

Close-up of a blue circular button with a red square on a dark background (no text or symbols visible)

Close-up of a control panel with a blue circular indicator and three colored squares (red, yellow, green) on a dark background.

Close-up of a control panel with a blue circular indicator and three colored square buttons (red, yellow, green) on a dark background.

Max to °C Li-ion Charging before storage

Close-up of a person using a black lawn mower with orange wheels and handlebars (no visible text or symbols)

Black plastic container with internal compartments and grid lines (no text or symbols visible)

Technical diagram of a mechanical assembly with no visible text or symbols

Ligação Easy Clean

Pure mechanical component diagram without any text, numbers, or symbols

3D mechanical assembly diagram showing a motor with orange top and black body, no visible text or symbols

0,6mm SEALING WASHER

Filtro de ar

Retirar a tampa do filtro de ar. Substituir o filtro de ar se estiver sujo para evitar a entrada de objectos na entrada de ar.

Papierelement Luftfilterabdeckung OHV

Esvaziar o depósito de gasolina e o carburador

3D technical illustration of a mechanical engine assembly with orange and black components, no visible text or symbols

Exterior view of a black and orange LUXTEC lawn mower (no signage or text visible)

FUXTEC GmbH

Kappstraße 69, 71083 Herrenberg-Gültstein, Duitsland

Achtung

Yellow background with black line drawing of two abstract shapes resembling tools or devices (no text or symbols)

Prohibition sign with pictogram of person using a cart and no text, indicating no illegal activity or restriction

Safety warning sign with pictograms and crossed-out red prohibition symbols

Technical diagram of a mechanical device with labeled components and an inset showing a magnified detail of a component.

Line drawing of a robotic car with a hand pouring liquid into a container (no text or symbols)

Technical diagram illustrating the assembly of a lawn mower with numbered steps and component details.

Grasvanger monteren ① ② ③

Batterijbevestiging model FX-RM5196eS, FX-RM5196eSPRO, FX-RM5396eSPRO

Two black automotive motor components with attached wiring and connectors, shown from different angles (no text or symbols visible)

Two views of a black industrial machine with attached components, one being handled and the other holding a handle (no visible text or symbols)

Close-up of hands operating a black digital camera with a rotary dial (no visible text or symbols)

Close-up of a black electronic device with an orange top and blue indicator light (no visible text or symbols)

Close-up of a hand holding a black electronic device with a red and orange button, displaying three colored buttons (blue, yellow, green) on its screen.

Close-up of a blue circular button with a red square on a dark background (no text or symbols visible)

Close-up of a control panel with a blue circular indicator and three colored squares (red, yellow, green) on a dark background.

Close-up of a blue circular indicator with three colored squares (red, yellow, green) on a dark background, no visible text or symbols.

Max to °C Li-ion Charging before storage

Close-up of a person using a black lawn mower with orange wheels and handlebars (no visible text or symbols)

Black plastic electrical plug with internal circuitry (no text or symbols visible)

Technical diagram of a mechanical assembly with no visible text or symbols

Gemakkelijk schoon

Pure mechanical component diagram without any text, numbers, or symbols

3D mechanical assembly diagram showing internal components and mounting base (no visible text or symbols)

0,6mm SEALING WASHER

Luchtfilter

3D technical illustration of a mechanical engine assembly with orange and black components, no visible text or symbols

Exterior view of a black and orange Fuxtec lawn mower (no signage or text visible)

FUXTEC GmbH

Kappstraße 69, 71083 Herrenberg-Gültstein, Tyskland

Achtung

Yellow background with black line drawings of two mechanical components (no text or symbols)

Prohibition sign with pictogram of a person using a cart and no sign, indicating no illegal transport or disposal.

Safety warning sign with pictograms and crossed-out red prohibition symbols

Illustration of a robotic vacuum cleaner with a hand pouring liquid into it (no text or symbols)

Technical diagram illustrating the assembly of a lawn mower with labeled parts and motion arrows

Close-up of hands operating a black digital camera with a yellow button, no visible text or symbols

Close-up of a black electronic device with an orange top and blue indicator light (no visible text or symbols)

Close-up of a hand holding a black device with a blue control knob and three colored buttons (orange, red, green) on its side (no visible text or symbols)

Close-up of a blue circular button with a red square on a dark background (no text or symbols visible)

Close-up of a blue circular button with three colored squares (red, yellow, green) on a dark background, no text or symbols visible.

Close-up of a control panel with a blue circular indicator and three colored square buttons (red, yellow, green) on a dark background.

Charging before storage

Black plastic enclosure with internal compartments and ventilation slots (no text or symbols visible)

Close-up of a person using a grass lawn mower with orange wheels and black casing (no visible text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Pure mechanical component diagram without any text, numbers, or symbols

3D mechanical assembly diagram showing internal components and mounting base (no visible text or symbols)

0,6mm SEALING WASHER

Luftfilter

3D technical illustration of a mechanical engine assembly with orange top and black body, showing internal components like valve and shaft (no text or symbols)

POLSKA WERSJA JEZYKOWA

Drogi kliencie,

Exterior view of a black and orange L400 lawn mower with visible branding (no text or symbols on the main body)

FUXTEC GmbH

Kappstraße 69, 71083 Herrenberg-Gültstein, Niemcy

Achtung

Yellow background with black line drawings of two mechanical components (no text or symbols)

Prohibition sign with pictogram of a person using a cart and no sign, indicating no illegal transport or disposal.

Safety warning sign with pictograms and crossed-out red prohibition symbols

Technical diagram of a mechanical device with labeled components and an inset showing a magnified detail of a component.

Line drawing of a robotic car with a hand pouring liquid into a container (no text or symbols)

Technical diagram illustrating the assembly of a lawn mower with numbered steps and component details.

Two black automotive motor components with attached wiring and connectors, shown from different angles (no text or symbols visible)

Two black industrial equipment components with yellow buttons and control knobs, being handled by hands (no visible text or symbols)

Close-up of hands operating a black digital camera with a rotary knob (no visible text or symbols)

Close-up of a black electronic device with an orange component and a blue indicator light (no visible text or symbols)

Close-up of a hand holding a black device with a control panel and three colored buttons (blue, red, green) on its side (no visible text or symbols)

Close-up of a blue circular button with a red square on a dark background (no text or symbols visible)

Close-up of a control panel with a blue circular indicator and two colored squares (red and yellow) on a dark background.

Close-up of a control panel with a blue circular indicator and three colored square buttons (red, yellow, green) on a dark background.

Charging before storage

Close-up of a person using a black lawn mower with orange wheels and handlebars (no visible text or symbols)

Black plastic electrical outlet cover with grid lines (no text or symbols visible)

Technical diagram of a mechanical assembly with no visible text or symbols

Pure mechanical component diagram without any text, numbers, or symbols

3D mechanical assembly diagram showing internal components and mounting base (no visible text or symbols)

0,6mm SEALING WASHER

Filtr powietrza

3D technical illustration of a mechanical engine assembly with orange and black components, no visible text or symbols
