USER MANUAL FX-E1RM20ECO Fuxtec

Line drawing of a lawn mower with extended blade and handle (no text or symbols)

Orange icon of a person reading a book (no text or symbols)

Icon of a hand pointing at an open book with horizontal lines representing text (no actual text or symbols)

Inhalt

DEUTSCHE VERSION 7

ENGLISH VERSION....24

VERSION FRANCAISE 40

1. Introduction and safety 24
2. Use and treatment of the power tool 26
3. Use and handling of the cordless tool.... 26
4. Safety Instructions for Lawn Mowers.... 27
5. Safety instructions for the charger 28
6. Safety Instructions for Li-Ion Batteries.... 29
7. Safety instructions on the mower 30
8. Presentation 31
9. Switching the device on/off 35
10. Lawn care tips.... 36
11. Cutting height adjustment 36
12. Disposal 37
13. Technical Data 38
14. EU Declaration of Conformity 39

VERSION FRANCAISE 40

Technical diagram of a lawn mower with numbered parts for identification and assembly reference.

2 Lithium-ion Pack in the following section: ④

Diagram of a plug with labeled parts, showing numbered annotations 1 and 2 pointing to specific components.

Technical line drawing of a car body panel (no text or symbols)

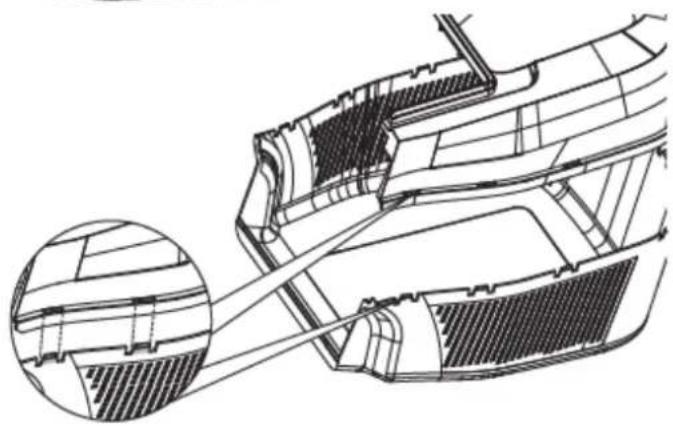

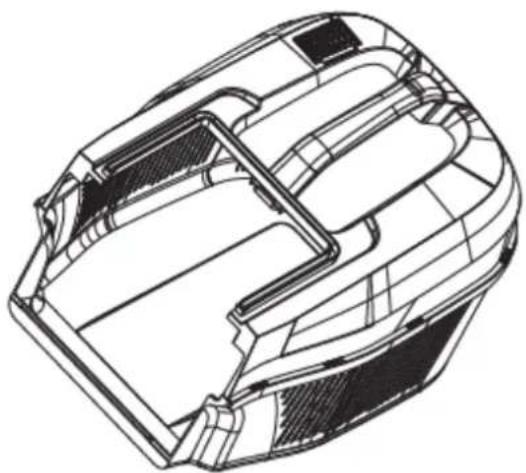

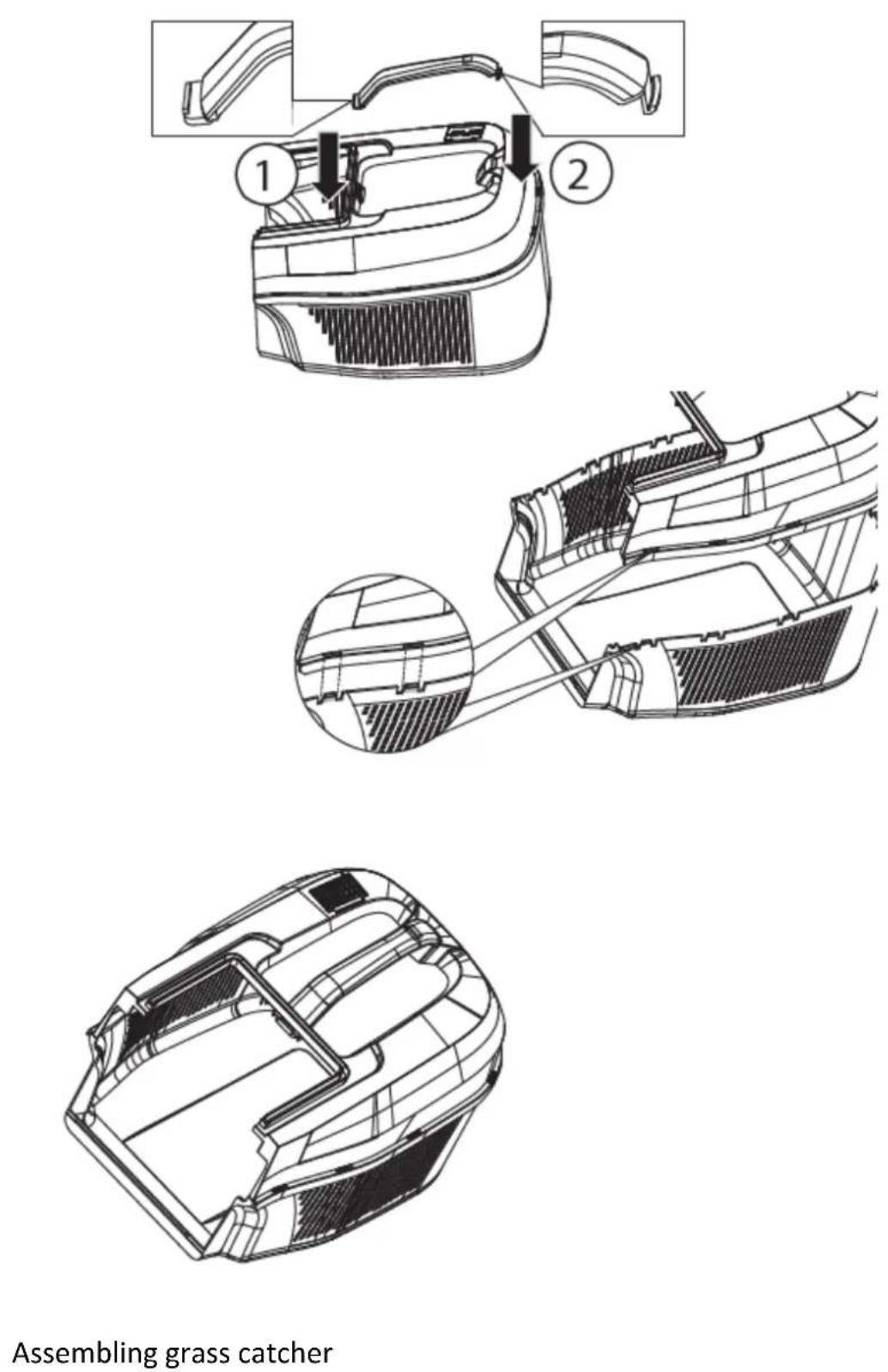

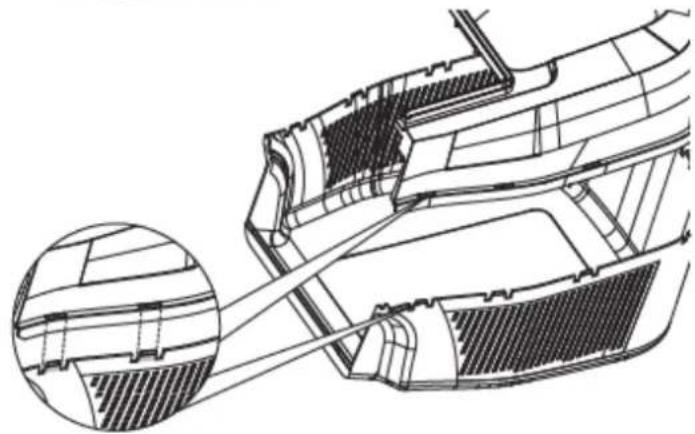

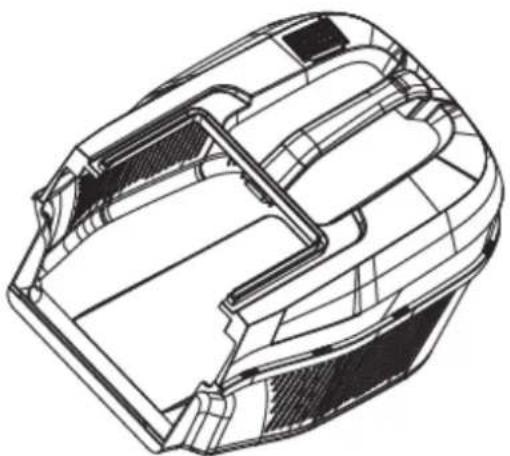

Aufbau Grasfangkorb

Technical diagram showing two types of lawn mawls with labeled components and mechanical parts, including lock mechanisms and gear assembly.

70mm 50mm 30mm

30mm 1 50mm 2 70mm 3

Recycling raw materials instead of waste disposal.

MD Directive: 2006 / 42 / EC

2014/30/EU

Angewandte Normen / applicable standards

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021

EN 60335-2-77:2010

EN IEC 55014-1: 2021

EN IEC 55014-2: 2021

Hereby we declare that the above mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

15. Introduction and safety

Never allow children or persons unfamiliar with these instructions to use the garden device. Children should be supervised to ensure that they do not play with the appliance.

Intended use

This device is intended exclusively for mowing lawns in private areas.

The device must be used following the descriptions

and safety instructions are given in this user manual. Any other use is not intended. Unauthorized use will invalidate the warranty and override any responsibility on the part of the manufacturer. The user is liable for all damages to third parties and their property. Operate the device only in the technical condition prescribed and delivered by the manufacturer. Unauthorized modifications to the device exclude the manufacturer's liability for any resulting damage.

General safety instructions for power tools

WARNING!

Read all safety notices and instructions. Failure to follow the safety instructions and instructions can cause electric shock, fire, and/or severe injury.

Keep all safety notes and instructions for future reference.

The term power tool used in the safety instructions refers to mains operated power tools (with power cord) and cordless power tools (without power cord).

Workplace Safety

- Keep your work area clean and well lit. Clutter or unlit work areas can lead to accidents.

- Do not work with the power tool in explosive environments containing flammable liquids, gases, or dust. Power tools produce sparks that can ignite the dust or fumes.

- Keep children and other persons away while using the power tool. If distracted, you may lose control of the device.

Electrical Safety

- The plug of the power tool must fit into the socket. The cap must not be changed in any way. Do not use adapter plugs together with grounded power tools. Unchanged plugs and suitable sockets reduce

the risk of electric shock.

- Avoid physical contact with grounded surfaces such as pipes, heaters, stoves, and refrigerators. There is an increased risk of electric shock if your body is grounded.

- Keep power tools away from rain or moisture. The penetration of water into a power tool increases the risk of electric shock.

- Do not use the cable to carry or hang up the power tool or to pull the plug from the socket. Keep the cord away from heat, oil, sharp edges, or moving parts. Damaged or tangled cables increase the risk of electric shock.

- If you use a power tool outdoors, only use extension cables that are suitable for outdoor use. The use of an extension cable ideal for outdoor use reduces the risk of electric shock.

- If you use a power tool outdoors, only use extension cables that are suitable for outdoor use. The use of an extension cable ideal for outdoor use reduces the risk of electric shock.

Safety of Persons

- Be alert, pay attention to what you are doing, and use common sense when working with a power tool. Do not use a power tool if you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while utilizing the power tool can cause serious injury.

- Wear personal protective equipment and always protective goggles. Wearing personal protective equipment, such as dust mask, non-slip safety shoes, safety helmet or hearing protection, depending on the type and use of the power tool reduces the risk of injury.

- Avoid unintentional commissioning. Make sure that the power tool is switched off before connecting it to the power supply and/or battery, picking it up or carrying it. If you have your finger on the switch when carrying the power tool or if you connect the device to the power supply while it is switched on, this can lead to accidents.

- Remove adjustment tools or wrenches before turning on the power tool. A tool or key that is in a rotating part of the device can cause injury.

- Avoid an abnormal posture. Make sure you have a secure footing and keep your balance at all times. This allows you to better control the power tool in unexpected situations.

- Wear suitable clothing. Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can be caught by moving parts.

16. Use and treatment of the power tool

- Do not overload the device. Use the appropriate power tool for your work. With the right power tool, you will work better and safer in the specified power range.

- Do not use a power tool with a defective switch. A power tool that can no longer be switched on or off is dangerous and must be repaired.

- Unplug the power cord and/or remove the battery before making any adjustments to the device, changing accessories, or putting the device away. This precaution prevents unintentional starting of the power tool.

- Keep unused power tools out of the reach of children. Do not allow persons to use the device which is not familiar with it or have not read these instructions. Power tools are dangerous if they are used by inexperienced persons.

- Maintain power tools with care. Check that moving parts function correctly and do not jam, that parts are not broken or damaged in such a way that the function of the power tool is impaired. Have damaged parts repaired before using the device. Many accidents are caused by poorly maintained power tools.

- Keep cutting tools sharp and clean. Carefully maintained cutting tools with sharp cutting edges jam less and are easier to guide.

- Use power tools, accessories, insertion tools, etc. according to these instructions. Take into account the working conditions and the job to be performed. The use of power tools for applications other than those intended can lead to dangerous situations.

17. Use and handling of the cordless tool

- Charge the batteries only with chargers recommended by the manufacturer. A charger that is suitable for a particular type of battery poses a fire hazard when used with other batteries.

- Only use the batteries provided in the power tools. Using other batteries may result in personal injury and fire hazards.

- Keep the unused battery away from paper clips, coins, keys, nails, screws, or other small metal objects that could cause the contacts to bridge. A short circuit between the battery contacts can cause burns or fire.

- The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin

irritation or burns.

18. Safety Instructions for Lawn Mowers

• For your safety and the safety of others, read this user manual and its safety instructions before using the device. Please keep the user manual and its safety instructions in a safe place for future reference and keep them handy for any use.
• Pass on the operating instructions with the device if there is a change of ownership.
• Persons operating the device must not be under the influence of intoxicating substances (e.g., alcohol, drugs, or medicines).
• Operate the device only in the condition prescribed and delivered by the manufacturer. Unauthorized modifications to the device exclude the manufacturer's liability for any resulting damage.
• Only use the device in daylight or under good artificial lighting.
• Only use the device in dry weather conditions. Keep it away from rain or moisture. The penetration of water into the device increases the risk of electric shock.
• Switch off the device and remove the battery in the following conditions:

♦ if the device is left unattended;
- before checking, cleaning or other work on the device;
♦ if the device starts to vibrate excessively.

Before Use

• Familiarize yourself with the device and its functions and controls before starting work.
• Check the device for signs of wear or damage before starting up and after a collision.
• Do not use a device whose switch is defective and can no longer be switched on or off.
• Check that all nuts, bolts, and screws are tight to ensure that the device is operated safely.
• Never use a device with damaged or missing parts. Have them repaired or replaced if necessary by a qualified specialist or workshop.
• When working with or on the device, always wear sturdy shoes, long trousers, and the appropriate personal protective equipment (safety goggles, hearing protection, non-slip work gloves, etc.). The wearing of personal protective equipment reduces the risk of injury.

During Operation

Do not switch on the device if persons (especially children) or animals are in the immediate vicinity. Make sure that children do not play with the device.

Interrupt work if you notice that people (especially children) or pets are nearby.

Working on steep slopes can be dangerous. Make sure that you have a firm stand and mow slowly. Always mow across the slope and not up and down. Be especially careful when changing directions. There is a danger of tipping over!

Do not mow on steep slopes. Be especially careful if you move backward when mowing and pull the mower onto yourself.

Do not tilt the mower when starting the motor.

Keep a safe distance, as indicated by the handle frame.

Do not start the motor until your feet are at a safe distance from the cutter bar. Be careful not to reach into the rotating cutter bar. Switch off the mower before tipping or transporting it, e.g., from/to lawn or over paths. Never drive over gravel while the motor is running. There is the danger of being hit by stones!

Before lifting or transporting the mower, turn off the motor, remove the safety key and service until the cutting bar has come to a standstill. Do not adjust the cutting height until the motor is switched off, and the cutter bar has come to a standstill. Never open the discharge hatch while the motor is running. Before removing the grass catcher, switch off the motor and wait until the cutter bar has come to a standstill. After emptying the grass catcher, carefully re-attach it and ensure that the grass catcher is securely attached to the mower. If possible, do not mow wet grass. Do not work with the garden device in a potentially explosive environment where there are flammable liquids, gases, or dust. If you interrupt work, never leave the device unattended and store it in a safe place.

After use

Switch off the device and remove the battery from the mower. Then place the unit in a safe place. Do not store the device within reach of children. Make sure that the ventilation slots in the device are clean.

Keep all nuts, bolts, and screws tightened to ensure that the mower is in safe working condition.

Check the grass catcher frequently for wear or damage.

Only use the cutter bar designed for this mower.

Please follow the provided installation instructions and remove the battery before.

Have repairs carried out only by a qualified technician or service center.

19. Safety instructions for the charger

- Keep the charger away from rain or moisture. The penetration of water into a charger increases the risk of electric shock.

- Keep the charger clean. There is a risk of electric shock from soiling.

- Check the charger, cable, and plug before each use. Do not use the charger if you notice any damage. Do not open the charger yourself and have it repaired only by qualified personnel and only with original spare parts.

Damaged chargers, cables, and connectors increase the risk of electric shock.

- Do not place objects on the charger or place them on soft surfaces. There is a risk of fire.

- Always check that the mains voltage corresponds to the voltage indicated on the charger's nameplate.

- Never use the charger if the cable, plug, or the device itself is damaged by external influences. Take the charger to the nearest specialist workshop.

- Never open the charger under any circumstances. Take it to a specialist workshop in the event of a fault.

20. Safety Instructions for Li-Ion Batteries

- Do not open the battery. There is a danger of a short circuit.

- Protect the battery from heat, including continuous exposure to sunlight, fire, water, and moisture. There is a danger of explosion.

- Vapors may escape if the battery is damaged or misused. Supply fresh air and consult a doctor if you have any complaints. The vapors may irritate the respiratory tract.

- The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or burns.

- Only use original rechargeable batteries with the voltage specified on the rating plate of your power tool. When using other batteries, e.g., imitation reconditioned batteries or batteries from different manufacturers, there is a risk of injury and material damage due to exploding batteries.

- The battery voltage must match the battery charging voltage of the charger. Otherwise, there is a risk of fire and explosion.

- Charge the batteries only with chargers recommended by the manufacturer. A charger that is suitable for a particular type of battery poses a fire hazard when used with other batteries.

- The battery can be damaged by pointed objects such as nails or screwdrivers or by an external force. An internal short circuit may occur, and the battery may burn, smoke, explode or overheat.

21. Safety instructions on the mower

Danger: keep hands and feet away from the cutting unit

Keep people at least 15 metres away from the work surface as there is a risk of flying parts.

Please wear safety goggles and hearing protection.

Caution: After switching off the motor, the blade / cutting tool may continue to run minimally.

Read the manual carefully before using your mower. Do not expose the mower to rain or moisture.

Remove the safety key before carrying out any maintenance or work on the mower. We also recommend that you remove the battery before carrying out these activities.

22. Presentation

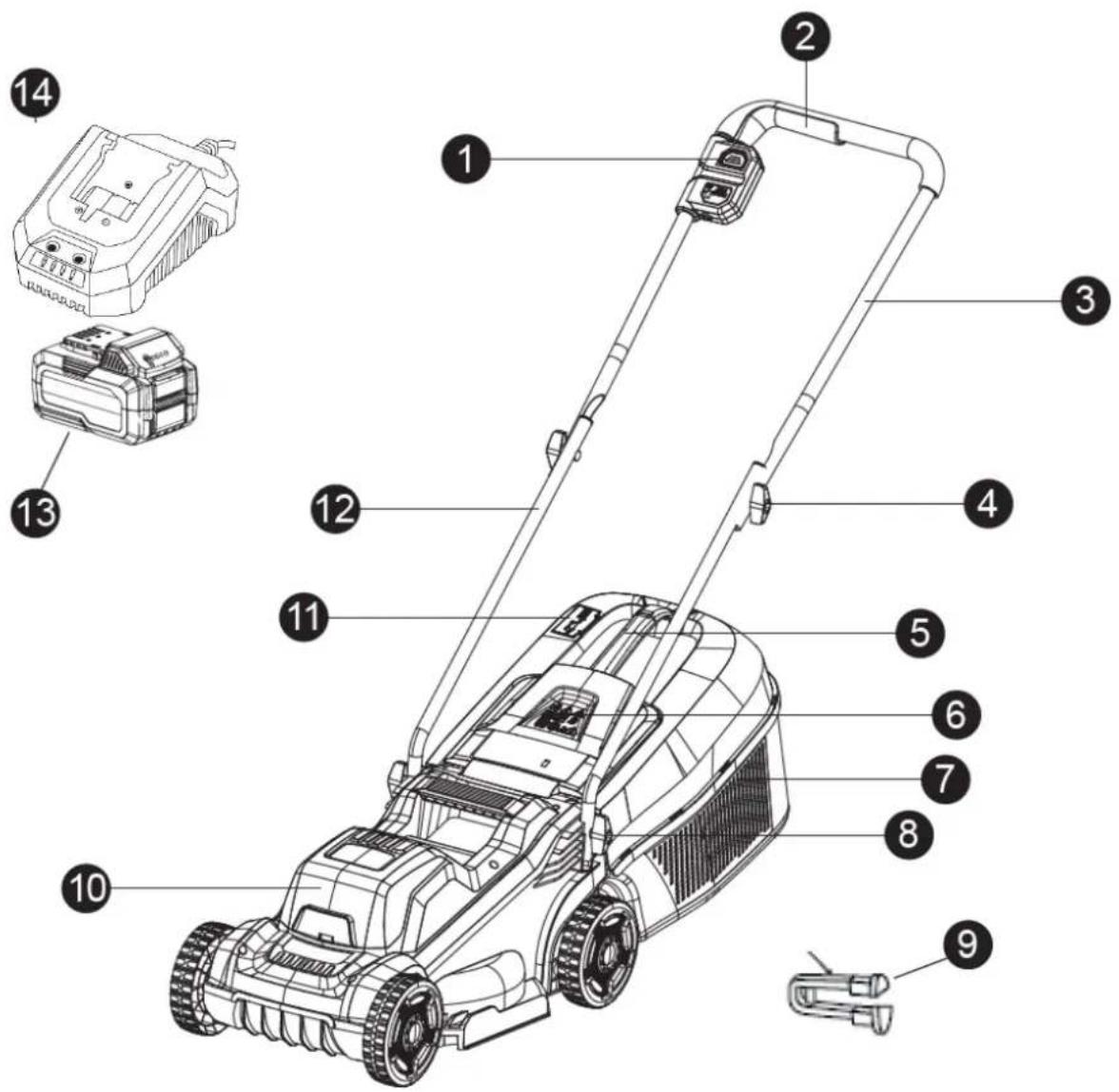

Technical diagram of a lawn mower with numbered parts for identification and assembly reference.

Illustration: Lawn mower

1. Safety switch 9. security key
2. throttle grip 10. battery compartment cover
3. upper tie bar 11. grass catcher fill level indicator
4. wing screws 12. lower tie bar
5. handle grass catcher 13. battery pack
6. grass catcher cover 14. charger
7. grass catcher
8. fastening lower tie bar

1 ① ② ③

2 Lithium ion Plate in voltage input ④

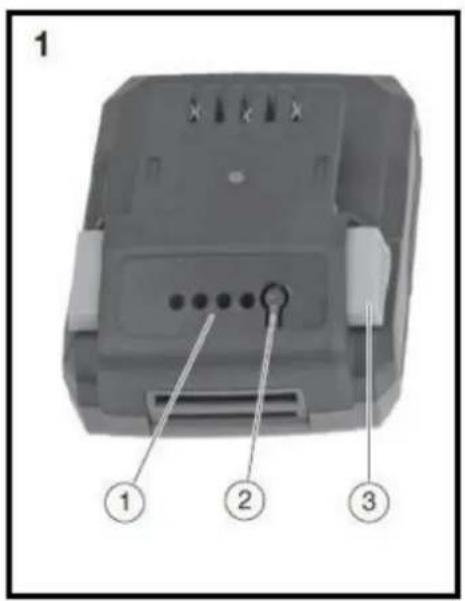

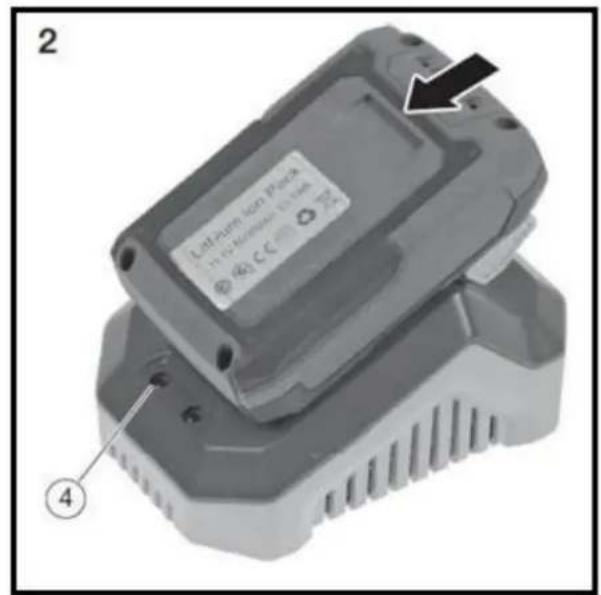

Figure: Rechargeable battery and charger (dual charger as shown on the the right is included)

1. Battery level indicator
2. Push button to display the charging capacity
3. Locking button (locks in place when inserted into charger or mower)
4. Control lights (in the right picture point 4)

Diagram of a plug with labeled parts, showing numbered annotations 1 and 2 pointing to specific components.

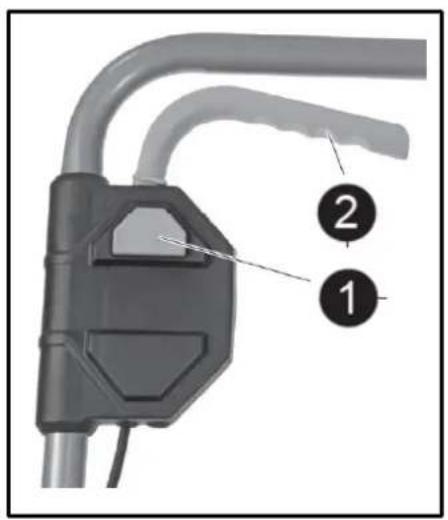

Figure: Close-up of the safety button and the on/off switch or handle.

1

Illustration of two identical lawn grasses with lock icons, no text or symbols present

2

Three-step diagram showing mechanical assembly with lock mechanism, no text or symbols present

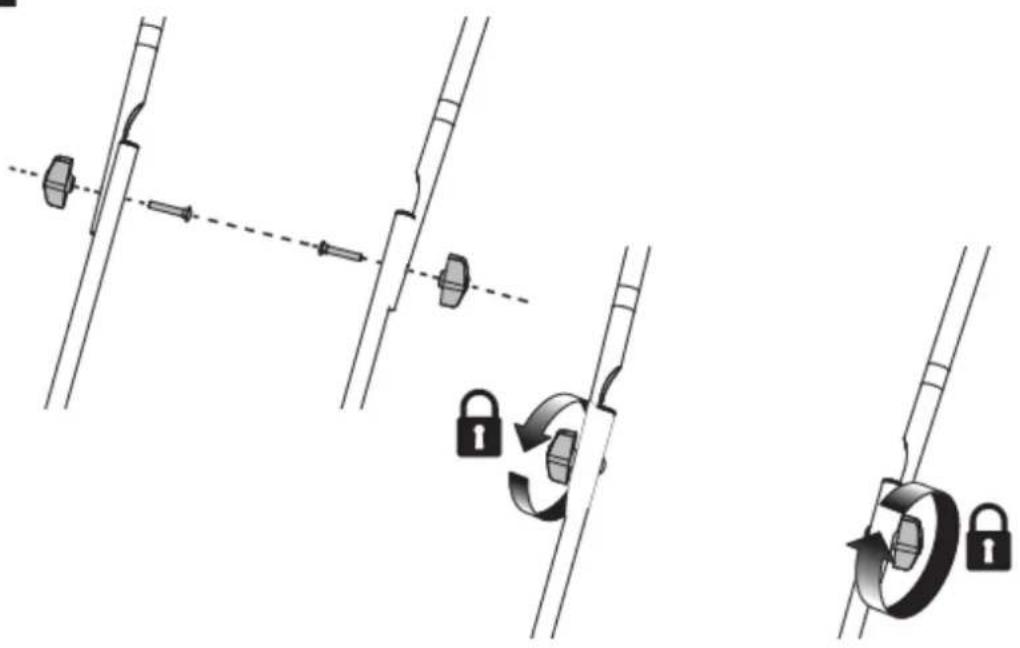

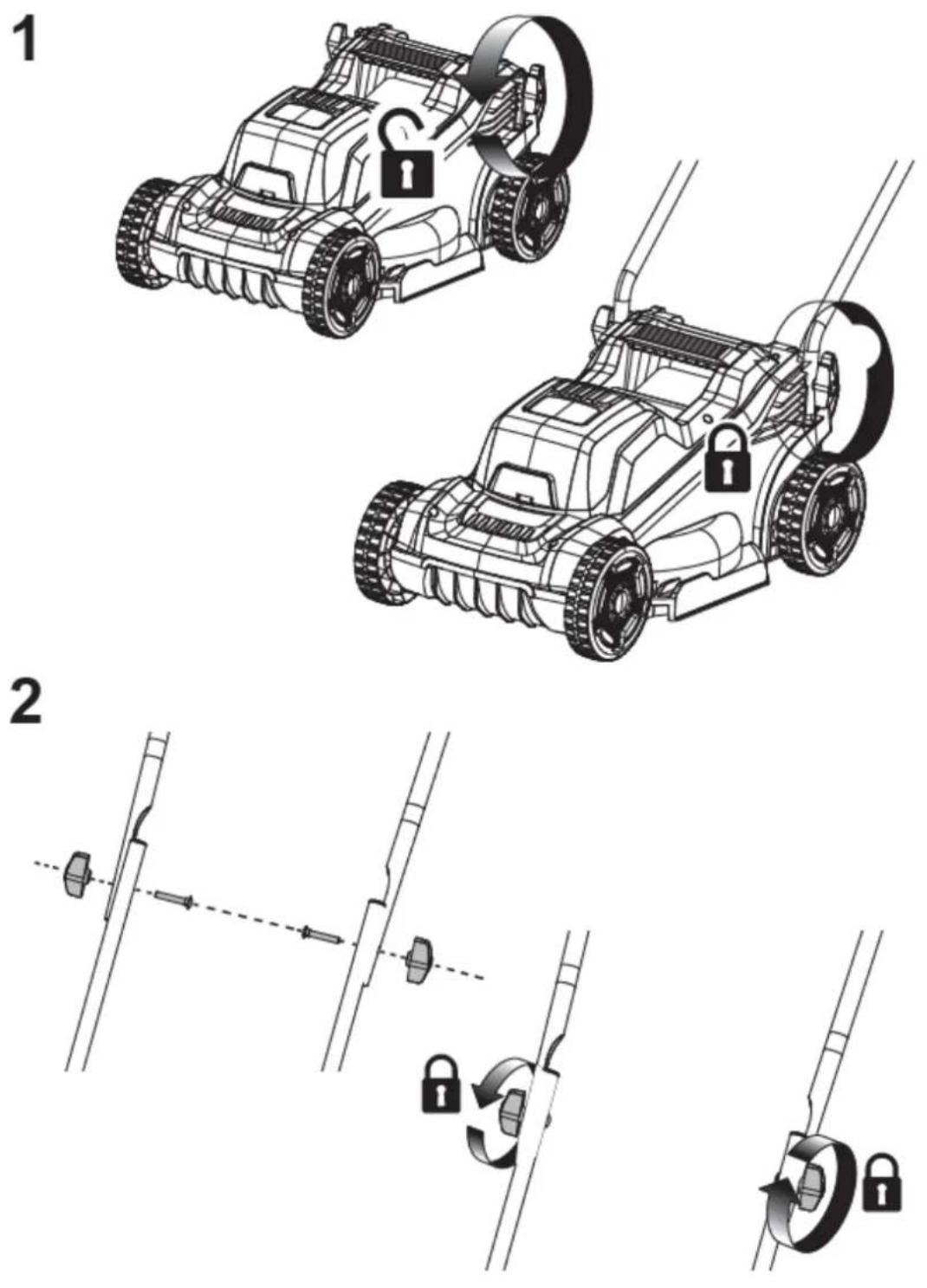

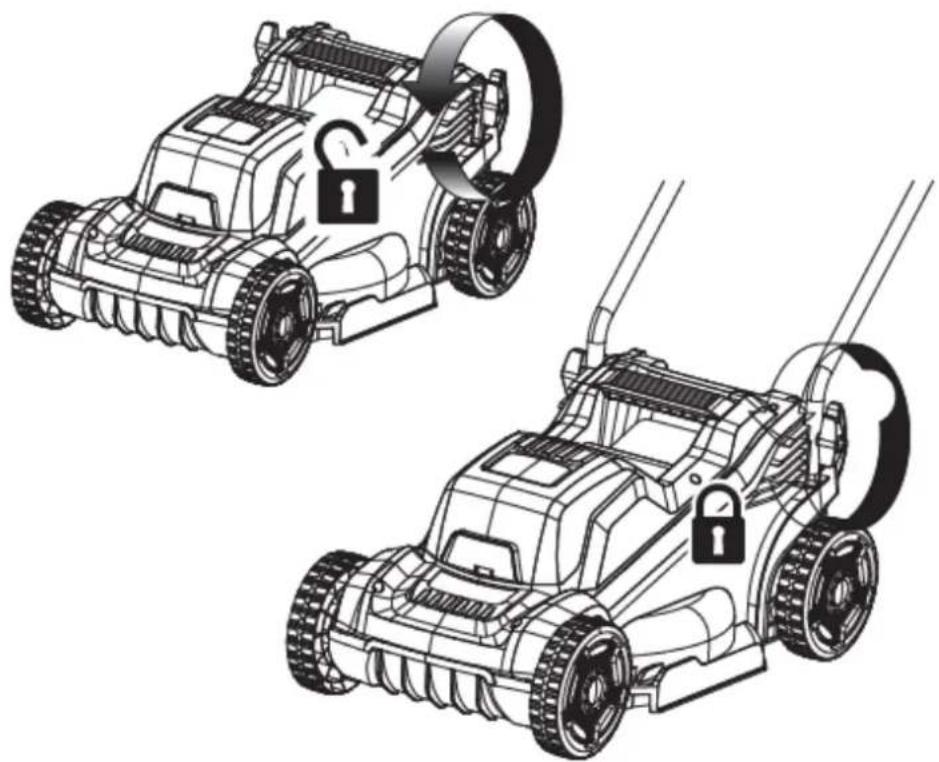

Assembling the bars

Manual_FX-E1RM20ECO_Int24_rev1

Technical diagram showing two types of lawn mawers with labeled parts, including lock mechanisms and mechanical components.

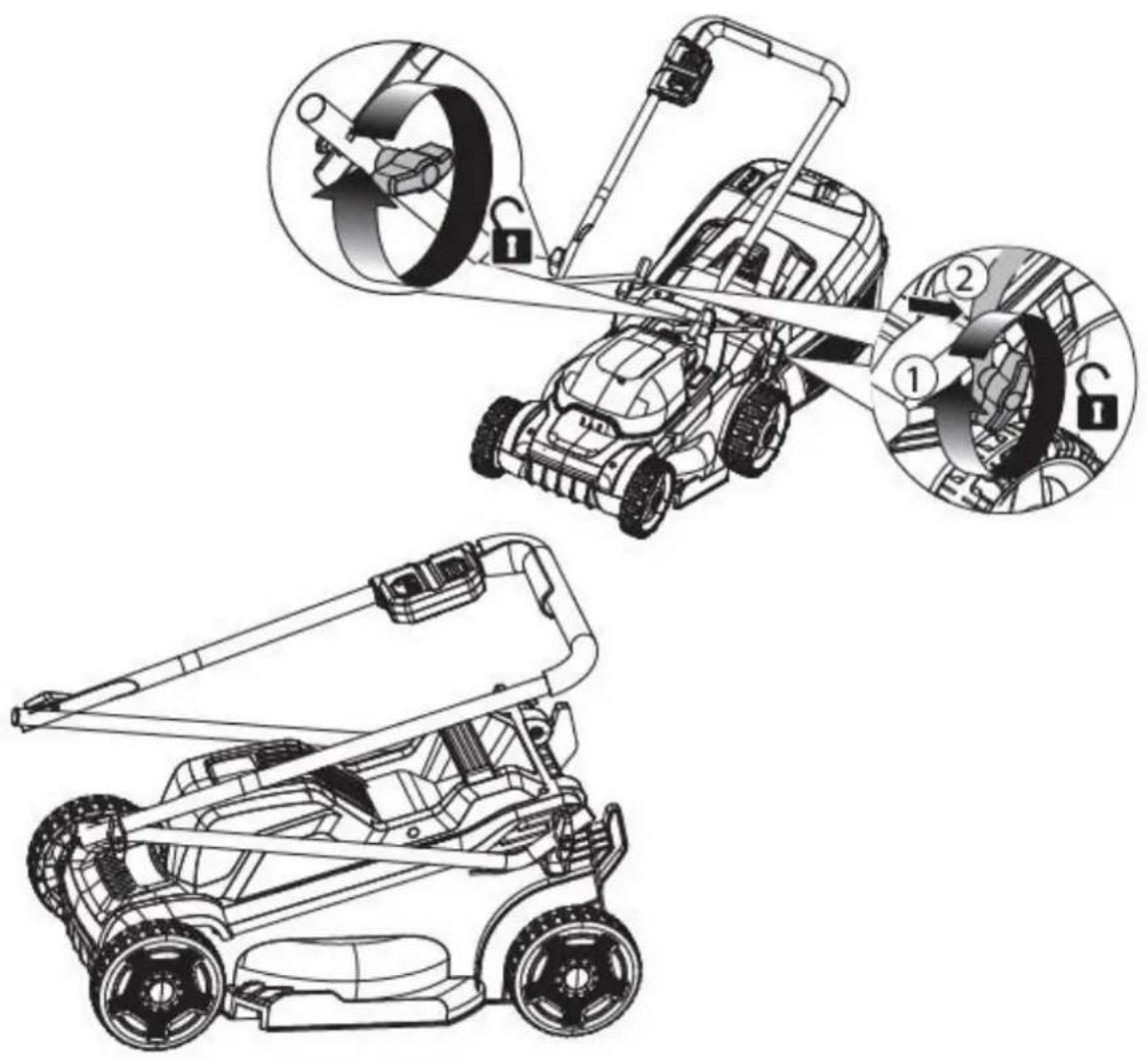

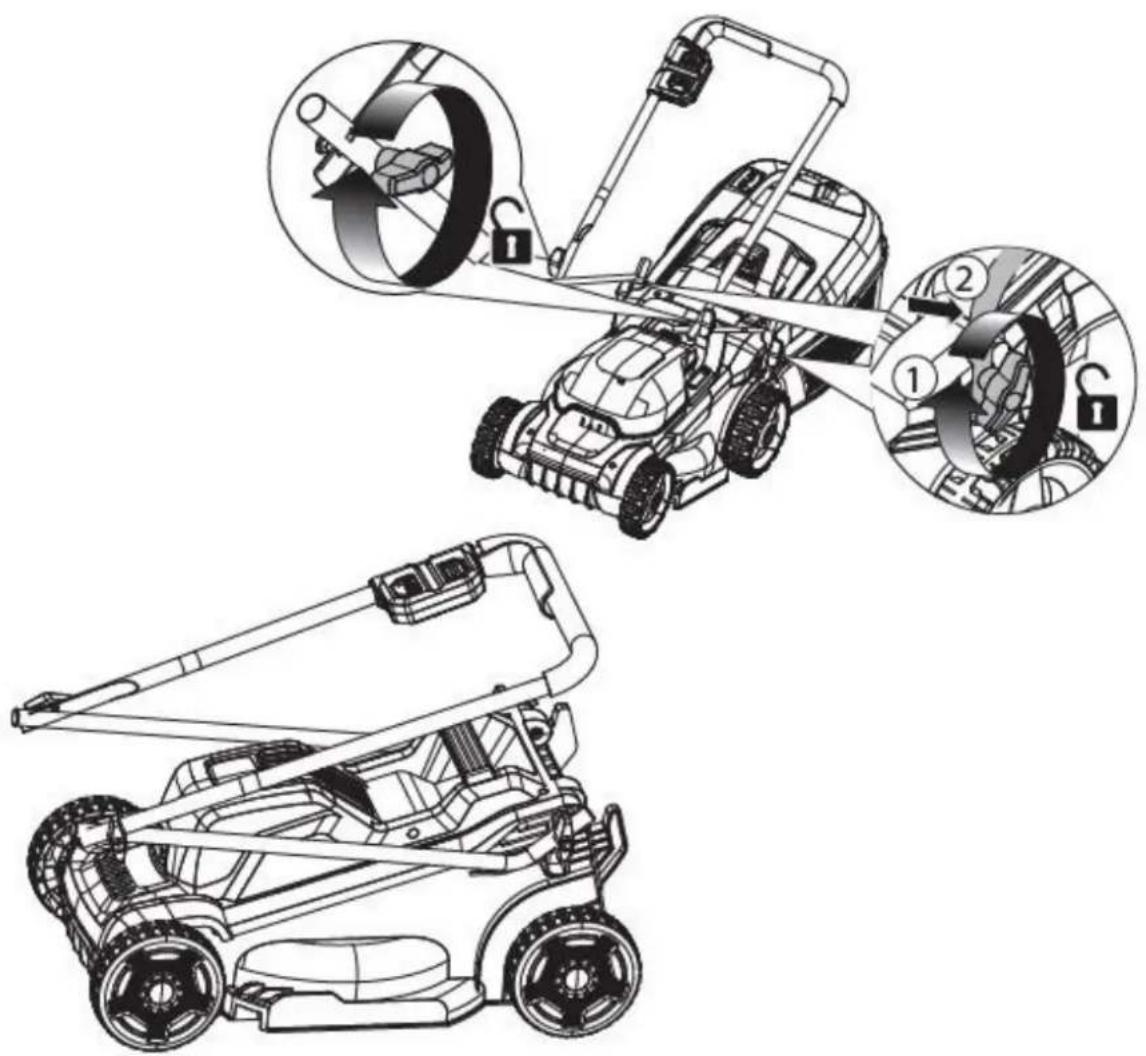

Space-saving storage

23. Switching the device on/off

Insert the battery into the rails provided. Then insert the safety key (illustration lawn mower, no. 9). Only then can you operate the safety button and the on/off switch (previous illustration, points 1+2). The appliance will now start.

When you release the on/off switch, the appliance stops working.

Attention: Cutting tool may still run slightly.

24. Lawn care tips

Here are some tips to help you keep your lawn healthy and ensure even growth:

A lawn consists of different types of grass. Frequent mowing promotes the growth of grass, this leads to strong roots and a firm grass leaf. If you rarely cut the grass, strongly growing grass species and other weeds (such as clover, daisies) will develop.

The average height of a lawn is about 4-5 cm. Only a third of the total height should be mowed; therefore, cut 7-8 cm of grass to the average height.

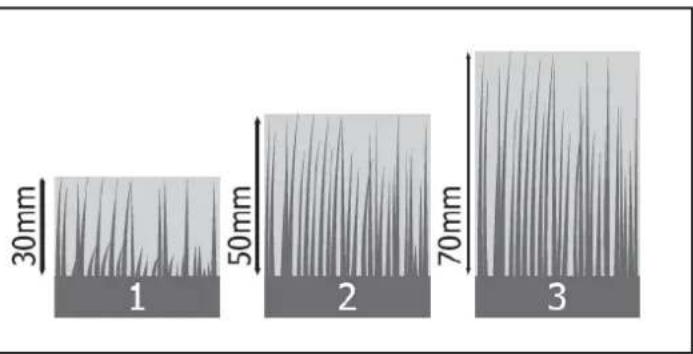

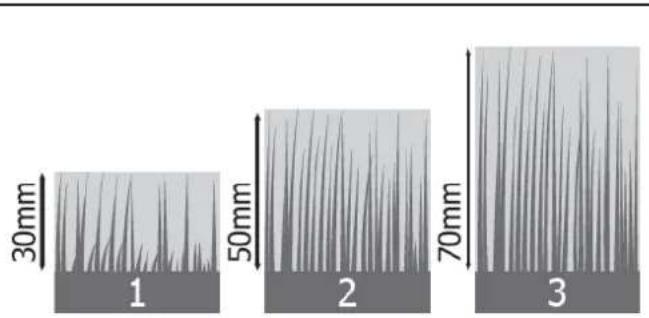

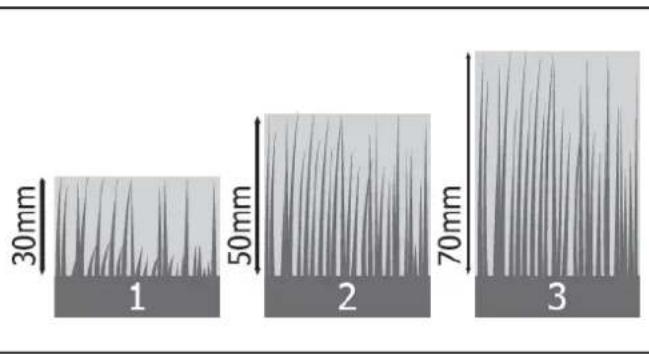

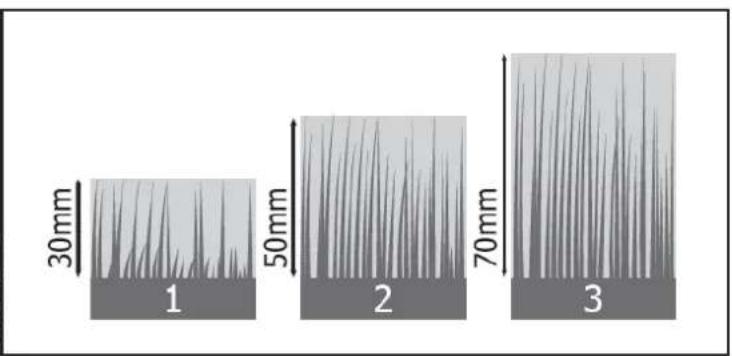

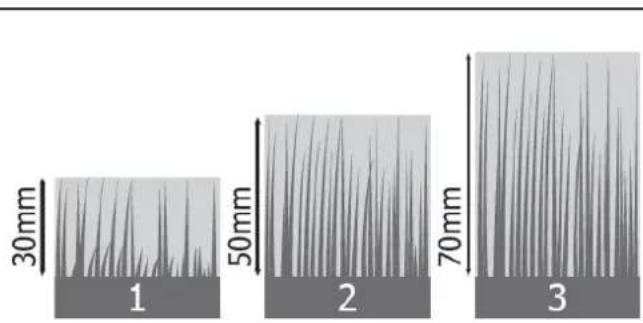

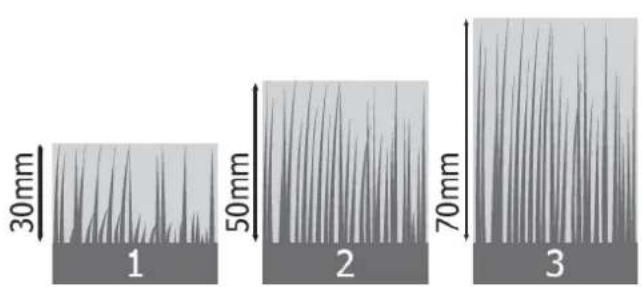

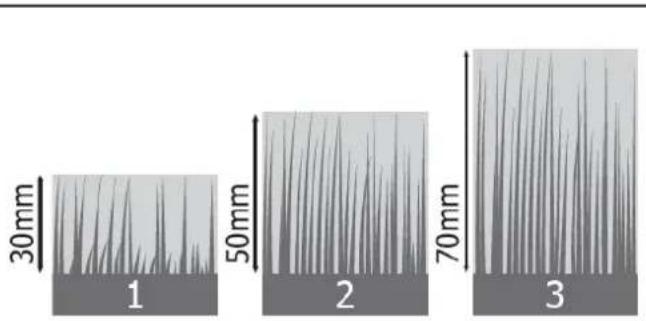

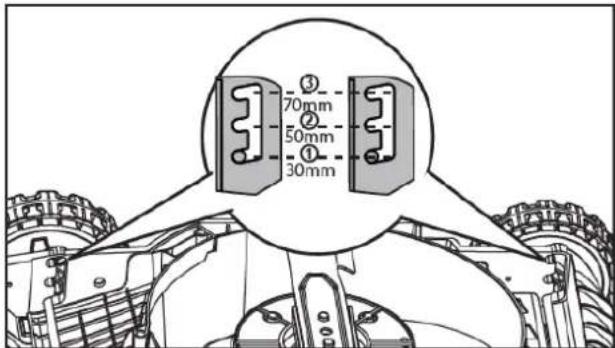

25. Cutting height adjustment

③ 70mm ② 50mm ① 30mm

30mm

50mm

70mm

Close-up of tall, thin plant stems with a number '3' below (no text or symbols on the stems)

The height adjustment levers are likewise the two axles of the mower. If the two axles are located in the recesses provided, you can choose between a grass height of 30 mm in level 1 (lowest level), 50 mm in level 2 (middle level) and 70 mm in level 3 (highest level).

To select the respective cutting levels, pull the axles towards the rear and then set the axles to the desired level.

26. Disposal

WARNING!

Make used power tools unusable before disposal:

• mains-operated power tools by removing the connecting plug,
• cordless power tools by removing the battery.

For EU countries only

Do not throw power tools in household waste! According to the European Directive 2012/19/EC on waste electrical and electronic equipment and its implementation in national law, used electrical equipment must be collected separately and sent for environmentally sound recycling. Recovery of raw materials instead of waste disposal. The device, accessories, and packaging should be recycled in

an environmentally friendly manner. Plastic parts are marked for recycling according to type.

WARNING!

Do not throw batteries in the household waste, fire, or water. Do not open worn-out batteries.

Batteries should be collected, recycled, or disposed of in an environmentally friendly manner.

For EU countries only: According to Directive 2006/66/EC, defective or exhausted batteries must be recycled.

i NOTE:

Please contact your local authority/city for information on disposal options,

Recycling raw materials instead of waste disposal.

27. Technical Data

Lawn Mower

Idling speed	3,600 min-1
Nominal voltage	20 V
Working width	300 mm
Cutting heights	30–70 mm
Setting options	3
Grass catcher box volume	30l
Granted sound power level (LWA)	96 dB (A)
Measured sound pressure (LPA)	78 dB (A)K = 3 dB (A)
Vibration	2.5 m/s ^2 (K = 1,5 m/s ^2 )
Weight (without battery)	9,6 kg

Charger

Nominal voltage	230 V~, 50 Hz
Nominal power	140W
Charging voltage	20.9 V
Charging current	2.4A
Protection class	II
Battery Pack
Battery type	Li-Ion
Nominal voltage	20 V
Capacity	4Ah
Charging time	120min

28. EU Declaration of Conformity

Producer FUXTEC GmbH

Kappstraße 69, 71083 Herrenberg Germany

Email: [e-mail] Web: www.fuxtec.com

Name 20V Cordless Lawn Mower

Model FX-E1RM20ECO

EC directive MD Directive: 2006 / 42 / EC 2014/30/EU

Applicable standards

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021

EN 60335-2-77:2010

EN IEC 55014-1: 2021

EN IEC 55014-2: 2021

We hereby declare that the device mentioned above, due to its design, in the version marketed by us, complies with the necessary safety and health requirements of the listed EC directive.

Any manipulation or change of the device not being explicitly authorized by us in advance renders this document null and void.

Storage of the technical documentation: FUXTEC GmbH ● Kappstraße 69 ● 71083 Herrenberg ●

Germany, L. Zirkler, Management

Herrenberg, June 08 ^th , 2024

C. Bille

L. Zirkler FUXTEC GmbH KAPPSTRASSE

69

71083 HERRENBERG GERMANY

VERSION FRANCAISE

Technical diagram of a lawn mower with numbered parts for identification and assembly reference.

2 Lithium-ion Battery in voltage range ④

Diagram of a plug with labeled parts, showing numbered annotations 1 and 2 pointing to specific components.

Technical line drawing of a car interior frame structure (no text or symbols)

Illustration of two identical lawn lawn machines with lock icons, no text or symbols present

2

Diagram showing three mechanical or electrical component states with lock icons, no text or symbols present

Installation des longerons

Technical diagram showing three views of a lawn mower system with labeled components and mechanical parts.

70mm 50mm 30mm

30mm 1 50mm 2 70mm 3

Simple line drawing of a lawn mower (no text or symbols)

ÉLÉMENTS D'EMBALLAGE À SÉPARER ET À DÉPOSER DANS LE BAC DE TRI

Normes applicables / applicable standards

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021

EN 60335-2-77:2010

EN IEC 55014-1: 2021

EN IEC 55014-2: 2021

Technical diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram of a plug with labeled parts, showing numbered annotations pointing to specific components.

Illustration of two grass lawn mawels with lock icons, no text or symbols present

2

Three-step diagram showing mechanical assembly with lock mechanism, no text or symbols present

Technical diagram showing two types of lawn mawers with labeled parts and mechanical components, including lock mechanisms and gear assembly.

70mm 50mm 30mm

30mm 1 50mm 2 70mm 3

Email: [e-mail] Web: www.fuxtec.it

Norme applicate / applicable standards

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021

EN 60335-2-77:2010

EN IEC 55014-1: 2021

EN IEC 55014-2: 2021

Hereby we declare that the above mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

Technical diagram of a lawn mower with numbered parts for identification and assembly reference.

2 Lithium-ion Pack in my version 1.000 ④

Diagram of a plug with labeled parts, showing numbered annotations 1 and 2 pointing to specific components.

Technical diagram of a car front bumper with labeled parts and directional arrows indicating assembly steps

Technical line drawing of a vehicle interior showing structural components and a magnified inset (no text or labels)

Technical line drawing of a car body panel (no text or symbols)

Illustration of two identical lawn grasses with a lock icon, no text or symbols present

2

Three-step diagram showing mechanical assembly with lock mechanism, no text or symbols present

Technical diagram showing two types of lawn mawing machines with labeled components and directional arrows indicating motion or assembly.

70mm 50mm 30mm

30mm 1 50mm 2 70mm 3

Fabricante / Producer FUXTEC GmbH

Directiva CE / EC directive

Directiva MD: 2006 / 42 / EC

2014/30/EU

Normas aplicadas / applicable standards

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021

EN 60335-2-77:2010

EN IEC 55014-1: 2021

EN IEC 55014-2: 2021

Hereby we declare that the above-mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

Two yellow warning signs: a person using a computer and a no-drought rain cloud symbol.

Technical diagram of a lawn mower with numbered parts for identification and assembly reference.

2 Electric shock absorber in voltage source ④ ⑤

Diagram of a plug with labeled parts, showing numbered annotations 1 and 2 pointing to specific components.

Technical line drawing of a car body panel (no text or symbols)

Construindo a cesta coletora de grama

Instalando as longarinas

Technical diagram showing two types of lawn mawels with labeled parts and mechanical components, including lock mechanisms and safety symbols.

70mm 50mm 30mm

30mm 1 50mm 2 70mm 3

Warning sign with pictogram of person using a computer and rain cloud symbol

Technical diagram of a lawn mower with numbered parts for identification and assembly reference.

Diagram of a plug with labeled parts, showing numbered annotations 1 and 2 pointing to specific components.

Technical diagram of a car headrest with labeled parts and directional arrows indicating assembly or repair steps.

Technical line drawing of a mechanical component with cross-sectional view (no text or symbols)

Technical line drawing of a car body panel (no text or symbols)

Technical diagram showing three views of a lawn mower system with labeled components and lock mechanisms

Ruimtebesparende opslag

70mm 50mm 30mm

30mm 1 50mm 2 70mm 3

Six yellow warning signs with different symbols: triangular warning triangle, red triangle with exclamation mark, human figure with left turn, triangular warning triangle with skull, person wearing goggles, and headphones.

Technical diagram of a lawn mower with numbered parts for identification and assembly reference.

Illustration: gräsklippare

2 Lithium-ion Pulsar in Vibration System ④

Diagram of a plug with labeled parts, showing numbered annotations 1 and 2 pointing to specific components.

Technical line drawing of a car body panel (no text or symbols)

Technical diagram showing three views of a lawn mower system with labeled components and directional arrows indicating motion or assembly.

70mm 50mm 30mm

30mm 1 50mm 2 70mm 3

E-post: [e-mail] Web: www.fuxtec.de

Beteckning / namn

POLSKA WERSJA JEZYKOWA

Warning sign with pictogram of person using a computer and rain cloud symbol

Technical diagram of a lawn mower with numbered parts for identification and assembly reference.

2 Lift/saturation Pack in my own position 4

Diagram of a plug with labeled parts, showing numbered annotations 1 and 2 pointing to specific components.

Technical line drawing of a car body panel (no text or symbols)

Technical diagram showing two types of lawn mawers with labeled parts and mechanical components, including lock mechanisms and gear assembly.

Oszczędność miejsca

70mm 50mm 30mm

30mm 1 50mm 2 70mm 3
