Product Type	Cordless Hedge Trimmer
Brand	Fuxtec
Model	FX-E1HHS20
Power Source	Rechargeable Lithium-Ion Battery (20V)
Blade Length	20 inches (500 mm)
Tooth Spacing	16 mm
Rotation Angle	0° to 90° adjustable
Weight	2.8 kg (with battery)
Dimensions (L x W x H)	850 x 180 x 160 mm
Battery Capacity	2.0 Ah (standard)
Charging Time	Approx. 1.5 hours
Running Time	Up to 45 minutes
Cutting Capacity	Up to 16 mm branch thickness
Blade Material	High-carbon steel, diamond-ground
Safety Features	Two-hand operation, blade guard, safety lock-off
Maintenance	Clean blades after use, lubricate periodically
Spare Parts Availability	Blades, battery, charger available online
Warranty	2 years limited warranty

Frequently Asked Questions - FX-E1HHS20 Fuxtec

How do I charge the battery for the FX-E1HHS20 hedge trimmer?

Insert the battery into the charger and plug it into a mains outlet. The LED indicator will show red during charging and green when fully charged. Charging takes approximately 1.5 hours.Always use the original charger to avoid damage.

What is the correct way to start the hedge trimmer?

First, ensure both hands are on the handles. Press and hold the safety lock-off button, then squeeze the trigger. Release the lock-off after starting. The trimmer will only operate when both safety switches are engaged.

Can I use the FX-E1HHS20 with a different brand battery?

No, the trimmer is designed to work exclusively with Fuxtec 20V batteries. Using incompatible batteries may cause malfunction or safety hazards.

How do I clean the blades after use?

Remove the battery first. Use a soft brush or cloth to remove debris. For stubborn sap, apply a mild solvent. After cleaning, apply a thin layer of lubricating oil to the blades to prevent rust.

What protective gear should I wear when operating this hedge trimmer?

Always wear safety goggles, gloves, and ear protection. Also wear sturdy footwear and long trousers to protect against falling branches.

Why does the hedge trimmer stop while cutting?

Possible reasons include a dull blade, overload on thick branches, or a low battery. Let the tool rest for a moment. If it persists, check the blade sharpness and battery level.

How often should I sharpen or replace the blades?

Sharpen the blades after every 50 hours of use or when cuts become ragged. Replace blades if they are bent, chipped, or excessively worn. Always order genuine Fuxtec spare parts.

Can I use the hedge trimmer in wet conditions?

No, the tool is not waterproof. Using it in rain or on wet hedges increases the risk of electric shock and tool damage. Wait for dry weather.

How do I store the hedge trimmer for winter?

Fully charge the battery, then remove it. Clean the blades thoroughly and apply oil. Store the trimmer in a dry, frost-free place. The battery should be stored separately at around 20°C.

Where can I find spare parts for the FX-E1HHS20?

Genuine Fuxtec spare parts such as blades, batteries, and chargers are available on the Fuxtec website or through authorized dealers. Always use original parts to maintain safety and performance.

USER MANUAL FX-E1HHS20 Fuxtec

Illustration of two Fuxteck electric drillers with glowing neon outlines against a black background (no text or symbols)

English version...... Page 20

Inhalt

Line drawing of a handheld device with mechanical components and directional arrows indicating motion (no text or symbols)

Illustration of a mechanical device cutting through a leafy plant with an upward arrow indicating motion (no text or symbols)

Line drawing of a WORFRO agricultural machine cutting through grass, with two arrows indicating direction (no text or symbols)

Wartung und Pflege

Recycling raw materials instead of waste disposal.

Technische Daten

Hereby we declare that the above mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

Introduction and safety 21

Intended use....21

General safety instructions for power tools.... 21

Workplace safety 21

Electrical safety 21

Personal safety 22

Use and handling of the power tool....22

Use and handling of the cordless tool.... 23

Safety instructions for chainsaws.... 23

General safety information 23

Before use....24

During use....24

Causes and prevention of a kickback 26

After use 26

Safety information for the charger 27

Safety information for Li-Ion batteries....27

Presentation 29

Assembly 30

Switching the device on/off 31

Operating notes.... 31

Maintenance and care....32

Disposal 33

Technical data 34

Declaration of Conformity.... 35

Introduction and safety

Never allow children or persons unfamiliar with these instructions to use the garden device. Children should be supervised to ensure that they do not play with the appliance.

Intended use

This appliance is intended exclusively for sawing wood and felling trees in private homes. It is not suitable for sawing plastic, masonry or building materials other than wood.

The device to be used in accordance with the descriptions and safety information provided in this manual. Any other use is not intended. Any other use is not in accordance with the intended purpose and will invalidate the warranty and result in the rejection of any responsibility on the part of the manufacturer. The user is liable for all damage to third parties and their property. Operate the device only in the technical condition specified and delivered by the manufacturer. Unauthorized modifications to the device preclude the manufacturer's liability for any resulting damage.

General safety instructions for power tools

WARNING!

Read all safety information and instructions. Failure to follow the safety information and instructions may result in electric shock, fire and/or serious injury.

Keep all safety information and instructions for future reference.

The term power tool used in the safety information refers to power tools that operate on mains power (with power cord) and battery-powered power tools (without power cord).

Workplace safety

- Keep your work area clean and well lit. Clutter or unlit work areas can lead to accidents.

- Do not work with the power tool in a potentially explosive environment containing flammable liquids, gases or dust. Power tools generate sparks that can ignite the dust or vapours.

- Keep children and other persons away from the power tool throughout its use. If distracted, you may lose control of the device.

Electrical safety

- Keep power tools away from rain or wet conditions. Water entering a power tool increases the risk of electric shock.

- Do not use the cord to carry or hang the power tool or to unplug the power tool from the wall outlet. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.

- If you use a power tool outdoors, only use extension cords that are suitable for outdoor use. Using an extension cord suitable for outdoor use reduces the risk of electric shock.

Personal safety

• Be alert, pay attention to what you are doing, and use common sense when working with a power tool. Do not use a power tool if you are tired or under the influence of drugs, alcohol or medication. A moment of carelessness while using a power tool can cause serious injury.
• Wear personal protective equipment and always wear safety glasses. Wearing personal protective equipment such as a dust mask, non-slip safety shoes, hard hat or ear protection, depending on the after type and use of the power tool, reduces the risk of injury.
• Avoid unintentional start-up. Make sure that the power tool is turned off before connecting it to the power supply and/or battery, picking it up or carrying it. If you lift your finger while carrying the power tool on the switch or connect the device to the power supply when switched on, this can lead to accidents.
• Remove adjustment tools or wrenches before turning on the power tool. A tool or wrench that is in a rotating part of the device may cause injury.
• Avoid abnormal posture. Maintain a safe standing position and balance at all times. This allows you to control the power tool better in unexpected situations.
• Wear suitable clothing. Do not wear loose clothing or jewellery. Keep hair, clothing and gloves away from moving parts. Loose clothing, jewellery or long hair can be caught by moving parts.

Use and handling of the power tool

• Do not overload the device. Be sure to use the designated power tool for your work. With the right power tool, you will work better and safer in the specified power range.
• Do not use a power tool whose switch is defective. A power tool that cannot be switched on or off is dangerous and must be repaired.
• Unplug the power cord and/or remove the battery before making adjustments to the device, changing accessories or putting the device away. This precaution prevents the power tool from starting accidentally.
• Keep unused power tools out of the reach of children. Do not have the device used by persons who are not familiar with it or have not read these instructions. Power tools are dangerous if they are used by inexperienced persons.
• Take care of power tools properly. Check that moving parts function properly and do not jam, that parts are not broken or damaged in such a way that the function of the power tool is impaired. Have

damaged parts repaired before using the device. Many accidents are caused by poorly maintained power tools.

- Be sure to use power tools, accessories, insert tools, etc. according to these instructions. Take into account the working conditions and the task to be performed. The use of power tools for applications other than those intended can lead to dangerous situations.

Use and handling of the cordless tool

- Charge the batteries only with chargers recommended by the manufacturer. Using a charger that is suitable for a particular type of battery creates a fire hazard when used with other batteries.

- Only use the rechargeable batteries in power tools that are designed for this purpose. Use of other batteries may cause injury and fire.

- Keep the unused battery away from paper clips, coins, keys, nails, screws, or other small metal objects that could cause the contacts to bridge. A short circuit between the battery contacts may cause burns or fire.

- Liquid may leak from the battery if used incorrectly. Avoid contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or cause burns.

Safety instructions

General safety information

- For your safety and the safety of others, read this manual and its safety information before using the device. Please keep this manual and its safety information in a safe place for future reference and keep it handy for any operation.

- Pass on the operating instructions with the device in the event of a change of ownership.

- Persons operating the device must not be under the influence of intoxicating substances (e.g. alcohol, drugs or medicines).

- Operate the device only in the conditions specified and supplied by the manufacturer. technical condition. Unauthorized modifications to the device exclude the manufacturer's liability for any resulting damage.

- Only use the device in daylight or under good artificial lighting.

- Only use the device in dry weather conditions. Keep it away from rain or moisture. Water ingress into the device increases the risk of electric shock.

- Turn off the device and remove the battery in the following conditions:

- if the device is left unattended;

• before checking, cleaning or other work on the device;
• if the device starts to vibrate excessively.

Before use

• Familiarize yourself with the device and its functions and controls before starting work.
• Check the device for signs of wear or damage before starting up and after a collision.
• Do not use device whose switch is defective and cannot be switched on or off.
• Check that all nuts, bolts and screws are tight to ensure that the device is operated safely.
• Never use any device with damaged or missing parts. Have them repaired or replaced if necessary by a qualified technician or service centre.
• When working with or on the device, always wear sturdy shoes, long trousers and the appropriate personal protective device (safety glasses, hearing protection, non-slip work gloves, etc.). Wearing personal protective device reduces the risk of injury.
• Do not wear jewellery or loose clothing that could be caught by the blades. Keep long hair away from the cutting device.
• Remove adjusting tools or wrenches before you turn on the device. A tool or wrench that is in a moving part of the machine can cause injury.

During use

• Do not operate the device if persons (especially children) or animals are in the immediate vicinity.
• Interrupt work if you notice that people (especially children) or pets are nearby.
• Always keep your hands and feet away from the moving blades, especially when you turn on the device.
• Avoid abnormal posture. Ensure that you stand securely and keep your balance at all times. This gives you better control of the device in unexpected situations and on particularly steep slopes.
• Do not work with the chainsaw in an explosive environment containing flammable liquids, gases or dust. The device may produce sparks that can ignite the dust or fumes.
• Exercise special caution when walking backwards. There is a danger of tripping!
• Only move at walking speed.
• Never leave the device unattended during breaks in work and store it in a safe place.

- Keep all parts of the body away from the device. Do not attempt to remove material to be cut or hold material to be cut while the blade is running. Remove trapped material only when the machine is switched off. A moment of carelessness while using the chainsaw can cause serious injury.

- Carry the device by the handle with the blade stationary. Always remove the battery when transporting or storing the device. Careful handling of the device reduces the risk of injury from the chainsaw.

- Hold the power tool only by its insulated grip surfaces, as the chainsaw may come into contact with hidden power lines. Contact of the saw with a live wire can put metal parts of the tool under voltage and cause electric shock.

- During the cutting process, make sure that no persons (especially children) or animals are in the working area.

-While the device is running, keep all parts of the body away from the blades. Before starting the saw, make sure that the saw chain does not touch anything. When working with a chainsaw, a moment of carelessness may cause clothing or body parts to be caught by the saw chain.

- Wear protective goggles and hearing protection. Other protective device for head, hands, legs and feet is recommended. Suitable protective clothing reduces the risk of injury from flying chips and accidental contact with the saw-chain.

- Do not work with the device when on a tree. There is a risk of injury when operating on a tree.

- Only use the device in dry weather conditions. Keep it away from rain or moisture.

- Always make sure that you stand firmly and only use the device when you are standing on firm, safe and level ground. Slippery surfaces or unstable standing surfaces, such as on a ladder, can cause loss of balance or loss of control of the saw.

- Make sure that the blades does not come into contact with the ground or other objects during operation.

-When cutting a branch that is under tension, expect it to spring back. If the tension in the wood fibres is released, the tensioned branch may hit the operator and/or snatch the chainsaw away from control.

- Wait until the power tool has stopped before putting it down.

- Never leave the device unattended during work interruptions and store it in a safe place.

- Always switch off the device when transporting it to other workplaces.

- Never touch the device by the cutting blade.

-Keep handles dry, clean and free from oil and grease. Greasy, oily grips are slippery and lead to loss of control.

• Operate the device only in the technical condition prescribed and delivered by the manufacturer. Unauthorised modifications to the device preclude any liability of the manufacturer for any damage resulting from such modifications.
• Spare parts must meet the requirements specified by the manufacturer. Therefore, only use original spare parts or spare parts approved by the manufacturer. When replacing the battery, please observe the installation instructions supplied and remove the battery beforehand.
• Have repairs carried out only by a qualified specialist or a specialist workshop.

Causes and prevention of a kickback

Kickback may occur if the tip of the saw-bar touches an object or if the wood bends and the saw-chain becomes jammed during cutting. In some cases, contact with the bar tip can cause an unexpected backward reaction, causing the bar to bounce up and towards the operator.

Jamming the saw-chain at the upper edge of the saw-bar can quickly push the bar back in the direction of the operator. Any of these reactions can cause you to lose control of the saw and possibly cause serious injury. Do not rely solely on the safety devices built into the chainsaw. As a chainsaw user you should take various measures to be able to work without accidents and injuries.

A kickback is the result of incorrect or faulty use of the power tool. It can be prevented by taking appropriate precautions as described below:

• Hold the chainsaw with both hands, with thumb and fingers around the handles of the chainsaw. Move your body and arms to a position where you can withstand the kickback forces. If appropriate measures are taken, the operator can control the kickback forces. Never let go of the chainsaw.
• Avoid abnormal posture. This prevents unintentional contact with the bar tip and allows better control of the chainsaw in unexpected situations.
• Always use replacement bars and saw chains specified by the manufacturer. Incorrect replacement bars and saw chains can cause the chain to break and/or kick back.
• Follow the manufacturer's instructions for sharpening and maintenance of the saw-chain. Too low depth limiters increase the tendency for kickback.

After use

• Turn off the device, remove the battery and then place the device in a safe place.
• Do not store the device within the reach of children.
• Make sure that the ventilation slots of the device are free from dirt.
• Replacement parts must meet the requirements specified by the manufacturer.

For this reason, only original spare parts or spare parts approved by the manufacturer should be used. When replacing the device, please observe the installation instructions provided and remove the

Battery.

- Only have repairs performed by a qualified specialist or a specialist workshop.

Safety information for the charger

• Keep the charger away from rain or moisture. Water entering a charger increases the risk of electric shock.
• Keep the charger clean. Soiling increases the risk of electric shock.
• Check the charger, cable and plug before each use. Do not use the charger if you notice any damage. Do not open the charger yourself and have it repaired by qualified personnel using only original spare parts.

Damaged chargers, cables and plugs increase the risk of electric shock.

• Do not place any objects on the charger or place it on soft surfaces. This could result in a fire hazard.
• Always check that the mains voltage corresponds to the voltage indicated on the charger's rating plate.
• Never use the charger if the cable, plug or the device itself is damaged by external influences. Take the charger to the nearest specialist workshop.
• Never open the charger. In the event of a fault, take it to a specialist workshop.

Safety information for Li-Ion batteries

• Do not open the battery. There is a risk of short circuit.
• Protect the battery from heat, including continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.
• Vapours may escape if the battery is damaged or used improperly. Supply fresh air and consult a doctor if you have any complaints. The vapours can irritate the respiratory tract.

• Liquid may leak from the battery if used incorrectly. Avoid contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or burns.

• Only use original batteries with the voltage specified on the rating plate of your power tool. If other batteries are used, e.g. imitation, reconditioned batteries or batteries from other manufacturers, there is a risk of injury and material damage due to exploding batteries.

• The battery voltage must match the battery charging voltage of the charger. Otherwise there is a risk of fire and explosion.
• Only charge the batteries with chargers recommended by the manufacturer. Using a charger that is suitable for a particular type of battery creates a fire hazard if it is used with other batteries.
• Sharp objects such as nails or screwdrivers or external force may damage the battery. An internal short circuit may occur and the battery may burn, smoke, explode or overheat.

Presentation

Figure 1: Grass and shrubbery shears

1. Grass shear blade 7. Battery pack release button
2. Shrubbery blade 8. Display for remaining capacity
3. Blade release button 9. Push button for capacity display
4. ON/OFF switch 10. Control lights
5. Safety lock-off button 11. Battrey charger
6. Battery pack

Assembly

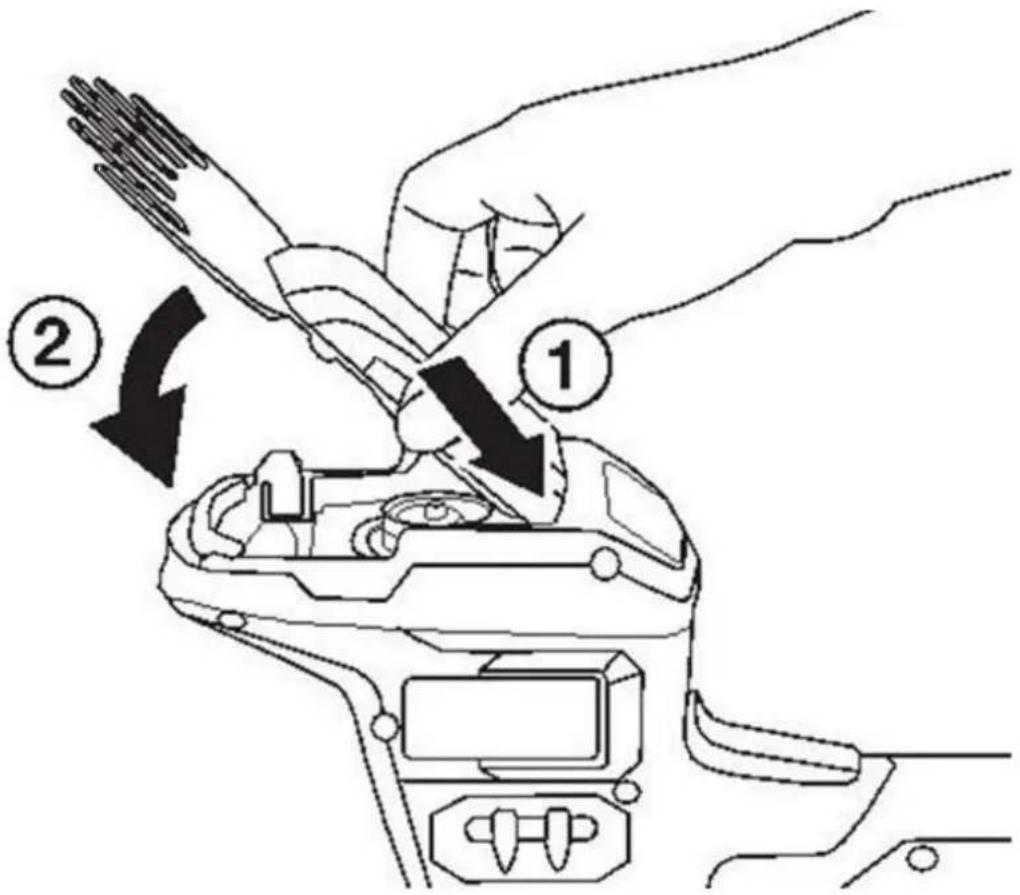

The appliance is equipped with two different blades, which can be changed quickly depending on the area of application.

To remove the blade, press the release buttons on both sides and remove the respective blade attachment (see following illustration).

Line drawing of a handheld device with mechanical joints and control buttons, no text or symbols present

Insert the desired blade into the appliance as shown in the illustration above. Press the two release buttons while doing so. As soon as the blades are in the correct position, release the release buttons and the blades are firmly connected to the appliance. Before use, check that the respective blade is firmly seated.

Switching the device on/off

Insert the battery into the slot provided. Then push the safety button (Figure 1, item 5) in at the side. Only then you can operate the on/off switch (Figure 1, item 4). The device will now start up. If you release the on/off switch, the device stops working.

Attention: The cutting tool can still run shortly afterwards.

Operating notes

1) Make sure that your free hand is at least 15 cm away from the cutting area of the blades when the device is running and that your hand does not reach into the cutting edge of the blade.

Original manual FUXTEC FX-E1HHS20 rev01

2) Do not use this device to cut large branches, as this may result in deformation of the guide bar and damage to the chain.
3) Do not use this appliance on rainy days.
4) We recommend disconnecting the battery from the device after use and storing both properly.
5) If you have the feeling that the cut is not clean or the device does not have enough power despite a fully charged battery, check whether the saw chain has become blunt.
6) The shrubbery attachment is designed for trimming small hedges and shrubs, the rass shear attachment for precise trimming of lawns that are difficult to access (see following illustrations).

Illustration of a robotic arm cutting through leafy plants with an arrow indicating compression (no text or symbols)

Line drawing of a cotton machine spraying water over grass, with two arrows indicating flow direction (no text or symbols)

Maintenance and care

Attention: before any work on the power tool, remove the battery from the device.

Sharp cutting teeth → Wear protective gloves!

Do not use water or liquid detergents.

• Clean the mini saw after each use with a dry cloth or, in the case of heavy Soiling with a brush.
• Never spray the device with water.
• Keep the contacts of the battery and the device clean and dust-free.
• Use a soft brush to remove debris from the blades.

Disposal

WARNING!

Make used power tools unusable before disposal:

• mains-operated power tools by removing the connecting plug,
• battery operated power tools by removing the battery.

For EU countries only

Do not throw power tools into the household waste! According to the European Directive 2012/19/EC on waste electrical and electronic device and its implementation in national law, used electrical device must be collected separately and recycled in an environmentally friendly manner.

Raw material recovery instead of waste disposal. Device, accessories and packaging should be

recycled in an environmentally friendly manner. Plastic parts are marked for recycling according to type.

WARNING!

Do not throw batteries into household waste, fire or water. Do not open spent batteries. Batteries should be collected, recycled or disposed of in an environmentally friendly manner.

For EU countries only: According to Directive 2006/66/EC, defective or used batteries must be recycled.

NOTE

Please contact your local authority/city for information on disposal options,

Recycling raw materials instead of waste disposal.

Technical data

FX-E1HHS20
Cutting length of shrub shears	200mm
Cutting width of grass shears	105mm
Cutting thickness of shrub shears	7,8mm
Weight (without battery)	0,67kg
Measured sound power level (LWA) for grass shear attachment	86.99dB(A)
Measured sound power level (LWA) for shrub shear attachment	86.49dB(A)
Guaranteed sound power level (LWA)	90db(A)

Declaration of Conformity

Manufacturer / Producer FUXTEC GmbH

Kappstraße 69, 71083 Herrenberg Germany / Germany

Email: [e-mail] Web: www.fuxtec.com

Designation / name Cordless Mini grass and shrub shear

Type / model FX-E1HHS20

EC directive

2006 / 42 / EC ,

2014/53/EU,

2014/30/EU

Applicable standards

EN 62841-1, EN 62841-4-2,

EN IEC 62841-4-5

EN IEC 55014-1

EN IEC 55014-2

Hereby we declare that the above-mentioned machine meets the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

Storage of technical documentation: FUXTEC GmbH • Kappstraße 69 • 71083 Herrenberg •

Germany, L. Zirkler, Management

Herrenberg, January 31 ^st 2024

C. Jille
