USER MANUAL EH-NA9N PANASONIC

Operating Instructions (Household use) Hair Dryer Model No. EH-NA9N

Operating Instructions

(Household use) Hair Dryer

Model No. EH-NA9N

Contents

Safety precautions. 4 Maintenance of the hair dryer 15

Parts identificaiton 7 Troubleshooting 17

About nanoeTM 9 Specific cations 18

How to use the hair dryer 10 Caution for AC Mains Lead 19

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

WARNING

• This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or those lacking experience and knowledge, provided they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• When the hair dryer is used in a bathroom, unplug after use, as the proximity of water presents a hazard even when the hair dryer is switched off.
• For additional protection, it is advisable to install a residual current device (RCD) with a rated residual operating current not exceeding 30mA is advisable for an electrical circuit supplying the bathroom. Consult your installer for advice.
• This symbol with prohibition sign in red on the appliance means "Do not use this appliance near water". Do not use or store this appliance near bathtubs, showers, basins or other vessels containing water.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified personnel in order to avoid a hazard.

• nanoe™ is a trademark of Panasonic Holdings Corporation.

• nanoe™ particles are nano-sized electrostatic atomized water particles.

Safety precautions

Make sure to follow these instructions

To prevent accidents, injuries or damage to property, please follow the instructions below.

WARNING

Indicates potential hazard that could result in serious injury or death.

CAUTION

Indicates potential hazard that could result in minor injury or property damage.

Some parts of the safety precaution illustrations differ from the actual product.

WARNING

Plug and Cord

• Do not use with the cord bundled.
• Do not damage the cord or plug.
  Do not deface, modify, forcefully bend or pull the cord or plug. Also, do not place anything heavy on, twist or pinch the cord.
• Do not use when the plug or cord is damaged or hot.

WARNING

• Do not wrap the cord tightly around the main body when storing.
• Do not store or use the cord in a twisted state.
• Disconnect the plug by holding onto it instead of pulling on the cord.
• Regularly clean the plug to prevent dust from accumulating.
  Always turn off the power switch and disconnect the plug from the household outlet after use.
• Insert the plug into the household outlet directly: Do not use with an extension cord.
• Fully insert the plug into a household outlet. Never use the appliance if the plug fits loosely.
• Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the appliance.

When the appliance is used in a bathroom, unplug it after use, as the proximity of water presents a hazard even when the appliance is switched off.

In case of an abnormality or malfunction

• Immediately stop using and remove the plug if there is any abnormality or malfunction.

  Air is not emitted
• Unit stops sporadically
• Interior becomes red hot and smoke is emitted
• The appliance is damaged or deformed, or strange noise is emitted.

Immediately request inspection or repair at an authorized service center.

Maintenance

• When you see sparks around the air outlet while using the hot air setting, stop use and remove the lint on the air outlet and air inlet.

This appliance

• Do not block or insert hair pins or other foreign objects into the air inlet, air outlet, nanoe™ outlet or mineral ion outlet.
• Do not leave the product with power switch on.
• Do not keep within the reach of infants or young children.
• Do not let them use the appliance.
• Do not use in proximity of flammable materials (such as alcohol, benzine, thinner, spray, hair care product, nail polish remover).

WARNING

• Never modify, disassemble, or repair.
• Doing so may cause ignition or injury due to abnormal operation.

Contact an authorized service center for repair.

• Do not handle any part of the plug or appliance with wet hands.
• This appliance is not designed for commercial use, and is not intended for use without appropriate maintenance.
• Do not immerse the appliance in water.
• Do not use or store the appliance near water.
• Do not use or store the appliance near bathtubs, showers, basins or other vessels containing water.
  If you feel pain or abnormality on your skin or other part of your body, immediately stop using this product.

CAUTION

To protect your hair

• Do not use with the air inlet damaged.
• Be sure to keep a distance of over 3 cm between the air outlet and your hair.
• Be sure to keep your hair at least 10cm away from the air inlet to avoid hair getting tangled.

Note the following precautions

• Do not drop or subject to shock.
• Do not use on children under 6 years old.
• Do not touch the air outlet, concentrator nozzle and diffuser which will become very hot.
• Do not use the appliance for any other purpose than drying hair.

Notes

• This hair dryer is equipped with an automatic overheating protective device. If the hair dryer overheats, it will switch to cool air mode. Switch off the hair dryer and unplug it from the household outlet. Allow it to cool down for a few minutes before using it again. Check that no fluff, hair etc. is in the air inlets and outlets before switching it on again.
• You may notice a characteristic odor when using this hair dryer. This is the characteristic odor of nanoe™ and mineral ions, or ozone, and is not harmful to the human body.

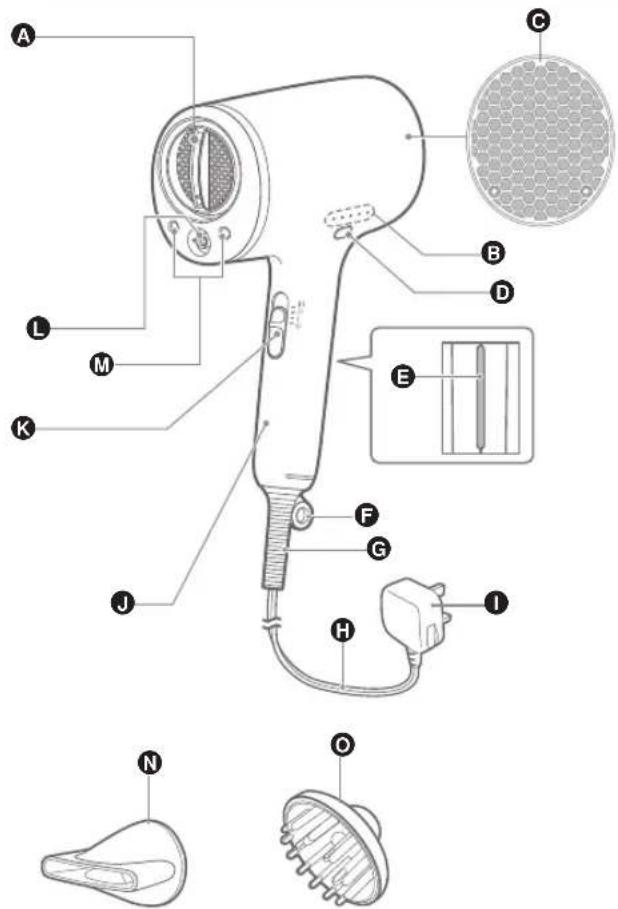

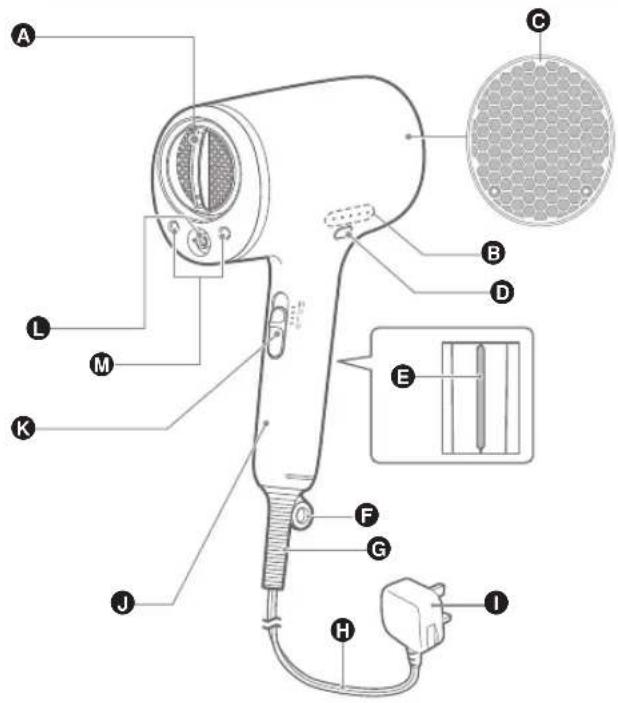

Parts identification

Air outlet
Quick-dry nozzle
Mode indicator
Air inlet
Mode switching button
Panel
Ring for hanging
Bushing
B Cord
Plug The shape of the plug differs depending on the area.
1 Handle
Power switch

III: Turbo (Very strong airflow)
Dry (Strong airflow)
I: Set (Gentle airflow)
O:Off

L nanoe™ outlet
Mineral ion outlet
Concentrator nozzle

Diffuser

How to attach

Place the nozzle to the air outlet and firmly insert it into position until locked.

(The illustrations above show the concentrator nozzle.)

How to remove

Twist and pull up the nozzle away from the air outlet.

Concentrator nozzle

For easy styling and blow drying of hair, attach the concentrator nozzle to the hair dryer.

• The concentrator nozzle helps to direct the airflow onto a specific area of the hair.

Quick-dry nozzle

You can increase the drying rate by using the vertical strong and weak airflows to dry and loosen bundles of damp hair.
- Attaching the concentrator nozzle may reduce performance of the quick-dry nozzle.

Diffuser

For creating full-bodied hair with lots of volume and styling.

Fast airflow

Concentrator nozzle

Fast airflow

Quick-dry nozzle

Mode indicator and mode explanation

• On all modes, an airflow enriched with nanoe™ and mineral will be provided.

Mode control

To change the mode, press the mode switching button.

Turbo/Dry setting

Hot/Cold

Set setting

*Switching to [Turbo] or [Dry] while using changes to Hot air mode.

Intelligent sensing

Two sensors monitor environment conditions and your way of using the dryer, and automatically control the temperature to prevent extreme heat.

(The air and room temperature are constantly monitored.)

Mode explanation

Air temperature varies in each mode. Select your desired temperature mode.

Hot Air mode [HOT]

The air temperature is automatically adjusted based on the room temperature, allowing you to comfortably dry your hair, even in the summer, with reduced heat.

Hot/Cold Alternating mode

Automatically alternate between hot and cold air. The hot air smooths unruly hair, while the cold air sets your hair style in place. A smoothed hair surface reflects light, and give you a sleek, shiny finish.

Hair Tip Care mode

Automatically alternate between hot and cold air with the most effective cycle and airflow for finishing hair ends, based on the ambient temperature constantly detected by the sensors. The gentle airflow prevents hair ends from separating, allowing you to easily blow-dry and style them.

Cold Air mode [COLD]

Finishing with cold air helps to keep your hair style in place for longer.

Scalp Care mode [SCALP]

Water remaining on your skin (scalp) may cause discomfort, such as stickiness. Dry your hair comfortably with the airflow at a temperature of around 60^ , which is kind to your skin (scalp).

Skin Care mode [SKIN]

The airflow enriched with nanoe™ and mineral helps prevent dehydration and leaves your skin moisturized after cleansing.

• About 1 minute face blowing will help keep your skin moisturized.

About nanoeTM

nanoeTM and mineral effect

Controls waviness by balancing hair moisture content, making hair glossy and easy to style. In addition to making hair stronger against damage from brushing etc., limits the influence of UV on hair, leading to beautiful hair.

Mineral ion outlet

What is nanoeTM, mineral?

nanoeTM

nanoe™ is generated by collecting the available moisture in the air, so depending on the usage environment, nanoe™ may not be produced. In conditions of low temperature and low humidity, moisture in the air becomes difficult to collect. When this occurs, negative ions are generated.

Mineral

"Mineral" means mineral ions generated by the discharge unit containing the zinc electrode.

nanoe™ and mineral are invisible to the human eye.

Panel effect

Just by grasping the panel along with the handle, more nanoe™ is attracted to your hair.

How to use the hair dryer

Preparation

Use a towel to partially dry your hair.
2 Then brush or comb with your fingers to remove tangles.
3 Plug into the household outlet.

Dry your hair

1 Turn the power switch on.

• Select [II] or [I] with the power switch.

2 Direct warm air throughout your hair.

• Your hair will dry quickly if you direct the warm air towards the roots.

When the hair is about 90% dry, use the Hot/Cold Alternating mode to finish it well, making the hair shiny.

• Select [ ] with the mode switching button.

To thoroughly apply hot and cold air, part your hair to the left and right while drying.

1. Apply the Hot/Cold Alternating mode while running your fingers through your hair from the inside. (One side)
2. Apply the Hot/Cold Alternating mode while running your fingers through your hair from the top of your head to the tip of your hair. (One side)
3. Also perform step 1 and 2 on the opposite side.

If you are concerned about damaged ends, use Hair Tip Care mode.

1. Select [ ] with the power switch and select [ ] with the mode switching button.
2. While using your fingers to section your hair, blow-dry the inside and outside of your hair to the ends.
3. Perform step 2 to the opposite side.

Turn the power switch off.

Remove the plug from the household outlet.

• When drying is complete, finish with a brush or your fingers.
  After the hair dryer has cooled down sufficiently, keep it in a place with low humidity.

Scalp Care mode

Do this after drying your hair by about 70% following procedure 2 on P.10

1 Select [SCALP] with the mode switching button.
2 Lift your hair by hand and dry your scalp.

• You may feel cold depending on the ambient temperature. In this case, move the appliance further away from your scalp on [HOT] and apply air.

3 Select [HOT] with the mode switching button and dry your hair overall.

Skin Care mode

Do this after drying your hair.

1 Select [1] with the power switch, and select [SKIN] with the mode switching button.

2 Place the air outlet at a distance of about 20 cm from your chin and apply air for about 1 minute, moving the appliance to the left and right.

• Use with your eyes closed.
• Perform skin care using lotion or milky lotion, in the same way and timing as normal.

To increase hair volume

Lift the base of your hair and apply the hot air from the bottom to the top.

For top For inner hair

To decrease hair volume

Run your hand through your hair in the same direction as the hair flow, and apply hot air from the top to bottom.

To define the curls and waves with a diffuser

1. Gently place the tip of your hair on the diffuser.
2. Lift your curls up and down from your scalp whilst they are drying.
3. Repeat all sections.
4. Finally, adjust the overall finished look with your hands.

To increase hair volume with a diffuser

Attain volume by moving the diffuser in a circular motion over the scalp. Keep the diffuser held on specific areas of your head for a few seconds to attain volume as you wish. Repeat until your desired look is achieved.

To adjust hair flow with a diffuser

Comb the hair with a diffuser to dry the hair from the roots to the tips while pulling the ends of the hair.

To set your hair

1. dampen the area of your hair you want to set with water etc.
2. Select [1] with the power switch.
3. Select [HOT] with the mode switching button and apply hot air.

Concentrator nozzle helps to focus and direct the airflow straight to hair for giving more control.

To make your hair setting last longer

Apply cold air to the area of your hair you want to set after applying hot air.

Note

• Be careful not to bump the air inlet such as on the corner of a desk.
• Do not look into the air outlet while in use.
• Waveperms may temporarily become easy to stretch when you apply nanoe™ and mineral ion to your hair, but return to their original state when you apply water or styling agents.
• Styling and treatment agents etc. can be used. However, if you use sticky substances such as oil, gel or wax, the intended effect of nanoe™ and mineral ion may become difficult to achieve.

• Since nanoe™ and mineral ions are generated, you might encounter the following.

• Water droplets may be blown out of the nanoe™ outlet during use.

• You may hear a noise from the nanoe™ outlet or the mineral ion outlet.

• You may notice a characteristic smell during use.

• Results of nanoe™ and mineral ions and each mode on hair vary according to the individual, and the following people may find it hard to experience an effect.

• People with curly hair

• People with strong wavy hair
• People with smooth hair that can be easily set
  People who have had a straightening perm within 3 to 4 months
• People with short hair

Maintenance of the hair dryer

Always turn the power switch off and disconnect the plug from the household outlet. (Except when performing maintenance on the air outlet)

Maintaining the air outlet

Do this about once a month or more

1. Plug into the household outlet.
2. Select [I], [I] or [I] with the power switch.
3. Select [COLD] with the mode switching button.
4. While scraping dust and hair jammed in the mesh with a cotton swab, blow them away with air.

Notes

• When performing maintenance, do not block the air inlet with your hand.
• Dust may fly out when you use the appliance for the first time after maintenance. Use the appliance after confirming that dust no longer flies out. (Do not look into the air outlet.)

Maintaining the air inlet

Do this about once a month or more

Wipe to clean lint, hair, or other matter from the air inlet with a tissue or toothbrush.

If dust is attached to the inside, remove it with a vacuum cleaner.

Note

• Do not press or rub with your nails or sharp items. Doing so may cause the air inlet to break.

Maintaining the nanoe™ outlet and the mineral ion outlet

At least once a month

In order to maintain the generation amount of nanoe™ and mineral ion.

1. Prepare a commercially available new cotton swab (intended for babies) and moisten the tip of the cotton swab with water.
2. Pinch the tip of the cotton swab with clean hands and make the tip thin as shown in the figure to the right.
3. Gently insert the swab in the nanoeTM outlet and the mineral ion outlet until it stops (about 1 cm).
4. Turn the cotton swab 2-3 times carefully. When turned, you may sense the swab getting caught, but this is not an issue.

The tips of the needle-shaped part.

Do not put a cotton swab in any portion other than the part indicated by O.

Maintaining the main body

Do this when dirty

To clean the hair dryer (when it is dirty), soak a cloth in the soapy water and squeeze it out firmly, then wipe with the cloth.

Notes

• Do not use substances such as alcohol, nail polish remover or detergent (hand soap). Doing so may result in malfunction or part cracks or discoloration.
• Do not leave the appliance with hairdressing products or cosmetics on it. Doing so will cause deterioration of the plastic, leading to discoloration and cracks.

Troubleshooting

Problem Possible cause Action
Sparks can be seen inside the product.- These sparks are caused by protective device (thermostat switch).They are not dangerous.	Lint has accumulated on the air inlet or air outlet.Hair or something is blocking the air inlet.
Hot air repeatedly turns into cold air.	Do not block the air inlet.
The hot air is abnormally hot.	Use an outlet in which the plug fits snugly.
The plug, cord, or bushing is abnormally hot.	Insert the plug firmly into the outlet.
Sparks are generated inside the nanoe \( {}^{\mathrm{{TM}}} \) outlet.	Perform maintenance on the nanoe \( {}^{\mathrm{{TM}}} \) outlet. (See page 16.)
A noise (crackling) is heard inside the nanoe \( {}^{\mathrm{{TM}}} \) outlet.
The temperature of the air is not hot.	Two sensors monitor environment conditions and your way of using the dryer, and automatically control the temperature to prevent extreme heat.
There is a peculiar smell.	This is the characteristic odor of nanoe \( {}^{\mathrm{{TM}}} \), mineral ions, or ozone, and is not harmful to the human body.
Water droplets fly out from the nanoe \( {}^{\mathrm{{TM}}} \) outlet.	Water droplets occasionally fly out from when generating nanoe \( {}^{\mathrm{{TM}}} \); this is not an abnormality.

If the problems still cannot be solved, contact the store where you purchased the unit or a service center authorised by Panasonic for repair.

Specifications

Power source Power consumption
220 V~ 50-60 Hz	1 300 W
230 V~ 50-60 Hz	1 450 W
240 V~ 50-60 Hz	1 600 W

When used in [HOT] [III] setting.

Accessories	Concentrator nozzle, Diffuser
Airborne Acoustical Noise 78 (dB(A) re 1 pW)

This product is intended for household use only.

Disposal of Old Equipment Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste. For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local authority.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Authorized Representative in EU:

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Germany

Importer:

Panasonic Marketing Europe GmbH

Hagenauer Strasse 43, 65203 Wiesbaden, Germany

Manufactured by:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma City, Osaka, Japan

For more information about the energy efficiency of the product, please visit our website, www.panasonic.com, and enter the model number in the search box.

Caution for AC Mains Lead

For your safety, please read the following text carefully. This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 10-ampere fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 10-ampere and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local dealer.

CAUTION

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.

THIS PLUG IS NOT WATERPROOF-KEEP DRY.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differs according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

Figure A Figure B

1. Replace the fuse and close or attach the fuse cover.

Figure A Figure B

Panasonic

Bedienungsanleitung

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Germany

Imposter:

Panasonic Marketing Europe GmbH

Hagenauer Strasse 43, 65203 Wiesbaden, Germany

Hergestellt von:

Panasonic Corporation

1006,Oaza Kadoma,Kadoma City, Osaka, Japan

Mode air chaud [HOT]

Mode alternance Chaud/Froid [

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

Importateur:

Panasonic Marketing Europe GmbH

Hagenauer Strasse 43, 65203 Wiesbaden, Germany

Fabrique par:

Panasonic Corporation

1006,Oaza Kadoma,ville de Kadoma, Osaka, Japan

Panasonic Testing Centre

Winsberging 15, 22525 Amburgo, Germany

Importatore:

Panasonic Marketing Europe GmbH

Hagenauer Strasse 43, 65203 Wiesbaden, Germany

Fabbricato da:

Panasonic Corporation

Panasonic Testing Centre

Winsberging 15, 22525 Hamburgo, Germany

Importer:

Panasonic Marketing Europe GmbH

Hagenauer Strasse 43, 65203 Wiesbaden, Germany

Fabricado por:

Panasonic Corporation

1006, Oaza Kadoma, Ciudad de Kadoma, Osaka,

Japon

Wat is nanoeTM, mineral?

nanoeTM

Panasonic Testing Centre

Winsberging 15,22525 Hamburg, Germany Importeur:

Panasonic Marketing Europe GmbH

Hagenauer Strasse 43, 65203 Wiesbaden, Germany

Geproduceerd door:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma-stad, Osaka, Japan

Panasonic Testing Centre

Winsberging 15, 22525 Hamburgo, Germany

Importador:

Panasonic Marketing Europe GmbH

Hagenauer Strasse 43, 65203 Wiesbaden, Germany

Fabricado por:

Panasonic Corporation

Component identifying

A Luftutblas

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Germany

Importor:

Panasonic Marketing Europe GmbH

Hagenauer Strasse 43, 65203 Wiesbaden, Germany

Tillverkad av:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma City, Osaka, Japan

Identification of deli

A Luftudgang

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Germany

Import:

Panasonic Marketing Europe GmbH

Hagenauer Strasse 43, 65203 Wiesbaden, Germany

Fremstillet af:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma, Osaka, Japan

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Tyskland

Importor:

Panasonic Marketing Europe GmbH

Hagenauer Strasse 43, 65203 Wiesbaden, Germany

Produsert av:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma, Osaka, Japan

For mer informasjon om Produkts energieffektivitet kan du gå inn pa www.panasonic.com og skrive modellnummeretinn i skefeltet.

Panasonic

Käyttoohjeet

Panasonic Testing Centre

Winsberging 15, 22525 Hampuri, Germany

Maahantuoja:

Panasonic Marketing Europe GmbH

Hagenauer Strasse 43, 65203 Wiesbaden, Germany

Valmistaja:

Panasonic Corporation

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Nemecko

Dovozce:

Panasonic Marketing Europe GmbH

Hagenauer Strasse 43, 65203 Wiesbaden, Nemecko

Vyrobil:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma City, Osaka,

Japonsko

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Nemecko

Dovozca:

Panasonic Marketing Europe GmbH

Hagenauer Strasse 43, 65203 Wiesbaden, Nemecko

Vyrobca:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma City, Osaka,

Japonsko

A nanoeTM nevjegye 235

Panasonic Testing Centre

1006, Oaza Kadoma, Kadoma City, Osaka, Japan

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Germany

Importer:

Panasonic Marketing Europe GmbH

Hagenauer Strasse 43, 65203 Wiesbaden, Germany

Fabricat de:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma City, Osaka, Japonia

Pentru informatii suplimentare privind eficiencta energetica a produsului va rugam vizitatiti site-ul nostru internet www.panasonic.com introducand numarul de model in masca de cautare.

Panasonic

Kullanim Kilavuzu

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Germany

Navanakorn Industrial Estate, Zone 3 No.106 Moo.18

Khlong 1, Khlong Luang, Pathum Thani 12120, Thailand.

YETKILI TEMSILCI

Ithalatci Firma:

Tesan Iletisim A.Ş.

Cobançesme Mah. Bilge 1 Sok. No:17

34196 Yenibosna- Istanbul

Tel: [phone] Faks: 0212 454 60 20

www.tesan.com.tr

URUNUN KULLANIM OMRU 7 YILDIR

Panasonic Corporation

https://www.panasonic.com

© Panasonic Corporation 2025

EN, GE, FR, IT, SP, DU, PT, SW, DA, NW, FI, PL, CZ, SK, HU, RO, TK

Printed in Thailand

SEHNA9N82503W Y0325-0
