Verehrter Kunde,

Homepage: https://www.scheppach.com/de/service

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Warning - Read the operating manual to reduce the risk of injury.		Do not use the nailer on animals!
	Wear safety goggles. Sparks created during work or fragments, chippings and dust ejected by the product can cause sight loss.		Do not point the nailer at people!
	Wear hearing protection. Exposure to noise can cause hearing loss.		The product complies with the applicable Serbian directives.
	Never use oxygen or other flammable gases as a source of energy!		The product complies with the applicable European directives.
	Do not use the product on scaffolding or ladders!		Keep the nailer away from children!
	Do not use the product in contact release for applications such as closing boxes or crates and the assembly of transport safety systems on trailers and trucks. Warning that the product must only be used in secure workplaces. Be careful when changing from one insertion point to another.		Warning: Fire hazard!
			Release safety catch

Table of contents: Page:

1. Introduction.... 18
2. Product description (Fig. 1)....18
3. Scope of delivery 18
4. Proper use 18
5. Safety instructions....19
6. Technical data.... 22
7. Unpacking 22
8. Before commissioning 23
9. Operation....23
10. Maintenance and care 23
11. Repair & ordering spare parts 24
12. Cleaning....24
13. Disposal and recycling.... 24
14. Declaration of conformity 242

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
• Failure to comply with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE 0113 not being observed

Note:

The operating manual is part of this product. It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

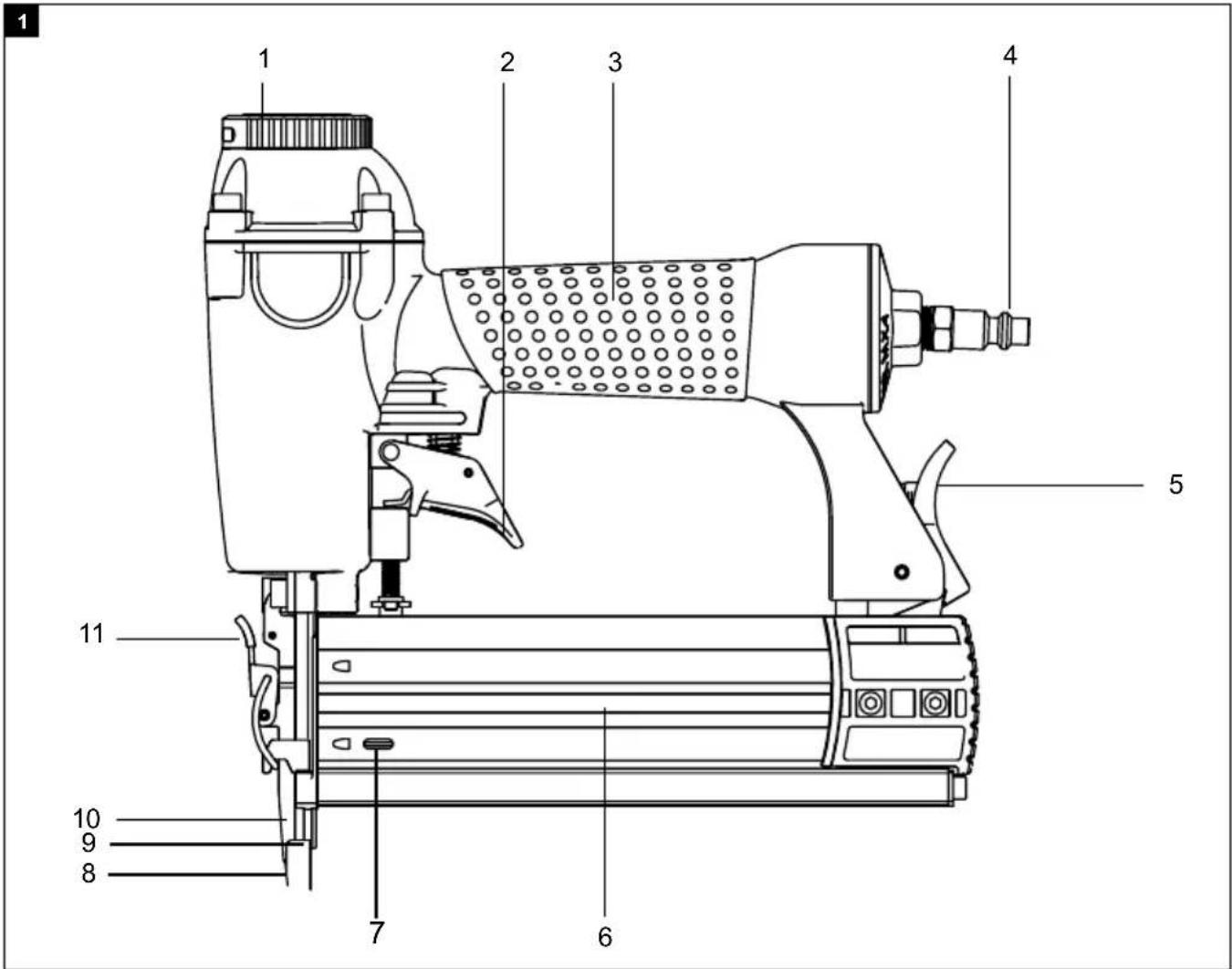

2. Product description (Fig. 1)

1. Exhaust air cover (rotatable)
2. Trigger
3. Handle
4. Threaded plug nipple
5. Magazine lever
6. Magazine

7. Level indicator

8. Release safety catch

9. Mouth
10. Front plate
11. Front plate quick clamp lever

3. Scope of delivery

Item Quantity Designation

1x Air nail gun

1x Oil bottle

2x Allen key

500x Nails (15 - 50 mm)

500x Tacker needles (Length 16 - 40 mm)

1x Operating manual

4. Proper use

The air nail gun is a compressed air-operated tool for a variety of uses.

This product is used to drive countersunk nails and staples into wood and similar materials. Only use the nails or staples that are explained under the item "Technical data" or shown on the information plate on the magazine. Other driven-in driven-in fasteners may not be used.

Likewise, use on hard materials such as stone, metal, etc. is not permitted.

Note!

Hose inside diameters that are too small and hose lines that are too long lead to a loss of performance on the product.

The product may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

In addition, the applicable accident prevention regulations must be strictly observed.

Other general occupational health and safety-related rules and regulations must be observed.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

The manufacturer is not liable for damage caused by improper use or incorrect operation.

5. Safety instructions

WARNING

Read all safety information and instructions. Failure to adhere to safety information and instructions can result in electric shock, fire and/or serious injuries.

Save all warnings and instructions for future reference.

General safety rules

• Keep your fingers away from the trigger when you are not using this product and alternating from one working position to another.
• Read and understand the safety instructions before connecting, disconnecting, charging, using or servicing the product, alternating accessories or working near the product. Failure to do so may result in serious physical injury.
• Keep all parts of the body, such as hands, legs, etc., away from the direction of firing and ensure that the driven-in fastener cannot penetrate parts of the body.
• When using the product, be aware that the driven-in fastener could bounce off, causing injury.
• Secure the product in a firm grip and prepare for recoil.
• Only technically trained users should use the driving-in device.
• Do not make any changes to the driving-in device. Changes may reduce the efficiency of the security measures and increase the risk for the user and/or third parties.

• Information on products intended for use on hard surfaces such as steel and concrete regarding additional contact forces required to operate the product and avoidance of the risk of slipping.
- Do not throw away the operation manual.
- Do not use a product if it has been damaged.
- Be careful when handling driven-in fasteners, especially when loading and unloading, as the driven-in fasteners have sharp points that could cause injury.
• Always investigate the product for defective, incorrectly connected or worn parts before use.
- Do not lean too far forward. Use only on a secure workplace. Always make sure you have a firm footing and keep your balance at all times.
- Keep third parties away (if you are working in an environment where through traffic of people is likely). Mark your work area clearly.
- Never aim the product at yourself or others.
- Only wear gloves that provide a suitable feel and secure operation of the trigger and all adjustment devices.

Hazards due to flying objects

• The driving-in device must not be connected when unloading driven-in fasteners, making adjustments, clearing blockages or replacing accessories.
• During operation, make sure that the driven-in fasteners always penetrate the material properly and are not deflected or misplaced towards the user and/or third parties.
• During operation, fragments may be ejected from the workpiece or from the fastening or magazine system.
  • Always wear shock-resistant eye protection with side shields while operating the product.
• The risk to others must be assessed by the user.
• Be careful with products without workpiece contact, as they can trip unintentionally and injure the user and/or third parties.
• Ensure that the product is always securely seated on the workpiece and cannot slip away.

Operational hazards

• Hold the product properly to be able to react to normal or sudden movements, such as recoil.
• Keep a firm footing and keep your balance at all times.
• Use suitable body protection equipment for your personal protection, such as hearing and eye protection.

Wearing personal protective equipment, such as dust masks, anti-slip safety shoes, safety helmet or hearing protection, depending on the type and use of the driving-in device, reduces the risk of injuries.

• When working, hold the driving-in device in such a way that the head and body cannot be injured in the event of a possible recoil due to a power supply incident or hard spots in the workpiece.
• Never trigger the driving-in device into empty space. In this way, you avoid hazards from free-flying driven-in fasteners and overstressing of the product.
• When transporting, disconnect the power tool from the compressed air supply, especially when using ladders or moving in an unaccustomed position.
• At the workplace, only carry the single-action tool by the handle and not with the trigger actuated.
• Pay attention to the workplace conditions. Driven-in fasteners can potentially penetrate thin workpieces or slide off workpieces when working on corners and edges, thereby endangering persons.

Hazards due to repetitive movements

When using the product for long periods of time, the user may experience discomfort in the following areas hands, arms, shoulders, the neck or other parts of the body.

• When using the driving-in device for long periods of time, the user may experience discomfort in the hands, arms, shoulders, neck or other parts of the body.
• When using the product, the user should maintain a comfortable posture, taking care to stand securely and avoiding awkward postures or those where it is difficult to maintain balance. The user should change posture in the course of prolonged work, which can be helpful in avoiding discomfort and fatigue.
• If the user experiences symptoms such as persistent or recurring discomfort, pain, palpitations, aching spots, tingling, numbness, burning sensation or stiffness, these warning signs should not be ignored. The user must consult a qualified occupational health professional regarding general activities.

Hazards due to accessories and consumables

- Disconnect the product from the compressed air supply before changing accessories or making adjustments.

- Only use accessories and consumables of the sizes and types recommended by the manufacturer of the air nail gun.

Hazards in the workplace

• Slips, trips and falls are major causes of workplace accidents. Pay attention to slippery surfaces caused by the use of the product and also to tripping hazards caused by the air pressure hose.
• Extra caution should be exercised in unknown environments. There may be hidden hazards, such as electrical cables or other supply lines.
• This product is not intended for use in hazardous areas and is not insulated against contact with electrical energy.
• Ensure that there are no electrical cables, gas pipes, etc. that could cause a hazard if damaged by the product.

Hazards due to dust and exhaust gases

• If the product is used in an area where static dust is present, it may swirl up the dust, causing a hazard.
• The air nail gun shall be operated and maintained in accordance with the recommendations contained in this manual to minimise the release of dust and vapours.
• The exhaust air must be discharged in such a way that the whirling up of dust in a dust-filled environment is reduced to a minimum.
• All installation/accessory parts of the product intended to collect, extract or suppress flying dust or vapours should be used and maintained in accordance with the manufacturer's instructions.
• Do not breathe in the exhaust air. Avoid getting the exhaust air in your eyes.
• The exhaust air from the product may contain water, oil, metal particles or impurities from the compressor. This can cause damage to health.

Hazards due to noise

• Exposure to high levels of noise without protection can cause permanent disabilities, hearing loss and other problems such as tinnitus (ringing, buzzing, whistling or humming in the ears).
• Use hearing protection equipment as required by occupational health and safety regulations.
• The product shall be operated and maintained as recommended in these instructions to prevent an unnecessary increase in noise level.

Hazards due to vibrations

• Exposure to vibrations can cause nerve paralysis and interruption of blood supply to hands and arms.
• Wear warm clothes when working in cold conditions and keep your hands warm and dry.
• If you experience numbness, tingling, pain or whitening of the skin on your fingers or hands, you should seek medical advice from a qualified occupational physician regarding general activities.
• Use and maintain the product as recommended in this manual to prevent an unnecessary increase in vibration level.
• Hold the product with a light but secure grip, as the risk from vibrations is generally greater when the gripping force is higher.

Additional safety instructions for compressed air-operated products:

• Compressed air can cause serious injuries.
• Always close the air supply and disconnect the product from the air supply when it is not in use.
• Always disconnect the product from the compressed air supply before switching accessories, making adjustments and/or repairs and when moving from one work area to another.

- Keep fingers away from the trigger when the product is not in use and when moving from one operating position to another.

- Never direct compressed air at yourself or anyone else

- Flared hose lines can cause serious injuries. Always check for damaged or loose hoses or connections.

- Never carry a compressed air-operated product by its hose.

- Never pull a compressed air-operated product by its hose.

- Do not exceed the maximum operating pressure when using compressed air-operated products.

- Compressed air powered products should only be operated by compressed air at the lowest possible pressure for the working process in order to reduce noise and vibration and to minimise wear and tear.

- The use of oxygen or flammable gases for operation of compressed air-operated products creates a fire and explosion hazard.

• Take care when using compressed air-operated products as the product may become cold, affecting grip and control.

Supplementary safety instructions for air nail guns

• Danger of injury! Never exceed the maximum permissible working pressure of 8 bar. Use a pressure reducer to set the working pressure.
• Keep your work area clean and well-lit. Disorganised and unlit work areas can result in accidents.
• Keep children and other people away while using the driving-in device. Distractions may cause you to lose control of the product.
  • Always remain attentive, pay attention to what you are doing and be sensible when working with a driving-in device.
• Do not use a driving-in device while you are tired or under the influence of drugs, alcohol or medication. A moment of carelessness when using the driving-in device can result in serious injuries.
• Disconnect the product from the compressed air source before repair and maintenance work as well as before transport.

Additional notes for compressed air-operated driving-in devices

• Danger of injury! Do not operate the product if the release safety catch is defective or has been removed. Otherwise, injuries may result.
• When disconnecting the hose coupling, hold the hose firmly in your hand to avoid injuries caused by a hose recoiling.
• Be sure to use a 14 " threaded nipple and a quick coupling for the compressed air supply. Otherwise, the staples/nails are shot out very slowly or with little pressure.
• The compressed air-operated driving-in device may only be connected to cables where it is ensured that the maximum permitted pressure is prevented from being exceeded by more than 10%, e.g. by means of a pressure control valve (pressure reducer) installed in the compressed air cable with a downstream or built-in pressure relief valve.

Triggering device & triggering system

- This driving-in device is triggered by pressing the trigger with the finger. In addition, certain driving-in products must be equipped with a release safety catch which only enables a driving-in operation when the muzzle of the product is placed on a workpiece. These products are marked with a triangle on the top and must not be used without an effective release safety catch.

- The product must not be used from scaffolds or ladders. It must not be used for certain applications, for example: when changing from one driving-in point to another via scaffolding, stairs, ladders or ladder-like constructions, such as roof battens, or when closing crates or crates, when attaching transport retainers, e.g. on vehicles and wagons.

Store the safety instructions safely.

Residual risks

Even when this tool is operated properly, residual risks still remain. The following hazards may arise in connection with the design and construction of this product:

1. Danger of crushing!
2. Danger of injury due to driven-in fasteners.
3. Hearing damage if suitable hearing protection is not worn.
4. Damage to health resulting from hand/arm vibration if the product is not properly operated and maintained.

6. Technical data

max. permissible working pressure 8.3 bar

recommended pressure range 4 - 7 bar
Air consumption 0.7 l/min
Staple width 5.7 mm
Staple length	16-40 mm
Nail length	15-50 mm
Recommended hose diameter	5x8 mm
Recommended lubricant	Compressed air special oil
Compressed air quality	cleaned, oil nebulised and condensate-free
Weight	1.19 kg

Subject to technical changes!

Noise and vibration

⚠ Warning: Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection.

Information about noise level measured in accordance with EN 12549.

Noise data:

Sound power level L_WA	103.6 dB
Sound pressure level L_pA	90.6 dB
Uncertainty K_wa/pA	2.5 dB

Vibration parameters

Vibration value per ISO 8662-11:1999

Vibration a_h	6.59 m/s ^2
Uncertainty K_h	1.5 m/s ^2

Compressed air quality:

Cleaned and oil-misted.

Air supply:

Connect to a compressed air source via a maintenance unit with filter pressure reducer and mist lubricator.

Note:

Wear the required protective clothing, especially safety goggles, when working with the air nail gun.

7. Unpacking

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating instructions before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

⚠ WARNING!

The product and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

8. Before commissioning

NOTE: Always put on the safety goggles provided before starting up the machine. Remove the protective film from the safety goggles before using them for the first time.

8.1 Connect compressed air source

NOTE: The air nail gun may only be operated with cleaned, oil-misted compressed air and must not exceed the maximum working pressure of 8.3 bar at the product. The compressor must be equipped with a pressure reducer to regulate the working pressure.

Connect the product to a suitable compressed air source:

1. To do this, press the quick coupling of the compressed air hose (not included in the scope of delivery) onto the 14 (4) threaded nipple of the air nail gun. The locking mechanism is automatic.

2. Connect the other end of the compressed air hose to the (filter) pressure reducer on the compressor.

8.2 Loading the magazine

1. Press the magazine lever (5) and pull back the magazine cover to the end stop.

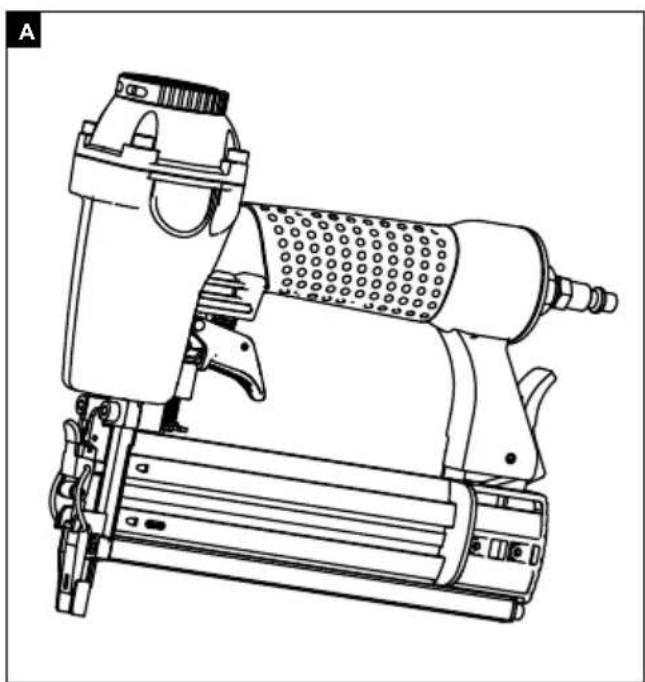

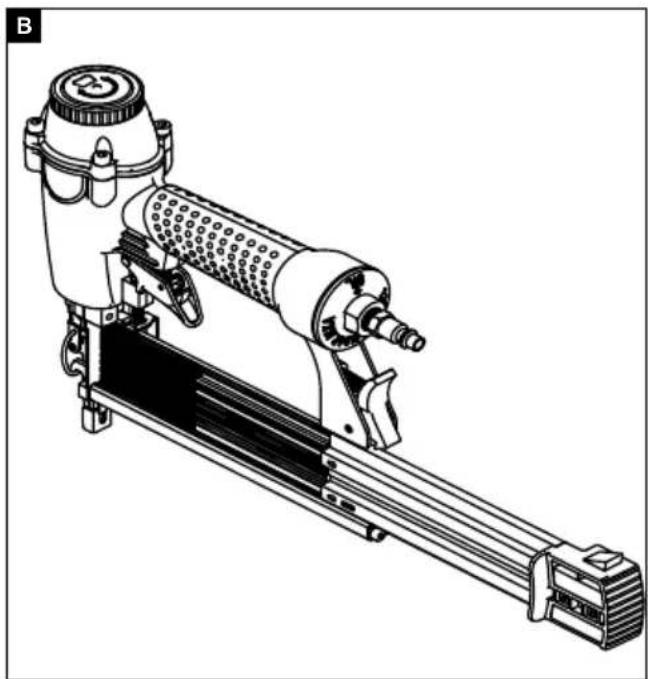

2. Insert the appropriate driving-in material (nails, see Fig. A or staples, see Fig. B) into the magazine (6). The staples must be placed on the spar of the magazine (6).

3. Slide the magazine cover forward until it clicks into place.

9. Operation

- Load the magazine (6) of the air nail gun as described in the chapter "Loading the magazine".

- Set the correct working pressure on the compressor using the pressure reducer.

- Ensure that the maximum working pressure of 8.3 bar on the product is not exceeded. Excessive working pressure does not improve performance, but only increases compressed air consumption and accelerates wear.

- Switch the compressor on.

- Run the compressor once until the maximum boiler pressure has been reached and the product switches off.

- Place the air nail gun on the workpiece and press the trigger (2). NOTE: The air nail gun is equipped with a release safety catch (8). The driving-in material does not leave the product until the muzzle of the air nail gun is tripped against the workpiece and the trigger (2) is actuated.

- Turn the exhaust air aperture (1), to let the air flow out to the desired direction.

- Disconnect the product from the compressor after completing your work.

Removing jammed staples

If a staple/nail gets stuck in the magazine shaft, remove the compressed air supply line immediately.

1. Open the magazine (6) as described in the chapter "Loading the magazine".

2. Open the front plate (10) by pulling the front plate quick clamp lever (11) towards the release catch (8).

3. Remove the jammed driving-in material.

4. Close the front plate (10) by pulling the front plate quick clamp lever (11) towards the exhaust air cover (1).

5. Close the magazine (6) of the air nail gun as described in the chapter "Loading the magazine".

10. Maintenance and care

Attention: Disconnect the product from the compressed air supply before carrying out maintenance and cleaning work.

Compliance with the maintenance notes specified here ensures a long service life and trouble-free operation for this quality product.

Before starting work, always check that the magazine (6) is firmly seated. Clean the product thoroughly and immediately after work.

Regular lubrication is a prerequisite for your product to function properly over the long term. Only use the oil included in the scope of delivery for this purpose.

If the compressed air universal tool is out of operation for several days, you must put 5-10 droplets of oil into the compressed air supply before switching it on.

Only store your compressed air tool in dry rooms.

There are two lubrication options:

via a misting lubricator

A complete maintenance unit includes a mist lubricator and is attached to the compressor.

manually

If your system has neither a maintenance unit nor a line lubricator, 3-5 droplets of oil must be added to the compressed air supply before each start-up of the compressed air universal tool.

Other maintenance

The interior of the product has no further internal parts that require maintenance.

11. Repair & ordering spare parts

After repairs or maintenance, make sure that all safety-related parts are installed and are in perfect condition.

All parts which may cause injury must be kept where they are inaccessible to children or others.

Attention: According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialist. The same applies to accessory parts.

11.1 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*:

Assortment of staples and nails Art. no. 7906100739

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

12. Cleaning

Air nail gun

• Do not use sharp objects to clean the product. No liquids must be allowed to enter the interior of the product. Otherwise, the product can be damaged.

• Clean the product regularly, preferably always immediately after finishing work.

• Clean the housing with a dry cloth - never use petrol, solvents or cleaners that attack plastic.
  • After each use, pack the air nail gun in the carrying case provided to protect it against soiling.

13. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen, Germania

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

Günzburger Straße 69

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Kedves Ügyfelünk!

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie,

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupci,

želimo vam mnogo zadovoljstva i uspjeha pri radu s novim proizvodom.

Napomena:

Prema važećem njemačkom Zakonu o odgovornosti za proizvode, proizvođač ovog proizvoda ne odgovara za štete koje nastanu na ovom proizvodu ili koje ovaj proizvod uzrokuje u slučaju:

• neispravnog rukovanja
- Nepridržavanje priručnika za uporabu
- popravaka koje obave drugi, neovlašteni stručnjaci
• montaže i zamjene neoriginalnih rezervnih dijelova
- nenamjenske uporabe
- kvarova električnog sustava zbog nepoštivanja električnih propisa i VDE propisa 0100, DIN 57113 / VDE 0113

Günzburger Straße 69

D-89335 Ichenhausen

Spoštovani kupec,

želimo vam veliko veselja in uspeha pri delu z vašim novim izdelkom.

Napotek:

Proizvajalec tega izdelka skladno z veljavnim zakonom o odgovornosti za izdelke ne jamči za poškodbe na tem izdelku ali poškodbe s tem izdelkom, do katerih pride pri:

Günzburger Straße 69

D-89335 Ichenhausen

Austatud klient!

Günzburger Straße 69

D-89335 Ichenhausen

Gerbiamas kliente,

Günzburger Straße 69

Skavu garums 16–40 mm

Naglu garums 15–50 mm

leteicamais šlūtenes diametrs 5x8 mm

Günzburger Straße 69

D-89335 Ichenhausen

Bästa kund!

Günzburger Straße 69

D-89335 Ichenhausen

Arvoisa asiakas,

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Kære kunde

Günzburger Straße 69

D-89335 Ichenhausen

Kjære kunde,

Günzburger Straße 69

D-89335 Ichenhausen, Германия

Уважаеми клиенти,

Günzburger Straße 69

D-89335 Ichenhausen

Αξιότιμε πελάτη,

Günzburger Straße 69

D-89335 Ichenhausen

Stimate client,

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupče,

Günzburger Straße 69

D-89335 Ichenhausen

İthalatçı:

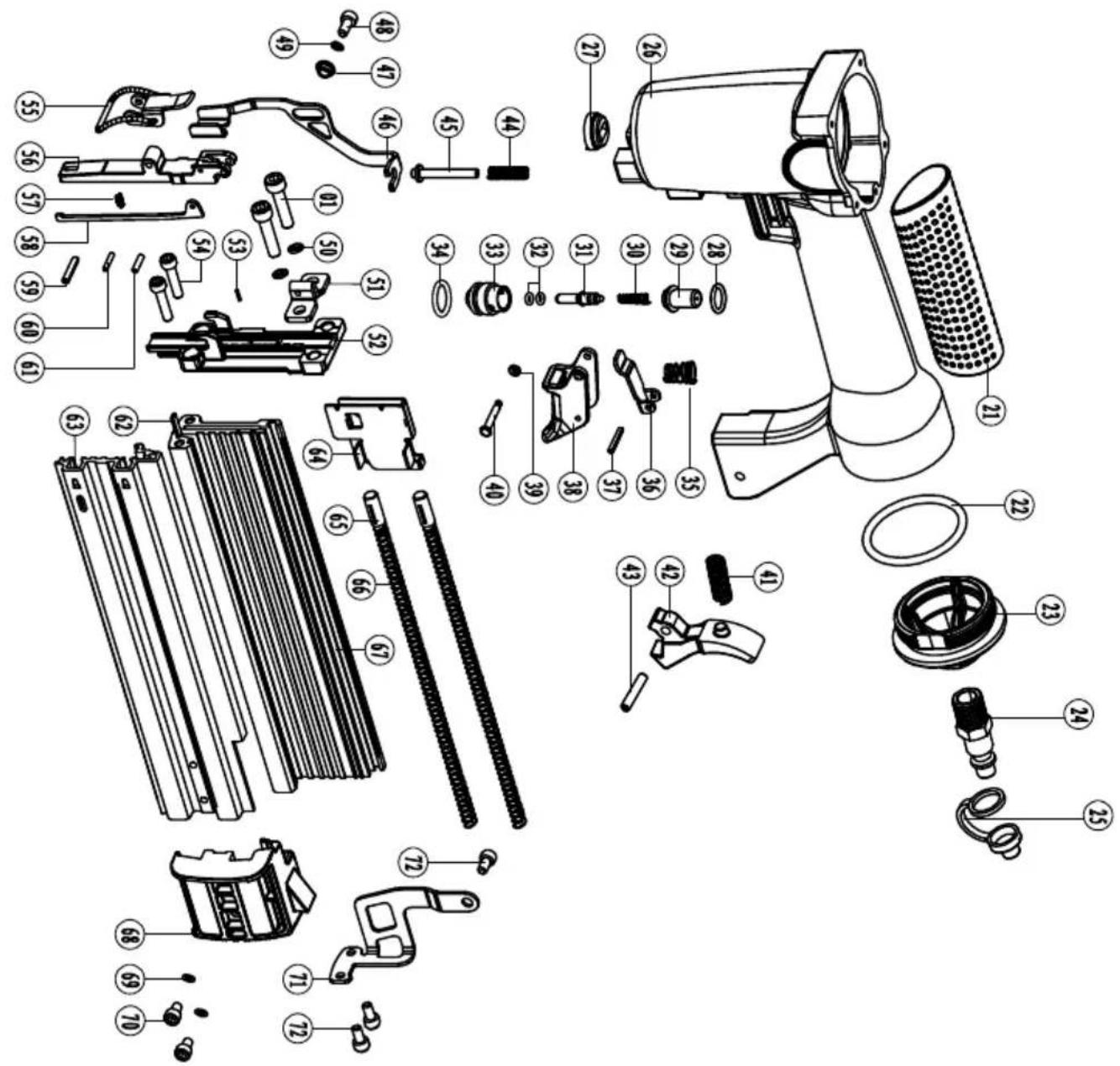

Exploded view diagram of a mechanical assembly with numbered parts for identification

Exploded view diagram of a mechanical device with numbered parts for identification

Scheppach GmbH, Günzburger Str. 69, 89335 Ichenhausen

DE	EU-KonformitätserklärungÜbersetzung der OriginalkonformitätserklärungWir erklären in alleiniger Verantwortung, dass das hier beschriebene Produkt mit den geltenden Richtlinien und Normen übereinstimmt.		Der hier beschriebene Gegenstand der Erklärung erfüllt die Vorschriften der Richtlinie 2011/65/EU des Europäischen Parlaments und des Rates vom 8. Juni 2011 zur Beschränkung der Verwendung bestimmter gefährlicher Stoffe in Elektro- und Elektronikgeräten.*Technische Unterlagen verfügbar bei: **
	Artikelnummer***	Artikelbezeichnung: Druckluft Klammer- und Nagelpistole ANS15-50		Marke****
GB	EU Declaration of ConformityTranslation of the original Declaration of ConformityWe declare under our sole responsibility that the product described here complies with the applicable directives and standards.		The object of the declaration described here fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.*Technical documentation available at: **
	Item number***	Item designation: Air nail gun ANS15-50		Brand****
FR	Déclaration UE de conformitéTraduction de la déclaration de conformité originaleNous déclarons, sous notre propre responsabilité, que le produit décrit ici est conforme aux directives et normes en vigueur.		L'appareil décrit ci-dessus dans la déclaration est conforme aux réglementations de la directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 visant à limiter l'utilisation de substances dangereuses dans la fabrication des appareils électriques et électroniques.*Dossier technique auprès de:**
	Référence ***	Désignation de l'article: Agrafeuse-cloueuse pneumatique ANS15-50		Marque ****
IT	Dichiarazione di conformità UETraduzione della dichiarazione di conformità originaleDichiariamo sotto la nostra esclusiva responsabilità che il prodotto qui descritto è conforme alle direttive e alle norme vigenti.		L'oggetto della dichiarazione, qui descritto, soddisfa le disposizioni della Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011, sulla restrizione nell'utilizzo di determinate sostanze pericolose negli apparecchi elettrici ed elettronici.*Documentazione tecnica disponibile presso: **
	Gaminio numeris ***	Nome articolo: Pistola aggraffatrice e sparachiodi ad aria compressa ANS15-50		Marchio ****
NL	EU-conformiteitsverklaringVertaling van de originele conformiteitsverklaringWij verklaren onder eigen verantwoordelijkheid dat het hier beschreven product voldoet aan de geldende richtlijnen en normen.		Het hier beschreven onderwerp van deze verklaring voldoet aan de voorschriften van richtlijn 2011/65/EU van het Europese Parlement en de Raad van 8 juni 2011 omtrent de beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparaten.*Technische documentatie verkrijgbaar bij: **
	Artikelnummer ***	Artikelnaam: Persluchttacker ANS15-50		Merk ****
ES	Declaración de conformidad UETraducción de la Declaración de conformidad originalDeclaramos, bajo nuestra exclusiva responsabilidad, que el producto aquí descrito cumple las directivas y normas aplicables.		El objeto de la declaración aquí descrito cumple las disposiciones de la Directiva 2011/65/UE del Parlamento Europeo y el Consejo del 8 de junio de 2011 sobre restricciones a la utilización de determinadas sustancias peligrosas en aparatos eléctricos y electrónicos.*Documentación técnica disponible en: **
	Núm. de articulo***	Denominación del articulo: Grapadora y pistola de clavos neumática ANS15-50		Marca****
PT	Declaração de conformidade UETradução da declaração de conformidade originalDeclaramos, à nossa exclusiva responsabilidade, que o produto aqui descri-to está em conformidade com as diretivas e normas aplicáveis.		O objeto da declaração aqui descrito cumpre com as normas da Diretiva 2011/65/UE do Parlamento Europeu e do Conselho de 8 de junho de 2011 relativamente à restrição da utilização de determinadas substâncias perigosas em equipamentos elétricos e eletrónicos.*Documentos técnicos disponíveis junto de: **
	Número de artigo***	Designação do artigo: Pistola pneumática de pregos e agrafos ANS15-50		Marca****
CZ	EU prohlásení o shoděPřeklad originálního prohlásení o shoděProhlašujeme na svou výlučnou odpovědnost, že zde popsaný výrobek od-povídá platným směrnicím a normám.		Zde popsaný předmět prohlásení splňuje předpisy směrnice 2011/65/EU Evropského parlamentu a Rady ze dne 8. června 2011 pro omezení používání určitých nebezpečných látek v elektrických a elektronických zařízeních.*Technické podklady k dispoziciu u: **
	Číslo výrobku***	Název výrobku: Pneumatická sponkovací a hřebikovací pistole ANS15-50		Značka****
SK	EÚ vyhlásenie o zhodePreklad originálního vyhlásenia o zhodeNa vlastnú zodpovednosť vyhlasujeme, že tu popísaný výrobok je v súlade s platnými smernicami a normami.		Tu opísaný predmet vyhlásenia je v súlade s predpismi smernice Európskeho parlamentu a Rady 2011/65/EÚ z 8. júna 2011 o obmedzení používania určitých nebezpečných látek v elektrických a elektronických zariadeniach.*Technické podklady sú k dispozícii na: **
	Číslo výrobku ***	Označenie výrobku: Pneumatická sponkovacia a nastrel'ovacia plistoľ ANS15-50		Značka ****
HU	EU megfelelőségi nyilatkozatAz eredeti megfelelőségi nyilatkozat fordításaSaját kizárólagos felelősségünkre kijelentjük, hogy az itt ismertetett termék megfelel az érvényes irányelveknek és szabványoknak.		A nyilatkozat iit megnevezett tárgya teljesiti az Európai Parlament és Tanács 2011. június 8-i, egyes veszélyes anyagok elektromos és elektronikus berendezésekbene való alkalmazásának koriátozásáról szóló 2011/65/EU irányelvének előírásait.*A műszaki dokumentáció elérhető: **
	Cikkszám ***	Termék megnevezése: Sûritett levegős kapocs- és szögbelövő pisztoly ANS15-50		Márka ****
PL	Deklaracja zgodności UETłumaczenie oryginalnej deklaracji zgodnościOświadczamy na własną odpowiedzialność, że opisany tutaj produkt jestzgodny z obowiązującymi dyrektywami i normami.		Wymieniony powyżej przedmiot niniejszej deklaracji jest zgodny z wymogamidyrektywy 2011/65/UE Parlamentu Europejskiego I Rady z 8 czerwca 2011 r.w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji wsprzęcie elektrycznym i elektronicznym. *Dokumentacja techniczna dostępna na stronie: **
	Numer artykułu ***	Nazwa artykułu: Pneumatyczny zszywacz i pneumatyczna gwoździarka ANS15-50		Marka ****
HR	EU izjava o sukladnostiPrijevod originalne izjave o sukladnostiNa svoju odgovornost izjavljujemo da je ovdje opisan proizvod usklađen svażećim direktivama i normama.		Ovdje opisani predmet Izjave ispunjava propise Direktive 2011/65/EU Europskogparlamenta i Vijeća od 8. lipnja 2011. o ograničenju uporabe određenih opasnihtvari u električnoj i elektroničkoj opremi. *Tehnička dokumentacija dostupna je na: **
	Broj artikła***	Naziv artikła: Pneumatski pištolj za klamerice i čavle ANS15-50		Marka****
SI	EU izjava o skladnostiPrevod originalne izjave o skladnostiiS polno odgovornostjo izjavljamo, da je tukaj opisani izdelek v skladu z ve-ljavnimi smernicami in standardi.		Tukaj opisani predmet izjave izpolnjuje predpise Direktive 2011/65/EU Evrop-skega parlamenta in Sveta z dne 8. junii 2011 za omejevanje uporabe določenihnevarnih snovi v električnih in elektronskih napravah. *Tehnični dokumenti so na voljo pri: **
	Številka izdelka ***	Opis izdelka: Pnevmatska pištola za sponke in žeblje ANS15-50		Znamka ****
EE	EL vastavusdeklaratsioonVastavusdeklaratsiooni originaali tõlgeMe deklareerimine ainuisikuliselt vastutades, et siin kirjeldatud toode ühtibesitatud direktiivide ja normidega.		Deklaratsiooni objektiks olev siin kirjeldatud ese vastab Euroopa Parlamendi janõukogu direktiivile 2011/65/EÜ kuupäevaga 8. juuni 2011 teatud ohtlike ainetekasutamispiirangu kohta elektri- ja elektroonikaseadmetes. *Tehnilised dokumentid on saadaval: **
	Artiklinumber ***	Art nimetus: Suruõhuga klambri- ja naelapüstol ANS15-50		Kaubamärk ****
LT	EB atitikties deklaracijaAtitikties deklaracijos originalo vertimasPrisiimdamí išskirtinę atsakomybę deklaruojame, kad čia apraśytas gaminys atitinka galiojančias direktyvas ir standartus.		Čia apraśytas deklaracijos objektas atitinka 2011 m. birželio 8 d. Europos Parlamento ir Tarybos direktyvos 2011/65/ES del tam tikry pavojingų medziągų nau-dojimo elektros ir elektroninėje jrangoje apribojimo reikalavimus. *Techninius dokumentus galima gauti iš: **
	Gaminio numéris ***	Gaminio pavadinimas: Pneumatinis sąvaržų ir vinių pistoletas ANS15-50		Prekės ženklas ****
LV	ES atbilstības deklarācijaOriginālās atbilstības deklarācijas tulkojumsMēs, uzņemoties pilnu atbildību, paziņojam, ka šeit aprakstītais ražojumsatbilst spēka esošajām direktivām un standartiem.		Šeit aprakstītais deklarācijas priekšmets atbilst Eiropas Parlamenta un EiropasPadomes 2011. gada 8. jūnija Direktīvas 2011/65/ES noteikumiem par noteiktubistamo vielu izmantošanas ierobežošanu elektriskajās un elektroniskajās ie-ricės. *Tehniskā lieta ir pieejama pie: **
	Preces numurs ***	Preces apzimėjums: Pneimatiskā skavu un naglu pistole ANS15-50		Prećzīme ****
SE	EU-försäkran om överensstämmelseÖversättning från försäkran om överensstämmelse ioriginalVi förklarar under eget ansvar att produkten som beskrivs här överensstämm-mer med gāfande riktlinjer och standarder.		Föremålet för försäkran som beskrivs här överensstämmer med bestämmelser-na i Europaparlamentets och rădets direktiv 2011/65/EU av den 8 juni 2011 ombegränsning av användningen av visa farliga ämnen i elektriska och elektroniska produkter. *Teknisk dokumentation tillgänglig hos: **
	Artikelnummer ***	Artikelbeteckning: Tryckluftsdriven klammer- och spikpistol ANS15-50		Märke ****
FI	EU-vaatimustenmukaisuusvakuutusAlkuperäisen vaatimustenmukaisuusvakuutuksenkäännösVakuutammeomalla vastuullamme, että tässä kuvattu tuote täyttää voimas-sa olevien direktiivien ja standardien määräykset.		Tässä kuvattu vakuutuksen kohde täyttää tiettyjen vaarallisten aineiden käytönrajoittamisesta sähkö- ja elektronikkalaitteissa 8. kesäkuuta 2011 annetun Eu-roopan parlamentin ja neuvoston direktiivin 2011/65/EU määräykset. *Tekniset asiakirjat saatavana: **
	Tuotenro ***	Tuotenimike: Painellmakäyttöinen nlitti- ja naulaplstooli ANS15-50		Merkki ****
DK	EU-overensstemmelseserklæringOversættelse af den originaleoverensstemmelseserklæringVi erklærer under eget ansvar, at det her beskrevne produkt overholder de gældende direktiver og standarder.		Genstanden for den her beskrevne erklæring overholder bestemmelserne iEuropa-Parlamentets og Rădets direktiv 2011/65/EU af 8. juni 2011 vedr. be-grænsning af brugen af visse farlige stoffer i elektrisk og elektronisk udstyr. *Tekniske dokumenter findes på: **
	Artikelnummer ***	Art.-betegnelse: Trykluftdrevet hæfteklamme- og sømpistol ANS15-50		Mærke ****
NO	EU-samsvarserklæringOversettelse av den opprinnelige samsvarserklæringenVi erklærer med eneansvar at produktet som er beskrevet her er i samsvarmed gjeldende direktiver og standarder.		Gjenstand for erklæringen beskrevet her oppfyller forskriftene til direktiv2011/65/EU fra Europa-Parlamentet og Rădet av 8. juni 2011 om begrensning avbruken av bestemte farlige stoffer i elektronikk og elektronisk utstyr. *Tekniske dokumenter tilgjengelig hos: **
	Artikkelnummer ***	Art.betegnelse: Trykkluft stift- og spikerpistol ANS15-50		Merke ****
BG	ЕС Декларация за съответствиеПревод на оригиналната декларация насъответствиеНие декларираме на своя отговорност, че описаният тук продукт отговаря на приложимите директиви и стандарти.		Описаният предмет в декларацията отговаря на разпоредбите на Дирек-тива 2011/65/ЕС на Европейския парламент и на Съвета от 8 юни 2011 г.относно ограничението на употребата на определени опасни вещества велектрическото и електронното оборудване.*Техническата документация се предоставя от: **
	Каталожен номер ***	Обозначение на артикула: Пневматичен такер за скоби и пирони ANS15-50		Марка ****
GR	Дήλωση συμμόρφωσης EEMετάφραση από το πρωτότυπο της δήλωσης συμμόρφωσηςДηλώνουμε με αποκλειστική μας ευθύνη ότι το προϊόν που περιγράφεταιστο παρόν βρίσκεται σε συμμόρφωση με τις ισχύουσες Οδηγίες και Πρό-тупа.		To αντικείμενο της παρούσας δήλωσης, то отпоio περιγράφεται εδώ, ектиλη-ρώνει τις διατάξεις της Οδηγίας 2011/65/ΕΕ του Ευρωπαϊκού Κοινοβουλίου και του Συμβουλίου της 8ης Ιουνίου 2011 σχετικά με τον περιορισμό της χρήσηςоріσμένων επικίνδυνων ουσιών σε ηλεκτρικό και ηλεκτρονικό εξοπλισμό.*Ο τεχνικός φάκελος είναι διαθέσιμος στη θέση:**
	Аріθμός είδους ***	Овомасіа είδ.: Пістóлі аéроς για συρραπτικά σύρματα και карфіа ANS15-50		Мáрка ****
RO	Declaratie de conformitate UETraducere a declarației de conformitate originaleDeclarăm pe proprie răspundere că produsul descris aici coincide cu direc-tivele și normele în vigoare.		Obiectul declarației descris aici îndeplinește prescripțiile directivei 2011/65/UE aParlamentului European și a Consiliului din 8 lunie 2011 asupra limitării utilizăriianumitor substanțe periculoase în aparatele electrice și electronice.*Documentație tehnică disponibilă la:**
	Număr articol ***	Notație art.: Pistol pneumatic de capse și cuie ANS15-50		Marcă ****
RS	EU izjava o usaglašenostiPrevod originalne izjave o usklađenostisljavljujemo na našu isključvu odgovornost da je ovde opisani proizvod usk-lađen sa primenljivim smenicama i standardima.		Ovde opisani predmet ove izjave ispunjava odredbe Direktive 2011/65/EUEvropskog parlamenta i Saveta od 8. juna 2011. godine o ograničenju upotrebe određenih opasnih materija u električnoj i elektrons koj opremi.*Tehnička dokumentacija dostupna kod:**
	Broj artikla ***	Oznaka proizvoda: Pneumatski pištolj za spajalice i eksere ANS15-50		Brend ****
TR	AB uygunluk beyanıOrijinal uygunluk beyanının çevirisiBurada açıklanan ürünün geçerli yönetmeliklere ve standartlara uygun oldu-ğunu tamamen kendi sorumluluğumuz altında beyan ediyoruz.		Işbu uygunluk beyanının düzenlendiği burada adı geçen ürün, Avrupa Parlamen-tosu’nun ve 8 Haziran 2011 tarihli Konsey’in elektrik ve elektronik cihazlarda belirii tehlikeli maddelerin sınırlandırılmasına ilişkin 2011/65/AT sayılı direktifini yerine getirmektedir.*Teknik belgeler şurada mevcuttur:**
	Ürün numarası ***	Ürün Tanım: Basınçlı havalı zimbalama ve civileme tabancası ANS15-50		Marka ****
	***7906100744			****SCHEPPACH

**:Florian SchäferGünzburger Str. 69D-89335 Ichenhauseni.V.Andreas Pecher /Head of Project Managementi.V. Andreas Pecher /Ichenhausen, 23.06.2025	X 2011/65/EU*□ 2014/30/EU□ 2016/1628/EU□ 2014/29/EU□ 2014/35/EU□ 2004/22/EG□ 2014/68/EU□ 89/686/EWG_96/58/EG□ 90/396/EWG	X 2006/42/EG□ Annex IVNotified Body:Notified Body No.:Certificate No.:	□ 2000/14/EG; 2005/88/EGNoise:measured L_WA =guaranteed L_WA =□ Annex V□ Annex VINotified Body:Notified Body No.:
	□ 2016/1628/EUEmission No.:
	EN ISO 11148-13:2018

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer loses its rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Záruka CZ

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer is rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantii EE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

гаранция BG
