BGB915 - Sander SCHEPPACH - Free user manual and instructions

Product Type	Combination Belt and Disc Sander
Brand	Scheppach
Model	BGB915
Belt Size	100 x 915 mm
Disc Diameter	150 mm
Motor Power	350 W
No-Load Speed	2950 rpm
Belt Speed	7.5 m/s
Disc Speed	2950 rpm
Sanding Belt Tension	Lever-operated
Working Table	Tilting cast aluminum table (0-45°)
Dust Extraction Port	35 mm diameter
Dimensions (W x D x H)	400 x 300 x 350 mm
Weight	12 kg
Power Supply	230 V / 50 Hz
Safety Features	Transparent guard for disc, emergency stop switch
Maintenance	Clean dust ports regularly; replace belt/disc when worn
Spare Parts Availability	Sandpaper belts, disc sheets, drive belts available
Included Accessories	1 sanding belt (100 x 915 mm), 1 sanding disc, wrench

Frequently Asked Questions - BGB915 SCHEPPACH

What type of sander is the Scheppach BGB915?

The Scheppach BGB915 is a combination belt and disc sander, ideal for woodworking and metalworking.

What are the belt and disc sizes?

The belt size is 100 x 915 mm and the disc diameter is 150 mm.

Can the working table be tilted?

Yes, the cast aluminum table can be tilted from 0 to 45 degrees for angled sanding.

Does the sander have dust extraction?

Yes, it has a 35 mm dust extraction port for connecting a vacuum system.

How do I change the sanding belt?

Release the belt tension by pulling the lever, remove old belt, slide new belt onto rollers, and re-tension by pushing the lever back.

What is the motor power of the BGB915?

The motor power is 350 W with a no-load speed of 2950 rpm.

Can I use the disc and belt simultaneously?

No, the machine is designed to use either the belt or the disc at one time, not both simultaneously.

What safety features does it have?

It includes a transparent protective guard for the disc and an emergency stop switch.

Where can I find replacement sanding belts?

Replacement belts and discs are available from Scheppach dealers or online retailers using the model number BGB915.

How do I clean the sander?

Regularly vacuum the dust ports and wipe the exterior with a dry cloth. Avoid using water.

USER MANUAL BGB915 SCHEPPACH

Black industrial machine with a circular base and labeled 'scheppach' on its side, showing no visible text beyond the label.

BGB915

Close-up of a hand using a screwdriver to adjust a mechanical component (no text or symbols visible)

Close-up of hands installing or adjusting a device component, labeled with number 19 and arrow (no text or symbols on the device itself)

Technical line drawing of a mechanical device with a circular component and labeled part (W), no readable text or symbols present.

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Explanation of the symbols on the equipment

	Warning! Danger to life, risk of injury or damage to the tool are possible by ignoring!
	Read the operating instructions to reduce the risk of inquiry!
	Wear safety goggles!
	Wear ear-muffs!
	Wear a breathing mask!
	Important! Risk of injury. Never reach into the running saw blade!
	Warning! Before installation, cleaning, alterations, maintenance, storage and transport switch off the device and disconnect it from the power supply.

Table of contents: Page:

1. Introduction ...... 20
2. Device description.... 20
3. Scope of delivery....20
4. Intended use....21
5. General safety instructions for power tools 21
6. Remaining hazards 23
7. Technical data 23
8. Attachment and operation....23
9. Transport....25
10. Working instructions....25
11. Cleaning and maintenance 25
12. Storage....26
13. Electrical connection....26
14. Disposal and recycling 26
15. Troubleshooting....27

1. Introduction

Manufacturer:

scheppach

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new tool brings you much enjoyment and success.

Note:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
  • Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service technicians,
• Installation and replacement of non-original spare parts,
  • Application other than specified,
• A breakdown of the electrical system that occurs due to the non-compliance of the electric regulations and VDE regulations 0100, DIN 57113 / VDE0113.

We recommend:

Read through the complete text in the operating instructions before installing and commissioning the device.

The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.

The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country.

Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

In addition to the safety notices contained in this operating manual and the particular instructions for your country, the generally recognised technical regulations for the operation of identical devices must be complied with.

We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

2. Device description

1 Locking screw for grinding/sanding table
2 Angle scale
3 Suction connection
4 Base plate
5 Allen screw
6 Grinding belt
7 Stop rail
8 Knurled screw for grinding/sanding belt adjustment
9 Support leg

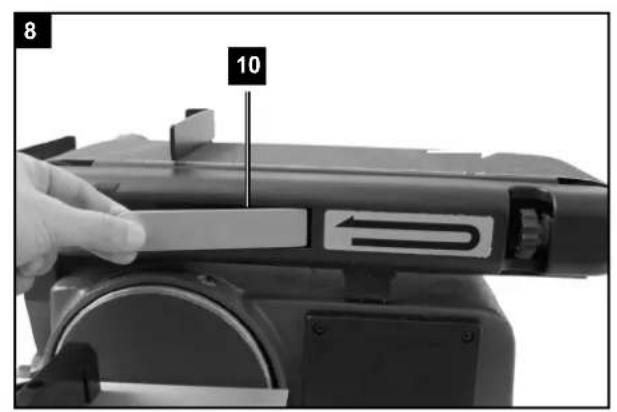

10 Grinding/sanding belt tensioner
11 Grinding/sanding disk
12 On/Off switch
13 Cross stop
14 Grinding/sanding table

3. Scope of delivery

• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, store the packaging until the warranty period has expired.

Attention!

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

• Belt/Disc Sanding machine
• Cross stop
• Grinding/sanding table
• Grinding belt
• Grinding disc
• Operation Manual

4. Intended use

The belt and disc sander is used for sanding all types of wood, depending on the size of the machine.

The machine meets the currently valid EU machine directive.

• The manufacturer's safety, operation and maintenance instructions as well as the technical data given in the calibrations and dimensions must be adhered to.
• Relevant accident prevention regulations and other generally recognized safety and technical rules must also be adhered to.
• The machine may only be used, maintained or repaired by trained persons who are familiar with the machine and have been informed about the dangers. Unauthorized modifications of the machine exclude a liability of the manufacturer for damages resulting from the modifications.
• The machine is intended for use only with original spare parts and original tools from the producer.
• Any other use is considered to be not intended. The manufacturer excludes any liability for resulting damages, the risk is exclusively borne by the user.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Generalsafety instructions for power tools

⚠ WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of power tools allow you to become complacent and ignore power tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing parts of insert tools, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and insert tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Warning! This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool.

Additional safety rules for the belt and disc sanding machine

Warning: Do not use your machine until it is completely assembled and installed according to the instructions.

• If you are not familiar with the operation of the sanding machine, ask the head of the department, your teacher, or any other qualified person.
• Attention: This machine has only been designed for sanding wood or similar materials. The sanding of other materials can cause fire, injuries, or damage the product.
  • Always wear safety goggles.
• This machine may only be operated indoors.
• Important: Mount and use the machine on a horizontal surface. A non-horizontal surface can damage the motor.
• If the machine tends to tilt or walk (especially when sanding long and heavy panels), it must be fastened to a solid surface of sufficient carrying force.
• Make sure the sanding belt runs in the correct direction – see arrows at the back of the belt.
• Make sure the sanding belt is running correctly so that it cannot come off the drive pulleys.
• Make sure the sanding belt is not twisted or loose.
• Firmly hold the workpiece when sanding.

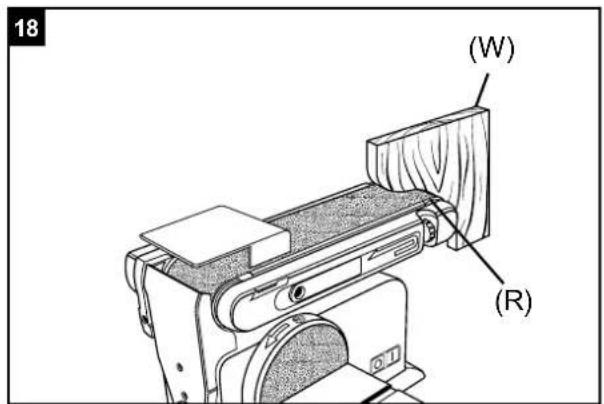

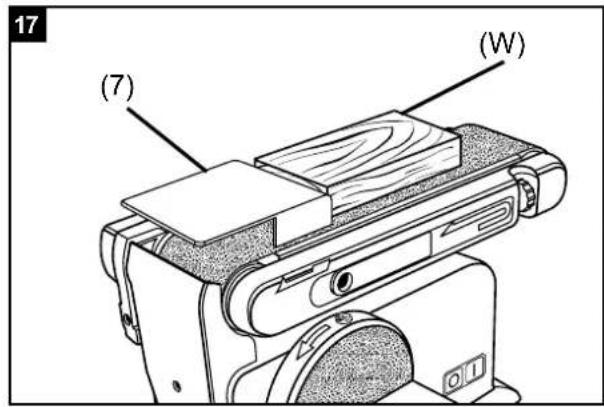

• Always use the fence when using the sanding machine in horizontal position.
• Always hold the workpiece firmly to the table when using the sanding disc.

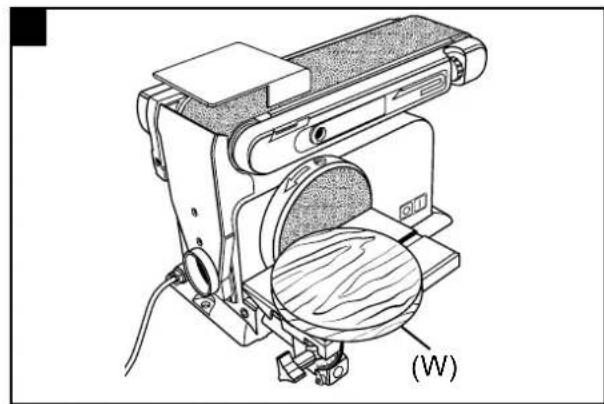

• Always hold the workpiece to the side of the sanding disc running downwards, in order to maintain the workpiece pressed to the table. By using the upward-running side of the sanding disc, the workpiece could be ejected and cause injury to persons.
• Always keep a minimum distance of about 1.5 mm or less between the table or fence and the sanding belt or disc.

• Do not wear gloves. Do not hold the workpiece with a cloth during sanding.

• Use sanding belt or disc of the correct grit corresponding with the wood.

• Never sand workpieces too small to be held safely.
• Avoid awkward hand positions where a sudden slip could cause your hand to touch the sanding belt or disc.
• When sanding a large piece of material, provide an additional support at table height.
• Never sand an unsupported workpiece. Secure the workpiece with the table or the fence. Exceptions are the sanding of curved workpieces on the outside of the sanding disc.
• Always clear the table, fence or sanding belt of scraps or other objects, before turning the machine on.
• Do not perform any layout assembly or set-up work on the table while the sanding machine is in operation.
• Switch the machine off and pull the power plug from the socket when fitting or removing accessories.
• Never leave the working area of the sanding machine while the tool is running, or as long as it has not come to an absolute standstill.

6. Remaining hazards

The machine has been built using modern technology and in accordance with recognized safety rules. Some hazards, however, may still remain.

• The grinding wheel poses a danger of injury to fingers and hands by improper feeding or placement of tools.
• Danger of injury from thrown tools due to improper holding or feeding.
• The use of incorrect or damaged mains cables can lead to electrical injuries.
• Although having regarded all considerable rules there may still remain not obvious remaining hazards.
• Minimize remaining hazards by following the instructions in "Safety Rules", "Use only as authorized" and in the entire operating manual.

7. Technical data

Dimensions L x W x H 460 x 360 x 280 mm

ø Disc 150 mm
RPM Disc 2980 min	-1
Belt dimensions 915 x 100 mm
Belt speed 7,3 m/s
Belt tilt	0° – 90°
Table size	225 x 160 mm
Table tilt	0°-45°
Weight	16.5 kg
Motor	230-240 V~ / 50 Hz
Power	370 W

Subject to technical changes!

Noise

Total vibration values determined in accordance with EN 62841-1

sound pressure level L_pA	82,2 dB(A)
uncertainty K_pA	3 dB
sound power level L_WA	89,4 dB(A)
uncertainty K_WA	3 dB

Wear hearing protection.

The effects of noise can cause a loss of hearing. Total vibration values (vector sum - three directions) determined in accordance with EN 62841-1.

8. Attachment and operation

Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Warning!

Always pull the power plug before making adjustments to the equipment.

• All covers and safety devices have to be properly fitted before the equipment is switched on.
• It must be possible for the grinding/sanding belt and disk to run freely.
• When working with wood that has been processed before, watch out for foreign bodies such as nails or screws, etc.
• Before you actuate the On/Off switch, make sure that the abrasive paper is correctly fitted and that the equipment's moving parts run smoothly.

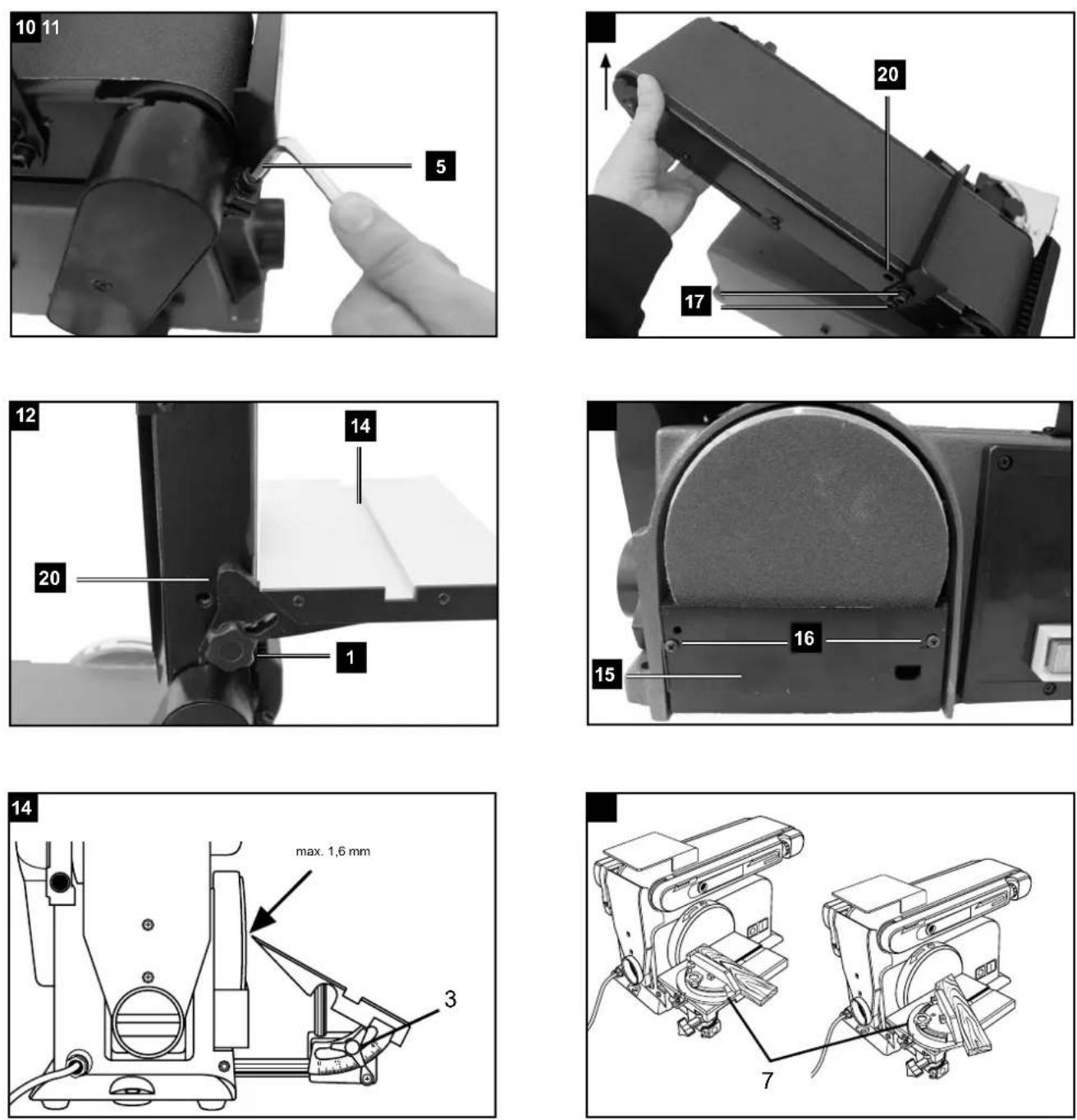

8.1 Assembling the machine (fig. 1 - 5)

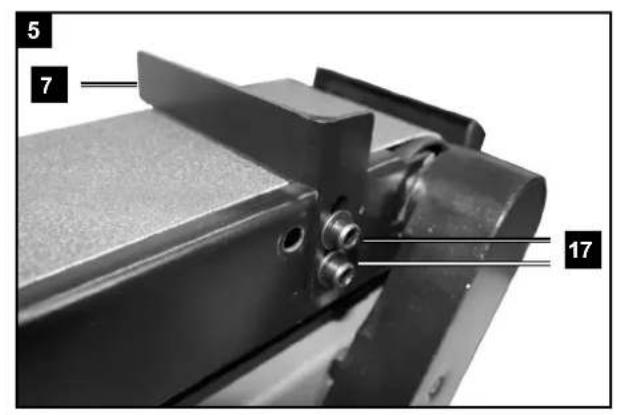

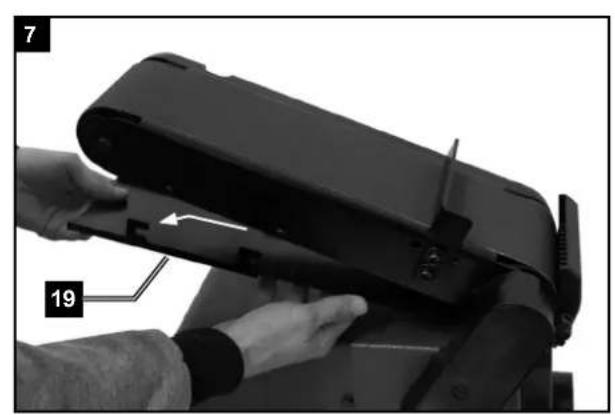

• Mount the lower wheel guard (15) with the screws (16). (fig. 2)

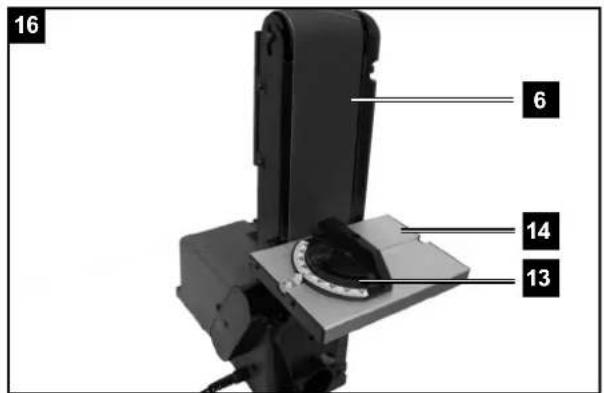

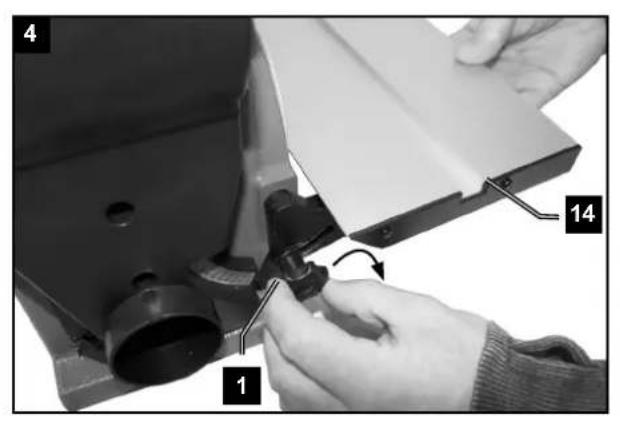

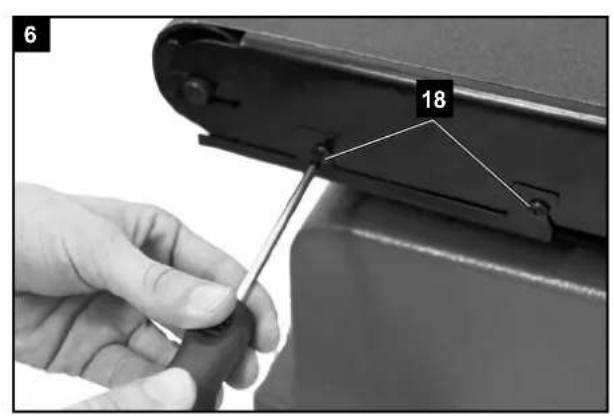

• Mount the grinding/sanding table (14) and secure with the screw (1). (fig. 3+4) The grinding/ sanding table (14) can be infinitely adjusted from 0^ to 45^ with the miter scale (2) and the thumb screw (1).
• The adjustable cross stop (13) ensures safe guidance of the workpiece. Important. The grinding/sanding disk (11) must be able to run freely, but the distance between the grinding/sanding table (14) and the grinding/sanding disk (11) is not allowed to exceed 1.6 mm.
• Put on the stop rail (7) and secure with the screw (17). (fig. 5) Important. The grinding/sanding belt (6) must be able to run freely.

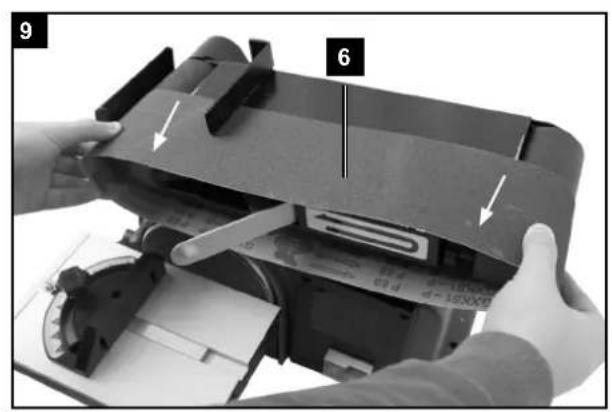

8.2. Changing the grinding/sanding belt (6) (fig. 6 - 9)

• Pull out the power plug
- Remove the screws (18).
- Remove the grinding/sanding belt guard (19).
- Turn the grinding/sanding tensioner (10) to the right in order to reduce the tension on the grinding/sanding belt (6).
- Remove the grinding/sanding belt (6) to the rear.
- Mount and the new grinding/sanding belt in reverse order. Important. Note the running direction: On the housing and on the inside of the grinding/sanding belt!

8.3. Adjusting the grinding/sanding belt (6)

• Pull out the power plug
• Push the grinding/sanding belt (6) by hand slowly in the running direction.
• The grinding/sanding belt (6) must run centrally on the grinding/sanding surface. If not, you can use the knurled screw (8) to make adjustments.

8.4. Moving the grinding/sanding position of the grinding/sanding belt (6)(Fig. 10-12)

• Loosen the Allen screw (5)
• Move the grinding/sanding belt (6) upwards into the desired position.
• Tighten the Allen screw (5) again to fix this position.
• In this position you can use the grinding/ sanding table to support the workpiece. To do this, first loosen the two Allen screws (17) and then remove the stop rail (7). The grinding table can now be pushed into the hole in the holder tube (20) and fixed with the screw (1)

8.5. Replacing the abrasive paper on the grinding/sanding disk (11)

Dismantle the bottom wheel guard (15) by removing the 2 screws (16). Pull the sanding/ grinding paper off the sanding/grinding disk (11) and attach the new sanding/grinding paper (quick-fit fastening system).

Mounting belt/disc sander to work bench

If your belt/disc sander is to be used in a permanent location, it is recommended you secure it to a workbench or other stable surface.

• Mark holes on workbench where belt/disc sander is to be mounted using holes in the base as a template for hole pattern.
• Drill holes through workbench.
• Place belt/disc sander on workbench aligning holes in the base with holes drilled in the workbench.

- Insert bolts (not included) and tighten securely with lock washers and hex nuts (not included). Note: All bolts should be inserted from the top. Install the lock washers and hex nuts from the underside of the workbench.

Clamping belt/disc sander to work bench

If your belt/disc sander is to be used as a portable tool, it is recommended you fasten it permanently to a mounting board that can easily be clamped to a workbench or other stable surface.

The mounting board should be of sufficient size to avoid tipping while belt/disc sander is in use. Any good grade plywood or chipboard with a 3/4 in. (19 mm) thickness is recommended.

• Mark holes on board where belt/disc sander is to be mounted using holes in the base as a template for hole pattern.
• Follow last three steps in section Mounting Belt/Disc Sander to Workbench.

If lag bolts are used, make sure they are long enough to go through holes in belt/disc sander base and material the belt/ disc sander is being mounted to. If machine bolts are used, make sure bolts are long enough to go through holes in belt/disc sander, the material being mounted to, and the lock washers and hex nuts.

8.6 On/Off switch (12)

• The grinder/sander can be switched on by pressing the green button „1“.
• To switch off the grinder/sander you must press the red button „0“.

Warning: Do not reach across the sanding disc to turn the belt/disc sander ON or OFF. Contact with the sanding disc can result in serious personal injury.

8.7 Grinding/sanding

• Always hold the workpiece firmly during grinding/sanding.
• Do not exert excessive pressure.
• To prevent the abrasive paper from becoming worn on one side, the workpiece should be moved to and from on the grinding/sanding belt or grinding/sanding plate as you grind/sand.
• Important! Pieces of wood should always be sanded with the grain to prevent them splitting. Important. If the grinding wheel or the grinding/sanding belt becomes jammed during operation, please remove the workpiece until the tool reaches its top speed again.

9. Transport

If you want to move the equipment to a different place, disconnect the equipment from the power supply and set it up in the new position you want to use it in.

10. Working instructions

Bevel sanding, fig. 14

The worktable can be tilted from 0^ to 45^ for bevel sanding. To tilt the worktable:

• Loosen the fixing screw (1).
• Set worktable to desired angle. Note: Position the worktable not further than 1/16 in. (1.6 mm) from the sanding surface.
• Retighten the fixing screw (1) again.

Sanding small end surfaces using the miter gauge, fig. 15

A miter gauge (13) is included with your tool for increased accuracy. Use of a miter gauge is recommended for sanding small end surfaces on the sanding disc.

Note: Always move the workpiece across the sanding disc from the left side towards the right side.

Horizontal and vertical sanding, fig. 10-12+16

Your belt/disc sander can sand both vertically and horizontally. Depending on the workpiece, the work support can be used with either the horizontal or vertical sanding operation.

• Loosen the Allen screw (5)
• Move the grinding/sanding belt (6) upwards into the desired position.
• Tighten the Allen screw (5) again to fix this position.
• In this position you can use the grinding/ sanding table to support the workpiece. To do this, first loosen the two Allen screws (17) and then remove the stop rail (7). The grinding table can now be pushed into the hole in the holder tube (20) and fixed with the screw (1)

Note: Sand long workpieces with the sanding belt in the vertical position by moving the work evenly across the sanding belt.

Surface sanding on the sanding belt, fig. 17

• Hold the workpiece firmly, keeping fingers away from the sanding belt.
• Keep the end pressed firmly against the work support (7) moving work evenly across the sanding belt.

Note: Use extra caution when sanding very thin pieces and when sanding extra long pieces, remove the work support (7). Apply only enough pressure to allow the sanding belt to remove the material.

Sanding curved pieces, see fig. 18

Warning: Never attempt to sand the end pieces of a workpiece on the idler drum. Applying the end of the workpiece on the idler drum could cause the workpiece to fly up. Failure to heed this warning could result in serious personal injury.

Always sand inside curves on the idler drum as shown in Figure 18.

• Hold the workpiece firmly, keeping fingers away from the sanding belt.
• Keep the curve pressed firmly against the idler drum moving work evenly across the sanding belt.
  Note: Use extra caution when sanding very thin pieces and apply only enough pressure to allow the sanding belt to remove the material.

Sanding outside curves on sanding disc fig. 19

Always sand outside curves using the sanding disc and moving the workpiece (W) from the left side of center as shown in Figure 19

- Hold the workpiece firmly, keeping fingers away from the sanding disc.

- Keep the curve pressed firmly against the sanding disc moving work evenly on the left side of the sanding disc.

Warning: Applying the workpiece to the right side of the sanding disc could cause the workpiece kickback. Failure to heed this warning could result in serious personal injury.

11. Cleaning and maintenance

Important.

Warning! Prior to any adjustment, maintenance or service work disconnect the mains power plug!

General maintenance measures

Wipe chips and dust off the machine from time to time using a cloth. In order to extend the service life of the tool, oil the rotary parts once monthly. Do not oil the motor.

When cleaning the plastic do not use corrosive prod - uct.

General maintenance

After using your belt/disc sander, clean it completely and lubricate all sliding and moving parts. Apply a light coat of automotive type paste wax to the worktable to help keep the surfaces clean.

Cleaning

Dust can collect in the belt and disc grinder. Check regularly (preferably after every use) and remove dust, e. g. by blowing away or carefully with compressed air.

Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Wear parts*: Carbon brushes, v-belt, grinding medium

* Not necessarily included in the scope of delivery!

12. Storage

Store the device and its accessories in a dark, dry and frost-proof place that is inaccessible to children. The optimum storage temperature is between 5 and 30°C.

Cover the electrical tool in order to protect it from dust and moisture.

Store the operating manual with the electrical tool.

13. Electrical connection

The installed electric motor is connected and is ready to work.

The connection complies with the relevant VDE and DIN regulations.

The customer-side mains supply and the used extension line must meet these regulations.

Damaged electrical connection cable.

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Passage points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
• Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Make sure that the connection cable does not hang on the power network during the inspection.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the marking „H05VV-F“.

The printing of the type designation on the connection cable is mandatory.

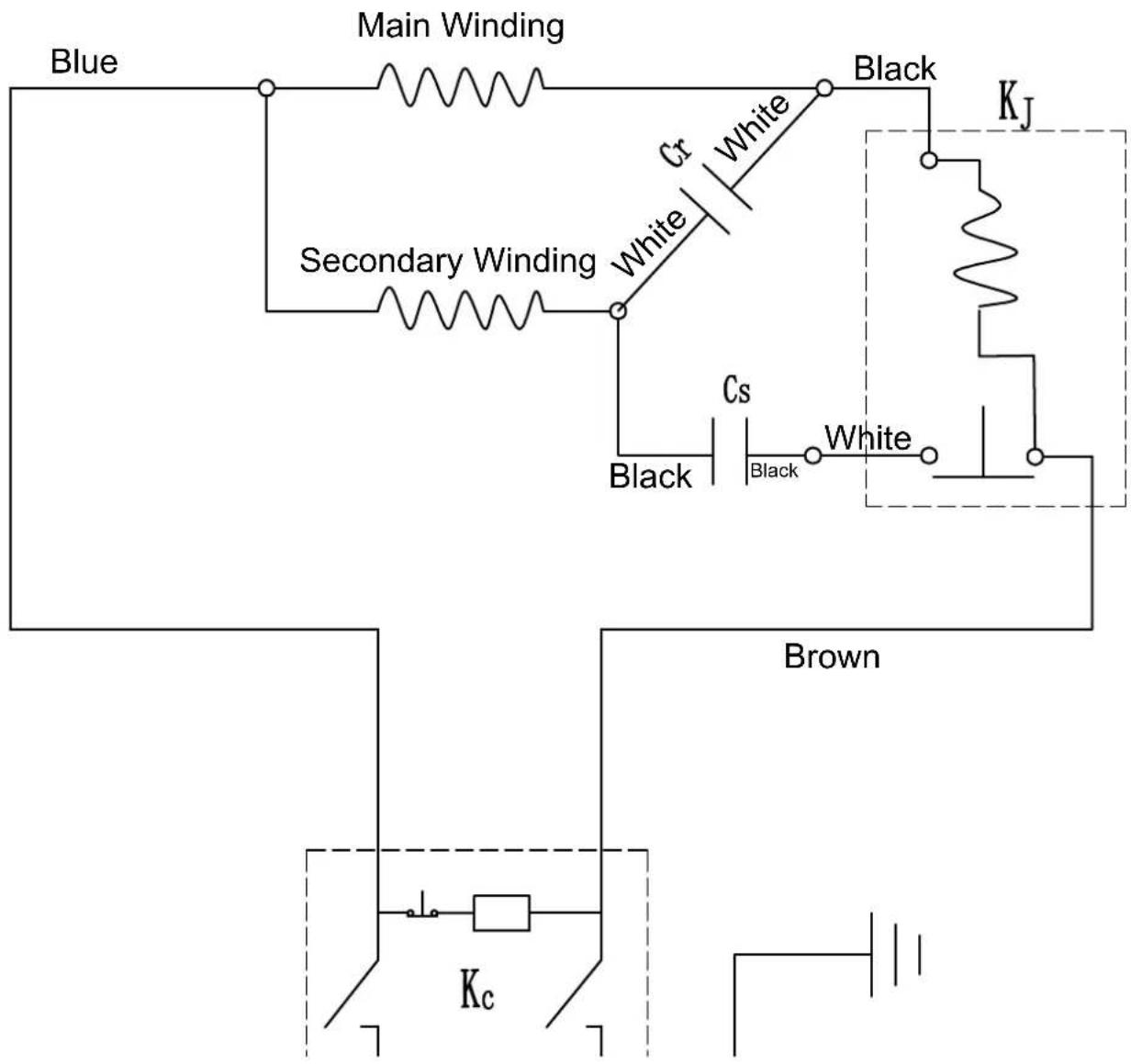

AC motor:

• The mains voltage must be 220 - 240 V\~.
• Extension cables up to 25 m long must have a cross-section of 1.5 ~mm^2 .

Connections and repairs of electrical equipment may only be carried out by an electrician.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
  • Machine data - type plate
  • Machine data - type plate

14. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled.

The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and onic equipment (WEEE). This product must be used of at a designated collection point. This can, for example, by handing it in at an authorised setting point for the recycling of waste electrical electronic equipment. Improper handling of the equipment may have negative consequences the environment and human health due to potential hazardous substances that are often contained electrical and electronic equipment. By properly using of this product, you are also contributing to effective use of natural resources. You can find information on collection points for waste management from your municipal administration, public waste disposal authority, an authorised body for disposal of waste electrical and electronic equipment or your waste disposal company.

15. Troubleshooting

Problem Possible cause Help
Motor doesn't start	a) ON/OFF switch damaged.b) ON/OFF cable damaged.c) ON/OFF relay damaged.d) Fuse blown.e) Motor burnt.	a-d) Replace all damaged parts before you use your machine again.e) Contact your local service centre. Every attempt to carry out a repair, can be dangerous if it is not done by skilled personnel.
Machine gets slower during work.	Too much pressure put on the workpiece.	Reduce the pressure on the workpiece.
Sanding belt comes off the drive pulleys.	Belt does not run straight. Reset the track.
The wood gets burnt during sanding.	a) Sanding disc or belt covered with grease.b) Excessive pressure on work-piece.	a) Replace disc or belt.b) Reduce pressure on workpiece.

CE - Declaration of Conformity

	2014/29/EU		2004/22/EC	89/686/EC_96/58/EC	2000/14/EC_2005/88/EC
	2014/35/EU		2014/68/EU	90/396/EC		Annex V
X	2014/30/EU		X 2011/65/EU*			Annex VINoise: measured L_WA = xx dB(A); guaranteed L_WA = xx dB(A)P = xx KW; L/∅ = cmNotified Body:Notified Body No.:
X 2006/42/EC
		Annex IVNotified Body:Notified Body No.:Certificate No.:			2010/26/EC
					Emission. No:

Standard references:

EN 62841-1:2015; EN 55014-1:2017; EN 55014-2:2015; EN IEC 61000-3-2:2019; EN 61000-3-3:2013/A1:2019

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyeris rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
