USER MANUAL IS-TH1ER.2 i.safe Mobile

OPERATING MANUAL SAFETY INSTRUCTIONS

OPERATING MANUAL SAFETY INSTRUCTIONS

IS-TH1xx.2

Document No. 1054MM01REV02

Version: 2022-10-27

(c) 2022 i.safe MOBILE GmbH

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

Tel. [phone]

[e-mail]

www.isafe-mobile.com Template:TEMPMM01REV10

CONTENTS

English....4

Deutsch....9

Česky 15

Español....21

Suomi....27

Français....33

Magyar 39

Italiano 45

Nederlands 51

Norsk 57

Polski 62

Português (BR) 69

Русский....75

Svenska....81

Korean....87

Japanese....92

Chinese....98

Arabic 104

This Operating Manual complies with these standards:

IEC 60079, IEC 82079, ANSI Z535.6

IEC 60079, IEC 82079, ANSI Z535.6

ENGLISH

>READ AND UNDERSTAND THE INSTRUCTIONS

PROTECT YOUR LIFE AND READ THE OPERATING MANUAL

This Operating Manual is part of the device IS-TH1xx.2 (model MTHA10 / MTHA11). This Operating Manual provides important information for safe use of the device.

» Before using the device, read this Operating Manual carefully and pay particular attention to the "Safety" section and the warnings highlighted with the warning symbol.
» Make sure you have access to this Operating Manual when you need it. You can find the current Operating Manual at www.isafe-mobile.com/en/support/downloads
» Follow all instructions given on the device and on the packaging.
»Follow local safety regulations.

INTENDED USE

The device IS-TH1xx.2 is used for scanning barcodes. The device IS-TH1xx.2 is suitable for use in potentially explosive atmospheres classified zone 2/22 in accordance with directives 2014/34/EU, SI 2016 No. 1107 and 1999/92/EC, as well as the IECEx scheme.

Only use the device as described in this Operating Manual. Any other use is considered improper and can lead to death, severe injuries and damage to the device.

The manufacturer i.safe MOBILE GmbH does not assume any liability for damage caused by improper use. The warranty expires in the event of improper use.

WARRANTY

You can find the warranty conditions at www.isafe-mobile.com/en/support/service

EX MARKINGS

> ATEX:

① II 3G Ex ic op is IIC T4 Gc
Ea II 3D Ex ic op is IIIC T135°C Dc

EU Type Examination Certificate:

EPS 21 ATEX 1 082 X

CE-designation: €

>IECEx:

Ex ic op is IIC T4 Gc

IECEx Certificate: IECEx EPS 21.0028X

UKEX:

Ea II 3G Ex ic op is IIC T4 Gc
① II 3D Ex ic op is IIIC T135°C Dc

UK Type Examination Certificate:

CML 21UKEX21327X

UKCA-designation: UK CA

> North America:

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA21CA80083773X

> Temperature range:

-20°C ... +60°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

Manufactured by:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

EU/UK DECLARATION OF CONFORMITY

You will find the EU/UK declaration of conformity at the end of this Operating Manual or at www.isafe-mobile.com/en/support/downloads

PRODUCT COMPLIANCE FOR NORTH AMERICA

Conforms to:

STD UL 62368-1, STD UL 913

Certified to:

CSA STD CSA C22.2#60079-0, CSA STD CSA C22.2#60079-11, CSA STD CSA C22.2#62368-1

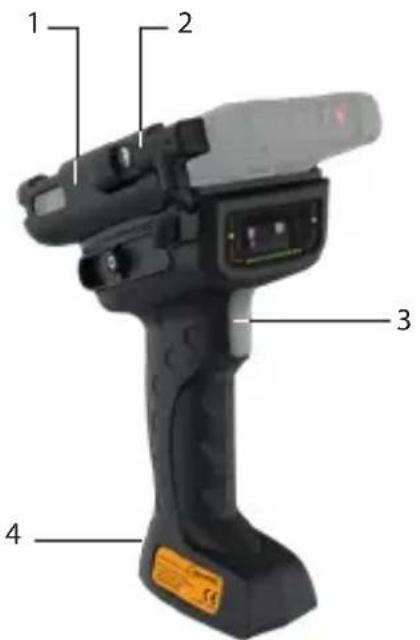

>DEVICE OVERVIEW

1 2 3 4

1> HOLDER: Holder for IS530.2
2> PLUG: Connecting IS530.2
3) SCAN BUTTON: Scanning barcodes
4) EYELET: Eyelet for Lanyard IS-TH

>NAME CONCEPT

The two "xx" in IS-TH1xx.2 are placeholders. The IS-TH1xx.2 comes in two variants with different scan ranges and scan engines:

name (model) scan range scan engine

IS-TH1MR.2 (MTHA10) mid range Zebra SE4750 (MR)

IS-TH1ER.2 (MTHA11) extended range Zebra SE4850 (ER)

> SAFETY

Read the "Safety" section of this Operating Manual carefully before using the device. If you do not follow these instructions or do not understand them, this could lead to death, severe injuries and damage to the device.

USER

Only trained users who are qualified in the use of Ex devices in explosion hazardous areas and who have read and understood this Operating Manual may use this device.

EX-RELEVANT SAFETY REGULATIONS

Use of this device assumes that the operator observes the conventional safety regulations and has read and understood Operating Manual, Safety Instructions and certificate. When used in explosion hazardous areas, the following Safety Instructions must also be complied with:

»The device may be connected only outside ex-hazardous areas to the IS530.2 via the ISM interface.
» To ensure the IP-protection, it has to be ensured that all gaskets are present and functional. There must be no large gap between the two halves of the housing.
» The device must be securely fastened to the ISM interface when used in ex-hazardous areas.
» The device may not be exposed to any aggressive acids or alkalis.
» The device may only be used in zones 2 or 22.
» Only accessories approved by i.safe MOBILE GmbH may be used.

EX-RELEVANT SAFETY REGULATIONS FOR NORTH AMERICA

Conditions of Acceptability:

» The Barcode Scanner IS-TH1xx.2 must be protected from impacts with high impact energy, against excessive UV light emission and high electrostatic charge processes.
» The 13-Pin connector of the IS-TH1xx.2 may only be assembled or disassembled from the ISM interface outside hazardous areas.
» The 2 pin charging contacts of the IS-TH1xx.2 should only be used in non-hazardous locations.
» Unauthorized repair is not allowed.
» Apparatus is for use in pollution degree 2 or better.
» Only designated charger may be connected to the charging contacts.
» Not suitable for hazardous locations when enclosure is damaged.

USE IN EXPLOSION HAZARDOUS AREAS

DANGER

Improper use can result in death or severe injuries!

» Only use the device in explosion hazardous areas of zones 2/22 or outside of explosion hazardous areas.
» Only connect the device outside explosion hazardous areas to the ISM interface of the IS530.2.

» Before entering an explosion hazardous area with the device,

• make sure that the device is securely fastened to the ISM interface of the IS530.2,
• make sure that no gap can be seen between the two halves of the device,
• make sure the device is not damaged,
• make sure that all the labels on the device are readable.

» If you use the device in an explosion hazardous area, read and follow the instructions in the “Possible User Errors” section.

» Switch o the device immediately and leave the explosion hazardous area without delay if

• malfunctions occur on the device,
• you have damaged the housing of the device,
• you have exposed the device to excessive loads,
• the labels on the device are no longer readable.

POSSIBLE USER ERRORS

DANGER

Improper use can result in death or severe injuries! Follow the instructions below:

» Laser Light. Do not stare into beam class 2 laser product 630 - 680 nm, 1 mW.
» Do not modify the device structurally.
» Do not expose the device to high temperatures.
» Do not expose the device to strong UV radiation.
» Do not expose the device to processes with high electrical charges.
» Do not expose the device to aggressive acids or bases.

When working in explosion hazardous areas, please note:

» Do not loosen the screws on the device.
» Do not open any interface cover.
» Do not charge the IS530.2.
» Do not open the device.
» Do not damage the device.

>SCOPE OF DELIVERY

Your device packaging contains the following:

1x IS-TH1xx.2

1 x Operating Manual Safety Instructions
1 x Screwdriver
1 x Lanyard IS-TH

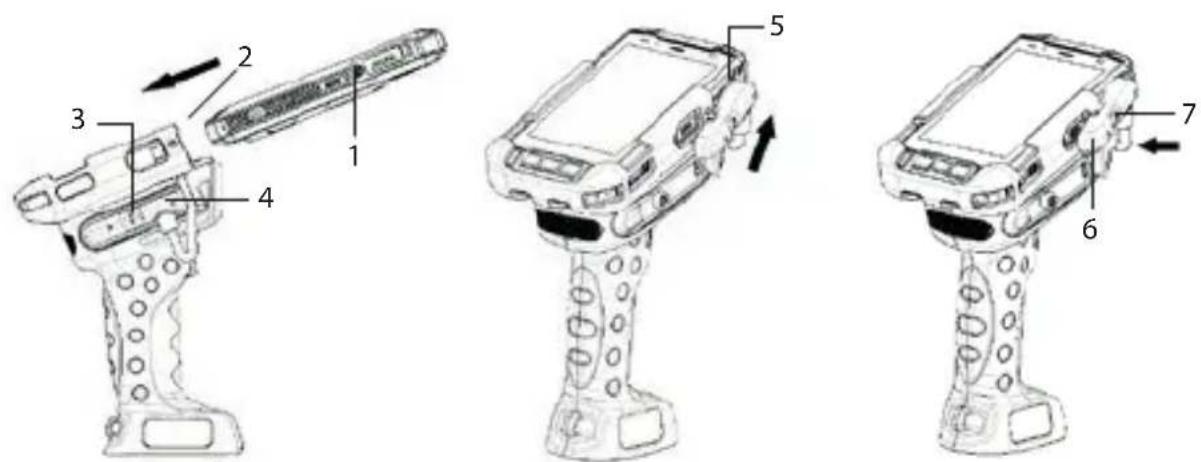

INSTALLATION

DANGER

Improper use can result in death or severe injuries! Only connect the device outside explosion hazardous areas to the ISM interface of the IS530.2.

» Unscrew the cover of the ISM interface (1) located on the IS530.2.
» Push the IS530.2 completely into the holder (2) of the device.
» Unscrew the screw (3).
» Loosen the plug (4).
» Attach the plug on top of the ISM interface (5).
» Fix the plug by pressing the rounded end of the plug (6).
» Tighten the screw (7).
» Check whether the plug is correctly and firmly attached to the ISM interface.

The device can now be used together with the IS530.2 in explosion hazardous areas.

POSSIBLE DEVICE PROBLEMS

You can find information on possible device problems and how to rectify them at www.isafe-mobile.com/en/support/service under the menu item "FAQ".

If you have any further questions, please contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service

MAINTENANCE/REPAIR

The device itself has no serviceable parts.

WARNING

Incorrect repairs present a risk of explosion or fire, which can result in death or severe injuries! Do not open the device or carry out any repairs yourself.

» Contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service if the device is not working normally, if the device needs to be repaired or if a replacement part is required.

RETURN SHIPMENT

Contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service

DISTRIBUTION PARTNER

You can find the specialist distribution partner responsible for your country at www.isafe-mobile.com/en/contact

CLEANING

NOTICE

Incorrect cleaning can cause damage to the device. Please note the following when cleaning:

» Do not use chemical agents for cleaning.
» Clean the device with a soft, moistened antistatic cloth.

STORAGE

NOTICE

Incorrect storage can cause damage to the device. Store the device at ambient temperatures between +5 °C to +35 °C (41 °F to +95 °F) and a humidity between 10 % to 60 %.

RECYCLING

NOTICE

Incorrect disposal of electronic products, batteries and packaging material puts the environment at risk. Please note the following when disposing of items:

» DO NOT throw away batteries with household waste.

» Always dispose electronic products, batteries and packaging material at the appropriate collection points. This way, you prevent uncontrolled waste disposal and promote the recycling of material resources.

You can obtain further information from regional waste disposal companies, state authorities or the i.safe MOBILE service centre responsible for your country or region at www.isafe-mobile.com/en/support/service

TRADEMARKS

i.safe MOBILE and the i.safe MOBILE logo are registered trademarks of the i.safe MOBILE GmbH. All other trademarks and copyrights are the properties of their respective owners.

DEUTSCH

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA21CA80083773X

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA21CA80083773X

> Teplotní rozsah:

-20°C ... +60°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

Výrobce:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Německo

SHODA VÝROBKŮ PRO SEVERNÍ AMERIKU

Vyhovuje:

STD UL 62368-1, STD UL 913

Technical diagram of a device with numbered parts and directional arrows indicating assembly or movement.

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA21CA80083773X

> Intervalo de temperatura:

-20°C ... +60°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

> Fabricado por:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Alemania

Technical diagram of a handheld device with numbered parts and directional arrows indicating assembly or movement.

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA21CA80083773X

Lämpötila-alue:

-20°C ... +60°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

> Valmistaja:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Saksa

TUOTTEIDEN VAATIMUSTENMUKAISUUS POHJOIS-AMERIKASSA

Technical diagram of a handheld device with numbered parts and directional arrows indicating assembly or operation.

DÉCLARATION DE CONFORMITÉ UE/UK

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA21CA80083773X

> Plage de temperature:

-20°C ... +60°C (EN/IEC 60079-0)
-10°C ... +50°C (EN/IEC 62368-1)

> Fabrique par:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Allemagne

CONFORMITÉ DU PRODUIT POUR L'AMÉRIQUE DU NORD

CSA STD CSA C22.2#62368-1

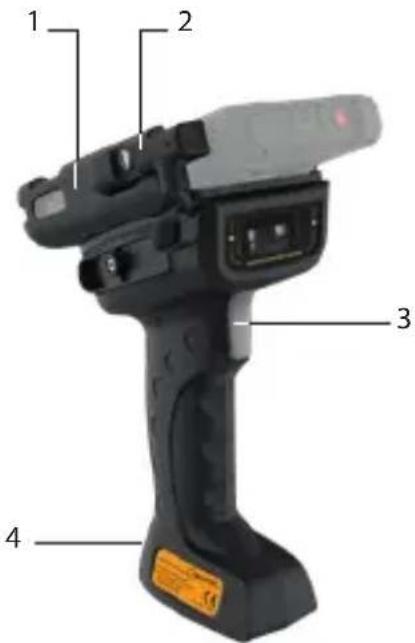

VUE D'ENSEMBLE DE L'APPAREIL

1 2 3 4

1 x Operating Manual Safety Instructions

1 x Tournevis

1 x Cordon IS-TH

INSTALLATION

DANGER

Technical diagram of a handheld device with numbered parts and directional arrows indicating assembly or movement.

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA21CA80083773X

Hömerseklet tartomany:

-20°C ... +60°C (EN/IEC 60079-0)
-10°C ... +50°C (EN/IEC 62368-1)

>Gyarto:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Németország

Technical diagram of a handheld device with numbered parts and directional arrows indicating assembly or movement.

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA21CA80083773X

CSA STD CSA C22.2#62368-1

PANORAMICA

1 2 3 4

1) STAFFA: staffa per IS530.2
2> SPINA: collegare l'IS530.2
3) PULSANTE SCANNER: Scansiona i codici a barre
4) OCCHIO: Occhiello per cordino IS-TH

CONCETTO DI NOME

USO IN AREE A RISCHIO DI ESPLOSIONE

PERICOLO

1 x Operating Manual Safety Instructions

1 x Cacciavite

1 x Cordino IS-TH

INSTALLAZIONE

PERICOLO

Technical diagram of a handheld device with numbered parts and directional arrows indicating assembly or movement.

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA21CA80083773X

CSA STD CSA C22.2#62368-1

> APPARAATOVERZICHT

1 2 3 4

1 x Operating Manual Safety Instructions

Technical diagram of a mobile phone with numbered components and directional arrows indicating movement or assembly.

Class I Div 2 Groups A, B, C, D, T4
Class II Div 2 Groups F, G, T135°C
Class III Div 2
CSA21CA80083773X

> Temperaturomrade:

-20°C ... +60°C (EN/IEC 60079-0)
-10°C ... +50°C (EN/IEC 62368-1)

> Produsert av:

i.safe MOBILE GmbH

i_Park Tauberfranken 10
97922 Lauda-Koenigshofen
Tyskland

PRODUKTOVERHOLDELSE FOR NORD-AMERIKA

Samsvarer med: STD UL 62368-1, STD UL 913

Sertifisert til: CSA STD CSA C22.2#60079-0, CSA STD CSA C22.2#60079-11,

CSA STD CSA C22.2#62368-1

ENHETSOVERSIKT

1 2 3 4

1) BRAKETT: Brakett til IS530.2
2> PLUG: Koble til IS530.2
3) SCANNER-KNAPP: Skann strekkoder
4) ∅YE: ∅ye for Lanyard IS-TH

NAVNEKONSEPT

1 x Operating Manual Safety Instructions
1 x Skrutrekker
1 x Lanyard IS-TH

INSTALLASJON

FARE

Technical diagram of a handheld device with numbered parts and directional arrows indicating assembly or movement.

VEDLIKEHOLD / REPARASJON

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA21CA80083773X

Zakres temperatur:

-20°C ... +60°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

> Producent:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Niemcy

ZGODNOŚĆ PRODUKTU DLA AMERYKI PÓŁNOCNEJ

Zgodność z:

STD UL 62368-1, STD UL 913

1 x Operating Manual Safety Instructions

1 x Wkrętak

1 x Smyczy IS-TH

> INSTALACJA

NIEBEZPIECZEŃSTWO

www.isafe-mobile.com/en/support/service

www.isafe-mobile.com/en/support/downloads

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA21CA80083773X

Technical diagram of a device with numbered parts and directional arrows indicating motion or assembly.

» Desaparafusar a tampa da interface ISM (1) no IS530.2.

www.isafe-mobile.com/en/support/service

> PARCEIRO COMERCIAL

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA21CA80083773X

1 x Operating Manual Safety Instructions

1 x Отвертка

1 x темляк IS-TH

УСТАНОВКА

ОПАСНО

Technical diagram of a handheld device with numbered parts and directional arrows indicating assembly or operation.

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA21CA80083773X

> Temperaturintervall:

-20°C ... +60°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

> Tillverkad av:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Tyskland

EU/UK-FÖRSÄKRAN OM ÖVERENSSTÄMMELSE

1 x Operating Manual Safety Instructions

1 x Mejsel

1 x Lanyard IS-TH

INSTALLATION

FARA

Technical diagram of a handheld device with numbered parts and directional arrows indicating assembly or movement.

Class I Div 2 Groups A, B, C, D, T4
Class II Div 2 Groups F, G, T135°C
Class III Div 2
CSA21CA80083773X

>온도 범위:

-20°C ... +60°C (EN/IEC 60079-0)
-10°C ... +50°C (EN/IEC 62368-1)

>제조업체:

i.safe MOBILE GmbH
i_Park Tauberfranken 10
97922 Lauda-Koenigshofen
Germany

북미 제품 규정 준수

준수:

STD UL 62368-1, STD UL 913

인증:

CSA STD CSA C22.2#60079-0, CSA STD CSA C22.2#60079-11, CSA STD CSA C22.2#62368-1

장치 개요/기능

1 2 3 4

Class I Div 2 Groups A, B, C, D, T4
Class II Div 2 Groups F, G, T135°C
Class III Div 2
CSA21CA80083773X

温度範囲:

-20°C ... +60°C (EN/IEC 60079-0)
-10°C ... +50°C (EN/IEC 62368-1)

製造元:

i.safe MOBILE GmbH
i Park Tauberfranken 10
97922 Lauda-Koenigshofen
Germany

北米向け製品コンプライアンス

に適合している:

STD UL 62368-1, STD UL 913

に認定されています。:

CSA STD CSA C22.2#60079-0, CSA STD CSA C22.2#60079-11, CSA STD CSA

C22.2#62368-1

装置の概要

1 2 3 4

Technical diagram of a device with numbered parts and directional arrows indicating assembly or movement.

Class I Div 2 Groups A, B, C, D, T4
Class II Div 2 Groups F, G, T135☒C
Class III Div 2
CSA21CA80083773X

温度范围:

-20^ C ·s +60^ C (EN/IEC 60079-0)
-10^·s +50^ (EN/IEC 62368-1)

制造商：

i.safe MOBILE GmbH
i_Park Tauberfranken 10
97922 Lauda-Koenigshofen
Germany

符合北美地区的产品标准

符合。:

STD UL 62368-1, STD UL 913

经认证符合。:

CSA STD CSA C22.2#60079-0, CSA STD CSA C22.2#60079-11, CSA STD CSA C22.2#62368-1

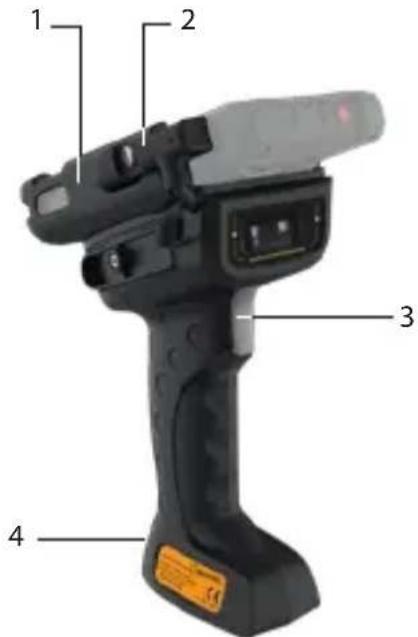

设备总览/功能

1 2 3 4

Technical diagram of a device with numbered parts and directional arrows indicating assembly or movement.

www.isafe-mobile.com/en/support/downloads

www.isafe-mobile.com/en/support/service

www.isafe-mobile.com/en/support/downloads

Operating Manual Safety Instructions -

- لكفم

IS-TH alحل -

التركيب

خطر

A plain gray background with a single horizontal red line at the bottom (no text or symbols)

CONTACT/SERVICE CENTRE

FOR FURTHER QUESTIONS PLEASE CONTACT OUR SERVICE CENTRE:

» i.safe MOBILE GmbH, i_Park Tauberfranken 10, 97922 Lauda-Koenigshofen, Germany
» [e-mail]
» https://support.isafe-mobile.com

A plain gray background with a single horizontal red line at the bottom (no text or symbols)

EU/UK DECLARATION OF CONFORMITY

i.safe MOBILE

EU/UK – Declaration of Conformity

The company i.safe MOBILE GmbH declares under its sole responsibility that the product to which this declaration relates is in accordance with the provisions of the following data, directives and standards:

EU/UK DECLARATION OF CONFORMITY

i.safe MOBILE

Conformity statement 2014/35/EU issued byKonformitätsaussage 2014/35/EU ausgestellt durchApplied harmonized standardsAngewandte harmonisierte Standards	Shenzhen TCT Testing Technology Co., Ltd.1B/F., Building 1, Yibaolai Industrial Park,Qiaotou, Fuyong, Baoan District,Shenzhen, Guangdong, ChinaEN 62368-1:2014+A11:2017
Conformity statement SI 2016 No. 1101 issued byKonformitätsaussage SI 2016 No. 1101 ausgestellt durchApplied harmonized standardsAngewandte harmonisierte Standards	Shenzhen TCT Testing Technology Co., Ltd.1B/F., Building 1, Yibaolai Industrial Park,Qiaotou, Fuyong, Baoan District,Shenzhen, Guangdong, ChinaBS EN 62368-1:2014+A11:2017
Conformity statement 2014/30/EU issued byKonformitätsaussage 2014/30/EU ausgestellt durchApplied harmonized standardsAngewandte harmonisierte Standards	Shenzhen TCT Testing Technology Co., Ltd.1B/F., Building 1, Yibaolai Industrial Park,Qiaotou, Fuyong, Baoan District,Shenzhen, Guangdong, ChinaEN 55032:2015;EN 55035:2017
Conformity statement SI 2016 No. 1091 issued byKonformitätsaussage SI 2016 No. 1091 ausgestellt durchApplied harmonized standardsAngewandte harmonisierte Standards	Shenzhen TCT Testing Technology Co., Ltd.1B/F., Building 1, Yibaolai Industrial Park,Qiaotou, Fuyong, Baoan District,Shenzhen, Guangdong, ChinaBS EN 55032:2015;BS EN 55035:2017
Conformity statement 2015/863/EU amending 2011/65/EU issued byKonformitätsaussage 2015/863/EU ergänzt 2011/65/EU ausgestellt durchApplied harmonized standardsAngewandte harmonisierte Standards	Shenzhen TCT Testing Technology Co., Ltd.1B/F., Building 1, Yibaolai Industrial Park,Qiaotou, Fuyong, Baoan District,Shenzhen, Guangdong, ChinaIEC 62321-2:2013; IEC 62321-3-1:2013;IEC 62321-5:2013;IEC 62321-4:2013+AMD1:2017;IEC 62321-7-1:2015; IEC 62321-7-2:2017;IEC 62321-6:2015; IEC 62321-8:2017
Conformity statement SI 2012 No. 3032 issued byKonformitätsaussage SI 2012 No. 3032 ausgestellt durchApplied harmonized standardsAngewandte harmonisierte Standards	Shenzhen TCT Testing Technology Co., Ltd.1B/F., Building 1, Yibaolai Industrial Park,Qiaotou, Fuyong, Baoan District,Shenzhen, Guangdong, ChinaBS EN 62321-2:2014; BS EN 62321-3-1:2014;BS EN 62321-5:2014;BS EN 62321-4:2014+AMD1:2017;BS EN 62321-7-1:2015;BS EN 62321-7-2:2017;BS EN 62321-6:2015; BS EN 62321-8:2017

EU/UK DECLARATION OF CONFORMITY

i.safe MOBILE

Nighttime exterior view of a large industrial chemical plant with illuminated towers and piping (no visible text or signage)

WWW.ISAFE-MOBILE.COM
