PHILIPS NA460 - Deep fryer
📄 828 pages English EN Download 💬 AI Question 10 questions ⚙️ Specs
Notice PHILIPS NA460 - page 4
Pick your language and provide your email: we'll send you a specifically translated version.
Product type Hot air fryer (Airfryer)
Brand Philips
Model NA460
Number of baskets 2 independent cooking baskets
Nominal power 2750 W (high version) / 2300 W (low version)
Maximum temperature 200 °C
Ambient temperature range 5 °C to 40 °C
Main functions Program presets (frozen fries, steak, fish, vegetables, chicken drumsticks, reheating), manual settings, time function, copy function, shaking reminder, interior light
Maximum capacity per basket Up to 1 kg depending on food (MAX line)
Basket material Steel with non-stick coating
Maintenance and cleaning Basket and bottom plate are dishwasher safe; exterior and interior wipe with a soft cloth; heating element can be cleaned with a soft brush
Safety Automatic stop when basket is removed, overheating protection, hot surfaces indicated, stop in case of malfunction (E codes)
Spare parts and repairability Baskets, bottom plates and other accessories available; repair by Philips authorized center only
Warranty 2 years (manufacturer warranty Versuni)
Power consumption in standby mode 0.28 W
Automatic standby delay 20 minutes
Included accessories 2 baskets, 2 bottom plates

Frequently Asked Questions - NA460 PHILIPS

What to do if white smoke comes out of the Airfryer?
White smoke can come from grease residues in the basket or foods high in fat. Clean the basket and bottom plate thoroughly after each use. Drain excess oil or fat from the basket during cooking. Make sure breadcrumbs adhere well to the food.
Why aren't my homemade fries crispy?
Use floury potatoes suitable for frying. Do not exceed 500 g per basket and cut sticks 10x10 mm. Soak potatoes in water for 30 minutes, dry well, then coat with a tablespoon of oil. Shake the fries 2 to 3 times during cooking.
How to clean the Airfryer basket?
Let the appliance cool down. Remove the bottom plate and discard the fat. The basket and bottom plate are dishwasher safe or can be washed in hot water with dish soap and a non-abrasive sponge. For stubborn residues, soak for 10-15 minutes in hot soapy water.
Can I cook frozen food directly?
Yes, the 'Frozen fries' preset is designed for that. You can also use manual settings. Do not use light foods like popcorn or parchment paper, as they could obstruct air circulation.
What does error code E1 on the screen mean?
Error code E1 indicates the appliance is too cold. Place the Airfryer at room temperature (between 5 °C and 40 °C) for at least 15 minutes. If the problem persists, contact Philips customer service.
How to use the time function?
Set the time and temperature for each basket, then press the 'Duration' button. The appliance automatically adjusts the start so that both baskets finish at the same time. Press Start/Pause to start synchronized cooking.
Can I use parchment paper?
No, never use parchment paper or light foods in the Airfryer, as they can be sucked into the ventilation and cause a fire. Use only the supplied accessories.
How to prepare homemade fries?
Peel and cut potatoes into sticks 10x10 mm. Soak in water for 30 minutes, dry, then mix with 1 tablespoon of oil. Cook 500 g per basket at 200 °C for 22-33 minutes (depending on power). Shake 2 to 3 times during cooking.
Does the appliance heat up on the outside?
Yes, the exterior walls become hot during use. The buttons and handles remain cool enough to touch. Do not touch surfaces marked with the 'hot surfaces' icon. Let cool before cleaning.
How to copy settings from one basket to the other?
Set the temperature and cooking time on one basket, then press the 'Copy' button. The settings are instantly duplicated on the other basket. Press Start/Pause to start cooking with identical settings.

User questions about NA460 PHILIPS

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Deep fryer in PDF format for free! Find your manual NA460 - PHILIPS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. NA460 by PHILIPS.

USER MANUAL NA460 PHILIPS

Blue circular icon with a white silhouette of a person using a laptop (no text or symbols)

Portuguese 399

Romanian 426

Albanian 453

Slovenian 480

Slovak 506

Serbian 533

Finnish 559

Swedish 585

Turkish 610

Greek 636

Bulgarian 664

Macedonian 692

Russian 720

Ukrainian 748

Kazakh 775

Cover 803

Contents

Important 4

Danger 4

Warning 4

Caution 5

Recycling 6

Electromagnetic fields (EMF) 6

Warranty and support 6

EcoDesign information 7

Introduction 7

General description 8

Product overview 8

Control panel overview 9

Before first use 11

Preparations before use 12

Using the appliance 12

Test run 12

Cooking with preset programs 14

Preset programs 16

Cooking with manual settings 17

Food table 19

Time function 20

Copy function 21

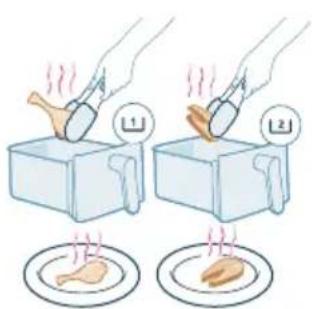

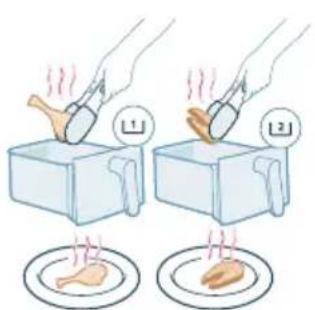

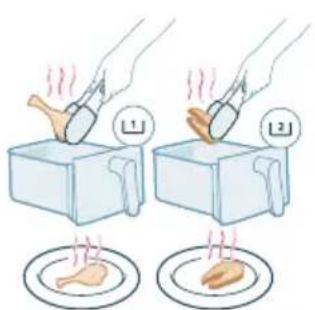

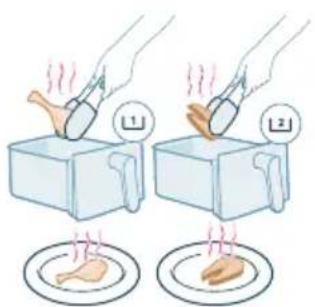

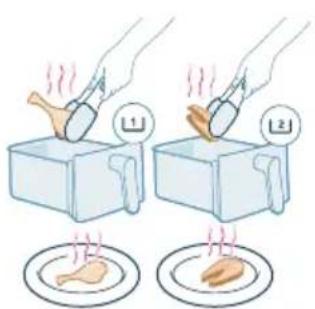

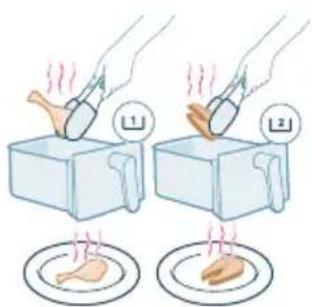

Shaking food 22

How to shake ____ 22

What to shake 23

When to shake ____ 23

Shake reminder 23

Making home-made fries 23

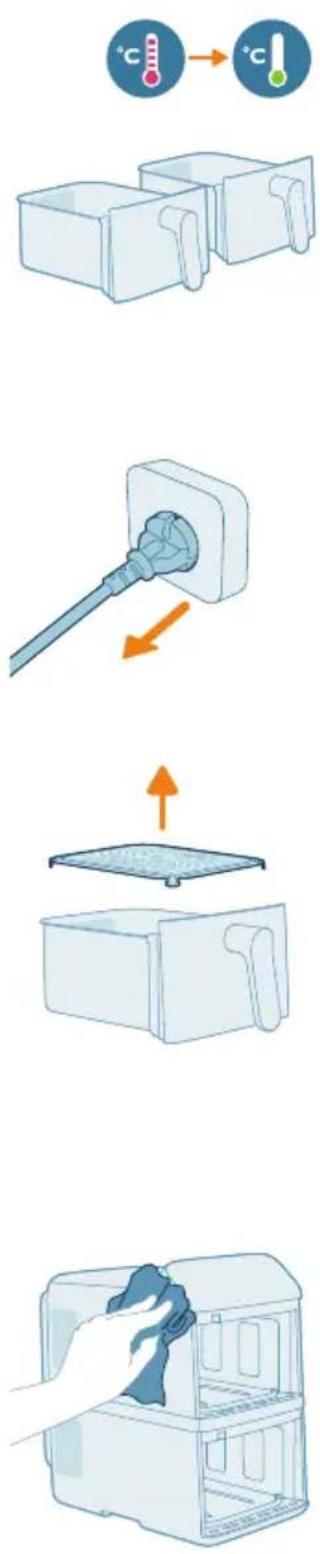

Cleaning 24

Cleaning table 25

Storage 25

Troubleshooting 26

Important

Read this important information carefully before you use the appliance and save it for future reference.

Danger

1

  • Do not place the appliance on or near a hot gas stove or all kinds of electric stove and electric cooking plates, or in a heated oven (fig. 1).
  • Never immerse the appliance in water nor rinse it under the tap.
  • Do not let any water or other liquid enter the appliance to prevent electric shock.
  • Always put the ingredients to be fried in the basket, to prevent them from coming into contact with the heating elements.
  • Do not cover the air inlet and the air outlet openings while the appliance is operating.
  • Do not fill the basket with oil as this may cause a fire hazard.
  • Do not use the appliance, if the plug, the mains cord or the appliance itself is damaged.
  • Never touch the inside of the appliance while it is operating.
  • Never put any amount of food that exceeds the maximum level indicated in the basket.
  • Always make sure the heater is clean and no food is stuck in it.

Warning

2

Warning

  • If the supply cord is damaged, it must be replaced by Philips, its service agent or similarly qualified persons in order to avoid a hazard.
  • Only connect the appliance to an earthed wall socket, protected by an earth leakage circuit breaker.
  • Always make sure that the plug is inserted into the wall socket properly.
  • This appliance is not intended to be operated by means of an external timer or a separate remote control system.
  • The accessible surfaces may become hot during use (fig. 2).
  • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
  • Keep the appliance and its cord out of the reach of children less than 8 years.
  • Do not place the appliance against a wall or against other appliances. Leave at least 15 cm free space on both sides and at the back of the appliance. Do not place anything on top of the appliance.

- During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also, be careful of hot steam and air when you remove the basket from the appliance.

- Never use light ingredients or baking paper in the appliance.

- Storage of potatoes: The temperature shall be appropriate to the potato variety stored and it shall be above 6 °C to minimize the risk of acrylamide exposure in the prepared foodstuff.

- Since this Airfryer has two cooking chambers, its electric power is large. Do not operate other powerful appliances on the same circuit at the same time (e.g., kettles, electric grills, and the like). Else, it can happen that the circuit breaker in your house installation responds and the power at this socket fails.

- This appliance is designed to be used at ambient temperatures between 5 °C and 40 °C.

- Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.

- Keep the mains cord away from hot surfaces.

- Do not place the appliance on or near combustible materials such as a tablecloth or curtain.

- Do not use the appliance for any other purpose than described in this manual and use only original Philips accessories.

- Do not let the appliance operate unattended.

- The basket, bottom plate, and accessories placed inside the cooking chamber becomes hot during and after use of the appliance, always handle carefully.

- Thoroughly clean the parts that come into contact with food before you use the appliance for the first time. Refer to the instructions in the manual.

Caution

Caution

- This appliance is intended for normal household use only. It is not intended for use in environments such as staff kitchens of shops, offices, farms or other work environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfasts and other residential environments.

- Always disconnect the appliance from the supply if it is left unattended and before you assemble, disassemble, store or cleaning.

- Place the appliance on a horizontal, even and stable surface.

- If the appliance is used improperly or for professional or semi-professional purposes, or if it is not used according to the instructions in the user manual, the guarantee becomes invalid and Philips refuses any liability for damage caused.

- Always return the appliance to a service center authorized by Philips for examination or repair. Do not attempt to repair the appliance yourself, otherwise the guarantee becomes invalid.

- Always unplug the appliance after use.

- Let the appliance cool down for approximately 30 minutes before you handle or clean it.

- Make sure the ingredients prepared in this appliance come out golden yellow instead of dark or brown.

Recycling

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

  • Remove burnt remnants. Do not fry fresh potatoes at a temperature above 180 °C (to minimize the production of acrylamide).
  • Be careful when cleaning the upper area of the cooking chamber: hot heating element and edge of metal parts.
  • Always make sure that the food is fully cooked in the Airfryer.
  • Be cautious when cooking easy perishable food with the sync finish function (bacteria may breed).
  • Be careful when pouring out the cooked food and prevent accessories from falling out. Additionally, watch out for oil that may drip from the mesh sides of the basket.
  • When cooking fatty food, the airfryer could emit smoke.

- This symbol means that electrical products shall not be disposed of with normal household waste.

- Follow your country's rules for the separate collection of electrical products.

Electromagnetic fields (EMF)

This appliance complies with the applicable standards and regulations regarding exposure to electromagnetic fields.

Warranty and support

Versuni offers a two-year warranty after purchase on this product. This warranty is not valid if a defect is due to incorrect use or poor maintenance. Our warranty does not affect your rights under law as a consumer. For more information or for invoking the warranty, please visit our website www.home.id/warranty.

For Australia and New Zealand:

Our goods and services come with guarantees that cannot be excluded under the Australian Consumer Law, or under the Consumer Guarantees Act (NZ). For major failures with the service, you are entitled: to cancel your service contract with us; and to a refund for the unused portion, or to compensation for its reduced value. You are also entitled to choose a refund or replacement for major failures with goods. If a failure with the goods or a service does not amount to a major failure, you are entitled to have the failure rectified in a reasonable time. If this is not done you are entitled to a refund for the goods and to cancel the contract for the service and obtain a refund of any unused portion. You are also entitled to be compensated for any other reasonably foreseeable loss or damage

from a failure in the goods or service. To make a claim under this warranty, contact: Versuni Australia on 1300 805 865 (AU) or 0800 854885 (NZ). Expenses of claiming the warranty will be borne by the person making the claim. This warranty is provided by Versuni Australia, 65 Epping Road North Ryde, Sydney NSW.

EcoDesign information

EcoDesign information for Model identifier(s): NA46x

Description Symbol Value Unit
Off-mode power consumption Poff0.28 W
Standby mode power consumption PsbN/A W
Period before automatic switches into standby mode Tsb20 Min
Measurement standard for service value EN 50564:2011
Contact details for obtaining more information DAP B.V.
Tussendiepen 4a,9206AD Drachten, The Netherlands
The appliance complies with the EcoDesign requirements of Annex II Of COMMISSION
REGULATION (EU) 2023/826

Introduction

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that we offer, register your product at www.home.id.

General description

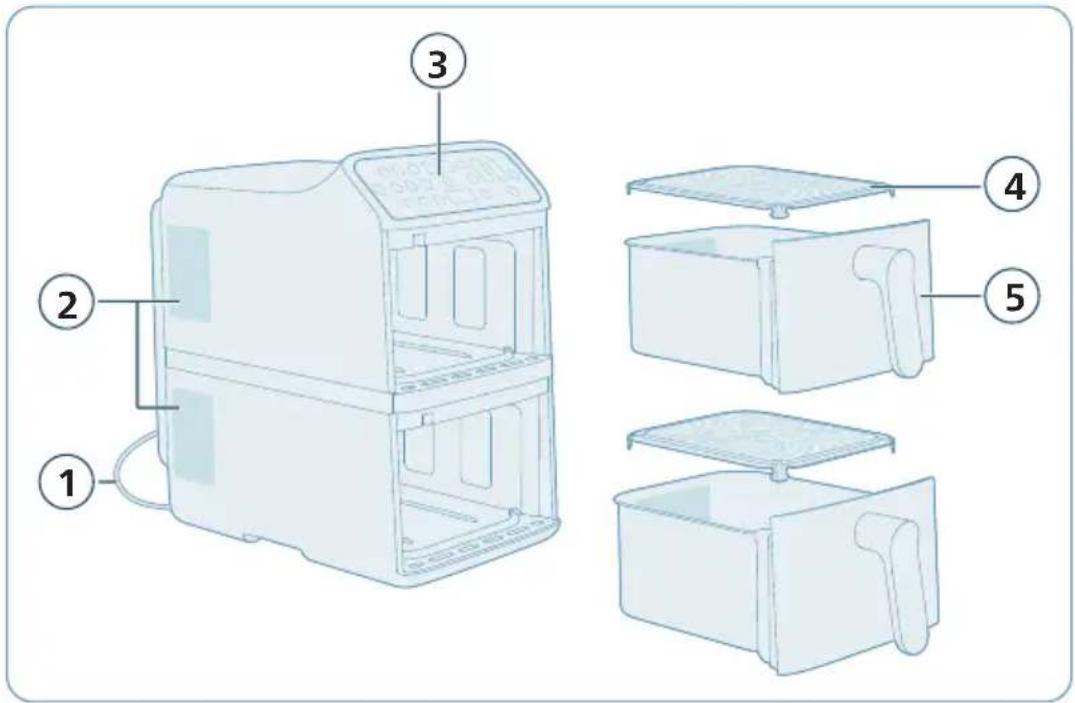

Product overview

Diagram of a multi-step appliance assembly with numbered parts for identification

1 Power cord 2 Air outlets 3 Control panel 4 Bottom plate (x2) 5 basket (x2)

Note: This appliance features two independent cooking baskets. You can choose to cook with just one basket or use both simultaneously. Each basket operates independently, allowing you to set different temperatures, cooking times, or preset programs for each basket.

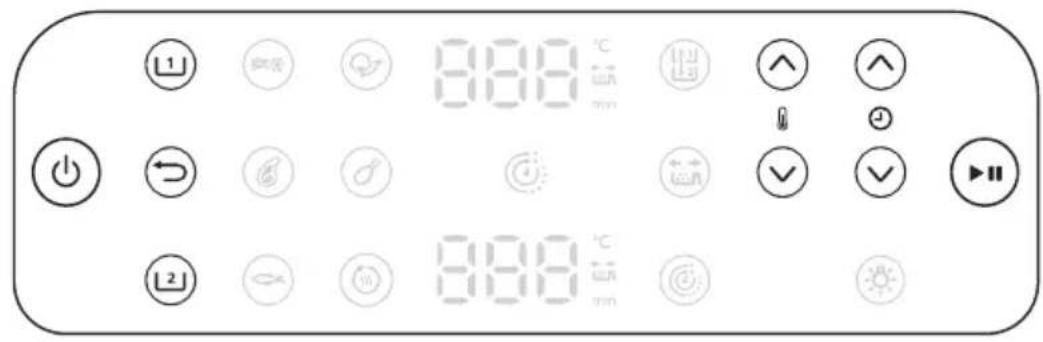

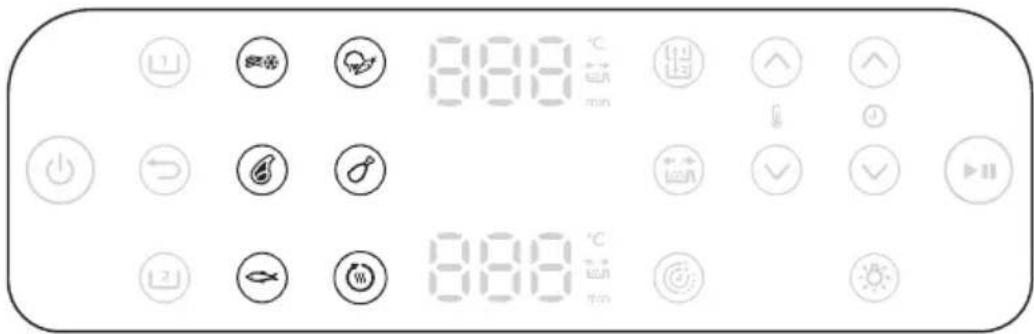

Control panel overview

Power and basic operations12 300 8:00 °C mm 12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96…

PHILIPS NA460 - Control panel overview - 2

On/off button

Tap to power the air fryer on or off.

PHILIPS NA460 - On/off button - 1

Top basket (1) selection button

Tap to select the top basket to adjust settings.

PHILIPS NA460 - Top basket (1) selection button - 1

Bottom basket (2) selection button

Tap to select the bottom basket to adjust settings.

PHILIPS NA460 - Bottom basket (2) selection button - 1

Return button

Tap to go back to the previous menu or cancel the current selection.

PHILIPS NA460 - Return button - 1

Start/pause button

Tap to begin or pause the cooking process.

PHILIPS NA460 - Start/pause button - 1

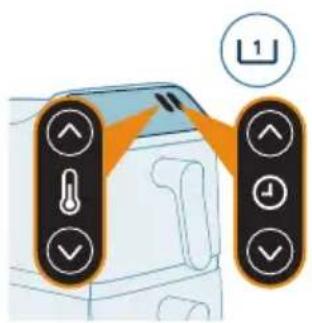

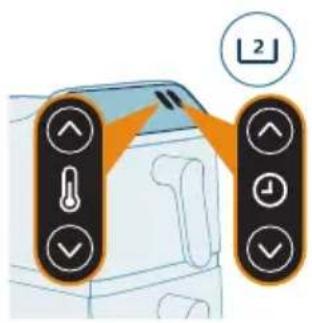

Temperature increase/decrease buttons

Tap to increase or decrease the cooking temperature for the selected basket.

PHILIPS NA460 - Temperature increase/decrease buttons - 1

Time increase/decrease buttons

Tap to increase or decrease the cooking time for the selected basket.

Preset programs

8:00 min 8:00 min

PHILIPS NA460 - Preset programs - 2

Frozen potato based snacks

Use this preset to cook frozen fries, wedges, or hash browns to a crispy golden finish.

PHILIPS NA460 - Frozen potato based snacks - 1

Steak

Use this preset to grill steak to your preferred doneness with a seared exterior.

PHILIPS NA460 - Steak - 1

Fish

Use this preset to gently cook fish fillets or seafood while keeping them moist and flaky.

PHILIPS NA460 - Fish - 1

Vegetables

Use this preset to roast or crisp vegetables evenly with minimal oil.

PHILIPS NA460 - Vegetables - 1

Chicken drumsticks

Use this preset to cook chicken drumsticks thoroughly with a crispy skin.

PHILIPS NA460 - Chicken drumsticks - 1

Reheat

Use this preset to warm up leftovers quickly while preserving texture and flavor.

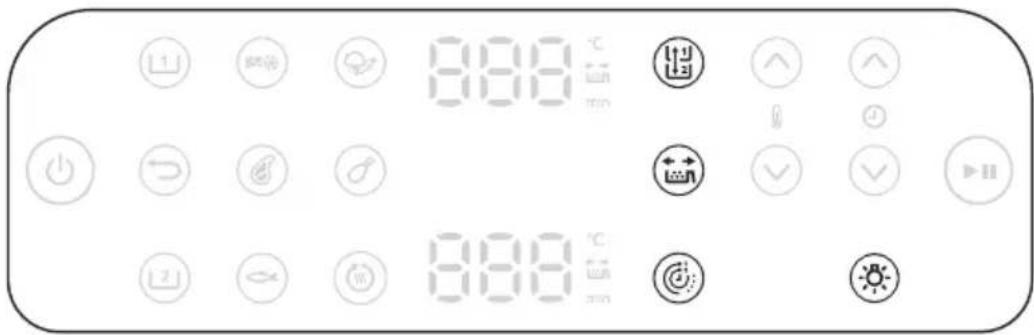

Additional functions

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

PHILIPS NA460 - Additional functions - 2

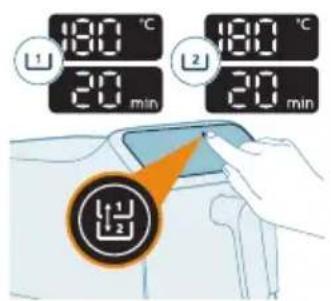

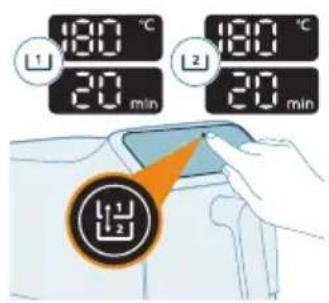

Copy function

You can set the time and temperature for one basket, then copy these exact settings to the other basket by pressing the copy function button.

PHILIPS NA460 - Copy function - 1

Time function

Automatically sync cooking times in 2 baskets for your meals to be ready at the same time.

PHILIPS NA460 - Time function - 1

Shake reminder

Press the shake reminder button to enable or disable alerts that remind you to shake or turn your food during cooking for more even results. You will hear a "beep" and see a shaking icon flashing beside the time display.

PHILIPS NA460 - Shake reminder - 1

Light

Turn the light in the cooking chamber on or off.

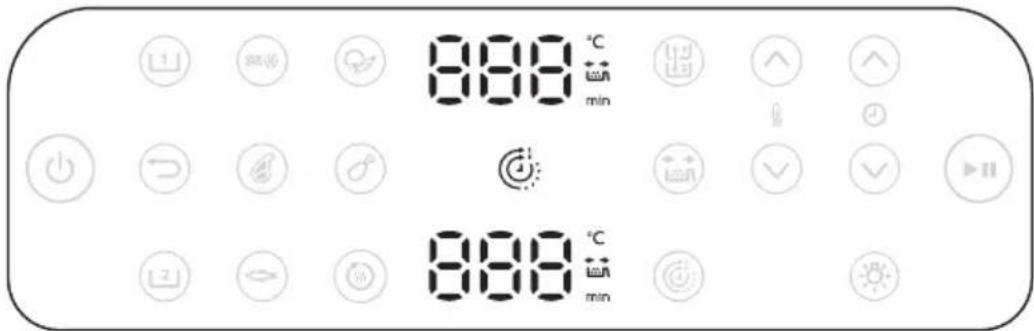

Display

888 °C min 888 °C min

888

Time/temperature display

The screen cycles between displaying the cooking time and temperature.

PHILIPS NA460 - Time/temperature display - 1

Shake reminder indication

Lights up when the shake reminder is activated.

PHILIPS NA460 - Shake reminder indication - 1

Time function indication

Lights up when the time function is activated.

Before first use

Illustration of a water dispenser pouring liquid into a container with a red 'X' symbol (no text or symbols on the diagram itself)

Important: During the first time use, the airfryer may produce some smoke and odor. This is normal and should dissipate in a few minutes.

Caution: This is an Airfryer that works on hot air. Do not fill the basket with oil, frying fat, or any other liquid.

Caution: Do not touch hot surfaces. Handle the hot basket with oven-safe gloves.

Caution: This appliance is for household use only.

Note: Preheating of the appliance is not necessary.

1 Remove all packing material. 2 Remove any stickers or labels (if applicable) from the appliance. 3 Thoroughly clean the appliance before first use (see 'Cleaning').

Preparations before use

>15cm

1 Place the appliance on a stable, horizontal, level and heat-resistant surface.

2 Leave at least 15 cm free space on both sides and at the back of the appliance.

Illustration of a tray with an orange arrow pointing downward, above a white container with a handle (no text or symbols)

3 Insert the bottom plate into the basket.

Note: During use, hot steam is released through the air outlets. Keep your hands and face safely away from the steam and outlets. Place the appliance at least 15 cm away from the wall, and do not position the air outlets directly in front of the socket.

Note: Do not put anything on top or on the sides of the appliance. This could disrupt the airflow and affect the frying result.

Note: Do not place the Airfryer next to another cooking appliance, close to the kitchen wall, or beneath a kitchen cupboard, as hot steam may condense and run down the surfaces.

Using the appliance

Test run

A test run helps you:

- Familiarize yourself with the Airfryer

- Verify proper operation

- Remove manufacturing residues

1 Make sure both baskets are empty, then plug in the appliance.

Illustration of a cable inserted into a socket with an arrow indicating direction (no text or symbols)

2 Tap the On/off button.

Illustration of a hand using a power button to press a device (no text or symbols present)

3 Select one of the baskets.

Diagram showing a hand holding a device with a circular icon labeled '1' pointing to the handle.

4 Tap the Frozen Fries button.

5 Select the other basket and choose Frozen Fries too.

Diagram showing a hand pressing a button on a car air conditioner cover with a circular logo containing Chinese characters.

6 Tap the Start/pause button to begin.

Illustration of a computer monitor with a play button and a blue triangular icon (no text or symbols).

7 A shake reminder beeps midway through cooking. Mute the beep by pulling out the baskets, then reinserting them securely.

Diagram showing a refrigerator with two drawers and an alarm bell, indicating ventilation or ventilation process.

Illustration of a refrigerator with two drawers and an orange arrow indicating flow direction, accompanied by a bell icon and checkmark (no text or symbols).

8 When cooking finishes, a final beep sounds.

Diagram showing temperature change from a container to a thermometer, with labeled temperature values and directional arrows.

9 Remove the baskets. Let both baskets cool for 10–30 minutes.

Cooking with preset programs

Illustration of a chicken being lifted by an arrow, with a small icon showing a time symbol (no text or symbols present).

This appliance comes with a variety of preset cooking programs designed to simplify meal preparation. Each preset is optimized for a specific type of food, automatically setting the ideal temperature and cooking time to deliver delicious results with minimal effort.

1 Add ingredients to the top basket.

Note: Always make sure the bottom plate is securely in place before using the basket.

Illustration of a hand inserting a device into a mailbox with an arrow indicating direction (no text or symbols).

2 Return the top basket to the appliance.

Illustration of a blue object being placed into a white container with an arrow pointing downward, next to a circled number 2 (no text or symbols on the object itself).

3 Add ingredients to the bottom basket.

Note: Avoid exceeding the suggested amounts or filling the basket beyond the 'MAX' line, as this may impact cooking performance.

Illustration of a mailbox with a hand inserting a folder into it, showing an orange arrow indicating direction (no text or symbols).

4 Return the bottom basket to the appliance.

Diagram showing a hand holding a device with a circular icon labeled '1' and a plus symbol, likely indicating a status or function.

5 Tap the Top basket button on the screen.

Diagram showing a hand pressing a button on a device with an icon and a U-shaped symbol, likely illustrating a process or control.

6 Choose the preferred preset button.

Illustration showing a hand inserting a device into a screen with a labeled icon 'L2'.

7 Tap the Bottom basket button on the screen.

Illustration showing a hand interacting with a device labeled '2' and a fish icon, likely indicating a step or instruction.

8 Choose the preferred preset button.

Illustration of a computer monitor with a play button and a play icon, no text or symbols present.

9 Tap the Start/pause button to start cooking.

Note: Some ingredients require shaking or turning halfway through the cooking time (see 'Preset programs'). To do this:

  • Gently pull out the basket.
  • Shake the contents over a heat-resistant surface.
  • Reinsert the basket to continue cooking.

Note: To pause the cooking process, press the Start/pause button. Press the same button again to resume.

Note: The appliance will automatically pause when the basket is removed. Cooking will automatically resume once the basket is placed back into the appliance.

Illustration of a refrigerator with two drawers and an orange bell icon.

10 Once cooking is complete, a timer bell will sound. Carefully pull out both baskets.

Caution: After the cooking process, the basket, the interior housing and the ingredients will be hot. Always place the basket on a heat resistant surface (e.g. trivet or silicone mat) when you remove the basket. Depending on the type of food, hot steam may escape from the basket.

Illustration showing two methods of heating a chicken, with labeled steps 1 and 2 indicating temperature or temperature change.

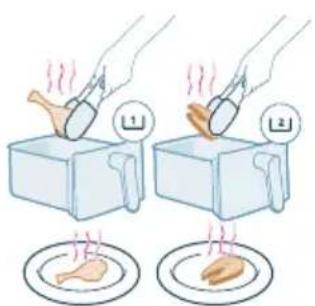

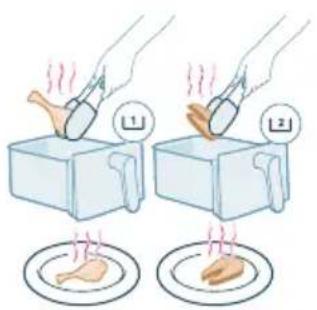

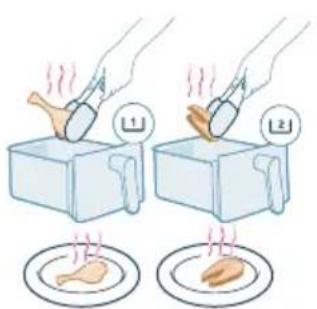

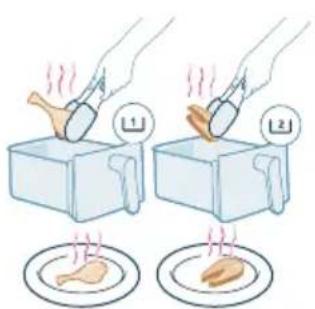

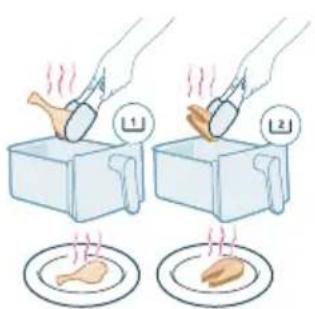

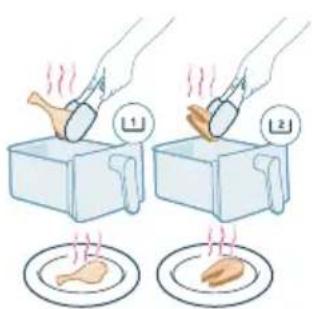

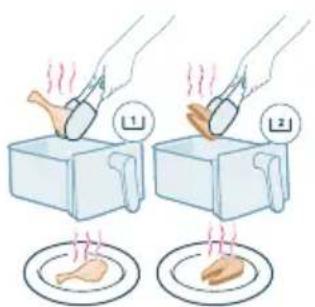

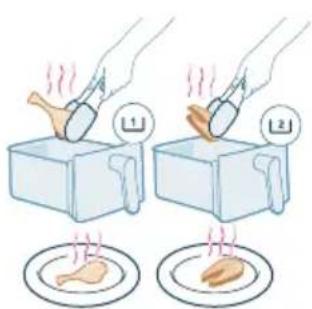

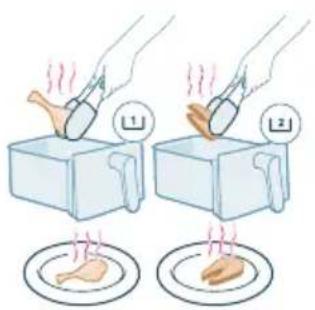

11 Use kitchen tongs to remove the cooked food from the baskets.

Note: Excess oil or rendered fat from the ingredients will collect at the bottom of the basket.

Note: Depending on the type of food being cooked, you may wish to pour off the excess oil or fat between batches or before shaking the contents. To do this safely, place the basket on a heat-resistant surface and wear oven-safe gloves. Carefully pour out the oil or fat.

Preset programs

Presets Recommended amountTempera-tureCooking time Shake reminder
PHILIPS NA460 - Cooking with preset programs - 12Frozen fries 500 g 200°C26 min 30 minx2
PHILIPS NA460 - Cooking with preset programs - 13Meat chops 250 g 200°C16 min 18 minx2
PHILIPS NA460 - Cooking with preset programs - 14Fish filet 650 g 200°C18 min 20 minx1
PHILIPS NA460 - Cooking with preset programs - 15Veggie 800 g 180°C18 min 20 minx2
PHILIPS NA460 - Cooking with preset programs - 16Drumsticks 1000 g 180°C32 min 34 minx1
PHILIPS NA460 - Cooking with preset programs - 17Reheat / 160°C5 min 5 min/

2750 W 2300 W

Note: The default cooking time for each preset program may vary depending on the power rating of your Airfryer.

Cooking with manual settings

Illustration of a chicken being lifted by an arrow, with a small circular icon showing the number 1.

When preset programs do not meet your personalized cooking needs, the manual settings give you full control over temperature and time.

1 Add ingredients to the top basket.

Note: Always make sure the bottom plate is securely in place before using the basket.

Illustration of a hand inserting a device into a machine, with an arrow indicating direction.

2 Return the top basket to the appliance.

Illustration of a mechanical assembly with a downward arrow and a numbered label (2).

3 Add ingredients to the bottom basket.

Note: The Airfryer is suitable for preparing a wide variety of ingredients. For best results, refer to the 'Food Table' for recommended quantities and cooking times.

Note: Avoid exceeding the suggested amounts or filling the basket beyond the 'MAX' line, as this may impact cooking performance.

Illustration of a hand inserting a device into a mailbox with an arrow indicating direction.

4 Return the bottom basket to the appliance.

Diagram showing a hand inserting a device into a machine with a circular icon labeled '1' pointing to the handle.

5 Tap the Top basket button on the screen.

Diagram showing directional control buttons with icons and a play button labeled 'U' pointing to the top panel.

6 Tap the temperature and time arrows to choose the preferred setting.

Illustration of a hand inserting a device into a device with a circular badge labeled 'L2'.

7 Tap the Bottom basket button on the screen.

Diagram showing a device with directional control buttons and a numbered indicator '2' pointing to the top panel.

8 Tap the temperature and time arrows to choose the preferred setting.

Illustration of a computer monitor with a play button icon.

Illustration of a refrigerator with two drawers and an orange arrow indicating flow direction.

Illustration showing food preparation steps with labeled icons and Chinese text.

9 Tap the Start/pause button to start cooking.

Note: Some ingredients require shaking or turning halfway through the cooking time (see 'Food table'). To do this:

  • Gently pull out the basket.
  • Shake the contents over a heat-resistant surface.
  • Reinsert the basket to continue cooking.

Note: To pause the cooking process, press the Start/pause button. Press the same button again to resume.

Note: The appliance will automatically pause when the basket is removed. Cooking will automatically resume once the basket is placed back into the appliance.

10 Once cooking is complete, a timer bell will sound. Carefully pull out both baskets.

Caution: After the cooking process, the basket, the interior housing and the ingredients will be hot. Always place the basket on a heat resistant surface (e.g. trivet or silicone mat) when you remove the basket. Depending on the type of food, hot steam may escape from the basket.

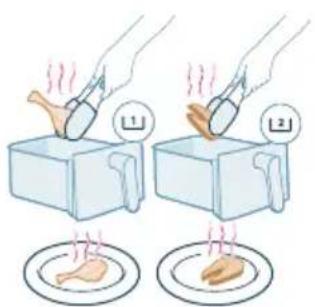

11 Use kitchen tongs to remove the cooked food from the baskets. For lighter items, such as fries, you can pour them directly onto a plate.

Note: Excess oil or rendered fat from the ingredients will collect at the bottom of the basket.

Note: Depending on the type of food being cooked, you may wish to pour off the excess oil or fat between batches or before shaking the contents. To do this safely, place the basket on a heat-resistant surface and wear oven-safe gloves. Carefully pour out the oil or fat.

Food table

The table below provides recommended base settings for preparing various food types.

Note

  • The settings listed are intended as guidelines. Due to variations in ingredient origin, size, shape, and brand, optimal results cannot be guaranteed for all ingredients.
  • When cooking larger quantities (e.g., fries, prawns, drumsticks, frozen snacks), shake, turn, or stir the ingredients 2–3 times during the cooking process to ensure consistent texture and doneness.
  • The suggested weight is for a single basket.

Food table for appliances with a power rating of 2750 W

Ingredients Min. – Max. amountTime (min)Temper- atureNote
Thin frozen fries (7x7 mm / 0.3x0.3 in)200-700g 22-33 200°C Shake, turn or stir between 2-3 times in
Chicken drumsticks (around 125g/4.5 oz)2-8 pieces 24-34 180°C Shake, turn or stir halfway
Salmon 400-1000g 14-24 200°C Shake, turn or stir halfway
Sausages 300-500g 10-15 180°C Shake, turn or stir halfway
Meat chop 200-1000g 15-20 200°C Shake, turn or stir halfway
Sponge cake 300g 50 140°C Use the baking tray accessory
Sponge cupcake 4-9 cup 14-16 160°C Use the baking cup accessory
Easy lava cake 4-9 cup 10 160°C Use the baking cup accessory
Mixed veggie 400-800g 15-20 180°C Shake, turn or stir halfway
Mini Röstis 6-11 pieces 15-20 180°C Shake, turn or stir halfway
Ingredients Min. – Max.Food table for appliances with a power rating of 2300 W
amountTime (min)Temper- atureNote
Thin frozen fries (7x7 mm / 0.3x0.3 in)200-700g26-37 200°C Shake, turn or stir between 2-3 times in
Chicken drumsticks (around 125g/4.5 oz)2-8 pieces26-36 180°C Shake, turn or stir halfway
Salmon 400-1000g16-26200°C Shake, turn or stir halfway
Sausages 300-500g12-17180°C Shake, turn or stir halfway
Meat chop 200-1000g17-22200°C Shake, turn or stir halfway
Sponge cake 300g50140°C Use the baking tray accessory
Sponge cupcake 4-9 cup14-16160°C Use the baking cup accessory
Easy lava cake 4-9 cup10160°C Use the baking cup accessory
Mixed veggie 400-800g15-20180°C Shake, turn or stir halfway
Mini Röstis 6-11 pieces15-20180°C Shake, turn or stir halfway

Time function

The Time function is designed to make sure that food in both baskets finishes cooking at the same time, even if the cooking times or temperatures are different. This is especially useful when preparing a full meal with different ingredients in each basket.

1 32 min 2 18 min

1 Set the cooking time and temperature for both baskets.

2 Tap the Time button on the control panel.

Illustration of a hand holding a device with a circular dial indicator.

3 Tap the Start/pause button, and the synchronized cooking begins.

Illustration of a computer monitor with a play button and a blue triangular icon (no text or symbols)

4 The Airfryer automatically adjusts the start time of one basket so that both baskets complete their cooking cycles simultaneously. This ensures that everything is hot and ready to serve at once.

32 min 18 min

Copy function

The Copy function allows you to duplicate the cooking settings from one basket to the other with a single touch. This is ideal when you're cooking the same food in both baskets and want consistent results.

180 °C 20 min

1 Set the time and temperature for one basket.

180 °C 20 min 180 °C 20 min

2 Press the Copy button. The settings will be instantly duplicated to the other basket.

3 Press Start/pause to begin cooking.

Illustration of a hand pressing a play button on a device (no text or symbols)

Shaking food

How to shake

Illustration of a hand holding a box with a spring-like object emerging from it, surrounded by motion lines (no text or symbols)

During cooking, remove the basket from the Airfryer to shake, mix, or flip the food.

To shake food safely:

1 Hold the basket above a heat-resistant surface. 2 Gently shake the basket and assure the hot air has a chance to reach all the food surfaces.

If the basket is too heavy to shake:

1. Place the basket on a heat-resistant surface.

Illustration of a hand using a spatula to spin a small object into a rectangular container (no text or symbols)

2. Use silicone-tipped tongs or utensils to toss or flip the ingredients. Reinsert the basket and resume cooking.

Note: The Airfryer will pause automatically when the basket is removed. The display will remain frozen until the basket is replaced.

Note: Cooking resumes automatically once the basket is reinserted.

Note: Avoid prolonged basket removal (over 30 seconds), as this may cause the appliance to cool down.

What to shake

  • Small items like fries or nuggets that are stacked during cooking typically require shaking to ensure even crispness and consistent cooking.
  • If you do not shake these foods, they might cook unevenly or stay undercooked in some areas.
  • For thicker items like steak, flipping halfway through cooking helps achieve uniform browning on all sides.

When to shake

  • Shake or flip food 1–2 times halfway through cooking, or more if desired.
  • Some presets include a built-in shaking reminder feature (see 'Preset programs').

Shake reminder

  • The shake reminder will sound 5 beeps and flash on the display.
  • If you do not remove the basket after 5 beeps, the reminder will turn off automatically.
  • The shake reminder will also stop as soon as you take out the basket.

Making home-made fries

To make great home-made fries in the Airfryer:

  • Choose a potato variety suitable for making fries, e.g. fresh, (slightly) floury potatoes.
  • It is best to air fry the fries in portions of up to 500 g / 18 oz for an even result. Larger quantities of fries tend to be less crispy than smaller portions.

1 Peel the potatoes and cut into fries (10x10 mm / 0.4x0.4 in thick).

2 Soak the potato sticks in a bowl of water for at least 30 minutes.

3 Empty the bowl and dry the potato sticks with a dish towel or paper towel.

4 Pour one tablespoon of cooking oil into the bowl, put the sticks in the bowl and mix until the sticks are coated with oil.

5 Remove the sticks from the bowl with your fingers or a slotted kitchen utensil so excess oil remains in the bowl.

Note

- Do not tilt the bowl to pour all the sticks in the basket at once to prevent excess oil from going into the basket.

Cleaning

PHILIPS NA460 - Cleaning - 1

6 Put the sticks into the basket. 7 Fry the potato sticks and stir them 2-3 times during cooking.

Warning: Let the basket and the inside of the appliance cool down completely before you start cleaning.

Warning: the basket has a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials as this may damage the non-stick coating.

Clean the appliance after every use. Remove oil and fat from the bottom of the basket after every use.

1 Press the power On/Off button to switch off the appliance, remove the plug from the wall outlet and let the appliance cool down.

Tip: Remove the basket to let the Airfryer cool down faster.

2 Remove the bottom plate from the basket. 3 Dispose of rendered fat or oil from the bottom of the basket. 4 Clean the basket in a dishwasher. You can also clean it with hot water, dishwashing liquid and a non-abrasive sponge (see "cleaning table"). Tip: If food residues stuck to the basket or bottom plate, you can soak them in hot water and dishwashing liquid for 10–15 minutes. Soaking loosens the food residues and makes it easier to remove. Make sure you use a dishwashing liquid that can dissolve oil and grease. If there are grease stains on the basket or bottom plate and you have not been able to remove them with hot water and dishwashing liquid, use a liquid degreaser. Tip: necessary, food residues stuck to the heating element can be removed with a soft to medium bristle brush. Do not use a steel wire brush or a hard bristle brush, as this might damage the coating on the heating element. 5 To prevent scratches, gently wipe the outside and inside of the appliance with an unwrinkled, clean, and soft cloth. Begin with a slightly moistened cloth and follow up with a dry one, if necessary.

Diagram showing a device with a connector and a magnified view of the connector labeled 'poo' (poo)

6 Clean the heating element with a cleaning brush to remove any food residues.

Illustration of a hand cleaning a small kitchen appliance (no text or symbols)

7 Clean the inside of the appliance with hot water and a non-abrasive sponge.

Cleaning table

Proper cleaning maintains your Airfryer's performance and safety. The table below outlines cleaning instructions for each component.

PHILIPS NA460 - Cleaning table - 1PHILIPS NA460 - Cleaning table - 2PHILIPS NA460 - Cleaning table - 3PHILIPS NA460 - Cleaning table - 4
PHILIPS NA460 - Cleaning table - 5 x2PHILIPS NA460 - Cleaning table - 6PHILIPS NA460 - Cleaning table - 7PHILIPS NA460 - Cleaning table - 8PHILIPS NA460 - Cleaning table - 9
PHILIPS NA460 - Cleaning table - 10 x2PHILIPS NA460 - Cleaning table - 11PHILIPS NA460 - Cleaning table - 12PHILIPS NA460 - Cleaning table - 13PHILIPS NA460 - Cleaning table - 14
PHILIPS NA460 - Cleaning table - 15PHILIPS NA460 - Cleaning table - 16PHILIPS NA460 - Cleaning table - 17PHILIPS NA460 - Cleaning table - 18PHILIPS NA460 - Cleaning table - 19

Storage

1 Unplug the appliance and let it cool down. 2 Make sure all parts are clean and dry before storing.

Note

  • When carrying the Airfryer, always hold it horizontally to prevent the baskets from accidentally falling out, which could potentially damage them.
  • Always make sure that the removable parts of the Airfryer e.g. bottom plate, etc. are fixed before you carry and/or store it.

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.home.id/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

The outside of the appliance becomes hot during use.The heat inside radiates to the outside walls.This is normal. All handles and knobs that you need to touch during use stay cool enough to touch.
The basket, bottom plate, and the inside of the appliance always become hot when the appliance is switched on to ensure the food is properly cooked. These parts are always too hot to touch.
If you leave the appliance switched on for a longer time, some areas get too hot to touch. These areas are marked on the appliance with the following icon: PHILIPS NA460 - Troubleshooting - 1
As long as you are aware of the hot areas and avoid touching them, the appliance is completely safe to use.
My home-made fries do not turn out as I expected.You did not use the right potato type.To get the best results, use fresh floury potatoes. If you need to store the potatoes, do not store them in a cold environment like in a fridge. Choose potatoes whose package states that they are suitable for frying.
The amount of ingredients in the basket is too big.Follow the instructions in this user manual to prepare home-made fries.

Problem Possible cause Solution

Certain types of ingredients need to be shaken halfway through the cooking time.Follow the instructions in this user manual to prepare home-made fries.
The Airfryer does not switch on. The appliance is not plugged in. Check if the plug is inserted in the wall outlet properly.
Several appliances are connected to one outlet.The Airfryer has a high wattage. Try a different outlet and check the fuses.
On/Off button was not activated yet.Use your thumb to press the On/Off button, ensuring the whole button is touched by finger.
I see some peeling off spots inside my Airfryer.Some small spots can appear inside the basket of the Airfryer due to the incidental touching or scratching of the coating (e.g. during cleaning with harsh cleaning tools and/or while inserting the basket).You can prevent damage by lowering the bottom plate into the basket properly. If you insert the bottom plate at an angle, its side may knock against the wall of the basket, causing small pieces of coating to chip off. If this occurs, please be informed that this is not harmful as all materials used are food-safe.
White smoke comes out of the appliance.You are cooking fatty ingredients.Carefully pour off any excess oil or fat from the basket and then continue cooking.
The basket still contains greasy residues from previous use.White smoke is caused by greasy residues heating up in the basket. Always clean the basket and bottom plate thoroughly after every use.
Breading or coating did not adhere properly to the food.Tiny pieces of airborne breading can cause white smoke. Firmly press breading or coating to food to ensure it sticks.
Marinade, liquid or meat juices are splattering in the rendered fat or grease.Pat food dry before placing it in the basket.
The screen on the Airfryer shows "E1" or "E2".Your Airfryer might be stored in a place where it is too cold.The device temperature is too low. This product is designed to operate in an ambient temperature between 5 °C and 40 °C. Place the Airfryer at room temperature for at least 15 minutes. If the problem persists, call the Philips service hotline or contact the consumer care center in your country/region.

Problem Possible cause Solution

The screen on the Airfryer shows "E4", "E5", "E12", or "E22".The device might have a malfunction.Try to plug out and plug in the device. If this does not help please call the Philips service hot line or contact the Consumer Care Center in your country.
The screen on the Airfryer shows "E10".The internal temperature of the device is too high.Check whether there are any obstructions around the air outlets that affect ventilation and heat dissipation. Leave at least 15 cm of space around the air outlets, and do not place any objects in between the air outlets and wall.

Contents

Illustration of a double-door refrigerator with orange arrows indicating airflow or movement, accompanied by an orange bell icon (no text or symbols).

Illustration showing a hand interacting with a device, featuring a fish icon and a numbered button labeled '2'.

Illustration of a refrigerator with two drawers and an orange arrow indicating direction, accompanied by a bell icon and checkmark.

Illustration showing two cooking steps with food being placed on a tray, labeled L1 and L2.

Diagram showing directional control buttons with a zoomed-in square indicator labeled '2'.

Illustration of a cable inserted into a socket with an orange arrow indicating direction.

1 Power cord 2 Air outlet 3 Control panel 4 Base plate (x2) 5 Basket (x2)

3 Place the base plate in the basket.

4 Press the Frozen Fries button.

6 Press the Start/Pause button to start.

Illustration of a computer monitor with a play button and playback icon (no text or symbols)

Illustration of a multi-level office drawer with orange arrows indicating flow or movement, and an orange bell icon above (no text or symbols)

Illustration of a hand inserting a device into a machine, with an arrow indicating direction (no text or symbols)

3 Put ingredients in the lower basket.

Illustration showing a hand using a device to touch a screen, with a fish icon and a numbered button labeled '2'

Illustration of a refrigerator with two drawers and an orange arrow indicating airflow direction (no text or symbols)

9 Press the Start/Pause button to start cooking.

3 Put ingredients in the lower basket.

Diagram showing directional control buttons with a numbered square indicator and arrow pointing to a device interface

Illustration of a refrigerator with two drawers and an orange arrow indicating flow direction, accompanied by a bell icon and checkmark (no text or symbols)

Diagram illustrating food preparation steps with labeled parts and heating methods

9 Press the Start/Pause button to start cooking.

3 Press Start/Pause to start cooking.

Shaking food

How to shake

Illustration of a hand holding a box with a plant inside, emitting sound waves (no text or symbols)

During cooking, remove the basket from the air fryer to shake, mix, or turn the food.

Illustration of a plug inserted into a socket with an orange arrow indicating direction (no text or symbols)

Illustration of a hand inserting a device into a machine, with an arrow indicating direction (no text or symbols).

Illustration showing a hand interacting with a device, featuring a fish symbol and a numbered button labeled '2'.

Illustration of a refrigerator with two drawers and an orange arrow indicating direction, accompanied by a bell icon and checkmark.

Illustration of two cooking steps showing a steaming dish being placed in a container.

Diagram showing directional control buttons with a numbered square indicator and arrow pointing to a device interface.

Illustration of a hand pressing a play button on a device.

Illustration of a hand using a tool to rotate a piece into a box (no text or symbols)

Illustration of a blue electrical plug inserted into a socket with an orange arrow indicating direction (no text or symbols)

Illustration of a flat plate with an upward arrow above a rectangular container (no text or symbols)

Illustration of a hand cleaning a small container with a cloth (no text or symbols)

x2×
x2×
×××

Storage

Ecodesign information 113

1 Power cord

3 Insert the bottom plate into the basket.

Illustration of a refrigerator with orange arrows indicating airflow or movement, accompanied by an 'USA' badge and a bell icon.

9 Remove the baskets. Let both baskets cool for 10–30 minutes.

Illustration of a hand inserting a device into a machine, with an arrow indicating direction (no text or symbols).

3 Add food to the bottom basket.

4 Put the bottom basket back into the appliance.

5 Touch the Top basket button on the screen.

Diagram showing a hand holding a device with a circular icon labeled '1' pointing to the handle.

7 Touch the Bottom basket button on the screen.

Illustration showing a hand interacting with a device labeled 'L2' and pointing at a screen.

Illustration showing a hand using a device to touch a screen, with a fish icon and a numbered button labeled '2'.

Illustration of a refrigerator with two drawers and an orange arrow indicating flow direction.

Illustration showing two methods of heating a chicken on a stove, with labeled steps [1] and [2] indicating the heating process.

3 Add food to the bottom basket.

4 Put the bottom basket back into the appliance.

Diagram showing a hand using a device to press a button labeled '1', with a circular icon containing the number 1.

5 Touch the Top basket button on the screen.

Diagram showing a device with directional control buttons and a numbered label '1' pointing to the right button.

Diagram showing directional control buttons with a numbered square indicator and arrow pointing to a device interface.

Illustration of a refrigerator with two drawers and an orange arrow indicating flow direction, accompanied by a bell icon and checkmark.

Diagram illustrating food preparation steps with labeled items and heating methods.

Illustration of a hand pressing a play button on a device (no text or symbols).

Shaking the food

How to shake?

Illustration of a hand holding a tool inside a box with a plant growing from it, surrounded by orange curved lines indicating motion (no text or symbols).

Illustration of a hand using a tool to rotate a piece into a box (no text or symbols).

  • This symbol means that electrical products shall not be disposed of with normal household waste.
  • Follow your country's regulations regarding the collection of electrical products.

Electromagnetic fields (EMF)

Illustration showing a hand interacting with a device, featuring a fish icon and a numbered button labeled '2'.

Illustration of a refrigerator with two drawers and an orange arrow indicating flow direction.

Illustration showing two cooking steps: adding a pan to a dish, then adding a pan to a dish with steam rising.

Diagram showing directional control buttons with a zoomed-in square indicator labeled '2'.

32 min 18 min

Illustration of a hand using a tool to rotate a piece into a box (no text or symbols)

Illustration of a flat plate with an upward arrow above a folded container (no text or symbols)

Illustration of a hand cleaning a small kitchen appliance with a cloth (no text or symbols)

Diagram showing a door with a lock and a magnified view of the door labeled 'poo' (poor), indicating a device's location.

Keep the appliance and its cord out of the reach of children less than 8 years.

Illustration of a double-door refrigerator with orange arrows indicating airflow or movement, accompanied by an orange bell icon. No text or symbols.

Illustration showing a hand interacting with a device, featuring a logo with a fish and a numbered button labeled '2'.

Illustration of a refrigerator with two drawers and an orange arrow indicating airflow or ventilation (no text or symbols).

Illustration of two cooking steps showing a steaming dish being placed on a stove or stoveplate, with no text or symbols present.

32 min 18 min

Illustration of a hand using a tool to rotate a piece into a drawer (no text or symbols).

  • This symbol indicates that electrical products must not be disposed of with regular household waste.
  • Follow your country's regulations for the separate collection of electrical products.

Electromagnetic fields (EMF)

1 Power cord

2 Air outlets

3 Control panel

4 Bottom plate (x2)

5 Basket (x2)

Caution: This is an Airfryer that fries with hot air. Do not fill the basket with oil, fat, or any other liquid.

Caution: Do not touch hot surfaces. Use kitchen gloves when handling the hot basket.

Caution: This appliance is intended for household use only.

Note: The appliance does not need to be preheated.

1 Remove all packaging. 2 Remove any stickers or labels (if present) from the appliance. 3 Thoroughly clean the appliance before first use (see "Cleaning").

3 Insert the bottom plate into the basket.

3 Select one of the baskets.

Illustration of a hand using a tool to adjust or install a device with a circular icon labeled '1'.

4 Touch the Frozen Fries button.

5 Select the other basket and select Frozen Fries again.

Illustration of a hand pressing down on a washing machine with a circular logo.

Illustration of a double-door refrigerator with orange arrows indicating airflow or movement, accompanied by an orange bell icon.

7 A shake reminder will sound halfway through cooking. Turn off its sound by pulling out the baskets and then firmly reinserting them.

Illustration of a double-door refrigerator with orange arrows indicating airflow or movement, accompanied by an orange bell icon and checkmark.

8 When cooking is finished, an end signal sounds.

Diagram showing temperature change from a thermometer to a Celsius, with visual indicators and container arrangement.

9 Remove the baskets. Let both baskets cool for 10–30 minutes.

Cooking with preset programs

Illustration of a chicken being lifted by an arrow, with a numbered scale icon.

This appliance has several preset cooking programs to simplify meal preparation. Each preset is optimized for a specific type of food and automatically sets the ideal temperature and cooking time to achieve delicious results with minimal effort.

2 Return the top basket to the appliance.

Diagram showing a blue object being lifted by an arrow, with a circled number 2 indicating a step or sequence.

4 Return the bottom basket to the appliance.

Diagram showing a hand holding a device with a circular icon labeled '1' pointing to the handle.

5 Touch the Upper basket button on the screen.

Diagram showing a hand interacting with a device panel, highlighting a key icon with an orange pointer and a button labeled '1'.

6 Press the button for the desired preset.

Illustration showing a hand interacting with a device, featuring a logo with a fish and a numbered button labeled '2'.

8 Press the button for the desired preset.

Illustration of a computer monitor with a play button and a playhead icon (no text or symbols).

Illustration of a refrigerator with two drawers and an orange arrow indicating flow direction, accompanied by a bell icon and checkmark (no text or symbols).

Illustration of two hands using chopsticks to stir chicken wings in a steaming pot, with two plates below showing the same dish (no text or symbols).

If the preset programs do not meet your personal needs, manual settings allow you to have full control over temperature and time.

2 Return the upper basket to the appliance.

Diagram showing a mechanical component with an arrow and a circled number 2, likely indicating a step or sequence.

4 Return the lower basket to the appliance.

5 Touch the Upper basket button on the screen.

Diagram showing a hand holding a device with a circular icon labeled '1' and a plus symbol, likely illustrating a process or safety warning.

Diagram showing directional control buttons with a numbered label '2' pointing to a device panel.

32 min 18 min

4 The Airfryer automatically adjusts the start time of one basket so that both baskets finish cooking cycles at the same time. This ensures that everything is hot and ready to serve at the same time.

Copy function

180°C 20 min

The Copy function allows you to duplicate cooking settings from one basket to the other with a single touch. This is ideal when you are cooking the same food in both baskets and want consistent results.

1 Set the time and temperature for one basket.

180 °C 20 min 180 °C 20 min

2 Press the Copy button. The settings will be automatically duplicated to the other basket.

Illustration of a hand interacting with a blue play button on a device.

3 Press Start/Pause to begin cooking.

Shaking food

How to shake

Illustration of a hand holding a box with a plant inside, emitting sound waves.

Illustration of a hand using a tool to rotate a piece into a drawer.

Illustration of a cable inserted into a socket with an orange arrow indicating direction.

Warning: Before cleaning, let the basket and the inside of the appliance cool down completely.

2 Separate the bottom plate from the basket. 3 Discard the fat or oil from the ingredients at the bottom of the basket. 4 Wash the basket in the dishwasher. You can also wash it with hot water, dishwashing liquid, and a non-abrasive sponge (see "Cleaning table").

6 Clean the heating elements with a cleaning brush to remove food residue.

Line drawing of a hand cleaning a small electronic device.

7 Clean the inside of the appliance with hot water and a non-abrasive sponge.

Cleaning table

Proper cleaning preserves the efficiency and safety of your Airfryer appliance. The table below provides cleaning instructions for each component.

PHILIPS NA460 - Cleaning table - 1 x2PHILIPS NA460 - Cleaning table - 2PHILIPS NA460 - Cleaning table - 3PHILIPS NA460 - Cleaning table - 4PHILIPS NA460 - Cleaning table - 5
PHILIPS NA460 - Cleaning table - 6 x2PHILIPS NA460 - Cleaning table - 7PHILIPS NA460 - Cleaning table - 8PHILIPS NA460 - Cleaning table - 9PHILIPS NA460 - Cleaning table - 10
PHILIPS NA460 - Cleaning table - 11PHILIPS NA460 - Cleaning table - 12PHILIPS NA460 - Cleaning table - 13PHILIPS NA460 - Cleaning table - 14PHILIPS NA460 - Cleaning table - 15

Storage

Illustration showing a container pouring liquid into a labeled container with a red 'X' symbol indicating rejection or invalid.

Illustration of a refrigerator with orange arrows indicating airflow or movement, accompanied by an 'USA' badge and a bell icon.

Illustration of a hand inserting a device into a machine, with an arrow indicating direction.

Diagram showing a hand pressing a button labeled '2' onto a device with a fish icon and a circular badge.

Illustration of a refrigerator with two doors and an orange arrow indicating airflow direction.

Illustration of two hands steaming chicken wings in a container, with two plates below showing food items.

Diagram showing directional control buttons with a numbered square indicator and arrow pointing to a device interface.

Illustration of a refrigerator with two drawers and an orange arrow indicating direction, accompanied by a bell icon and checkmark (no text or symbols).

Illustration showing a cooking step with labeled steps L1 and L2, depicting a pan on a dish and a knife on a tray.

Illustration of a hand holding a tool inside a box with a spring-like symbol above it, emitting sound waves (no text or symbols present).

9 Remove the baskets. Let both baskets cool for 10-30 minutes.

Illustration showing a hand interacting with a device, featuring a logo with a fish and a numbered button labeled '2'.

Illustration of a refrigerator with two drawers and an orange arrow indicating flow direction, accompanied by a bell icon and checkmark.

Illustration showing two methods of heating a chicken on a stove, labeled L1 and L2, with steam rising from the plate.

Diagram showing directional control buttons with a numbered square indicator and arrow pointing to a device interface.

Illustration of a refrigerator with two drawers and an orange arrow indicating flow direction, accompanied by a bell icon and checkmark (no text or symbols).

Diagram illustrating food preparation steps with labeled items and heating methods.

Shaking food

How to shake

Illustration of a hand holding a tool inside a box with a spring-like symbol above it, emitting sound waves (no text or symbols present).

Illustration of a cable inserted into a socket with an orange arrow indicating direction (no text or symbols).

Illustration of a plastic container with an upward arrow indicating top view (no text or symbols).

Illustration of a hand cleaning a small kitchen appliance with a cloth (no text or symbols).

x2×
x2×
×××

Storage

1 Power cord

6 Press the start/pause button to begin.

Illustration of a hand pressing a button on a device with a play button.

Illustration of a double-door refrigerator with orange arrows indicating airflow or movement, accompanied by an orange bell icon.

Illustration showing a hand using a device to touch a screen, with a fish icon and a numbered button labeled '2'.

Illustration of a refrigerator with two drawers and an orange arrow indicating airflow direction.

Illustration showing two methods of heating a chicken on a stove, with labeled steps L1 and L2.

Diagram showing directional control buttons with a numbered label '2' pointing to a device panel.

32 min 18 min

Illustration of a plug inserted into a socket with an orange arrow indicating direction (no text or symbols).

1 Power cord

Illustration of a double-door refrigerator with orange arrows indicating airflow or movement, accompanied by an orange bell icon (no text or symbols)

Illustration showing a hand interacting with a device, featuring a logo with a fish and a numbered button labeled '2'

Illustration of a multi-tiered refrigerator with orange arrows indicating airflow or ventilation direction (no text or symbols)

Illustration of two cooking steps showing a steaming dish being placed on a stove or stoveplate, with no text or symbols present.

Diagram showing a device with directional control buttons and a 2-lens indicator, likely illustrating a navigation or system adjustment.

Illustration of a double-door refrigerator with orange arrows indicating airflow direction, accompanied by a bell icon and checkmark (no text or symbols).

Illustration showing a cooking step with labeled steps 1 and 2, showing a ladle being added to a dish and then being heated.

Shaking the food

Illustration of a blue electrical plug inserted into a socket with an orange arrow indicating direction (no text or symbols).

Illustration of a flat plate with an upward arrow above a closed container (no text or symbols).

Illustration of a hand cleaning a transparent container with a cloth (no text or symbols)

1 Power cord 2 Air outlet openings

3 Control panel

4 Base plate (x2)

5 Basket (x2)

Illustration of a refrigerator with orange arrows indicating airflow or movement, accompanied by an 'USA' badge and a bell icon.

Illustration of a hand inserting a device into a machine, with an arrow indicating direction (no text or symbols)

Diagram showing a hand interacting with a device, highlighting a fish symbol and a numbered button labeled '2'

Illustration of a refrigerator with two drawers and an orange arrow indicating flow direction, accompanied by a bell icon and checkmark (no text or symbols)

Illustration of two cooking steps showing a steaming dish being placed on a stove or stoveplate, with no text or symbols present.

Diagram showing directional control buttons with a numbered square indicator and arrow pointing to a device interface

Illustration of a double-door refrigerator with orange arrows indicating airflow direction, accompanied by a bell icon and checkmark (no text or symbols)

Illustration showing a cooking step with labeled steps 1 and 2, depicting a dish being heated by a ladle or pan.

32 min 18 min

Illustration of a hand using a tool to rotate or rotate a piece into a box (no text or symbols)

Illustration of a flat plate with an upward arrow above a rectangular container.

Illustration of a hand cleaning a multi-tiered storage unit.

Diagram showing a hand inserting a plug into a device with an icon labeled 'PFP' pointing to the component.

Line drawing of a hand cleaning a small electronic device.

1 Power cord 2 Air outlet 3 Control panel 4 Base plate (x2) 5 Basket (x2)

Warning: This is an Airfryer that works with hot air. Do not fill the basket with oil, frying fat, or any other liquid.

3 Insert the base plate into the basket.

3 Place ingredients in the lower basket.

4 Put the lower basket back into the appliance.

Diagram showing a hand holding a device with a circular icon labeled '1' pointing to the handle.

Illustration showing a hand interacting with a device, featuring a fish icon and a numbered button labeled '2'.

Illustration of a refrigerator with two drawers and an orange arrow indicating direction, accompanied by a bell icon and checkmark (no text or symbols).

Illustration showing two cooking steps: adding a pan to a dish, then adding a dish with food, with labeled steps L1 and L2.

Illustration of a hand inserting a device into a mailbox with an arrow indicating direction (no text or symbols).

3 Place ingredients in the lower basket.

4 Put the lower basket back into the appliance.

Diagram showing a hand holding a device with a circular icon labeled '1' and a warning symbol, likely indicating a safety or inspection step.

11 Use kitchen tongs to remove the cooked food from the baskets. For lighter dishes, such as French fries, you can pour them directly onto a plate.

Note: Excess oil or fat residue from the ingredients collects at the bottom of the basket.

3 Press the Start/Pause button to start the synchronized cooking.

Illustration of a hand holding a play button with a play symbol.

32 min 18 min

Illustration of a hand using a tool to rotate a shell into a drawer.

Illustration of a plug inserted into a socket with an orange arrow indicating direction.

Tip: Any food residue stuck to the heating element can be removed with a dish brush with soft or medium bristles. Do not use a steel brush or a dish brush with stiff bristles, as this may damage the coating on the heating element.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of the reach of children less than 8 years.

Illustration of a refrigerator with orange arrows indicating airflow or movement, accompanied by an 'USA' badge and a bell icon.

Illustration of a hand inserting a device into a machine, with an arrow indicating direction (no text or symbols)

Diagram showing a hand interacting with a device, highlighting a fish symbol and a numbered label '2'

Illustration of a refrigerator with two drawers and an orange bell icon (no text or symbols)

Illustration of two hands using a tool to heat boiling on food items, with no visible text or symbols.

Diagram showing a device with directional control buttons and a 2-lens indicator, likely illustrating a navigation or system adjustment.

Illustration of a double-door refrigerator with orange arrows indicating airflow or ventilation (no text or symbols).

Diagram illustrating a cooking process with labeled steps and heating elements.

Illustration of a hand pressing a play button on a device (no text or symbols).

3 Insert the lower plate into the basket.

Diagram showing a hand interacting with a device, highlighting a fish symbol and a numbered button labeled '2'.

Illustration of a refrigerator with two drawers and an orange arrow indicating flow direction (no text or symbols).

Illustration showing two cooking steps: adding a pan to a dish, then adding a dish with a chicken.

Diagram showing a device with directional control buttons and a numbered indicator '2' pointing to the right button.

Illustration of a refrigerator with two drawers and an orange arrow indicating direction, accompanied by a bell icon and checkmark (no text or symbols).

Illustration showing a cooking step with labeled steps L1 and L2, depicting a pan on a dish and a knife on a tray.

Illustration of a hand pressing a play button on a device (no text or symbols)

Shake the food

How to shake

Illustration of a hand holding a tool inside a box with a plant growing from it, surrounded by orange curved lines indicating motion (no text or symbols)

Illustration of a hand using a tool to rotate a piece into a box (no text or symbols)

2 Remove the lower plate from the basket.

Illustration showing a hand pressing a button on a device with a fish icon and a numbered button labeled '2'.

Illustration of a refrigerator with two drawers and an orange arrow indicating flow direction.

Illustration showing two methods of heating a chicken on a stove, with labeled steps [1] and [2] indicating heating process.

32 min 18 min

Shake the food

Illustration of a hand using a tool to rotate a piece into a box (no text or symbols)

Illustration of a flat plate with an upward arrow above a folded container (no text or symbols)

Illustration of a hand cleaning a small kitchen appliance with a cloth (no text or symbols)

Diagram showing a door with a lock and a magnified view of the door labeled 'poo' (poor), indicating a device's location.

1 Power cord

2 Press the On/off button.

Illustration of a hand using a power button to press or install a device (no text or symbols present).

4 Touch the Frozen Fries button.

Illustration of a double-door refrigerator with orange arrows indicating airflow or movement, accompanied by an orange bell icon (no text or symbols).

Illustration showing a hand using a device to touch a screen, with a fish icon and a numbered button labeled '2'.

Illustration of a refrigerator with two drawers and an orange arrow indicating airflow direction (no text or symbols).

Illustration showing two methods of heating a chicken, with labeled steps [1] and [2] indicating heating process.

Diagram showing directional control buttons with a numbered square indicator and arrow pointing to a device interface.

Illustration of a printer with two drawers and an orange bell icon (no text or symbols).

Diagram illustrating a cooking process with labeled steps and food items, including a ladle, pan, and dish.

3 Press the Start/pause button and synchronized cooking begins.

Illustration of a hand pressing a play button on a device (no text or symbols)

32 min 18 min

Shaking food

How to shake

Illustration of a hand holding a tool inside a box with a plant growing from it, surrounded by orange curved lines indicating motion (no text or symbols)

Illustration of a hand using a tool to rotate or rotate a piece into a box (no text or symbols)

2 Tap the On/Off button.

Illustration showing a hand using a device to press a button labeled '1', with a circular icon containing the number 1.

3 Select one of the baskets.

Illustration of a hand pressing down on a washing machine with a circular dial indicator. No text or symbols present.

4 Tap the Frozen fries button.

6 Tap the Start/pause button to begin.

Illustration of a double-door refrigerator with orange arrows indicating airflow or movement, accompanied by an orange bell icon. No text or symbols present.

7 Halfway through cooking, a reminder to shake will sound. Turn off the beep by pulling out the baskets, then reinsert them safely.

Illustration of a double-door refrigerator with orange arrows indicating airflow or movement, accompanied by an orange bell icon and checkmark. No text or symbols on the main image.

9 Remove the baskets. Let both baskets cool for 10–30 minutes.

Cooking with preset programs

Illustration of a chicken being lifted by an arrow, with a numbered scale icon. No text or symbols on the diagram itself.

2 Return the top basket to the appliance.

Diagram showing a blue object being lifted by an arrow, with a circled number 2 indicating a step or sequence.

3 Add ingredients to the bottom basket.

5 Tap the Top basket button on the screen.

Diagram showing a hand interacting with a device, highlighting a key icon with an orange pointer and a button labeled '1'.

Illustration showing a hand interacting with a device, featuring a logo with a fish and a numbered button labeled '2'.

Illustration of a double-door refrigerator with orange arrows indicating airflow direction, accompanied by an orange bell icon and checkmark.

Illustration showing two methods of heating a chicken, labeled (1) and (2), with steam rising from a pan.

9 Tap the Start/pause button to begin cooking.

Note: some ingredients need to be shaken or turned halfway through cooking (see the "Preset programs" section). To do this:

  • Carefully pull out the basket.
  • Shake the contents over a heat-resistant surface.
  • Insert the basket back to continue cooking.

Note: To pause cooking, press the Start/Pause button. To resume cooking, press the same button again.

2 Return the upper basket to the appliance.

Diagram showing a mechanical component being lifted into a drawer, with a numbered label '2' in the corner.

3 Add ingredients to the lower basket.

5 Tap the Upper Basket button on the screen.

Diagram showing a device with directional control buttons and a numbered label '1' pointing to the top panel.

Diagram showing directional control buttons with a numbered square indicator and arrow pointing to a device interface.

Illustration of a double-door refrigerator with orange arrows indicating airflow or movement, accompanied by a bell icon and checkmark.

Illustration showing a cooking process with labeled steps and food items, including a pan and chicken.

9 Tap the Start/Pause button to begin cooking.

Note: Some ingredients need to be shaken or turned halfway through the cooking time (see "Food Table"). To do this:

  • Carefully pull out the basket.
  • Shake the contents over a heat-resistant surface.
  • Insert the basket back to continue cooking.

Note: To pause cooking, press the Start/Pause button. To resume cooking, press the same button again.

32 min 18 min

Shaking food

How to shake

Illustration of a hand holding a tool inside a box with a plant growing from it, surrounded by orange curved lines indicating motion (no text or symbols).

Illustration of a hand using a tool to rotate a piece into a box (no text or symbols).

When preparing food in the Airfryer, remove the basket and shake, stir, or turn the food.

For safe food shaking:

Warning: wait until the basket and the inside of the appliance have completely cooled down before cleaning.

1 Press the on/off button to switch off the appliance. Then unplug it from the wall socket and wait for the appliance to cool down.

Tip: Remove the basket to let the Airfryer cool down faster.

Illustration of a flat plate with an upward arrow above a folded container (no text or symbols).

7 Clean the inside of the appliance with hot water and a smooth sponge.

9 Remove the baskets. Let both baskets cool down for 10–30 minutes.

2 Put the top basket back into the appliance.

Diagram showing a blue object being lifted by an arrow, with a circled number 2 indicating a step or sequence.

6 Select the preferred preset button.

7 Press the Bottom basket button on the screen.

Illustration showing a hand interacting with a device labeled 'L2' and pointing at a screen.

Illustration showing a hand interacting with a device, featuring a fish symbol and a numbered button labeled '2'.

8 Select the preferred preset button.

Illustration of a computer monitor with a play button and playback icon.

Illustration of a double-door refrigerator with orange arrows indicating airflow or movement, accompanied by an orange bell icon and a checkmark.

Illustration showing two methods of heating a chicken, with labeled steps [1] and [2] indicating temperature or temperature change.

2 Put the top basket back into the appliance.

Illustration of a mechanical component with a downward arrow and a numbered label (2) in the corner, no text or symbols present.

6 Use the temperature and time arrows to select the preferred setting.

Diagram showing a device with directional control buttons and a numbered label '1' pointing to the top panel.

7 Press the Bottom basket button on the screen.

Illustration showing a hand inserting a device into a screen with a labeled icon 'L2'

Diagram showing directional control buttons with a zoomed-in square indicator labeled '2'

8 Use the temperature and time arrows to select the preferred setting.

Illustration of a computer monitor with a play button icon (no text or symbols)

32 min 18 min

Illustration of a plug inserted into a socket with an orange arrow indicating direction (no text or symbols)

  • This symbol indicates that electrical products must not be disposed of with regular household waste.
  • Follow your country's regulations for the separate collection of waste electrical products.

Electromagnetic fields (EMF)

1 Power cord

Caution: This is an Airfryer that uses hot air for cooking. Do not fill the basket with oil, frying fat, or any other liquid.

3 Insert the bottom plate into the basket.

Note: During use, hot steam is released through the air vents. Keep your hands and face at a safe distance from the steam and vents. Place the appliance at least 15 cm from the wall and do not place the air vents directly in front of an electrical outlet.

1 Make sure both baskets are empty, then plug the appliance into the power supply.

3 Select one of the baskets.

Illustration showing a hand using a tool to adjust or install a device with a circular icon labeled '1' and a plus symbol.

4 Touch the frozen fries button.

6 Touch the start/pause button to begin.

Illustration of a computer monitor with a play button and playback icon (no text or symbols).

Illustration of a refrigerator with orange arrows indicating airflow or movement, accompanied by an 'USA' badge and a bell icon.

7 The shake reminder sounds a beep halfway through cooking. Silence the signal by pulling out the baskets, then safely return them.

Illustration of a refrigerator with two drawers and an orange arrow indicating airflow direction (no text or symbols).

9 Remove the baskets. Let both baskets cool for 10–30 minutes.

Cooking with preset programs

This appliance comes with various preset cooking programs designed to simplify meal preparation. Each preset program is optimized for a specific type of food, automatically setting the ideal temperature and cooking time to achieve delicious results with minimal effort.

1 Add ingredients to the upper basket.

Illustration of a hand inserting a device into a machine, with an arrow indicating direction (no text or symbols).

2 Return the upper basket to the appliance.

Diagram showing a blue object being lifted by an arrow, with a circled number 2 indicating a step or sequence.

3 Add ingredients to the lower basket.

Note: Avoid exceeding the recommended quantities or filling the basket above the "MAX" line, as this may affect cooking performance.

Illustration of a hand inserting a folder into a mailbox with an arrow indicating direction (no text or symbols).

4 Return the lower basket to the appliance.

Diagram showing a hand holding a device with a circular icon labeled '1' pointing to the handle.

5 Touch the upper basket button on the screen.

Diagram showing a hand interacting with a device, highlighting a key icon with an orange pointer and a button labeled '1'.

6 Select the desired preset button.

7 Touch the lower basket button on the screen.

Illustration showing a hand pointing at a device with a circular badge labeled 'L2' and number 1, likely indicating a step or location.

Illustration showing a hand interacting with a device, featuring a fish icon and a numbered button labeled '2'.

8 Select the desired preset button.

Illustration of a computer monitor with a play button and a play icon (no text or symbols).

Illustration of a refrigerator with two drawers and an orange arrow indicating direction, accompanied by a bell icon and checkmark.

Illustration showing two cooking steps: adding a pan to a dish, then adding a dish with food, both with steam rising.

9 Touch the start/pause button to begin cooking.

2 Return the upper basket to the appliance.

Diagram showing a mechanical component being lifted into a drawer, with an arrow indicating downward motion and a circled number 2 in the corner.

3 Add ingredients to the lower basket.

4 Return the lower basket to the appliance.

Diagram showing a hand using a device to press a button labeled '1', with a circular icon containing the number 1.

5 Touch the upper basket button on the screen.

Diagram showing a device with directional control buttons and a numbered label '1' pointing to the top panel.

6 Touch the temperature and time arrows to select the desired settings.

7 Touch the basket button on the screen.

Illustration of a hand inserting a component into a device with a circular badge labeled 'L2'.

Diagram showing directional control buttons with a numbered square indicator and arrow pointing to a device interface.

8 Touch the temperature and time arrows to select the desired settings.

Illustration of a computer monitor with a play button and a play icon.

Illustration of a refrigerator with two drawers and an orange arrow indicating flow direction.

Diagram illustrating food preparation steps with labeled parts and hot pot illustrations.

9 Touch the start/pause button to begin cooking.

Illustration of a hand pressing a play button on a device.

Shaking food

How to shake

Illustration of a hand holding a tool inside a box with a plant growing from it, surrounded by orange curved lines indicating motion (no text or symbols)

Illustration of a hand using a tool to rotate a piece into a box (no text or symbols)

Warning: Let the basket and the inside of the appliance cool down completely before you start cleaning.

Warning: The basket has a non-stick coating. Do not use metal kitchen utensils or abrasive materials for cleaning because they can damage the non-stick coating.

Clean the appliance after each use. Remove oil and grease from the bottom of the basket after each use.

Illustration of a plug inserted into a socket with an orange arrow indicating direction (no text or symbols)

Illustration of a flat plate with an upward arrow above a folded container (no text or symbols)

Illustration of a hand cleaning a small kitchen appliance with a cloth (no text or symbols)

Diagram showing a door with a lock and a magnified view of the door labeled 'poo' (poor), indicating a device's location.

1 Press the on/off button to switch off the appliance, unplug it from the wall socket and wait for the appliance to cool down.

Useful tip: Remove the basket to allow the Airfryer to cool down faster.

2 Detach the bottom plate from the basket. 3 Remove grease or oil from the bottom of the basket. 4 Wash the basket in the dishwasher. You can also clean it with hot water and dishwashing detergent and a non-abrasive sponge (see 'Cleaning table').

Useful tip: If food residue has stuck to the basket or the bottom plate, you can soak them in hot water with dishwashing detergent for 10-15 minutes. Soaking releases food residue and makes it easier to remove. Make sure you use a dishwashing detergent that can dissolve oil and grease. If there are grease stains on the basket or the frying insert and you cannot remove them with hot water and dishwashing detergent, use a liquid degreaser.

Tip: If necessary, you can remove food residue stuck to the heating element with a brush with soft or medium-hard bristles. Do not use a brush with metal bristles or a brush with hard bristles because they can damage the coating on the heating element.

5 Gently wipe the outside and inside of the appliance with a smooth, clean, soft cloth to avoid damaging its surface. Clean it with a slightly damp cloth, then wipe it dry with a dry cloth if necessary.

7 Clean the inside of the appliance with hot water and a non-abrasive sponge.

Cleaning table

Proper cleaning maintains the performance and safety of your Airfryer appliance. The table below lists cleaning instructions for each component.

PHILIPS NA460 - Cleaning table - 1PHILIPS NA460 - Cleaning table - 2PHILIPS NA460 - Cleaning table - 3PHILIPS NA460 - Cleaning table - 4
PHILIPS NA460 - Cleaning table - 5 x2PHILIPS NA460 - Cleaning table - 6PHILIPS NA460 - Cleaning table - 7PHILIPS NA460 - Cleaning table - 8PHILIPS NA460 - Cleaning table - 9
PHILIPS NA460 - Cleaning table - 10 x2PHILIPS NA460 - Cleaning table - 11PHILIPS NA460 - Cleaning table - 12PHILIPS NA460 - Cleaning table - 13PHILIPS NA460 - Cleaning table - 14
PHILIPS NA460 - Cleaning table - 15PHILIPS NA460 - Cleaning table - 16PHILIPS NA460 - Cleaning table - 17PHILIPS NA460 - Cleaning table - 18PHILIPS NA460 - Cleaning table - 19

Storage

1 Unplug the appliance from the electrical outlet and allow it to cool down. 2 Make sure all parts are clean and dry before storing.

Note

  • When carrying the Airfryer, always hold it horizontally to prevent the baskets from accidentally falling out and getting damaged.
  • Always check that the removable parts of the Airfryer, e.g., the bottom plate, etc., are fixed before carrying and/or storing.

Troubleshooting

This chapter briefly lists the most common problems that may occur with the appliance. If you are unable to resolve the issue using the information below, visit www.home.id/support to find a list of frequently asked questions or contact the customer support center in your country.

4 Press the button for frozen fries.

Illustration of a refrigerator with orange arrows indicating airflow or movement, accompanied by an 'USA' badge and a bell icon.

Illustration of a hand inserting a device into a machine, with an arrow indicating direction (no text or symbols)

Illustration showing a hand using a device to touch a screen, with a fish icon and a numbered button labeled '2'

Illustration of a refrigerator with two drawers and an orange arrow indicating airflow direction.

Illustration showing two methods of heating a chicken on a stove, with labeled steps [1] and [2] indicating the heating process.

Diagram showing directional control buttons with a numbered label '2' pointing to a device panel.

32 min 18 min

Shaking the food

How to shake

Illustration of a hand holding a tool inside a box with a plant growing from it, surrounded by orange curved lines indicating motion (no text or symbols)

Illustration of a hand using a tool to rotate a piece into a box (no text or symbols)

Illustration of a flat plate with an upward arrow above a folded container (no text or symbols)

Illustration of a hand cleaning a small kitchen appliance with a cloth (no text or symbols)

Diagram showing a hand inserting a component into a device with an icon labeled 'ppf' pointing to it.

Illustration of a hand cleaning a small electronic device with a cloth (no text or symbols)

1 Power cord 2 Air outlet 3 Control panel 4 Bottom plate (x2) 5 Basket (x2)

2 Press the on/off button.

Illustration of a hand using a power button to press or install a machine (no text or symbols visible).

4 Press the Frozen fries button.

Illustration of a printer with two stacked compartments and directional arrows indicating flow or movement (no text or symbols).

9 Remove the baskets. Let the baskets cool for 10–30 minutes.

Illustration of a double-door refrigerator with orange arrows indicating airflow direction, accompanied by icons of a bell and checkmark.

Illustration showing a cooking process with labeled steps and food items, including a frying pan and induction method.

3 Press the start/pause button to start the synchronized cooking.

Illustration of a computer monitor with a play button and a play icon (no text or symbols).

Shake ingredients

How to shake

Illustration of a hand holding a box with a spring-like object emerging from it, surrounded by motion lines (no text or symbols).

Illustration of a blue cable inserted into a white socket with an orange arrow indicating direction (no text or symbols).

Illustration of a flat plate with an upward arrow above a rectangular container (no text or symbols).

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols).

1 Power cord

2 Air outlets

3 Control panel

4 Bottom plate (2 pieces)

5 Basket (2 pieces)

Illustration of a double-door refrigerator with orange arrows indicating airflow or movement, accompanied by an orange bell icon (no text or symbols).

Illustration showing a hand pressing a button on a device with a fish symbol and a numbered label '2'.

Diagram showing a refrigerator with two drawers and an orange bell icon, indicating ventilation or status check.

Illustration showing two methods of cooking a chicken, with labeled steps [1] and [2] indicating heating or cooling process.

32 min 18 min

Illustration of a plug inserted into a socket with an orange arrow indicating direction (no text or symbols)

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of the reach of children less than 8 years.

Illustration of a double-door refrigerator with orange arrows indicating airflow or movement, accompanied by a bell icon (no text or symbols)

Illustration of a hand inserting a device into a machine, with an arrow indicating direction.

Shake food

How to shake

Illustration of a hand using a tool to rotate a shell into a container (no text or symbols)

Diagram showing a hand pressing a button labeled 'L2' onto a device with a fish icon and label

Diagram showing directional control buttons with a numbered label '2' pointing to a device interface.

Diagram showing a hand interacting with a device, featuring a fish icon and a numbered button labeled '2'.

Illustration of a double-door refrigerator with orange arrows indicating airflow or movement, accompanied by a bell icon and checkmark.

Illustration showing food preparation steps with labeled items and heating methods

32 min 18 min

Illustration of a double-door refrigerator with orange arrows indicating airflow or movement, accompanied by an orange bell icon (no text or symbols)

Diagram showing a hand interacting with a device, highlighting a fish symbol and a numbered button labeled '2'

Illustration of a refrigerator with two drawers and an orange arrow indicating airflow direction (no text or symbols).

Illustration showing food preparation steps with labeled items and heating methods.

32 min 18 min

Illustration of a hand using a tool to rotate or rotate a piece into a box (no text or symbols)

Illustration of a hand inserting a device into a machine, with an arrow indicating direction (no text or symbols)

Illustration showing a hand inserting a device into a machine, with a logo and number 2 in the corner.

Diagram showing a device with directional control buttons and a labeled '2' button, likely illustrating a navigation or system adjustment.

Illustration of a double-door refrigerator with orange arrows indicating airflow or ventilation.

Diagram illustrating a cooking process with labeled steps and heating elements.

Illustration of a hand using a tool to rotate a component into a box.

Illustration of a blue electrical plug inserted into a socket with an orange arrow indicating direction.

Illustration of a tray placed on top of a rectangular container with an upward arrow.

Illustration of a hand cleaning a small container with a cloth.

- Keep the appliance and its cord out of the reach of children less than 8 years.

Illustration of a refrigerator with orange arrows indicating airflow or movement, accompanied by an 'USA' badge and a bell icon.

Diagram showing a hand interacting with a device, featuring a fish symbol and a numbered button labeled '2'

Illustration of a double-door refrigerator with orange arrows indicating airflow or movement, accompanied by a bell icon and checkmark.

Illustration showing food preparation steps with labeled items and steam rising.

Illustration of a hand using a power button to press or install a device (no text or symbols visible).

Diagram showing a hand inserting a button into a device with a numbered label '1' on the button.

5.0'N

Diagram showing a hand pressing a button on a car air conditioner cover with a circular logo containing Chinese characters.

6.7门

Illustration of a hand interacting with a device via a play button (no text or symbols).

7017C

Illustration of a double-door refrigerator with orange arrows indicating airflow or movement, and a bell icon above (no text or symbols).

Illustration of a hand inserting a device into a machine, with an arrow indicating direction (no text or symbols).

8.π9⁻

Illustration of a computer monitor with a play button and playback icon (no text or symbols).

9.710

11.07

Illustration of a hand inserting a device into a machine, with an arrow indicating direction (no text or symbols).

2.

Diagram showing a mechanical component with an arrow indicating downward motion and a circled number 2 in the corner.

3.117

4.

Diagram showing a hand holding a device with a circular icon labeled '1' pointing to the handle, indicating a status or operation.

5.70r.

Diagram showing a device with directional control buttons and a play button, likely illustrating navigation or system adjustment.

6.π9⁻

Illustration showing a hand pointing at a device with a labeled badge '2' and a blue arrow pointing to it.

  1. nor.

Diagram showing a device with directional buttons and a labeled '2' button, likely illustrating a navigation or control mechanism.

8.π9⁻

9.710

Illustration of a hand interacting with a blue play button on a vehicle.

1107

3.7n

Illustration of a hand pressing a play button on a device.

4070

32 min 18 min

Illustration of a hand using a spatula to lift a blue object into a plastic drawer.

2U'.[

Illustration of a tray with an upward arrow above a container.

Illustration of a hand cleaning a small kitchen appliance with a cloth.

7.1701

הכלהה כרְתָה,הכלהה כרְתָה,הכלהה כרְתָה,הכלהה כרְתָה,הכלהה כרְתָה,הכלהה כרְתָה,הכלהה כרְתָה,הכלהה כרְתָה,הכלהה כרְי,הכלהה כרְי,הכלהה כרְי,הכלהה כרְי,הכלהה כרְי,הכלהה כרְי,הכלהה כרְי,הכלהה כרְי,הכלהה כרְי,הכלהה כרְי,הכלהה כרְя,הכלהה כרְя,הכלהה כרְя,הכלהה כרְя,הכלהה כרְя,הכלהה כרְя,הכלהה כרְя,הכלהה כרְя,הכלהה כרְя,הכלהה כרְя,הכלהה כרְЯ,הכלהה כרְЯ,הכלהה כרְЯ,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכchia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכemia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכalia,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ Race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכRace,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ races,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ战,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ赛,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ racial,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ族,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Race,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכParty,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ parties,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ-party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכPolitical Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ Political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Political Party,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ NationalITY,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ Nationality,הכ NationalCity,הכ NationalCity,הכ NationalCity,הכ NationalCity,הכ NationalCity,הכ NationalCity,הכ NationalCity,הכ NationalCity,הכ NationalCity,הכ NationalCity,הכ NationalCity,הכ NationalCity,הכ NationalCity,הכ NationalCity,הכ NationalCity,הכ NationalCity,הכ NationalCity,הכ NationalCity,הכ NationalCity,הכ NationalCity,הכ NationalCty,הכ NationalCty,הכ NationalCty,הכ NationalCty,הכ NationalCty,הכ NationalCty,הכ NationalCty,הכ NationalCty,הכ NationalCty,הכ NationalCty,הכ NationalCty,הכ NationalCty,הכ NationalCty,הכ NationalCty,הכ NationalCty,הכ NationalCty,הכ NationalCty,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCty,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הכNationalCity,הoderateCty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,Cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,ctycty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,cty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,ttytty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,tty,u

PHILIPS and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.

This product has been manufactured by and is sold under the responsibility of Versuni Holding B.V., and Versuni Holding B.V. is the warrantor in relation to this product.

2025 © Versuni Holding B.V.

642001025372 (09/2025)

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : PHILIPS

Model : NA460

Category : Deep fryer
