Assembly and operating instructions

Hanging umbrella Model Rhodos Grande

(400 x 300 cm: Art. no. 787-00

Two identical outdoor umbrellas with brown shades, mounted on black stands (no text or symbols visible)

Dear Customer,

Congratulations on the purchase of your new umbrella.

You are now the owner of a high-quality and technologically advanced product.

To get the best use out of your umbrella, please take a few minutes to carefully read these assembly and operating instructions.

Follow the information to the letter and keep this information for future reference.

General

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

During assembly of the umbrella, keep children away.

Never set up the umbrella on soft, sandy or wet ground.

In windy conditions, close the umbrella and secure with the strap.

Never leave the umbrella unattended when open.

We will not be liable for damage due to incorrect use.

Setup and assembly

Check to make sure that the delivery is complete. If despite stringent quality controls a part should be defective or missing, please contact the retailer where you purchased the umbrella. Keep the box in case you ever have to return the umbrella under warranty.

List of parts

Part no.:	Article no.:	Illustration / description:	Quantity:
A	400x300 cm: 9112-787-00400 cm : 9112-789-00	Cross base, bottom element	1
B	400x300 cm: 9111-787-00400 cm : 9111-789-00	Cross base, top element	1
C	400x300 cm: 9113-787-00400 cm : 9113-789-00	Tube	1
D	400x300 cm: 9122-787-00400 cm : 9122-789-00	Rotating plate	1
E	400x300 cm: 9114-787-00400 cm : 9114-789-00	Screw M8x14	4
F	400x300 cm: 9114-787-00400 cm : 9114-789-00	Screw M8x20	4
G	400x300 cm:9114-787-00400 cm ∅:9114-789-00	Washer	8
H	---	Umbrella	1
I	400x300 cm:9108-787-00400 cm ∅:9108-789-00	crank	1
J	---	Screw	1
K	400x300 cm:9114-787-00400 cm ∅:9114-789-00	Allen key	1
L	400x300 cm:9153-787-00400 cm ∅:9153-789-00	Cover cap on tube, two-part	1
M	400x300 cm:9119-787-00400 cm ∅:9119-789-00	Protective cover	1
N	400x300 cm:9103-787-00400 cm ∅:9103-789-00	Top	1

To order replacement parts please contact the retailer where you purchased the umbrella.

Use the article numbers listed above to make sure you order the right part.

Assembly

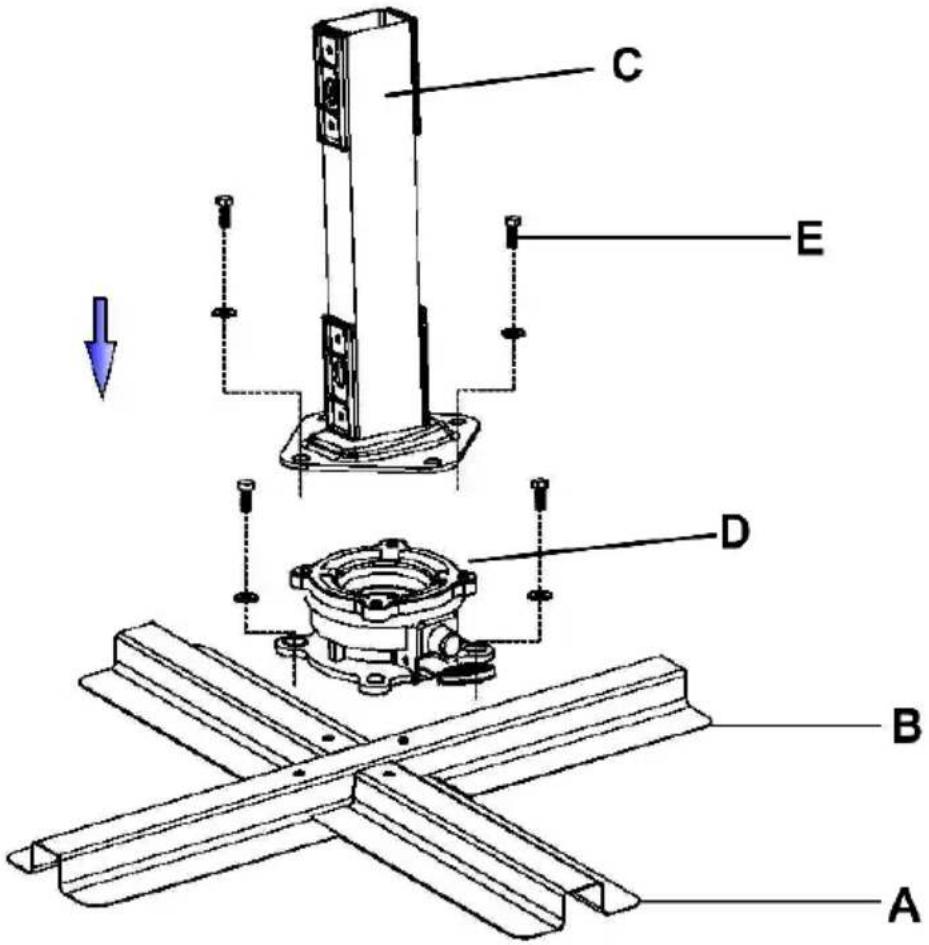

Place the two elements of the cross base (A + B) one on top of the other as shown and screw firmly to the rotating plate (D).

Use the screws M8x20 (F) and one washer (G) for each screw.

Then bolt the tube (C) to the rotating plate (D).

Use the screws M8x14 (E) and one washer (G) for each screw.

NOTE:

The tube slants backwards at an angle of 3^ .

This is intentional and is not grounds for complaint.

The slanted design of the tube prevents the pole from hanging forward when the umbrella is open and also gives the umbrella an overall elegant appearance.

C E D B A

Now put the assembled cross base at the location where the umbrella is to be set up. Make sure the ground underneath is solid and level. Now insert 4 paving slabs in the cross base.

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

IMPORTANT:

Always use all four paving slabs with a size of 50x50x5 cm! Never use the umbrella stand without paving slabs.

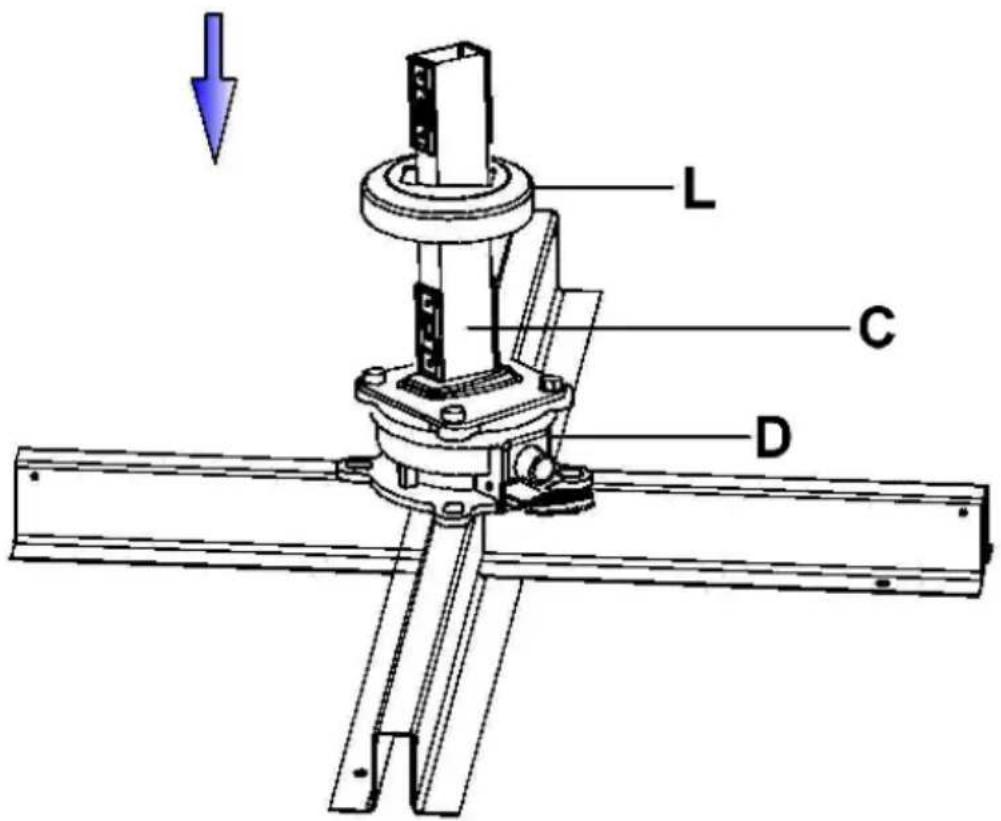

Now place the cover (L) on the rotating plate as shown.

The rectangular notch on the cover must be at an even distance from the tube on all sides. Otherwise, the cover may be damaged by the pole in the next step.

L C D

For the next step, you should have someone help you, due to the heavy weight of the umbrella.

400 cm ∅:

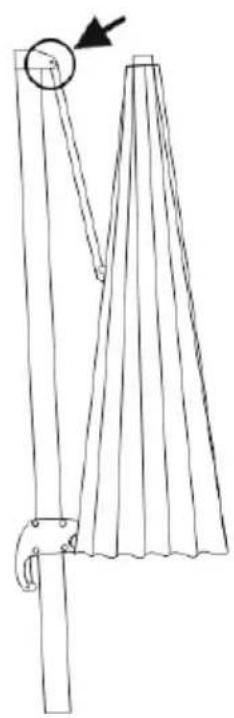

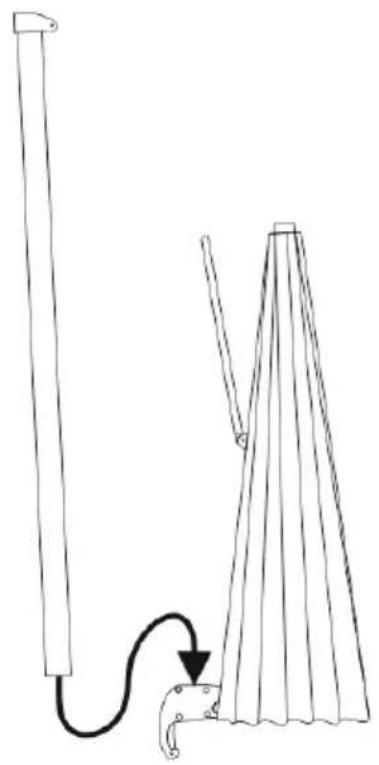

Simple line drawing of a vertical pole connected to a conical structure with a curved base and arrow indicating motion (no text or symbols)

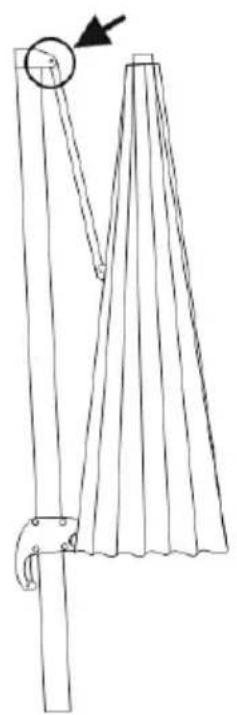

Simple line drawing of a folding curtain with a circular object on top and a pointer arrow indicating direction (no text or symbols)

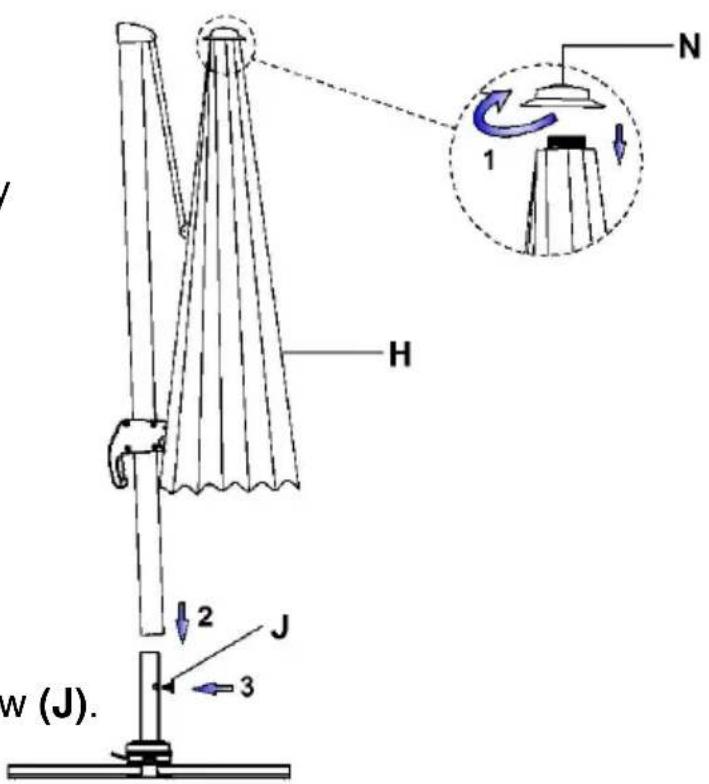

Place the umbrella on the tube as shown.

Make sure that the umbrella is properly aligned.

Avoid letting the umbrella fall down, since this could damage both the umbrella and the cover cap.

H N 1 2 J 3 w (J).

Now secure the umbrella with the screw (J).

Operation

Opening:

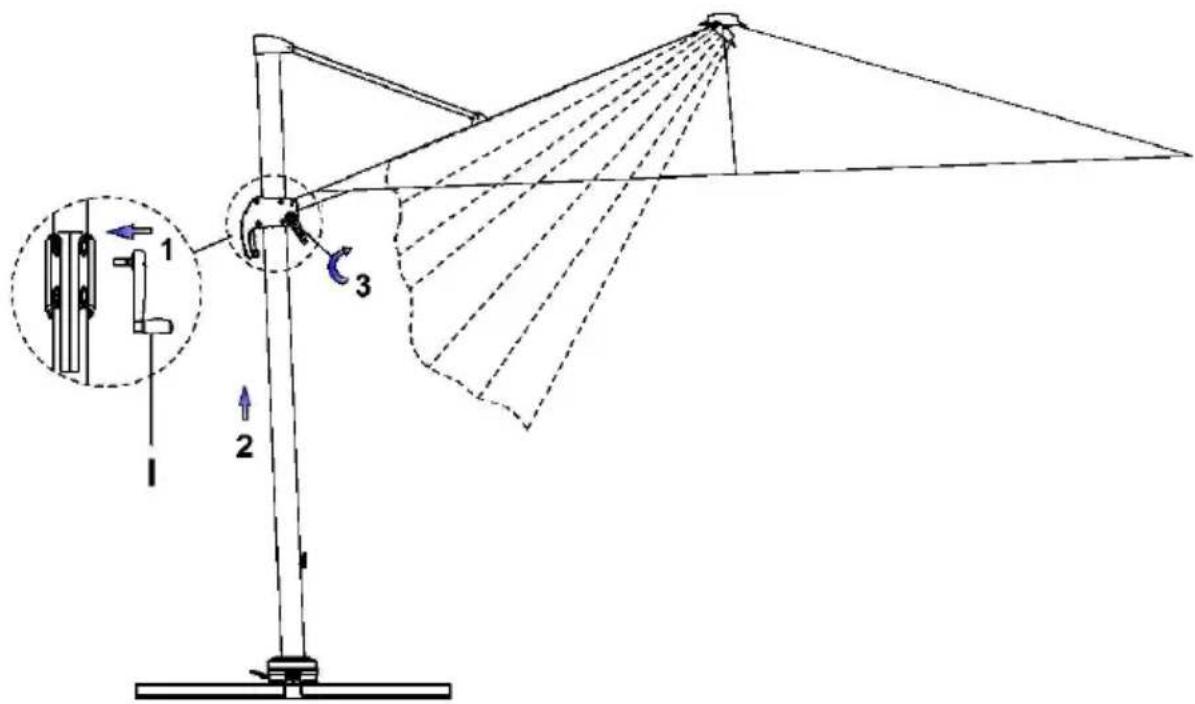

Insert the crank (I) in the hole on the crank housing and push in firmly until it locks into place.

Turn the crank clockwise to open the umbrella.

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

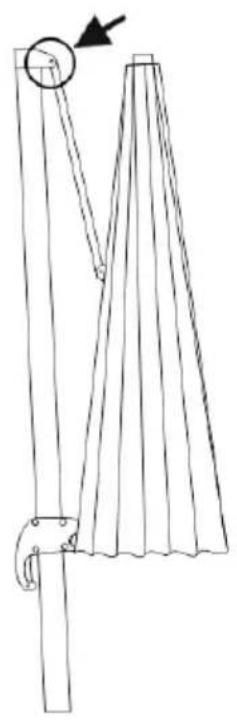

Make sure that none of the braces on the umbrella become jammed. It may be necessary to pull the ends of the braces outward slightly.

Make sure table of tr

Make sure that there are no obstacles, such as a house wall, table or tree, to prevent the umbrella from opening.

While opening the umbrella by turning the crank (I) unlock the hand lever on the handle and push it up slowly along the pole.

The umbrella is completely opened when the canopy is stretched taut.

Always open the umbrella completely.

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or assembly.

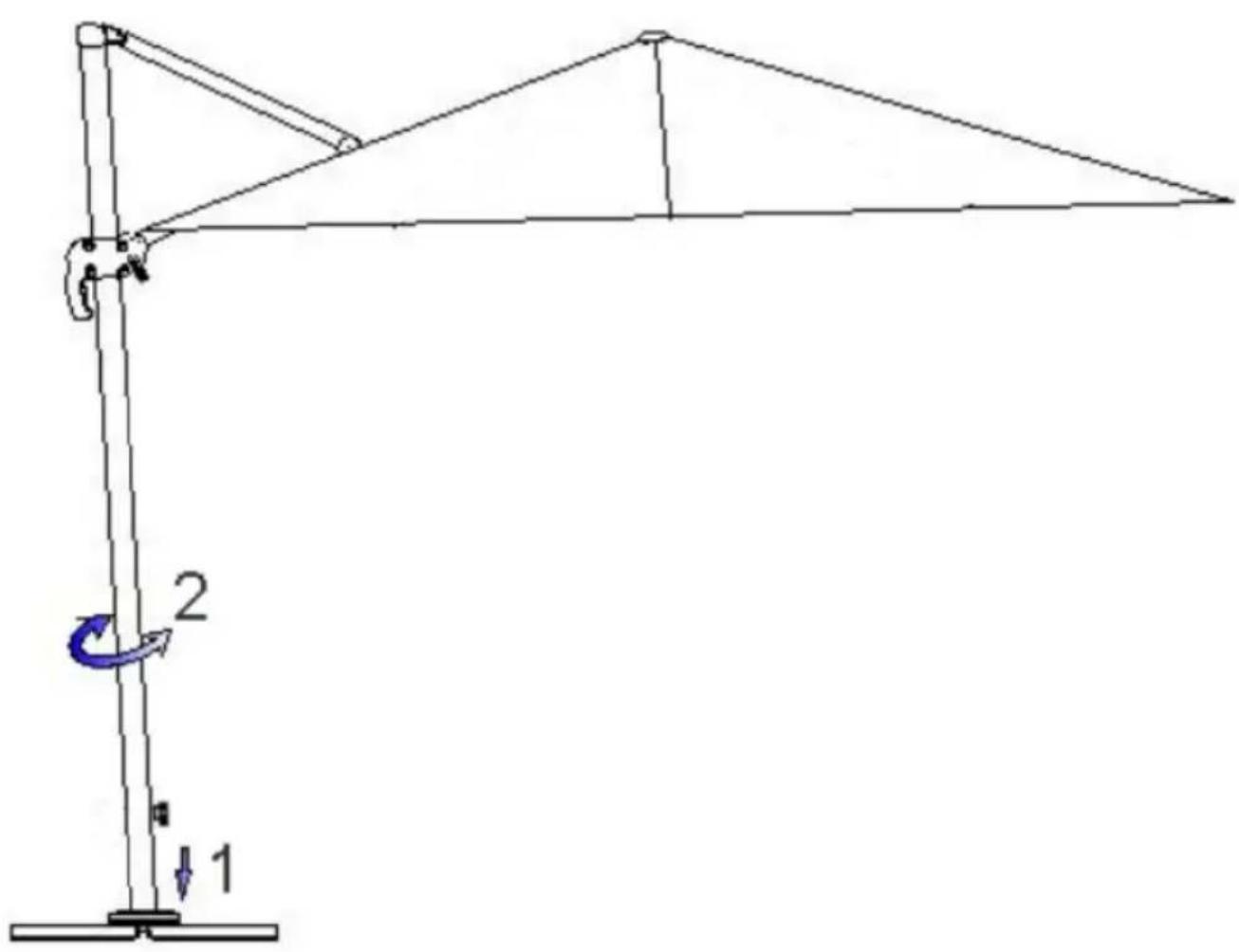

Rotating:

Push the foot pedal to unlock the rotating plate (D).

Now you can rotate the umbrella to the desired position.

Release the foot pedal to lock the rotating plate in position.

Allow the umbrella to lock into the nearest position.

1 2

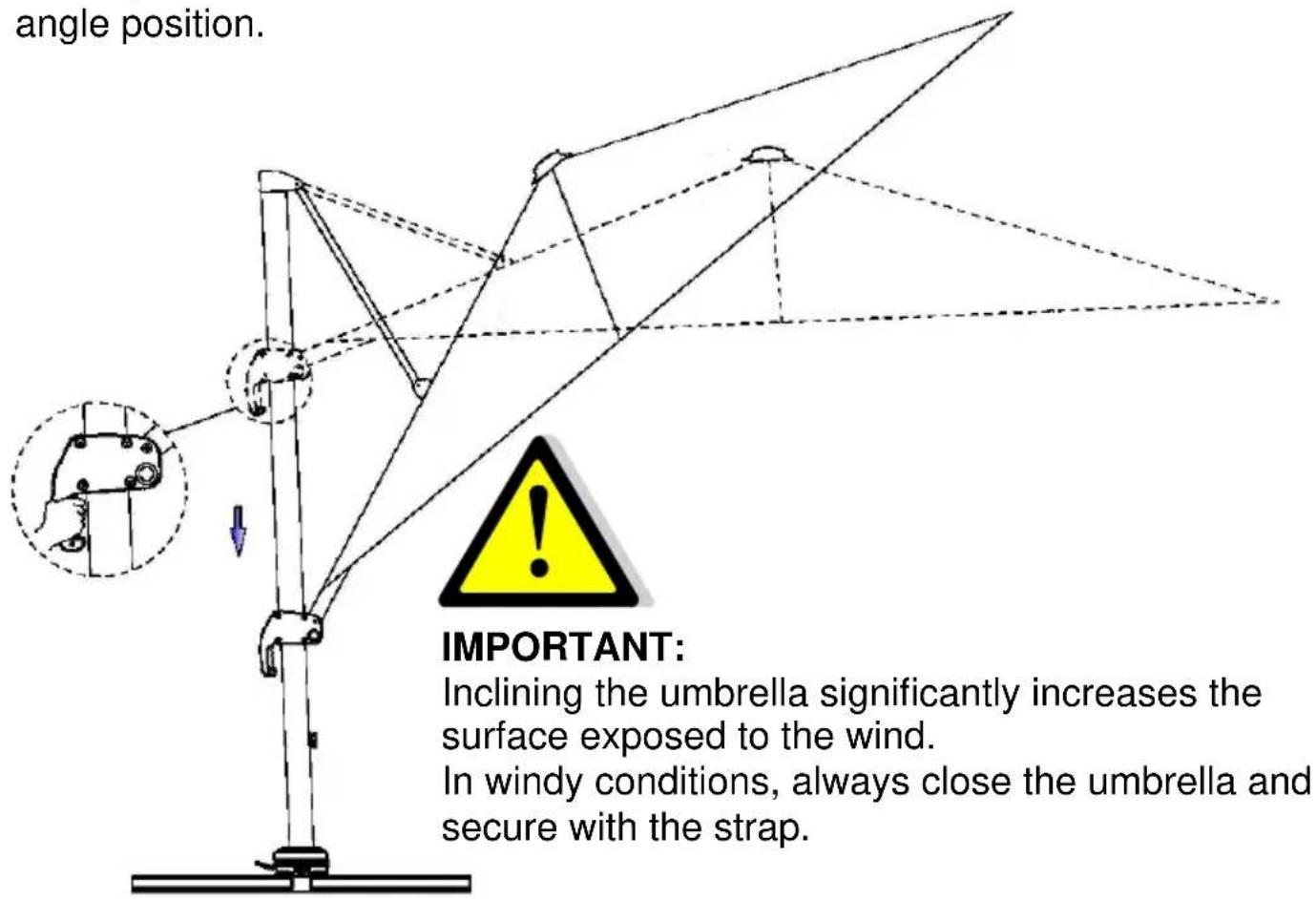

Setting the desired inclination:

Push in the hand lever on the handle firmly and adjust the umbrella to the desired angle of inclination.

When you release the hand lever the umbrella will lock into the nearest angle position.

angle position. IMPORTANT: Inclining the umbrella significantly increases the surface exposed to the wind. In windy conditions, always close the umbrella and secure with the strap.

Closing:

To close the umbrella push in the hand lever on the handle and turn the crank (I) counter clockwise in the direction of "CLOSED".

At the same time allow the handle to slide slowly down on the pole.

Secure the closed umbrella with the strap.

We recommend using the included protective cover if the umbrella is not used for an extended period or in case of rain.

Cleaning:

Remove loose dirt or dust with a soft brush.

Rinse the umbrella regularly with clear water to prevent excessive soiling. If necessary, you can wash the umbrella with lukewarm water and mild detergent. In this case, use a sponge or soft brush.

It is important not to use the following cleaning methods:

• Do not use high-pressure cleaners (will damage the waterproofing)
• Do not wash the canopy in the washing machine (will damage the waterproofing and the seams)
  ■ Do not use abrasive or caustic cleaners
• Do not use hot water for cleaning (can cause the fabric to shrink)

Storage:

Always store the umbrella in a dry place.

Yellow triangular warning sign with black exclamation mark symbol

Especially if the umbrella is not used for an extended period you should make sure that the canopy is dry. Otherwise there is a danger of mould and mildew.

The rotating plate is equipped with two high-quality ball bearings. Although these bearings are protected against splashing water, the stand should not be exposed to excessive weather conditions and dirt.

Safety information:

This umbrella provides protection against direct UV radiation. For complete protection, also against indirect UV radiation, you should use a suitable cosmetic sunscreen product in addition.

In rain or snow the umbrella must be closed – danger of breakage.

In windy conditions, close the umbrella immediately and secure with the strap or protective cover.

Never leave the umbrella unattended when open.

Do not leave children alone or unsupervised with the umbrella.

The parasol is not suitable for use on roof terraces or in other places that are exposed to high winds and gusts!

For domestic use only. Designed exclusively for outdoor use.

Always use paving slabs with a size of 50x50x5 cm.

Smaller paving slabs are too light and significantly reduce the stability of the umbrella – danger of injury.

Never operate a grill (gas, charcoal or electric) or kindle an open fire under or next to the umbrella – danger of fire. The umbrella can be damaged by flying sparks.

Never use heaters (gas or infrared) under the umbrella – danger of fire.

We wish you much enjoyment with your new umbrella from our company.

SCHNEIDER

SCHIRME

Two identical outdoor umbrellas with brown shades, mounted on metal supports against a white background (no text or symbols visible)

Apreciado cliente:

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

Yellow triangular warning sign with black exclamation mark symbol

ATENCIÓN:

Simple line drawing of a vertical pole with a curved cable and a triangular support structure (no text or symbols)

Simple line drawing of a folding curtain with a circular arrow pointing to the top-left corner (no text or symbols)

o; mo H 1 N 2 J 3

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or caution event.

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or force directions.

Girar:

Yellow triangular warning sign with black exclamation mark symbol

Two identical outdoor umbrellas with brown covers, mounted on black stands (no text or symbols visible)

Chère cliente, cher client,

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

Yellow triangular warning sign with black exclamation mark symbol

ATTENTION :

Simple line drawing of a vertical pole connected to a conical structure with a curved base and arrow indicating motion (no text or symbols)

Simple line drawing of a folding chair with a circular head and arrow indicating rotation (no text or symbols)

Diagram of a simple pendulum setup with labeled parts and directional arrows indicating motion or force directions.

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or assembly.

Tourner :

Diagram of a simple pendulum with labeled parts and motion indicators

Yellow triangular warning sign with black exclamation mark symbol

Two identical outdoor umbrellas with brown shades, mounted on metal stands against a white background (no text or symbols visible)

Αγαπητέ πελάτη,

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

ΠΡΟΣΟΧΗ:

Line drawing of two different types of folding or lifting devices, showing a cable and lever mechanism (no text or symbols)

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or force directions.

Περιστροφή:

Technical diagram of a crane structure with labeled components and directional arrows

Yellow triangular warning sign with black exclamation mark symbol

Two identical outdoor umbrellas with brown shades, mounted on black stands (no text or symbols visible)

Yellow triangular warning sign with black exclamation mark, commonly used to indicate caution or hazard.

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

FIGYELEM!

Technical line drawing of two different types of folding or lifting structures with no text or symbols

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

Yellow triangular warning sign with black exclamation mark symbol

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or assembly.

Forgatás:

Diagram of a simple pendulum setup with labeled components and motion indicators

Yellow triangular warning sign with black exclamation mark (no text)

Two identical outdoor umbrellas with beige shades, mounted on metal stands against a white background (no text or symbols visible)

Gentile Cliente,

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

ATTENZIONE:

Simple line drawing of a vertical pole with a curved base and a triangular support structure, no text or symbols present.

Simple line drawing of a crane lifting a weight with an arrow indicating force (no text or symbols)

e ché in la H 2 J 3 N

Uso

Apertura:

Yellow triangular warning sign with black exclamation mark symbol

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or force directions.

Rotazione:

Yellow triangular warning sign with black exclamation mark symbol

Two identical outdoor umbrellas with beige shades, mounted on metal supports against a white background (no text or symbols visible)

Geachte klant,

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

ATTENTIE:

Simple line drawing of a vertical pole connected to a conical structure with a curved base and arrow indicating motion (no text or symbols)

Simple line drawing of a folding chair with a circular dial and an arrow indicating direction (no text or symbols)

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

Yellow triangular warning sign with black exclamation mark symbol

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or force directions.

Draaien:

Diagram of a simple pendulum with labeled parts and motion indicators

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

Two identical outdoor umbrellas with brown shades, mounted on metal supports against a white background (no text or symbols visible)

Szanowni Klienci,

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

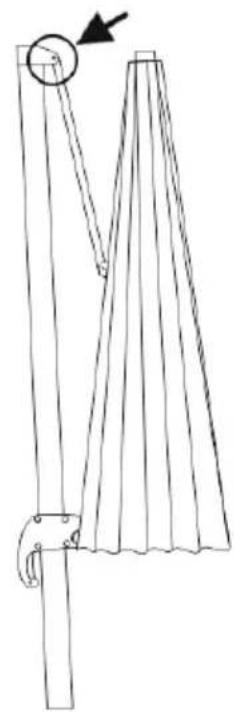

UWAGA:

Simple line drawing of a vertical pole with a curved base and a triangular structure, no text or symbols present.

Simple line drawing of a folding umbrella with a circular dial indicator (no text or symbols)

H 2 J 3 1 N

Obstuga

Otwieranie:

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

Yellow triangular warning sign with black exclamation mark symbol

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or assembly.

Obracanie:

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

Two identical outdoor umbrellas with brown shades, mounted on black poles against a white background (no text or symbols visible)

Caro cliente,

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

ATENÇÃO:

Simple line drawing of a vertical pole with a curved cable and a triangular structure, no text or symbols present.

Simple line drawing of a pole with a circular head and a triangular support structure, no text or symbols present.

ular, ecutar H 1 N 2 J 3

Manuseamento

Abrir:

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or assembly.

Rodar:

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

Two identical outdoor umbrellas with brown shades, mounted on metal supports against a white background (no text or symbols visible)

Stimate client,

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

ATENTIE:

Simple line drawing of a vertical pole with a curved base and a triangular structure, no text or symbols present.

Simple line drawing of a folding umbrella with a circular head and arrow indicating direction (no text or symbols)

H 2 J 3 N 1

Utilizare

Deschidere:

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or assembly.

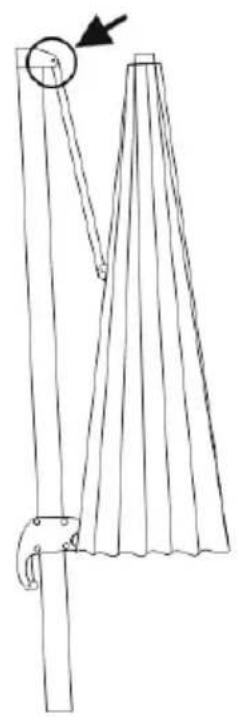

Rotire:

Technical diagram of a crane structure with labeled components and directional arrows

Yellow triangular warning sign with black exclamation mark symbol

Two identical outdoor umbrellas with beige shades, mounted on black stands (no text or symbols visible)

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

ВНИМАНИЕ:

Simple line drawing of a simple pendulum device with a curved arm and base, no text or symbols present

Simple line drawing of a pole with a circular arrow pointing to the pole (no text or symbols)

H 2 J 3 N 1

Эксплуатация

Открытие:

Two yellow triangular warning symbols with black exclamation marks, indicating caution or hazard.

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or force directions.

Вращение:

Diagram of a simple pendulum with labeled parts and motion indicators

Yellow triangular warning sign with black exclamation mark symbol

Two identical outdoor umbrellas with brown shades, mounted on black stands (no text or symbols visible)

Vážený zákazník,

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

POZOR:

Simple line drawing of a vertical pole with a curved base and a triangular structure, no text or symbols present.

Simple line drawing of a folding chair with a circular arrow indicating rotation (no text or symbols)

H 2 J 3 N 1

Potom zaistite slnečník skrutkou (J).

Obsluha

Otvorenie:

Nasad'te kl'učku (I) do otvoru na telese kl'učky a riadne ju zatlačte až na doraz.

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or force directions.

Otočenie:

Diagram of a simple pendulum with labeled parts and motion indicators

Yellow triangular warning sign with black exclamation mark symbol
