USER MANUAL LFR720 SCHEPPACH

Blue and silver electric shaver with mechanical components (no visible text or symbols)

https://www.scheppach.com/de/service scheppach

LFR720

GB Paint remover | Translation of the original operating instructions .... 14

Pure diagram of a coiled pipe or tube with directional arrows, no text or symbols present

4 8 12 12a

5 B A

Inhaltsverzeichnis

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Garantiebedingungen

Revisionsdatum 26.11.2021

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Attention! Failure to observe the safety signs and warning information affixed to the product and failure to observe the safety and operating manual can result in serious injury or even death.
	Before commissioning, read and observe the operating manual and safety instructions!
	Wear safety goggles.
	Wear hearing protection.
	If dust builds up, wear respiratory protection!
	Protection class II (double insulation).
CE	The product complies with the applicable European directives.

The product complies with the applicable Serbian directives.

1 Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
  • Non-compliance with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use
• Failures of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE0113 not being observed.

Note:

The operating manual is part of this product.

It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

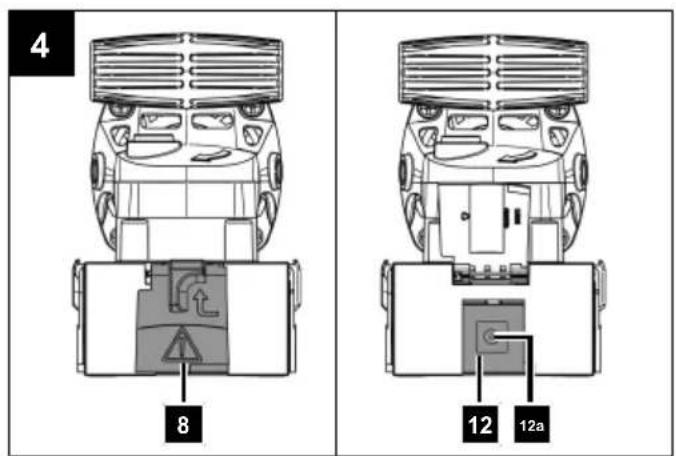

2 Product description (Fig. 1-5)

1. Front handle
   1a. Allen screw
2. On/off switch
3. Rear handle
4. Mains cable
5. Suction adapter
   5a. Locking mechanism
6. Connection for suction adapter
7. Base plate
8. Protective cover
9. Locking knob
10. Blade head
11. Removal depth adjustment
12. Reversible blade
    12a.Fixing screw

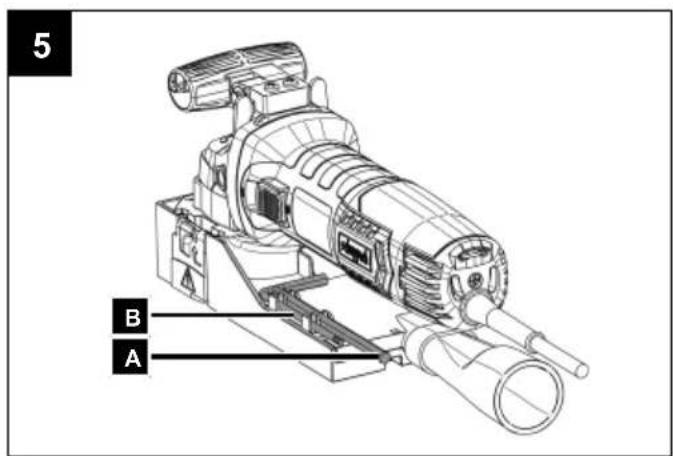

3 Scope of delivery (Fig. 1)

Item QuantityDesignation

1. 1 x Suction port

A. 1 × Allen key

B. 1 x Ball-end Allen key

1 x Paint remover

1 x Operating manual

Note:

Keep the two Allen keys included in the scope of delivery in the holders provided on the base plate (Fig. 5).

4 Proper use

This product is intended for the removal of paints, varnishes and coatings from wood or wood-like surfaces.

The product may only be used in the intended manner. Any use beyond this is improper. The user, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

5 Safety instructions

General power tool safety warnings

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

1) Work area safety

a) Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) The connection plug of the electric tool must fit into the socket. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Wear personal protective equipment and always safety goggles. Protective equipment such as a dust mask, non-skid safety shoes, safety helmet or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or rechargeable battery, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting tools or spanners/keys before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Avoid abnormal postures. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust extraction can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such precautionary measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and attachments. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use electric tools, insertion tools, etc. according to these instructions. Take into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Only have your power tool repaired by qualified specialists and only with original spare parts. This will ensure that the safety of the power tool is maintained.

5.1 Special safety instructions

a) When performing work during which the tool attachment can meet with concealed power lines or its own connection cable, hold the power tool by the insulated gripping surfaces. Contact with a live wire may make exposed metal parts of the power tool live and could give the operator an electric shock.
b) Fasten and secure the workpiece to a stable base using clamps or other means. If the workpiece is held only by hand or against the body, it remains unstable, which may result in a loss of control.
c) Wait until the electrical tool has come to a standstill before setting it down. The tool attachment can get caught and this can lead to loss of control over the electric tool.
d) To protect the tools used, do not place the product on hard surfaces.
e) Risk of injury due to sharp cutting edges of the reversible blades. Pay attention to the rotating cutter head! Please note that the motor and therefore the cutter head of your paint remover will still be running after switching off!
f) Turn or replace any reversible blades that have become blunt in good time. Worn cutting edges on the reversible blades increase the risk of kickback and reduce the quality of the paint removal work.
g) Check the material to be processed for foreign objects such as nails, screws etc. and remove them.
h) The workpiece must be firmly supported and secured against slipping, e.g. using clamping fixtures.
i) Guide the product in a stable and even movement. Avoid jerky or overly aggressive movements to prevent uncontrolled behaviour of the product.
j) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

5.2 Residual risks

The power tool is state-of-the-art and has been built according to the recognised technical safety regulations. However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
- Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.
- Prevent the product being unintentionally started up.
- Keep your hands away from the working area when the product is in operation.
• Unintentional starting up of the product.
- Comply with the stipulated maintenance and safety instructions in the operating manual.

WARNING

This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

WARNING

In case of extended working periods, the operating personnel may suffer circulatory disturbances in their hands (vibration white finger) due to vibrations.

Raynaud's syndrome is a vascular disease that causes the small blood vessels on the fingers and toes to cramp in spasms. The affected areas are no longer supplied with sufficient blood and therefore appear extremely pale. The frequent use of vibrating products can cause nerve damage in people whose circulation is impaired (e.g. smokers, diabetics).

If you notice unusual adverse effects, stop working immediately and seek medical advice.

6 Technical data

Rated voltage 230-240V~ / 50 Hz
Rated input 720 W
Protection class II
Idle speeds n0	10,000 rpm
Cutting edge flight circle ∅ 80 mm
Axial paint removal depth 0-0.3 mm
Lateral paint removal height 27 mm
Suction connection ∅ 35 mm
Weight 2.6 kg

Subject to technical changes!

Noise and vibration

WARNING

Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection for you and persons in the vicinity.

The noise and vibration values have been determined in accordance with EN 62841-1.

Noise data

Sound power level L_wA	95.5 dB
Sound pressure level L_pA	87.5 dB
Measurement uncertainty K_wA/pA	3 dB

Vibration parameters (hand/arm vibration)

Vibration an	4.75 m/s2
Measurement uncertainty K	1.5 m/s2

The total vibration emission values specified and the device emissions values specified have been measured in accordance with a standardised test procedure and can be used for comparison of one electric tool with another.

The total noise emission values specified and the total vibration emission values specified can also be used for an initial estimation of the load.

WARNING

The noise emission values and vibration emission value can vary from the specified values during the actual use of the power tool, depending on the type and the manner in which the electric tool is used, and in particular the type of workpiece being processed.

Try to keep the stress as low as possible. For example: Limit working time. In doing so, all parts of the operating cycle must be taken into account (such as times in which the power tool is switched off or times in which it is switched on, but is not running under a load).

7 Unpacking

WARNING

The product and the packaging material are not children's toys!

Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. Immediately report any damage to the transport company that delivered the Product. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.

• Familiarise yourself with the product by means of the operating manual before using for the first time.

• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.

• When ordering please provide our article number as well as type and year of manufacture for the product.

8 Assembly

WARNING

Danger of injury!

Only insert the mains plug into the socket when the product is ready for use.

WARNING

Tool attachments may be sharp and become hot during use. Always wear protective gloves when handling the tool attachments.

8.1 Assembling/removing the suction adapter (5) (Fig. 2)

1. Fit the suction adapter (5) by pushing it into the connection for the suction adapter (6) so that the lock (5a) engages.
2. To remove the suction adapter (5), press the lock (5a) and pull the suction adapter (5) out of the connection for the suction adapter (6).

8.2 Connection to an external dust extraction system (Fig. 2)

ATTENTION

The dust extraction system must be suitable for the material to be processed.

Use a special extraction device to extract particularly harmful or carcinogenic dusts.

1. Connect a dust extraction system* to the suction adapter (5).

* = may not be included in the scope of delivery!

8.3 Adjusting the front handle (1) (Fig. 1)

1. Loosen the Allen screw (1a) on the joint of the front handle (1). Use the Allen key (A).
2. Set the handle (1) to the desired position.
3. Retighten the Allen screw (1a).

9 Operation

ATTENTION

Always make sure the product is fully assembled before commissioning!

WARNING

Danger of injury!

Only insert the mains plug into the socket when the product is ready for use.

WARNING

Tool attachments may be sharp and become hot during use. Always wear protective gloves when handling the tool attachments.

Notes:

• Always hold the product tight with both hands during work. Make sure that you have a secure footing.
- Prior to commissioning, all covers and safety devices must be mounted correctly. Damaged or illegible stickers must be replaced.
- Before connecting of the product, make certain that the data on the type plate matches with the mains power data.
- Remember that when the starter mechanism with motorised products is commissioned, the cutting tool also starts operating.
- Never operate the product with defective Protective devices or without safety devices.
- Before switching on, make sure that the product does not touch any objects.
- Lift the product slightly before switching it on.
- Check the material to be processed for foreign objects such as nails, screws etc. and remove them.
- Make sure that the surface to be treated is dust-free and dry.
• After switching on, wait until the product has reached its maximum speed. Only then should you start working.

9.1 Switching the product on/off (Fig. 1)

Switching on

1. Always hold the product with one hand on the front handle (1) and the other on the rear handle (3).
2. Slide the switch-on lock (2a) forward and press the on/off switch (1). For safety reasons, it is not possible to lock the ON/OFF switch (2).

Switching off

1. Release the ON/OFF switch (2) to switch the product off.
2. Wait until the product has come to a standstill before switching it off.

9.2 Adjusting the paint removal depth (Fig. 1)

1. Place the product on its side on a flat surface.
2. Press and hold the locking button (9) to lock the cutter head (10).
3. Use the Allen key (A) to set the paint removal depth on the paint removal depth adjustment (11).
4. The setting depth can be read off using the scale on the cutter head (10) and the marking on the paint removal depth setting (11).
5. It is advisable to first set a shallow milling depth and carry out a test paint removal on the workpiece to be machined.

10 Working instructions

10.1 Machining flat surfaces (Fig. 1, 3)

1. Preferably insert the product into the workpiece from the outside.

2. Ensure that the base plate (7) rests as completely as possible on the workpiece.

3. Move the product evenly over the workpiece without applying pressure and without settling.

4. Check the paint removal result:

- If too little material has been removed, adjust the paint removal depth.

- Set the paint removal depth to 0 mm and rework the surface in the case of recognisable offsets.

- Depending on the nature of the material, it may be necessary to rework the removed surface with fine sandpaper.

10.2 Circumferential paint removal (Fig. 1)

Folds and corners can also be processed during circumferential paint removal.

1. Open the protective cover (8) facing the workpiece by sliding it slightly to the side and then folding it upwards.

2. When removing paint, guide the side with the open protective cover (8) flush along the rebate to be processed.

3. Close the protective cover (8) immediately after finishing work.

Notes:

- Switch the product off.

- Wait until all moving parts have come to a standstill.

11 Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cable used must also comply with these regulations.

11.1 Damaged electrical connection cables

The insulation on electrical connection cables is often damaged.

This may have the following causes:

- Pressure points, where connection cables are passed through windows or doors.

- Kinks where the connection cable has been improperly fastened or routed,

- Places where the connection cables have been cut due to being driven over.

• Insulation damage due to being ripped out of the wall socket.

- Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables of the same designation.

The printing of the type designation on the connection cable is mandatory.

Safety information for replacing damaged or defective mains connection cables

Connection type Y

If it is necessary to replace the mains connection cable, this must be done by the manufacturer or their representative to avoid safety hazards.

11.2 AC motor

Connections and repair work on the electrical equipment may only be carried out by electricians.

• The mains voltage must be 230 V - 240V\~

- Extension cables up to 25 m long must have a cross-section of 1.5 mm ^2 .

12 Transport

1. To transport the product, disconnect the it from the power supply and set it up in the new position you want to use it in.

2. The product must be secured against tipping and slipping during transport in vehicles in order to prevent damage and injuries.

3. Protect the product from impacts, shocks and severe vibrations, e.g. during vehicular transport.

13 Maintenance and cleaning

WARNING

Pull out the mains plug before carrying out any setting, servicing or repair work!

13.1 Cleaning

- Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the product clean with a clean cloth* or blow it off with compressed air* at low pressure. We recommend that you clean the product directly after every use.

- Never immerse the product in water or other liquids for cleaning.

• Always keep the product clean, dry and free from oil or grease. Remove dust after each use and before storage.

- Do not use chemical, alkaline, abrasive or other aggressive cleaning agents or disinfectants to clean the product, as these may damage the surfaces.

13.1.1 Cleaning the reversible blade (Fig. 1)

1. Make sure that the reversible blades (12) are free of residue.

This could impair the cutting properties of the reversible blades.

Remove the residue with a graver* if necessary.

* = may not be included in the scope of delivery!

13.2 Maintenance

13.2.1 Turn and replace the lower reversible blades (12) (Fig. 1, 4)

1. Place the product on its side.
2. Press and hold the locking button (9) to lock the cutter head (10).
3. Open the fastening bolts (12a) of the reversible blades (12) using the ball-end allen key (B).
4. Remove the reversible blade (12) and turn or replace it. The individual cutting edges are numbered for better orientation.
5. Ensure that all fastening screws (12a) are tightened again.

13.2.2 Turn and replace the lateral reversible blades (12) (Fig. 1, 4+5)

1. Place the product on a flat surface with the cutter head (10) facing downwards.
2. Open the protective covers (8).
3. Press and hold the locking button (9) to lock the cutter head (10).
4. Open the fastening bolts (12a) of the reversible blades (12) using the ball-end allen key (B).
5. Remove the reversible blade (12) and turn or replace it. The individual cutting edges are numbered for better orientation.
6. Ensure that all fastening screws (12a) are tightened again.

14 Storage

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children.

The optimum storage temperature is between 5°C and 30°C.

Store the product in its original packaging. Cover the product to protect it from dust or moisture. Store the operating manual with the product.

15 Repair & ordering spare parts

After repairs or maintenance, make sure that all safety-related parts are installed and are in perfect condition. All parts which may cause injury must be kept where they are inaccessible to children or others.

ATTENTION

According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialists. The same applies to accessory parts.

Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

15.1 Ordering spare parts

Please provide the following information when ordering spare parts:

• Model designation
• Item number
• Type plate data

Spare parts / accessories

Reversible blade set 4 pcs. - Article number: 7914900601

15.2 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Abrasives, toothed belts

* = not included in the scope of delivery!

16 Troubleshooting

Fault Possible cause Remedy
Motor does not start. On/off switch damaged Replace all damaged parts before you use your grinding machine again. Contact your local service centre or an authorised service station. Every attempt to carry out a repair, can be dangerous if it is not done by skilled personnel.
The motor runs slowly and does not reach the operating speed.	Voltage too low, coils damaged, capacitor burnt.	Have the voltage checked by a qualified electrician. Arrange for inspection of the motor by a specialist. Arrange for replacement of the capacitor by a specialist.
Engine producing excessive noise.	Coils damaged, motor defective. Arrange for inspection of the motor by a specialist.
Motor overheats easily.	Overloading of the motor, insufficient cooling of the motor	Prevent overloading of the motor, remove ventilation slots to ensure optimum cooling of the motor
The product becomes slower during work	Too much pressure is applied to the workpiece.	Apply less pressure to the workpiece.
The motor does not reach its full power.	Circuits in the network are overloaded (lamps, other motors, etc.).	Do not use any other products or motors on the same circuit.

17 Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act (ElektroG)

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
• Waste electrical and electronic equipment can be handed in free of charge at the following places:

– Public disposal or collection points (e.g. municipal works yards)
- Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.
- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.
– Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

• If the manufacturer delivers a new electrical device to a private household, the manufacturer can arrange for the free collection of the old electrical device upon request from the end user. Please contact the manufacturer's customer service for this.
  • These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

18 EU Declaration of Conformity

Translation of the original Declaration of Conformity

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

We declare under our sole responsibility that the product described here complies with the applicable directives and standards.

Brand: SCHEPPACH

Art. designation: PAINT REMOVER - LFR720

Item No. 5914901901

EU directives:

2014/30/EU, 2006/42/EC, 2011/65/EU*

* The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Applied standards:

EN 62841-1:2015/A11:2022;

EN ISO 12100:2010;

EN IEC 55014-1:2021;

EN IEC 55014-2:2021;

EN IEC 61000-3-2:2019/A1:2021;

EN 61000-3-3:2013/A2:2021

Documentation authorised representative:

Georg Kohler

Günzburger Str. 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Sommaire

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Indice

Günzburger Straße 69

D-89335 Ichenhausen, Germania

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Inhoudsopgave

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Índice

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Índice

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Obsah

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Obsah

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Tartalomjegyzék

Günzburger Straße 69

D-89335 Ichenhausen

Tisztelt Ügyfelünk!

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Spis treści

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Popis sadržaja

1 Uvod.... 102
2 Opis proizvoda (sl. 1 - 5) 102
3 Sadržaj isporuke (sl. 1) 103
4 Namjenska uporaba.... 103
5 Sigurnosne napomene.... 103
6 Tehnički podatci 105
7 Raspakiravanje 105
8 Montaža 106
9 Rukovanje 106
10 Napomene za rad.... 107
11 Priključivanje na električnu mrežu.... 107
12 Transport.... 107
13 Održavanje i čišćenje.... 107
14 Skladištenje.... 108
15 Popravak i naručivanje rezervnih dijelova..... 108
16 Otklanjanje neispravnosti.... 108
17 Zbrinjavanje i recikliranje.... 109
18 EU izjava o sukladnosti.... 109
19 Povećani crtež.... 219

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupče

Želimo vam mnogo zadovoljstva i uspjeha prilikom rada s novim proizvodom.

Napomena:

Prema važećem njemačkom Zakonu o odgovornosti za proizvode, proizvođač ovog proizvoda ne odgovara za štete koje nastanu na ovom proizvodu ili koje ovaj proizvod uzrokuje u slučaju:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Kazalo

Günzburger Straße 69

D-89335 Ichenhausen

Spoštovani kupec,

Želimo vam veliko veselja in uspeha pri delu z vašim novim izdelkom.

Napotek:

Proizvajalec tega izdelka skladno z veljavnim zakonom o odgovornosti za izdelke ne jamči za poškodbe na tem izdelku ali poškodbe s tem izdelkom, do katerih pride pri:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Sisukord

Günzburger Straße 69

D-89335 Ichenhausen

Austatud klient!

8.1 Imuadapteri (5) monteerimine/demonteerimine (joon. 2)

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Turinys

Günzburger Straße 69

D-89335 Ichenhausen

Gerbiamas kliente,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Satura rādītājs

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Günzburger Straße 69

D-89335 Ichenhausen

Bästa Kund!

Günzburger Straße 69

Division Manager Product Center

Andreas Pecher

Head of Project Management

Sisällysluettelo

Günzburger Straße 69

D-89335 Ichenhausen

Arvoisa asiakas

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

J. Agentin Pach

Andreas Pecher

Head of Project Management

Indholdsfortegnelse

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Kære kunde

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Division Manager Product Center

Head of Project Management

Innholdsfortegnelse

Günzburger Straße 69

D-89335 Ichenhausen

Kjære kunde

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Съдържание

Günzburger Straße 69

D-89335 Ichenhausen, Германия

Уважаеми клиенти,

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Günzburger Straße 69

D-89335 Ichenhausen

Αξιότιμε πελάτη

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Cuprins

Günzburger Straße 69

D-89335 Ichenhausen

Stimate client

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

Sadržaj

1 Uvod....203
2 Opis proizvoda (sl. 1-5).... 203
3 Opseg isporuke (sl. 1)....204
4 Namenska upotreba.... 204
5 Sigurnosne napomene.... 204
6 Tehnički podaci 206
7 Raspakivanje....206
8 Montaža 207
9 Rukovanje 207
10 Radna uputstva....208
11 Električni priključak.... 208
12 Transport.... 208
13 Održavanje i čišćenje.... 208
14 Skladištenje....209
15 Popravka i naručivanje rezervnih delova ...... 209
16 Pomoć za otklanjanje smetnji.... 209
17 Odlaganje na otpad i reciklaža.... 210
18 EU izjava o usaglašenosti.... 210
19 Znak eksplozije 219

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupče

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

İçindekiler

Günzburger Straße 69

D-89335 Ichenhausen

İthalatçı:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

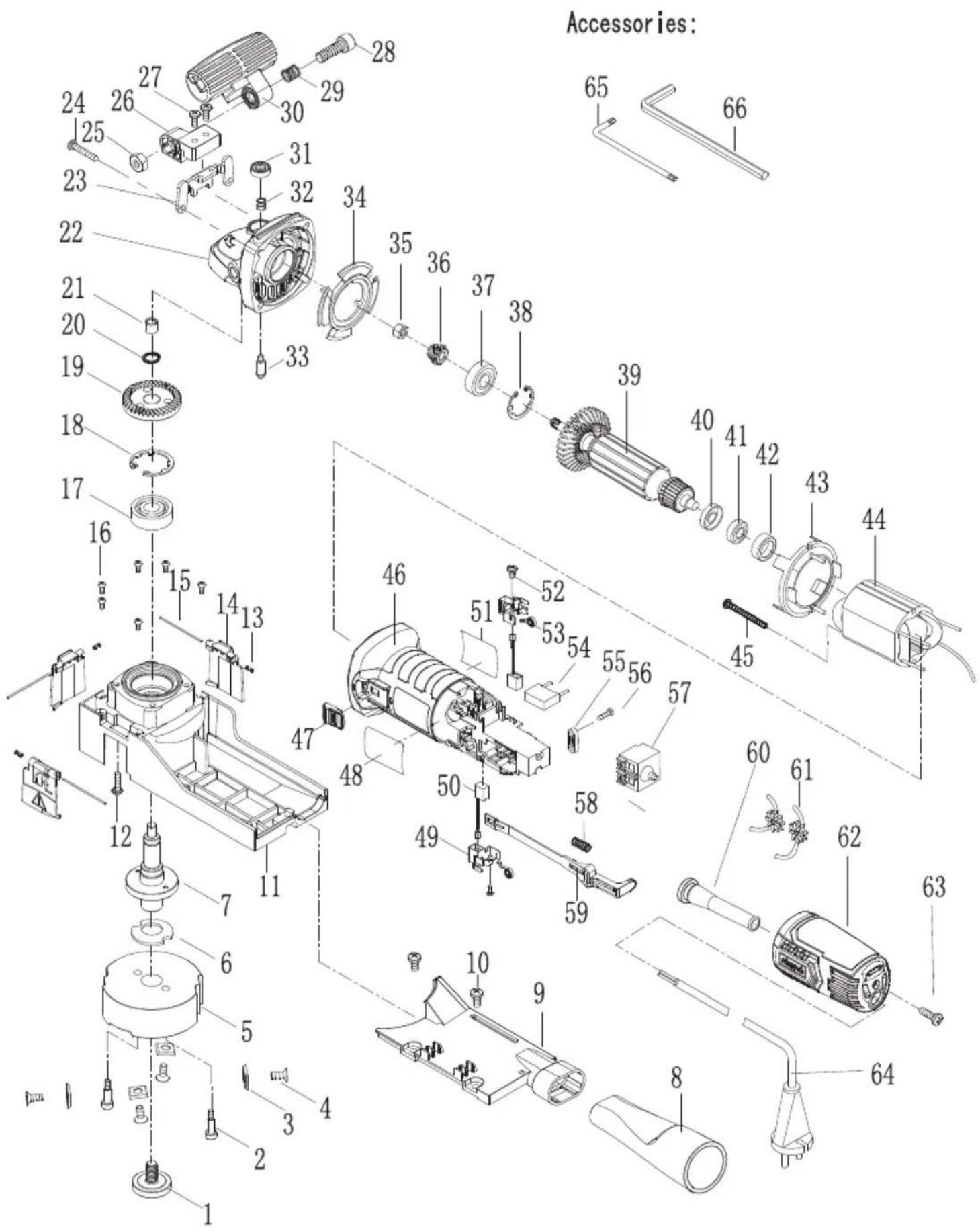

Accessories: 65 66 28 29 30 27 24 26 25 31 32 34 35 36 37 38 39 40 41 42 43 44 23 22 21 20 19 18 17 16 15 14 13 46 51 52 53 54 55 56 57 45 47 48 50 58 49 59 60 61 62 63 64 10 9 8 7 6 5 4 3 2 1

Garantie DE

Obvious defects must be reported within 8 days after receipt of the goods, otherwise the purchaser loses all claims due to such defects. We guarantee our machines, if handled correctly, for the duration of the statutory warranty period from handover in such a way that we will replace free of charge any machine part that demonstrably becomes unusable within this period as a result of material or manufacturing defects. For parts that we do not manufacture ourselves, we only provide a warranty to the extent that we are entitled to warranty claims against the upstream suppliers. The purchaser shall bear the costs of fitting the new parts. Claims for conversion and reduction and other claims for damages are excluded.

Garantie FR
