USER MANUAL BC-EHR24-X SCHEPPACH

Technical line drawing of a mechanical presser or drill center assembly (no text or symbols visible)

https://www.scheppach.com/de/service scheppach

Made in P.R.C.

BC-EHR24-X

GB Cordless router | Translation of the original instructions 16

Technical diagram of a mechanical device with labeled parts, including a brushless sensor and internal components.

2 1 4 7 8 9 9a 9b 9c 9d 10 11

3 7

4 8a 5 7a

5 4i 9b 4 4d 9 9d 9c 9a 5 5c 4i 9b 9 9c 9d 9a

6 10 1c 1d 1b 1a 1

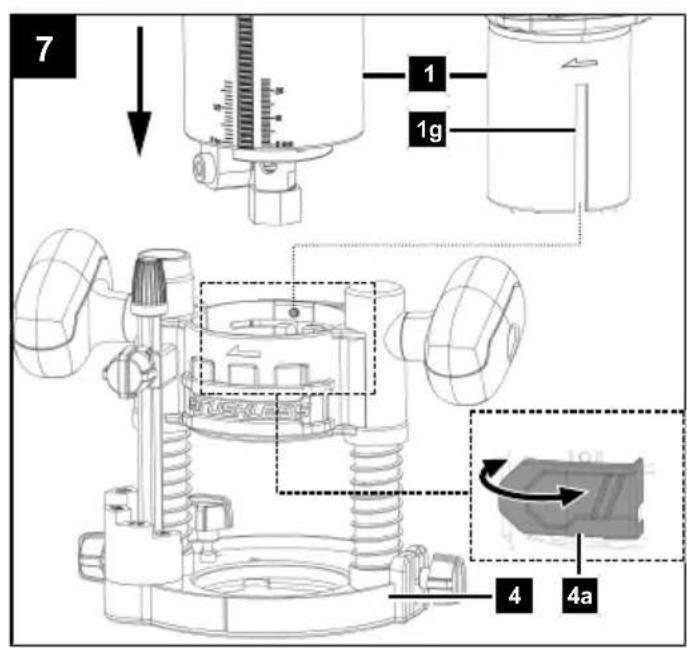

7 1 1g 4 4a

8 5 1f 5d 1 6 1 1g 1f 6e 1 5a

9 3a 3b 3

10 4b 1 4b 4a 4c 4 4b 4h 4e 4g 4f 4b 1 4b 4b 4c 4c 4g 4f 4h 4c

11 6c 6d 6 6d 1 6d

12 4 9 9d 5 9 9d

Inhaltsverzeichnis

Günzburger Straße 69

D-89335 Ichenhausen

Hinweis:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

15 Garantiebedingungen – Scheppach 20V IXES Serie

Revisionsdatum 25.04.2024

https://shop.scheppach.com/contact

1 Introduction ...... 16
2 Proper use.... 16
3 Product description (Fig. 1-12).... 17
4 Scope of delivery (Fig. 2) 17
5 Unpacking 17
6 Technical data.... 17
7 Safety instructions.... 18
8 Before commissioning.... 19
9 Operation 20
10 Cleaning and maintenance 22
11 Storage and transport 22
12 Repair and ordering spare parts 22
13 Disposal and recycling 22
14 EU Declaration of Conformity.... 23
15 Warranty conditions - Scheppach 20V IXES series 23

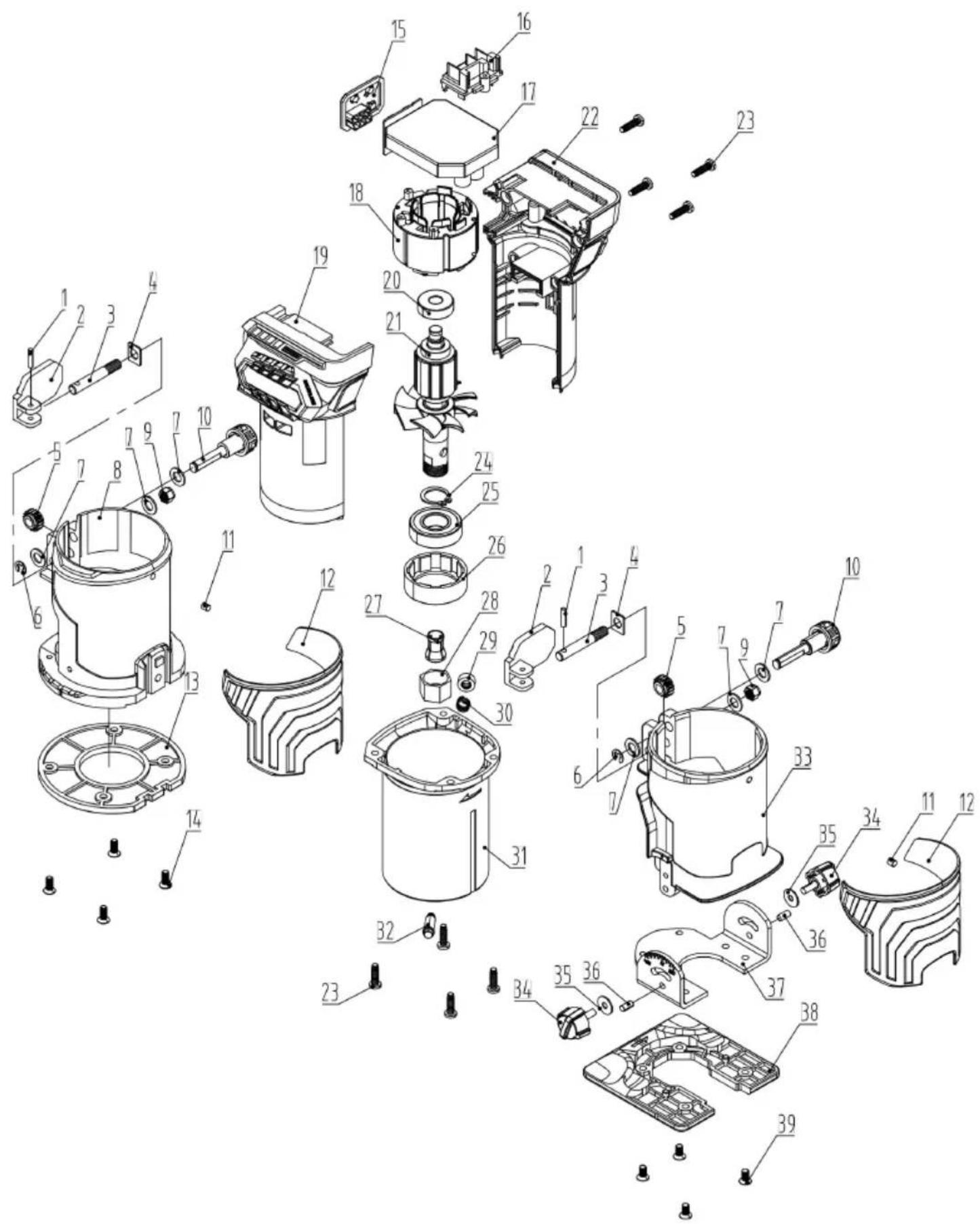

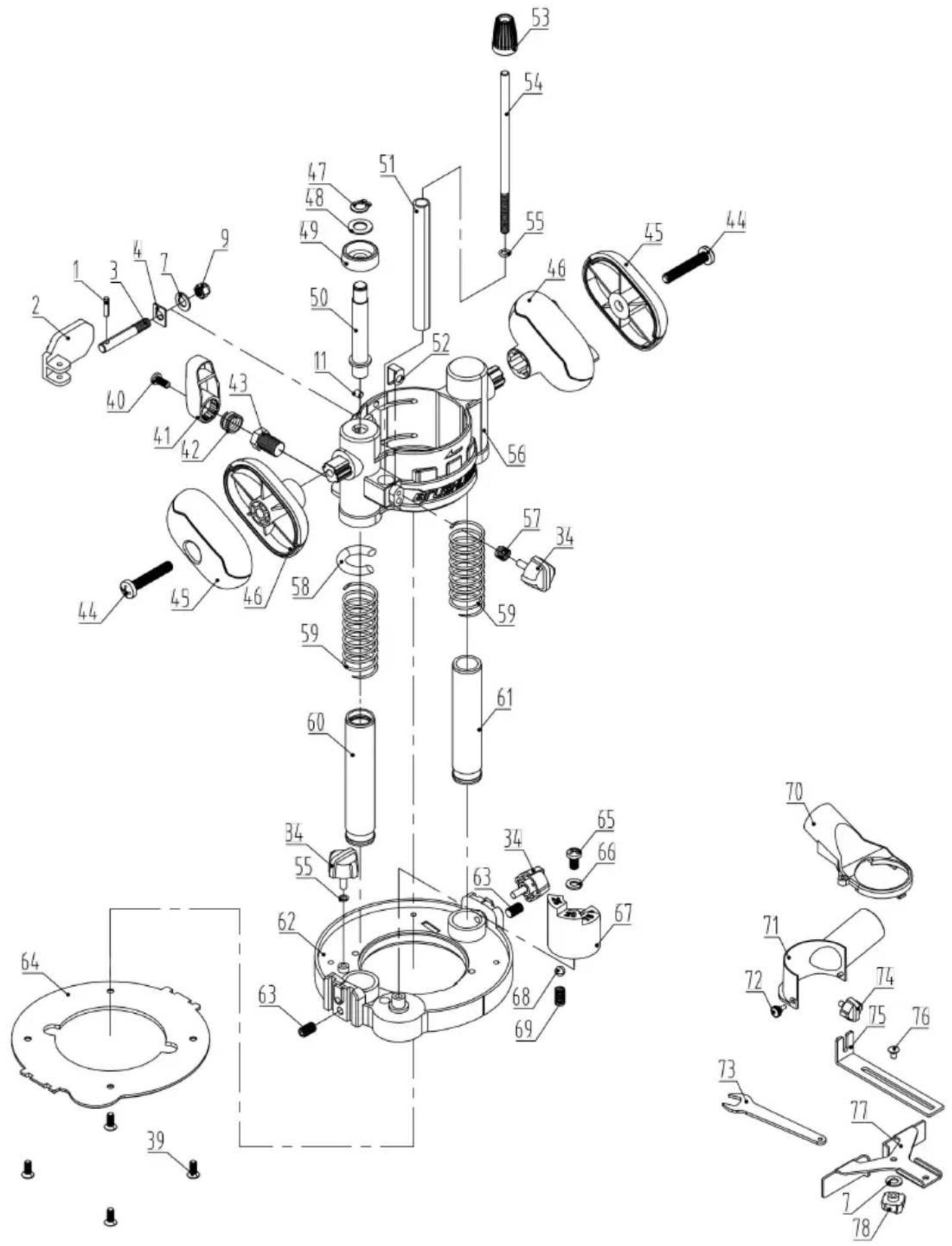

16 Exploded view.... 266

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Before commissioning, read and observe the operating manual and safety instructions!
	Lithium-ion battery
	The product complies with the applicable European directives.
	The product complies with the applicable Serbian directives.

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

1 Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
• Failure to comply with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use

Note:

The operating manual is part of the product and contain important information for safe, proper and economical operation. Please also observe the applicable national regulations. Read all operating and safety instructions carefully before use and only use the product as described. Keep the manual and pass it on when you give the product to someone else.

2 Proper use

The product is designed for milling grooves, edges, profiles and slotted holes in solid substrates made of wood, plastic and lightweight materials, as well as for copy milling.

The product may only be used in the intended manner. Any use beyond this is improper. The user, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

3 Product description (Fig. 1-12)

1. Milling unit

1a. Union nut

1b. Collet

1c. Spindle locking bolt

1d. Spindle

1e. LED work lamp

1f. Scale

1g. Guide

1. Control panel

2a. Switch lock

2b. On/Off button

2c. Speed indicator

2d. Speed sensor

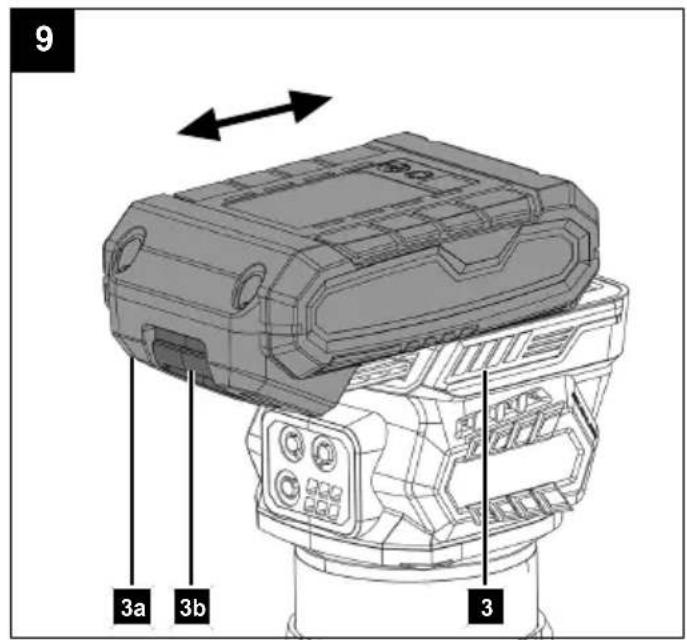

1. Battery mount

3a. Battery*

3b. Release button

1. Upper milling module

4a. Tightening lever

4b. Insulated handles

4c. Height adjustment lever

4d. Parallel stop receiver

4e. Locking screw

4f. Step stop

4g. Depth stop

4h. Set screw

4i. Locking screw

1. Edge milling module

5a. Tightening lever

5b. Set screw

5c. Parallel stop receiver

5d. Insulated grip surface

1. Angle milling module

6a. Tightening lever

6b. Set screw

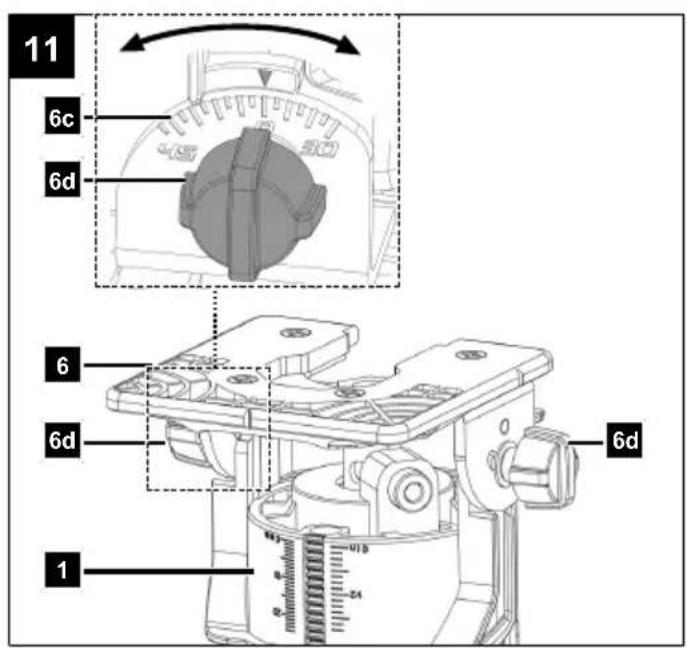

6c. Angle scale

6d. Locking screw

6e. Insulated grip surface

1. Extraction nozzle (upper milling module)

7a. Fixing screw

1. Extraction nozzle (edge milling module)

8a. Pins

1. Parallel stop

9a. Stop fixing

9b. Screw

9c. Washer

9d. Plastic nut

1. Open-end spanner 17 mm

2. Suction adapter

* = may not be included in the scope of delivery!

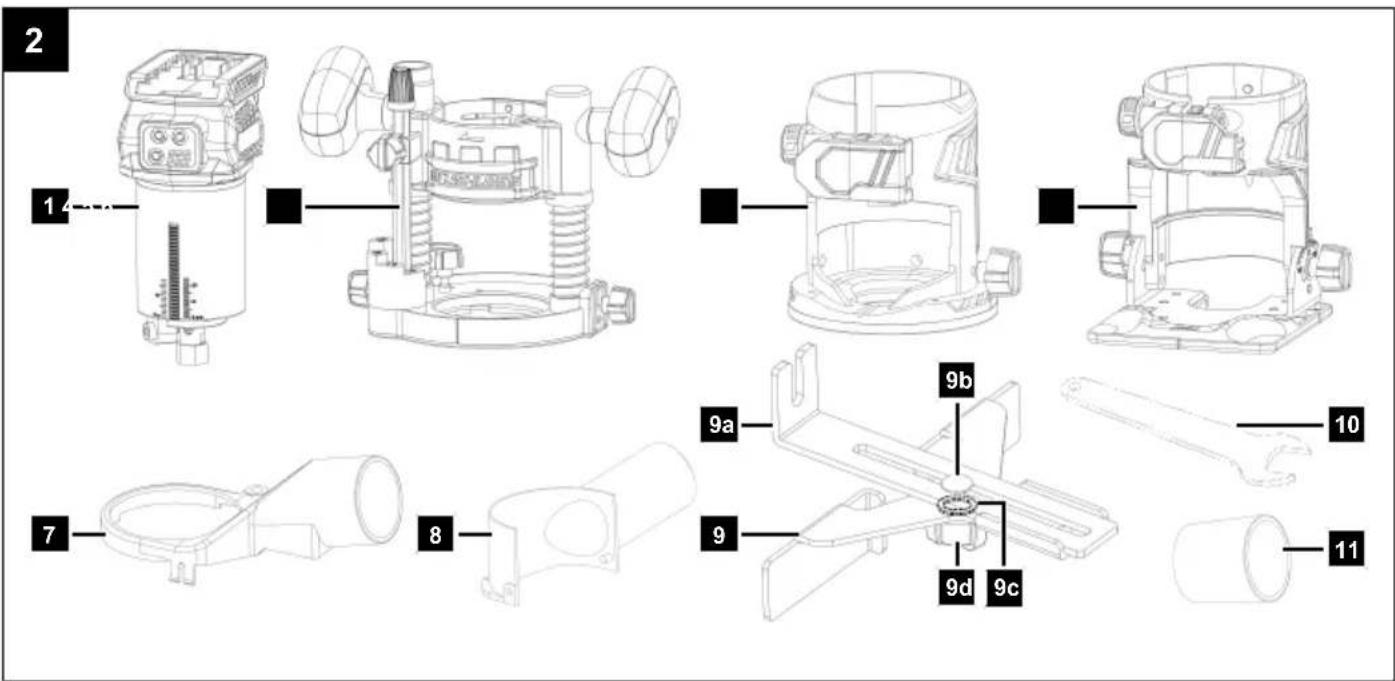

4 Scope of delivery (Fig. 2)

Item QuantityDesignation

1. 1 x Milling unit

2. 1 x Upper milling module

3. 1 x Edge milling module

4. 1 x Angle milling module

5. 1 x Extraction nozzle (upper milling module)

7a. 1 x Fixing screw

1. 1 x Extraction nozzle (edge milling module)

2. 1 x Parallel stop

9a. 1 x Stop fixing

9b. 1 x Screw

9c. 1 x Washer

9d. 1 x Plastic nut

1. 1 x Open-end spanner 17 mm

2. 1 x Suction adapter

1 x Cordless router

1 x Operating manual

5 Unpacking

WARNING

The product and the packaging material are not children's toys!

Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

- Open the packaging and carefully remove the product.

- Remove the packaging material, as well as the packaging and transport safety devices (if present).

- Check whether the scope of delivery is complete.

- Check the product and accessory parts for transport damage. Immediately report any damage to the transport company that delivered the Product. Later claims will not be recognised.

- If possible, keep the packaging until the expiry of the warranty period.

- Familiarise yourself with the product by means of the operating manual before using for the first time.

- With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.

- When ordering please provide our article number as well as type and year of manufacture for the product.

6 Technical data

Rated voltage	20V
Idle speed n_0	10000-30000 min ^-1
Cutting performance	0-35 mm
Tool receiver	8 mm
Weight (without battery)	approx. 1.6 kg

Subject to technical changes!

Noise and vibration

The noise and vibration values have been determined in accordance with EN 62841-1.

Noise data

Sound pressure level L_pA	79.2 dB
Measurement uncertainty K_pA	3 dB
Sound power level L_wA	90.2 dB
Measurement uncertainty K_wA	3 dB

Vibration parameters (hand/arm vibration)

Vibration, handle a_h

<2.5 m/s ^2

Measurement uncertainty K 1.5 m/s

2

The total vibration emission values specified and the device emissions values specified have been measured in accordance with a standardised test procedure and can be used for comparison of one electric tool with another.

The total noise emission values specified and the total vibration emission values specified can also be used for an initial estimation of the load.

WARNING

The noise emission values and vibration emission value can vary from the specified values during the actual use of the power tool, depending on the type and the manner in which the electric tool is used, and in particular the type of workpiece being processed.

Try to keep the stress as low as possible. For example: Limit working time. In doing so, all parts of the operating cycle must be taken into account (such as times in which the power tool is switched off or times in which it is switched on, but is not running under a load).

7 Safety instructions

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or rechargeable battery, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust extraction can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such precautionary measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and attachments. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use electric tools, insertion tools, etc. according to these instructions. Take into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery. Avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Incorrect

charging or charging outside the approved temperature range can destroy the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Any type of battery maintenance shall be carried out only by the manufacturer or an authorised customer service centre.

7.1 Safety instructions for routers

a) Fasten and secure the workpiece to a stable base using clamps or other means. If the workpiece is held only by hand or against the body, it remains unstable, which may result in a loss of control.
b) The maximum speed of the milling tool used must be at least as high as the maximum speed specified for the power tool. Accessories which rotate faster than the maximum permissible rate can be destroyed.
c) Cutters or other accessories must fit precisely into the collet (shank diameter 8 mm) of your power tool. Milling tools that do not fit exactly on your power tool's collet rotate unevenly, vibrate strongly and can cause a loss of control.
d) Only guide the power tool against the workpiece when switched on. Otherwise there is a risk of kick-back if the tool attachment gets caught in the workpiece.
e) Do not place your hands in the cutting area or on the cutter. Hold the additional handle or the motor housing with your second hand. If both hands hold the power tool, they cannot be injured by the cutter.
f) Never mill over metal objects or screws. The cutter can be damaged and this can lead to increased vibrations.
g) The maximum speed specified on the insertion tool may not be exceeded.
h) Tools with visible cracks must not be used.

8 Before commissioning

WARNING

For your own safety, please thoroughly read this manual and the general safety instructions before turning the product on. If you give the product to third parties, always include these operating instructions.

WARNING

Always make sure that the tool attachment is fitted correctly!

• Make sure the product is fully assembled before starting it.
• Some noise pollution from this product is unavoidable. Postpone noisy work to approved and designated times. If necessary, adhere to rest periods.

8.1 Extraction port set (7, 8)

An external extraction system can be connected to the extraction connections (7, 8). If necessary, the suction adapter (11) can be inserted into the suction nozzle (7, 8).

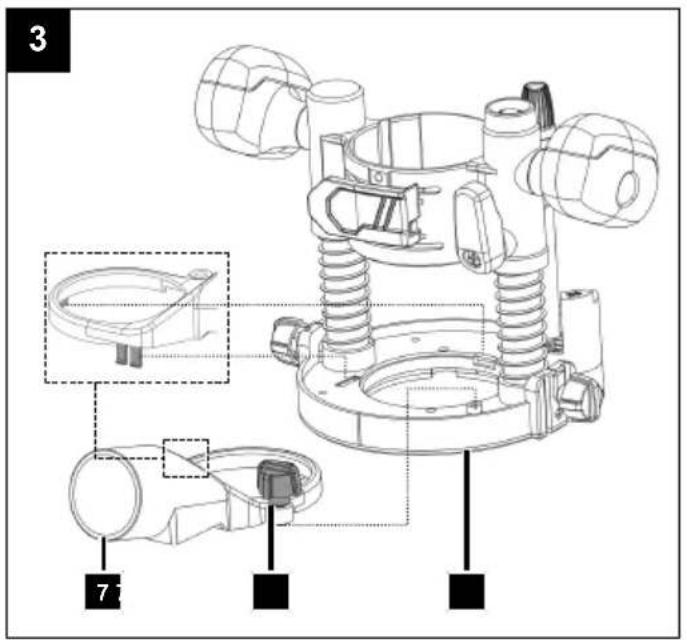

8.1.1 Fit the extraction nozzle (7) to the upper milling module (4) (Fig. 3)

1. Insert the extraction nozzle (7) with the pins into the upper milling module (4).
2. Ensure that the mounting hole of the extraction nozzle (7) is located above the thread on the upper milling module (4).
3. Secure the suction nozzle (7) with the fastening screw (7a).

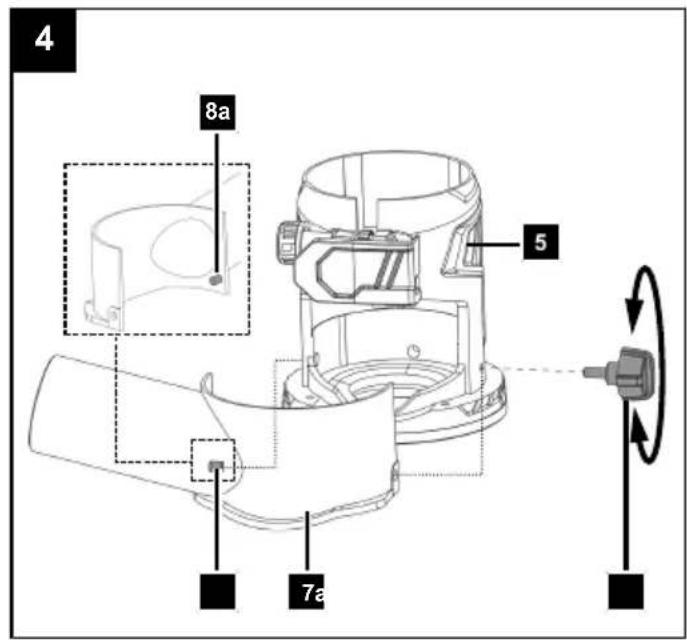

8.1.2 Fitting the extraction nozzle (8) to the edge milling module (5) (Fig. 4)

1. Insert the extraction nozzle (8) with the pin (8a) into the edge milling module (5).
2. Ensure that the mounting hole of the extraction nozzle (8) is located above the thread on the edge milling module (5).
3. Secure the suction nozzle (8) with the fastening screw (7a).

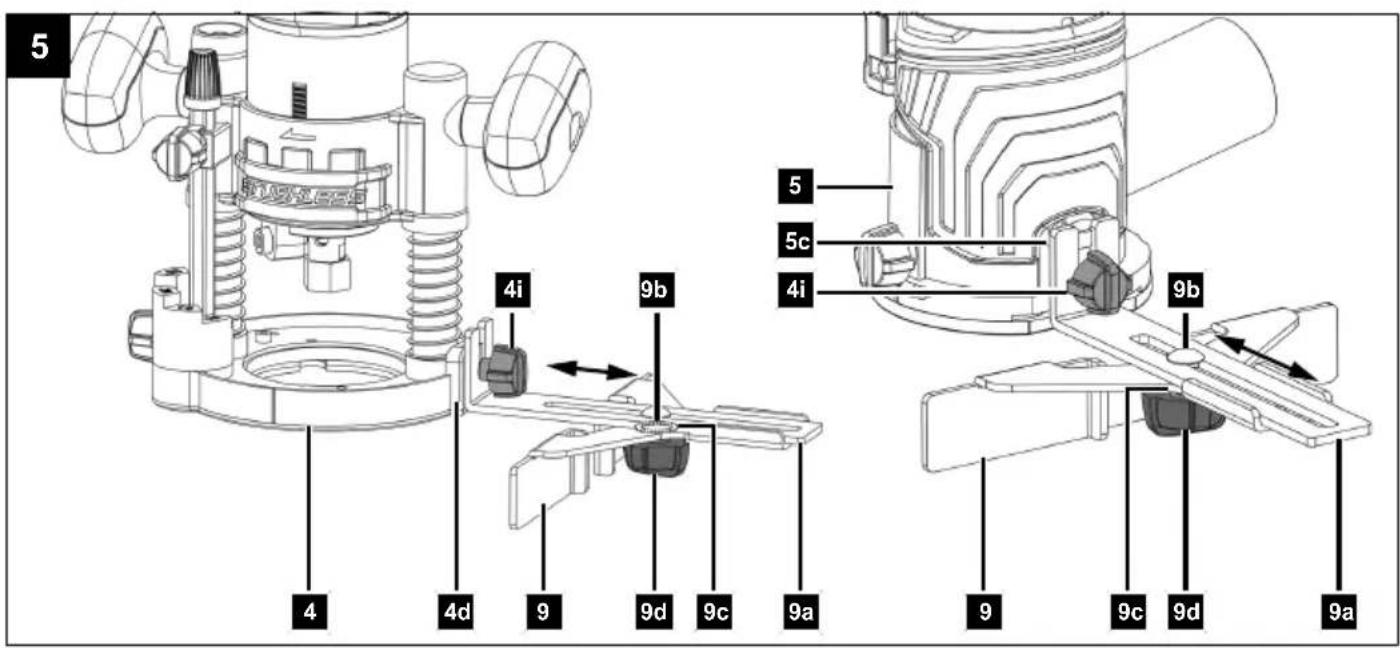

8.2 Assembling and mounting the parallel stop (9) (Fig. 5)

To assemble the parallel stop (9):

1. Place the stop lock (9a) into the guide on the parallel stop (9).
2. Insert the screw (9b) from above through the stop fixing (9a) and the front hole of the parallel stop (9). Secure the screw (9b) from underneath with the washer (9c) and the plastic nut (9d).

Fitting the parallel stop (9):

The parallel stop (9) can be used on the router module (4) or on the edge milling module (5).

1. Loosen the locking screw (4i).
2. Insert the stop fixing (9a) into the parallel stop holder (4d, 5c).
3. Ensure that the parallel stop (9) is at the correct height.
4. Tighten the locking screw (4i).

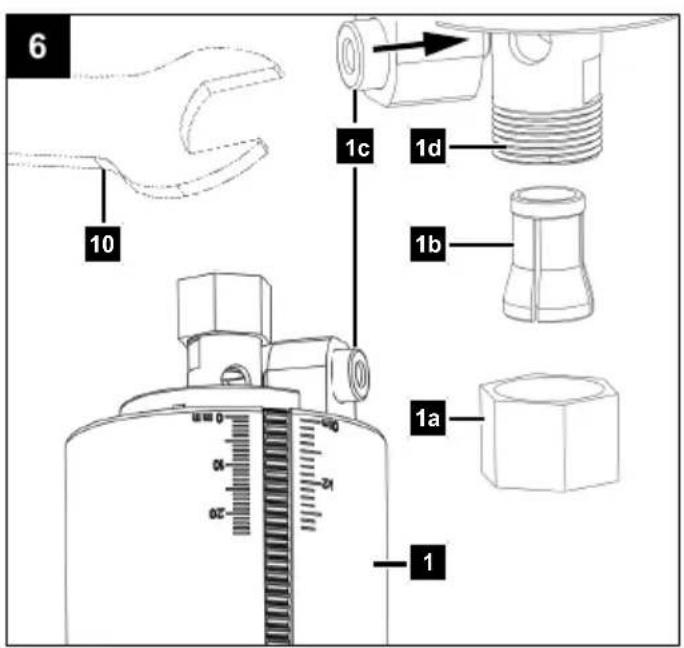

8.3 Fitting/changing the milling tool (Fig. 6)

1. Press and hold the spindle locking bolt (1c) into the spindle (1d) to lock it.
2. Loosen the union nut (1a). Use an open-ended spanner, size 17 mm (10).
3. The collet (1b) loosens and the milling tool can be mounted or changed.
4. Tighten the cap nut (1a) again to secure the milling tool. Use an open-ended spanner, size 17 mm (10).
5. Release the spindle locking bolt (1c).

8.4 Selecting and installing the milling module

The milling unit (1) can be mounted on three different milling modules. Before starting work, select the appropriate module for your application and install it.

8.4.1 Upper milling module (4) (Fig. 7)

For precise milling on flat surfaces, e.g. for milling grooves, recesses or decorative patterns in workpieces.

1. Open the clamping lever (4a).
2. Insert the milling unit (1) into the upper milling module (4) as far as it will go. Pay attention to the guide (1g). The milling unit (1) can only be mounted in one position.
3. Close the clamping lever (4a).

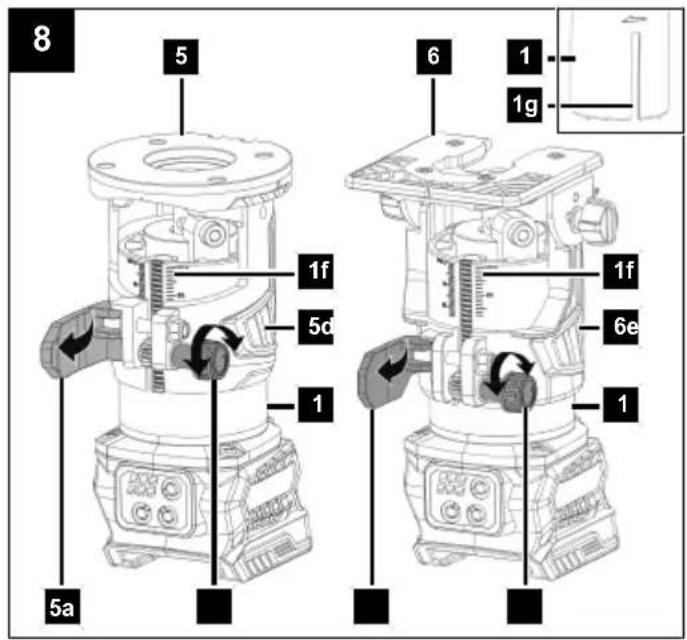

8.4.2 Edge milling module (5) (Fig. 8)

Ideal for rounding, chamfering or profiling edges; ensures clean and even edge finishing.

1. Open the clamping lever (5a).
2. Hold the adjusting screw (5b) firmly.
3. Insert the milling unit (1) into the edge milling module (5). Pay attention to the guide (1g). The milling unit (1) can only be mounted in one position.
4. The height of the milling unit (1) can be adjusted using the adjustment screw (5b).
5. Close the clamping lever (5a) when the milling unit (1) is at the correct height.

8.4.3 Angle milling module (6) (Fig. 8)

For milling at a fixed angle – e.g. for chamfers or grooves on hard-to-reach or inclined surfaces.

1. Open the clamping lever (6a).
2. Hold the adjusting screw (6b) firmly.
3. Insert the milling unit (1) into the angle milling module (6). Pay attention to the guide (1g). The milling unit (1) can only be mounted in one position.
4. The height of the milling unit (1) can be adjusted using the adjustment screw (6b).
5. Close the clamping lever (6a) when the milling unit (1) is at the correct height.

8.5 Inserting/removing the battery (3a) (Fig. 9)

Inserting the battery

1. Push the battery (3a) into the battery mount (3). The battery (3a) clicks into place audibly.

Removing the battery

1. Press the unlocking button (3b) of the battery (3a) and remove the battery (3a) from the battery mount (3).

9 Operation

9.1 Switching the product on/off (Fig. 1)

Switching on

1. Press the power lock (2a). The product then remains active for 10 seconds.

2. The LED work light (1e) and the speed indicator (2c) are illuminated.

3. Press the on/off button (2b) while the product is active.
4. The product begins to work.

Switching off

1. Press the on/off button (2b) or the power lock (2a).

9.1.1 Adjusting the speed

Notes:

The speed can also be changed during operation.

The speed that makes sense when working depends on what tasks you are doing with the product.

We recommend determining the speed using practical tests.

The integrated motor brake ensures a quick standstill.

1. Press the speed button (2d) to set the speed between 6 levels. The current speed level is shown on the speed display (2c).

Level 1: Lowest speed
Level 6: Maximum speed

9.2 Setting the milling depth

WARNING

Switch off the product and remove the battery!

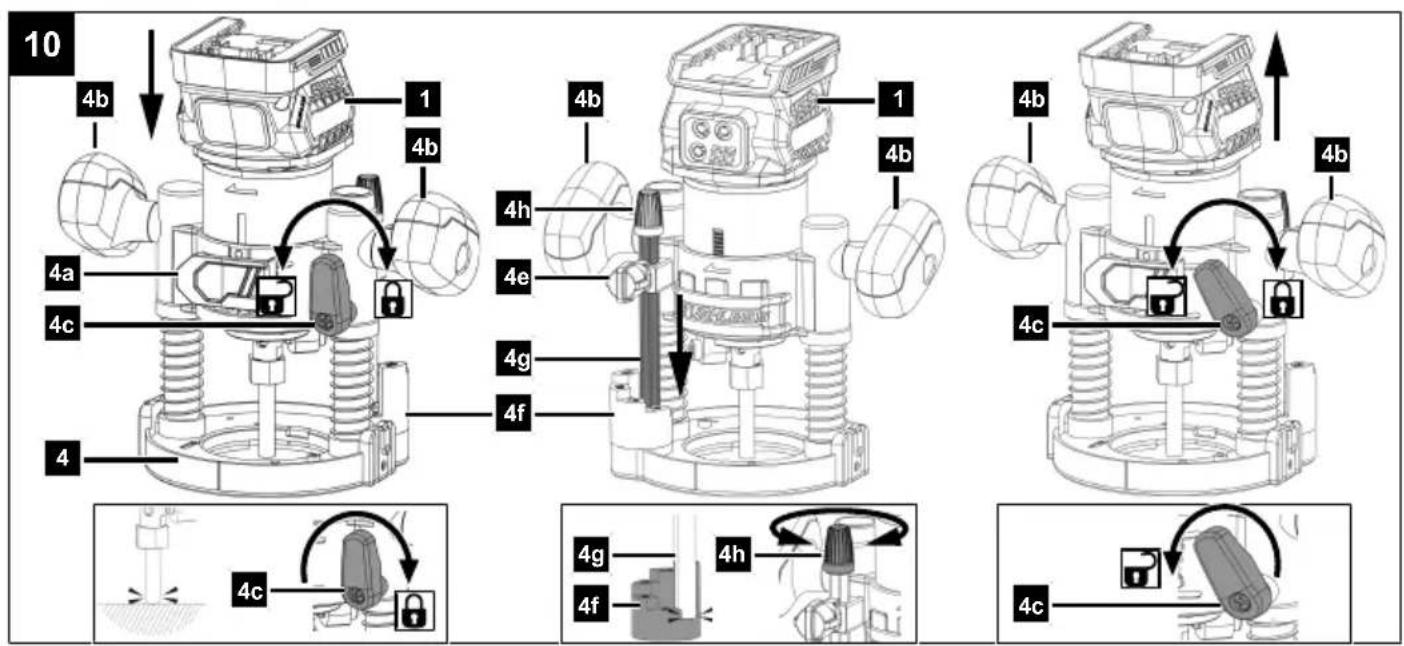

9.2.1 Upper milling module (4) (Fig. 10)

1. Ensure that the milling unit (1) is correctly positioned in the upper milling module (4) and that the clamping lever (4a) is closed.

2. Turn the step stop (4f) until it locks into the lowest position (0 mm). The depth stop (4g) should be aligned with the lowest position (0 mm) of the step stop (4f).

3. Place the product on the surface to be machined.

4. Loosen the locking screw (4e).

5. Open the height adjustment lever (4c).

6. Press the milling unit (1) downwards until the milling cutter touches the workpiece surface.

7. Close the height adjustment lever (4c) to secure the product in its current position.

8. Push the depth stop (4g) downwards until it rests on the lowest position (0 mm) of the step stop (4f).

9. Turn the adjustment screw (4h) to set the scale on the depth stop (4g) to a straight value.

10. Set the depth stop (4g) to the desired milling depth and tighten the locking screw (4e).

11. Open the height adjustment lever (4c) and move the milling unit (1) back up.

12. Check the milling depth by means of a practical test.

13. Fine-tune the milling depth using the adjustment screw (4h). One full turn of the adjustment screw (4h) corresponds to 1 mm in the milling depth.

14. Use the step stop (4f) for greater milling depths in order to work in stages with smaller chip removal. After setting the milling depth, start at the highest possible level and work your way down step by step to the lowest position (0 mm).

9.2.2 Edge milling module (5) / angle milling module (6) (Fig. 8)

1. Turn the milling unit (1) upside down and place it on a flat surface with the battery holder (3).
2. Open the clamping lever (5a, 6a).
3. Turn the adjustment screw (5b, 6b) to adjust the milling depth. The scale (1f) on the milling unit (1) will help you with this.
4. Close the clamping lever (5a, 6a) once you have set the desired height.
5. Test the set milling depth using a practical test. If necessary, readjust the milling depth.

9.2.3 Setting the milling angle on the angle milling module (6) (Fig. 11)

1. Open the locking screw (6d) on both sides.
2. Tilt the milling unit (1) until the arrow points to the desired angle on the angle scale (6c).
3. Tighten the locking screw (6d) on both sides again.
4. Check the angle again to ensure that it has not shifted during tightening.

9.3 Milling process

Notes:

• Let the tool attachment reach full speed before processing the workpiece.
  • Always perform the milling process at a consistent speed and with consistent contact pressure to achieve a clean result.
• Only handle the product by the insulated grip surfaces.

9.3.1 Milling direction

DANGER

Always guide the product through the workpiece in the counter direction!

In the opposing direction, there is a risk of kick-back. The product can be pushed out of the cut.

9.3.2 Working with the parallel stop (9) (Fig. 12)

Note:

The parallel stop can only be mounted and used on the upper milling module and the edge milling module.

1. Fit the parallel stop (9) as described in 8.2.
2. Loosen the plastic nut (9d).
3. Slide the parallel stop (9) to the desired measurement.
4. Tighten the plastic nut (9d) to secure the parallel stop (9) in position.

5. Place the parallel stop (9) against the corresponding edge of the workpiece.

6. During milling, ensure that the parallel stop (9) always rests evenly against the edge of the workpiece.

10 Cleaning and maintenance

WARNING

Have maintenance and repair tasks that are not described in this operating manual, carried out by a specialist workshop. Use only original spare parts.

WARNING

Improper maintenance or cleaning work can cause injuries!

WARNING

The product may start unexpectedly and cause injuries and burns during cleaning, repair and maintenance work.

• Switch the product off.
• Remove the battery.
• Allow the product to cool down.
• Remove the tool attachment.

10.1 Cleaning

1. Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the product clean with a clean cloth or blow it off with compressed air at low pressure. We recommend that you clean the product directly after every use.
2. Ventilation openings must always be free.
3. Do not use any cleaning products or solvents; they could attack the plastic parts of the product. Make sure that no water can penetrate the product interior.

10.2 Maintenance

1. Check the product for obvious defects such as loose, worn or damaged parts before each use.
2. For safety reasons, replace any damaged or cracked tool attachments.
3. Check the covers and protective devices for damage and correct seating. Replace them if necessary.

11 Storage and transport

WARNING

Danger of injury and burning!

The product can start unexpectedly and cause injuries.

• Switch off the engine before carrying out any cleaning or maintenance work.
• Allow the engine to cool down.
• Remove the battery.

11.1 Storage

Preparation for storage

1. Remove the battery from the product before prolonged storage (e.g. winter storage).

2. Clean and check the product for damage.

3. Store the battery in a partially charged state.
4. When stored, check the battery charge level every three months.

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children.

The optimum storage temperature is between 5°C and 30°C.

Store the product in its original packaging.

Cover the product to protect it from dust or moisture.

Store the operating manual with the product.

11.2 Transport

• Allow the product to cool.
• Protect the product from impacts, shocks and severe vibrations, e.g. during vehicular transport.
• Secure the product to prevent it slipping and toppling.

12 Repair and ordering spare parts

ATTENTION

According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialists. The same applies to accessory parts.

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

12.1 Ordering spare parts

Please provide the following information when ordering spare parts:

• Model designation
• Item number
• Type plate data

Spare parts / accessories

Battery pack SBP2.0 - Article no.: 7909201708

Battery pack SBP4.0 - Article no.: 7909201709

Battery charger SBC2.4A - Article no.: 7909201710

Battery charger SBC4.5A - Article no.: 7909201711

Battery charger SDBC2.4A - Article no.: 7909201712

Battery charger SDBC4.5A - Article no.: 7909201713

StarterKit SBSK2.0 - Article no.: 7909201720

StarterKit SBSK4.0 - Article no.: 7909201721

13 Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the disposal of electrical and electronic equipment

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.
- Owners or users of electrical and electronic devices are legally obliged to return them after use.
- The end user is responsible for deleting their personal data from the old device being disposed of!
- The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
- Waste electrical and electronic equipment can be handed in free of charge at the following places:

– Public disposal or collection points (e.g. municipal works yards)
- Points of sale of electrical devices (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.
- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.
– Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

- If the manufacturer delivers a new electrical appliance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer's customer service for this.

• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

Notes on lithium-ion batteries

Remove the battery before disposing of the device!

• Do not dispose of batteries in household waste, in a fire (risk of explosion) or in water. Damaged batteries can harm the environment and your health if toxic vapours or liquids escape.
• Defective or used batteries must be recycled in accordance with Regulation (EU) 2023/1542.
• Hand in the battery and the battery charger at a recycling centre. The plastic and metal parts used can be separated by type and thus recycled.
• Dispose of batteries when discharged. We recommend covering the poles with an adhesive strip to protect against a short circuit. Do not open the battery.

- Dispose of batteries in accordance with local regulations. Return batteries to a used battery collection point where they can be recycled in an environmentally friendly manner. Ask your local waste disposal company about this.

14 EU Declaration of Conformity

Translation of the original Declaration of Conformity

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

We declare under our sole responsibility that the product described here complies with the applicable directives and standards.

Brand: SCHEPPACH

Art. designation: Cordless router - BC-EHR24-X

Art. no. 5902706900

EU directives:

2014/30/EU, 2006/42/EG, 2011/65/EU*,

* The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Applied standards:

EN 62841-1:2015 + AC:2015 + A11:2022;

EN 62841-2-17:2017;

EN IEC 55014-1:2021;

EN IEC 55014-2:2021

Documentation authorised representative:

Georg Kohler

Günzburger Str. 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

15 Warranty conditions - Scheppach 20V IXES series

Revision date 25/04/2024

Dear customer,

our products are subject to strict quality checks. However, if a product does not function perfectly, we deeply regret this and ask that you contact our customer service at the address specified below. We will also be glad to assist you by telephone via the service number. The following information is intended to help you to process and settle your claim without any problems.

For the assertion of warranty claims, the following applies:

1. The warranty conditions govern our additional manufacturer warranty services for purchasers (private end consumers) of new products. The statutory warranty claims are not affected by this warranty. This is the responsibility of the dealer who you purchased the product from.

2. The manufacturer's warranty only covers defects in a new product purchased by you that are due to a material or manufacturing defect. If material or manufacturing defects occur during the warranty period, the manufacturer as guarantor shall provide one of the following services of its choice under this warranty:

– Free repair of the goods

- Free replacement of the goods with an item of equal value (if necessary also replacement with a successor model if the original goods are no longer available).

Replaced products or parts shall become our property. Please note that our products were not designed for commercial, trade or professional use. A warranty claim is therefore not valid if the product has been used in commercial, trade or industrial operations within the warranty period or has been subjected to equivalent stress.

1. The following are excluded from our warranty services:

- Damage to the product which was caused by non-observance of the assembly instructions, improper installation, non-observance of the operating instructions (e.g. connection to an incorrect mains voltage or type of current) or the maintenance and safety regulations or use of the product in unsuitable environmental conditions as well as by insufficient care and maintenance.

- Damage to the product caused by misuse or improper application (such as overloading the product or using non-approved tools and accessories), penetration of foreign bodies into the product (such as sand, stones or dust), transport damage, use of force or external influences (such as damage caused if dropped).

- Damage to the product or parts of the product which is due to intentional, normal (operational) or other natural wear as well as damage and/or wearing of wear parts.

- Defects in the product which have been caused by the use of accessories, expansions or spare parts that are not original parts or are not used as intended.

– Products on which changes or modifications have been made.

– Minor deviations from the target characteristics which are irrelevant for the value and usability of the product.

– Products on which unauthorised repairs have been carried out, in particular by an unauthorised third party.

- If the marking on the product or the identification information of the product (machine label) is missing or illegible.

– Products that are very dirty and are therefore refused by the service personnel.

– Claims for damages and consequential damages are generally excluded from this warranty.

1. The warranty period is usually 5 years (12 months for batteries/rechargeable batteries) and starts from the date of purchase of the product. The date on the original purchase receipt is decisive. Warranty claims must be made immediately after becoming aware of them. The assertion of warranty claims after expiry of the warranty period is excluded. The repair or replacement of the product does not result in an extension of the warranty period, nor does this service initiate a new warranty period for the product or for any installed spare parts. This also applies when using an on-site service. A prerequisite for a claim under the warranty is that the manufacturer, as the guarantor, is enabled to examine the warranty claim by sending in the goods at the manufacturer's request. Care must be taken to avoid damage during transport by using appropriate packaging. The product concerned is to be cleaned and returned to the service centre together with a copy of the purchase receipt, which must include the date of purchase and the product designation. If a product is sent in incomplete without the complete scope of delivery, the missing accessories will be charged / deducted in value if the product is exchanged or in the event of a refund. Partially or completely dismantled products cannot be accepted as a warranty claim. In the event of an unjustified complaint or if outside the warranty period, the purchaser shall generally bear the transport costs and the transport risk. Please report a warranty claim in advance to the service centre (see below). It is generally agreed upon that the defective product will be returned to the service address given below with a brief description of the fault by organised return or, in the case of repair outside the warranty period, with sufficient postage, taking the appropriate packaging and shipping guidelines into account. Please note that your product (depending on the model) will be free of all operating materials when returned for safety reasons. The product sent to our service centre must be packaged in such a way that damage to the product under complaint is avoided during transport. After successful repair / replacement, we will send the product back to you free of charge. If products cannot be repaired or replaced, a sum up to the purchase price of the defective product may be refunded at our own discretion, taking into account any deduction for wear and tear. These warranties are only for the benefit of the original private purchaser and cannot be assigned or transferred.

2. Extension of the warranty period to 10 years: Scheppach offers an additional warranty extension of 5 years on products of the Scheppach 20V series. Thus, the warranty period for these products totals 10 years. Batteries / rechargeable batteries, battery chargers and accessories are excluded from this. You can claim this warranty extension by registering your Scheppach product from this range at https://garantie.scheppach.com no later than 30 days from the date of purchase. After registering online successfully, you will receive confirmation for the item-related warranty extension.

3. In order to submit your warranty claim, please contact our service centre.

Preferably, please use our form on our homepage:

https://shop.scheppach.com/contact

Please do not send us any products without first contacting and registering with our service centre.

Contacting our service centre first is mandatory to claim these warranty promises. Warranty claims must be made before expiry of the warranty period within 14 days of discovery of the defect. For this purpose, the original purchase receipt and, if necessary, confirmation of the item-related warranty extension are required.

1. Processing time - We normally process complaint consignments within 14 days of receipt at our service centre. If, in exceptional cases, the processing time mentioned is exceeded, you will be informed in good time.

2. Wear parts are generally excluded from the warranty! - Wear parts are: a) supplied, attached and/or installed batteries / rechargeable batteries as well as b) all model-dependent wear parts (i.e. belts, saw blades, tool attachments, grinding discs, filters, carbon brushes etc., see operating manual). The warranty does not cover batteries or rechargeable batteries that are deeply discharged or those with damaged housing or battery terminals.

3. Cost estimate - Products that are not covered or no longer covered by the warranty will be repaired at extra cost. Upon request to our service centre, you can send in the defective products for a cost estimate and, if necessary, give the service centre approval for the repair in writing (by post, e-mail). No further processing will take place without approval for the repair.

The warranty conditions only apply in the current version at the time of the complaint and, if necessary, can be found on our homepage (www.scheppach.com).

In case of translations, the German version is decisive.

89335 Ichenhausen (Germany)

Tel: [phone] ·

E-Mail: [e-mail]

Internet: https://www.scheppach.com

We reserve the right to make changes to the warranty conditions at any time without prior notice.

Sommaire

Günzburger Straße 69

D-89335 Ichenhausen

Remarque :

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

15 Conditions de garantie - série IXES 20 V de Scheppach

https://shop.scheppach.com/contact

Günzburger Straße 69

D-89335 Ichenhausen, Germania

Indicazione:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

https://shop.scheppach.com/contact

Günzburger Straße 69

D-89335 Ichenhausen

Aanwijzing:

8.1 Afzuigmof (7, 8)

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

https://shop.scheppach.com/contact

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

https://shop.scheppach.com/contact

[e-mail] –

Internet: https://www.scheppach.com

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

https://shop.scheppach.com/contact

Günzburger Straße 69

D-89335 Ichenhausen

Upozornění:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

https://shop.scheppach.com/contact

Günzburger Straße 69

D-89335 Ichenhausen

Upozornenie:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

https://shop.scheppach.com/contact

Günzburger Straße 69

D-89335 Ichenhausen

Megjegyzés:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

https://www.scheppach.com/de/service

Günzburger Straße 69

D-89335 Ichenhausen

Wskazówka:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

https://shop.scheppach.com/contact

Günzburger Straße 69

D-89335 Ichenhausen

Napomena:

Prema važećem njemačkom Zakonu o odgovornosti za proizvode, proizvođač ovog proizvoda ne odgovara za štete koje nastanu na ovom proizvodu ili koje ovaj proizvod uzrokuje u slučaju:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

https://shop.scheppach.com/contact

Ne šaljite nam proizvode bez prethodnog stupanja u kontakt i prijave našem servisnom centru.

©

Kazalo

1 Uvod.... 133
2 Namenska uporaba.... 133
3 Opis izdelka (sl. 1–12).... 134
4 Obseg dostave (sl. 2).... 134
5 Razpakiranje 134
6 Tehnični podatki.... 134
7 Varnostni napotki 135
8 Pred zagonom.... 137
9 UPRAVLJANJE.... 138
10 Čiščenje in vzdrževanje 139
11 Skladiščenje in transport.... 139
12 Popravila in naročanje rezervnih delov ..... 139
13 Odlaganje med odpadke in reciklaža.... 140
14 EU izjava o skladnosti.... 141
15 Garancijski pogoji – serija Scheppach 20V IXES.... 141
16 Eksplozijska risba.... 266

Razlaga simbolov na izdelku

Günzburger Straße 69

D-89335 Ichenhausen

Napotek:

Proizvajalec tega izdelka skladno z veljavnim zakonom o odgovornosti za izdelke ne jamči za poškodbe na tem izdelku ali poškodbe s tem izdelkom, do katerih pride pri:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

15 Garancijski pogoji – serija Scheppach 20V IXES

Datum revizije 25.04.2024

Spoštovana stranka,

https://shop.scheppach.com/contact

Prosimo, da nam ne pošiljate nobenih izdelkov, ne da bi nas prej kontaktirali in se registrirali pri našem servisnem centru.

Günzburger Straße 69

D-89335 Ichenhausen

Juhis:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

15 Garantiitingimused – Scheppach 20V IXES seeria

https://shop.scheppach.com/contact

Günzburger Straße 69

D-89335 Ichenhausen

Nuoroda:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

https://shop.scheppach.com/contact

Günzburger Straße 69

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

https://shop.scheppach.com/contact

E-pasts: [e-mail] ·

Internets: https://www.scheppach.com

Günzburger Straße 69

D-89335 Ichenhausen

Anvisning:

Günzburger Straße 69

Division Manager Product Center

Head of Project Management

15 Garantivillkor – Scheppach 20V IXES Serie

Revisionsdatum 2024-04-25

Ärade kund,

https://shop.scheppach.com/contact

Günzburger Straße 69

D-89335 Ichenhausen

Huomautus:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

https://shop.scheppach.com/contact

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Bemærk:

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Division Manager Product Center

Andreas Pecher

Head of Project Management

15 Garantivilkår – Scheppach 20V IXES-serie

Revisionsdato 25-04-2024

Kære kunde,

https://shop.scheppach.com/contact

Günzburger Straße 69

D-89335 Ichenhausen

Merknad:

1 x Batteridreven overfreser

1 x Bruksanvisning

5 Utpakking

ADVARSEL

9.1.1 Stille inn turtall

Merknader:

9.2 Stille inn fresedybden

ADVARSEL

Forberedelse for lagring

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

15 Garantibetingelser – Scheppach 20V IXES serie

https://shop.scheppach.com/contact

E-post: [e-mail] ·

Internett: https://www.scheppach.com

Günzburger Straße 69

D-89335 Ichenhausen, Германия

Указание:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

https://shop.scheppach.com/contact

Günzburger Straße 69

D-89335 Ichenhausen

Υπόδειξη:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

https://shop.scheppach.com/contact

89335 Ichenhausen (Germany)

Tηλ: [phone] ·

E-mail: [e-mail]

Internet: https://www.scheppach.com

Günzburger Straße 69

D-89335 Ichenhausen

Indicatie:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Head of Project Management

https://shop.scheppach.com/contact

Günzburger Straße 69

D-89335 Ichenhausen

Napomena:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

15 Uslovi garancije - Scheppach 20V IXES serija

Datum revizije 25.04.2024.

Poštovani kupci,

naši proizvodi podležu strogim kontrolama kvaliteta. Uko-liko ovaj uređaj i pored toga ne bude radio besprekorno, žao nam je zbog toga i molimo Vas da se obratite našoj servisnoj službi na adresi koja je navedena u nastavku. Sa zadovoljstvom Vam stojimo na raspolaganju i putem telefona preko servisnog broja. Napomene u nastavku treba da vam posluže za obradu i regulaciju bez problema i slučaju štete.

https://shop.scheppach.com/contact

Nemojte nam slati proizvode a da nas prethodno niste kontaktirali i prijavili kod našeg servisnog centra.

Ta dobijanje ovih usluga po osnovu garancije obavezno je da prvo kontaktirate naš servisni centar.

Zahtevi po osnovu garancije moraju da se podnesu pre isteka garantnog roka u roku od 14 dana posle utvrđivanja nedostatka. Za to je potreban originalni račun i po potrebi potvrda produženja garancije za određeni proizvod.

1. Trajanje obrade - u redovnim slučajevima obrađuje- mo reklamacione pošiljke u roku od 14 dana posle do- stave u naš servisni centar. Ako se navedeno trajanje obrade u izuzetnim slučajevima prekorači, pravoreme- no ćemo vas obavestiti.
2. Potrošni delovi - potrošni delovi su: a) isporučene, priključene i/ili ugrađene baterije / akumulatori kao i b) svi od modela zavisni potrošni delovi (između ostalog kaiševi, listovi testere, alati za intervenciju, brusni diskovi, filteri, ugljene četkice, itd., vidi uputstvo za upotrebu). Izuzeti od garancije su potpuno ispražnjene ili na polovima oštećene baterije odn. akumulatori.
3. Obračun troškova - proizvode koji nisu ili nisu više pokriveni garancijom popravljamo uz naknadu. Na upit kod našeg servisnog centra neispravne uređaje možete poslati da bi se napravio obračun troškova i po potrebi servisno centru poslati pismeno (poštom, e-poštom) odobrenje za popravku. Bez odobrenja popravke neće se vršiti dalja obrada.

Günzburger Straße 69

D-89335 Ichenhausen

İthalatçı:

Günzburger Straße 69

D-89335 Ichenhausen

Division Manager Product Center

Andreas Pecher

Head of Project Management

Exploded view diagram of a mechanical assembly with numbered components for identification

Exploded view diagram of a mechanical assembly with numbered parts for identification

CE

SCHEPPACH GMBH

Günzburger Str. 69

D-89335 Ichenhausen

FR ©

Stand der Informationen · Status of the information · Version des informations · Versione delle informazioni · Stand van de informatie · Información disponible · Versão das informações · Stav informaci · Stav informácií · Az információk kelte · Stan informacji · Verzija informacija · Stanje informacij · Informatsiooni seis · Informacijos data · Informácijas stāvoklis · Informationens status · Tietojen tila · Informationsstatus · Status for informasjon · Последна редакция на информацията · Έκδοση των πληροφοριών · Stadiul informațiilor · Izdanje informacija · Bilgilerin güncelliği Update: 02/2026 · Ident.-No.: 5902706900
