USER MANUAL MTP370 SCHEPPACH

Black-and-white photo of a manual tiller machine with visible blades and wheels (no text or symbols)

https://www.scheppach.com/de/service Aischeppach Erling BenZu Öl sobepach

MTP370

DE	Benzin-BodenhackeOriginalbetriebsanleitung	6
GB	Petrol Power CultivatorTranslation from the original instruction manual	18
FR	Motobineuse à essenceTraduction des instructions d'origine	29
CZ	Benzínová plečkaPřeklad originálního návodu k obsluze	41
HU	Benzinmotoros kapaAz eredeti használati útmutató fordítása	52
IT	Motozappa a benzinaTraduzioni del manuale d'uso originale	65
EE	Bensiini-pinnasekobestiTölge Originaalkasutusjuhend	77
LT	Benzininis kultivatoriusVertimas originali naudojimo instrukcija	88

LV	Benzīna kultivatorsTulkošana no originālā lietošanas instrukcija	99
SK	Benzínový kultivátorPreklad originálu návodu na obsluhu	110
ES	Motocultor de gasolinaTraducción de las instrucciones originales de funcionamiento	121
NL	Benzine grondfreesVertaling van de originele gebruikershandleiding	133
PL	Glebogryzarka spalinowaTłumaczenie oryginalnej instrukcji obsługi	145
SE	Bensindriven jordfräsÖversättning av originalinstruktionsmanualen	157
FI	Bensiinikäyttöinen puutarhajyrsinAlkuperäisen käyttöohjeen käännös	168

1

Labeled diagram of a manual tiller with numbered parts for identification

16 15 14 12 20 13

2

P Ø8,4x24x2 Q M8x35 R M8x30 S Ø8,1x2,1 T M8

Mechanical tool assembly with labeled parts (G and M), no readable text or symbols beyond labels

3 10 4

O N P Q X T S B R W

4 A 13 17

5 10 B

6 R P S T M Q M X 6

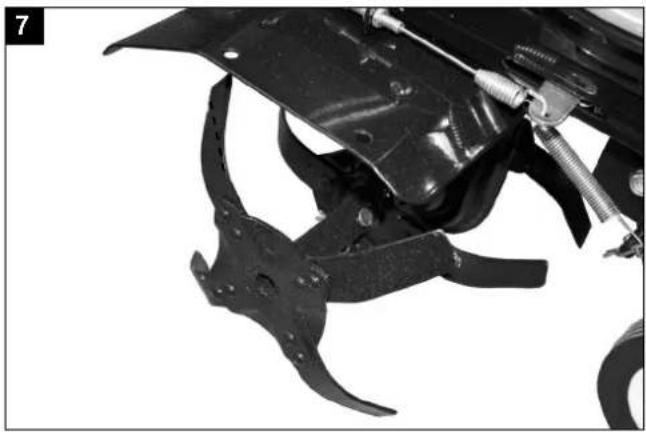

Close-up of a mechanical tool or bracket assembly with metal parts and bolts (no visible text or symbols)

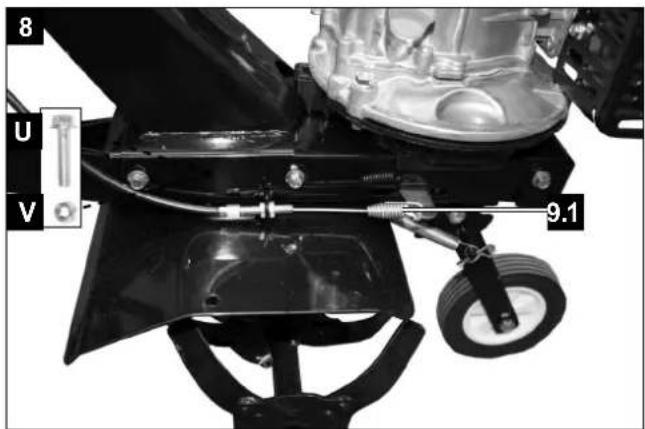

8 U V 9.1

Close-up of a black cable clip with a numbered label pointing to the handle (no text or symbols on the object itself)

10 15 14

11 15 MinMax

Close-up of a mechanical tool with a circular vent and base mount (no visible text or symbols)

13 17 B A

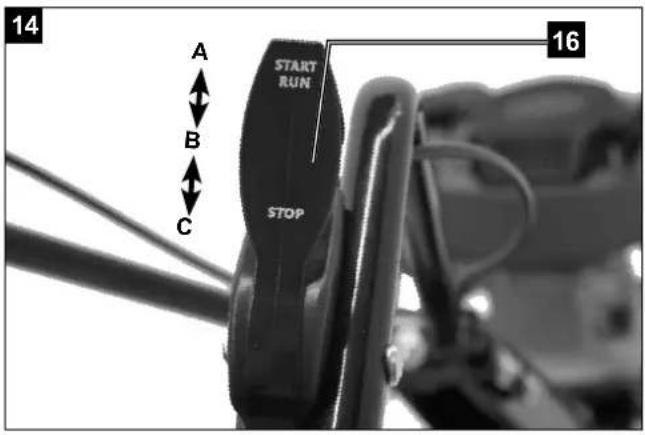

14 A B C START RUN STOP 16

15 3 5

Mechanical component with lever mechanism and magnified view showing a hand holding a tool (no text or symbols)

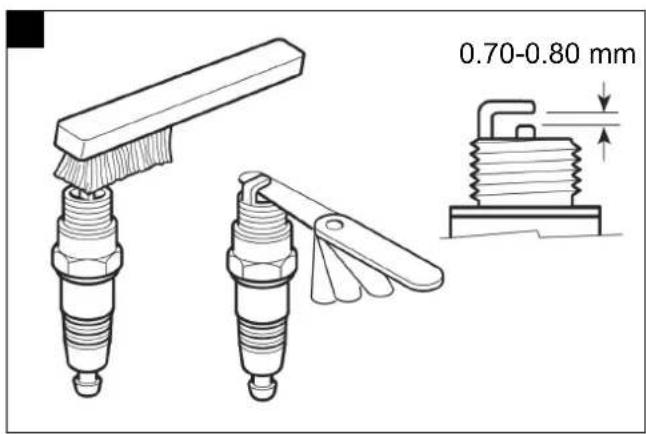

0.70-0.80 mm

18 21 22

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Description of the symbols

Read instruction manual and safety instructions before starting up and pay attention!

Wear ear protection!

Wear safety goggles!

Wear work gloves!

Wear robust footwear when using the device!

Open fires forbidden!

Attention! Do not touch rotating parts. There is serious risk of injury!

Do not remove or modify protection and safety devices.

Attention! Hot components - Do not touch

Risk of catapulted parts if the engine is running. Be sure to keep a safe distance.

Keep bystanders away from the device!

Table of contents: Page:

1. Introduction 21
2. Device description (Fig. 1) ...... 21
3. Scope of delivery (Fig. 2 + 3)....21
4. Intended use....22
5. Safety instructions....22
6. Technical data....24
7. Assembly....24
8. Function....25
9. Operation 25
10. Working instructions.... 25
11. Maintenance....26
12. Storage....27
13. Disposal and recycling 27
14. Troubleshooting....28

1. Introduction

Manufaturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear customer,

We hope your new tool brings you much enjoyment and success.

Note:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
  • Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service technicians,
• Installation and replacement of non-original spare parts,
  • Application other than specified,

We recommend:

Read through the complete text in the operating instructions before installing and commissioning the device. The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations. The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country. Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

In addition to the safety notices contained in this operating manual and the particular instructions for your country, the generally recognised technical regulations for the operation of identical devices must be complied with.

We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

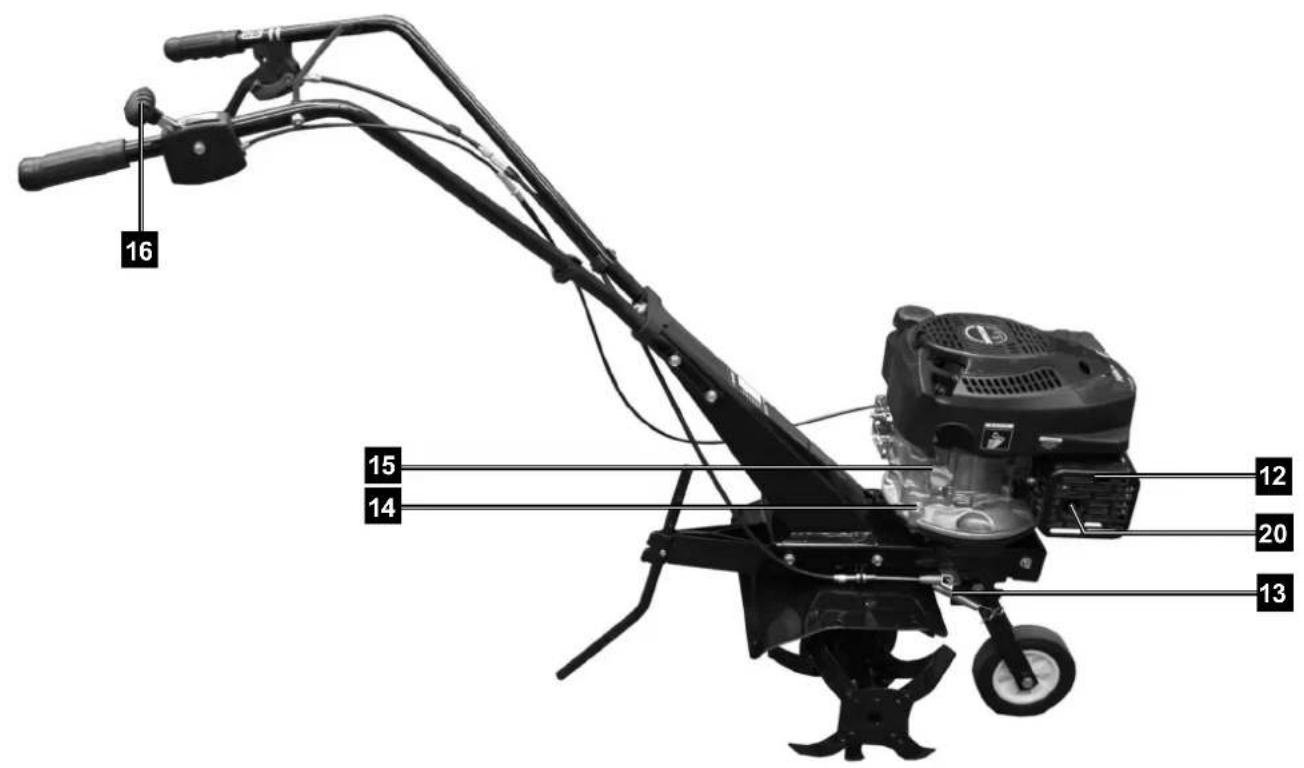

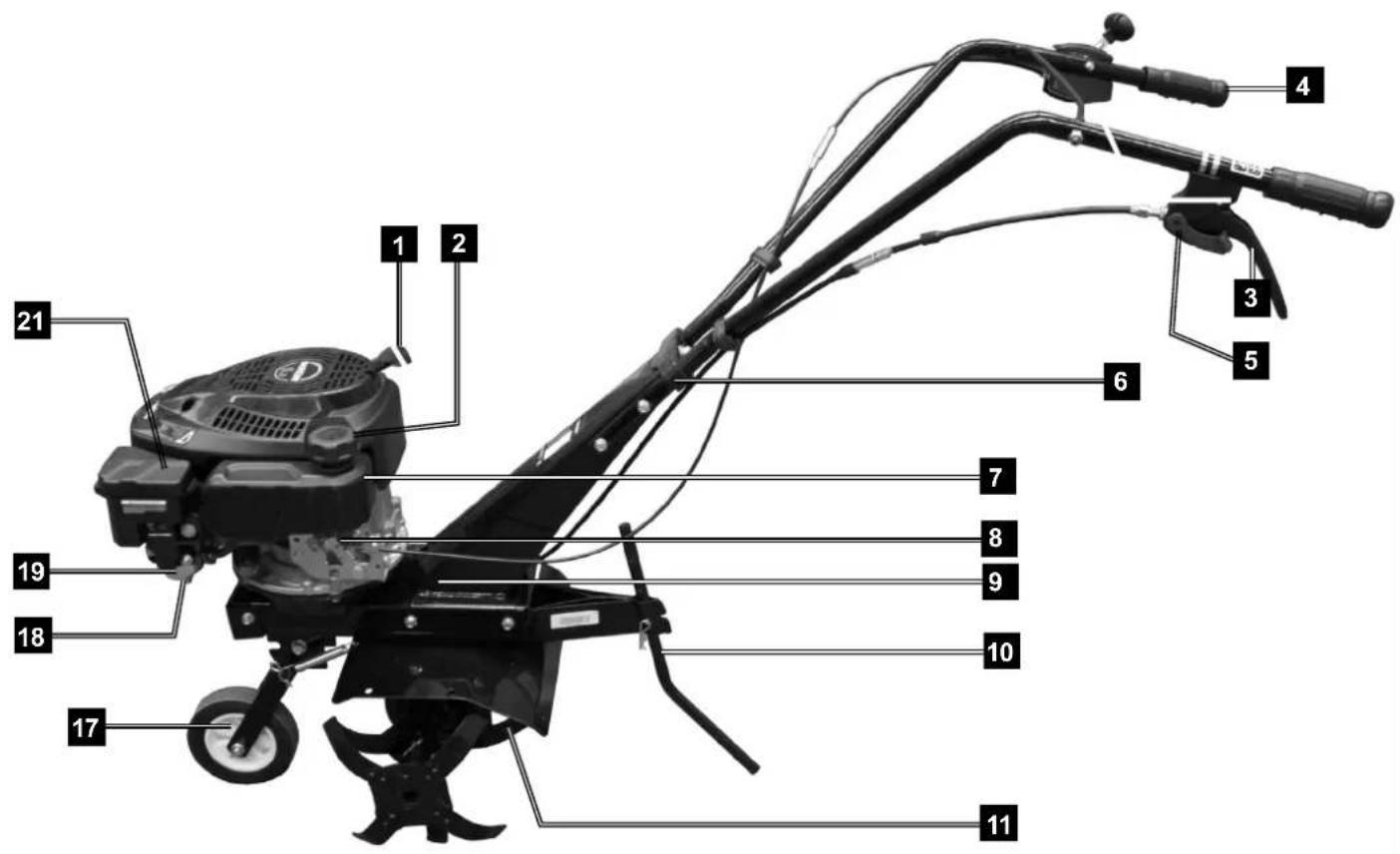

2. Device description (Fig. 1)

1. Recoil starter

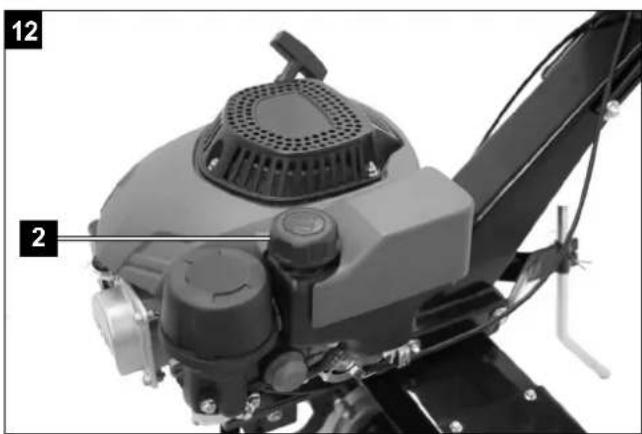

2. Fuel tank cap

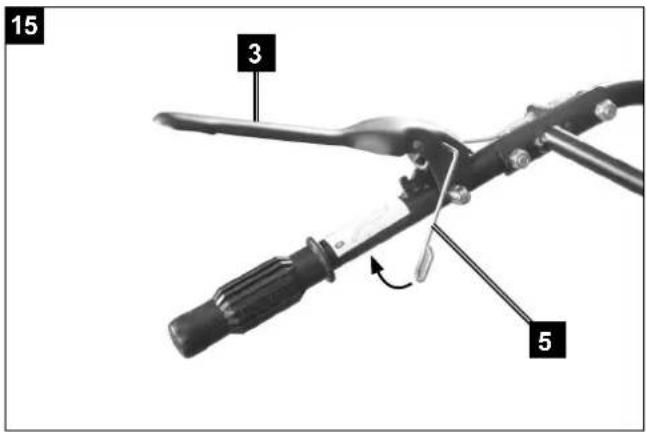

3. Clutch handle
4. Handle
5. Lock clutch lever
6. Handlebar mount
7. Fuel tank
8. Fuel pipe
9. Blade guard

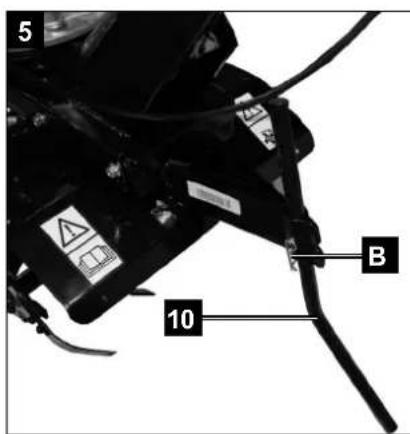

10. Depth stop
11. Blades
12. Spring
13. Oil drain plug

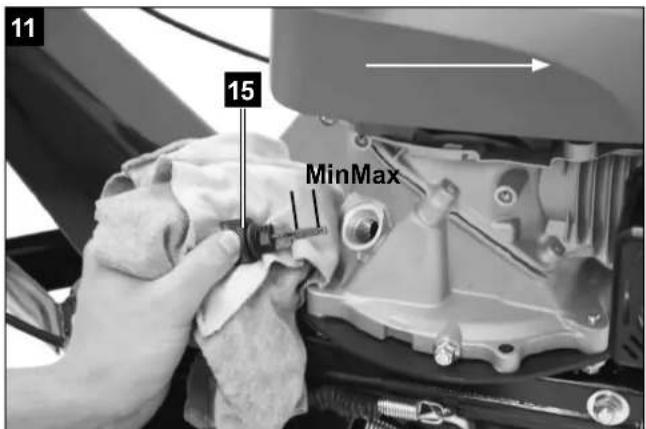

14. Oil dipstick
15. Accelerator
16. Wheel
17. Fuel drain plug
18. Carburetor
19. Muffler

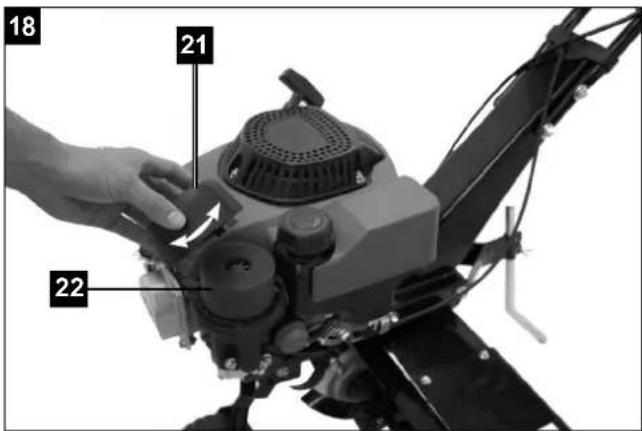

20. Air filter cap

21. Air filter

22. Protective cover of the muffler

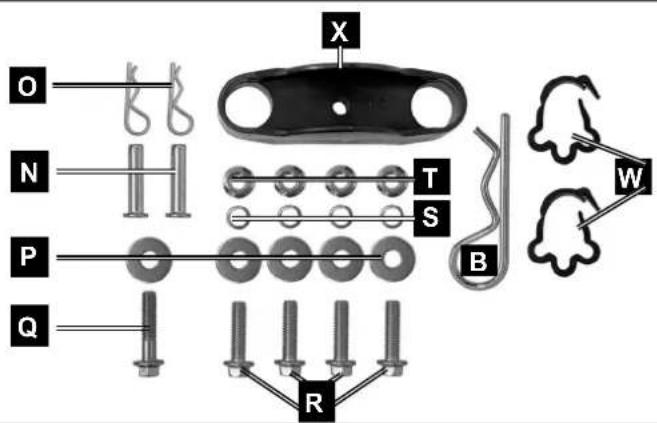

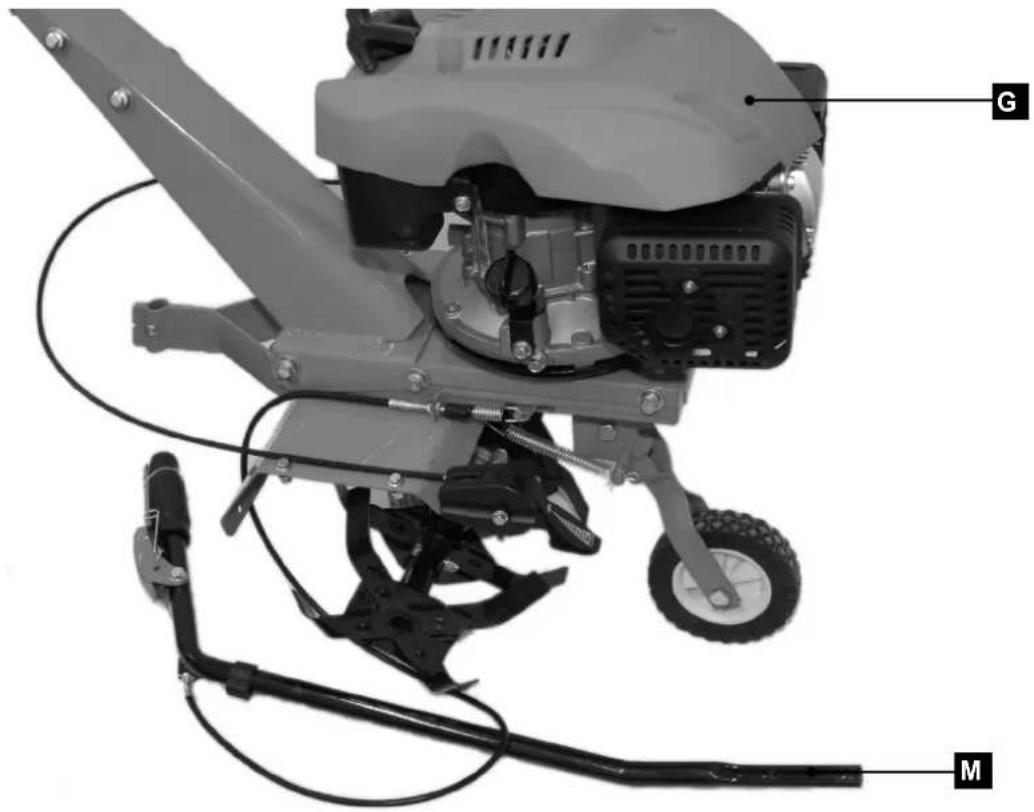

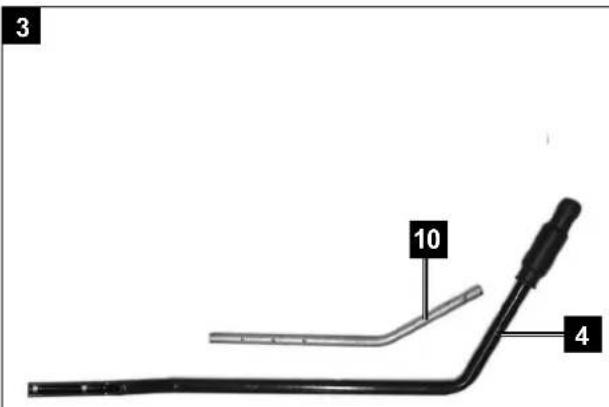

3. Scope of delivery (Fig. 2 + 3)

• Motorised cultivator MTP560 (G) (1x)
• Spark plug socket (H) (1x)
• Depth stop (10) (1x)
• Hardware bag (L)
• Handlebars (M) (2x)
• Operator's manual

- Open the packaging and remove the device carefully.

- Remove the packaging material as well as the packaging and transport bracing (if available).

- Check that the delivery is complete.

- Check the device and accessory parts for transport damage. When complaints the dealer must be informed immediately. Subsequent complaints will not be accepted.

- If possible, store the packaging until the warranty period has expired.

- Read the operating instructions to make yourself familiar with the device prior to using it.

- Only use original parts for accessories as well as for wearing and spare parts. Spare parts are available from your specialized dealer.

- Specify our part numbers as well as the type and year of construction of the device in your orders.

ATTENTION!

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of

swallowing and suffocation!

4. Intended use

The machine is designed for digging over beds and fields. Be sure to observe the restrictions in the additional safety instructions.

The equipment is allowed to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind resulting from such misuse.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Safety instructions

General safety rules

Understand your machine.

Read and understand the operator's manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards peculiar to it. Be thoroughly familiar with the controls and their proper operation. Know how to stop the machine and disengage the controls quickly.

Make sure to read and understand all the instructions and safety precautions as outlined in the Engine Manufacturer's Manual, packed separately with your unit. Do not attempt to operate the machine until you fully understand how to properly operate and maintain the Engine and how to avoid accidental injuries and/or property damage.

Work area

Never start or run the engine inside a closed area. The exhaust fumes are dangerous, containing carbon monoxide, an odorless and deadly gas. Operate this unit only in a well ventilated outdoor area.

Never operate the machine without good visibility or light.

Never operate the machine on a steep slope. Always work transversally, not up and down.

Personal safety

1. Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly.

2. Dress properly. Wear heavy long pants, boots and gloves. Do not wear loose clothing, short pants, and jewelry of any kind. Secure long hair so it is above shoulder level. Keep your hair, clothing and

gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

1. Use safety equipment. Always wear eye protection.
2. Safety equipment such as a dust mask, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
3. Check your machine before starting it. Keep guards in place and in working order. Make sure all nuts, bolts, etc. are securely tightened.
4. Never operate the machine when it is in need of repair or is in poor mechanical condition.
5. Replace damaged, missing or failed parts before using it. Check for fuel leaks. Keep the machine in safe working condition.
6. Never tamper with safety device. Check their proper operation regularly.
7. Do not use the machine if the engine's switch does not turn it on or off. Any gasoline powered machine that can not be controlled with the engine switch is dangerous and must be replaced.
8. Form a habit of checking to see that keys and adjusting wrenches are removed from machine area before starting it. A wrench or a key that is left attached to a rotating part of the machine may result in personal injury.
9. Stay alert, watch what you are doing and use common sense when operating the machine.
10. Do not overreach. Do not operate the machine while barefoot or when wearing sandals or similar lightweight footwear. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces.
11. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations.
12. Avoid accidental starting. Be sure the engine is off before transporting the machine or performing any maintenance or service on the unit. Transporting or performing maintenance or service on a machine with engine on invites accidents.

Fuel Safety

1. Fuel is highly flammable, and its vapors can explode if ignited. Take precautions when using to reduce the chance of serious personal injury.

2. When refilling or draining the fuel tank, use an approved fuel storage container while in a clean, well-ventilated outdoor. Do not smoke, or allow sparks, open flames or other sources of ignition near the area while adding fuel or operating the unit. Never fill fuel tank indoors.

3. Keep grounded conductive objects, such as tools, away from exposed, live electrical parts and connections to avoid sparking or arcing. These events could ignite fumes or vapors.

4. Always stop the engine and allow it to cool before filling the fuel tank. Never remove the cap of the fuel tank or add fuel while the engine is running or when the engine is hot. Do not operate the machine with known leaks in the fuel system.

5. Loose the fuel tank cap slowly to relieve any pressure in the tank.
6. Never over fill fuel tank. Fill tank to no more than 12.5mm (1/2" below the bottom of the filler neck to provide space for expansion as the heat of the engine can cause fuel to expand).
7. Replace all fuel tank and container caps securely and wipe up spilled fuel. Never operate the unit without the fuel cap securely in place.
8. Avoid creating a source of ignition for spilled fuel. If fuel is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until fuel vapors have dissipated.
9. Store fuel in containers specifically designed and approved for this purpose.
10. Store fuel in a cool, well-ventilated area, safely away from sparks, open flames or other sources of ignition.
11. Never store fuel or machine with fuel in the tank inside a building where fumes may reach a spark, open flame, or other sources of ignition, such as a water heater, furnace, clothes dryer and the like. Allow the engine to cool before storing in any enclosure.

Machine use and care

1. Never pick up or carry a machine while the engine is running.
2. Do not force the machine.
3. Use the correct machine for your application. The correct machine will do the job better and safer at the rate for which it was designed.
4. Do not change the engine governor settings GB or over-speed the engine. The governor controls the maximum safe operating speed of the engine.
5. Do not run the engine at a high speed when you are not tilling.
6. Do not put hands or feet near rotating parts
7. Avoid contact with hot fuel, oil, exhaust fumes and hot surfaces. Do not touch the engine or muffler. These parts get extremely hot from operation. They remain hot for a short time after you turn off the unit. Allow the engine to cool before doing maintenance or making adjustments.
8. If the machine should start to make an unusual noise or vibration, immediately shut off the engine, disconnect the spark plug wire, and check for the cause. Unusual noise or vibration is gener-

ally warning of trouble.

1. Use only attachments and accessories approved by the manufacturer. Failure to do so can result in personal injury.
2. Maintain the machine. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the machine's operation. If damaged, have the machine repaired before use. Many accidents are caused by poorly maintained equipment.
3. Keep the engine and muffler free of grass, leaves, excessive grease or carbon build up to reduce the chance of a fire hazard.
4. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
5. Never douse or squirt the unit with water or any other liquid. Keep handles dry, clean and free from debris. Clean after each use.
6. Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment.
7. Store idle machine out of the reach of children and do not allow persons unfamiliar with the machine or these instructions to operate it. Machine is dangerous in the hands of untrained users.

Service

Before cleaning, repair, inspecting, or adjusting, shut off the engine and make certain all moving parts have stopped. Disconnect the spark plug wire, and keep the wire away from the plug to prevent accidental starting.

Have your machine serviced by qualified repair personnel using only identical replacement parts. This will ensure that the safety of the machine maintained.

Specific safety rules

1. Thoroughly inspect the area to be tilled, and remove all debris and hard or sharp objects such as stones, sticks, glass, wire, bones, etc.
2. Do not operate tiller in soil with large rocks and foreign objects which can damage the machine.
3. Do not till above underground electric cables, telephone lines, water lines, gas line, pipes, or hoses. If in doubt, contact your utility or telephone company to locate underground services.
4. Keep all bystanders, children, and pets at least 23m away. If you are approached, stop the unit immediately.
5. Walk, never run with the machine.
6. This unit has a clutch. Squeeze the clutch control lever and check that it returns automatically to the neutral position. If it does not, have unit adjusted by a qualified repair personnel.
7. Disengage clutch lever before starting the engine.
8. Start the engine carefully according to instructions and with feet well away from the tines.
9. The tines remain stationary when the clutch is dis-

engaged. If it does not, have unit adjusted by a qualified repair personnel.

1. Always operate the machine from behind, never pass or stand in front of the machine when the engine is running.
2. Always hold the unit with both hands when operating. Keep a firm grip on the handlebars.
3. Be aware that the machine may unexpectedly bounce upward or jump forward if the tines should strike buried obstacles such as large stones, roots, or stumps.
4. If the unit strikes a foreign object, stop the engine, disconnect the spark plug, thoroughly inspect the machine for any damage, and repair the damage before restarting and operating the machine.
5. Use extreme caution when in reverse ornpulling the machine towards you.
6. Do not overload the machine capacity by tilling too deep in a single pass or at too fast a rate.
7. Never operate the tiller at high transport speeds on hard or slippery surfaces.
8. Be careful when tilling in hard ground. The tines may catch in the ground and propel the tiller forward. If this occurs, let go of the handlebars and do not restrain the machine.
9. Use caution when tilling near fences, buildings and underground utilities. Rotating tines can cause property damage or personal injury.
10. Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or traffic. Do not carry passengers.
11. Never leave the operating position when the engine is running.
12. Always stop the engine when tilling is delayed or when walking from one tilling location to another.
13. Keep unit clean of vegetation and other materials. They may become lodged between the tines. Stop the engine and disconnect the spark plug before unclogging the tines.

Repairs

Use only the accessory and spare parts recommended by the manufacturer. If the machine suers a failure despite our quality controls and your care, have repair work carried out only by a trained electrician.

Environmental protection

Do not simply dispose of the machine, accessories and packaging in the dustbin, but ensure that it can be recycled. A small amount of effort on your part can do a great deal of good for our environment.

Residual risks

Even though using the machine properly there will always remain a residual risk which can't be eliminated. From the type and construction of the machine

following dangers can occur:

• Ejection of parts of the cutting material
• Damage of hearing if no prescribed hearing protection is worn
• Inhalation of the cutting material
• This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the tool.

6. Technical data

Engine: 4-stroke engine,1 4 4 cm ^3

Engine rating: 2.5 kW/ 3.5 hp

Engine working speed: 3600 rpm

Working width: 450 mm

Hoe blade diameter ∅: 290 mm

Starting system: reversing starter

Fuel:	Unleaded petrol	min. 91 octane
	max. 5 %	bio-ethanol

Engine oil:	0.4l
(10W-30 / 10W-40 / SAE 30)
Tank capacity:	0.8 l
Weight:	34.0 kg
Spark plug:	LG F6RTC
Depth:	130 mm

Measured acoustic power level L_pA : 71.23 dB

K uncertainty: 2 dB

Measured acoustic power level L_wA : 91.23 dB

K uncertainty: 2 dB

Guaranteed acoustic power level L_wA : 93 dB

Vibration value ahw: (left) 11.08 m/s ^2 (right) 15.72 m/s ^2

K uncertainty: 1.5 m/s ^2

ATTENTION: The value of vibration emitted during product usage may differ from the declared value depending on the circumstances.

Safety measures to protect the operator are based on an estimate of exposure under normal conditions of use (taking into account all operating cycles such as the time when the tool is shut off, when operating empty or in use).

7. Assembly

1. At first check all parts of the device and place them in front of you on the floor (Fig. 2 + 3).

2. To enhance the stability of the machine mount the depth stop (10) and fix it with pin (B) (Fig. 5).

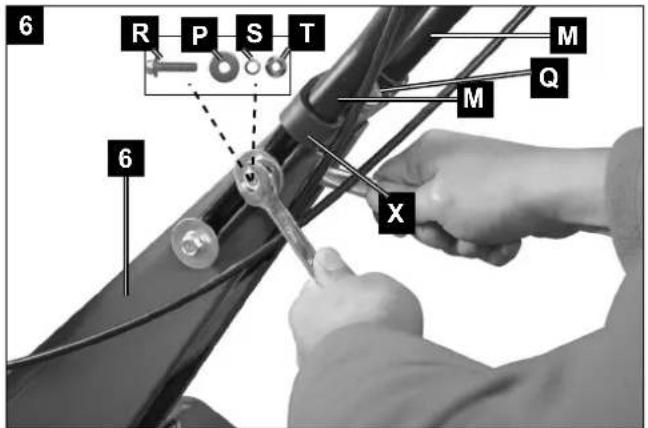

3. Mount the handles (M) at the handle bar mount (6) with the delivered bolts (Fig. 6).

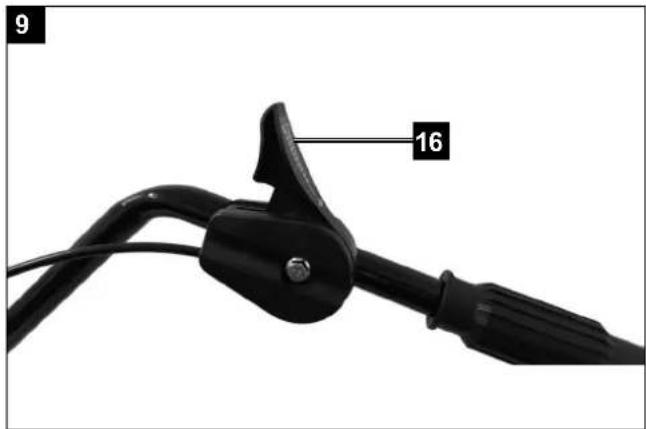

4. Mount the accelerator (16) as shown in figure 9.

8. Function

Throttle Lever (16)

It controls engine speed. Moving the throttle lever in the directions shown makes the engine run faster or slower. (Fig. 14)

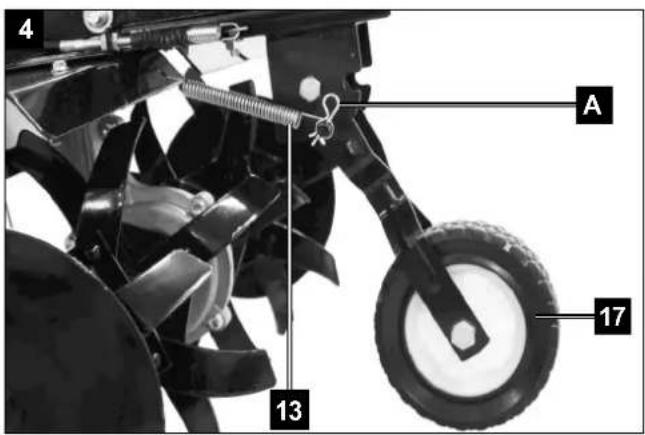

Wheel (17)

The spring locks wheel bracket at different height and distance from the tines. Pull the spring-connected wheel bracket downwards to raise the wheel in the upper groove when tilling. Set the wheel down when transporting the tiller. Tilt the machine back until the tines clear the ground. Push or pull the unit to the next location. (Fig. 13)

Depth Regulator Rod (10)

It regulates the tilling depth and helps the operator control the direction and speed of the tiller. Insert the depth regular rod in the groove at the rear of the chassis, with the pointed end downward and the side outward. Lowering the depth regulator rod will slow the tiller and make it till deeper. Raising the depth regulator rod will allow it to move faster and till shallower. (Fig. 5)

To adjust the tilling depth (Fig. 5):

1. Remove the pin. (Pos. B)
2. Raise or lower the depth regulator rod to the desired position. (Pos. 10)
3. Replace the pin. (Pos. B)

9. Operation

Adding motoroil and gasoline

⚠️ ATTENTION! OIL HAS BEEN DRAINED FOR SHIPPING.

Failure to fill engine sump with oil before starting engine will result in permanent damage and void engine warranty.

1. Check the oil level and top up if necessary oil. (Max mark on the oil level indicator) (Fig. 11).
2. Open the fuel tank cap (2) and fill the device with regular unleaded gasoline. (Fig. 12).

Starting the motor

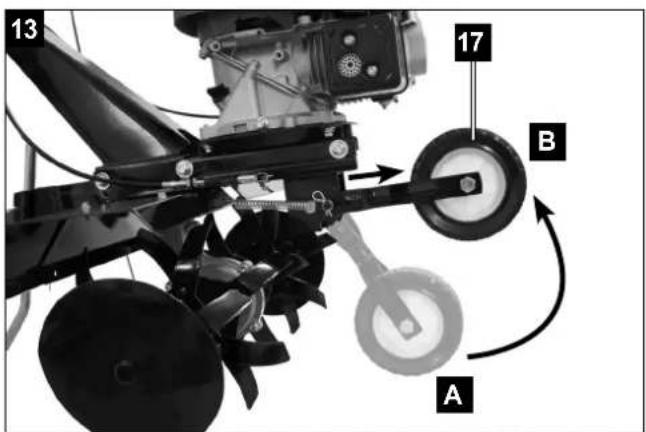

1. Pivot the wheel (17) upwards until the locking engages on the intended recess (Fig. 13).
2. Put the accelerator (16) into position (Fig. 14) A= Full throttle

B= Idle

C= Stop

1. Set the throttle lever to the position "A". Start the motor using the recoil starter (1). To do this, first gently pull until you feel resistance, then pull hard all the way. Repeat this operation until the motor starts up. If the motor still does not start up after ten attempts, refer to the "TROUBLESHOOTING" section in this manual.
2. For operating the blades withdraw the accelerator trigger lock (5) and pull the clutch handle (3) to start the rotation of the blades. Keep the clutch handle (3) pushed downwards. Release the clutch to stop the blades (Fig. 15+16).

9.1 Idle Speed (Fig. 14)

Set throttle control lever (16) to its "B" position to reduce stress on the engine when tilling is not being performed. Lowering the engine speed to idle the engine will help extend the life of the engine, as well as conserve fuel and reduce the noise level of the machine.

9.2 Shutting Down (Fig. 14 + 15)

Release tine clutch control lever (3) to neutral position "C" to stop the tines. To stop the engine switch the throttle lever to position "C"

9.3 Operating Speed (Fig. 14)

For normal tilling:

• set the accelerator (16) to “for best tiller action. (Pos. A)

Cultivating.

- The accelerator (16) should be set to control a slow walking speed “for cultivating. (Pos. C)

10. Working instructions

10.1 Depth regulator

Besides depth regulator rod setting, variation of pressure on the handles also helps further control of tilling depth and travel speed. A downward pressure on the handles will reduce the tilling depth and increase the forward speed. An upward pressure on the handles will increase the working depth and reduce the forward speed.

10.2 Tiling

Tilling is digging in, turning over and breaking up garden soil and preparing a seedbed for planting. Best tilling depth is 100 mm to 150 mm. A tiller will also clear the soil of unwanted vegetation. The decomposition of this vegetation matter enriches the soil.

Avoid tilling soil that is too dry as it will pulverize and produce a dust that will not hold water

- Water a few days before tilling.

Also, tilling soil that is too wet will produce unsatisfactory clods.

- Wait a day or two after heavy rain for the soil to dry.

Better growth will be obtained if an area is tilled properly and used soon after tilling to preserve the moisture content.

The type of soil and working conditions will determine the actual setting of the tilling depth. In some soils, the desired depth is reached by first passing over garden. In other soils, the desired depth is obtained by going over the garden two or three times. In later case, the depth regulator rod should be lowered before each succeeding pass over the garden. Passes should be made across the length and width of the garden alternately.

Do not try to dig too deeply in the first pass. If the machine jumps or bucks, allow the unit to move forward at a lightly faster rate.

If the tiller stops forward motion and tries to dig in one spot, rock the handles from side to side to start it moving forward again.

Rocks which are turned up should be removed from the garden area.

10.3 Cultivating

Cultivating is loosening or digging around growing plants to disrupt weeds and aerate soil. Less than 50mm depth is always desirable.

11. Maintenance

Keeping your tiller in top running condition will prolong its life, and help you obtain optimum performance whenever you wish to till your garden.

Cleaning Tine Area

Clean the tiller underside of the tine shield after each use. The dirt washes off tines easier if rinsed off immediately instead of after it dries.

1. Turn off engine. Engine must be cool.

2. "C" position and remove spark plug wire from spark plug and secure.

3. Remove all vegetation, string, wire, and other materials that may have accumulated to the axle between the inside set of tines and the seal on the transmission housing.

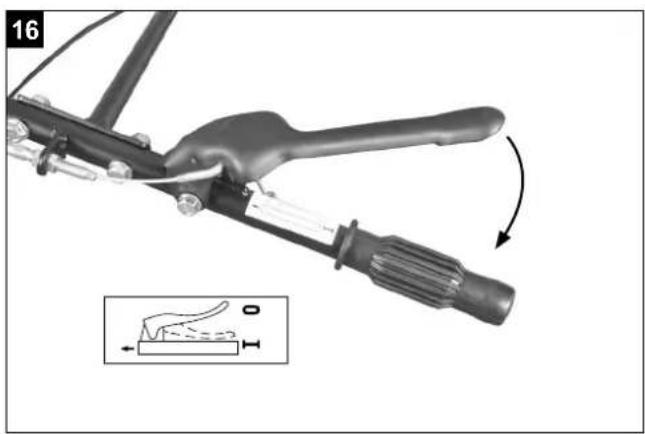

Checking the clutch

1. As clutch wears out, the same lever could have

a wider opening, being so uneasy to use. This means that it is necessary to adjust the cable, setting clutch lever on its original position acting on the adjustment device and on counternut.

1. Always towel dry the tiller afterwards and apply a light coat of oil or silicone to prevent rusting or water damage.
2. Replace spark plug wire.

ATTENTION! Never use a "pressure washer" to clean your tiller. Water can penetrate tight areas of the tiller and its transmission case and cause damage to spindles, gears, bearings, or the engine. The use of pressure washers will result in shortened life and reduce serviceability.

Maintaining the spark plug (Fig. 17)

You must inspect the spark plug after every 50 hours of actual operation.

Check the color of any deposits that have accumulated on the end of the spark plug, it should be "light brown".

Remove any deposits with a stiff brush, preferably a brass-wire brush. Check the gap between the spark plug electrodes and adjust it if necessary. This gap must be between 0.7 and 0.8 mm.

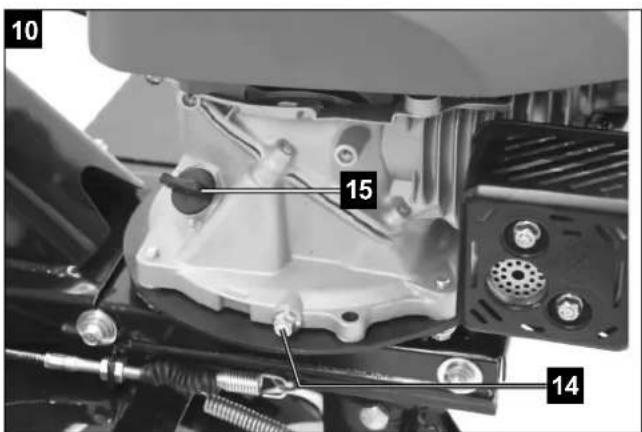

Replacing the motor oil (Fig. 10)

When:

After 20 hours of operation

After 100 hours of operation

Place the machine on a flat stable surface, and let the motor run for a few minutes.

Then shut off the motor. Remove the oil fill plug (15). Place a receptacle underneath the motor to collect the spent oil.

Unscrew the oil drain plug (14) and let the oil flow out completely. Use a hose or any other appropriate instrument to prevent the oil from running onto the pump frame. Check the condition of the oil drain plug (14), its joint, the fill plug (15) and its toric joint; replace any defective parts. Screw the drain plug (14) back on. Pour the new oil into the case, until the maximum level is reached.

Air filter (22) (Fig. 18)

You must examine the condition of the air filter and clean it after every 50 hours of actual use or every 3 months. Hold the air filter while unscrewing the wing nut and remove the air filter.

To clean it, use an environmentally-friendly water-based de-greasing product. Let the air filter dry completely, re-assemble it and put on its cover. Caution! Never run the motor without its air filter.

Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Wear parts*: spark plug, blades, air filter, all operating fluids/fuels

* Not necessarily included in the scope of delivery!

12. Storage

If the tiller will not be used for a period longer than 30 days, follow the steps below to prepare your tiller for storage.

1. Drain the fuel tank completely. Stored fuel containing ethanol or MTBE can start to go stale in 30 days. Stale fuel has a high plastic content and can clog the carburetor and restrict fuel flow.

2. Start the engine and allow it to run until it stops. This ensures no fuel is left in the carburetor. Run the engine until it stops. This helps prevent plastic deposits from forming inside the carburetor and possible engine damage.

3. While the engine is still warm, drain the oil from the engine. Refill with fresh oil of the grade recommended in the Engine Manual.

4. Allow the engine to cool. Remove the spark plug and put 30 ml of high quality motor oil into the cylinder. Pull the starter rope slowly to distribute the oil. Replace the spark plug.

⚠️ ATTENTION! Remove the spark plug and drain all of the oil from the cylinder before attempting to start the unit after storage.

1. Use clean cloths to clean off the outside of the tiller and to keep the air vents free of obstructions.

⚠️ ATTENTION! Do not use strong detergents or petroleum based cleaners when cleaning plastic parts. Chemicals can damage plastics.

1. Inspect for any loose or damaged parts. Repair or replace damaged parts and tighten loose screws, nuts or bolts.

2. Remove the tines. Clean and apply oil to the tines and tine shafts to prevent rusting. Mount the tines onto the tine shafts.

3. Coat the wheel axles lightly with oil. Oil the throttle cables and all visible moving parts. Do not remove the engine cover.

4. Store your tiller in upright position in a clean, dry building that has good ventilation.

5. △ ATTENTION! Do not store tiller with fuel in a non-ventilated area where fuel fumes may reach flame, sparks, pilot lights or any ignition sources. Use only approved fuel containers.

13. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

You can find out how to dispose of the disused device from your local authority or city administration.

Fuels and oils

- Before disposing of the unit, the fuel tank and the engine oil tank must be emptied!

- Fuel and engine oil do not belong in household waste or drains, but must be collected or disposed of separately!

- Empty oil and fuel tanks must be disposed of in an environmentally friendly manner.

14. Troubleshooting

Problem Possible cause Solution
Motor does not start up 1. The	starter is not in the correct position for the prevailing conditions2. The reservoir is empty3. The air filter components are dirty4. Spark plug is loose5. Spark plug wire improperly attached or disconnected from the outlet6. Incorrect spark plug gap7. Defective spark plug8. Carburetor immersed in gasoline - Gas switch is in the OFF position	1. Move the starter to the appropriate position2. Fill the tank3. Clean the air filter components4. Tighten the plug to 25-30 Nm5. Attach the plug wire to the plug6. Adjust the spacing between the electrodes to between 0.7 to 0.8 mm7. Install a new spark plug that is correctly placed8. Remove the air filter and pull on the starter cable continually until the carburetor cleans itself and reinstall the air filter Set the gasoline switch to the position
Motor has trouble starting or loses power	1. Lighter module defective2. Dirt, water or mold from the gas tank3. The hole in the tank stopper is obstructed4. The air filter components are dirty	1. Contact the vendor service2. Drain the reservoir, clean it and fill it with clean fresh gasoline3. Clean or replace the tank plug4. Clean the air filter components
Motor operates irregularly 1. Air	air filter components are dirty2. The throttle level is blocked by debris3. Cooling fins and air passages under the motor are blocked	1. Clean the air filter components2. Remove any projectile debris3. Remove any debris from the cooling fins and the air passage
Motor locks up at high speeds	1. The gap between the spark plug electrodes is too small.	1. Adjust the spacing between the electrodes to between 0.7 and 0.8 mm
Motor overheats 1. Cooling air	flow is obstructed.2. Defective spark plug.	1. Remove all debris from the mounting, ventilator, air passages and cooling fins2. Install an LG F6TC spark plug.
Motor vibrates abnormally	1. The tiller has not been properly assembled. The power tiller assembly is not balanced	1. Check that all parts of the engine are properly assembled

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Tisztelt vásárló!

Günzburger Straße 69

D-89335 Ichenhausen

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Austatud Klient!

Günzburger Straße 69

D-89335 Ichenhausen

Gerbiamas Kliente,

Günzburger Straße 69

D-89335 Ichenhausen

Godātais Klient!

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Estimado cliente:

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

9.1 Stationair (afb. 14)

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny kliencie,

Günzburger Straße 69

D-89335 Ichenhausen

Bästa Kund!

Günzburger Straße 69

D-89335 Ichenhausen

Arvoisa asiakas

Exploded view diagram of a mechanical assembly with numbered components and exploded views

EU Declaration of Conformity

Standard references:

EN 709/A4:2009; EN ISO 14982

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Stefan Hartinger

Günzburger Str. 69, D-89335 Ichenhausen

Garantiebedingungen

Revisionsdatum 26.11.2021

https://www.scheppach.com/de/service scheppach

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyeris rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
