USER MANUAL MTP470 SCHEPPACH

Black-and-white photo of a Scheppaeh 208-cc tiller with visible blade and headstock (no text or symbols on the machine body)

MTP470

DE	Benzin-TriebradhackeOriginalbetriebsanleitung
GB	Petrol rotavatorOriginal operating Instructions
FR	Rotovateur cultivateurTraduction des instructions d'origine

DE	Benzin-TriebradhackeOriginalbetriebsanleitung	7-17
GB	Petrol Power CultivatorOriginal operating Instructions	18-27
FR	Motobêche à essenceMode d'emploi d'origine	28-38

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 1b scheppach

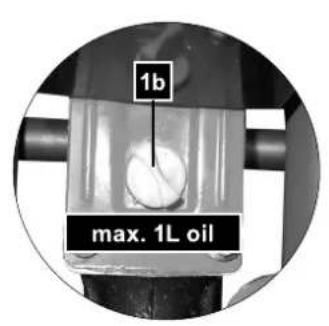

1b max. 1L oil

11 12

1b 1c 1d

Close-up of a mechanical component with a central screw-like feature and a labeled section '1e' (no other text or symbols visible)

2

3 2d 3a 6 3a

4 6 2d 2a

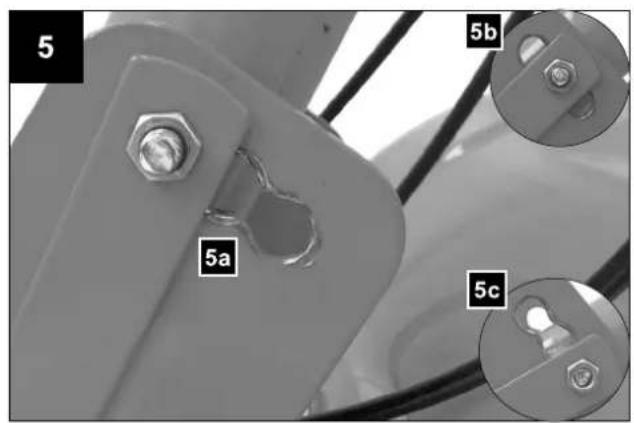

Close-up of mechanical components with labeled parts (5, 5a, 5b, 5c) and bolted joints, no readable text or symbols beyond labels

6 2c 5 6

7 1 2b 7a

8 1 2

9 2b 1 2b

10 2e 16 10a 2e

11 14 14 2f

12 12a 2f 14

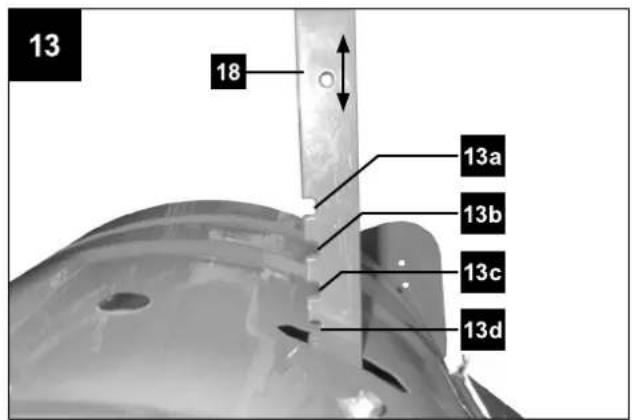

13 18 13a 13b 13c 13d

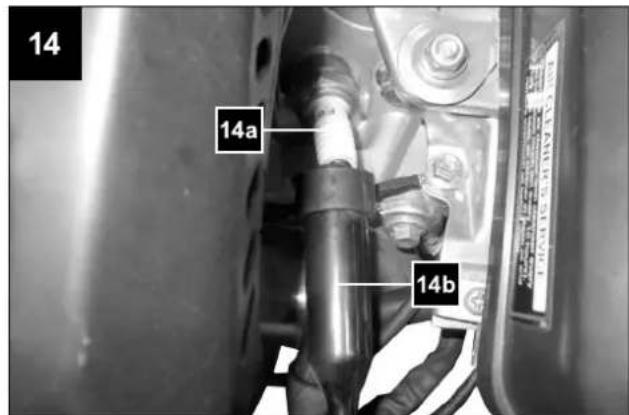

14 14a 14b

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Safety warning symbols and pictograms depicting human and non-human workers with hazard signs

Kaltstart

Description of the symbols

Read instruction manual and safety instructions before starting up and pay attention!

Wear ear protection!

Wear safety goggles!

Wear work gloves!

Wear robust footwear when using the device!

Open fires forbidden!

Attention! Do not touch rotating parts. There is serious risk of injury!

Do not remove or modify protection and safety devices.

Attention! Hot components - Do not touch

Risk of catapulted parts if the engine is running. Be sure to keep a safe distance.

Keep bystanders away from the device!

Do not remove or modify protection and safety devices.

1. Introduction

Manufaturer:

Scheppach

Günzburger Straße 69

D-89335 Ichenhausen

Dear customer,

We hope your new tool brings you much enjoyment and success.

Note:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
  • Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service technicians,
• Installation and replacement of non-original spare parts,
• Application other than specified.

We recommend:

Read through the complete text in the operating instructions before installing and commissioning the device. The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations. The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country.

Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

In addition to the safety instructions contained in this manual and the special regulations of your country, the technical rules generally accepted for the operation of identical devices must be observed.

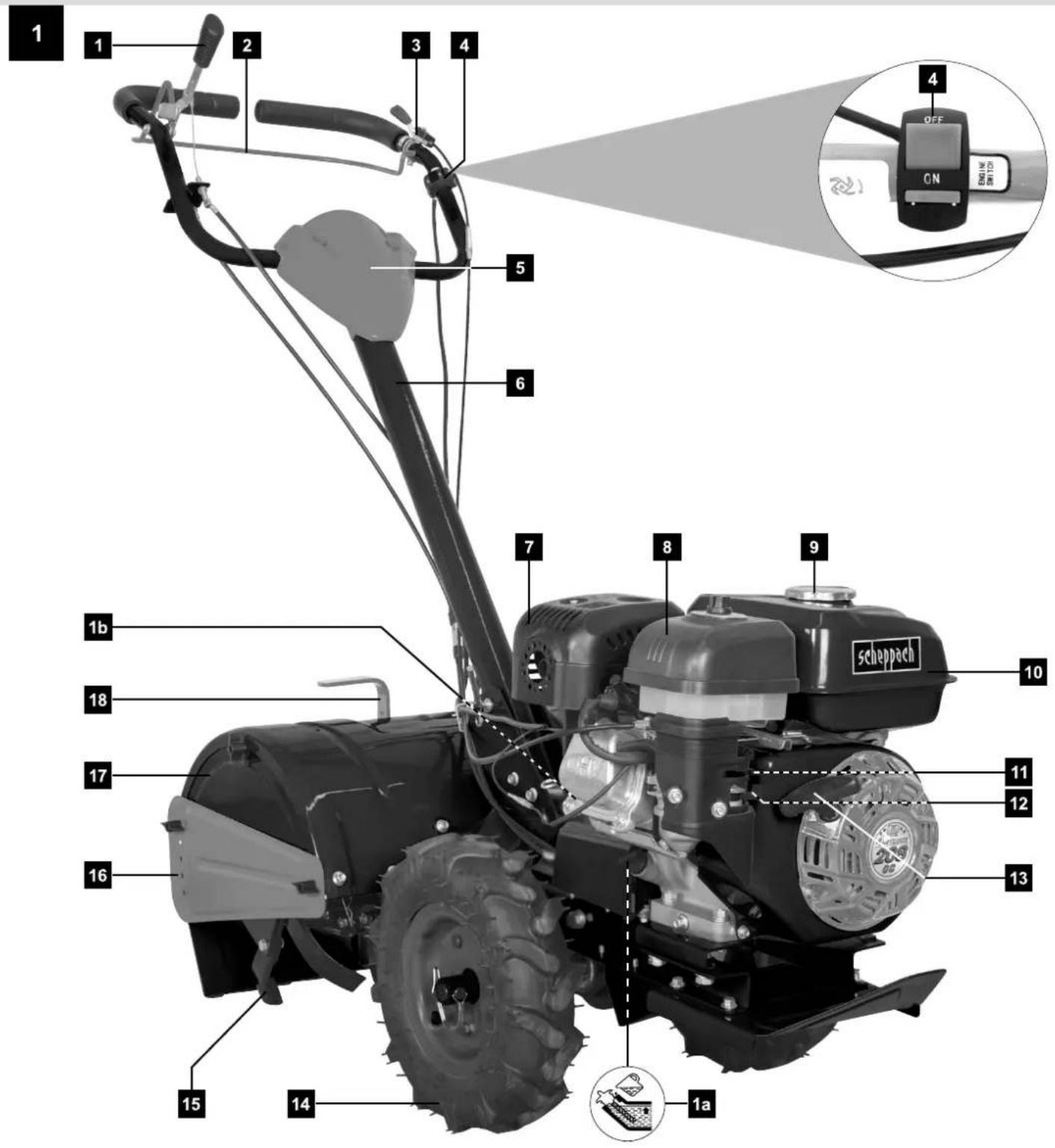

2. Device description (Fig. 1)

1. Reverse gear
2. Forward gear
3. Throttle
4. On/off switch
5. Plastic cover
6. Steering column
7. Exhaust cover
8. Air filter cover
9. Tank cover
10. Fuel tank
11. Choke - lever
12. Fuel valve
13. Cable pull
14. Wheels
15. Cutter
16. Side guard
17. Protective guard
18. Depth limiter

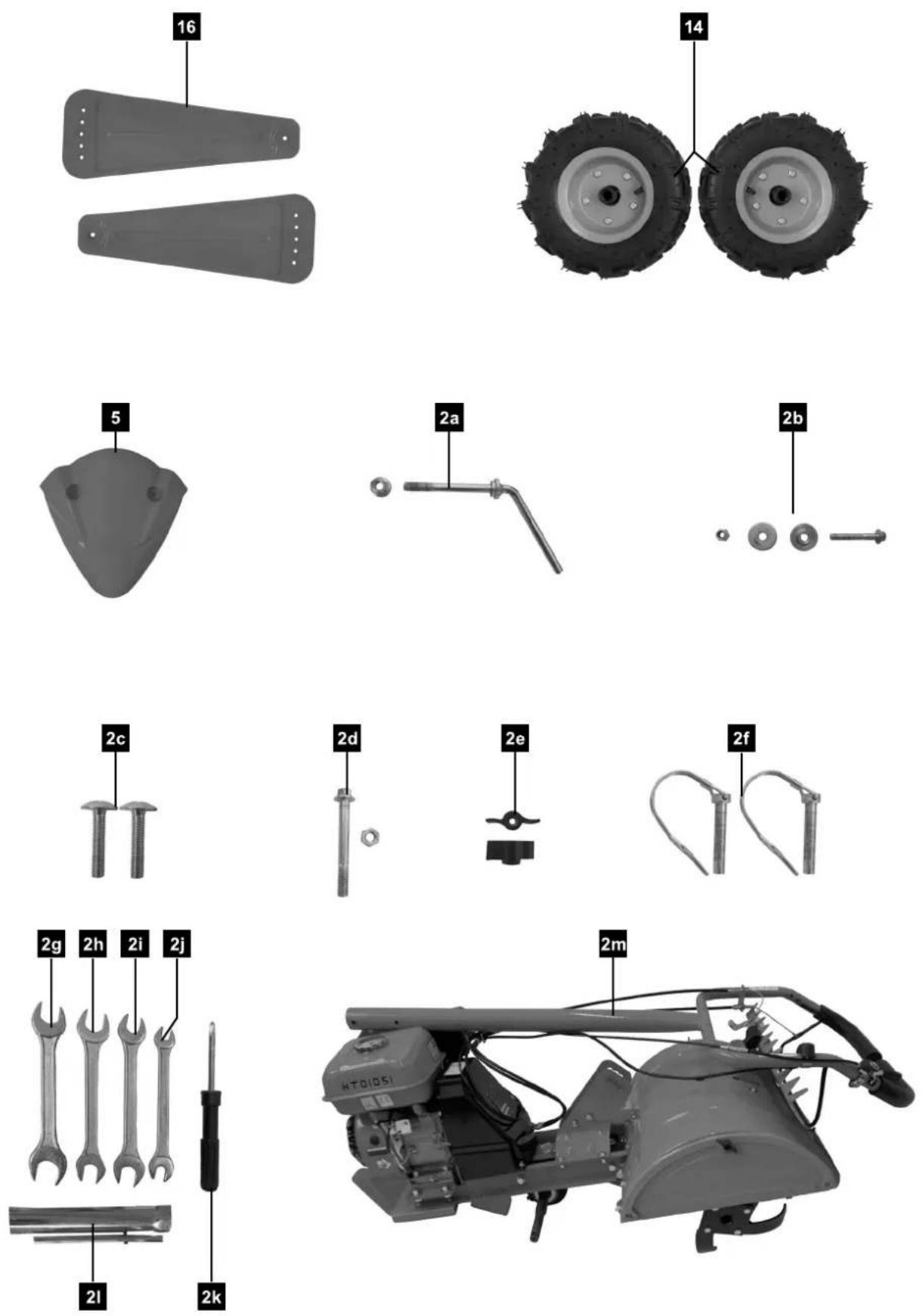

3. Scope of delivery (Fig. 1+2)

2a Clamping lever (1x)
2b Hexagonal flanged screw, collar bushing, washer and locknut (1x)
2c Fillister head flanged screw and hexagonal nut (2x)
2d Hexagonal flanged screw and hexagonal nut (1x)
2e Wing nut (6x)
2f Tube clip (2x)
2g Hexagonal open-end spanner 17/19 (1x)
2h Hexagonal open-end spanner 13/16 (1x)
2i Hexagonal open-end spanner 12/14 (1x)
2j Hexagonal open-end spanner 8/10 (1x)
2k Screwdriver (cross-head) (1x)
2I Spark plug wrench (1x)
2m Housing with engine / gearbox and steering bar (1x)

• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport damage. When complaints the dealer must be informed immediately. Subsequent complaints will not be accepted.
• If possible, store the packaging until the warranty period has expired.
• Read the operating instructions to make yourself familiar with the device prior to using it.
• Only use original parts for accessories as well as for wearing and spare parts. Spare parts are available from your specialized dealer.
• Specify our part numbers as well as the type and year of construction of the device in your orders.

ATTENTION!

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

4. Intended use

The machine is designed for digging over beds and fields. Be sure to observe the restrictions in the additional safety instructions.

The equipment is allowed to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind resulting from such misuse.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Safety instructions

General safety rules

Understand your machine.

Read and understand the operator's manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards peculiar to it. Be thoroughly familiar with the controls and their proper operation. Know how to stop the machine and disengage the controls quickly.

Make sure to read and understand all the instructions and safety precautions as outlined in the Engine Manufacturer's Manual, packed separately with your unit. Do not attempt to operate the machine until you fully understand how to properly operate and maintain the Engine and how to avoid accidental injuries and/or property damage.

Safety at work area

Never start or run the engine inside a closed area. The exhaust fumes are dangerous, containing carbon monoxide, an odorless and deadly gas.

Operate this unit only in a well ventilated outdoor area.

Never operate the machine without good visibility or light.

Never operate the machine on a steep slope.

Always work transversally, not up and down.

Personal safety

1 Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly.

2 Dress properly. Wear heavy long pants, boots and gloves. Do not wear loose clothing, short pants, and jewelry of any kind. Secure long hair so it is above shoulder level. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

3 Use safety equipment. Always wear eye protection.
4 Safety equipment such as a dust mask, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
5 Check your machine before starting it. Keep guards in place and in working order. Make sure all nuts, bolts, etc. are securely tightened.
6 Never operate the machine when it is in need of repair or is in poor mechanical condition.
7 Replace damaged, missing or failed parts before using it. Check for fuel leaks. Keep the machine in safe working condition.
8 Never tamper with safety device. Check their proper operation regularly.
9 Do not use the machine if the engine's switch does not turn it on or off. Any gasoline powered machine that can not be controlled with the engine switch is dangerous and must be replaced.
10 Form a habit of checking to see that keys and adjusting wrenches are removed from machine area before starting it. A wrench or a key that is left attached to a rotating part of the machine may result in personal injury.
11 Stay alert, watch what you are doing and use common sense when operating the machine.
12 Do not overreach. Do not operate the machine while barefoot or when wearing sandals or similar lightweight footwear. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces.
13 Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations.
14 Avoid accidental starting. Be sure the engine is off before transporting the machine or performing any maintenance or service on the unit. Transporting or performing maintenance or service on a machine with engine on invites accidents.

Fuel Safety

1 Fuel is highly flammable, and its vapors can explode if ignited. Take precautions when using to reduce the chance of serious personal injury.

2 When refilling or draining the fuel tank, use an approved fuel storage container while in a clean, well-ventilated outdoor. Do not smoke, or allow sparks, open flames or other sources of ignition near the area while adding fuel or operating the unit. Never fill fuel tank indoors.

3 Keep grounded conductive objects, such as tools, away from exposed, live electrical parts and connections to avoid sparking or arcing. These events could ignite fumes or vapors.

4 Always stop the engine and allow it to cool before filling the fuel tank. Never remove the cap of the fuel tank or add fuel while the engine is running or when the engine is hot. Do not operate the machine with known leaks in the fuel system.

5 Loose the fuel tank cap slowly to relieve any pressure in the tank.

6 Never over fill fuel tank. Fill tank to no more than 12.5mm (1/2" below the bottom of the filler neck to provide space for expansion as the heat of the engine can cause fuel to expand).
7 Replace all fuel tank and container caps securely and wipe up spilled fuel. Never operate the unit without the fuel cap securely in place.
8 Avoid creating a source of ignition for spilled fuel. If fuel is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until fuel vapors have dissipated.
9 Store fuel in containers specifically designed and approved for this purpose.
10 Store fuel in a cool, well-ventilated area, safely away from sparks, open flames or other sources of ignition.
11 Never store fuel or machine with fuel in the tank inside a building where fumes may reach a spark, open flame, or other sources of ignition, such as a water heater, furnace, clothes dryer and the like. Allow the engine to cool before storing in any enclosure.

Instructions for use and maintenance of the machine

1 Never pick up or carry a machine while the engine is running.
2 Do not force the machine. Use the correct machine for your application. The correct machine will do the job better and safer at the rate for which it was designed.
3 Do not change the engine governor settings GB or over-speed the engine. The governor controls the maximum safe operating speed of the engine.
4 Do not run the engine at a high speed when you are not tilling.
5 Do not put hands or feet near rotating parts
6 Avoid contact with hot fuel, oil, exhaust fumes and hot surfaces. Do not touch the engine or muffler. These parts get extremely hot from operation. They remain hot for a short time after you turn off the unit. Allow the engine to cool before doing maintenance or making adjustments.
7 If the machine should start to make an unusual noise or vibration, immediately shut off the engine, disconnect the spark plug wire, and check for the cause. Unusual noise or vibration is generally warning of trouble.
8 Use only attachments and accessories approved by the manufacturer. Failure to do so can result in personal injury.
9 Maintain the machine. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the machine's operation. If damaged, have the machine repaired before use. Many accidents are caused by poorly maintained equipment.
10 Keep the engine and muffler free of grass, leaves, excessive grease or carbon build up to reduce the

chance of a fire hazard.

11 Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
12 Never douse or squirt the unit with water or any other liquid. Keep handles dry, clean and free from debris. Clean after each use.
13 Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment.
14 Store idle machine out of the reach of children and do not allow persons unfamiliar with the machine or these instructions to operate it. Machine is dangerous in the hands of untrained users.

Instructions for maintenance

Before cleaning, repair, inspecting, or adjusting, shut off the engine and make certain all moving parts have stopped. Disconnect the spark plug wire, and keep the wire away from the plug to prevent accidental starting. Have your machine serviced by qualified repair personnel using only identical replacement parts. This will ensure that the safety of the machine maintained.

Specific safety rules for Petrol Power Cultivator

1 Thoroughly inspect the area to be tilled, and remove all debris and hard or sharp objects such as stones, sticks, glass, wire, bones, etc.
2 Do not operate tiller in soil with large rocks and foreign objects which can damage the machine.
3 Do not till above underground electric cables, telephone lines, water lines, gas line, pipes, or hoses. If in doubt, contact your utility or telephone company to locate underground services.
4 Keep all bystanders, children, and pets at least 23m away. If you are approached, stop the unit immediately.
5 Walk, never run with the machine.
6 This unit has a clutch. Squeeze the clutch control lever and check that it returns automatically to the neutral position. If it does not, have unit adjusted by a qualified repair personnel.
7 Disengage clutch lever before starting the engine.
8 Start the engine carefully according to instructions and with feet well away from the tines.
9 The tines remain stationary when the clutch is disengaged. If it does not, have unit adjusted by a qualified repair personnel.
10 Always operate the machine from behind, never pass or stand in front of the machine when the engine is running.
11 Always hold the unit with both hands when operating. Keep a firm grip on the handlebars.
12 Be aware that the machine may unexpectedly bounce upward or jump forward if the tines should strike buried obstacles such as large stones, roots, or stumps.
13 If the unit strikes a foreign object, stop the engine, disconnect the spark plug, thoroughly inspect the machine for any damage, and repair the damage before restarting and operating the machine.

14 Use extreme caution when in reverse ornpulling the machine towards you.
15 Do not overload the machine capacity by tilling too deep in a single pass or at too fast a rate.
16 Never operate the tiller at high transport speeds on hard or slippery surfaces.
17 Be careful when tilling in hard ground. The tines may catch in the ground and propel the tiller forward. If this occurs, let go of the handlebars and do not restrain the machine.
18 Use caution when tilling near fences, buildings and underground utilities. Rotating tines can cause property damage or personal injury.
19 Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or traffic. Do not carry passengers.
20 Never leave the operating position when the engine is running.
21 Always stop the engine when tilling is delayed or when walking from one tilling location to another.
22 Keep unit clean of vegetation and other materials. They may become lodged between the tines. Stop the engine and disconnect the spark plug before unclogging the tines.

6. Technical data

Engine:	H170F
Engine rating: 4,2 kW / 5,7 PS
Engine working speed: 3600 min	-1
Working width: 480 mm
Blades diameter ∅: 320 mm
Starting system: Reversing starter
Fuel:	Unlead

min. 91 octane max.

Engine oil:	0,6 l (10W30)
Tank capacity:	3.6 l
Weight:		70
Spark plug:		F7RTC
Speed
Forwards
Forward gear	1,83 km/h
Backwards
Reverse gear	1,83 km/h

Information concerning noise emission measured according to relevant standards:

Sound pressure L_pA = 85 dB(A)

Uncertainty K = 2 dB(A)

Sound power L_WA = 98 dB(A)

Uncertainty K = 2 dB(A)

Wear ear-muffs.

The impact of noise can cause damage to hearing.

Vibration A_hv (left/right) = 4,0 / 4,5 m/s²

Uncertainty K = 2 m/s ^4

Reduce noise generation and vibration to a minimum!

• Use only equipment that is in perfect condition.
• Maintain and clean the equipment regularly.
• Adopt your way of working to the equipment.
• Do not overload the equipment.
• Have the equipment checked if necessary.
• Switch off the equipment when not in use.
• Wear gloves.

7. Assembly

At first check all parts of the device and place them in front of you on the floor.

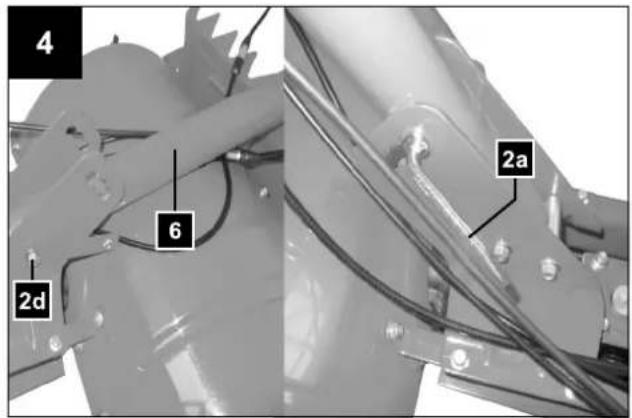

Installing the steering bar (6) (fig. 3-5)

Proceed as follows to install the steering bar (6):

• Place the steering bar between the two panels (3a) (fig. 3).
• Fasten the steering bar with the hexagonal screw and the nut (2d)
• Adjust the height of the bar by loosening the clamping lever (2a) (fig. 4+5).

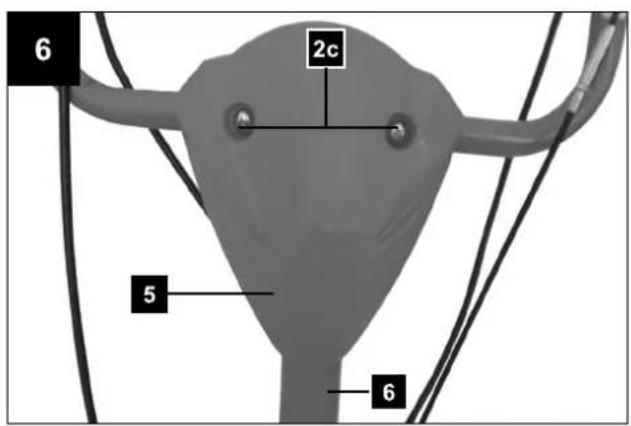

Installing the plastic cover (5) (Fig. 6)

- Fasten the plastic cover (5) onto the steering bar (6) (Fig. 6). Use the screws (2c) (Fig. 6) for this.

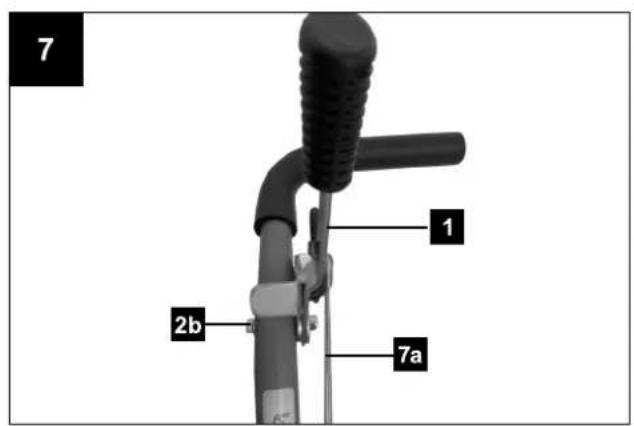

Installing the reversing lever (1) (Fig. 7-9)

• Fasten the Bowden cable to the bottom hole of the lever (1). 208cm ^3
• Fasten the lever (1) to the steering bar with the hexagonal flanged screw, the collar bushing, the washer and the locknut (2b) (fig. 7). [pre-assemble loosely]

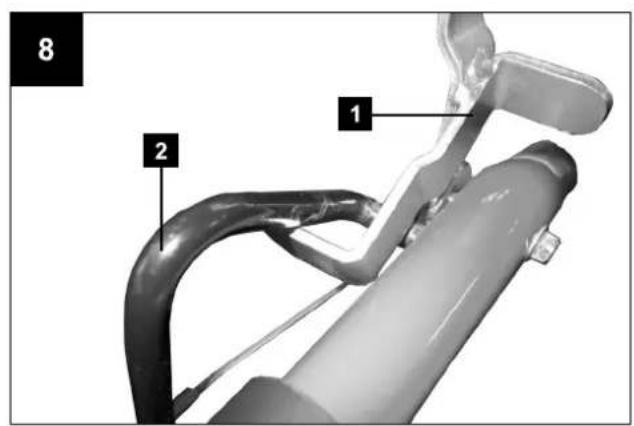

• Then guide the lever (1) between the forward gear levpe(2)l (fig. 8)

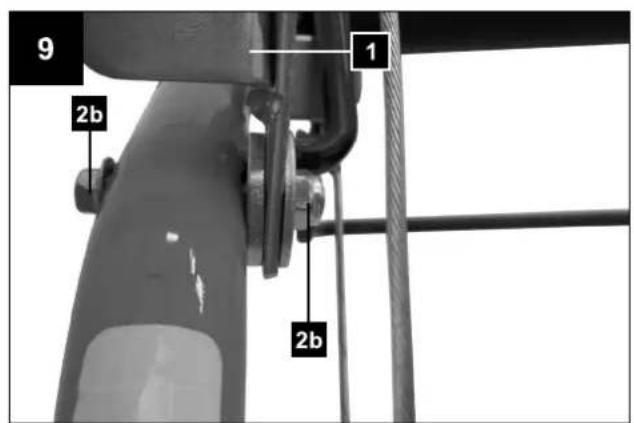

  • Tighten the nut (2b) (fig. 9)

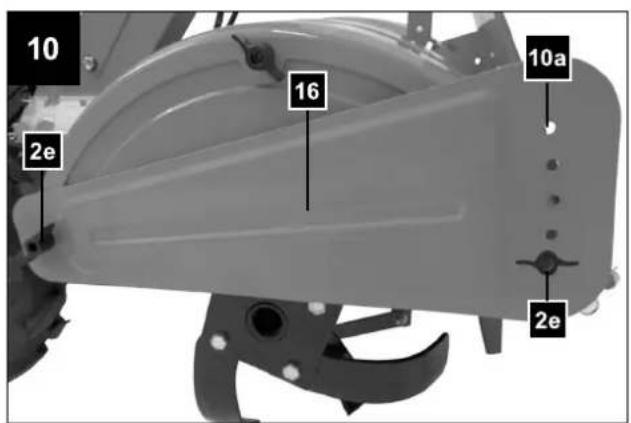

Installing the side guards (16) (Fig. 10)

• Position the side guards (16) on the threaded pins kg and fasten the guards with the wing nuts (2e) (fig. 10).
- You can change the height of the side guards by loosening the wing nuts (2e) and setting the guards to the desired height with the help of the holes (10a).

⚠️ ATTENTION! Mounting the protective housing is compulsory!

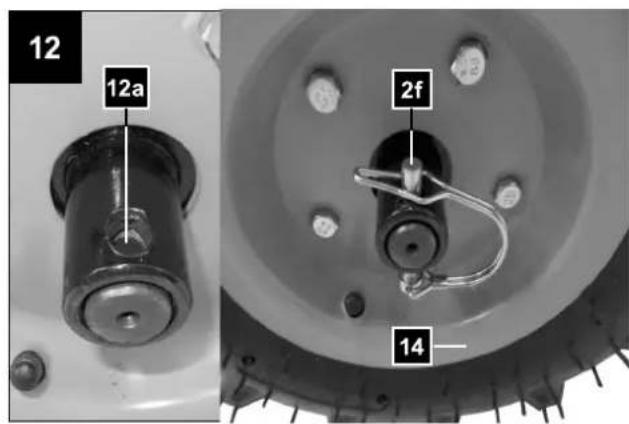

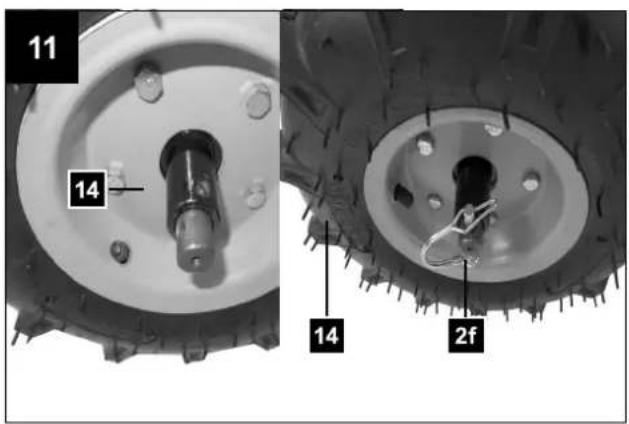

Installing the wheels (14) (Fig. 11), transport position

• Remove the tube clip (2f). Fit the wheels onto the wheel axle and slide the wheels on far enough that the hole in the wheel axle projects from the front of the wheels (fig.11).
• Insert the tube clip (2f) through the hole in the wheel axle in order to secure the wheels to prevent them sliding off the wheel axle (fig.11).
  • The wheels can rotate freely on the wheel axle.

Installing the wheels (14) (Fig. 12), driven operation

• Remove the tube clip (2f) and align the holes (9a) (fig. 11).
• Insert the tube clip (2f) through the hole in the wheel axle in order to secure the wheels to prevent them sliding off the wheel axle (fig.12).

△ ATTENTION! Always fasten both wheels in driven position or use both wheels in free-wheeling position. Never use the machine with only one driven wheel.

ATTENTION! The securing bolt can become loose and interfere with the operation of the machine if not installed correctly. This can damage the machine and put the safety of the operator at risk!

Working depth setting (18)

• Pull the working depth adjuster (18) backwards and slide it up or down.
• Cut-out 10a is for transport (fig. 13).

The depth of the depth limiter can be set in various positions. (13b-13d) (Abb.13)

⚠️ ATTENTION! The device is supplied without gear oil, engine oil and fuel.

Filling with engine oil

Check the engine oil level.

The engine may be permanently damaged and the engine warranty voided, if the engine sump is not filled with oil before the engine is started.

Filling with gear oil

Check the gear oil level.

The gearbox may be permanently damaged and the gearbox warranty voided, if the gearbox is not filled with oil before starting up (see "Maintenance & Cleaning" chapter).

8. Function

Forward gear (2)

The rotavator cutters are set into forward motion by actuating the lever (2). If released, the machine will stop.

Reverse gear (1)

The rotavator cutters are set into reverse motion by actuating the lever (1). The lever must be pulled backwards.

Throttle (3)

It controls the engine speed. The engine runs faster or slower when the throttle is pulled in the directions shown.

Working depth setting (18)

The working depth is set with this. It supports the operator in regulating the direction and speed of the mower. The rotavator is slowed down and the working depth increased by raising the depth setting. The speed is increased and the working depth reduced by lowering the depth setting.

9. Operation

9.1 Filling the tank

⚠️ CAUTION! Always wear protective gloves during maintenance work. This product is driven by a four-stroke engine. Store unleaded petrol in a clean container approved for petrol.

Recommended fuel:

This engine is approved for use with unleaded petrol for vehicles with an octane rating of 91 or higher.

Never use superimposed or contaminated petrol or a two-stroke mixture. Do not allow dirt or water to penetrate into the tank.

⚠️ CAUTION! Observe the safety regulations for the handling of fuel. Always stop the engine before refuelling. Never refuel when the engine is running or hot. Only refuel outdoors. Move at least 3 m away from the fuelling location before starting the engine. SMOKING PROHIBITED!

1. Clean the area around the tank cap to avoid any contamination.
2. Slowly loosen the tank cap.
3. Carefully fill the fuel into the tank. Avoid spillages.
4. Wash and clean the strainer before placing the cap on the tank.
5. Immediately replace the tank cap and tighten it by hand. Wipe up spilled fuel.

⚠ CAUTION! Make sure to check for any possible fuel leaks and rectify these before use. Contact a maintenance company if necessary.

9.2 Test before starting work

⚠️ CAUTION! THE CUTTING TOOL SHOULD NOT ROTATE DURING IDLE OPERATION.

Severe injuries may occur if the cutting tool rotates during idle operation.

⚠️ ATTENTION! Only authorized specialist personnel may undertake adjustments to the clutch!

9.3 Starting the engine

⚠️ ATTENTION! Never hold on tightly to the forward gear lever / reverse gear lever during the start procedure, as otherwise the engine will accelerate thereby rotating the cutting tools of the machine with a risk of accidents or injuries. Never wrap the cable cord around your hand.

⚠️ CAUTION! Presence in the hatched area is essential when starting the machine.

Safety warning diagram showing human figures and hazard symbols with a central warning box

Changing gears

⚠️ ATTENTION! Do not release the clutch lever (5) before changing the gear.

Cold start

1. Set the choke lever (11) against the "position.
2. Set the throttle (3) to the "position."
3. Slowly pull the cable (13) several times so that fuel can flow into the carburettor of the engine. Then hold it firmly and pull out the cord a little until you can feel resistance. Then quickly pull the cable (13) without interruption and slowly lead it back again. Do not allow it to spring back. Pull the cable (13) several times if necessary until the engine starts.
4. Let the engine run for a few seconds until it gets warm. Then slowly set the choke lever (11) to the “ ” position.
5. Get a good grip on the two handles using both hands. Press the gear lever (2) upwards. This starts the wheels (14) and the rotavator moves forward.
6. Set the throttle (3) to the desired speed.

Warm start

The choke lever (11) must normally not be actuated if an engine, which is already warm due to an earlier operation, is restarted.

1. Set the throttle (3) to "
2. Firmly hold the start lever (13) and pull out the cord a little until you can feel resistance. Then quickly pull the cable (13) without interruption and slowly lead it back again. Do not allow the cable (13) to spring back.
3. Get a good grip on the two handles using both hands. Press the gear lever (2) upwards. This starts the wheels (14) and the rotavator moves forward.
4. Set the throttle (2) to the desired speed

Initial commissioning of the engine

The engine reaches its full level of performance after the first 5 to 8 operating hours.

Do not allow the machine to run at full drive while stationary during this time to avoid any overload.

Starting problems (too much fuel inside the combustion chamber)

If the engine has not started after 10 attempts, too much fuel may have entered the combustion chamber. Excess fuel can be removed using the above-mentioned warm start procedure. Depending on how much fuel is in the combustion chamber, it may be necessary to pull the starting lever (13) several times.

• Lever the ignition cable (14b) from (Fig.14).
• Insert a suitable tool (2o) into the fitting of the spark plug (14a).
• Unscrew the spark plug (14a) and dry.
• Set the throttle (3) to the “” position.
• Pull the start lever (13) several times to air the carburettor chamber.
• Reinstall the spark plug (14a) and ignition cable (14b)
• Set the choke lever (11) to position “”, even if the engine is cold.
• Set the throttle (3) to the centre position.

- Firmly hold the cable (13) and pull out the cord a little until you can feel resistance. Then quickly pull the cable (13) without interruption and slowly lead it back again. Do not allow the cable (13) to spring back.

9.4 Idle Speed

Set throttle control lever (3) to its “position to reduce stress on the engine when tilling is not being performed. Lowering the engine speed to idle the engine will help extend the life of the engine, as well as conserve fuel and reduce the noise level of the machine.

9.5 Gear selection

Forward gears:

Set the throttle (3) to the desired speed. Get a good grip on the two handles using both hands. The rotavator starts driving by actuating the gear lever (2).

Reverse gears:

Set the throttle (3) to the “position. Actuate the reverse gear lever (1) and the rotavator then moves backwards.

9.6 Shutting the engine off

Set the throttle (3) to the “position to shut off the engine. Set the on/off switch to off.

⚠️ ATTENTION! Do not set the choke lever (11) against the position “|” to stop the engine. This can damage the engine.

9.7 Operating speed

Normal operating speed:

- Set the throttle lever (3) to “for best results.”

Cultivation:

- The throttle lever (3) should be adjusted to the step speed with forward movement.

10. Working instructions

10.1 Depth regulation

Besides depth regulator rod setting, variation of pressure on the handles also helps further control of tilling depth and travel speed. A downward pressure on the handles will reduce the tilling depth and increase the forward speed. An upward pressure on the handles will increase the working depth and reduce the forward speed.

10.2 Tiling

Tilling is digging in, turning over and breaking up garden soil and preparing a seedbed for planting. Best tilling depth is 100 mm to 150 mm. A tiller will also clear the soil of unwanted vegetation. The decomposition of this vegetation matter enriches the soil.

Avoid tilling soil that is too dry as it will pulverize and produce a dust that will not hold water

- Water a few days before tilling.

Also, tilling soil that is too wet will produce unsatisfactory clods.

- Wait a day or two after heavy rain for the soil to dry.

Better growth will be obtained if an area is tilled properly and used soon after tilling to preserve the moisture content.

The type of soil and working conditions will determine the actual setting of the tilling depth. In some soils, the desired depth is reached by first passing over garden. In other soils, the desired depth is obtained by going over the garden two or three times. In later case, the depth regulator rod should be lowered before each succeeding pass over the garden. Passes should be made across the length and width of the garden alternately. Do not try to dig too deeply in the first pass. If the machine jumps or bucks, allow the unit to move forward at a lightly faster rate.

If the tiller stops forward motion and tries to dig in one spot, rock the handles from side to side to start it moving forward again.

Rocks which are turned up should be removed from the garden area.

10.3 Cultivating

Cultivating is loosening or digging around growing plants to disrupt weeds and aerate soil. Less than 50 mm depth is always desirable.

11. Maintenance & Cleaning

Cleaning of the device

⚠ ATTENTION! - Protective goggles and a dust mask must be worn when using compressed air to clean the device.

Regular maintenance ensures your mower is kept in an optimal condition, extends its service life and supports the optimal performance when working on your garden.

Cleaning of the cutter (15)

Clean the mower on the underside of the cutter protective housing (17) after each use. Dirt can be washed off more easily if it is immediately rinsed off with water and can not dry.

1. Switch off the engine. The engine must be cold.
2. Disconnect the ignition cable (14b) from the spark plug (14a).
3. Remove plants, strands and other materials which may have accumulated at the axis between the cutters and the seal of the gearbox housing. Inspection of the clutch The clutch abrades. In the case of abrasion, the opening of the lever can enlarge and its operation be made more difficult. This means that the cable has to be adjusted. To do so, set the clutch lever to its original position and adjust the adjustment device and the counter nut accordingly.
4. Rub the mower dry after each use and apply a light grease or silicone film to prevent rust formation and water damages.
5. Refit the ignition cable.

⚠ ATTENTION! Never use a “pressure washer” to clean your tiller. Water can penetrate tight areas of the tiller and its transmission case and

cause damage to spindles, gears, bearings, or the engine. The use of pressure washers will result in shortened life and reduce serviceability.

⚠️ CAUTION! The exhaust and other parts of the engine (e.g. cooling fins or spark plug) become hot during operation and it takes a while for them to cool down after the engine is shut off. Do not touch the exhaust and other hot parts to avoid any burns.

Adjusting the clutch

⚠️ ATTENTION! The cutter must only begin rotating when the clutch has been fully actuated.

This is achieved by adjusting the adjusting screws of the clutch. The clutch lever must also only set the cutter in motion after max. 8 mm has been covered. If the settings are not sufficient to achieve these conditions (e.g. if the adjusting screw has been screwed as far as the thread end), please get in touch with an authorized customer service centre.

Cutting machine

⚠ CAUTION! Never repair damaged cutting tools by welding, straightening or changing the shape. This can lead to parts of the cutting tool becoming detached and cause severe or even fatal injuries.

Lubrication

Dismount the cutters at least once per season and lubricate the shafts of the tines.

Oil change

REMARK: Dispose of waste oil in an environmentally friendly manner. We recommend taking it to your local waste management company in a sealed container for recycling. Do not throw it into the garbage, do not pour it on the ground and not into the gutter.

Motor oil

CAUTION!

Operating the engine with too little oil can lead to serious damage of the engine.

Gearbox oil

The gearbox is pre-lubricated and sealed at the factory. Ensure that the interior of the gearbox is sufficiently lubricated before each season begins.

• Check the gearbox oil level every 50 operating hours.
• Let the gearbox cool down before refilling the gearbox oil.

• Change the gear oil every 100 operating hours:

• The device must be horizontal.

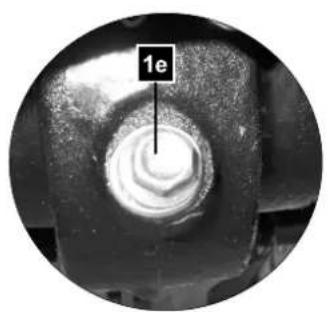

• Untwist the closure (1b) and then the closure (1e) (Fig. 1).
• Allow all of the oil filling to drain from the manual gearbox.
• Twist the closure (1e) back again.
• Fill the gearbox with 1l oil SAE 15W-40 until the mark (Fig. 1).
• Twist the closure (1b) back again.

Extraordinary maintenance

A specialist from the customer service department should carry out a general inspection every two years during normal use and at the end of the season in the case of intensive use.

Unauthorized alterations or the use of non-original accessories may lead to severe or even fatal accident to the detriment of the user or third parties.

12. Storage

If the cultivator will not be used for a period longer than 30 days, follow the steps below to prepare your tiller for storage.

1. Drain the fuel tank completely. Stored fuel containing ethanol or MTBE can start to go stale in 30 days. Stale fuel has a high plastic content and can clog the carburetor and restrict fuel flow.
2. Start the engine and allow it to run until it stops. This ensures no fuel is left in the carburetor. Run the engine until it stops. This helps prevent plastic deposits from forming inside the carburetor and possible engine damage.
3. While the engine is still warm, drain the oil from the engine. Refill with fresh oil of the grade recommended in the Engine Manual.
4. Allow the engine to cool. Remove the spark plug (14a) and put 30 ml of high quality motor oil into the cylinder. Pull the start lever (13) slowly to distribute the oil. Replace the spark plug (14a).

△ ATTENTION! Remove the spark plug (18c) and drain all of the oil from the cylinder before attempting to start the unit after storage.

1. Use clean cloths to clean off the outside of the tiller and to keep the air vents free of obstructions.

⚠️ ATTENTION! Do not use strong detergents or petroleum based cleaners when cleaning plastic parts. Chemicals can damage plastics.

1. Inspect for any loose or damaged parts. Repair or replace damaged parts and tighten loose screws, nuts or bolts.
2. Remove the blades. Clean and apply oil to the tines and tine shafts to prevent rusting. Mount the tines onto the tine shafts.
3. Coat the wheel axles lightly with oil. Oil the throttle cables and all visible moving parts. Do not remove the engine cover.
4. Storage with steering folded in: Loosen the hexagonal screw (2d) and the clamping lever (2a), pull out the steering bar (6) and place it on the machine.
5. Store your tiller in upright position in a clean, dry building that has good ventilation.

⚠️ ATTENTION! Do not store tiller with fuel in a non-ventilated area where fuel fumes may reach flame, sparks,

pilot lights or any ignition sources. Use only approved fuel containers.

13. Transport

Transport by pushing

Mount the wheels as described in the "Wheels" chapter.

14. Disposal and recycling

The device is supplied in packaging to avoid transport damages. This packaging is raw material and can thus be used again or can be reintegrated into the raw material cycle.

The device and its accessories are made of different materials, such as metals and plastics.

Take defective components to special waste disposal sites. Check with your specialist dealer or municipal administration!

15. Troubleshooting

ATTENTION! Before carrying out any tests recommended in the following table, the device must always be shut off and the spark plug disconnected, unless operation of the device is explicitly required. If all possible causes have been checked and the fault wasn't able to be rectified, please get in touch with an authorized customer service centre. If a problem occurs that is not listed in this table, please get in touch with an authorized customer service centre.

SERVICE INFORMATION

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*

Spark plug, cutters, starter cable, all operating materials

* may not be included in the scope of supply!

ATTENTION!

Note when sending the device to a customer service centre:

Ensure that the device is returned free of oil and petrol due to safety reasons!

Problem Cause Remedy
Engine fails to start. Spark plug wire disconnected.	Plug wire disconnected.	Attach spark plug wire securely to spark plug. Fill with clean, fresh gasoline. Move throttle control lever to start position. Chock must be positioned at “for a cold start. Clean the fuel line. Clean, adjust gap, or replace. Wait a few minutes to restart, but do not prime. Tine clutch control lever must be released to neutral to start the engine. ON-/OFF switch at position “ON”
	Out of fuel or stale fuel. Throttle control lever not in correct starting position. Choke not in „Position.
	Blocked fuel line. Fouled spark plug.
	Engine flooding. Tine clutch control not in initial position.
	ON-/OFF switch at position “OFF”
Engine runs erratically. Spark plug wire loose. Unit running on CHOKE. Blocked fuel line or stale fuel. Vent plugged. Water or dirt in fuel system. Dirty air cleaner. Improper carburetor adjustment.	Connect and tighten spark plug wire. Move choke lever contrary to position “Clean fuel line. Fill tank with clean, fresh gasoline. Clear vent. Drain fuel tank. Refill with fresh fuel. Clean or replace air cleaner. Refer to Engine Manual.
Engine overheats. Engine oil level low. Dirty air cleaner. Air flow restricted. Carburetor not adjusted properly.	Fill crankcase with proper oil. Clean air cleaner. Remove blower housing and clean. Refer to Engine Manual.
Engine will not stop when throttle control is positioned at „or engine speed does not increase properly when throttle control is adjusted.	Debris interfering with throttle linkage. Improper throttle linkage adjustment.	Clean dirt and debris. Refer to Engine Manual to check and adjust throttle linkage.
Tiller moves forward during starting.	Tine clutch control not in neutral position.	Tine clutch control lever must be released to neutral to start the engine.
Tiller is difficult to control when tilling (machine jumps or lurches forward).	Improper tilling depth setting. Too high engine speed on hard ground.	Raise the tines for shallower tilling by raising the depth regulator rod. Set the throttle lever at lower speed.
Tines do not engage. Foreign object lodged in tines. Tine clevis pin(s) missing. Belt worn and/or stretched. Pulley and idler not in correct adjustment.	Stop tiller completely, check and discard foreign object. Replace tine clevis pin(s). Replace belt. Contact dealer.

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Safety warning diagram showing human and pedestrian symbols with hazard signs

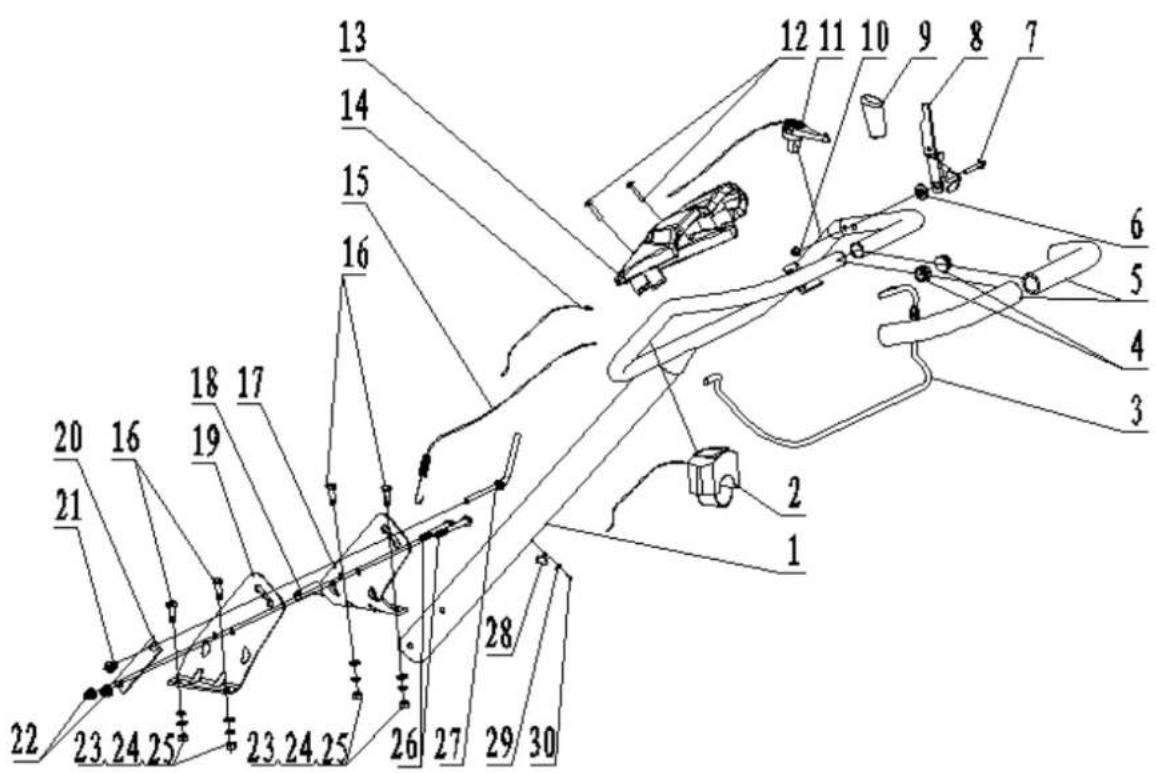

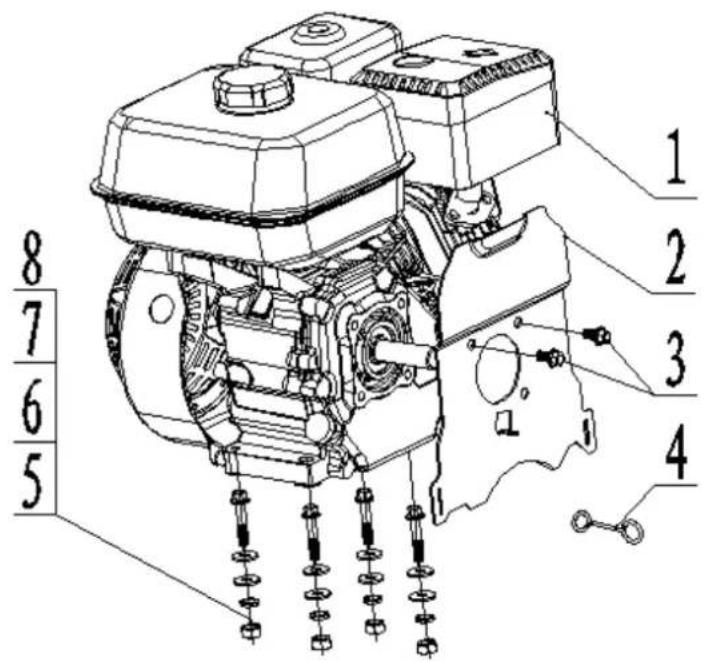

Technical diagram of a mechanical assembly with numbered components for identification

B

8 7 6 5

C

Technical diagram of a mechanical assembly with numbered components for identification

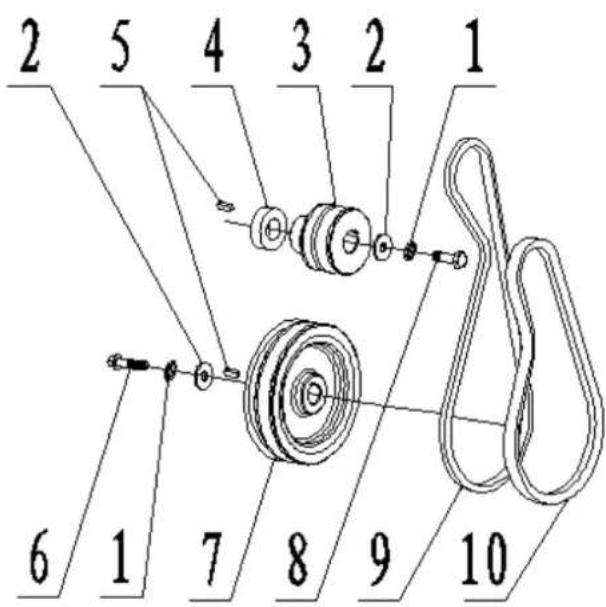

D

2 5 4 3 2 1 6 1 7 8 9 10

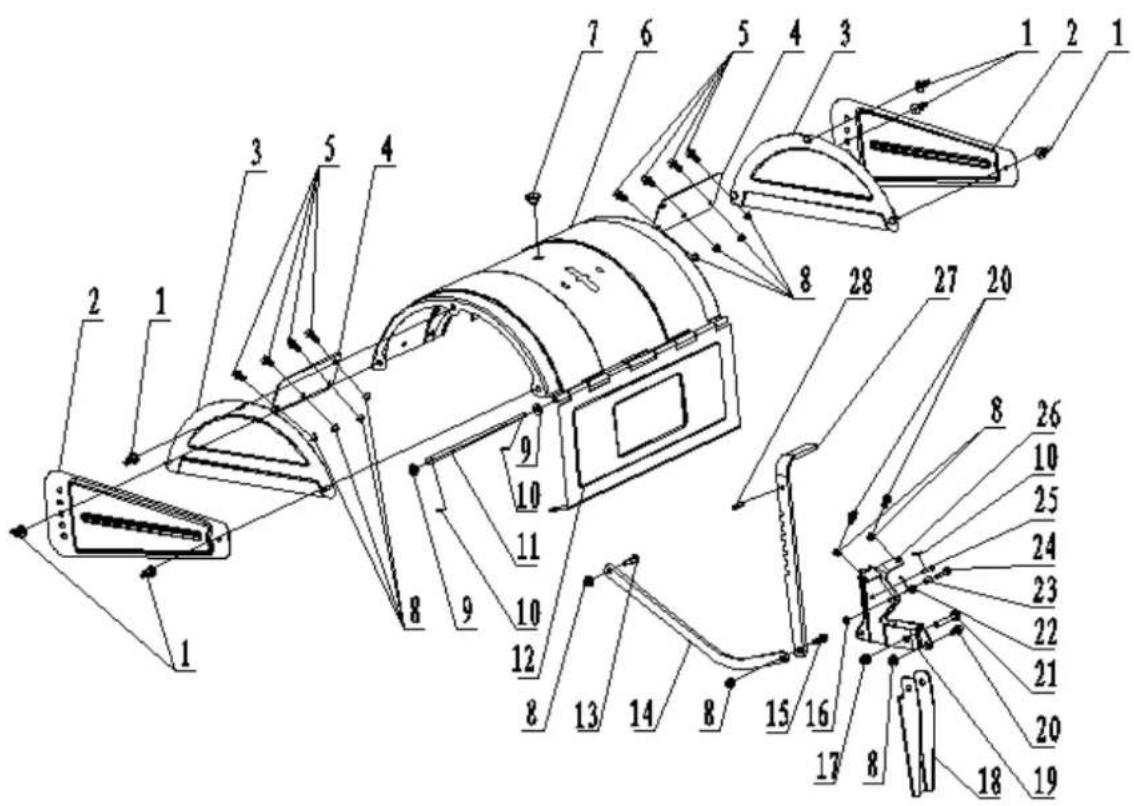

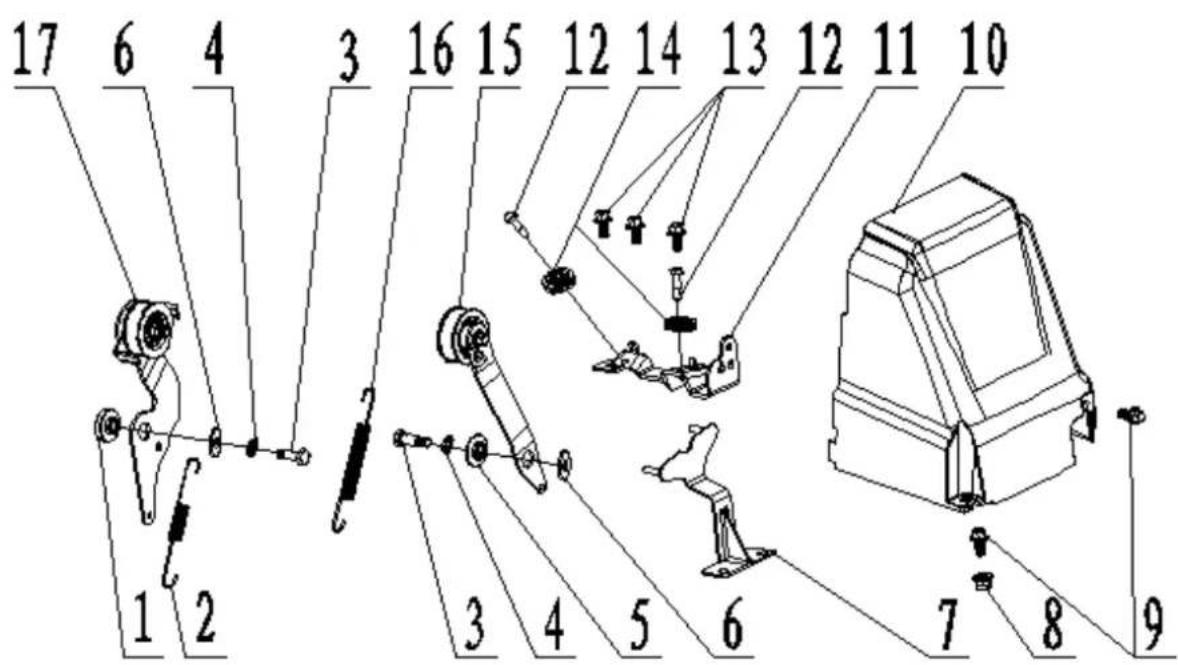

E

17 6 4 3 16 15 12 14 13 12 11 10 1 2 3 4 5 6 7 8 9

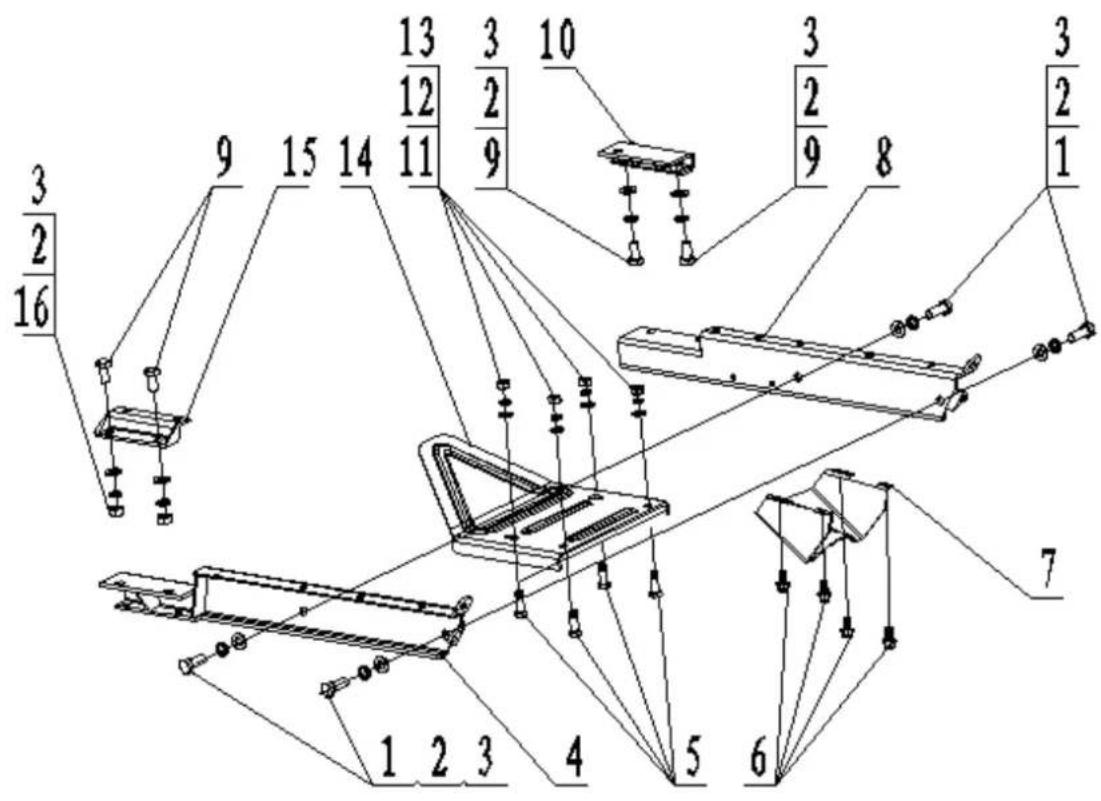

F

3/2 16 9 15 14 13 12 11 3/2 9 10 3/2 9 8 3/2 1 7 1 2 3 4 5 6

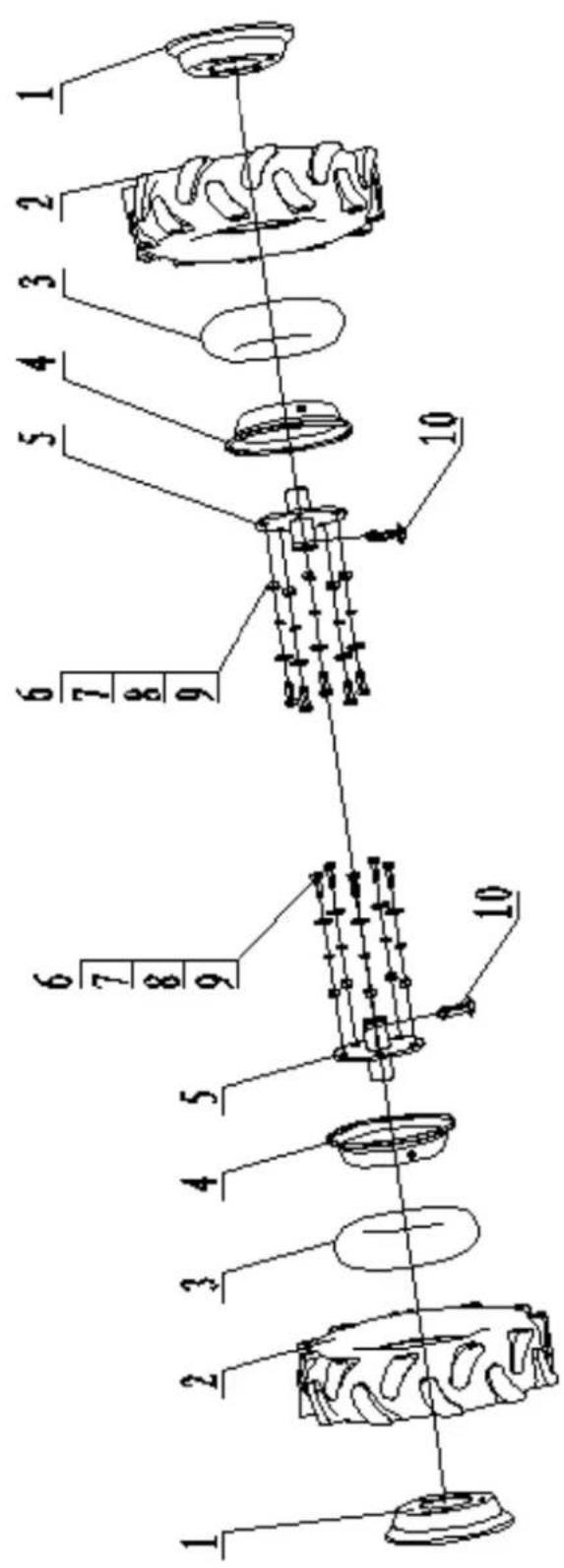

G

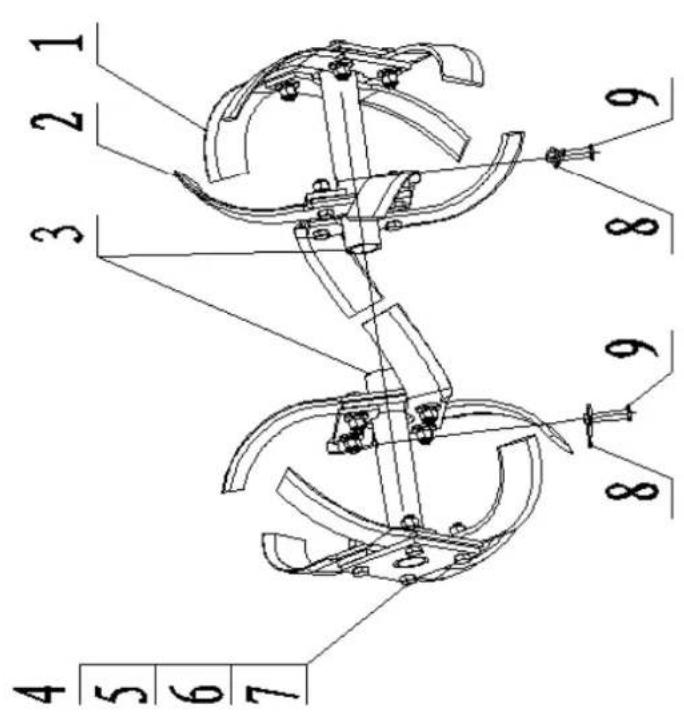

Technical diagram of a device with numbered components and labeled parts, likely for assembly or manufacturing documentation.

1 2 3 4 5 6 7 8 9 9 8

|

Technical diagram of a mechanical assembly with numbered components and labeled parts

A
motor

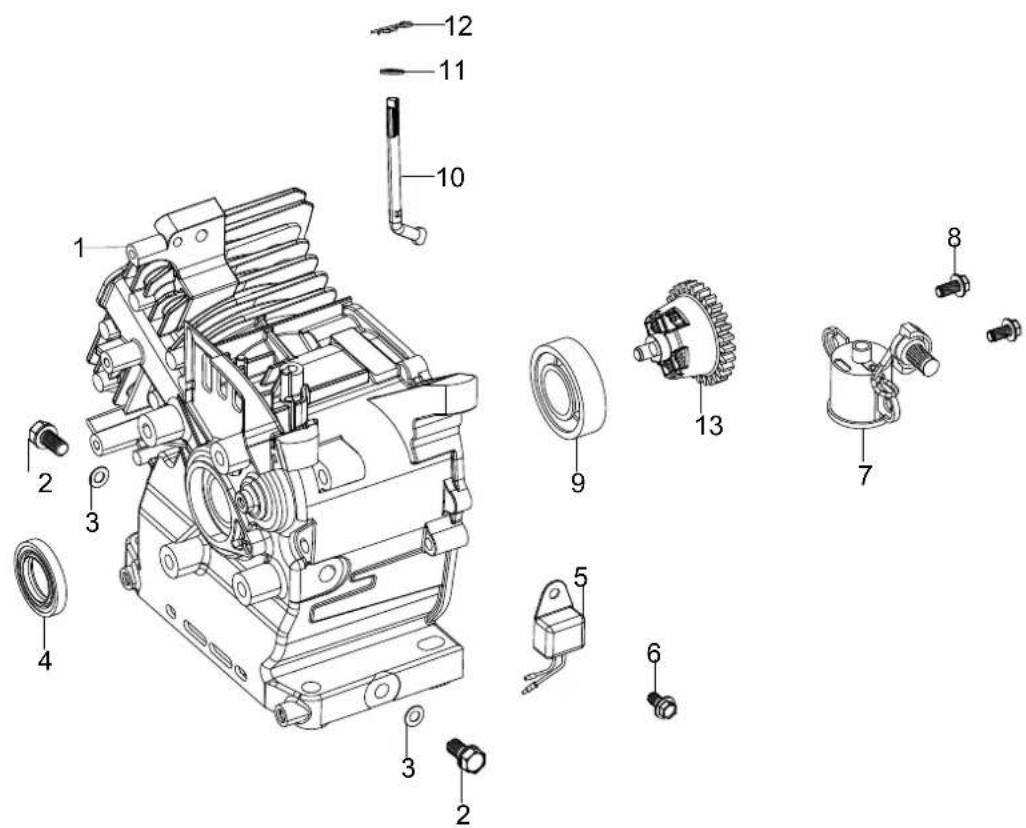

Exploded view diagram of a mechanical assembly with numbered parts for identification

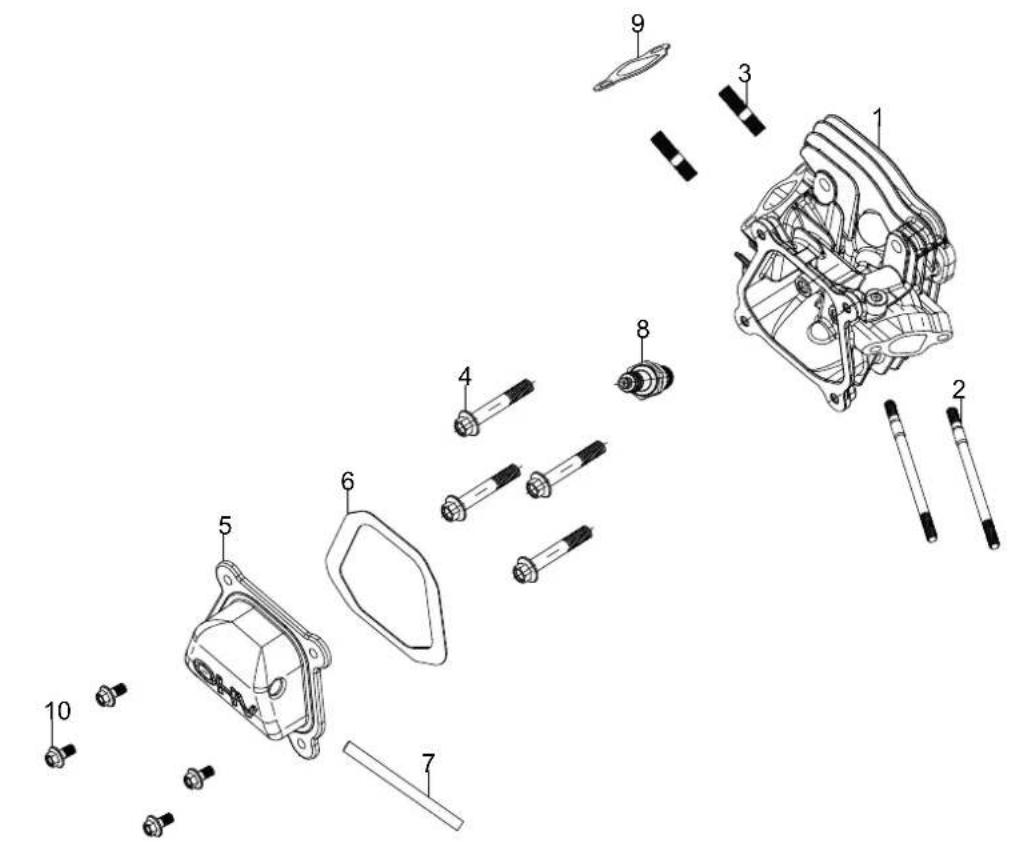

B

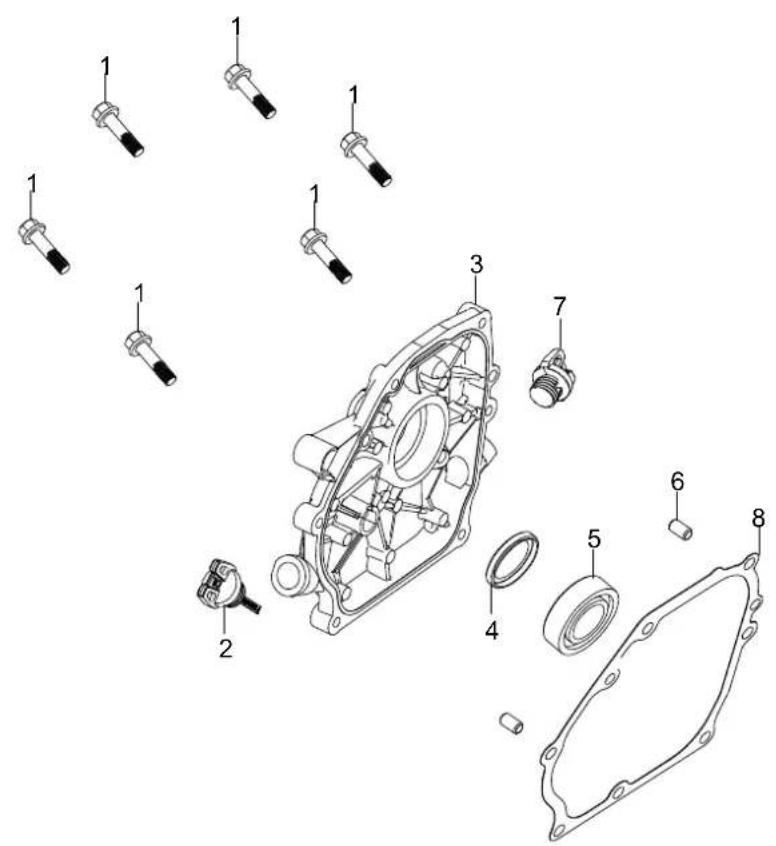

Exploded view diagram of a mechanical assembly with numbered parts for identification

C

Exploded view diagram of a mechanical assembly with numbered parts for identification

D

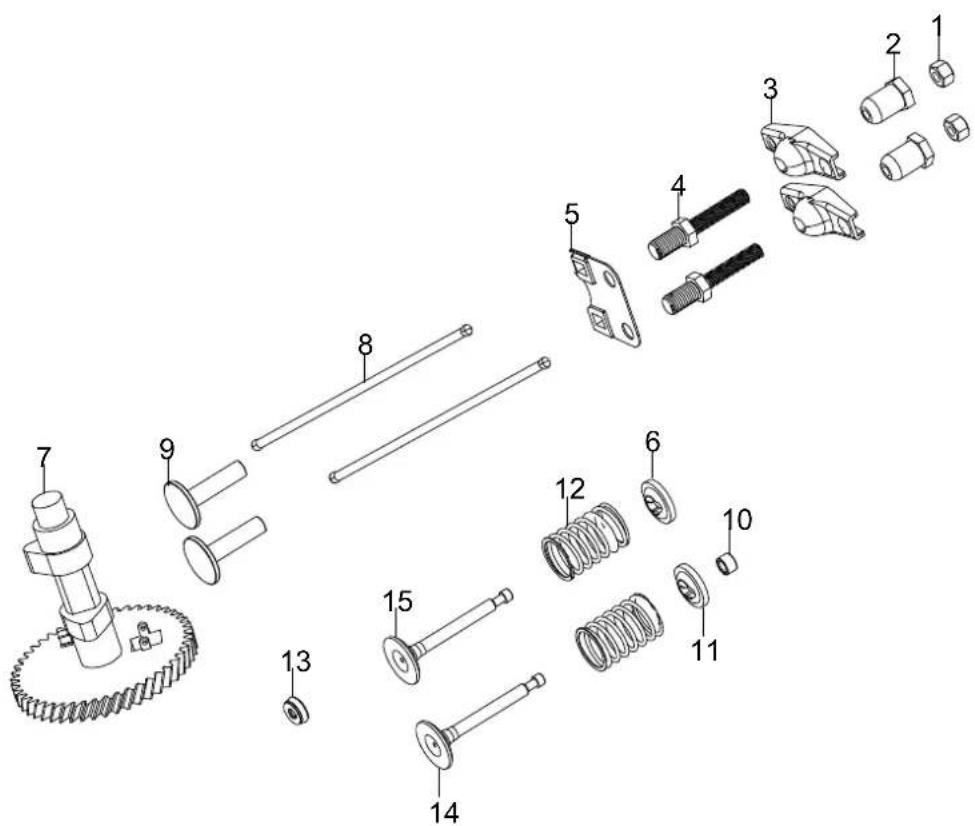

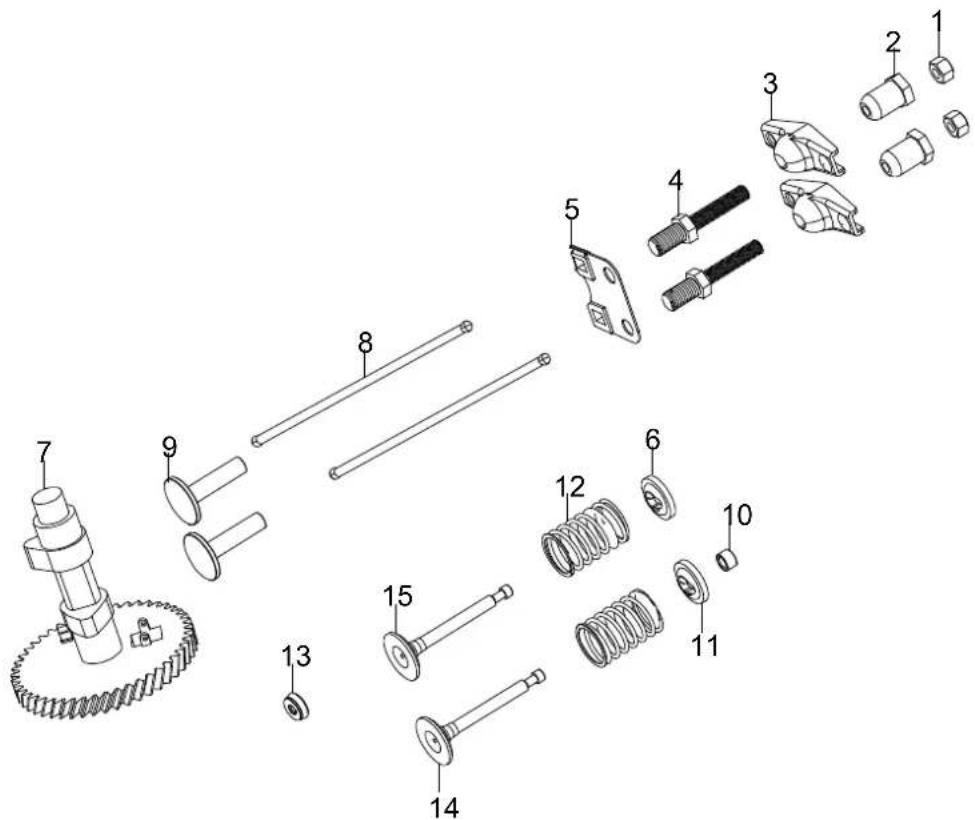

Technical diagram of mechanical components with numbered parts, including gears and shafts

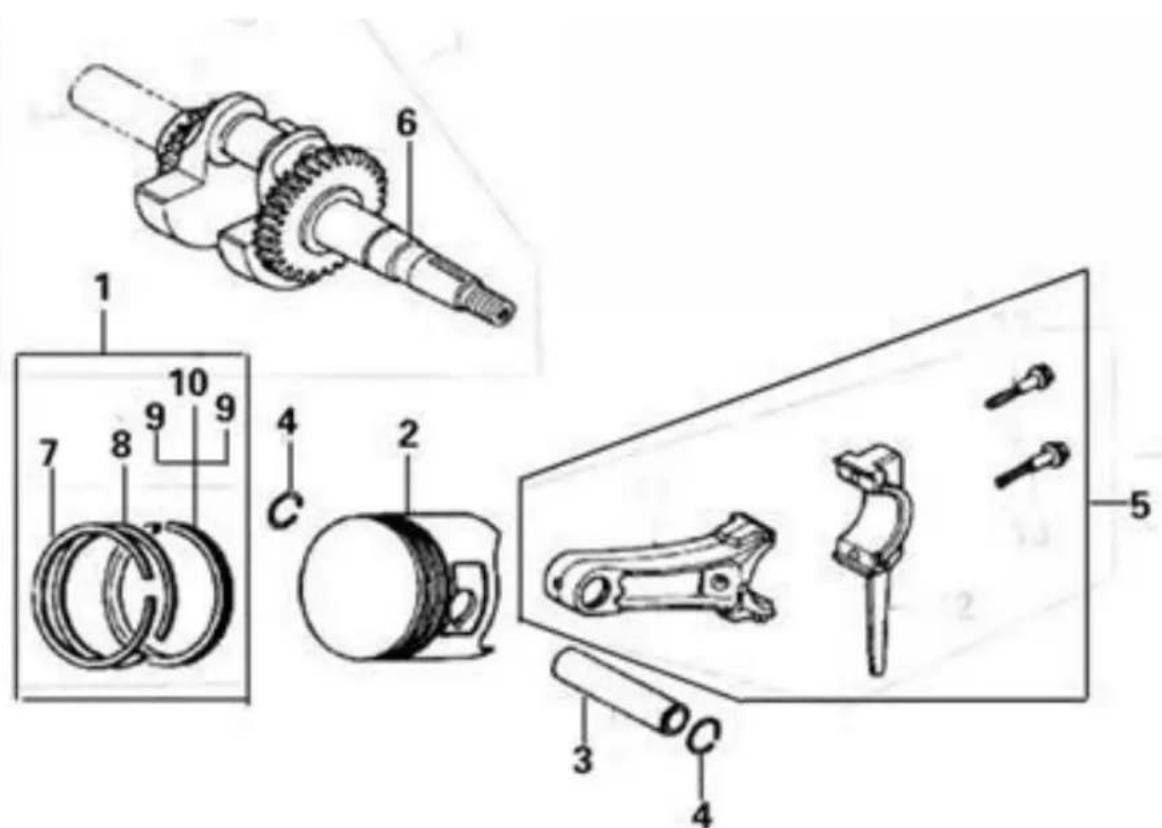

e

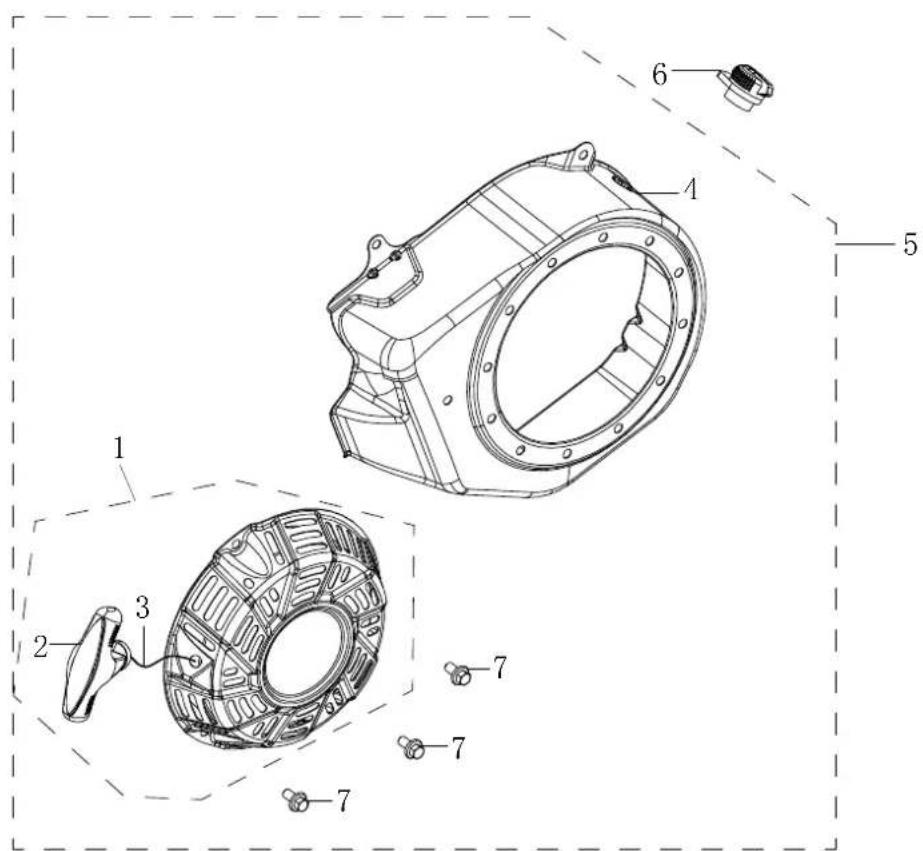

Exploded view diagram of mechanical assembly with numbered parts for identification

F

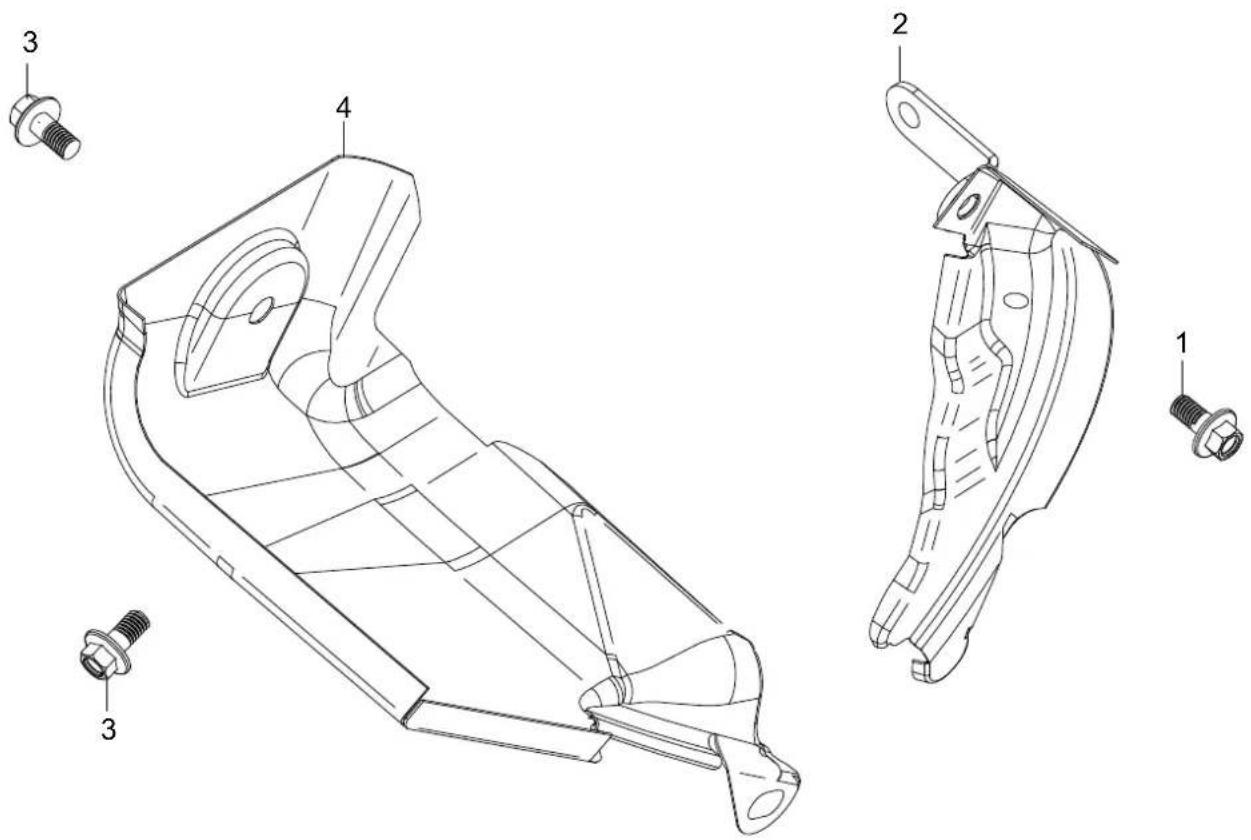

Technical diagram of a mechanical assembly with numbered components, showing exploded and assembled views.

G

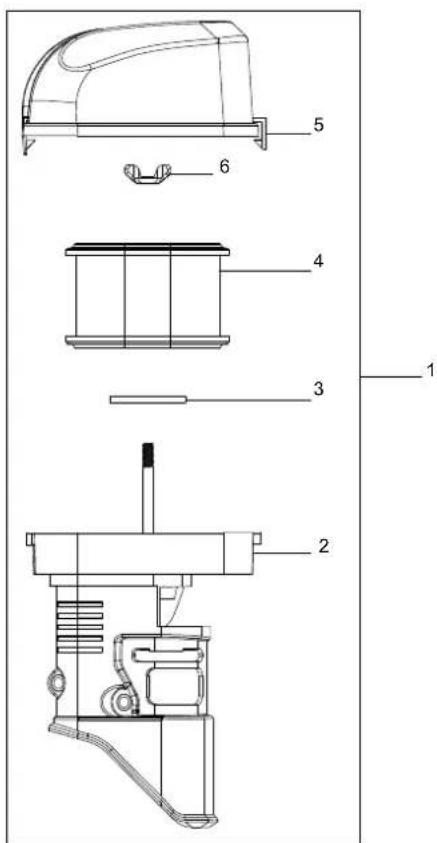

Technical diagram of a mechanical component with numbered parts, including threaded fasteners and a separate view with bolted components.

H

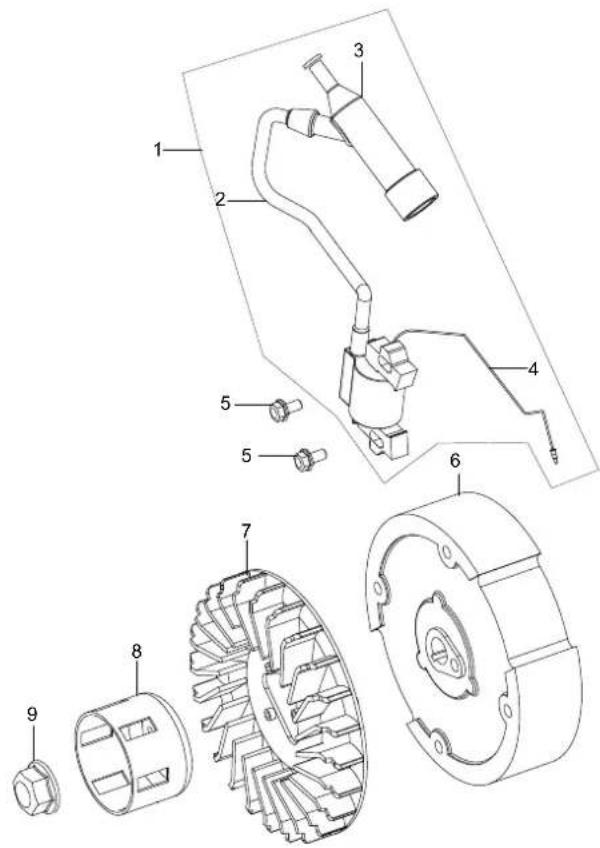

Technical diagram of a mechanical assembly with numbered parts, including exploded and assembled views

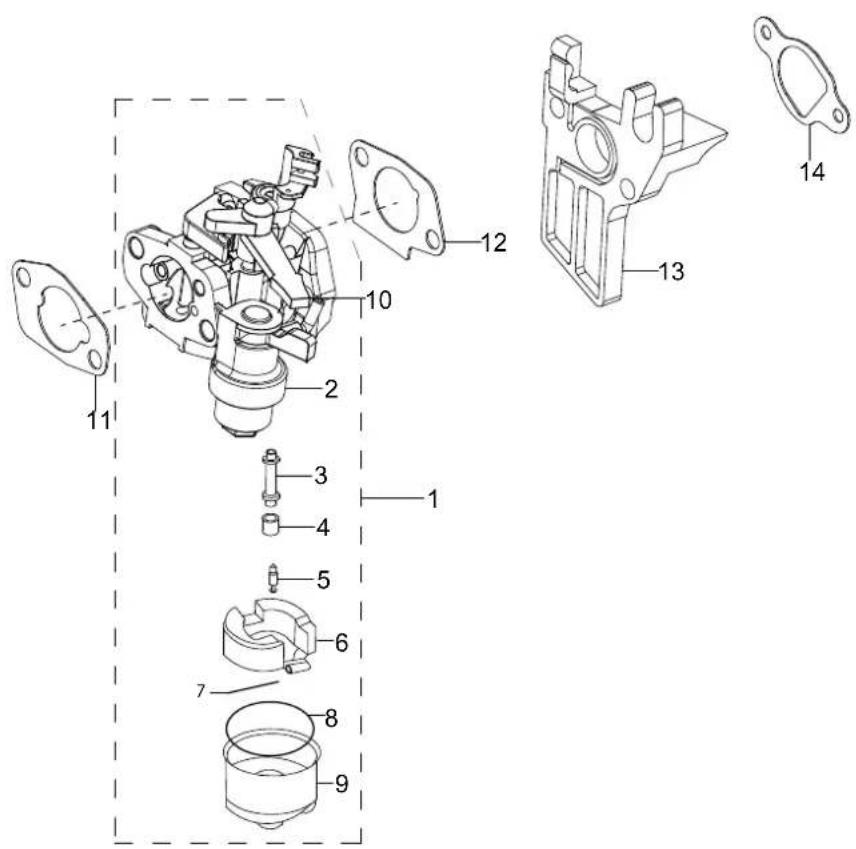

1

Technical diagram of a mechanical assembly with numbered parts for identification

J

Exploded view diagram of mechanical assembly with numbered parts for identification

K

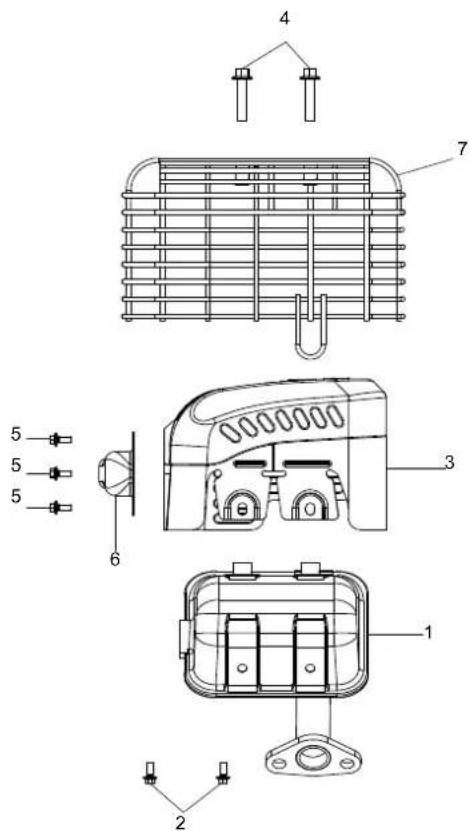

Technical diagram of a mechanical device with numbered parts for identification

L

Technical diagram of an electrical enclosure with numbered components and labeled parts

CE - Declaration of Conformity

X 2000/14/EC_2005/88/EC

Noise: measured L_NA = dB(A) ; guaranteed L_WA = 98 dB(A) P = xx KW; L/∅ = cm

x Annex V

Annex VI

Notified Body:

Notified Body No.:

X 2016/1628/EC

Emission. No: e13*2016/1628*2016/1628SRA2/P*0303*00

Standard references:

EN 709/A4:2009; EN ISO 14982

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registar: Stefan Hartinger

Günzburger Str. 69, D-89335 Ichenhausen

Garantiebedingungen

Revisionsdatum 20. August 2018

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not

manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
