USER MANUAL WIE-IN-100 Wiesenfield

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name	Egg Incubator
Model	WIE-IN-100
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	35
Protection class	II
Chicken egg capacity	16
Bird egg capacity	40
Goose egg capacity	4
Quail egg capacity	40
Pigeon egg capacity	40
Duck egg capacity	12
Temperature range [°C]	20 ~ 50
Dimensions [width x depth x height; mm]	530 x 330 x 145
Weight [kg]	1.5

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

Class II protection device with double insulation.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Egg Incubator

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
g) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. The device generates sparks which may ignite dust or fumes.
c) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
d) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
e) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
f) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
g) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
h) Keep packaging elements and small assembly parts in a place not available to children.
i) Keep the device away from children and animals.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety.
c) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.

d) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. Safe device use

a) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
b) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
d) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
e) Keep the device out of the reach of children.
f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
h) Do not touch articulated parts or accessories unless the device has been disconnected from the power source.
i) Do not move, adjust or rotate the device in the course of work.
j) Clean the device regularly to prevent stubborn grime from accumulating.
k) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
m) Keep the device away from sources of fire and heat.
n) Before the first use, always verify that the device is complete and that all movable elements that may affect the safety of embryonated eggs or chicks, e.g. the fans, are protected by covers.
o) Do not cover the device when in use.
p) Warning: Risk of fire.
q) Some parts of this appliance can get very hot. To avoid injury, be careful when touching these surfaces.
r) Inspect the water level in the egg incubator regularly. Fill with warm water.
s) Use a measuring cup when filling with water.
t) Always disconnect the egg incubator from power when topping up with water and when not in use.
u) In order to improve incubation observe generally accepted breeding principles.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The egg incubator is designed for incubating fertile avian eggs. The incubator keeps the eggs at the correct temperature and humidity required for the embryo to develop and hatch.

The product is intended for home use only.

The user is liable for any damage resulting from unintended use of the device.

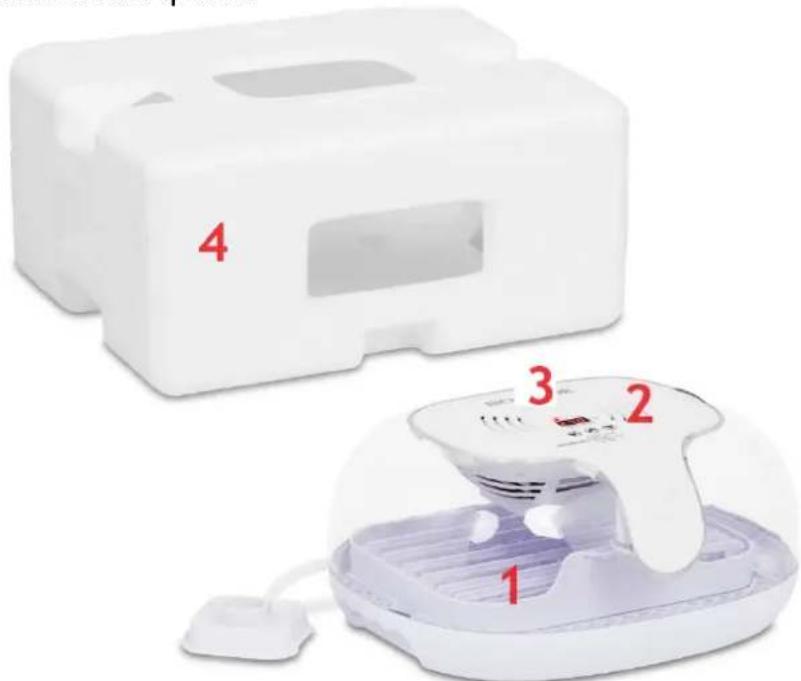

3.1. Device description

1-Egg incubator / 2-Control panel / 3-Ovoscope / 4-Thermal insulation

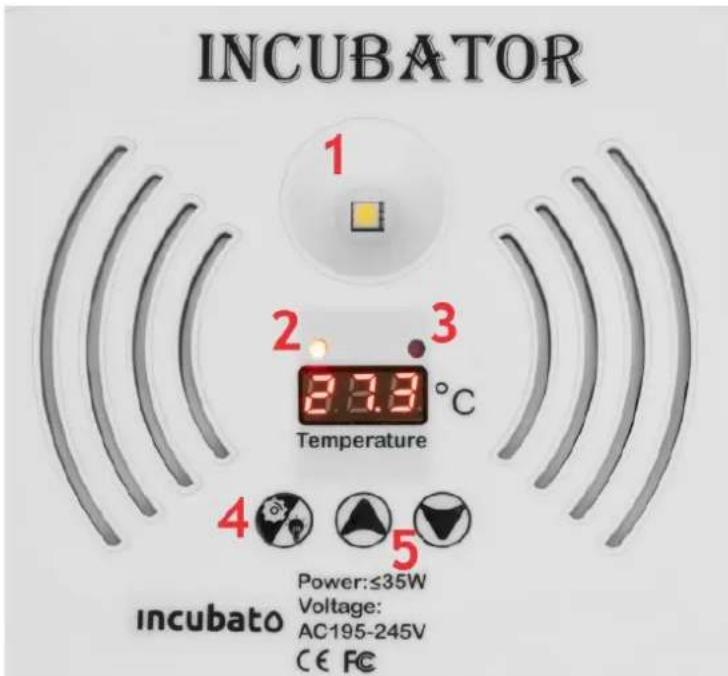

Control panel:

1 - Ovoscope / 2 - Operating (heating) indicator light / 3 - Parameter setting indicator light / 4 - Temperature setting button (press once) / Ovoscope switch (to turn on press for 3 seconds. To turn off press again, if not pressed then the light will turn off after 6 minutes) / 5 - Buttons for increasing / decreasing the temperature value. Button for decreasing temperature value is also the button for test eggs turning (long press).

3.2.Preparing for use

APPLIANCE LOCATION

Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

3.3. Device use

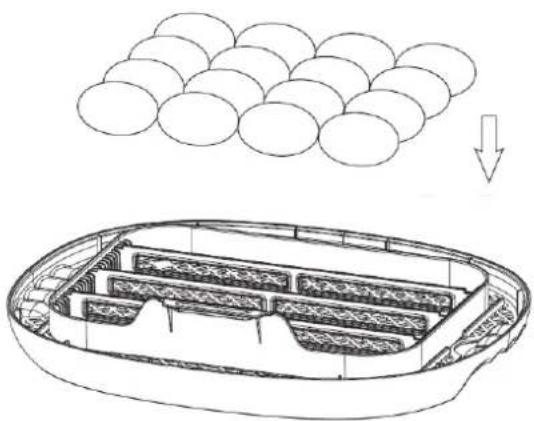

3.3.1. Put eggs

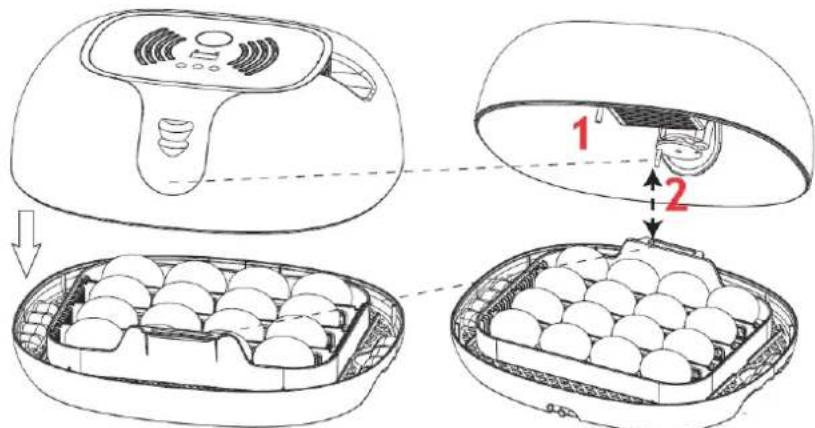

3.3.2. Close the lid

The transparent cover must be properly aligned with the bottom and closed to maintain air seal. Otherwise, hot air will leak and cause internal temperature fluctuations.

Note: the turntable must be inserted into the slot of the egg tray to ensure the normal operation of egg turning.

1-Turntable / 2-Eggs turning slot

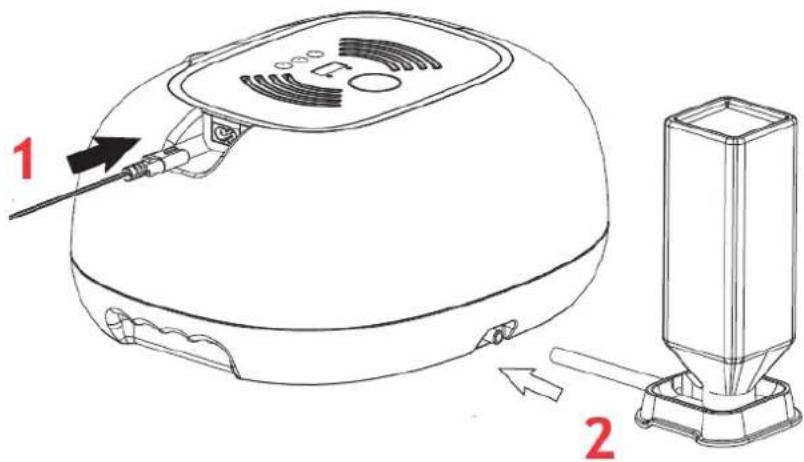

3.3.3. Plug in and water connection

Plug in the device. Please pay attention to the water lever during incubation and add water timely when level is low.

1 - Plug in / 2 - Water connection (the bottle shown in the picture is not included in the scope of delivery and is for information purposes only)

Please do not throw away the Styrofoam and foam cushion of water filling device. If weather gets cold, please cover machine with Styrofoam to get better temperature. At the same time the foam cushion should also be cushioned under the water filling device:

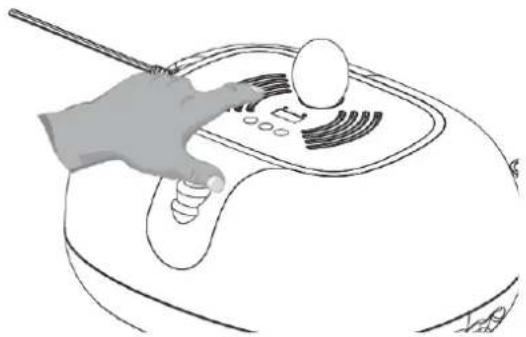

3.3.4.Ovoscope

Ovoscope switch (to turn on press for 3 seconds; to turn off press again, if not pressed then the light will turn off after 6 minutes).

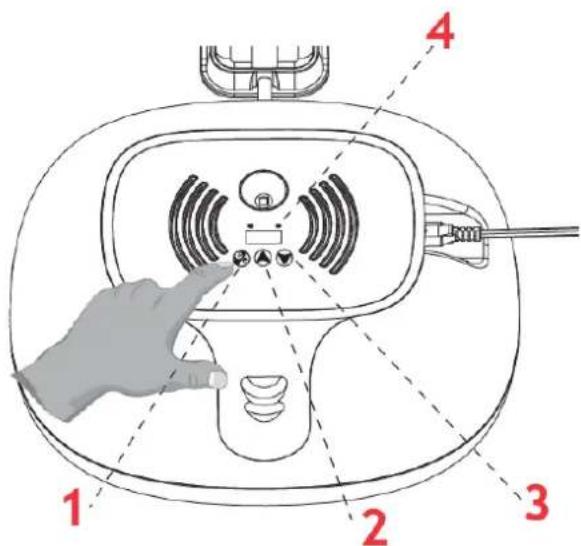

3.3.5. Temperature setting

1 - Press once to enter the temperature setting mode / 2, 3 - Buttons for increasing and decreasing the temperature value / 4 - The light is on when setting.

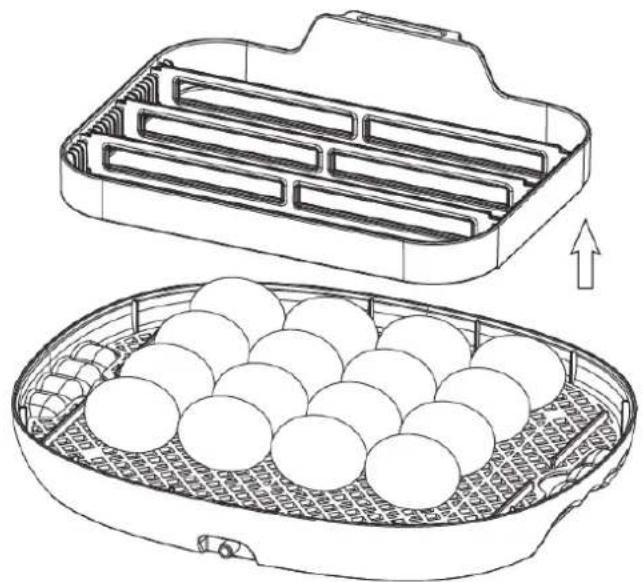

3.3.6. Take out the eggs tray

Take out the eggs tray after entering the hatching period to ensure the chicks hatch successfully.

3.4. Incubation tips (Based on chicken eggs as example)

1) How to choose Fertilized Eggs before hatching?

a) The eggs must be fresh. Generally, the fertilized eggs within 4-7 days after laying. And do not put them into the refrigerator or wash.
b) Take out the rotation shaft and place the eggs in the hatching grid after 18-day hatching period.

2) What are the precautious for hatching?

a) Proper operation and careful observation are required during the incubation, Such as: add water to the machine every 1 to 2 days (it depends on the environment and the amount of water inside the machine).
b) Put machine into foam if environment temperature bellowed 20^ / 68^ for better warm keeping.
c) Do not open the lid frequently during incubation, it'll make the unbroken eggshell dry out and difficult to be broken.
d) Check the development of eggs timely during the incubation period:

i) The 1st time to test egg (Day 5th-6th): mainly to check the fertilization of the eggs, select the unfertilized eggs, scattered yellow eggs, dead eggs.
ii) The 2nd time to test egg (Day 11th-12th): mainly to check the development of egg embryo, the well-developed embryo is enlarged, with blood vessels inside, and the air chamber is large and sharply demarcated.
iii) The 3rd time to test egg (Day 16th-17th): Light from the pointed side, a well-developed embryo is larger, meanwhile full of egg, and no light in most places. If it's a dead egg, the blood vessels in the egg are blurred, Parts yellow near the air chamber, the boundary between the egg and the air chamber is not clear.
e) Hatching period (Day 19th-21st): It's into hatching period once cracks appeared on the eggshell, Meanwhile increase the humidity to ensure the eggshell soft enough to break, and decrease the temperature into 37 - 37.5^ / 98 - 99^

3) How to better preserve the machine after hatching?

Clean up and air-dry the machine timely after using, to prevent the electronic components from being damaged by internal moisture of the machine.

3.5. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
b) Use only non-corrosive cleaners to clean the surface.
c) After cleaning the device, all parts should be dried completely before using it again.
d) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
e) Do not spray the device with a water jet or submerge it in water.
f) Do not allow water to get inside the device through vents in the housing of the device.
g) Clean the vents with a brush and compressed air.
h) The device must be regularly inspected to check its technical efficiency and spot any damage.
i) Use a soft, damp cloth for cleaning.
j) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
k) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

APPARATETS PLACERING

PLAATS VAN HET APPARAAT

For the disposal of the device please consider and act according to the national and local rules and regulations.
