Product Type	Automatic Incubator
Model	IN-50DDI
Rated Voltage	230 V ~ / 50 Hz
Rated Power	140 W
Protection Class	II (double insulation)
Capacity (chicken eggs)	50
Capacity (bird eggs)	100
Temperature Range	20 °C to 42 °C
Dimensions (L × W × H)	525 × 630 × 160 mm
Weight	6.5 kg
Display	Digital (temperature and humidity)
Temperature adjustment	Yes, with Up/Down buttons
Humidity adjustment	Yes, with dedicated button
Automatic egg turning	Yes
Alarms	Low/high temperature, water refill (code UU)
Water tank capacity	1400 ml
Material	Plastic with insulation
Cleaning	Soft damp cloth, do not immerse
Safety	Double insulation, auto shut-off, child protection
Included accessories	Egg tray, lid, manual

Frequently Asked Questions - IN-50DDI Wiesenfield

What is the egg capacity of the IN-50DDI incubator?

The incubator can hold up to 50 chicken eggs or 100 bird eggs.

How to adjust temperature and humidity?

Use the up/down buttons to adjust temperature and the humidity button to adjust humidity. Settings are displayed on the digital screen.

Does the incubator automatically turn the eggs?

Yes, the device automatically turns the eggs. You can check the function by holding down the humidity adjustment button.

What does the 'UU' code on the humidity screen mean?

The 'UU' code indicates it is time to add water to the tank. Pour warm water up to 1400 ml.

How to prepare the incubator before first use?

Disassemble and clean all parts with a soft damp cloth. Assemble the device and run a test operation for 20 to 30 minutes (heating, turning, alarms) before placing eggs inside.

What types of eggs can be incubated?

The incubator is designed for fertile bird eggs (chicken, duck, goose, quail). Eggs must be fresh, unwashed, and unrefrigerated.

How to clean the incubator after use?

Unplug the device and let it cool down. Clean surfaces with a soft slightly damp cloth. Never immerse the device in water and do not use corrosive cleaners.

Can I repair the incubator myself?

No, any repair must be carried out by an authorized service. Do not attempt to modify or repair the device yourself.

What is the recommended ambient temperature range?

Ambient temperature must not exceed 40 °C and relative humidity should be below 85%. Ensure good ventilation and at least 10 cm of space around the device.

What to do in case of low temperature alarm?

The low temperature alarm activates if the internal temperature drops too much. Press any button to cancel it and check that the device is properly plugged in and the room is not too cold. If the problem persists, contact after-sales service.

USER MANUAL IN-50DDI Wiesenfield

Labeled diagram of an egg incubator with numbered parts and digital display screen

Exploded view diagram of a device showing 10 numbered parts with internal structure and labels

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Egg incubator
Model	IN-50DDI
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	140
Protection class	II
Chicken egg capacity	50
Bird egg capacity	100
Temperature range [°C]	20-42
Dimensions [width x depth x height; mm]	525 x 630 x 160
Weight [kg]	6.5

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

CE !

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

ATTENTION! Electric shock warning!

Class II protection device with double insulation.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Egg incubator

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
g) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. The device generates sparks which may ignite dust or fumes.
c) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
d) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
e) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
f) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
g) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
h) Keep packaging elements and small assembly parts in a place not available to children.
i) Keep the device away from children and animals.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety.
c) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.

d) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. Safe device use

a) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
b) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
d) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
e) Keep the device out of the reach of children.
f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
h) Do not touch articulated parts or accessories unless the device has been disconnected from the power source.
i) Do not move, adjust or rotate the device in the course of work.
j) Clean the device regularly to prevent stubborn grime from accumulating.
k) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
I) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
m) Keep the device away from sources of fire and heat.
n) Before the first use, always verify that the device is complete and that all movable elements that may affect the safety of embryonated eggs or chicks, e.g. the fans, are protected by covers.
o) Do not cover the device when in use.
p) Warning: Risk of fire.
q) Some parts of this appliance can get very hot. To avoid injury, be careful when touching these surfaces.
r) Inspect the water level in the egg incubator regularly. Fill with warm water.
s) Use a measuring cup when filling with water.
t) Always disconnect the egg incubator from power when topping up with water and when not in use.
u) In order to improve incubation observe generally accepted breeding principles.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The egg incubator is designed for incubating fertile avian eggs. The incubator keeps the eggs at the correct temperature and humidity required for the embryo to develop and hatch.

The product is intended for home use only.

The user is liable for any damage resulting from unintended use of the device.

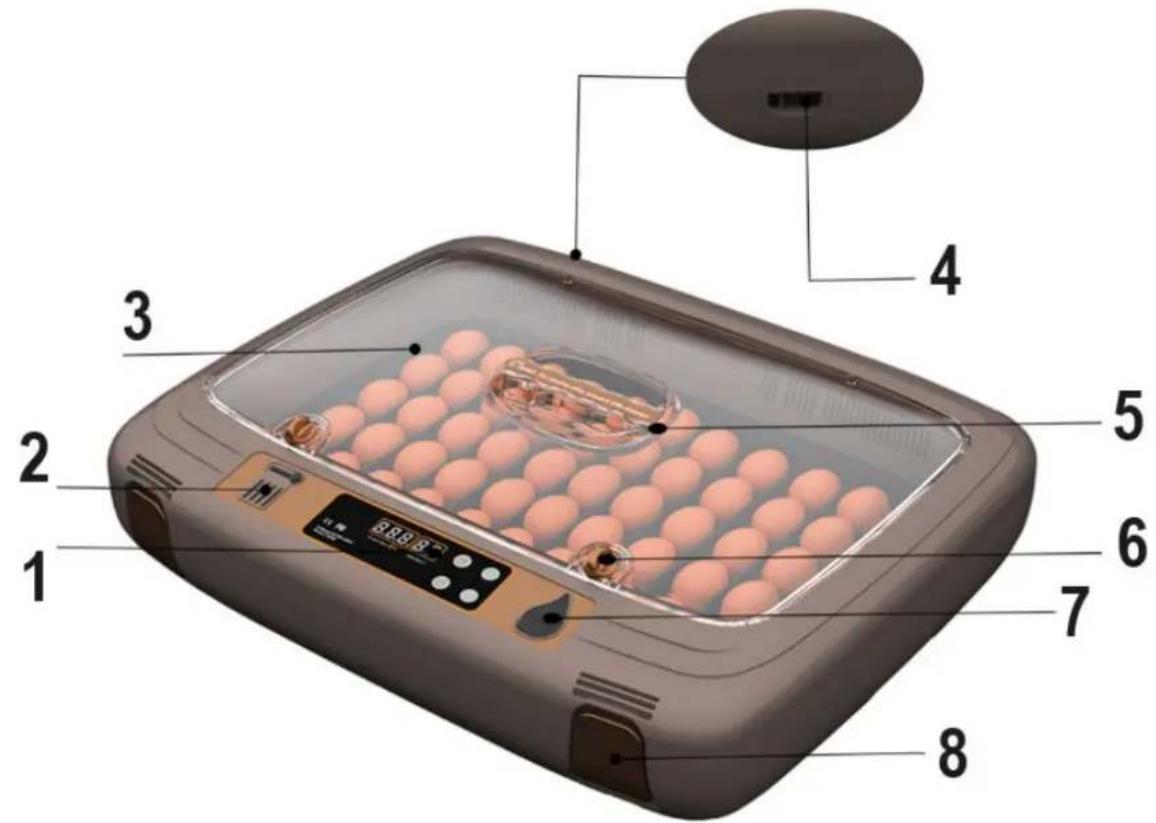

3.1. Device description

1 2 3 4 5 6 7 8

1.	Control panel	2.	Ventilation hole
3.	Egg tray	4.	Power socket
5.	Cover	6.	Cover lock
7.	Water hole	8.	Main body lock

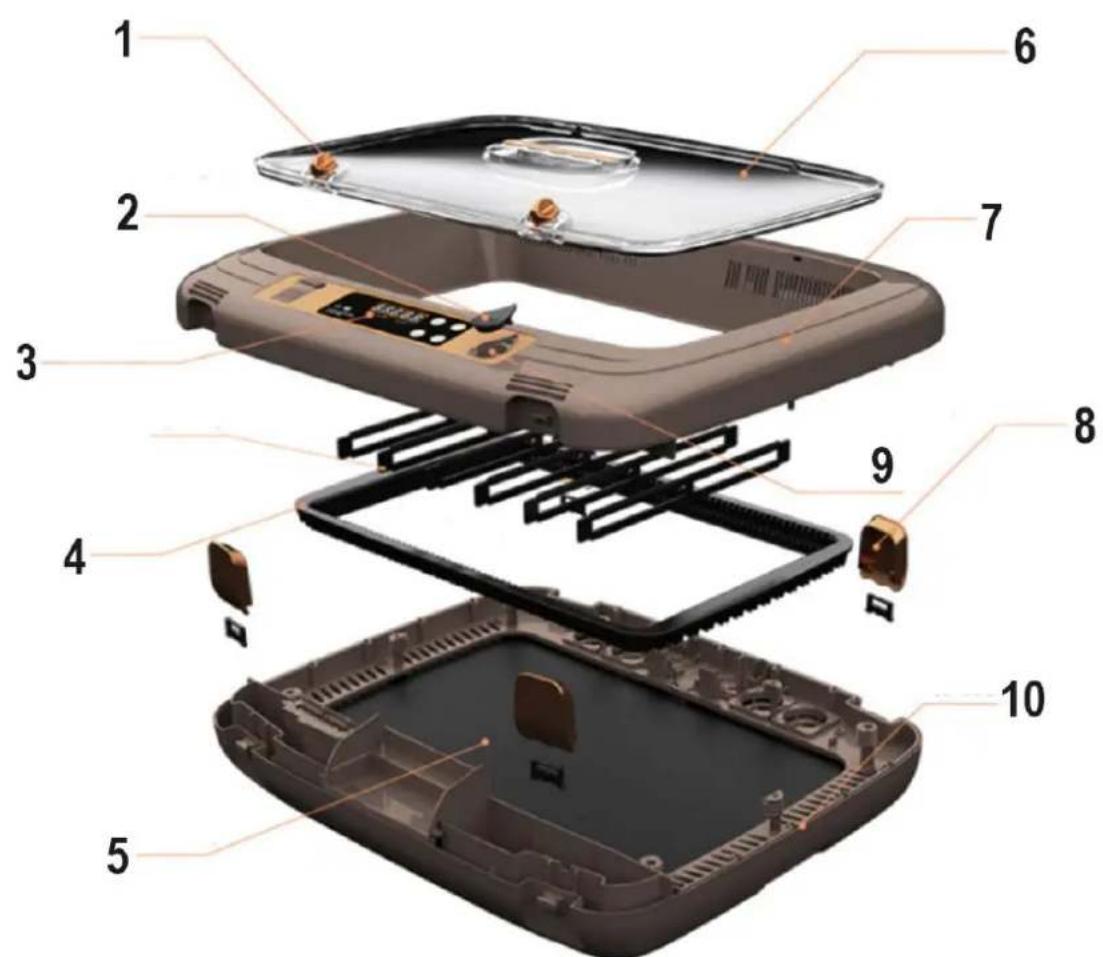

Exploded view diagram of a device showing 10 numbered parts with internal structure and labels

1.	Cover lock	2.	Dust cover
3.	Control panel	4.	Egg tray frame
5.	Stand	6.	Cover
7.	Corpus	8.	Lock
9.	Water hole	10.	Base

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Disassemble the device and all its components and clean them before the first use.

3.3. Device use

Functional testing before hatching:

Assemble the unit and check that the internal structure is complete.

Connect the unit and the incubator will start to operate.

A low temperature/humidity alarm will appear, press any button to cancel it.

Pour water into the water hole (up to 1400 ml).

Press and hold the humidity setting button to check that the unit can turn the eggs normally.

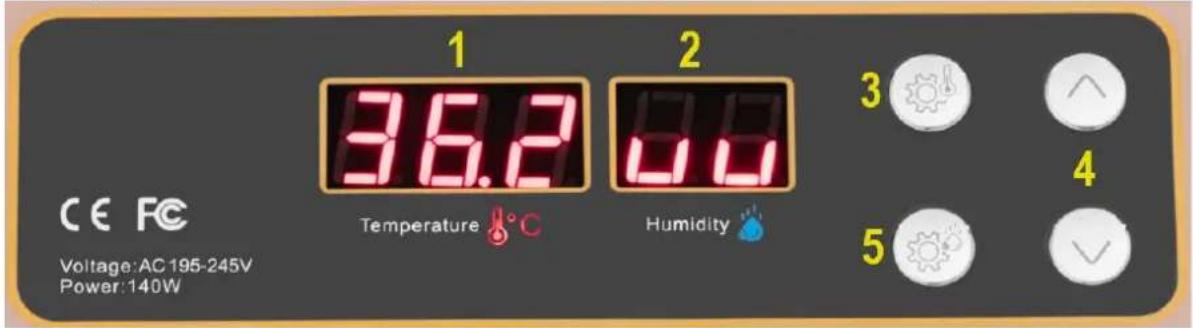

Control panel:

1 36.2 Temperature °C 2 4 Humidity 5 CE FC Voltage:AC 195-245V Power:140W

1 - Temperature display

2 - Humidity display

3 - Temperature settings

4 - Up / Down buttons

5 - Humidity settings

Code	Description	Factory setting
AL	Low temperature alert setting menu	1°C/2°F
AH	High temperature alert setting menu	1°C/2°F
CA	Calibrating temperature setting menu	0
HS	Upper temperature limit setting menu	39.5°C/103°F
LS	Lower temperature limit setting menu	30°C/86°F

Note: When the "UU" code appears on the humidity display, it reminds you to add water at the appropriate time.

• Inject water into the water hole (up to 1,400 ml of water can be stored inside the unit).
• Place the fertilised eggs one at a time in the egg tray (eggs must be fresh, it is strictly forbidden to put them in the fridge and wash them with water, and fertilised eggs within 4-7 days after laying are best), make sure the pointy side down.
• Place the cover in place, plug in and start hatching (press any button to cancel the low temperature/humidity alarm).
• Keep the power on and do not open the lid often. Place the unit in styrofoam when the ambient temperature is below 20^ C / 68^ F for better heat retention. Check the water level in the egg incubator regularly. It is recommended to fill with warm water once every 3 days, but this depends on the ambient conditions.
• Once the eggs have entered the hatching stage (the eggshell is cracked), remove the egg tray and place the eggs directly on the base grid for hatching.
• Note: It is advisable to add water and heat the unit to test for 20-30 minutes before officially hatching the eggs and to check the unit's fan, temperature and humidity display, button function, whether the egg turning function and heating function are working properly.

Recommended temperature and humidity settings:

Egg type	Hatching days	Setter period		Hatcher period		Egg weight [g]
		Temperature °C/°F ±0.5	Humidity %	Temperature °C/°F±0.5	Humidity %
Chicken	21	38.0°C/100°F	55-70	°C/°F	65-85	50-60
Duck	28	37.8°C/100°F	60-75	°C/°F	65-85	80-100
Goose	30	37.6°C/99°F	65-80	°C/°F	65-85	100-120
Quail	18	38.5°C/101°F	55-70	°C/°F	65-85	30-40

Incubation tips:

Based on hen eggs as an example for information purposes only

1) How do you select eggs before hatching?

a) Hatching eggs must be fresh, not put in the fridge or washed with water, and the best fertilised eggs are within 4-7 days after laying.
b) The large round end of the egg must face upwards and the small end must face downwards when the eggs are placed in the hatching machine.

2) What are the hatching precautions?

a) Please handle correctly and observe carefully throughout the incubation process.
Check the water level in the egg incubator regularly. We recommend filling with warm water once every 3 days or so, but this depends on the actual environment and the amount of water in the unit.
b) If the room temperature is below 20^ C/68°F, cover the unit with foam packing to keep it warm.
c) Do not open the cover frequently throughout the incubation process, otherwise the unbroken eggshell will dry out and not be broken.
d) Check the development of the eggs during incubation:

Testing eggs for the first time (day 5-6): Mainly checks fertilisation of hatching eggs and selects unfertilised eggs, eggs with loose yolk and eggs with dead sperm.

Second check eggs (days 11-12): Mainly check the development of the embryos of the eggs. Well-developed embryos become larger, blood vessels are throughout the egg and air cells are large and well defined.

Third testing eggs (day 16-17): Aim at a light source with a small head, the embryo in a well-developed egg is filled with embryos and cannot see the light in most places; if it is a stillbirth, the blood vessels in the egg are blurred and invisible, the part near the air chamber turns yellow and the boundary between the egg contents and the air chamber is not obvious.

e) Hatching period (day 19-21): The hatching period has started when cracks appear on the eggshell, in the meantime the humidity should be increased to make the eggshell soft enough for the chicks to break it, and ideally the temperature should be lowered to 37-37.5°C /98-99°F.

3) How better to maintain the unit after hatching?

After use, the unit should be cleaned and air-dried so that the moisture left inside the unit does not damage the electronic components and affect use.

3.4. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
b) Use only non-corrosive cleaners to clean the surface.
c) After cleaning the device, all parts should be dried completely before using it again.
d) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
e) Do not spray the device with a water jet or submerge it in water.
f) Do not allow water to get inside the device through vents in the housing of the device.
g) Clean the vents with a brush and compressed air.
h) The device must be regularly inspected to check its technical efficiency and spot any damage.
i) Use a soft, damp cloth for cleaning.
j) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
k) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

Labeled diagram of an egg incubator with numbered parts and digital display screen

Exploded view diagram of a device showing 10 numbered parts with internal structure and labels

Exploded view diagram of a device showing 10 numbered parts with internal structure and labels

Labeled diagram of an infant incubator with numbered parts and digital display showing 8 eggs inside

Exploded view diagram of a device showing 10 numbered parts with internal structure and labels

Labeled diagram of an egg incubator with numbered parts and digital display showing 8 eggs inside

Exploded view diagram of a device showing 10 numbered parts with internal structure and labels

Labeled diagram of an egg incubator with numbered parts for identification and assembly reference.

Exploded view diagram of a device showing 10 numbered parts with internal structure and labels

Labeled diagram of an egg incubator with numbered parts and digital display showing 8 eggs inside

Exploded view diagram of a device showing 10 numbered parts with internal structure annotations

Exploded view diagram of a device showing 10 numbered parts with internal structure annotations

APPARATETS PLACERING

Exploded view diagram of a device showing 10 numbered parts with internal structure and labels

Exploded view diagram of a device showing 10 numbered parts with internal structure and labels

1.	Deksel slot	2.	Stofkap
3.	Besturingspaneel	4.	Frame van eiertray
5.	Stellage	6.	Deksel
7.	Corpus	8.	Lås
9.	Waterpoel	10.	Basis

PLAATS VAN HET APPARAAT

Exploded view diagram of a device showing 10 numbered parts with internal structure and labels

1.	Deksellås	2.	Støvdeksel
3.	Styrepanel	4.	Eggbrettramme
5.	Stå	6.	Lokk
7.	Corpus	8.	Sperre
9.	Vannhull	10.	Ramme

4 - Opp / Ned-knapper

5 – Fuktighetsinnstillinger

Kode	Beskrivelse	Fabrikk setting
AL	Innstillingsmeny for lav temperaturvarsling	1°C/2°F
AH	Innstillingsmeny for høy temperaturvarsling	1°C/2°F
CA	Innstillingsmeny for kalibrering av temperatur	0
HS	Innstillingsmeny for øvre temperaturgrense	39,5°C/103°F
LS	Innstillingsmeny for nedre temperaturgrense	30°C/86°F

Exploded view diagram of a device showing 10 numbered parts with internal structure and labels

1.	Lock lås	2.	Dammskydd
3.	Kontrollpanel	4.	Äggbricka ram
5.	Stå	6.	Lock
7.	Corpus	8.	Spärr
9.	Vattenhål	10.	Bas

APPARATENS PLACERING

Exploded view diagram of a device showing 10 numbered parts with internal structure and labels

Exploded view diagram of a device showing 10 numbered parts with internal structure and labels

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
