Original Instructions

CAUTION, Read instructions before using the machine.

QR code image containing encoded data, no visible human-readable text

Machine Overview ......Pages 9-12

Control Panel Overview ......Pages 13-14

Machine Set up Guide ......Pages 15-20

Fitting the Brush / Pad ......Pages 21-26

Fitting the Floor Tool ......Pages 21-26

Fitting the Hose Guide ......Pages 27-32

Filling the Clean Water Tank ......Pages 27-32

Fill Level Indicator Page 33-38

Machine Operation ......Pages 39-44

Raise / Lower the Floor Tool....Pages 39-44

Raise / Lower Brush Deck....Pages 39-44

Setting the Cleaning Controls ......Pages 39-44

Brush Pressure / Load Adjustment......Pages 45-50

Breakaway Floor Tool ......Pages 45-50

Machine in Use ......Pages 45-50

Regular Maintenance ......Pages 51-56

Machine Cleaning ......Pages 51-56

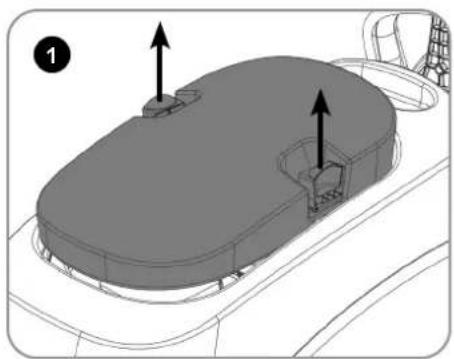

Waste Water Tank Full ......Pages 51-56

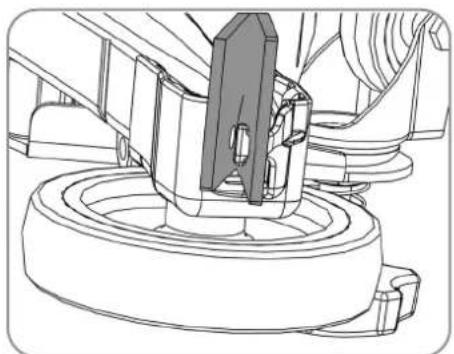

Changing Floor tool Blades......Pages 57-62

Machine Charging ......Pages 63-68

Battery Care ......Pages 63-68

Charging Lights Sequence....Pages 69-79

Control Panel Overview

TBL6055T ......Pages 80-85

Specifications ......Pages 69/88

Machine Operation. ......Pages 80-89

Fault Codes Page 93

Rating Label / Personal Protective

Equipment /Recycling ......Pages 104-106

Battery Safety & Storage ......Pages 137/138-140

Recommended Spare Parts ......Page 171

Trouble Shooting Page 171

Schematic Diagram ......Page 182

EU Declaration Document ......Page 183

Company Address Page 184

TBL6055/50 = 1x battery

TBL6055/100 = 2x batteries

TBL6055/50T = 1x battery

TBL6055/100T = 2x batteries

DE

TBL6055/50 = 1x batterie

TBL6055/100 = 2x batterien

TBL6055/100 = 2x batteries

TBL6055/100T = 2x batteries

NL

TBL6055/50 = 1x accu

TBL6055/100 = 2x accu's

TBL6055/50T = 1x accu

TBL6055/100T = 2x accu's

PT

TBL6055/50 = 1x bateria

TBL6055/100 = 2x baterias

TBL6055/50T = 1x bateria

TBL6055/100T = 2x baterias

IT

TBL6055/50 = 1x akumulator

TBL6055/100 = 2x batteries

TBL6055/50T = 1x akumulator

TBL6055/100T = 2x batteries

SV

TBL6055/50 = 1x batteri

TBL6055/100 = 2x batterier

TBL6055/50T = 1x batteri

TBL6055/100T = 2x batterier

FI

TBL6055/50 = 1x akun

TBL6055/100 = 2x akut

TBL6055/50T = 1x akun

TBL6055/100T = 2x akut

DA

TBL6055/50 = 1x batteri

TBL6055/100 = 2x batterier

TBL6055/50T = 1x batteri

TBL6055/100T = 2x batterier

EN

PLEASE READ, BEFORE COMMENCING OPERATION

After the removal of all the packaging, carefully open and check the contents.

• Owner Manual • 2 x Ignition Keys • Battery Charging Lead • 1 x 30 Amp Fuse (Brush) • 1 x 20 Amp Fuse (Vac)
• 1 x 2.5 Amp Fuse
• Maxi Fuse-puller

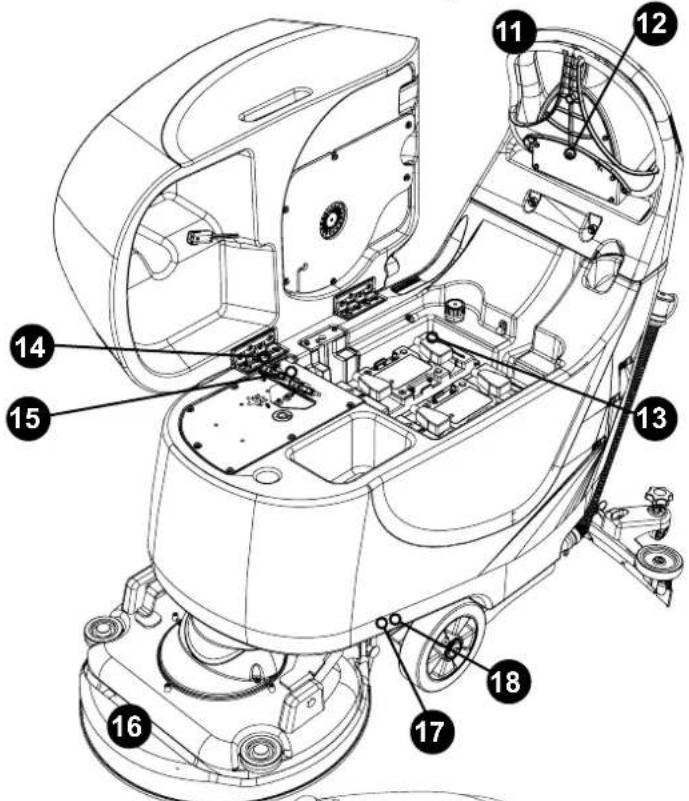

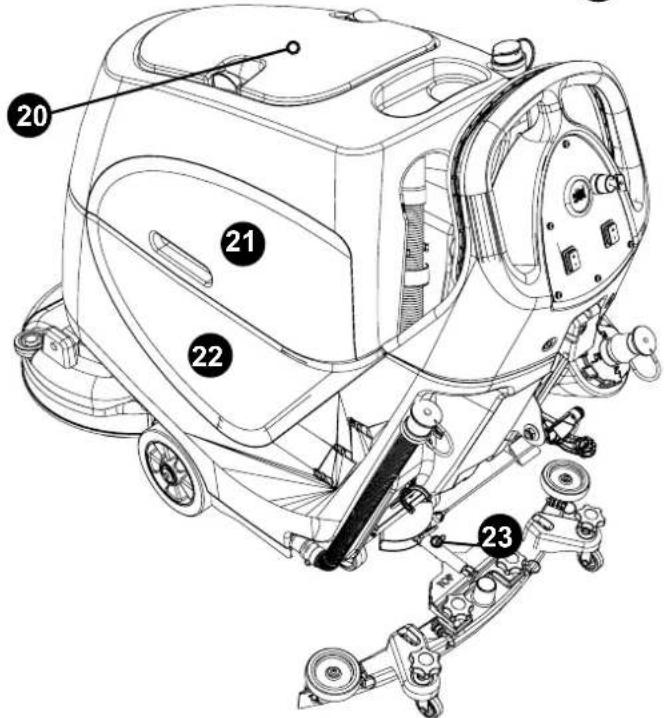

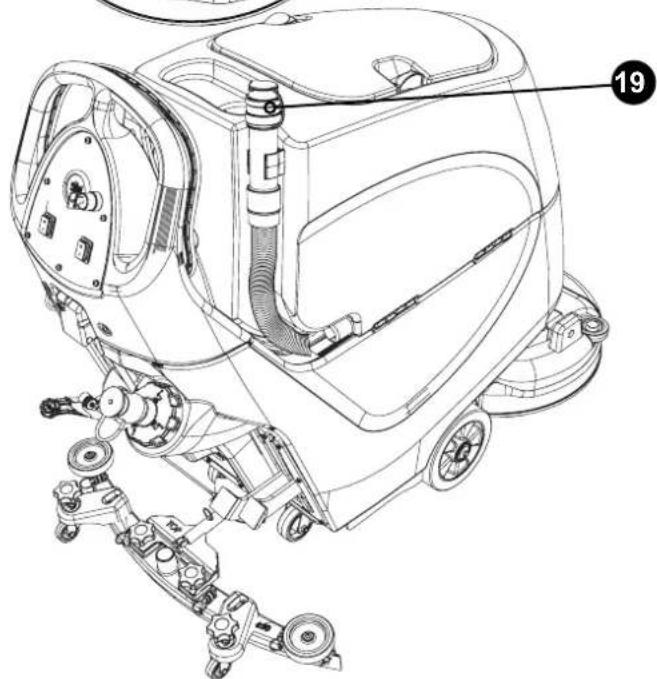

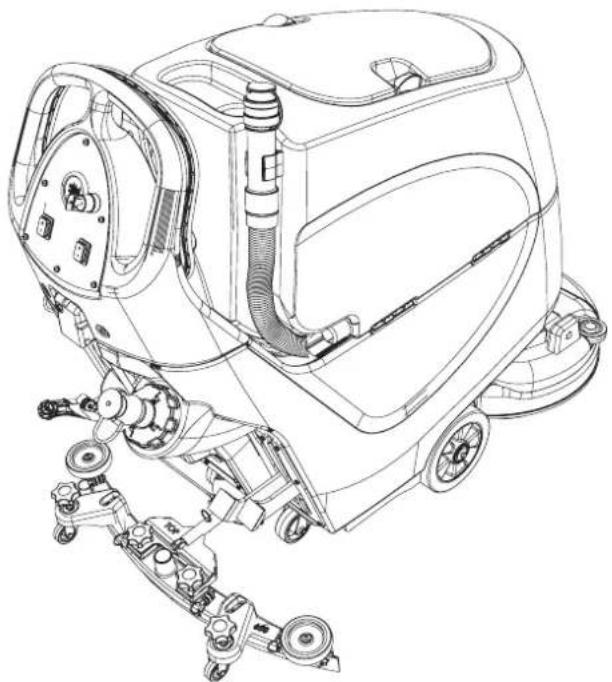

1 Operator control panel

2 Charging Socket / Point

3 Clean Water Fill Point

4 Floor Tool Raise / Lower Lever

5 Clean Water Tank Emptying Hose & Fill Level

6 Vacuum Hose

7 Charging Lights

8 Brush Deck Lifting Pedal

9 Extra Brush Load Pedal

10 Semi Parabolic Floor Tool

11 Brush On/Off / Control Handle

12 Safety Fuse 2.5 Amp

13 Batteries

14 Brush Motor Fuse 30 Amp

15 Vac Motor Fuse 20 Amp

16 Brush Deck

17 Clean Water Filter

18 Water Flow Tap

19 Waste Water Emptying Hose

20 Separator

21 Top Tank (Waste Water)

22 Bottom Tank (Clean Water)

23 Detent Pin

24 Key Ignition. On/Off

FR

Technical diagram of a cleaning or cleaning device with numbered parts labeled 1 through 10.

Technical diagram of a cleaning or cleaning device with numbered components for identification

Technical diagram of a cleaning machine with numbered components labeled 20, 21, 22, and 23.

Technical line drawing of a cleaning or cleaning machine with labeled component (19), showing internal components and no readable text or symbols.

EN: For Traction Drive Twintec see pages 80-91
DE: Informationen zu Fahrantrieb Twintec siehe Seiten 80-91
FR: Pour l'entraînement de traction Twintec, voir pages 80-91 NL: Twintec-rij-aandrijving zie pagina's 80-91
PT: Para informações sobre o acionamento de tração Twintec, consulte as páginas 80-91
IT: Per il comando trazione Twintec, vedere pagg. 80-91
ES: Para la TwinTec con motor de tracción, véanse las páginas 80-91
PL: Aby uzyskać informacje na temat napędu trakcyjnego Twintec, zob. str. 80-91
SV: För Twintec-drivning se sidorna 80-91
Fl: Lisätietoja vetomoottorilla varustetusta Twintecista on sivuilla 80-91
DA: Se side 80-91 for at få oplysninger om Twintec-trækmotoren

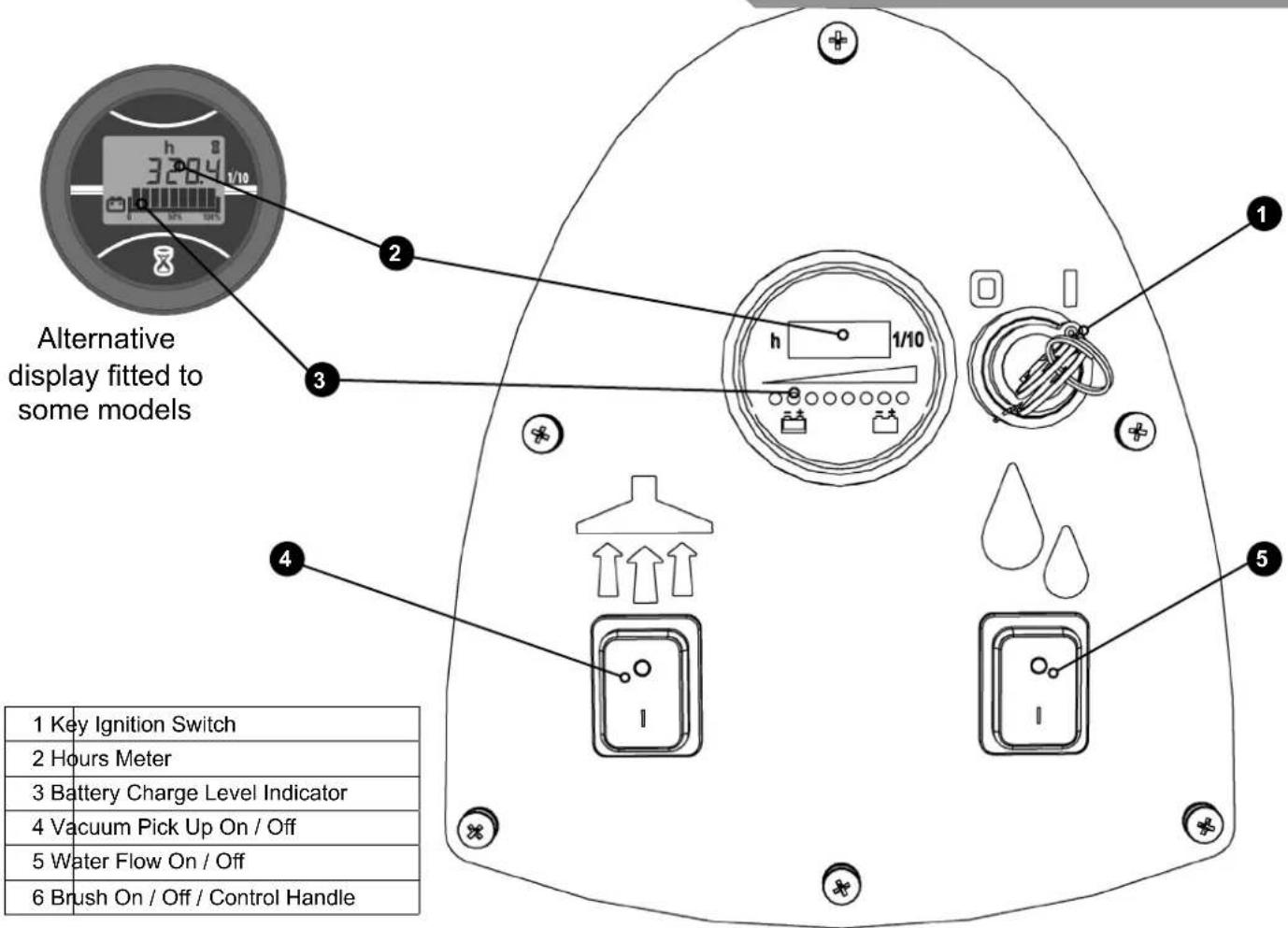

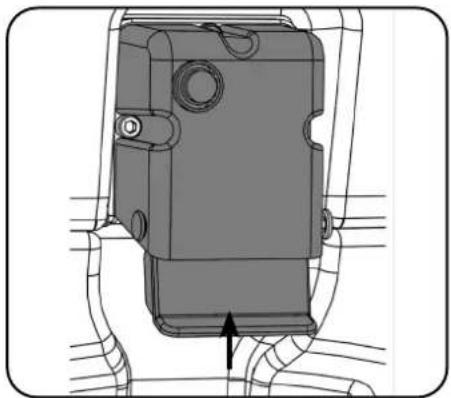

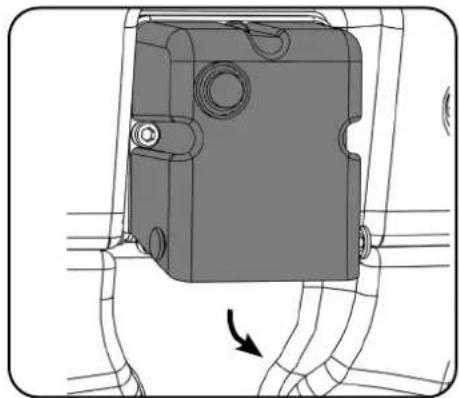

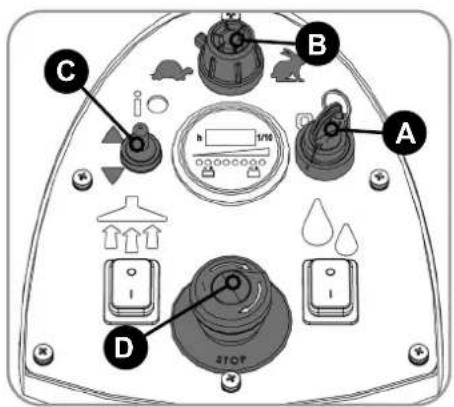

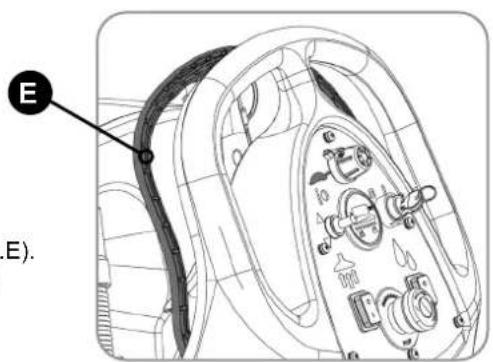

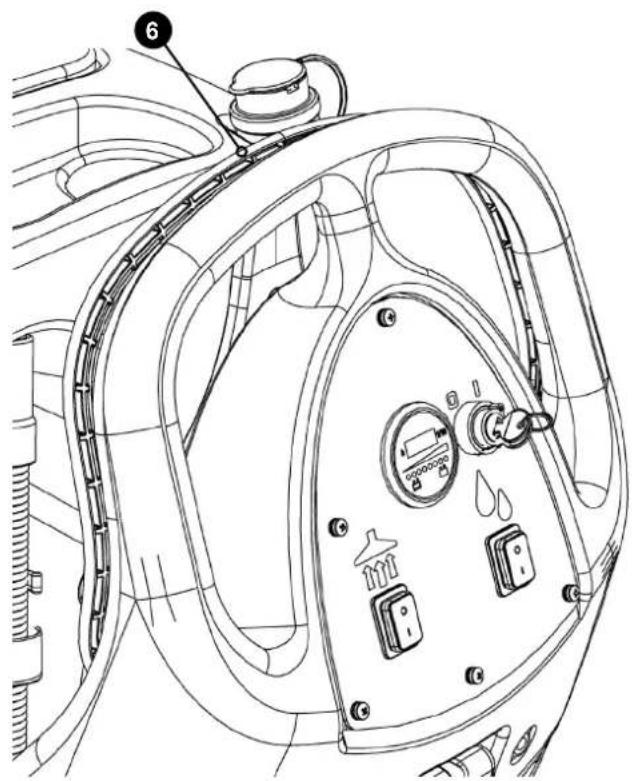

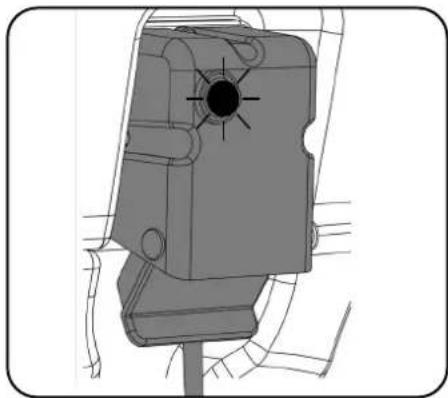

Alternative display fitted to some models 1 Key Ignition Switch 2 Hours Meter 3 Battery Charge Level Indicator 4 Vacuum Pick Up On / Off 5 Water Flow On / Off 6 Brush On / Off / Control Handle

Technical diagram of a car interior with labeled components, including dashboard, air vent, and control buttons.

EN: In the event of a breakdown contact your Numatic dealer.

- 1 x 30 Amp Fuse (Brush)

- 1 x 20 Amp Fuse (Vac)

- 1 x 2.5 Amp Fuse • Maxi Fuse-puller

Lift top tank assembly to reveal battery compartment, ensuring you use the handle grip provided.

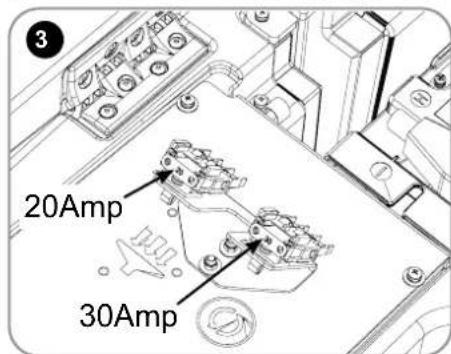

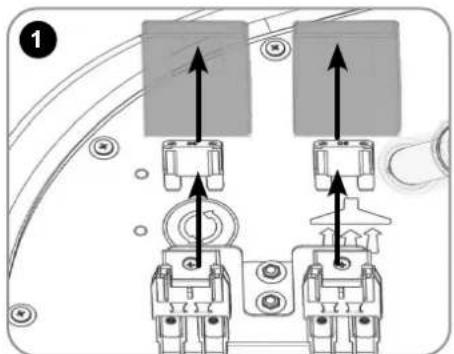

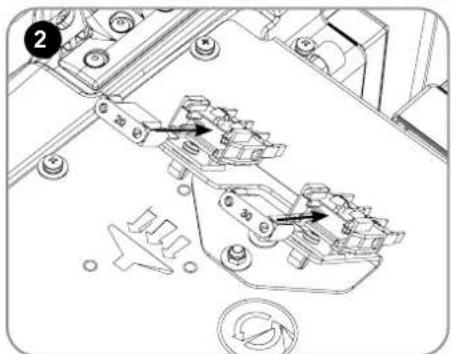

Fit vacuum and brush fuses (contained in start-up pack) into the fuse holders as illustrated.

(Fig. 1, 2, 3.)

Charge the machine to activate the batteries. After the batteries were activated, LEDs should illuminate on the top of all the batteries.

Insert Key into ignition located on the control panel (See below (Fig. A)

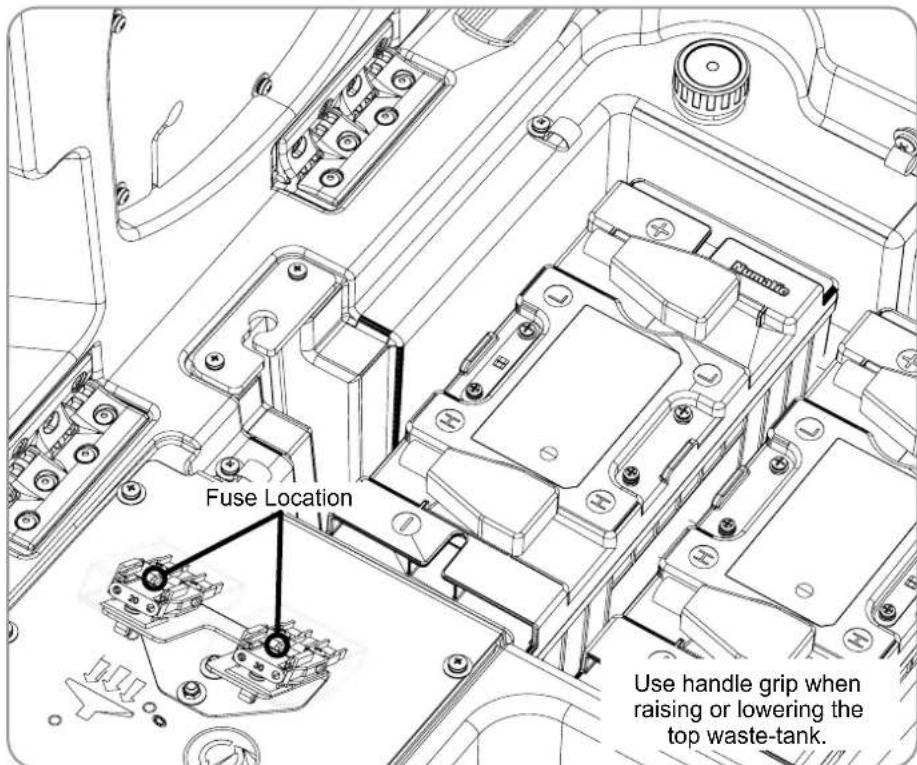

Fuse Location Use handle grip when raising or lowering the top waste-tank.

Diagram showing two mechanical components with upward arrows indicating assembly or movement, labeled with number 1.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating movement or flow

20Amp 30Amp

Numatic International Ltd recommends ONLY using 911948 NX1K LFP battery type Lithium Batteries provided with this machine.

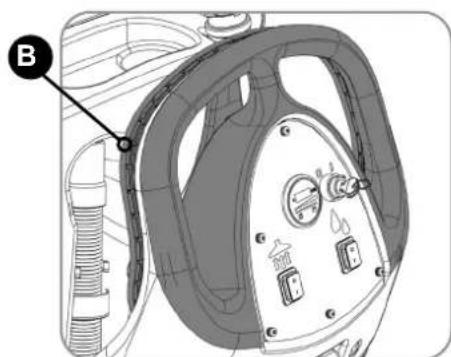

ENSURE THAT NO METAL OBJECTS COME INTO CONTACT WITH BATTERY TERMINALS WHILE THE BATTERIES ARE EXPOSED.

A h WTO 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

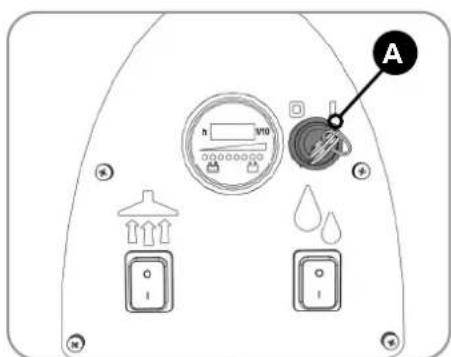

Insert the Ignition key and switch the machine on. (Fig. A)

Using the control handle with both hands, slowly push the machine off the pallet. When the machine is removed and in a safe position, release the control handle. Note: Do not pull the RED trigger handle while in transport mode (Fig. B) During vehicular transportation ensure the product is secured to avoid unnecessary movement.

B

DE

Fitting the Brush / Pad / Turn on water

550mm Brush or a 508mm Pad on the TBL 6055/100.

Featuring the Nulock brush system.

The brush is simply pushed and twisted to lock, making fitting and removal a simple process.

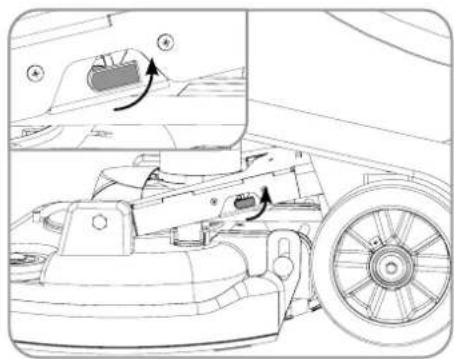

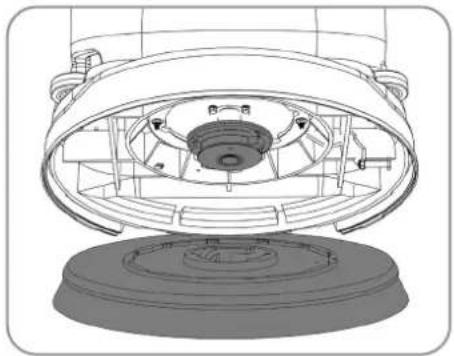

Slide the brush / pad under the brush deck.

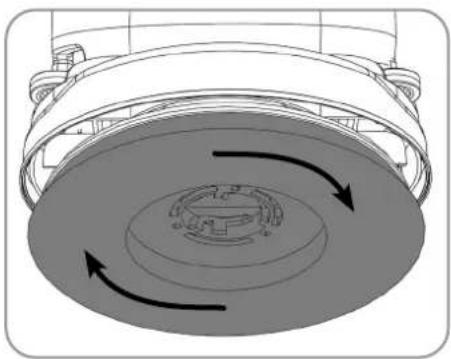

Fit the brush / pad onto the Nulock drive chuck, twist to lock the brush / pad in place.

Safety gloves are recommended for the changing of used brushes.

Turn on the clean water tap.

Technical line drawing of a mechanical component with no visible text or symbols

Mechanical component diagram showing a rotating wheel and surrounding gears (no text or symbols)

Technical line drawing of a vehicle's internal components, including wheel, dashboard, and dashboard assembly (no text or symbols)

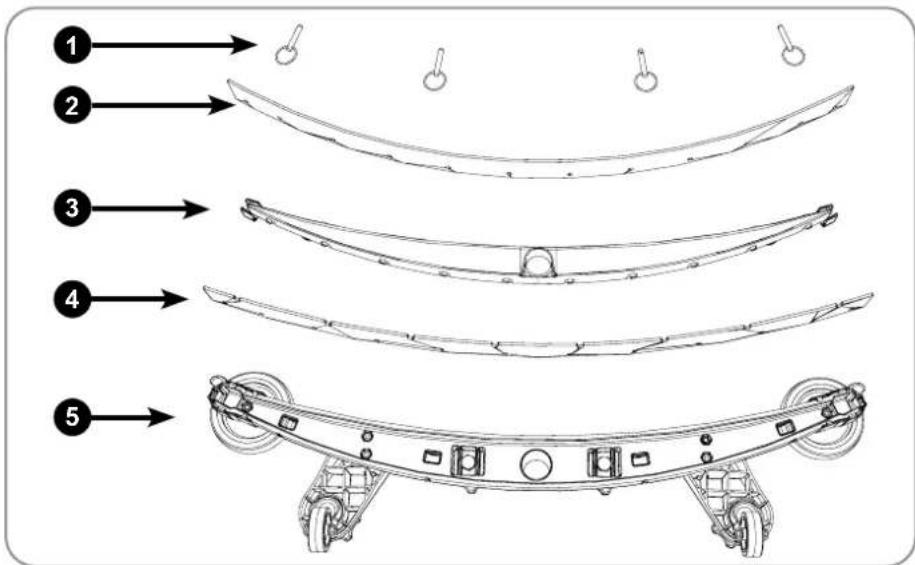

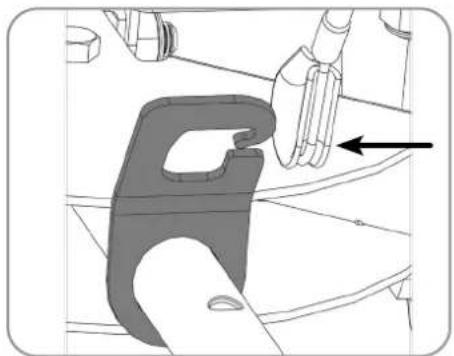

Fitting the Floor Tool

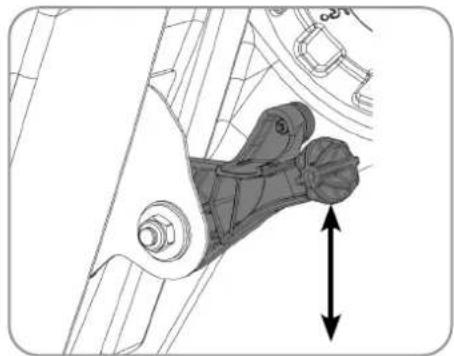

The floor tool has been designed for quick fitting, allowing easy squeegee blade replacement and a safety knock-off feature if the floor tool gets snagged, whilst in transit.

Mechanical component diagram showing a handle interacting with a curved bracket (no text or symbols)

Mechanical assembly diagram showing a piston and crankshaft mechanism (no text or labels)

Technical line drawing of a mechanical assembly with a hook and lever (no text or symbols)

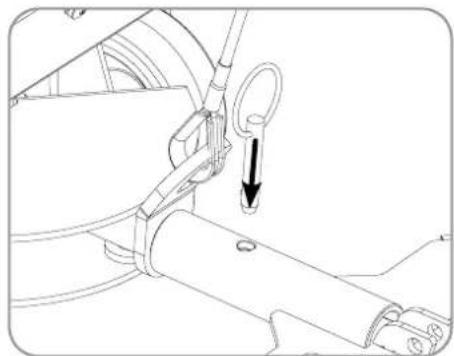

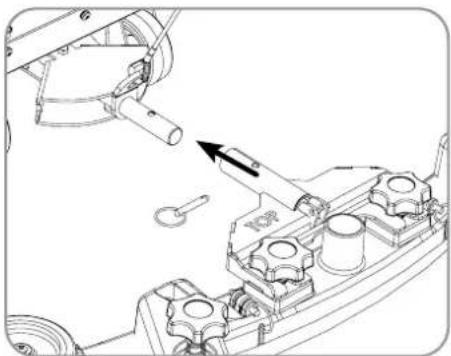

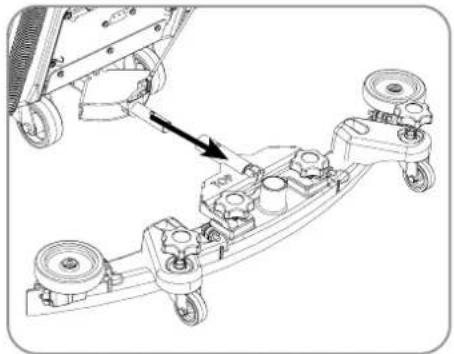

Fit the floor tool and retain using the detent pin.

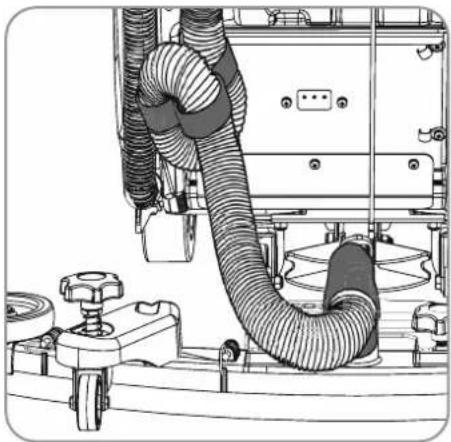

Push waste collection pipe onto the floor tool; ensure a tight fit.

Raise the floor tool for transit or lower for cleaning operation using the lifting handle fitted to the back of the machine.

For fitting the floor tool blades (See Page 12).

Technical line drawing of a mechanical assembly with hoses and components (no visible text or symbols)

Mechanical assembly diagram showing a lever mechanism with two directional arrows indicating movement (no text or labels present)

Fitting the Hose Guide

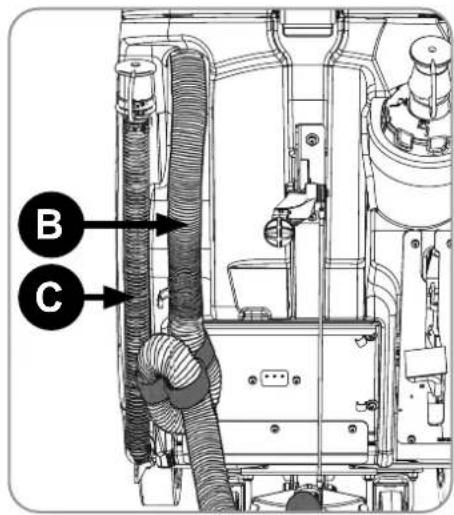

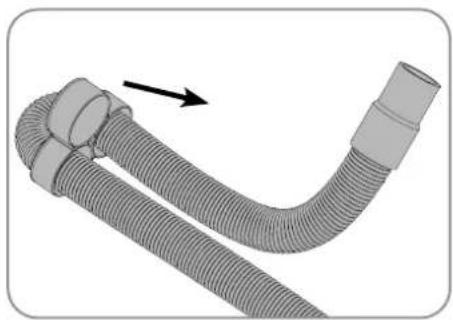

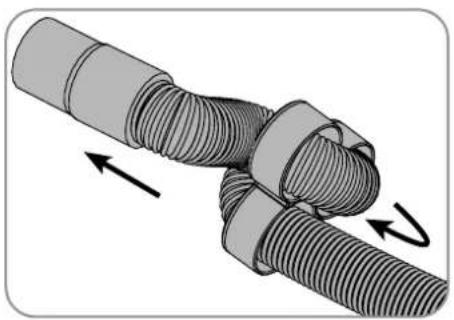

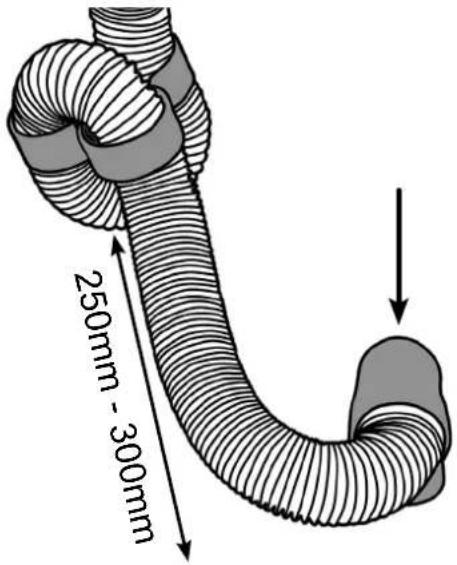

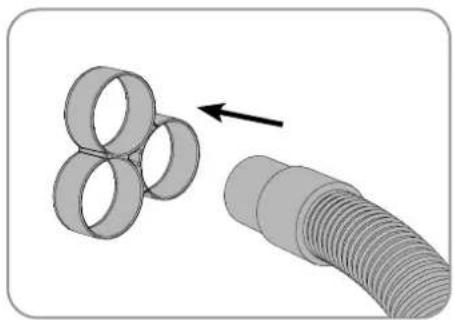

The vacuum hose has a U-bend clip which creates a U-bend in the hose preventing water spillage when the vacuum is switched off. If you need to remove the U-bend clip for any reason always ensure it is refitted correctly before you resume operation.

Diagram showing a coiled pipe with a separate threaded pipe, no text or symbols present

Note: DO NOT push the vacuum hose onto the floor tool with the floor tool in the raised position.

Illustration of a flexible hose with a black arrow indicating direction (no text or symbols)

Diagram of a mechanical joint or connector with threaded ends and directional arrows indicating movement (no text or symbols)

250mm - 300mm

Refit vacuum hose to the Floor tool when finished.

Filling the Clean Water Tank

The TBL6055/100 is equipped with a large capacity clean water tank allowing for large areas to be covered in a single fill.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

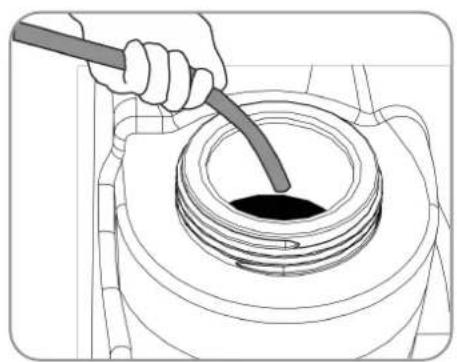

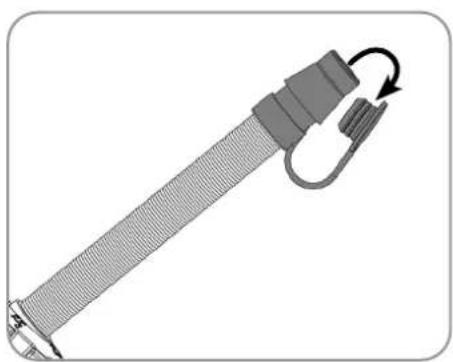

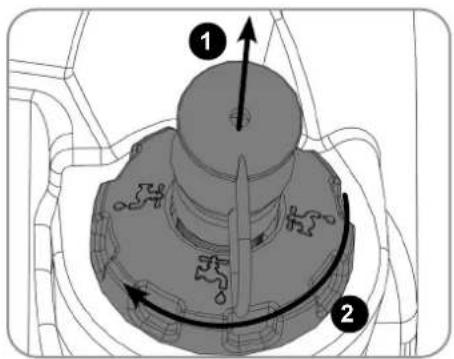

To fill the clean water tank, extend the hose located to the rear of the machine in the centre of the removable filler cap (1). Pull out hose. Open the stopper and place hose under water tap or use a hose to commence filling. The tank can also be filled by unscrewing the filler cap and using a bucket or similar container (2).

Illustration of a mechanical device with a curved handle and mesh grip, showing a rotational arrow (no text or symbols)

Illustration of a hand using a tool to brush the inner layer of a mechanical component (no text or symbols visible)

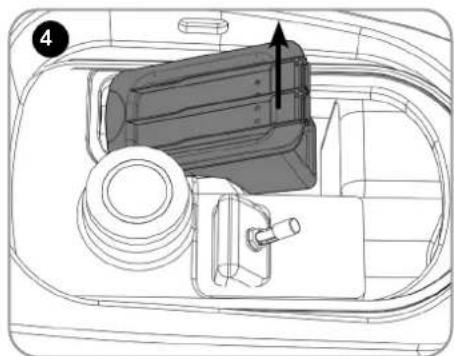

Note: Great care must be taken to ensure that contaminants (leaves, hair, dirt, etc.) are not allowed to enter the clean water tank during the filling process. If using a bucket or similar, ensure it is always clean and free from debris.

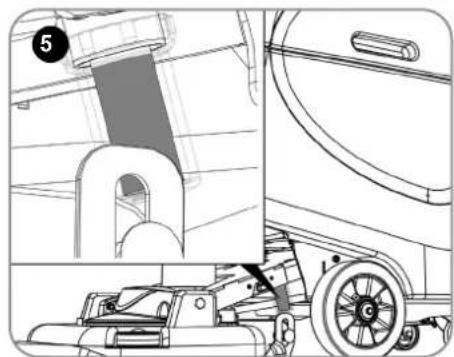

The water level in the clean-water tank can be measured using the scale on the left rear side of the machine. The clean water bottom tank holds 60 litres.

Note: always ensure that the waste water tank is empty before lifting.

60 L 40 L 20 L after tank on the clean . waste ing.

WHEN HANDLING AND MIXING CHEMICALS

Always ensure that chemical manufacturer's safety guidelines are followed. Only use chemicals recommended for use in auto scrubber-dryers.

IMPORTANT

Do not operate machine unless the Operator Manual has been read and fully understood.

The machine is now ready to be moved to the cleaning site.

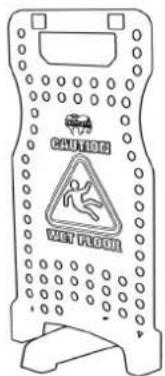

Before performing the cleaning operation, place out appropriate warning signs and sweep or dust-mop the floor.

CAUSE WIRE FLOOD

Technical line drawing of a cleaning or cleaning machine with visible components and mounting brackets (no text or symbols)

Füllstandsanzeige

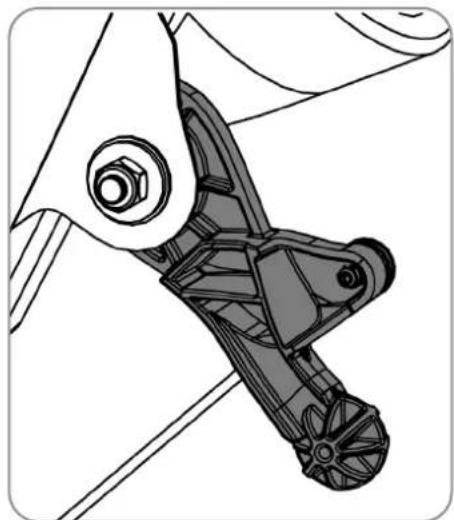

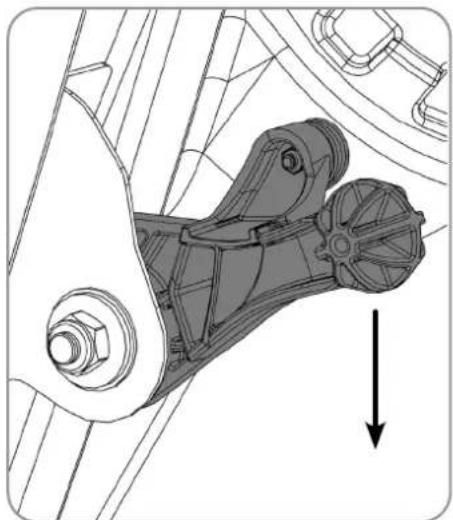

Raising/Lowering the Floor Tool

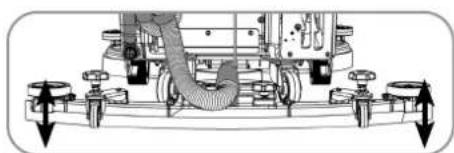

After preparing the floor (see previous section), we are now ready to set the controls to suit the cleaning conditions. Before any settings can be applied, ensure the brush deck is lowered. Move the floor tool lever to its lower position.

Note: Do not drive the machine backwards with the floor tool in the lowered position, this could possibly damage the blades.

Technical line drawing of a mechanical assembly with wheels and a coiled component (no text or symbols)

Mechanical assembly diagram showing a bracket with mounting flanges and a downward arrow indicating force or motion (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

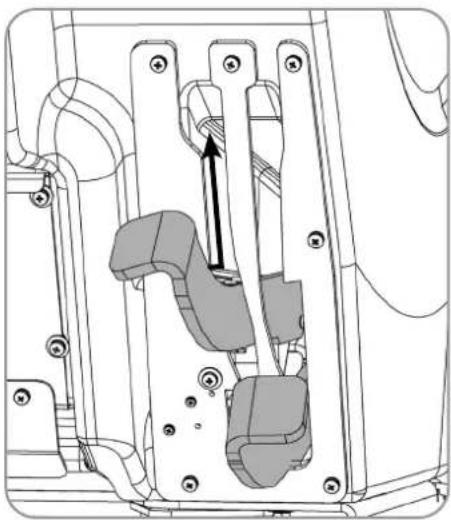

Raising/Lowering the Brush Deck

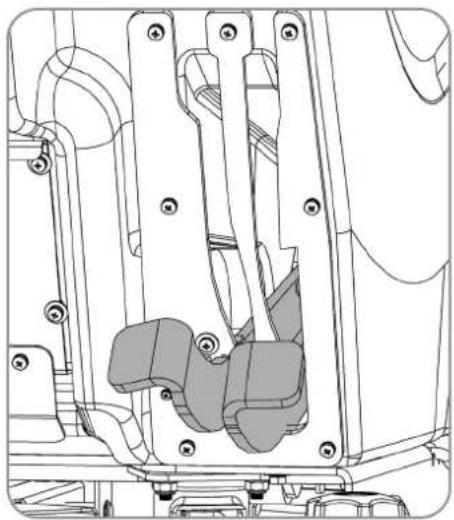

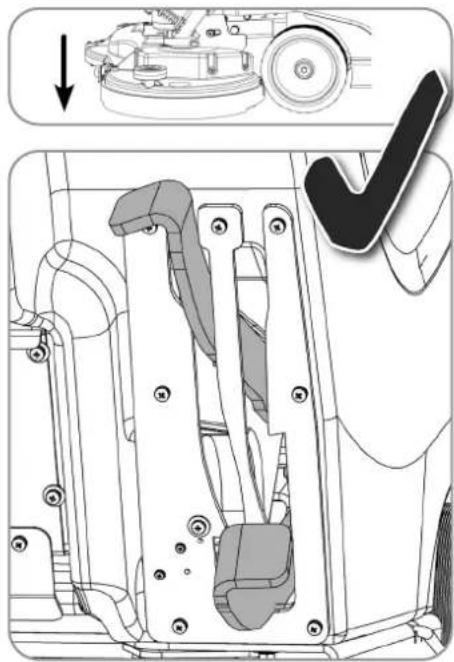

The control for lowering the brush deck can be found to the rear right of the machine. Lower the brush deck by moving the left hand release lever to the upper position.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with no visible text or symbols

Technical diagram of a vehicle's internal gear assembly with a checkmark indicating inspection (no text or symbols present)

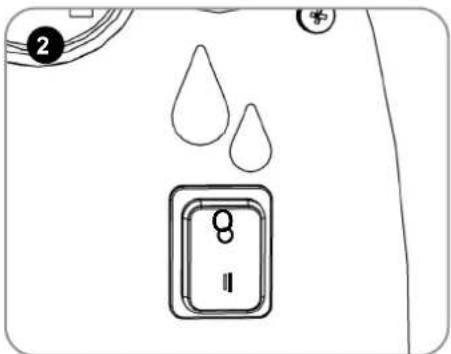

Setting the Cleaning Controls

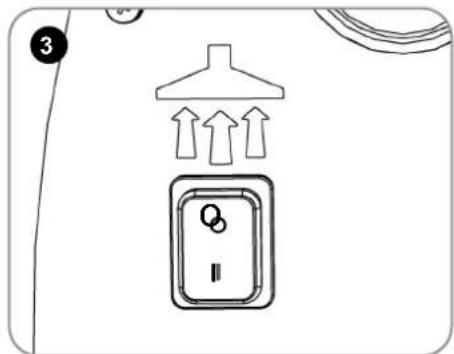

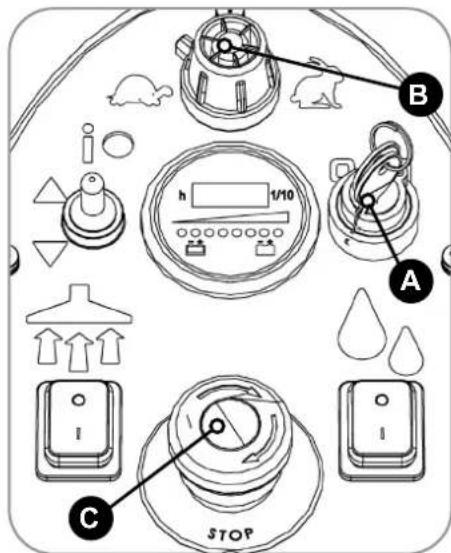

Using the control handle with both hands, push the machine forward. The battery charge level meter will illuminate for 5 seconds (Fig. 1). Switch on the Water Flow Rate (Fig. 2), and vacuum pick up (Fig. 3).

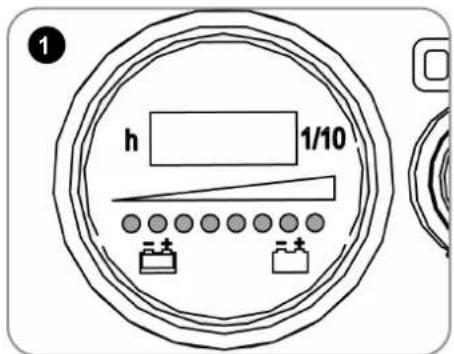

h 1/10

Diagram showing a water drop system with labeled components and symbols

3 Q II

Brush Pressure / Load Adjustment

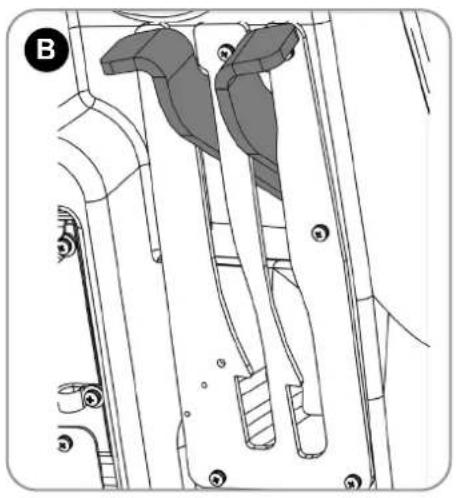

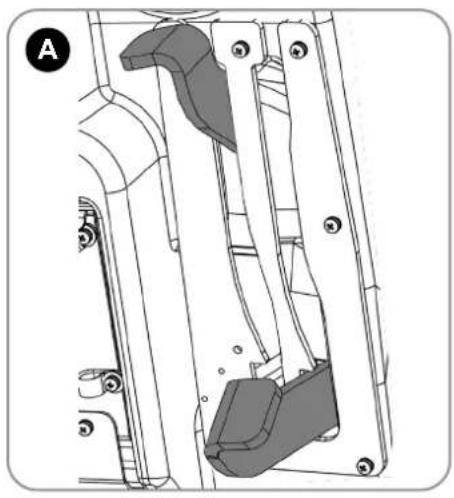

The brush load lever is located to the right hand side of the machine. This option is for hard to clean patches, adding extra pressure to the brushes.

NOTE: It is recommended this option is NOT used all the time and is for spot cleaning only. The run-time of the machine may decrease if the load on the brushes is increased.

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

(A) Standard Duty

24 Kg Pressure

(B) Heavy Duty

32 Kg Pressure

Break-away Floor Tool

The floor tool design incorporates a break-away feature.

Allowing it to safely disengage from its mounting should it become caught on an obstruction, during forward machine movement.

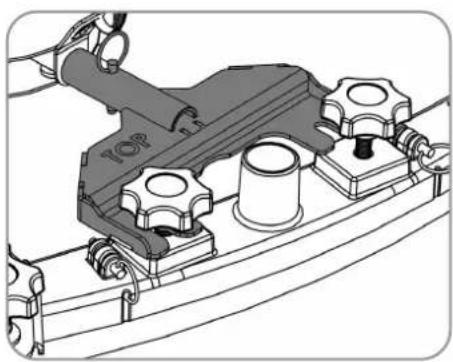

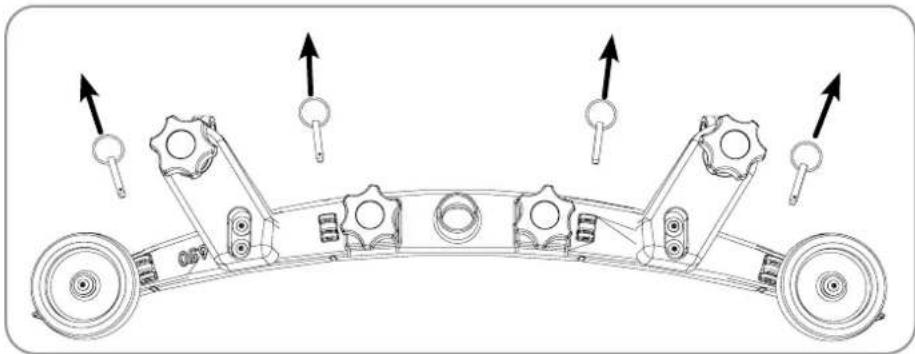

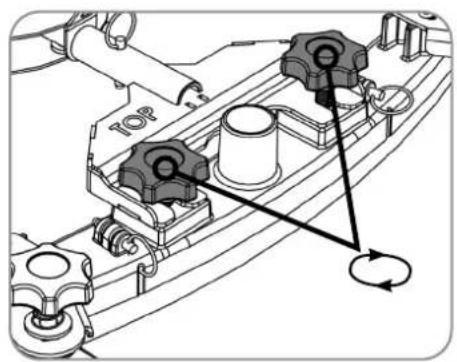

To re-attach the floor tool to its holder. First loosen the retaining knobs on the floor tool body and slide onto the holding bracket.

Tighten retaining knobs to finger tight.

Mechanical assembly diagram showing a bracket with gears and a cylindrical component (no text or symbols)

Mechanical assembly diagram showing two components with directional arrows indicating motion (no text or labels)

ALWAYS ENSURE THAT THE FLOOR IS PRE-SWEPT AND RELEVANT SAFETY SIGNS ARE DISPLAYED.

Machine In Use

To operate, set water flow rate (Page 6), lower brush deck (Page 9), lower the floor tool (page 9), press the vacuum switch (Page 9), pull brush On/Off trigger (Page 5).

Adjust the speed to suit the conditions using the variable speed control, depending on floor type and level of soiling (Traction model only, Page 15). Middle speed is the optimum cleaning speed.

The waste water is then retrieved by the suction floor tool.

Overlap each scrubbing path by 10cm to ensure an even clean.

Do not operate on cleaning surfaces having a gradient exceeding that marked on the machine, when full.

Warning: While on ramps or inclines, avoid sudden stops. Avoid sharp turns. Use low speed down ramps.

Clean only while descending (driving down) the ramp.

On heavily soiled floors use a 'double scrub' technique.

First pre-scrub the floor with the floor tool in the raised position, allow the chemical time to work then scrub the area a second time with the floor tool lowered.

If streaking occurs wipe floor tool blades clean.

Note: Care must be taken to reduce speed when cornering or when manoeuvring around obstacles

nung der Maschine

Overlap hver skrubberute med 10 cm for at sikre jævn rengøring.

Technical diagram showing a device component with labeled connection point A and a close-up of its cable assembly.

After use, empty waste water tank using emptying hose and flush out with clean water.
B Next remove floor tool vacuum hose and flush out with clean water.
C Next empty clean water tank, using emptying hose and again flush out with clean water.

B C

Waste Water Tank Full

3D diagram of a vehicle interior with two directional arrows indicating movement or force (no text or symbols present)

Whilst pressing in the top tank hood toggles, remove the hood. Fig1

The hood also has a sealing-rubber which should be examined at every clean-down. Rinse using clean water, avoiding the vac filter.

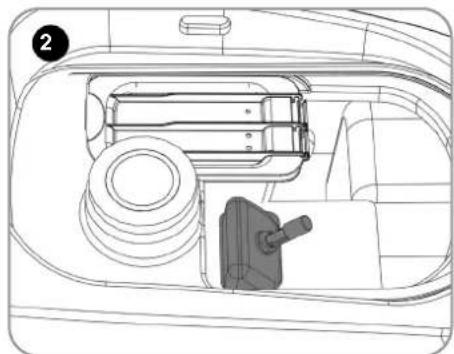

Located in your waste water (top) tank is a full tank switch, this stops your machine from working once the waste water reaches its maximum limit.

Sometimes the switch gets clogged and blocked, clean to ensure correct operation. Fig2

Also ensure float pad is clean and in the correct position.

Diagram of a mechanical component with an upward arrow indicating motion or force, no text or symbols present

IMPORTANT

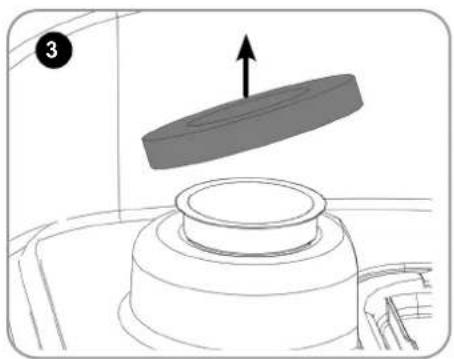

Remove vac filter and clean if required (keep dry). Fig3

Never use the machine without the recommended filter as it may cause damage to the machine.

Remove debris basket filter and rinse using clean water, and refit. Fig4 IMPORTANT If the debris basket is allowed to become clogged, vacuum performance can deteriorate.

Technical line drawing of a vehicle interior showing engine, wheel, and valve components (no text or labels)

Technical line drawing of a vehicle interior showing internal components and a directional arrow (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Located under the left hand side is a clean water filter, make sure the clean water tank is empty before removing this filter. Fig5

Note: To make access easier, raise the brush deck.

mäßige Wartung

Vuilwatertank is vol

Always ensure that the machine is switched off prior to any maintenance.

Mechanical assembly diagram showing a vehicle chassis with wheels and gears, no text or symbols present

Technical line drawing of a mechanical assembly with multiple wheels and mounting holes (no text or symbols)

To clean the floor tool, remove securing-pin and pull-free from the holder. Rinse the floor tool assembly with clean water and refit.

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a vehicle chassis with mounting brackets and wheels, no text or symbols present

Technical illustration of a mechanical assembly with curved metal strips and internal components (no text or symbols)

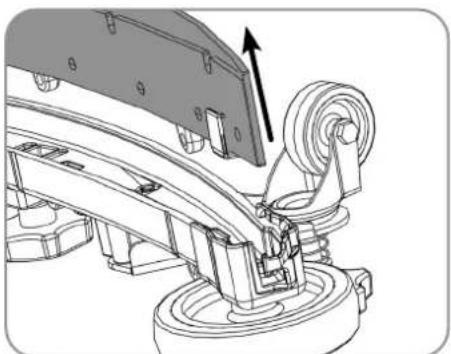

Periodically the floor tool blades should be examined and checked for wear and damage. The blade removal is easy. Simply start by removing the four retaining pins, turn the floor tool over and separate the blade carrier from the body. Peel away the blades from their locating lugs and examine or renew as required. Replacement is a reversal of the removal process.

Floor Tool Overview

1. Retaining pins x 4
2. Rear blade
3. Blade carrier
4. Front blade (slotted)
5. Floor tool main body

Note: The blades are designed to be reversible, thus extending their useful working life.

Technical diagram of a curved mechanical component with numbered parts and assembly details

Always ensure that the machine is switched off prior to charging.

The battery meter displays the charge level of the batteries; when fully charged, all meter lights are illuminated.

0 50% 100%

1

As the machine is used and the batteries are discharged, the meter lights will go out from right to left.

If the battery-charge level is allowed to discharge to the point that only one or two lights / bars remain illuminated, the operator must consider charging the machine.

0 50% 100%

2

When the machine is getting close to empty the last light starts to flash, the operator should then take the machine to a suitable charging point. When the battery icon starts flashing, the vacuum and brush motors will be disabled and the user should charge the machine.

0 50% 100%

3

Diagram of a battery model with two terminals and circular components (no text or symbols)

Alternative Display

When the last red light starts flashing, the vacuum and brush motors will be disabled and the user should charge the machine.

The LFP batteries are sealed for life and are totally maintenance free.

The on-board charger automatically monitors the charging process and will switch to float charge mode when the batteries are fully charged. Float charge mode allows to maintenance LFP batteries at the right level of health. The machine should be left on float charge overnight or over the weekend at least once per month or more frequently if needed.

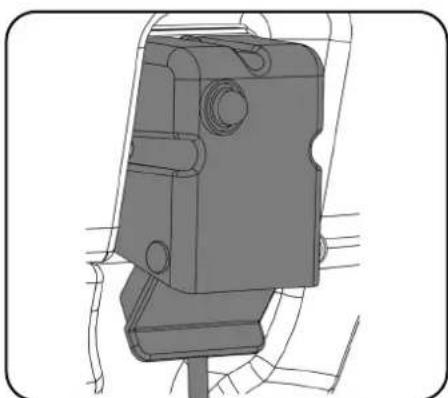

Insert the charging lead required for your country into the charging point.

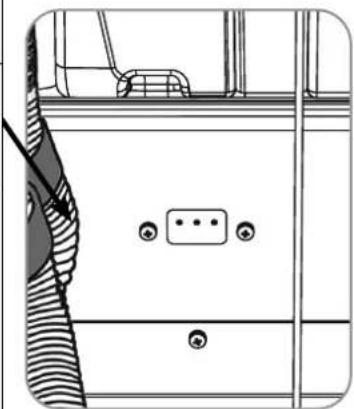

The machine charging point is located to the rear of the machine under the control panel.

Connect to a suitable power supply.

Once mains power is connected the red charging indicator will illuminate.

To ensure a full charge, from an empty state, the machine should be left for a period of 8 hrs.

Once fully charged, disconnect the charging lead from both the power supply and the machine.

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Battery Care

To ensure your machine remains at its maximum efficiency and prolong your battery life, please follow the simple steps below:

Under normal daily usage:

Re-charge the machine FULLY after each use regardless of machine operation time.

It is recommended to leave the machine connected to power grid overnight, at least once a month. If the user does not disconnect the cable after full charge it is not an issue.

Do not leave the machine in a discharged state.

Periodically inspect the battery

connections for tightness and corrosion.

does not issue. 0 50% 100%

Technical line drawing of a mechanical component with no visible text or symbols

des Geräts

Signal (LED) Meaning
Red LED on First Phase (Constant Current Mode).
Orange LED on Second Phase (Constant Voltage Mode).
Green LED on	Third Phase (Constant Voltage Mode) Charge Complete.However, after full re-charge, leaving the charger connected moves to float-charge mode to help to maintain a healthy balance between batteries.
Red LED flashing followed by Pause	Cooling Fan Locked > 1 flash between pause.Over Voltage Protection / Output Short Circuit / Battery Reverse Polarity > 2 flashes between pause.Over Temperature Protection > 3 flashes between pause.Charge Time has exceeded 16 hrs during phase 1 or 2 > 4 flashes between pause.
	Condition RED LED YELLOW LED GREEN LED
	Pre-charge Timeout	Flashing 4 Times		O
	CC Timeout		O
	CV Timeout		O	O
	Battery Disconnection
	Note: O means illuminates continuously

Three battery icons with warning symbols, no text or labels present

Technical line drawing of a vehicle door panel with buttons and a handle (no text or symbols)

Note: Re-charge the machine fully after its last use. Do not leave the machine in a discharged state.

Under abnormal use;

i.e. leaving the machine without charging for a period of time, we advise that you follow these steps:

Float charge mode allows to maintain LFP batteries at the right level of health.

The machine should be left on float charge overnight or over the weekend at least once per month.

Charge fully the day before you start using the machine again.

steps. 0 10% 100%

Specifications

Model - TBL6055 (Non Traction Models)
Brush Motor Vac Motor Brush Sizes Pad Sizes Charger
300 W 400 W 550 mm 508 mm			20 Amp
Protection Class	Brush Speed		Water Capacity	Fluid Flow	Hand Arm Vibration
IPX4	140 RPM		60 L	0 - 2 L/Min	≤ 1.07m/s^2
Scrub Pressure Standard	Scrub Pressure Heavy		Dimensions
24 kg 32 kg	Width = 560mm		(948mm) / Length = 1425mm / Height = 1120mm
50 Ah
Net Weight	Gross Weight (Full)	Sound Pressure Level (LpA)	Run Time	Maximum Climbing Gradient	Re-charge Time
115.29 kg	175.29 kg	≤ 72 dB (A)	1 hr 40 mins average	Scrubbing 2 %	2.5 hrs
100 Ah
Net Weight	Gross Weight (Full)	Sound Pressure Level (LpA)	Run Time	Maximum Climbing Gradient	Re-charge Time
126.09 kg	186.09 kg	≤ 72 dB (A)	3 hrs 10 mins average	Scrubbing 2 %	5 hrs

Alternative display fitted to some models 1 Key Ignition Switch 2 Hours Meter 3 Battery Charge Level Indicator 4 Vacuum Pick Up On / Off 5 Water Flow On / Off 6 Speed Control Dial 7 Forward / Backwards Control 8 Emergency Stop Button 9 Traction Status Light / Green Light Error Stat Nu-Ass Download on the App Store

Machine Operation.

A B C D 3STOP

Depress control handle with both hands and slowly drive machine off of the pallet (Fig.E). When the machine is removed and in a safe position, turn key back to the position (0) 'OFF'
Note: During vehicular transportation ensure the product is secured to avoid unnecessary movement.

E (E).

In the event of a breakdown contact your Numatic dealer or the

Numatic Technical help line [phone]

EN Machine Operation

Setting the Cleaning Controls

Insert the key, turn the main control on / off key to position '1' (Fig.A). The battery charge-level indicator will illuminate for 5 seconds.

Set desired traction speed as required, depending on floor type and level of soiling (Fig.B).

Middle speed is the optimum cleaning speed.

The TBL6055T is equipped with an electronic braking system.

Simply release the hand operated start / stop trigger and the machine will stop. In an emergency, strike the Emergency Stop button. (Fig.C).

The machine will be disabled.

To reset, turn Emergency Stop button clockwise.

After re-setting the Emergency Stop button, to restart the machine, turn the main control on / off key to '0' and then position '1'.

B h 1/10 A C STOP

Free Wheel Function

The machine is equipped with a free-wheel function that will enable the operator to move the machine manually if required.

The motor brake is located on the right side of the machine near the rear wheel.

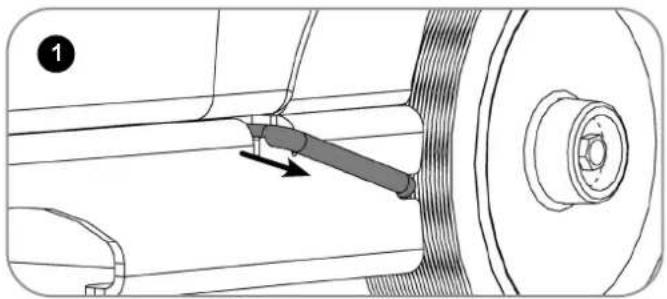

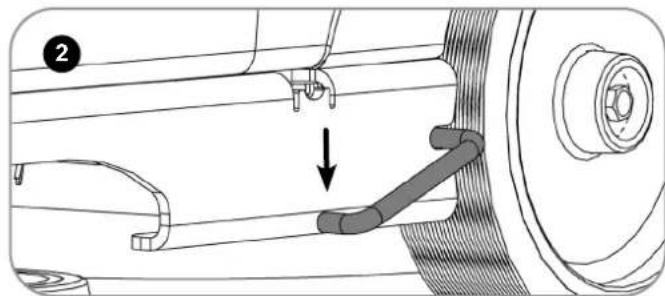

Pull the arm out (Fig.1). Swing to the disengaged position (Fig.2).

The motor brake will be fully disengaged. The machine will now be in full free wheel mode.

Technical diagram of a mechanical assembly with a lever and shaft (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Note: Drive functions on the machine will not work whilst in free-wheel mode.

Remember to re-engage the drive when you reach your final destination / before using the machine.

Specifications

Model - TBL6055T (Traction Models)
Brush Motor Vac Motor Brush Sizes Pad Sizes Charger
300 W 400 W 550 mm 508 mm 20 Amp
Protection Class Brush Speed Water Capacity Fluid Flow Hand Arm Vibration
IPX4	140 RPM		60 L		0 - 2 L/Min	≤1.07m/s2
Scrub Pressure Standard	Scrub Pressure Heavy		Dimensions
24 kg 32 kg	Width = 560mm		(948mm) / Length = 1425mm / Height = 1120mm
Traction Drive Motor				Drive Speed
250W				0-4km/h
50 Ah
Net Weight	Gross Weight (Full)	Sound Pressure Level (LpA)	Run Time		Maximum Climbing Gradient	Re-charge Time
141.15 kg	201.15 kg	≤ 72 dB (A)	1 hr 30 mins average		Scrubbing 11 %	2.5 hrs
100 Ah
Net Weight	Gross Weight (Full)	Sound Pressure Level (LpA)	Run Time		Maximum Climbing Gradient	Re-charge Time
151.95 kg	211.95 kg	≤ 72 dB (A)	3 hrs average		Scrubbing 11 %	5 hrs

ung der Maschine

Green Status Indicator	Fault	Possible Cause	Effect on Product	Investigate the Following	Action Required	If Fault Persists
1 Flash with pause●	Batteries voltage low	Batteries not been charged	Operating time severely reduced or machine will not operate	Check when machine last charged Charge batteries immediately		Contact Service Agent
		Possible bad connection between batteries, controller, charger or fuses caused by loose connections, damaged wiring, water ingress		Switch OFF the machine:Remove FusesCheck connections to batteries, charger and fuses for loose wires or screws	Tighten loose connections and replace damaged components
		Not accepting charge due to faulty battery / cell		Check each battery Voltage individually to detect defect unit 10.5V min	Replace batteries as required
		Charger not functioning		Check battery voltage and charge current ensuring charger red fault light is extinguished	Replace charger
2 Flashes with pause●●	Traction motor disconnected	The motor has a bad connection	The motor will not operate	Check all connections and leads between motor and controller	Tighten loose connections and replace damaged components
		Motor disconnected
		TCO activated (Thermal Cut Out)
		Motor failed to open circuit
3 Flashes with pause●●●	Traction motor wiring trip	The motor has a short circuit to a battery	Motor will not operate Check all connections and leads between the motor and controller
4 Flashes with pause●●●●	Battery Lockout	The battery charge level has fallen below the battery lockout level and the controller is inhibiting machine functions	Machine functions not working	Check battery voltage and charge current ensuring charger red fault light is extinguished	Charge batteries immediately
				Check each battery voltage individually to detect defect unit 10.5V min
6 Flashes with pause●●●●●●	Charger connected	The controller is being inhibited from driving, this may be because the battery charger is connected	Machine functions not working	Remove charger to operate machine
8 Flashes with pause●●●●●●●●	Controller trip A controller trip is indicated		Machine functions not working	Check all connections and leads	Tighten loose connections and replace damaged components
9 Flashes with pause●●●●●●●●●	Brake deactivated or failed	Poor brake connections Brake failure or deactivation	Traction drive disabled Check brake wiring and brake lever		Replace brake or wiring as necessary. Reactivate brake by engaging brake lever
10 Flashes with pause●●●●●●●●●	High battery voltage	Poor connections between battery controller and traction motor	Machine functions not working	Check each battery Voltage individually to ensure voltage < 14 volts
				Check connections on controller batteries and traction motor
				Check combined battery pack voltage is < 28 volts

Diagram of a device control panel with labeled buttons and indicators, including air filters, water level meters, and power meters.

Diagram of a device control panel with labeled buttons and indicators, including a black arrow pointing to a specific component.

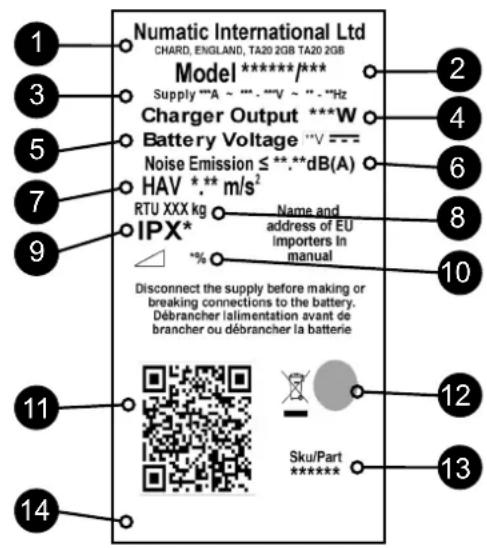

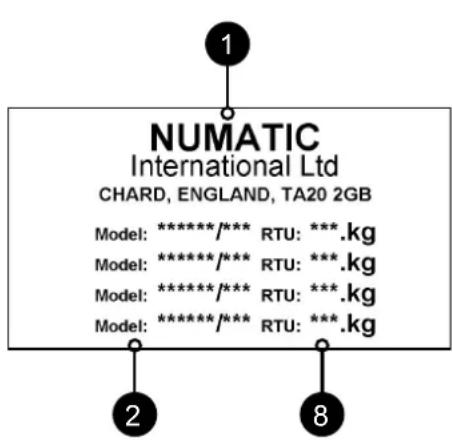

Rating Label
1 Company Name & Address
2 Machine Description
3	Supply Current / Voltage / Alternating Current / Frequency
4 Charger Output
5 Battery Voltage
6 Noise Rating
7 Hand Arm Vibration
8 Weight (ready to use)
9 Ingress Protection Rating
10 Max Gradient
11 QR Code
12 WEEE Logo / Approvals Mark
13 SKU / Part
14 Machine yr/wk Serial number

Numatic International Ltd CHARD, ENGLAND, TA20 2GB TA20 2GB Model *****/*** Supply ***A ~ **. ***V ~ *." **Hz Charger Output ***W Battery Voltage ***V --- Noise Emission ≤ **.**dB(A) HAV *.* m/s² RTU XXX kg IPX* Name and address of EU importers In manual Disconnect the supply before making or breaking connections to the battery. Débrancher alimentation avant de brancher ou débrancher la batterie Sku/Part *****

NUMATIC International Ltd CHARD, ENGLAND, TA20 2GB Model: ********/*** RTU: ***.kg Model: ********/*** RTU: ***.kg Model: ********/*** RTU: ***.kg Model: ********/*** RTU: ***.kg 2 8

WEEE (Waste, Electrical and Electronic Equipment)

Scrubber dryer Accessories and packaging should be sorted for environmentally-friendly recycling.

Only for UK & EU countries.

Do not dispose of scrubber-dryer into household waste.

According to the European Directive 2012/19/EU on waste electrical electronic equipment and its incorporation into national law.

Scrubber-dryers that are no longer suitable for use must be separated, collected and sent for recovery in an environmentally-friendly manner.

PPE (Personal protective equipment) that may be required for certain operations.

Ear Protection Safety Footwear Head Protection Safety Gloves
Dust / Allergens Protection	Eye Protection Protective Clothing		Hi-Vis Jacket	Caution Wet Floor Sign

Note: A risk assessment should be conducted to determine which PPE should be worn.

Safety Critical Component:

Charging Leads: H05VV-F 3 Core x 1.0 mm²

Battery Charger: 100V-240V (50-60Hz)

DC Output: 25.6VDC, 20A

In the event of a breakdown contact

your Numatic dealer or the

Numatic Technical

help line [phone]

READ MANUAL BEFORE USE

COMPONENT INTERVAL INSPECT FOR
Charging Lead DAILY Scuffi ng	cracks, splits, conductors showing
Brushes DAILY Bristle dama ge, wear, drive collar wear
Squeegee Blade BEFORE EACH USE Wear, cracks, splits
Filters BEFORE EACH USE Clogging and debris retention
Tanks AFTER EACH USE Rinse dirty water tank after use

WARNING

As with all electrical equipment care and attention must be exercised at all times during its use, in addition to ensuring that routine and preventative maintenance is carried out periodically in order to ensure its safe operation. Operators shall be adequately instructed on the use of these machines.

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility or liability in this respect.

When ordering spare parts always quote the Model Number / Serial Number specified on the Rating Plate.

Do not use on cleaning surfaces having a gradient exceeding that marked on the machine. While on ramps or inclines, avoid sudden stops. Avoid sharp turns. Use low speed down ramps. Clean only while descending (driving down) the ramp.

This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.

Children should be supervised to ensure that they do not play with the appliance.

Only use brushes provided with the appliance or those specified in the instruction manual.

The use of other brushes may impair safety.

A full range of brushes and accessories are available for this product.

Only use brushes or pads which are suitable for the correct operation of the machine for the specific task being performed.

It is essential that this equipment is correctly assembled and operated in accordance with current safety regulations.

When using the equipment always ensure that all necessary precautions are taken to guarantee the safety of the operator and any other persons who may be affected.

Wear non slip footwear when scrubbing. Use a respiratory mask in dusty environments.

When cleaning, servicing or maintaining the machine, replacing parts or converting to another function the power source shall be switched off.

Mains operated machines shall be disconnected by removing the power plug, and battery operated machines shall be disconnected by using top ON/OFF button on the battery.

In order to prevent unauthorised use of the machine the power key must be removed after use.

Machines left unattended shall be secured against unintentional movement.

When detergents or other liquids are used, read the manufacturer's instructions.

CAUTION

This machine is not suitable for picking-up hazardous dust.

This machine is not to be stored outdoors or in wet conditions.

This machine is for indoor use only.

NOTES: This machine is intended for commercial use, for example in hotels, schools, hospitals, factories, shops, offices and rental businesses.

This product meets the requirements of IEC 60335-2-72

DO

• Ensure only competent persons unpack/assemble the machine.
• Keep your machine clean.
• Keep your brushes in good condition.
• Replace any worn or damaged parts immediately.
• Regularly examine the power cord for damage, such as cracking or ageing. If damage is found, replace the cord before further use.
  • Only replace the power cord with the correct Numatic approved replacement parts.
  • Ensure that the work area is clear of obstructions and / or people.
  • Ensure that the working area is well illuminated.
  • Pre-sweep the area to be cleaned.

DON'T

• Use steam cleaners or pressure washers to clean the machine or use in the rain.
- Allow any inexperienced repairs. Call the experts.
- Leave the brush pad on the machine when not in use.
- Allow the machine to be used by inexperienced or unauthorised operators or without appropriate training.
• Use the machine without the solution tanks properly positioned on the machine, as shown in the instructions
• Expect the machine to provide trouble-free, reliable operation unless maintained correctly.
• Lift or pull the machine by any of the operating triggers, use the main handle.
- Allow water solutions to ingress to the battery.
- Remove the handle from the machine except for service and repair.

Precautions when working with batteries

1. Always wear protective clothing e.g. face visor, gloves and overalls when working with batteries.
2. Whenever possible always use a properly designated and well-ventilated area for charging.

Do not smoke or bring naked flames into the charging area.

1. Remove any metallic items from hands, wrists and neck i.e. rings, chains etc. before working on a battery.
2. Never rest tools or metallic objects on top of the battery.
3. When charging is complete disconnect from the mains supply.
4. The batteries must be removed from the machine before it is scrapped.
5. The machine must be disconnected from the supply when removing the battery.
6. To remove the batteries:- Disconnect machine from the mains supply (if charging) and ensure batteries are switched off using the button that is placed on the battery top. Disconnect hoses from separator and tanks.

Remove separator and tanks. Unscrew battery strap fi xings and remove.

Undo battery terminals and remove. Remove batteries.

1. The batteries are to be disposed of safely, as according to local government guidelines.
2. Only use genuine Numatic replacement batteries.
3. Do not allow the batteries to become fully discharged; it may not be possible to re-charge them.
   Batteries should not be discharged below 22.5 volts with 10 amps flowing.
4. Do not allow one battery to be discharged separately to the other.
5. Do not mix batteries from different machines.
6. The batteries fitted to this product are Lithium-ion (Li-ion), Lithium Iron phosphate (LFP) type.

The fitting of any other type of battery may cause a safety hazard.

1. Switch off the battery using top ON/OFF button before cleaning or maintenance.

Battery Care

1. Battery Storage:

a. Batteries must be stored in a dry, level and clean location not exceeding a temperature range of 15°C \~ 25°C.
b. Batteries must by fully charged every 6 months when on-the-shelf or if the battery voltage reduces to 25V.
c. Batteries must be put into use within 12 months of the date of manufacture, failure to do so will lead to reduced capacity in

the field. (battery date code) -

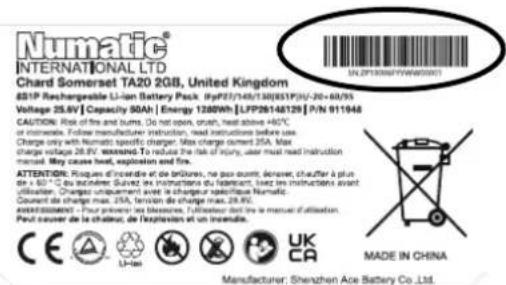

ZP19006F YYW W0 0001

Serial number

Week of Production

Year of Production

d. If a battery does not want to switch ON and the green LED on the top is not illuminating, irreversible damage has occurred. Under this condition, a battery should not enter into service and should be disposed of according to local authority guidelines.

1. During Use:

a. Batteries must be recharged after every use regardless of machine run time.
b. If the machine is to be left dormant for any length of time complete the following:
i. Fully charge the batteries.
ii. Do not leave batteries dormant for more than 6 months.

Daily

Keep the machine clean.

Ensure brushes/ pads/ squeegee/ filters are in good condition.

Check for any worn or damaged parts and replace immediately.

Drain and rinse dirty water tank after every use.

Store machine with brush deck secured in the elevated position.

Weekly – as daily and –

Check brush or pad and skirt and rinse.

Check floor tool blades for wear and wipe clean.

Clean separator assembly including filter and check condition of seal.

Flush out system with clean water and clean filters.

Batteries

Always re-charge the batteries after use.

Charge for a minimum of 4 hours. Leave the battery on charge overnight, at least once per month.

After it has been fully charged, this will prolong battery life.

TwinTec Maintenance

Simple line drawing of a trash bin with crossed lines and a black rectangle below (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Numatic Lithium-ion Rechargeable Battery

25.6V | 50Ah | 1280Wh | LFP26148129

Warning symbol image with exclamation mark inside triangle

Weather protection symbol with no text, numbers, or symbols

Prohibition sign with a thermometer crossed out, indicating no heat or temperature allowed

Prohibition sign with no smoking symbol (no text or numbers present)

Black circular icon showing a hand washing a faucet (no text or symbols)

Stylized black-and-white graphic of an eye with a pointed hat above it, no text or symbols present.

It is important that you observe the following information and warnings!

1. If a customer wishes to return a battery to a supplier after removing from product, then collection of the battery must be arranged by the supplier; however, Faulty batteries must not be returned through the postal system or by courier.
2. If on return to a supplier, OR at a customer base, a suspected defective battery shows any signs of impact damage, distortion, blistering, loose parts or leakage then on no account should it be offered for condition checking. It must be considered defective and the procedures described from item 6 below should be followed.
3. If, on return to a supplier, OR at a customer base, a suspected defective battery, that shows No signs of impact damage, distortion, blistering, loose parts or leakage, may be offered for condition checking with an appropriate battery condition checking device operated by a competent person.
4. If checking shows the battery to be defective then the procedures described from item 6 below should be followed.
5. On no account must any further attempt to recharge be made. A defective battery should not be stored inside buildings on any account.
6. The defective battery must be switched off, and all electrical terminals sufficiently insulated to remove risk of short circuit. The defective battery can then be stored in a locked battery waste container which should be plastic or plastic lined and placed away from buildings and combustible materials and clearly signed as a defective battery container with appropriate warnings. Defective batteries should be sent for waste disposal / recycling according to your country waste regulations.

Line drawing of a simple electrical cabinet with four legs and a central door (no text or symbols)

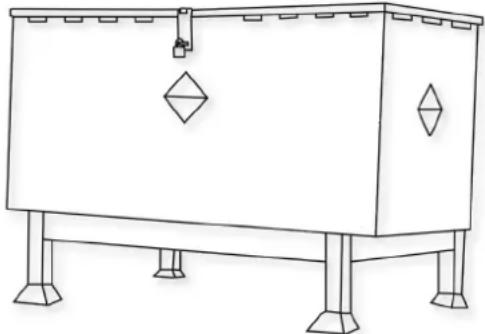

An example of a waste battery storage bin well away from buildings.

2. HANDLING AND STORAGE

EN

DANGER!

Improper handling can lead to an explosion or ignite a fire!

Store batteries out of reach of children.

• Only trained staff can fix the battery in the machine.
• Storage temperature range: -10°C\~40°C.
  • Temperatures must not exceed 40^ C.
  • Relative humidity range: 20% to 80%.
• Optimum preservation of functionality: 15^ 25^ .

WARNING:

• Do not open the battery, disassemble it or allow it to fall from a substantial height
• Protect the battery against short-circuiting – danger of explosion!
• Protect the battery against rain, do not immerse in liquids – danger of short-circuiting.
• Protect the battery against direct sunlight, heat and fire.
• Do not incinerate the battery – danger of explosion!
• Do not use defective or deformed batteries.
• Use only original Numatic specific appliances to charge and discharge batteries.
• Use only an external supply with the following specifications: 100-240V \~ 6.8A.

STORAGE:

• Good batteries should be stored in a protected area away from sources of direct heat and sunlight and should be kept dry.
- The temperature should not exceed 40^ but preferably not be above 25^ to maintain good battery performance.
- Storage area should be of low humidity, non dusty and a non corrosive atmosphere.

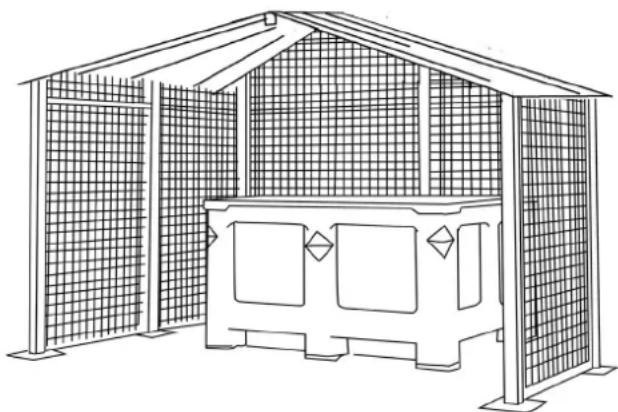

- An example of a well protected area with a cage to protect against accidental impact damage and with the batteries stored in a protective container to protect from heat, impact and accidental spillage of liquids.
- Care when handling / moving with forklift trucks or pallet trucks is needed at all times to avoid any physical damage to the batteries.
- If a good battery at any time is mishandled or subjected to any conditions that may damage it, as described in the battery Instruction manual supplied, it must then be considered as defective and procedures followed from Item 1 of this document overleaf.

Line drawing of a traditional-style gage structure with lattice windows and a central platform (no text or symbols)

3. HAZARDS IDENTIFICATION

• Electrolyte may escape from damaged batteries. Avoid contact.
• Contact can cause skin irritation, burns and chemical burns.
• If liquid comes into contact with eyes, seek medical attention.
• Avoid inhaling any vapours formed or released from the battery – Contains caustic alkaline electrolytes.
• Warning - Risk of fire - This battery contains No user serviceable parts.

4. FIRST AID MEASURES

EN

In the event of contact with released electrolyte or electrolyte vapours:

• Eye contact – flush eyes for at least 15 minutes with plenty of clean water without rubbing and seek medical attention.
• Skin contact – wash affected areas of skin with plenty of water and soap; if irritation persists, seek medical attention.
- Inhalation – provide fresh air or administer oxygen immediately and seek medical attention.
- Ingestion – if electrolyte has been ingested, seek medical attention immediately.

Information for physicians:

- Contains caustic alkaline electrolytes in cells with Lithium Iron Phosphate – NO LITHIUM METAL OR LITHIUM ALLOYS.

5. FIRE FIGHTING MEASURES

EN

• In case of fire – Keep clear of vapours and gases generated, take wind direction into consideration. If possible without danger, remove batteries from the vicinity of the fire. In principle, cooling or extinguishing with water is possible, but should only be done by trained personnel with sufficiently large quantities of water.
• If the hazard situation is unclear, extinguish only with ABC powder extinguishers (Class D extinguishers for fires involving metals are especially suitable).
• Fire fighters should only approach the fire wearing protective clothing and self-contained breathing apparatus.
• Once the fire has been extinguished, as a rule, the area should be monitored (fire watch) and cleaned up by trained and appropriately equipped personnel; fire residue should be contained and disposed of properly.

6. EXPOSURE CONTROLS, PERSONAL PROTECTION

EN

Respiratory Protection:

- In case of battery venting, providing as much ventilation as possible. Avoid confined areas with venting batteries.

- Respiratory Protection is not necessary under conditions of normal use.

Ventilation:

- Not necessary under conditions of normal use.

Protective Gloves:

- Not necessary under conditions of normal use.

Other Protective Clothing or Equipment:

• Not necessary under conditions of normal use.
• Personal Protection is recommended for venting batteries: Respiratory Protection, Protective Gloves, Protective Clothing and safety glass with side shields.

7. ACCIDENTAL RELEASE

EN

Disposal – Wear protective clothing and equipment, wipe up with absorbent textile and dispose of as hazardous waste at collection points for hazardous waste according to national regulations.

8. DO

EN

- Use NUMATIC batteries only with NUMATIC appliances and charge them only using NUMATIC chargers.

• Charge battery before use.
• Store the battery out of the reach of children.
• Protect from rain – do not immerse in fluids.
• Protect from direct sunlight, heat, and open flames.
• Keep a battery that is not in use away from metal objects, (e.g. nails, coins, jewellery).
• Follow the disposal advice of the manufacturer and any internal waste management guidance.
• Use and store the battery with-in temperature range (as shown in Temperature Range Table).
  • Always switch off the battery using the button by holding it for 6 seconds, before disconnection and handling.
• To activate / turn ON the battery please hold the top button for 6 seconds or alternatively charge the battery using original Numatic specific chargers.
• Be aware of the risk of terminals of the battery-operated appliance or battery being short circuited by metal objects.

Warning: The battery must only be charged by the Numatic Charger supplied with the product and under NO circumstances should an alternative non Numatic charger be used as there is a risk of severe damage and fire could result.

Note* "If batteries are subjected to temperatures beyond normal operating limits automatic shutdown will occur. Under these conditions allow the batteries to acclimatise at room temperature (18°C – 22°C) for several hours to allow the battery to wake up".

Numatic NX 1K

Temperature Range Table

CHARGING 5°C~35°C

DISCHARGING -10°C~35°C

STORAGE OPTIMUM 15°C~25°C

STORAGE LIMIT -10°C~40°C

9. DO NOT

EN

• Throw battery into fire – risk of explosion!
• Charge or use a defective, damaged or deformed battery.
• Open, damage or drop the battery.
• Expose the battery to microwaves or high pressure.
• Bridge (short circuit) the battery terminals with metallic objects since this may damage the battery.
• Use metal containers for transporting batteries.
• Expose the batteries to high temperatures including direct sunlight.
• Crush, break open or physically abuse the batteries or the equipment that contains them.

10. DISTRIBUTOR TAKE-BACK / DISPOSAL

EN

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

• On the basis of the Battery Directive, the manufacturers take responsibility for financing collection, treatment and recycling of batteries used in devices. To this end, batteries must be handed over for disposal to the collection systems established for this under national law. Disposal of batteries together with household waste is prohibited; batteries must be collected separately according to type.
• Return the battery free of charge to your NUMATIC servicing dealer for disposal or hand it over to an appropriate public collection point.

11. CHARGING BATTERIES

EN

- The charger is intended for use only in the machine where it has been installed. The charger is intended for use with the detachable power cord supplied, the power unit is capable of operating at different voltages without user adjustment. If the charger is damaged or does not charge anymore, please return to service centre.

CAUTION!

• Check the mains cord regularly for any sign of damage.
• Do not use damaged devices.
• If the mains cord of the charger is damaged, it must be replaced by an original NUMATIC mains cord available from the manufacturer or service agent.

12. WARRANTY

EN

Lithium-Ion Battery Warranty

Warranty: Commercial Use

a. Batteries are warranted for (3 Years) as standard. *Note: Numatic dealerships outside of the UK may provide longer warranty periods.

Please confirm with your Numatic dealership on purchase of your product.

b. To claim warranty the following details must be supplied

i. Serial number of the machine
ii. Battery date code
iii. Date purchased
iv. Proof of Purchase
v. Maintenance history and charging regime

Failure to use the correct Numatic charger will void your warranty.

Numatic® INTERNATIONAL LTD Chard Somerset TA20 2GB, United Kingdom 851P Rechargeable Li-ion Battery Pack (Rp237/148/130/651P) (50-20-60/95) Voltage 25.0V (Capacity 50Ah) | Energy 1200Wh | LFP26148129 | P/N 911946 CAUTION: Risk of fire and burns. Do not open, clean, heat above 450°C. or increase. Follow manufacturer instruction, read instructions before use. Charge only to the specific charger. Max charge current STA. Max charge voltage 26.0V, measured. To reduce the risk of injury, user must read instruction manual. May cause level, exploration and fire. ATTENTION: Roques d'incendite et de brilles, ne par point, déreter, chauffer à plus de a 60 °C du incliner. Suivre les instructions du fabricant, lave les instructions avant diffraction. Charge uniquement avant le chargeur spécifique Numatic. Croutant de charge max. (STA. tenaire de charge max. 28.0V). AVAILING - Pour premier les blessances, l'appliquer dont le menu d'utilisation. Peut coureur de la chaleur, de l'exploration et un incendite. CE L-Las UK CA MADE IN CHINA Manufacturer: Shenzhen Ace Battery Co.,Ltd.

ZP19006-01FYYWW00001

Serial number Week of production Year of production

1. SCHADHAFTE BATTERIEN

Line drawing of a simple rectangular industrial machine with four legs and a central door (no text or symbols)

Beispiel für einen

Line drawing of a simple outdoor structure with lattice windows and a central platform (no text or symbols)

3. MÖGLICHE GEFAHREN

Numatic NX 1K

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Line drawing of a rectangular industrial machine with four legs and a central door (no text or symbols)

Line drawing of a simple house structure with lattice windows and a central cabin (no text or symbols)

3. IDENTIFICATION DES DANGERS

Numatic NX 1K

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Line drawing of a rectangular industrial or storage unit with four legs and two diamond-shaped cutouts (no text or symbols)

Line drawing of a traditional-style building with lattice windows and a central structure (no text or symbols)

3. IDENTIFICATIE VAN RISICO'S

Numatic NX 1K

TEMPERATUURTABEL

OPLADEN 5°C tot 35°C

ONTLADEN -10°C tot 35°C

OPTIMUM VOOR OPSLAG 15°C tot 25°C

MAXIMA BIJ OPSLAG -10°C tot 40°C

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Line drawing of a rectangular industrial cabinet with four legs and a central diamond-shaped opening (no text or symbols)

Line drawing of a simple outdoor structure with lattice windows and a central rectangular base (no text or symbols)

Numatic NX 1K

Simple line drawing of a trash bin with no text or symbols

Line drawing of a simple electrical cabinet with four legs and a central door (no text or symbols)

Line drawing of a simple outdoor structure with lattice windows and a central rectangular frame (no text or symbols)

Numatic NX 1K

Simple line drawing of a trash bin with no text or symbols

Chard Somerset TA20 2GB, United Kingdom

8S1P Rechargeable Li-ion Battery Pack. IFpP27/148/130(8S1P)H/-20+60/95

Voltage 25.8V | Capacity 50Ah | Energy 1280Wh | LFP26148129 | P/N 011948

CAUTION: Risk of fire and burns. Do not open, crush, heat above +60°C

or immenate, Follow manufacturer instruction, read instructions before use.

Charge only with Nominal specific charger, Max charge current 25A. Max charge voltage 28.8V, waensing. To reduce the risk of injury, user must read instruction

change mortgage bill. Simulated 15 October 2014 manual. May cause heat, explosion and fire.

Manufacturer: Shenzhen Ace Battery Co., Ltd.

ZP19006-01FYYWW00001

Numero di serie

Line drawing of a simple electrical cabinet with four legs and a central door (no text or symbols)

Line drawing of a traditional-style building with lattice windows and a central structure (no text or symbols)

Numatic NX 1K

TABLA DE INTERVALOS DE TEMPERATURA

CARGANDO 5°C~35°C

DESCARGANDO -10°C~35°C

ALMACENAMIENTO ÓPTIMO 15°C~25°C

LÍMITE DE ALMACENAMIENTO -10°C~40°C

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Chard Somerset TA20 2GB, United Kingdom

8B1P Rechargeable Li-ion Battery Pack IFpP27/149/130(8S1P)H/-20+60/95

Voltage 25.6V | Capacity 50Ah | Energy 1280Wh | LFP26148129 | P/N 911948

CAUTION: Risk of fire and burns. Do not open, crush, heat above +60°C

or incinerate. Follow manufacturer instruction, need instructions before use

Charge only with Numatic specific charger. Max charge current 25A. Max charge voltage 28 RV, reverse To end up the Ohio of Michigan, unless must read Instruction

charge voltage 28.5V. WARNING TO reduce fire-marked. May cause heat, explosion and fire.

MADE IN CHINA
Manufacturer: Shenzhen Ace Battery Co., Ltd.

ZP19006-01FYYWW00001

Número de serie

Line drawing of a rectangular industrial or electrical cabinet with four legs and a central door (no text or symbols)

Line drawing of a simple outdoor structure with lattice windows and a central rectangular base (no text or symbols)

3. IDENTYFIKACJA ZAGROŻEŃ

PL

Numatic NX 1K

TABELA ZAKRESU TEMPERATUR
ŁADOWANIE 5°C~35°C
ROZŁADOWYWANIE -10°C~35°C
OPTYMALNA TEMEPRATURA PRZECHOWYWANIA 15°C~25°C
GRANICZNA TEMPERATURA PRZECHOWYWANIA -10°C~40°C

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Line drawing of a rectangular industrial or electrical cabinet with four legs and a central door (no text or symbols)

Line drawing of a traditional-style building with lattice windows and a central structure (no text or symbols)

SV

Numatic NX 1K

9. GÖR INTE DETTA

SV

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Line drawing of a rectangular industrial or electrical cabinet with four legs and a central diamond-shaped opening (no text or symbols)

Line drawing of a traditional-style building with lattice windows and a central platform (no text or symbols)

4. ENSIAPUTOIMENPITEET

FI

Numatic NX 1K

9. VÄÄRIN

FI

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Line drawing of a simple rectangular box with four legs and a diamond-shaped opening, no text or symbols present.

Line drawing of a traditional-style building with lattice windows and a central structure (no text or symbols)

Numatic NX 1K

TEMPERATUROMRÅDETABEL
OPLADNING 5°C~35°C
AFLADNING -10°C~35°C
OPTIMAL OPBEVARING 15°C~25°C
OPBEVARINGSGRÅENSE -10°C~40°C

Simple line drawing of a trash bin with no text or symbols

Chard Somerset TA20 2GB, United Kingdom

881P Rechargeable Li-ion Battery Pack. IfpF23/540/T30(RS1P)0/-20-60/95

Voltage 25.6V | Capacity 50Ah | Energy 1280Wh | LFP26148139 | P/N 911946

CAUTION: Risk of fires and burns. Do not open, crush, heat above +60°C or inzwere. Follow manufacturer instruction, next instructions before use

Charge only with Numatic specific charger, Max charge current 25A. Max

charge voltage 28.8V WINKING To reduce the risk of injury, laser must read instruction output. My group best, projector and fire

Hindi: My case was, explosion and fire.

MADE IN CHINA
Manufacturer: Shenzhen Ace Battery Co., Ltd.

ZP19006-01FYYWW00001

Serienummer

Produktionsuge

Produktionsår

Part No. BRUSHES
918295 550	mm Ten-Tec Brush
606550 550	mm Nyloscrub Brush
606551 550	mm Long Life Brush
900526 500	mm NuLoc2 Drive Board

Numatic Recommended Battery	Part Number
NX1K LFP battery type (Li-ion) 911948

Make Voltage Capacity/Energy	Weight	Size
NX1K Battery	25.6 V	50Ah / 1280 Wh	10.8 kg

For optimum performance Numatic International Ltd recommend the use of the above batteries in the Twintec machines.

Trouble Shooting

PROBLEM CAUSE SOLUTION
Machine will not operate Missing or blown fusesLow battery chargeMachine is connected and chargingWaste tank full switch stuck or cloggedKey is off or missingHandle safety fuse blown		Fit or replace fuse (pages 15-20)Charge batteries (pages 63-79)Take off charge (pages 63-68)Inspect & clean switch inside tank (pages 51-56)Insert key & turn to operating positionReplace fuse (or contact service engineer)
Vacuum will not operate Missing or blown fuseVacuum switch not engagedWaste water tank full		Fit or replace fuse (pages 15-20)Press switchEmpty waste water tank (pages 51-56)
Poor water pick-up Waste water tank fullClogged / blocked vacuum hoseLoose hose connectionsDebris basket filter clogged / blockedSeparator filter clogged / blockedPoor separator sealDamaged separator sealDamaged / split vacuum hoseDamaged floor tool bladesLow battery chargeFloor tool incorrectly adjusted		Empty waste water tank (pages 51-56)Remove and clean (pages 51-56)Push tight connections (pages-27-32)Remove and clean (pages 51-56)Remove and clean (Pages 51-56)Clean and refit (pages 51-56)Renew (contact service dept)Renew (contact service dept)Renew (contact service dept)Re-charge batteries (pages 63-79)Adjust floor tool
No brush / scrub function No brushes fittedBrush deck raisedLever not pressedMissing or blown fuses		Check and fit (pages 21-26)Lower brush deck (pages 39-44)Press leverFit or replace fuse (pages 12-20)
Little or no water flow Clean water tank emptyClean water tank filter blocked / cloggedWater flow not onBrush deck raisedTap not openedSolenoid blocked		Fill clean water tank (pages 27-32)Remove and clean (pages 51-56)Switch on water flow (Pages 39-44)Lower brush deck (pages 39-44)Open tap to desired flowClean solenoid seal
Machine just ‘stops’ during operating	Too much load on the brush systemBrush motor fuse blown due to high loadHandle safety fuse blown	Decrease the brush load to best suit the floor type (pages 45-50).Replace fuse & reduce load (pages 15-20)Replace fuse (or contact service engineer)

Warning Do not fit a replacement fuse link having a higher rating than the value stated on the fuse label.

DE

Ersatzteile

Position: Head of Technology

Chard,

Signed: M. Cola Date: 1 ^st February 2024 Somerset, TA20 2GB, UK

DEC-027 V3.4

For declaration of conformity for model TBL6055.TM see supplement sheet part no 919998 For declaration of conformity for model TBL6055.TM 50T/100T see supplement sheet part no 920004

UKCA Declaration of Conformity
Manufacturer:	Numatic International LimitedChard Somerset TA20 2GBwww.numatic.co.ukNumatic
Product:	TGB6055, TBL6055
Description:	Floor Treatment - Walk Behind – Commercial - Battery
We, Numatic hereby declare under our sole responsibility, that the above-mentioned product(s) is/are in conformity with the following directives and standards.
S.I. 2008: 1597	Supply of Machinery + A15:2021Regulations EN60335-2-72:2012EN62233:2008
S.I. 2016: 1091	EMC Regulations EN55014-1:2017 + A11:2020EN55014-2:1997 + A1:2001 + A2:2008EN61000-3-2:2014EN61000-3-3:2013
S.I. 2012: 3032	RoHS Regulations
Authorised Signatory: Mr. Matthew Coles		Position: Head of TechnologyNumatic International Limited, Chard,Somerset, TA20 2GB, UK
Signed: M Coles Date: 1stFebruary 2024

This Machine Has Been Packed With The Following
Brush / Pad	□
Floor Tool	□
Charging Lead	□
Battery	□
Fuse Pack	□

Signed

Distributed by:

Numatic

numatic.com

Numatic International Limited (Head Office)

Chard, Somerset TA20 2GB, UNITED KINGDOM

Tel: [phone] numatic.com

Numatic International GmbH

Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND

Tel: [phone] numatic.de

Numatic International Denmark

Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND

Tel: [phone] numatic-online.dk

Numatic International S.A.S

Numatic International BV

Numatic International (PTY) Ltd.

Cnr. 16th & Pharmaceutical Road, Randjes Park, Midrand 1685, SOUTH AFRICA

Tel: [phone] numatic.co.za

Numatic International ULDA

Numatic International Spain, S.L.U.

Av. Baix Llobregat, 5-7, Ofi cina bajos 1 (Parc Negocis Mas Blau II)

08820 El Prat de Llobregat (Barcelona), SPAIN

Tel: [phone] numatic.es

Numatic International Italy S.R.L

Via Luigi Galvani, 2, Z.I. Talponedo, 33080 Porcia (PN), ITALY

Tel: [phone] numatic.it
