TBL4045/50

TBL4045/100

TBL4055/50

TBL4055/100

TBL4055/50T

TBL4055/100T

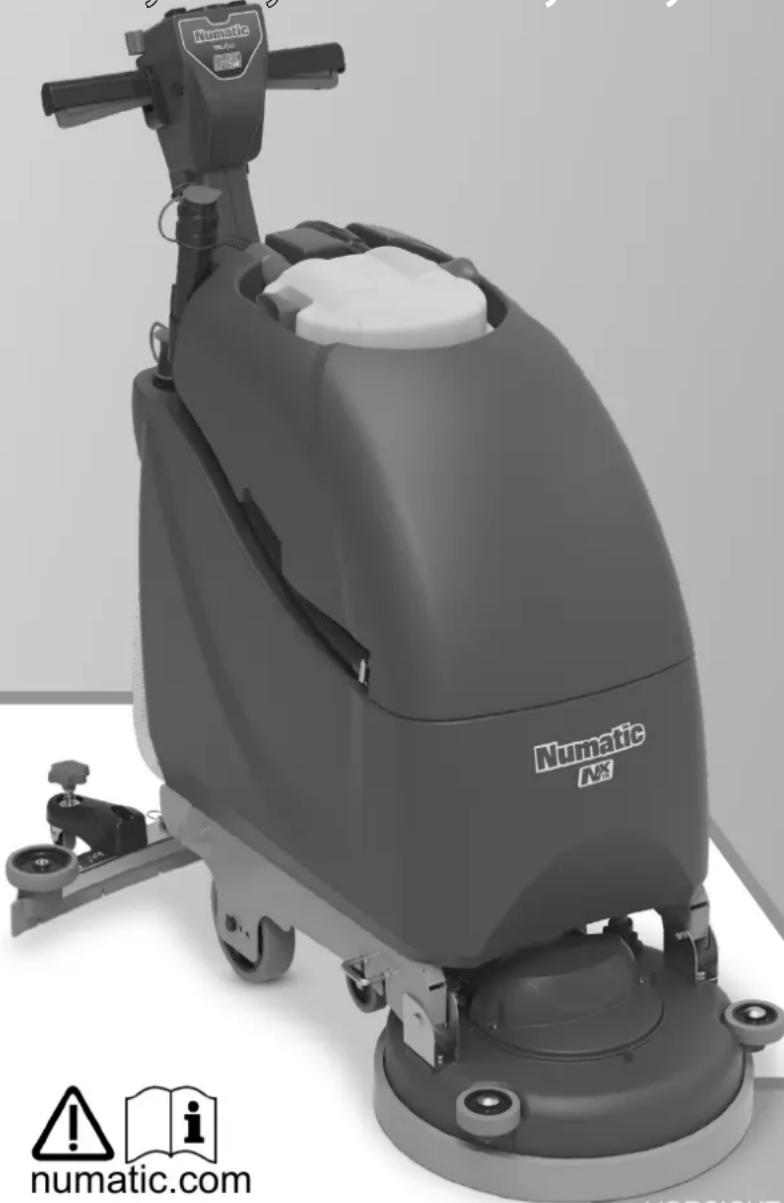

SCRUBBER DRYER

SCHEUERSAUGMASCHINE

AUTOLAVEUSE

SCHROBZUIGMACHINE

LAVADORA-SECADORA

LAVASCIUGA PAVIMENTI

FREGADORA-SECADORA

MASZYNA CZYSZCZĄCA

KOMBISKURMASKIN

YHDISTELMÄKONE

SKURE-OG T∅RREMASKINE

numatic.com

Original Instructions

CAUTION, Read instructions before using the machine.

Machine Overview ......Pages 9-12

Control Panel Overview ......Pages 13-16

Machine Set up Guide ......Pages 17-22

Raise / Lower Brush Deck....Pages 23-27

Fitting the Brush / Pad ......Pages 23-27

Fitting the Floor Tool ......Pages 28-33

Fitting the Hose Guide ......Pages 28-33

Filling the Clean Water Tank.....Pages 34-39

Handle Height Adjustment ......Pages 34-39

Raising/ Lowering the Floor Tool ......Pages 40-45

Setting the Cleaning Controls ......Pages 40-45

Brush Pressure ......Pages 40-45

Breakaway Floor Tool ......Pages 46-51

Machine Operation ......Pages 46-51

Regular Maintenance ......Pages 52-57

Changing Floor tool Blades ......Pages 58-63

Machine Charging ......Pages 64-69

Battery Care ......Pages 64-69

Charging Light Sequence....Pages 70-80

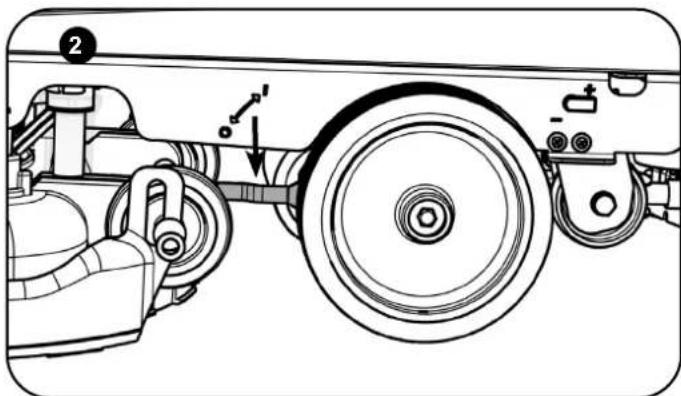

Free Wheel Function ......Pages 70-80

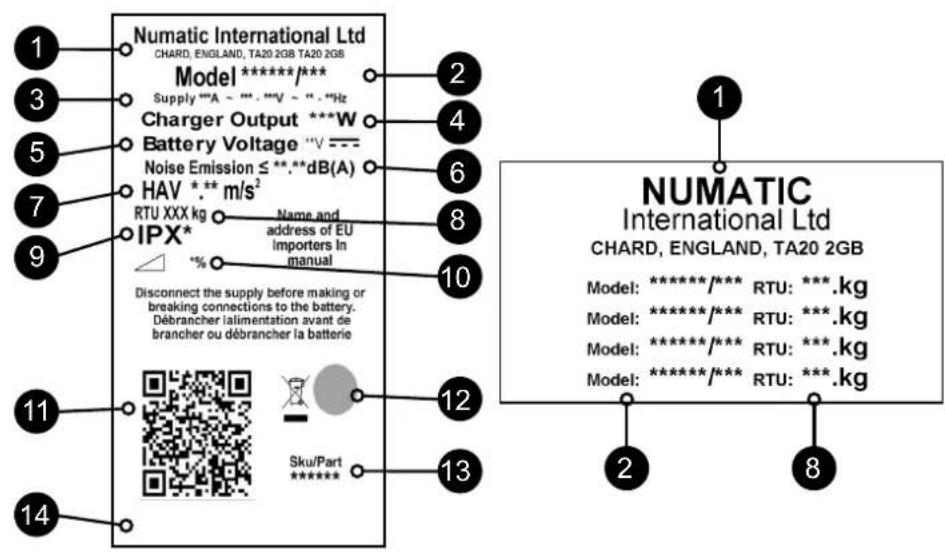

Rating Label / Personal Protective Equipment /

Recycling Page 81

Information for Scrubber Dryer......Pages 82-83

Battery Information ......Pages 114 - 117

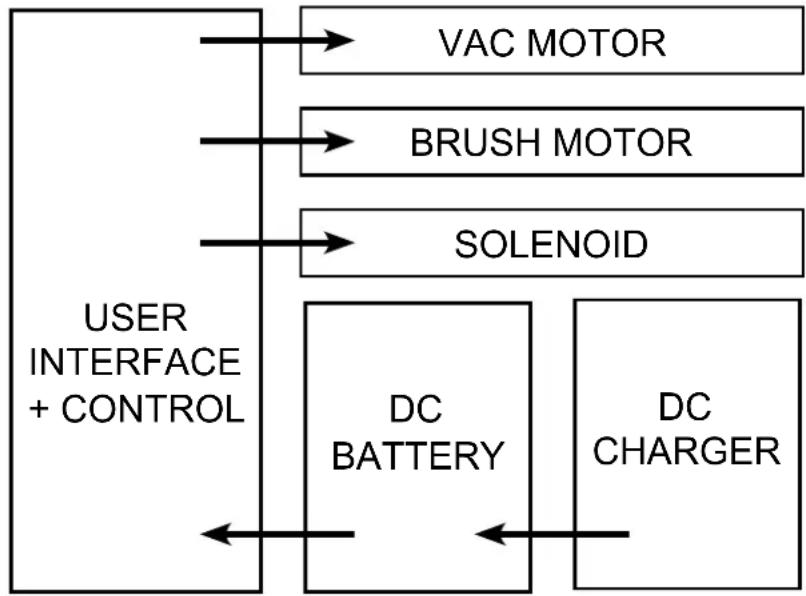

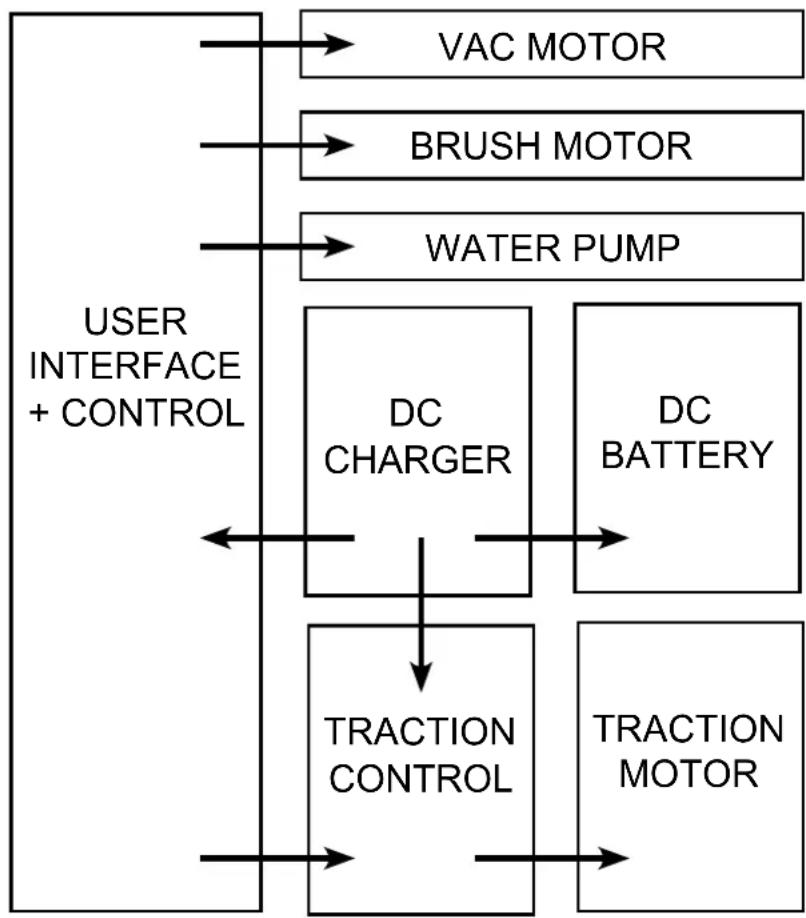

Schematic Diagram Page 148

Specifications ......Page 149

Recommended Spare Parts ......Page 160

Trouble Shooting Page 160

TBL Fault Codes Page 171

EU Declaration Document ......Page 182

Company Address Page 184

After the removal of all the packaging, carefully open and check the contents.

• Owner Manual
• Battery Charging Lead
• Scrub Brush
• Floor Tool
• Brush / Pad
• Isolator Key
• 1 x 30 Amp Fuse (Brush) • 1 x 20 Amp Fuse (Vac) • 1 x 2.5 Amp Fuse • Maxi Fuse-puller

1 Control Panel

2 Top Tank (Waste-Water) Drainage Hose

3 Separator

4 Top Tank (Waste-Water)

5 Bottom Tank (Clean Water)

6 Brush Deck

7 Clean-Water Filler Cap and Hose

8 Deck Locking Mechanism

9 Battery Compartment

10 Isolator Key

11 Brush & Vacuum Motor Fuse

12 Charging Light

13 Charger Socket

14 Floor Tool Vacuum Hose

15 Vacuum Hose

16 Floor-Tool Lifting Lever

17 Clean Water Level Indicator / Drainage Hose

18 Floor-Tool Retaining Knobs

19 Clean-Water On/Off Tap

20 Clean Water Tank Filter

DE

EN: In the event of a breakdown contact your Numatic dealer.

Technical diagram of a mechanical device with numbered components for identification

1 2 328.9 0 50% 100% 1/10

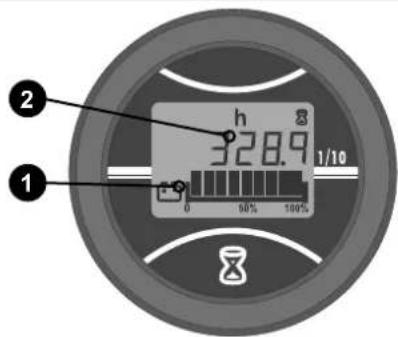

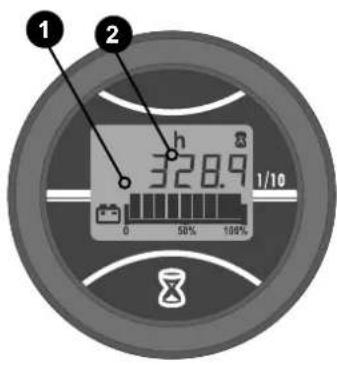

1 Battery Charge Level Display

2 Hour Meter

3 Vacuum On/Off Indicator

4 Water Flow On/Off Button

5 Handle Position Lever

6 Start Switch

7 Start Triggers

8 Charge Indicator Light

9 Charge Socket

Control Panel Overview

TBL 4055T

Technical diagram of a mechanical device with numbered components and a QR code for scanning.

QR code image containing encoded data, no visible human-readable text

Traction model only

Download on the App Store

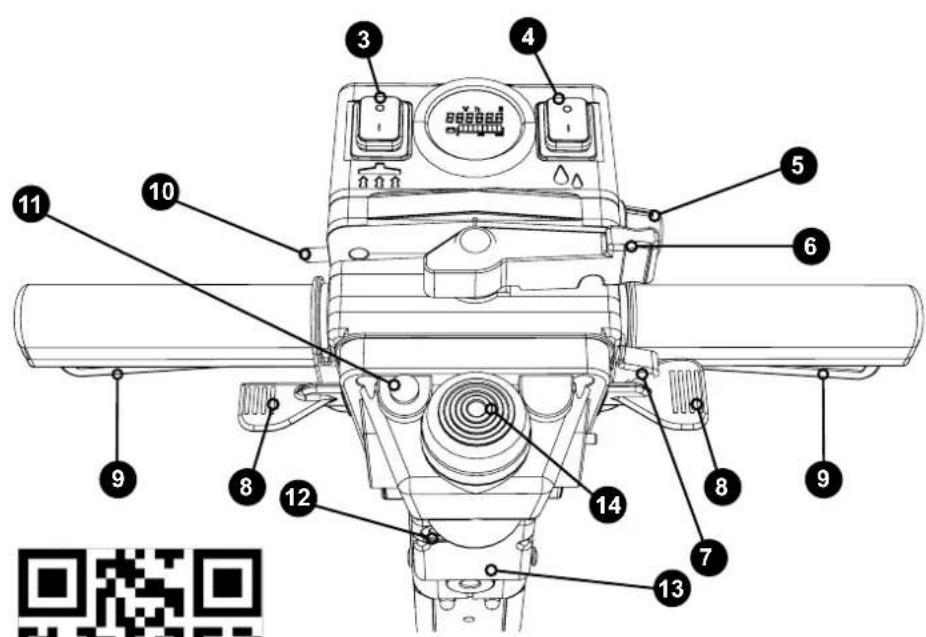

h 328.9 1/10 1 2 100% 50%

1 Battery Charge Level Display
2 Hour Meter
3 Vacuum On/Off Indicator
4 Water Flow On/Off Button
5 Speed Control Knob
6 Handle Position Lever
7 Start Switch
8 Speed Boost Levers
9 Start Triggers
10 Forward/Reverse Switch
11 Traction Status LED
12 Charge Indicator Light
13 Charge Socket
14 Anti Crush Switch

DE

TBL4045/50 = 1x battery

TBL4045/100 = 2x batteries

TBL4055/50 = 1x battery

TBL4055/100 = 2x batteries

TBL4055/50T = 1x battery

TBL4055/100T = 2x batteries

DE

TBL4045/50 = 1x batterie

TBL4045/100 = 2x batterien

TBL4045/100 = 2x batteries

TBL4055/100 = 2x batteries

TBL4055/100T = 2x batteries

NL

TBL4045/50 = 1x accu

TBL4045/100 = 2x accu's

TBL4055/50 = 1x accu

TBL4055/100 = 2x accu's

TBL4055/50T = 1x accu

TBL4055/100T = 2x accu's

TBL4045/50 = 1x bateria

TBL4045/100 = 2x baterias

TBL4055/50 = 1x bateria

TBL4055/100 = 2x baterias

TBL4055/50T = 1x bateria

TBL4055/100T = 2x baterias

TBL4045/50 = 1x akumulator

TBL4045/100 = 2x akumulatory

TBL4055/50 = 1x akumulator

TBL4055/100 = 2x batteries

TBL4055/50T = 1x akumulator

TBL4055/100T = 2x batteries

TBL4045/50 = 1x batteri

TBL4045/100 = 2x batterier

TBL4055/50 = 1x batteri

TBL4055/100 = 2x batterier

TBL4055/50T = 1x batteri

TBL4055/100T = 2x batterier

TBL4045/50 = 1x akun

TBL4045/100 = 2x akut

TBL4055/50 = 1x akun

TBL4055/100 = 2x akut

TBL4055/50T = 1x akun

TBL4055/100T = 2x akut

TBL4045/50 = 1x batteri

TBL4045/100 = 2x batterier

TBL4055/50 = 1x batteri

TBL4055/100 = 2x batterier

TBL4055/50T = 1x batteri

TBL4055/100T = 2x batterier

PLEASE READ

BEFORE

COMMENCING

ANY OPERATION AFTER

THE REMOVAL OF ALL

THE PACKAGING,

CAREFULLY

OPEN AND CHECK

THE CONTENTS.

TBL CONTENTS

- Isolator Key

- 1 x 30 Amp Fuse (Brush)

- 1 x 20 Amp Fuse (Vac)

- 1 x 2.5 Amp Fuse • Maxi Fuse-puller

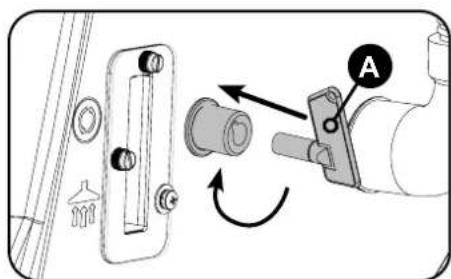

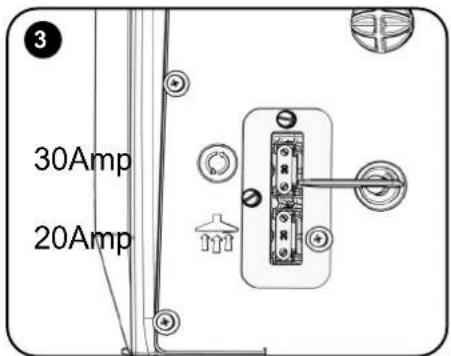

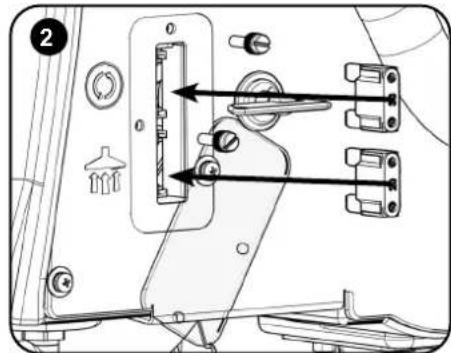

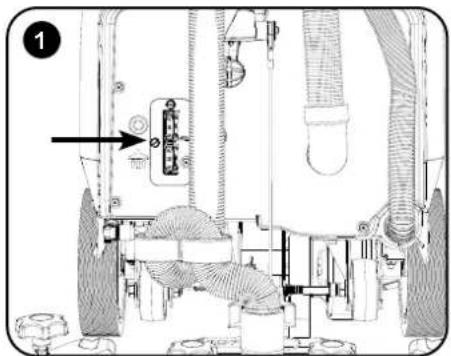

Open the fuse cover and fit vacuum and brush fuses (contained in start-up pack) into the fuse holders as illustrated. (Fig. 1, 2, 3.)

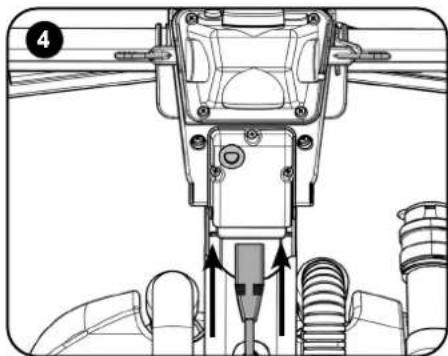

Charge the machine to activate the batteries (4).

Lift top tank assembly to reveal battery compartment, ensuring you use the handle grip provided.

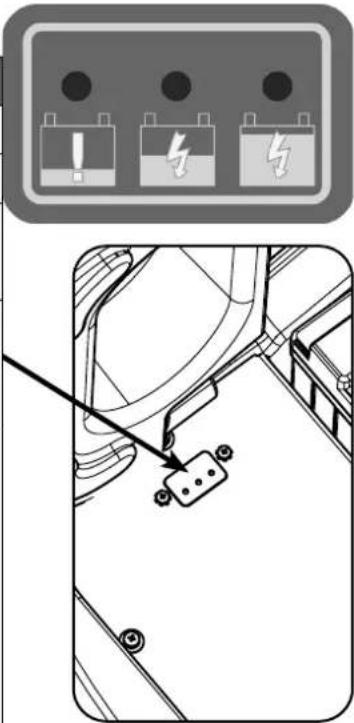

After the batteries are activated, LEDs shouldilluminate on the top of the battery/batteries

Numatic NX 1K

Mechanical assembly diagram showing components like gears, hoses, and a valve (no text or labels visible)

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating movement or assembly.

3 30Amp 20Amp

Technical line drawing of a mechanical assembly with no visible text or symbols

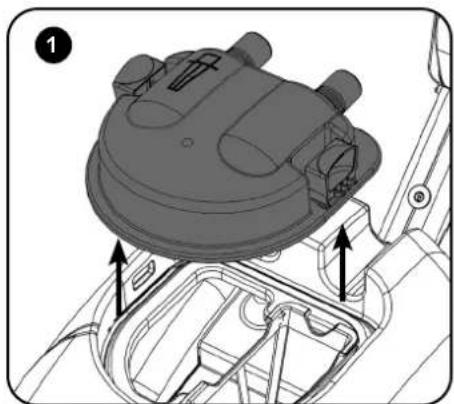

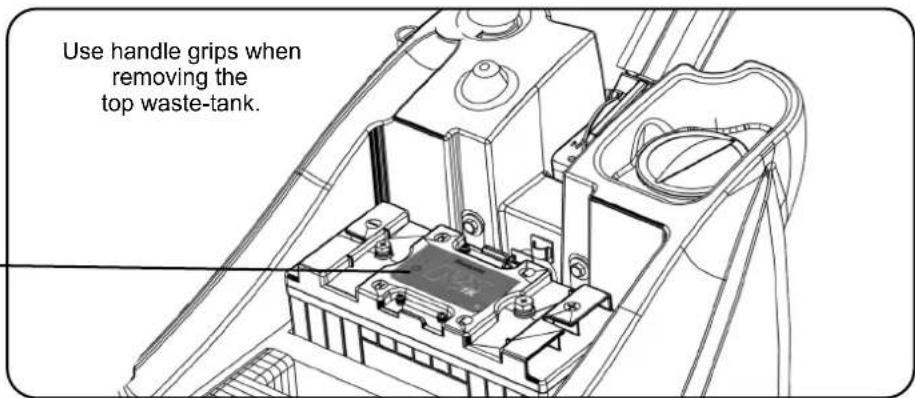

Use handle grips when removing the top waste-tank.

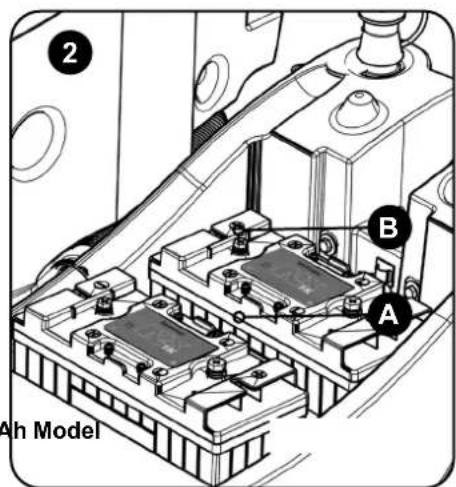

Numatic International Ltd recommends ONLY using 911948 NX1K LFP battery type Lithium Batteries provided with this machine.

ENSURE THAT NO METAL OBJECTS COME INTO CONTACT WITH BATTERY TERMINALS

WHILE THE BATTERIES ARE EXPOSED.

Technical diagram showing mechanical assembly with labeled component A and directional arrows indicating rotation or movement.

Insert Isolator Key into ignition located on the rear of the machine and switch the machine on. (Fig. A)

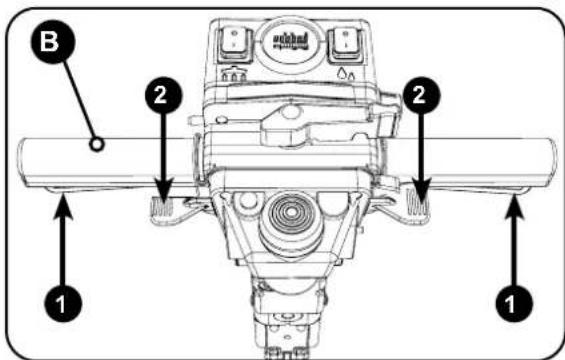

Select forward and slow speed then depress control triggers (1) with both hands and press the start switches (2) and slowly drive machine off of the pallet. (Fig.B)

When the machine is removed and in a safe position, turn key back to the position (0) 'OFF'

TBL4055T only

B 2 2 1 1

Note: During vehicular transportation ensure the product is secured to avoid unnecessary movement.

DE

Raising/Lowering the Brush Deck

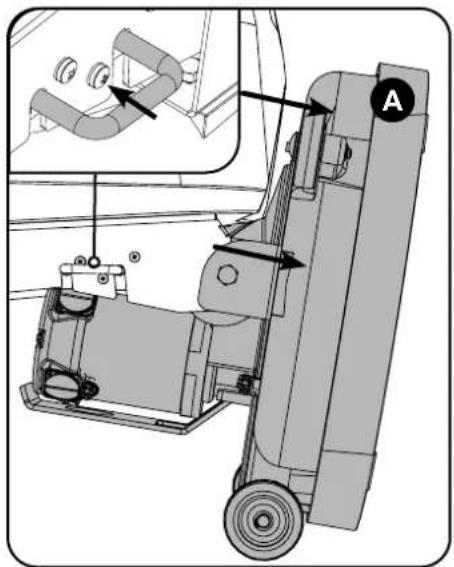

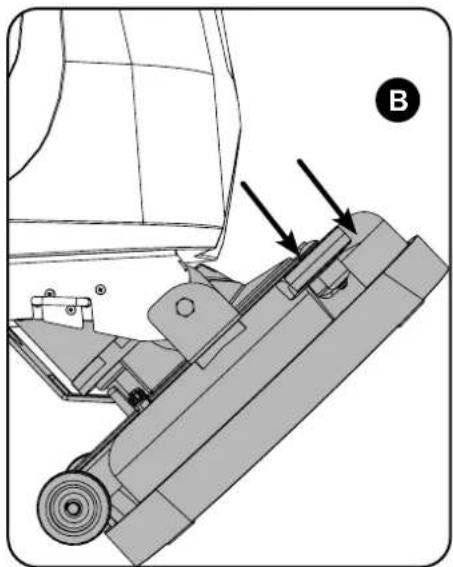

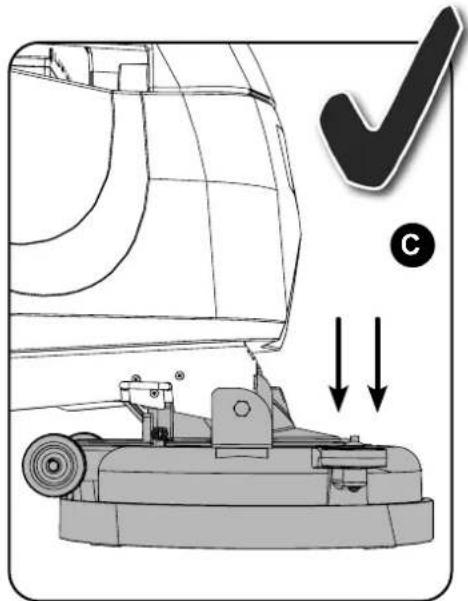

To tip the deck into the down position (Operating mode). Press in the brush deck locking pin (Fig. A) and rotate the brush deck (Fig. B & C). To change to brush deck up position, (Transit mode) simply lift the deck and the spring loaded locking pin will activate to hold the deck up.

Technical diagram of a mechanical device with labeled component A, showing assembly and component details

Mechanical assembly diagram showing a component with arrows indicating motion or force direction (no text or symbols present)

Technical diagram of a mechanical assembly with a checkmark and downward arrows indicating motion or force (no text or symbols present)

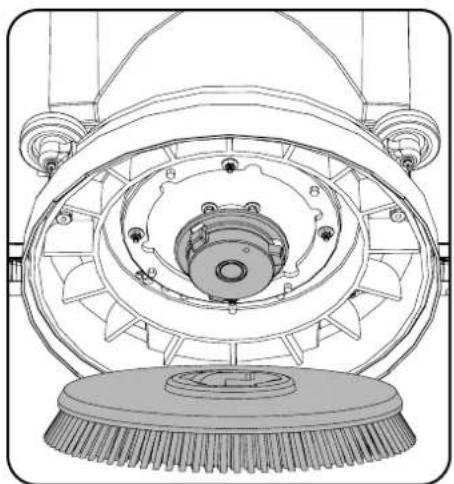

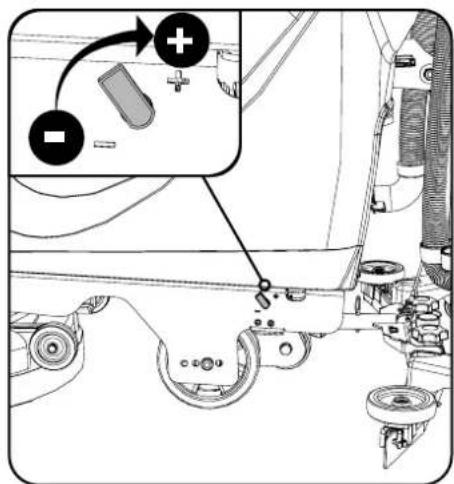

Fitting the Brush/Pad Turn on Water

TBL4045 450mm Brush or 400mm Pad. TBL4055 / TBL4055T 550mm Brush or 508mm Pad. Featuring the Nuloc brush system.

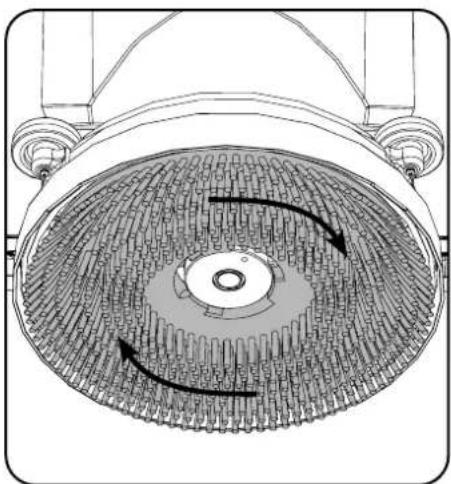

The brush is simply pushed and twisted to lock, making fitting and removal a simple process. Slide the brush / pad under the brush deck. Fit the brush / pad onto the Nuloc drive chuck, twist to lock the brush / pad in place. Safety gloves are recommended for the changing of used brushes. Turn on the clean water tap.

Technical line drawing of a mechanical component with central hub and base plate (no text or symbols)

Technical diagram of a mechanical component with internal gear-like structure and rotational arrows (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and a magnified inset highlighting a positive charge symbol.

DE

Fitting the Floor Tool

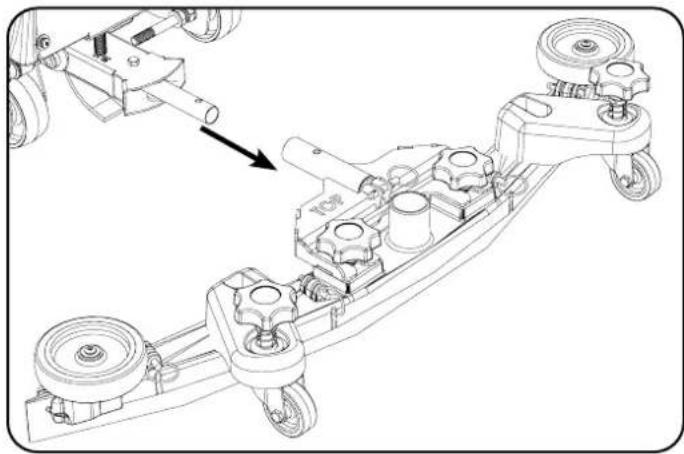

The floor tool has been designed for quick fitting, allowing easy squeegee blade replacement and a safety knock-off feature if the floor tool gets snagged, whilst in transit.

Note: It is easier to fit the floor tool if the weight of the machine is resting on the brush. Ensure the brush is fitted first.

Mechanical assembly diagram showing gear and shaft components with no visible text or symbols

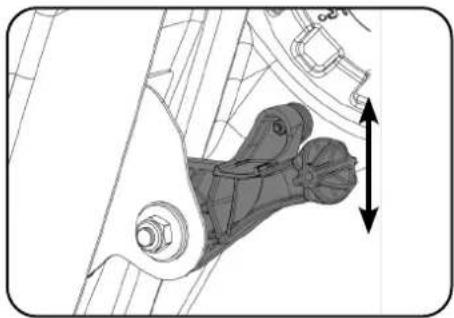

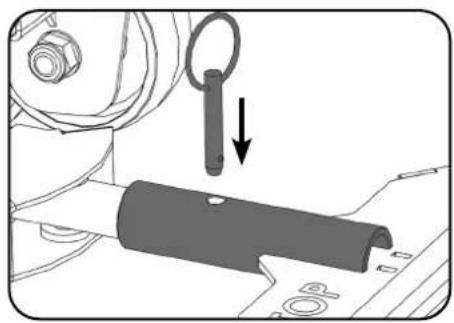

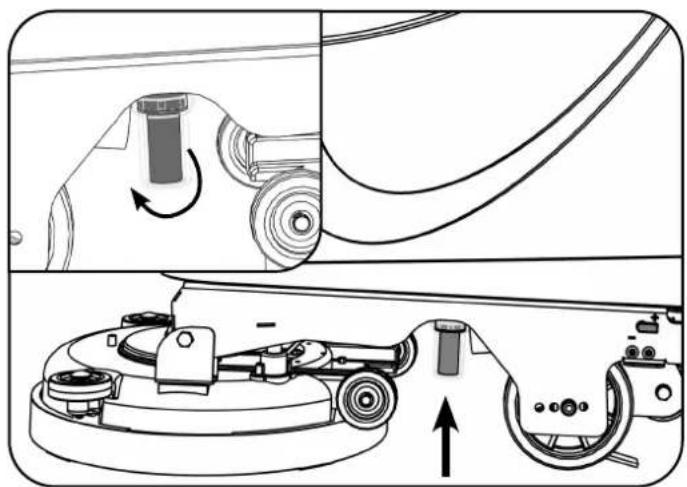

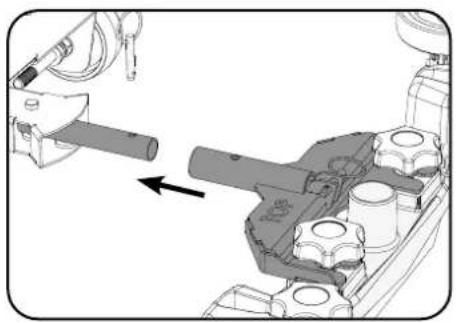

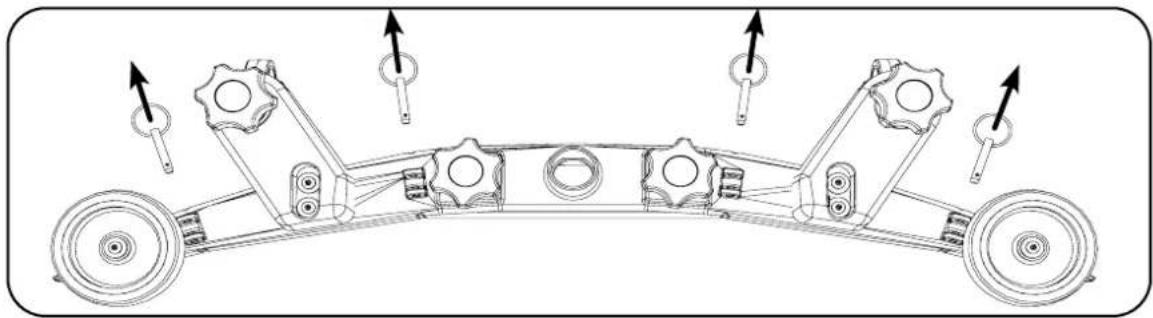

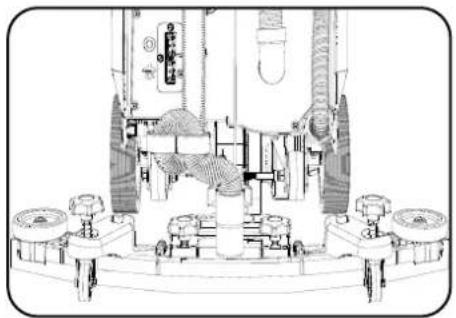

Fit the floor tool and retain using the detent pins.

Push waste collection pipe onto the floor tool; ensure a tight fit.

Note: DO NOT push the vacuum hose onto the floor tool with the floor tool in the raised position.

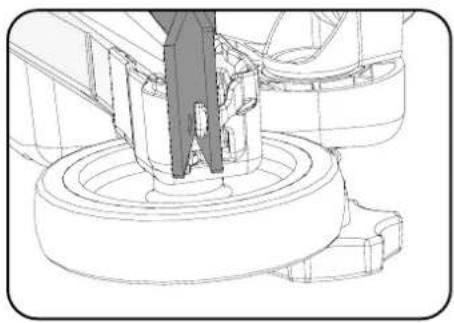

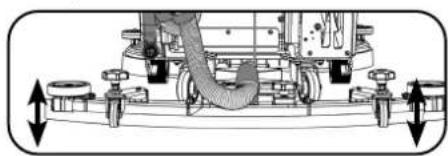

Raise the floor tool for transit or lower for cleaning operation using the lifting handle fitted to the back of the machine.

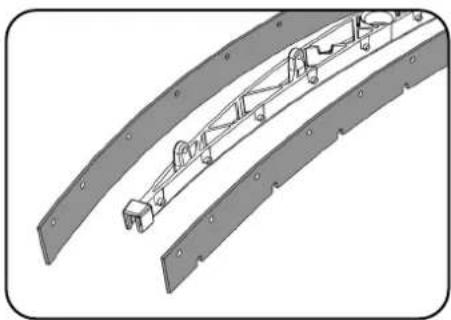

For fitting the floor tool blades (See Page 58-63).

Mechanical assembly diagram showing a tool interacting with a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component, no text or symbols present

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Fitting the Hose Guide

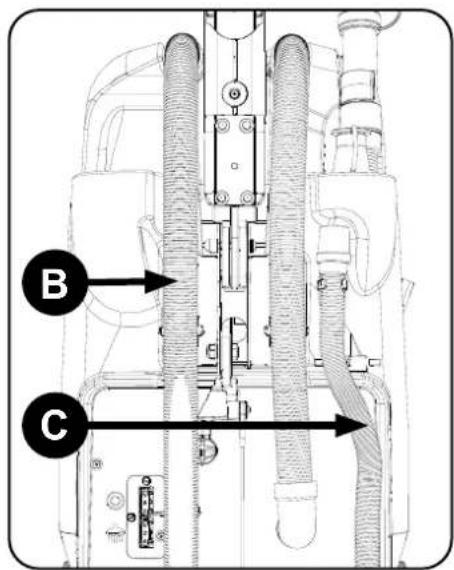

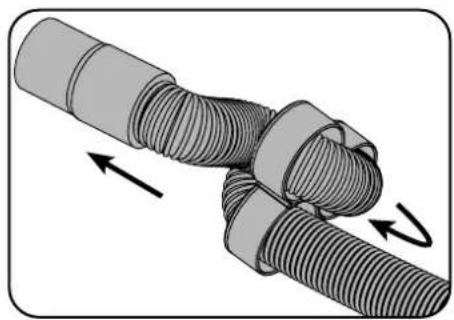

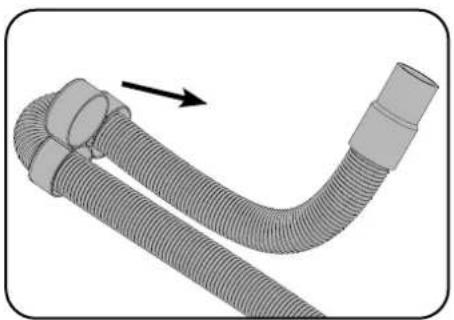

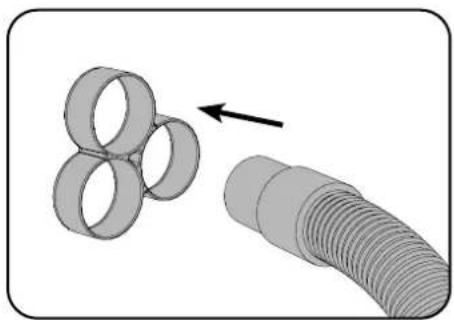

The vacuum hose has a U-bend clip which creates a U-bend in the hose preventing water spillage when the vacuum is switched off. If you need to remove the U-bend clip for any reason always ensure it is refitted correctly before you resume operation.

Diagram showing a coiled pipe with two loops and a threaded tube, no text or symbols present

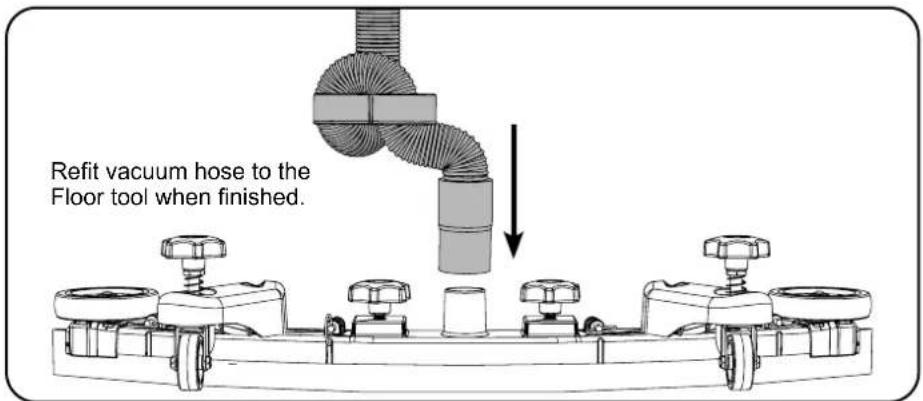

Refit vacuum hose to the Floor tool when finished.

Illustration of a flexible hose with a bent tube and cap, showing a directional arrow (no text or symbols)

Diagram of two threaded fasteners with directional arrows indicating compression or disassembly (no text or symbols)

Note: DO NOT push the vacuum hose onto the floor tool with the floor tool in the raised position.

Filling the Clean Water Tank

Technical diagram of a mechanical assembly with a threaded component and tubing (no text or symbols)

Mechanical assembly diagram showing a cylindrical component connected to a threaded bolt and housing (no text or labels)

Diagram of a mechanical device with a tool pouring liquid into a cylindrical component (no text or symbols visible)

Technical diagram of a vehicle engine showing intake pipe, valve, and hoses (no text or labels)

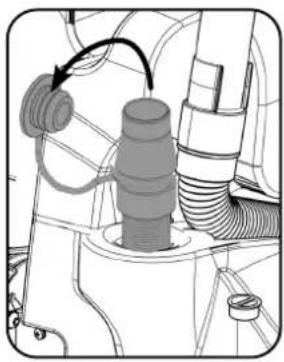

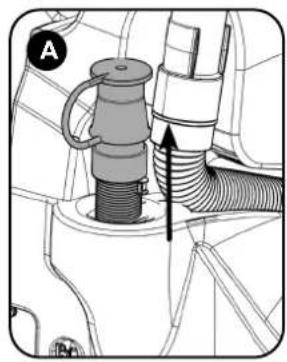

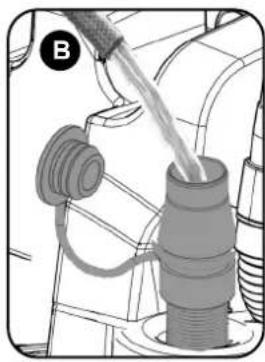

To fill the clean-water tank, use the FLEXI - FILL pipe from either a tap or hose pipe (Fig. A & B).

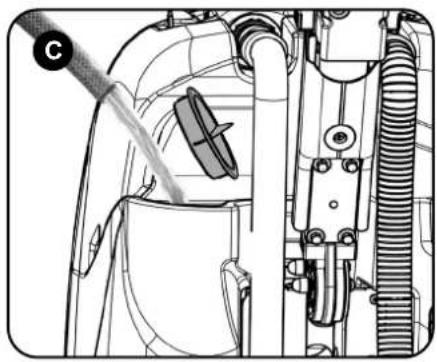

The large cap can also be used for filling from a bucket or suitable container (Fig. C). Fill the clean-water tank to MAX line indication on tank, including cleaning chemicals if required. Follow chemical manufacturing guide lines.

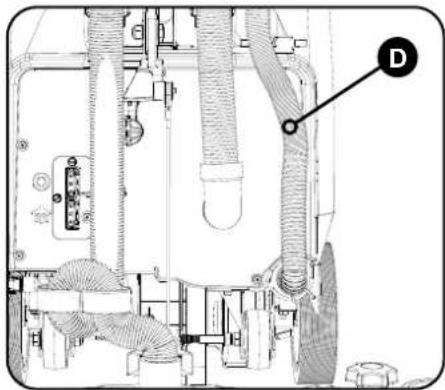

The clear dump hose at the rear of the machine can be used to see the level of the clean-water (Fig. D).

Note: Great care must be taken to ensure that contaminants (leaves, hair, dirt, etc.) are not allowed to enter the clean water tank during the filling process. If using a bucket or similar, ensure it is always clean and free from debris.

Control of Substances Hazardous to Health (COSHH)

For best results use a non-foaming type of chemical recommended for use in auto scrubber dryers, dilute to the manufacturers specification. For further guidance on hazardous substances refer to health and safety instructions online.

Technical diagram of a mechanical assembly with hoses and components, no visible text or symbols

WHEN HANDLING AND MIXING CHEMICALS

Always ensure that chemical manufacturer's safety guidelines are followed. Only use chemicals recommended for use in auto scrubber-dryers.

Handle Height Adjustment

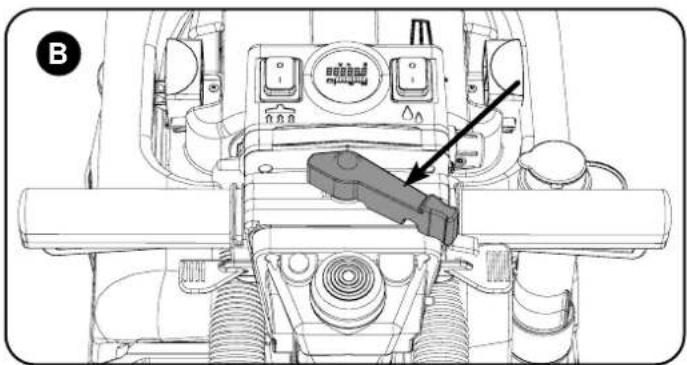

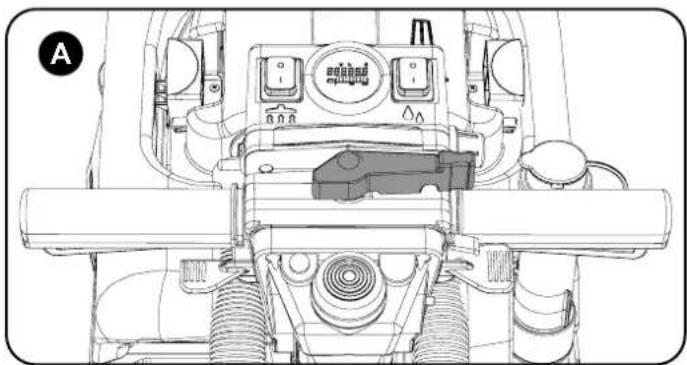

Using the handle position lever, lower the handle to a comfortable working position.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with no visible text or symbols

IMPORTANT

Do not operate machine unless the Operator Manual has been read and fully understood.

The machine is now ready to be moved to the cleaning site.

Before performing the cleaning operation, place out appropriate warning signs and sweep or dust-mop the floor.

COSHH (Control of Substances Hazardous to Health)

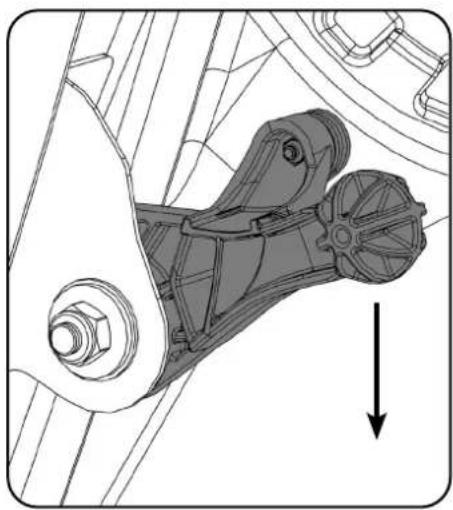

Raising/ Lowering the Floor Tool

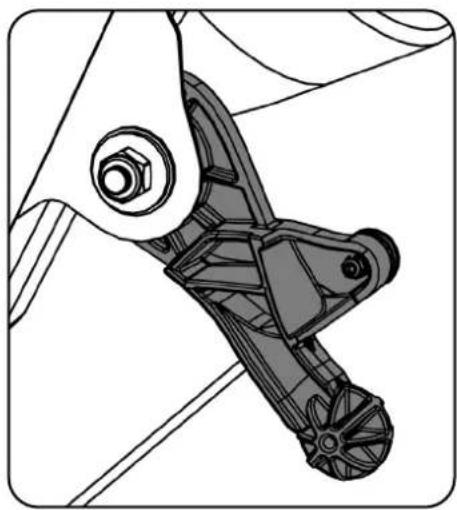

After preparing the floor (see previous section), we are now ready to set the controls to suit the cleaning conditions. Before any settings can be applied, ensure the brush deck is lowered. Move the floor tool lever to its lower position.

Note: Do not pull the machine backwards with the floor tool in the lowered position, this could possibly damage the blades.

Technical line drawing of a mechanical assembly with wheels and a central component (no text or symbols)

Mechanical assembly diagram showing a bracket and gear mechanism with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Setting the Cleaning Controls

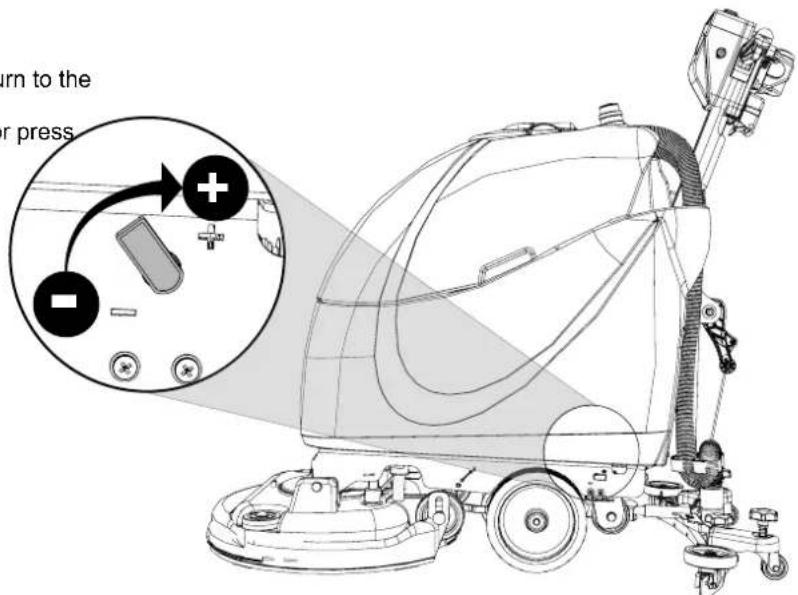

Insert the isolator key into the rear of the machine and turn to the on position. To check the battery level, pull one of the Triggers (A) or press button (B).

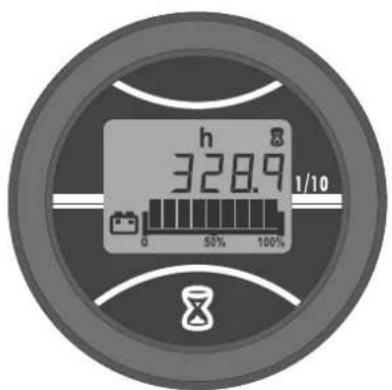

h 328.9 1/10

urn to the or press

Adjust water flow using the fluid control tap.

Brush Pressure

Technical diagram of a vehicle battery pack assembly with labeled component '50 Ah Model 100' (no readable text beyond label)

2 B A Ah Model

Your machine has been designed to work at the optimum brush pressure with a weight set added into the 50 Ah model in place of an additional battery 100 Ah model.

IMPORTANT

If the brush motor keeps overloading consider using a different type of brush. Heavy brush load decreases the available battery run time.

Break-away Floor Tool

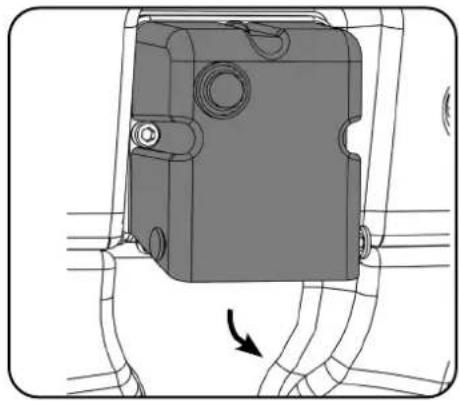

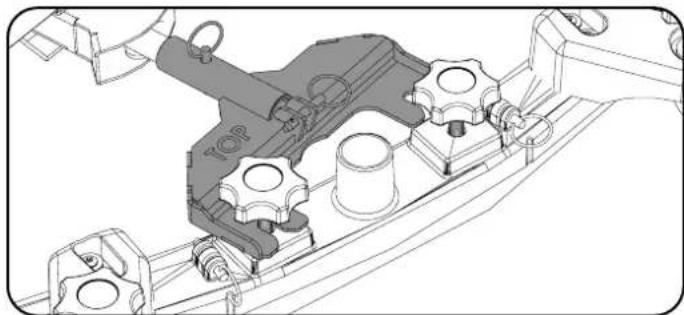

The floor tool design incorporates a break-away feature.

Allowing it to safely disengage from its mounting should it become caught on an obstruction, during forward machine movement. To re-attach the blade to its holder. First loosen the retaining knobs on the floor tool body and slide onto the holding bracket. Tighten retaining knobs to finger tight.

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Mechanical assembly diagram showing gear and cylinder components with no visible text or symbols

ALWAYS ENSURE THAT THE FLOOR IS PRE-SWEPT AND RELEVANT SAFETY SIGNS ARE DISPLAYED.

Insert the isolator key into the rear of the machine and turn to the on '1' position.

Switch on the Vacuum (C) and the water pump (D).

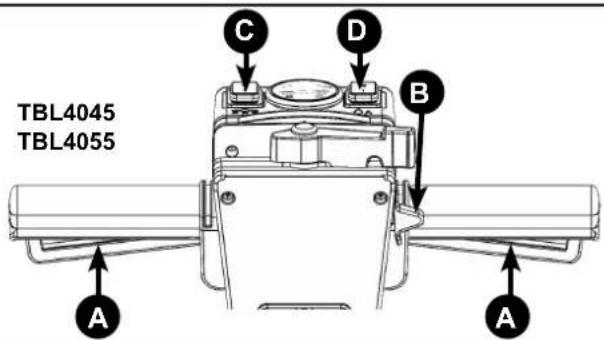

To operate the machine squeeze lever (A), then press yellow lever (B).

Releasing the Levers (A) will stop the machine.

TBL4045 TBL4055 A B C D

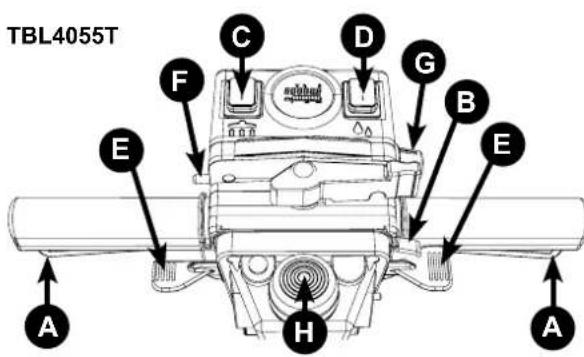

TBL4055T A E F C D G B E H A

TBL4055T models only set direction of travel (F) and the desired traction speed as required (G), depending on floor type and level of soiling. Middle speed is the optimum cleaning speed.

Switch on the Vacuum (C) and the water pump (D).

To operate the machine squeeze levers (A), then press yellow lever (B). Releasing the Levers (A) will stop the machine.

Speed can be increased using the Speed Boost Levers (E).

The TBL4055T is equipped with an electronic braking system.

Simply release the hand operated start / stop trigger and the machine will stop.

This machine is fitted with an Anti Crush Switch (H). Instantly stopping and moving the machine forward if accidentally reversed into the operator.

After re-setting this switch, to restart the machine, turn the isolator key at the rear of the machine to '0' and then position '1'.

The waste water is then retrieved by the suction floor tool.

Overlap each scrubbing path by 10cm to ensure an even clean.

Do not operate on cleaning surfaces having a gradient exceeding that marked on the machine, when full.

On heavily soiled floors use a 'double scrub' technique.

First pre-scrub the floor with the floor tool in the raised position, allow the chemical time to work then scrub the area a second time with the floor tool lowered.

If streaking occurs wipe floor tool blades clean.

Note: Care must be taken to reduce speed when cornering or when manoeuvring around obstacles

nung der Maschine

abe des Abstreifers

Overlap hver skrubberute med 10 cm for at sikre jævn rengøring.

A After using with c B Next and fi C Next empty with c

After use, empty waste water tank using emptying hose and flush out with clean water.
B Next remove floor tool vacuum hose and flush out with clean water.
C Next empty clean water tank, using emptying hose and again flush out with clean water.

B C

Mechanical assembly diagram showing a component with arrows indicating direction (no text or symbols present)

Whilst pulling the top tank separator toggles up and inwards, remove the separator. (Fig 1)

The separator has a sealing rubber which should be examined at every clean-down. Rinse the separator using clean water, remove the vac filter, clean and inspect for any damage. (Fig 2)

IMPORTANT

Never use the machine without the recommended filter as it may cause damage to the machine. Remove debris basket filter and rinse using clean water, and refit. (Fig.3)

Technical line drawing of a mechanical component with internal parts and a central hub (no text or symbols)

Technical diagram of a mechanical component with a central bucket and directional arrow (no text or symbols)

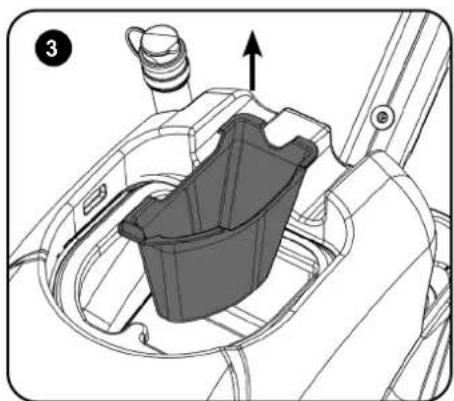

IMPORTANT

If the debris basket is allowed to become clogged, vacuum performance can deteriorate.

Located under the left hand side is a clean water filter, make sure the clean water tank is empty before removing this filter.

Note: To make access easier, raise the brush deck.

Technical diagram showing mechanical components with arrows indicating motion, no text or symbols present

Always ensure that the machine is switched off prior to maintenance.

Technical line drawing of a mechanical assembly with wheels and gears, showing a close-up view of a component (no text or symbols)

To clean the floor tool, remove securing-pin and pull-free from the holder. Rinse the floor tool assembly with clean water and refit.

Periodically the floor tool blades should be examined and checked for wear and damage.

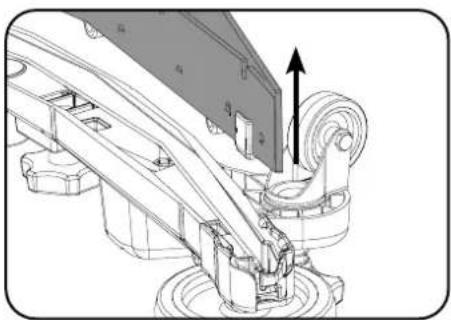

The blade removal is easy. Simply start by removing the four retaining pins, turn the floor tool over and separate the blade carrier from the body.

Peel away the blades from their locating lugs and examine or renew as required.

Replacement is a reversal of the removal process.

Technical line drawing of a vehicle chassis with wheels and mechanical components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with rotating components and an upward arrow indicating motion (no text or symbols present)

Technical illustration of a mechanical assembly with curved metal strips and mounting holes (no text or symbols)

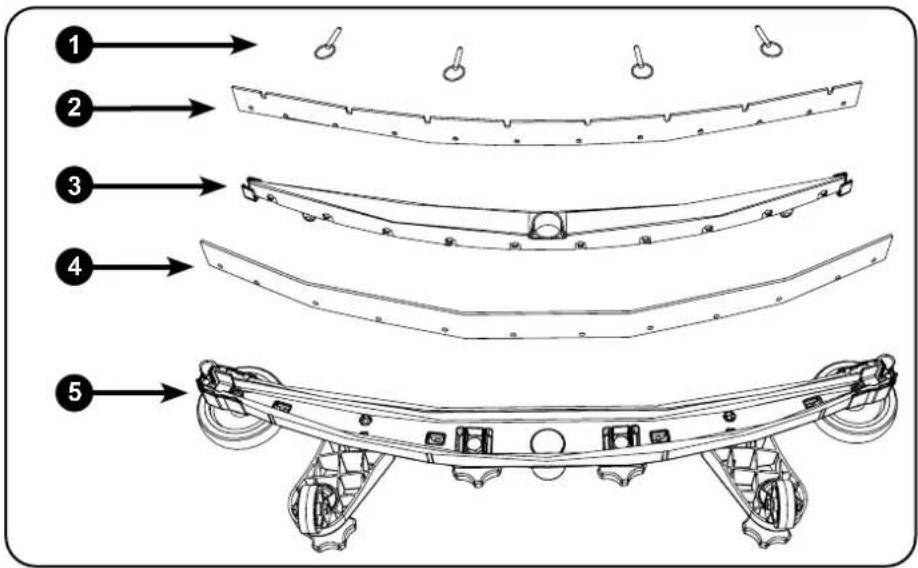

Floor Tool Overview

1. Retaining pins x 4
2. Front blade (slotted)
3. Blade carrier
4. Rear blade
5. Floor tool main body

Note: The blades are designed to be reversible, thus extending their useful working life.

Technical diagram of a vehicle chassis with five labeled components, showing structural parts and assembly details.

The battery meter displays the charge level of the batteries; when fully charged, all meter lights are illuminated.

0 50% 100%

1

As the machine is used and the batteries are discharged, the meter lights will go out from right to left. If the battery-charge level is allowed to discharge to the point that only one or two lights / bars remain illuminated, the operator must consider charging the machine.

0 50% 100%

2

Always ensure that the machine is switched off prior to charging.

When the machine is getting close to empty the last light starts to flash, the operator should then take the machine to a suitable charging point. When the battery icon starts flashing, the vacuum and brush motors will be disabled and the user should charge the machine.

0 50% 100%

3

Pure electrical circuit lines without any symbols

Alternative Display When the last red light starts flashing, the vacuum and brush motors will be disabled and the user should charge the machine.

The LFP batteries are sealed for life and are totally maintenance free.

The on-board charger automatically monitors the charging process and will switch to float charge mode when the batteries are fully charged. Float charge mode allows to maintenance LFP batteries at the right level of health. The machine should be left on float charge overnight or over the weekend at least once per month or more frequently if needed.

Insert the charging lead required for your country into the charging point.

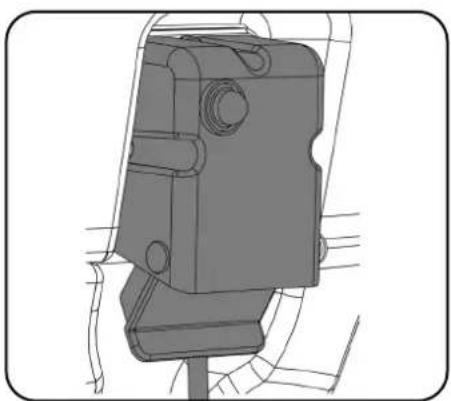

The machine charging point is located to the rear of the machine under the control panel.

Connect to a suitable power supply.

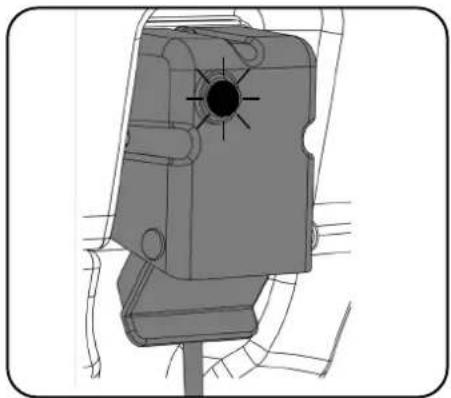

Once mains power is connected the red charging indicator will illuminate.

To ensure a full charge, from an empty state, the machine should be left for a period of 8 hrs.

Once fully charged, disconnect the charging lead from both the power supply and the machine.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Battery Care

To ensure your machine remains at its maximum efficiency and prolong your battery life, please follow the simple steps below:

Under normal daily usage:

Re-charge the machine FULLY after each use regardless of machine operation time.

It is recommended to leave the machine connected to power grid overnight, at least once a month. If the user does not disconnect the cable after full charge it is not an issue.

Do not leave the machine in a discharged state.

Periodically inspect the battery connections for tightness and corrosion.

does not issue. 0 50% 100%

Technical line drawing of a mechanical component with no visible text or symbols

der Maschine

Signal (LED) Meaning
Red LED on First Phase (Constant Current Mode).
Orange LED on Second Phase (Constant Voltage Mode).
Green LED on	Third Phase (Constant Voltage Mode) Charge Complete.However, after full re-charge, leaving the charger connected moves to float-charge mode to help to maintain a healthy balance between batteries.
Red LED flashing followed by Pause	Cooling Fan Locked > 1 flash between pause.Over Voltage Protection / Output Short Circuit / Battery Reverse Polarity > 2 flashes between pause.Over Temperature Protection > 3 flashes between pause.Charge Time has exceeded 16 hrs during phase 1 or 2 > 4 flashes between pause.
	Condition RED LED YELLOW LED GREEN LED
	Pre-charge Timeout	Flashing 4 Times		O
	CC Timeout		O
	CV Timeout		O	O
	Battery Disconnection
	Note: O means illuminates continuously

Technical diagram showing a device panel with warning labels and a connector pin, likely illustrating electrical or mechanical wiring.

Note: Re-charge the machine fully after its last use. Do not leave the machine in a discharged state.

Under abnormal use;

i.e. leaving the machine without charging for a period of time, we advise that you follow these steps:

Float charge mode allows to maintain LFP batteries at the right level of health.

The machine should be left on float charge overnight or over the weekend at least once per month.

Charge fully the day before you start using the machine again.

steps: 0 10% 100%

Free Wheel Function

Technical diagram of a vehicle's wheel assembly with labeled components (no text or symbols present)

Technical line drawing of a vehicle chassis with wheels and suspension components (no text or symbols)

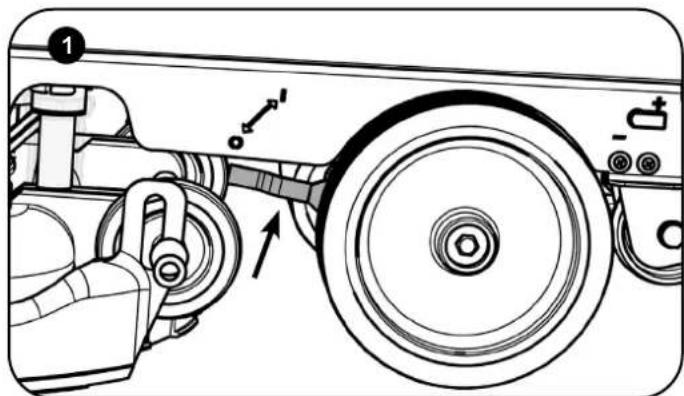

The machine is equipped with a free-wheel function that will enable the operator to move the machine manually if required.

The motor brake is located on the right side of the machine near the rear wheel.

Lift the Arm to the upper position for Drive (Fig.1). Lower the arm to disengage the drive (Fig.2).

The motor brake will be fully disengaged. The machine will now be in full free wheel mode.

Note: Drive functions on the machine will not work whilst in free-wheel mode. Remember to re-engage the drive when you reach your final destination / before using the machine.

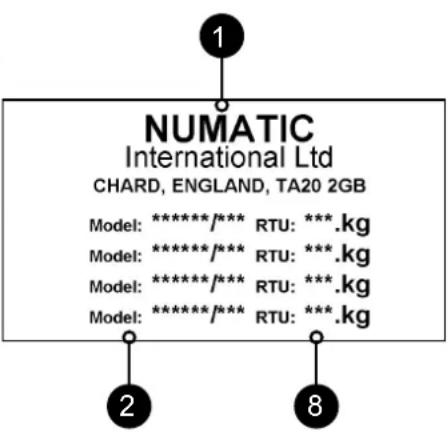

Rating Label
1 Company Name & Address
2 Machine Description
3	Supply Current / Voltage / Alternating Current / Frequency
4 Charger Output
5 Battery Voltage
6 Noise Rating
7 Hand Arm Vibration
8 Weight (ready to use)
9 Ingress Protection Rating
10 Max Gradient
11 QR Code
12 WEEE Logo / Approvals Mark
13 SKU / Part
14 Machine yr/wk Serial number

Numatic International Ltd CHARD, ENGLAND, TA20 2GB TA20 2GB Model *****/** Supply ***A ~ **. ***V ~ * . **Hz Charger Output ***W Battery Voltage **V =--- Noise Emission ≤ **.**dB(A) HAV *.* m/s² RTU XXX kg Name and address of EU Importers In manual IPX* %* Disconnect the supply before making or breaking connections to the battery. Débrancher alimentation avant de brancher ou débrancher la batterie 14 1 1 NUMATIC International Ltd CHARD, ENGLAND, TA20 2GB Model: *****/*** RTU: ***.kg Model: *****/*** RTU: ***.kg Model: *****/*** RTU: ***.kg Model: *****/*** RTU: ***.kg

WEEE (Waste, Electrical and Electronic Equipment)

Scrubber dryer Accessories and packaging should be sorted for environmentally-friendly recycling.

Only for UK & EU countries.

Do not dispose of scrubber-dryer into household waste.

According to the European Directive 2012/19/EU on waste electrical electronic equipment and its incorporation into national law.

Scrubber-dryers that are no longer suitable for use must be separated, collected and sent for recovery in an environmentally-friendly manner.

PPE (Personal protective equipment) that may be required for certain operations.

Ear Protection Safety Footwear Head Protection
Dust / Allergens Protection	Eye Protection Protective Clothing		Hi-Vis Jacket	Caution Wet Floor Sign

Note: A risk assessment should be conducted to determine which PPE should be worn.

Safety Critical Component:

Charging Leads: H05VV-F 3 Core x 1.0 mm²

Battery Charger: 100V-240V (50-60Hz)

DC Output: 25.6VDC, 20A

In the event of a breakdown contact

your Numatic dealer or the

Numatic Technical

help line [phone]

COMPONENT INTERVAL INSPECT FOR

Charging Lead DAILY Scuffi ng, cracks, splits, conductors showing
Brushes DAILY Bristle damage, wear, drive collar wear
Squeegee Blade BEFORE EACH USE Wear, cracks, splits
Filters BEFORE EACH USE Clogging and debris retention
Tanks AFTER EACH USE Rinse dirty water tank after use

As with all electrical equipment care and attention must be exercised at all times during its use, in addition to ensuring that routine and preventative maintenance is carried out periodically in order to ensure its safe operation. Operators shall be adequately instructed on the use of these machines.

WARNING

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility or liability in this respect.

When ordering spare parts always quote the Model Number / Serial Number specified on the Rating Plate.

Do not use on cleaning surfaces having a gradient exceeding that marked on the machine. While on ramps or inclines, avoid sudden stops. Avoid sharp turns. Use low speed down ramps. Clean only while descending (driving down) the ramp.

This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.

Children should be supervised to ensure that they do not play with the appliance.

Only use brushes provided with the appliance or those specified in the instruction manual.

The use of other brushes may impair safety.

A full range of brushes and accessories are available for this product.

Only use brushes or pads which are suitable for the correct operation of the machine for the specific task being performed.

It is essential that this equipment is correctly assembled and operated in accordance with current safety regulations.

When using the equipment always ensure that all necessary precautions are taken to guarantee the safety of the operator and any other persons who may be affected.

Wear non slip footwear when scrubbing. Use a respiratory mask in dusty environments.

When cleaning, servicing or maintaining the machine, replacing parts or converting to another function the power source shall be switched off.

Mains operated machines shall be disconnected by removing the power plug, and battery operated machines shall be disconnected by using top ON/OFF button on the battery.

In order to prevent unauthorised use of the machine the power key must be removed after use.

Machines left unattended shall be secured against unintentional movement.

When detergents or other liquids are used, read the manufacturer's instructions.

CAUTION

This machine is not suitable for picking-up hazardous dust.

This machine is not to be stored outdoors or in wet conditions.

This machine is for indoor use only.

NOTES: This machine is intended for commercial use, for example in hotels, schools, hospitals, factories, shops, offices and rental businesses.

This product meets the requirements of IEC 60335-2-72

DO

• Ensure only competent persons unpack/assemble the machine.
• Keep your machine clean
• Keep your brushes in good condition.
• Replace any worn or damaged parts immediately.
• Regularly examine the power cord for damage, such as cracking or ageing. If damage is found, replace the cord before further use.
  • Only replace the power cord with the correct Numatic approved replacement parts.
  • Ensure that the work area is clear of obstructions and / or people.
  • Ensure that the working area is well illuminated.
  • Pre-sweep the area to be cleaned.

DON'T

• Use steam cleaners or pressure washers to clean the machine or use in the rain.
- Allow any inexperienced repairs. Call the experts.
• Leave the brush pad on the machine when not in use.
- Allow the machine to be used by inexperienced or unauthorised operators or without appropriate training.
• Use the machine without the solution tanks properly positioned on the machine, as shown in the instructions
• Expect the machine to provide trouble-free, reliable operation unless maintained correctly.
• Lift or pull the machine by any of the operating triggers, use the main handle.
- Allow water solutions to ingress to the battery.
- Remove the handle from the machine except for service and repair.

READ MANUAL BEFORE USE

Precautions when working with batteries

1. Always wear protective clothing e.g. face visor, gloves and overalls when working with batteries.
2. Whenever possible always use a properly designated and well-ventilated area for charging.

Do not smoke or bring naked flames into the charging area.

1. Remove any metallic items from hands, wrists and neck i.e. rings, chains etc. before working on a battery.
2. Never rest tools or metallic objects on top of the battery.
3. When charging is complete disconnect from the mains supply.
4. The batteries must be removed from the machine before it is scrapped.
5. The machine must be disconnected from the supply when removing the battery.
6. To remove the batteries:- Disconnect machine from the mains supply (if charging) and ensure batteries are switched off using the button that is placed on the battery top. Disconnect hoses from separator and tanks.

Remove separator and tanks. Unscrew battery strap fi xings and remove.

Undo battery terminals and remove. Remove batteries.

1. The batteries are to be disposed of safely, as according to local government guidelines.
2. Only use genuine Numatic replacement batteries.
3. Do not allow the batteries to become fully discharged; it may not be possible to re-charge them. Batteries should not be discharged below 22.5 volts with 10 amps flowing.
4. Do not allow one battery to be discharged separately to the other.
5. Do not mix batteries from different machines.
6. The batteries fitted to this product are Lithium-ion (Li-ion), Lithium Iron phosphate (LFP) type.

The fi tting of any other type of battery may cause a safety hazard.

1. Switch off the battery using top ON/OFF button before cleaning or maintenance.

Battery Care

1. Battery Storage:

a. Batteries must be stored in a dry, level and clean location not exceeding a temperature range of 15°C \~ 25°C.
b. Batteries must by fully charged every 6 months when on-the-shelf or if the battery voltage reduces to 25V.
c. Batteries must be put into use within 12 months of the date of manufacture, failure to do so will lead to reduced capacity in

the fi eld. (battery date code) -

ZP19006F YYW W0 0001

Serial number

Week of Production

Year of Production

d. If a battery does not want to switch ON and the green LED on the top is not illuminating, irreversible damage has occurred. Under this condition, a battery should not enter into service and should be disposed of according to local authority guidelines.

1. During Use:

a. Batteries must be recharged after every use regardless of machine run time.
b. If the machine is to be left dormant for any length of time complete the following:

i. Fully charge the batteries.

ii. Do not leave batteries dormant for more than 6 months.

Daily

Keep the machine clean.

Ensure brushes/ pads/ squeegee/ fi Iters are in good condition.

Check for any worn or damaged parts and replace immediately.

Drain and rinse dirty water tank after every use.

Store machine with brush deck secured in the elevated position.

Weekly – as daily and –

Check brush or pad and skirt and rinse.

Check floor tool blades for wear and wipe clean.

Clean separator assembly including filter and check condition of seal.

Flush out system with clean water and clean filters.

Batteries

Always re-charge the batteries after use.

Charge for a minimum of 4 hours. Leave the battery on charge overnight, at least once per month.

After it has been fully charged, this will prolong battery life.

TwinTec Maintenance

Numatic International Ltd CHARD, ENGLAND, TA20 2GB TA20 2GB Model *****/*** Supply ***A - ** - **V - ** - **Hz Charger Output ***W Battery Voltage ***V = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = == 2 RTU XXX kg Name and IPX* address of EU importers In manual % manual Disconnect the supply before making or breaking connections to the battery. Débrancher alimentation avant de brancher ou débrancher la batterie 11 Sku/Part 12 13 14

NUMATIC International Ltd CHARD, ENGLAND, TA20 2GB Model: *****/*** RTU: ***.kg Model: *****/*** RTU: ***.kg Model: *****/*** RTU: ***.kg Model: *****/*** RTU: ***.kg 2 8

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Numatic Lithium-ion Rechargeable Battery

25.6V | 50Ah | 1280Wh | LFP26148129

Warning symbol image with exclamation mark inside triangle

Weather protection symbol with no text, numbers, or symbols

Prohibition sign with a thermometer crossed out, indicating no heat or temperature allowed

Prohibition sign showing a crossed-out flame symbol (no text or numbers present)

Black circular icon showing a hand washing a faucet (no text or symbols)

Stylized black-and-white graphic of an eye with a pointed hat above it, no text or symbols present.

It is important that you observe the following information and warnings!

Emergency Contact Information
Address: CBAK BATTERY HEADQUARTERS Shenzhen BAK ENERGY Co. LTD, 2603A BAK Tech Bldg, 9th Keyan Rd, Hi-tech Park, Nanshan Dist, Shenzhen City, China		NUMATIC INTERNATIONAL LTD Millfield Road, Chard, Somerset, TA20 2GB, UK
Tel: Fax	0086-755-832837100086-755-8328649	0044-146-0686000044-146-068458
www.numatic.com | www.numatic.de | www.numatic.ch | www.numatic.frwww.numatic.nl | www.numatic.co.za | www.numatic.pt | www.numatic.eswww.numatic.it | www.numatic.dk

1. DEFECTIVE BATTERIES

EN

1. If a customer wishes to return a battery to a supplier after removing from product, then collection of the battery must be arranged by the supplier; however, Faulty batteries must not be returned through the postal system or by courier.
2. If on return to a supplier, OR at a customer base, a suspected defective battery shows any signs of impact damage, distortion, blistering, loose parts or leakage then on no account should it be offered for condition checking. It must be considered defective and the procedures described from item 6 below should be followed.
3. If, on return to a supplier, OR at a customer base, a suspected defective battery, that shows No signs of impact damage, distortion, blistering, loose parts or leakage, may be offered for condition checking with an appropriate battery condition checking device operated by a competent person.
4. If checking shows the battery to be defective then the procedures described from item 6 below should be followed.
5. On no account must any further attempt to recharge be made. A defective battery should not be stored inside buildings on any account.
6. The defective battery must be switched off, and all electrical terminals sufficiently insulated to remove risk of short circuit. The defective battery can then be stored in a locked battery waste container which should be plastic or plastic lined and placed away from buildings and combustible materials and clearly signed as a defective battery container with appropriate warnings. Defective batteries should be sent for waste disposal / recycling according to your country waste regulations.

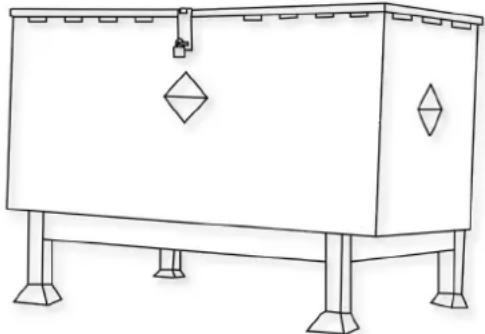

Line drawing of a simple electrical cabinet with four legs and a central door (no text or symbols)

An example of a waste battery storage bin well away from buildings.

2. HANDLING AND STORAGE

EN

DANGER!

Improper handling can lead to an explosion or ignite a fire!

Store batteries out of reach of children.

• Only trained staff can fix the battery in the machine.
• Storage temperature range: -10°C\~40°C.
  • Temperatures must not exceed 40^ C.
  • Relative humidity range: 20% to 80%.
• Optimum preservation of functionality: 15^ 25^ .

WARNING:

• Do not open the battery, disassemble it or allow it to fall from a substantial height.
• Protect the battery against short-circuiting – danger of explosion!
• Protect the battery against rain, do not immerse in liquids – danger of short-circuiting.
• Protect the battery against direct sunlight, heat and fire.
• Do not incinerate the battery – danger of explosion!
• Do not use defective or deformed batteries.
• Use only original Numatic specific appliances to charge and discharge batteries.
• Use only an external supply with the following specifications: 100-240V \~ 6.8A.

STORAGE:

• Good batteries should be stored in a protected area away from sources of direct heat and sunlight and should be kept dry.
- The temperature should not exceed 40^ but preferably not be above 25^ to maintain good battery performance.
- Storage area should be of low humidity, non dusty and a non corrosive atmosphere.

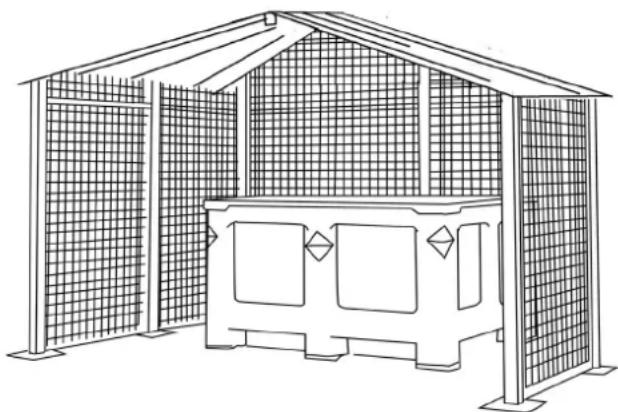

- An example of a well protected area with a cage to protect against accidental impact damage and with the batteries stored in a protective container to protect from heat, impact and accidental spillage of liquids.
- Care when handling / moving with forklift trucks or pallet trucks is needed at all times to avoid any physical damage to the batteries.
- If a good battery at any time is mishandled or subjected to any conditions that may damage it, as described in the battery Instruction manual supplied, it must then be considered as defective and procedures followed from Item 1 of this document overleaf.

Line drawing of a traditional-style gage structure with lattice windows and a central platform (no text or symbols)

3. HAZARDS IDENTIFICATION

• Electrolyte may escape from damaged batteries. Avoid contact.
• Contact can cause skin irritation, burns and chemical burns.
• If liquid comes into contact with eyes, seek medical attention.
• Avoid inhaling any vapours formed or released from the battery – Contains caustic alkaline electrolytes.
• Warning - Risk of fire - This battery contains No user serviceable parts.

4. FIRST AID MEASURES

EN

In the event of contact with released electrolyte or electrolyte vapours:

• Eye contact – flush eyes for at least 15 minutes with plenty of clean water without rubbing and seek medical attention.
• Skin contact – wash affected areas of skin with plenty of water and soap; if irritation persists, seek medical attention.
- Inhalation – provide fresh air or administer oxygen immediately and seek medical attention.
- Ingestion – if electrolyte has been ingested, seek medical attention immediately.

Information for physicians:

- Contains caustic alkaline electrolytes in cells with Lithium Iron Phosphate – NO LITHIUM METAL OR LITHIUM ALLOYS.

5. FIRE FIGHTING MEASURES

EN

• In case of fire – Keep clear of vapours and gases generated, take wind direction into consideration. If possible without danger, remove batteries from the vicinity of the fire. In principle, cooling or extinguishing with water is possible, but should only be done by trained personnel with sufficiently large quantities of water.
• If the hazard situation is unclear, extinguish only with ABC powder extinguishers (Class D extinguishers for fires involving metals are especially suitable).
• Fire fighters should only approach the fire wearing protective clothing and self-contained breathing apparatus.
• Once the fire has been extinguished, as a rule, the area should be monitored (fire watch) and cleaned up by trained and appropriately equipped personnel; fire residue should be contained and disposed of properly.

6. EXPOSURE CONTROLS, PERSONAL PROTECTION

EN

Respiratory Protection:

• In case of battery venting, providing as much ventilation as possible. Avoid confined areas with venting batteries.
• Respiratory Protection is not necessary under conditions of normal use.

Ventilation:

- Not necessary under conditions of normal use.

Protective Gloves:

- Not necessary under conditions of normal use.

Other Protective Clothing or Equipment:

• Not necessary under conditions of normal use.
• Personal Protection is recommended for venting batteries: Respiratory Protection, Protective Gloves, Protective Clothing and safety glass with side shields.

7. ACCIDENTAL RELEASE

EN

Disposal – Wear protective clothing and equipment, wipe up with absorbent textile and dispose of as hazardous waste at collection points for hazardous waste according to national regulations.

8. DO

EN

• Use NUMATIC batteries only with NUMATIC appliances and charge them only using NUMATIC chargers.
• Charge battery before use.
• Store the battery out of the reach of children.
• Protect from rain – do not immerse in fluids.
• Protect from direct sunlight, heat, and open flames.
• Keep a battery that is not in use away from metal objects, (e.g. nails, coins, jewellery).
• Follow the disposal advice of the manufacturer and any internal waste management guidance.
• Use and store the battery with-in temperature range (as shown in Temperature Range Table).
  • Always switch off the battery using the button by holding it for 6 seconds, before disconnection and handling.
• To activate / turn ON the battery please hold the top button for 6 seconds or alternatively charge the battery using original Numatic specific chargers.
• Be aware of the risk of terminals of the battery-operated appliance or battery being short circuited by metal objects.

Warning: The battery must only be charged by the Numatic Charger supplied with the product and under NO circumstances should an alternative non Numatic charger be used as there is a risk of severe damage and fire could result.

Note* "If batteries are subjected to temperatures beyond normal operating limits automatic shutdown will occur. Under these conditions allow the batteries to acclimatise at room temperature (18°C – 22°C) for several hours to allow the battery to wake up".

Numatic NX 1K

Temperature Range Table

CHARGING 5°C~35°C

DISCHARGING -10°C~35°C

STORAGE OPTIMUM 15°C~25°C

STORAGE LIMIT -10°C~40°C

9. DO NOT

EN

• Throw battery into fire – risk of explosion!
• Charge or use a defective, damaged or deformed battery.
• Open, damage or drop the battery.
• Expose the battery to microwaves or high pressure.
• Bridge (short circuit) the battery terminals with metallic objects since this may damage the battery.
• Use metal containers for transporting batteries.
• Expose the batteries to high temperatures including direct sunlight.
• Crush, break open or physically abuse the batteries or the equipment that contains them.

10. DISTRIBUTOR TAKE-BACK / DISPOSAL

EN

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

• On the basis of the Battery Directive, the manufacturers take responsibility for financing collection, treatment and recycling of batteries used in devices. To this end, batteries must be handed over for disposal to the collection systems established for this under national law. Disposal of batteries together with household waste is prohibited; batteries must be collected separately according to type.
• Return the battery free of charge to your NUMATIC servicing dealer for disposal or hand it over to an appropriate public collection point.

11. CHARGING BATTERIES

EN

- The charger is intended for use only in the machine where it has been installed. The charger is intended for use with the detachable power cord supplied, the power unit is capable of operating at different voltages without user adjustment. If the charger is damaged or does not charge anymore, please return to service centre.

CAUTION!

• Check the mains cord regularly for any sign of damage.
• Do not use damaged devices.
• If the mains cord of the charger is damaged, it must be replaced by an original NUMATIC mains cord available from the manufacturer or service agent.

12. WARRANTY

EN

Lithium-Ion Battery Warranty

Warranty: Commercial Use

a. Batteries are warranted for (3 Years) as standard. *Note: Numatic dealerships outside of the UK may provide longer warranty periods.

Please confirm with your Numatic dealership on purchase of your product.

b. To claim warranty the following details must be supplied

i. Serial number of the machine
ii. Battery date code
iii. Date purchased
iv. Proof of Purchase
v. Maintenance history and charging regime

Failure to use the correct Numatic charger will void your warranty.

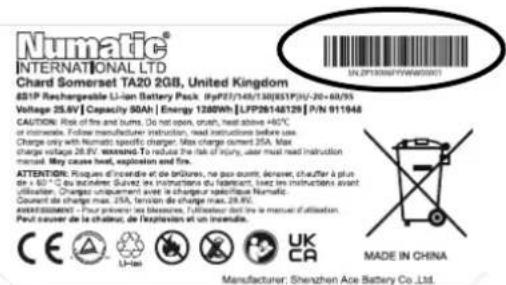

Numatic® INTERNATIONAL LTD Chard Somerset TA20 2GB, United Kingdom 851P Rechargeable Li-ion Battery Pack (Rp237/148/130/651P) (50-20-60/95) Voltage 25.0V (Capacity 50Ah) | Energy 1200Wh | LFP26148129 | P/N 911946 CAUTION: Risk of fire and burns. Do not open, clean, heat above 450°C. or increase. Follow manufacturer instruction, read instructions before use. Charge only to the specific charger. Max charge current STA. Max charge voltage 26.0V, measured. To reduce the risk of injury, user must read instruction manual. May cause level, exploration and fire. ATTENTION: Roques d'incendite et de brilles, ne par point, déreter, chauffer à plus de a 60 °C du incliner. Suivrez les instructions du fabricant, lavez les instructions avant diffraction. Charge uniquement avant le chargeur spécifique Numatic. Croutant max. STA. Tensile de charge max. 28.0V. AVAILMENT - Pour premier les blessances, l'appliquer dont le menu d'utilisation. Peut coureur de la chaleur, de l'exploration et un incendite. CE L-Las UK CA MADE IN CHINA Manufacturer: Shenzhen Ace Battery Co., Ltd.

ZP19006-01FYYWW00001

Serial number Week of production Year of production

1. SCHADHAFTE BATTERIEN

Line drawing of a simple rectangular industrial machine with four legs and a central door (no text or symbols)

Beispiel für einen

Line drawing of a simple outdoor structure with lattice windows and a central rectangular frame (no text or symbols)

3. MÖGLICHE GEFAHREN

Numatic NX 1K

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Chard Somerset TA20 2GB, United Kingdom

8S1P Rechargeable Li-ion Battery Pack: IFpF27/148/130[8S1P]H/-20+60/95

Voltage 25.6V | Capacity 50Ah | Energy 1280Wh | LFP26146129 | P/N 911948

CAUTION: Risk of fire and burns. Do not open, crush, heat above +60°C or inorganic. Follow manufacturer instruction, read instructions before use

Charge only with Numatic specific charger. Max charge current 25A. Max

charge voltage 28.8V. WARNING To reduce the risk of injury, user must read instruction manual. May cause heat, explosion and fire.

Line drawing of a rectangular industrial or laboratory equipment unit with four legs and a central door (no text or symbols)

Line drawing of a simple outdoor structure with lattice windows and a central rectangular frame (no text or symbols)

3. IDENTIFICATION DES DANGERS

Numatic NX 1K

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Line drawing of a rectangular industrial or electrical cabinet with four legs and a central door (no text or symbols)

Line drawing of a traditional-style building with lattice windows and a central structure (no text or symbols)

3. IDENTIFICATIE VAN RISICO'S

Numatic NX 1K

TEMPERATUURTABEL

OPLADEN 5°C tot 35°C

ONTLADEN -10°C tot 35°C

OPTIMUM VOOR OPSLAG 15°C tot 25°C

MAXIMA BIJ OPSLAG -10°C tot 40°C

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Line drawing of a rectangular industrial or electrical cabinet with four legs and a central door (no text or symbols)

Line drawing of a simple outdoor structure with lattice windows and a central rectangular frame (no text or symbols)

Numatic NX 1K

Simple line drawing of a trash bin with no text or symbols

Line drawing of a rectangular industrial or electrical cabinet with four legs and a central diamond-shaped opening (no text or symbols)

Line drawing of a traditional-style building with lattice windows and a central structure (no text or symbols)

Numatic NX 1K

TABELLA RANGE DI TEMPERATURA

IN CARICA 5°C bis 35°C

SCARICA -10°C bis 35°C

STOCCAGGIO OTTIMALE 15°C bis 25°C

CONDIZIONI LIMITE DI STOCCAGGIO - 10°C bis 40°C

Simple line drawing of a trash bin with no text or symbols

Chard Somerset TA20 2GB, United Kingdom

8S1P Rechargeable Li-ion Battery Pack. IFpP27/148/130(8S1P)H/-20+60/95

Voltage 25.8V | Capacity 50Ah | Energy 1280Wh | LFP26148129 | P/N 011948

CAUTION: Risk of fire and burns. Do not open, crush, heat above +60°C

or immenate, Follow manufacturer instruction, read instructions before use.

Charge only with Nominal specific charger, Max charge current 25A. Max charge voltage 28.8V, waensing. To reduce the risk of injury, user must read instruction

change mortgage bill. Simulated 15 October 2014 manual. May cause heat, explosion and fire.

Manufacturer: Shenzhen Ace Battery Co., Ltd.

ZP19006-01FYYWW00001

Numero di serie

Line drawing of a simple electrical cabinet with four legs and a handle (no text or symbols)

Line drawing of a simple outdoor structure with lattice windows and a central rectangular frame (no text or symbols)

Numatic NX 1K

TABLA DE INTERVALOS DE TEMPERATURA

CARGANDO 5°C~35°C

DESCARGANDO -10°C~35°C

ALMACENAMIENTO ÓPTIMO 15°C~25°C

LÍMITE DE ALMACENAMIENTO -10°C~40°C

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Chard Somerset TA20 2GB, United Kingdom

8B1P Rechargeable Li-ion Battery Pack IFpP27/149/130(8S1P)H/-20+60/95

Voltage 25.6V | Capacity 50Ah | Energy 1280Wh | LFP26148129 | P/N 911948

CAUTION: Risk of fire and burns. Do not open, crush, heat above +60°C

or increments. Follow manufacturer instruction, need instructions before use Charge only with Numatic specific charger. Max charge current 25A. May

charge voltage 28.8V. WARNING-To reduce the risk of injury, user must read Instruction

manual. May cause heat, explosion and fire.

MADE IN CHINA
Manufacturer: Shenzhen Ace Battery Co., Ltd.

ZP19006-01FYYWW00001

Número de serie

Line drawing of a rectangular industrial or electrical cabinet with four legs and a central door (no text or symbols)

Line drawing of a simple outdoor structure with lattice windows and a central rectangular base (no text or symbols)

3. IDENTYFIKACJA ZAGROŻEŃ

PL

Numatic NX 1K

TABELA ZAKRESU TEMPERATUR
ŁADOWANIE 5°C~35°C
ROZŁADOWYWANIE -10°C~35°C
OPTYMALNA TEMEPRATURA PRZECHOWYWANIA 15°C~25°C
GRANICZNA TEMPERATURA PRZECHOWYWANIA -10°C~40°C

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Line drawing of a rectangular industrial or electrical cabinet with four legs and a central door (no text or symbols)

Line drawing of a traditional-style gable with lattice windows and a central rectangular structure (no text or symbols)

3. RISKBEDÖMNING

SV

Numatic NX 1K

9. GÖR INTE DETTA

SV

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Line drawing of a simple industrial equipment cabinet with four legs and a central door (no text or symbols)

Line drawing of a traditional-style building with lattice windows and a central structure (no text or symbols)

4. ENSIAPUTOIMENPITEET

FI

Numatic NX 1K

9. VÄÄRIN

FI

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Line drawing of a simple rectangular box with four legs and a diamond-shaped opening, no text or symbols present.

Line drawing of a traditional-style building with lattice windows and a central structure (no text or symbols)

Numatic NX 1K

TEMPERATUROMRÅDETABEL
OPLADNING 5°C~35°C
AFLADNING -10°C~35°C
OPTIMAL OPBEVARING 15°C~25°C
OPBEVARINGSGRÅENSE -10°C~40°C

Simple line drawing of a trash bin with no text or symbols

Chard Somerset TA20 2GB, United Kingdom

881P Rechargeable Li-ion Battery Pack. IfpF23/540/T30(RS1P)0/-20-60/95

Voltage 25.6V | Capacity 50Ah | Energy 1280Wh | LFP26148139 | P/N 911946

CAUTION: Risk of fires and burns. Do not open, crush, heat above +60°C or inzwere. Follow manufacturer instruction, next instructions before use

Charge only with Numatic specific charger, Max charge current 25A. Max

charge voltage 28.8V WINKING-To reduce the risk of injury, laser must read instruction output. My group best application and fire

Hindi: My case was, explosion and fire.

MADE IN CHINA
Manufacturer: Shenzhen Ace Battery Co., Ltd.

ZP19006-01FYYWW00001

Serienummer

Produktionsuge

Produktionsår

Schematic Diagram

- Schaltbild • Schéma • Principeschema • Diagrama esquemático • Schema apparecchio • Diagrama esquemático • Schemat • Schematiskt diagram • Kytkentäkaavio • Skematisk diagram

TBL4045
TBL4055

TBL4055T

Model - TBL 4045 (Non Traction Models)
Brush Motor Vac Motor Brush Sizes Pad Sizes Charger
300 W 400 W 450 mm 400 mm 20 Amp
Protection Class Brush Speed Water Capacity Fluid Flow Hand Arm Vibration
IPX4	140 RPM		40 L	0 - 2 L/Min	≤2.5m/s2
Brush Pressure	Dimensions
25 g/cm2	Width = 470mm (805mm) / Length = 1070mm (1155mm) / Height = 1160mm
50 Ah
Net Weight	Gross Weight (Full)	Sound Pressure Level	Run Time	Maximum Climbing Gradient	Re-charge Time
119.3 kg	159.3 kg	LpA ≤ 70 dB(A)	1 hr 40 mins average	Scrubbing 9 %	2.5 hrs
100 Ah
Net Weight	Gross Weight (Full)	Sound Pressure Level	Run Time	Maximum Climbing Gradient	Re-charge Time
130.64 kg	170.64 kg	LpA ≤ 70 dB(A)	3 hrs 10 mins average	Scrubbing 9 %	5 hrs

Model - TBL 4055 (Non Traction Models)
Brush Motor Vac Motor Brush Sizes Pad Sizes Charger
300 W 400 W 550 mm 508 mm 20 Amp
Protection Class Brush Speed Water Capacity Fluid Flow Hand Arm Vibration
IPX4	140 RPM		40 L	0 - 2 L/Min	≤2.5m/s2
Brush Pressure	Dimensions
24 g/cm2	Width = 560mm (948mm) / Length = 1115mm (1200mm) / Height = 1160mm
50 Ah
Net Weight	Gross Weight (Full)	Sound Pressure Level	Run Time	Maximum Climbing Gradient	Re-charge Time
113.85 kg	153.85 kg	LpA ≤ 70 dB(A)	1 hr 38 mins average	Scrubbing 9 %	2.5 hrs
100 Ah
Net Weight	Gross Weight (Full)	Sound Pressure Level	Run Time	Maximum Climbing Gradient	Re-charge Time
124.65 kg	164.65 kg	LpA ≤ 70 dB(A)	3 hrs 09 mins average	Scrubbing 9 %	5 hrs

Model - TBL 4055T (Traction Models)
Brush Motor Vac Motor Brush Sizes Pad Sizes Charger
300 W 400 W 550 mm 508 mm 20 Amp
Protection Class Brush Speed Water Capacity Fluid Flow Hand Arm Vibration
IPX4	100 RPM		40 L	0 - 2 L/Min	≤2.5m/s2
Brush Pressure	Dimensions
24 g/cm2	Width = 560mm (948mm) / Length = 1115mm (1200mm) / Height = 1160mm
50 Ah
Net Weight	Gross Weight (Full)	Sound Pressure Level	Run Time	Maximum Climbing Gradient	Re-charge Time
123.83 kg	163.83 kg	LpA ≤ 70 dB(A)	1 hrs 33 mins average	Scrubbing 9 %	2.5 hrs
100 Ah
Net Weight	Gross Weight (Full)	Sound Pressure Level	Run Time	Maximum Climbing Gradient	Re-charge Time
134.71 kg	174.71 kg	LpA ≤ 70 dB(A)	3 hrs 04 mins average	Scrubbing 9 %	5 hrs

For optimum performance Numatic International Ltd recommend the use of the following batteries in the Twintec machines.

Machine		Numatic Recommended Battery				Part Number
TBL4045 / 4055 / 4055T		NX1K LFP battery type (Li-ion)				911948
Make	Voltage		Capacity/Energy	Weight	Size
NX1K Battery	25.6 V		50Ah / 1280 Wh	10.8 kg	315mm (L) x 132mm (W) x 185mm (H)

Trouble Shooting

PROBLEM	CAUSE	SOLUTION
Machine will not operate	Low battery charge Charge batteries (pages 64-69)
Vacuum will not operate	Waste water tank full	Empty waste water tank (pages 52-57)
Poor water pick-up	Waste water tank fullClogged / blocked vacuum hoseLoose hose connectionsDebris basket filter clogged / blockedSeparator filter clogged / blockedPoor separator sealDamaged separator sealDamaged / split vacuum hoseDamaged floor tool bladesLow battery charge	Empty waste water tank (pages 52-57)Remove and clean (pages 52-57)Push tight connections (pages 28-33)Remove and clean (pages 52-57)Remove and clean (Pages 52-57)Clean and refit (pages 52-57)Renew (contact service dept)Renew (contact service dept)Renew (contact service dept)Re-charge batteries (pages 64-69)
No brush / scrub function	No brushes fitted	Check and fit (pages 23-27)
Little or no water flow	Clean water tank emptyClean water tank filter blocked / cloggedWater flow not onBrush deck raised	Fill clean water tank (pages 34-39)Remove and clean (pages 52-57)Switch on water flow (Pages 23-27)Lower brush deck (page 23-27)
Machine just 'stops' while operating	Too much load on the brush system	Decrease the brush load to best suit the floor type.

Warning Do not fit a replacement fuse link having a higher rating than the value stated on the fuse label.

DE

Ersatzteile

Position: Head of Technology

Numatic International Limited

Chard,

DEC-026 V2.2
For declaration of conformity for model TBL4045.TM see supplement sheet part no 919997 For declaration of conformity for model TBL4055.TM see supplement sheet part no 920003

UKCA Declaration of Conformity
Manufacturer:	Numatic International LimitedChard Somerset TA20 2GB www.numatic.co.uk Numatic
Product:	TGB3045, HGB3045, HBG3045, TGB4045, TGB4055, TBL4045, TBL4055
Description:	Floor Treatment - Walk Behind – Commercial - Battery
We, Numatic hereby declare under our sole responsibility, that the above-mentioned product(s) is/are in conformity with the following directives and standards.
S.I. 2008: 1597	Supply of Machinery Regulations	EN60335-1:2012 + AC:2014 + A11:2014 + A13:2017 + A15:2021 EN60335-2-72:2012 EN62233:2008
S.I. 2016: 1091	EMC Regulations	EN55014-1:2017 + A11:2020 EN55014-2:1997 + A1:2001 + A2:2008 EN61000-3-2:2014 EN61000-3-3:2013
S.I. 2012: 3032	RoHS Regulations
Authorised Signatory: Mr. Matthew Coles		Position: Head of Technology Numatic International Limited, Chard, Somerset, TA20 2GB, UK
Signed: M.Cleus Date: 1stFebruary 2024

This Machine Has Been Packed With The Following
Brush / Pad	□
Floor Tool	□
Charging Lead	□
Battery	□
Fuse Pack	□

Signed

Distributed by:

Numatic

numatic.com

Numatic International Limited (Head Office)

Chard, Somerset TA20 2GB, UNITED KINGDOM

Tel: [phone] numatic.com

Numatic International GmbH

Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND

Tel: [phone] numatic.de

Numatic International Denmark

Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND

Tel: [phone] numatic-online.dk

Numatic International S.A.S

Numatic International BV

Numatic International (PTY) Ltd.

Cnr. 16th & Pharmaceutical Road, Randjes Park, Midrand 1685, SOUTH AFRICA

Tel: [phone] numatic.co.za

Numatic International ULDA

Numatic International Spain, S.L.U.

Av. Baix Llobregat, 5-7, Ofi cina bajos 1 (Parc Negocis Mas Blau II)

08820 El Prat de Llobregat (Barcelona), SPAIN

Tel: [phone] numatic.es

Numatic International Italy S.R.L

Via Luigi Galvani, 2, Z.I. Talponedo, 33080 Porcia (PN), ITALY

Tel: [phone] numatic.it
