Original Instructions

CAUTION, Read instructions before using the machine.

Fitting Dump Hose ......Page 22

Fitting the Hose Guide ......Page 22

Fitting the Floor Tool ......Page 22

Lowering the Floor Tool ......Page 22

Breakaway Floor Tool ......Page 22

Fitting the Side Pod Skirts Page 28

Fitting the Brush ......Page 28

Setting the Width Adjustment ......Page 34

Filling the Clean Water Tank ......Page 37

Fill Level Indicator ......Page 37

Adjusting the Seat ......Page 43

Raise/Lower Brush Deck Page 43

Machine Operation

Setting the Cleaning Controls ......Page 47

Waste Water Tank Full Page 53

Emergency Stop Button / Horn...... Page 56

Maximum Speed Control...... Page 56

Machine in Use ......Page 59

Off -Aisle Cleaning Page 59

Machine Cleaning ......Pages 65 & 71

Fuses Page 71

Changing Floor tool Blades ......Page 77

Free Wheel Function Page 83

Machine Charging ......Page 89

Battery Care Page 89

Charging Lights Sequence ......Page 95

Schematic Diagram Page 95

Specifications Page 101

Trouble Shooting ......Pages 112 & 201

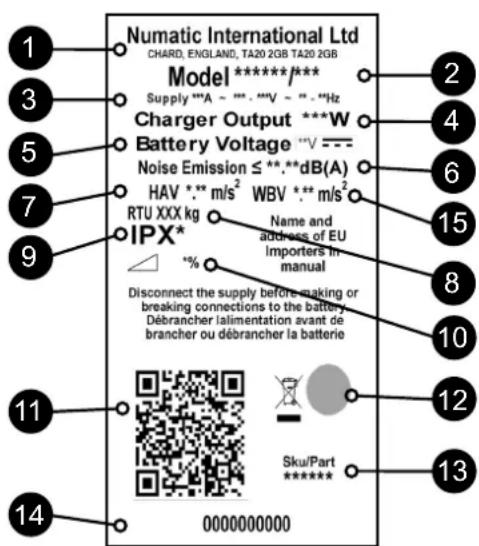

Rating Label / Personal Protective Equipment /

Recycling Page 123

Information for Scrubber Dryer....Pages 124-125

Recommended Spare Parts ......Page 156

Battery Information ...... Pages 167-170

EU Declaration Document ......Page 207

Company Address ......Page 208

TVL850/200 = 4x batteries

TVL850/250 = 5x batteries

TVL850/300 = 6x batteries

DE

TVL850/200 = 4x batteries

TVL850/250 = 5x batteries

TVL850/300 = 6x batteries

NL

TVL850/150 = 3x accu's

TVL850/200 = 4x accu's

TVL850/250 = 5x accu's

TVL850/300 = 6x accu's

PT

TVL850/200 = 4x batteries

TVL850/250 = 5x batteries

TVL850/300 = 6x batterias

IT

TVL850/200 = 4x batteries

TVL850/250 = 5x batteries

TVL850/300 = 6x batteries

SV

TVL850/250 = 5x akut

TVL850/300 = 6x akut

DA

After the removal of all the packaging, carefully open and check the contents.

• Owner Manual
• Battery Charging Lead
• 2 x Keys
• 1 x 20 Amp Fuses
• 1 x 4 Amp Fuse
• 1 x 2.5 Amp Fuse
• Maxi Fuse-puller

1 Operator control panel

2 Brush load adjuster knob

3 Brush deck release lever

4 Brush deck foot pedal

5 Clean water tank fill point

6 Side pod and skirt

7 Brush deck

8 Side pod lever

9 Floor tool raise / lower lever

10 Seat adjustment lever

11 Separator release catches

12 Pedestrian warning light

13 Accelerator pedal

14 Steering wheel

15 Clean water tank emptying hose

16 Vacuum hose

17 Air separator assembly

18 Waste water emptying hose

19 Floor tool vacuum hose

20 Semi parabolic floor tool

21 Fuse panel

22 Towing point

23 2.5 Amp safety fuse

24 Li-ion batteries

25 Charger

FR

EN: In the event of a breakdown contact your Numatic dealer.

1 Hours and battery meter display 6 Water flow rate
2 Forward / Reverse switch 7 Traction LED
3 Suction On / Off switch 8 Emergency stop button
4 Horn button 9 On / Off switch
5 Maximum speed control

DE

- Battery charging lead

- 2 x Keys

- 4 x 20 Amp fuses

- 4 Amp fuse

- Maxi fuse-puller

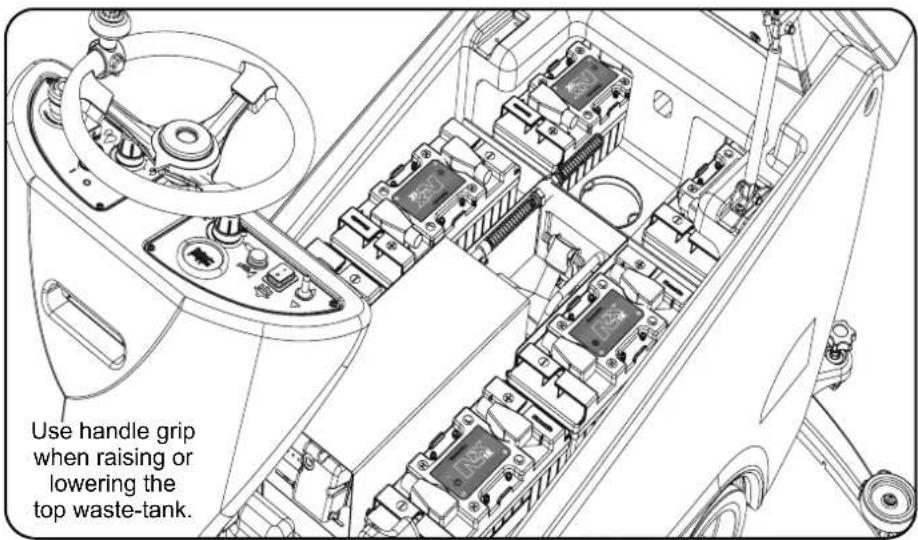

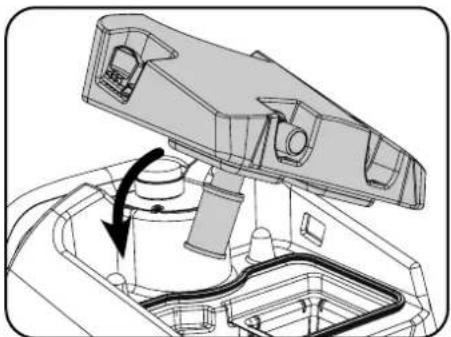

Use handle grip when raising or lowering the top waste-tank.

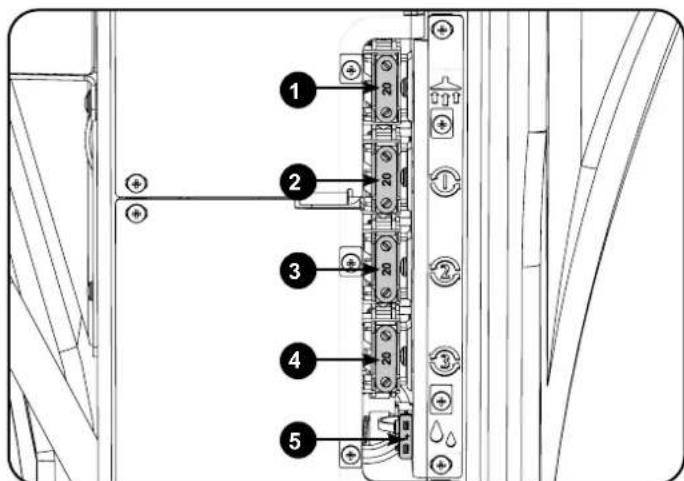

1 20 Amp 20 Amp 20 Amp 20 Amp 3 4 Amp

Lift top tank assembly to reveal battery compartment, ensuring you use the handle grip provided.

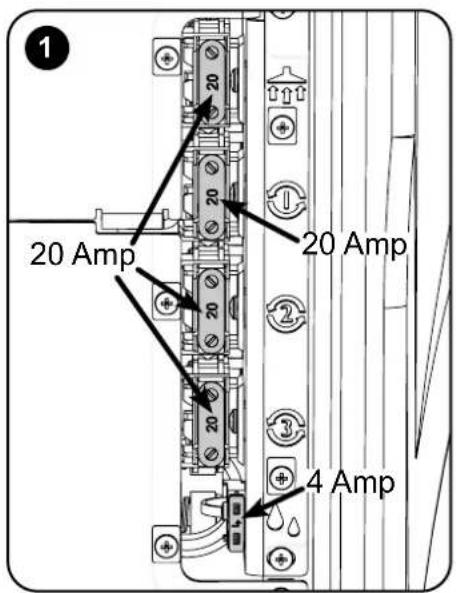

Fit vacuum and brush fuses (contained in start-up pack) into the fuse holders as illustrated. (Fig. 1)

Charge the machine to activate the batteries. After the batteries are activated, LEDs should illuminate on the top of all the batteries.

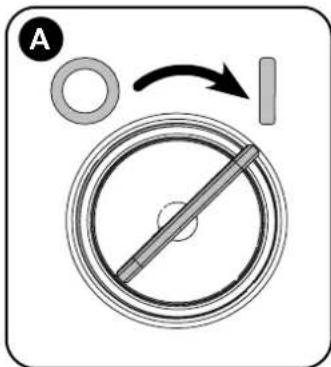

Insert Key into ignition located on the control panel. (Fig. A)

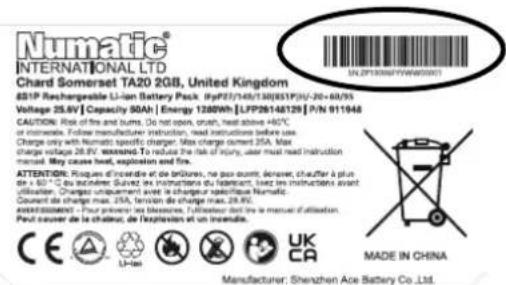

Numatic International Ltd recommends ONLY using 911948 NX1K LFP battery type Lithium Batteries provided with this machine.

A →

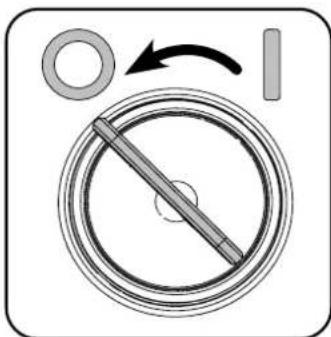

Insert the Ignition key and switch the machine on. (Fig. A)

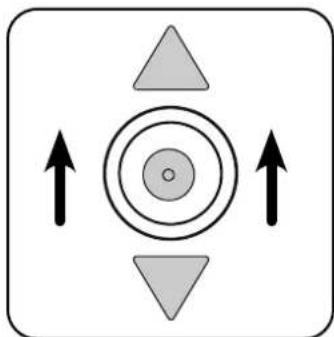

ENSURE THAT NO METAL OBJECTS COME INTO CONTACT WITH BATTERY TERMINALS WHILE THE BATTERIES ARE EXPOSED.

Abstract diagram with concentric circles and directional arrows, no text or symbols present

Turn the key to switch on the machine, set lever to forward.

Diagram of a circular mechanical component with arrows indicating rotation, surrounded by two rabbits (no text or symbols)

Set to slowest speed, depress accelerator and drive off the pallet using ramp provided.

Diagram showing a circular object with a diagonal line and an arrow indicating rotation, alongside a separate rectangular symbol.

Once in a safe location switch off machine.

Note: DO NOT depress accelerator pedal while software initialises. The machine will not operate in reverse with the floor tool lowered. The seat is fitted with a pressure sensor that disables the machine until an operator is seated.

DE

Technical illustration of two screwdriver tools with a 7mm measurement label (no text or symbols on the devices themselves)

Mechanical assembly diagram showing two cylindrical components connected by a bolt, with an arrow indicating direction (no text or labels)

Mechanical assembly diagram showing a rotating component with a circular arrow indicator (no text or symbols)

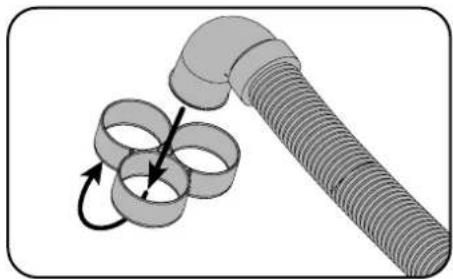

Fitting the Hose Guide

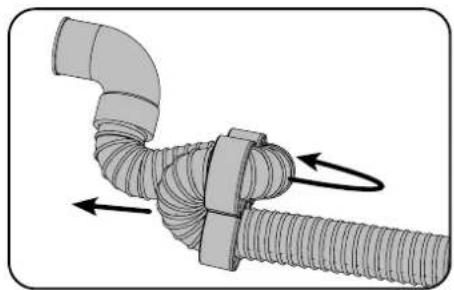

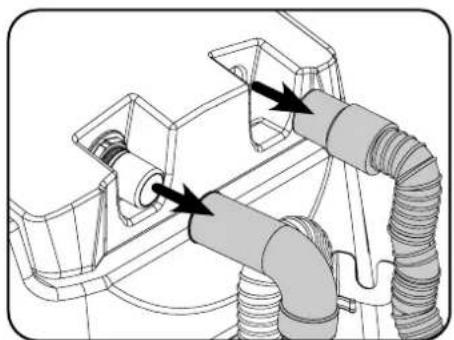

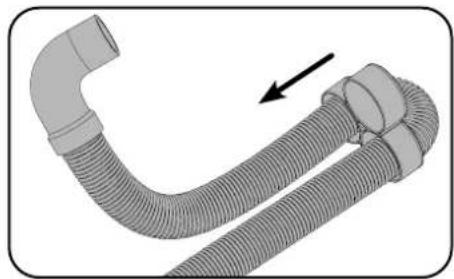

The U-bend in the hose prevents water spillage when the vacuum is switched off. Refit vacuum hose to the floor tool when finished.

Diagram of a mechanical component with a threaded shaft and coiled spring, showing rotational motion (no text or symbols)

Illustration of a flexible hose with a black arrow indicating direction (no text or symbols)

Diagram of a pipe fitting with threaded ends and a central fastener, showing rotational motion arrows (no text or symbols)

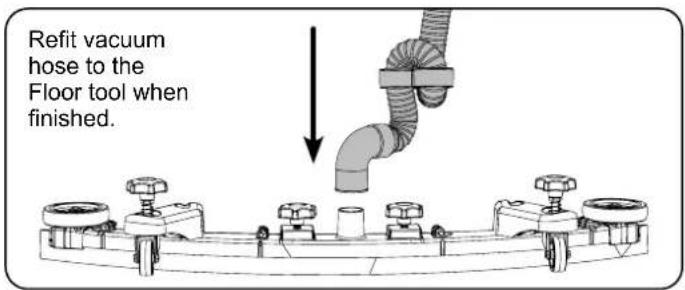

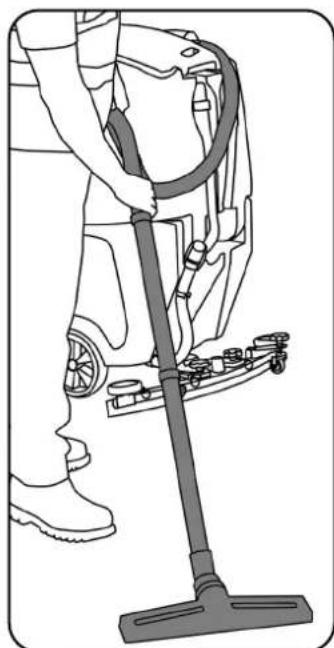

Refit vacuum hose to the Floor tool when finished.

Note: DO NOT push the vacuum hose onto the floor tool with the floor tool in the raised position.

Fitting the Floor Tool

Note: Raise floor tool before driving to the cleaning area. The machine will not operate in reverse with the floor tool lowered.

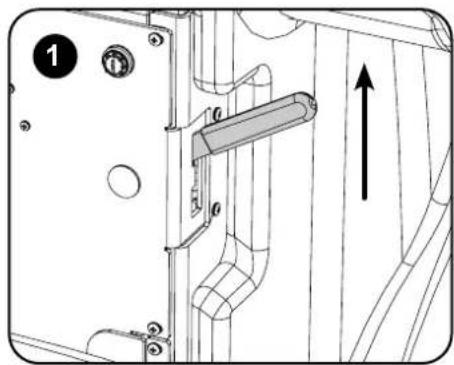

Lower the floor tool arm by moving the release lever to the upper position (Fig.1).

Break-away Floor Tool

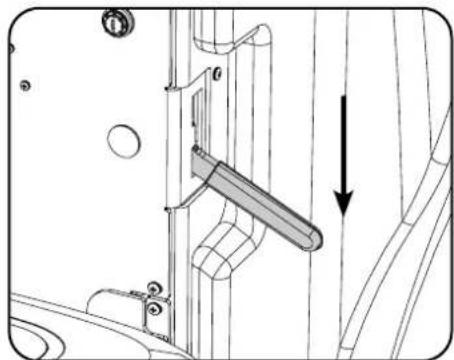

The floor tool design incorporates a safety knock-off feature, this allows it to safely disengage from its mounting should it become caught on an obstruction during forward movement.

Make sure you do not over tighten the retaining knobs.

1 G G

Lower the floor tool.

Mechanical assembly diagram showing pipe connection and gear mechanism (no text or symbols)

Mechanical assembly diagram showing hoses and components with a black arrow indicating a specific component (no text or labels present)

Technical line drawing of a mechanical assembly with no visible text or symbols

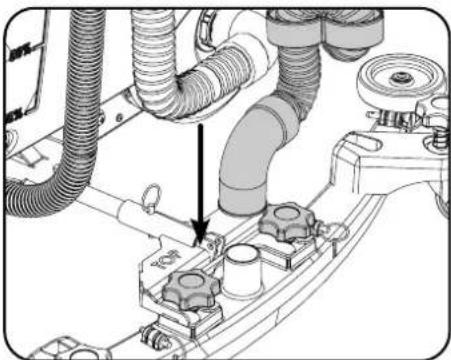

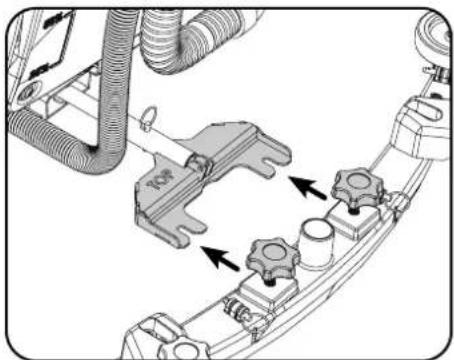

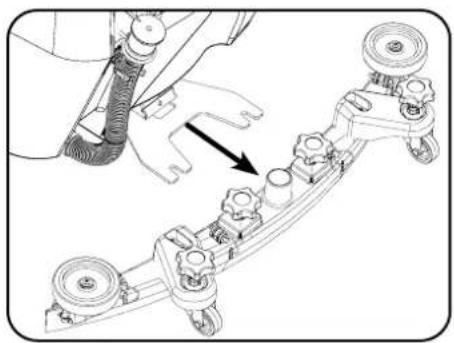

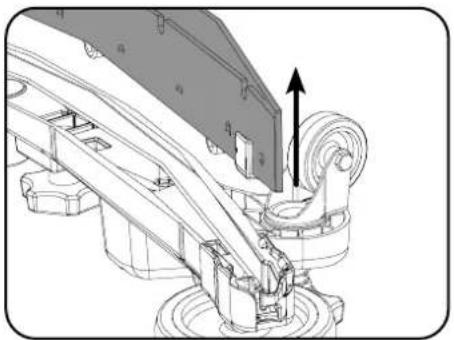

Slide floor tool onto bracket. Raise the floor tool. Tighten retaining knobs to finger tight and attach hose.

Fitting the Side Pod Skirts

Technical line drawing of a mechanical component with curved base and circular top (no text or symbols)

Technical diagram of a vehicle rear bumper with mounting brackets and structural elements (no text or symbols)

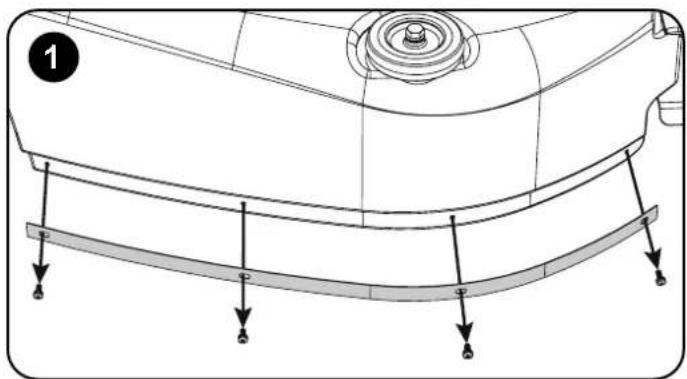

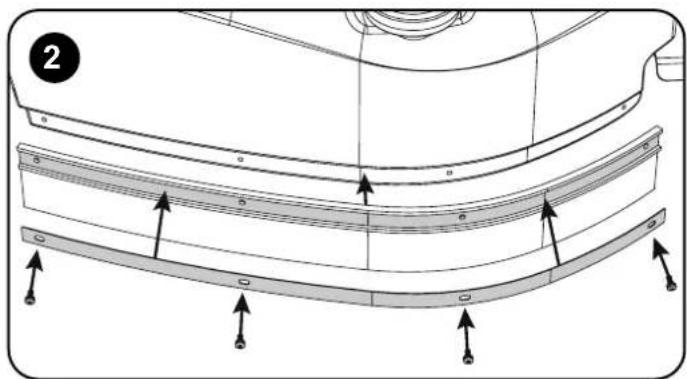

To fit the side pod skirts, first remove the steel retaining strip already fitted to the pod (Fig.1). Align the steel retaining strip within the locating grooves of the rubber skirt and refit using existing screws (Fig.2). Periodically the side skirts should be examined and checked for wear and damage. Replace as shown above.

Fitting the Brushes

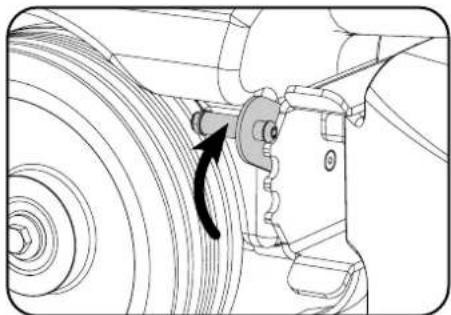

Featuring the OBS (Octagonal Brush System); the brushes push-fit up onto the chucks making fitting and removal a simple process.

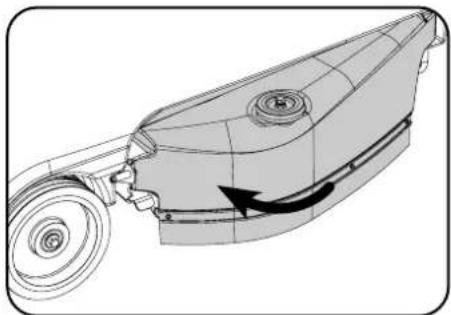

Push in side pod. Pull the side pod adjustment lever and set to the top position.

Technical line drawing of a mechanical component with rotational arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating component with a black arrow indicating motion direction (no text or symbols present)

Mechanical assembly diagram showing a wheel connected to a bracket with an arrow indicating motion (no text or symbols present)

Technical diagram showing mechanical components with numbered annotations indicating parts of a cleaning or cleaning system.

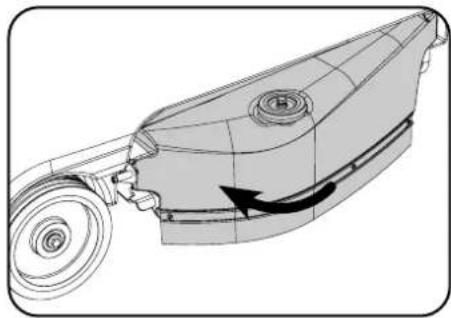

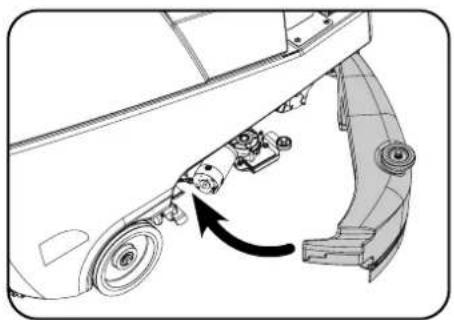

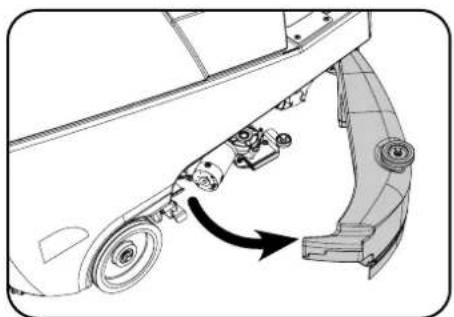

The side pod will now pull open

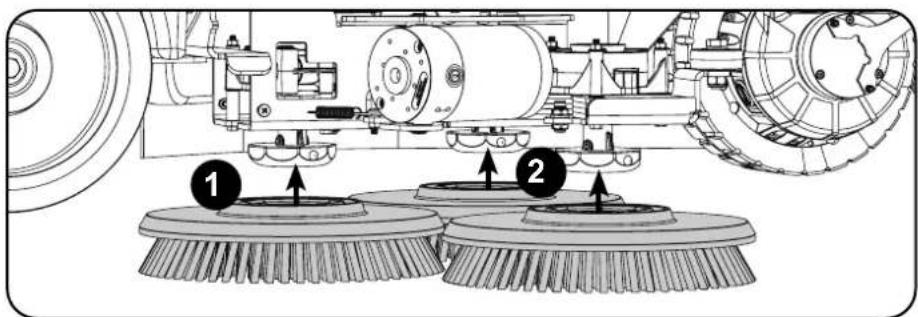

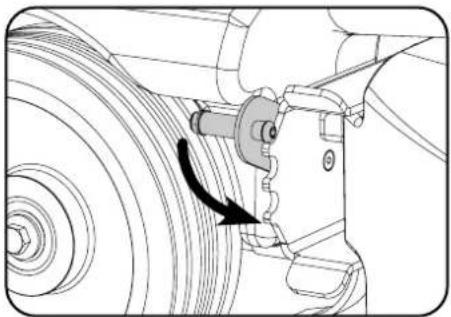

Fit middle brush first (brushes will click-fit onto the OBS drive chuck). Fit outer brush next on both sides.

Mechanical assembly diagram showing a wheel-mounted component with a curved arm and directional arrow (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating motion (no text or symbols present)

Close side pod and while keeping the side pod pushed in, set to appropriate width (see Setting the Width Adjustment, page 34)

Safety gloves are recommended for the changing of used brushes.

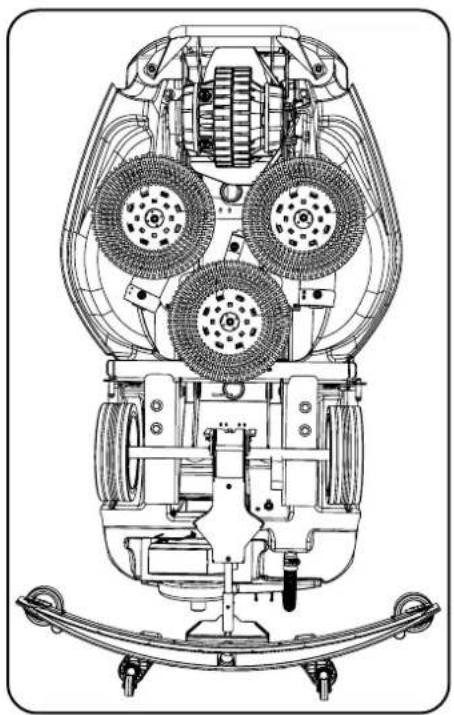

Setting the Width Adjustment

Owning the TVL850 ride-on scrubber dryer is like having 3 machines in one.

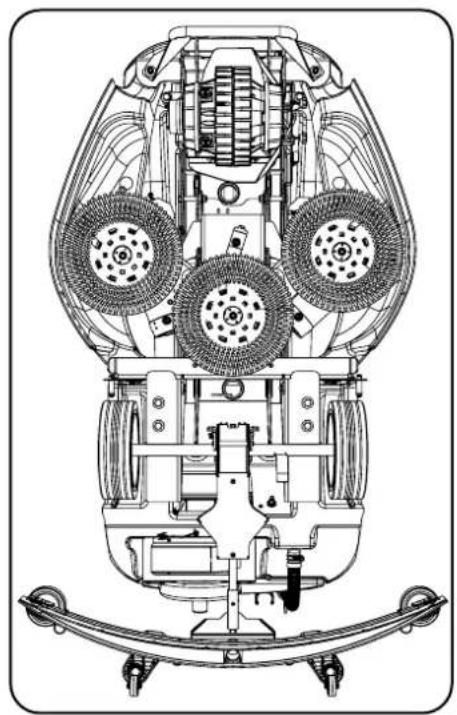

With three width-settings the operator can quickly adapt the machine to any cleaning situation; without the need for any tools.

The machine can be set to clean anything from a narrow corridor to a large warehouse. The TVL850 is a totally versatile machine.

Technical line drawing of a mechanical component with rotational arrow indicating motion (no text or symbols)

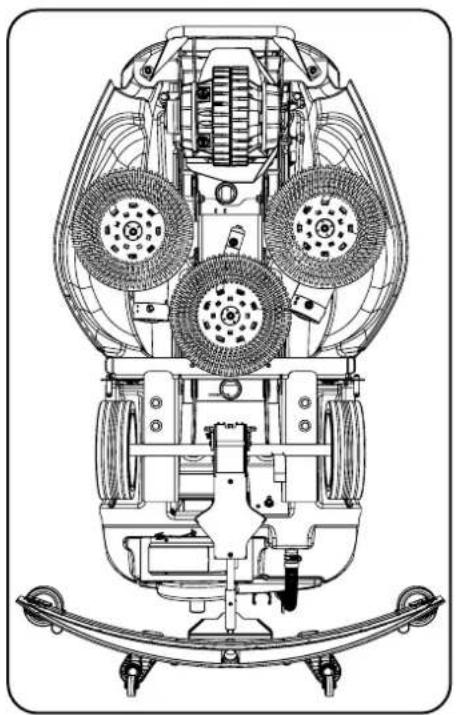

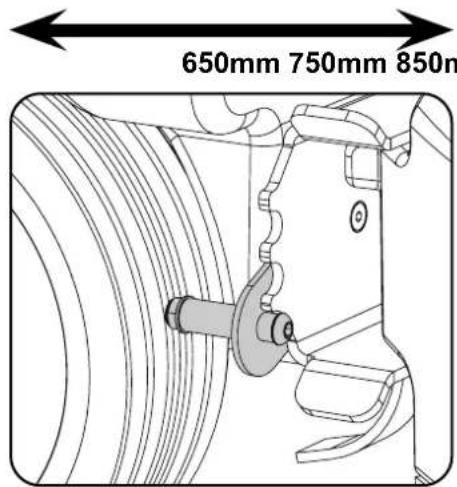

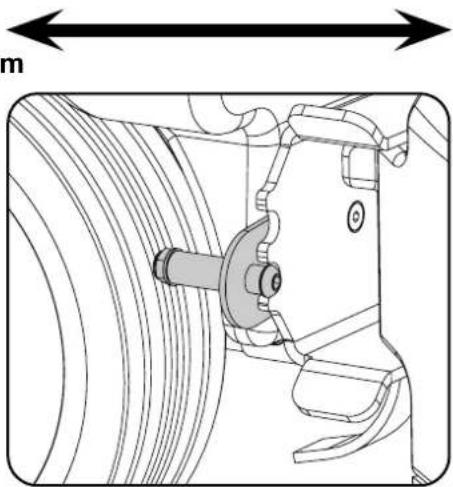

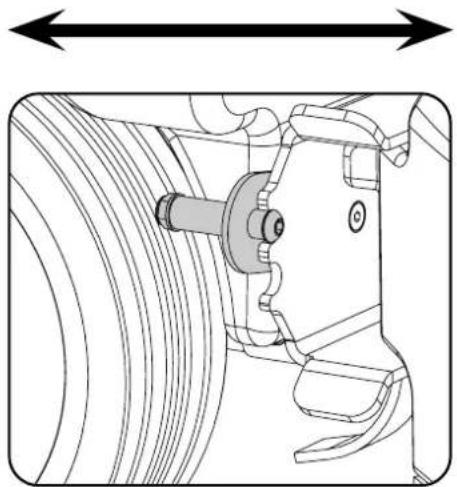

First push the side pod in, then pull the side pod adjustment lever and set it to one of the three width-settings. Repeat the operation on both sides.

Technical line drawing of a mechanical device with three circular components and wheels (no text or symbols)

Technical line drawing of a mechanical assembly with gears and wheels (no text or symbols)

Technical line drawing of a vehicle chassis with visible wheels and structural components (no text or symbols)

650mm 750mm 850m

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Filling the Clean Water Tank

The TVL850 is equipped with a large capacity 120 litre clean water tank, allowing for large areas to be covered in a single fill.

Mechanical assembly diagram showing a gear mechanism with an arrow indicating rotation (no text or symbols present)

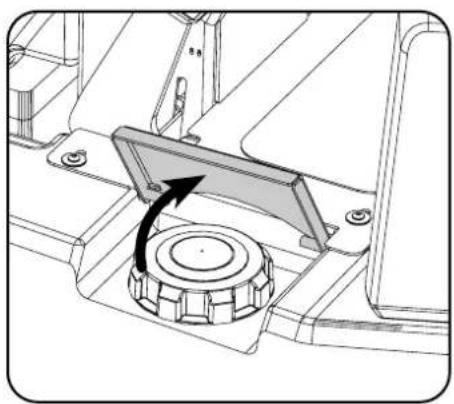

To fill clean water tank, lift cover flap.

Mechanical assembly diagram showing a rotating component with a shaft and housing (no text or symbols)

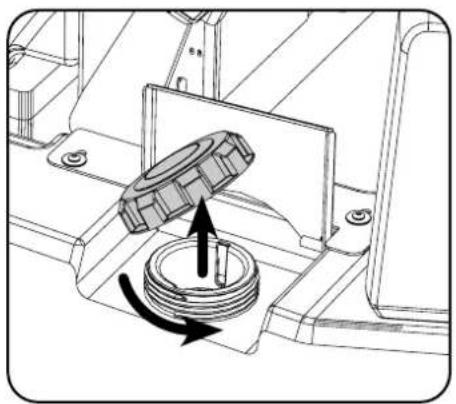

Unscrew and and remove filler cap.

Technical line drawing of a mechanical assembly with a coiled spring and pipe (no text or symbols)

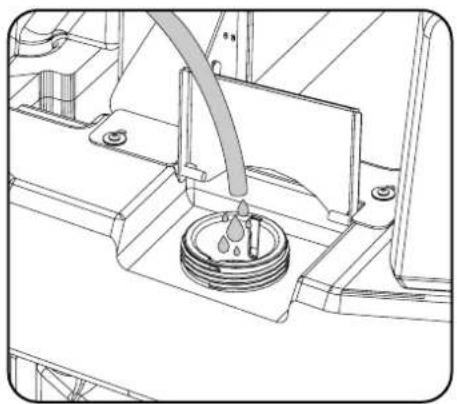

Fill tank using a hose or other preferred method.

Add cleaning chemicals to the tank following the manufacturers guidlines.

Note: A filter basket ensures that contaminants (i.e. leaves, hair, dirt, etc.) are not allowed to enter the clean water tank during the filling process. Periodically inspect and clean if necessary.

WHEN HANDLING AND MIXING CHEMICALS

Always ensure that chemical manufacturer's safety guidelines are followed.

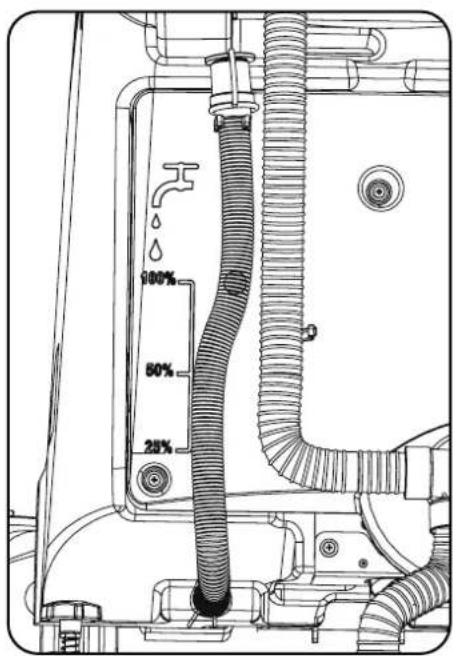

Fill-Level Indicator

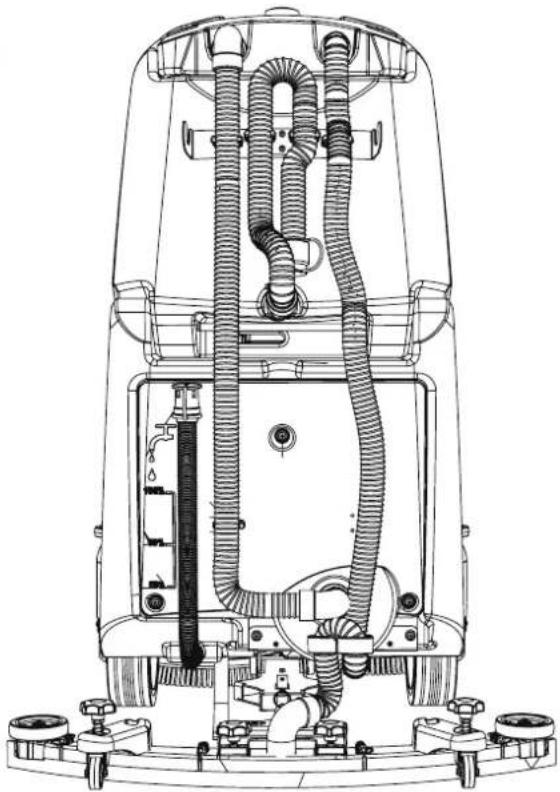

The water level in the clean water tank can be measured using the visible float inside the clean water dump hose located on the rear of the machine.

Do not overfill the clean water tank.

100% 50% 25%

Technical line drawing of a cleaning or cleaning machine with coiled tubing and mounting feet (no text or symbols)

Do not operate machine unless the operator manual has been read and fully understood.

Adjusting the Seat

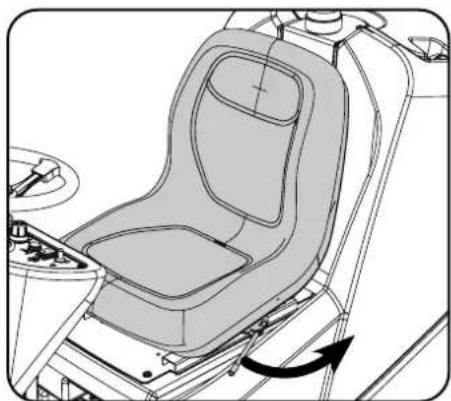

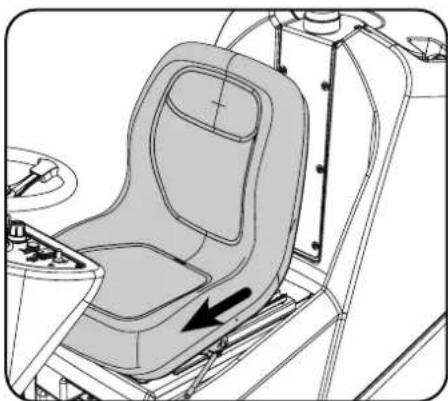

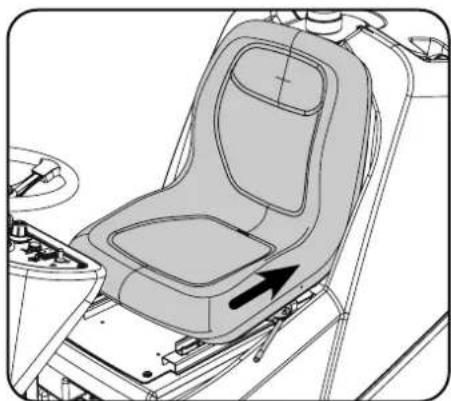

Sitting in the driving position, adjust the seat forwards or backwards as necessary by using the lever found on the left-hand side.

Technical line drawing of a vehicle's seat assembly with no visible text or symbols

Technical line drawing of a vehicle's seat assembly with no visible text or symbols

Technical line drawing of a vehicle's seat assembly with an arrow indicating direction (no text or symbols)

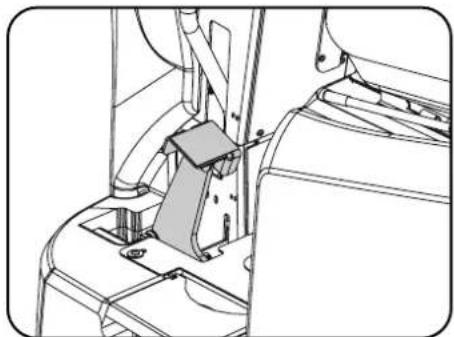

Note: The seat is fitted with a pressure sensor that disables the machine until an operator is seated.

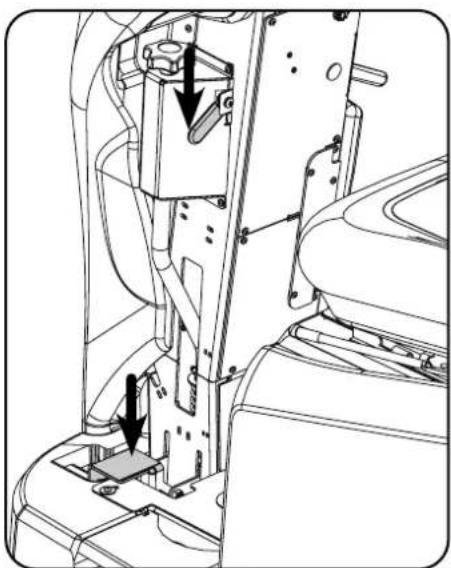

Raise/ Lower Brush Deck

After preparing the floor, we are now ready to set the controls to suit the cleaning conditions. Before any settings can be applied, ensure the brush deck is lowered.

Technical line drawing of a mechanical assembly with no visible text or symbols

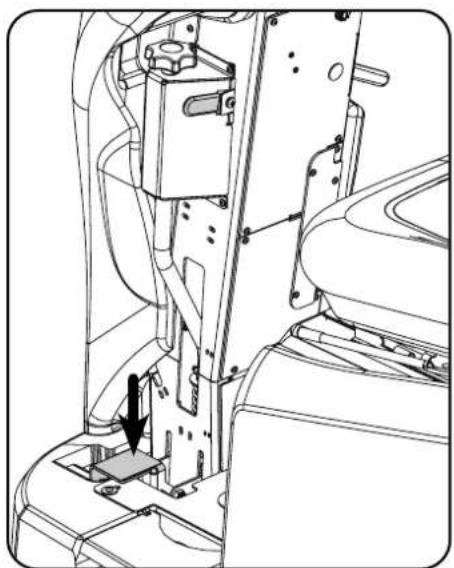

Depress left-hand pedal

Technical line drawing of a mechanical assembly with no visible text or symbols

While depressing left-hand foot pedal press down the release lever

Technical line drawing of a mechanical assembly with no visible text or symbols

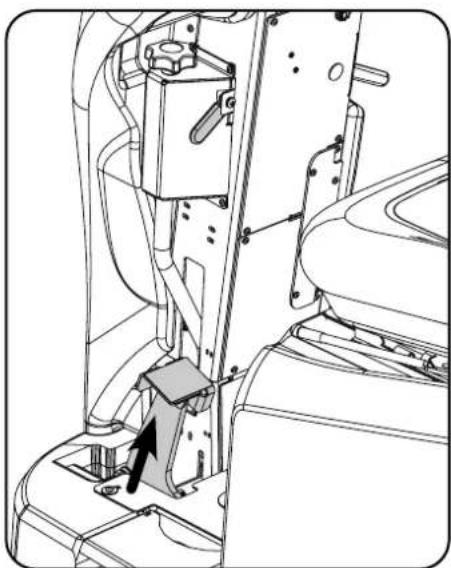

Gently release the foot pedal to lower the brush deck

DE

Drive the machine to the cleaning site.

Before cleaning operation, place out appropriate warning signs and sweep or dust-mop the floor.

When ready for cleaning lower the floor tool (page 22) and the brush deck (page 43).

Setting the Cleaning Controls

Diagram showing a circular component with a diagonal line and an arrow, next to a ring and a vertical bar (no text or symbols)

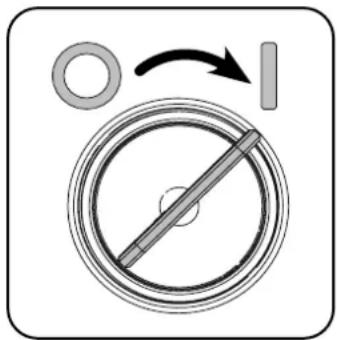

Insert the Ignition key and switch the machine on.

Abstract diagram with concentric circles and directional arrows, no text or symbols present

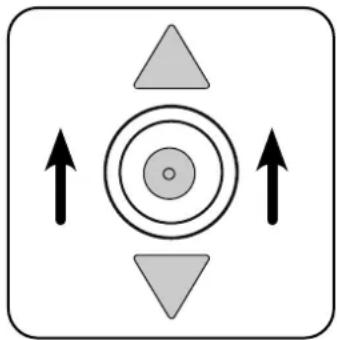

Set direction switch to forward.

Diagram of a circular mechanical component with arrows indicating rotational motion, surrounded by two rabbits (no text or symbols)

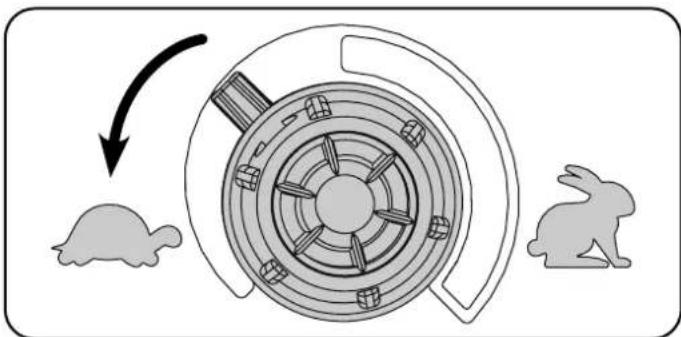

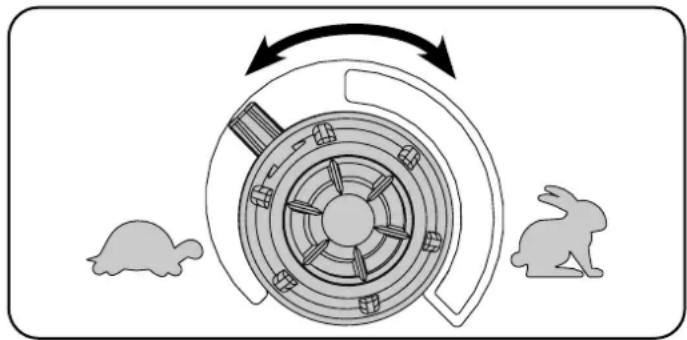

Turn speed dial to set desired cleaning speed.

NOTE: MACHINE WILL NOT REVERSE WITH FLOOR TOOL IN LOWERED POSITION

HEAVY SOILING

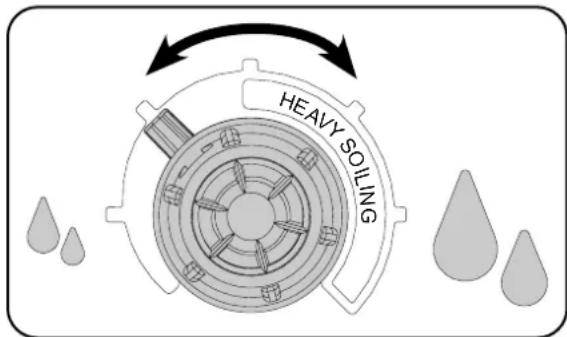

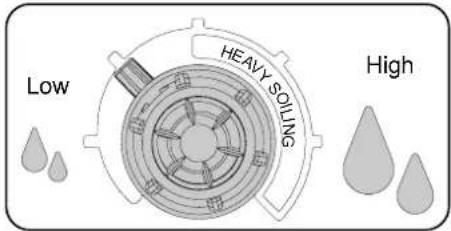

Turn dial to set desired water flow.

Diagram of a door with an up-down roof and three arrows indicating upward motion (no text or symbols)

Press the vacuum switch to the on position to turn on suction.

Technical line drawing of a mechanical assembly with arrows indicating motion or force directions (no text or symbols present)

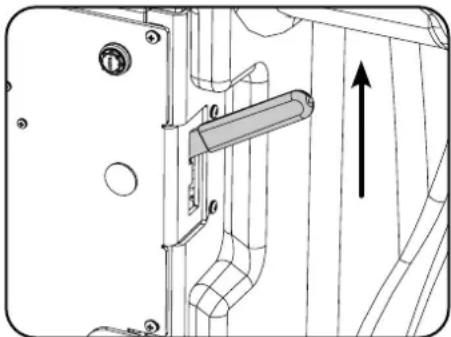

Lower brush deck by pushing down on the left pedal, lower handle and raise foot pedal.

Technical line drawing of a mechanical assembly with no visible text or symbols

Lower floor tool by lifting lever

The machine is now set up ready to start cleaning, depress the accelerator pedal to start cleaning process.

Adjust waterfall and speed according to floor type and level of soiling

EN Machine Operation

Waste Water Tank Full

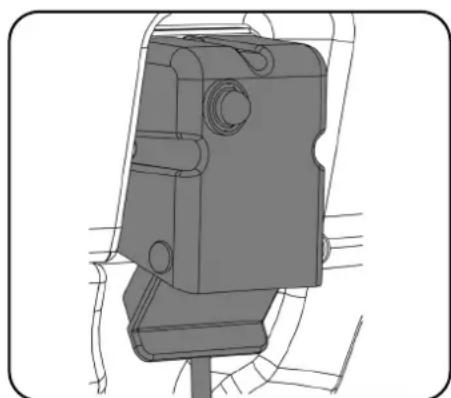

The vacuum shut off system stops the airflow when the top waste water tank is full. A float ball rises as the water level rises, when the waste water tank is full the float ball blocks the vacuum hole to prevent any liquid entry.

The vacuum motor will continue to run, there is an audible difference in the sound when the waste water tank is full.

A secondary shut off will engage if the water exceeds the float ball shutting off the vacuum until the water level is lowered.

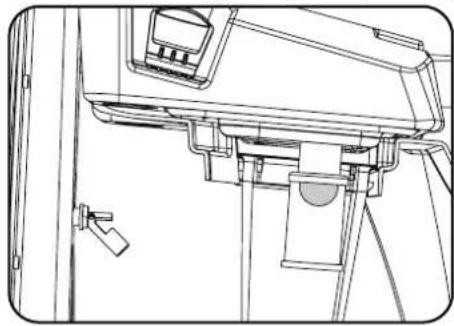

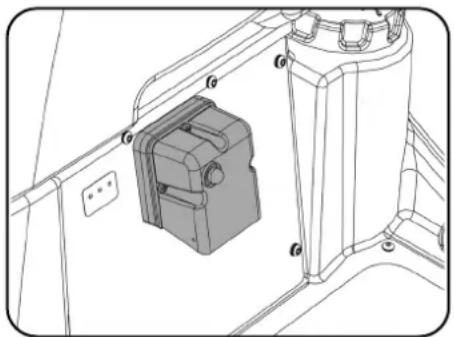

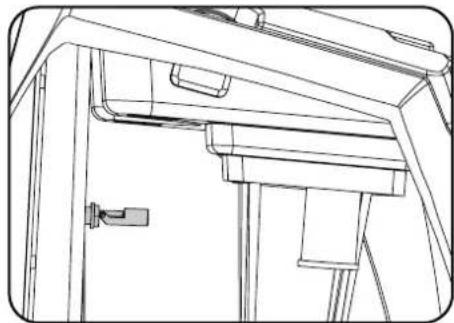

Located in your waste-water (top) tank is a full tank switch, this stops your machine from working once the waste-water reaches its maximum limit.

Sometimes the switch gets clogged and blocked, clean to ensure correct operation.

Open Closed

DE - Offen

FR - Ouvert

NL - Open

PT - Aberto

IT - Aperto

ES - Abierto

PL - Otwarty

SV - Öppen

FI - Avoinna

DA -Äben

Technical line drawing of a mechanical assembly with no visible text or symbols

Geschlossen

Fermé

Dicht

Fechado

Chiuso

Cerrado

Zamknięty

Stängd

Suljettu

Lukket

Full Tank Switch

Schwimmerschalter

Open Closed

Technical line drawing of a mechanical assembly or bracket (no text or symbols)

Bedi

enung der Maschine

Vuilwatertank is vol

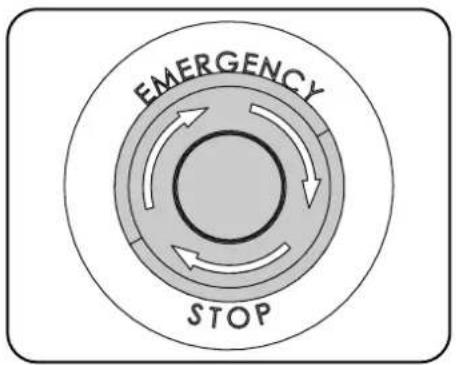

Emergency Stop Button/ Horn

In an emergency, strike the emergency stop to disable the machine.

Two abstract geometric shapes: a tall trapezoidal object above a circular ring, both without any text or symbols.

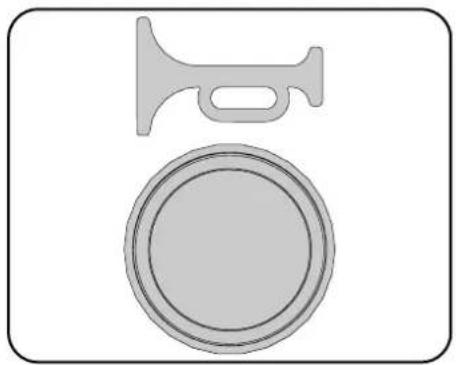

Horn button - for sounding a warning signal
Note: After the Emergency Stop button has been pressed the Traction LED will flash 7 times, pause and repeat until the Emergency Stop button has been reset and the machine switched off / on.

Maximum Speed Control

Set desired traction speed as required, depending on floor type and level of soiling.

Once the Max speed has been set using the control knob on the control panel, fine adjustments can be made using the variable control speed pedal located on the right side of the footplate.

Optimum Floor Cleaning

OPTIMUM FLOOR CLEANING TRANSIT SPEED

nung der Maschine

Notausschalter/Hupe

GB Machine Operation

DO NOT OPERATE THE MACHINE ON INCLINES THAT EXCEED 11%.

Machine in Use

Abstract diagram with concentric circles and directional arrows, no text or symbols present

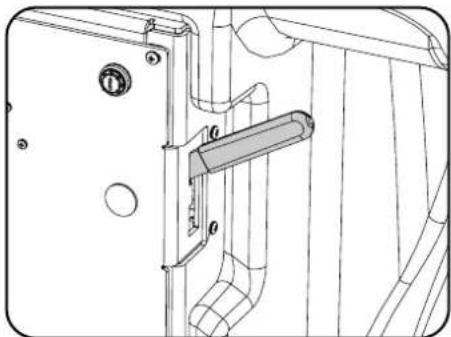

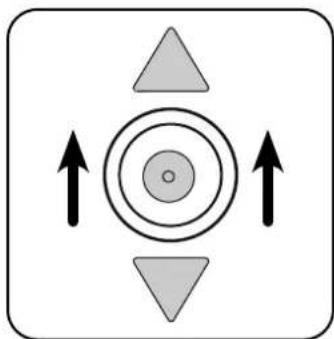

Set lever to forward.

To operate, select forward and depress the accelerator pedal.

Vacuum pick-up and water flow will turn on if selected and providing the brush and floor tool are in the lowered position, the machine will move forward.

Clean water is dispersed evenly via 'THRU-FEED' scrubbing brushes.

The waste water is then retrieved by the suction floor tool.

Overlap each scrubbing path by 10cm to ensure an even clean.

After stopping, let the vacuum motor run for 10 seconds to collect any water left in the vacuum hose, then switch the vacuum motor off.

On heavily soiled floors use a 'double scrub' technique.

First pre-scrub the floor with the floor tool in the raised position, allow the chemicals time to work, then scrub the area a second time with the floor tool lowered.

If your machine leaves streaks on the cleaned floor, either clean the floor tool blade or adjust blade height for optimum performance.

NOTE: MACHINE WILL NOT REVERSE WITH FLOOR TOOL IN THE LOWERED POSITION

HEAVY SOILING Low High

Technical line drawing of a mechanical assembly with no visible text or symbols

Brush deck in lowered position. Floor tool lever in lowered position.

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a gear mechanism with rotating components (no text or labels)

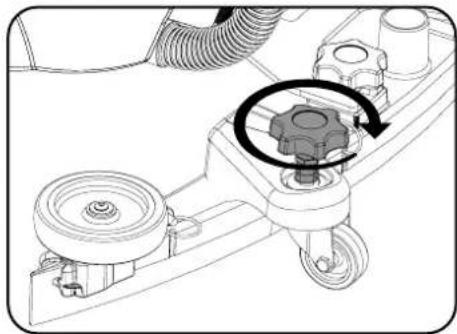

Adjusting the blade height.

Off-aisle Cleaning Kit

(Optional Extra Accessory) 606182

The optional off-aisle cleaning kit gives added flexibility to the operator.

The kit can be used to clean hard to reach / inaccessible areas. Remove the vacuum hose from the floor tool and attach to the off-aisle kit.

To operate the vacuum, press the vacuum switch on.

Note: Return the hose to the floor tool once finished using the off-aisle facility.

Diagram of a door with an up/down arrow indicating airflow or ventilation (no text or symbols)

Vacuum switch.

Line drawing of a person using a vacuum cleaner on a vehicle (no text or symbols)

Saugtaster/ Bouton de l'aspirateur/ Stofzuigerschakelaar/ Interruptor de vácuo/ Interruttore aspiratore/ Interruptor de aspiración/ Włącznik ssania/ Dammsugaromkopplare/ Alipainekytkin/ Vakuumkontakt

Maschine im Einsatz

Overlap hver skrubberute med 10 cm for at sikre jævn rengøring.

After use, empty waste water tank using emptying hose and flush out with clean water.

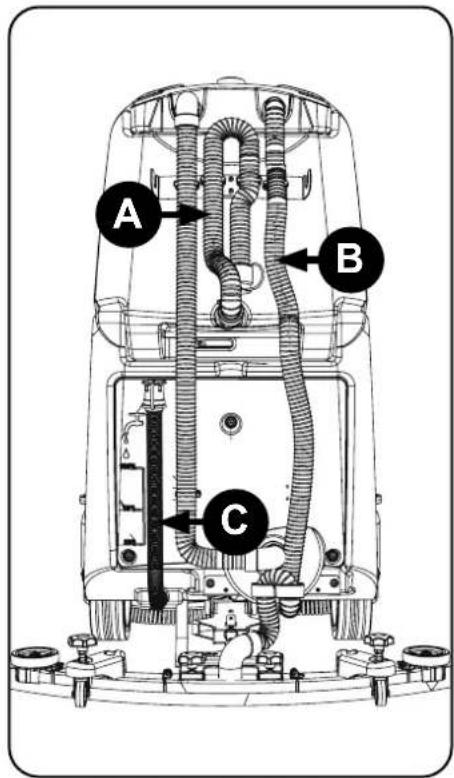

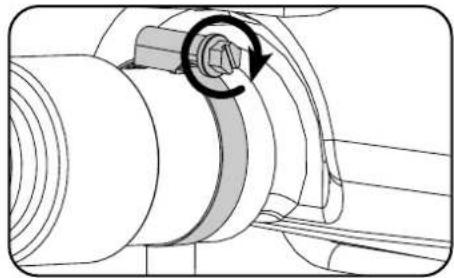

Remove floor tool vacuum hose ensuring you remove the U-bend clip and flush out with clean water.
C Empty clean water tank, using emptying hose and flush out with clean water.

Mechanical assembly diagram showing pipe connections and housing components (no text or labels)

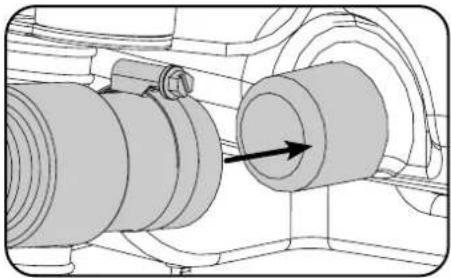

Remove hoses

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

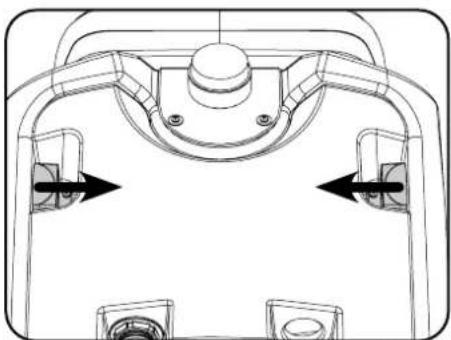

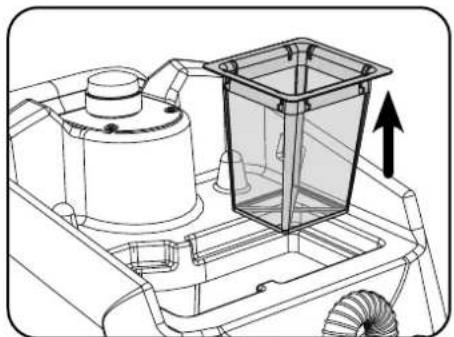

Press in the 2 retaining handles of the separator

A B C

Technical diagram of a mechanical assembly with no visible text or symbols

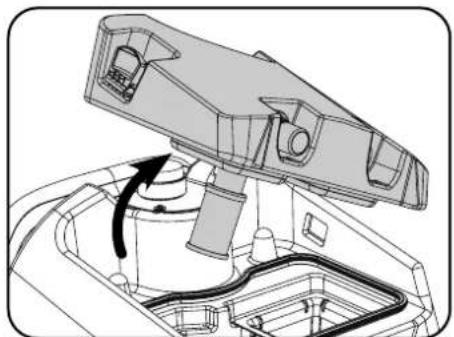

Hold the handles and lift the separator away from the machine

Technical line drawing of a mechanical bracket component (no text or symbols)

Clean and examine rubber seal during each clean

Technical line drawing of a mechanical bracket component (no text or symbols)

Remove and clean vacuum shut off filter

Technical line drawing of a mechanical device with a transparent container and internal components (no text or symbols)

Hold the handles and lift the separator away from the machine

Technical diagram of a mechanical assembly with a lever and internal components (no text or symbols)

Clean and examine rubber seal during each clean

Located in your waste water top tank is a vacuum shut off system, this prevents suction when the waste water tank is full.

It also prevents foam created by high-foaming detergents from entering the motor.

Sometimes the float vents get clogged and blocked, clean to ensure correct operation. Remove debris basket filter and rinse using clean water, and refit. Refit both of the vacuum hoses.

IMPORTANT: IF THE DEBRIS BASKET IS ALLOWED TO BECOME CLOGGED, VACUUM PERFORMANCE CAN DETERIORATE.

Retire as mangueiras

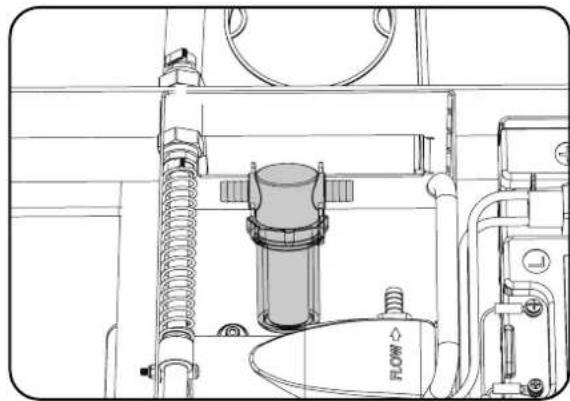

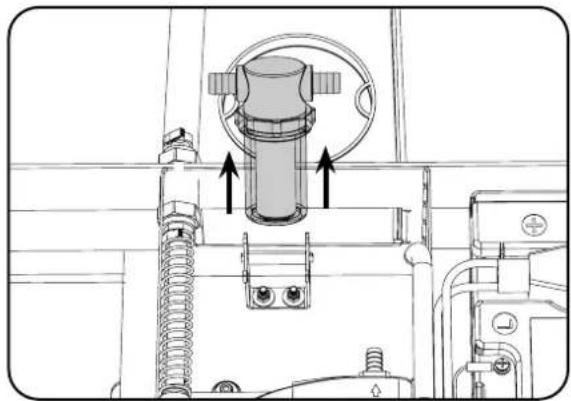

The clean water pump filter is located to the rear of the battery compartment, and should be checked before each use.

Lift the filter off of the cradle, unscrew the bottom and remove, taking care not to spill any liquid on to the batteries.

Rinse using clean water and refit, refitting is reversal of removal.

NOTE: Any spills should be wiped up before tank is lowered.

Technical line drawing of a mechanical assembly with springs, pipes, and a central component labeled 'FLOW' (no readable text or symbols beyond the label)

Technical diagram of a mechanical assembly with springs and bolts, no visible text or symbols

Fuses

Technical diagram of an electrical enclosure with labeled components and connection points

Technical diagram of a device panel with numbered components and connection points

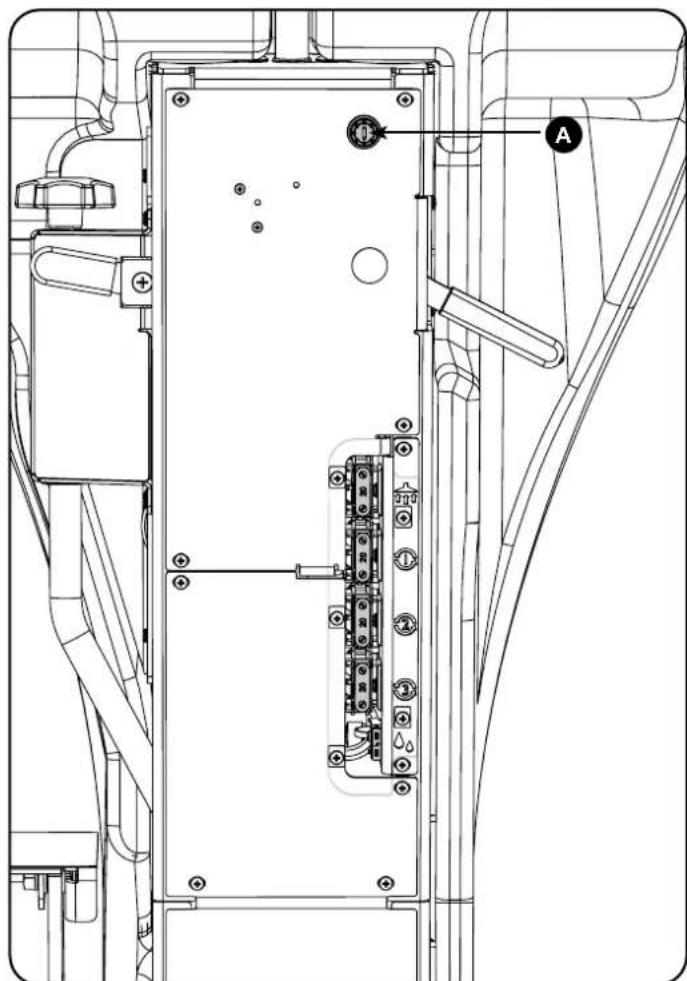

Located on the inside of the steering column is the machines fuse box containing the fuses.

To the right of the fuses are the symbols identifying what the fuse links to.

Fuses in order:

A - 2.5 Amp safety fuse

1 - 20 Amp fuse for Vacuum Motor

2 - 20 Amp fuse for Motor Brush 1

3 - 20 Amp fuse for Motor Brush

4 - 20 Amp fuse for Motor Brush

5 - 4 Amp fuse for Water Pump.

GB Changing the Floor Tool Blades

Always ensure that the machine is switched off prior to maintenance.

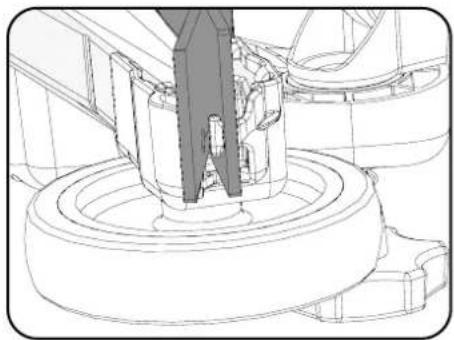

Lower the floor tool then unscrew the retaining knobs and slide it off the holding bracket.

Rinse the floor tool assembly with clean water and refit.

Mechanical assembly diagram showing a component being inserted into a bracket (no text or labels visible)

Mechanical assembly diagram showing a vehicle chassis with gears and wheels, no text or symbols present

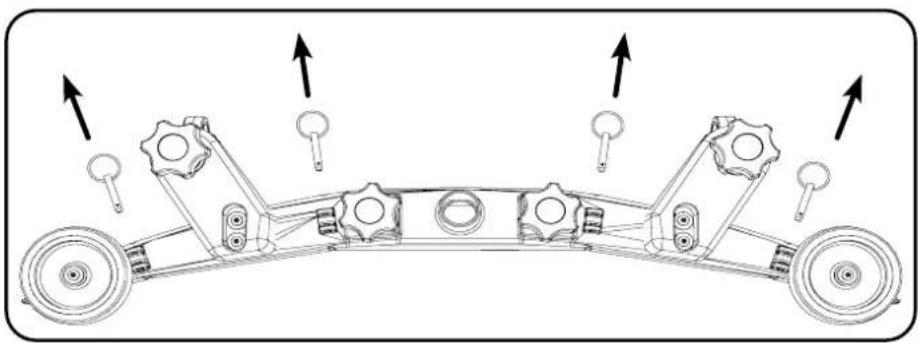

Remove floor tool. Remove four retaining pins.

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with a directional arrow (no text or symbols present)

Technical illustration of a mechanical assembly with curved metal strips and internal components (no text or symbols)

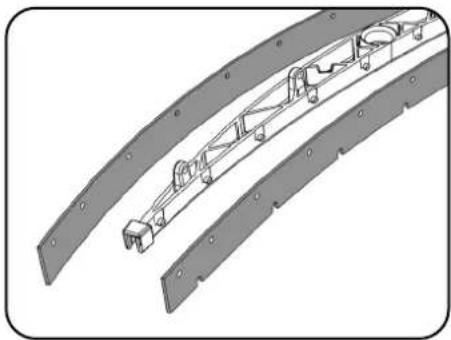

Turn the floor tool over. Separate the blade from the carrier. Peel away blades.

Periodically the floor tool blades should be examined and checked for wear and damage.

Replacement is a reversal of the removal process.

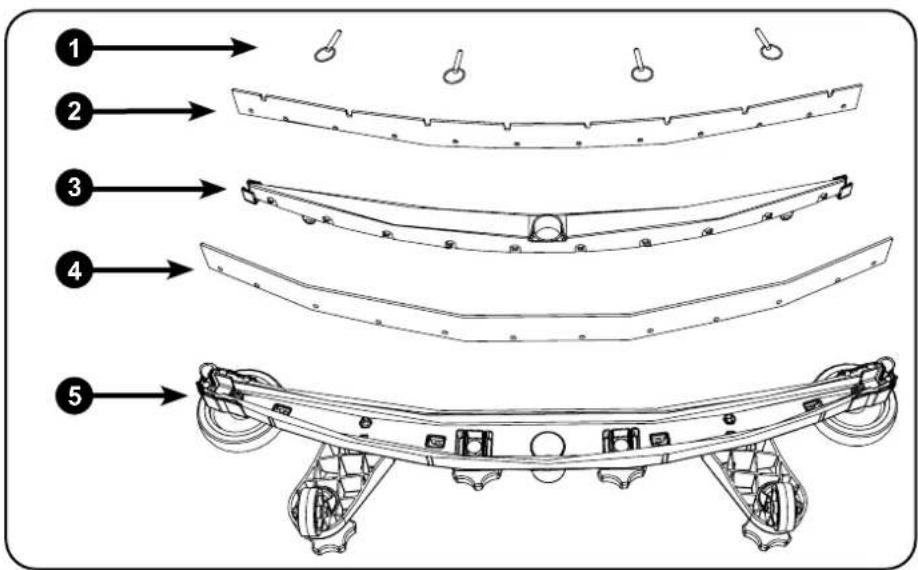

Floor Tool Overview

1. Retaining pins x 4
2. Front blade (slotted)
3. Blade carrier
4. Rear blade
5. Floor tool main body

Note: The blades are designed to be reversible, thus extending their useful working life.

Technical diagram of a vehicle chassis with five labeled components, showing structural parts and assembly details.

GB Free Wheel and Towing

ALWAYS ENSURE THAT THE MACHINE IS ON LEVEL GROUND BEFORE DISENGAGING BRAKE ARM. NEVER DISENGAGE THE BRAKE WHEN THE MACHINE IS ON A SLOPE / GRADIENT. NEVER TOW THE MACHINE WITH THE BRAKE ENGAGED AND POWER PLUG CONNECTED! REMOVE BATTERY FUSES

Technical line drawing of a mechanical component with no visible text or symbols

The TVL850 is equipped with a free wheel function that will enable the operator to move / tow the machine. The motor brake is disengaged by opening the brake arm on the side of the drive wheel.

Numatic

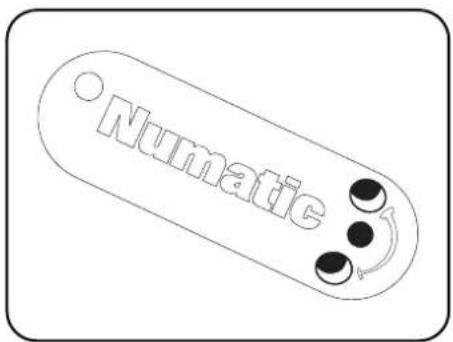

Your start-up kit includes a brake drive disengage key (329945).

AMER

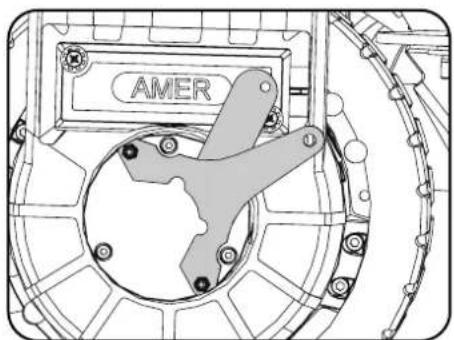

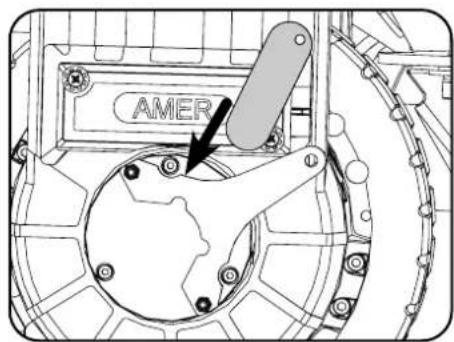

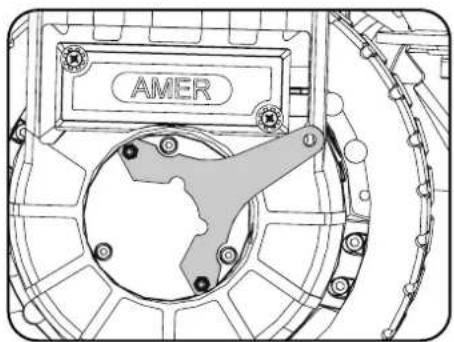

Insert the disengage key between the brake arm and drive housing.

Technical line drawing of a mechanical assembly with no visible text or symbols

Once the key has been inserted the motor brake will be fully disengaged. The machine will now be in full free wheel mode.

Technical diagram showing mechanical components with circular arrows indicating rotation or movement (no text or symbols present)

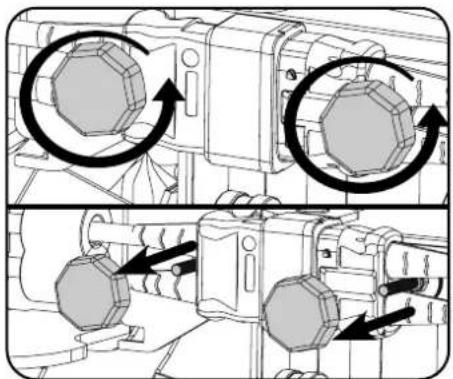

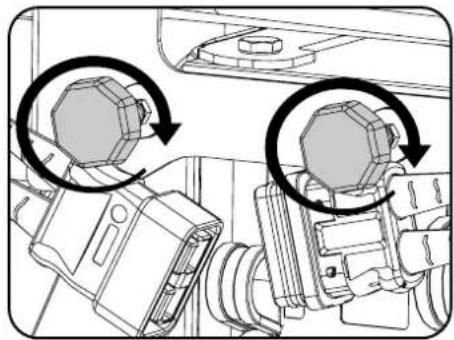

Undo and remove the two retaining knobs.

Mechanical assembly diagram showing two components with directional arrows indicating movement or force (no text or symbols present)

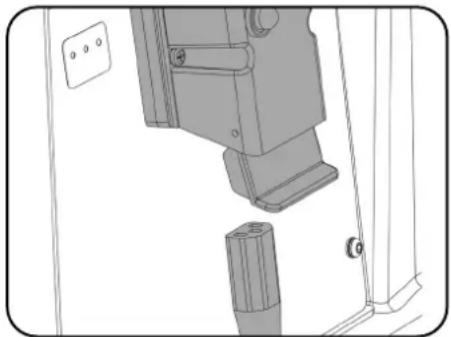

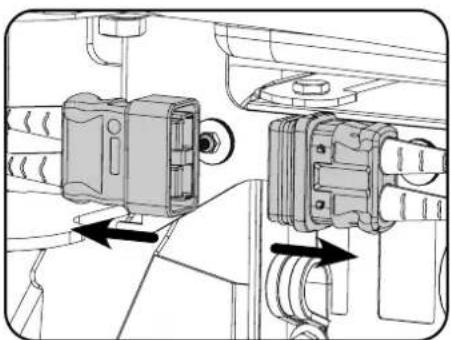

Pull the power connector block apart.

Mechanical assembly diagram showing two circular components with arrows indicating rotation or adjustment (no text or symbols present)

Refit the retaining knobs.

Technical line drawing of a mechanical assembly with no visible text or symbols

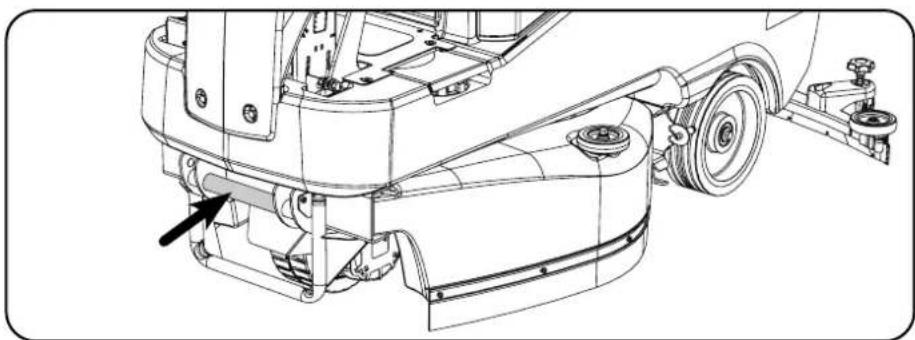

Care must be taken when towing; WHEN TOWING DO NOT EXCEED AVERAGE SPEED OF 3 KPH. The machine can be towed from the front bar as indicated.

When destination place reached, remove brake disengage key, connect power plug.

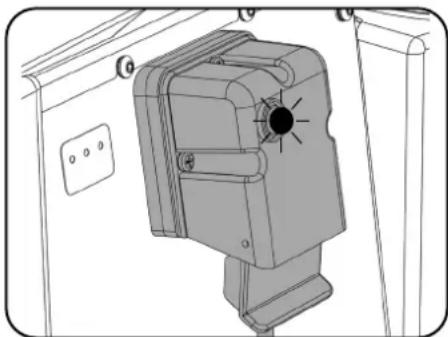

WARNING! WHEN THE BRAKE IS DISENGAGED AND POWER PLUG IS DISCONNECTED THE MACHINE IS IN FREE WHEEL MODE AND HAS NO BRAKE FACILITY, WHEN TOWING THE MACHINE ENSURE THAT A SUITABLE TOW BAR IS USED.

Remember to remove the brake disengage key when you reach your final destination / before using the machine. NOT FOLLOWING DESCRIBED METHOD COULD DAMAGE MAIN CONTROL UNIT AND VOID THE WARRANTY.

The battery meter displays the charge level of the batteries; when fully charged, all meter lights are illuminated.

1

As the machine is used and the batteries are discharged, the meter lights will go out from right to left. If the battery-charge level is allowed to discharge to the point that only one or two lights / bars remain illuminated, the operator must consider charging the machine.

2

When the machine is getting close to empty the last light starts to flash, the operator should then take the machine to a suitable charging point. When the battery icon starts flashing, the vacuum and brush motors will be disabled and the user should charge the machine.

0 50% 100%

3

Pure electrical circuit lines without any symbols

Alternative Display When the last red light starts flashing, the vacuum and brush motors will be disabled and the user should charge the machine.

The LFP batteries are sealed for life and are totally maintenance free.

The on-board charger automatically monitors the charging process and will switch to float charge mode when the batteries are fully charged. Float charge mode allows to maintenance LFP batteries at the right level of health. The machine should be left on float charge overnight or over the weekend at least once per month or more frequently if needed.

Insert the charging lead required for your country into the charging point.

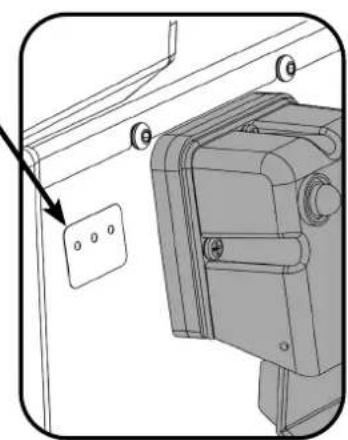

The machine charging point is located to the rear of the machine under the control panel.

Connect to a suitable power supply.

Once mains power is connected the red charging indicator will illuminate.

To ensure a full charge, from an empty state, the machine should be left for a period of 8 hrs.

Once fully charged, disconnect the charging lead from both the power supply and the machine.

Technical line drawing of a mechanical assembly with labeled components (no text or symbols)

Technical line drawing of a mechanical assembly with mounting bracket and housing (no text or symbols)

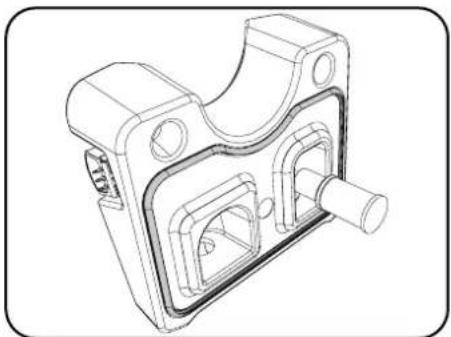

Machine charging point, above footplate. Insert country specific charging lead.

Technical line drawing of a mechanical device with mounting holes and a central circular component (no text or symbols)

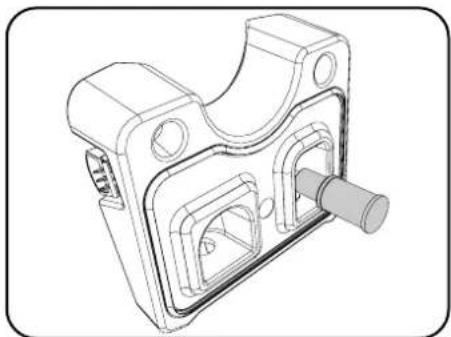

Red charging indicator illuminates when charging.

Battery Care

To ensure your machine remains at its maximum efficiency and prolong your battery life, please follow the simple steps below:

Under normal daily usage:

Re-charge the machine FULLY after each use regardless of machine operation time.

It is recommended to leave the machine connected to power grid overnight, at least once a month. If the user does not disconnect the cable after full charge it is not an issue.

Do not leave the machine in a discharged state.

Periodically inspect the battery connections for tightness and corrosion.

does not issue. 0 30% 100%

Technical line drawing of a mechanical component with no visible text or symbols

der Maschine

EN Charging Light Sequence

Signal (LED) Meaning
Red LED on First Phase (Constant Current Mode).
Orange LED on Second Phase (Constant Voltage Mode).
Green LED on	Third Phase (Constant Voltage Mode) Charge Complete.However, after full re-charge, leaving the charger connected moves to float-charge mode to help to maintain a healthy balance between batteries.
Red LED flashing followed by Pause	Cooling Fan Locked > 1 flash between pause.Over Voltage Protection / Output Short Circuit / Battery Reverse Polarity > 2 flashes between pause.Over Temperature Protection > 3 flashes between pause.Charge Time has exceeded 16 hrs during phase 1 or 2 > 4 flashes between pause.
	Condition RED LED YELLOW LED GREEN LED
	Pre-charge Timeout	Flashing 4 Times
	CC Timeout		O
	CV Timeout		O
	Battery Disconnection
	Note: O means illuminates continuously

Three battery icons with warning symbols and battery symbols, no readable text or labels

Technical diagram of a mechanical assembly with mounting brackets and a wall-mounted socket (no text or symbols)

Note: Re-charge the machine fully after its last use. Do not leave the machine in a discharged state.

Under abnormal use;

i.e. leaving the machine without charging for a period of time, we advise that you follow these steps:

Float charge mode allows to maintenance LFP batteries at the right level of health.

The machine should be left on float charge overnight or over the weekend at least once per month.

Charge fully the day before you start using the machine again.

0 100% 100%

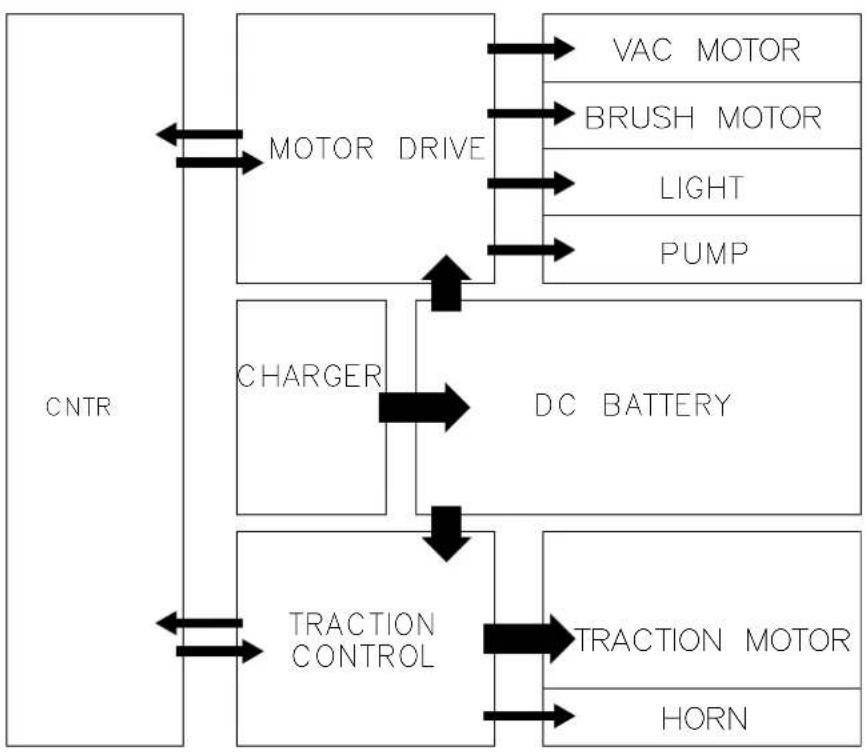

Schematic Diagram

DE Schaltbild

FR Schéma

NL Principeschema

PT Diagrama esquemático

IT Schema apparecchio

ES Diagrama esquemático

PL Schemat

SV Schematiskt diagram

FI Kytkentäkaavio

DA Skematisk diagram

Make	Voltage	Capacity/Energy	Weight	Battery Size
NX1K Battery	25.6 V	50Ah / 1280 Wh	10.8 kg	315mm (L) x 132mm (W) x 185mm (H)

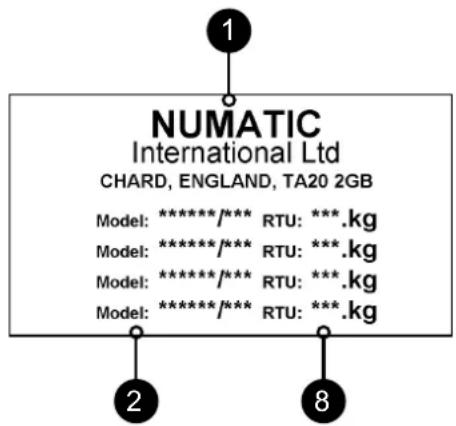

Rating Label
1 Company Name & Address
2 Machine Description
3	Supply Current / Voltage / Alternating Current / Frequency
4 Charger Output
5 Battery Voltage
6 Noise Rating
7 Hand Arm Vibration
8 Weight (ready to use)
9 Ingress Protection Rating
10 Max Gradient
11 QR Code
12 WEEE Logo / Approvals Mark
13 SKU / Part
14 Machine yr/wk Serial number
15 Whole Body Vibration

Numatic International Ltd CHARD, ENGLAND, TA20 2GB TA20 2GB Model ***** Supply ***A ~ **.***V ~ **.***Hz Charger Output ***W Battery Voltage ***V --- Noise Emission ≤ **.**dB(A) HAV *.* m/s² WBV *.* m/s² RTU XXX kg IPX* Name and address of EU importers in manual % Disconnect the supply before making or breaking connections to the battery Débrancher alimentation avant de brancher ou débrancher la batterie Skul/Part ***** 0000000000 1 2 3 4 5 6 7 8 9 10 11 12 13 14

NUMATIC International Ltd CHARD, ENGLAND, TA20 2GB Model: ********/*** RTU: ***.kg Model: ********/*** RTU: ***.kg Model: ********/*** RTU: ***.kg Model: ********/*** RTU: ***.kg 2 8

WEEE (Waste, Electrical and Electronic Equipment)

Scrubber dryer Accessories and packaging should be sorted for environmentally-friendly recycling.

Only for UK & EU countries.

Do not dispose of scrubber-dryer into household waste.

According to the European Directive 2012/19/EU on waste electrical electronic equipment and its incorporation into national law.

Scrubber-dryers that are no longer suitable for use must be separated, collected and sent for

recovery in an environmentally-friendly manner.

PPE (Personal protective equipment) that may be required for certain operations.

Ear Protection Safety	Footwear Head Protection	Safety Gloves
Dust / Allergens Protection	Eye Protection Protective	Clothing	Hi-Vis Jacket	Caution Wet Floor Sign

Note: A risk assessment should be conducted to determine which PPE should be worn.

Safety Critical Component:

Charging Leads: H05VV-F 3 Core x 1.0 mm ^4

Battery Charger: 100V-240V (50-60Hz)

DC Output: 25.6VDC, 20A

In the event of a breakdown contact

your Numatic dealer or the

Numatic Technical

help line [phone]

COMPONENT INTERVAL INSPECT FOR

Charging Lead DAILY Scuffi ng, cracks, splits, conductors showing
Brushes DAILY Bristle damage, wear, drive collar wear
Squeegee Blade BEFORE EACH USE Wear, cracks, splits
Filters BEFORE EACH USE Clogging and debris retention
Tanks AFTER EACH USE Rinse dirty water tank after use

As with all electrical equipment care and attention must be exercised at all times during its use, in addition to ensuring that routine and preventative maintenance is carried out periodically in order to ensure its safe operation. Operators shall be adequately instructed on the use of these machines.

WARNING

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility or liability in this respect.

When ordering spare parts always quote the Model Number / Serial Number specified on the Rating Plate.

Do not use on cleaning surfaces having a gradient exceeding that marked on the machine. While on ramps or inclines, avoid sudden stops. Avoid sharp turns. Use low speed down ramps. Clean only while descending (driving down) the ramp.

This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.

Children should be supervised to ensure that they do not play with the appliance.

Only use brushes provided with the appliance or those specified in the instruction manual.

The use of other brushes may impair safety.

A full range of brushes and accessories are available for this product.

Only use brushes or pads which are suitable for the correct operation of the machine for the specific task being performed.

It is essential that this equipment is correctly assembled and operated in accordance with current safety regulations.

When using the equipment always ensure that all necessary precautions are taken to guarantee the safety of the operator and any other persons who may be affected.

Wear non slip footwear when scrubbing. Use a respiratory mask in dusty environments.

When cleaning, servicing or maintaining the machine, replacing parts or converting to another function the power source shall be switched off.

Mains operated machines shall be disconnected by removing the power plug, and battery operated machines shall be disconnected by using top ON/OFF button on the battery.

In order to prevent unauthorised use of the machine the power key must be removed after use.

Machines left unattended shall be secured against unintentional movement.

When detergents or other liquids are used, read the manufacturer's instructions.

CAUTION

This machine is not suitable for picking-up hazardous dust.

This machine is not to be stored outdoors or in wet conditions.

This machine is for indoor use only.

NOTES: This machine is intended for commercial use, for example in hotels, schools, hospitals, factories, shops, offices and rental businesses.

This product meets the requirements of IEC 60335-2-72

DO

• Ensure only competent persons unpack/assemble the machine.
• Keep your machine clean.
• Keep your brushes in good condition.
• Replace any worn or damaged parts immediately.
• Regularly examine the power cord for damage, such as cracking or ageing. If damage is found, replace the cord before further use.
  • Only replace the power cord with the correct Numatic approved replacement parts.
  • Ensure that the work area is clear of obstructions and / or people.
  • Ensure that the working area is well illuminated.
  • Pre-sweep the area to be cleaned.

DON'T

• Use steam cleaners or pressure washers to clean the machine or use in the rain.
- Allow any inexperienced repairs. Call the experts.
- Leave the brush pad on the machine when not in use.
- Allow the machine to be used by inexperienced or unauthorised operators or without appropriate training.
• Use the machine without the solution tanks properly positioned on the machine, as shown in the instructions
• Expect the machine to provide trouble-free, reliable operation unless maintained correctly.
• Lift or pull the machine by any of the operating triggers, use the main handle.
- Allow water solutions to ingress to the battery.
- Remove the handle from the machine except for service and repair.

READ MANUAL BEFORE USE

Precautions when working with batteries

1. Always wear protective clothing e.g. face visor, gloves and overalls when working with batteries.
2. Whenever possible always use a properly designated and well-ventilated area for charging.

Do not smoke or bring naked flames into the charging area.

1. Remove any metallic items from hands, wrists and neck i.e. rings, chains etc. before working on a battery.
2. Never rest tools or metallic objects on top of the battery.
3. When charging is complete disconnect from the mains supply.
4. The batteries must be removed from the machine before it is scrapped.
5. The machine must be disconnected from the supply when removing the battery.
6. To remove the batteries:- Disconnect machine from the mains supply (if charging) and ensure batteries are switched off using the button that is placed on the battery top. Disconnect hoses from separator and tanks.

Remove separator and tanks. Unscrew battery strap fi xings and remove.

Undo battery terminals and remove. Remove batteries.

1. The batteries are to be disposed of safely, as according to local government guidelines.

2. Only use genuine Numatic replacement batteries.

3. Do not allow the batteries to become fully discharged; it may not be possible to re-charge them. Batteries should not be discharged below 22.5 volts with 10 amps flowing.

4. Do not allow one battery to be discharged separately to the other.
5. Do not mix batteries from different machines.
6. The batteries fitted to this product are Lithium-ion (Li-ion), Lithium Iron phosphate (LFP) type.
   The fi tting of any other type of battery may cause a safety hazard.
7. Switch off the battery using top ON/OFF button before cleaning or maintenance.

Battery Care

1. Battery Storage:

a. Batteries must be stored in a dry, level and clean location not exceeding a temperature range of 15°C \~ 25°C.
b. Batteries must by fully charged every 6 months when on-the-shelf or if the battery voltage reduces to 25V.
c. Batteries must be put into use within 12 months of the date of manufacture, failure to do so will lead to reduced capacity in the field. (battery date code) -

ZP19006F YYW W0 0001

Serial number

Week of Production

Year of Production

d. If a battery does not want to switch ON and the green LED on the top is not illuminating, irreversible damage has occurred. Under this condition, a battery should not enter into service and should be disposed of according to local authority guidelines.

1. During Use:

a. Batteries must be recharged after every use regardless of machine run time.
b. If the machine is to be left dormant for any length of time complete the following:
i. Fully charge the batteries.
ii. Do not leave batteries dormant for more than 6 months.

Daily

Keep the machine clean.

Ensure brushes/ pads/ squeegee/ fi Iters are in good condition.

Check for any worn or damaged parts and replace immediately.

Drain and rinse dirty water tank after every use.

Store machine with brush deck secured in the elevated position.

Weekly – as daily and –

Check brush or pad and skirt and rinse.

Check floor tool blades for wear and wipe clean.

Clean separator assembly including fi Iter and check condition of seal.

Flush out system with clean water and clean fi Iters.

Batteries

Always re-charge the batteries after use.

Charge for a minimum of 4 hours. Leave the battery on charge overnight, at least once per month.

After it has been fully charged, this will prolong battery life.

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.

Numatic Lithium-ion Rechargeable Battery

25.6V | 50Ah | 1280Wh | LFP26148129

Warning symbol image with exclamation mark inside triangle

Weather protection symbol with no text, numbers, or symbols

Prohibition sign with a thermometer crossed out, indicating no heat or temperature allowed

Prohibition sign showing a crossed-out flame symbol (no text or numbers present)

Black circular icon showing a hand washing a faucet (no text or symbols)

Stylized black-and-white graphic of an eye with a pointed hat above it, no text or symbols present.

It is important that you observe the following information and warnings!

Emergency Contact Information
Address: CBAK BATTERY HEADQUARTERS Shenzhen BAK ENERGY Co. LTD, 2603A BAK Tech Bldg, 9th Keyan Rd, Hi-tech Park, Nanshan Dist, Shenzhen City, China		NUMATIC INTERNATIONAL LTD Millfield Road, Chard, Somerset, TA20 2GB, UK
Tel: Fax	0086-755-832837100086-755-8328649	0044-146-0686000044-146-068458
www.numatic.com | www.numatic.de | www.numatic.ch | www.numatic.frwww.numatic.nl | www.numatic.co.za | www.numatic.pt | www.numatic.eswww.numatic.it | www.numatic.dk

1. DEFECTIVE BATTERIES

EN

1. If a customer wishes to return a battery to a supplier after removing from product, then collection of the battery must be arranged by the supplier; however, Faulty batteries must not be returned through the postal system or by courier.
2. If on return to a supplier, OR at a customer base, a suspected defective battery shows any signs of impact damage, distortion, blistering, loose parts or leakage then on no account should it be offered for condition checking. It must be considered defective and the procedures described from item 6 below should be followed.
3. If, on return to a supplier, OR at a customer base, a suspected defective battery, that shows No signs of impact damage, distortion, blistering, loose parts or leakage, may be offered for condition checking with an appropriate battery condition checking device operated by a competent person.
4. If checking shows the battery to be defective then the procedures described from item 6 below should be followed.
5. On no account must any further attempt to recharge be made. A defective battery should not be stored inside buildings on any account.
6. The defective battery must be switched off, and all electrical terminals sufficiently insulated to remove risk of short circuit. The defective battery can then be stored in a locked battery waste container which should be plastic or plastic lined and placed away from buildings and combustible materials and clearly signed as a defective battery container with appropriate warnings. Defective batteries should be sent for waste disposal / recycling according to your country waste regulations.

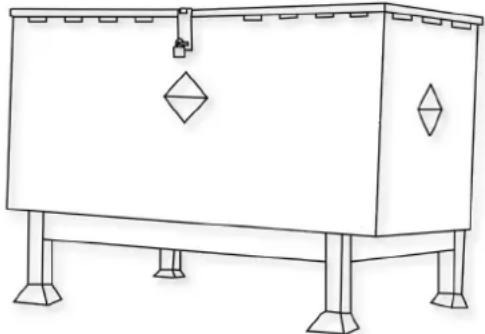

Line drawing of a simple electrical cabinet with four legs and a central door (no text or symbols)

An example of a waste battery storage bin well away from buildings.

2. HANDLING AND STORAGE

EN

DANGER!

Improper handling can lead to an explosion or ignite a fire!

Store batteries out of reach of children.

• Only trained staff can fix the battery in the machine.
• Storage temperature range: -10°C\~40°C.
  • Temperatures must not exceed 40^ C.
  • Relative humidity range: 20% to 80%.
• Optimum preservation of functionality: 15^ 25^ .

WARNING:

• Do not open the battery, disassemble it or allow it to fall from a substantial height
• Protect the battery against short-circuiting – danger of explosion!
• Protect the battery against rain, do not immerse in liquids – danger of short-circuiting.
• Protect the battery against direct sunlight, heat and fire.
• Do not incinerate the battery – danger of explosion!
• Do not use defective or deformed batteries.
• Use only original Numatic specific appliances to charge and discharge batteries.
• Use only an external supply with the following specifications: 100-240V \~ 6.8A.

STORAGE:

• Good batteries should be stored in a protected area away from sources of direct heat and sunlight and should be kept dry.
- The temperature should not exceed 40^ but preferably not be above 25^ to maintain good battery performance.
- Storage area should be of low humidity, non dusty and a non corrosive atmosphere.

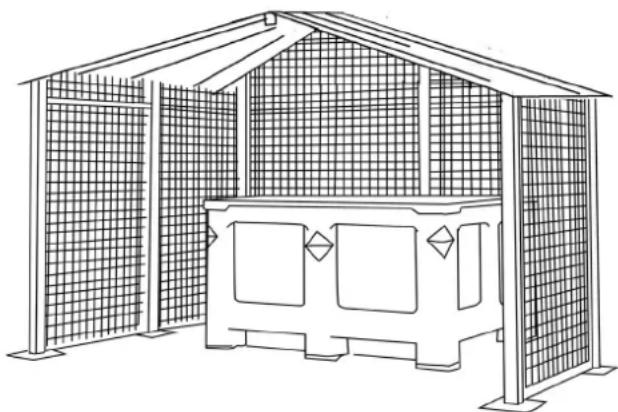

- An example of a well protected area with a cage to protect against accidental impact damage and with the batteries stored in a protective container to protect from heat, impact and accidental spillage of liquids.
- Care when handling / moving with forklift trucks or pallet trucks is needed at all times to avoid any physical damage to the batteries.
- If a good battery at any time is mishandled or subjected to any conditions that may damage it, as described in the battery Instruction manual supplied, it must then be considered as defective and procedures followed from Item 1 of this document overleaf.

Line drawing of a simple outdoor structure with lattice windows and a central rectangular frame (no text or symbols)

3. HAZARDS IDENTIFICATION

• Electrolyte may escape from damaged batteries. Avoid contact.
• Contact can cause skin irritation, burns and chemical burns.
• If liquid comes into contact with eyes, seek medical attention.
• Avoid inhaling any vapours formed or released from the battery – Contains caustic alkaline electrolytes.
• Warning - Risk of fire - This battery contains No user serviceable parts.

4. FIRST AID MEASURES

EN

In the event of contact with released electrolyte or electrolyte vapours:

• Eye contact – flush eyes for at least 15 minutes with plenty of clean water without rubbing and seek medical attention.
• Skin contact – wash affected areas of skin with plenty of water and soap; if irritation persists, seek medical attention.
- Inhalation – provide fresh air or administer oxygen immediately and seek medical attention.
- Ingestion – if electrolyte has been ingested, seek medical attention immediately.

Information for physicians:

- Contains caustic alkaline electrolytes in cells with Lithium Iron Phosphate – NO LITHIUM METAL OR LITHIUM ALLOYS.

5. FIRE FIGHTING MEASURES

EN

• In case of fire – Keep clear of vapours and gases generated, take wind direction into consideration. If possible without danger, remove batteries from the vicinity of the fire. In principle, cooling or extinguishing with water is possible, but should only be done by trained personnel with sufficiently large quantities of water.
• If the hazard situation is unclear, extinguish only with ABC powder extinguishers (Class D extinguishers for fires involving metals are especially suitable).
  • Fire fighters should only approach the fire wearing protective clothing and self-contained breathing apparatus.
• Once the fire has been extinguished, as a rule, the area should be monitored (fire watch) and cleaned up by trained and appropriately equipped personnel; fire residue should be contained and disposed of properly.

6. EXPOSURE CONTROLS, PERSONAL PROTECTION

EN

Respiratory Protection:

• In case of battery venting, providing as much ventilation as possible. Avoid confined areas with venting batteries.
• Respiratory Protection is not necessary under conditions of normal use.

Ventilation:

- Not necessary under conditions of normal use.

Protective Gloves:

- Not necessary under conditions of normal use.

Other Protective Clothing or Equipment:

• Not necessary under conditions of normal use.
• Personal Protection is recommended for venting batteries: Respiratory Protection, Protective Gloves, Protective Clothing and safety glass with side shields.

7. ACCIDENTAL RELEASE

EN

Disposal – Wear protective clothing and equipment, wipe up with absorbent textile and dispose of as hazardous waste at collection points for hazardous waste according to national regulations.

8. DO

EN

• Use NUMATIC batteries only with NUMATIC appliances and charge them only using NUMATIC chargers.
• Charge battery before use.
• Store the battery out of the reach of children.
• Protect from rain – do not immerse in fluids.
• Protect from direct sunlight, heat, and open flames.
• Keep a battery that is not in use away from metal objects, (e.g. nails, coins, jewellery).
• Follow the disposal advice of the manufacturer and any internal waste management guidance.
• Use and store the battery with-in temperature range (as shown in Temperature Range Table).
  • Always switch off the battery using the button by holding it for 6 seconds, before disconnection and handling.
• To activate / turn ON the battery please hold the top button for 6 seconds or alternatively charge the battery using original Numatic specific chargers.
• Be aware of the risk of terminals of the battery-operated appliance or battery being short circuited by metal objects.

Warning: The battery must only be charged by the Numatic Charger supplied with the product and under NO circumstances should an alternative non Numatic charger be used as there is a risk of severe damage and fire could result.

Note* "If batteries are subjected to temperatures beyond normal operating limits automatic shutdown will occur. Under these conditions allow the batteries to acclimatise at room temperature (18°C – 22°C) for several hours to allow the battery to wake up".

Numatic NX 1K

Temperature Range Table

CHARGING 5°C~35°C

DISCHARGING -10°C~35°C

STORAGE OPTIMUM 15°C~25°C

STORAGE LIMIT -10°C~40°C

9. DO NOT

EN

• Throw battery into fire – risk of explosion!
• Charge or use a defective, damaged or deformed battery.
• Open, damage or drop the battery.
• Expose the battery to microwaves or high pressure.
  • Bridge (short circuit) the battery terminals with metallic objects since this may damage the battery.
• Use metal containers for transporting batteries.
• Expose the batteries to high temperatures including direct sunlight.
• Crush, break open or physically abuse the batteries or the equipment that contains them.

10. DISTRIBUTOR TAKE-BACK / DISPOSAL

EN

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

• On the basis of the Battery Directive, the manufacturers take responsibility for financing collection, treatment and recycling of batteries used in devices. To this end, batteries must be handed over for disposal to the collection systems established for this under national law. Disposal of batteries together with household waste is prohibited; batteries must be collected separately according to type.
• Return the battery free of charge to your NUMATIC servicing dealer for disposal or hand it over to an appropriate public collection point.

11. CHARGING BATTERIES

EN

- The charger is intended for use only in the machine where it has been installed. The charger is intended for use with the detachable power cord supplied, the power unit is capable of operating at different voltages without user adjustment. If the charger is damaged or does not charge anymore, please return to service centre.

CAUTION!

• Check the mains cord regularly for any sign of damage.
• Do not use damaged devices.
• If the mains cord of the charger is damaged, it must be replaced by an original NUMATIC mains cord available from the manufacturer or service agent.

12. WARRANTY

EN

Lithium-Ion Battery Warranty

Warranty: Commercial Use

a. Batteries are warranted for (3 Years) as standard. *Note: Numatic dealerships outside of the UK may provide longer warranty periods.

Please confirm with your Numatic dealership on purchase of your product.

b. To claim warranty the following details must be supplied

i. Serial number of the machine
ii. Battery date code
iii. Date purchased
iv. Proof of Purchase
v. Maintenance history and charging regime

Failure to use the correct Numatic charger will void your warranty.

Numatic® INTERNATIONAL LTD Chard Somerset TA20 2GB, United Kingdom 851P Rechargeable Li-ion Battery Pack (Rp237/148/130/651P) (50-20-60/95) Voltage 25.0V [Capacity 50Ah] | Energy 1200Wh [LFP26148129] P/N 911946 CAUTION: Risk of fire and burns. Do not open, clean, heat above 450°C. or increase. Follow manufacturer instruction, read instructions before use. Charge only to the specific charger. Max charge current STA. Max charge voltage 26.0V, measured. To reduce the risk of injury, user must read instruction manual. May cause level, exploration and fire. ATTENTION: Roques d'incendite et de brilles, ne par point, déreter, chauffer à plus de a 60 °C du incliner. Suivrez les instructions du fabricant, lavez les instructions avant diffraction. Charge uniquement avant le chargeur spécifique Numatic. Croutant de charge max. (STA. tenaire de charge max. 28.0V). AVAILING - Pour premier les blessances, l'appliquer dont le menu d'utilisation. Peut coureur de la chaleur, de l'exploration et un incendite. CE L-Las UK CA MADE IN CHINA Manufacturer: Shenzhen Ace Battery Co.,Ltd.

ZP19006-01FYYWW00001

Serial number Week of production Year of production

1. SCHADHAFTE BATTERIEN

Line drawing of a simple rectangular industrial machine with four legs and a central door (no text or symbols)

Beispiel für einen

Line drawing of a simple outdoor structure with lattice windows and a central platform (no text or symbols)

3. MÖGLICHE GEFAHREN

Numatic NX 1K

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Line drawing of a rectangular industrial machine with four legs and a central door (no text or symbols)

Line drawing of a simple outdoor structure with lattice windows and a central rectangular platform (no text or symbols)

3. IDENTIFICATION DES DANGERS

Numatic NX 1K

Simple line drawing of a trash bin with no text or symbols

Line drawing of a rectangular industrial or electrical cabinet with four legs and a central door (no text or symbols)

Line drawing of a traditional-style building with lattice windows and a central structure (no text or symbols)

3. IDENTIFICATIE VAN RISICO'S

Numatic NX 1K

TEMPERATUURTABEL

OPLADEN 5°C tot 35°C

ONTLADEN -10°C tot 35°C

OPTIMUM VOOR OPSLAG 15°C tot 25°C

MAXIMA BIJ OPSLAG -10°C tot 40°C

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Numatic INTERNATIONAL LTD

Chard Somerset TA20 2GB, United Kingdom

8S1P Rechargeable Li-ion Battery Pack IFpP27/148/130[8S1P]H/-20+60/95 Volta: 95.6% Capacity: 50A1 Energy: 428VIP, LFPB446199 D/N 011844

Voltage 25.6V | Capacity 50Ah | Energy 1280Wh | LFP261461 CAUTION: Risk of fire and burns. Do not open, crush, heat above +90°C

orZYWATE. Follow manufacturer instruction, read instructions before use

Charge only with Numatic specific charger. Max charge current 25A. Max charge voltage 28 RV, WARNING. To reduce the risk of injury, user must read instruction

manual. May cause heat, explosion and fire.

Line drawing of a rectangular industrial cabinet with four legs and a central diamond-shaped opening (no text or symbols)

Line drawing of a simple outdoor structure with lattice windows and a central rectangular frame (no text or symbols)

Numatic NX 1K

TABELA DE INTERVALOS DE TEMPERATURA

Simple line drawing of a trash bin with no text or symbols

Line drawing of a rectangular industrial or electrical cabinet with four legs and a central door (no text or symbols)

Line drawing of a simple outdoor structure with lattice windows and a central rectangular frame (no text or symbols)

Numatic NX 1K

Simple line drawing of a trash bin with no text or symbols

Chard Somerset TA20 2GB, United Kingdom

8S1P Rechargeable Li-ion Battery Pack. IFpP27/148/130(8S1P)H/-20+60/95

Voltage 25.8V | Capacity 50Ah | Energy 1280Wh | LFP26148129 | P/N 011948

CAUTION: Risk of fire and burns. Do not open, crush, heat above +60°C

or immenate, Follow manufacturer instruction, read instructions before use.

Charge only with Nominal specific charger, Max charge current 25A. Max charge voltage 28.8V, waensing. To reduce the risk of injury, user must read instruction

change mortgage bill. Simulated 15 October 2014 manual. May cause heat, explosion and fire.

Manufacturer: Shenzhen Ace Battery Co., Ltd.

ZP19006-01FYYWW00001

Numero di serie

Line drawing of a simple rectangular industrial machine with four legs and a central door (no text or symbols)

Architectural line drawing of a roof structure with diagonal bracing and grid pattern (no text or symbols)

Numatic NX 1K

TABLA DE INTERVALOS DE TEMPERATURA

CARGANDO 5°C~35°C

DESCARGANDO -10°C~35°C

ALMACENAMIENTO ÓPTIMO 15°C~25°C

LÍMITE DE ALMACENAMIENTO -10°C~40°C

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Chard Somerset TA20 2GB, United Kingdom

8B1P Rechargeable Li-ion Battery Pack IFpP27/149/130(8S1P)H/-20+60/95

Voltage 25.6V | Capacity 50Ah | Energy 1280Wh | LFP26148129 | P/N 911948

CAUTION: Risk of fire and burns. Do not open, crush, heat above +60°C

or incinerate. Follow manufacturer instruction, need instructions before use

Charge only with Numatic specific charger. Max charge current 25A. Max charge voltage 28 RV, reverse To end up the Ohio of Michigan, unless must read Instruction

charge voltage 28.5V. WARNING TO reduce fire-marked. May cause heat, explosion and fire.

1.1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99

C

( F )

U-Hen

MADE IN CHINA
Manufacturer: Shenzhen Ace Battery Co., Ltd.

ZP19006-01FYYWW00001

Número de serie

Line drawing of a rectangular industrial machine with four legs and a central door (no text or symbols)

Line drawing of a simple outdoor structure with lattice windows and a central rectangular base (no text or symbols)

3. IDENTYFIKACJA ZAGROŻEŃ

PL

Numatic NX 1K

TABELA ZAKRESU TEMPERATUR
ŁADOWANIE 5°C~35°C
ROZŁADOWYWANIE -10°C~35°C
OPTYMALNA TEMEPRATURA PRZECHOWYWANIA 15°C~25°C
GRANICZNA TEMPERATURA PRZECHOWYWANIA -10°C~40°C

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Line drawing of a rectangular industrial or electrical cabinet with four legs and a central door (no text or symbols)

Line drawing of a traditional-style building with lattice windows and a central structure (no text or symbols)

3. RISKBEDÖMNING

SV

Numatic NX 1K

9. GÖR INTE DETTA

SV

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Line drawing of a rectangular industrial or electrical cabinet with four legs and a central diamond-shaped opening (no text or symbols)

Line drawing of a simple outdoor structure with lattice windows and a central rectangular frame (no text or symbols)

4. ENSIAPUTOIMENPITEET

FI

Numatic NX 1K

9. VÄÄRIN

FI

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Line drawing of a simple rectangular box with four legs and a diamond-shaped opening, no text or symbols present.

Line drawing of a traditional-style building with lattice windows and a central structure (no text or symbols)

Numatic NX 1K

TEMPERATUROMRÅDETABEL
OPLADNING 5°C~35°C
AFLADNING -10°C~35°C
OPTIMAL OPBEVARING 15°C~25°C
OPBEVARINGSGRÅENSE -10°C~40°C

Simple line drawing of a trash bin with no text or symbols

Chard Somerset TA20 2GB, United Kingdom

881P Rechargeable Li-ion Battery Pack. IfpF23/540/T30(RS1P)0/-20-60/95

Voltage 25.6V | Capacity 50Ah | Energy 1280Wh | LFP26148139 | P/N 911946

CAUTION: Risk of fires and burns. Do not open, crush, heat above +60°C or inzwere. Follow manufacturer instruction, next instructions before use

Charge only with Numatic specific charger, Max charge current 25A. Max

charge voltage 28.8V WINKING-To reduce the risk of injury, laser must read instruction output. My group best application and fire

Hindi: My case was, explosion and fire.

MADE IN CHINA
Manufacturer: Shenzhen Ace Battery Co., Ltd.

ZP19006-01FYYWW00001

Serienummer

Produktionsuge

Produktionsår

PROBLEM CAUSE SOLUTION
Machine will not operate Low battery charge	Machine is connected and chargingWaste tank full switch stuck or cloggedKey is off or missingHandle safety fuse blown	Charge batteries (page 89-100)Take off chargeInspect & clean switch inside tank (page 53-55)Insert key & turn to operating positionReplace fuse (or contact service engineer)
Vacuum will not operate Missing or blown fuse	Waste tank full switch stuck or cloggedVacuum switch not engagedWaste water tank full	Fit or replace fuse (page 16-21 / 71-76)Inspect & clean switch inside tank (page 53-55)Press switch (page 47-52)Empty waste water tank (page 65-70)
Poor water pick-up Waste water tank full	Clogged / blocked vacuum hoseLoose hose connectionsDebris basket filter clogged / blockedSeparator filter clogged / blockedPoor separator sealDamaged separator sealDamaged / split vacuum hoseDamaged floor tool bladesLow battery chargeFloor tool incorrectly adjusted	Empty waste water tank (page 65-70)Remove and clean (page 65-70)Push tight connections (page 65-70)Remove and clean (page 65-70)Remove and clean (Page 65-70)Clean and refit (page 65-70)Renew (contact service dept)Renew (contact service dept)Renew (contact service dept)Re-charge batteries (page 89-100)Adjust floor tool
No brush / scrub function No brushes fitted	Brush deck raisedMissing or blown fuses	Check and fit (page 28-33)Lower brush deck (page 43-46)Fit or replace fuse (page 16-21 / 71-76)
Little or no water flow Clean water tank empty	Clean water tank filter blocked / cloggedWater flow not onBrush deck raised	Fill clean water tank (page 37-42)Remove and clean (page 71-76)Switch on water flow (Page 47-52)Lower brush deck (page 43-46)
Machine just 'stops' during operating	Brush motor fuse blown due to high load	Replace fuse & reduce load (page 16-21 / 71-76)

Warning Do not fit a replacement fuse link having a higher rating than the value stated on the fuse label.

DE

Reservedele

Position: Head of Technology

Numatic International Limited

Chard,

Signed: M Cels Date: 1 ^st February 2024 Somerset, TA20 2GB, UK

DEC-056 V2.3

UKCA Declaration of Conformity
Manufacturer:	Numatic International LimitedChardSomersetTA20 2GBwww.numatic.co.ukNumatic
Product:	TRG, TRL, TVL.
Description:	Floor Treatment – Ride On – Commercial
We, Numatic hereby declare under our sole responsibility, that the above-mentioned product(s) is/are in conformity with the following directives and standards.
S.I. 2008: 1597	Supply of Machinery Regulations	EN60335-1:2012 + AC:2014 + A11:2014 + A13:2017 + A15:2021EN60335-2-72:2012EN62233:2008
S.I. 2016: 1091	EMC Regulations	EN55014-1:2017 + A11:2020EN55014-2:1997 + A1:2001 + A2:2008EN61000-3-2:2014EN61000-3-3:2013
S.I. 2012: 3032	RoHS Regulations
Authorised Signatory: Mr. Matthew Coles		Position: Head of TechnologyNumatic International Limited,Chard, Somerset, TA20 2GB, UK
Signed: Date: 1stFebruary 2024

DEC-056 V3.4

For declaration of conformity for model TVL850.TM see supplement sheet part no 920001

This Machine Has Been Packed With The Following
Brush / Pad	□
Floor Tool	□
Charging Lead	□
Battery	□
Fuse Pack	□
Signed

Distributed by:

Numatic

numatic.com

Numatic International Limited (Head Office)

Chard, Somerset TA20 2GB, UNITED KINGDOM

Tel: [phone] numatic.com

Numatic International GmbH

Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND

Tel: [phone] numatic.de

Numatic International Denmark

Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND

Tel: [phone] numatic-online.dk

Numatic International S.A.S

Numatic International BV

Numatic International (PTY) Ltd.

Cnr. 16th & Pharmaceutical Road, Randjes Park, Midrand 1685, SOUTH AFRICA

Tel: [phone] numatic.co.za

Numatic International ULDA

Numatic International Spain, S.L.U.

Av. Baix Llobregat, 5-7, Ofi cina bajos 1 (Parc Negocis Mas Blau II)

08820 El Prat de Llobregat (Barcelona), SPAIN

Tel: [phone] numatic.es

Numatic International Italy S.R.L

Via Luigi Galvani, 2, Z.I. Talponedo, 33080 Porcia (PN), ITALY

Tel: [phone] numatic.it
