USER MANUAL Juice&Live 1500 Slim CECOTEC

Exterior view of a modern OSCOUBIC 3UICEALIVE juice maker with clear glass and two empty glasses (no text or symbols on the device itself)

Safety instructions 8

1. Parts and components 50
2. Before use 50
3. Assembly 51
4. Operation 51
5. Cleaning and maintenance 52
6. Troubleshooting 53
7. Technical specifications 54
8. Disposal of old electrical and electronic appliances 54
9. Technical support and warranty 55
10. Copyright 55

SOMMAIRE

Before using the appliance, read the following instructions carefully. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• Check the power cable regularly for visible damage. If the power cable is damaged, it must be repaired by the official Cecotec Technical Support Service or similarly qualified personnel to avoid hazards.
• The appliance is not intended to be used by children. Keep this appliance and its power cable out of their reach.
• This appliance can be used by people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children must not play with the appliance. Supervise children to prevent them from playing with the appliance. Close supervision is necessary if the appliance is used near children.
• Cleaning and user maintenance should not be carried out by unsupervised children.
• Unplug the appliance if it's left unattended and before

assembly, disassembly, or cleaning.

- Do not let unsupervised children use the appliance.

- Switch off and unplug the device before changing accessories or related parts that move during use.

- Make sure that the blade has stopped rotating and that the product is unplugged before assembling or disassembling any part of the appliance.

- Do not disassemble the base.

- Do not insert foreign materials into the appliance.

- Do not use the appliance for more than 10 minutes at a time, allow the motor to cool down.

- Do not use the appliance if the cable, plug, main body, or any part is damaged or malfunctioning, or if it has been dropped or damaged in any way. Contact the official Cecotec Technical Support Service.

- Do not use the appliance if the sieve is damaged.

- Strictly follow the instructions in this manual to avoid injury or damage to the appliance.

- This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

- Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is earthed.

- Do not immerse the cable, plug, or any other non-removable part of the appliance in water or any other liquid. Do not expose the electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.

- Do not twist, bend, pull, or damage the power cable. Protect it from sharp edges and heat sources. Do not allow the cable to touch hot surfaces. Do not let the cable hang over the

edge of the working surface or worktop.

• The device is not intended to be operated by means of an external timer or separate remote-control system.
• Make sure all parts are properly installed before plugging in the appliance.
• Do not use any accessory that has not been recommended by Cecotec, as they might cause injuries or damage.
• Place the appliance on a dry, stable, flat, heat-resistant surface.
• Do not use the appliance under the following circumstances:
• On or near a gas or electric hob, in heated ovens, or near open flames.
• On soft surfaces (such as carpets) or where it may tip over during use.
• Outdoors or in areas with high humidity levels.
• Do not cover the appliance while in use.
• Do not insert any body part or sharp objects into the ingredients inlet of the juicer. No object can replace the tamper that comes with the appliance. Keep your eyes away from the ingredients inlet.
• Make sure no object touches the moving components of the appliance while in use to prevent injuries or damage to the product.
• If the fruits and vegetables that you use have hard seeds, thick skin, or hard shells, please remove them before putting them into the ingredients inlet of the appliance.
• If the appliance stops working, it may be caused by the temperature control protection of the motor. Please, switch it off and let it cool down for 20-30 minutes before resuming operation.
• Unplug the juicer immediately if fire or smoke is observed.
• Do not try to repair the appliance by yourself. Contact the

official Cecotec Technical Support Service.

• Do not wash the appliance in the dishwasher.
• No liability is accepted for any eventual damage or personal injuries derived from misuse or non-compliance with this instruction manual.

INSTRUCTIONS DE SÉCURITÉ

1. Tamper
2. Cover
3. Filters
4. Screw
5. Juice outlet cover
6. Juice collector
7. Knob
8. Base
9. Juice container
10. Residue container

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.
• The appliance is assembled when you take it out of its packaging. Before the first use, we recommend that you remove the detachable parts to wash them with warm water and a little non-abrasive cleaning fluid. After cleaning, rinse and dry the parts thoroughly. Never immerse the base in water or other liquids.

Box content

• Juicer
• Containers x2

• Tamper

• Brush

• Instruction manual

3. ASSEMBLY

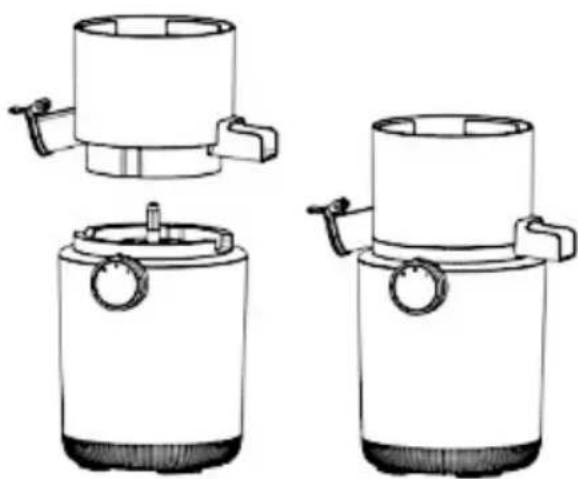

1. Place the juice collector on the base. Fig. 2
   Note: please note that if the collector is not correctly positioned, the appliance may not work.

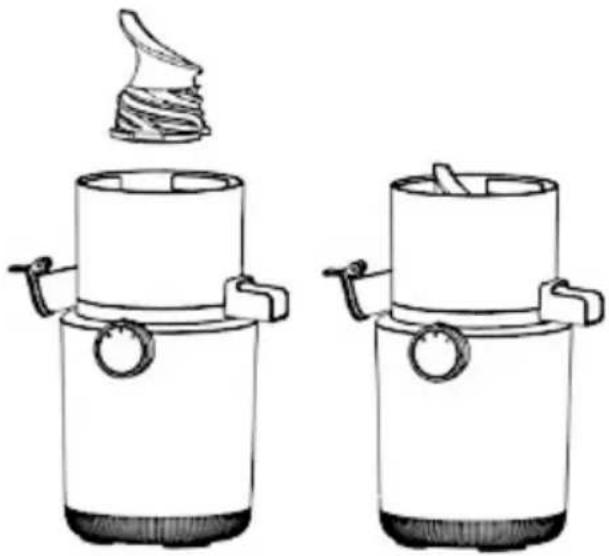

2. Fit the screw into the juice collector. Fig. 3
   Note: please note that if the screw is not correctly positioned, you will not be able to fit the cover.

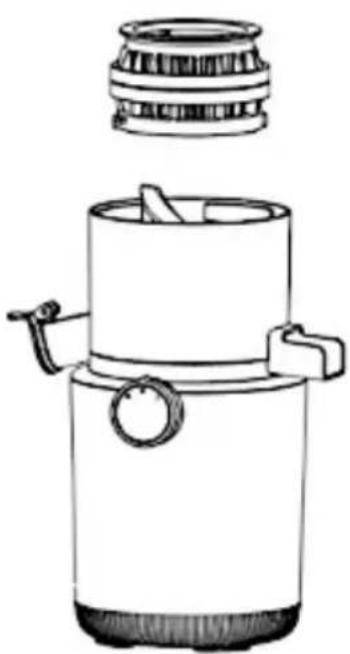

3. Place the filters in the collector. Fig. 4

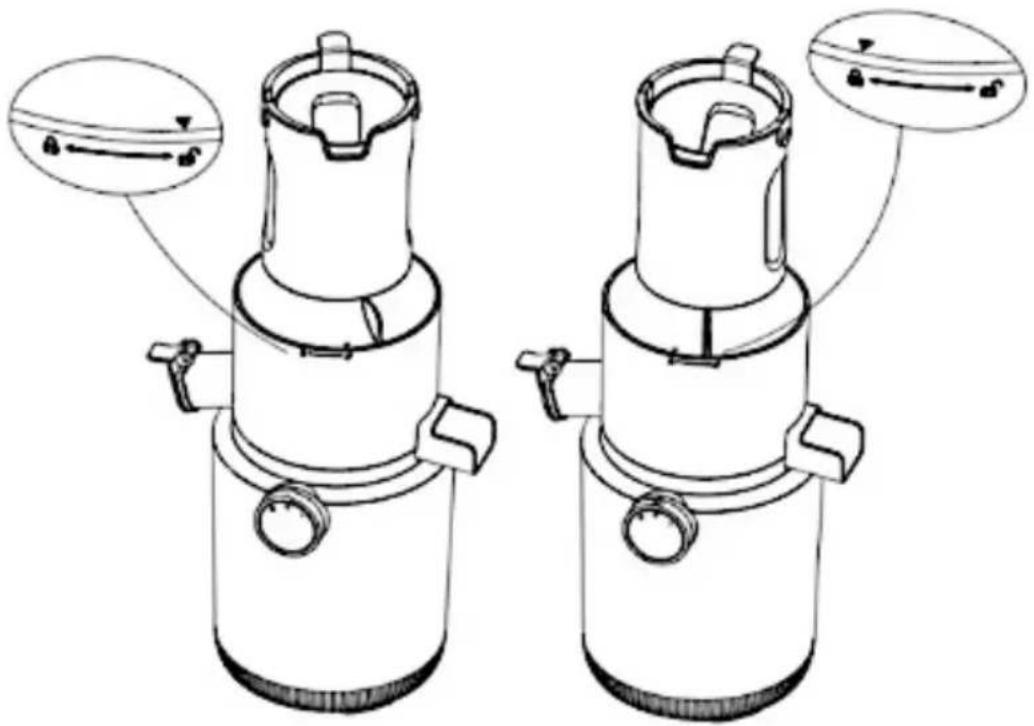

4. Screw on the juice collector cover and turn it to the locked position. Fig. 5.

4. OPERATION

1. When all parts are correctly positioned, connect the appliance to the mains.
2. Place the residue container under the pulp outlet nozzle and the juice container under the juice outlet nozzle.

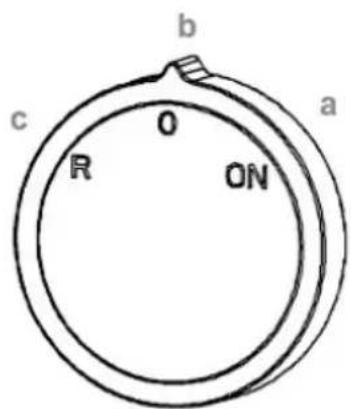

3. This machine has 3 modes. Fig. 6:

a. ON: the motor will start, and the appliance will begin to operate.
b. OFF: motor operation is stopped.
c. Reverse: the screw will move in the opposite direction.

1. Before placing food in the appliance, wash it. It should also be cut into pieces no bigger than 7 cm.

Note: make sure that the food you put into the machine is free of seeds and hard bones, otherwise the screw may be damaged.

1. When you put the food into the appliance, it will start blending immediately. Do not push the food or overfill the appliance. The provided tamper should only be used in the event of a blockage.
2. To prevent this from happening, we recommend that before introducing new foods, you wait until the foods you have already introduced are blended.
3. Remember to switch off the machine when you have finished using it. Do not start the appliance if no food has been inserted in, as this could damage the motor.
4. To clean the appliance, simply place one of the containers under the juice outlet and add some water while the blender is operating. This will remove most of the residues produced during the last blending process. When the water starts to run clear, the blender is clean and ready for use.

ENGLISH

Note: this process is not a substitute for cleaning the parts separately.

To get better results, follow these tips:

• Add the food carefully.
• The provided tamper should only be used in the event of a blockage. Do not push the food or overfill the appliance.
• Cut food into pieces of no more than 7 cm.
• For best results, add the food slowly.
• Do not put ice in the appliance, or any frozen ingredients.

Notes

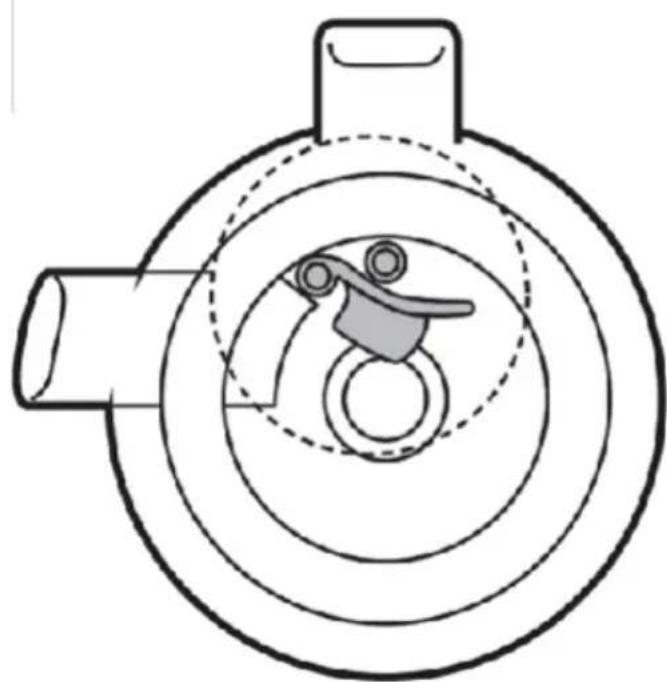

• Underneath the juice collector there is a silicone pad that prevents the juice from flowing out of the pulp outlet nozzle (Fig. 7).
• When using the appliance, make sure that this pad is correctly positioned.
• When cleaning the collector, be sure to slide the pad out and run water through the pulp outlet nozzle to remove all food debris.

5. CLEANING AND MAINTENANCE

1. Switch off the appliance and disconnect it from the power supply.
2. Turn the juice collector cover counterclockwise to unlock it
3. Turn the juice collector counterclockwise to the unlocked position and lift it up.

4. The top part of the juicer is disassembled in the following order:
   a. Cover
   b. Filters
   c. Screw
   d. Juice collector

5. Clean all removable parts with soapy water and a little liquid cleaning agent. You can also use the provided brush. Remember to move the silicone pad underneath the juice collector to clean out any debris left in the pulp outlet nozzle.

Note:

• Do not use any abrasive cleaning product.
• Do not rinse the juicer base or immerse it in water.

• Be sure to dry all parts thoroughly before reuse.

• Hand wash all parts; do not put them in the dishwasher.

Stubborn stains

- Due to the carotenoids found in many vegetables, especially carrots, have potent colouring

properties, we advise you to soak the parts in:

• Warm soapy water.
• A container containing one part of warm water and one part of cider vinegar.
• A bowl of warm water and 500 g of baking soda.
• A sink full of warm water and half a cup of bleach.

Other cleaning tips

Do not use any abrasive cleaning agents to clean the juicer.

Cleaning the appliance after each use will reduce stains.

6. TROUBLESHOOTING

PROBLEM SOLUTION
The machine does not work	-Check the power cable and supply.-Check that all parts are correctly positioned.
The appliance jams or stops working	-Check that there are no obstructions.-Check that you have not inserted any food containing hard seeds, as these could clog the appliance.-Turn the appliance off and then activate Reverse mode for 3 seconds.-Remove the top part and clean all food residues.
A kind of squeaking sound is heard when the appliance is blending	-This is normal. Do not start the appliance if no food has been inserted in.
There are leaks in the collector	-Make sure that the silicone pad is correctly positioned after cleaning the appliance.
The filter is damaged -Follow	the advice in this instruction manual to avoid damaging machine parts. Remember not to overfill the machine or introduce frozen food.

ENGLISH

Too much pulp comes out	-Cut food into smaller pieces, especially the more fibrous ones, to avoid fibres getting caught in the screw. Add food more slowly and wait until the food already added is fully blended before adding new food.
The juice collector is jammed and cannot be removed from the base	-This is usually because it is very full. Activate Reverse mode for 3-5 seconds. Repeat the process 2-3 times. Then, push the juice collector upwards while turning it.
The food conduct or the cover is clogged	-Activate Reverse mode for 3-5 seconds. Repeat the process 2-3 times. Then, press down on the top of the cover while turning it.

7. TECHNICAL SPECIFICATIONS

Product reference: EU01_101572

Product: Juice&Live 1500 Slim

Rated power: 200 W

Voltage: 220-240 V

Frequency: 50/60 Hz

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Image 1

6. PROBLEEMOPLOSSING

Labeled diagram of a coffee maker with numbered parts for identification

Fig./Img./Abb./Afb./Rys.1

Line drawings of three different types of kitchen appliances (no text or symbols)

Fig./Img./Abb./Afb./Rys. 2

Line drawing of two identical kitchen cooktops with handles and a lid, no text or symbols present

Fig./Img./Abb./Afb./Rys.3

Line drawing of a small manual blender with lid and handle (no text or symbols)

Fig./Img./Abb./Afb./Rys. 4

Technical line drawing of two types of industrial filter or blender units with handlebars and control knobs (no text or symbols)

Fig./Img./Abb./Afb./Rys. 5

b c O R ON a

Fig./Img./Abb./Afb./Rys. 6

Technical line drawing of a mechanical component with concentric circles and internal features (no text or symbols)

Fig./Img./Abb./Afb./Rys. 7
