Zitrus TowerAdjust Easy Inox - Blender CECOTEC - Free user manual and instructions

Product Type	Electric Juicer
Brand	Cecotec
Model	Zitrus TowerAdjust Easy Inox
References	04123 / 04119
Power	350 W
Voltage / Frequency	230 V, 50 Hz
Housing Material	Stainless Steel
Additional Filter	Extra Stainless Steel Filter (Black Inox Model)
Number of Juice Cones	2 (Large and Small)
Pulp Regulator	Yes, Adjustable
Anti-Drip Spout	Yes
Automatic Stop	Yes, as soon as you stop pressing the fruit
Maximum Continuous Operation Time	15 seconds
Recommended Duty Cycle	15s on / 15s off, up to 10 cycles, then rest 30 min
Dishwasher Safe Parts	Lid, Cones, Filter, Pulp Regulator, Juice Container
Country of Manufacture	China (Designed in Spain)
Warranty	2 years
After-Sales Service	[phone] (Official Cecotec Service)

Frequently Asked Questions - Zitrus TowerAdjust Easy Inox CECOTEC

How to start the Cecotec Zitrus TowerAdjust Easy Inox juicer?

Simply cut a fruit in half and press the half against the juicer cone. The appliance starts automatically when pressure is applied.

How to adjust the amount of pulp in the juice?

Use the pulp regulator located on the filter. The larger the openings, the more pulp the juice will contain. Adjust it to your taste before pressing.

Can the Zitrus TowerAdjust parts be washed in the dishwasher?

Yes, the following parts are dishwasher safe: the lid, large and small cones, filter, pulp regulator, and juice container. The main unit and cable should never be immersed.

What is the recommended maximum usage time?

The appliance should not run for more than 15 seconds continuously. After each use, let it rest at least 15 seconds. A complete cycle can include up to 10 repetitions, then a 30-minute rest is necessary.

What should I do if the juicer stops working?

First, check that the appliance is properly plugged in and the socket works. If the problem persists, contact official Cecotec customer service at [phone]. Do not attempt to repair it yourself.

Can I use citrus fruits that are not cut in half?

No, you must cut the fruits in half to press them correctly on the cone. Whole fruits could damage the appliance or not produce juice.

How to clean the filter after use?

Rinse the filter immediately after use under warm water, using a soft brush if necessary. You can also place it in the dishwasher. Regular cleaning prevents pulp buildup and prolongs the life.

Does the spout drip after use?

The spout is designed anti-drip. To avoid drips, close the spout when not pouring juice. It can be opened by tilting for serving.

What is the warranty on the appliance?

This product comes with a 2-year warranty from the date of purchase, upon presentation of the receipt. The warranty covers manufacturing defects, but not damage due to misuse or normal wear.

Can I use exotic fruits like mangoes or pineapples?

This appliance is designed mainly for citrus fruits (oranges, lemons, grapefruits). Stone fruits or very fibrous fruits may clog the filter or damage the mechanism. It is not recommended to use them.

USER MANUAL Zitrus TowerAdjust Easy Inox CECOTEC

Zitrus TowerAdjust Easy Black Inox/White

Exprimidor/Citrus juicer

Two CEOTec branded thermos in white and black, displayed against a dark background (no text or symbols on the devices themselves)

1. Safety instructions / 10
2. Parts and components / 12
3. Before use / 12
4. Operation /13
5. Cleaning and maintenance / 13
6. Technical specifications / 14
7. Disposal of old electrical appliances / 14
8. Technical support service and warranty / 14

SOMMAIRE

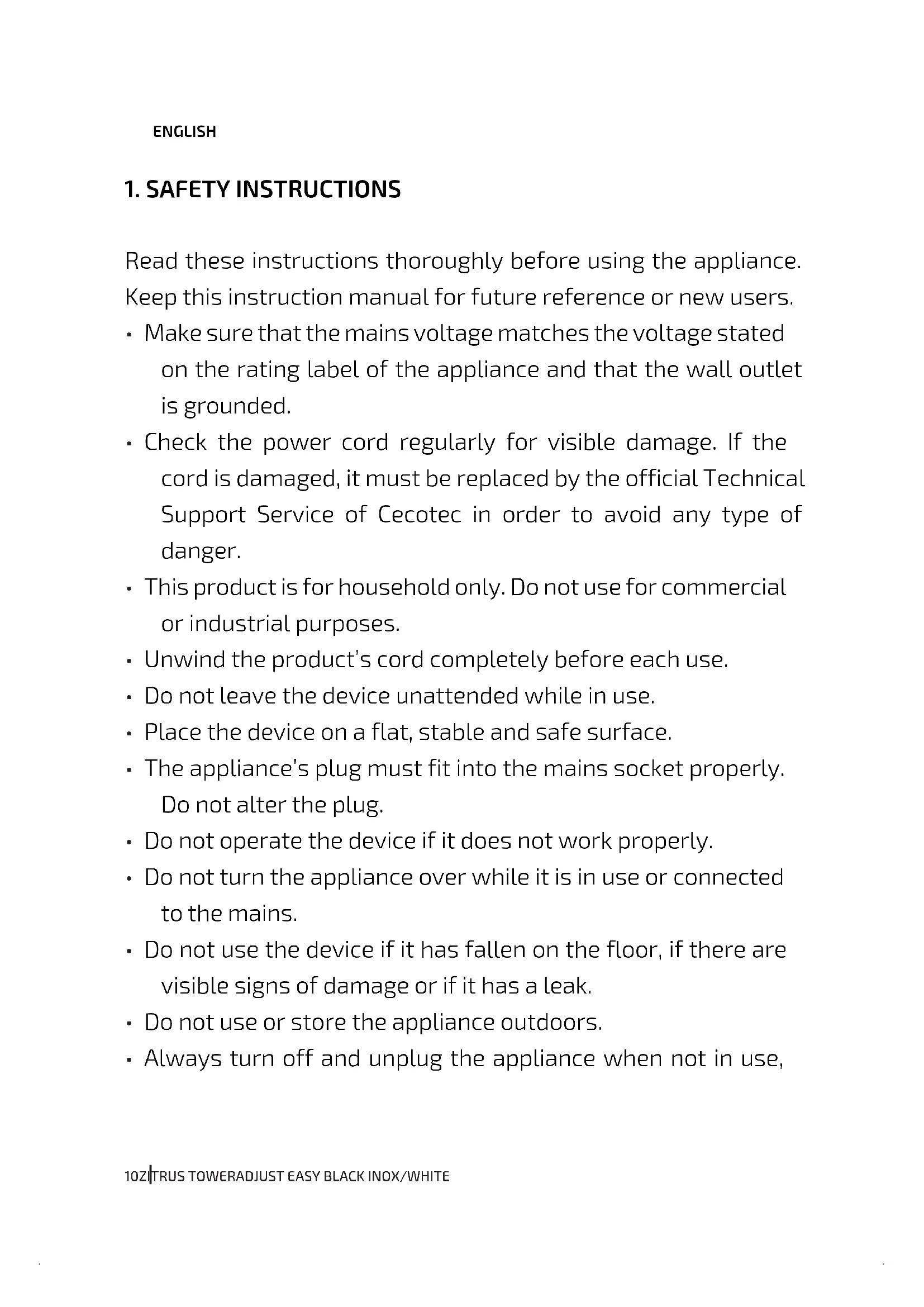

1. SAFETY INSTRUCTIONS

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.

- This product is for household only. Do not use for commercial or industrial purposes.

- Unwind the product's cord completely before each use.

- Do not leave the device unattended while in use.

- Place the device on a flat, stable and safe surface.

- The appliance's plug must fit into the mains socket properly. Do not alter the plug.

- Do not operate the device if it does not work properly.

- Do not turn the appliance over while it is in use or connected to the mains.

- Do not use the device if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

- Do not use or store the appliance outdoors.

• Always turn off and unplug the appliance when not in use,

ENGLISH

when changing accessories, assembling or disassembling the device and before moving it to a new location. Pull from the plug, not the cord, to disconnect it from the outlet.

- Disconnect the device from the power supply before cleaning or carrying out cleaning tasks.

- If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

- Do not use any accessory that has not been recommended by Cecotec, as it could cause damage.

- The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.

- This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

- Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.

ENGLISH

2. PARTS AND COMPONENTS

1. Cover
2. Large juicer cone
3. Small juicer cone
4. Pulp strainer
5. Filter
6. Juice container
7. Axes
8. Main body
9. Anti-drip nozzle

* The black model includes an extra stainless-steel filter.

Simple line drawing of a cylindrical object on a circular base, labeled with number 1 (no text or symbols on the object itself)

3. BEFORE USE

• Take the product out of the box and remove all packaging materials.
- Check for any visible damage, if any is observed, contact as soon as possible the Technical Support Service of Cecotec for advice or reparation.
- Before using the product for the first time, clean the parts that will come into contact with food.
- Place the juicer on a flat and stable surface.

• Unroll the cord completely.
• Connect the appliance to a power outlet.

4. OPERATION

1. Cut fruits to be squeezed in half.
2. Place a glass under the anti-drip juice outlet.
3. To control the amount of pulp you want in your juice, place the pulp strainer on top of the filter in the desired position. Adjust it according to the amount of pulp desired; the wider the holes formed by both pieces, the more pulp.
4. Turn on the appliance by pressing the piece of citrus fruit against the juicer cone.
5. Close the anti-drip nozzle to keep the juice inside the container, open it to let the juice pour out into the cup.
6. When you have finished juicing fruit, stop pressing it on the cone. The juicer will stop operating as soon as no pressure is applied on the cone.
7. If a large quantity of fruit is juiced, clean periodically the filter and remove the remains of the pulp.

Operating times

• Operate the device for a maximum of 15 continuous seconds.
• Allow the device to rest for 15 seconds.
• Repeat these 2 steps as a cycle for a maximum of 10 times.

Note: Once the device has been operated for 10 times in a row, allow it to rest for 30 minutes.

Note: If the device has been used to juice a large quantity of fruits, clean periodically the filter and tank to remove pulp rests.

Once operation is over, unplug the appliance from the power supply.

5. CLEANING AND MAINTENANCE

• Always turn off and unplug the appliance to cool down before cleaning.
- Do not use abrasive scouring pads, powders or cleaners to clean the product.
- Use a soft, dampened and clean cloth with water and a few drops of washing-up liquid to clean the product's outer housing.
• Do not immerse the appliance in water or any other liquid, or place it under running water.
- It is suggested to carry out the cleaning process periodically to remove fruit rests.
- All parts and components except for the mains connection and cord can be washed with

ENGLISH

detergent and water. Rinse thoroughly to remove all traces of detergent.

- The following parts can be washed in the dishwasher:

• Cover
• Small juicer cone
• Large juicer cone
• Filter
• Pulp strainer
• Juice container

- Make sure the device is completely dry before storing or using it again.

6. TECHNICAL SPECIFICATIONS

Product name: Zitrus TowerAdjust Easy Black Inox/White

Products reference: 04123/04119

350 W, 230 V, 50 Hz

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

8. TECHNICAL SUPPORT SERVICE AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

- The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any

ENGLISH

other fault attributable to the customer.

• The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.
• Faults deriving from the normal wear and tear of its parts, due to use.
• The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].

FRANÇAIS

1. INSTRUCTIONS DE SÉCURITÉ

8. GWARANCJA I OBSŁUGA KLIENTA

Quart de Poblet, Valencia (Spain)

GE02190904
