USER MANUAL Zitrus 160 Vita Inox CECOTEC

1. Parts and components / 04

5. Cleaning and maintenance / 11

6. Technical specifications / 12

7. Disposal of old electrical appliances / 12

8. Technical support service and warranty / 12

2. Large juicer cone

3. Small juicer cone

4. Stainless-steel filter

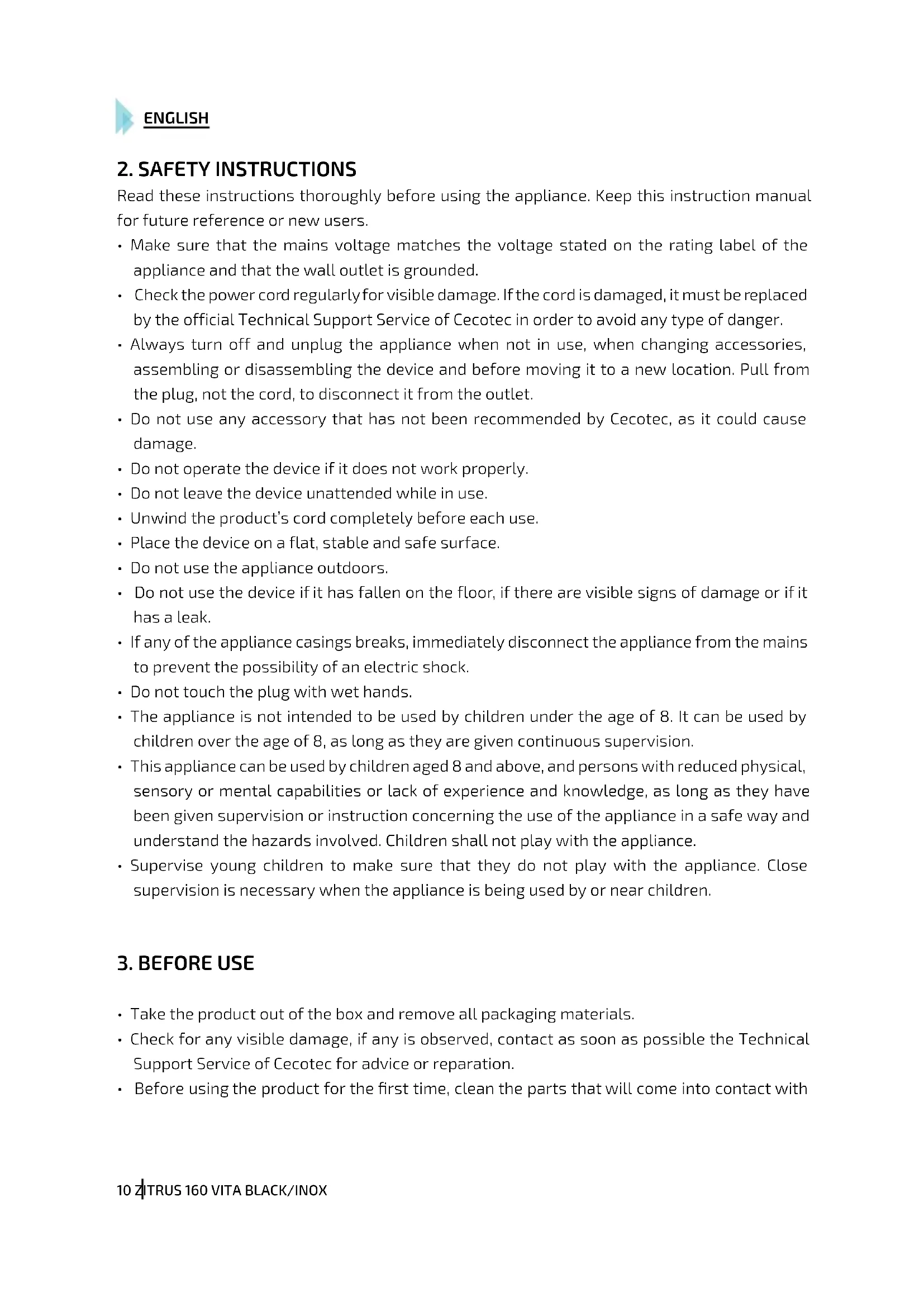

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.

• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.

• Always turn off and unplug the appliance when not in use, when changing accessories, assembling or disassembling the device and before moving it to a new location. Pull from the plug, not the cord, to disconnect it from the outlet.

• Do not use any accessory that has not been recommended by Cecotec, as it could cause damage.

• Do not operate the device if it does not work properly.

• Do not leave the device unattended while in use.

• Unwind the product’s cord completely before each use.

• Place the device on a flat, stable and safe surface.

• Do not use the appliance outdoors.

• Do not use the device if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

• Do not touch the plug with wet hands.

• The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.

• This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

• Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.

• Take the product out of the box and remove all packaging materials.

• Check for any visible damage, if any is observed, contact as soon as possible the Technical Support Service of Cecotec for advice or reparation.

• Before using the product for the first time, clean the parts that will come into contact withENGLISH

• Place the juicer on a flat and stable surface.

• Unroll the cord completely.

• Connect the appliance to a power outlet.

1. Cut fruit pieces in half.

2. Place a glass under the anti-drip juice outlet.

3. Select the appropriate cone:

• Use the larger one for bigger fruits such as orange.

• Use the smaller one for smaller fruits such as lemon.

4. Place the half piece of fruit on top of the cone.

5. Lower the pressure lever in order to press down the fruit. In case the lemon to juice is

small, you can press directly with your hand.

6. Lift the lever when you have finishing juicing. The juicer will stop operation as soon as you

stop pressing down the lever. Operating times

• Operate the device for a maximum of 15 continuous seconds.

• Allow the device to rest for 15 seconds.

• Repeat these 2 steps as a cycle for a maximum of 10 times. Note: once the device has been operated for 10 times in a row, allow it to rest for 30 minutes. Note: if the device has been used to juice a large quantity of fruits, clean periodically the filter and tank to remove pulp rests.

• Once operation is over, unplug the appliance from the power supply.

5. CLEANING AND MAINTENANCE

• Always turn off and unplug the appliance to cool down before cleaning.

• Do not use abrasive scouring pads, powders or cleaners to clean the product.

• Use a soft, dampened and clean cloth with water and a few drops of washing-up liquid to clean the product’s outer housing.

• Do not immerse the appliance in water or any other liquid, or place it under running water.

• It is suggested to carry out the cleaning process periodically to remove fruit rests.ENGLISH

12 ZITRUS 160 VITA BLACK/INOX

• The following parts can be washed in the dishwasher:

• Dry thoroughly all the product parts before storing it.

6. TECHNICAL SPECIFICATIONS

Model: Zitrus 160 Vita Black/Inox Product reference: 04092/04093 160 W, 230 V, 50/60 Hz Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately. Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

8. TECHNICAL SUPPORT SERVICE AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual. The warranty will not cover the following situations:ENGLISH

13ZITRUS 160 VITA BLACK/INOX

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.

• The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.

• Faults deriving from the normal wear and tear of its parts, due to use. The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply. If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].FRANÇAIS
