USER MANUAL ExtremeTitanium 19000 XXL CECOTEC

Exterior view of a modern stainless steel coffee maker with 'TitaniumDisk' branding and '19000 rpm' label (no additional text or symbols)

Exterior view of a black and orange Ceodtec vacuum cleaner (no signage or text visible on body)

1. Parts and components
2. Safety instructions
3. Before use
4. Product assembly
5. Operation
6. Cleaning and maintenance
7. Troubleshooting
   B. Technical specifications
8. Disposal of old electrical appliances
9. Technical support service and warranty

SOMMAIRE

ES.

1. Pusher: when introducing ingredients, use it to carefully press them down to ensure full contact with the filter to improve juicing efficiency.
2. Ingredients inlet: part through which fruits and vegetables are introduced.
3. Filter: filters fresh juice and separates it from the food's skin and bones.
4. Centre bowl: container where filtered juice is collected before passing to the juice container.
5. Spout: part through which juice is served.
6. Motor gear: connects the filter with the product's main body.
7. Juice container's lid: closes the juice container to prevent dust from entering
8. Juice container: container used to store freshly juiced juice without pulp.
9. Main body: it is the main part of the juicer, inside it all electrical parts together with the motor are stored.
10. Clamp: it keeps the ingredients inlet and the product's main body safely shut.
11. Power level knob: allows you to select the product's power level (Pulse, 0, 1 or 2).
12. Power cord: connects the device to the power supply.
13. Pomace-collecting container: where all the fruit and vegetables' pomace is collected after being filtered.
14. Safety push button: allows safe operating of the device.

FR.

2. SAFETY INSTRUCTIONS

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

1. Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
2. The blades inside the product are very sharp, handle them carefully. Take extreme precaution during cleaning, maintenance or while emptying the container.
3. Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec. In order to avoid any type of danger.
4. Always turn off and disconnect the appliance from the power supply before assembling, disassembling, cleaning it or if it is not going to be used for a long period of time. Pull from the plug and not the cord to disconnect it.
5. This appliance is intended for household use only. Do not use outdoors,
6. Do not introduce any utensil or body parts inside the product during operation in order to reduce risk of injuries to persons or damage to the product.
7. Do not use fruits or vegetables with bone, pips or thick skin. Remove any of these before introducing them in the product.
8. Operate it in strict accordance with the following working times:
   • Continuous operation shall not exceed 1 min:
9. The device must be stopped for 2 mins after completing functions;
10. The device must be stopped for 15–20 minutes after 3 cycles of continuous operation and then restarted after once the motor has cooled down. This method will help extending its service life.
11. Do not repair or remove any fixed part of the product. Contact the Technical Support Service of Cecotec for help or advice.
12. Always make sure all the detachable parts are properly placed and fixed before operating it. If any of the parts is damaged, do not use it.
13. After using the device, make sure to turn off and disconnect the product from the power supply.
14. The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.
15. This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
16. Supervise young children to make sure that they do not play with the appliance. Close

ENGLISH

ENGLISH

supervision is necessary when the appliance is being used by or near children.

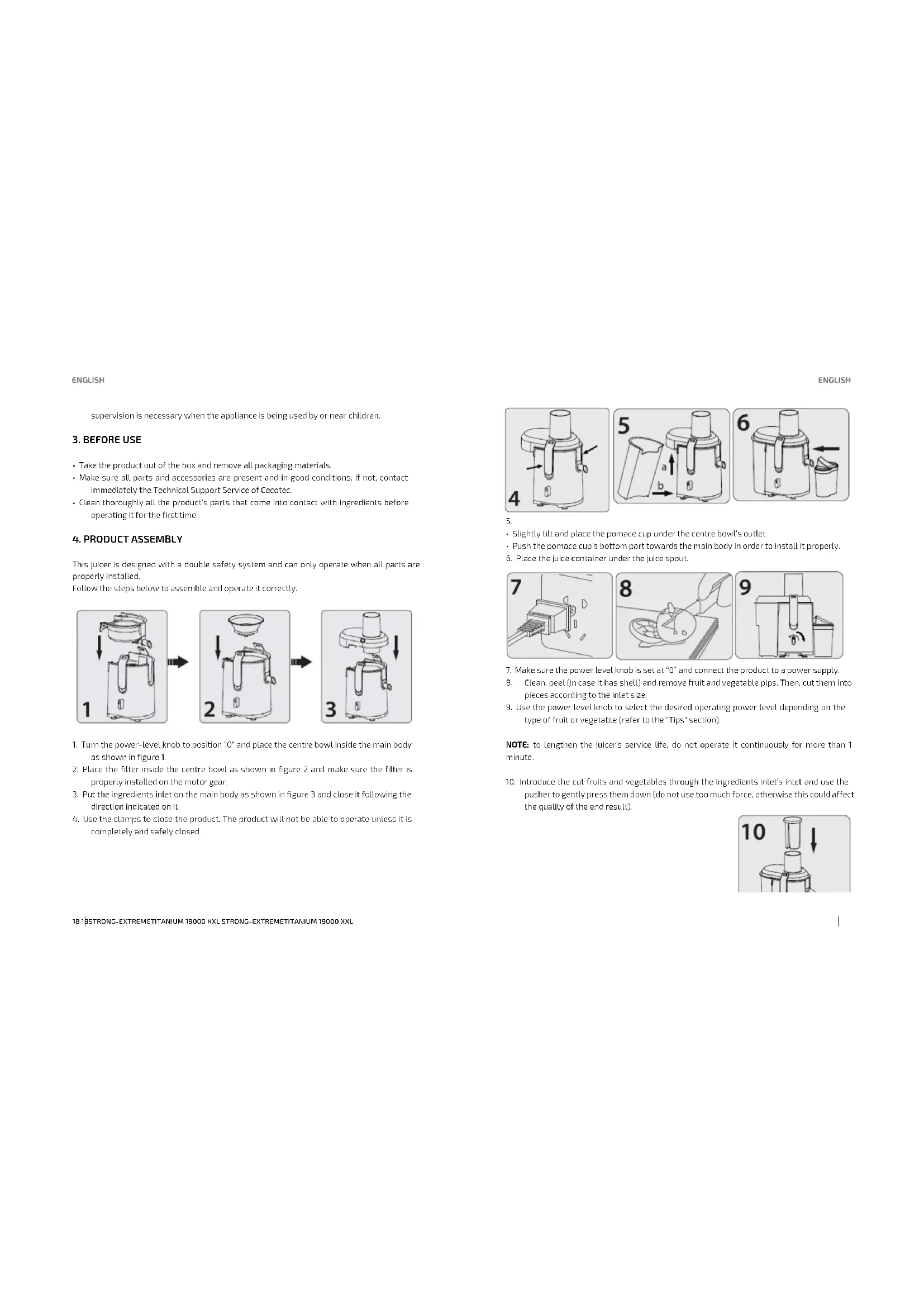

3. BEFORE USE

• Take the product out of the box and remove all packaging materials.
- Make sure all parts and accessories are present and in good conditions. If not, contact Immediately the Technical Support Service of Cecotec.
- Clean thoroughly all the product's parts that come into contact with ingredients before operating it for the first time.

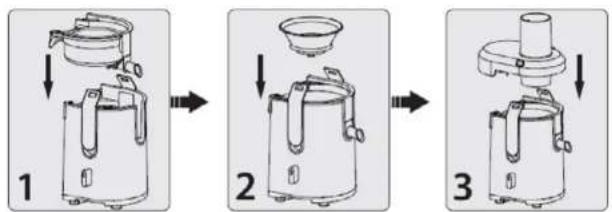

4. PRODUCT ASSEMBLY

This Julcer is designed with a double safety system and can only operate when all parts are properly installed.

Follow the steps below to assemble and operate it correctly.

1. Turn the power-level knob to position "0" and place the centre bowl inside the main body as shown in figure 1.
2. Place the filter inside the centre bowl as shown in figure 2 and make sure the filter is properly installed on the motor gear.
3. Put the ingredients inlet on the main body as shown in figure 3 and close it following the direction indicated on it.
4. Use the clamps to close the product. The product will not be able to operate unless it is completely and safely closed.

18 19STRONG-EXTREMETITANIUM 19000 XXL STRONG-EXTREMETITANIUM 19000 XXL

5

• Slightly tilt and place the pomace cup under the centre bowl's outlet.
• Push the pomace cup's bottom part towards the main body in order to install it properly.
• Place the juice container under the juice spout.

1. Make sure the power level knob is set at "0" and connect the product to a power supply.
2. Clean peel (in case it has shell) and remove fruit and vegetable pips. Then, cut them into pieces according to the inlet size.
3. Use the power level knob to select the desired operating power level depending on the type of fruit or vegetable (refer to the "Tips" section).

NOTE: to lengthen the juicer's service life, do not operate it continuously for more than 1 minute.

1. Introduce the cut fruits and vegetables through the ingredients inlet's inlet and use the pusher to gently press them down (do not use too much force, otherwise this could affect the quality of the end result).

ENGLISH

ENGLISH

WARNING:

• If the pomace bullet is blocked or the pomace or juice container is full, disconnect the device from the power supply and clear or clean them before using it again.
• Do not put fingers or other objects inside the inlet.
• After finishing processing fruits and vegetables, switch the juicer off and disconnect it from the power supply. Walt until the filter has stopped rotating before removing the juice container.

NOTE: fresh-fruit juice shall be drunk immediately, since its taste and nutritional value will be affected if exposed to air for a while.

TIPS

• Use fresh fruits and vegetables since they contain more juice. Specific preferred fruits are: pineapple, beetroot, celery stick, apple, cucumber, carrot, spinach, melons, tomato, mandarin orange, grape, etc.
• It is unnecessary to remove thin peels and skins. Only thick peels (e.g. those of oranges, pineapples or beetroots) need to be removed. Seeds (e.g. those of oranges) shall also be removed.
  • As fresh apple juice will quickly turn into brown, you can add a few drops of lemon juice to slow down this colour turning process.
  • Leaves and stems (e.g. lettuce) could be extracted in the Juicer for juice.
• It is inadvisable to put fruits containing starch, such as banana, pawpaw, avocado, fig, mango, into the juicer for juice extraction.

5. OPERATION

POWER LEVEL KNOB

• "P": Pulse mode (turbo).
- "0"; Off
- "I": Low. This mode is used specially to process soft fruits and vegetables, for example: watermelon, strawberry, tomato etc.
• "2": High. This mode is used to process all fruits and vegetables.

NOTE: see the "Tips" section for further information on suitable fruits and vegetables.

6. CLEANING AND MAINTENANCE

• After cleaning the device, make sure you dry it thoroughly before storing it.
• After using the product, store it in a dry, safe place. Avoid direct exposure to sun light.
- Make sure it is stored in a place out of the reach of children.
- Clean the juicer immediately after each use. Dot not immerse the product's main body in water or other liquids
- Disconnect the product from the power supply before cleaning the product's surface. Use a soft, dry cloth to clean it. The rest of the parts can be washed with water.
- Do not wash the detachable parts with water over 60 °C. Use warm water with some soap and clean them with a cleaning brush, then, rinse with water.

Follow the instructions below for correct cleaning:

1. Take the pomace cup out.
2. Remove the pusher.
3. Use the clamps on the sides to open the product.
4. Remove the ingredients inlet, the filter and the centre bowl

NOTE: add cleaning agent to water and use a cleaning brush to clean the filter and then rinse it with clean water.

1. To remove the filter, grab the edge with both hands and lift it up.
2. Grab both sides of the centre bowl with both hands and lift it up to remove it.

Diagram of a food processing machine with a side panel and upward arrow indicating motion (no text or symbols)

ENGLISH

ENGLISH

1. TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
After connecting it to the power supply, the product does not switch on.	1. The centre bowl is not installed properly.2. The ingredients inlet is not installed properly.3. The safety push button does not work.	1. Place the centre bowl in its place.2. Place the ingredients inlet in its place.3. Replace Ingredients inlet;4. Make sure all the parts of the product are installed correctly.
The product's motor emits unusual smells during the first uses.	This is due to the residual rests from manufacturing.	If the smell remains after several uses, contact the Technical Support Service of Cecotec.
The product stops during operation.	1. The voltage is not adequate.2. There is too much amount of food inside the product.3. The pusher has been pressed down with too much force.4. The motor has overheated and the device has stopped as a safety measure.	1. Make sure the voltage suits the rating label on the product.2. Disconnect the device from the power supply and take out any excess food.3. Lightly press the pusher.4. Switch it off for 20-30 minutes before using it again.
Fruit contains much pomace.	The filter is damaged.2. There is too much pomace built up in the centre bowl.	1. Replace the damaged filter.2. Replace the centre bowl.

Small quantity of juice comes out from the spout.	1. There is too much pomace built up in the centre bowl.2. The pusher has been pressed down with too much force.	1. Clean the centre bowl.2. Lightly press the pusher.
The device vibrates too much or produces loud and unusual noises.	1. The filter is not installed properly.2. The juicer is not placed on a stable, flat surface.3. The voltage is too high.4. There are too many fruits/vegetables in the product.	1. Place the filter in its place.2. Place the juicer on a stable, flat surface.3. Make sure the voltage suits the rating label on the product.4. Remove any excess fruits or vegetables.
The product is obstructed. The cutter or sieve is obstructed by ingredients.		Disconnect the product from the power supply, remove the foods causing the obstruction and cut them into smaller pieces.

8. TECHNICAL SPECIFICATIONS

Model: StrongTitanium 19000 XXL

Product reference: 04110

800 W, 220-240 V, 50 Hz

Maximum Power: 1300 W

Made in China | Designed in Spain

Model: ExtremeTitanium 19000 XXL

Product reference: 04111

800 W, 220-240 V, 50 Hz

Maximum Power: 1300 W

Made in China | Designed in Spain

ENGLISH

FRANÇAIS

9. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately,

in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out 'wheeled bin' symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

10. TECHNICAL SUPPORT SERVICE AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations:

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.
• The product has been disassembled, modified, or repaired by persons. not authorised by the official Technical Support Service of Cecotec.
• Faults deriving from the normal wear and tear of its parts, due to use.
• The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].
