USER MANUAL Power Black Titanium 2500MAX CECOTEC

Exterior view of a modern stainless steel blender with a circular control knob (no text or symbols on the device itself)

Safety instructions 8

1. Parts and components 36

2. Before use 36

3. Operation 37

4. Cleaning and maintenance 37

5. Technical specifications 38

6. Disposal of old electrical and electronic appliances 38

7. Technical support and warranty 38

8. Copyright 38

9. Simplified EU Declaration of Conformity 39

SOMMAIRE

EN · The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Ensure that the mains voltage matches the voltage specified on the product rating label and that the plug is earthed.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Always disconnect the appliance from the power supply if it is left unattended and before assembly, disassembly, or cleaning.
• The appliance can be used by people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• The appliance is not intended to be used by children. Keep the appliance and its power cable out of the reach of children.
• Children must not play with the appliance.
• Cleaning and user maintenance should not be carried out by children unless they are over 8 years old and under supervision.
• Strictly follow the instructions in this manual to avoid injury or damage to the appliance.

• Be careful when handling the cutting blades, when emptying the jug, and during cleaning.

• Switch off and unplug the appliance before changing accessories or nearby parts that move during use.

• Check the power cable regularly for visible damage. If the power cable is damaged, it must be replaced by the official Cecotec Technical Support Service or similar qualified personnel to avoid risks.
• Be careful if you pour hot liquid into the blender, as it may be expelled from the appliance due to sudden steam.
• Do not immerse the cable, plug, or any other non-removable part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.
• Do not use accessories not provided or suggested by Cecotec, as these could cause damage to the product or result in risk.
• Do not twist, bend, pull, or damage the power cable. Protect it from sharp edges and heat sources. Do not allow the cable to touch hot surfaces. Do not let the cable hang over the edge of the working surface or worktop.
• Do not use outdoors, near a gas or electric hob, in heated ovens, or near open flames.
• Extreme caution must be taken when moving appliances containing hot liquids or foodstuffs.
• Do not introduce any utensil inside the product during operation in order to reduce the risk of injuries to persons or damage to the product. A scraper may be used while the product is paused.
• Be sure to keep the dosing cap in position when the blender is in operation.
• Do not use the product if its blade is curved or damaged.
• Do not use the product under vacuum.

• Make sure that the blade is correctly installed before using the appliance.

• Do not overfill the jug.

• Always operate the product with the cover in place.

INSTRUCTIONS DE SÉCURITÉ

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Main body
• High-strength molten glass jug
• Filter for juices
• Instruction manual

Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

Place the appliance on a flat, stable, and dry surface.

3. OPERATION

• Set the power knob to "0" to turn the appliance off.
• Turn the power knob to the Turbo position to activate this function.
• The product has 5 power levels, from 1 to 5: from minimum to maximum power. Set the desired power level according to the ingredients to be processed.

Warning:

• The maximum capacity allowed by the jug is 1.8 L, do not exceed this quantity.
• Do not operate the appliance empty. It is recommended to fill the jug with 2 parts of fruit per 3 of water (soft fruit or vegetables only, such as carrots, apples, etc.).
• The maximum non-stop operating time is 2 minutes. Do not operate the product for longer.

4. CLEANING AND MAINTENANCE

• Always turn the power knob to the "0" position, turn the switch off and unplug the appliance after each use and before cleaning.
• Use water to clean the jug. Do not use chemical or harsh abrasive cleaning agents.
• Use a dry, soft cloth to clean the motor base. Do not clean this part with a wet cloth.

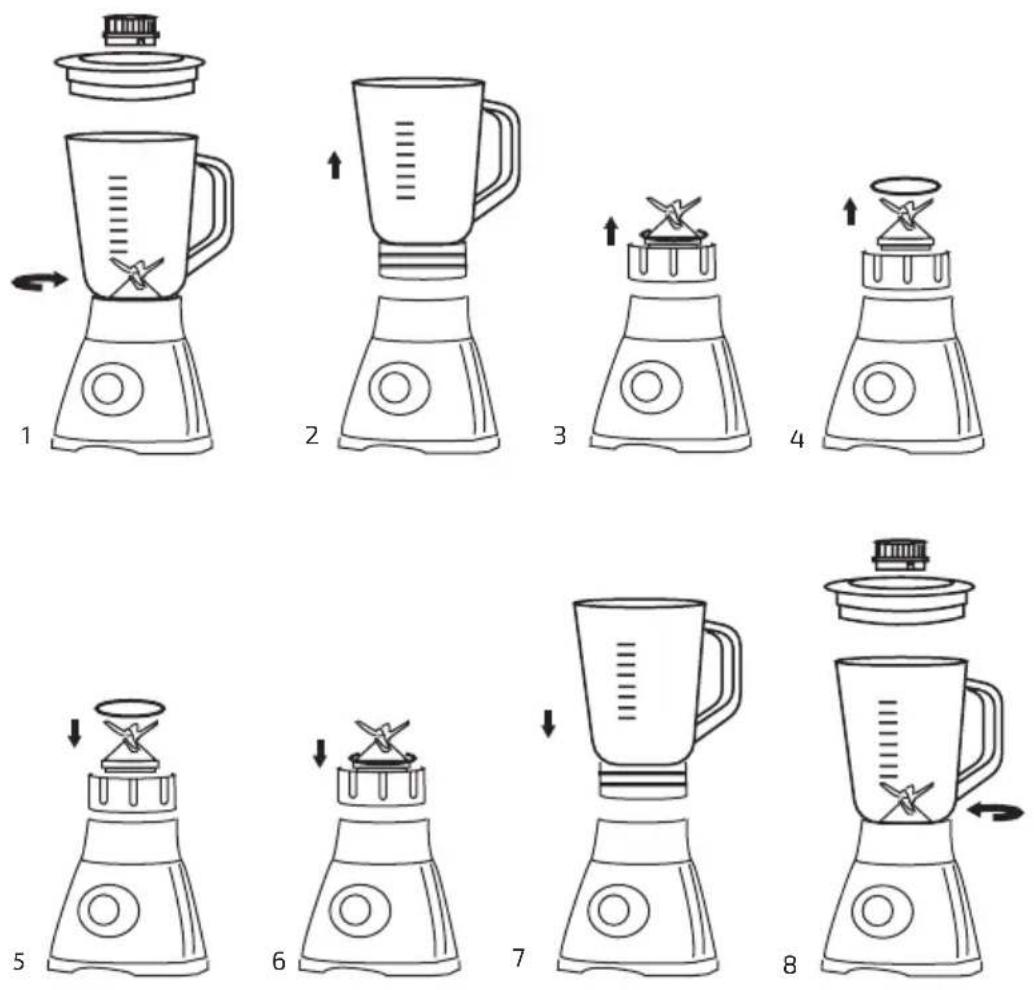

• To remove the blades, follow the procedure described below. You can also refer to Figure 2 for a visual representation of the process.

Make sure that the power knob is in the "0" position and that the appliance is unplugged from the mains.

With the help of the main body, turn the mechanism joining the blades to the base of the jug counterclockwise.

Once it has been loosened, carefully remove the blades.

Repeat the process in reverse to assemble the appliance (turning clockwise).

Maintenance

If the product does not work properly, makes unusual noises or shakes more than usual, stop using it and contact the official Cecotec Technical Support Service. Do not carry out maintenance tasks yourself.

Storage

• After cleaning the appliance, make sure it is thoroughly dried before storing it.
• After using the product, store it in a dry, safe place. Avoid direct exposure to sun light.
• Make sure it is stored in a place out of the reach of children.

ENGLISH

5. TECHNICAL SPECIFICATIONS

Model: Power Black Titanium 2500MAX

Product reference: 04100

Voltage: 220 - 240 V

Frequency: 50/60 Hz

Rated power: 1800 W

Maximum peak power of locked motor: 2500 W

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

6. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the appliance and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

7. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

9. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested to meet the required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

Exploded diagram of a blender with numbered parts for identification

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys.2
