USER MANUAL Strongtitanium 19000 Xxl CECOTEC

Safety instructions 7

1. Parts and components 40

2. Before use 40

3. Assembly 41

4. Operation 42

5. Cleaning and maintenance 42

6. Troubleshooting 43

7. Technical specifications 44

8. Disposal of old electrical and electronic appliances 44

9. Technical support and warranty 45

10. Copyright 45

SOMMAIRE

• Before using the appliance, read the following instructions carefully. Keep this instruction manual for future reference or new users.
• All safety instructions must be closely followed when using the appliance.
• Check the power cord regularly for visible damage. If the power cord is damaged, it must be repaired by the official Cecotec Technical Support Service or similarly qualified personnel to avoid hazards.
• The appliance is not intended to be used by children. Keep this appliance and its power cord out of reach of children.
• This appliance can be used by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children must not play with the appliance. Supervise children to prevent them from playing with the appliance.

Close supervision is necessary if the appliance is used near children.

• Cleaning and user maintenance should not be carried out by unsupervised children.
• Unplug the appliance if it's left unattended and before assembly, disassembly, or cleaning.
• Do not let unsupervised children use the appliance.
• Switch off and unplug the appliance before changing accessories or related parts that move during use.
• Make sure that the blade has stopped rotating and that the product is unplugged before assembling or disassembling any part of the appliance.
• Do not use the appliance if the cord, plug, main body, or any part is damaged or malfunctioning, or if it has been dropped or damaged in any way. Contact the official Cecotec Technical Support Service.
• Do not use the appliance if the sieve is damaged.
• Incorrect or improper use can be dangerous for both the appliance and the user. Use the appliance only for the purposes described in this manual.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
• Do not immerse the cord, plug, or any non-removable part of the appliance in water or any other liquid. Do not expose the electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.
• Do not twist, bend, pull, or damage the power cord. Protect it from sharp edges and heat sources. Do not allow the cord

to touch hot surfaces. Do not let the cord hang over the edge of the working surface or worktop.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Make sure all parts are properly installed before plugging in the appliance.
• Do not use any accessory that has not been recommended by Cecotec, as they might cause injuries or damage.
• Place the appliance on a dry, stable, flat, heat-resistant surface.
• Do not use the appliance under the following circumstances:
• On or near a gas or electric hob, in heated ovens, or near open flames.
• On soft surfaces (such as carpets) or where it may tip over during use.
• Outdoors or in areas with high humidity levels.

- Do not cover the appliance while in use.

• Do not insert any body part or sharp objects into the ingredients inlet of the juicer. No object can replace the tamper that comes with the appliance. Keep your eyes away from the ingredients inlet.
• Make sure no object touches the moving components of the appliance while in use to prevent injuries or damage to the product.
• If the fruits and vegetables that you use have hard seeds, thick skin, or hard shells, please remove them before putting them into the ingredients inlet of the appliance.
• If the product stops working, it may be caused by the temperature control protection of the motor. Please, turn off the power and let it cool down for 20-30 minutes before resuming operation.

• Unplug the juicer immediately if fire or smoke is observed.

• Do not try to repair the product by yourself. Contact the official Cecotec Technical Support Service.

• Use the product in strict accordance with the following working times:
• Continuous operation must not exceed 1 min.
• Let the juicer rest for 2 minutes after juicing before resuming operation.
• The device must be stopped for 20-30 minutes after 3 cycles of continuous operation and then restarted after the motor has cooled down. This method will help extending its service life.

INSTRUCTIONS DE SÉCURITÉ

1. Tamper: when inserting ingredients, use it to carefully press them down. Make sure to press until foods are in full contact with the filter to improve juicing efficiency.
2. Ingredients inlet: part through which fruits and vegetables are inserted.
3. Filter: filters fresh juice and separates it from the food's skin and kernels.
4. Centre bowl: container where filtered juice is collected before pouring into the juice container.
5. Spout: part through which juice is served.
6. Motor gear: connects the filter with the juicer's main body.
7. Juice container's lid closes the juice container to prevent dust from entering.
8. Juice container: container used to store freshly made juice without pulp.
9. Main body: the main part of the juicer, where electrical parts and the motor are stored.
10. Clamp: it keeps the ingredients inlet and the product's main body safely together.
11. Power regulator: allows to select the product's power level between 0, 1, 2, or Pulse (Turbo).
12. Power cord: connects the device to the power supply.
13. Fruit-skin collection container: where all the fruit and vegetables' skin and kernels are collected after being filtered.
14. Safety push button allows for safe operation of the juicer.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Thoroughly clean all parts of the juicer that come into contact with ingredients before first use.

3. ASSEMBLY

This juicer is designed with a double safety system and can only operate when all parts are properly installed.

Follow the steps below to assemble and operate it correctly.

1. Turn the power regulator to position "0" and place the centre bowl inside the main body as shown in Figure 1.
2. Place the filter inside the centre bowl as shown in figure 2 and make sure the filter is properly installed on the motor gear.

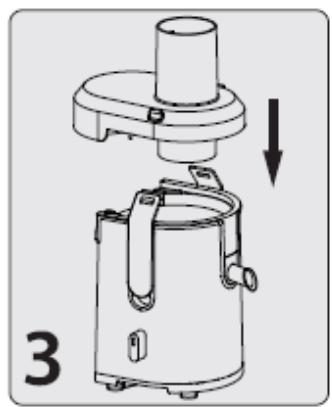

3. Put the ingredients inlet on the main body as shown in figure 3 and close it following the direction indicated on it.
4. Use the clamps to close the product. The product will not be able to operate unless it is completely and safely closed. Fig. 4
5. Slightly tilt and place the container under the centre bowl's outlet. Push the container's bottom part towards the main body to install it properly. Fig. 5
6. Place the juice container under the juice spout. Fig. 6
7. Make sure the power regulator is set to "0" and connect the product to a power supply. Fig. 7
8. Clean, peel (in case it has shell), and remove fruit and vegetable pips and kernels. Then, cut them into pieces according to the inlet size. Fig. 8
9. Use the power regulator to select the desired operating power level depending on the type of fruit or vegetable (refer to the "Tips" section). Fig. 9

Note

To lengthen the juicer's service life, do not operate it continuously for more than 1 minute.

1. Introduce the cut fruits and vegetables through the ingredients inlet and use the tamper to gently press them down (do not use too much force, otherwise this could affect the quality of the end result). Fig. 10

Warning

If the outlet is blocked or the juice container is full, unplug the device from the power supply and clear or clean them before using it again.

1. Do not put fingers or other objects inside the inlet.
2. After finishing processing fruits and vegetables, switch the juicer off and disconnect it from the power supply. Wait until the filter has stopped rotating before removing the juice container.

Note

Fresh fruit juice shall be drunk immediately, since its taste and nutritional value will be affected if exposed to air for a while.

Tips

• Use fresh fruits and vegetables since they contain more juice. Specific preferred fruits are pineapple, beetroot, celery stick, apple, cucumber, carrot, spinach, melons, tomato, mandarin orange, grape, etc.
• It is unnecessary to remove thin peels and skins. Only thick peels (e.g., those of oranges, pineapples or beetroot) need to be removed. Seeds (e.g., those of oranges) shall also be removed.
• As fresh apple juice will quickly turn into brown, you can add a few drops of lemon juice to slow down this colour turning process.
• Leaves and stems (e.g., lettuce) could be extracted in the juicer for juice.
• It is inadvisable to put fruits containing starch, such as banana, pawpaw, avocado, fig, mango, into the juicer for juice extraction.

4. OPERATION

Power regulator

• "0" = 0ff
• "1": Low. This mode is used specially to process soft fruits and vegetables, for example: watermelon, strawberry, tomato, etc.
• "2": High. This mode is used to process all fruits and vegetables.

Note: see the "Tips" section for further information on suitable fruits and vegetables.

5. CLEANING AND MAINTENANCE

• After cleaning the device, make sure it is thoroughly dried before storing it.
• After using the product, store it in a dry, safe place. Avoid direct exposure to sun light.
• Make sure it is stored in a place out of the reach of children.
• Clean the juicer immediately after each use. Do not immerse the main body in water or other liquids.
• Disconnect the product from the power supply before cleaning the product's surface. Use a soft, dry cloth to clean it. The rest of the parts can be washed with water.
• Do not wash the detachable parts with water over 60 °C. Use warm water with some soap and clean them with a cleaning brush, then, rinse with water.

• Follow the instructions below for correct cleaning:

• Remove the container. Fig. 11

• Remove the tamper. Fig. 11
• Use the clamps on the sides to open the product. Fig. 12

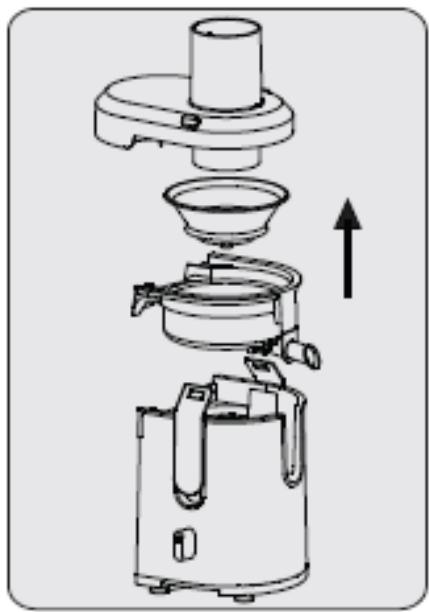

• Remove the ingredients inlet, the filter and the centre bowl. Fig. 13

Note: add cleaning agent to water and use a cleaning brush to clean the filter and then rinse it with clean water.

1. To remove the filter, grab the edge with both hands and lift it up. Fig. 14

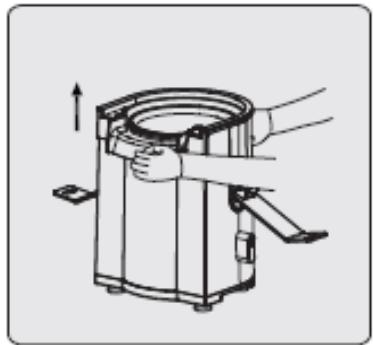

2. To remove the centre bowl, grab the edge with both hands and lift it up. Fig. 15

6. TROUBLESHOOTING

Problem	Possible causes	Possible solutions
After connecting it to the power supply, the product does not switch on.	The centre bowl is not installed properly.The ingredients inlet is not installed properly.The safety push button does not work.	Place the centre bowl in its place.Place the ingredients inlet in its place.Replace Ingredients inlet.Make sure all the parts of the product are installed correctly.
The product's motor emits unusual smells during the first uses.	This is due to the residual rests from manufacturing.	If the smell remains after several uses, contact the official Cecotec Technical Support Service
The product stops during operation.	The voltage is not adequate.There is too much amount of food inside the product.The tamper has been pressed down with too much force.The motor has overheated, and the device has stopped as a safety measure.	Make sure the voltage suits the rating label on the product.Disconnect the device from the power supply and take out any excess food.Lightly press the tamper.Switch it off for 20-30 minutes before using it again.
Fruit contains much pomace.	The filter is damaged.There is too much pomace built up in the centre bowl.	Replace the damaged filter.Replace the centre bowl.
Small quantity of juice comes out from the spout.	There is too much pomace built up in the centre bowl.The tamper has been pressed down with too much force.	Clean the centre bowl.Lightly press the tamper.
The device vibrates too much or produces loud and unusual noises.	The filter is not installed properly.The juicer is not placed on a stable, flat surface.The voltage is too high.There are too many fruits/vegetables in the product.	Place the filter in its place.Place the juicer on a stable, flat surface.Make sure the voltage suits the rating label on the product.Remove any excess fruits or vegetables.
The product is obstructed.	The cutter or sieve is obstructed by ingredients.	Disconnect the product from the power supply, remove the foods causing the obstruction and cut them into smaller pieces.

7. TECHNICAL SPECIFICATIONS

Model: StrongTitanium 19000 XXL / ExtremeTitanium 19000 XXL

Product reference: 04110 / 04111

Power: 800 W

Voltage and frequency: 220-240 V, 50 Hz

Maximum Power: 1300 W

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information

concerning the correct disposal of

old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 0

6. PROBLEEMOPLOSSING

Fig./Img./Abb./Afb./ Rys./Obr. 0

Fig./Img./Abb./Afb./ Rys./Obr. 1

Fig./Img./Abb./Afb./Rys./Obr. 2

Fig./Img./Abb./Afb./ Rys./Obr. 3

Fig./Img./Abb./Afb./Rys./Obr. 4

Fig./Img./Abb./Afb./Rys./Obr. 5

Fig./Img./Abb./Afb./Rys./Obr. 6

Fig./Img./Abb./Afb./Rys./Obr. 7

Fig./Img./Abb./Afb./Rys./Obr. 8

Fig./Img./Abb./Afb./ Rys./Obr. 9

Fig./Img./Abb./Afb./ Rys./Obr. 10

Fig./Img./Abb./Afb./Rys./Obr. 11

Fig./Img./Abb./Afb./ Rys./Obr. 12

Fig./Img./Abb./Afb./Rys./Obr. 13

Fig./Img./Abb./Afb./Rys./Obr. 14
