USER MANUAL PHY_SMC_02 Physa

Line drawing of a person standing beside a massage chair with a directional arrow (no text or symbols)

1 Auto 3 Airbag auto 5 Airbag intensity 7 Shoulder airbag 9 Hand airbag 11 Leg airbag 13 14 15 16 17 Pause Time Foot speed Zero-G Breathing lamp 18 19 20 21 22 Manual massage Massage strength Width adjustment Interval fixed point 18 TIME 16 Foot speed

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Massage chair
Model	PHY_SMC_02
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	120
Max Load [kg]	100
Timer [min]	15-30
Dimensions [width x depth x height; mm]	1540 x 750 x 1080
Weight [kg]	68.3

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

CE !

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

ATTENTION! Electric shock warning!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Massage chair

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
f) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
g) Do not use in very humid environments or in the direct vicinity of water tanks.
h) Before the first use, please check whether the main voltage type and current comply with the indicated data on the type plate.

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
c) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
d) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
e) Keep packaging elements and small assembly parts in a place not available to children.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
b) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
c) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. Safe device use

a) Do not use the device if the „ON/OFF“ switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
b) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
c) Keep the device out of the reach of children.

d) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
e) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
f) Do not leave this appliance unattended while it is in use.
g) Clean the device regularly to prevent stubborn grime from accumulating.
h) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
i) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
j) Keep the device away from sources of fire and heat.
k) For the following patients, consult your doctor before use:

• Patients with malignant tumours.
• Patients with heart attack.
• Patients with severe dermatosis.
• Patients with severe bone growths.
• Pregnancy.
• Persons undergoing therapy as prescribed by a doctor.
• Accident-causing abnormalities of the spine or bending of the back.
• Disease deforming the joints.
• Persons who have had a pacemaker implanted.
• Persons with visceral diseases such as gastritis, inflammatory bowel disease, hepatitis, etc.
• Severe circulatory disorders.
• People with high fever.
• Patients with impaired perception.
• Watch out for children and do not allow them to play on the massage chair.
• This product is not intended for use by persons (including children) who have limb insufficiency, sensory or mental impairment, or lack the necessary experience and knowledge, unless someone responsible for them.

1) The recommended operating time is 30 minutes. It is not recommended that the user exceeds the suggested time.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

A massage chair is a device that provides massage to the entire body or selected parts of it. Thanks to the various massage programs, the massage chair can be adjusted to your needs and preferences. The massage chair can help alleviate muscle pain, reduce stress, improve blood circulation, as well as relaxation.

The product is intended for home use only!

The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

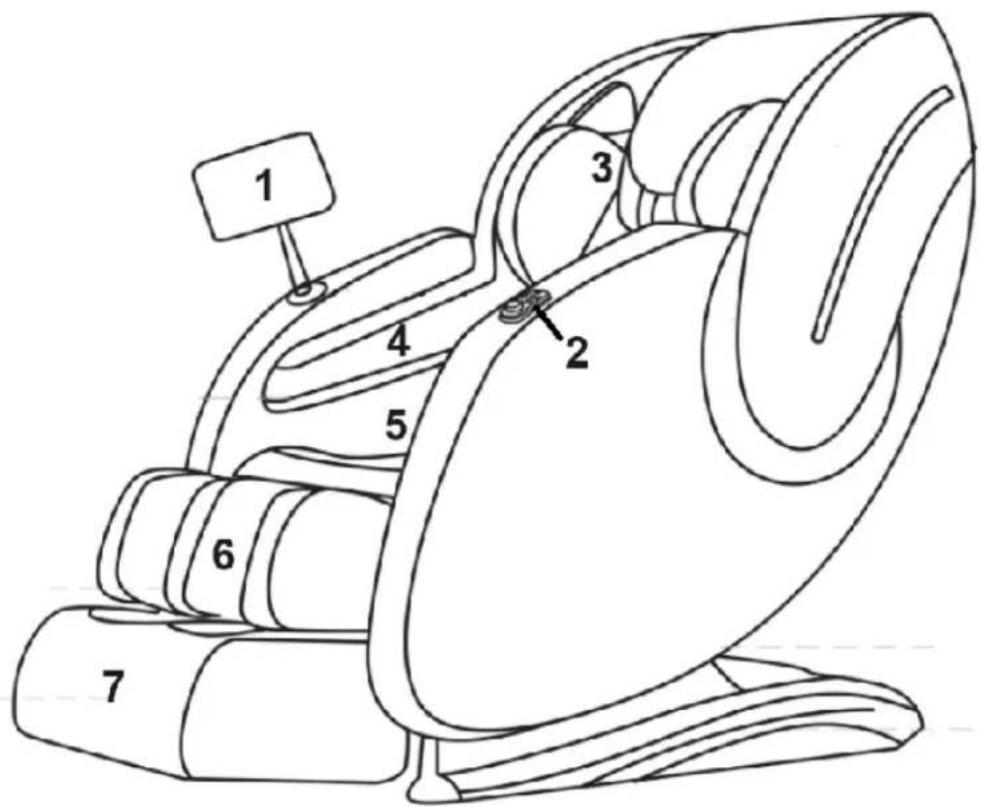

1 2 3 4 5 6 7

1 - Main controller

2 - Quick controller

3 - Shoulder airbag

4 - Arm airbag

5 – Waist airbag

6,7 - Leg and foot airbags

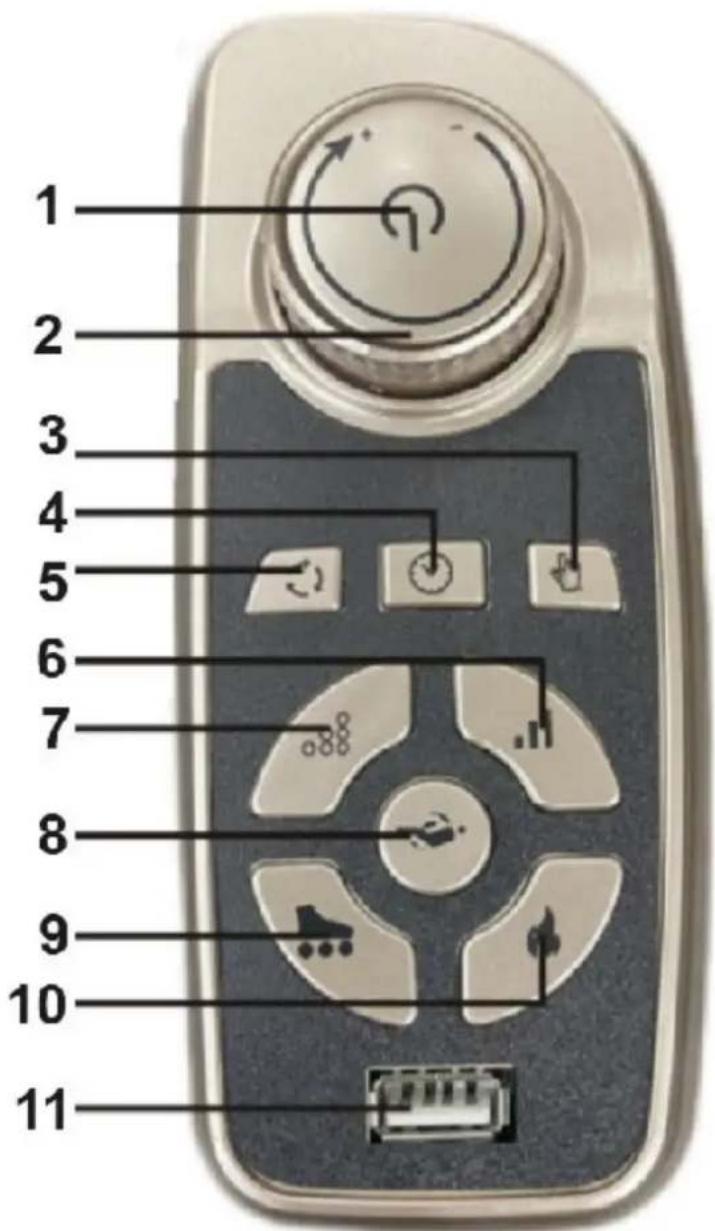

1 2 3 4 5 6 7 8 9 10 11

1 - ON/OFF
2 - Raising / lowering
3 - Manual mode
4 - Timer
5 - Auto mode
6 - Massage power level
7 - Air pressure level
8 - Zero gravity
9 - Roller
10 - Heating
11 - USB socket (DC 5V)

Auto Airbag auto Airbag intensity Shoulder airbag Hand airbag Leg airbag SPEED ROLLER WIDTH INTENSITY 18 TIME Manual massage Massage strength Width adjustment Interval fixed point Pause Time Zero-G Breathing lamp Foot speed

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 40 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

3.3. Assembling the device / Device use

After unpacking, carefully remove the massage chair. The unit is packaged as a whole machine; assembly is not required. Simply plug in the power cord.

Once unpacked, find the main control switch on the back of the unit, plug in the power cord and switch on the switch. The chair is now ready for use.

1 2

1 - Power cord socket
2-ON/OFF switch

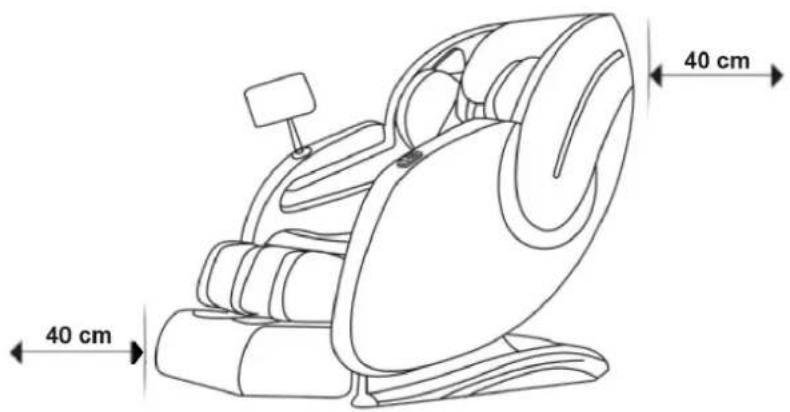

Sufficient space must be left at the front and back of the chair.

- Where the massage chair is placed, there must be enough space to recline the seat and raise the foot section.

• Make sure there is at least 40 cm of free space behind the massage chair and at least 40 cm of free space in front of the massage chair.
  • Make sure there are no obstructions in front and behind the massage chair.
• Place a rug under the massage chair to prevent damage to the floor.

40 cm 40 cm

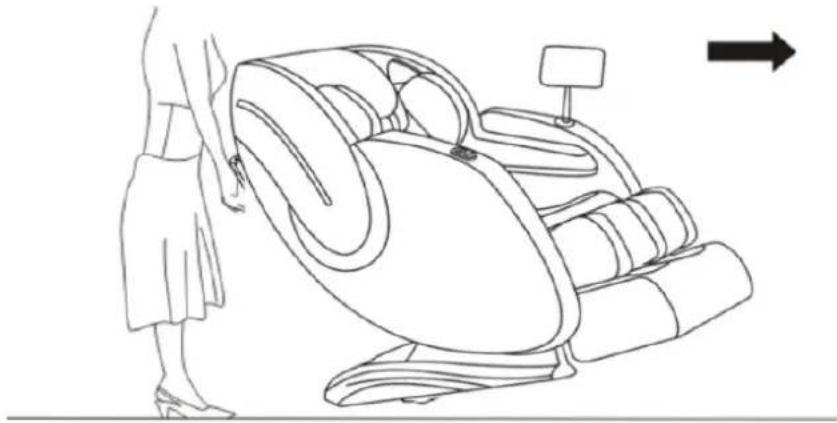

Press the backrest with both hands and tilt the chair backwards by about 45 degrees, then carefully push the massage chair forward or backwards using the castors.

Line drawing of a person pushing a massage chair with a hand on the side (no text or symbols)

1 Auto 3 Airbag auto 5 Airbag intensity 7 Shoulder airbag 9 Hand airbag 11 Leg airbag 13 14 15 16 17 Pause Time Foot speed 20 21 22 Zero-G Breathing lamp

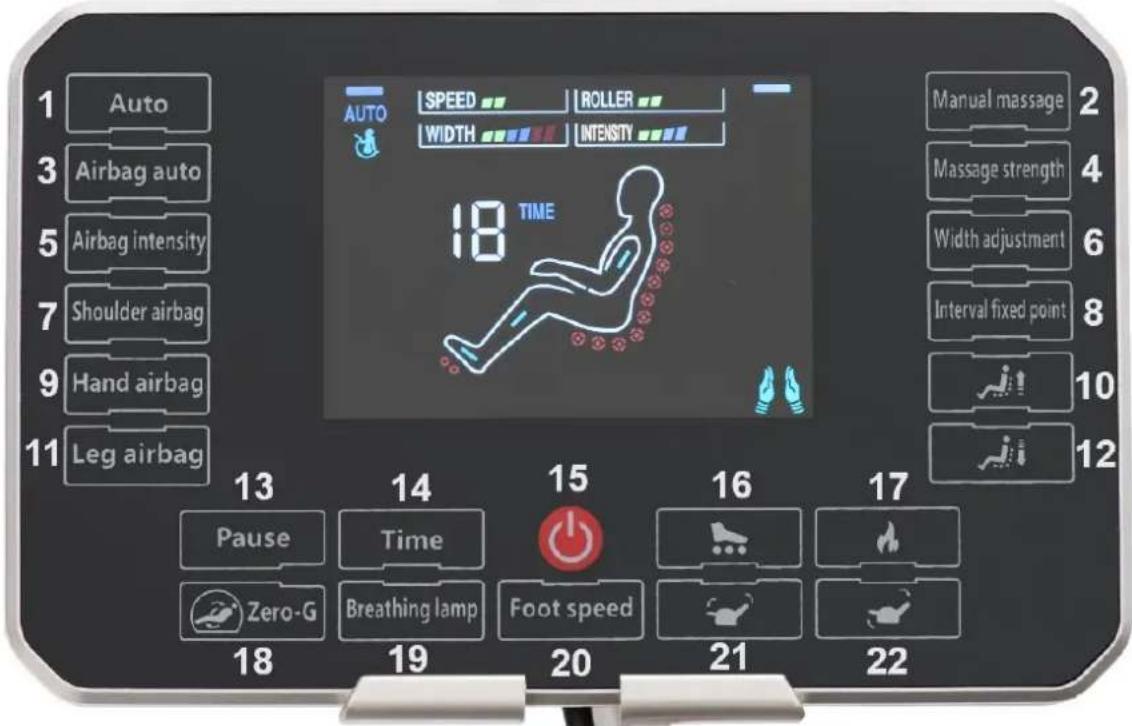

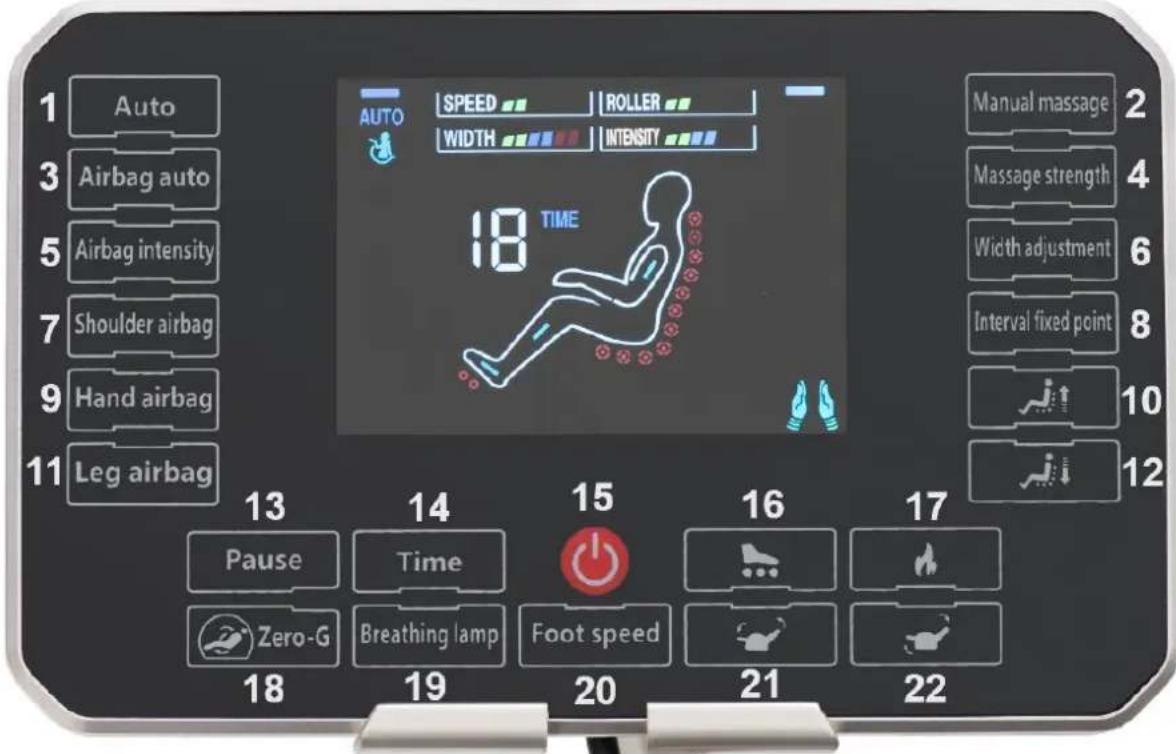

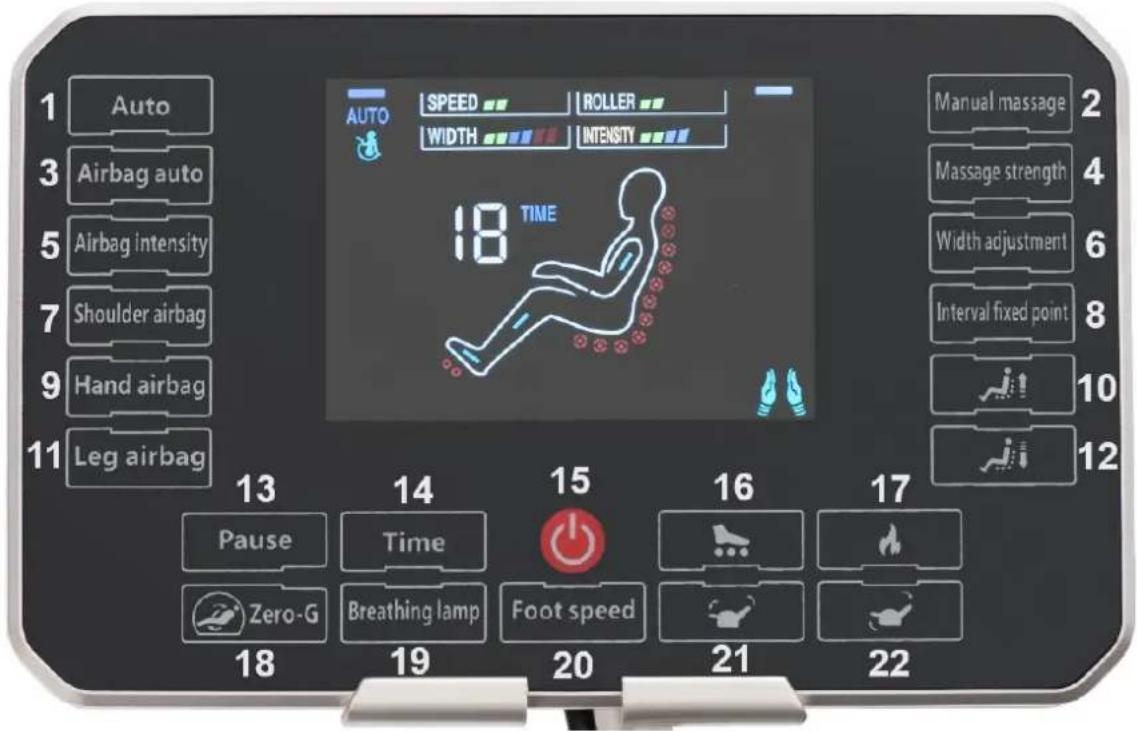

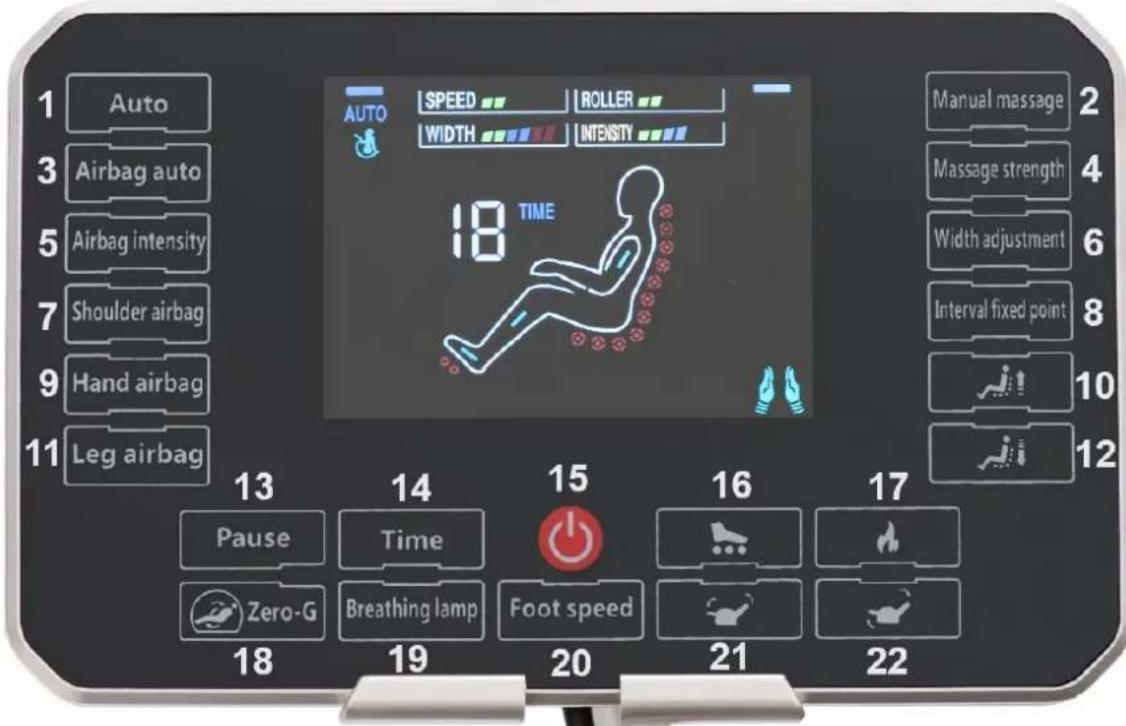

1.	Auto mode	2.	Manual mode
3.	Auto mode for airbag	4.	Massage strength
5.	Airbag intensity	6.	Width adjustment
7.	Shoulder airbag	8.	Interval fixed point
9.	Hand airbag	10.	Raising
11.	Leg airbag	12.	Lowering
13.	Pause	14.	Timer
15.	ON/OFF switch	16.	Foot Roller
17.	Heating	18.	Zero-gravity position
19.	Lamp	20.	Foot speed massage
21.	Seat drop / backrest lift	22.	Backrest drop / seat lift

1. Automatic program: Press this button to select the automatic massage program, including 10 massage programmes, followed by F1-F2-F3-F4-F5-F6-F7-F8-F9-FO for targeted massage. (See instructions on the LCD screen for details).
2. Manual mode: Select massage type.
3. Auto mode for airbag: Activate or close the full-body airbag massage.
4. Massage strength: Adjustment of the pressure massage 1 / 2 / 3 / stop (available in manual mode).
5. Airbag intensity: Adjustment of airbag intensity.
6. Width adjustment: Adjustment of the width of the back massage: high, medium and narrow respectively (available in manual mode).
7. Shoulder airbag: Open or close the shoulder airbag.
8. Interval fixed point: Adjustment of local and spot massage (available in manual mode).
9. Hand airbag: Switch the hand airbag on or off.
10. Press and hold this button to move upwards (available in manual mode).
11. Leg airbag: Turn the leg airbag on or off.
12. Press and hold this button to move downwards (available in manual mode).
13. Pause: Pause according to the massage function.
14. Time: Select one of the three time adjustment modes (10-20-30 min).
15. Standby button: Press the ON/OFF button to activate or deactivate the massage function. When the power is on, press this button to adjust the chair to the initial angle and test your body shape within 10 seconds. You can press the button up or down to readjust the position of the arms and neck. During body shape detection, the function button is locked and cannot be controlled. When finished,

the first automatic programme "Leisure massage" will start by default. The default running time is 20 minutes. Then press this button to enter standby mode.

1. Foot Roller: foot roller massage on or off.
2. Heating: activation or deactivation of the waist or leg heating function.
3. Zero-gravity position: the massage chair performs a massage in the zero-gravity position.
4. Lamp: Switch the lamp on or off.
5. Foot speed massage: set low, medium, or high food speed massage.
6. Seat drop / backrest lift: the backrest will start to slowly descend and the seat will slowly rise at the same time. Once the angle has been set, release the button and the backrest and seat will be locked.
7. Backrest drop / seat lift: the backrest of the chair will slowly start to rise and the seat will slowly start to descend at the same time. Once the angle has been set, release this button and the backrest and seat will be locked.

The Bluetooth function is activated when the device is switched on.

Open your mobile phone's Bluetooth function to find the device (AMY-888) and connect to it. Open the music player to start playing music.

Voice control.

The chair's voice control is in English only.

If the chair is in standby mode, say "Hello Pretty" / "Hi Michele" / "Hello Lazy" to start the voice control. Once the voice control has started, there are a few seconds to enter the next command.

	Voice command	Operation
1.	Power on	Power on
2.	Massage chair off	Switch seat massage off
3.	Mode switch	Switch massage mode
4.	Airbags on	Airbag activation
5.	Airbags off	Airbag deactivation
6.	Sole kneading	Foot massage
7.	Foot roller off	Foot massage off
8.	Airbag strength increase	Increase airbag intensity
9.	Airbag force reduced	Reduce airbag intensity
10.	Speed increase	Increase speed
11.	Massage intensity decrease	Decrease massage intensity
12.	Heating	Heating
13.	Heating off	Switch heating off
14.	Zero gravity on	Activate zero gravity position
15.	Turn off zero gravity	Switch zero gravity position off
16.	Back up	Raise backrest
17.	Back down	Backrest down
18.	Pause	Pause
19.	Cancel pause	Pause
20.	Time switching	Switching the timer

3.4. Cleaning and maintenance

a) Always unplug the device before cleaning or putting it away.
b) Use only non-corrosive cleaners to clean the surface.
c) After cleaning the device, all parts should be dried completely before using it again.
d) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
e) Do not spray the device with a water jet or submerge it in water.
f) Do not allow water to get inside the device through vents in the housing of the device.
g) Clean the vents with a brush and compressed air.
h) The device must be regularly inspected to check its technical efficiency and spot any damage.
i) Use a soft, damp cloth for cleaning.
j) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
k) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

Line drawing of a person using a massage chair with a hand on the side (no text or symbols)

1 Auto 3 Airbag auto 5 Airbag intensity 7 Shoulder airbag 9 Hand airbag 11 Leg airbag 18 TIME AUTO SPEED ROLLER WIDTH INTENSITY Manual massage 2 Massage strength 6 Width adjustment 8 Interval fixed point 10 12 13 14 15 16 17 Pause Time Foot speed Zero-G Breathing lamp

Line drawing of a massage chair with a person standing beside it, showing no text or symbols.

1 Auto 3 Airbag auto 5 Airbag intensity 7 Shoulder airbag 9 Hand airbag 11 Leg airbag 18 TIME AUTO | SPEED | ROLLER | | Speed | WIDTH | INTENSITY | Manual massage 2 Massage strength 4 Width adjustment 6 Interval fixed point 8 10 12 13 14 15 16 17 Pause Time Foot speed 20 21 22 Zero-G Breathing lamp

Line drawing of a person using a massage chair with a hand on the side (no text or symbols)

1 Auto 3 Airbag auto 5 Airbag intensity 7 Shoulder airbag 9 Hand airbag 11 Leg airbag 13 14 15 16 17 Pause Time Foot speed Zero-G Breathing lamp 18 19 20 21 22 Manual massage Massage strength Width adjustment Interval fixed point 18 TIME 16 Foot speed

Line drawing of a person using a massage chair with a hand on the side (no text or symbols)

1 Auto 3 Airbag auto 5 Airbag intensity 7 Shoulder airbag 9 Hand airbag 11 Leg airbag 13 14 15 16 17 Pause Time Foot speed 20 21 22 Zero-G Breathing lamp

Line drawing of a person pushing a massage chair with a hand on the side (no text or symbols)

1 Auto 3 Airbag auto 5 Airbag intensity 7 Shoulder airbag 9 Hand airbag 11 Leg airbag 18 TIME 13 14 15 16 17 Pause Time Foot speed 20 21 22 Zero-G Breathing lamp

Line drawing of a person using a massage chair with a hand on the side (no text or symbols)

1 Auto 3 Airbag auto 5 Airbag intensity 7 Shoulder airbag 9 Hand airbag 11 Leg airbag 13 14 15 16 17 Pause Time Foot speed Zero-G Breathing lamp 18 19 20 21 22 Manual massage Massage strength Width adjustment Interval fixed point 18 TIME 16 Foot speed

APPARATETS PLACERING

Line drawing of a person standing beside a massage chair with motion arrows indicating direction (no text or symbols)

1 Auto 3 Airbag auto 5 Airbag intensity 7 Shoulder airbag 9 Hand airbag 11 Leg airbag 13 14 15 16 17 Pause Time Foot speed Zero-G Breathing lamp 18 19 20 21 22 Manual massage Massage strength Width adjustment Interval fixed point 18 TIME 16 Foot speed

Line drawing of a person standing beside a massage chair with a directional arrow (no text or symbols)

1 Auto 3 Airbag auto 5 Airbag intensity 7 Shoulder airbag 9 Hand airbag 11 Leg airbag 13 14 15 16 17 Pause Time Foot speed 20 21 22 Zero-G Breathing lamp

PLAATS VAN HET APPARAAT

Line drawing of a person standing beside a massage chair with a hand gesture, no text or symbols present

1 Auto 3 Airbag auto 5 Airbag intensity 7 Shoulder airbag 9 Hand airbag 11 Leg airbag 13 14 15 16 17 Pause Time Foot speed 20 21 22 Zero-G Breathing lamp

Line drawing of a massage chair with a person standing beside it, showing no text or symbols.

1 Auto 3 Airbag auto 5 Airbag intensity 7 Shoulder airbag 9 Hand airbag 11 Leg airbag 18 TIME AUTO | SPEED | ROLLER | | Speed | WIDTH | INTENSITY | Manual massage 2 Massage strength 4 Width adjustment 6 Interval fixed point 8 10 12 13 14 15 16 17 Pause Time Foot speed 20 21 22 Zero-G Breathing lamp

APPARATENS PLACERING

Line drawing of a person pushing a massage chair with a hand on the side (no text or symbols)

1 Auto 3 Airbag auto 5 Airbag intensity 7 Shoulder airbag 9 Hand airbag 11 Leg airbag 13 14 15 16 17 Pause Time Foot speed 20 21 22 Zero-G Breathing lamp

Line drawing of a person standing beside a massage chair with motion arrows indicating direction (no text or symbols)

1 Auto 3 Airbag auto 5 Airbag intensity 7 Shoulder airbag 9 Hand airbag 11 Leg airbag 13 14 15 16 17 Pause Time Foot speed 20 21 22 Zero-G Breathing lamp

Line drawing of a person using a massage chair with a hand on the side (no text or symbols)

1 Auto 3 Airbag auto 5 Airbag intensity 7 Shoulder airbag 9 Hand airbag 11 Leg airbag 13 14 15 16 17 Pause Time Foot speed Zero-G Breathing lamp 18 19 20 21 22 Manual massage Massage strength Width adjustment Interval fixed point 18 TIME 16 Foot speed

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
