USER MANUAL PHY-50SM-1 Physa

Technical diagram showing two views of a mechanical component with numbered parts and labeled parts.

Parameter description Parameter value
Product name Foot Massager
Model PHY-50SM-1
Rated power [W] 50
Rated voltage [V~]/ Frequency [Hz]	230/50
Heating temperature [°C]	40
Timer [min] 5-30
Levels of massage intensity	2
Dimensions [mm] 420x350x240
Weight [kg] 3.7

1. GENERAL DESCRIPTION

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure a trouble-free operation, use it in accordance with this user manual and regularly perform the maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. Taking into account technological progress and noise reduction opportunities, the device was designed to reduce noise emission risks to the minimum.

LEGEND

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation (general warning sign).

PLEASE NOTE! ! Drawings in this manual are for illustration purposes only and in some details it may differ from the actual machine.

The original operation manual is in German. Other language versions are translations from German.

2. USAGE SAFETY

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in an electric shock, fire and/or serious injury or even death.

Whenever „device“ or „product“ are used in the warnings and instructions, it shall mean Foot Massager. Do not use in very humid environments or in the direct vicinity of water tanks. Prevent the device from getting wet. Risk of electric shock! Do not cover the ventilation openings. When in use, do not put your hands or other items inside the device!

2.1. ELECTRICAL SAFETY

a) The plug has to fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and fridges. There is an increased risk of electric shock if the earthed device is exposed to rain, in direct contact with a wet surface or operating in a humid environment. Water ingression into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands
d) Use the cable only in accordance with its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If using the device in a humid environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.

2.2. SAFETY AT THE WORKPLACE

a) Do not use the device in an explosion hazard zone, for example in the presence of flammable liquids, gasses or dust. The device generates sparks which may ignite dust or fumes.
b) Upon discovering damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
c) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
d) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
e) If a fire starts, use solely powder or carbon dioxide (CO2) fire extinguishers suitable for use on live devices to put it out.
f) Use the device in a well-ventilated space.

2.3. USE THE DEVICE IN A WELL-VENTILATED SPACE

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The machine is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instructions on how to operate the machine.

c) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.

2.4. SAFE DEVICE USE

a) Do not overload the device. Use appropriate tools for the given task. A correctly selected device will perform the task for which it was designed better and in a safer manner.
b) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and have to be repaired.
c) When not in use, store in a safe place, away from children and people not familiar with the device, who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
d) Maintain the device in a good technical state.
e) Keep the device out of the reach of children.
f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
g) To ensure the operational integrity of the device, do not remove factory fitted guards and do not loosen any screws.
h) Avoid situations where the device halts during use due to excessive loading. This may result in overheating of the drive elements and device damage.
i) Do not leave this appliance unattended while it is in use.
j) Clean the device regularly to avoid a durable encrustation of dirt.

2.5. SAFE USE OF THE MASSAGER

a) It is not recommended to use the device without prior consultation with a doctor by:
- persons with contraindications from the doctor or feeling ill,
- women in the course of menstruation or being pregnant,
• persons with serious illnesses,
- people suffering from diseases such as hypertension, heart disease, atherosclerosis and cerebral vein thrombosis.
• people suffering from osteoporosis,
- people with a pacemaker or other implanted medical device.
b) Do not use the massager to massage your hands, elbows, knees, chest, stomach and body in the immediate vicinity of these parts.
c) Do not use the device if the fabric inside the device has been damaged.
d) Do not use the device one hour before or one hour after a meal as undesirable effects may occur.
e) Do not activate the heating function when using the appliance in cold weather. It is recommended to gradually increase the ambient temperature before commencement of heating with the device.
f) If the product is used immediately after moving from a cold environment to a warm one, accumulation of water vapor inside the product may adversely affect the normal operation of the product or even cause a mechanical failure. It is recommended to place the product at normal room temperature for 1 hour before use.

g) Be especially careful when using the heating function.
h) Do not use the device in case of skin hypersensitivity or problems with blood circulation.
i) The device heats up, people with hypersensitivity to heat should pay special attention in the course of use of the product.
j) Do not use the device under cover, e.g. under a cushion or a duvet. Covering the device may cause a fire, electric shock, burns, improper device operation or overheating.
k) Stop using the device immediately, if the user feels nauseous or other disturbing symptoms.
I) Before disconnecting the device from the power supply, it is necessary to first turn off the device.
m) It is forbidden to use the device while sleeping.

3. USE GUIDELINES

The foot massager is designed for vibration massage of the feet, which can lead to improved blood circulation in the body, neutralizing muscle tension and tiredness of the feet. The product is outside the scope of MDD 93/42/EEC regulations for medical devices.

The user is liable for any damage resulting from nonintended use of the device.

3.1. DEVICE DESCRIPTION

Top view

Bottom view

Diagram of a biological structure with three labeled parts: 1, 2, and 3.

Diagram of a circular mechanical component with mounting holes and a labeled pin (no text or symbols present)

1. Massaging surfaces
2. Control panel
3. Removable and washable fabric cover
4. Cord spool

Control Panel

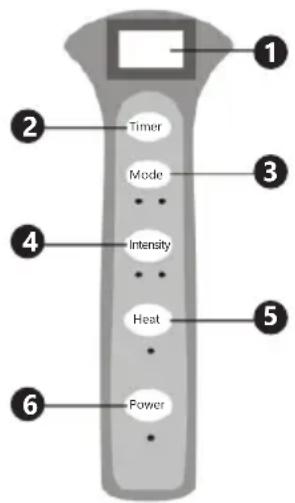

Remote control

Timer Mode Intensity Heat Power

6 OUTLIGHT HEAT INTENSITY MODE SETUP 2 3 4 5

1. Digital display - shows the set operating time.
2. TIMER/SETUP - The timer control button, if pressed, causes the change of the set operating time of the device by 5 minutes longer. The device cannot work longer than 30 minutes. After pressing the button, when the display shows „30“, it will cause resetting the operating time to 5 minutes.
3. MODE - Button that changes the massage mode
4. INTENSITY- Button that changes the intensity of the massage
5. HEAT - Heating On / Off button
6. POWER, ON/OFF - main switch of the device

3.2. PREPARING FOR USE

Appliance location

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is used. The distance between each side of the device and the wall or other objects should be at least 35 cm. Keep the device away from hot surfaces. Operate the device on flat, stable, clean, refractory and dry surfaces out of the reach of children and people with mental disabilities. Install the device making sure that constant access to the main plug is ensured. The power cord connected to the appliance must be properly grounded and correspond to the technical details.

3.3. DEVICE USE

NOTE: Do not exceed the total time of 30 minutes of continuous use by one person.

a) Press the On / Off button.

The device will be switched on in the basic mode I, mode of the massage intensity I and with the heating turned off. After 15 minutes, the device will turn off.

b) During the operation of the device, the user has the following options of settings to choose from:

• setting the time of massage,
• selection of one of two possible intensities of operation
• selection of one of three modes of operation
• selection of massage options with or without heating.

Each of the functions is controlled by the appropriate button described in the section – Control panel.

c) After finishing of use, it is necessary to switch off the device, disconnect it from the power supply, remove the fabric from inside of the device and wash it.

3.4. CLEANING AND MAINTENANCE

• Before each cleaning, adjustment, replacement of accessories and if the device is not used, it is necessary to pull out the mains plug and cool the device completely.
• Use cleaners without corrosive substances to clean each surface.
• Note! The product should be washed after each use.
  • After cleaning the device, all parts should be dried before reusing it.
• Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
• Never spray the device with water jets.
• Use a soft, dry cloth for cleaning.
• Device during the storage time must be protected against dust, for example by placing it in a cover.

DISPOSING OF USED DEVICES Do not dispose of this device to municipal waste systems. Hand it over to electric and electrical device recycling and collection point. Check the symbol on the product, user manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By recycling you are making a significant contribution to the protection of our environment. Contact local authorities for information on your local recycling facility.

DANE TECHNICZNE

Technical diagram showing two views of a mechanical component with numbered parts and labeled parts.

Technical diagram showing two views of a mechanical component with numbered parts and labeled parts.

Technical diagram showing two views of a mechanical component with numbered parts and labeled parts.

Timer Mode Intensity Heat Power

Télécommande

6 ON/OFF HEAT INTENSITY MODE SETUP 2 3 4 5

Diagram of a biological structure with three labeled parts: 1, 2, and 3.

4

Technical diagram showing two views of a mechanical component with numbered parts and labeled parts.

For the disposal of the device please consider and act according to the national and local rules and regulations.
