USER MANUAL DDM-1900D MSW

Technical diagram of a mechanical device with numbered parts for identification

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name	Diamond drilling machine
Model	MSW-DDM-1900D	MSW-DDM-2300D	MSW-DDM-O1800P	MSW-DDM-O2100P
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	1600	1900	1800	1900
Brick Drill Range [mm]	132	165	150	200
Concrete Drill Range [mm]	60	105	90	130
No-Load Speed [rpm]	720-1270 / 1000-1480	850-1200 / 1980 /2170	100-720 / 2860	100-590 / 1290 / 2660
Dimensions [width x depth x height; mm]	500 x 290 x 400	550 x 500 x 120	560 x 300 x 300	560 x 280 x 100
Weight [kg]	5.75	11.9	11.2	11.3

WARNING

To prevent electric shock or fire, please strictly abide by the procedures in the operation manual. The machine is designed to be used only for the authorized persons, please do not let other people to operate. If any violation of the instructions operation and cause personal injury or machine damage, our company disclaim all responsibility.

The machine can be only maintained by the people who has the certification.

HAMMER DRILLING USE

This drilling machine is designed for either wet or dry core drilling in masonry, concrete and similar types of materials. It is equipped with a 2-speed gearbox which allows mechanical selection of 2 speed ranges for ideal drilling with either small or large diameter core bits. In addition, the motor is equipped with feedback electronic speed stabilization which works to keep the rotation speed the same, regardless of load. There is a variable speed function which is controlled by a thumbwheel. There is soft start and electronic overload protection and a mechanical slip clutch for safety. There is provision for both impact drilling and standard drilling functions. Selection between impact and standard drilling is made with a selector tab on the top of the gearbox.

APPLICATION FIELD

This machine is applied for drilling holes in concrete, stone, masonry, and pipe work, such as air cooler, electric appliance, water pipe and gas pipe.

The user is liable for any damage resulting from unintended use of the device.

SAFETY PRECAUTION

◆ Read all precautions before operation.
◆ Please follow the operating instruction strictly, failures in the compliance with these safety precautions and instructions can cause electric shock, fire and/or heavy injuries.

1. Keep your working area clean and well illuminated. Disorder or unilluminated working areas can cause accidents.
2. Do not work in explosive ambiances with the electric tool, because there are flammable liquid, gases or dusts. Electric tools generate sparks which can inflame the dust or vapours.
3. Keep children and other persons away from the electric tool while using it. When being distracted, you can lose the control on the device.
4. Be attentive, pay attention to what you do and go to work with the electric tool with reason. Do not use an electric tool when you are tired or under the influence of drugs, alcohol or pharmaceuticals. One moment of carelessness while using an electric tool can cause serious injuries.
5. Wear personal protective equipment and always goggles. The wearing of personal protective equipment, like dust mask, skid-proof shoes, protection helmet or hearing protect-ion, reduces the risk of injuries.
6. Avoid unintended start up. Make sure that the electric tool is switched off before connecting it to the electricity. When you have your fin-ger on the switch while carrying the electric tool or connect the device to the power when it is switched on, this can cause accidents.
7. Remove adjusting tools or wrenches before switching on the electric tool. A tool or wrench which is located on a turning device can cause injuries.
8. Avoid abnormal posture. Care for safe standing and keep the balance anytime. Do not work on a ladder. Thus, you can control the electric tool better in unexpected situations.
9. Wear suitable clothing. Do not wear wide clothing or jewellery. Keep hair, clothing and gloves away from moving parts. Wide clothing, jewellery or long hair can be caught by moving parts.
10. Do not overload the device. Use the appropriate electric tool for your work. With the appropriate electric tool you work better and safer in the declared range of performance.
11. Do not use an electric tool whose switch is damaged. An electric tool which cannot be switched on and off is dangerous and must be repaired.
12. Unplug the plug from the socket before carrying out instrument settings, exchanging accessories or put the device aside. This safety measure avoids the unintended start of the electric tool.
13. Keep unused electric tools out of reach of children. Do not allow persons to use the device who are not familiar with it or have not read these instructions. Electric tools are dangerous if they are used by inexperienced persons.
14. Voltage: please be attention that the power voltage should be no more than +5% of rated voltage. Higher voltages however can cause irreparable damages. Please note that when operating the machine via a generator, this does not generate higher voltage peaks.

PRODUCT STRUCTURE

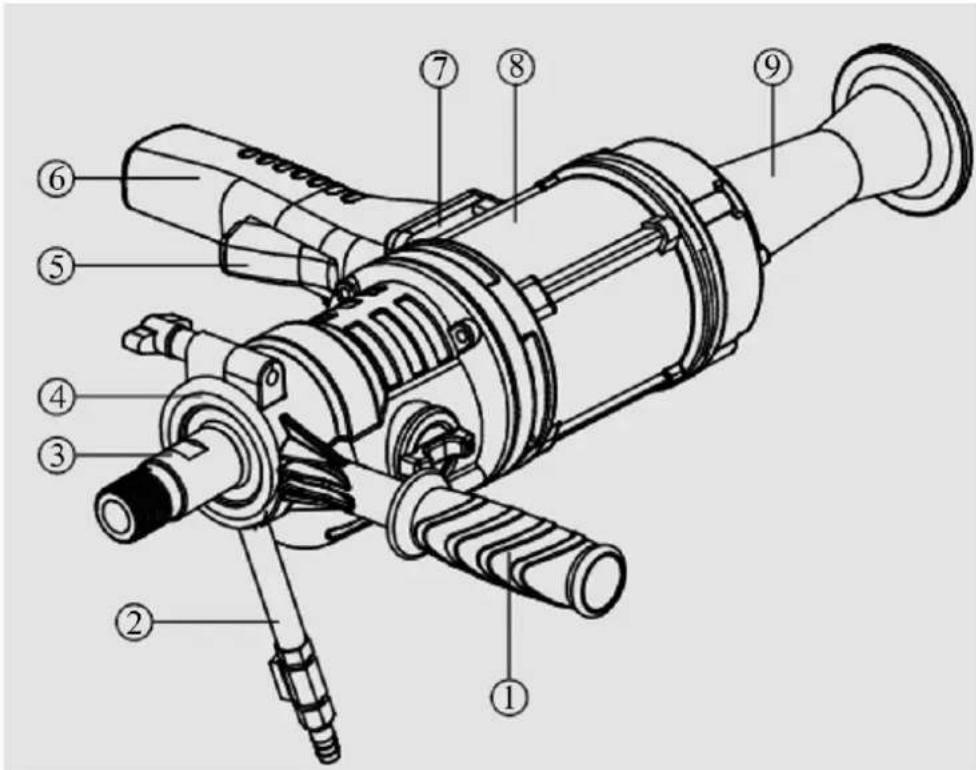

Technical diagram of a mechanical device with numbered parts for identification

1. Sliding handle
2. Flush water valve

3. Motor spindle

4. Water ring assembly (External)

5. Power switch

6. Main handle

7. Soft start the overload

8. Motor assembly

9. Plastic shoulder rest

INSTRUCTIONS FOR USE:

• Wear hearing protection when operating the machine.
  Use the auxiliary handles that are supplied with the device.
• Hold the handle while operating the machine.

OIL IMMERSED ADVANTAGES

Oil immersed type diamond drilling machine is a kind of drill for the reinforced concrete, brick, stone, ceramic and refractory materials. It is suitable for equipment installation, installation of water and electricity, tunnels and other construction, installation. Oil immersed type diamond drilling machine gear oil has a very good pressure, when gear meshing friction surface temperature is high enough. The friction losses, greatly improving the service life of the gear. The bearing capacity of gear oil is high, is conducive to the tooth surface protection. At the high temperature it can guarantee the reliable lubrication of the gear. Viscosity temperature performance is good with the variation of working temperature, it ensures a sufficient liquidity at low temperature, ensure the liquid oil to the tooth surface and bearing friction loss, prevent injury. In the high temperature viscosity does not decrease too much, can form a lubricating oil sufficiently thick enough.

Attention: Our company does not assume any responsibility because the machine is not solid or fixed safety facilities are not in appropriate place cause accident.

SAFE OPERATION

1. Please read the manual carefully before operation. This machine may only be used by trained people.
2. Please check the voltage before start, the power voltage should be no more than ±5% of rated voltage. Higher voltages however can cause damages such as motor burning and electric leakage.
3. Wear helmet, insulating gloves, workwear. Do not wear wide clothing or jewellery, keep hair away from it in case of twist.
4. This machine is designed for wet drill bits, do not use other bits, and do not enlarge the motor load.
5. Pay attention that the water can't get into the motor, do not block the ventilation, in case of motor burning.
6. Check the workplace before operation, eliminate danger, such as high voltage power lines, gas piping water pipe and telecommunication facility and so on.
7. Pay attention to the safety of down layer if the machine should drill holes through floor. When drill on beam column, check the structure of building.
8. Do not work in explosive ambiances with the electric tool, in which there are flammable liquid, gases or dusts. Electric tools generate sparks which can inflame the dust or vapours.
9. Make sure, the drill machine starts to operate with no-load, starting with load is prohibited, or may cause damages to machine and users. Fix the machine well in case of dropping when working on high place.
10. Use high quality three-core cable and make sure the cable is connected with ground. A ground fault circuit interrupter is necessary.

OPERATION

1. The fixation of expansion bolt: Drill a hole by impact drill in the set position, screw the expansion bolt, make sure it is tight, fix the diamond drill machine on it, and adjust the four regulating screws to keep the drill machine from swinging.
2. The fixation of support rod: determine the drilling location, supporting rod, adjusting the length of the push rod, and adjust the fastening screws, so that the drilling rig substructure full contact face, and ensure the drill bit and drill vertical face, no swing.
3. Fix the drill bit, connect the power and water supply, move adjusting tools, switch on when the drill machine is no load, check the drill bit and sound, if everything is fine, then open the water tap, the machine can start to drill when water flow from the drill bit.
4. Take it slow when at first, when the drill bit cut in the wall, change to normal speed. Slow down when the drill machine run into steel.
5. Both mechanical and electronic protections exist in drill machine. When drilling, if the motor is working, while the drill bit is not moving, means the drill bit need sharpened or feeding speed is too fast, please pull out the drill bit then re-feed. If the motor stop when drilling, please return on the machine and slow down the feed speed.
6. After some time of use, the abrasion of friction plate may cause slip. Please take the clutch gear out of gearbox and change friction plates to unified size, tight the screws. Then put the gear back to gearbox (This step should be done by trained person).

INSTRUCTION OF SHIFTING GEAR

To improve the efficiency, some machines are designed with 2-speed gear shift, and some are designed with 3-speed gear shift.

“H” / “1” – high speed.

"L" / "2" - low speed.

“H” / “1” – high speed.

“M” / “2” – middle speed.

"L" / "3" - low speed.

H speed is for drilling on soft material with small drill bit, M speed is for drilling on hard material with medium drill bit, L speed is for drilling on hard material with large drill bit.

Shift when the machine stops or will stop.

Shift in place. If the spindle does not rotate or there is some noise after starting up, the gear may not shift in place. Turn off the machine immediately, and then shift the gear to proper place, rotate the spindle back and forth at the same time till shift in place.

Do not shift when the machine is full speed operated, it may lead to overload or stuck.

L M H

L - low speed

M - middle speed

H - high speed

Error	Cause	Solution
The Motor does not work	Power off, or plug loosed	Power up, plug in
	Carbon brush get stuck, and detach from diverter	Re-install carbon brush
	Reset PRCD failed	Push reset button or re-start the motor
	PRCD get damaged	Chang PRCD
Slow drilling	Drill bit worn out	Change drill bit
	Feeding speed is too low	Accelerate feeding speed
	Drill bit was pasted by chips	Clean the drill bit, enhance water pressure
	Rotate speed is too high	Change to low speed
	Cutting on steel and slip	Reduce feeding speed, after cutting through the steel, increase it
	Too many chips in the hole	Clean the bottom of hole and enhance water pressure
	Less water supply or water leakage	Check the ball valve and the water flow
	Drill bit becoming glazed	Re-sharp the drill bit with grinder
Drill bit jammed	The tube and drill bit or the drill bit and hole wall was jammed by chips. The stand is not secured, move location	Switch off the machine, turn the drill bit right and left with wrench or pull the drill bit out and break up the core sample
	Rotate speed is too high	Re-fix the stand
	Cutting on steel and slip	Narrow the gap
Drill bit under cutting	Spindle is not straight	Repair or replace the spindle
	Drill bit is not straight	Replace the drill bit
	Chips can't be flushed out of the hole	Enhance water pressure, pull out the drill bit, clean the hole
Water seal is leaking	The seal is worn out	Change the seal

MAINTENANCE

Warning: Always and on principle pull the mains plug before beginning with works of maintenance or repairs.

Clean the machine with a dry or moist cleaning-rag and not with a jet of water, make sure the water does not go into the motor and switch box. Keep the ventilation apertures clean, do not forget to clean the core bit thread and grease it, get all screws checked and tighten.

Have your tool only repaired by qualified personnel and only with original spare parts. Or else, it may cause damage to person or machine.

CARBON BRUSH

After you have used the machine for about 300 hours you should check the carbon brushes for wear and replace them if necessary. Like any other work on the motor this must be done by an electrical specialist.

Technical diagram of a mechanical device with numbered parts for identification

Technical diagram of a mechanical device with numbered parts for identification

STRUCTURE DU PRODUIT

Technical diagram of a mechanical device with numbered parts for identification

Technical diagram of a mechanical device with numbered parts for identification

ESTRUCTURA DEL PRODUCTO

Technical diagram of a mechanical device with numbered parts for identification

Technical diagram of a mechanical device with numbered parts for identification

Technical diagram of a mechanical device with numbered parts for identification

"L" / "2" - lav hastighed.

"L" / "3" - lav hastighed.

Technical diagram of a mechanical device with numbered parts for identification

Technical diagram of a mechanical device with numbered parts for identification

Technical diagram of a mechanical device with numbered parts for identification

Technical diagram of a mechanical device with numbered parts for identification

Technical diagram of a mechanical device with numbered parts for identification

Technical diagram of a mechanical device with numbered parts for identification

Technical diagram of a mechanical device with numbered parts for identification

Technical diagram of a mechanical device with numbered parts for identification

1. Klizna ručka

2. Ventil za vodu za ispiranje

3. Motorno vreteno

4. Sklop vodenog prstena (vanjski)

5. Prekidač napajanja

6. Glavna ručka

7. Meki start preopterećenja

8. Sklop motora

9. Plastični naslon za ramena

UPUTE ZA UPOTREBU:

Technical diagram of a mechanical device with numbered parts for identification

STRUCTURA PRODUSULUI

Technical diagram of a mechanical device with numbered parts for identification

Technical diagram of a mechanical device with numbered parts for identification

"H" / "1" - visoka hitrost.

"L" / "2" - nizka hitrost.

"H" / "1" - visoka hitrost.

"M" / "2" - srednja hitrost.

"L" / "3" - nizka hitrost.

Hitrost H je za vrtanje v mehak material z majhnim svedrom, hitrost M je za vrtanje v trd material s srednjim svedrom, hitrost L je za vrtanje v trd material z velikim svedrom.

Prestavite, ko se stroj ustavi ali se bo ustavil.

Premik na mestu. Če se vreteno ne vrti ali je po zagonu nekaj hrupa, se prestava morda ne bo premaknila na svoje mesto. Takoj izklopite stroj in nato premaknite prestavo na pravo mesto, istočasno zavrtite vreteno naprej in nazaj, dokler ne prestavite na svoje mesto.
