USER MANUAL Cafelizzia ColdBrew CECOTEC

Cafeteras express /Espresso coffee machines

Exterior view of a modern espresso machine (no signage or text visible on the device body)

Safety Instructions 0

1. Parts and components 41

2. Before use 41

3. Operation 42

4. Cleaning and maintenance 45

5. Troubleshooting 47

6. Technical specifications 48

7. Disposal of old electrical

and electronic appliances 48

B. Technical support and warranty 48

1. Copyright 48

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• Incorrect or improper use can be dangerous for the user and damage the appliance.
• Ensure that the mains voltage matches the voltage specified on the device rating label and that the plug is earthed.
• Place the appliance on a dry, stable, flat, heat-resistant surface.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.
• Do not use the appliance if its cable, plug, or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• Check the power cable regularly for visible damage. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not try to repair the appliance by yourself. Contact the official Cecotec Technical Support Service for advice.
• Do not cover the appliance during operation and do not place heavy objects on it.
• Do not use the appliance under the following circumstances: A On or near a gas or electric hob, in heated ovens, or near open flames.

B On soft surfaces (such as carpets) or where it may tip over during use.
C Outdoors or in areas with high humidity levels.
- Do not use any accessory that has not been recommended or provided by Cecotec, as they might cause injuries or damage.
- CAUTION: hot surface. The temperature of accessible surfaces may be high while the appliance is in use and could cause burns. Do not touch hot surfaces during operation or immediately after.
- When filling the water tank, be careful to avoid spillage, especially on the cord and electrical parts of the appliance.
- Warning: the filling opening must not be opened during operation.
- Do not insert coffee while the machine is in operation.
- Do not operate the appliance without water.
- Do not move or turn the appliance off during operation.
- Do not let the cable hang over the edge of the working surface or worktop, and prevent it from touching hot surfaces.
- Switch off the appliance and unplug it from the mains when not in use or when cleaning, before changing accessories, disassembling, or assembling the product. Allow it to cool down completely before attaching or removing parts and before cleaning the appliance.
- Never leave the device unattended during use. Unplug the device after use and when you leave the room where it is installed.
- Cleaning and maintenance tasks must not be carried out by children.
- The device is not intended to be used by children. Keep this appliance and its power cable out of their reach.
- This product can be used by children and people with reduced physical, sensory, or mental capabilities or lack of experience

and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

• Supervise children to prevent them from playing with the appliance. Close supervision is necessary when the appliance is being used by or near children.
• The device must not be submerged.
• Warning: this product has undergone a quality control previous to its commercialisation with the aim of ensuring its correct operation. After the quality control testing, the appliance is cleaned thoroughly, therefore, although it is unlikely to occur, there could be rests of water drops.

INSTRUCTIONS DE SÉCURITÉ

1. Water tank cover
2. Water tank
3. Steam knob
4. Control panel
5. Cup/mug tray
6. Steerable steamer
7. Removable drip tray
   B. Measuring spoon with tamper
8. Single coffee filter
9. Double-coffee filter
10. Portafilter
11. Portafilter handle

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Espresso coffee machine
• Instruction manual
• Measuring spoon with tamper
• Portafilter handle
• Portafilter

ENGLISHENGLISH

• Single-coffee filter
• Double-coffee filter

First cleaning

1. Make sure that the appliance is switched off and disconnected from the mains.
2. Remove the water tank by pulling from it upwards.
3. Fill the water tank with fresh water. Do not exceed the MAX. fill level line.
4. Replace the water tank and make sure it is securely in place.
5. Place the filter inside the portafilter. Fig. 3
6. Insert the portafilter into the machine head. Turn the portafilter handle slightly to the left and then turn it to the right to the lock position. Make sure that the portafilter is securely in place and tilted slightly to the right. Fig. 5
7. Place a jug under the coffee spout.
8. Plug the appliance into a mains socket, press the power icon, the other icons will light up.
9. Once the appliance has finished preheating, select double coffee.
10. Once the preheating process has finished, press the power icon to switch off the appliance, all the icons on the display will switch off.
11. Remove the portafilter by turning it clockwise and, then, remove the filter.
12. Allow the accessories to coal completely before washing them under running water.

3. OPERATION

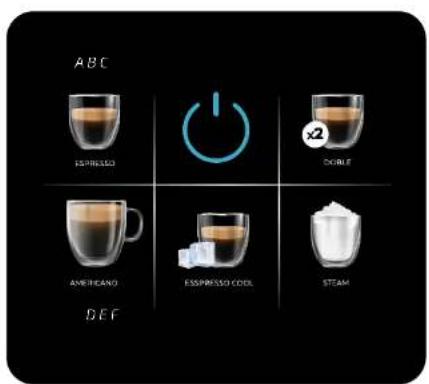

Control panel. Fig. 2

Fig. 2 key:

A Espresso coffee: press the Espresso icon to brew a single espresso coffee. The corresponding Icon will start flashing, indicating that the appliance is preheating. When the icon stops flashing and remains steady, the appliance is ready to brew coffee. The extraction process will take about 17 seconds.
B Power icon.
C Double coffee: press the Double Espresso icon to brew a double espresso coffee. The corresponding icon will start flashing, indicating that the appliance is preheating. When the icon stops flashing and remains steady, the appliance is ready to brew coffee. The extraction process will take about 25 seconds.
D Americano coffee: press the Americano icon to prepare an Americano coffee. The corresponding icon will start flashing, indicating that the appliance is preheating. When the icon stops flashing and remains steady, the appliance is ready to brew coffee. The extraction process will take about 41 seconds.
E Cold Espresso coffee: to prepare a cold Espresso, add ice cubes to the water tank and press the Espresso Coolicon. The extraction process will take about 19 seconds. For best results, always use cold water.

F Steam: the milk froth is extracted by the steam. This is a process that consists of using the steamer to emulsify the milk by mixing air or steam to obtain a creamy texture at the same time as heating it. However, mastering this technique requires patience and practice.

3.1 Steamer

1. Determine the amount of milk needed based on the number of cups to be prepared.

Tip: please note that when the milk is frothed, its volume and density will increase considerably.

1. Fill a stainless steel jug one-third full with cold milk.

2. Activate the steam function by pressing the steam icon. The corresponding icon will stop flashing and will remain steady when the preheating process is finished, and the appliance is ready for use.

3. Before frothing milk, purge the steamer to remove any remaining condensed water. To do this, activate the hot water outlet by slowly turning the steam knob to the ON position. Once the steamer has been purged, stop the water outlet by turning the steam knob to the OFF position.

4. Move the steamer slightly to one side of the coffee machine so that it is easier to froth milk.

5. Insert the steamer through the side of the jug approximately 1 cm deep into the milk and, at the same time, activate the steam function by turning the knob to the ON position.

6. Tilt the jug slightly forward so that the steamer touches the wall of the jug and move it away until the steamer is in contact with the surface of the milk. This will cause a layer of froth to form on the surface of the milk.

Note: do not let the steamer come out unevenly, otherwise the milk will start to bubble and will not froth properly. In case this happens, insert the steamer deeper into the milk.

1. As the steam heats and froths the milk, its volume will increase. When this happens, follow the level of the froth by slightly lowering the jug and always try to keep the steamer in contact with the surface of the milk, without touching the bottom of the jug.

2. Once you have achieved the desired amount of froth, insert the steamer into the bottom of the jug to ensure that the milk reaches the correct temperature.

Tip: the amount of froth required will vary depending on the type of coffee you wish to prepare. For example, a cappuccino needs more froth than a latte.

1. Stop the steam outlet by turning the knob to the OFF position.

ENGLISHENGLISH

Note: do not boil the milk.

1. Remove the jug, wipe the steamer with a damp cloth and purge it with a steam shot to remove any residue.

Note: the steam outlet nozzle should be cleaned with a damp sponge immediately after steam stops coming out but be careful not to burn yourself.

1. To switch off the coffee machine, press the power icon. All icons on the display will turn off.

Note: if you wish to prepare coffee immediately after steaming, you must first dispense water to allow the machine to cool down.

3.2 Brewing with ground coffee

1. Make sure that the appliance is switched off and disconnected from the mains.
2. Remove the water tank by pulling from it upwards.
3. Fill the water tank with fresh water. Do not exceed the MAX. fill level line.
4. Replace the water tank and make sure it is securely in place.
5. Place the filter inside the portafilter. Fig. 3
6. Fill the filter with ground espresso using the measuring spoon provided. Apart from the type of coffee used and the coffee grind, the key to a quality espresso is to distribute and press it evenly in the filter with the tamper. It must also be ensured that the filter is always clean and free of coffee residues. Fig. 4
7. Insert the portafilter into the machine head. Turn the portafilter handle slightly to the left and then turn it to the right to the lock position. Make sure that the portafilter is securely in place and tilted slightly to the right. Fig. 5
   B. Place one or two pre-heated cups under the coffee spout.
8. Plug the appliance into a mains socket, press the power icon, the other icons will light up.
9. Once the machine has finished preheating, select one of the options (Espresso, Double, Americano, Cold Espresso) depending on the type of coffee you want to prepare and wait a few seconds until the coffee comes out.
10. The extraction process will take about 25 seconds and, if no operation is performed during this time, the machine will stop automatically.
11. Once the brewing process has finished, press the power icon to switch off the appliance, all the icons on the display will switch off.
12. Remove the portafilter by turning it clockwise and then, remove the filter.
13. Allow the accessories to cool completely before washing them under running water.

Note:

- If the grind is too fine, the coffee will be over-extracted, resulting in a bitter coffee, with an irregular, spotty crema.

• If the grind is too coarse, water will quickly pass through the ground coffee without being properly extracted, resulting in coffee with little crema.
• If necessary, add more ground coffee to fill the filter and re-press the ground coffee with the tamper.
• Wipe any coffee residue from the rim of the portafilter to ensure that it is securely attached to the appliance head to prevent leakage.
• The pressing of ground coffee is a crucial part of the espresso preparation process. If pressed evenly and consistently, the espresso will be extracted slowly and more crema will be produced. If not pressed compactly, the espresso will be extracted more quickly, and less crema will be formed.
• A perfect extraction will result in a dark, hazelnut-coloured coffee with reddish hues.
• After preparing a hot espresso, allow the machine to cool down for 15 minutes before preparing a cold espresso.
• To do this, activate the steam function by pressing the steam icon and turning the steam knob to the ON position to dispense water through the steamer and cool the coffee machine. Once the machine has cooled down, turn off the steam function and turn the steam knob to the OFF position so that no more water comes out and the machine can be used to prepare coffee again.

3.3 Hot water function

Press and hold the steam icon for 3 seconds to make the coffee machine dispense hot water through the steamer.

Cooling function

The coffee machine reaches very high temperatures after frothing milk or dispensing hot water, which means that the machine must first be cooled down before it can be used to make coffee again. Otherwise, coffee could splash out and cause burns. Once the appliance has cooled down, you can use it again to prepare coffee.

Press the steam icon to deactivate the steam function. Then, turn the steam knob to the ON position to dispense water through the steamer and cool down the appliance. Once the machine has cooled down, turn the steam knob to the OFF position so that no more water comes out and the machine can be used to prepare coffee again.

4. CLEANING AND MAINTENANCE

Before cleaning the appliance, switch it off and unplug it from the wall socket. Do not immerse the machine in water or any other liquid. To clean it, simply wipe it with a clean, damp cloth and dry it before storing it.

ENGLISHENGLISH

Cleaning the filters, portafilter and appliance head

After each use, clean the stainless steel filters and the portafilter with water to remove any coffee residue.

To remove coffee residues from the inside of the appliance, insert the portafilter without ground coffee into the appliance head and dispense hot water until it comes out completely clean.

To thoroughly clean the inside of the coffee machine head and remove coffee residues, use a clean, damp cloth.

Cleaning the outer housing and the cup/mug tray

Do not use detergents or abrasive cleaning agents to clean the outer housing and cup/mug tray. Use a soft, damp cloth.

Cleaning the drip tray grille

The drip tray should be removed, emptied, and cleaned frequently, especially when it is full. To do this, remove the grille from the drip tray, wash it with warm soapy water and rinse it thoroughly. Do not use abrasive detergents or cleaning products, scouring pads or cloths that could scratch the surface.

Cleaning the drip tray

After removing the grille, remove the drip tray and clean it with a soft, damp cloth (do not use detergents or abrasive cleaners).

Note: do not put any of the parts or accessories in the dishwasher.

Cleaning the steamer

The steamer must be cleaned each time it is used to froth milk.

First, clean the surface of the steamer with a damp cloth and then, with the steamer facing the drip tray, turn the steam function on by turning the knob to the ON position. This will remove any remaining milk from inside the steamer. Once the steamer is clean, turn the steam knob to the OFF position. Then, press the power icon to switch off the machine, unplug the power cord from the power socket and allow the machine to cool down. If the steamer is still clogged, insert a pin through the steam outlet.

1. TROUBLESHOOTING

Problem Possible cause	Possible solution
No coffee comes out	No water in the water tank. Fill up the water tank.
	The ground coffee is too fine or not pressed enough.	Empty the filter, rinse it with water to clean it and then dry it with a cloth. Fill the filter with ground coffee and press it firmly.
No steam comes out of the steamer	The steam outlet is blocked.	Check if the steam outlet is blocked. Clean the steamer as detailed in the "Cleaning the steamer" section.
	No water in the water tank. Fill the water tank and activate the hot water function to make sure that the water comes out properly.
Water leaks from underneath the coffee machine or water leaks out	The drip tray is too full. Empty the drip tray.
Filter is leaking or leaking water	There are traces of ground coffee on the edges of the filter.	Remove coffee residues from the edge of the filter.
Coffee has an unpleasant taste	Water has been in the water tank for too long or it has not been cleaned properly.	Clean the water tank and remove limescale.
No or very little steam comes out	The steam outlet is blocked.	Check if the steam outlet is blocked. Clean the steamer as detailed in the "Cleaning the steamer" section.
The coffee machine does not froth milk well	The type of milk you have used is not suitable.	Use whole milk.

ENGLISH

FRANÇAIS

6. TECHNICAL SPECIFICATIONS

Product reference: 00270

Product: Cafelizzia ColdBrew

Voltage: 220 - 240 V\~

Frequency: 50 Hz

Power: 1350 W

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Image 1

3.3 Functle warm water

Labeled diagram of a coffee maker with numbered parts for identification and assembly reference.

Fig./Img./Abb./Afb./Rys./Obr.1

ABC ESPRESSO DBLE ×2 AMERICANO ESPRESSO COOL STEAM DEF

Fig./Img./Abb./Afb./Rys./Obr.2

Diagram showing a mechanical assembly with labeled parts and directional arrows indicating process flow.

Fig./Img./Abb./Afb./Rys./Obr.3

Technical line drawings of three different mechanical devices or tools, showing different mounting configurations (no text or symbols present)

Fig./img./Abb./Afb./Rys./Obr. 4 Fig./img./Abb./Afb./Rys./Obr. 5
