USER MANUAL GPS 35 18-EC Flex
VORSICHT!
Symbols used in this manual
WARNING!
Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.
CAUTION!
Denotes a possibly dangerous situation. Non-observance of this warning may result in slight injury or damage to property.
NOTE
Denotes application tips and important information.
Symbols on the power tool
Before switching on the power tool, read the operating manual!
Wear ear protection
DANGER - Keep hands away from blade
Do not expose to rain
Disposal information for the old machine (see page 13)
For your safety
WARNING!
Before using the power tool, please read and follow:
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without Supervision.
– these operating instructions,
– the currently valid site rules and the regulations for the prevention of
accidents.
This power tool is state of the art and has been constructed in accordance with the acknowledged safety regulations.
Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged.
The pruning shear may be used only –asintended,
– in perfect working order.
Faults which impair safety must be repaired immediately.
Intended use
This pruning shear is intended
– for commercial use in industry and trade,
– for cutting and pruning small limbs and branches.
Safety instructions for pruning shear
WARNING!
Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
■ Do not use the pruning shear in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
- Keep all power cords and cables away from cutting area. Power cords or cables may be hidden and can be accidentally cut by the blade.
■ Hold the pruning shear by insulated gripping surfaces only, because the blade may contact hidden wiring. Blades contacting a "live" wire may make exposed metal parts of the pruning shear "live" and could give the operator an electric shock.
- Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the pruning shear may result in serious personal injury.
■ When clearing jammed material or servicing the pruning shear, make sure
the power switch is off and the battery pack is removed or disconnected.
Unexpected actuation of the pruning shear while clearing jammed material or servicing may result in serious personal injury.
- Carry the pruning shear by the handle with the blade stopped and taking care not to operate the power switch. Proper carrying of the pruning shear will decrease the risk of inadvertent starting and resultant personal injury from the blades.
Noise and vibration
The noise and vibration values have been determined in accordance with EN 62841. The A evaluated noise level of the power tool is typically:
- Sound pressure level L_pA : 60 dB(A)
– Sound power level L_WA : 68 dB(A) - Uncertainty: K = 3 dB
Total vibration value:
- Emission value a_h : <2.5 m/s
- Uncertainty: K = 1.5 m/s ^2
CAUTION!
The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.
NOTE
The vibration emission level given in this information sheet has been measured in accordance with a measurement method standardised in EN 62841 and may be used to compare one tool with another.
That the declared vibration total value(s) and the declared noise emission value(s) may also be used in a preliminary assessment of exposure.
However, if the tool is used for different applications, with different cutting accessories or poorly maintained, the vibration emission level may differ.
This may significantly increase the exposure level over the total working period.
To make an accurate estimation of the vibration exposure level, it is also necessary to take into account the times when the tool is switched off or running but not actually in use.
This may significantly decrease the exposure level over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the cutting accessories, keep the hands warm, organisation of work patterns.
WARNING!
- that the vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the ways in which the tool is used especially what kind of workpiece is processed; and
- of the need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use(taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
CAUTION!
Wear ear protection at a sound pressure above 85 dB(A).
Technical data
| Tool GPS 35 18-EC | |||
| Type Pruning Shear | |||
| Rated voltage V 18 | |||
| Cutting capacity mm 35 | |||
| Weight according to"EPTA Procedure 01/2003" | kg | 0.9 | |
| Battery | 18V | AP 18.0/2.5AP 18.0/5.0AP 18.0/8.0 | |
| Weight of battery | kg | AP 18.0/2.5AP 18.0/5.0AP 18.0/8.0 | 0.40.71.1 |
| Working Temperature | -10~40°C | ||
| Charging Temperature | 4~40°C | ||
| Storage Temperature | <50°C | ||
| Charger | CA 12/18CA 18.0-LDCA 10.8/18.0 | ||
Overview (Figure A)
The numbering of the product features refers to the illustration of the machine on the graphics page.
- Fixed Blade
- Movable Blade
- Tension-adjusting Nut
- Locking Screw
- Handle
- Power Button
- Trigger Button
- Lubricating Hole
- Socket Wrench
- 4mm Hex Key
- 3mm Hex Key
- Lubricating Oil
Operating instructions
WARNING!
Remove the battery before carrying out any work on the power tool.
Keep hands away from the blades. Contact with blade will result in serious personal injury.
i NOTE
The pruning shears have a supporting warning device. An audible warning signal may sound as soon as the cutting edges and the switch have skin contact with a person at the same time. The cutting edges will automatically stop and open. This warning device supports the safe handling of the pruning shears, but cannot guarantee safety. Wearing gloves will prevent this feature. Dry skin can prevent this function.
Before switching on the power tool
Unpack the power tool and check that there are no missing or damaged parts.
NOTE
The batteries are not fully charged on
delivery. Prior to initial operation, charge the batteries fully. Refer to the charger operating manual.
Inserting/replacing the battery

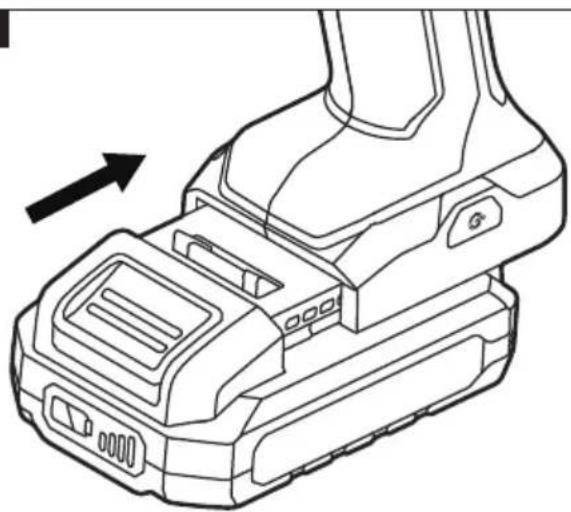

■ Press the charged battery into the power tool until it clicks into place (see figure B).

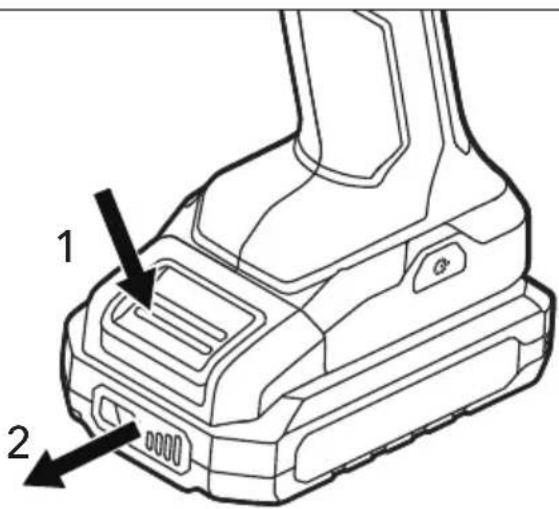

■ To remove, press the release button and pull out the battery (see figure C).
CAUTION!
When the device is not in use, protect the battery contacts. Loose metal parts may short circuit the contacts; explosion and fire hazard!

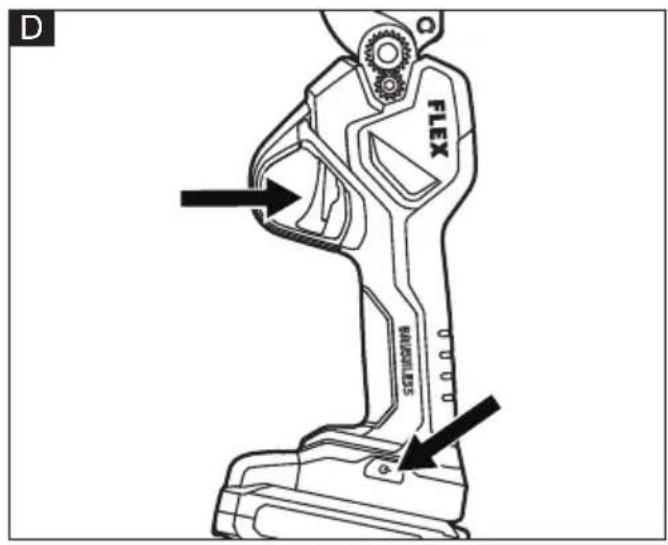

Switching on and off (see figure D)
■ Press and hold the power button on the base of the tool to turn on the power. The blades will open.
■ Pull the trigger button to close the blades. Press and hold the power switch on the base of the tool to cut off the power.
i NOTE
Before you start working, pull the trigger several times to check whether its no-load operation is normal.
NOTE
If you do not operate the trigger for approximately 3 minute, the tool will automatically power off and beep at the time of powering off.

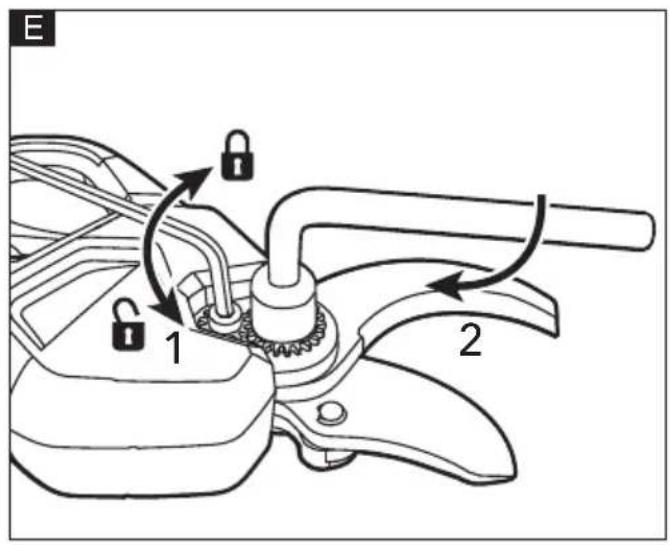

Adjusting the blade tension (see figure E)
After a certain number of hours of operation the blade tension (the gap between the blades) may deteriorate. Proper blade tension is important for the pruning shear to make accurate cuts.
a. Power off the tool and detach the battery pack.
b. Loosen the locking screw with the provided hex key.
c. Rotate the tension-adjusting nut with the provided socket wrench to achieve the perfect tension.
d. Use the provided hex key to tighten the locking screw.
NOTE
When the blades are closed, they should not swing sideways. Lateral swings can damage the interior mechanical structure of the tool.

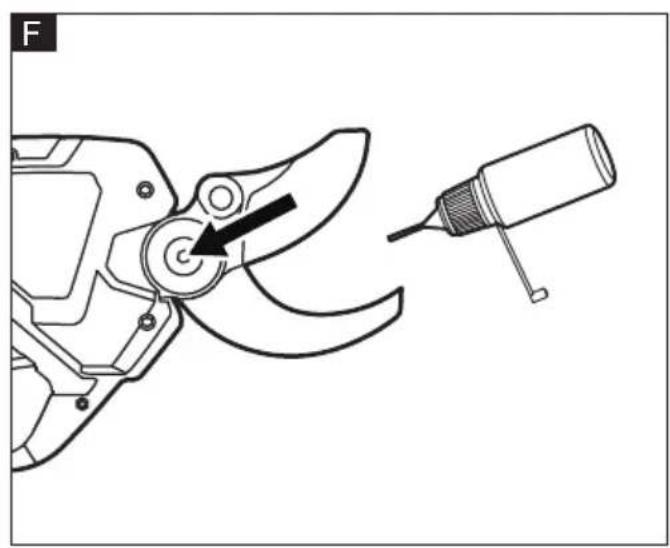

Lubricating the pruning shear (see figure F)
The blades need to be lubricated with liquid lubricant before use or after working when the blades are dry.
a. Power off the tool and detach the battery pack.
b. With the blades open, add lubricating oil into the lubricating hole on the back of the pruning shear.
c. Perform a no-load cut to help uniformly distribute the oil.
Maintenance and care
WARNING!
Remove the battery before carrying out any work on the power tool.
Cleaning
■ Clean the power tool and vent slots regularly. Frequency of cleaning is dependent on the material and duration of use.
■ Regularly blow out the housing interior and motor with dry compressed air.
Spare parts and accessories
For other accessories, in particular tools and polishing aids, see the manufacturer's catalogues.
Exploded drawings and spare-part lists can be found on our homepage:
www.flex-tools.com.
The instruction can also be available on www.flex-tools.com.
Disposal information
WARNING!
Render redundant power tools unusable:
- mains operated power tool by removing the power cord.
EU countries only
Do not throw electric power tools into the household waste!
In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and transposition into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner.
Raw material recovery instead of waste disposal.
Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.
NOTE
Please ask your dealer about disposal options!
C €-Declaration of conformity
We declare on our sole responsibility that the product described in "Technical specifications" conforms to the following standards or normative documents: EN 62841 in accordance with the regulations of the directives 2014/30/EU, 2006/42/EC, 2011/65/EU. Responsible for technical documents: FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr
Technical Director Head of Quality
Department (QD)
Declaration of Conformity
We as the manufacturer: FLEX
declare under our sole responsibility, that the product(s) described under „Technical specifications“ fulfills all the relevant provisions of The Supply of Machinery
(Safety) Regulations S.I. 2008/1597 and also fulfills all the relevant provisions of the following UK Regulations:
Electromagnetic Compatibility Regulations
S.I. 2016/1091, The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations
S.I. 2012/3032 and are manufactured in accordance with the following designated Standards:
BS EN 62841-1:2015/A11:2022
BS EN ISO 12100:2010
BS EN IEC 55014-1:2021
BS EN IEC 55014-2:2021
Place of declaration: Steinheim, Germany. Responsible person: Peter Lameli, Technical Director - FLEX-Elektrowerkzeuge GmbH
Contact details for Great Britain: FLEX Power Tools Limited, Unit 8 Anglo Office Park, Lincoln Road, HP 12, 3RH Buckinghamshire, United Kingdom.
