TILE CUTTER 450W TC502AC

Simple white icon of a hat on a box, no text or symbols present

EN Original Instructions 07

Technical diagram of a machine with numbered parts for identification

B-1 B-2

9 9 13

9 10

B-3 C-1

60 9 10

12 22 22

C-2

16 15 2 17 14

C-3

2 19 20 15 16

C-4

16 15 14 2 17

D-1 D-2

Technical line drawing of a mechanical assembly with two components and a numbered label (4), no readable text or symbols present.

12 23 4

E

1 3 11

F

3 1 11 21

G 1 5

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fi re and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Risk of electric shock.

Immediately unplug the plug from the mains electricity in the case that the cord gets damaged and during maintenance.

Wear hearing protection.

Wear eye protection.

Earthing symbol. This appliance is classified as protection class I and must be connected to an earthed socket.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep the work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool

repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

ADDITIONAL SAFETY INSTRUCTIONS FOR TILE CUTTER

• Check your power tool for damage before starting your work, particularly the diamond blade. All parts must be fitted properly and must meet all requirements in order to guarantee the tool's smooth operation. Any safety guards or any lightly damaged parts must be checked to see if they still function properly before continuing the use of the tool. Moving parts, and the diamond-blade guard in particular, must be fitted properly and must not jam. Do not use tools that cannot be switched on or off with the switch.
• The diamond-blade guard must not be jammed or removed.
• A jamming guard must be repaired immediately.
  The riving knife must not be removed.

Before you operate the machine:

- Check the following:

• Does the voltage rating of the bench grinder correspond to the power supply?
  Are the power cord and plug in good condition (solid, without fraying or other damage)?

• Use safety goggles.

• Use a dust mask.

Whenever using the machine

• Check that the switch is NOT in the 'ON/1' position before connecting the machine to the power supply.
• Always keep the power cord out of the way from the moving parts of the machine.

Immediately switch off the machine when:

• The plug or power cord is defective or damaged.
  The switch is defective.
• You smell smoke or burning insulation.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fi re, electric shock and personal injury. Read the following safety instructions.

Always check that the voltage of the power supply corresponds to the voltage on the rating plate label.

Warning! An earthed power outlet is required to safely operate this machine. Do not connect the machine to unearthed power outlets.

Using extension cables

Only use an approved extension cable suitable for the power input of the machine. The minimum conductor size is 1.5 mm^2 . When using a cable reel always unwind the reel completely. Do not use unearthed extension cables.

2. MACHINE INFORMATION

Intended use

This tool is suitable for cutting various wall and floor tiles with a maximum tile size of 500x500x35 mm. The diamond wheel may be replaced by the user. It is not permitted to use the tool for any other materials.

TECHNICAL SPECIFICATIONS

Model no. TC502AC
Voltage 230V~ / 50Hz
Power rating 300W S1 / 600W S6 15%
Cutting disc no-load speed 2990/min
Max. depth of cut at 90° 34mm

Max. depth of cut at 45° 18mm
Cutting angle 0-45°
Cutting disc diameter ∅180mm x ∅22.2mm
Cutting disc thickness 2.2mm
Table dimensions 360 x 330mm
IP rating IP44
L_PA (Sound pressure level)	87dB(A), K=3dB(A)
L_WA (Sound power level)	100dB(A), K=3dB(A)

DESCRIPTION

The numbers in the text refer to the diagrams on page 2-6.

1. Cutting table
2. Cutting blade
3. Fence
4. Water tray
5. Bevel adjustment knob
6. On/off switch
7. Fence knob
8. Measurement ruler

9. Riving knife screws

10. Riving knife

11. Blade guard

12. Lower blade guard

13. Riving knife plate

14. Inner blade flange

15. Outer blade flange

16. Blade fixing nut

17. Motor axle

18. Machine

19. Small wrench

20. Large wrench

21. Mitre guide

22. Lower guard screws

23. Mounting holes

3. ASSEMBLY

Mounting the riving knife and blade guard (Fig. A, B)

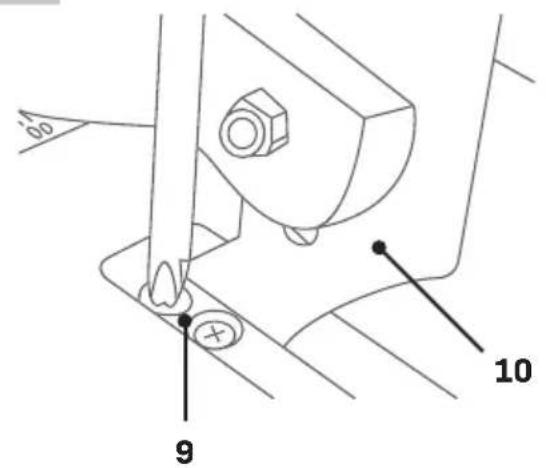

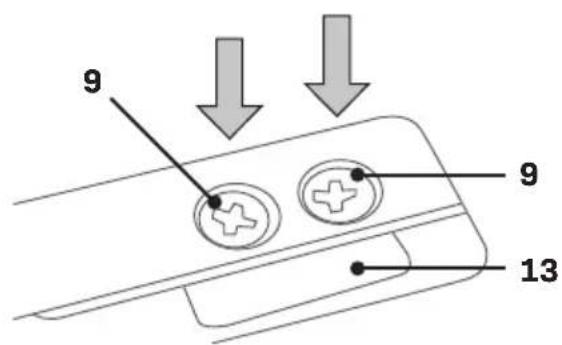

• Unscrew the two screws (9) slightly.

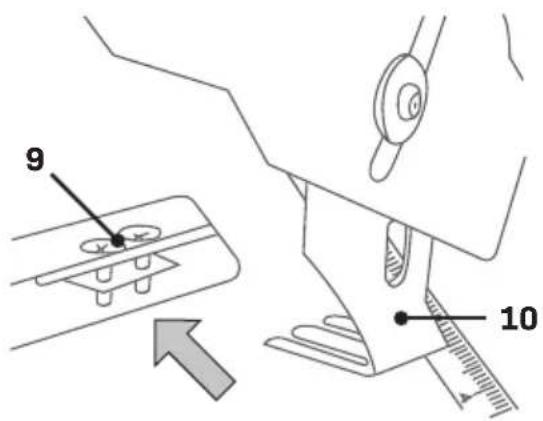

• Place the foot of the riving knife (10) under the screws (and slightly under the table).
• Tighten the screws (9).

Mounting the cutting blade (Fig. A, C)

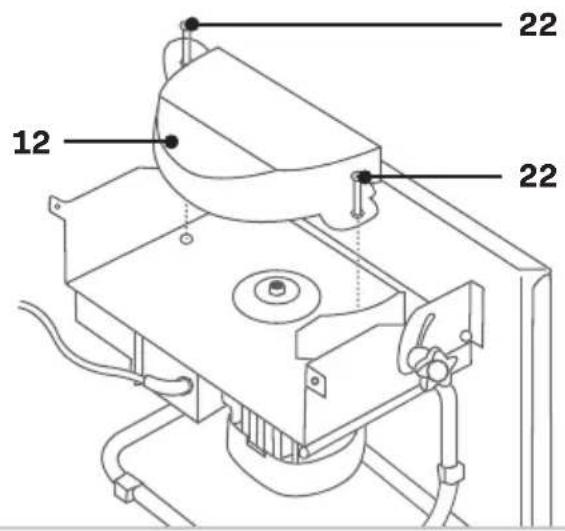

• Remove the two screws (22) from the lower blade guard (12). Ensure to remove the screws as indicated in figure C1, and not the two (smaller-) screws at the bottom of the lower blade guard.
• Remove the lower blade guard (12).

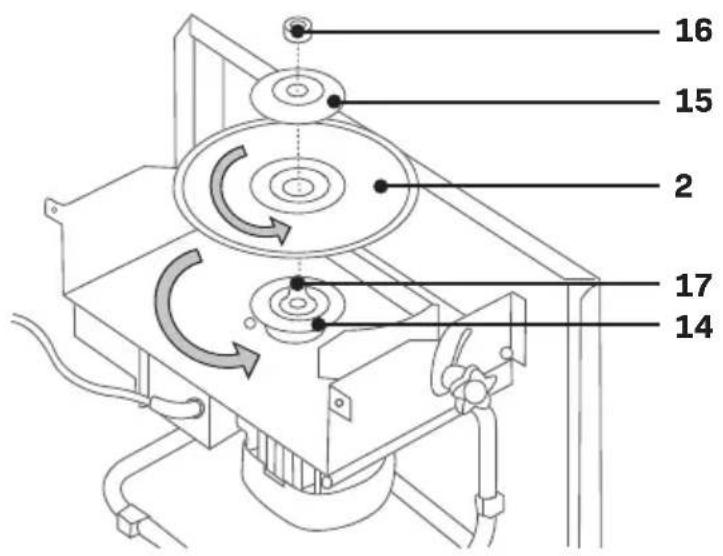

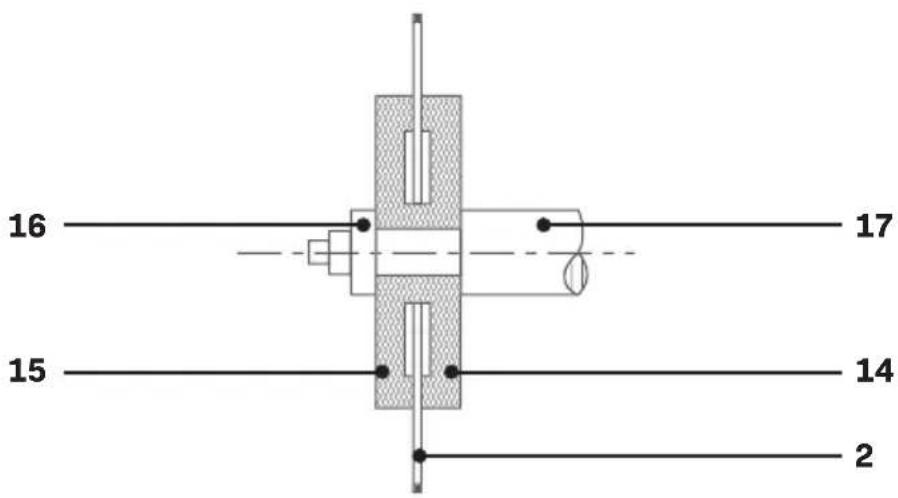

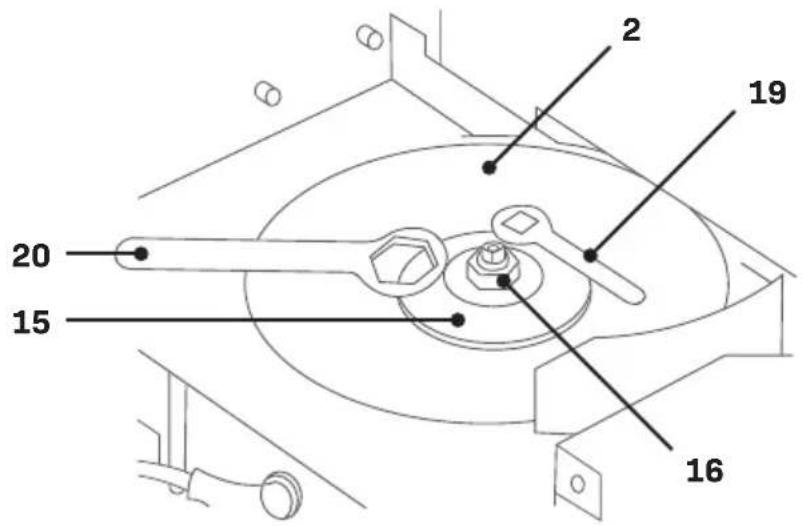

• Remove the nut (16) by turning it counterclockwise and remove the outer fl ange (15).
• Place blade (2) on the inner fl ange (14).
• Place the outer flange (15) on the blade.
• Secure the blade by holding the outer fl ange (15) with the large wrench (20) and tightening the nut (16) clockwise with the small wrench (19).

Mounting the adjustable fence (Fig. A)

• Connect the knob (7) with the fence (3) by using the plate (1 hole with thread). Do not yet fully tighten the knob.
• Slide the complete fence with (loosely fixed) knobs onto the table; the plates on the inner side of the table.
• Position the fence (3) at the desired distance from the blade (2).
• Tighten the knobs (7) to secure the fence in place.

Mounting the water tray (Fig. A, D)

Always use the water tray (4) and ensure the water level is between the indicated MIN and MAX markings.

It is essential to use the machine with the supplied water tray. It is essential to use the machine with the supplied water tray (4). The water cools the blade, signifi cantly extending its lifespan. Additionally, the water reduces the generation of dust.

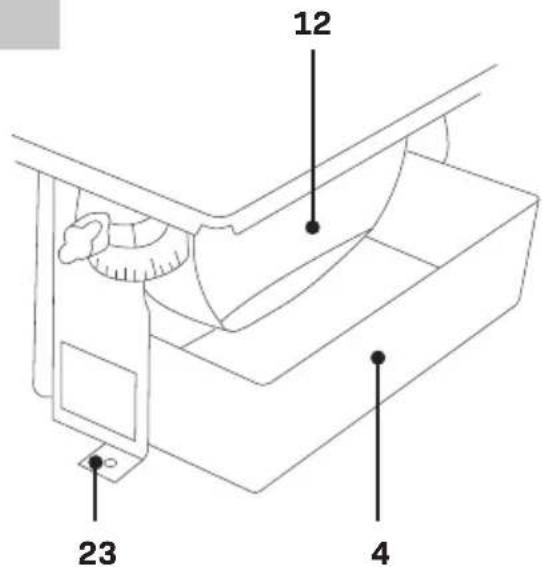

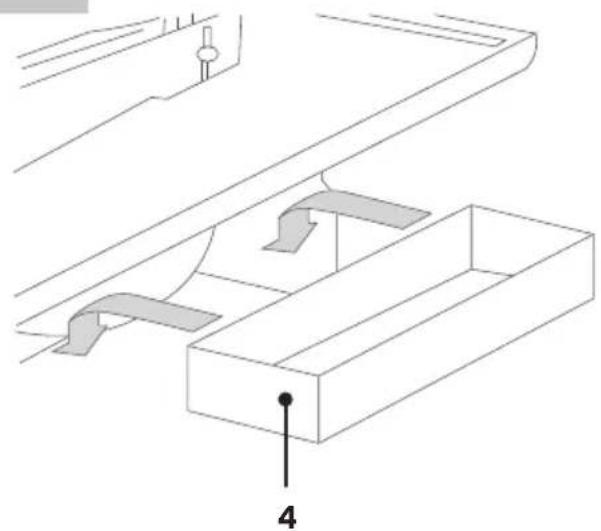

• Put the machine on a surface and place the water tray (4) under the lower blade guard (12).
• Ensure that the water tray is placed properly: the edge of the water tray furthest away from you must fit between the lower blade guard (12) and the metal surface on the machine.

Installing the tile cutter (Fig. A, D)

- The tile cutter may only be used as a fixed tool and should be screwed down to a level and horizontal surface. Please use the mounting holes (23) in the base of the machine.

• The electrical supply must be connected to a 230V\~ earthed wall socket. The mains voltage must comply with the information on the type plate, and must be protected by a circuit breaker.
• Do not use the power cable to pull the plug from the socket. Protect the cable against heat, oil and sharp objects.

Only use accessories and auxiliary equipment mentioned in the instructions for use or recommended or mentioned by the manufacturer. Using other accessories or auxiliary equipment may carry a risk of injury for you and others.

4. OPERATION

Before starting the cutting job, always ensure there is suffi cient water in the water tray. The diamond blade must run through the water. Keep a close eye on the water level during the job, so it doesn't run out unexpectedly. Flush and replace the water after a few cuts, so it doesn't become too contaminated.

(Accidentally) operating the machine without suffi cient water may reduce the lifespan of the machine and will quickly dull the blade.

Cutting with a dull blade, without suffi cient water, or with very contaminated water may result in rough cuts and/or cracked/chipped tiles. For best results: always make sure that the blade is in good condition and that there is suffi cient clean water in the tray.

• Wait until the blade has reached its full rotational speed before starting the cut.

• The diamond blade must NEVER be exposed to sideways pressure. The blade can shatter under sideways pressure and the fl ying pieces become projectiles!

• Do not attempt to cut extremely small pieces from the tiles. Always make sure that the full surface of the tile is on the work table. The supplied mitre guide can be used to push the tiles through the cutter. In the early stages of cutting in particular, the tile must remain absolutely level to avoid the tile moving up.

• Do not overload your tool. It is better and safer to work within the indicated power range. Do not cut materials other than tiles.

• Maintain your tools carefully. Keep the tools sharp and clean in order to work properly and safely.
• Follow the maintenance instructions and the instructions for replacing the diamond blade.
• Stand safely and maintain your balance. Avoid any unnatural body angles. Remain alert and pay attention to your work. Use common sense. Do not use the machine when you cannot concentrate or when you are tired.
• If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard.

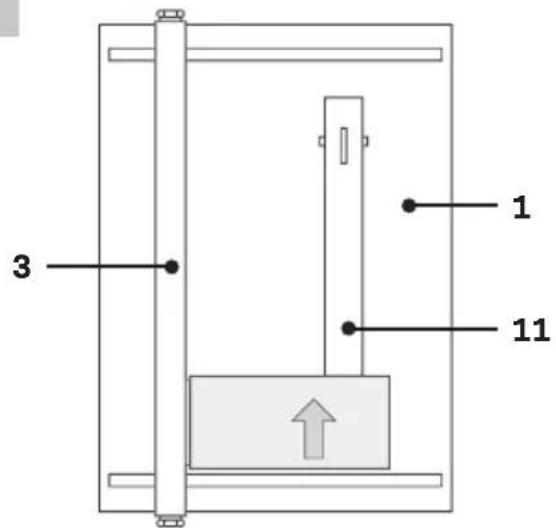

Full-length adjustable fence Fig. A, E)

The fence (3) enables you to cut parallel to the cutting blade.

• Loosen the fence knobs (7) and set the required distance.
• Tighten the fence knobs on both sides of the cutting table (1).
  The markers determine the measurements (8).

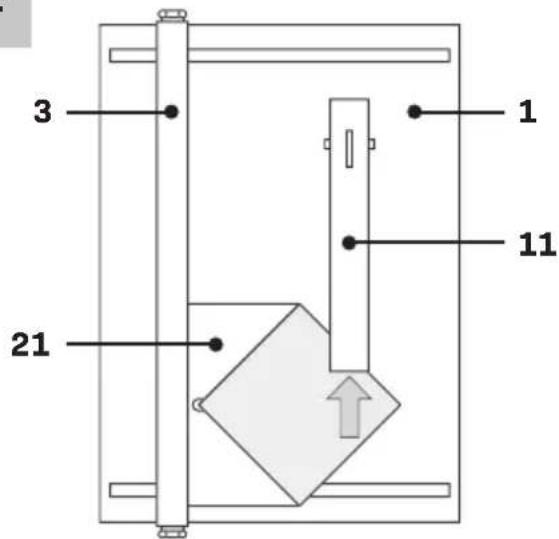

Follow the same procedure for a straight/parallel cut but use the mitre guide (21) against the fence (3) for 45-defree cutting of tiles. Ensure that the tile is held firmly into the guide before making the cut.

Bevel angle adjustment (Fig. A, G)

The table surface has a variable setting between 0^ and 45^ bevel angle.

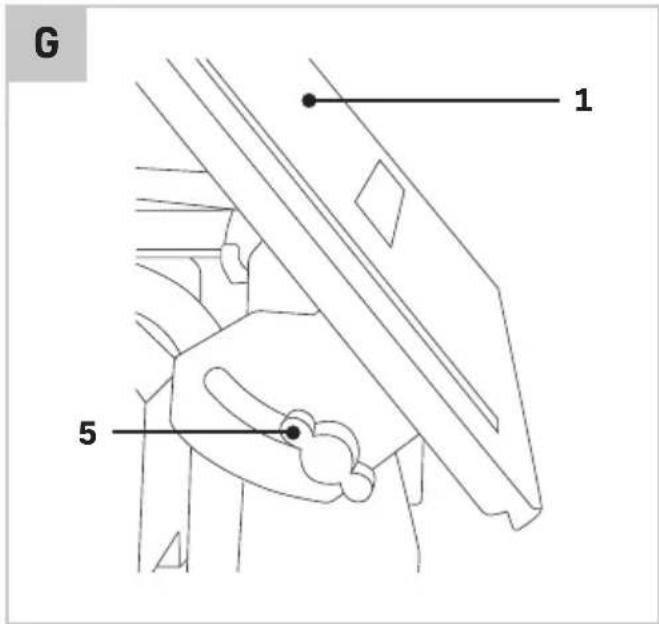

• Loosen the bevel adjustment knobs (5) on the front- and rearside of the table (1)
• Set the bevel angle by tilting the table (1) up until you have reached the required tilt.
• Tighten the knobs (5) again on both sides of the table.

Inspecting and replacing the diamond blade (Fig. A, C)

• Cracked or distorted diamond blades must be replaced immediately.

• Type of disk: diamond cutting blade with a diameter of 180mm.

• Do not use blades that do not meet the specifications in these instructions.

• Ensure that the diamond blade is secured properly and rotates in the correct direction.

Replacing the diamond blade (Fig. C)

Disconnect the machine from the mains electricity before replacing the blade

• Remove the water tray (4) from the machine.
• Loosen the blade guard's fixing bolts (22) and remove the splash guard (12).
• Loosen the blade fixing nut (16).
• Remove the counter fl ange (15) and blade (2) and push the new blade on the fl ange (14). Consider the rotation direction indicated on the blade. Attach the counter fl ange (15).
• Tighten the fi xing nut (16) and mount the splash guard.

5. MAINTEN ANCE

Before cleaning and maintenance, always switch off the machine and unplug the power cord.

The machines have been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

Cleaning

Keep the ventilation slots of the machine clean to prevent overheating of the engine. Regularly clean the machine housing with a soft cloth, preferably after each use. Keep the ventilation slots free from dust and dirt. If the dirt does not come off use a soft cloth moistened with soapy water. Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

Always clean the tool immediately after use.

• Remove the water tray from the machine and drain the dirty water.
• Unscrew the splash guard and clean it.
• Loosen the star-shaped knob, fold up the table, and polish the entire machine.

Maintenance

The machine complies with all current safety regulations. Repairs may only be carried out by an approved company, because repair attempts by unqualified persons may cause injuries to the user and bystanders. Regularly check the power cable and plug and if they are damaged they should be replaced by an approved company. Also check any extension cables. Damaged safety guards and switches must be replaced before the machine is used again.

ENVIRONMENT

crossed out wheelie bin symbol means

that this product shall not be disposed of with normal household waste. Electronic and Electrical Equipment not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances. Please dispose of responsibly at an approved waste or recycling facility.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
• Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fi tness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.
