Product type	Wet and dry vacuum cleaner
Brand	Ghibli & Wirbel
Model	AS 59 IK
Power supply	Electric, mains plug connection
Motorization	Single or dual motor depending on configuration
Suction capacity	Adjustable on models with ergonomic handle (force selector)
Filtration type	Washable polyester filter, paper dust bag (optional)
Use for liquids	Yes, after removing polyester filter and paper bag
Included accessories	Suction hose, ergonomic handle/flexible tube, rigid extensions, nozzles (nozzle, brush, crevice tool, etc.), electric brush possible
Socket for electric brush	Yes on equipped models (max 200 W)
Tank emptying	Via drain tube or tilting tank depending on version
Filter maintenance	Clean with air jet or wash with lukewarm water, dry completely before reassembly
Bag replacement	Open the lid, remove the polyester filter, change the paper bag
Safety	Do not vacuum flammable, explosive, corrosive, toxic, or hot substances
Repairability	Spare parts available through Ghibli & Wirbel after-sales service
Weight	Approximately 10 kg (estimate)
Dimensions (L x W x H)	Approximately 45 x 35 x 50 cm (estimate)

Frequently Asked Questions - AS 59 IK Ghibli & Wirbel

How to use the vacuum cleaner to vacuum dust?

To vacuum dust, ensure that the polyester filter and paper bag (if present) are installed. Plug in the power cord, turn on the switch (position 'I'). For dual motor models, you can activate both motors for more power. Use the accessories suitable for the type of surface.

How to use the vacuum cleaner to vacuum liquids?

To vacuum liquids, remove the polyester filter and paper bag. Plug in the power cord, turn on the appliance. Ensure the recovery tank does not overflow: the noise increases when the tank is full, then stop the appliance and empty it.

How to change the paper dust bag?

Unclip the clips and remove the lid with the motor unit. Remove the polyester filter. Remove the used paper bag and install a new bag by engaging the collar into the nozzle. Replace the polyester filter and the lid, then lock the clips.

How to clean the polyester filter?

Unclip the clips, remove the lid and the polyester filter. Clean it with an air jet from the inside out. If it is very dirty, you can wash it with lukewarm water. Let it dry completely before putting it back in place.

What to do if suction is weak?

Check if the paper bag is full (replace it), if the filters are dirty (clean them), if the hoses or accessories are clogged, or if the squeegee of the nozzle is worn. Inspect each item and clean or replace if necessary.

How to adjust the suction force?

On models with an ergonomic handle, you can adjust the suction force by operating the selector on the handle. Opening the window reduces the suction force.

How to empty the tank after vacuuming liquids?

Unclip the clips and remove the lid. Tilt the tank to empty it. On some models, use the drain tube: remove the tube, unscrew the cap and drain. For tilting tank models, loosen the lock and tilt the tank.

How to use an electric brush with this vacuum cleaner?

If your model is equipped with a socket, lift the socket cover and connect the electric brush (max 200 W). The brush will then be powered during vacuuming.

What are the important safety instructions?

Never vacuum flammable, explosive, corrosive, toxic, or hot substances. Do not use the appliance in an explosive environment. Always unplug the power cord before any maintenance. Do not wash the appliance with water jets.

What to do if the vacuum cleaner does not start?

Check that the switch is in the 'I' position. Make sure the plug is properly connected. Check the electrical supply (fuse, circuit breaker). If the problem persists, contact after-sales service.

USER MANUAL AS 59 IK Ghibli & Wirbel

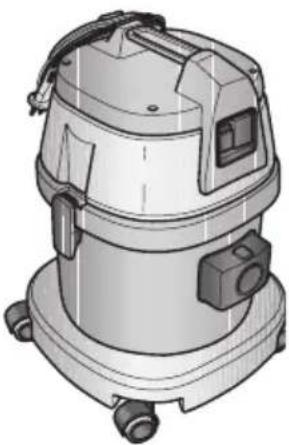

Illustration of a small industrial vacuum cleaner with handle and wheels (no text or symbols)

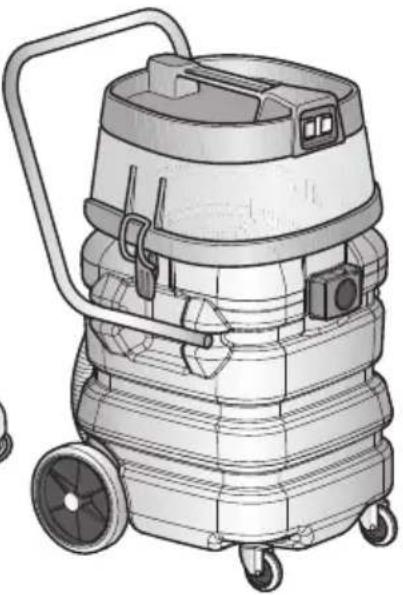

Line drawing of a four-wheeled industrial vacuum cleaner with handle and wheels (no text or symbols)

Illustration of a vacuum cleaner with attached control panel and wheels (no text or symbols)

EN Use and Maintenance

Line drawing of a portable air purifier with attached cable and control panel (no text or symbols)

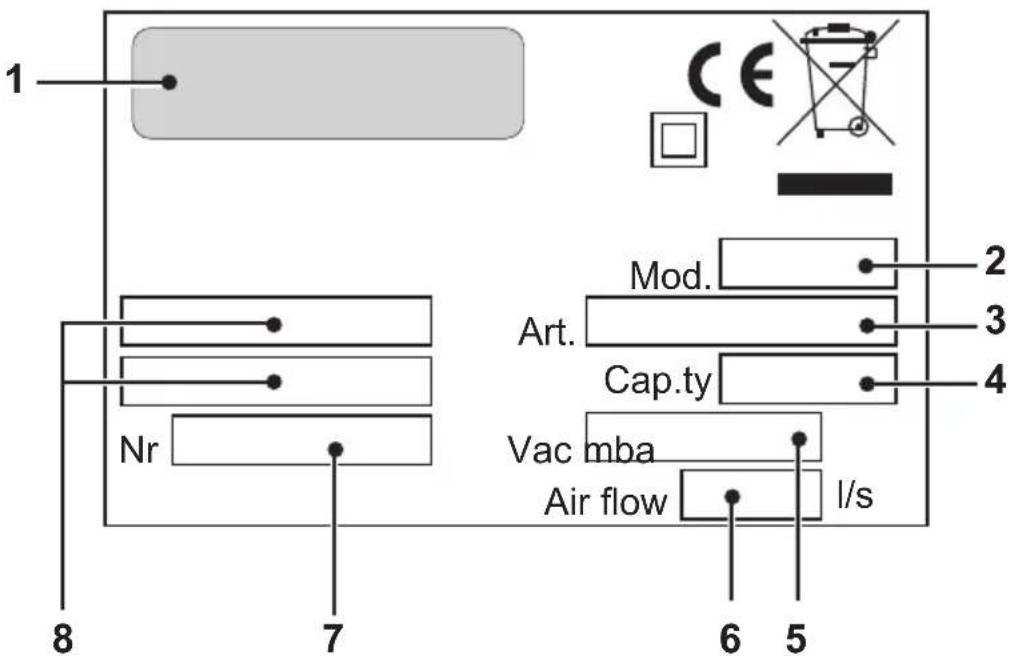

1 8 7 Nr Mod. 2 Art. 3 Cap.ty 4 Vac mba Air flow 6 5 I/s

	1 2 3	4 5 6	7 8
IT	Produttore	Modello	Articolo	Capacità fusto	Capacità aspirazione	Portata d'aria	N° Matricola	Caratteristiche elettriche
EN	Manufacturer	Model	Article	Container capacity	Vacuum	Air flow	Serial N°	Electrical characteristics
FR	Producteur	Modèle	Article	Capacité de la cuve	Capacité d'aspiration	Débit d'air	N° Matricule	Caractéristiques électriques
DE	Hersteller	Modell	Artikel	Fassungsvermögen des Körpers	Ansaugleistung	Luftdurchsatz	Matrikelnr. Elektrische Eigenschaften
ES	Fabricante	Modelo	Artículo	Capacidad del bidón	Capacidad de aspiración	Caudal de aire	N° Matrícula	Características eléctricas
PT	Produtor	Modelo	Artigo	Capacidade do reservatório	Capacidade de aspiração	Caudal de ar	Número de série	Características elétricas
NL	Producent	Model	Artikel	Inhoud reservoir	Zuigcapaciteit	Luchtdebiet	Serienummer	Elektrische eigenschappen
NO	Produsent	Modell	Artikkel	Beholderkapasitet	Sugekapasitet	Luftmengde	Matrikkelnr.	Elektriske egenskaper
DK	Fabrikant	Model	Artikel	Beholdervolumen	Sugeeffekt	Luftmængde	Matrikelnummer	El-specifikationer
SV	Tillverkare	Modell	Artikel	Korgens kapacitet	Sugkapacitet	Luftflöde	Serienummer	Elektriska egenskaper
PL	Producent	Model	Artykuł	Pojemność zbiornika	Podciśnienie (mbar)	Przepływ powietrza	Nr. Fabryczny	Właściwości elektryczne
CS	Výrobce	Model	Typ	Obsah nádoby	Sací výkon	Množství dopravovaného vzduchu	Výrobní č.	Elektrické údaje
SK	Výrobca	Model	Výrobok	Objem nádoby	Sací výkon	Prietok vzduchu	Výrobné č.	Elektrické vlastnosti
TR	Üretici	Model	Ürün	Gövde kapasitesi	Aspirasyon kapasitesi	Hava Akışı	Seri No	Elektriksel Özellikler
HU	Gyártó	Modell	Cikk	A szár teljesítménye	Szívó teljesítmény	Levegőhozam	Törzskönyvi szám	Elektromos sajátosságok
RO	Producātor	Model	Articol	Capacitate rezervor	Capacitate aspiratie	Volum aer	Nr. Matricol	Caracteristici electrice
EL	Κατασκευαστής	Μοντέλο	Προϊόν	Χωρητικότητα κάδου	Ικανότητα αναρρόφησης	Ροή αέρα	Αρ. Μητρώου	Ηλεκτρικά характерπριστικά
RU	Изготовитель	Модель	Артикул	Емкость бака	Мощность всасывания	Расход воздуха	Заводской No	Электрические характеристики
HR	Proizvođač	Model	Proizvod	Zapremnina spremnika	Usisní kapacitet	Protok zraka	Registracijski br.	Električna svojstva
SR	Proizvođač	Model	Proizvod	Kapacitet postolja	Kapacitet usisa	Nosivost vazduha	Br° Proizvoda	Električne karakteristike
BG	Производител	Модел	Артикул	Вместимост на резервоара	Капацитет на засмукване	Въздущен поток	Сериен номер	Електрически характеристики
ET	Tootja	Mudel	Artikkel	Paagi maht	Imemisvõimsus	Õhuvool	Seerianumber	Elektrilised omadused
FI	Valmistaja	Mallil	Artikkeli	Kapasiteetti tekojärvi	Kapasiteetti poisto	Virtaus ilma	Sarjanumero	Sähköiset ominaisuudet
LV	Ražotājs	Modelis	Raksts	Tvertnes tilpums	Sūkšanas jauda	Gaisa plūsma	Sērijas numurs	Elektriskie raksturlielumir
LT	Gamintojas	Modelis	Straipsnis	Bako talpa	Øsiurbimo galimybòs	Eeilés numeris	Eilés numeris	Elektrinês charakteristikos
SL	Proizvajalec	Model	Člen	Prostornina rezervoarja	Sesalna zmogljivost	Pretok zraka	Serijska številka	Električne značilnosti
AR	الصناع	الطراز	النوع	ساعة الخزان	قدرة الشفقط	تدFAST قعواع	الرقم التسريلسلي	العواصرفات الكسرربابئيeta

3 2 1 4 Fig. 1

5 Fig. 2 5

Illustration of a vacuum cleaner with labeled component 6, shown in technical line drawing (no text or symbols beyond label)

8 7 Fig. 4

Fig. 5 7 10 9

12 11 Fig. 6

14 15 14 16 Fig. 7

11 13

17 19 20 18 Fig. 8

Illustration of a hand using a tool to adjust or install a mechanical component, labeled with number 21 (no text or symbols on the diagram itself)

21 9

						[mbar 10 l]
AS10P/I	■		190 mpar 10 l		800 W 60 dbA 160	mbar 10 l		410 x 410x 560	8,8 kg (P)9,4 kg (l)	∅ 36 mm
ASL10P/I / I Auto	■ ■ 1000 W 62 dbA	190 mpar 10 l						410 x 410x 560	9,2 kg (P)9,8 kg (l)	∅ 36 mm (P)∅ 40 mm (Auto)
AS27P / IK / IK Auto	■ ■ 1000 W 62 dbA	190 mpar 25 l						410 x 410x 760	9,7 kg (P)10,4 kg (IK)	∅ 36 mm∅ 40 mm
AS400P/PD / IK / IK Auto	■ ■ 1200 W 63 dbA	210 mpar 35 l						500 x 500x 840	13 kg (P/PD)14 kg (IK)	∅ 40 mm
AS59P / IK / IK Auto	■ ■ 1900 W 65 dbA	190 mpar 56 l						610 x 520x 920	20 kg (P)21,3 kg (IK)	∅ 40 mm
AS59PD SP	■ ■ 1900 W 65 dbA	190 mpar 56 l						620 x 480x 930	23,1 kg	∅ 40 mm
AS590PIK CBN	■ ■ 1900 W 65 dbA	190 mpar 56 l						610 x 520x 920	20,4 kg (P)21,3 kg (IK)	∅ 40 mm
AS590IK CBM	■ ■ 1900 W 65 dbA	190 mpar 56 l						610 x 520x 920	21,3 kg	∅ 40 mm
AS60P / IK / IK Auto	■ ■ 2900 W				66,5 dbA	205 mbar 56 l	610 x 520x 920	24 kg (P)25,2 kg (IK)	∅ 40 mm
AS60PD SP	■ ■ 2900 W				66,5 dbA	205 mbar 56 l	620 x 480x 930	25,6 kg	∅ 40 mm
AS600PCBN	■ ■ 2900 W				66,5 dbA	205 mbar 56 l	610 x 520x 920	24,7 kg	∅ 40 mm
AS600IK CBN / IK CBM	■ ■ 2900 W				66,5 dbA	205 mbar 56 l	610 x 520x 920	26 kg	∅ 50 mm

EN English ...... ENGLISH -1

(Translation of original instructions)

FR Français ...... FRANÇAIS -1

These devices were designed to vacuum liquids or solids or both, according to the technical data table from the introduction to this manual. They were designed only for this use.

DANGER:

The manufacturer can not be held responsible for any damage due to improper or incorrect use.

Any other use releases the manufacturer from liability for harm to persons and/or property and invalidates any warranty condition.

IMPROPER USE

Do not use the appliance to:

• Aspirate flammable, explosive, corrosive and toxic substances.
• Aspirate hot substances.
• Do not use the appliance in liquid suction mode to suction powder and vice versa.

Do not use the appliance in areas at risk of explosion.

PREPARING THE APPLIANCE

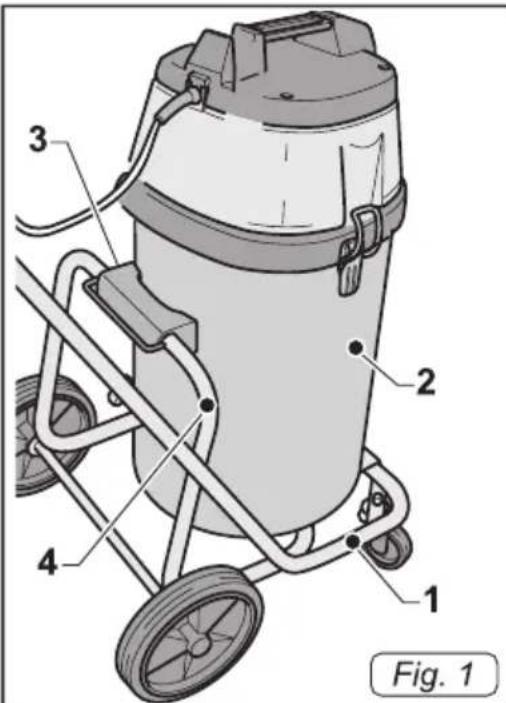

Trolley installation (for models equipped with cart)

• Place the trolley on the ground (1 Fig. 1)
• Place the cover (2 Fig. 1) on the trolley, setting the support In the plastic (3 Fig. 1) on the trolley's rod (4 Fig. 1).

Vacuum cleaner

For appliances equipped with suitable accessories.

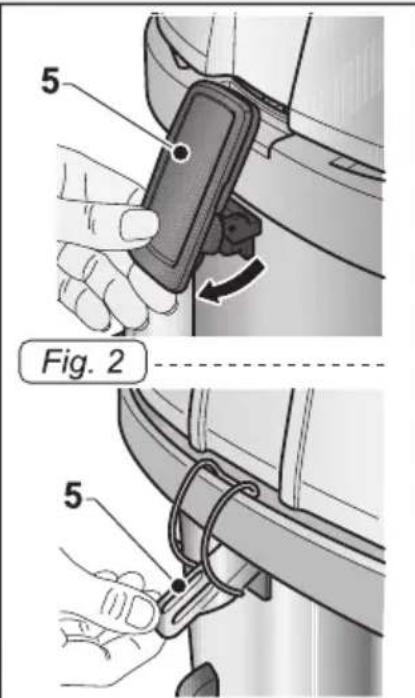

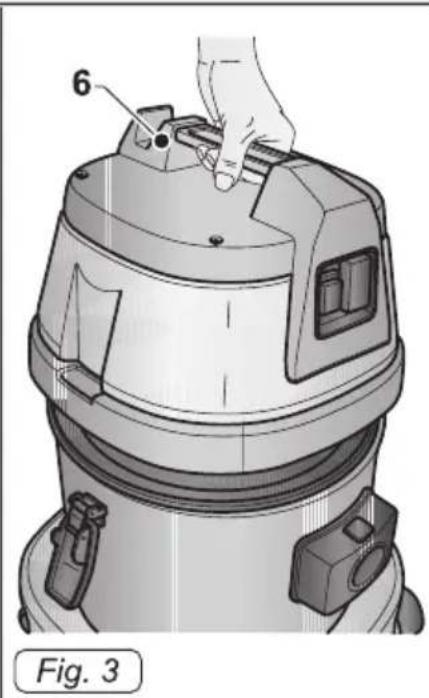

• Release the levers (5 Fig. 2) and remove the cover (6 Fig. 3) complete with the motor unit.

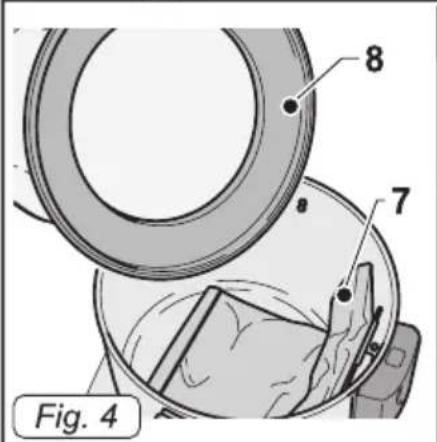

• Remove the polyester filter (8 Fig. 4).

• Check, if applicable, that inside the device to be set the paper bag (7 Fig. 4).

• If the paper bag (7 Fig. 4) is not there, install it, if necessary, acting as follows:
  Install the paper bag (7 Fig.5) in the nozzle (9 Fig. 5) until it passes the banding (10 Fig. 5)

• Reassemble the polyester filter (8 Fig. 4).
• Place the cover back on (5 Fig. 2) and lock it using the levers.

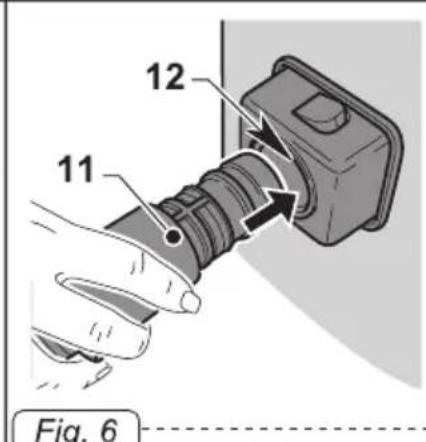

• Insert, as far as possible, the sleeve (11 Fig. 6) of the suction hose into the nozzle (12 Fig. 6) on the drum.

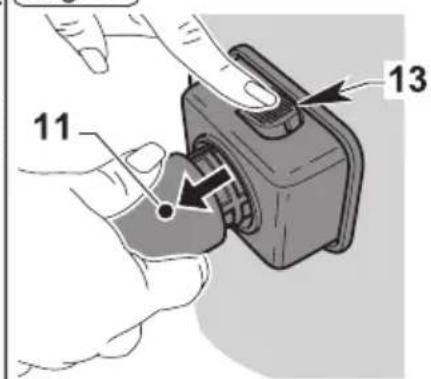

• To release the sleeve (11 Fig. 6) press and hold the button (13 Fig. 6) and then pull out the sleeve (11 Fig. 6).

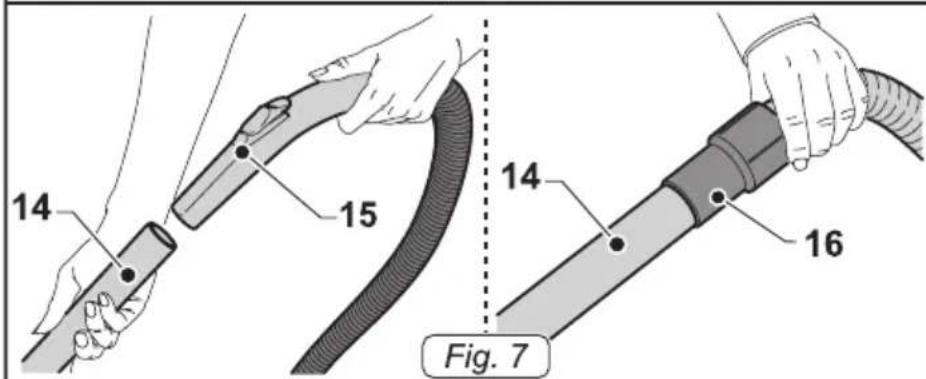

• Connect the ergonomic handle (15 Fig. 7) or the hose (16 Fig. 7) depending on the model, with the extension (14 Fig. 7).

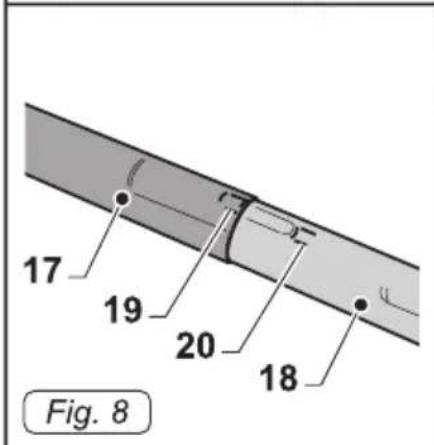

• Join the two rigid extensions (17-18 Fig. 8), alining the reference points (19-20 Fig. 8), if applicable.

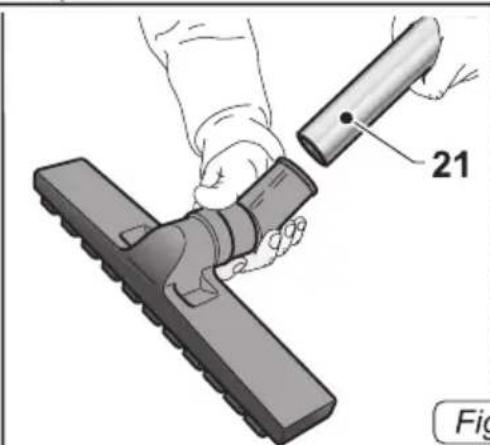

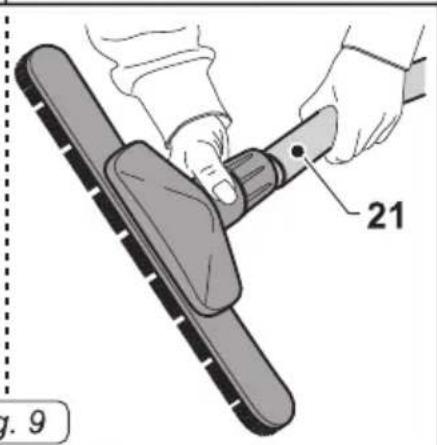

• Attach to the rigid extension (21 Fig. 9) the desired accessory (the vacuum nozzle, the dust brush, the accessory for tight spaces, the floor nozzle etc..

NOTES:

For models equipped with ergonomic handle is possible to adjust the suction force, by acting the selector (22 Fig. 10).

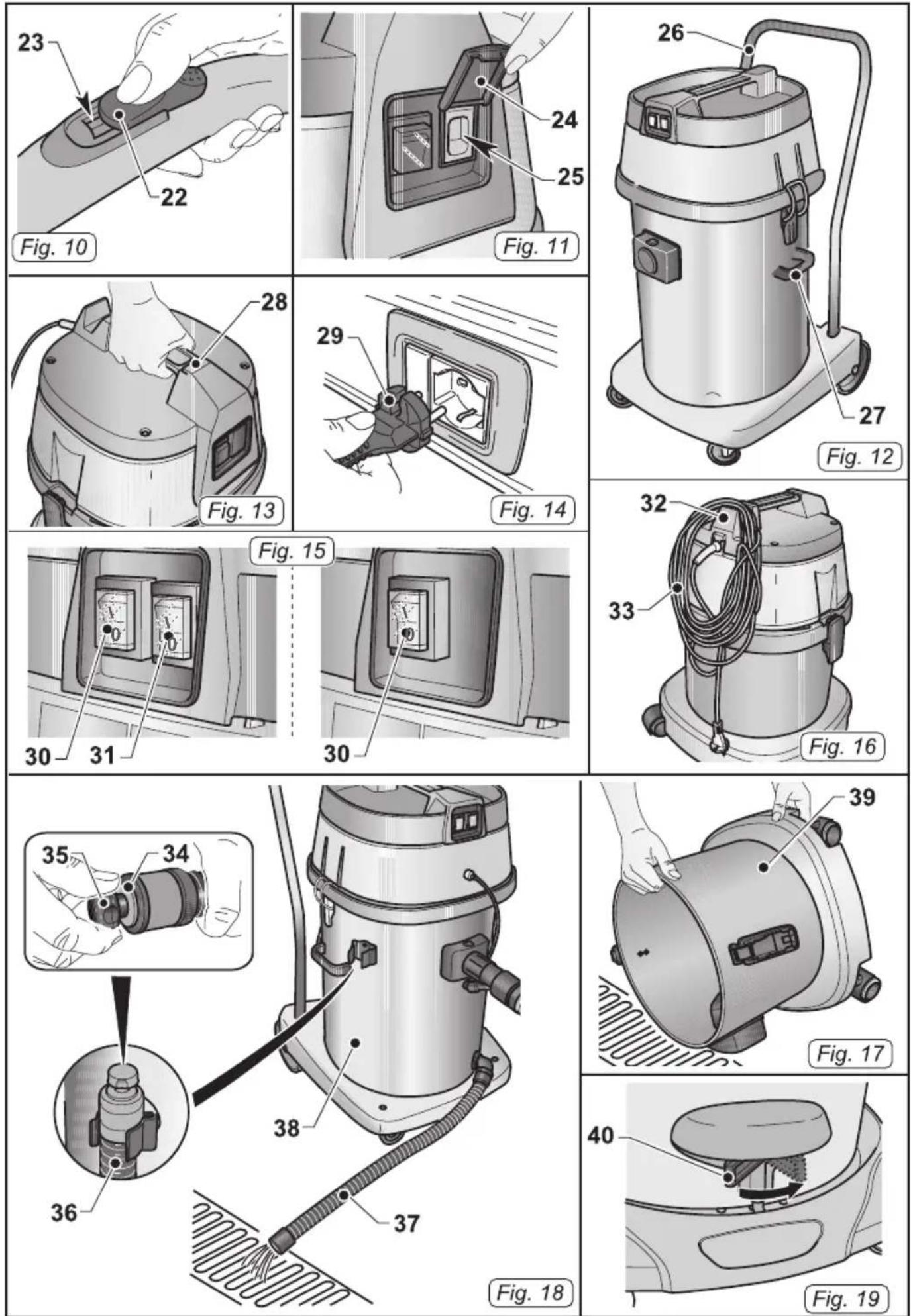

By opening the window (23 Fig. 10) you get a lower suction force.

Connecting the electrical brush

For devices with socket:

• Lift the shutter (24 Fig. 11).
• Connect the electrical brush's plug to the socket (25 Fig. 11) located on the top of the vacuum (maximum output 200 W).

Liquid suction

For appliances equipped with suitable accessories.

• Release the levers (5 Fig. 2) and remove the cover (6 Fig. 3) complete with the motor unit.
• Remove the polyester filter (8 Fig. 4) if present.
• Remove the paper bag (7 Fig. 4) if present.
• Place the cover back on and lock it using the levers (5 Fig. 2).
• Insert, as far as possible, the sleeve (11 Fig. 6) of the suction hose into the nozzle (12 Fig. 6) on the drum.
• To release the sleeve (11 Fig. 6) press and hold the button (13 Fig. 6) and then pull out the sleeve (11 Fig. 6).
• Merge the ergonomic handle (15 Fig. 7) or hose (16 Fig. 7) depending on the model, with the extension (14 Fig. 7).
• Connect the two rigid extensions (17-18 Fig. 8) by aligning the two reference points (19-20 Fig. 8).
• Mount on the rigid extension (21 Fig. 9) the desired accessory,( vacuum nozzle, floor nozzle etc..)

NOTES:

For models equipped with ergonomic handle it is possible to adjust the suction force acting the nut (22 Fig. 10).

By opening the little window (23 Fig. 10) you get a lower suction force.

USING THE APPLICANCE

• The device is equipped with wheels and thus can be moved with the proper handles, or it can be pushed with the help of the handle (26 Fig. 12)
• To lift it up insert your fingers under the dedicated handle (28 Fig. 13) on the top of the cover of the single version motor or lift with the help of two people using the handles (27 Fig. 12).

Starting up the appliance

- Insert the plug (29 Fig. 14) into the socket.

Single motor

- Press the switch (30 Fig.15) to position "I" to start the vacuum engine; lights, if located on the switch will turn on.

Double motor

- Depending on the power required it is possible to start only one motor by pressing the switch (30 Fig. 15) on "I" or both switches (30 e 31 Fig. 15) if a greater suction force is required.

Lights, if located on the switch will turn on.

NOTES:

When the recovery tank is full, the noise intensity increases and the device can no longer aspire. Then you must switch off the device and empty the tank as described in the relevant paragraphs.

Switching off the appliance

• Push the switches (30, 31 Fig. 15) to the "0" position to stop the device; the lights, if any on the switches, will go off.
• Remove the plug (29 Fig. 14) from the electrical socket.
• Wind up the cable (33 Fig. 16) and hook it onto its housing (32 Fig. 16).

CLEANING AND MAINTENANCE

DANGER:

Before performing any maintenance operation, unplug the appliance from the electrical socket.

Removing and replacing the paper dust collection bag (if present)

• Release the levers (5 Fig. 2) and remove the cover (6 Fig. 3) complete with motor.
• Remove the polyester filter (8 Fig. 4).
• Remove the paper bag for collecting dust (7 Fig. 4), and replace it as described above.
• Reassemble all the parts by following the dismantling process steps in the reverse order.

Emptying the recovery tank

• Release the lever (5 Fig. 2) and remove the top (6 Fig. 3) along with the engine.
• Place it on the top of a drain and empty the liquid in the recovery tank (38 Fig. 18).
• Clean the inside of the tank with running water and then re-install everything doing the opposite of the disassembly.

For machines equipped with drain hose

• Release the exhaust tube (36 Fig. 18) from its base.
• Unscrew the button (35 Fig. 18), remove the cap (34 Fig. 18) of the exhaust hose (37 Fig. 18) and drain the liquid in the recovery tank (37 Fig. 18).

For devices with rocking tank

• Release the lever (5 Fig. 2) and remove the top (6 Fig. 3) along with the engine.
• Remove the tank locking device by acting the lever (40 Fig. 19) if any.

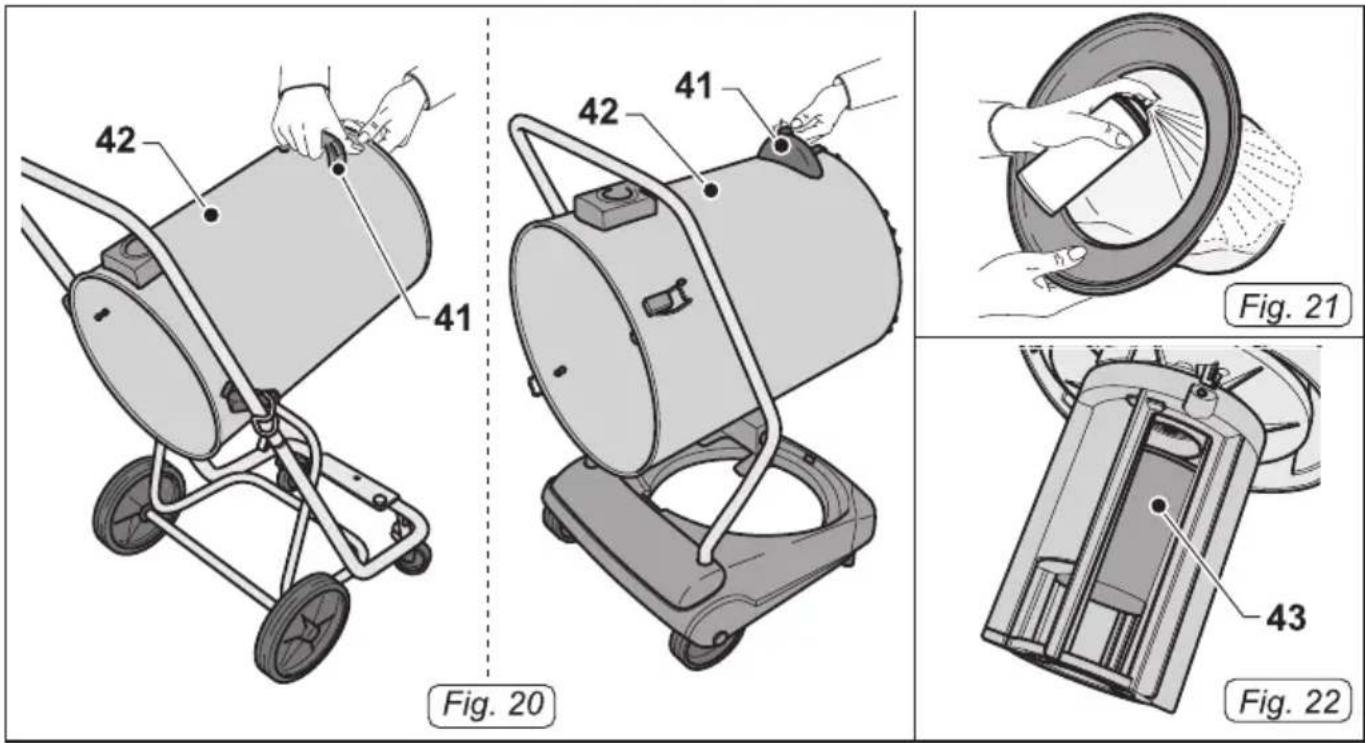

• Lift the tank (39 Fig. 17) with the appropriate lever (41 Fig. 20) until completely emptied.
• Replace everything doing the opposite of the disassembly.

Daily cleaning

Checking and cleaning the polyester filter (if present)

• Release the levers (5 Fig. 2) and remove the cover (6 Fig. 3) complete with motor.
• Remove the polyester (8 Fig. 4) filter.
• Clean the filter (Fig. 21) from the inside out with a blast of air; the filter can be washed (Fig. 21) in warm water and must only be replaced once it is completely dry. If it is too dirty, replace it.
• Reassemble all the parts by following the dismantling process steps in the reverse order.

Cleaning the appliance

• Clean the unit body with a cloth dampened with water or a mild detergent.
• Remove the top, as described above and clean the inside with running water and then empty it, as indicated above.

Replace everything doing the opposite of the disassembly.

DANGER:

Do not wash the appliance using jets of water.

Periodic checks

Checking the floater

• Remove the top as shown above
• Check If the floater (43 Fig. 22) is In good condition and if it moves freely in its space.

PROBLEM CAUSE SOLUTION
The vacuum cleaner does not work.	Switch not pressed.Plug not inserted.No current.	Press the switch.Insert the plug into the socket.Check the power supply line.
Suction is not satisfactory. Paper bag full.Filter elements clogged.Accessories or tubes clogged.Suction nozzle squeegee worn or damaged.		Replace the dust bag.Clean the filter elements.Check and clean the flexible hose and the suction nozzle.Check and replace the squeegee.

TYPE D'UTILISATION

Professional Cleaning Machines Since 1968

DEALER

GHIBLI & WIRBEL S.p.A.

Registered office:

Via Enrico Fermi, 43 - 37136 Verona (VR) - Italy

Headquarters:
