USER MANUAL IQ18LB MURRAY

WARNING! Read this manual before operating your product.

IMPORTANT NOTES

Details

Thank you for purchasing your Murray product. Murray prides itself in the quality and performance of all its products.

This instruction manual will aid in the assembly, safe operation and maintenance of your product.

Please read the following warnings to ensure safety and the long life of your product.

WARNING

Do not attempt to operate this product until you have read thoroughly and understood completely all instructions, safety rules, etc, contained in this manual. Failure to comply may result in accidents involving electric shock, fire, and/or serious personal injury.

INTENDED USE

This blower is intended for the blowing and of leaves, grass clippings and other similar garden debris in domestic use. Do not use for stones, bark, fine abrasive and clogging aggregate such as saw dust or sand. Do not use as an air/gas extraction unit.

Do not use the product for any task, except for that which it is intended.

General safety

Warning!

Read the directions for use before operating the machine.

Wear safety goggles and ear protection that meet safety standards.

Wear sturdy, non-slip footwear.

Wear safety gloves.

Do not use machine in wet conditions, protect the machine from rain and damp.

Be careful of objects being thrown out! Ensure bystanders are kept at least 50" (15m) away & stop the machine if approached.

Keep hands, loose hairs and loose clothing away from blower fan.

Beware of electric shock hazard when charging.

Read the directions before carrying out any maintenance work.

Wait for all components of the machine to completely stop & remove the battery.

Should NOT be disposed of with house hold items.

Ambient temperature 40°C Max.

Do not throw into water.

Keep away from heat and/or open flame.

Li-Ion
Batteries contain Li-ion. Do not dispose of waste batteries in domestic waste. Contact local authority to find out how to dispose of batteries appropriately.

Table of Contents

Features & Supplied Items

Blower 3

Safety & Handling

General safety 4

Assembly Procedures

Unpacking 5Assembly 5Removing the tube 5Install & remove the battery 6

Operating Instructions

Starting & stopping 6Operating 7

Maintenance & Care

Cleaning 8Storage 8Product disposal 8Maintenance chart 9Emergency contact Service 9

Troubleshooting

Troubleshooting 10

Technical Specifications

Specifications 11

NOTE: WARRANTY DETAILS ARE NOT WRITTEN WITHIN THIS OPERATOR'S MANUAL. REFER TO OTHER DOCUMENTS SUPPLIED WITH THIS MACHINE FOR WARRANTY DETAILS. THE WARRANTY DOCUMENTS MAY INCLUDE TECHNICAL SPECIFICATIONS THAT ARE SPECIFIC TO EACH MODEL THAT ARE NOT WRITTEN WITHIN THIS OPERATOR'S MANUAL.

Features & Supplied Items

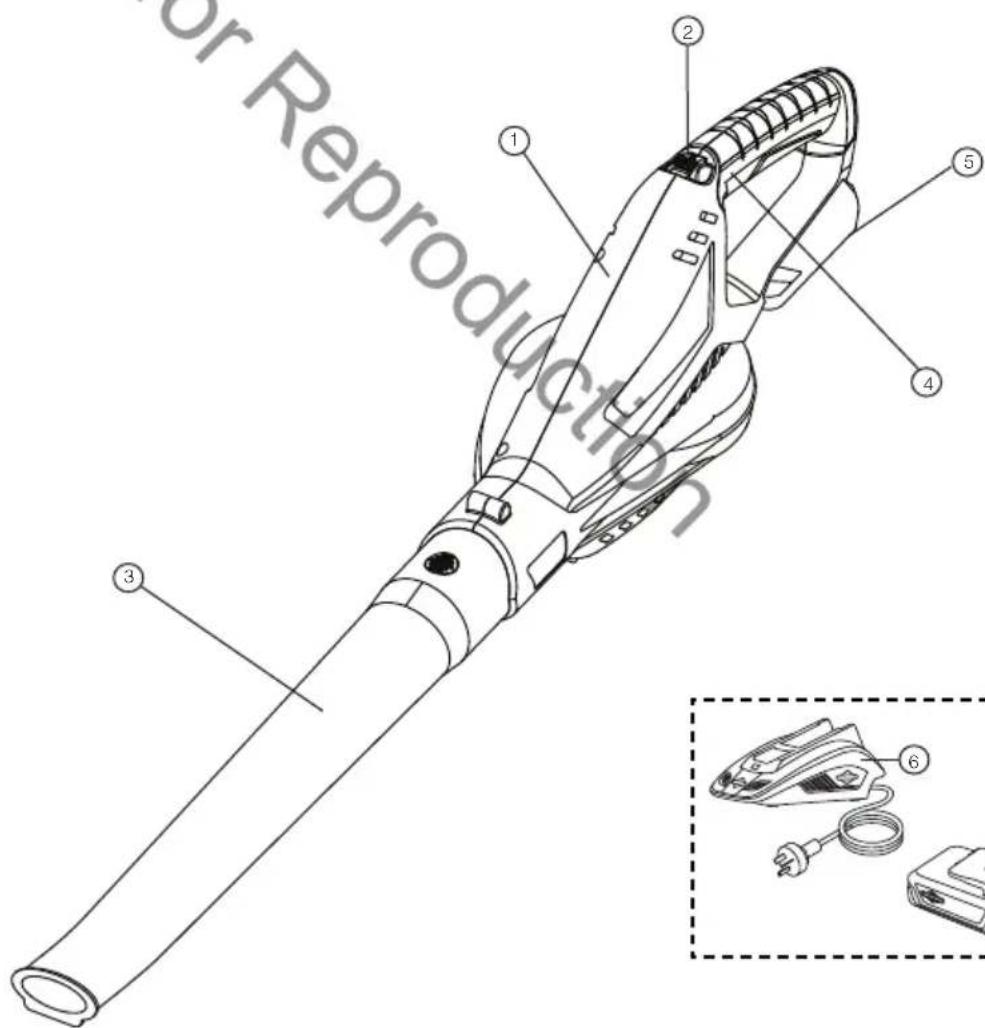

18V Lithium-Ion Blower

1 Blower Housing
2 Variable Speed Dial
3 Blower Tube
4 Handle
5 Battery Slot

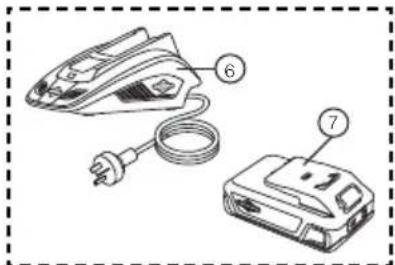

6 Battery Charger (not included with all product)
7 Battery (not included with all product)

• Blower Instruction/Safety Manual (not shown)
• Battery & Charger Instruction/Safety Manual (not shown)

Or Reproduction ① ② ③ ④ ⑤

Illustration of a pair of household appliances, one electric and connected to a power plug, the other portable device (no text or symbols)

WARNING

Do not operate the product if any component is missing or damaged. Have any missing or damaged components repaired or replaced.

General Safety

- Carefully read all instructions on the machine and in the manual before attempting to assemble and operate the machine. Keep this manual in a safe place for future reference, and consult it regularly. Ensure other users read this manual and are aware of the product safety risks.

- The machine should be operated only with a genuine Briggs & Stratton battery. When using battery operated machine basic safety precaution should always be followed to reduce the risk of leaking batteries and personal injury.

- Become familiar with all controls and their proper operation before using the machine. Know how to stop the machine and how to disengage the power in an emergency.

• Always wear a face mask or a dust mask when operating the machine in a dusty environment.

- Always wear appropriate clothing & do not wear loose clothing (or jewellery etc) that can get caught in moving parts.

- Do not operate this machine in bare feet, or while wearing sandals or lightweight (e.g. canvas shoes) Wear long trousers & heavy shoes.

- Do not operate the machine while under the influence of alcohol or drugs.

- Stay alert & do not operate the machine when you are tired. Pay attention to what you are doing and ensure others are aware of your task intentions before commencing.

- Avoid using the machine dangerous environments. Only use the machine in daylight or in good artificial light.

- Do not use the machine in a rush. Always walk & never run with the machine. Do not overreach and keep balance at all times. Be careful while working on slopes.

- Before inspecting, adjusting, servicing or cleaning the machine, always stop & remove both the battery.

- If the machine starts to vibrate excessively, discontinue use until the machine has been inspected and assessed. Having a machine assessed for vibration problems generally reduces the risk for injury or product failure.

- Do not use the machine indoors. Only store the machine indoors in a dry & secure location. Keep the machine out of reach of children.

• Always maintain the machine according to the maintenance section of this manual.

- If machine strikes a foreign objects, always inspect for damage.

- Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator.

- Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that may obscure your view & the path of the machine.

- Do not use the machine near hot ash, combustible materials or immerse in liquids. This may cause fire hazard, serious injury or product damage.

- Do not put any object into ventilation grills. Do not use with any openings blocked, keep openings free from anything that may reduce air flow.

- Do not point the machine in the direction of people or pets.

- The fan will continue to move for a short time after unit is turned off. Keep all objects at a safe distance from moving parts.

- Never operate the machine while people, especially children, or pets are nearby.

ASSEMBLY PROCEDURES

Unpacking

The Blower is supplied with some components not assembled. To assemble these, proceed as follows:

• Carefully remove the product and any accessories from the box. Make sure that all items listed on page 3 are included.
• Inspect the product carefully to make sure no breakage or damage occurred during shipping.

WARNING

If any parts are damaged or missing do not operate this product until the parts are replaced. Using a product with damaged or missing parts could result in serious personal injury.

Blower Assembly

NOTE: Refer to figure 2.

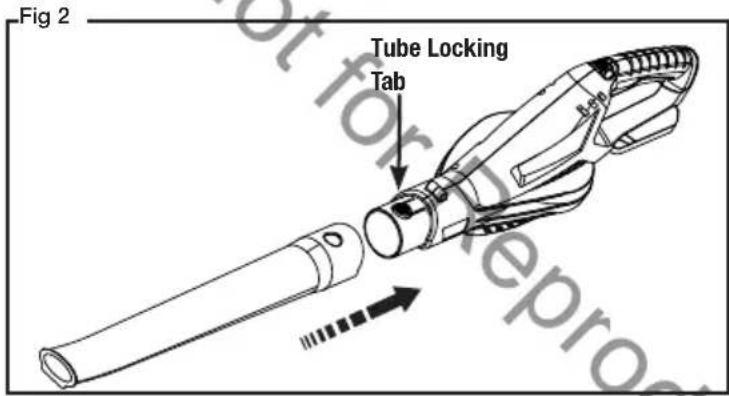

Fig 2 Tube Locking Tab

• Slide blower tube onto the blower housing until the tube lock tab is engaged with the tube.
• Ensure the tube clicks into location. And is securely locked.

Removing the Tube

• Turn the blower off.
• Remove the battery.
• Press and hold the Tube Locking Tab.
• Pull the Tube away from the blower.

ASSEMBLY PROCEDURES

Installing the Battery

NOTE: Refer to figure 3.

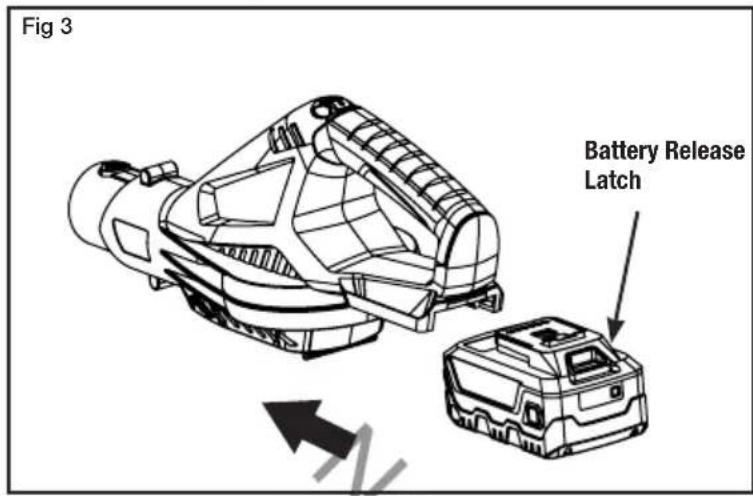

Fig 3 Battery Release Latch

Removing the Battery

• Turn the blower off.
• Press and hold the release latch button at the bottom of the battery.

• Remove battery from the blower.

• Place the battery in the blower. Align raised rib on battery with grooves in the blower's battery port.

• Make sure the latch on bottom of the battery snaps in place and that battery pack is secured in the blower before beginning operation.

WARNING

When placing battery in the blower, be sure the raised ribs on the battery align with the grooves in the top of the blower. Make sure the battery is fully seated, and it latches into place properly. Improper installation of the battery can cause damage to internal components and may fall from product whilst in use resulting in personal injury.

Refer to the Briggs & Stratton 18V Battery & Charger instruction manual for further information relating to battery & charger use, servicing, storage and safety.

NOTE: Refer to figure 4.

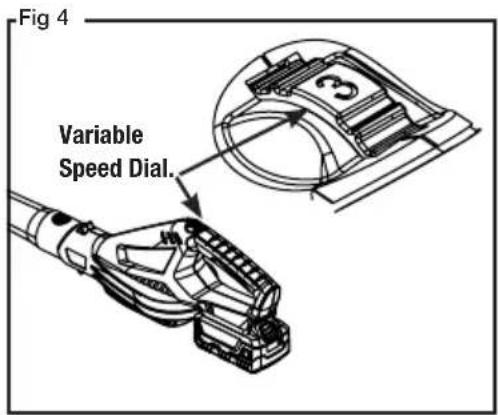

Fig 4 Variable Speed Dial.

• Install the Battery.
- Roll the variable speed dial forward to 1 to start the blower.
- Roll the variable speed dial forward from 1 to 5 to increase the speed to a maximum air velocity of 245km/h.

Stopping The Blower

NOTE: Refer to figure 5.

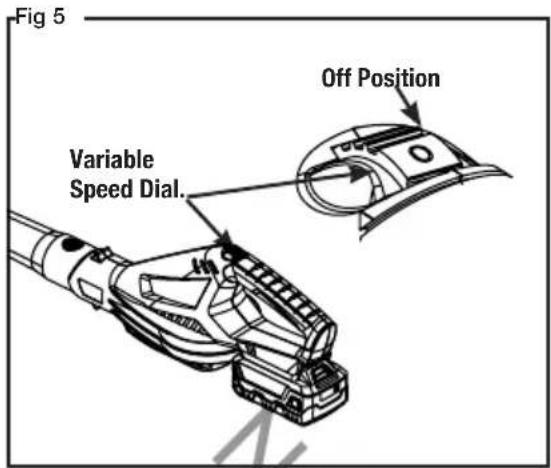

Fig 5 Variable Speed Dial. Off Position

- Roll the variable speed dial backward to slow the speed or Roll it to 0 to stop the blower.

- Remove the battery. To ensure the blower is not turned on accidentally.

Operating

BLOWER

• Assure the unit is not directed at anybody or any loose debris before starting the unit.
- Verify that the unit is in good working condition. Make sure the tubes and guards are in place and secure.
- If possible, loosen debris before blowing.
- Be aware of your surrounding when operating the blower. Watch out for children, pets, open windows, freshly washed cars etc and blow debris safely away.

OPERATING TIPS

Hold the blower firmly. Sweep from side to side with the nozzle 5-10cm above the ground or floor. Slowly advance the unit, keeping the accumulated pile of debris in front of you. Most dry blowing operations are better suited to low speeds, rather than high. High speed blowing is a better way to move heavier items like large debris or gravel.

AIR VENTS

Never cover air vents. Keep them free from obstructions and debris. They must always remain clear for proper motor cooling and optimum performance.

WARNING

To avoid serious personal injury, do not wear loose fitting clothing or articles such as scarves, strings, chains, ties, etc., that could get drawn into the air vents. To make sure long hair does not get drawn into the air vents, tie long hair back.

Cleaning

WARNING

To prevent serious personal injury remove the battery from the machine before servicing, cleaning, or removing debris.

• Clean the unit using a damp cloth with a mild detergent.
• Do not immerse the machine or any part of it in water.
• Moisture can cause a shock hazard. Wipe off any moisture with a soft dry cloth & ensure the machine is dry before replacing the battery.
• Use a small brush or vacuum cleaner to clean the air vents on the product
• Keep the air vents free of obstructions.

Do not use solvents, strong detergents, certain aromatic oils such as pine and lemon when cleaning plastic parts. Chemicals can damage, weaken or destroy plastic component which may result in serious personal injury.

Storing

The following steps should be taken in order to prepare the machine for storage.

• Clean the machine as described in the previous section.
• Store the machine in a dry, clean location. Do not store it next to corrosive materials, such as fertilizer or fuel.
• Store the machine indoors, in a cool, dry place, out of the reach of children.
• Ensure battery is removed before storage.

Product Disposal

CORRECT DISPOSAL OF THE PRODUCT

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. The battery contains material which is hazardous to you and the environment. It must be removed and disposed of separately at a facility that accepts lithium-ion batteries.

Refer to Briggs & Stratton 18V Battery & Charger manual for further information relating to battery and charger disposal.

CORRECT DISPOSAL OF THE PACKAGING

The packaging consists of cardboard and correspondingly marked plastics that can be recycled. Make these materials available for recycling.

Information about the residual risks that remain despite the inherit safe design measures, safeguarding and complementary protective measures adopted.

Emergency Contact

In the rare case a battery is damaged & any of the contents leaks or comes into contact with a persons skin, eyes, or is ingested, follow the first aid instructions inside the battery & charger manual. Seek further medical attention immediately.

Maintenance Chart

Refer to the following table for routine maintenance.

Features Requirements		Before use	After use	Recharging	Monthly	Yearly	If damaged	As required
Whole unit	Visual inspection	●		●
Variable Speed Dial	Check operation	●
Blower housing	Check & clean		●					●
Air inlet	Check & clean		●
Tube	Check & clean	●						●
All accessible fasteners	Check & re-tighten.	●						●

Emergency Contact

In the rare case a battery is damaged & any of the contents leaks or comes into contact with a persons skin, eyes, or is ingested, follow the first aid instructions inside the battery & charger manual. Seek further medical attention immediately.

Service

Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest authorized service centre for repair. When servicing, use only genuine replacement parts.

• Keep the machine dry, clean, and free of oil and grease.
• In order to reduce the risk of fire, keep the motor free of grass, leaves, and debris build-up.
• Keep all nuts, bolts, and screws tight in order to be sure that the equipment is in safe working condition.
• Never tamper with safety devices. Check them regularly for proper operation.

NOTE: Refer to warranty card supplied with this product for service contact details.

Troubleshooting

Problem Possible Cause User action
Unit will not blow	1. Tube2. Fan is blocked3. Battery is not seated correctly in the product4. Battery is not charged	1. Clear the blockage following the procedure in the manual.2. Clear the blockage following the procedure in the manual.3. Ensure that the battery is fully seated in the product and that the clip has fully engaged.4. Charge the battery fully.
The unit will not start	1. Battery is not seated correctly in the product2. Battery is not charged3. The blower tube is not correctly installed	1. Ensure that the battery is fully seated in the product and that the clip has fully engaged.2. Charge the battery fully.3. Check all tubes assembly.

Specifications

PRODUCT SPECIFICATION 18V BLOWER
Function Blow
Motor Type Brushed Motor
Motor Specification 18V DC
Maximum Motor Speed 18000RPM
Maximum Air Velocity 245km/h
Maximum Air Volume 98CFM
Product Weight (No Battery) 1.4Kg
Sound Pressure Level L	pa: 80.3dB (A), K: 3dB (A)
Sound Power Level (Guaranteed) Lwa: 96dB (A)
Vibration Total Value (Max)	ah: 3.257 m/s2, K:1.5 m/s2

A warning:

• That the declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another;
• That the declared vibration total value may also be used in a preliminary assessment of exposure.
• That the vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used and of the need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Detalles

for Reproduction ① ② ③ ④ ⑤

ADVERTENCIA

Technical diagram of a handheld device with numbered parts and an inset photo of its internal components.

AVISO

SEGURANÇA E MANUSEIO

Segurança geral

Diagram showing two electrical components: a iron iron and a power cord, with numbered parts labeled 6 and 7.

AVERTISSEMENT

ÉLIMINATION CORRECTE DU PRODUIT

Technical diagram of a handheld electric shaver with numbered parts and an inset close-up showing internal components.

!WARNUNG

Technical diagram of a handheld electric shaver with numbered parts and an inset photo showing internal components.

NOTA:

Technical diagram of a hairless tool with numbered parts and an inset photo showing its internal components.

WAARSCHUWING

Fig. 3 Original installation was added to the bottom

Fig 4 SARSHENG

Fig 5 10 kW/ Seal hardware Stroom Oil Refactor Mn

Technical diagram of a handheld electric shaver with numbered parts and an inset close-up showing internal components.

VAROVÁNÍ!

Technical diagram of a handheld device with numbered components and an inset close-up showing internal wiring and components.

ADVARSEL

Technical diagram of a hairless tool with numbered parts and an inset photo showing internal components.

UPOZORENJE!

Fig 2 Tube Locking Tab

Fig 3 Battery Release Latch

Uklanjanje baterije

- Isključite puhač.

- Pritisnite i držite gumb za otpuštanje na dnu baterije.

Diagram showing two types of household appliances: a iron iron and a power cord, with numbered labels pointing to each component.

WARNING

Diagram showing two types of household appliances: a iron iron and a power cord, with numbered labels pointing to each component.

VAROITUS

Technical diagram of a handheld electric shaver with numbered parts and an inset photo showing internal components.

ADVARSEL

General Safety

Tube Locking Tab

Fig 3 Battery Release Latch

Removing the Battery

NOTE: Refer to figure 5.

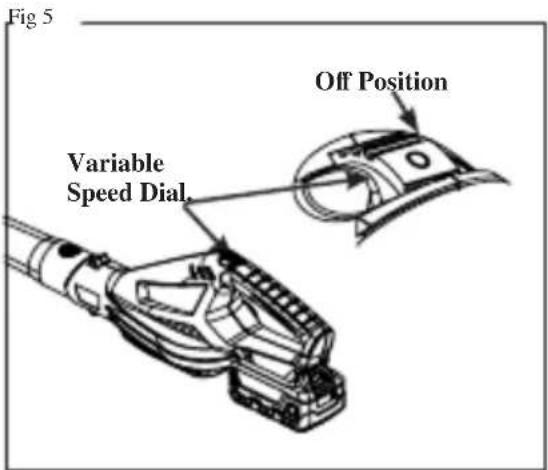

Fig 5 Off Position Variable Speed Dial.

- Roll the variable speed dial backward to slow the speed or Roll it to 0 to stop the blower.

- Remove the battery. To ensure the blower is not turned on accidentally.

Operating

BLOWER

• Assure the unit is not directed at anybody or any loose debris before starting the unit.
- Verify that the unit is in good working condition. Make sure the tubes and guards are in place and secure.
• If possible, loosen debris before blowing.
- Be aware of your surrounding when operating the blower. Watch out for children, pets, open windows, freshly washed cars etc and blow debris safely away.

OPERATING TIPS

Hold the blower firmly. Sweep from side to side with the nozzle 5-10cm above the ground or floor. Slowly advance the unit, keeping the accumulated pile of debris in front of you. Most dry blowing operations are better suited to low speeds, rather than high. High speed blowing is a better way to move heavier items like large debris or gravel.

AIR VENTS

Never cover air vents. Keep them free from obstructions and debris. They must always remain clear for proper motor cooling and optimum performance.

WARNING

To avoid serious personal injury, do not wear loose fitting clothing or articles such as scarves, strings, chains, ties, etc., that could get drawn into the air vents. To make sure long hair does not get drawn into the air vents, tie long hair back.

Rengøring

ADVARSEL

For at undgå alvorlig personskade skal batteriet fjernes fra maskinen inden service, rengøring eller fjernelse af affald.

Technical diagram of a handheld device with numbered components and an inset photo showing internal components.

OSTRZEŻENIE

PRAWIDŁOWA UTYLIZACJA PRODUKTU

Not for Reproduction

ABN 13 006 576 856

©2018 Briggs & Stratton Corporation. All rights reserved.

No part of this booklet may be reproduced by any means without prior written permission.

All information herein is subject to change without notice.

Murray is a registered trademark of Briggs & Stratton Corporation.

WWW.MURRAY.COM

2278 A	PL PB	PRODUCTION 6/12/18
ECN ISS DRN CKD DESCRIPTION DATE
