USER MANUAL Titano Giordani

Line drawing of a car comfort seat with seats and buttons (no text or symbols)

|

IMPORTANTE:

LEGGERE ATTENTAMENTE

E CONSERVARE

PER FUTURO RIFERIMENTO.

UK

IMPORTANT:

KEEP FOR FUTURE REFERENCE,

READ CAREFULLY.

E

¡IMPORTANTE!

LEER DETENIDAMENTE

Y CONSERVAR PARA FUTURAS

CONSULTAS.

2

P

IMPORTANTE!

Diagram of a car comfort seat with numbered parts and close-ups of the seat, showing interior details and usage instructions.

COMPONENTI

1. Headrest adjustment knob
2. Headrest
3. Infant head cushion
4. Upper belt guide
5. Shoulder pad
6. Five-point safety harness

7. Safety buckle

8. Groin pad

9. Infant insert
10. Harness adjuster button
11. Harness adjuster strap
12. Rotation button
13. Lower belt guide

14. Recline adjustment knob

15. ISOFIX connectors release button with a colour indicator for correct installation

16. ISOFIX connectors
17. Top Tether

E COMPONENTES

40-105 cm b a ✓ ✓ ✗

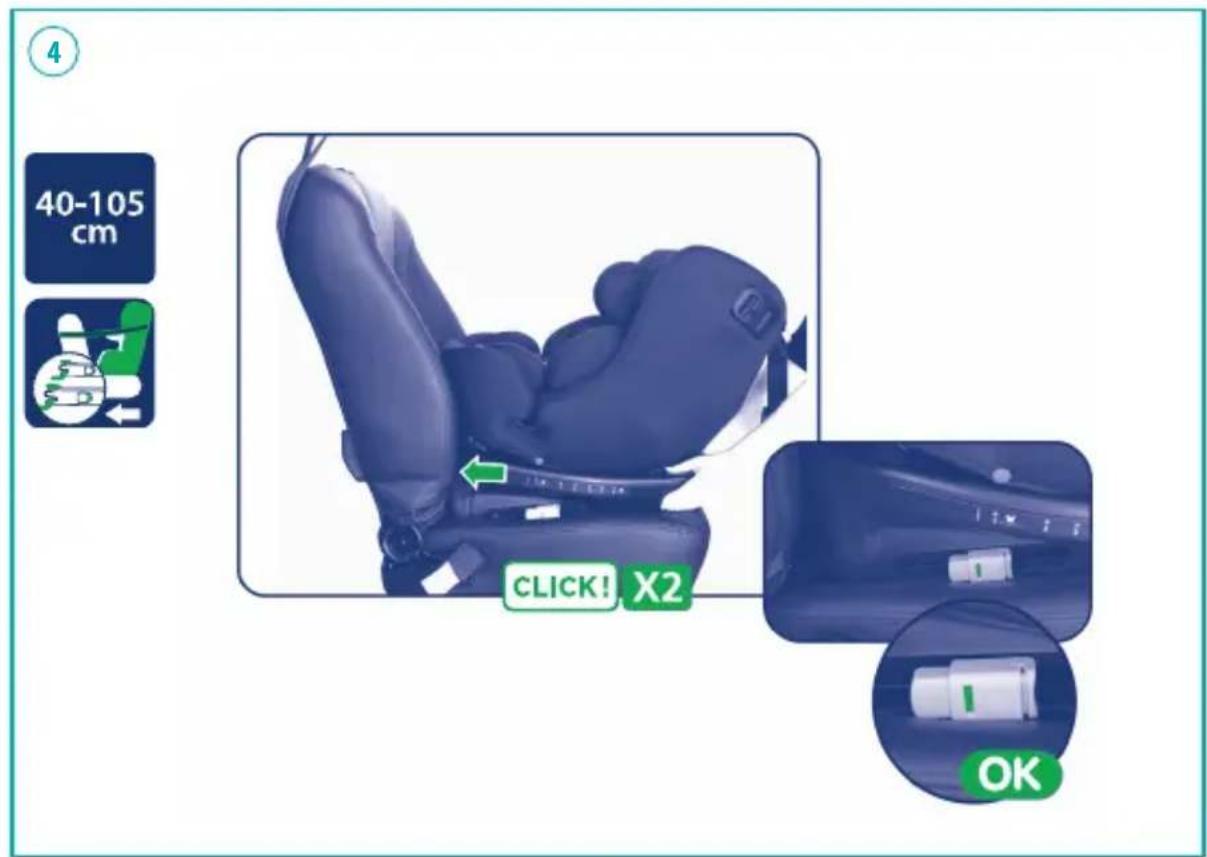

40-105 cm CLICK! X2 OK

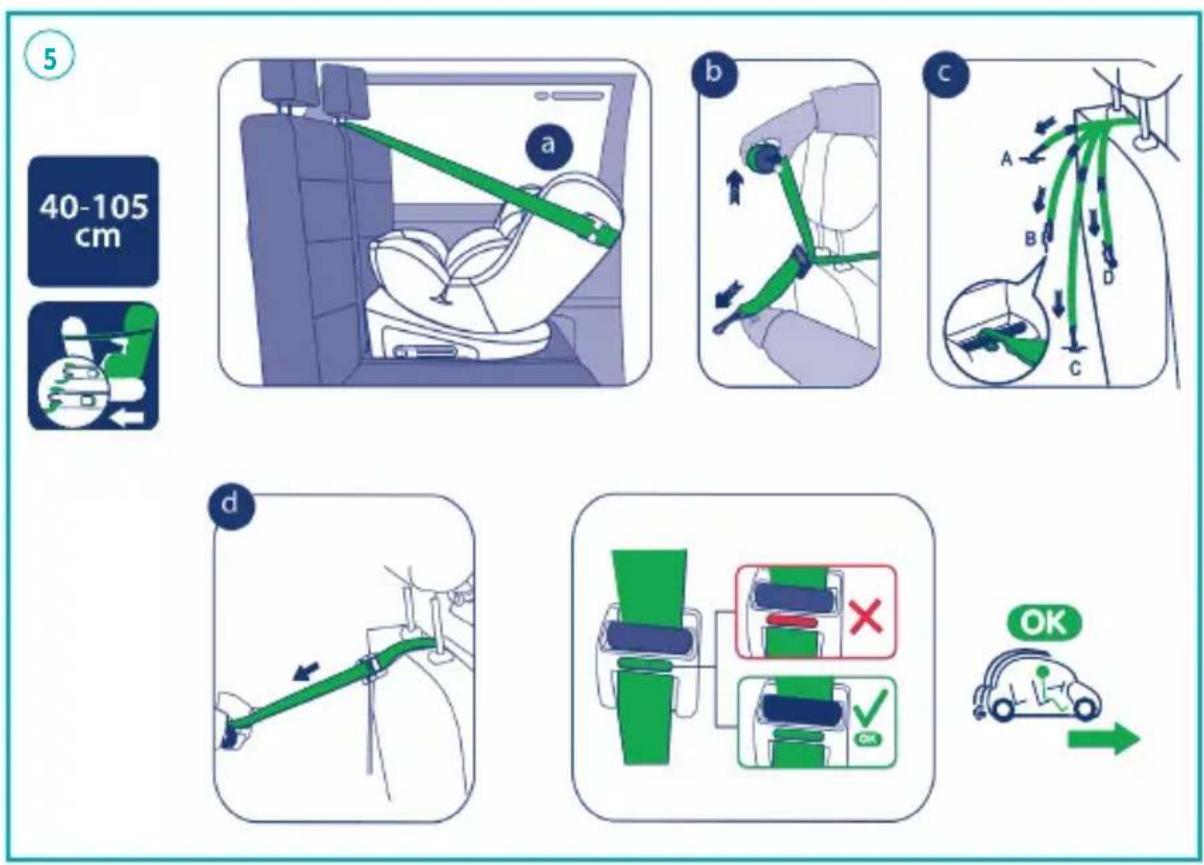

40-105 cm 5 a b c A B C d OK

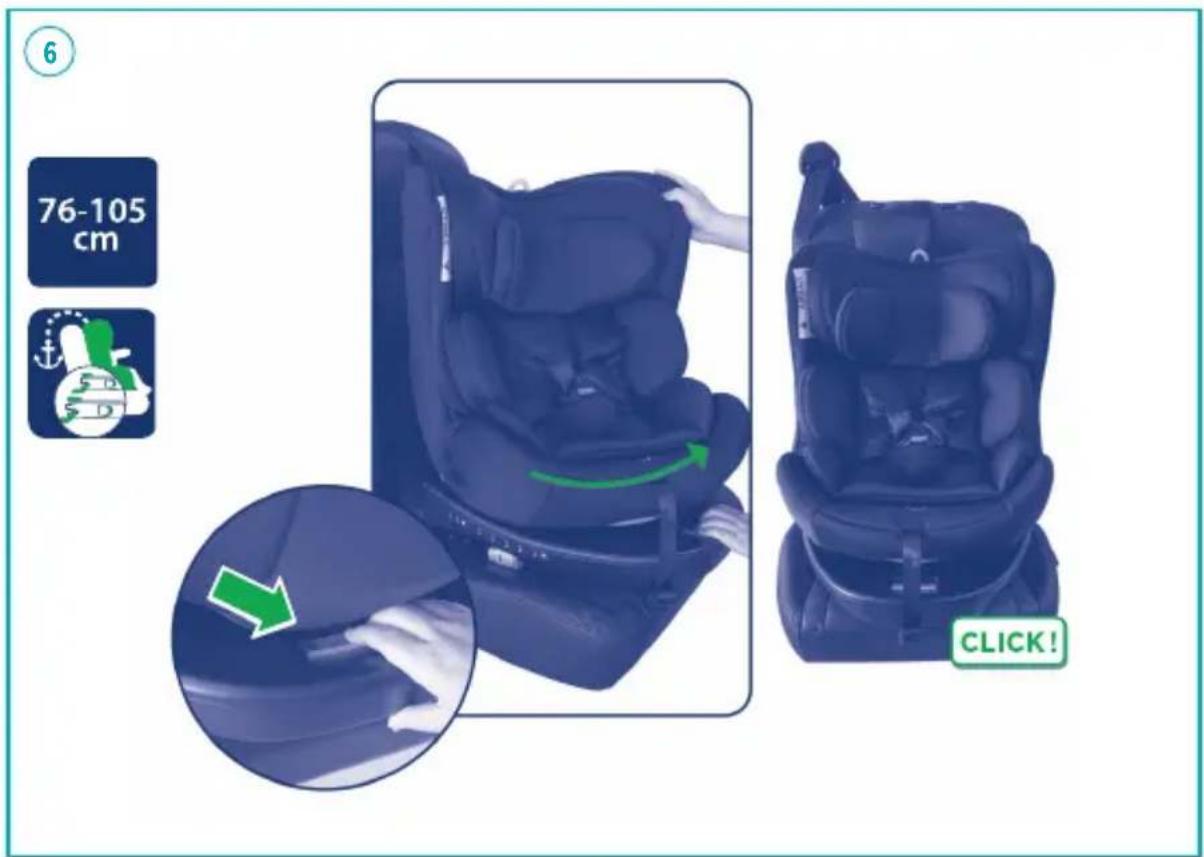

76-105 cm CLICK!

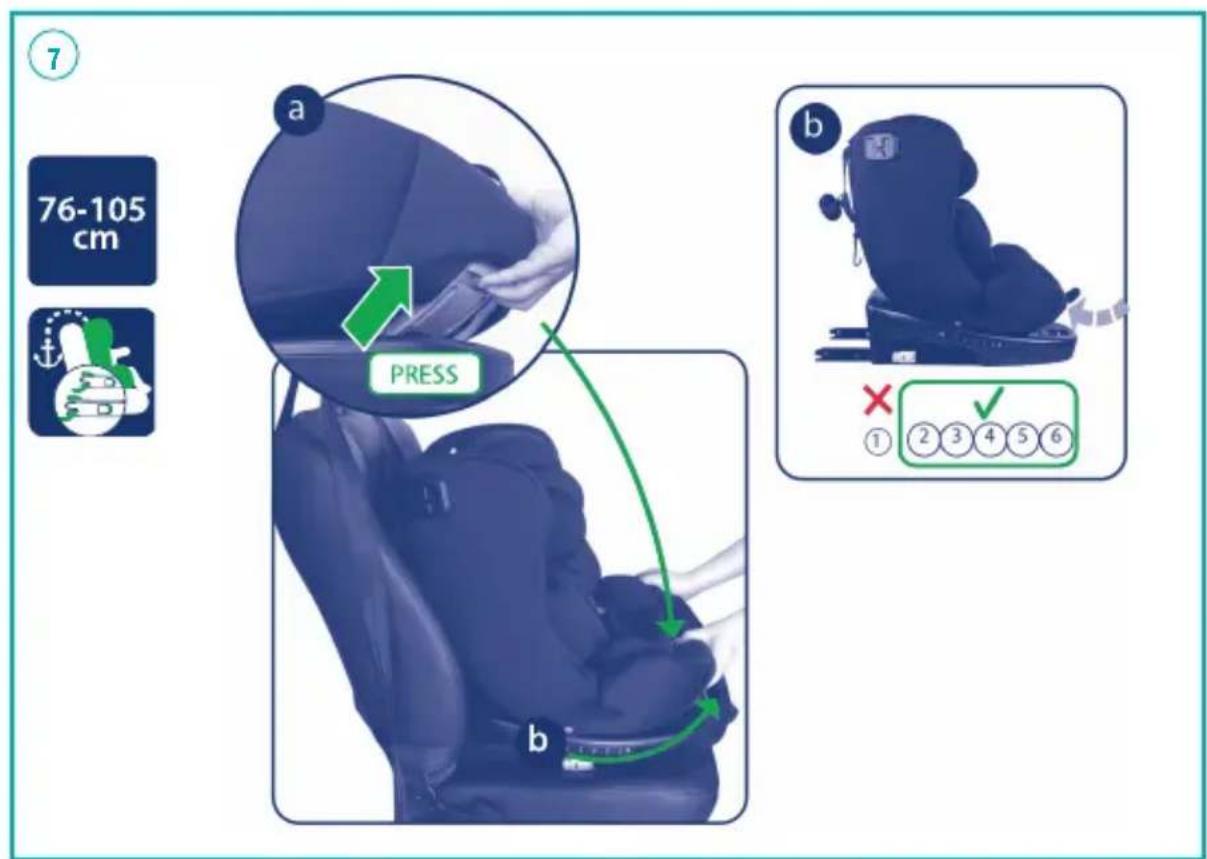

7 76-105 cm a PRESS b ① ② ③ ④ ⑤ ⑥ ⑦

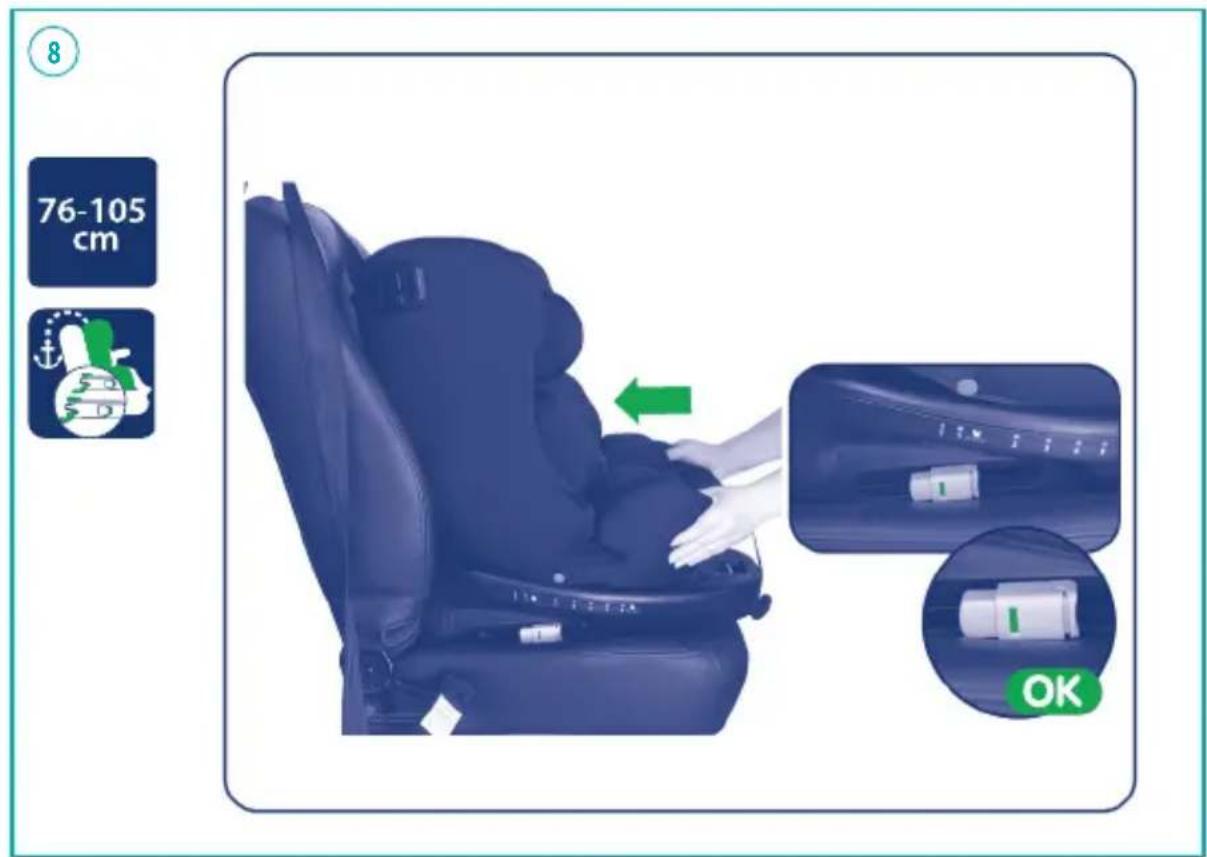

76-105 cm OK

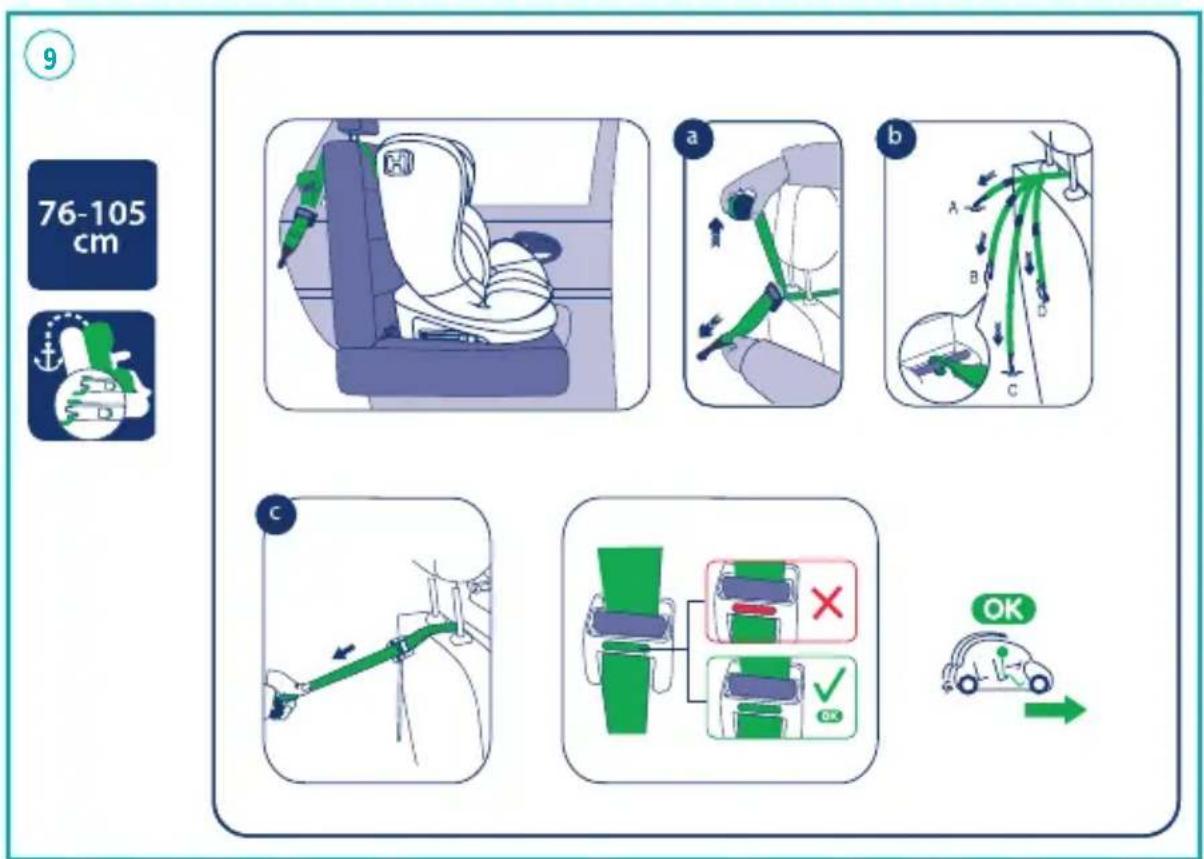

76-105 cm 9 a b A B C c OK

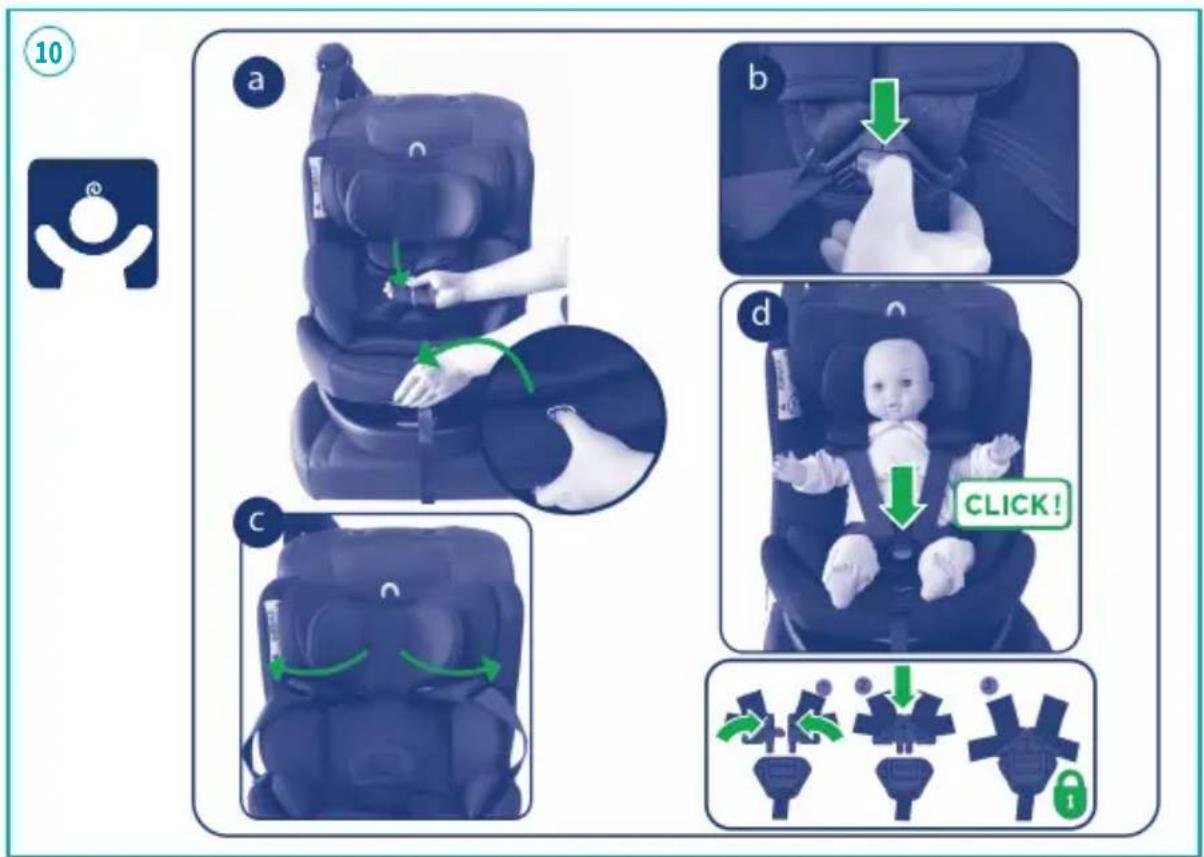

10 a b c d CLICK!

Diagram showing how to adjust seatbelt between two car seats, with green arrows indicating adjustment steps.

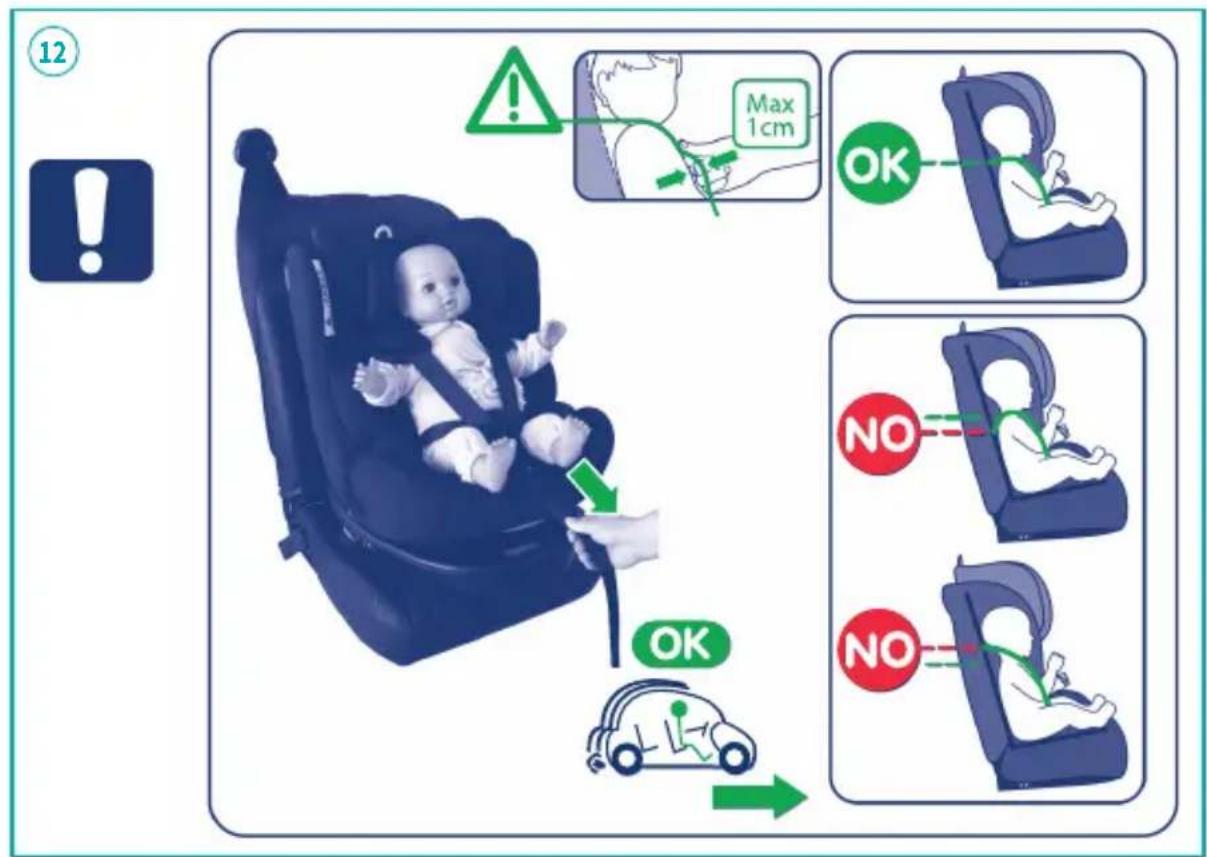

12 ! Max 1cm OK NO NO

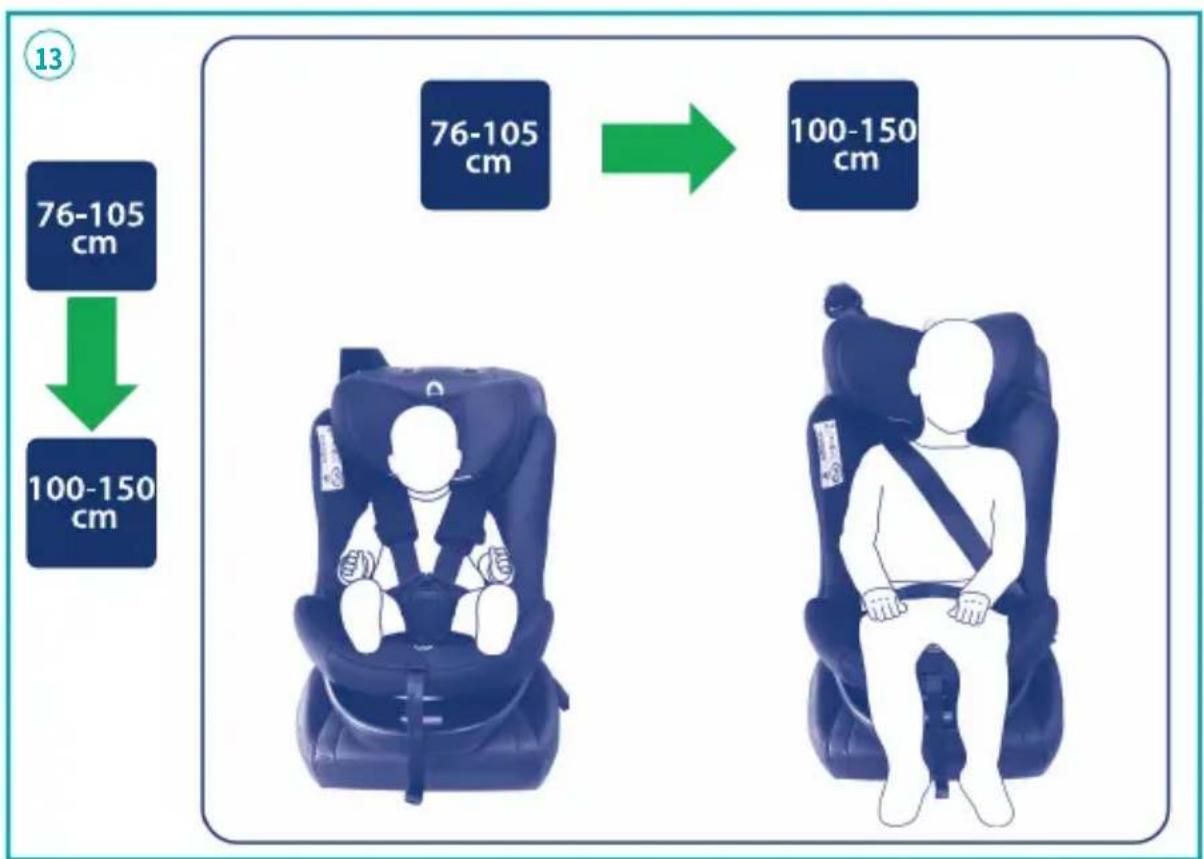

76-105 cm 100-150 cm 76-105 cm 100-150 cm

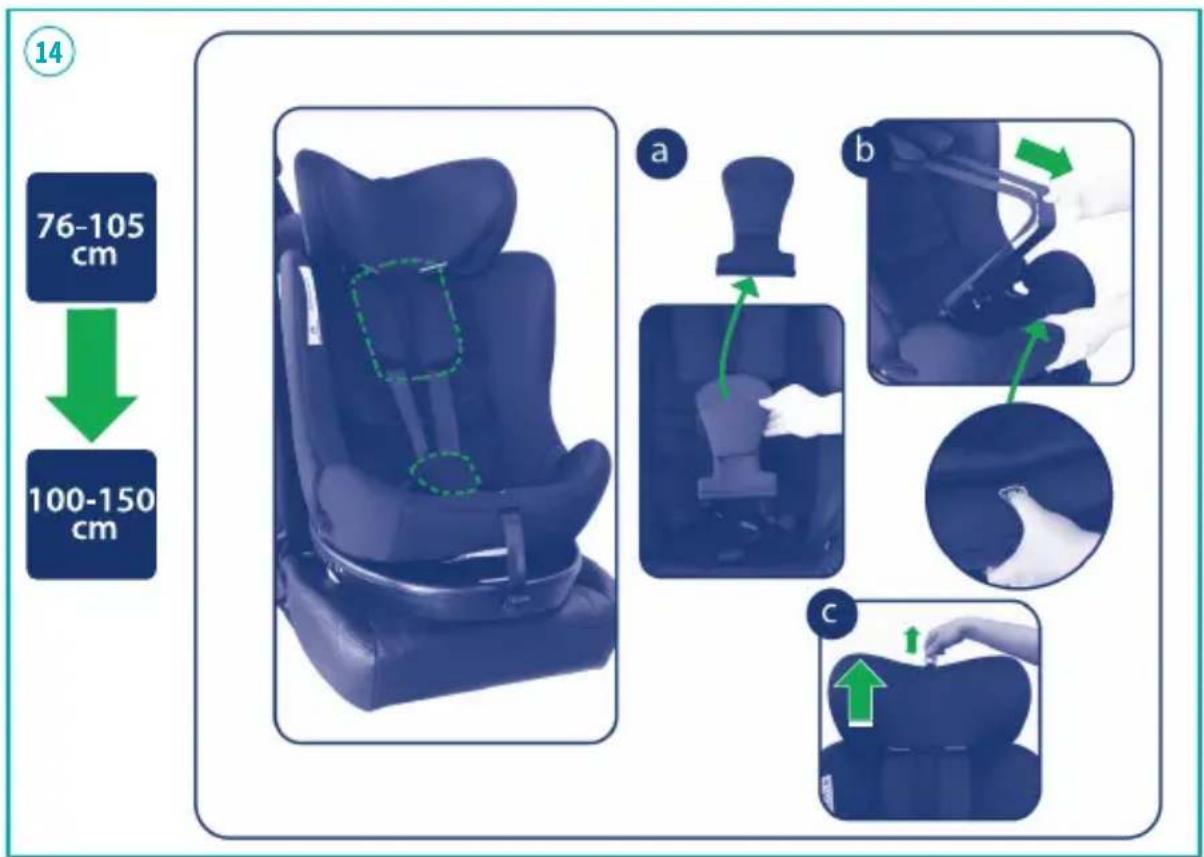

76-105 cm 100-150 cm a b c

15

76-105 cm 100-150 cm

Close-up of a hand interacting with a dark object, labeled 'd' and 'X2' (no readable text or symbols)

Close-up of a car seatbelt being adjusted for shipping (no visible text or symbols)

Blue baby car seat with neck and seatbelt, no visible text or symbols

Close-up of a hand holding a device with a green arrow and letter 'F' on its side (no readable text or symbols)

Close-up of a person's seatbelt with a green arrow pointing to the seat area (no text or symbols visible)

Close-up of hands holding a small object with a green arrow pointing to it (no visible text or symbols)

Close-up of hands holding a dark-colored object with a green arrow pointing to a detail (no visible text or symbols)

16

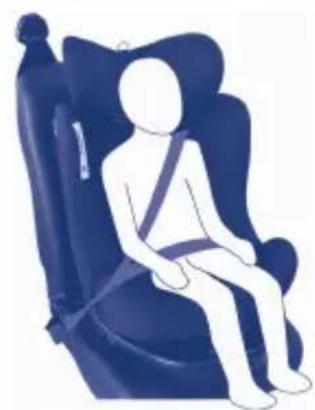

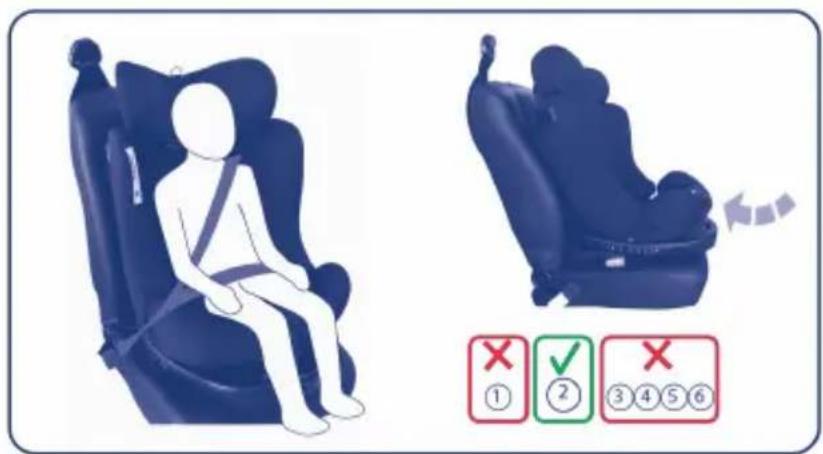

Illustration showing a person seated in a car seat and a car seat with six numbered items, accompanied by a checklist with checkmarks.

Illustration of a person sitting in a car seat with a backrest (no text or symbols)

Blue car seat with a small propeller, no visible text or symbols

Icon showing a person with a green seatbelt and a plus sign, next to a smiling face wearing a seatbelt.

OK

OK

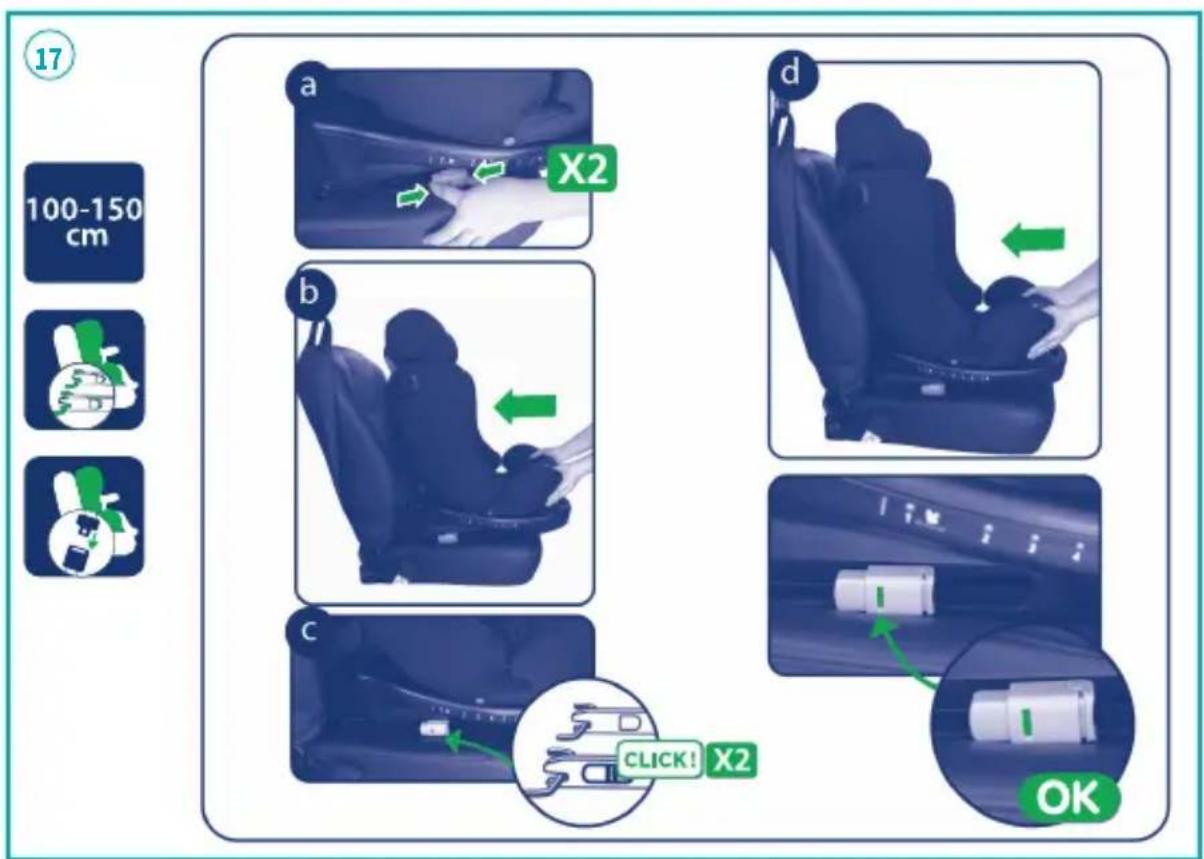

17 100-150 cm a X2 b c CLICK! X2 d OK

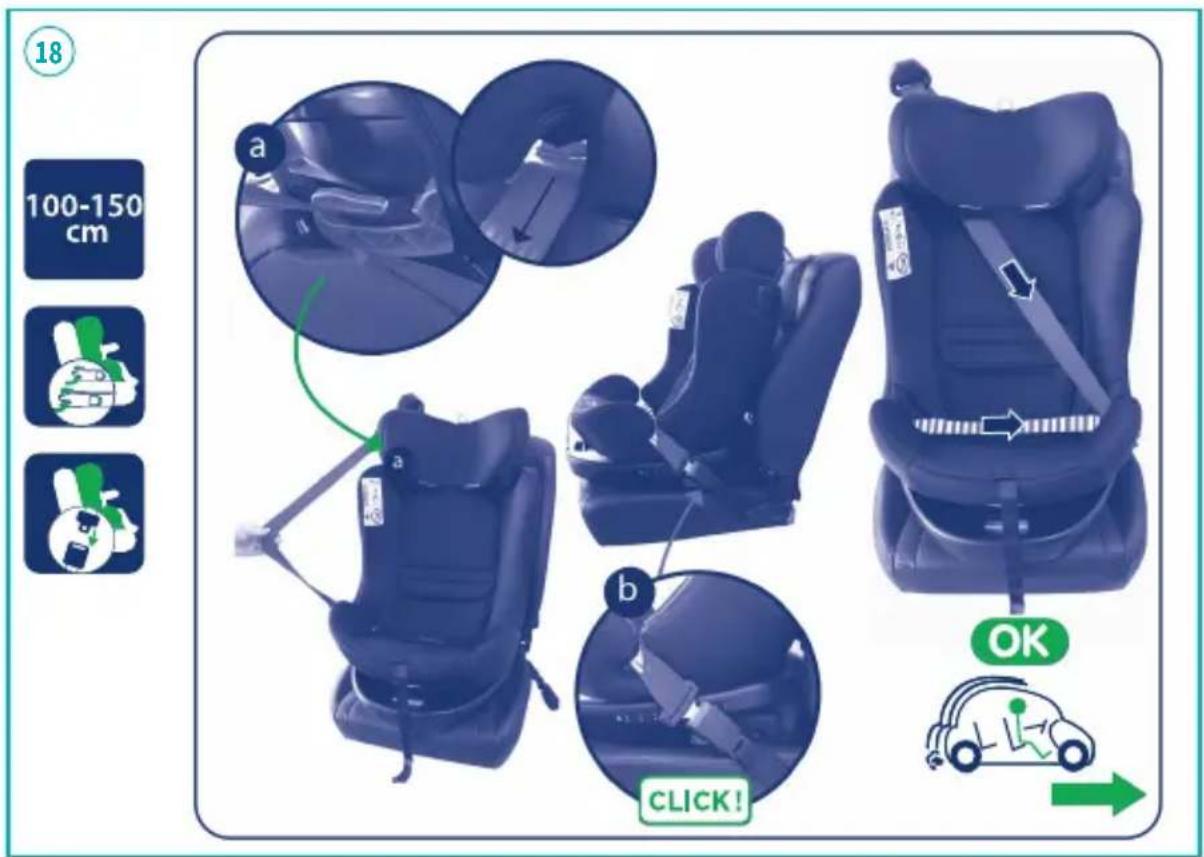

18 100-150 cm a a b CLICK! OK

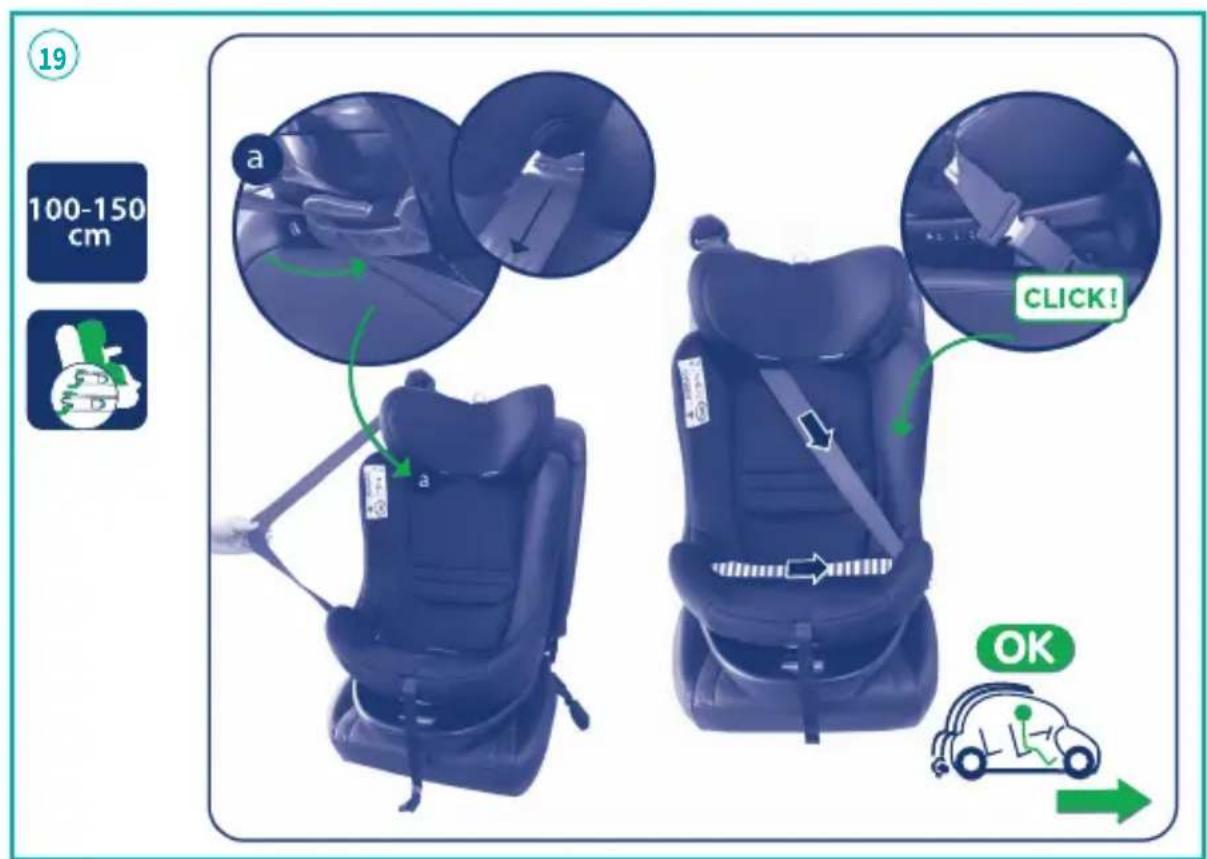

19 100-150 cm a a CLICK! OK

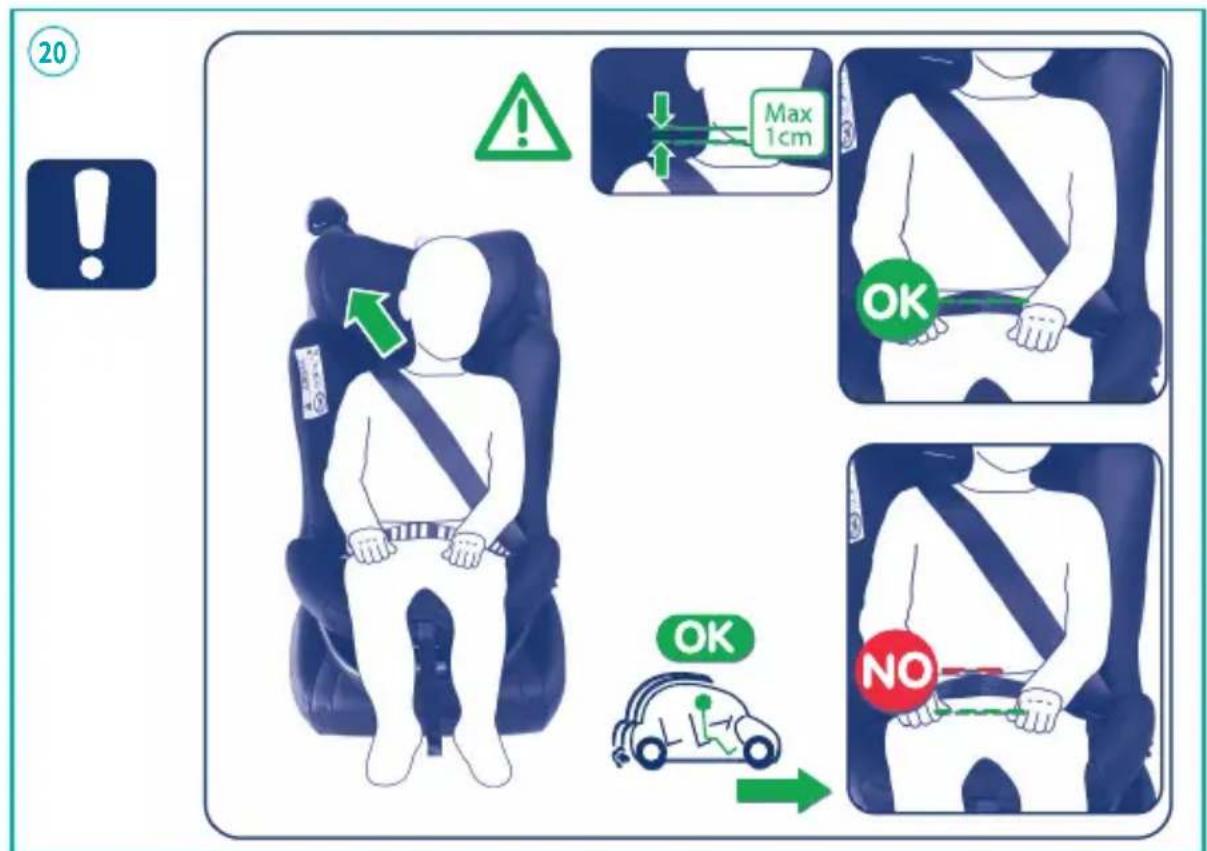

20 ! Max 1cm OK OK NO

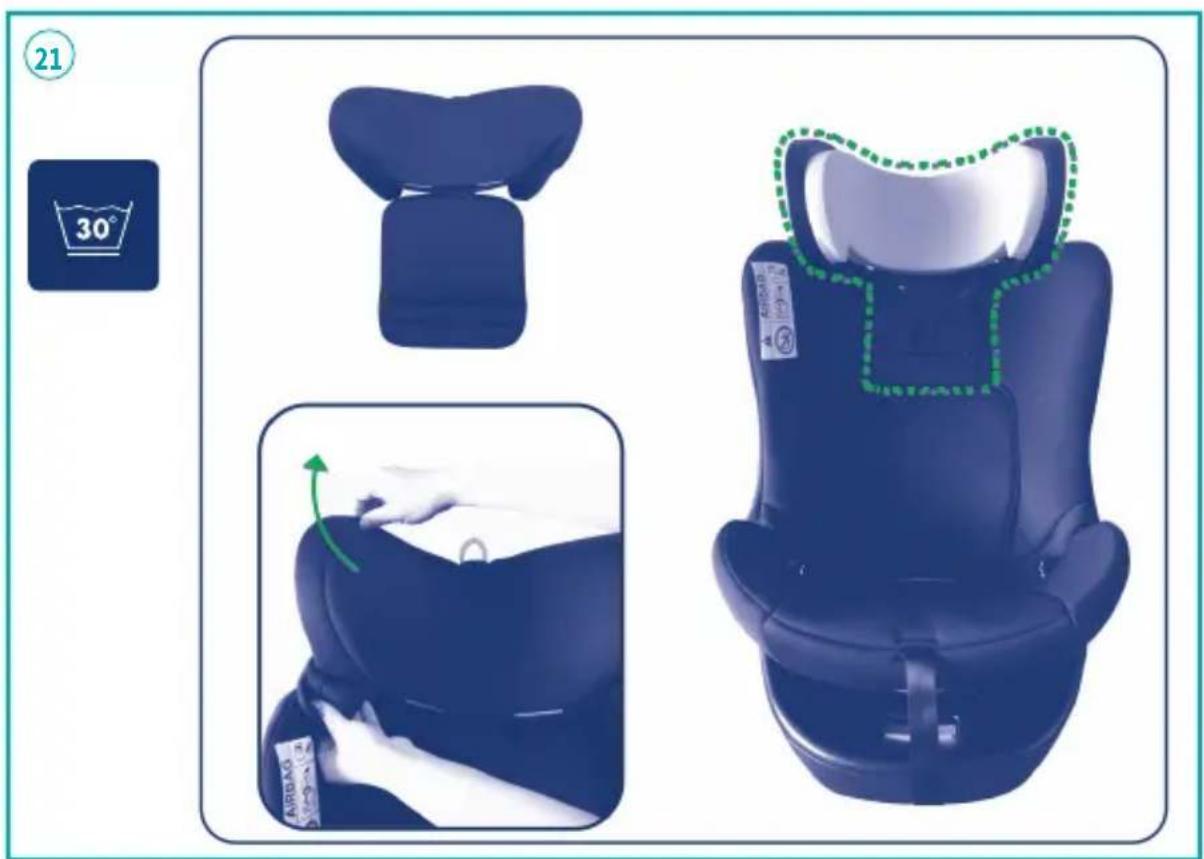

21 30° AIRDAG SOMA AIRDAG SOMA

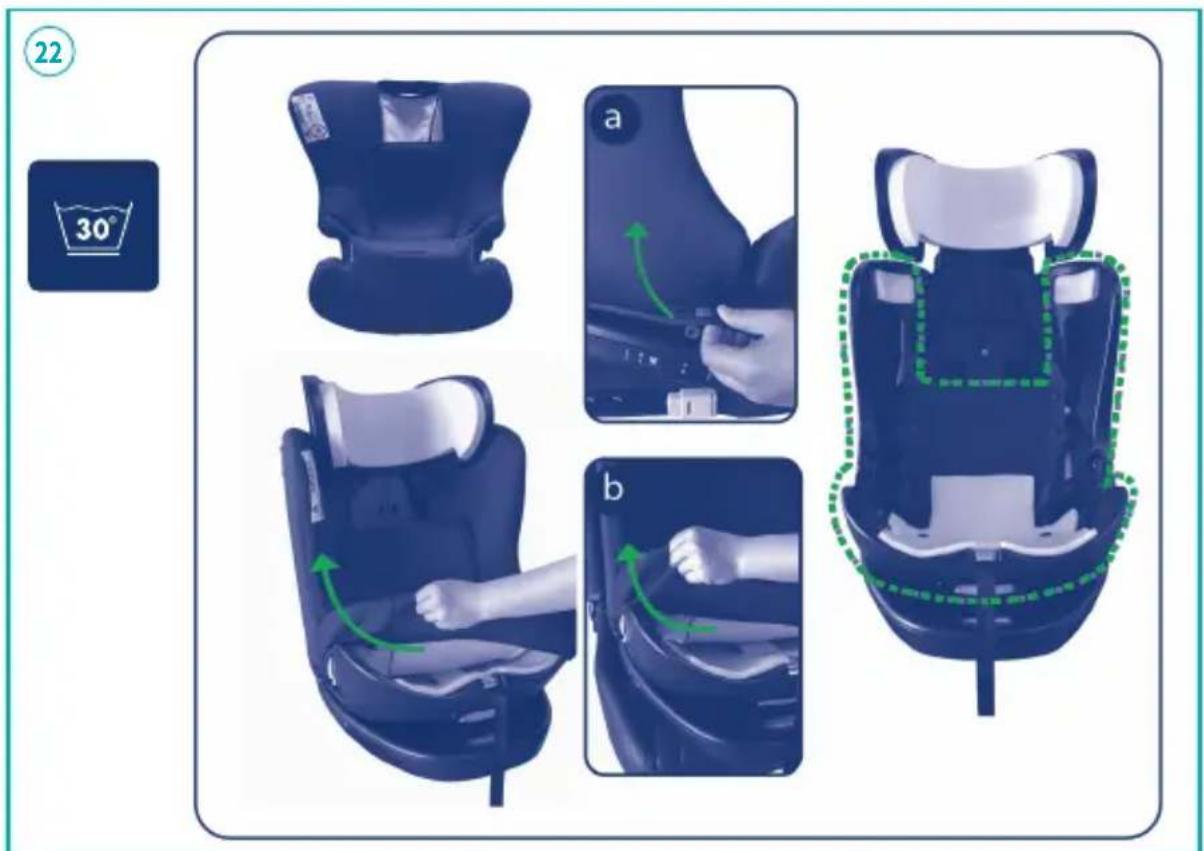

22 30° a b

20

Interior view of a car seat with two seats and directional arrows indicating movement (no text or symbols)

Illustration of a hand pressing down on a blue surface with green arrows indicating motion (no text or symbols)

In order to easily place the child in the child safety seat, pass the seat belts through the special elastic bands on the sides, as shown in figure.

Diagram of a car with checklist and checkmarks, showing unknown status indicators and a question mark in the center.

• All Giordani products have been carefully designed and tested for your child’s safety and comfort.
  Only use Giordani-sold or approved accessories. Using other accessories may be dangerous.
• You are responsible for the safety of your child at all times. Please read these instructions carefully and familiarise yourself with the product before using it.
  • Always keep the instructions for future reference; there is a storage section on the child seat.
• The TITANO i-Size is intended for car use only.
• Do not use second-hand products of unknown history. Some parts could be broken, torn or missing.
• Do not use any load-bearing contact points other than those described in the instructions and marked in the child restraint.
• Replace the TITANO i-Size following any violent stresses in an accident. Otherwise, it won’t provide the best safety for your child.

WARNING:

- Do not modify the child seat, as this could lead to unsafe situations.

The TITANO i-Size car seat in the car:

- Before buying this product ensure the child seat is compatible with

the vehicle in which you intend to use it.

• Consult the list of cars suitable for the car seat's correct installation on the website https://giordanibaby.com/manuali/
• Before using the ISOFIX anchorage system, it is IMPERATIVE to read the vehicle instruction manual before installing your child car seat.
• In the 76-105cm range, with the child seat facing forwards, ensure every time you change the angle that the child seat is firmly attached to the car seat (no slackness). If necessary, re-tighten the Isofix anchorage points.
• Make sure the fold-down rear seat is locked into position.
• Ensure that any luggage and other objects liable to cause injuries in a collision are properly secure.
• Make sure the straps holding the car seat to the vehicle are tight.

WARNING:

- Warning: When the child seat is installed on the front passenger seat, deactivate the front passenger airbag if your child is sitting in a rearward-facing position.

Baby in the TITANO i-Size car seat:

- Never leave your child unattended.

- For your safety and that of your child, always place them in the child seat and fasten them in, however short the journey.

- Use the TITANO i-Size only on a front-facing seat fitted with an automatic or static three-point belt approved under the ECE R16 standard or similar. Do NOT use a two-point belt.

• After placing the child in the child seat, ensure the harness is sufficiently tight by pulling the belt. Before every use, make sure the harness is not damaged or twisted.

- Ensure you can fit only one finger between the harnesses and your child (1cm). If the space is greater than 1 cm, tighten the harness belt further.

- Check to make sure the headrest is adjusted to the proper height.

- Ensure the straps under the stomach are as low as possible to support the pelvis properly.

- Do not use the child restraint device without the cover.

- Do not replace the seat cover with anything other than the manufacturer's recommended one because it will directly impact the functioning of the car seat.

- The temperature inside a vehicle may be very high, particularly after a long period of exposure to the sun. We strongly recommend, under such conditions, to cover the car seat with a piece of

material or something equivalent to prevent the harness fixings, particularly the metal parts, from overheating and burning the child.

ATTENTION:

When using ISOFIX, fitting clips for lower anchorage to the vehicle are insufficient. The ISOFIX anchors are designed for safe and easy fitting of the child safety systems inside the car. Not all cars have these anchors, although they are standard on more recent models. Consult the list of cars on which the car seat can be installed correctly on the website https://giordanibaby.com/manuali/

- In forward-facing position, the seat must be placed on the car's rear seat or, exceptionally, on the front seat according to local legislation (In France: Decree n° 91-1321 du 27-12-1991).

- Warning: when installing the car seat, spaces between the base of the car seat and the vehicle seat may appear depending on the position of the anchorage within the vehicle.

- The rigid parts and the plastic sections of a child restraint device should be positioned and installed so they cannot when the vehicle is used under normal conditions, become trapped under a moving seat or in the vehicle door.

- Never modify the construction or the materials of the car seat and the seat belt without consulting

the manufacturer.

• This child restraint is only effective if the usage instructions are respected.
  • Always fasten the child restraint even when they are not sitting in it.
• Never place heavy objects on the rear parcel shelf so they don't act as projectiles in an accident.
  • Always check that no part of the seat or the harness is trapped under a seat or in the vehicle door.
• If in any doubt about the system's correct installation or use, the user is advised to contact the distributor or the manufacturer of the child restraining device system.

CARE

- Keep the car seat clean. Do not use aggressive detergents.

Insert:

- The insert included in your TITANO i-Size seat plays an integral part in the restraint system's effectiveness for your child. It can be removed and the cover taken off for washing, but you must put it back where it belongs and only use this official TITANO i-Size insert. This insert is exclusively for use with the TITANO i-Size seat.

Fabric:

- The cover and groin pad can be removed for washing. If the cover

needs to be replaced at any time, only use an official Giordani cover because it is integral to the performance of the restraint.

• The shoulder pads can be washed with a damp cloth.
• Before cleaning, check the label sewn into the various parts of the fabric. You will find the washing instruction symbols for each item.

Shell:

- Clean the shell using a damp cloth.

Environment:

- Keep all plastic packaging materials out of your child's reach to avoid the danger of suffocation. For environmental reasons, when you have stopped using this product, please dispose of it in the proper waste facilities as per local legislation.

WARNINGS

- WARNING! BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF REACH OF CHILDREN IT IS RECOMMENDED TO DISPOSE OF THESE ITEMS AT AN APPROPRIATE WASTE SORTING COLLECTION POINT, AS REQUIRED BY REGULATIONS IN FORCE.

- WARNING! If the child car seat is damaged, deformed or excessively worn, it must be replaced as its original safety features may have been compromised. Make sure

there are no protruding elements that could cause damage to the child or to the vehicle upholstery: in this case, do not use the child seat or contact the manufacturer if in doubt.

• The metal parts and plastic parts of the safety seat must be fastened by referring to the manual, which ensures that the safety seat does not get caught on the vehicle seat or in the door.
• Any straps securing the child restraint system to the vehicle should be tight and adjusted to fit the child's body, and should not be twisted.
• The lap belt must be worn low, so that the pelvis is firmly secured.
• The safety seat must not be used after it has been involved in an accident.
• It is dangerous to make any alterations or additions to the safety seat without the manufacturer's approval. The installation instructions provided by the manufacturer of the child restraint system must be followed closely to ensure the child's safety.
• The safety seat should be kept out of direct sunlight, otherwise it may be too hot for the child's skin.
• Please do not leave your child unattended in the child restraint system.
  • Any luggage or other objects liable

to cause injuries in the event of a collision must be properly secured.

• a: The child restraint must not be used without the cover.
- b: The seat cover should not be replaced with a seat cover other than the one recommended by the manufacturer, since it is an integral part of the child restraint system.
- The instructions for the child restraint system should be kept for as long as the safety seat is in use.
- Do not use any load bearing contact points other than those described in the instructions and marked on the child restraint system.
- The rigid elements and plastic parts of the child restraint system must be positioned and installed so that they do not get caught in the vehicle seat or door during everyday use of the vehicle.
- Any luggage or other objects liable to cause injuries in the event of a collision must be properly secured.
- Safe driving is the best way to protect children; child safety seats can protect children effectively, but they cannot completely prevent the harmful consequences of car accidents.
- Please make sure to use the correct type of safety seat with the appropriate application method, as indicated in the instruction manual of the child restraint system.

• Otherwise, the child’s safety could be at risk.
• The child safety seat must not be positioned anywhere near an active airbag, as this could result in your child being injured in the event of an accident.
• If there is any risk of interference between the adult safety-belt buckle and the main load bearing contact points on the restraint system, it must not be used. If in doubt about this point, the user is advised to contact the manufacturer of the child restraint system.
• Do not use the safety seat in the forward facing position before the child is 15 months old and has reached a height of 76 cm.
• The safety seat must not be installed in the rearward facing position onto a vehicle seat fitted with an airbag.
• Keep the instruction manual for future reference.

FOR TECHNICAL OR COMMERCIAL REASONS, PRG RESERVES THE RIGHT, AT ANY TIME AND ALSO ONLY IN A SPECIFIC COUNTRY, TO MODIFY THE TECHNICAL CHARACTERISTICS OF THE PRODUCTS DESCRIBED IN THIS LEAFLET, AND/ OR THE SHAPE, TYPE AND NUMBER OF THE ACCESSORIES SUPPLIED.

GUARANTEE INFORMATION

- This item is guaranteed against manufacturing defects as stipulated in the legal Directives and/or regulations in force on guarantees for consumer goods applicable to the European Union and those of the country in which it is marketed.

- It is essential to provide the purchase invoice or receipt in order to process the guarantee through the seller of the item or, failing that, through the manufacturer.

- The guarantee does not cover anomalies or faults caused by misuse, non-compliance with the safety regulations and instructions for use and maintenance provided, or due to wear and tear caused by normal use and regular handling of the item.

- The label containing the serial number of your model must not be torn off under any circumstances, as it contains information relevant to the guarantee.

Installation instructions

Height Body restraint mode Seat connection mode			Installation direction
40 -105 cm Five-point harness ISOFIX		+Top tether	Rearward facing
76 - 105 cm Five-point harness ISOFIX		+Top tether	Forward facing
100 - 150 cm Three-point car seat belt restraint		ISOFIX+ connectors+ Three point car seat belt	Forward facing
100 - 150 cm Three-point car seat belt restraint		Three-point car seat belt	Forward facing

- Rearward facing

40-105 cm/weight≤18 kg: ISOFIX + Top tether + Five-point seat belt

- Forward facing

75-105 cm: ISOFIX + Top tether + Five-point seat belt

100-150 cm: ISOFIX + Three-point car seat belt or Three-point car seat belt only.

- Notice regarding i-Size category Enhanced Child Restraint Systems (40-105 cm). This is an i-Size Enhanced Child Restraint System.

This is an i-Size Enhanced Child Restraint System.

It is approved according to UN Regulation No. 129 for use in i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer. Notice regarding i-Size booster seat category Enhanced Child Restraint Systems (100-150 cm). This is a i-Size booster seat Enhanced Child Restraint System. It is approved according to UN Regulation No. 129 for use primarily in "i-Size seating positions" as indicated by vehicle manufacturers in the vehicle user's manual. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

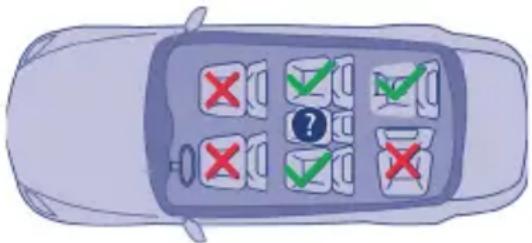

DO NOT USE REARWARD FACING ECRS IN SEATING POSITIONS WHERE THERE IS AN ACTIVE FRONTAL AIRBAG INSTALLED.

Do not use forward facing before the child is 15 months old and has reached a height of 76 cm.

IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS (Refer to instructions).

Diagram of a car with checkmarks and a question mark inside, indicating selection or status of an unknown object.

- Suitable for models with ISOFIX systems compliant with ECE R14 and with three-point seat belt/seat belt with a retractor compliant with ECE R16. It is not suitable for cars with only two-point seat belts.

E GIORDANI TITANO SILLA DE AUTO

SEGURIDAD

Diagram of a car with checkmarks and red X marks indicating failure or unknown status, overlaid on a grid of checkmarks and a question mark.

Diagram of a car with checkmarks and question mark indicating status or inspection, featuring a central '?' symbol.

Diagram of a car with checklist and checkmarks, showing red and green checkmarks for selected items

Diagram of a car with checkmarks and red X marks indicating unknown or missing status, overlaid on a grid of checkmarks and a question mark.

INFORMATIONS SUR LA GARANTIE

Diagram of a car with multiple driver keys and checkmarks, indicating unknown or incorrect drivers.

Diagram of a car with checkmarks and a question mark inside, indicating selection or status.

Meihu Village, Henghe Town, Cixi City, Ningbo, China

Imported and distributed by:

https://giordanibaby.com/manuali/

UK Approved to: ECE R 129/03
