USER MANUAL Adonis Giordani

Line drawing of a car seat assembly with no text or symbols

|

IMPORTANTE:

LEGGERE ATTENTAMENTE

E CONSERVARE

KEEP FOR FUTURE REFERENCE, READ CAREFULLY

E

¡IMPORTANTE!

LEER DETENIDAMENTE Y CONSERVAR PARA FUTURAS CONSULTAS

2

P

IMPORTANTE!

Diagram of car seat components with numbered labels pointing to different parts of the seat.

Notice: the inner cushion is suitable for children with a height of 76-105 cm.

Keep any spare parts. If you lose any parts, please contact the manufacturer. Missing parts of damaged child car seats may not be used.

1. Headrest
2. Belt guiding hook for 1
3. Shoulder pads
4. Inner cushion
5. Harness buckle

6. Shoulder strap adjustment button

7. Harness adjustment strap

8. Belt guiding hookfor 2
9. Buckle pad
10. Seat base

11. Backrest

12. Headrest adjustment handle

13. Shoulder straps hole
14. Shoulder straps
15. Metal yoke
16. Rotation bar

E COMPONENTES

Diagram illustrating seatbelt buckle adjustment steps with labeled instructions and visual diagrams

3

④

5

6

10

Simple vertical line with a green border on white background (no text or symbols)

7 click

8

Illustration of a child wearing a car seat with a green belt and orange straps (no text or symbols)

10

Simple vertical line with a teal color bar on the left, no text or symbols present.

1112 Click

Illustration of a baby in a car seat with green safety belt, no text or symbols present

11

13

Illustration of a child in a baby car seat with green safety straps (no text or symbols)

14

Line drawing of a hand pressing down on a mechanical device with a green component (no text or symbols)

Diagram of a mechanical or anatomical component with red arrows indicating direction, no text or symbols present

15

Simple line drawing of a stylized human head with no text or symbols

Simple line drawing of a person wearing a teal-colored headgear (no text or symbols)

Simple line drawing of a stylized human head with large ears and a straight neck (no text or symbols)

A B C

Simple vertical green line on white background (no text or symbols)

1617

Diagram showing a baby car seat with a red arrow indicating the change from the main body to the seat.

1819

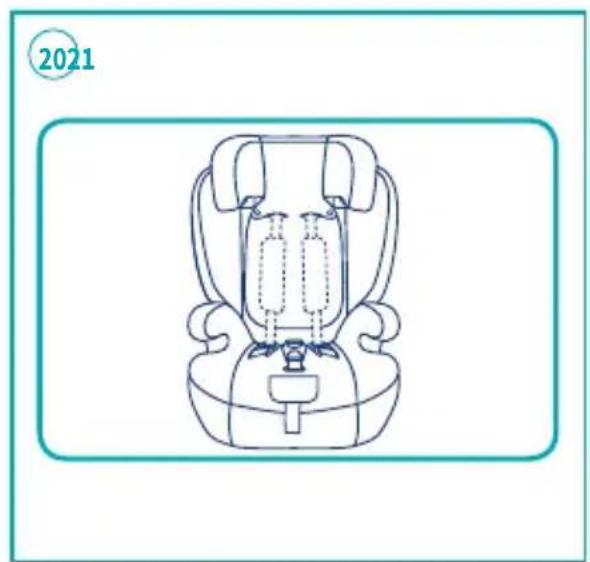

Line drawing of a car seat assembly with a highlighted seat area (no text or symbols)

Simple vertical line with a teal color bar on the left, no text or symbols present.

Line drawing of a car seat assembly (no text or symbols)

Line drawing of a medical device with a red arrow pointing to a central component (no text or symbols)

13

Line drawing of a traditional Chinese ceremonial vessel with ornate handles and central basin (no text or symbols)

Line drawing of a car seat with neck and seatbelt (no text or symbols)

24

Line drawing of a child seated in a car seat (no text or symbols)

26

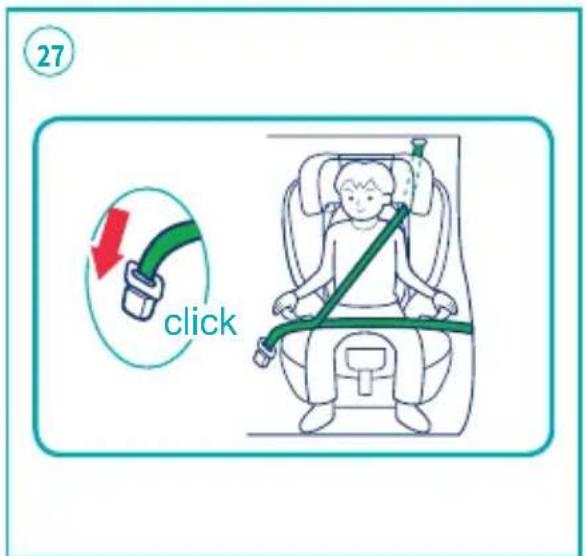

27 click

14

Simple vertical line with a green border on white background (no text or symbols)

2829

Illustration of a car seat with internal components and a highlighted seat area (no text or symbols)

Line drawing of a car seat with internal compartments and a numbered label (30) in the top-left corner.

31

Simple vertical line with a teal color bar on the left, no text or symbols present.

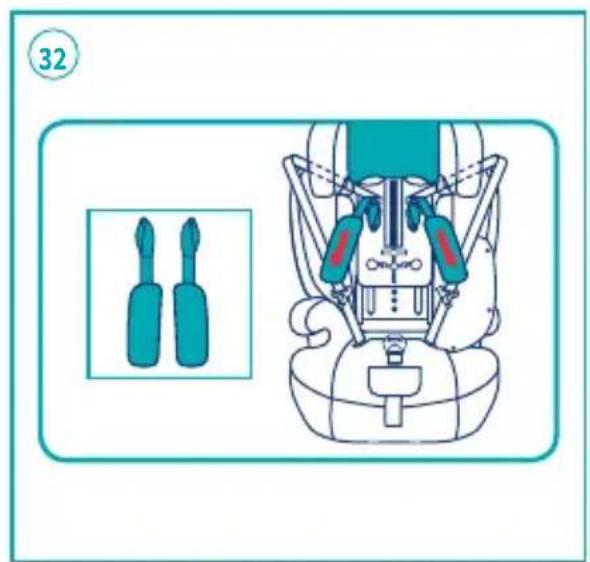

Illustration of a baby car seat with two toothbrushes, one shown in a separate inset (no text or symbols)

Illustration of two car seat designs, one teal and one white outline, with no text or symbols present.

15

34

35 36

Illustration of hands holding a teal-colored belt buckle with a red upward arrow indicating compression (no text or symbols)

Silhouette of a car with two seats and three seatbelting, marked with red prohibition signs (no text or symbols)

Diagram showing car parking layout with parking signs and checkmarks indicating availability or status

Diagram showing a car with a no-smoking sign and a person lying on the seat, alongside a simple line drawing.

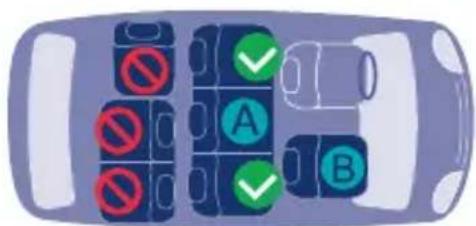

A Car Safety Belt: Diagonal Belt B Car Safety Belt: Lap Belt C ISOFIX Attachments

This ECRS system is suitable for seat belts compliant with the ECE R16 requirement and is not suitable for models only equipped with two-point seat belts.

Silhouette of a car with two seats and two no-smoking symbols (no text or numbers present)

Diagram showing car parking lot with no signs, green checkmarks, and letter blocks A and B indicating parking zones or vehicle sections.

Diagram showing a car with a red 'No' sign and a broken-out seat, alongside a simple line drawing of a person lying on the back.

The suitable location for installation in the car is shown on the left :

Not allowed to install child safety seat.

√ Safe to install child safety seat.

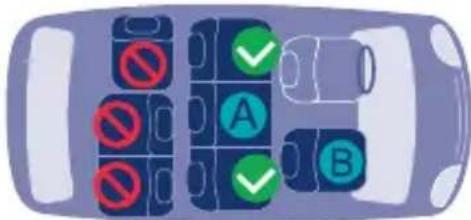

A It can only be installed in this position with a three-point seat belt.

The child safety seat cannot be installed in this position if the airbag has been deployed.

22

NOTICE

Notice regarding Universal Belted seat category Enhanced Child Restraint Systems (76-105 cm). This is a Universal Belted Enhanced Child Restraint System. It is approved according to UN Regulation No. 129 for use primarily in ‘Universal seating positions’ as indicated by vehicle manufacturers in the vehicle user’s manual. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer. Notice regarding i-Size booster seat category Enhanced Child Restraint Systems (100-150 cm). This is an i-Size booster seat Enhanced Child Restraint System. It is approved according to UN Regulation No. 129 for use primarily in ‘i-Size seating positions’ as indicated by vehicle manufacturers in the vehicle user’s manual. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer. IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD’S AGE EXCEEDS 15 MONTHS (refer to instructions).

INSTALLATION WITH ADULT SAFETY BELT (76-105 cm)

1. Forward Facing:

Child height 76 cm- 105 cm Child weight ≤ 18 kg

Press the harness adjustment button and loosen the straps.

1. Press the red button to disengage the buckle. Insert the buckle tongue into the loop on the side.

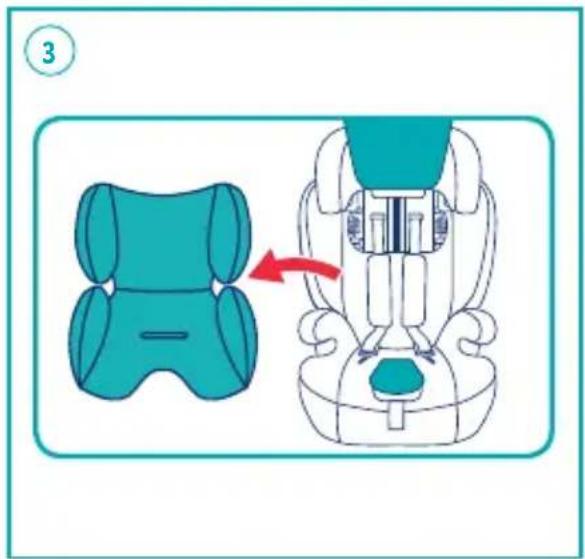

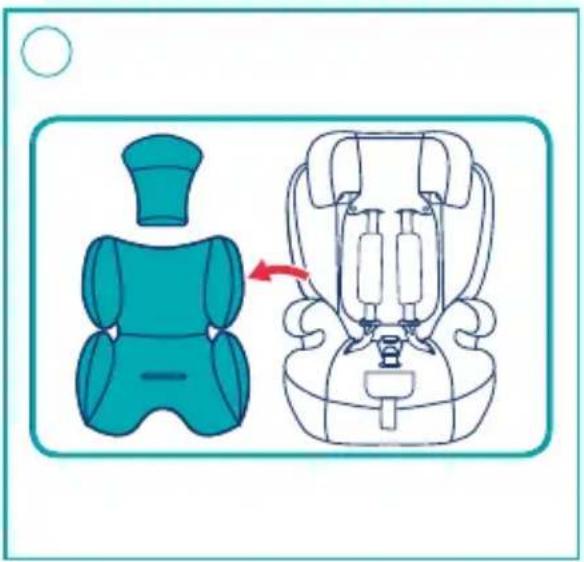

2. Pull up the headrest and lift the lower back cushion, then remove the inner cushion.

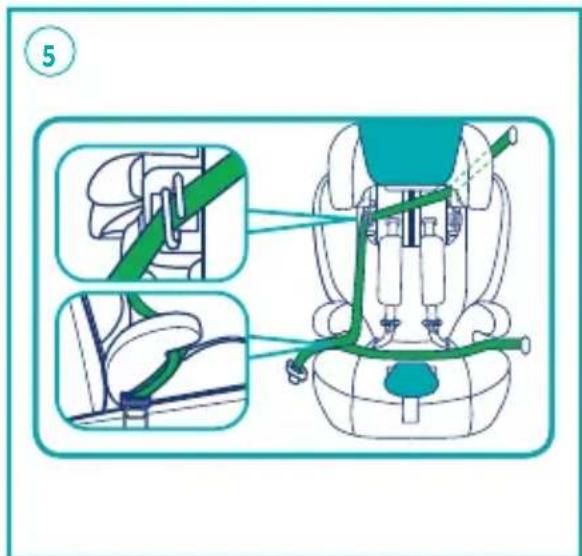

3. Place the child safety seat on the car seat. Pull out the seat belt completely.

4. The shoulder strap must pass through the shoulder strap guide and the lap belt must go under the armrest on the seat base.

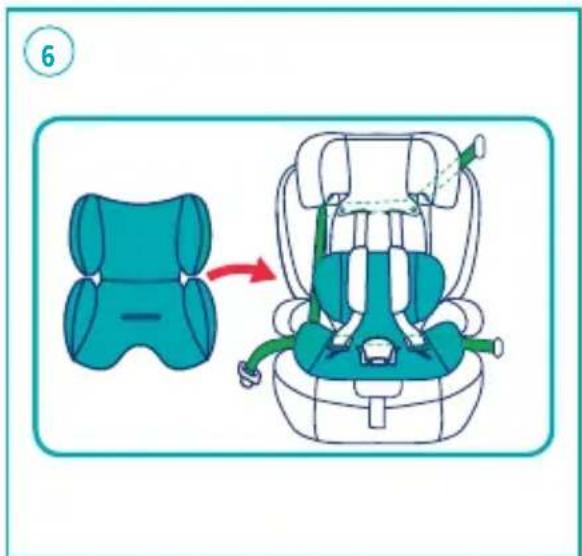

5. Put the lower back cushion back on the headrest and put the inner cushion back on.

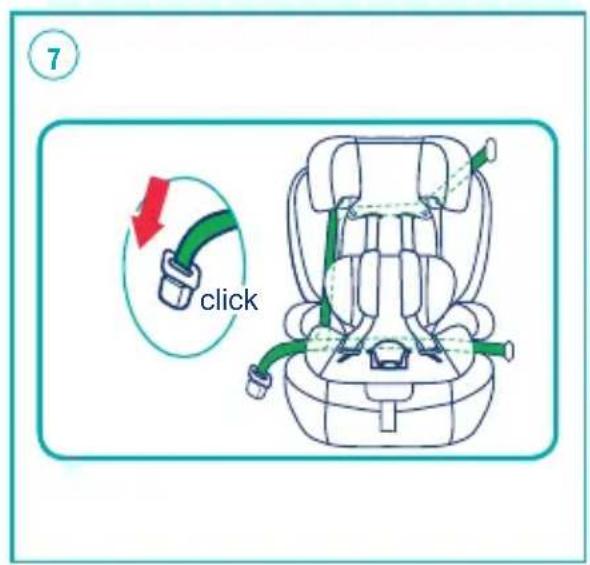

6. Insert the metal tongue of the car seat belt into the car seat buckle until you hear it click into place.

7. Hold the seat down with one hand and pull the belt tight with the other hand.

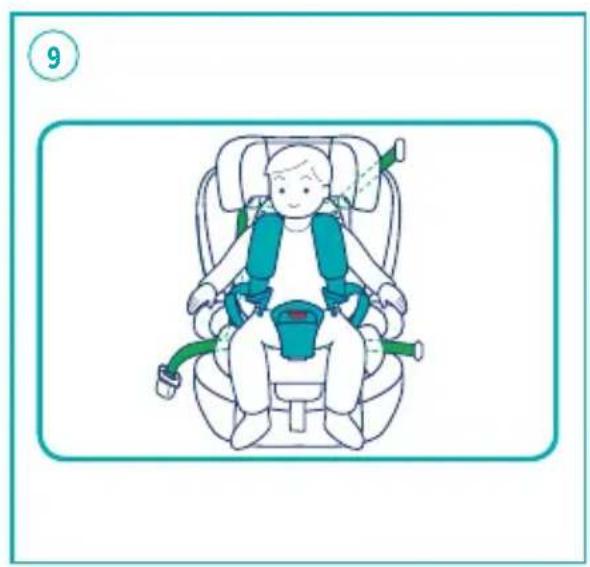

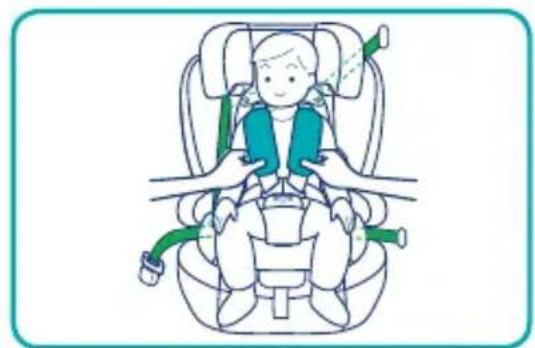

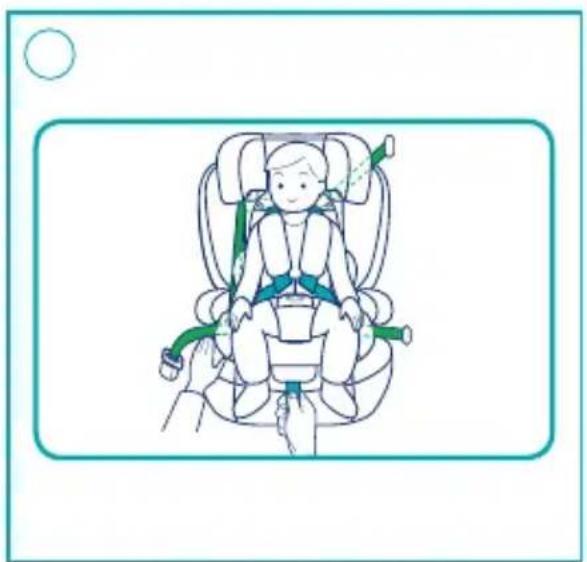

8. Place your child in the child restraint system and pass both arms through the harnesses.

9. Important: the left and right bolts of the five-point safety seat buckle must be fitted first.

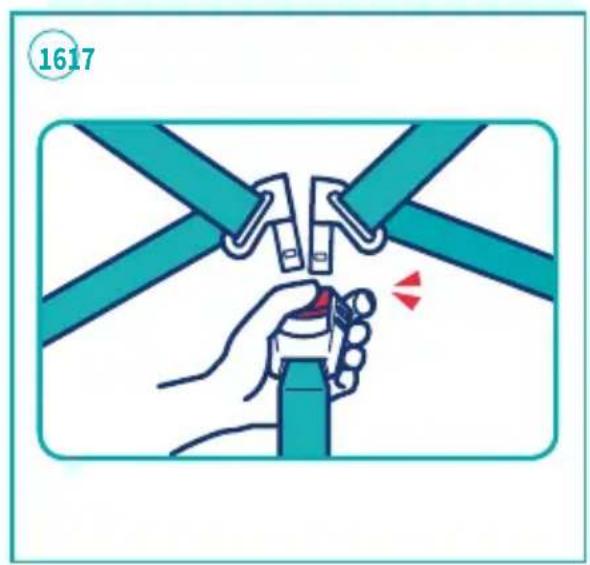

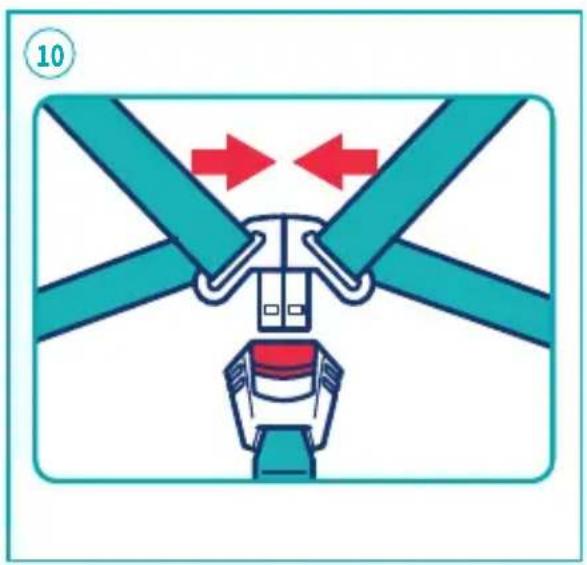

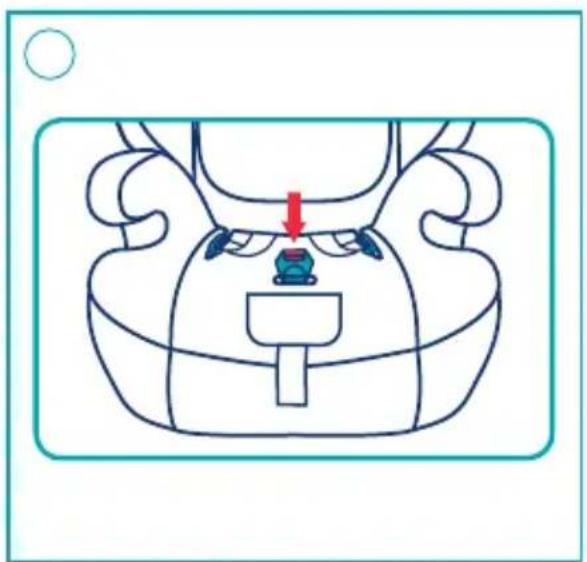

10. Engage the buckle as shown in the pictures.

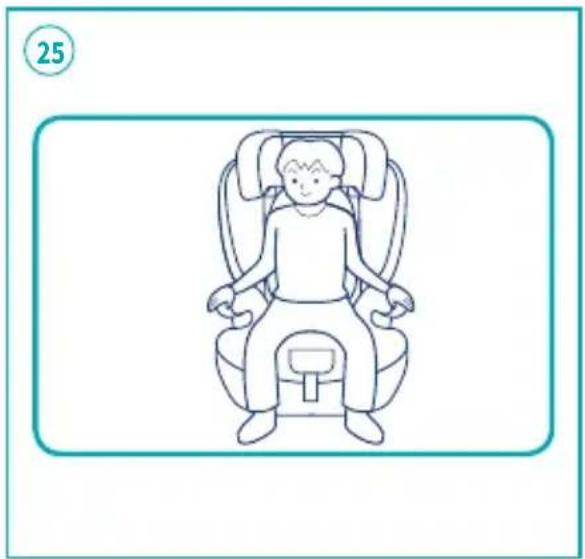

11. Pull down the adjustment webbing and adjust it to the correct length to make sure your child is snugly secured.

12. Pull the shoulder straps as far as they will go.

HEADREST ADJUSTMENT

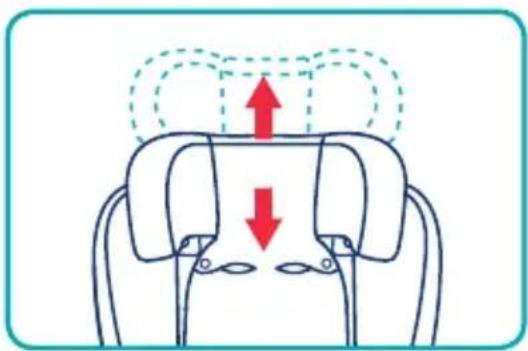

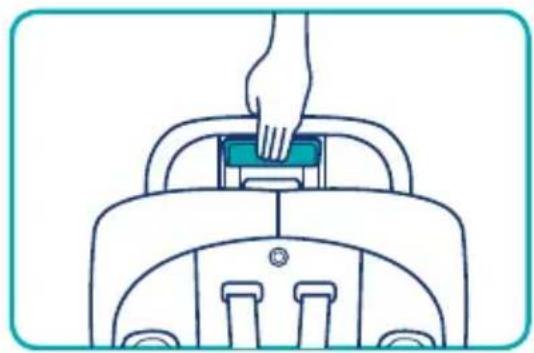

1. Pull the headrest adjustment handle. Pull the head support adjustment and, at the same time, pull up or push down the head support.

Make sure that the harness is level with your child's shoulders.

Otherwise, move the shoulder strap up or down to the correct slot

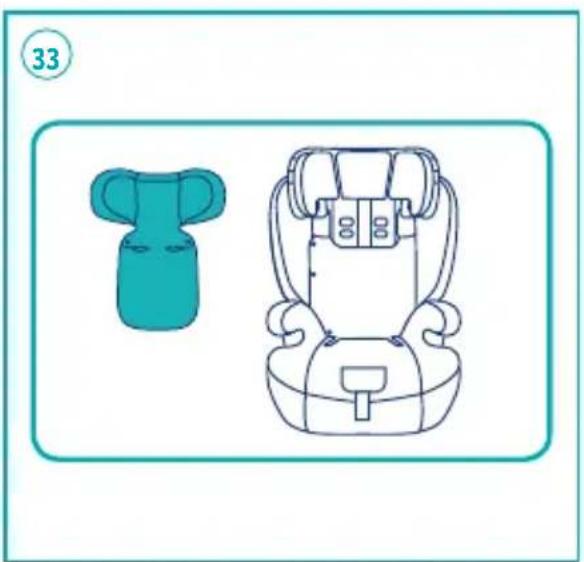

CONCEALING THE HARNESS SYSTEM (suitable for children with a height of 100 cm-150 cm)

1. Release the five-point buckle.

2. Remove the buckle pad and inner cushion.

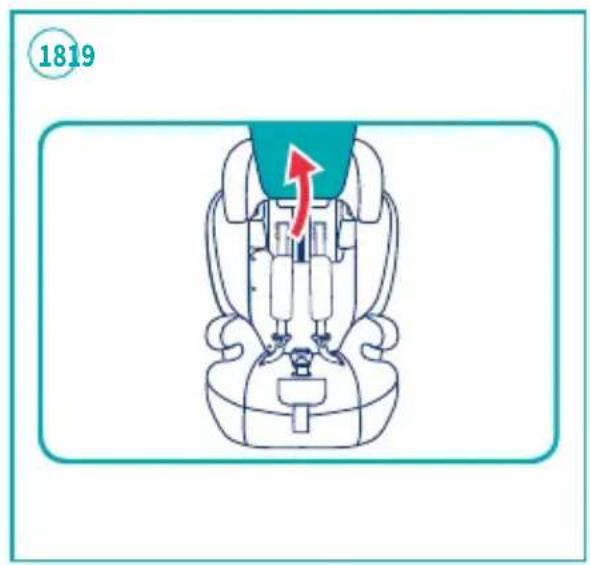

3. Pull up the headrest and lift the lower back cushion.

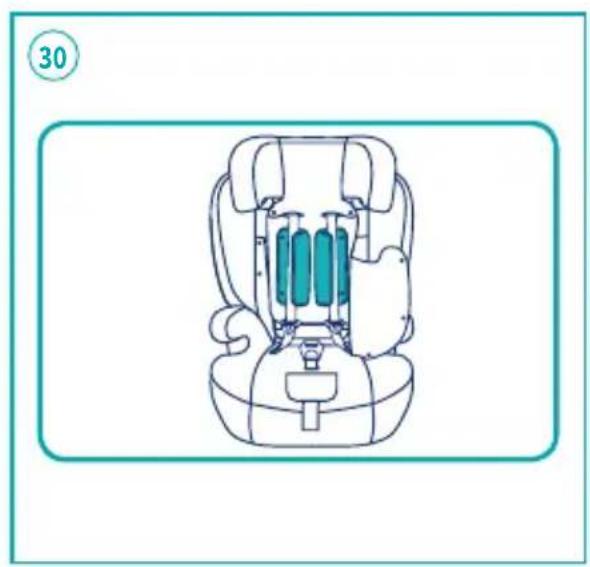

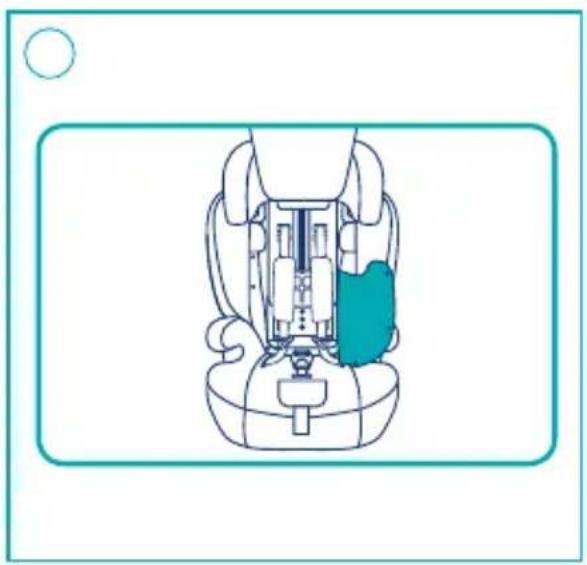

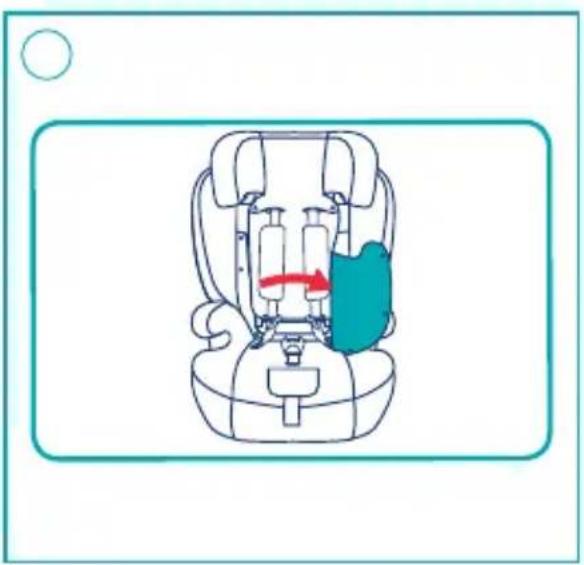

4. Undo the three buttons on the fabric cover on the back of the seat and move it to the right.

5. Hide the shoulder strap and shoulder pad sleeve and do up all the buttons on the back.

6. Place the buckle tongue and the buckle under the seat base cover.

7. Insert the buckle tongue and buckle into the storage slot in the base of the seat.

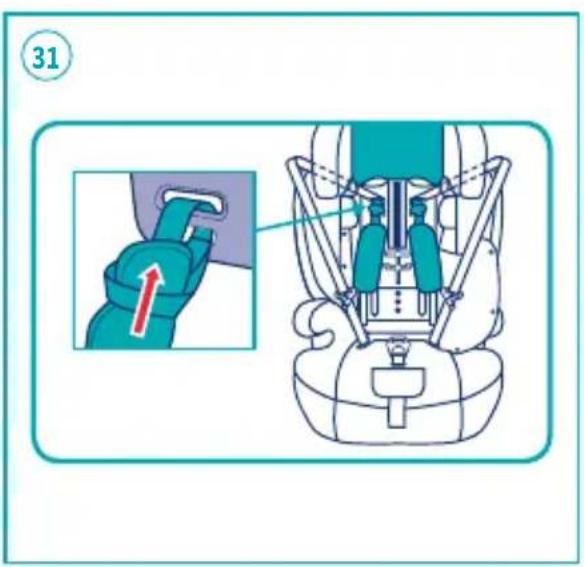

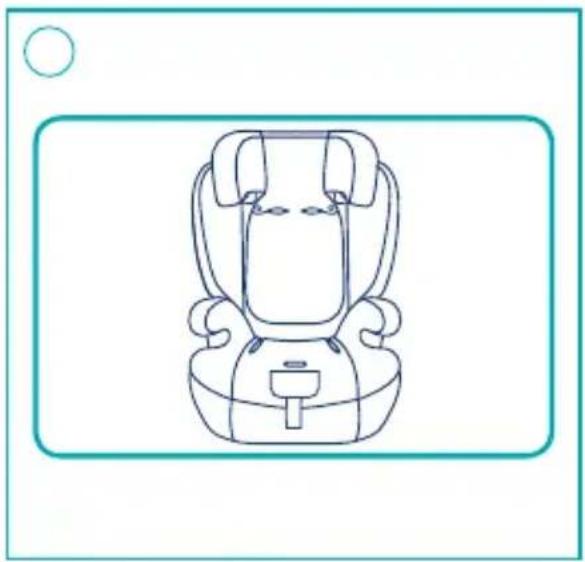

8. Tighten the shoulder straps of the seat correctly, making sure that they are not too tight, as this would prevent normal use.

INSTALLATION WITH ADULT SAFETY BELT (100-150 cm)

1. Forward Facing:

Child height 100 cm-150 cm i-Size Booster seat.

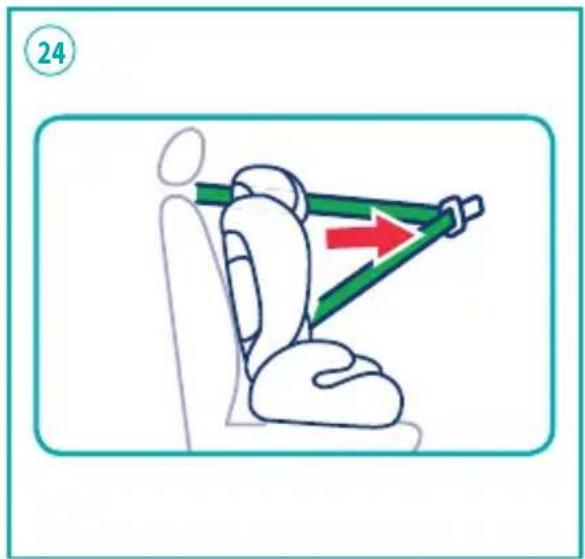

Place the child safety seat on the car seat. Pull out the seat belt completely.

1. Place the child in the seat and adjust the headrest to the appropriate height.

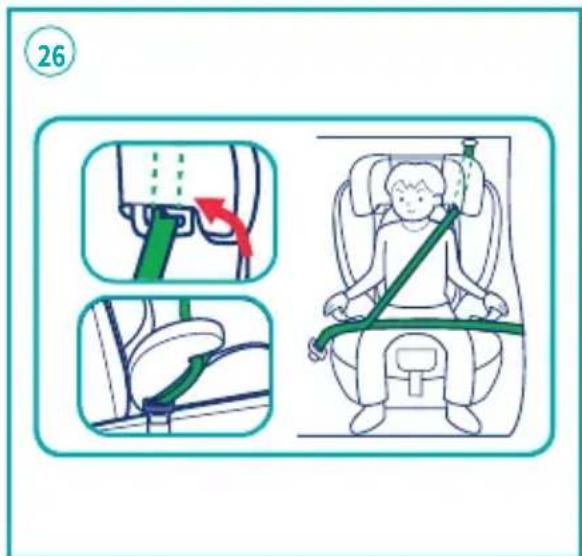

2. The shoulder strap must pass through the shoulder strap guide and the lap belt must go under the armrest on the seat base. Make sure that the car seat belt does not hurt the child's neck.

3. Insert the metal tongue of the car seat belt into the car seat buckle until you hear it click into place.

4. Tighten the seat belt and make sure it is not twisted.

REMOVING/INSTALLING THE COVER

Remove the buckle pad and inner cushion.

1. Undo the three buttons on the back-rest cover and move it to the right.

2. Loosen all fastening buttons on the shoulder pad sleeve.

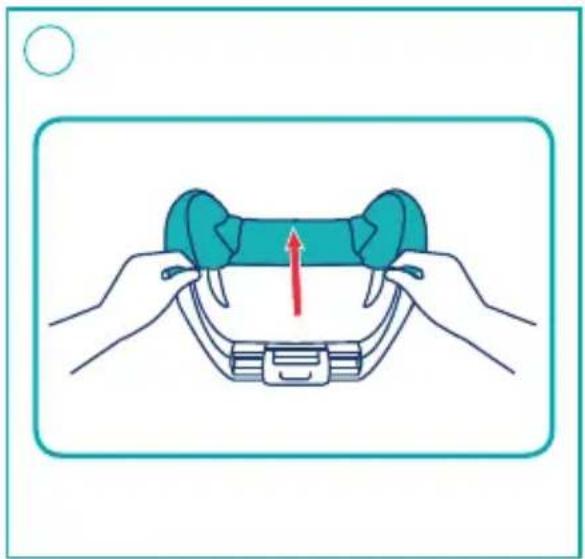

3. Pull upwards to take the shoulder pad out of the hole.

4. Pull downwards to take the shoulder pad out. Lower the fabric cover of the headrest.

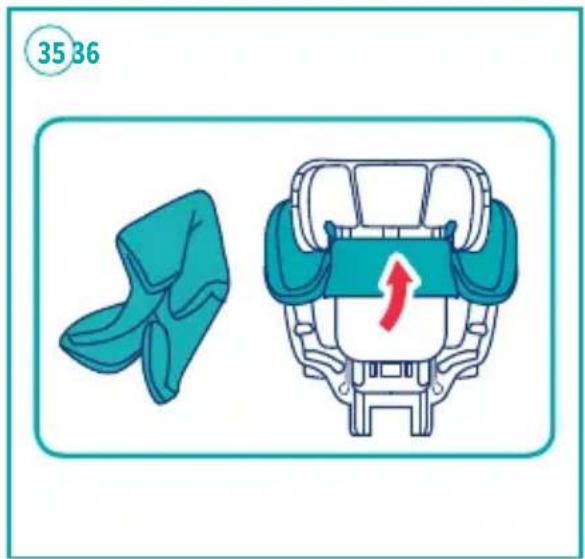

5. Remove the fabric cover from the headrest.

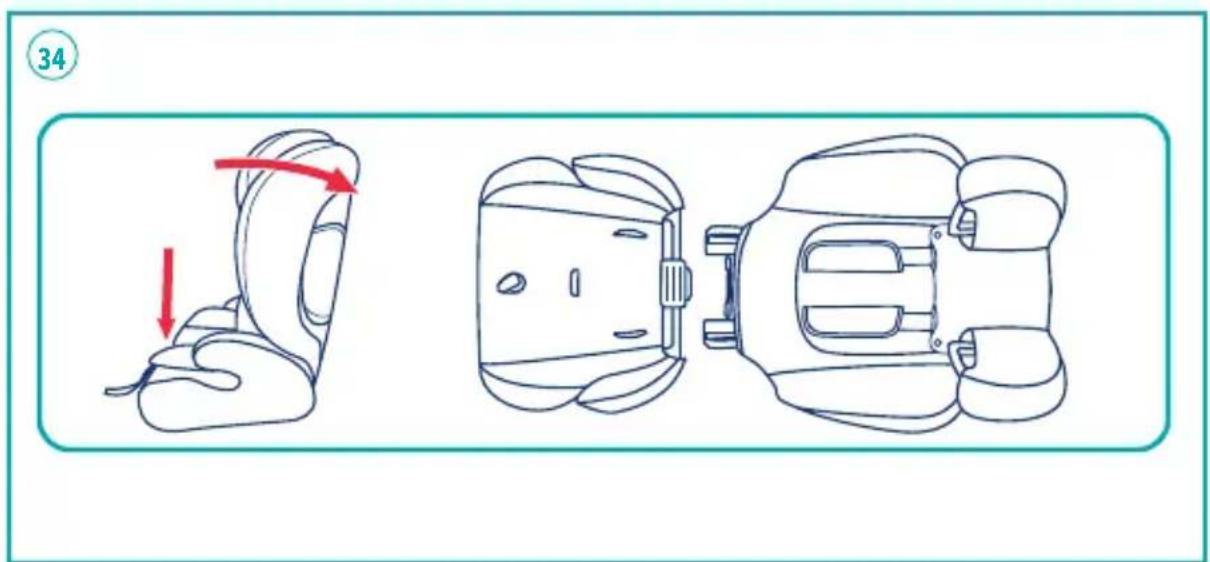

6. Removing the backrest: disconnect the backrest and base, take out the backrest hook from the rubber band on the seat cover of the base, then separate the backrest from the base.

7. Take off the backrest cover by lifting it up.

8. Remove the base cover by lifting it up. Seat fabric cover fitted: to assemble the soft goods, repeat the steps above in reverse order.

MAINTENANCE

Safety seat maintenance

After removing the foam from the infant insert, please keep it in a safe place where your child cannot access it.

• Wash the soft goods in cold water below 30 °C.
• Do not iron the soft goods.
• Do not bleach or dry clean the soft goods.
• Do not use undiluted neutral detergents, petrol or other organic solvents to wash the child restraint. It may cause damage to the child restraint.
• When drying the soft goods, do not twist them too hard, as this may cause creases.
• Please hang the soft goods to dry in the shade.

Warning: the child restraint system (safety seat) cannot be used without fabric cover.

CHILD SEAT SAFETY

Please always check that the seat parts are complete and that the seat is in good condition to reduce the risk of accidents. In case of prolonged non-use, remove the child restraint from the vehicle seat. Put the child restraint in the shade, in a safe place where your child cannot access it. Please do not leave the seat in a cold or hot and humid environment for long periods of time. Keep the instructions carefully for future reference.

POST-ACCIDENT TREATMENT

In the event of a violent collision and accident, please replace it with a new seat. If you have any other questions, please contact the distributor or manufacturer.

WARNINGS

• WARNING! BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF REACH OF CHILDREN IT IS RECOMMENDED TO DISPOSE OF THESE ITEMS AT AN APPROPRIATE WASTE SORTING COLLECTION POINT, AS REQUIRED BY REGULATIONS IN FORCE.

- WARNING! If the child car seat is damaged, deformed or excessively worn, it must be replaced as its original safety features may have been compromised. Make sure there are no protruding elements that could cause damage to the child or to the vehicle upholstery: in this case, do not use the child seat or contact the manufacturer if in doubt.

IMPORTANT!

Please carefully read and make sure you understand all instructions in this manual and in the vehicle owner's manual related to child safety seats. Install and use the child safety seat as described in the instruction manual. Otherwise, your child could suffer serious injury or death. Keep the

instructions together with the ECRS for future reference.

• Ensure that the straps holding the restraint system to the vehicle are securely tightened. Any straps restraining the child should be adjusted to the child's body. Make sure that the straps are not twisted.
  • Make sure the lap strap is worn low, so that the pelvis is firmly engaged to prevent the child from falling out of the safety seat.
  • Make sure that the ECRS is replaced if it has been subjected to violent stress in an accident.
  • Make sure that the rigid elements and plastic parts of an ECRS are positioned and installed in such a way that there is no risk of being trapped by a moving seat or vehicle door during daily vehicle use.
• DO NOT make any alterations or additions to the ECRS without the approval of the Type Approval Authority. It is also dangerous to not follow the instructions for installation provided by the manufacturer of the ECRS.
• HOT! If the child seat is not provided with a textile cover, it should be kept out of direct sunlight, otherwise it may be too hot for the child's skin.
• DO NOT leave your child unattended in this restraint system for a short period of time.
• Ensure that any luggage and other objects liable to cause injuries in a collision are properly secure.
  • A) DO NOT use the ECRS system

without the cover.

• B) DO NOT replace the seat cover with a seat cover other than the one recommended by the manufacturer because it constitutes an integral part of the restraint performance.
• DO NOT use the ECRS if the adult safety belt buckle is not positioned correctly with respect to the main load-bearing contact points on the restraint system. If in doubt about this point, please contact the manufacturer.
• DO NOT use any load-bearing contact points other than those described in the instructions and marked in the ERCS. If in doubt about this point, please contact the manufacturer.
• Please read the car manufacturer's handbook before installing this i-Size ECRS.

FOR TECHNICAL OR COMMERCIAL REASONS, PRG RESERVES THE RIGHT, AT ANY TIME AND ALSO ONLY IN A SPECIFIC COUNTRY, TO MODIFY THE TECHNICAL CHARACTERISTICS OF THE PRODUCTS DESCRIBED IN THIS LEAFLET, AND/ OR THE SHAPE, TYPE AND NUMBER OF THE ACCESSORIES SUPPLIED.
