UP-D55 - Printer SONY - Free user manual and instructions

Product type	Dye sublimation thermal printer
Brand	Sony
Model	UP-D55
Dimensions (W × H × D)	280 × 125 × 398 mm
Weight	Approx. 9 kg
Power supply	100-120 V AC or 220-240 V AC, 50/60 Hz
Power consumption	2.8 A max (100-120 V) / 1.2 A max (220-240 V)
Printing system	Thermal dye sublimation, ink transfer
Print resolution	14.93 dots/mm
Printable pixels (full image)	2528 × 1920 dots
Color gradations	256 levels per color (yellow, magenta, cyan)
Print time (high speed mode)	Approx. 20 seconds
Connectivity	USB 2.0 (Type B)
Operating temperature	5 °C to 35 °C
Operating humidity	20% to 80% (non-condensing)
Storage temperature	-20 °C to 60 °C
Storage humidity	20% to 90% (non-condensing)
Operating/storage pressure	700 hPa to 1060 hPa
Supplied accessories	Paper magazine, USB cable, ink ribbon holder, CD-ROM (drivers and manuals), contact list
Electrical safety	Class I, mandatory grounding
Usage environment	Medical and office use
Maintenance and cleaning	Clean the exterior with a dry cloth. Do not use solvents. Refer to the manual for head cleaning.
Ribbon replacement interval	According to usage, replace the ink ribbon when depleted

Frequently Asked Questions - UP-D55 SONY

How to install the ink ribbon on the UP-D55 printer?

Open the front cover, insert the supplied ink ribbon holder aligning the notches, then close the cover. Ensure the ribbon is taut. Consult the manual for more details.

What type of paper to use with the Sony UP-D55?

Use paper specifically for dye sublimation printing, usually sold in a kit with compatible Sony ink ribbon. Do not use ordinary paper.

What to do in case of paper jam?

Turn off the printer, open the cover, gently remove the jammed sheet by pulling slowly. Check that the paper is correctly loaded in the magazine. Refer to the manual for detailed instructions.

How to clean the print head?

Use a cotton swab soaked in isopropyl alcohol (90% or more) after turning off the device and unplugging the power cable. Gently rub the thermal head in a side-to-side motion. Let it dry before powering on.

Is the UP-D55 printer compatible with all operating systems?

It is compatible with Windows 98 SE, Me, NT 4.0, 2000, and XP. For newer systems, check driver availability on the Sony website. The supplied CD-ROM contains the necessary drivers.

How to connect the printer to a computer?

Use the supplied USB cable (Type A to Type B). Connect the printer, install drivers from the CD-ROM, then restart the computer. The printer will be recognized automatically.

What is the lifespan of the ink ribbon?

The lifespan depends on the number of prints. On average, one ribbon allows printing about 100 to 200 full-size images. The printer indicator shows the remaining ribbon level.

Can I use the printer in a medical environment?

Yes, it is designed for medical use and complies with IEC 60601-1 standards. It must be grounded and used with approved equipment. Refer to the electromagnetic compatibility guidelines in the manual.

How to adjust the paper ejection stop?

Pull the stop located on the paper magazine until you hear a click to lock it in position. To retract it, pull again. Do not leave more than 10 ejected sheets to avoid jams.

Where can I find spare parts or accessories?

Contact Sony after-sales service or an authorized dealer. Optional accessories include surge protectors. The contact list is provided with the printer.

USER MANUAL UP-D55 SONY

Digital Color Printer

Before Using this Printer

The model and serial numbers are located at the rear. Record these numbers in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. Serial No.

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

No modification of this equipment is allowed.

THIS APPARATUS MUST BE EARTHED.

To disconnect the main power, unplug the power plug. When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible socket-outlet near the unit. Do not position the ME equipment where it is difficult to unplug the power plug.

If a fault should occur during operation of the unit, operate the disconnect device to switch the power supply off, or unplug the power plug.

Symbols on the products

This symbol indicates the equipotential terminal which brings the various parts of a system to the same potential.

This symbol indicates the manufacturer, and appears next to the manufacturer's name and address.

Refer to the operating instructions.

Follow the directions in the operating instructions for parts of the unit on which this mark appears.

For the customers in the U.S.A.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

For the customers in Canada

This unit has been certified according to Standard CAN/CSA-C22.2 No.60601-1.

For the customers in the U.S.A and Canada

When you use this product connected to 240V single phase, be sure to connect this product to a center tapped circuit.

Important safeguards/notices for use in the medical environments

1. All the equipments connected to this unit shall be certified according to Standard IEC60601-1, IEC60950-1, IEC60065 or other IEC/ISO Standards applicable to the equipments.
2. Furthermore all configurations shall comply with the system standard IEC60601-1-1. Everybody who connects additional equipment to the signal input part or signal output part configures a medical system, and is therefore, responsible that the system complies with the requirements of the system standard IEC60601-1-1. If in doubt, consult the qualified service personnel.
3. The leakage current could increase when connected to other equipment.
4. For this particular equipment, all accessory equipment connected as noted above must be connected to mains via an additional isolation transformer conforming with the construction requirements of IEC60601-1 and providing at least Basic Insulation.
5. This equipment generates, uses, and can radiate radio frequency energy. If it is not installed and used in accordance with the instruction manual, it may cause interference to other equipment. If this unit causes

interference (which can be determined by unplugging the power cord from the unit), try these measures: Relocate the unit with respect to the susceptible equipment. Plug this unit and the susceptible equipment into different branch circuits.

Consult your dealer. (According to standard EN60601-1-2 and CISPR11, Class B, Group 1)

Important EMC notices for use in medical environments

• The UP-D55 needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in these instructions for use.
• Portable and mobile RF communications equipment such as cellular phones can affect the UP-D55.

Warning

The use of accessories and cables other than those specified, with the exception of replacement parts sold by Sony Corporation, may result in increased emissions or decreased immunity of the UP-D55.

Guidance and manufacturer's declaration-electromagnetic emissions
The UP-D55 is intended for use in the electromagnetic environment specified below.The customer or the user of the UP-D55 should assure that it is used in such an environment.
Emission test Compliance Electromagnetic environment-guidance
RF emissionsCISPR 11	Group 1	The UP-D55 uses RF energy only for its internal function.Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.
RF emissionsCISPR 11	Class B	The UP-D55 is suitable for use in all establishments, including domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes.
Harmonic emissionsIEC 61000-3-2	Class A
Voltage fluctuations/flicker emissionsIEC 61000-3-3	Complies

Warning

If the UP-D55 should be used adjacent to or stacked with other equipment, it should be observed to verify normal operation in the configuration in which it will be used.

Guidance and manufacturer's declaration - electromagnetic immunity
The UP-D55 is intended for use in the electromagnetic environment specified below. The customer or the user of the UP-D55 should assure that it is used in such as environment.
Immunity test	IEC 60601 test level	Compliance level	Electromagnetic environment-guidance
Electrostatic discharge (ESD)IEC 61000-4-2	±6 kV contact±8 kV air	±6 kV contact±8 kV air	Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30%.
Electrical fast transient/burstIEC 61000-4-4	±2 kV for power supply lines±1 kV for input/output lines	±2 kV for power supply lines±1 kV for input/output lines	Mains power quality should be that of a typical commercial or hospital environment.
SurgeIEC 61000-4-5	±1 kV differential mode±2 kV common mode	±1 kV differential mode±2 kV common mode	Mains power quality should be that of a typical commercial or hospital environment.
Voltage dips, short interruptions and voltage variations on power supply input linesIEC 61000-4-11	< 5% UT(>95% dip in UT)for 0.5 cycle40% UT(60% dip in UT)for 5 cycles70% UT(30% dip in UT)for 25 cycles< 5% UT(>95% dip in UT)for 5 sec	< 5% UT(>95% dip in UT)for 0.5 cycle40% UT(60% dip in UT)for 5 cycles70% UT(30% dip in UT)for 25 cycles< 5% UT(>95% dip in UT)for 5 sec	Mains power quality should be that of a typical commercial or hospital environment. If the user of the UP-D55 requires continued operation during power mains interruptions, it is recommended that the UP-D55 be powered from an uninterruptible power supply or a battery.
Power frequency (50/60 Hz)magnetic fieldIEC 61000-4-8	3 A/m 3 A/m Power	frequency magnetic	fields should be at least characteristic of a typical location in a typical commercial or hospital environment.
NOTE: UTis the a.c. mains voltage prior to application of the test level.
Conducted RF	3 Vrms	3 Vrms	Portable and mobile RF communications equipment should be used no closer to any part of the UP-D55, including cables, than the recommended separation distance calculated from the equation appliance to the frequency of the transmitter.Recommended separation distanced = 1.2 √P
IEC 61000-4-6	150 kHz to 80 MHz
Radiated RF	3 V/m	3 V/m	d = 1.2 √P 80 MHz to 800 MHz
IEC 61000-4-3	80 MHz to 2.5 GHz		d = 2.3 √P 800 MHz to 2.5 GHzWhere P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in meters (m).Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey,a should be less than the compliance level in each frequency range.bInterference may occur in the vicinity of equipment marked with following symbol:
NOTE 1: At 80 MHz and 800 MHz, the higher frequency range applies.NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the UP-D55 is used exceeds the applicable RF compliance level above, the UP-D55 should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the UP-D55.b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
Recommended separation distances between portable and mobile RF communications equipment and the UP-D55
The UP-D55 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the UP-D55 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (Transmitters) and the UP-D55 as recommended below, according to the maximum output power of the communications equipment.
Rated maximum output power of transmitter W	Separation distance according to frequency of transmitter m
	150 kHz to 80 MHz d = 1.2 √P	80 MHz to 800 MHz d = 1.2 √P	800 MHz to 2.5 GHz d = 2.3 √P
0.01 0.12 0.12 0.23
0.1 0.38 0.38 0.73
1 1.2 1.2 2.3
10 3.8 3.8 7.3
100 12 12 23
For transmitters rated a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer. NOTE 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

Caution

When you dispose of the unit or accessories, you must obey the law in the relative area or country and the regulation in the relative hospital.

Warning on power connection

Use a proper power cord for your local power supply. 1. Use the approved Power Cord (3-core mains lead) / Appliance Connector / Plug with earthing-contacts that conforms to the safety regulations of each country if applicable. 2. Use the Power Cord (3-core mains lead) / Appliance Connector / Plug conforming to the proper ratings (Voltage, Ampere).

If you have questions on the use of the above Power Cord / Appliance Connector / Plug, please consult a qualified service personnel.

Warning on power connection for medical use

Please use the following power supply cord.

With connectors (plug or female) and cord types other than those indicated in this table, use the power supply cord that is approved for use in your area.

	United States and Canada
Plug Type	HOSPITAL GRADE*
Cord Type	Min.Type SJT Min.18 AWG
Minimum Rating for Plug and Appliance Couplers	10 A/125 V
Safety Approval	UL Listed and CSA

*Note: Grounding reliability can only be achieved when the equipment is connected to an equivalent receptacle marked 'Hospital Only' or 'Hospital Grade'.

For the customers in Europe

This product has been manufactured by or on behalf of Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. Inquiries related to product compliance based on European Union legislation shall be addressed to the authorized representative, Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany.

For any service or guarantee matters, please refer to the addresses provided in the separate service or guarantee documents.

Using the CD-ROM Manual

The supplied CD-ROM includes manuals for this printer (in Japanese, English, French, German, Italian, Spanish, Dutch, Swedish, Portuguese, Finnish, Danish, Greek and Norwegian). The copies of these manuals are created in pdf (Portable Document Format).

Preparation

To read the manuals included on the supplied CD-ROM, the Adobe Reader is required.

If the Adobe Reader is not installed on your computer, you can copy it from the Acrobat folder on the CD-ROM. Install the Adobe Reader for the language corresponding to the manual you want to read on your computer.

Caution

Do not play back this CD-ROM using an audio CD player. Doing so may result in damage to your hearing or to the audio equipment due to loud sounds.

CD-ROM System Requirements

The following are required to access the supplied CD-ROM.

Computer: - Personal computer equipped with Intel Pentium processor or a 100% compatible processor - External or built-in CD-ROM drive - Operating system: Microsoft® Windows® 98 SE, WindowsMe, Windows NT® 4.0 (service pack 5 or later), Windows2000, Windows XP

Reading the CD-ROM Manual

To read the manual on the CD-ROM, proceed as follows.

1 Insert the CD-ROM disc in your CD-ROM drive. The manuals are saved in the Instructions For Use folder. 2 Select and click the manual that you want to read.

Note

If you lose the CD-ROM disc or you cannot read it for some reason, you can purchase a new CD-ROM disc. Contact your nearest Sony service representative.

Trademarks

Intel and Pentium are registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation in the United States and/or other countries.

Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Abbreviations

• Microsoft Windows 98 Second Edition operating system is abbreviated to Windows98 SE.
• Microsoft Windows Millennium Edition operating system is abbreviated to WindowsMe.
• Microsoft WindowsNT 4.0 operating system is abbreviated to WindowsNT 4.0.
• Microsoft Windows 2000 operating system is abbreviated to Windows2000.
• Microsoft® Windows® XP operating system is abbreviated to Windows XP.

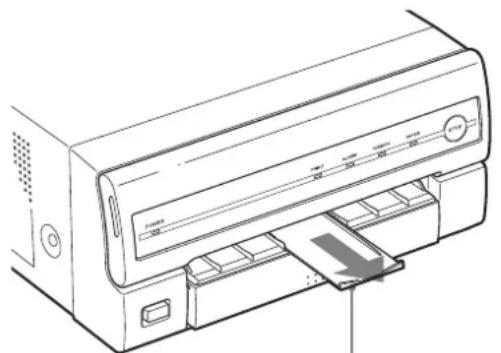

How to use the paper eject stopper

To keep ejected printouts on the paper tray, pull the paper eject stopper on the paper tray out until it clicks.

Note

Do not leave more than 10 sheets of ejected printouts. Doing so may cause a paper jam.

Pull the paper eject stopper on the paper tray out until it clicks.

Specifications

Power requirements

100 to 120 V AC, 50/60 Hz

(for 100 to 120 VAC users)

220 to 240 VAC, 50/60 Hz

(for 220 to 240 VAC users)

Input Current: 2.8 A max. at 25°C

(for 100 to 120 VAC users)

1.2 A max. at 25°C

(for 220 to 240 VAC users)

Operating temperature

5°C to 35°C (41°F to 95°F)

Operating humidity

20% to 80% (no condensation allowed)

Operating pressure

700 hPa to 1,060 hPa

Storage and transport temperature

-20°C to 60°C (-4°F to 140°F)

Storage and transport humidity

20% to 90% (no condensation allowed)

Storage and transport pressure

700 hPa to 1,060 hPa

Dimensions Approx. 280 x 125 x 398 mm (w/h/d)

(11 1/8 x 5 x 15 3/4 inches)

Mass Approx. 9 kg (19 lb 13 oz)

Printing system

Sublimation heat transfer printing

Printable pixels

When printing the full-image: 2528 x 1920 dots

Total gradation 256 levels each for yellow, magenta, and cyan

Printing time When the printer is set to high speed:

Approximately 20 seconds

Thermal head 14.93 dots/mm

USB connector

Universal Serial Bus (USB)

Specification Revision 2.0

Input connector

AC IN (for power input)

Supplied accessories

Paper tray (1)

USB cable 1-824-211-41 (Sony) (1)

Ink ribbon holder (1)

Software License Agreement (1)

Before Using this Printer (1)

CD-ROM (including the printer drivers

and PDF files of multi-lingual

Instructions For Use) (1)

Service Contact List (1)

Optional accessories

UPC-55 Color Printing Pack

Medical Specifications

Protection against electric shock:

Class I

Protection against harmful ingress of water:

Ordinary

Degree of safety in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide: Not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide

Mode of operation:

Continuous

Design and specifications are subject to change without notice.

WARNING

USB (Universal Serial Bus) specification

UPC-55 Color Printing Pack

Medical specifications

Systems Incorporated.

Abbreviations

UPC-55 Color Printing Pack

UPC-55 Color Printing Pack

THIS DEVICE MUST BE EARTHED.

UPC-55 Color Printing Pack

Medical specifications

Software license (1)

Before using the printer (1)

CD-ROM (including printer drivers

and PDF files with

UPC-55 Color Printing Pack

UPC-55 Color Printing Pack

Health precautions

UPC-55 Color Printing Pack

Color printing kit

This product is manufactured under license from Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. Questions regarding product conformity with European Union legislation should be addressed to the authorized representative Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For product disposal or warranty, please refer to the relevant authorities or warranty terms.

Using the Manual - CD-ROM

The instructions on the CD-ROM are available in various languages (Greek, English, French, German, Italian, Spanish, Portuguese, Russian, Polish, Dutch, Swedish, and Norwegian). The documents are in PDF (Portable Document Format).

Introduction

To read the documents on the provided CD-ROM, it is necessary to have the Adobe Reader program. If Adobe Reader is not installed on your computer, you can install it from the Acrobat folder on the CD-ROM. Install Adobe Reader in the language of the documents you want to read on your computer.

Caution

Do not attempt to play this CD-ROM on an audio CD player. Doing so may cause damage to your hearing or to the audio system.

System requirements for the CD-ROM

The following characteristics are required for the use of the provided CD-ROM.

• Computer:

- Intel Pentium processor or compatible processor running at 100% compatibility

- Internal or external CD-ROM drive.

• Operating system: Microsoft® Windows® 98 SE, Windows Me, Windows NT® 4.0 (Service Pack 5 or later), Windows 2000, Windows XP

Reading the Manual - CD-ROM

To read the document on the CD-ROM, follow the instructions:

1. Insert the CD-ROM into the CD-ROM drive.

The documents contained in the folder Instructions for Use.

Note

If the CD-ROM is lost or damaged and you need to reinstall the software, you can purchase a new CD-ROM.

Contact your nearest Sony service representative for more detailed information.

Trademarks

Intel and Pentium are trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Microsoft, Windows, and Windows NT are trademarks of Microsoft Corporation in the United States and/or other countries.

UPC-55 Color Printing Pack

service representative.

Trademarks

UPC-55 Color Printing Pack

For Customer in China

Printed on recycled paper.
