USER MANUAL 4367 JBL

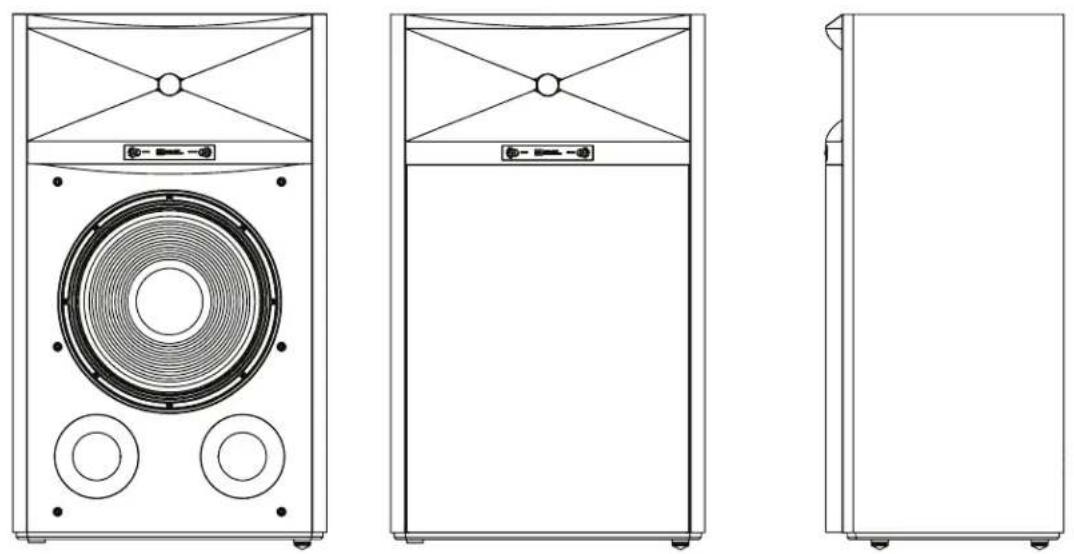

15-inch (380 mm) 2-way floorstanding loudspeaker

INTRODUCTION

THANK YOU for purchasing the JBL® 4367 2-way floorstanding loudspeaker. For more than 65 years, JBL engineers have been providing audio equipment for homes, concert halls, recording studios and movie theaters around the world, and JBL products have become the hands-down choice of leading recording artists and sound engineers. The 4367 is a new member of the family of JBL floorstanding loudspeakers designed for home use. To get the best performance from your new loudspeakers, please read these instructions thoroughly.

PACKAGE CONTENTS

EACH JBL 4367 BOX CONTAINS:

1 - Loudspeaker •
1 - Grille •
1 - User Manual •
4 - Spike Feet •
4 - Floor Coasters •

If you suspect that there has been shipping damage, report it immediately to your dealer. We recommend that you keep the box and packing materials for future use.

INSTALLING THE SPEAKER'S FEET

Before using the speaker, install the supplied spiked inserts into the speaker's metal feet.

1. Turn the speaker upside down onto a thickly carpeted or well-padded surface.

2. Screw the spiked inserts into the feet.

Two circular diagrams showing mechanical components with arrows indicating motion (no text or symbols)

IMPORTANT: To prevent damage (scratches, indentations, etc.) to wood or linoleum floors due to the weight of these speakers, always use the included coasters. Be especially sure to use the coasters on tile surfaces to prevent cracking the tile.

PLACEMENT

Before deciding where to place your speakers, note that the floor at your selected location must be capable of supporting a load of 61.2 kg (135 lb). Because the stainless-steel feet solidly couple the speaker to the floor, a flat, hard surface such as wood or linoleum is preferable. However, the coupling system, along with the speakers' substantial weight, should result in excellent performance on any surface, even carpeting.

To decide on a final location for your speakers, survey your room and think about placement using the illustration below as a guide.

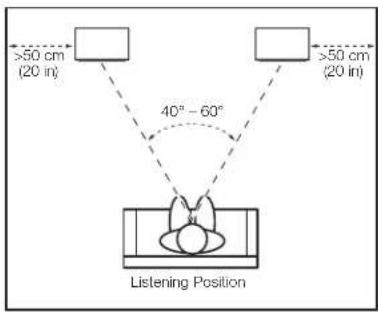

>50 cm (20 in) 40° - 60° >50 cm (20 in) Listening Position

For best results, place the speakers about two to three meters (about six to ten feet) apart. If you place the speakers farther apart, angle them toward the listening position.

The speakers will produce the most accurate stereo soundstage when the angle between the listener and the speakers is between 40 and 60 degrees.

Position each speaker so that its tweeter is approximately at ear level.

Generally, bass output will increase as the speaker is moved closer to a wall or corner. For best performance, we recommend that you place the speakers at least 50 cm (about 20 inches) away from the side walls.

NOTES ABOUT SPEAKER PLACEMENT:

• To prevent damage (scratches, indentations, etc.) to wood or linoleum floors due to the weight of these speakers, always use the included coasters. Be especially sure to use the coasters on tile surfaces to prevent cracking the tile.
• Avoid placing the speakers near power amplifiers, heat registers or other objects that generate large amounts of heat.

Do not place the speakers in very humid or dusty places.

• Do not place the speakers in direct sunlight or in places where they will be exposed to other strong light.
• The 4367 is not video-shielded and may distort or discolor the picture if placed close to some types of TVs. If the speakers do distort or discolor your TV's picture, move the speakers away from the TV until the distortion or discoloration disappears.

CONNECTIONS

CAUTION: Make sure that all of the system's electrical components are turned OFF (and preferably unplugged from their AC outlets) before making any connections.

Speakers and amplifiers have corresponding positive and negative ("+" and "-" connection terminals. The 4367 has two sets of connection terminals; jumper wires connect the terminals to each other. The terminals are marked "+" and "-" Additionally, the "+" terminals have red rings, while the "-" terminals have black rings. See the illustration below.

URL MODEL 4367 (-) Mid-High Frequency (+) (-) Low Frequency (+) Interference Connection Interference signal received Band No. Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machaining

We have designed the 4367 so that a positive voltage at the “+” (red) terminal will cause the speaker transducers to move outward (toward the room).

We recommend using a high-quality speaker wire with polarity coding. The side of the wire with a ridge or other coding is usually considered positive polarity ("+").

To ensure proper polarity, connect the left- and right-channel "+" terminals on the back of the amplifier or receiver to their respective "+" (red) terminals on the speakers. Connect the "-" (black) terminals in a similar way. See the owner's manual of your receiver or amplifier to confirm its connection procedures.

BASIC SINGLE-WIRE CONNECTION:

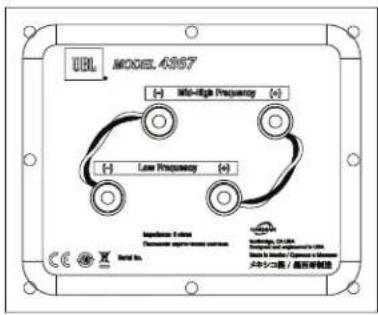

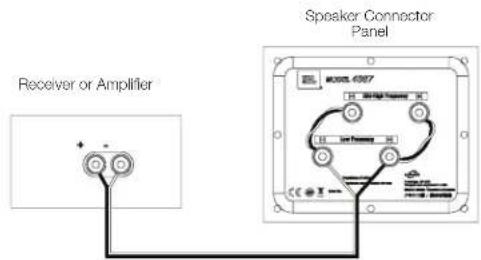

Connect the amplifier to each speaker as shown in the illustration below. You can use either set of terminals on the speaker. NOTE: Do not remove the jumper wires from between the two sets of terminals when connecting the speaker wires.

Receiver or Amplifier Speaker Connector Panel

IMPORTANT: Do not reverse polarities (i.e., “+” to “-” or “-” to “+”) when making connections. Doing so will cause poor stereo imaging and diminished bass performance.

The 4367's gold-plated speaker terminals can accept a variety of wire-connector types: bare wire, spade connectors, pin connectors and banana connectors.

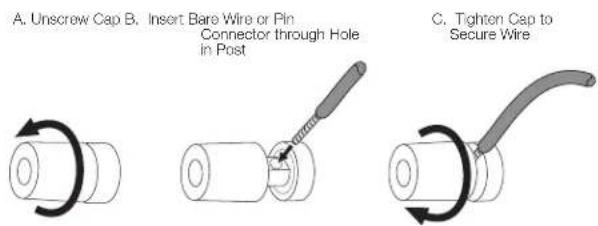

Using Bare Wire or Pin Connectors:

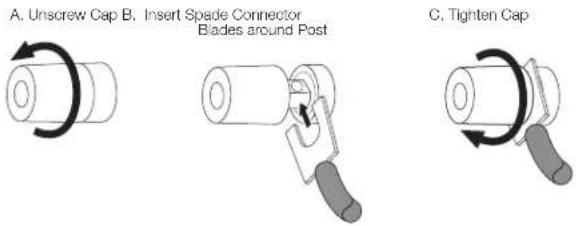

A. Unscrew Cap B. Insert Bare Wire or Pin Connector through Hole in Post C. Tighten Cap to Secure Wire

IMPORTANT: Make sure the (+) and (−) wires or pins do not touch each other or the other terminal. Touching wires can cause a short circuit that can damage your receiver or amplifier.

Using Spade Connectors:

A. Unscrew Cap B. Insert Spade Connector Blades around Post C. Tighten Cap

IMPORTANT: Make sure the (+) and (−) spade connector blades do not touch each other or the other terminal. Touching blades can cause a short circuit that can damage your receiver or amplifier.

Using Banana Connectors:

A. Tighten Cap B. Insert Banana Connector into Hole in Cap

BI-WIRE CONNECTION:

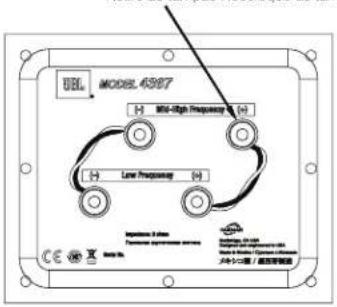

The 4367 connection assembly has two sets of input terminals that are connected by jumper wires. The upper set of terminals is for high-frequency/ultrahigh-frequency drivers, and the lower set of terminals is for the woofer.

This arrangement allows you to bi-wire the speakers using a single stereo power amplifier or two stereo power amplifiers. Bi-wiring can offer sonic advantages and more flexibility in power-amplifier selection over a conventional single-wire connection.

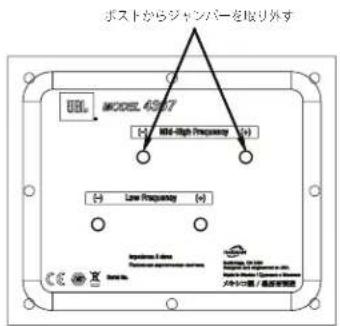

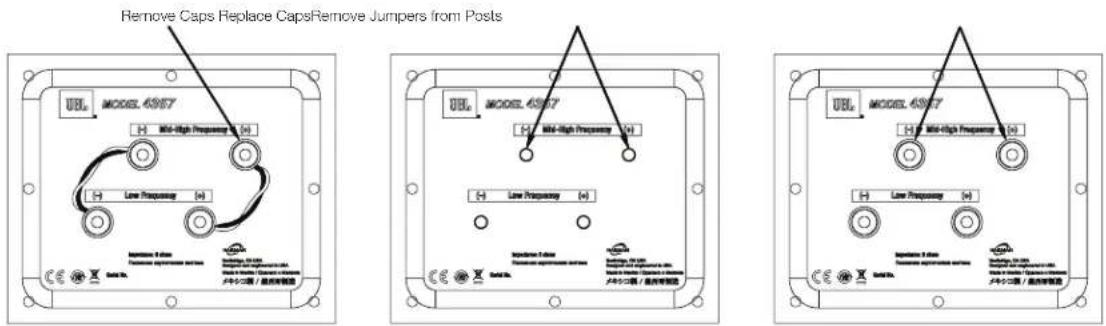

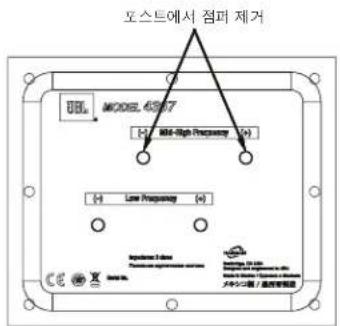

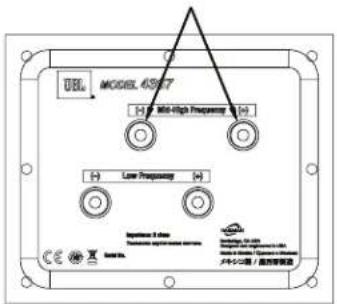

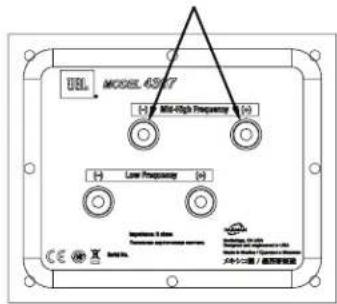

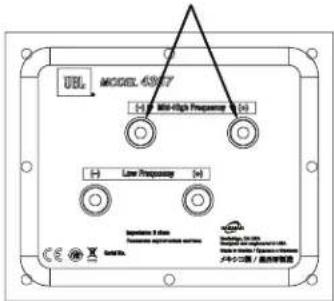

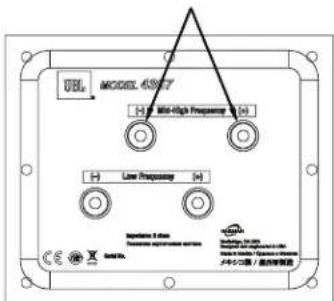

To bi-wire the 4367, first remove the terminal jumper wires as shown in the illustration.

Remove Caps Replace CapsRemove Jumpers from Posts UB1 MODEL 4987 H Mid-High Frequency (A) H Low Frequency (A) M2000/5000/5000/5000/5000/5000/5000/5000/5000/5000/5000/5000/5000/5000/5000/5000/5000/5000/5000/5000/5000/6 UB2 MODEL 4987 H Mid-High Frequency (A) H Low Frequency (A) M2000/5000/5000/5000/5000/5000/5000/5000/5000/5000/5000/5000/5000/5000/5 UB3 MODEL 4987 H Mid-High Frequency (A) H Low Frequency (A) M2000/5000/5000/5000/5000/5000/5000/5000/5000/5 M2001/5011/5111/5111/5111/5111/5111/5111/5111/5111/5111/5111/5111/5 M2122/6222/6222/6222/6222/6222/6222/6222/6222/6222/6222/6222/6222/6222/6 M2133/7333/7333/7333/7333/7333/7333/7333/7333/7333/7333/7333/7333/7

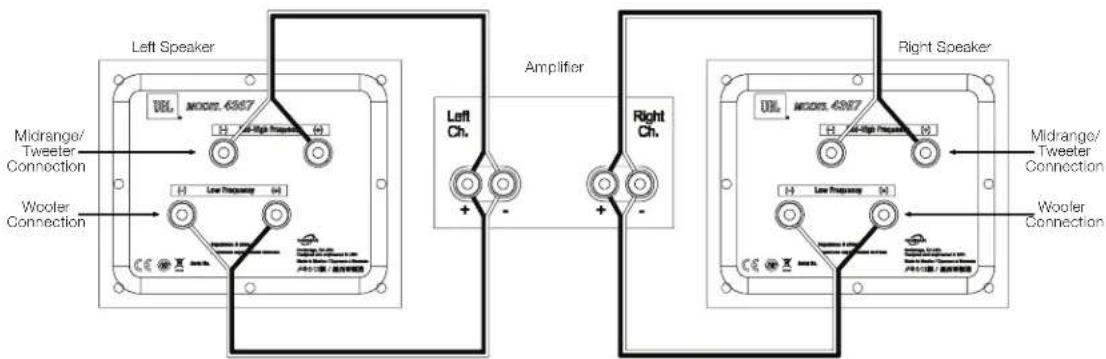

If you're bi-wiring with a single stereo power amplifier, connect the speakers according to the following illustration.

Left Speaker Midrange/ Tweeter Connection Wooler Connection Amplifier Left Ch. Right Ch. Right Speaker Midrange/ Tweeter Connection Wooler Connection

BI-WIRE CONNECTION (continued):

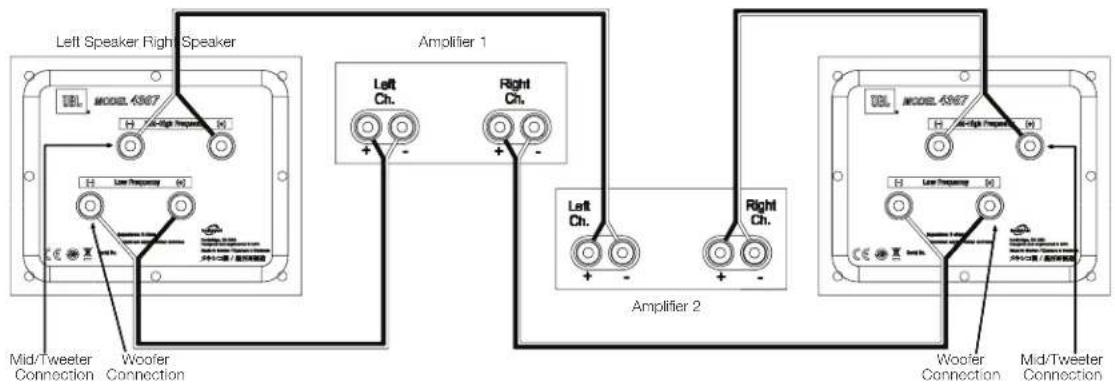

If you're bi-wiring with two stereo power amplifiers, connect the speakers according to the following illustration.

Left Speaker Right Speaker Amplifier 1 Mid/Tweeter Connection Woofer Connection Amplifier 2 Woofer Connection Mid/Tweeter Connection

In either case, follow the instructions for the different connector types in Basic Single-Wire Connection, on page 4. NOTE: For more information about various speaker-wire and connection options, contact your local JBL dealer.

CONTROLS/ADJUSTMENTS

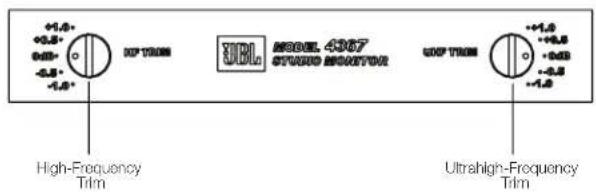

The 4367 has stepped front-panel adjustments that let you balance the high-frequency (HF) range and ultrahigh-frequency (UHF) range against the woofer.

+1.0 +0.5 -0.5 -1.0 High-Frequency Trim +1.0 +0.5 -0.5 -1.0 +1.0 +0.5 -0.5 -1.0 +1.0 +0.5 -0.5 -1.0 +1.0 +0.5 -0.5 -1.0 +1.0 +0.5 -0.5 -1.0 +1.0 +0.5 -0.5 -1.2 +1.0 +0.5 -0.5 -1.2 +1.0 +0.5 -0.5 -1.2 +1.0 +0.5 -0.5 -1.2 +1.0 +0.5 -0.5 -1.2 +1.0 +0.5 -0.5 -1.3 +1.0 +0.5 -0.5 -1.2 +1.0 +0.5 -0.5 -1.2 +1.0 +0.5 -0.5 -1.2 +1.0 +0.5 -0.5 -1.2 +1.0 +0.5 -0.5 -1.4

You can use these controls to adjust the speaker's sound according to your room's acoustics or your personal taste. If you want to return the speakers to their factory-shipped response, set the controls to "0 dB."

As with most speakers, the 4367 has transducers whose suspensions will take several weeks to "break in" and achieve optimum performance. During this period, the balance between the woofer, HF and UHF drivers may change, so we recommend that you adjust the HF and UHF controls accordingly.

CARING FOR YOUR SPEAKERS

• Wipe the cabinet with a clean, dry cloth to remove dust. A damp cloth may dull the cabinet's finish. Do not use volatile liquids such as benzene, paint thinner or alcohol on the cabinet.
  Do not spray insecticide near the cabinet.
  To remove dust from the grille fabric, use a vacuum cleaner set to low suction.
  Do not wash the grille in water, as water may fade the grille's color or make it uneven.
• If the surface of the woofer cone becomes dusty, you can carefully sweep it clean with a soft, dry calligraphy brush or paint brush. Do not use a damp cloth.

SPECIFICATIONS

JBL® STUdio MONITOR MOdEL 4367

Speaker Type: 2-way Floorstanding Loudspeaker
Low-frequency transducer: 15" (380 mm) 2216Nd-1 Differential Drive	* woofer
Mid/High Frequency Transducer: 3" (75 mm) D2430K dual compression
Maximum Recommended Amplifier Power: 300 watts RMS
Frequency Response (-6 dB): 30 Hz - 40 kHz
Sensitivity (2.83 V @ 1 m): 94 dB
Nominal Impedance: 6 Ohm
Crossover Frequencies: 700 Hz
Enclosure type: Bass-reflex via Dual Front-firing Ports
Inputs: Dual Gold-plated Five-way Binding Posts
Dimensions (H x W x D):	37-1/16" x 22-1/16" x 16-3/4" (941 mm x 560 mm x 425 mm)
Weight: 135 lb (61.2 kg)
Finishes: Walnut or Black Walnut Woodgrain Veneer

HARMAN International, Incorporated

8500 Balboa Boulevard, Northridge, CA 91329 USA

www.jbl.com

© 2015 HARMAN International Industries, Incorporated. All rights reserved.

JBL, Differential Drive and HDI are trademarks of HARMAN International Industries, Incorporated, registered in the United States and/or other countries.

Features, specifications and appearance are subject to change without notice.

JBL® 4367

Two circular diagrams showing mechanical components with arrows indicating motion (no text or symbols)

Diagram showing a cylindrical object being rotated into a segmented cylindrical object, with no text or symbols present.

URL: MODEL 6387 Mid-High Frequency (M) Low Frequency (A) Implementation & Status Functional performance status C E X Standard Standard to 100% Standard to 100% Standard to 100% Standard to 100% Standard to 100%

UBL MODEL 43807 MIA-High Frequency Low Frequency Specification Table Performance Performance and Standard A125-200 / A125-200 A125-200 / A125-200

URL: MODEL 4507 H: Mid-High Frequency H: Low Frequency Parameters 1 Data Parameters 2 Data Parameters 3 Data Parameters 4 Data Parameters 5 Data Parameters 6 Data Parameters 7 Data Parameters 8 Data Parameters 9 Data Parameters 10 Data Parameters 11 Data Parameters 12 Data Parameters 13 Data Parameters 14 Data Parameters 15 Data Parameters 16 Data Parameters 17 Data Parameters 18 Data Parameters 19 Data Parameters 20 Data Parameters 21 Data Parameters 22 Data Parameters 23 Data Parameters 24 Data Parameters 25 Data Parameters 26 Data Parameters 27 Data Parameters 28 Data Parameters 29 Data Parameters 30 Data Parameters 31 Data Parameters 32 Data Parameters 33 Data Parameters 34 Data Parameters 35 Data Parameters 36 Data Parameters 37 Data Parameters 38 Data Parameters 39 Data Parameters 40 Data Parameters 41 Data Parameters 42 Data Parameters 43 Data Parameters 44 Data Parameters 45 Data Parameters 46 Data Parameters 47 Data Parameters 48 Data Parameters 49 Data Parameters 50 Data Parameters 51 Data Parameters 52 Data Parameters 53 Data Parameters 54 Data Parameters 55 Data Parameters 56 Data Parameters 57 Data Parameters 58 Data Parameters 59 Data Parameters 60 Data Parameters 61 Data Parameters 62 Data Parameters 63 Data Parameters 64 Data Parameters 65 Data Parameters 66 Data Parameters 67 Data Parameters 68 Data Parameters 69 Data Parameters 70 Data Parameters 71 Data Parameters 72 Data Parameters 73 Data Parameters 74 Data Parameters 75 Data Parameters 76 Data Parameters 77 Data Parameters 78 Data Parameters 79 Data Parameters 80 Data Parameters 81 Data Parameters 82 Data Parameters 83 Data Parameters 84 Data Parameters 85 Data Parameters 86 Data Parameters 87 Data Parameters 88 Data Parameters 89 Data Parameters 90 Data Parameters 91 Data Parameters 92 Data Parameters 93 Data Parameters 94 Data Parameters 95 Data Parameters 96 Data Parameters 97 Data Parameters 98 Data Parameters 99 Data

HARMAN International, Incorporated.

8500 Balboa Boulevard, Northridge, CA 91329 USA

www.jbl.com

Line drawing of a speaker with concentric circles and a triangular top (no text or symbols)

Line drawing of a rectangular cabinet with diagonal lines and a central circular element, no text or symbols present.

Front view line drawing of a refrigerator with side legs and front panel (no text or symbols)

INTRODUCCIÓN

Two circular diagrams showing a mechanical setup with a knob and rotating component, no text or symbols present.

UHL MODE 4367 (H) Mid-High Frequency (e) (H) Low Frequency (e) Integrazione: 1.5mm Transmitter: 0.8mm Band No. Technique: 20-100k Signal and response in UHL Magnetic Transmitter / High Efficiency Menske/Power / Current Control

Diagram showing a cylindrical object being rotated into a segmented cylindrical object, with no text or symbols present.

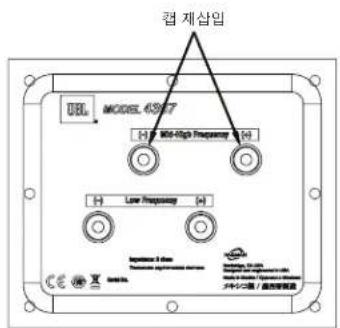

CONEXIÓN CON CABLEADO DOBLE:

Quitar lapsas UBL MODEL 4987 Mid-High Frequency (M) Low Frequency (M) C E X D S N T S A B C D E F G H I J K L M N O P R S T U V W X Y Z Z A X B X C D E F G H I J K L M N O P R S T U V W X Y Z Z A X B X C D E F G H I J K L M N O P R S T U V W X Y Z Z A X B X C D E F G H I J K L M N O P R S T U V W X Y Z Z A X B X C D E F G H I J K L M N O P R.S T U V W X Y Z Z A X B X C D E F G H I J K L M N O P R.S T U V W X Y Z Z A X B X C D E F G H I J K L M N O P R.S T U V W X Y Z Z A X B X C D E F G H I J K L M N O P R.S T U V W X Y Z Z A X B X C D E-F M125000 / 高圧電圧

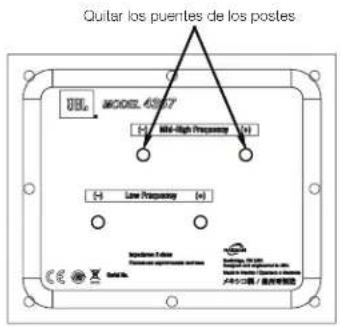

Quitar los puentes de los postes DBL MODEL 4507 Mid-High Frequency Low Frequency Magnetism Factor Pension: 10.000 Recovery: 10.000 Status: Yes/No MOSO-200 / 高度传感器

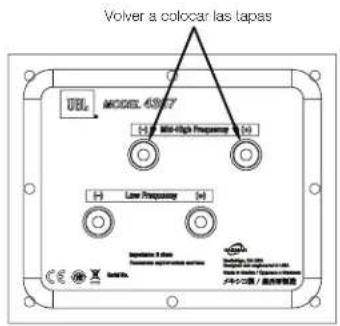

Volver a colocar las tapas UBL MODE 45837 H Mid-High Frequency (H) H Low Frequency (H) Supercase 1.0 Hz Supercase 2.0 Hz Mensator 1.0 Hz Mensator 2.0 Hz Mensator 3.0 Hz Mensator 4.0 Hz Mensator 5.0 Hz Mensator 6.0 Hz Mensator 7.0 Hz Mensator 8.0 Hz Mensator 9.0 Hz Mensator 10.0 Hz Mensator 11.0 Hz Mensator 12.0 Hz Mensator 13.0 Hz Mensator 14.0 Hz Mensator 15.0 Hz Mensator 16.0 Hz Mensator 17.0 Hz Mensator 18.0 Hz Mensator 19.0 Hz Mensator 20.0 Hz Mensator 21.0 Hz Mensator 22.0 Hz Mensator 23.0 Hz Mensator 24.0 Hz Mensator 25.0 Hz Mensator 26.0 Hz Mensator 27.0 Hz Mensator 28.0 Hz Mensator 29.0 Hz Mensator 30.0 Hz Mensator 31.0 Hz Mensator 32.0 Hz Mensator 33.0 Hz Mensator 34.0 Hz Mensator 35.0 Hz Mensator 36.0 Hz Mensator 37.0 Hz Mensator 38.0 Hz Mensator 39.0 Hz Mensator 40.0 Hz Mensator 41.0 Hz Mensator 42.0 Hz Mensator 43.0 Hz Mensator 44.0 Hz Mensator 45.0 Hz Mensator 46.0 Hz Mensator 47.0 Hz Mensator 48.0 Hz Mensator 49.0 Hz Mensator 50.0 Hz Mensator 51.0 Hz Mensator 52.0 Hz Mensator 53.0 Hz Mensator 54.0 Hz Mensator 55.0 Hz Mensator 56.0 Hz Mensator 57.0 Hz Mensator 58.0 Hz Mensator 59.0 Hz Mensator 60.0 Hz Mensator 61.0 Hz Mensator 62.0 Hz Mensator 63.0 Hz Mensator 64.0 Hz Mensator 65.0 Hz Mensator 66.0 Hz Mensator 67.0 Hz Mensator 68.0 Hz Mensator 69.0 Hz Mensator 70.0 Hz Mensator 71.0 Hz Mensator 72.0 Hz Mensator 73.0 Hz Mensator 74.0 Hz Mensator 75.0 Hz Mensator 76.0 Hz Mensator 77.0 Hz Mensator 78.0 Hz Mensator 79.0 Hz Mensator 80.0 Hz Mensator 81.0 Hz Mensator 82.0 Hz Mensator 83.0 Hz Mensator 84.0 Hz Mensator 85.0 Hz Mensator 86.0 Hz Mensator 87.0 Hz Mensator 88.0 Hz Mensator 89.0 Hz Mensator 90.0 Hz Mensator 91.0 Hz Mensator 92.0 Hz Mensator 93.0 Hz Mensator 94.0 Hz Mensator 95.0 Hz Mensator 96.0 Hz Mensator 97.0 Hz Mensator 98.0 Hz Mensator 99.0 Hz Mensator 100.0 Hz

HARMAN International, Incorporated

8500 Balboa Boulevard, Northridge, CA 91329 USA

www.jbl.com

© 2015 HARMAN International Industries, Incorporated. Todos los derechos reservados.

Line drawing of a speaker with concentric circles and a triangular top (no text or symbols)

Line drawing of a rectangular cabinet with diagonal lines and a central circular element, no text or symbols present.

Simple line drawing of a refrigerator with no text or symbols

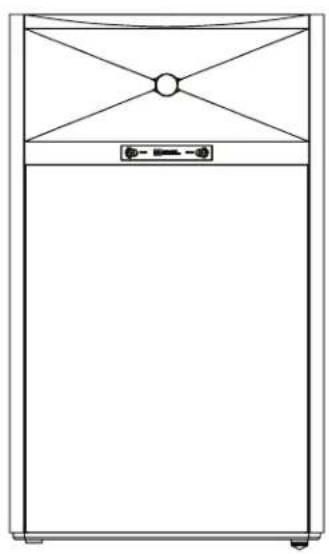

APRESENTAÇÃO

Two circular diagrams showing a mechanical component with a downward arrow, one above and one below, both without any text or symbols.

A. Desparafuse a tampa

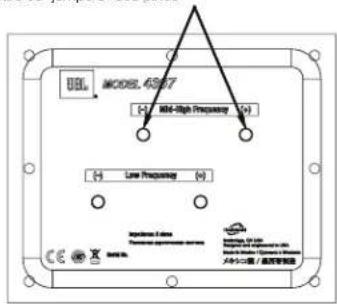

Retire as tampas Recolque as tampasRetire os "jumpers" dos pinos

URL MODEL 4387 MSA High Frequency (H) Low Frequency (H) Parameters & Values Functional performance metrics Parameters & Values Parameter & Values MENI-100 / 高度管阻器

UH1 MODEL 4307 MHD-897 Frequency (-) (-) Low Frequency (+) Systeine & Noise Temperature, °C Control, 100 dB Signal, 100 dB MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD 100 dB MHD 100 dB MHD 100 dB MHD 100 dB MHD 100 dB MHD 100 dB MHD 100 dB MHD 100 dB MHD 100 dB MHD 100 dB MHD 100 dB MHD 100 dB MHD 100 dB MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD-897 Frequency MHD-896 Frequency MHD-896 Frequency MHD-896 Frequency MHD-896 Frequency MHD-896 Frequency MHD-896 Frequency MHD-896 Frequency MHD-896 Frequency MHD-896 Frequency MHD-896 Frequency MHD-896 Frequency MHD-896 Frequency MHD-896 Frequency MHO 100 dB MHO 100 dB MHO 100 dB MHO 100 dB MHO 100 dB MHO 100 dB MHO 100 dB MHO 100 dB MHO 100 dB MHO 100 dB MHO 100 dB MHO 100 dB MHO 100 dB

URL MODEL 4397 [+] Mid-0.5 High Frequency [+] [+] Low Frequency [+] Standard 1.5 GHz Standard 2.5 GHz Standard 3.5 GHz Standard 4.5 GHz 大中小二组 / 高频带宽幅

HARMAN International, Incorporated

8500 Balboa Boulevard, Northridge, CA 91329 EUA

www.jbl.com

Line drawing of a speaker with concentric circles and a triangular top (no text or symbols)

Line drawing of a rectangular cabinet with diagonal lines and a central circular element, no text or symbols present.

Line drawing of a refrigerator with front and back panels (no text or symbols)

EINLEITUNG

Two circular diagrams showing mechanical components with arrows indicating motion (no text or symbols)

Diagram showing a cylindrical object being processed into a cylindrical component, with no text or symbols present.

+1.0 +0.8 +0.6 +0.4 +0.2 +0.0 HF TRIM MODEL 4367 STUDIO REMOTER Hochfrequenz-Trim Ultrahochfrequenz-Trim +1.0 +0.8 +0.6 +0.4 +0.2 +0.0

HARMAN International, Incorporated

8500 Balboa Boulevard, Northridge, CA 91329 USA

www.jbl.com

© 2015 HARMAN International Industries, Incorporated. Alle Rechte vorbehalten.

Simple line drawing of a mechanical component with a downward arrow, no text or symbols present

Simple line drawing of a mechanical component inside a circular frame (no text or symbols)

URL MODEL 4367 (-) Mid-High Frequency (+) (-) Low Frequency (+) Interference State Interference state Band No. Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machaining, MACHaining, MACHaining MACHaining, MACHaining, MACHaining MACHaining, MACHaining, MACHaining

Diagram showing a cylindrical object being rotated into a segmented cylindrical component, with no text or symbols present.

CONNESSIONE BI-WIRE (A DUE CAVI)

UBL MODEL 43807 (H) Mid-High Frequency (H) (H) Low Frequency (A) Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines Standard T lines

URL MODEL 6387 H - Mid-High Frequency (m) H - Low Frequency (H) Schematic 1.0 mm Schematic 2.0 mm Schematic 3.0 mm Schematic 4.0 mm Schematic 5.0 mm Schematic 6.0 mm Schematic 7.0 mm Schematic 8.0 mm Schematic 9.0 mm Schematic 10.0 mm Schematic 11.0 mm Schematic 12.0 mm Schematic 13.0 mm Schematic 14.0 mm Schematic 15.0 mm Schematic 16.0 mm Schematic 17.0 mm Schematic 18.0 mm Schematic 19.0 mm Schematic 20.0 mm Schematic 21.0 mm Schematic 22.0 mm Schematic 23.0 mm Schematic 24.0 mm Schematic 25.0 mm Schematic 26.0 mm Schematic 27.0 mm Schematic 28.0 mm Schematic 29.0 mm Schematic 30.0 mm Schematic 31.0 mm Schematic 32.0 mm Schematic 33.0 mm Schematic 34.0 mm Schematic 35.0 mm Schematic 36.0 mm Schematic 37.0 mm Schematic 38.0 mm Schematic 39.0 mm Schematic 40.0 mm Schematic 41.0 mm Schematic 42.0 mm Schematic 43.0 mm Schematic 44.0 mm Schematic 45.0 mm Schematic 46.0 mm Schematic 47.0 mm Schematic 48.0 mm Schematic 49.0 mm Schematic 50.0 mm Schematic 51.0 mm Schematic 52.0 mm Schematic 53.0 mm Schematic 54.0 mm Schematic 55.0 mm Schematic 56.0 mm Schematic 57.0 mm Schematic 58.0 mm Schematic 59.0 mm Schematic 60.0 mm Schematic 61.0 mm Schematic 62.0 mm Schematic 63.0 mm Schematic 64.0 mm Schematic 65.0 mm Schematic 66.0 mm Schematic 67.0 mm Schematic 68.0 mm Schematic 69.0 mm Schematic 70.0 mm Schematic 71.0 mm Schematic 72.0 mm Schematic 73.0 mm Schematic 74.0 mm Schematic 75.0 mm Schematic 76.0 mm Schematic 77.0 mm Schematic 78.0 mm Schematic 79.0 mm Schematic 80.0 mm Schematic 81.0 mm Schematic 82.0 mm Schematic 83.0 mm Schematic 84.0 mm Schematic 85.0 mm Schematic 86.0 mm Schematic 87.0 mm Schematic 88.0 mm Schematic 89.0 mm Schematic 90.0 mm Schematic 91.0 mm Schematic 92.0 mm Schematic 93.0 mm Schematic 94.0 mm Schematic 95.0 mm Schematic 96.0 mm Schematic 97.0 mm Schematic 98.0 mm Schematic 99.0 mm Schematic 100.0mm

HARMAN International Industries, Incorporated 8500 Balboa Boulevard, Northridge, CA 91329 USA

www.jbl.com

© 2015 Harman International Industries, Incorporated. Tutti i diritti riservati.

Line drawing of a speaker with concentric circles and two side knobs (no text or symbols)

Line drawing of a rectangular cabinet with diagonal lines and a central circular element, no text or symbols present.

Front view line drawing of a refrigerator with side legs and front panel (no text or symbols)

INLEIDING

Simple line drawing of a mechanical component with a downward arrow, no text or symbols present

Simple line drawing of a mechanical component inside a circular frame (no text or symbols)

URL MODEL 4367 (-) Mid-High Frequency (+) (-) Low Frequency (+) Interference State Interference signal received Band No. Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machuting, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Mochining, Moching

HARMAN International, Incorporated

8500 Balboa Boulevard, Northridge, CA 91329 USA

www.jbl.com

© 2015 HARMAN International Industries, Incorporated. Alle rechten voorbehouden

Line drawing of a speaker with concentric circles and two side knobs (no text or symbols)

Line drawing of a rectangular cabinet with diagonal lines and a central circular element, no text or symbols present.

Line drawing of a refrigerator with front and back panels (no text or symbols)

INNLEDNING

Simple line drawing of a mechanical component with a downward arrow, no text or symbols present

Simple line drawing of a mechanical component inside a circular frame (no text or symbols)

URL MODEL 4367 (-) Mid-High Frequency (+) (-) Low Frequency (+) Interference Connection Interference signal received Band No. Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machaining, MACHaining, MACHaining MACHaining, MACHaining, MACHaining MACHaining, MACHaining, MACHaining

Diagram showing a cylindrical object being twisted with a curved arrow, then being cut into a cylindrical component (no text or symbols)

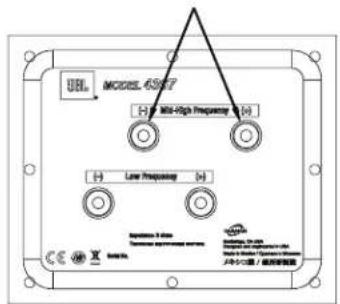

BI-WIRE-TILKOBLING:

USL MDD 4507 (-) Mid-High Frequency (+) (-) Low Frequency (-) Display Panel Display Panel Description A small display panel is shown in the image.

BI-WIRE-TILKOBLING (fortsatt):

HARMAN International, Incorporated

8500 Balboa Boulevard, Northridge, CA 91329 USA

www.jbl.com

© 2015 HARMAN International Industries, Incorporated. Alle rettigheter er forbeholdt.

JBL, Differential Drive og HDI er varemerker for HARMAN International Industries, Incorporated, registrert i USA og/eller andre land.

Line drawing of a speaker with two circular buttons and a central speaker grille (no text or symbols)

Line drawing of a refrigerator with front panel and side door (no text or symbols)

Line drawing of a refrigerator with front and back panels (no text or symbols)

ESITTELY

Two circular diagrams showing a mechanical setup with a knob and rotating component, no text or symbols present.

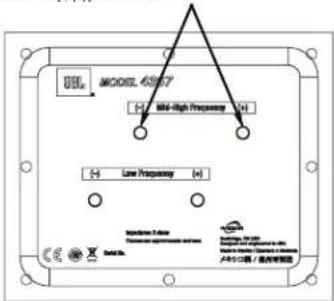

URL: MODEL 43957 H Mid-High Frequency (A) H Low Frequency (A) C E X S A B C D E F G H I J K L M N O P Q R S T U V W X Y Z S A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

UBL MODEL 4507 (H) Mid-High Frequency (H) (H) Low Frequency (A) Standard Taside Standard Taside Standard Taside Standard Taside Standard Taside / 高级带宽 C C C D S E X X Y Z X X X Y Z X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X M1000000 / 高级带宽

URL: MODEL 4397 H: Mid-High Frequency (H) H: Low Frequency (H) Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Connection to Intersection

HARMAN International, Incorporated

8500 Balboa Boulevard, Northridge, CA 91329 USA

www.jbl.com

Line drawing of a speaker with two circular buttons and a central speaker grille (no text or symbols)

Line drawing of a rectangular cabinet with diagonal lines and a central circular element, no text or symbols present.

Line drawing of a refrigerator with front and back panels (no text or symbols)

ВВЕДЕНИЕ

Simple line drawing of a mechanical component with a downward arrow, no text or symbols present

Simple line drawing of a mechanical component inside a circular frame (no text or symbols)

URL MODEL 4367 H Mid-High Frequency (+) H Low Frequency (+) Implications & errors Performance experimental sensors Serial No. Machining: 20 dB Signal and expensed in dB Data to the / Data set in the Machining / Data set in the Machining / Data set in the Machining / Data set in the Machining / Data set in the Machining / Data set in the Machining / Data set in the Machining / Data set in the Machining / Data set in the Machining / Data set in the Machining / Data set in the Machining / Data set in the Machining/ Data set in the Machining/ Data set in the Machining/ Data set in the Machining/ Data set in the Machining/ Data set in the Machining/ Data set in the Machining/ Data set in the Machining/ Data set in the Machining/ Data set in the Machining/ Data set in the Machining/ Data set in the Machining/Data set in the Machining/Data set in the Machining/Data set in the Machining/Data set in the Machining/Data set in the Machining/Data set in the Machining/Data set in the Machining/Data set in the Machining/Data set in the Machining/Data set in the Machining/Data set in the Machining/Dataset in the Machining/Dataset in the Machining/Dataset in the Machining/Dataset in the Machining/Dataset in the Machining/Dataset in the Machining/Dataset in the Machining/Dataset in the Machining/Dataset in the Machining/Dataset in the Machining/Dataset in the Machining/Datasetin an MACHING/ Machining/Datasetin an MACHING/ Machining/Datasetin an MACHING/ Machining/Datasetin an MACHING/ Machining/Datasetin an MACHING/ Machining/Datasetin an MACHING/ Machining/Datasetin an MACHING/ Machining/Datasetin an MACHING/ Machining/Datasetin an MACHING/ Machining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechaning/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Mechining/Nearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bareline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bearline/Bear line Bearline Bearline Bearline Bearline Bearline Bearline Bearline Bearline Bearline Bearline Bearline Bearline Bearline Bearline Bearline Bearline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbarline Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line Bbar line BBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBBB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB BBABB

HARMAN International, Incorporated

8500 Balboa Boulevard, Northridge, CA 91329 USA (CWA)

www.jbl.com

© 2015 HARMAN International Industries, Incorporated. Все права защищены.

Line drawing of a speaker with two speakers and a circular speaker grille (no text or symbols)

Line drawing of a rectangular cabinet with diagonal lines and a central circular element, no text or symbols present.

Line drawing of a refrigerator with front and back panels (no text or symbols)

INTRODUKTION

INSTALLERA HÖGTALARFÖTTERNA

Two circular diagrams showing a mechanical setup with a knob and rotating component, no text or symbols present.

URL MODEL 4367 (-) Mid-High Frequency (+) (-) Low Frequency (+) Interference State Interference state Band No. Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machining, ON/OFF Machaining, MACHaining, MACHaining MACHaining, MACHaining, MACHaining MACHaining, MACHaining, MACHaining

Ta av locken Sätt tillbaka lockenTa bort byglar från terminaler UBL MODEL 4987 H Mid-High Frequency (h) H Low Frequency (h) Upgrades 1 class Downgrades 2 classes Upgrades 3 class Upgrades 4 classes Upgrades 5 class Upgrades 6 class Upgrades 7 class Upgrades 8 class Upgrades 9 class Upgrades 10 class Upgrades 11 class Upgrades 12 class Upgrades 13 class Upgrades 14 class Upgrades 15 class Upgrades 16 class Upgrades 17 class Upgrades 18 class Upgrades 19 class Upgrades 20 class Upgrades 21 class Upgrades 22 class Upgrades 23 class Upgrades 24 class Upgrades 25 class Upgrades 26 class Upgrades 27 class Upgrades 28 class Upgrades 29 class Upgrades 30 class Upgrades 31 class Upgrades 32 class Upgrades 33 class Upgrades 34 class Upgrades 35 class Upgrades 36 class Upgrades 37 class Upgrades 38 class Upgrades 39 class Upgrades 40 class Upgrades 41 class Upgrades 42 class Upgrades 43 class Upgrades 44 class Upgrades 45 class Upgrades 46 class Upgrades 47 class Upgrades 48 class Upgrades 49 class Upgrades 50 class Upgrades 51 class Upgrades 52 class Upgrades 53 class Upgrades 54 class Upgrades 55 class Upgrades 56 class Upgrades 57 class Upgrades 58 class Upgrades 59 class Upgrades 60 class Upgrades 61 class Upgrades 62 class Upgrades 63 class Upgrades 64 class Upgrades 65 class Upgrades 66 class Upgrades 67 class Upgrades 68 class Upgrades 69 class Upgrades 70 class Upgrades 71 class Upgrades 72 class Upgrades 73 class Upgrades 74 class Upgrades 75 class Upgrades 76 class Upgrades 77 class Upgrades 78 class Upgrades 79 class Upgrades 80 class Upgrades 81 class Upgrades 82 class Upgrades 83 class Upgrades 84 class Upgrades 85 class Upgrades 86 class Upgrades 87 class Upgrades 88 class Upgrades 89 class Upgrades 90 class Upgrades 91 class Upgrades 92 class Upgrades 93 class Upgrades 94 class Upgrades 95 class Upgrades 96 class Upgrades 97 class Upgrades 98 class Upgrades 99 class Upgrades 100 class

DUBBELKABELANSLUTNING (forts):

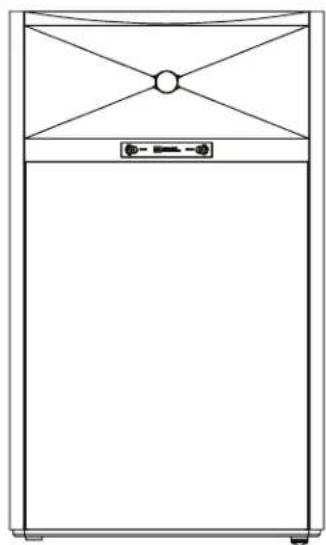

+1.0 +0.5 +0.0 -4.8 -4.0 ICF TRIN +1.0 +0.5 +0.0 +0.5 +0.0 +1.0 +0.5 +0.0 +0.5 +0.0 +1.0 +0.5 +0.0 +0.5 +0.0 Trimming av höga frekvenser +1.0 +0.5 +0.0 +0.5 +0.0 +1.0 Trimming av ultrahöga frekvenser

HARMAN International, Incorporated

8500 Balboa Boulevard, Northridge, CA 91329 USA

www.jbl.com

Line drawing of a speaker with two circular buttons and a central speaker grille (no text or symbols)

Line drawing of a refrigerator with front panel and side door (no text or symbols)

Line drawing of a refrigerator with front and back panels (no text or symbols)

INTRODUKTION

Simple line drawing of a mechanical component with a downward arrow, no text or symbols present

Simple line drawing of a scroll wheel mounted on a shelf, enclosed in a circular frame (no text or symbols)

BI-WIRET TILSLUTNING (fortsat):

HARMAN International Industries, Incorporated 8500 Balboa Boulevard, Northridge, CA 91329 USA

www.jbl.com

© 2015 HARMAN International Industries, Incorporated. Alle rettigheder forbeholdt.

JBL, Differential Drive and HDI er varemærker tilhorende HARMAN International Industries, Incorporated, registreret i USA og/eller andre lande.

Line drawing of a speaker with two speakers and a circular speaker grille (no text or symbols)

Line drawing of a rectangular cabinet with diagonal lines and a central circular element, no text or symbols present.

Simple line drawing of a refrigerator with no text or symbols

はじめに

Simple line drawing of a mechanical component with a downward arrow, no text or symbols present

Simple line drawing of a curved object on a platform inside a circle (no text or symbols)

UBL MODEL 4367 Mid-High Frequency (e) Low Frequency (e) Intepotential Section Performance approximation section Bend No. MILK 10.0% MILK 10.0% MILK 10.0% MILK 10.0% MILK 10.0% MILK 10.0% MILK 10.0% MILK 10.0% MILK 10.0% MILK 10.0% MILK 10.0% MILK 10.0% D-NEC-DR / 機率控制器

Diagram showing a cylindrical object being twisted into a cylindrical component, illustrating the process of rotation and deformation (no text or symbols present)

バイワイヤー接続:

主菜单栏を取り外す URL: MODEL 4587 High Frequency Low Frequency CE X MOSA-1000 MOSA-1000 MOSA-1000 MOSA-1000 MOSA-1000 MOSA-1000 MOSA-1000 MOSA-1000 MOSA-1000 MOSA-1000 MOSA-1000 MOSA-1000 NOSA-1000 MOSA-1000 MOSA-1000 MOSA-1000 MOSA-1000 MOSA-1000 MOSA-1000 MOSA-1000 MOSA-1000 MOSA-1000 MOSA-1000 MOSC-1000 MOSC-1000 MOSC-1000 MOSC-1000 MOSC-1000 MOSC-1000 MOSC-1000 MOSC-1000 MOSC-1000 MOSC-1000 MOSC-1000 MOSC-1000 MOSC-10

ポストからジャンパーを取り外す DBL. MODEL 4507 [+] M6-High Frequency [+] [+] Low Frequency [+] CE X Molecular Data Molecular Data Molecular Data Molecular Data Molecular Data Molecular Data Molecular Data Molecular Data Molecular Data

DBL MODEL 4597 High Frequency Low Frequency Standard Error Standard Error Standard Error Model 4597 Model 4597 Model 4597 Model 4597 Model 4597 Model 4597 Model 4597 Model 4597 Model 4597 Model 4597 Model 4597 Model 4597 Model 4597 Model 4597 Model 4597 MIL-1000 / 高度传感器

Line drawing of a speaker with two speakers and a circular speaker grille (no text or symbols)

Line drawing of a rectangular cabinet with diagonal lines and a central circular element, no text or symbols present.

Line drawing of a refrigerator with front and back panels (no text or symbols)

소개

Simple line drawing of a mechanical component with a downward arrow, no text or symbols present

Simple line drawing of a mechanical component inside a circular frame (no text or symbols)

>50cm (20in) 40° - 60° >50cm (20in) 청취 위치

UHL MODEL 4367 Mid-High Frequency Low Frequency Intervision Element Perimeter application system C2 C3 X2 D2 N1 Send No. Menske I-05/05 / 智能電源電源 Menske I-05/05 / 智能電源電源 Menske I-05/05 / 智能電源電源

Diagram showing a cylindrical object being inserted into a housing, with no text or symbols present.

이중 전선 연결:

DBL MODEL 6387 Max High Frequency Low Frequency Max High Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max Low Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max High Frequency Max Low Frequency / Max Low Frequency

포스트에서 점파 제거 USB MODEL 45307 High Frequency Low Frequency Measurement Data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data Measurement data

DBL MODEL 4397 High-100 High Frequency (H) Low Frequency (H) Supervision & Control Supervision & Control MOSI 2.00 / 100% Minimum MOSI 2.00 / 100% Maximum MOSI 2.00 / 100% Minimum MOSI 2.00 / 100% Maximum

+1.0 +2.0 -0.0 -4.0 XP TRIM XUBL MODEL 6367 STUDIO MONITOR XP TRIM +1.0 +0.0 -0.0 -4.0 +1.0 +0.0 -0.0 -4.0 +1.0 +0.0 -0.0 -4.0 +1.0 +0.0 -0.0 -4.0 +1.0 +0.0 -0.0 -4.0 +1.0 +0.0 -0.0 -4.1 +1.0 +0.0 -0.0 -4.1 +1.0 +0.0 -0.0 -4.1 +1.0 +0.0 -0.0 -4.1 +1.0 +0.0 -0.0 -4.1

HARMAN International, Incorporated

8500 Balboa Boulevard, Northridge, CA 91329 USA

www.jbl.com

© 2015 HARMAN International Industries, Incorporated. All rights reserved.

Line drawing of a speaker with two circular buttons and a central speaker grille (no text or symbols)

Line drawing of a rectangular cabinet with diagonal lines and a central circular element, no text or symbols present.

Line drawing of a refrigerator with front and back panels (no text or symbols)

简介

Simple line drawing of a mechanical component with a downward arrow, no text or symbols present

Simple line drawing of a mechanical component inside a circular frame (no text or symbols)

URL MODEL 4967 (H) Mid-High Frequency (a) (H) Low Frequency (a) Importance details Permeation approximation software BASF Inc. Machining System Machining System Machining System Machining System Machining System Machining System Machining System Machining System Machining System Machining System Machining System Machining System Machining System Machining System Machining System Machining System Machining System Machining System Machining System Machining System Machining System

Three-step diagram showing a cylindrical object being adjusted to form a ring, with no text or symbols present.

Diagram showing a cylindrical object being processed into a cylindrical component, with no text or symbols present.

双线分音连接：

更换防护帽 UBL MODEL 43977 Mid-High Frequency (M) Low Frequency (M) Supervision & Control Supervision & Control C2 C3 X M1000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

HARMAN International, Incorporated

8500 Balboa Boulevard, Northridge, CA 91329 USA

www.jbl.com

© 2015 HARMAN International Industries, Incorporated。保留所有权利。
