USER MANUAL Pro-RF 521 Toolson
GB Original operating instructions Tile Cutting Machine
DE
Danger! - Read the operating instructions to reduce the risk of inquiry
Caution! Wear ear-muffs. The impact of noise can cause damage to hearing.
Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!
Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.
Danger! Risk of injury through cutting
Caution! Segmented diamond cutting wheels must not be used
GB
Danger!
When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.
1. Safety regulations
The corresponding safety information can be found in the enclosed booklet.
Danger!
Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury.
Keep all safety regulations and instructions in a safe place for future use.
Additional safety instructions
- Set up the machine on a level, non-slip floor. Make sure that the machine does not wobble.
- Check that the voltage on the rating plate is the same as your supply voltage. Only then are you to insert the power plug in the socket-outlet.
• Wear safety goggles.
• Wearear-muffs.
• Wear safety gloves. - Never use cracked diamond cutting wheels. Replace immediately.
• Never use segmented cutting wheels. - Caution! The cutting wheel runs on after the machine is switched off!
- Never apply side pressure to the diamond cutting wheel in order to bring it to a halt.
- Notice! The diamond cutting wheel must be cooled with water at all times.
• Always pull out the power plug before changing the cutting wheel.
• Use only suitable diamond cutting wheels. - Never leave the machine unattended in rooms with children.
• Always pull out the power plug before examining the electric motor compartment system - Disorder in the work area can easily lead to accidents.
- Make sure that you stand squarely and solidly while working. Avoid abnormal body positions and always keep your balance.
- If the cutting wheel becomes jammed, switch off the equipment and disconnect it from the power supply; only then are you to remove the workpiece.
2. Layout and items supplied
2.1 Layout (Fig. 1/2/4)
- Base frame
- Diamond wheel
- Trough
- Work table
- Angle stop
- Rail fence
- Guide rail
- Safety hood for the cutting wheel
- Handle
- Star grip screw for setting the angle
- Star grip screw for securing during transportation
- Base frame
- Cooling water pump
- Hose
- Motor
2.2 Items supplied
Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.
- Open the packaging and take out the equipment with care.
- Remove the packaging material and any packaging and/or transportation braces (if available).
- Check to see if all items are supplied.
- Inspect the equipment and accessories for transport damage.
- If possible, please keep the packaging until the end of the guarantee period.
GB
Danger!
The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!
- Tile cutting machine
Trough(3)
• Cooling water pump (13)
Angle stop (5) - Base frame (1)
• Original operating instructions
• Safetyinstructions
3. Proper use
The tile cutting machine is designed for the standard cutting of small and medium-size tiles (glazed tiles, ceramic tiles or similar) which can be accommodated by the size of the machine. It is designed for DIY applications and craft businesses in particular. It should never be used for cutting wood or metal.
The machine should be used exclusively for its intended purpose. No other use is permitted and the manufacturer will not accept liability for any damages or injury resulting from any such use; responsibility rests with the user/operator in any such case. Only use cutting wheels which are suitable for the machine. Saw blades should never be used. Compliance with the safety instructions, the assembly instructions, and advice and instructions on operation contained in the operating instructions also falls under the terms of intended use. All persons operating or carrying out maintenance work on the machine must be acquainted with the above and be aware of all potential dangers.
In addition, strict compliance with the accident prevention regulations in force in your area, as well as all other general rules of health and safety at work, is imperative. The manufacturer's liability shall be deemed void if the machine is modified in any way and the manufacturer shall therefore accept no liability for any damages arising as a result of modifications. Even if the machine is used as intended, certain residual risk factors cannot be completely eliminated. For reasons of design and the construction of the machine, the following eventualities are possible:
- Contact with the diamond cutting wheel where it is not covered.
- Contact with the diamond cutting wheel while it is turning.
• Defective diamond tips flying off the cutting wheel.
• Workpieces or parts of workpieces kicking back. - Damage to hearing if the ear-muffs specified are not used.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.
4. Technical data
Motorrating....800W
Motor speed 3000 rpm
AC motor 230 V \~ 50 Hz
Insulation material class .... Class B
Protection type IP54
Table size 570 x 385 mm
Cut length 520 mm
Jolly length 520 mm
Max. workpiece thickness 90° ..... 30 mm
Max. workpiece thickness 45° ..... 25 mm
Diamond wheel 200 x 25.4
LED power supply 3 x 1.5 V (AAA)
Weight 31 kg
Danger!
Noise emission levels
The noise emitted by this saw is measured in accordance with EN ISO 3744; EN ISO 11201 The noise at the workplace may exceed 85 dB (A). The user will require noise protection measures if this is the case. (Wear ear-muff s!)
With-load operation
L_pA sound pressure level ..... 94 dB(A)
K_p0 uncertainty 3 dB
L_WA sound power level 107 dB(A)
K_WA uncertainty 3 dB
No-load operation
L_pA sound pressure level 76 dB(A)
K_pA uncertainty 3 dB
L_WA sound power level 89 dB(A)
K_WA uncertainty 3 dB
GB
Keep the noise emissions and vibrations to a minimum.
- Only use appliances which are in perfect working order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance. - Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.
Caution!
Residual risks
Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:
- Lung damage if no suitable protective dust mask is used.
- Damage to hearing if no suitable ear protection is used.
- Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.
5. Before starting the equipment
Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.
Warning!
Always pull the power plug before making adjustments to the equipment.
- The machine must be set up so that it stands firmly, i.e. it must be securely screwed to a work bench, the base frame supplied in delivery, or similar.
- All covers and safety devices must be correctly attached before the machine is used for the first time.
• The cutting wheel must rotate smoothly.
Assembly (Fig. 1-6)
- Fasten the feet (18) to the base frame (12) with the 4 screws (19).
• Turn the sub-frame upright. -
Insert the two screws (37) for the trough fixture through the square holes and place the trough (3) in the base frame (12).
-
Fasten the cooling water pump (13) to the mount (38). Place the tile cutter into the trough and screw on the trough fixture (39).
- Unscrew and remove the star handle screw (11) and spacer (40) and keep them in a safe place.
- Fill the trough with water until the cooling water pump (13) is completely immersed.
Notice!
To guarantee proper operation, the cooling water hose (14) must not be kinked during installation.
Danger!
It must be impossible for the cable and the cooling water hose to get into the cutting area.
6. Operation

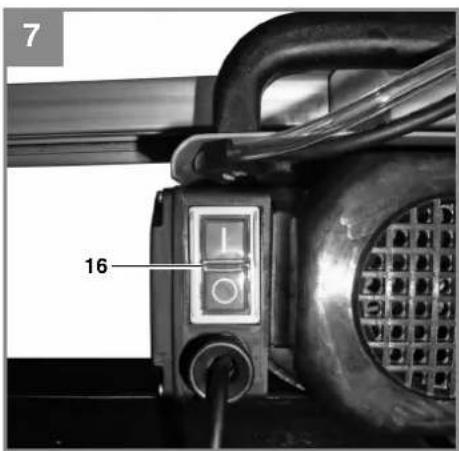

6.1 ON/OFF switch (Fig. 7)
- To switch on, press the "I" on the ON/OFF switch (16).
- Before you begin cutting, wait until the cutting wheel has reached maximum speed and the cooling water pump (13) has started supplying the cutting wheel with water.
• To switch off, press the "0" on the switch (16).

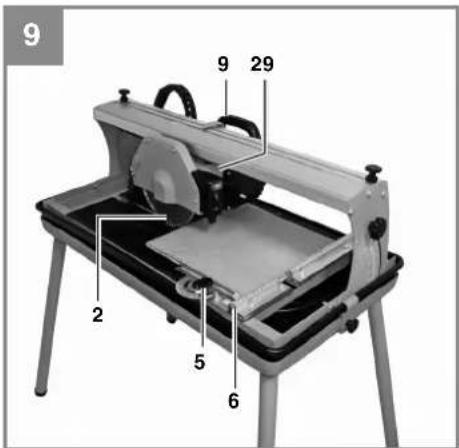

6.2 90° Cutting (Fig. 8/9)
• Loosen the star grip screw (27).
- Set the angle stop (5) to 90° and retighten the star grip screw (27).
- Retighten the screws (28) to fasten the angle stop (5).
- Move the machine head (29) to the far end with the handle (9).
- Position the tile against the rail fence (6) on the angle stop (5).
- Switch on the tile cutting machine.
- Notice! Always wait until the cooling water has reached the cutting wheel (2) first.
- Move the machine head (29) slowly and smoothly forward through the tile with the handle (9).
- Switch off the tile cutting machine after completion of cutting.

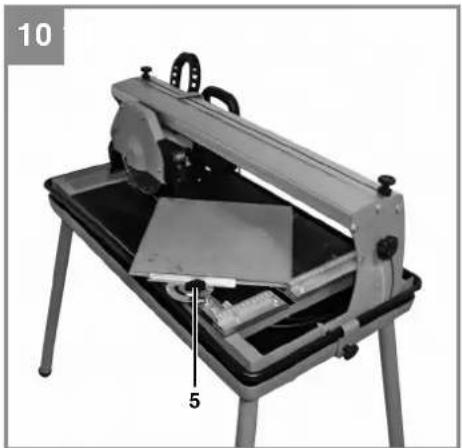

6.3 45° Diagonal cut (Fig. 10)
• Set the angle stop (5) to 45^ .
• Cut as described in 6.2.
GB
6.4 45° Lengthwise cut, "jolly cut" (Fig.11)
• Loosen the star grip screw (10).
- Tilt the guide rail (7) to the left to 45° on the angle scale (17).
• Retighten the star grip screw (10).
• Cut as described in 6.2.

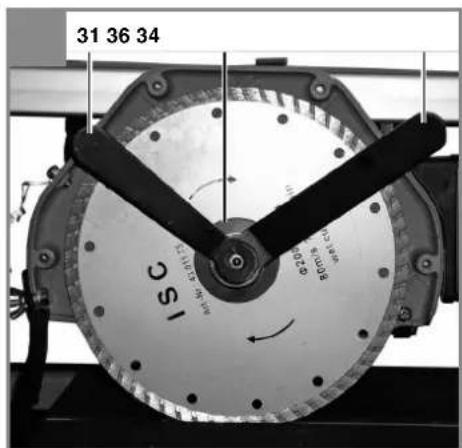

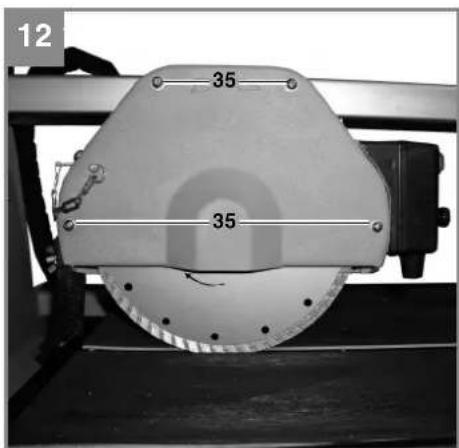

6.5 Changing the diamond cutting wheel (Fig. 12/13)
• Pull out the power plug.
- Unscrew the four screws (35) and remove the safety hood (8) for the blade.
- Using the wrench (34), loosen the flange nut in the direction of rotation of the cutting wheel (2). (Notice! Left-hand screw-thread.) To do so, place the wrench (31) on the motor shaft and apply counterpressure.
- Remove the outer flange (36) and cutting wheel (2).
- Clean the mounting flange thoroughly before fitting the new cutting wheel.
- Fit the new cutting wheel by following the above procedures in reverse and then tighten. Notice! Pay attention to the direction of rotation of the cutting wheel!
• Mount the safety hood (8) for the blade again.

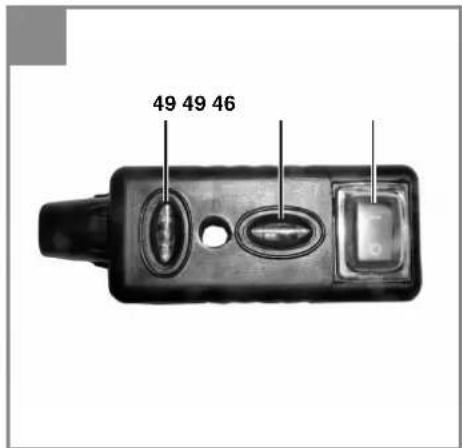

6.6 Operating the LED light (Fig. 15-16)
Danger! Never look directly into the LED light!
6.6.1 Stationary operation (Fig. 15)
To switch on: Move the ON/OFF switch (46) to the "1" position.
To switch off: Move the ON/OFF switch (46) to the "0" position.
Switch on the LED light (45). The work area is now illuminated. You can additionally adjust the LED light with the screw (47). To do so, undo the screw (47) by a few turns. The LED light (45) can now be moved and adjusted vertically and horizontally on the adapter (48).
When the LED light is in the desired position, re-tighten the screw (47).
6.6.2 Operation as a torch light/spirit level (Fig. 15)
Remove the screw (47). The LED light can now be taken off the adapter (48) and used as a torch light. The base plate (50) of the LED light is magnetic, enabling it to be secured on suitable surfaces. You can also use the LED light as a leveling aid using the integrated spirit levels (49).

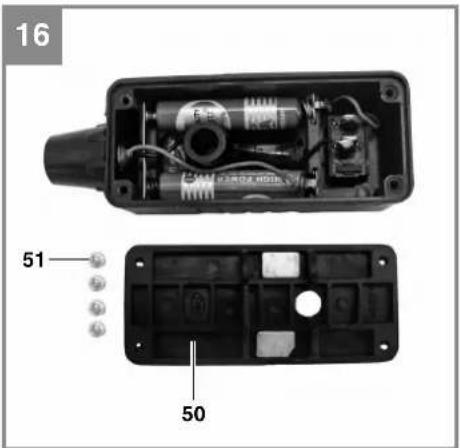

6.6.3 Replacing the battery
Unscrew the 4 screws (51) and remove the base plate (50). Take out the old batteries and replace with new ones. Then screw the base plate (50) back on.
7. Replacing the power cable
Danger!
If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.
8. Cleaning, maintenance and ordering of spare parts
Danger!
Always pull out the mains power plug before starting any cleaning work.
8.1 Cleaning
- Remove dust and dirt from the machine at regular intervals. Cleaning is best carried out with a rag or brush.
- Never use caustic agents to clean plastic parts.
- The trough (3) and the cooling water pump (13) must be cleaned at regular intervals or proper cooling of the diamond cutting wheel (2) will not be guaranteed.
8.2 Maintenance
Lubricate all moving parts at regular intervals.
8.3 Transport
- The coolant must be drained completely before transport.
- Do not lift the machine by any of the safety devices.
8.4 Ordering replacement parts:
Please quote the following data when ordering replacement parts:
• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required
For our latest prices and information please go to www.isc-gmbh.info
9. Disposal and recycling
The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.
The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.
10. Storage
Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30^ . Store the electric tool in its original packaging.

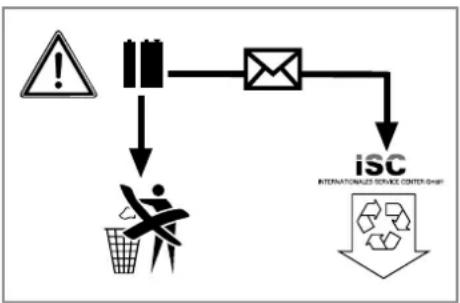

11. Battery disposal
Batteries contain materials that are potentially harmful to the environment. Never place batteries in your household refuse, in fire or in water. Batteries should be collected, recycled or disposed of by environment-friendly means. Send your old batteries to ISC GmbH, Eschenstrasse 6 in D-94405 Landau. You can then be sure that the equipment will be correctly disposed of by the manufacturer.
GB
For EU countries only
Never place any electric power tools in your household refuse.
To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.
Subject to technical changes
GB
Service information
We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.
| Category Example | |
| Wear parts* | |
| Consumables* Cutting wheels | |
| Missing parts |
* Not necessarily included in the scope of delivery!
In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:
• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
Warranty certifi cate
Dear Customer,
All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the following terms under which guarantee claims can be made:
- These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
- The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.
- The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).
- Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.
- The guarantee is valid for a period of 60 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.
- Please report the defective device on the following internet address to register your guarantee claim: www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device.
Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.
FR
ES
Negotovost K_WA .....3 dB
Prosti tek
Nivo zvočnega tlaka L _pA 76 dB (A)
Negotovost K _nA 3 dB
Nivo zvočne moči L _WA 89 dB (A)
Negotovost K_WA .....3 dB
SI
Omejite hrupnost in vibracije na minimum!
SI
Samo za dežele EU
HR
Sapma K _WA ....3dB
Rölanti
Sapma K _WA ....3dB
TR
TR
10. Хранение
DK
Kun for EU-lande
Óvissa K _pA ....3dB
Óvissa K _pA ....3dB
SE
Helirōhu tase L _pA ....94 dB(A)
Helirōhu tase L _pA ....76 dB(A)
EE
X 2006/42/EC
Annex IV
Notified Body:
Notified Body No.:
Reg. No.
□2000/14/EC_2005/88/EC
□Annex V
Annex VI
P = KW; L/∅ = cm
Notified Body:
2004/26/EC
Emission No.:
Noise: measured L_ = dB(A) ; guaranteed L_ = dB(A)
Standard references: EN 61029-1; EN 12418; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3
Subject to change without notice
Archive-File/Record: NAPR012207
Documents registrar: Martin Guggenberger
Wiesenweg 22, D-94405 Landau/Isar
EH 04/2015 (01)
