USER MANUAL C.A 1950 CHAUVIN ARNOUX

An infrared camera is a sensitive optical measuring device; pay special attention to the following points:

1. Never aim the camera at the sun, a laser welding, or other source of powerful thermal radiation.
2. Avoid exposing to dust with the lens flap open.
3. Do not touch the lens with your fingers.
4. Avoid jolting or dropping the camera.

If parts of the camera are damaged or present problems following failure to heed the warnings listed above, neither the manufacturer nor the distributor shall be held liable, and all costs incurred shall be borne solely by the operator.

Meanings of the symbols used on the device:

CE	The CE marking indicates compliance with the European "Low Voltage" and "Electromagnetic Compatibility" directives (2006/95/EC and 2004/108/EC).
	In the European Union, this product is subject to selective collection and recycling at end-of-life as waste electric and electronic equipment under directive 2002/96/EC (WEEE): this equipment must not be treated as an ordinary household waste. The spent batteries must not be treated as household wastes. Take them to the appropriate collection point for recycling.
	This product is designed to allow the recovery and recycling of most of its constituents.

1. QUICK START STEPS

1. Insert charged batteries in the camera.
2. Insert the micro SD memory card in its slot.
3. Open the flap protecting the lenses.

4. Press the ON/OFF key :

5. If the corresponding window appears, enter the date and time.

6. If you just insert batteries, configure battery manager (see instructions, user's manual §. 1.4.1.)

7. Aim at the target:

8. either with the IR display,

9. or with the visible image, the trigger, or the keys.

10. Stop the acquisition, key.

11. Save the current image, key.

12. Transfer the image to the PC:

13. either using the USB cable,

14. or using a micro SD card reader.

For more information, refer to the user's manual on the CD-ROM.

2. STRUCTURE OF THE FRONT PANEL

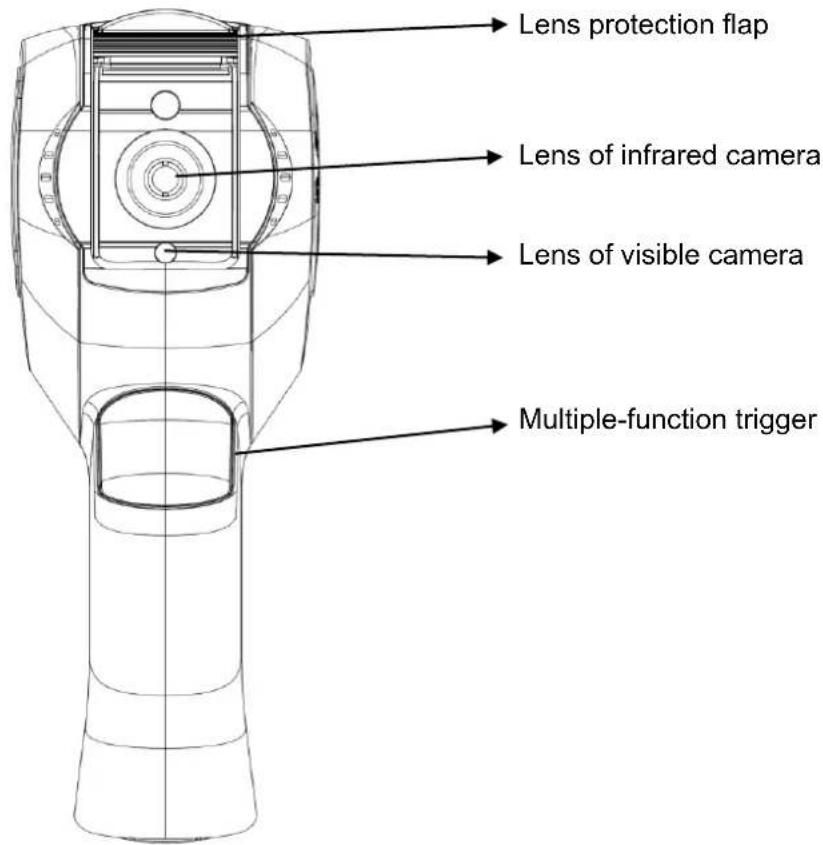

Lens protection flap Lens of infrared camera Lens of visible camera Multiple-function trigger

3. INTERFACE

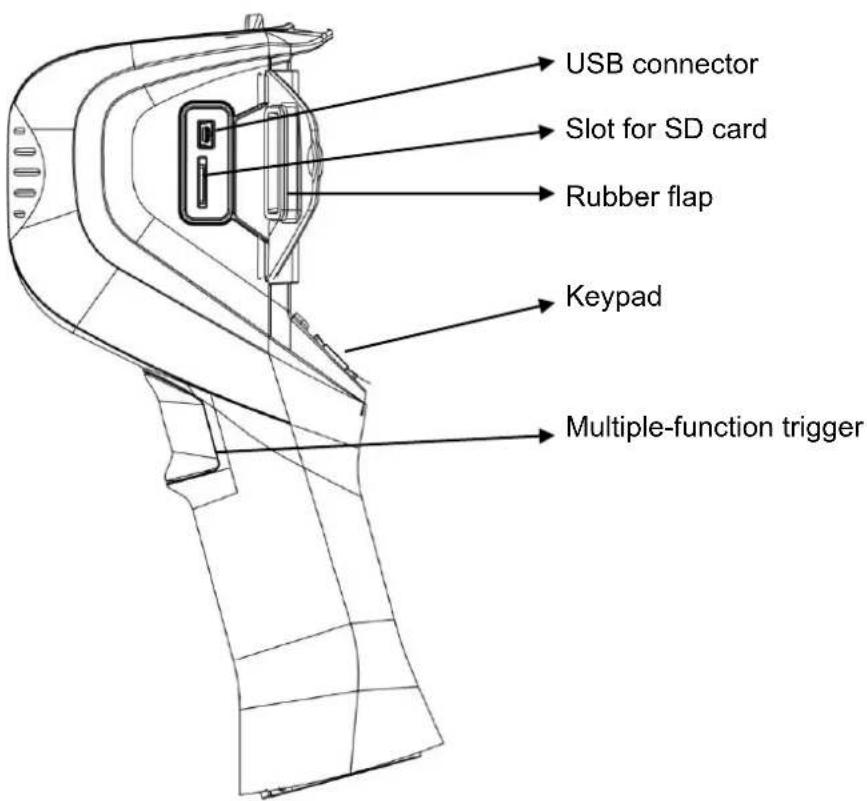

USB connector Slot for SD card Rubber flap Keypad Multiple-function trigger

4. DESCRIPTION OF THE KEYS

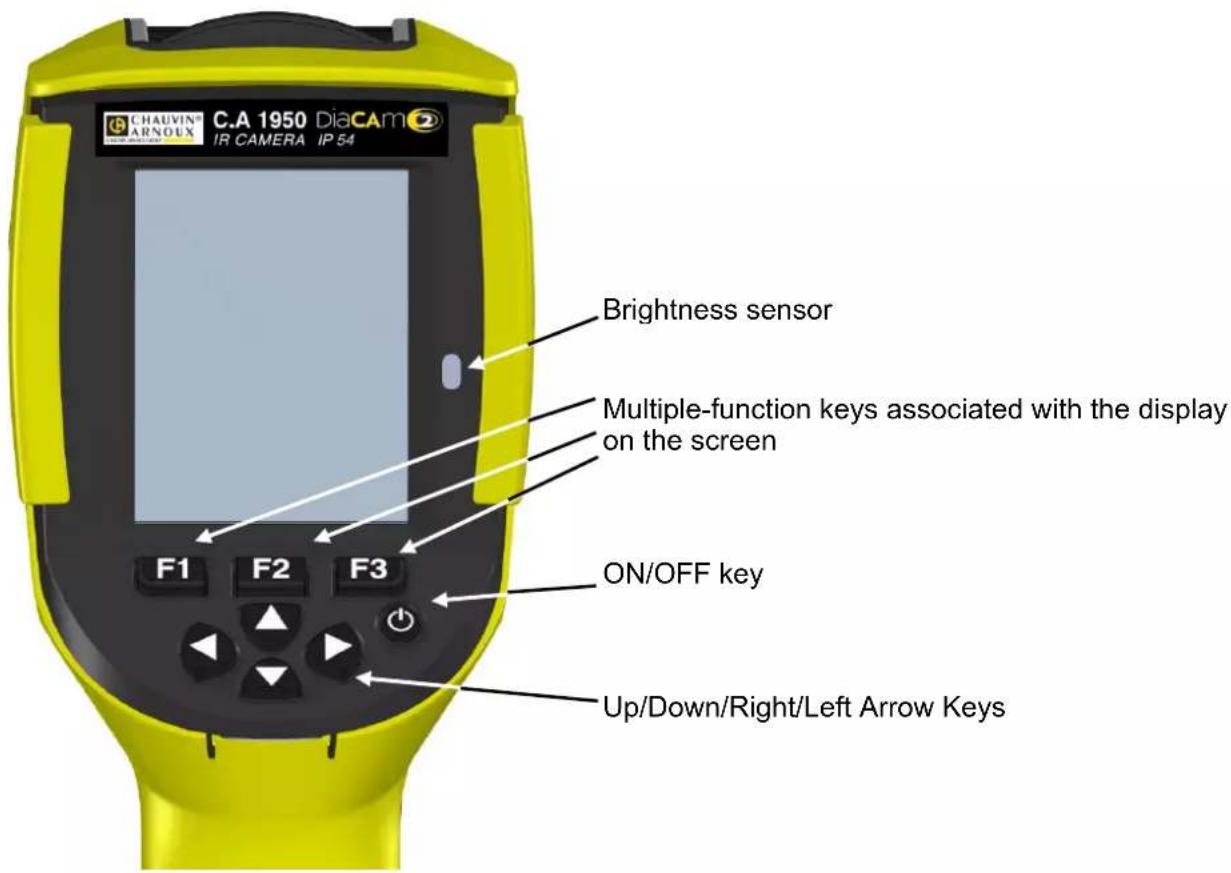

CHAUVIN ARNOUX C.A 1950 DiaCAM® IR CAMERA IP 54 Brightness sensor Multiple-function keys associated with the display on the screen ON/OFF key Up/Down/Right/Left Arrow Keys

5. STRUCTURE OF THE BATTERY COMPARTMENT COVER

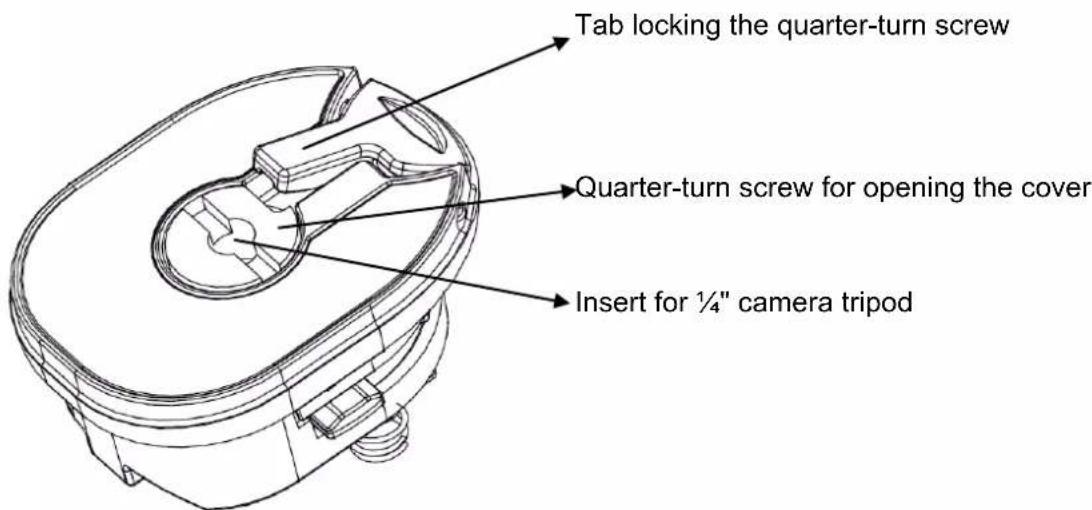

Tab locking the quarter-turn screw Quarter-turn screw for opening the cover Insert for ¼" camera tripod

6. DISPLAY

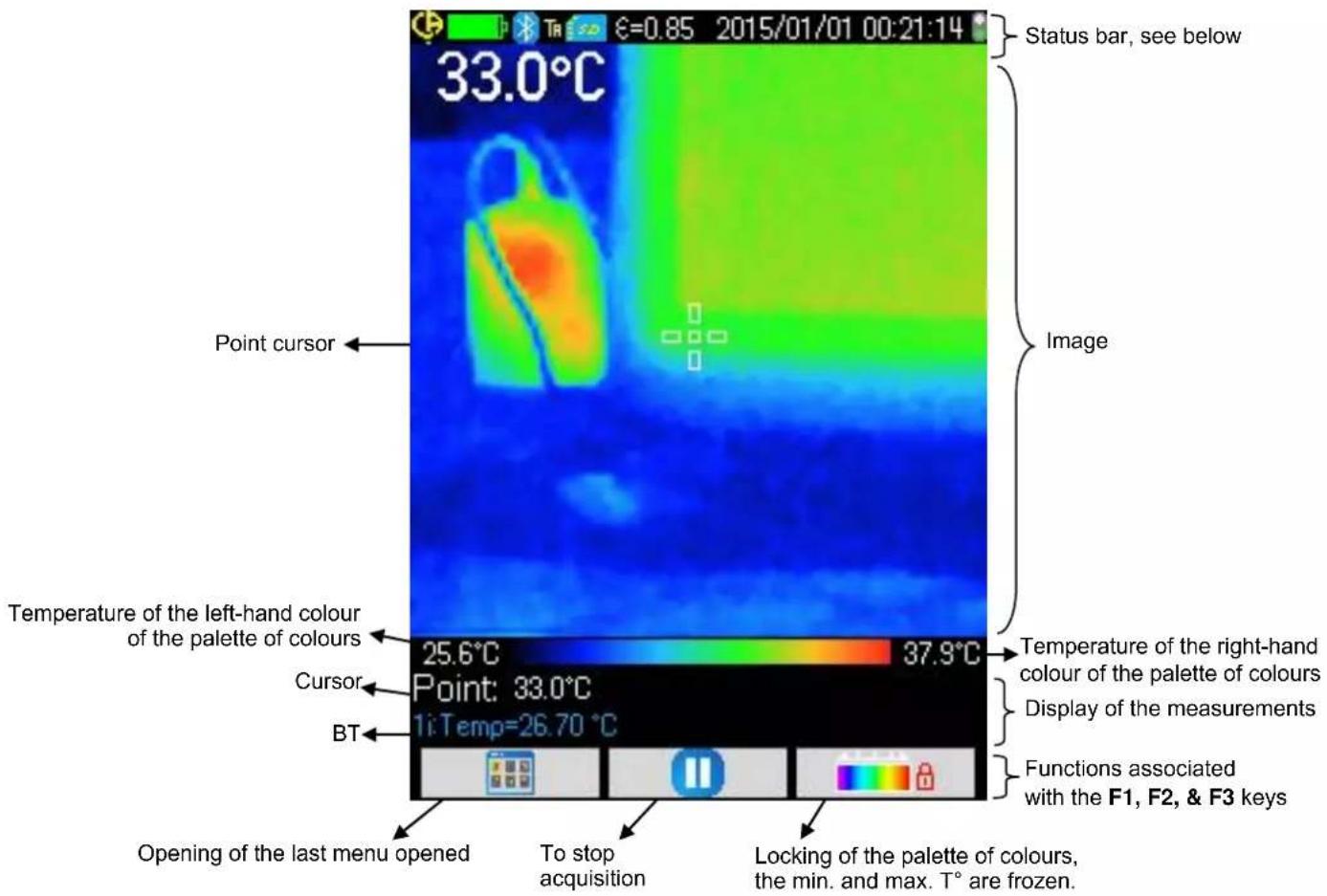

33.0°C Status bar, see below Point cursor Image Temperature of the left-hand colour of the palette of colours 25.6°C 37.9°C Temperature of the right-hand colour of the palette of colours 1:Temp=26.70 °C Cursor BT Display of the measurements Functions associated with the F1, F2, & F3 keys Opening of the last menu opened To stop acquisition Locking of the palette of colours, the min. and max. T° are frozen.

7. STATUS BAR

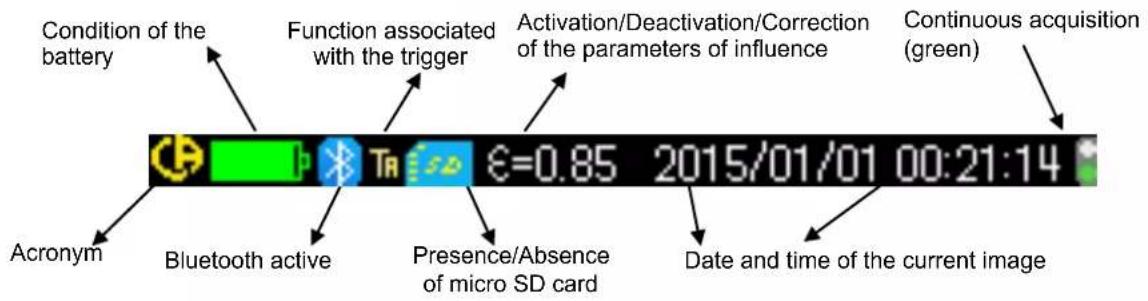

Condition of the battery Function associated with the trigger Activation/Deactivation/Correction of the parameters of influence Continuous acquisition (green) Acronym Bluetooth active Presence/Absence of micro SD card Date and time of the current image €=0.85 2015/01/01 00:21:14
