E200 - Humidifier BONECO - Free user manual and instructions

Product type	Evaporative humidifier
Brand	Boneco
Model	E200
Dimensions (L × W × H)	320 × 320 × 400 mm
Empty weight	3.8 kg
Supply voltage	100 - 240 V ~ 50/60 Hz
Power consumption	2.2 - 5.7 W
Humidification performance	Up to 200 g/h (level 3, 230 V)
Maximum recommended area	Up to 30 m²
Water tank capacity	3.8 liters
Sound level	25 - 44 dB(A)
Operating modes	3 power levels
Ambient lighting	LED with automatic or fixed color change, night mode
Automatic shut-off	Yes, when the tank is empty (LEDs flash red)
Container for fragrant substances	Yes, compatible with essential oils
Humidification type	Natural evaporation with evaporation mat
Antimicrobial treatment	Ionic Silver Stick® A7017 (antimicrobial effect)
Main spare parts	Evaporation mat A7018, Ionic Silver Stick A7017
Recommended cleaning frequency	Every 2 weeks for the water tray
Evaporation mat replacement	Every 10 to 12 weeks (or as needed)
Ionic Silver Stick replacement	Once a year
Safety instructions	Provided separately (mandatory)
Delivery contents	Device, power supply unit, simplified manual, safety instructions

Frequently Asked Questions - E200 BONECO

How to fill the water tank of the Boneco E200?

Two methods: direct filling through the filling opening on top, or indirect filling by removing the top part and pouring water directly into the water tray. Stop when the filling ring appears (direct) or when the water reaches the filling limit (indirect).

Can I use essential oils with the Boneco E200?

Yes, thanks to the integrated container for fragrant substances. Add a few drops of essential oil into this container, never directly into the water. Do not put oils into the water tank, as this would damage the device.

How to clean the Boneco E200 humidifier?

First unplug the device. Clean the outside with a damp cloth. Remove the top part and clean the float tip. Clean the water tray with a brush and dish soap. Rinse thoroughly. Reassemble everything.

When should the evaporation mat A7018 be replaced?

Every 10 to 12 weeks, or sooner if dirty, smelly, or performance is reduced. Replace it by turning the float tip to the OPEN position, remove the old mat, insert the new one, and close to the CLOSE position.

What to do if the LEDs flash red?

This means the water tank is empty. Add fresh water and the LEDs will turn off automatically. The device shuts off automatically for safety reasons.

How to change the ambient light color?

Press and hold the on/off button for about 3 seconds to turn the light on/off. Automatic color change is active by default. To set a fixed color, hold the button until the device turns off and then on again.

What is the runtime of the Boneco E200 with a full tank?

It depends on the power level. With a capacity of 3.8 liters and a maximum performance of 200 g/h, the runtime can vary from several hours to more than a day in low power mode.

Is the Boneco E200 quiet?

Yes, the sound level is between 25 and 44 dB(A), making it suitable for use in a bedroom, especially in night mode.

How to replace the Ionic Silver Stick A7017?

Remove the old stick and replace it with a new one once a year. It can be disposed of with household waste. Make sure to use the specific model A7017 to ensure the antimicrobial effect.

What is the maximum area that the Boneco E200 can cover?

It is recommended for rooms up to 30 m² (or 75 m³). For larger areas, efficiency may be reduced.

USER MANUAL E200 BONECO

Read and save these instructions

EN Always observe all safety notes (included separately in delivery).

EN Instructions for use 19

FR Mode d'emploi 33

WASSER NACHFÜLLEN

STIMMUNGSLICHT

VERWENDUNG

REINIGUNGSHINWEISE

ÜBER DIE REINIGUNG

Healthy air is a basic need 21

Availability of accessories 21

Overview and part names 22

Technical data 23

Starting up (filling directly) 24

Filling indirectly 25

Operation
26

Operating modes 26

Refill the water 26

Mood light 27

Turning the mood light on or off 27

Keeping the current color 27

Using fragrances 28

Basics	28
Use	28

Notes on cleaning	29
About cleaning	29
Recommended cleaning intervals	29

Cleaning the appliance 30

Replacing the accessories 31

Replace the A7017 Ionic Silver Stick °	31
Replacing the A7018 evaporator mat	31
Disposing of the A7018 evaporator mat	31
Availability of accessories 31

ITEMS INCLUDED

HEALTHY AIR IS A BASIC NEED

There is little to which we react with greater sensitivity than poor air. And yet many people do not pay enough attention to air quality, which has consequences for health and quality of life. This makes us all the more pleased that you have chosen a BONECO appliance to ensure that the basic need for healthy room air is satisfied for you and the people around you.

AVAILABILITY OF ACCESSORIES

You can obtain replacements for spent accessories as well as additional accessories:

• At your BONECO specialist dealer,
  • At www.shop.boneco.com or
• Directly via the "BONECO healthy air" app.

ITEMS INCLUDED

BONECO E200

Power supply

Quick Manual

Safety instructions

en

OVERVIEW AND PART NAMES

LEGEND

1 Fill opening

2 Upper part

3 Float tip

4 Fragrance container

5 Filling limit

6 Control buttons / display

7 Fill level ring

8 A7018 evaporator mat

9 A7017 Ionic Silver Stick®

10 Water base

TECHNICAL DATA

TECHNICAL DATA*

Power supply voltage 100 - 240V ~ 50 / 60 Hz

Power consumption 2.2 - 5.7 W

Humidity output up to 200 g/h**

For rooms up to 30 m2 / 75 m3

Water capacity max. 3.8 liters

Dimensions L×W×H 320 × 320 × 400 mm

Weight (empty) 3.8 kg

Operation noise level 25 - 44 dB (A)

* subject to change
¹⁰ at 230V\~50 Hz, Level 3

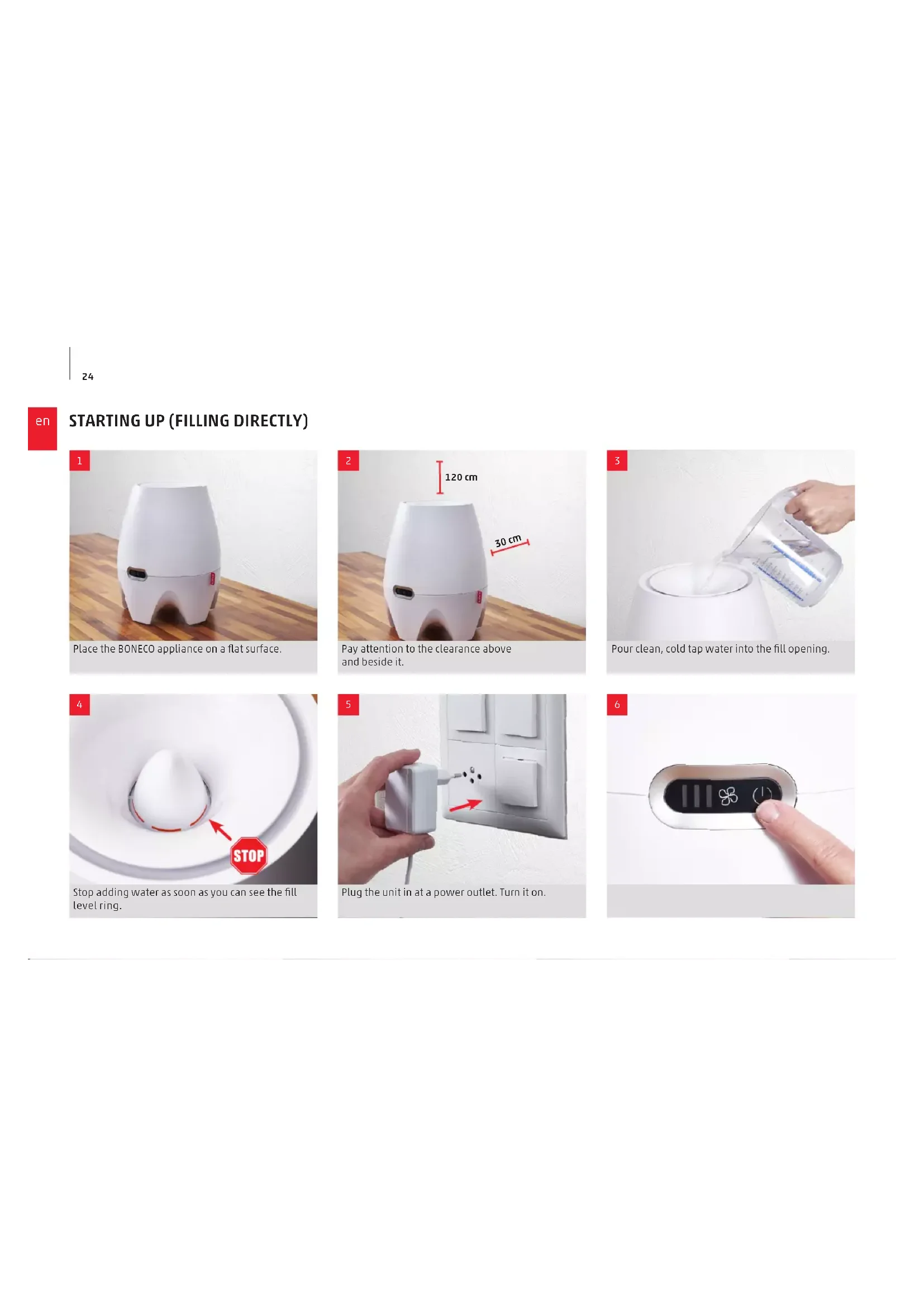

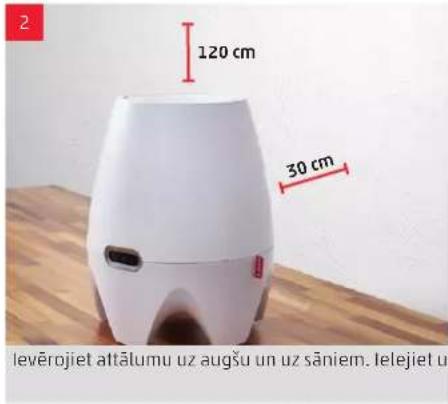

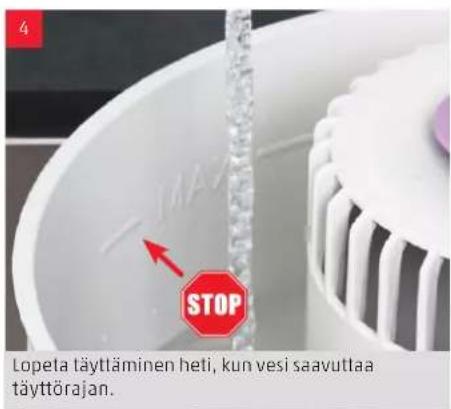

STARTING UP (FILLING DIRECTLY)

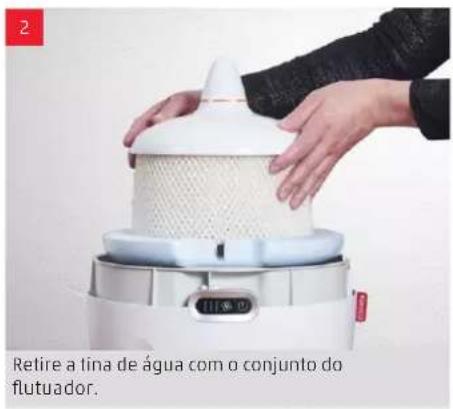

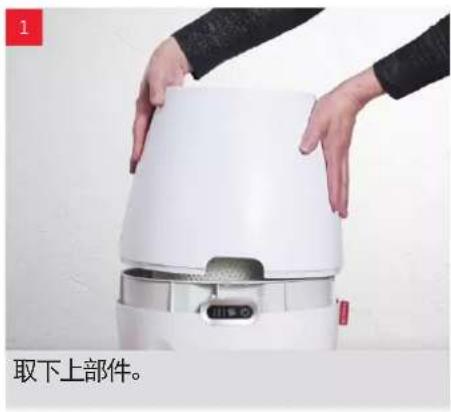

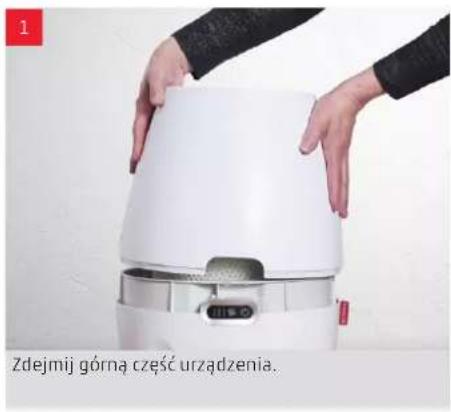

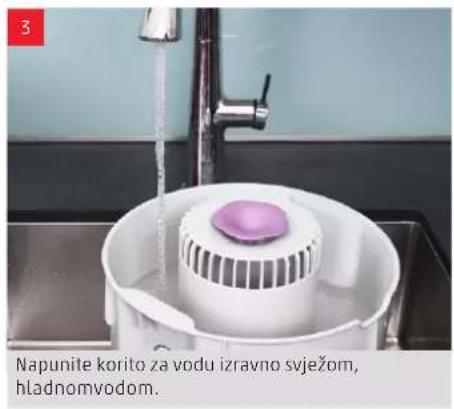

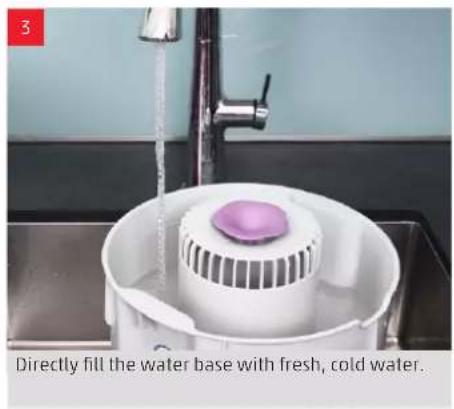

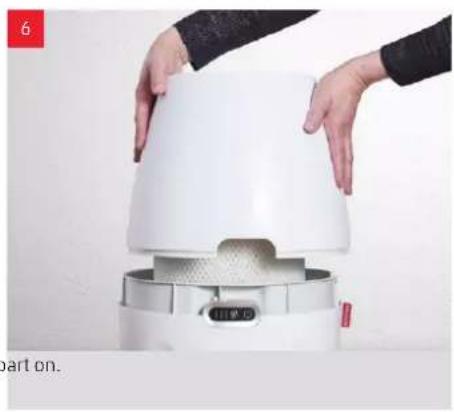

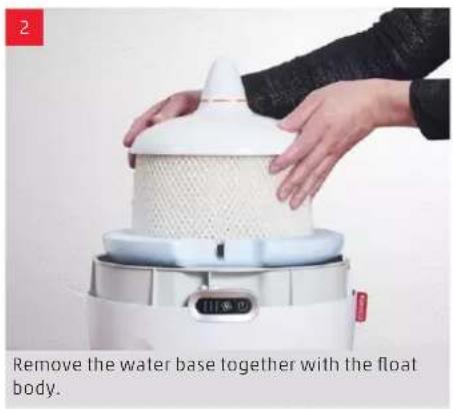

FILLING INDIRECTLY

OPERATION

OPERATING MODES

The BONECO appliance has three operating modes and the user can switch between them using the output button:

Press the button repeatedly to switch between the levels.

REFILL THE WATER

If the water tank is empty, all three LEDs on the BONECO appliance flash red. They automatically turn off once the water has been refilled.

MOOD LIGHT

Your BONECO appliance is equipped with a variable LED light that provides for a pleasant ambience. The color can be adjusted, as can the automatic color change. And, of course, the light can be turned off completely for night mode.

TURNING THE MOOD LIGHT ON OR OFF

When the BONECO appliance is turned on, the automatic color change is activated.

To turn the mood light on or off, press and hold the On/Off button for about 3 seconds.

KEEPING THE CURRENT COLOR

The color change can be deactivated so that the current color is kept. Once the desired color is shining, press and hold the On/Off button until the appliance turns off and back on.

Holding the On/Off button again will reactivate the color change.

USING FRAGRANCES

BASICS

Inside the BONECO E200 there is a fragrance container for adding commercially available fragrances and essential oils.

This fragrance container is made of a special material. Never add essential oils and other

fragrances directly into the water tank or water base. It only takes a small amount to damage the appliance irreparably. Such damage is not covered by the warranty.

USE

1. Remove the upper part.

1. Put the upper part on.

1. Remove the float body.

1. Add a few drops of the fragrance of your choice to the fragrance container.

NOTES ON CLEANING

ABOUT CLEANING

This means regular maintenance and cleaning is necessary to ensure unimpaired and clean operation.

Recommended cleaning and maintenance intervals vary depending on air quality, water quality and operating time.

A soft cloth, dish detergent and a scrub brush are recommended for cleaning.

Always unplug the BONECO appliance from the power outlet before you begin cleaning.

Failure to do so can result in electric shock and fatal injury!

RECOMMENDED CLEANING INTERVALS

Interval Task

After the third day without operation Empty water base and fill with fresh water

Every 2 weeks Clean the water base

Every 10 - 12 weeks (or as necessary) Replace the A7018 evaporator mat

Annually Replace the A7017 Ionic Silver Stick ^®

CLEANING THE APPLIANCE

CLEANING THE APPLIANCE

1. Clean the outside with a damp, soft cloth.
2. Remove the upper part.

1. Clean the float tip with a soft cloth.

1. Remove the float body.

1. Take out the A7017 Ionic Silver Stick ⁴ .

1. Clean the water base with a dish brush and a little dish detergent.

1. Put the unit back together by following the steps in reverse order.

REPLACING THE ACCESSORIES

REPLACE THE A7017 IONIC SILVER STICK®

The A7017 Ionic Silver Stick ^® uses the antimicrobial effect of silver for a significant improvement of water hygiene. It is effective as soon as water comes into contact with it – even if the appliance is switched off.

Replace the A7017 Ionic Silver Stick ^® annually to guarantee antimicrobial effectiveness.

The spent A7017 Ionic Silver Stick® can be thrown out with your regular household waste.

REPLACING THE A7018 EVAPORATOR MAT

Replace the A7018 evaporator mat if there is excessive contamination, limescale build-up, odor, reduced suction, etc.

1. Turn the float tip in the "OPEN" direction to remove it.

1. Pull out the used evaporator mat and throw it out with your household waste.

1. Insert the new evaporator mat.

2. Install the float tip on the float body by turning it in the "CLOSE" direction.

DISPOSING OF THE A7018 EVAPORATOR MAT

The A7018 evaporator mat consists of paper, so you can recycle it or throw it out with your household waste.

AVAILABILITY OF ACCESSORIES

You can obtain replacements for spent accessories as well as additional accessories:

- At your BONECO specialist dealer,

• At www.shop.boneco.com or

- Directly via the "BONECO healthy air" app.
