U7147 - Humidifier BONECO - Free user manual and instructions

Product type	Ultrasonic humidifier
Brand	Boneco
Model	U7147
Dimensions (L x W x H)	30 x 20 x 35 cm
Weight	2.5 kg
Tank capacity	5 liters
Power supply	220-240 V, 50 Hz
Maximum power	25 W
Humidification output	300 ml/h
Recommended coverage area	Up to 60 m²
Main features	Ultrasonic humidification, automatic shut-off, humidity control, night light
Noise level	< 25 dB(A)
Control type	Touch electronic
Display	LED
Filter	Integrated antibacterial filter
Maintenance and cleaning	Weekly cleaning with white vinegar or descaling agent; filter change every 3 months
Safety	Automatic shut-off when tank is empty, safety cover
Spare parts and repairability	Tank, filters, piezo membrane available; repairability by authorized service
Color	White / Gray
Warranty	2 years

Frequently Asked Questions - U7147 BONECO

How do I clean the tank of my Boneco U7147?

Empty the tank and fill it with warm water and a little white vinegar or descaling agent. Let it sit for 15 minutes, gently scrub with a non-abrasive sponge, rinse thoroughly. Perform this operation every week.

Why is my humidifier not producing mist?

Check that the tank is full and properly installed. Make sure the piezo membrane is not scaled. If the problem persists, clean the membrane with a soft brush or descale. See the manual for details.

What type of water should I use?

It is recommended to use demineralized water or filtered tap water to avoid limescale buildup. Distilled water is ideal. Avoid spring or mineral water high in minerals.

How to set the desired humidity level?

Use the touch buttons to select the target humidity level (usually between 40% and 60%). The unit automatically stops when this level is reached. Consult the manual for precise settings.

How often should I change the filter?

The antibacterial filter should be changed approximately every 3 months, or more often if the water is very hard. Follow the instructions in the manual. A used filter reduces efficiency and may produce odors.

My humidifier is making an abnormal noise. What should I do?

An unusual noise may come from a scaled piezo membrane or a mispositioned tank. Clean the membrane and check the installation. If the noise persists, contact customer service.

Can I leave the humidifier running all night?

Yes, the Boneco U7147 is designed for night use. It has a silent mode (< 25 dB) and an integrated night light. Make sure the tank has enough water for the desired duration.

How to descale the piezo membrane?

Use a special humidifier descaler or a water/white vinegar mixture (1:1). Apply to the membrane with a soft brush, let it sit for a few minutes, then rinse. Do not use metal objects to avoid scratching.

What does the red indicator light mean?

The red light usually indicates a low water level in the tank or a malfunction. Fill the tank and check that the lid is closed properly. If the light persists, consult the manual.

Where can I find spare parts for the U7147?

Spare parts (tank, filters, membrane, etc.) are available on the official Boneco website or from authorized dealers. Always use original parts to ensure proper operation and safety.

USER MANUAL U7147 BONECO

U7145/U7147

Gebrauchsanweisung (5 – 16)	de	Bruksanvisning (101 – 112)	se
Instructions for use (17 – 28)	en	Käyttöohje (113 – 124)	fi
Instructions d’utilisation (29 – 40)	fr	Brugsanvisning (125 – 136)	dk
Istruzioni per l’uso (41 – 52)	it	Bruksanvisning (137 – 148)	no
Gebruiksaanwijzing (53 – 64)	nl	Lietošanas instrukcija (149 – 160)	lv
Instrucciones para el uso (65 – 76)	es	Naudojimo instrukcija (161 – 172)	lt
Használati útmutató (77 – 88)	hu	Kasutusjuhend (173 – 184)	ee
Instrukcja obsługi (89 – 100)	pl	使用说明书 (185 – 197)	cn

Gebrauchsanweisung

Vorwort

Auspacken

Wasserreinhaltung

Bedienung U7145

C) Wasserstandsanzeige (rot)

Achtung!

Instructions for use

Foreword

Congratulations on choosing the Ultrasonic Humidifier U7145/U7147!

en

Proper use:

The appliance must only be used for the humidification of the air indoors.

Did you know that dry room air:

• Dries out the mucous membranes, and also causes chapped lips and stinging eyes?
• Encourages infections and illnesses of the respiratory system?
• Causes weariness, tiredness and poor concentration?
  • Stresses household pets and house plants?
• Encourages the formation of dust and the electrostatic charging of textiles made of synthetic fibers, as well as carpets and plastic flooring?
• Damages wooden furniture and especially parquet floors?
• Causes musical instruments to go out of tune?

General information

A comfortable indoor atmosphere is achieved at a relative humidity of between 40 and 60%. Your appliance automatically controls the humidity level according to your chosen setting. If the air is too dry, the unit will automatically switch on. As soon as the desired humidity level is reached, it will automatically switch off.

Safety instructions

• Read the operating instructions carefully before using the appliance and keep them in a safe place for later reference.
• Connect the unit only to an AC supply with a voltage according to the rating label.
• Only use the appliance indoors and within the parameters stated in the technical specifications. Using the appliance for a purpose for which it is not intended could pose a serious hazard to health and life.
• Children cannot recognize the hazards associated with the usage of electrical appliances. For this reason, always supervise children when they are near the appliance (image 1).
• Persons who are unfamiliar with the operating instructions, as well as children and persons under the influence of medication, alcohol or drugs are not permitted to operate the appliance, or are only permitted to operate it under supervision.
• Never use the appliance if there is any damage to the appliance or cable (2), after malfunction has occurred, after the appliance has been dropped (3) or damaged in any other way.
• Only operate the appliance when it is completely assembled.
• Repairs to electrical appliances may only be carried out by qualified service engineers (4). Improper repair work can pose a considerable hazard to the user.
• Disconnect the appliance from the mains power before filling/emptying the water tank, before cleaning, before assembling/dismantling of individual parts and before moving the appliance.
• Do not reach inside the nebuliser space during operation. The high frequency oscillation causes the membrane to become hot.

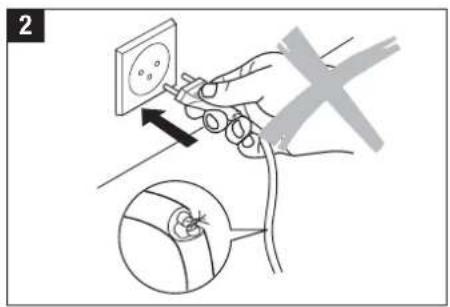

• Never pull the plug from the mains socket by the cable or with wet hands.

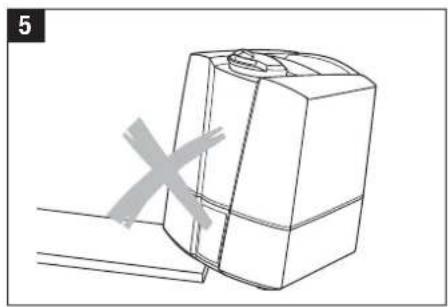

  • Always place the appliance on a dry, level surface (5).

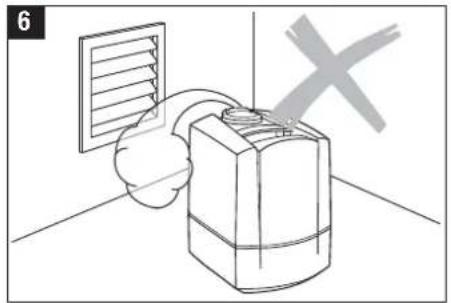

• Do not place the appliance directly on the floor or next to heating. If the mist comes in contact with the floor before it has fully evaporated, the surface could be damaged (6). We do not accept any liability for damages due to the incorrect placement of the unit.

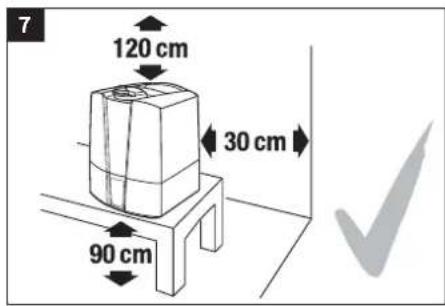

• The unit should be placed in an elevated position (7), e.g. on a table, chest, etc.
• Do not pour water into the mist outlet of the appliance.
• Do not immerge the main body in water or other liquids.

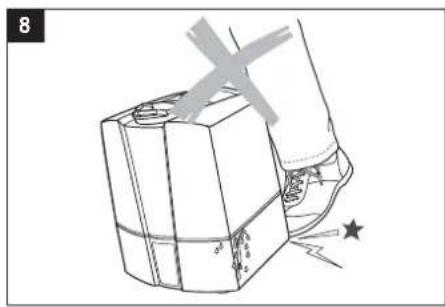

• Position the appliance where it cannot be easily knocked over (8).
• Always disconnect from the mains power when not in use.
• Do not run the power cord under a carpet or other objects. Position the appliance so that you will not trip over the cord.
• Do not use the appliance in areas where combustible materials, gases or vapours are present.
• Do not expose the appliance to rain, and do not use it in damp locations.
• Do not insert foreign objects in the device.
• Do not block the air intake or mist outlet.
• Do not sit, stand or place any heavy objects on the appliance.
• To protect health safety and proper humidifier function use only clean, contamination-free, cold, fresh tap water in your humidifier. If your water source is contaminated or if you are uncertain of its safety use distilled water. In addition, it is advised to clean and maintain your humidifier in a timely manner as instructed in this manual.
• The use of fragrances, such as essential oils, water conditioners and aromas will damage your appliance! Appliances that are damaged by such additives will not be covered by the manufacturer's warranty.
• The high frequency vibrations cannot be heard by humans or animals, and are completely safe.

Unpacking

• Carefully remove the unit from its box.
• Remove the unit from the plastic bag.
• Review the information given on the rating plate about the mains supply.
• Use the original packaging for storing the appliance if you do not use it all year round.

Putting into operation

Find the ideal location for your appliance:

• Do not place it directly next to a radiator or on a floor with floor heating. The moisture of the mist can damage the floor surface (6 and 7) (see Safety Instructions).

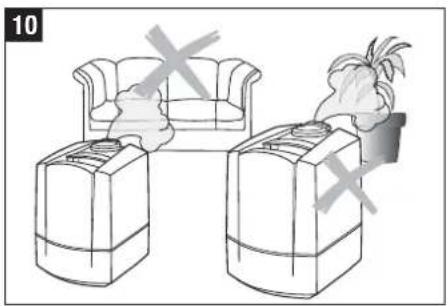

• The mist outlet must not be pointed directly at plants or other objects. Keep a distance of at least 50 cm) (10).
• Soak the demineralisation cartridge in a bowl of water for at least 24 hours before using it. The granules have to absorb water to reach full performance.
• On average the demineralisation cartridge should be replaced every 2 – 3 months. This interval can be shorter or longer depending on the hardness of your water.
• Read the instructions under «Filling the Tank» for filling the water tank (12).

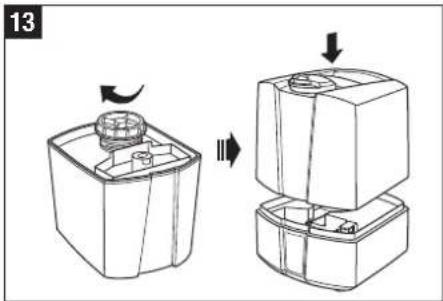

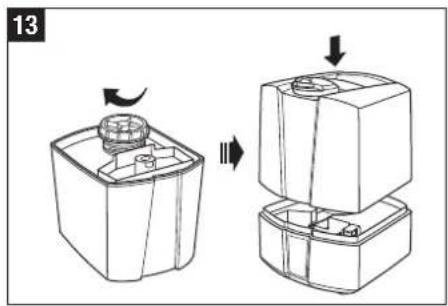

• Place the water tank onto the base (13).

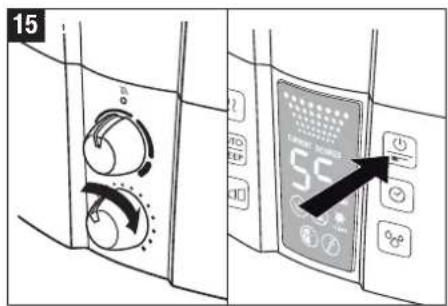

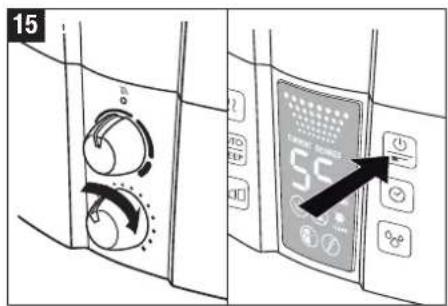

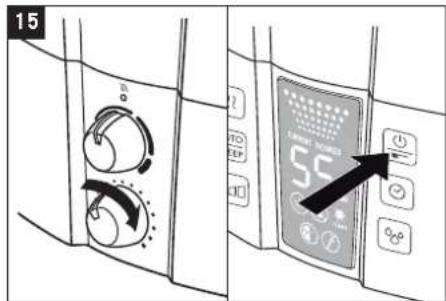

• Insert the plug into the mains socket and switch on the appliance using the on/off switch (15).
• The appliance will reach full capacity about 10 to 15 minutes after being switched on.

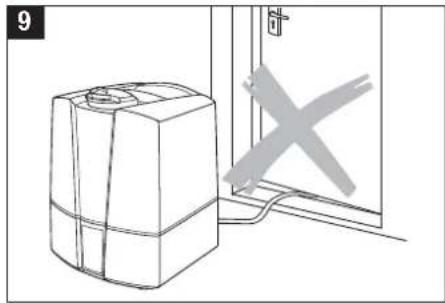

• Make sure that the power cord is not pinched anywhere (9). Do not operate the appliance if the cord is damaged (2).

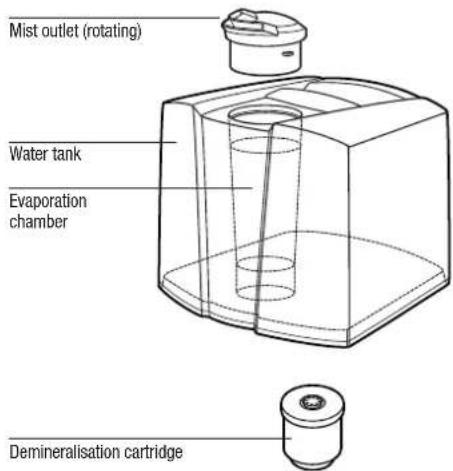

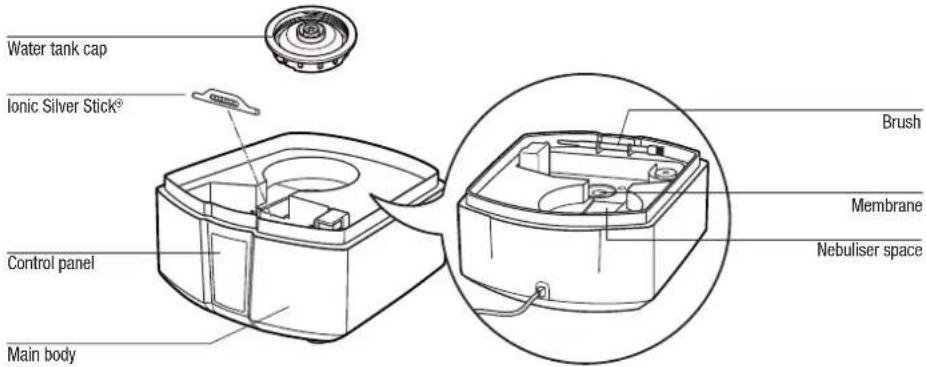

Description of the appliance

Filling the tank

Always switch off the appliance before removing the water tank. Do not reach inside the nebuliser space while the appliance is running!

To protect health safety and proper humidifier function use only clean, contamination-free, cold, fresh tap water in your humidifier. If your rice is contaminated or if you are uncertain of its distilled water.

Do not operate the appliance when the water tank is empty! When the water reaches the minimum level, the unit switches off automatically.

• Make sure that there are no foreign objects inside the water tank.

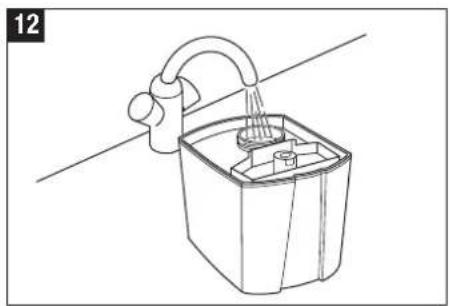

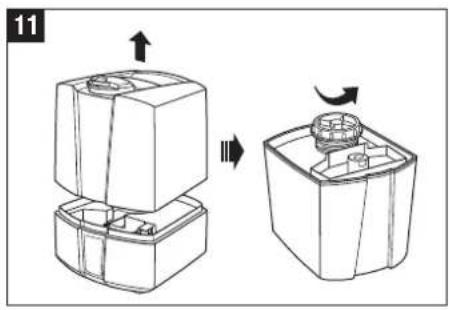

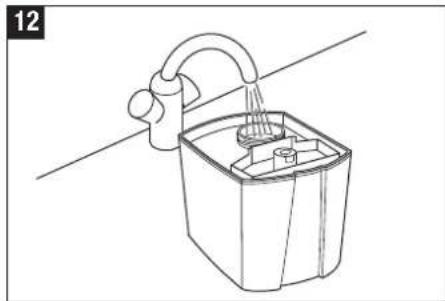

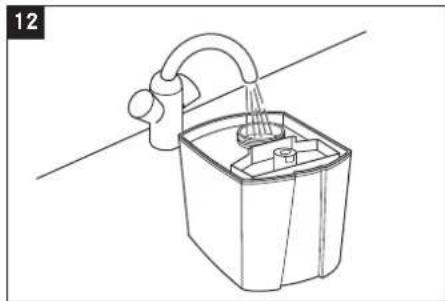

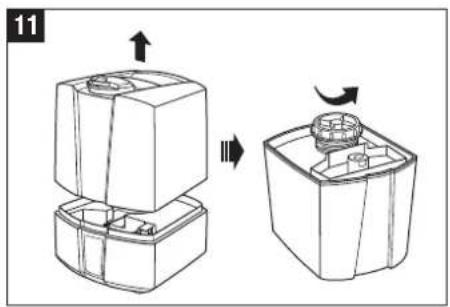

• Remove the water tank cap from the tank (11). Fill the tank with clean, cold tap water (12). Close the cap of the water tank securely! Place the water tank onto the base (13). Do not add any additives to the water (14)!
• Insert the plug into the power socket and switch on the appliance (15).

Water quality maintenance

The Ionic Silver Stick utilizes the antimicrobial property of silver and provides one season of optimum water quality maintenance in all BONECO humidifiers. The ISS begins working as soon as it comes into contact with water – even if the unit is switched off. The ISS is intended exclusively for use in humidifiers. Look at picture 16 for the position of the ISS in the appliance. Do not reach inside the nebuliser space during operation. Switch off the unit first.

Do not use additives

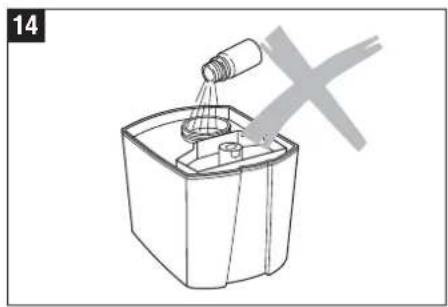

Water additives (e.g. essential oils, fragrances, water conditioners etc.) must NOT be used! Even a small amount can cause damage to the tank material. The material is not suitable for the use of such additives. One drop is enough to damage the tank and render the appliance unusable. Appliances that are damaged by such additives will not be covered by the manufacturer's warranty.

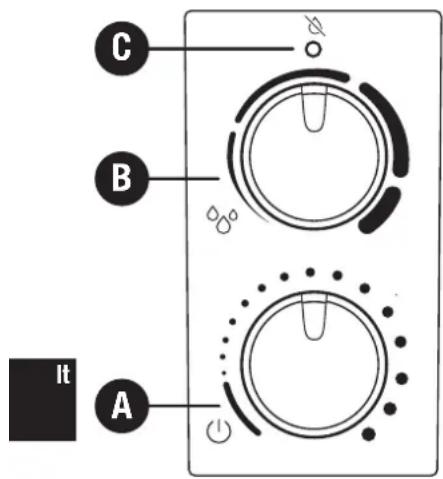

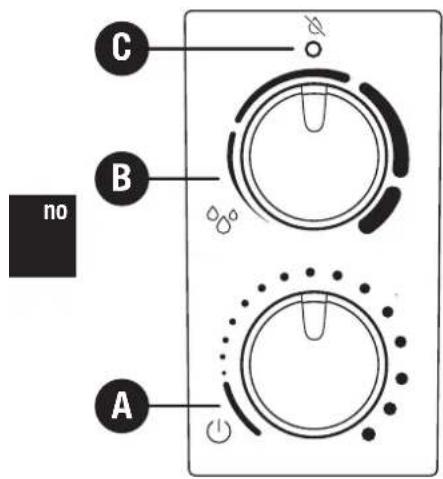

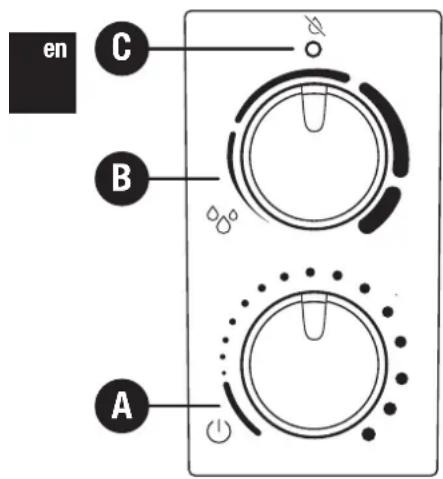

Operation U7145

C) Empty indicator (red)

The water level is easy to see, thanks to the transparent water tank. The appliance also alerts you when the water tank is empty. The red empty indicator is illuminated (symbol C). Please read the chapter «Filling the tank» for more information. The red symbol C may stay illuminated for some seconds with a refilled tank until the base is filled with water.

A) On-off switch

Turning the rotary switch clockwise switches the appliance on and at the same time regulates the mist output from low to high.

B) Hygrostat (setting the humidity level)

The desired humidity level can be set by turning the rotary switch clockwise. A relative humidity between 40 and 60% is recommended. You can achieve this level by rotating the switch until it is roughly in the vertical position. The accuracy of measurement is +/- 5%. The unit will switch off when the moisture level exceeds the desired setting. The appliance does not switch off if the switch is turned all the way to the right. This activates the continuous operation function.

Operation U7147 I) Pre-heating Indicator

A) Switching on/off

You can switch the unit on or off by pressing button A. This button is also used to reset the cleaning indicator light (by holding down).

B) Hygrostat (pre-set moisture level)

By pressing button B you can set the desired moisture level in %. A relative moisture of between 40 and 60% is recommended. The accuracy of measurement is +/- 5%. The unit will switch off when the moisture level exceeds the desired setting. During selection the target value is displayed (symbol DESIRED). The display will automatically show the current humidity value after a few seconds (symbol CURRENT).

C) Timer

Using button C, the operation time can be set – adjustable between 1 and 8 hours, or continuous operation (C0). Symbol G shows the operating period that has been set (1h/2h/3h/4h/5h/6h/7h/8h/C0). The display will automatically show the current value after a few seconds.

D) Controlling mist output and Evaporator output

By repeatedly pressing button D you can control the mist output. Symbol H shows which of the three levels (low/medium/high) you have selected.

E) Operation with pre-heating

Button E is used for switching the pre-heating on and off (symbol I lights up). As a result, the water is pre-heated to a temperature of 80 °C before entering the nebuliser space. It takes approx. 10 to 15 minutes for the water in the base to warm up. The mist now leaves the nebuliser space at a pleasant temperature of 40 °C. The advantage of this is that the room temperature does not drop and, in addition, it significantly improves the water quality maintenance.

F) Auto/Sleep Mode

The automatic and sleep modes can be activated by pressing button F. By pressing the button once, the automatic function is switched on (symbol J appears on the display), maintaining the optimum humidity subject to the temperature. Control takes place by means of output quantity and pre-set target value. If the sleep function is switched on (the symbol K appears on the display), the target humidity is 50 – 65%; the operation time is automatically set at 6 hours; the heating is switched on. In addition, the output quantity is also controlled subject to the difference between the target value and the actual value.

The hygrostat and mist output settings cannot be changed in either mode. If the buttons B or D are pressed, the unit will no longer be in auto or sleep mode.

G) Timer Indicator

H) Mist Output Indicator

J) Auto Mode Indicator

K) Sleep Mode Indicator

L) Empty indicator

The transparent water tank makes it possible to see the water level well. Furthermore, the unit shows on the display (L) when water must be added.

Please read the chapter «Filling the tank» for more information. The symbol L may stay illuminated for some seconds with a refilled tank until the base is filled with water.

M) Cleaning indicator

If symbol M and «CLEAN» appear on the display, the appliance should be cleaned as recommended by the manufacturer. This symbol comes on automatically every 2 weeks, depending on the level of use. The display can be cancelled by depressing button A for between 10 and 15 seconds.

Cleaning/Maintenance

Always switch the appliance off before removing the water tank. Do not reach inside the nebuliser space while the appliance is running!

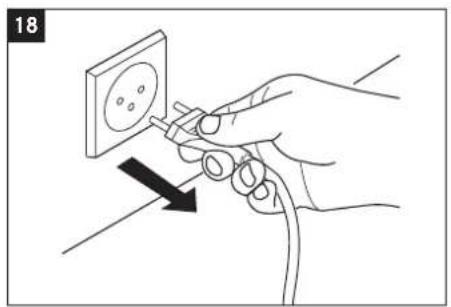

• Switch off the appliance (17) and remove the plug from the mains socket (18) before cleaning.

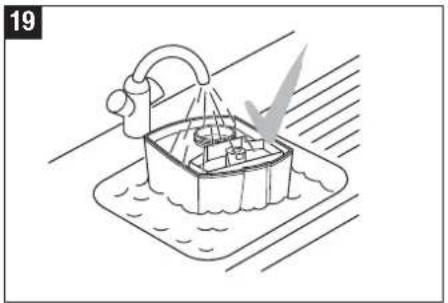

• Clean the water tank and the nebuliser space regularly once a week (use only water, without detergent) (19).

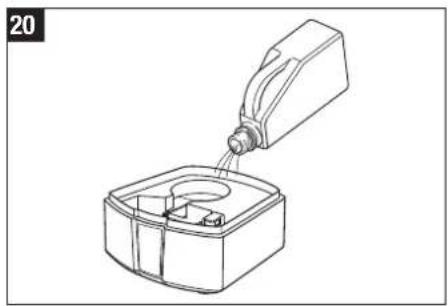

• Decalcify the water base regularly using commercially available decalcification agents (20). Rinse out the decalcification agent thoroughly with plenty of water.

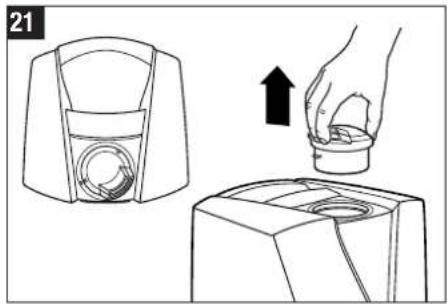

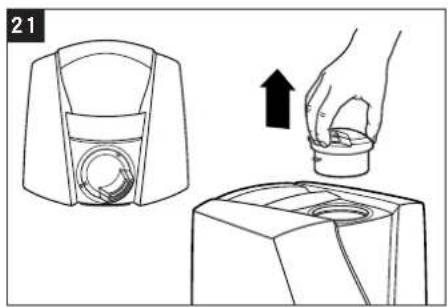

• To remove the mist outlet (21): Twist the mist outlet to either the right or the left. Align the arrow on the mist outlet with the arrow on the ring around the mist outlet. Pull up on the mist outlet once the arrows are aligned.

Important

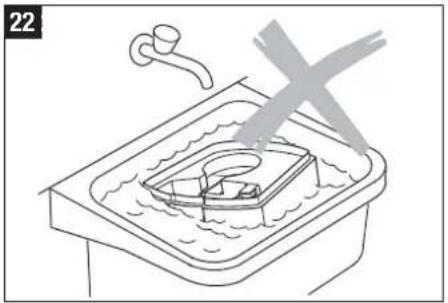

• Make sure that no water gets into the lower part of the main body (22).

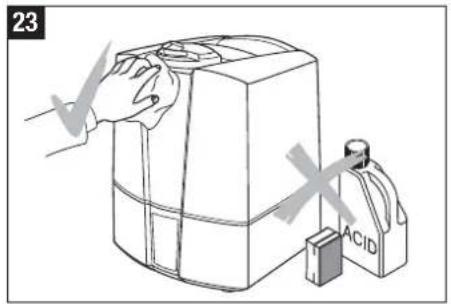

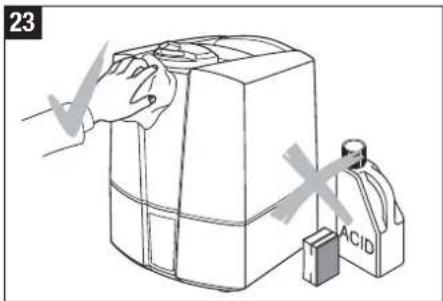

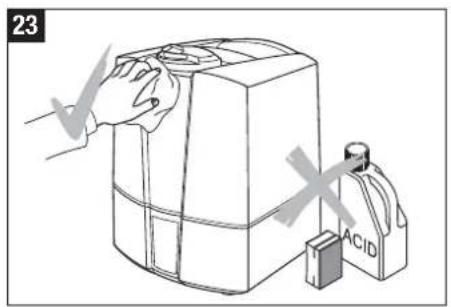

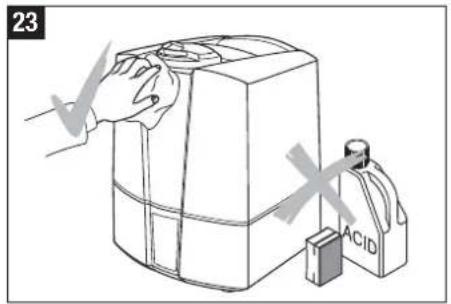

• Clean the inner parts with a soft cloth. Never use any solvents or aggressive cleaning agents (23).
• Only use the brush to clean the membrane (24). This should be done once a week.
• Change the water in the tank at least once a week.

Replacement of the demineralisation cartridge

Always switch off the appliance before removing the water tank. Do not reach inside the nebuliser space while the appliance is running!

The cartridge must be replaced every 2 – 3 months. If the water is very hard, it may be necessary to replace the cartridge earlier. White dust around the appliance is a sure sign that the cartridge needs replacing. If white residues continues to form around the appliance after a new cartridge has been inserted, please make sure that the water you are using is untreated. If the water flows through a domestic decalcification system before it is used in the unit, salt will precipitate around the appliance.

Option A: Replace the granules

• Remove the water tank from the base and unscrew the water tank cap (25).

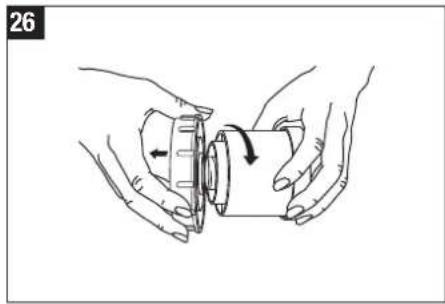

• The demineralisation cartridge is attached to the inside of the cap. Unscrew the cartridge from the cap by turning it counter-clockwise (26). Important: do NOT dispose of the tank cap!
• Open the cartridge (27).
• Throw the content (granules) into the waste (28). Attention! Disposed granules can make the floor slippery!
• Place the enclosed pink styrofoam piece in the center of the cartridge. Do not push it to the bottom as it will be difficult to remove afterwards (29).
• Pour the contents of one refill resin bag into the plastic cup that is included with the refill resin packaging (30).

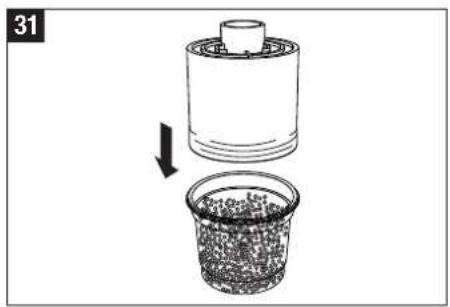

• Place the empty cartridge with the plug in the center onto the plastic cup (31).

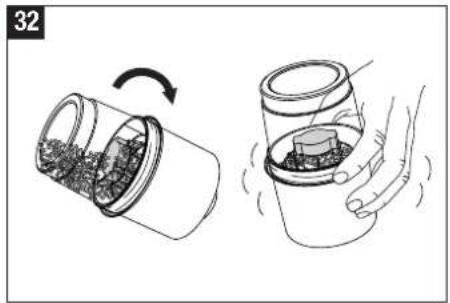

• Turn the plastic cup and cartridge over and shake until

all granules are in the cartridge (32).

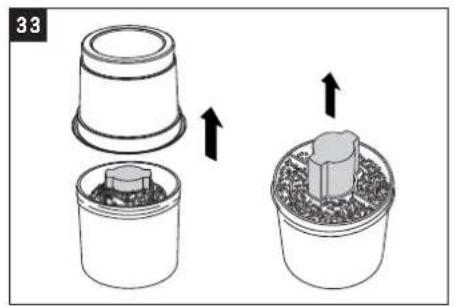

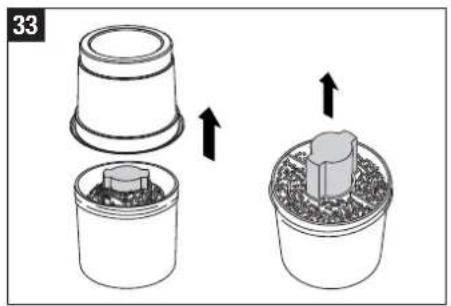

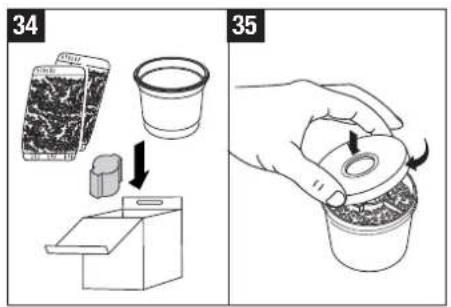

• Remove the plastic cup and the pink styrofoam piece from the cartridge (33) and retain for future use (the refill resin consists of 3 refill bags) (34).
• Close the cap (35).

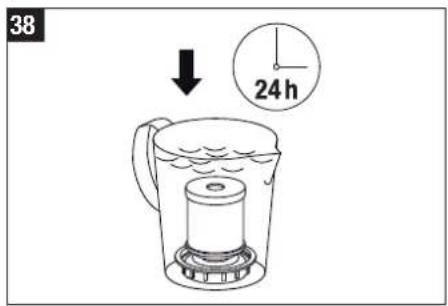

• Soak the demineralisation cartridge in a bowl of water for at least 24 hours before use (38). The granules have to absorb water to reach full performance.

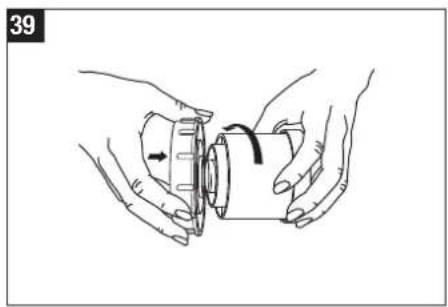

• Now screw the cartridge onto the water tank cap (39). Close the tank cap securely! Place the water tank onto the base (40).

Option B: Replace the entire cartridge

• Remove the water tank from the base and unscrew the water tank cap (25).
• The demineralisation cartridge is attached to the inside of the tank cap. Unscrew the cartridge from the cap by turning it counter-clockwise (26). Important: do NOT dispose of the tank cap!

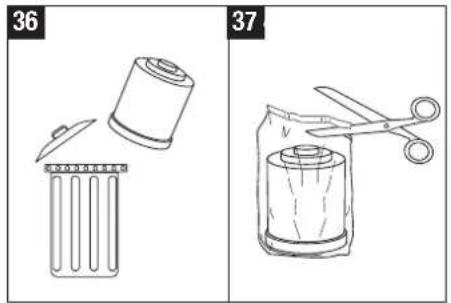

• Dispose of the old cartridge (36).
• Unpack the new cartridge (37).
• Soak the new cartridge in a bowl of water for at least 24 hours before use (38). The granules have to absorb water to reach full performance.
• Now screw the cartridge onto the water tank cap (39). Close the tank cap securely! Place the water tank onto the base (40).

25

26

27

Storing the appliance for extended periods

Clean the appliance as described earlier and allow to dry thoroughly. Preferably store the appliance in its original box, in a dry place away from high temperatures.

Disposal

Return your worn out unit to your dealer for proper disposal. You can obtain information on other ways to dispose of the unit from your local district or town council.

Warranty

The warranty conditions are defined by our representative in the country of sale. Please contact your dealer if, despite strict quality control, your appliance becomes defective. You must present your original receipt when making a claim under the warranty. Repairs to electric appliances can only be carried out by specialists. Through improper repairs, considerable danger for the operator can result and warranty claims lapse.

Technical specifications U7145

Mains voltage 230 V ~ 50 Hz
Power consumption 22 W / 39 W
Humidity output 400 g/h
Suitable for rooms up to 60 m	2 / 150 m3
Water capacity 5.0 litres
Dimensions 240 x 260 x 310 mm
Weight (empty) 3.0 kg
Operating noise level < 25 dB(A)
Accessories A7531 Demineralisation cartridgeA7017 Ionic Silver Stick (ISS)

Troubleshooting

Problem Possible cause What to do
Unit does not operate	Power plug not plugged in	Plug in power plug into mains socket
No water in the tank(Empty indicator is on)	Fill tank with water
No mist output	Desired humidity level lowerthan actual	Increase humidity setting
Cleaning agent residues	Rinse with clear water
Weak mist output	Water temperature too lowappliance will work properly againafter 10 minutes.	Set mist output to maximum. The
Mineral deposits on membrane	Clean membrane
White deposit around the appliance	Demineralisation cartridge exhausted	Replace demineralisation cartridge or granules

Désemballage

Commande U7145

Attention

26

27

Funzionamento U7145

Attenzione

Uitpakken

Bediening U7145

C) Leegstandindicator (rood)

Belangrijk

26

27

Desembalaje

Depuración del agua

Manejo U7145

Atención

Kicsomagolás

Az U7145 használata

Figyelem

Obsługa U7145

Uwaga

Uppackning

Vattenrenhållning

Manövrering U7145

C) Tomindikator (röd)

Observera

26

27

Vedenpuhdistus

Käyttö U7145

Varo:

Udpakning

Vandforureningskontrol

Drift U7145

C) Indikator for påfyldning (rød)

Vigtigt

Betjening U7145

C) Vannivåindikator (rød)

Merk

Izsainošana

Ierices U7145 vadiba

Svarīgi

26

27

Išpakavimas

U7145 veikimas

Svarbu

Vandens talpa 5,0 litrai

Matmenys 240 x 260 x 310 mm

Vandens talpa 5,0 litrai

Matmenys 240 x 260 x 310 mm

Lahtipakkimine

Vee kvaliteedi parandamine

U7145 kasutamine

C) Tühjuse indikaator (punane)

NB!

打开包装

水质保证

运行U7145

c) 缺水指示灯（红色）

重要事项

更换去矿盒

拿走水箱之前一定要确保先关机。机器在运转时不能触碰雾化池！

26

27

贮藏

BONECO is a registered trademark of BONECO AG, Switzerland
