1000 Series DST1030 - Iron PHILIPS - Free user manual and instructions

Product type	Steam iron
Brand	Philips
Model	1000 Series DST1030
Power supply	220-240 V, 2000 W (approx.)
Dimensions (approx.)	28 x 12 x 14 cm
Weight (approx.)	1.1 kg
Water tank capacity	150 ml (approx.)
Cord length	2 m (approx.)
Soleplate type	Stainless steel soleplate
Temperature settings	Synthetic, Silk, Cotton, Linen, ECO
Steam functions	Constant steam, horizontal shot of steam, vertical shot of steam, water spray
Dry ironing mode	Yes, selectable
ECO mode	Yes, reduced steam output to save energy
Calc-Clean function	Yes, self-cleaning to remove scale
Recommended water type	Tap water; in hard water areas, mix 50/50 with distilled water
Maintenance	Clean soleplate with a damp cloth; do not use chemicals
Storage	Wrap cord around heel; empty water tank
Safety	Heating indicator light; auto shut-off not specified
Included accessories	None (not specified)
Warranty	2 years (standard Philips)

Frequently Asked Questions - 1000 Series DST1030 PHILIPS

What type of water to use in the Philips DST1030 iron?

Use tap water. If the water is very hard, mix equal parts tap water and distilled or demineralized water. Never use perfume, vinegar, starch, or other additives.

How to fill the water tank?

Unplug the iron and make sure it is cold. Set the steam selector to 'Dry ironing'. Open the cap, fill up to the MAX level, then close properly.

How to set the temperature?

Turn the thermostat according to fabric type: Synthetic (low), Silk, Cotton, Linen (high). The indicator light goes off when the temperature is reached.

How to use steam?

Select a steam setting (ECO or constant steam) with the steam selector. Steam is only available for Silk, Cotton, and Linen settings. For dry ironing, choose 'Dry ironing'.

How to use the horizontal shot of steam?

Briefly press the Shot of steam button for a powerful steam burst. Available for Cotton and Linen settings. Ideal for stubborn creases.

How to use the vertical shot of steam?

Hold the iron vertically and briefly press the Shot of steam button to de-wrinkle hanging garments. Do not hold the button down.

How to clean the soleplate?

Unplug the iron and let it cool. Wipe the soleplate with a damp cloth. Never use a scouring pad, vinegar, or chemicals. Avoid contact with metal objects.

How to perform descaling (Calc-Clean)?

Fill the tank to MAX, set the thermostat to MAX, plug in the iron and wait for the indicator light to turn off. Unplug, hold the iron horizontally over the sink and shake it to remove scale. Replug for 2 minutes to dry the soleplate.

What to do if smoke comes out during first use?

This is normal. Smoke may appear briefly during the first heating. It disappears after a few moments.

How to store the iron after use?

Set the steam selector to 'Dry ironing', unplug, let cool, empty the water tank. Wrap the cord around the heel.

USER MANUAL 1000 Series DST1030 PHILIPS

Exterior view of a Philips 1000 Series air iron (no text or symbols on body)

Using the appliance 5

Preparing for use 5

Filling the water tank 5

Setting the temperature 7

Using the appliance 7

Ironing with steam 9

No Steam/ Dry ironing 10

Water spray 10

Horizontal steam boost 10

Vertical steam boost 11

Cleaning and maintenance 12

Calc-Clean 13

Storage 15

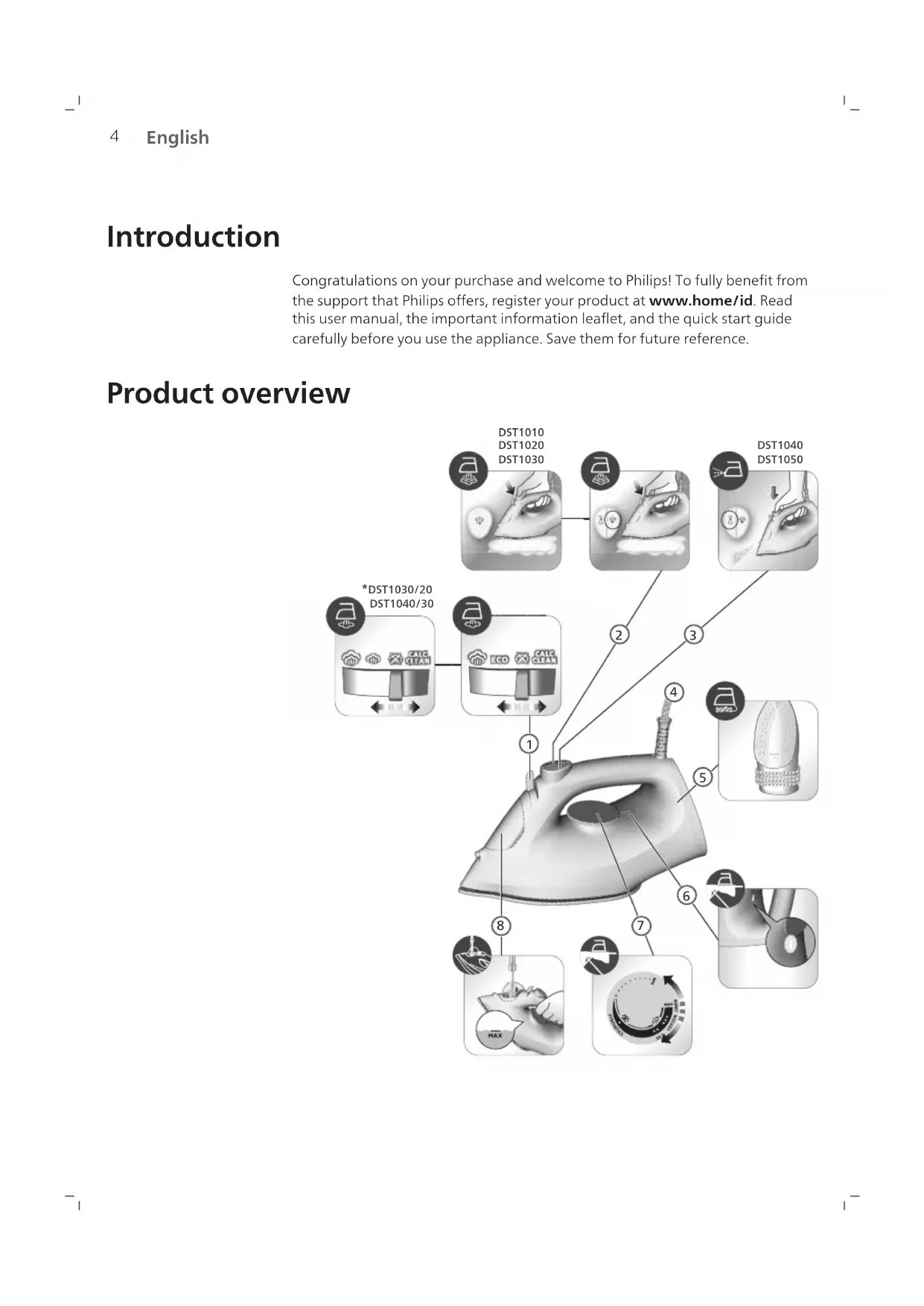

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.home/id. Read this user manual, the important information leaflet, and the quick start guide carefully before you use the appliance. Save them for future reference.

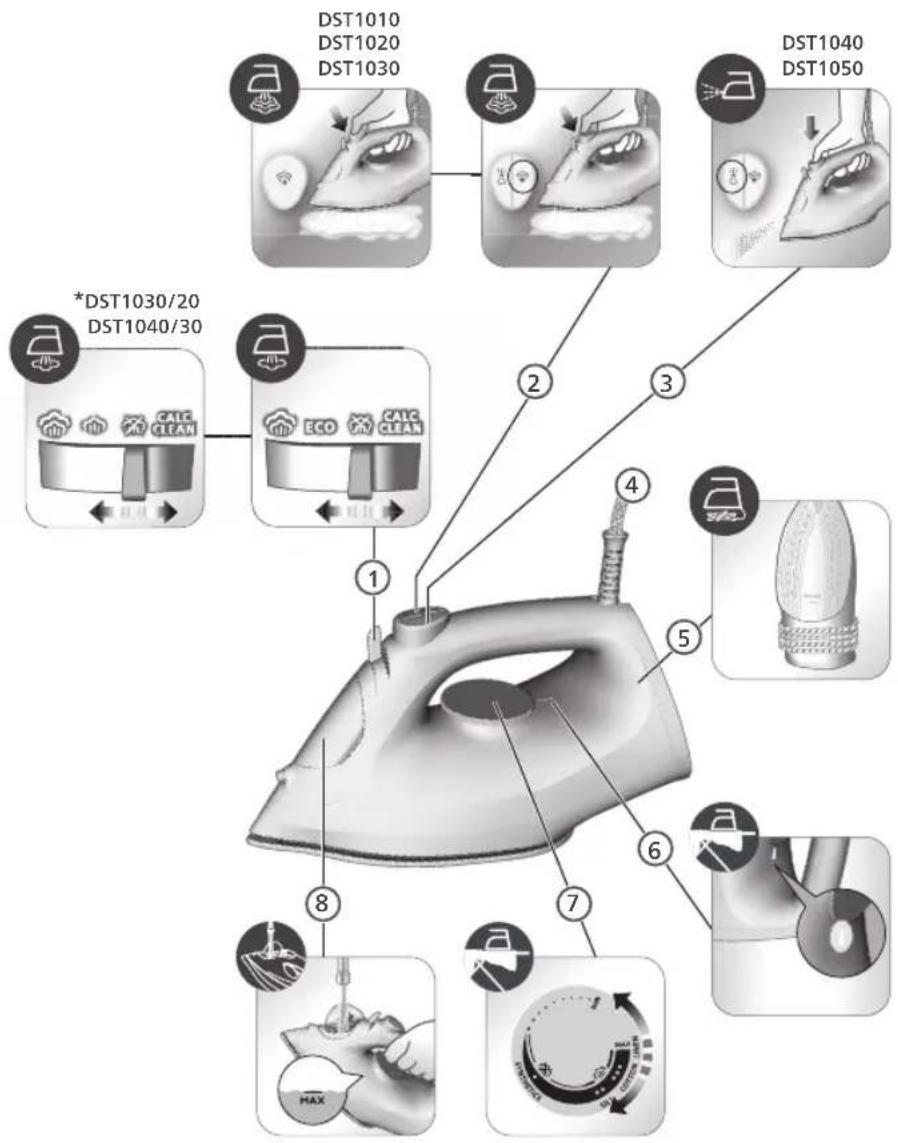

Product overview

1 Steam selector
2 Steam boost button
3 Water spray
4 Power cord
5 Cord winding
6 Indicator light
7 Temperature dial
8 Water tank lid

Using the appliance

Preparing for use

Note: The iron may give off some steam when you use it for the first time. This stops after a short while.

Type of water to use

The appliance is suitable to be used with tap water. However, if you live in an area with hard water, we recommend that you mix an equal amount of tap water with distilled or demineralized water. This will prevent fast scale build up and prolong the lifetime of the appliance.

Do not add perfume, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Filling the water tank

1 Do not plug in the iron.

Illustration of a steam iron with a warning symbol (no text or labels)

2 Ensure the iron is cooled down.

3D rendered image of a steam iron with a checkmark indicating selection (no text or symbols)

6 English

Illustration of an iron (£) being placed on a power outlet, with a magnified inset showing internal components (no text or symbols)

3 Slide the steam selector to the right to select no steam mode (dry ironing)

Illustration of a hand pressing down on a piece of iron, showing the process (no text or symbols)

4 Flip open the water tank lid.

5 Fill the water tank up to the MAX indication in the water tank. Do not add any additives like perfume, fragrances, soap or vinegar.

Medical illustration of a hand performing a CT scan on a bone structure (no text or labels)

6 Close the water tank lid firmly.

Setting the temperature

	MAXLINEN
	●●●COTTON
	●●SILK	*/ ECO
	●SYNTHETICS

Illustration of a hand using a power iron to clean or store (no text or symbols)

ECO setting ECO cloud setting : Minimum constant steam is delivered continuously for garments with less creases. This setting also saves energy.

Illustration of a hand using an iron on a surface, with a circular icon containing a leaf symbol (no text or symbols present)

Two steam clouds are More constant steam is delivered continuously for tough creases.

Using the appliance

Smoke can be visible during the first use, and it is normal. This ceases after a short while.

8 English

1 Check the garment label to ensure that the fabric is ironable.

2 Set the temperature dial to the required ironing temperature by turning it to the appropriate temperature indication.

Illustration of two iron iron holders with a screw and a pencil, marked with a black X (no text or symbols)

3 Allow the iron to rest on its heel.

Illustration of a steam iron with a cord and plug, showing electrical connections (no text or symbols)

4 Insert the plug into an earthed socket and allow the iron rest on its heel. If using an extension plug, ensure that the power rating of the extension plug is suitable for the iron.

Illustration of a mechanical component with an hourglass symbol (no text or labels)

5 Wait for the iron to heat up. The indicator light will turn steady while it is heating up.

Close-up of a mechanical component with a checkmark and circular detail (no text or symbols)

6 Once the indicator light is off, the iron is ready for use. The indicator light will turn steady on from time to time during ironing.

Ironing with steam

Steam can be used at the ECO setting ECO cloud setting and in clouds setting

1 Turn the temperature dial to the appropriate setting: silk, cotton, or linen, based on the type of fabric you will be ironing on. Steam will not be available on the synthetic setting. This will lead to water spitting if used.

Illustration of a person using a iron on a bed (no text or symbols visible)

2 Steam will be released during ironing.

No Steam/ Dry ironing

Illustration of a steam iron being heated by a coiled wire, with a magnified inset showing the iron inside (no text or symbols)

1 Set steam setting to no steam setting

Illustration of a person using a power iron on a bed (no text or symbols visible)

2 After a short while, steam will cease during ironing.

Water spray

Illustration of a hand performing a medical or therapeutic procedure on skin, with a downward arrow indicating pressure or action (no text or symbols present)

1 Press and release the water spray button at the top of the handle. Water should be sprayed out of the nozzle.

Horizontal steam boost

1 Steam boost is available at the cotton and linen settings.

Illustration of a hand using a steam iron to clean or brush the power (no text or symbols visible)

2 Press and release the steam boost button for a powerful boost of steam to remove stubborn creases.

Vertical steam boost

1 Steam boost is available at the cotton and linen settings.

Illustration of a hand holding a jacket with a checkmark and arrow, against a hanger background (no text or symbols)

2 Press and release the steam boost button in the vertical position to remove creases from hanging garments using the steam boost. Holding down the steam boost button at the vertical position will not deliver constant steam.

Illustration of a hand cleaning a car with a brush (no text or symbols)

3 Pull and stretch your garment while applying steam boost to remove stubborn creases.

4 Do not use your bare hand as a supporting surface when you iron.

12 English

Illustration of a person holding a bottle with a cross mark, no text or symbols present

5 Do not position the iron towards yourself/ another person.

Cleaning and maintenance

1 Switch the steam setting to no steam mode (dry ironing) on the steam selector.

2 Ensure the iron is not plugged in.

3 Ensure the iron has cooled down.

Illustration of a hand cleaning a seed pod with a checkmark indicating inspection (no text or symbols present)

4 Wipe flakes and other deposit off the soleplate with a damp cloth.

Note: To keep the soleplate smooth, avoid hard contact with metal objects. Never use a scouring pad, vinegar or other chemicals to clean the soleplate.

Illustration of a hand washing a sink with a water tap and warning symbols (no text or labels)

5 Do not wash/ clean the iron under running water.

Calc-Clean

Tip: The Calc Clean function can be used at any time. If you live in an area with hard water, use the function more frequently.

1 It is recommended to descale your iron after every month of use to prolong its lifetime, or when brown stains/water is observed.

2 Make sure the iron is unplugged and the steam setting is set to no steam mode (dry ironing)

14 English

3 Fill the water tank to the MAX indication.

4 Set the temperature dial to MAX.

Illustration of a steam iron with a plug inserted, showing internal components (no text or symbols)

5 Plug the iron into the mains and switch on the mains if needed.

Illustration of a mechanical component with an hourglass symbol (no text or labels)

6 The indicator light will light up, indicating the iron is heating up.

Close-up of a mechanical component with a checkmark and a circular detail (no text or symbols)

7 Wait for indicator light to go out.

8 Unplug the iron.

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

9 Hold the iron over the sink in the horizontal position and shake the iron. Steam, hot water and calc particles will be released from the soleplate. Continue to shake the iron until all the water has been emptied from the water tank.

Illustration of a steam iron with a magnified inset showing the ear and cord (no text or symbols)

10 Plug in the iron and let the iron heat up to dry the soleplate. This takes about 2 minutes. You may see water spitting out from the steam vents, this is normal as excess water is being dispelled.

Illustration of a bottle with decorative patterns and rotating arrows (no text or symbols)

11 Let the iron cool down and wind the cord around the heel of the iron.

Storage

1 Slide the steam selector to select no steam mode (dry ironing)

English

Illustration of a wall socket connected to a plug with a black arrow indicating direction (no text or symbols)

2 Unplug the iron.

3 Let the iron cool down.

Hand cleaning a kitchen surface with a curved tool, no visible text or symbols

4 Pour any remaining water out of the water tank.

Illustration of a bottle with internal structure and curved arrows indicating rotation (no text or symbols)

5 Wind the power cord around the main body of the iron.
