USER MANUAL ClearTronic 11 W OASE

- EN - Translation of the original Operating Instructions

SAFETY INFORMATION This unit can be used by children aged 8  and above and by persons with reduced physical, sensory or mental capabilities or lack of experi- ence and knowledge if they are su- pervised or have been instructed on how to use the unit in a safe way and they understand the hazards in- volved. Do not allow children to play with the unit.- EN -

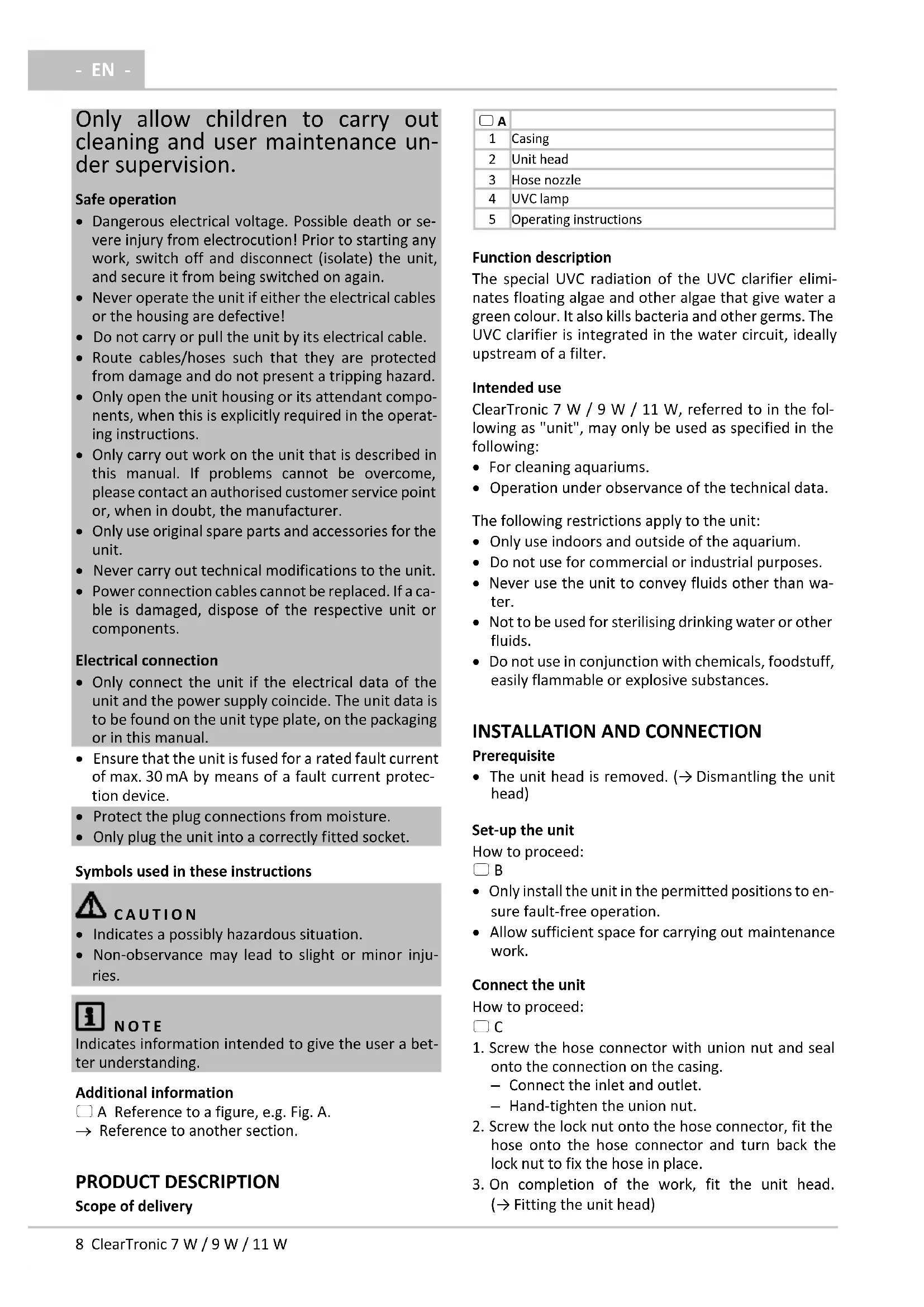

Only allow children to carry out cleaning and user maintenance un- der supervision. Safe operation

• Dangerous electrical voltage. Possible death or se- vere injury from electrocution! Prior to starting any work, switch off and disconnect (isolate) the unit, and secure it from being switched on again.

• Never operate the unit if either the electrical cables or the housing are defective!

• Do not carry or pull the unit by its electrical cable.

• Route cables/hoses such that they are protected from damage and do not present a tripping hazard.

• Only open the unit housing or its attendant compo- nents, when this is explicitly required in the operat- ing instructions.

• Only carry out work on the unit that is described in this manual. If problems cannot be overcome, please contact an authorised customer service point or, when in doubt, the manufacturer.

• Only use original spare parts and accessories for the unit.

• Never carry out technical modifications to the unit.

• Power connection cables cannot be replaced. If a ca- ble is damaged, dispose of the respective unit or components. Electrical connection

• Only connect the unit if the electrical data of the unit and the power supply coincide. The unit data is to be found on the unit type plate, on the packaging or in this manual.

• Ensure that the unit is fused for a rated fault current of max. 30 mA by means of a fault current protec- tion device.

• Protect the plug connections from moisture.

• Only plug the unit into a correctly fitted socket. Symbols used in these instructions CAUTION

• Indicates a possibly hazardous situation.

• Non-observance may lead to slight or minor inju- ries. NOTE Indicates information intended to give the user a bet- ter understanding. Additional information A Reference to a figure, e.g. Fig. A.

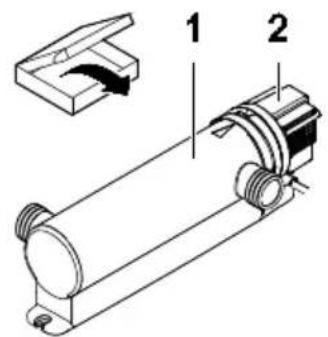

• Reference to another section. PRODUCT DESCRIPTION Scope of delivery

Operating instructions

Function description The special UVC radiation of the UVC clarifier elimi- nates floating algae and other algae that give water a green colour. It also kills bacteria and other germs. The UVC clarifier is integrated in the water circuit, ideally upstream of a filter. Intended use ClearTronic 7 W / 9 W / 11 W, referred to in the fol- lowing as "unit", may only be used as specified in the following:

• For cleaning aquariums.

• Operation under observance of the technical data. The following restrictions apply to the unit:

• Only use indoors and outside of the aquarium.

• Do not use for commercial or industrial purposes.

• Never use the unit to convey fluids other than wa- ter.

• Not to be used for sterilising drinking water or other fluids.

• Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.

• The unit head is removed. (→ Dismantling the unit head) Set-up the unit How to proceed:

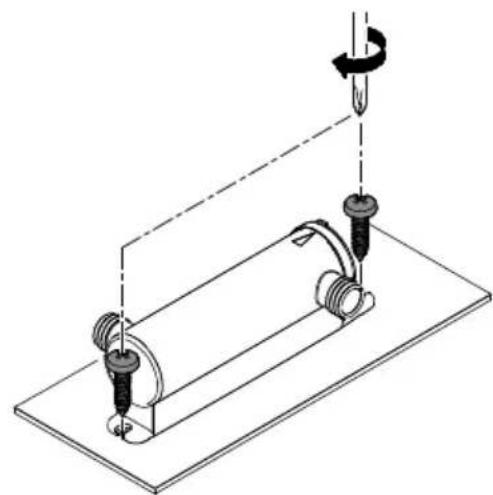

• Only install the unit in the permitted positions to en- sure fault-free operation.

• Allow sufficient space for carrying out maintenance work. Connect the unit How to proceed:

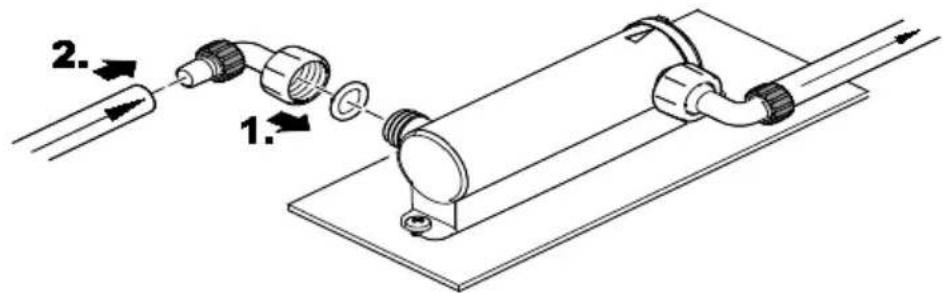

1. Screw the hose connector with union nut and seal

onto the connection on the casing. – Connect the inlet and outlet. – Hand-tighten the union nut.

2. Screw the lock nut onto the hose connector, fit the

hose onto the hose connector and turn back the lock nut to fix the hose in place.

3. On completion of the work, fit the unit head.

• First switch on the pump, then the UVC clarifier.

• Check all connections for leaks. Switching ON/switching OFF

• Switching on: Insert the power plug into the socket. – The unit switches on immediately.

• Switching off: Disconnect the power plug. Check the function.

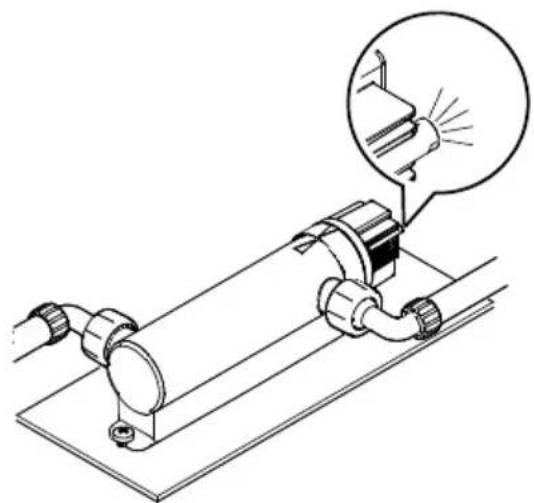

• The function display is lit when the UVC lamp is switched on.

Malfunction Cause Remedy The performance of the unit is not satis- factory The water is extremely soiled. Remove algae and leaves from the aquar- ium, change the water. The quartz glass is soiled. Clean the quartz glass. The UVC lamp capacity is exhausted. The lamp must be replaced after 8000 op- erating hours. Flow rate is too high. Reduce the pump capacity. UVC lamp is not lit. Power plug not connected Connect the power plug. UVC lamp defective Replace the UVC lamp. Connection defective Check the electrical connection.

MAINTENANCE AND CLEANING

If necessary, clean the unit with clear water using a soft brush.

• Do not use cleaning agents or chemical solutions. We recommend using OASE PumpClean for remov- ing calcium deposits. Dismantling the unit head

CAUTION The ultra-violet radiation of the UVC lamp can burn your eyes and skin.

• Never operate the UVC lamp outside its casing.

• Never operate the UVC lamp in a casing that is de- fective.

Attention! Breakable glass. Possible consequences: Injury to your hands caused by cuts. Protective measures: Handle the quartz glass and UVC lamp with care.

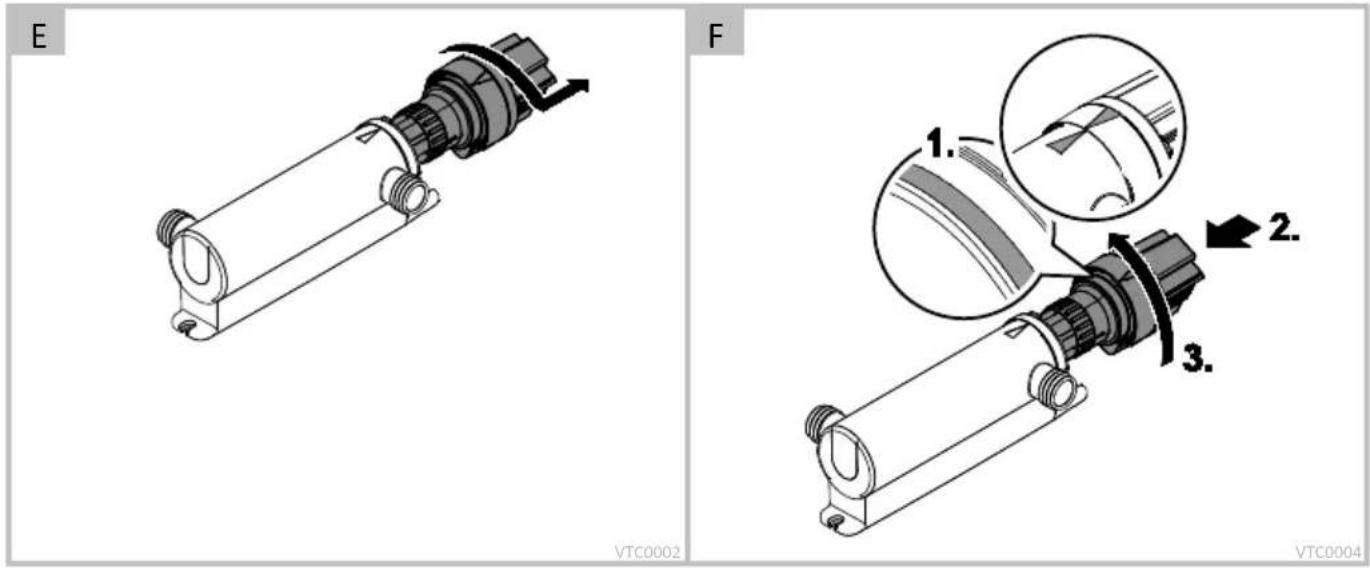

1. Turn the unit head counter-clockwise up to the stop

and carefully pull it out of the casing together with the O ring.

2. Clean the casing from the inside and the outside.

NOTE For safety reasons, the UVC lamp can only be switched on when the unit head has been correctly fitted into the casing.

Fitting the unit head How to proceed:

1. Check the O ring at the unit head for correct seating.

– Clean the O ring, replace if damaged.

2. Carefully push the unit head into the casing up to

the stop while applying slight pressure. – Turn the unit head slightly so that the tenons and grooves of the bayonet closure intermesh.

3. Turn the unit head clockwise up to the stop.

– The two arrows on the casing and unit head must point towards one another. Cleaning the quartz glass / Replacing the UVC lamp Replace the UVC lamp after max. 8,000 operating hours. This ensures optimum filtering performance.

Attention! Breakable glass. Possible consequences: Injury to your hands caused by cuts. Protective measures: Handle the quartz glass and UVC lamp with care.

• The unit head is removed. (→ Dismantling the unit head)

• Ensure that the identification and capacity data of the UVC lamps used correspond to the information on the unit type plate. (→ Technical data) How to proceed:

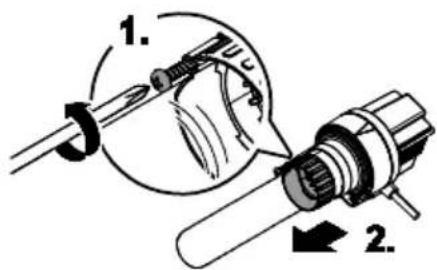

1. Loosen the self-tapping screw until the the screw tip

is sunk in the housing of the clamping screw.

2. Unscrew the clamping screw counter-clockwise.

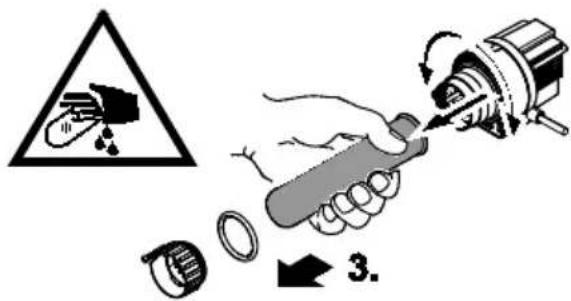

3. Remove the quartz glass including the O ring to-

wards the front with a slight turning movement.- EN -

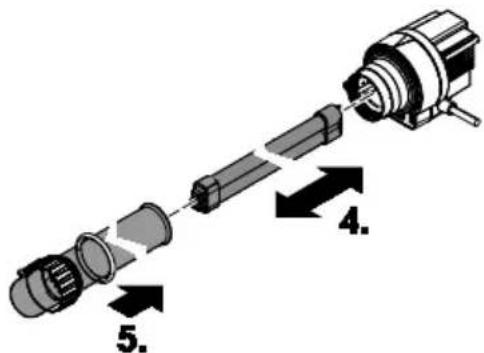

4. Pull out the UVC lamp and replace.

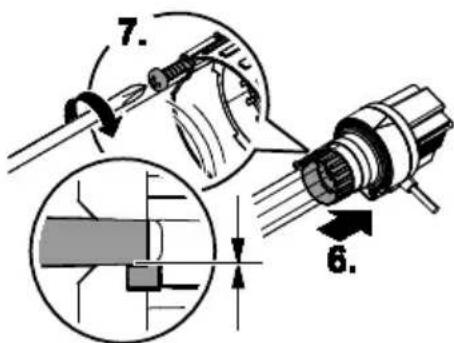

5. Push the quartz glass including the O ring as far as

the stop in the unit head. – Clean the O ring, replace if damaged. – Ensure that the O ring is located in the gap be- tween the unit head and the quartz glass.

6. Tighten the clamping screw clockwise up to the

7. Tighten the self-tapping screw.

8. Wipe the quartz glass tube with a damp cloth

9. On completion of the work, fit the unit head.

(→ Fitting the unit head) WEAR PARTS The following components are wear parts and are ex- cluded from the warranty:

• UVC lamp, quartz glass and O ring for quartz glass DISPOSAL Do not dispose of this unit with domestic waste! For disposal purposes, please use the return system pro- vided. Render the unit unusable beforehand by cutting the cables. GUARANTEE For this OASE unit purchased by you, OASE GmbH as- sumes a 24 month manufacturer's guarantee in ac- cordance with the guarantee conditions laid down in the following. The guarantee period starts with the first purchase from an OASE specialist dealer. In other words, in the event of a resale, the guarantee period will not start again. If services are provided under the terms of this guarantee, this does not lead to exten- sion or renewal of the guarantee period. Your legal rights as a purchaser, especially those ensuing from the warranty, persist. They are not restricted by this guarantee. Guarantee conditions OASE GmbH guarantees impeccable, purpose-related properties and workmanship, expert assembly and proper functionality. Subject to our discretion, the guarantee refers to free-of-charge repair or free-of- charge supply of spare parts or of a replacement unit respectively. Should the unit type concerned no longer be manufactured, we reserve the right, at our discre- tion, to supply a replacement unit from our range that is closest to the type subject to complaint. Claims, the origin of which can be traced back to installation and operating faults as well as lack of care, e.g. the use of unsuitable cleaning materials or negligent mainte- nance, use other than that intended, damage due to accidents, falls, impact, effect of frost, cutting plugs, shortening cables, calcium deposits or improper at- tempts to repair the unit, are not covered by our guar- antee. We hereby refer to the proper use as specified in the instructions of use that form an integral part of the guarantee. Wear parts such as bulbs etc. are ex- empted from the guarantee. The refund of costs for removal and installation, checks, claims for lost profit and damages are ex- empted from the guarantee together with further reaching claims for damages and loss of whatever na- ture caused by the unit or its use. The guarantee is only valid in the country in which the unit was purchased from an OASE dealer. This guaran- tee is governed by German law under the exclusion of the agreement of the United Nations covering con- tracts governing the international sale of goods (CISG) regulations. Guarantee claims can only be brought forward by pre- senting the sales receipt to us, OASE GmbH, Tecklen- burger Straße 161 in D-48477 Hörstel, Germany by re- turning to us the unit or part of the unit subject to complaint, freight free, at your own risk, accompanied by a copy of the original purchase receipt from the OASE specialist dealer, this guarantee document and written information of the fault encountered.

ClearTronic 7 W 9 W 11 W Rated voltage V AC

For cloudy water l/h

For removal of germs l/h

Hose connector, in- let/outlet Hose inside diameter

Protection to prevent contact with dangerous components, splash water protection

Dangerous UVC radiation

Protect from direct sun radiation.

The lamp is suitable for direct fastening to normally flammable mounting surfaces.

Remove at temperatures of 0 °C and below.

Do not dispose of with household waste.

Read and adhere to the instructions for use.
