Product type	Water pump
Brand	Oase
Model	ProMax MudDrain 25000
Nominal voltage	230 V AC
Frequency	50 Hz
Power	1200 W
Protection rating	IP68 (up to 7 m depth)
Discharge connection	G2
Switch-on height	550 to 750 mm
Switch-off height	180 to 300 mm
Maximum flow rate	25,000 l/h
Maximum delivery head	10 m
Maximum immersion depth	7 m
Maximum particle size	40 mm
Power cable length	10 m
Dimensions (L x W x H)	178 x 246 x 453 mm
Weight	13.6 kg
Recommended use	Clean water, rainwater, chlorinated water, wastewater up to 40 mm, irrigation, draining
Unsuitable use	Salt water, drinking water, industrial use, chemicals, continuous operation
Operating mode	Automatic (float switch) or manual
Body material	Cast iron (natural corrosion)
Electrical protection	30 mA residual current device recommended
Maintenance	Clean with clear water and soft brush, at least twice a year
Wear parts	Operating unit (replacement by Oase service)
Recycling	Do not dispose of with household waste, return to the take-back system

Frequently Asked Questions - ProMax MudDrain 25000 OASE

How to properly install the ProMax MudDrain 25000 pump?

Place the pump vertically and stably in the water. Use the handle to lower it, never the cable. Ensure the float switch can move freely. For use in wells, attach a rope to the handle.

What to do if the pump does not start?

First check the power supply (socket, fuse). If the pump stops after a few minutes, the overload protection may have tripped: clean the suction inlet and hose, then let it cool down. The protection resets automatically.

Can I use this pump with seawater?

No, the pump is not compatible with salt water. Use it only for clear water, rainwater, chlorinated water, or wastewater with particles up to 40 mm.

How to clean the ProMax MudDrain 25000 pump?

Clean it with clear water and a soft brush or sponge. For stubborn deposits, use Oase PumpClean or household detergents without vinegar or chlorine. Rinse thoroughly afterwards. Perform this cleaning at least twice a year.

What are the switch-on and switch-off heights?

The pump switches on automatically when the water level reaches between 550 and 750 mm, and switches off between 180 and 300 mm, depending on the position of the float switch.

Can I let the pump run dry?

No, dry running causes increased wear. In manual mode, the pump can run dry: stop it as soon as the minimum water level is reached. Preferably use automatic mode with float switch.

How to store the pump in winter?

The device is not frost-resistant. Disassemble it, clean it thoroughly, and store it dry and frost-free. Protect open plugs from moisture. Drain hoses and fittings as much as possible.

What hose diameter to use for optimal flow?

Flow is optimal with a 50 mm diameter hose. Adapt the supplied stepped adapter (G2) to your hose diameter, then secure it with a hose clamp.

What to do if the pump runs but does not discharge or has insufficient flow?

Check that the hose is not kinked or blocked. Clean the suction inlet. Bleed air from the hose. If a non-return valve is installed, ensure it is correctly installed and clean. If the rotor unit is defective, contact Oase service.

How to replace the rotor unit?

Replacing the rotor unit (operating unit) is a task reserved for Oase after-sales service. Do not attempt to do it yourself, contact an approved professional.

USER MANUAL ProMax MudDrain 25000 OASE

Exterior view of a stainless steel water level instrument with handle and control panel (no visible text or symbols)

ProMax MudDrain

25000, 30000

EN Operating instructions

FR Notice d'emploi

POX0014

Technical line drawing of an electric robotic arm with cable and plug, showing wiring and a close-up inset (no text or symbols)

POX0015

Manueller Betrieb

Line drawing of a mechanical device with hoses and connectors (no text or symbols)

POX0018

Betrieb

WARNING

▶ Disconnect all electrical units in the water from the power supply before reaching into the water. Otherwise there is a risk of injuries or death by electrocution.
This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved. Do not allow children to play with the unit. Only allow children to carry out cleaning and user maintenance under supervision.

Safety information

Electrical connection

• Only connect the unit if the electrical data of the unit and the power supply match.
• Only plug the unit into a correctly installed outlet. Ensure that the unit is fused for a rated fault current of max. 30 mA by means of a fault current protection device.
• Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use (splash-proof).
• Protect open plugs and sockets from moisture.

Safe operation

• Operate the unit only when there are no people in the water.
• Do not use the unit, if electrical lines or the housing are damaged.
• If a power connection cable is damaged, have it replaced immediately by OASE, an authorized customer service or a qualified electrician to prevent electric shock.
• Do not carry or pull the unit by its power cable.
• Route lines so that they are protected from damage and nobody can trip over them.
• Never make technical modifications to the unit.
• Only carry out work on the unit that is described in this manual.
• Only use original spare parts and accessories.
• Should problems occur, please contact the authorized customer service or OASE.

Intended use

Only use the product described in this manual as follows:

• For pumping clear water or rain water.
  • For pumping chlorinated water.
• For pumping dirty water containing particles max. 40 mm in size.
  • For irrigating and watering.
• For transferring water from and draining basins or ponds/pools.
• For pumping the water out of rain barrels or cisterns.
• In compliance with the technical specifications. (→Technical data)

The following restrictions apply to the unit:

• Not suitable for salt water.
• Not suitable for drinking water.
- Do not use for long-term operation (e.g. continuous recirculation of water in a pond).
- Do not use for industrial purposes.
- Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.
- Do not connect to the drinking water supply.

Product description

Overview

EN

POX0014

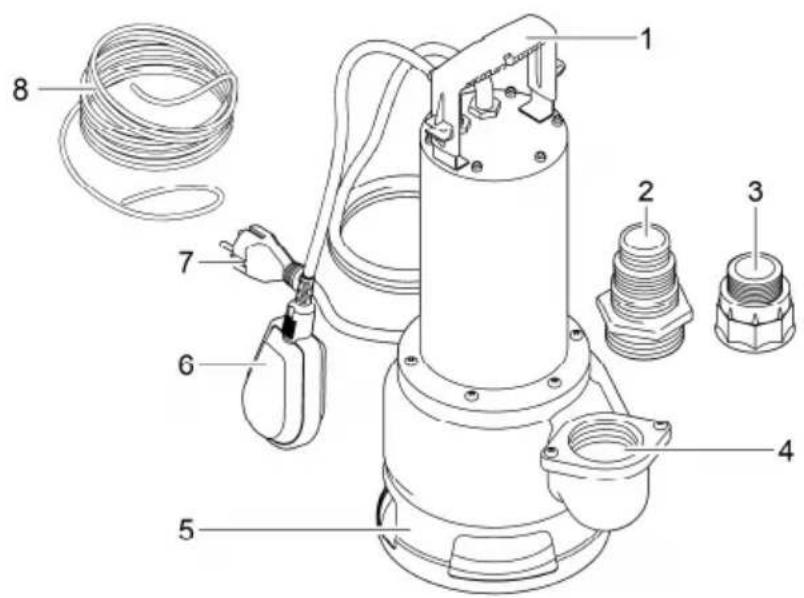

1 Handle
2 Stepped hose adapter
3 Reducing coupling, G1½ to G1¼
4 Connection, pressure side G2
5 Pump base
6 Float switch
7 Power connection cable
8 Fastening cable, 10 m

The unit contains cast iron which is subject to a natural corrosion process. This does not impair the function of the unit.

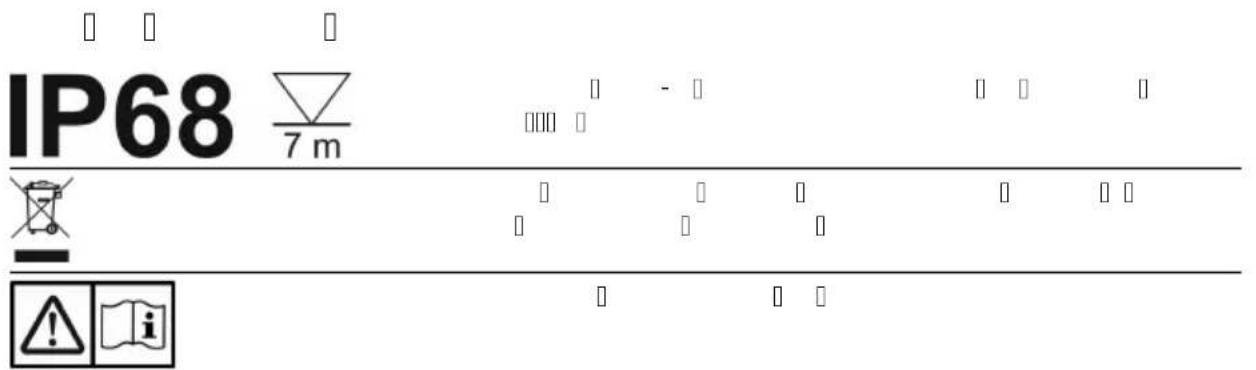

Symbols on the unit

IP68

The unit is dust-proof and water-tight down to 7 m.

Never dispose of the unit with normal household waste.

Read the operating instructions.

Installation and connection

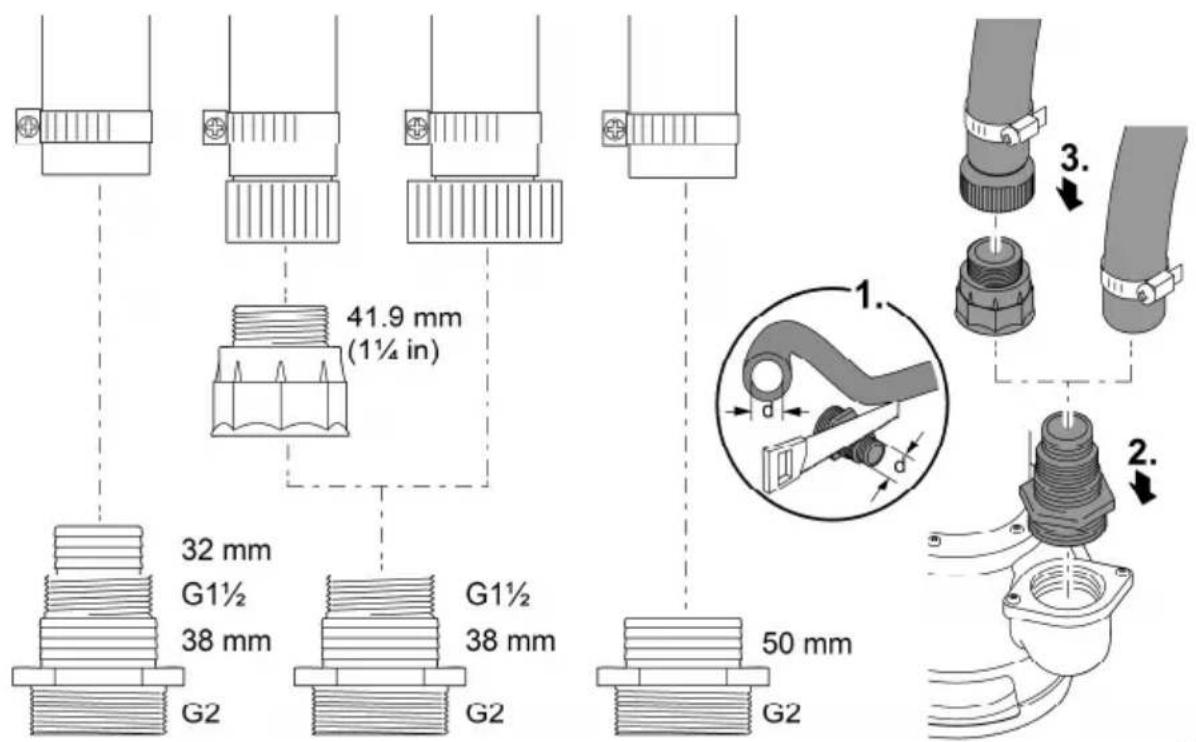

Connecting the pressure hose

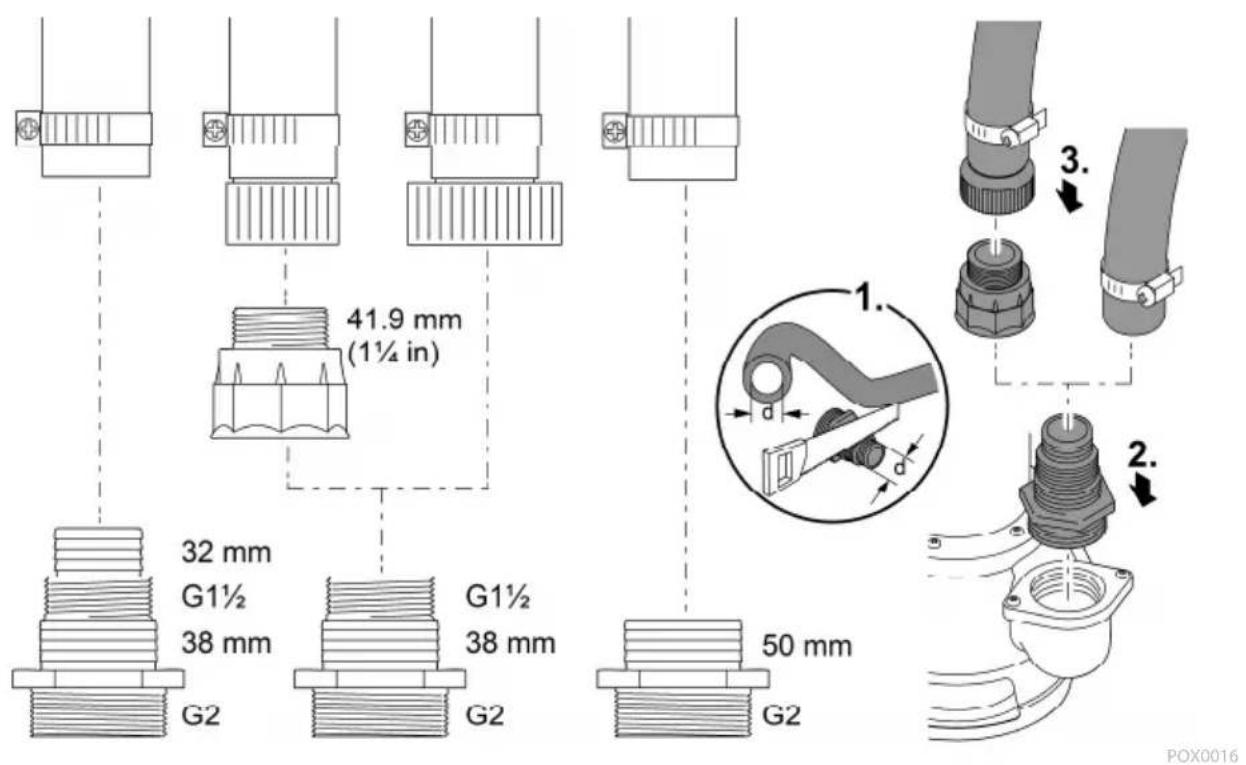

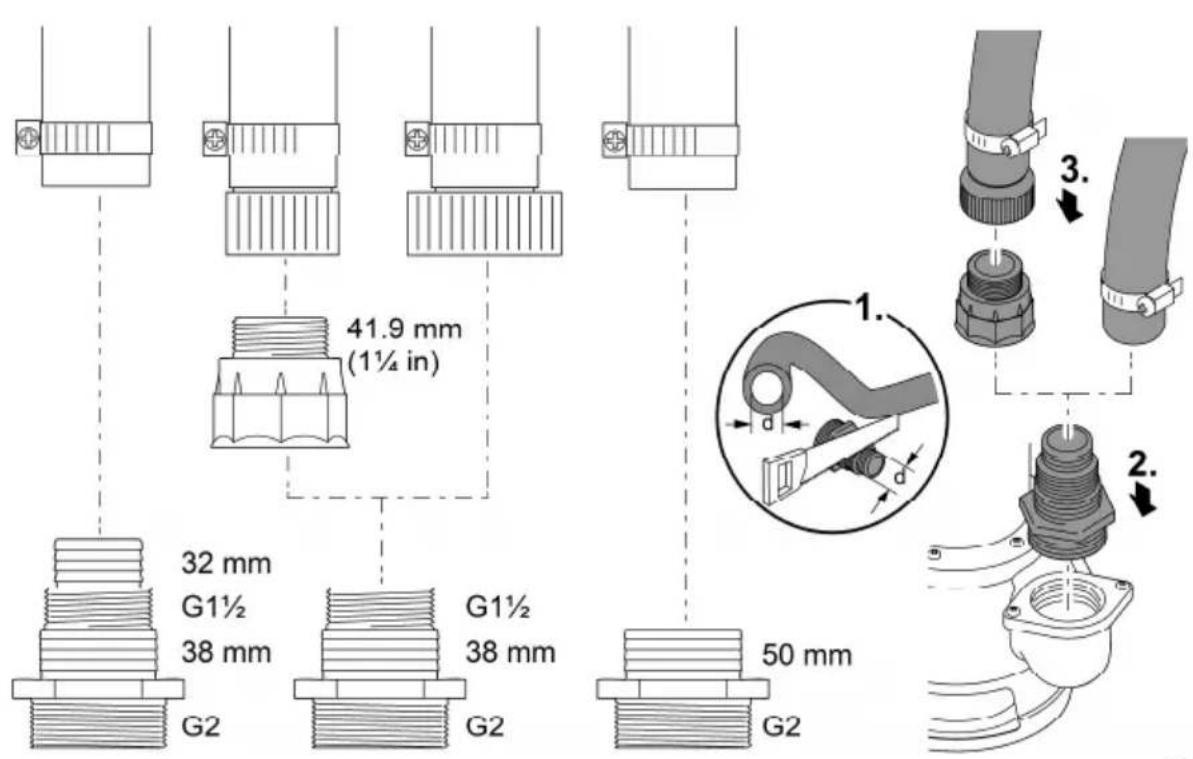

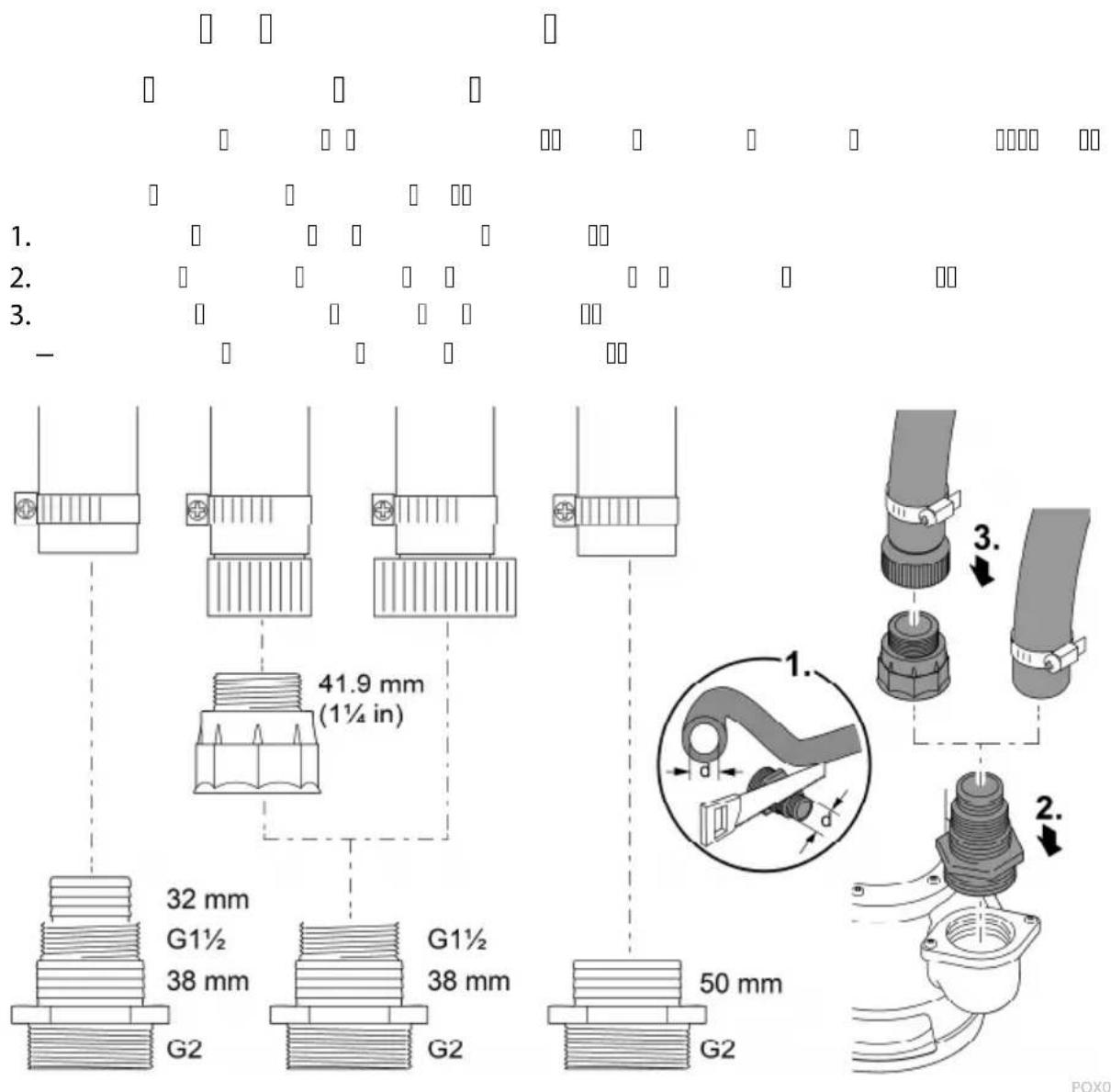

An optimum flow rate is achieved with a 50 mm hose diameter.

How to proceed:

1. Adapt the stepped hose adapter to the hose diameter.
2. Screw the stepped hose adapter onto the connection on the pressure side.
3. Connect the pressure hose to the stepped hose adapter.

— Secure the pressure hose with a hose clip.

POX0016

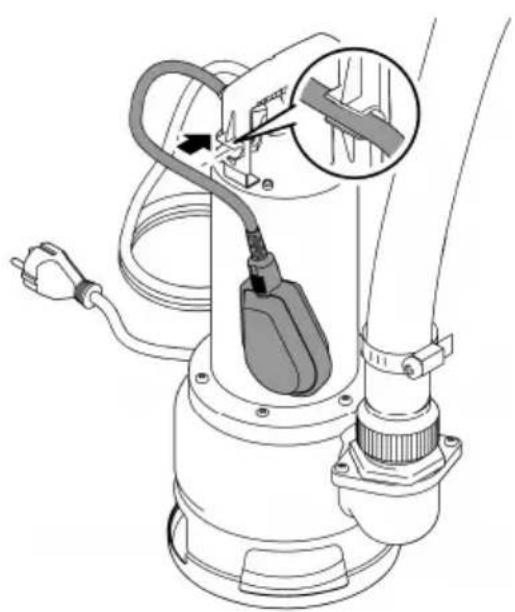

Automatic mode

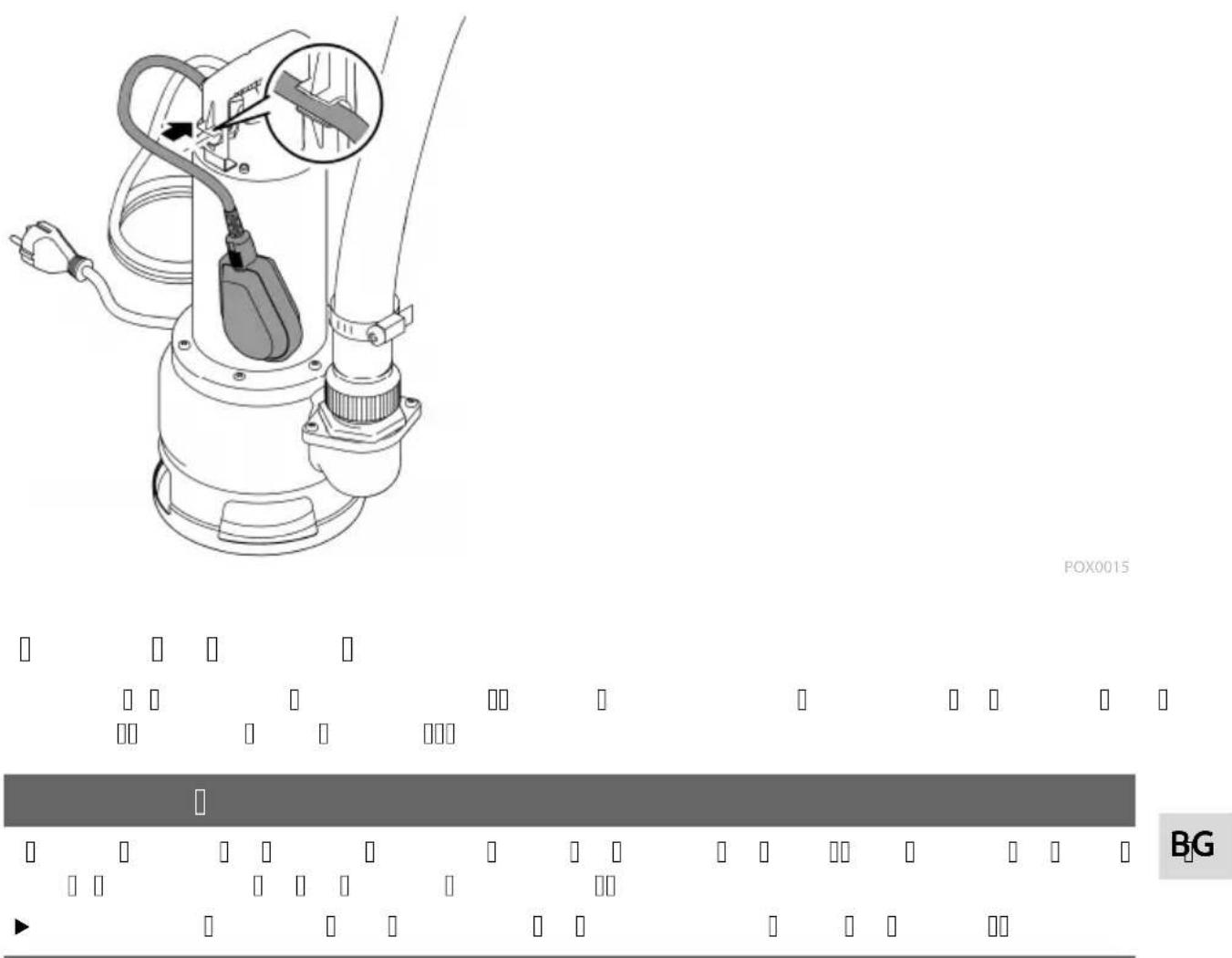

When the water level rises, it lifts the float switch until the switch-on point is reached and the pump switches on.

When the water level drops, the float switch lowers until the switch-off point is reached and the pump switches off.

How to proceed:

- Push the float switch cable into the cable clip.

— The shorter the cable between the float switch and the cable clip, the lower the switch-on point and the higher the switch-off point.

To ensure faultless function, ensure that the length of cable between the float switch and the cable clip is at least 100 mm long.
The minimum residual water height is only reached in manual mode.

Technical illustration of an electric robotic arm with cable and plug, showing a close-up of the component (no text or symbols present)

POX0015

Manual mode

The pump remains permanently switched on if the float switch is positioned vertically (cable hanging down).

NOTE

The pump can run dry in manual mode. Running the pump dry increases wear.

▶ Switch off the pump when the minimum water level is reached.

Installing the pump

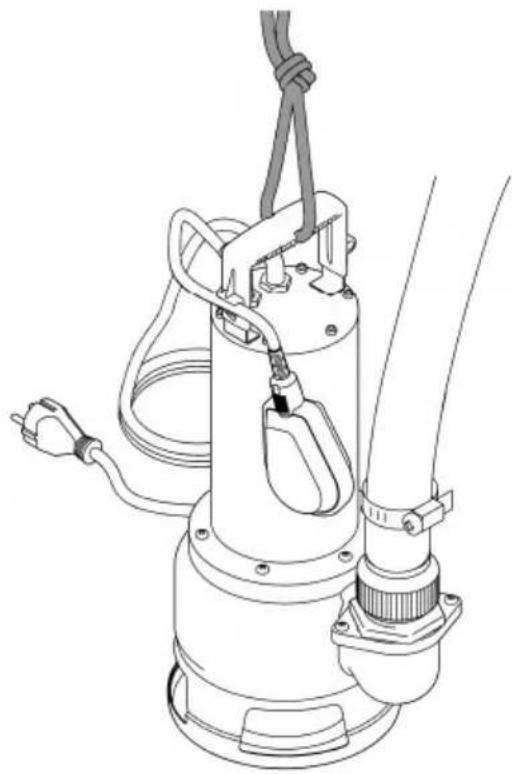

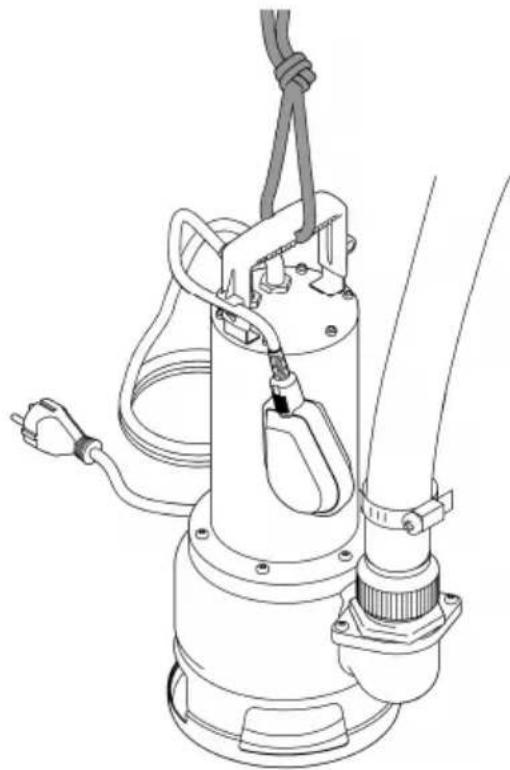

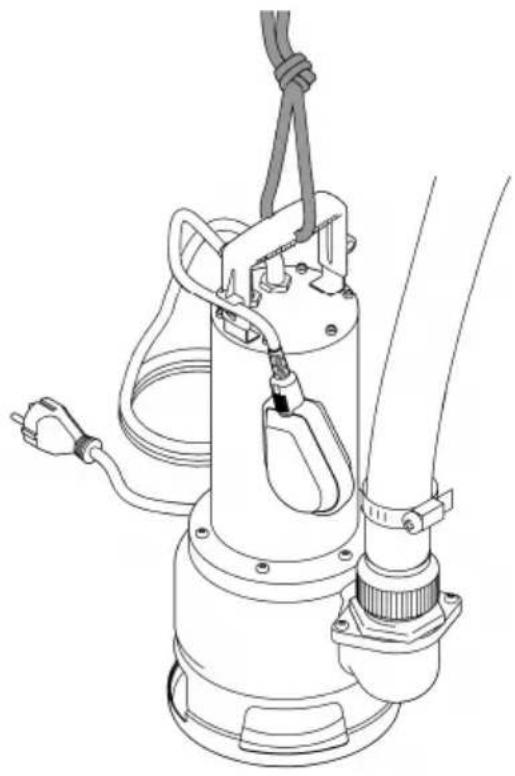

• Install the pump in a vertical and stable position in the water.
- If it needs to be lowered into a shaft, fasten a rope to the handle. Do not carry it by the power connection cable.
- Install the pump so that it does not take in dirt particles with a size >40 mm, which would block the intake. Install the pump in a raised position if necessary.
- Ensure that the float switch can always move freely.

Technical line drawing of a mechanical device with hoses and connectors (no text or symbols)

POX0018

Operation

WARNING

Serious injury or death from electric shock is possible.

▶ Only operate the pump if no persons are in the water.
▶ Disconnect all electrical devices in the water from the power supply before reaching into the water.

NOTE

The pump is not suitable for long-term operation. Long-term operation will reduce the pump service life accordingly.

Switching on the unit

- Insert the power plug into the outlet.

— The pump is ready for operation.
— The pump will start up as soon as the water level reaches the activation height.

Switching off the unit

- Disconnect the power plug.

- When the pump is switched off, residual water in the hose may flow back and out of the pump intake.

i Rinse the pump with clear water after use.

Maintenance and cleaning

NOTE

Do not use aggressive cleaning agents or chemical solutions. These agents can damage the housing, impair the function of the device and harm animals, plants and the environment.

▶ Clean the unit with clean water and a soft brush or sponge wherever possible. Remove stubborn dirt with the aid of the recommended cleaning agents.

i Clean the unit as required, but at least twice a year.

• Recommended cleaning agent for removing stubborn limescale deposits:
  — Pump cleaning agent PumpClean from OASE.
  — Vinegar- and chlorine-free household cleaning agent.
  • After cleaning, thoroughly rinse all parts in clean water.

Storage/overwintering

The unit is not frost-proof and has to be removed and put into storage if freezing temperatures are expected.

How to correctly store the unit:

• Thoroughly clean the unit and replace damaged components.
• Store the unit in a dry and frost-free place.
• Protect open plug connections from moisture and dirt.
  • Empty hoses and connections as much as possible

Troubleshooting

Malfunction Possible cause Remedy

The pump does not start The power supply is interrupted Plug in the power plug
		Check the fuse of the power outlet
The pump switches off after a short running period	The overload protection has switched the pump off due to overheating	Clean the intake opening and the pressure hoseAllow the pump to cool down. The overload protection is automatically reset after cooling down
The pump is running but is not delivering, or the delivered quantity is insufficient	The pressure hose is blocked	Route the pressure hose without kinksCheck the outlet and clean if necessary
	The intake opening is clogged	Clean the intake opening
	The pressure hose contains air	Bleed the pressure hose
	If applicable:The non-return valve is incorrectly fitted in the pressure hose or clogged	Fit the non-return valve correctlyClean the non-return valve

The impeller unit is faulty or worn Contact OASE.
- The impeller unit may only be replaced by the OASE service.

Technical data

ProMax MudDrain 25000 30000

Rated voltage V AC 230 230
Rated frequency Hz 50 50
Rated power W 1200 1500
Protection type IP68 IP68
Connection, pressure side G 2	2
Minimum switch-on height / maximum switch-off height		mm	550	300
Maximum switch-on height / minimum switch-off height		mm	750	180
Flow rate	maximum	l/h	25000	30000
Head height	maximum	m	10	12
Immersion depth	maximum	m	7	7
Particle size	maximum	mm	40 40
Power connection cable	Length	m	10	10
Dimensions	Length	mm 178		178
	Width	mm	246	246
	Height	mm	453	453
Weight		kg	13.60	14.10

EN

Wear parts

The following components are wear parts and may only be replaced by the OASE service.

- Impeller unit

Disposal

NOTE

Do not dispose of this unit with domestic waste.

▶ Dispose of the unit by using the return system provided for this purpose.
▶ Should you have questions, please contact your local disposal company. They will give you instructions on how to dispose of your unit properly.
▶ Disable the unit by cutting off the cables.
