WL 1000 - Lighting 4K5 - Free user manual and instructions

Product type	Rechargeable work light with floodlight and spotlight
Brand	4K5
Model	WL 1000
Dimensions (L x W x H)	57 x 131 x 48 mm
Total weight	320 g (with integrated battery)
Power supply	Li-ion battery 3.7 V / 5.2 Ah
Charging interface	USB-C
Charging time	Approx. 4 hours
Operating time (Flood Low/Medium/High)	~84 h / ~13 h / ~4 h
Operating time (Spot Low/High)	~48 h / ~13 h
Luminous flux Flood (Low/Medium/High)	30 lm / 430 lm / 1000 lm
Luminous flux Spot (Low/High)	70 lm / 250 lm
Lighting range	100 m
Color rendering index (CRI)	> 80
LED type	High power LED
Photobiological safety	Risk group 1 (low risk) according to DIN EN 62471
Protection rating	IP X5
Operating temperature	-10°C to 40°C
Lighting modes	Flood (3 levels), Spot (2 levels), red light steady/flashing
Additional features	180° pivoting head, integrated magnets, 1/4" tripod thread
Care and cleaning	Clean with a slightly damp cloth; do not use solvents or abrasive products
Important safety instructions	Strong magnetic fields: keep 30 cm away from implants; do not look directly at the light source
Disposal	Recycling according to WEEE; battery must be removed and disposed of separately

Frequently Asked Questions - WL 1000 4K5

How to turn the WL 1000 lamp on and off?

Press the control button to turn on/off. Hold it down for about one second to switch between floodlight (Flood) and spotlight (Spot) modes.

How to adjust the brightness levels?

In Flood mode, press briefly to cycle through Low, Medium, and High levels. In Spot mode, Low and High levels are available.

How to activate the red light?

The red light (steady or flashing) is an additional mode. Refer to the complete manual for the exact sequence.

How to charge the battery?

Use a USB-C cable and a power adapter (not included). Charging time is approximately 4 hours. The indicator flashes during charging and turns off when done.

What to do if the battery is low?

The operation indicator flashes when the battery is low. Recharge the device using the USB-C cable. Charging can be done during use.

Can the lamp be used on a tripod?

Yes, the base has a standard 1/4-inch thread for mounting on a camera tripod or other support.

How to attach the lamp to a metal surface?

The mounting bracket includes powerful magnets. Attach it to any ferromagnetic surface. Beware of magnetic fields: keep a distance of at least 30 cm from medical implants.

What safety precautions should be taken?

Do not look directly at the light source (risk of glare). Magnets can damage magnetic cards and hard drives. Observe safety distances.

How to clean the device?

Use a slightly damp cloth. Do not use cleaning products, solvents, or abrasive sponges. Store in a dry, clean place.

How to dispose of the lamp at end of life?

In accordance with the WEEE directive, do not dispose of it with household waste. Take it to a recycling center or store. The Li-ion battery must be removed and recycled separately.

USER MANUAL WL 1000 4K5

Black and white photo of a black and silver ASK device with a handle, no visible text or symbols on the device itself.

WL 1000

1 ON / OFF Switch 2 Magnet 3 Hook 4 Battery level indicator (backside) 5 Charging Port 6 Flood LED 7 Spot LED

1 ON / OFF Switch
2 Magnet
3 Hook
4 Battery level indicator (backside)
5 Charging Port
6 Flood LED
7 Spot LED
8 1/4" tripod thread

1 BATTERY LEVEL INDICATOR

●	●	●	●	75% - 100%
●	●	●	○	50% - 75%
●	●	○	○	25% - 50%
●	○	○	○	5% - 25%
○	○	○	○	Strobe < 5%

5 CHARGING

ON 1. Click 3 sec + →

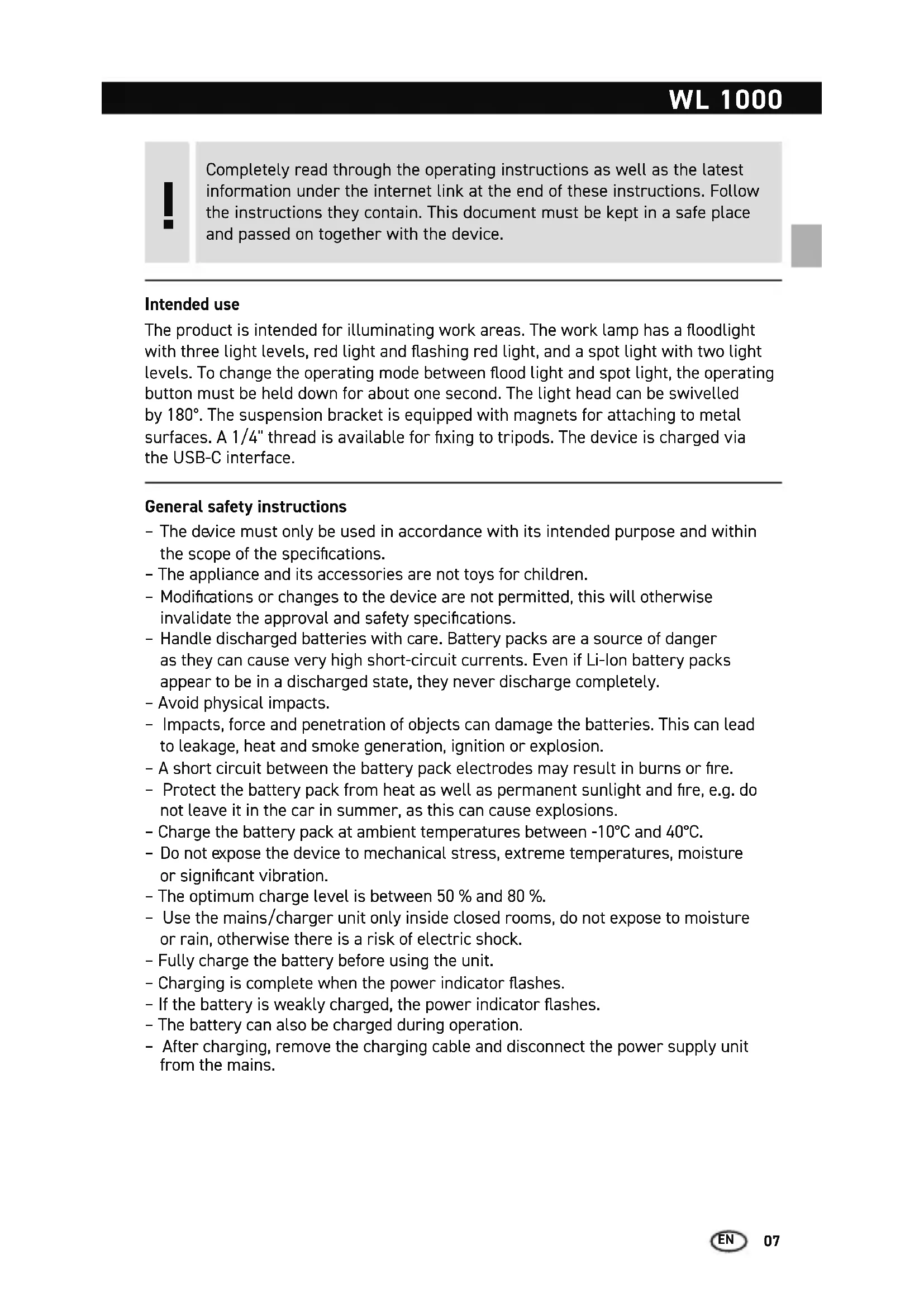

Completely read through the operating instructions as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Intended use

The product is intended for illuminating work areas. The work lamp has a floodlight with three light levels, red light and flashing red light, and a spot light with two light levels. To change the operating mode between flood light and spot light, the operating button must be held down for about one second. The light head can be swivelled by 180°. The suspension bracket is equipped with magnets for attaching to metal surfaces. A 1/4" thread is available for fixing to tripods. The device is charged via the USB-C interface.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The appliance and its accessories are not toys for children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Handle discharged batteries with care. Battery packs are a source of danger as they can cause very high short-circuit currents. Even if Li-Ion battery packs appear to be in a discharged state, they never discharge completely.
• Avoid physical impacts.
• Impacts, force and penetration of objects can damage the batteries. This can lead to leakage, heat and smoke generation, ignition or explosion.
• A short circuit between the battery pack electrodes may result in burns or fire.
• Protect the battery pack from heat as well as permanent sunlight and fire, e.g. do not leave it in the car in summer, as this can cause explosions.
• Charge the battery pack at ambient temperatures between -10^ and 40^ .
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The optimum charge level is between 50 % and 80 %.
• Use the mains/charger unit only inside closed rooms, do not expose to moisture or rain, otherwise there is a risk of electric shock.
• Fully charge the battery before using the unit.
• Charging is complete when the power indicator flashes.
• If the battery is weakly charged, the power indicator flashes.
• The battery can also be charged during operation.
• After charging, remove the charging cable and disconnect the power supply unit from the mains.

Safety instructions

Danger - powerful magnetic fields

• Powerful magnetic fields can adversely affect persons with active medical implants (e.g. pacemaker) as well as electromechanical devices (e.g. magnetic cards, mechanical clocks, precision mechanics, hard disks).
• With regard to the effect of powerful magnetic fields on persons, the applicable national stipulations and regulations must be complied with such as BGV B11 §14 „electromagnetic fields" (occupational health and safety - electromagnetic fields) in the Federal Republic of Germany.
• To avoid interference/disruption, always keep the implant or device a safe distance of at least 30 cm away from the magnet.

Safety instructions

Dealing with electromagnetic disturbances

• The device complies with the provisions and limit values for safety and electromagnetic compatibility in accordance with the Low Voltage Directive (LVD) 2014/35/EU and the Electromagnetic Compatibility (EMC) Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

Safety instructions

Using artificial, optical emission (OStrV)

• Do not look into the radiation source.
• Temporary irritating optical effects (e.g. glare, (e.g. glare, flash blindness, after-images, impairment of colour vision) cannot be completely excluded. especially at low ambient brightness.
• The unit operates with light sources of risk group RG 1 (low risk) according to the valid standards for photobiological safety.
• The light source does not pose a hazard when used as intended.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technical Data (Subject to technical changes without notice. 22W51)

Luminosity floodLow / Medium / High	30 / 430 / 1000 lm
Lighting time floodLow / Medium / High	approx. 84 / 13 / 4 hours
Luminosity spotLow / High	70 / 250 lm
Lighting time spotLow / High	approx. 48 / 13 hours
Lightning rage 100 m
CRI value	>80
LED chip High power LED
Photobiological safety Risk group 1 (DIN EN 62471)
Protection class IP X5
Ports	USB type C1/4" tripod thread
Power supply Li-ion battery pack 3.7V / 5	2Ah
Battery recharging time approx. 4 hours
Operating conditions -10° ... 40°C
Dimensions 57 x 131 x 48 mm
Overall weight	320 g (incl. batteries)

EU and UK directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU - and the UK.

This product, including accessories and packaging, is an electrical appliance that must be recycled in an environmentally appropriate manner in accordance with European and UK directives on waste electrical and electronic equipment, batteries and packaging, in order to recover valuable raw materials. Further safety and supplementary notices at: www.4K5tools.com

For lithium-based primary and secondary batteries as well as other high performance batteries Only dispose of completely discharged batteries. If a battery is not completely discharged, precautions must be takento prevent short circuiting its terminals, e.g. isolation of the terminals.

Notice about transporting products containing lithium batteries The battery has been built and tested according to the current UN manual 38.3. Effective protection against over-pressure, short-circuit, forceful breakage and reverse current are provided. Refer to the operating instructions for battery data. If no specific safety information is provided this means the quantity of lithium and energy level are below the currently applicable limits. In this case the battery, neither on its own nor installed in the device, is subject to international hazardous materials regulations. The transport of multiple batteries could be relevant for hazardous materials regulations, please observe the special conditions (e.g. packaging).

Notice about disposal Electrical devices, mechanical devices, batteries, accessories and packaging should be recycled in an environmentally appropriate process to recover valuable raw materials. Please contact your municipal authority for information on corresponding disposal facilities and comply with the disposal and safety information at the collection sites.

For EU countries Do not put electric devices into household garbage. The European directive for scrap electric and electronic devices dictates they must be collected separately and sent to an environmentally appropriate recycling facility. Electric devices are marked with an icon of a crossed-out garbage can. Batteries must be removed from the device before its disposal, the batteries must be disposed of separately.

!
