Product type	Rechargeable LED work light with integrated power bank
Brand	4K5
Model	WL 1500
Dimensions (L x H x D)	102 x 158 x 55 mm
Total weight (with batteries)	600 g
Power supply	Li-ion battery 3.7 V / 10.4 Ah, charging via USB-C
Charging time	Approximately 5 hours
Light levels	FloodLow (45 lm), Medium (320 lm), High (660 lm), Boost (1500 lm)
Lighting duration per level	FloodLow: ~139 h, Medium: ~20 h, High: ~9 h, Boost: ~5 h
Lighting range	50 m
Color rendering index (CRI)	> 80
LED type	High power LED
Photobiological risk group	RG 1 (low risk)
Protection rating	IP X5
Head orientation	180° tiltable
Mounting	Integrated magnets + 1/4" thread for tripod
Connections	USB-C (charging), USB-A (power bank)
Additional functions	Steady red light, flashing red light, power bank for mobile devices
Operating temperature	-10°C to 40°C
Maintenance and cleaning	Clean with a slightly damp cloth; avoid solvents and abrasive products
Main safety instructions	Do not look into the light source; keep >30 cm from implants; use only indoors for charging
Repairability / Spare parts	Integrated battery not user replaceable; contact customer service for any repairs
Warranty and compliance	Compliant with EU and UK directives; mandatory recycling at end of life

Frequently Asked Questions - WL 1500 4K5

How to charge the WL 1500 lamp?

Use the supplied USB-C cable (not included in the manual, but standard). Plug the charger into a mains socket (not supplied). The operation indicator flashes during charging and turns off or stays steady once charging is complete. Full charge takes approximately 5 hours.

What is the battery runtime?

The runtime varies depending on the light level: FloodLow (~45 lm): about 139 hours, Medium (~320 lm): about 20 hours, High (~660 lm): about 9 hours, Boost (~1500 lm): about 5 hours.

Can the lamp be used while charging?

Yes, you can use the lamp while it is charging. However, the charging time may be slightly extended.

Is the lamp waterproof?

The lamp has an IP X5 protection rating, which means it is protected against water jets. It can be used in the rain but must not be submerged.

How to attach the lamp to a metal surface?

The lamp is equipped with powerful magnets in its suspension bracket. Simply bring it close to a clean metal surface. Beware of magnetic fields: keep a distance of at least 30 cm from medical implants, bank cards, etc.

What is Boost mode and how to activate it?

Boost mode delivers maximum power of 1500 lumens for intense illumination. It is likely activated by a long press or an additional press of the power button. Refer to the complete manual for exact instructions.

How to clean the lamp?

Use a slightly damp cloth to clean the surfaces. Never use cleaning agents, solvents, or abrasive products, as they could damage the housing or seals.

What to do if the lamp flashes abnormally?

If the indicator flashes while the lamp is not charging, it indicates a low battery. Recharge it. If the flashing persists after charging, contact customer service.

Is it dangerous to look at the LED?

Yes, never look directly at the light source. The lamp is classified as RG 1 (low risk), but prolonged exposure can cause glare, afterimages, or visual discomfort, especially in the dark.

Is the battery replaceable?

The Li-ion battery is built-in and not intended to be replaced by the user. If an issue occurs, contact the manufacturer or an authorized service. Do not attempt to open the housing.

USER MANUAL WL 1500 4K5

Black and white photo of a 4KS portable hard-shell device with a flat cover and metal bracket (no text or symbols visible)

WL 1500

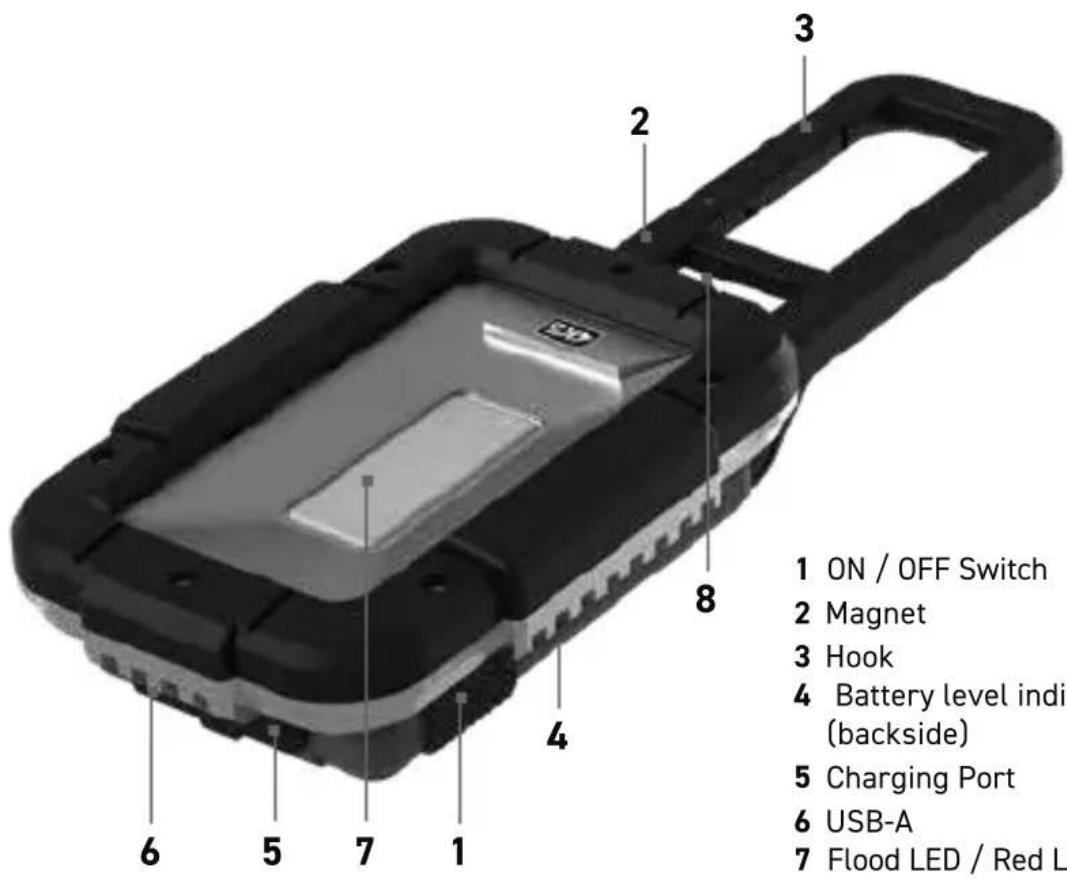

1 ON / OFF Switch 2 Magnet 3 Hook 4 Battery level indie (backside) 5 Charging Port 6 USB-A 7 Flood LED / Red L

1 ON / OFF Switch
2 Magnet
3 Hook
4 Battery level indicator (backside)
5 Charging Port
6 USB-A
7 Flood LED / Red Light
8 1/4" tripod thread

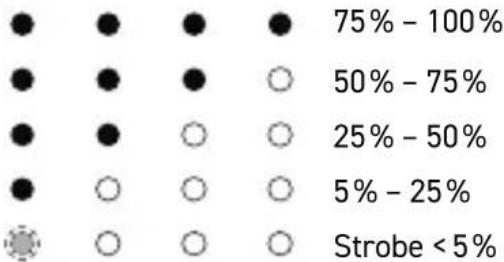

4 BATTERY LEVEL INDICATOR

5 CHARGING

POWER BANK FUNKTION

POWERBANK

USB

Built-in power bank with USB outlet to charge mobile devices

USB Input 5V-3A / 9V-2A
USB Output 5V-3A / 9V-2A / 12V-1A

ON / OFF

ON 1. Click 3 sec 2. 1x Click OFF

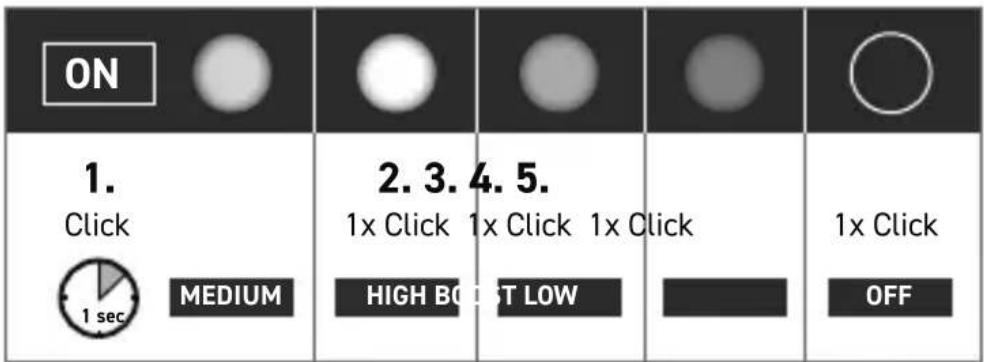

FLOOD

ON 1. Click MEDIUM 2. 3. 4. 5. 1x Click 1x Click 1x Click HIGH BOST LOW 1x Click OFF

RED LIGHT

ON 1. Click RED 1 sec 2.3. 1x Click 1x Click RED FLASHING OFF

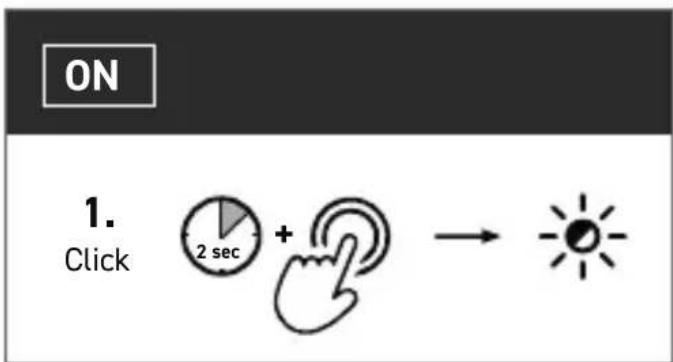

FLOOD ↔ RED LIGHT

ON 1. Click 2 sec + →

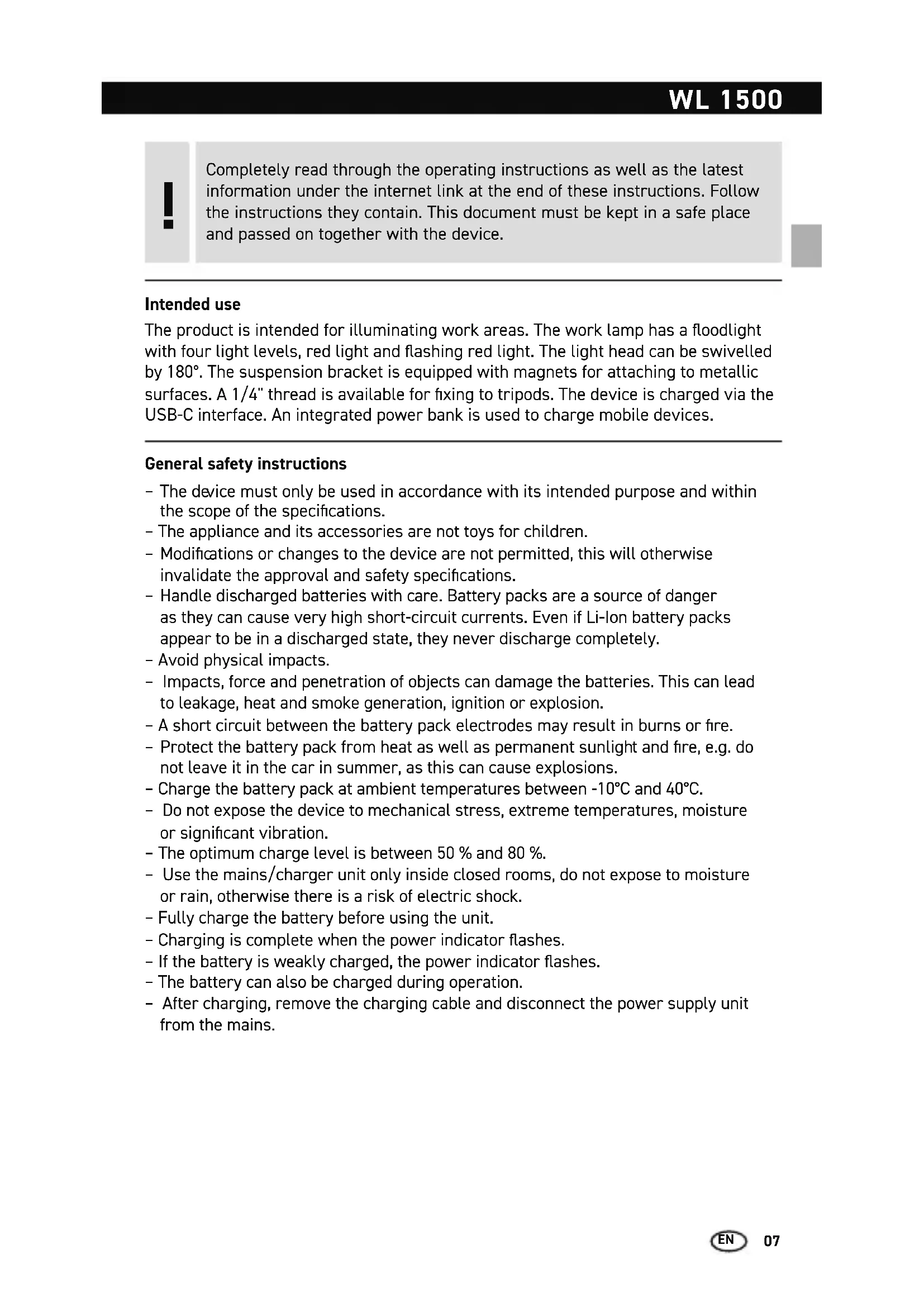

Completely read through the operating instructions as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Intended use

The product is intended for illuminating work areas. The work lamp has a floodlight with four light levels, red light and flashing red light. The light head can be swivelled by 180°. The suspension bracket is equipped with magnets for attaching to metallic surfaces. A 1/4" thread is available for fixing to tripods. The device is charged via the USB-C interface. An integrated power bank is used to charge mobile devices.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The appliance and its accessories are not toys for children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Handle discharged batteries with care. Battery packs are a source of danger as they can cause very high short-circuit currents. Even if Li-Ion battery packs appear to be in a discharged state, they never discharge completely.
• Avoid physical impacts.
• Impacts, force and penetration of objects can damage the batteries. This can lead to leakage, heat and smoke generation, ignition or explosion.
• A short circuit between the battery pack electrodes may result in burns or fire.
• Protect the battery pack from heat as well as permanent sunlight and fire, e.g. do not leave it in the car in summer, as this can cause explosions.
• Charge the battery pack at ambient temperatures between -10^ and 40^ .
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The optimum charge level is between 50 % and 80 %.
• Use the mains/charger unit only inside closed rooms, do not expose to moisture or rain, otherwise there is a risk of electric shock.
• Fully charge the battery before using the unit.
• Charging is complete when the power indicator flashes.
• If the battery is weakly charged, the power indicator flashes.
• The battery can also be charged during operation.
• After charging, remove the charging cable and disconnect the power supply unit from the mains.

Safety instructions

Danger - powerful magnetic fields

• Powerful magnetic fields can adversely affect persons with active medical implants (e.g. pacemaker) as well as electromechanical devices (e.g. magnetic cards, mechanical clocks, precision mechanics, hard disks).
• With regard to the effect of powerful magnetic fields on persons, the applicable national stipulations and regulations must be complied with such as BGV B11 §14 „electromagnetic fields" (occupational health and safety - electromagnetic fields) in the Federal Republic of Germany.
• To avoid interference/disruption, always keep the implant or device a safe distance of at least 30 cm away from the magnet.

Safety instructions

Dealing with electromagnetic disturbances

• The device complies with the provisions and limit values for safety and electromagnetic compatibility in accordance with the Low Voltage Directive (LVD) 2014/35/EU and the Electromagnetic Compatibility (EMC) Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

Safety instructions

Using artificial, optical emission (OStrV)

• Do not look into the radiation source.
• Temporary irritating optical effects (e.g. glare, (e.g. glare, flash blindness, after-images, impairment of colour vision) cannot be completely excluded. especially at low ambient brightness.
• The unit operates with light sources of risk group RG 1 (low risk) according to the valid standards for photobiological safety.
• The light source does not pose a hazard when used as intended.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technical Data (Subject to technical changes without notice. 22W51)

Luminosity floodLow / Medium / High / Boost	45 / 320 / 660 / 1500 lm
Lighting time floodLow / Medium / High / Boost	approx. 139 / 20 / 9 / 5 hours
Lightning rage 50 m
CRI value >80
LED chip	High power LED
Photobiological safety Risk group 1 (DIN EN 62471)
Protection class IP X5
Ports	USB type CUSB type A1/4" tripod thread
Power supply Li-ion battery pack 3.7V / 10.4Ah
Battery recharging time approx. 5 hours
Operating conditions	-10° ... 40°C
Dimensions	102 x 158 x 55 mm
Overall weight 600 g (incl. batteries)

EU and UK directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU - and the UK.

This product, including accessories and packaging, is an electrical appliance that must be recycled in an environmentally appropriate manner in accordance with European and UK directives on waste electrical and electronic equipment, batteries and packaging, in order to recover valuable raw materials. Further safety and supplementary notices at: www.4K5tools.com

For lithium-based primary and secondary batteries as well as other high performance batteries Only dispose of completely discharged batteries. If a battery is not completely discharged, precautions must be takento prevent short circuiting its terminals, e.g. isolation of the terminals.

Notice about transporting products containing lithium batteries The battery has been built and tested according to the current UN manual 38.3. Effective protection against over-pressure, short-circuit, forceful breakage and reverse current are provided. Refer to the operating instructions for battery data. If no specific safety information is provided this means the quantity of lithium and energy level are below the currently applicable limits. In this case the battery, neither on its own nor installed in the device, is subject to international hazardous materials regulations. The transport of multiple batteries could be relevant for hazardous materials regulations, please observe the special conditions (e.g. packaging).

Notice about disposal Electrical devices, mechanical devices, batteries, accessories and packaging should be recycled in an environmentally appropriate process to recover valuable raw materials. Please contact your municipal authority for information on corresponding disposal facilities and comply with the disposal and safety information at the collection sites.

For EU countries Do not put electric devices into household garbage. The European directive for scrap electric and electronic devices dictates they must be collected separately and sent to an environmentally appropriate recycling facility. Electric devices are marked with an icon of a crossed-out garbage can. Batteries must be removed from the device before its disposal, the batteries must be disposed of separately.

!
