DJControl Inpulse 200 MK2 - DJ Equipment HERCULES - Free user manual and instructions

Product Type	DJ Controller
Brand	Hercules
Model	DJControl Inpulse 200 MK2
Category	DJ Equipment
Power Supply	Via USB-B 2.0 port (bus-powered)
Connections	Master Output: 2 x RCA (Cinch), Headphone Output: 3.5 mm stereo jack, USB-B input
Compatible Software	DJUCED® and Serato DJ Lite (license included)
Included License	Serato DJ Lite (Serato DJ Pro trial)
System Requirements	PC Windows 10/11 or Mac macOS, available USB port
Sampling Rate	44.1 kHz
Audio Resolution	24-bit
Headphone Output (power)	5 dBU into 32Ω @ 1 kHz, THD+N < 0.017%
Main Features	Jog wheels, performance pads, tempo faders, crossfader, 2-band equalizer, filter, Beatmatch Guide, loops, scratch, pre-listening
Number of Decks	2
Number of Pads	4 performance pads with Hot Cue, Stems, FX, Sampler modes
Beatmatch Guide	Yes (TEMPO and BEAT ALIGN visual guides)
Vinyl / Scratch Mode	Yes (activate with SHIFT + LOOP)
Firmware Update	Automatic via Hercules drivers
ASIO Compatibility	Yes (ASIO drivers for low latency on Windows)
Box Contents	Controller, USB cable, stickers, warranty flyer
Maintenance and Cleaning	Clean with a soft, dry cloth. Avoid solvents.
Safety	Use in a dry environment. Do not expose to moisture or liquids.
Spare Parts and Repairability	Contact Hercules technical support for any repairs.

Frequently Asked Questions - DJControl Inpulse 200 MK2 HERCULES

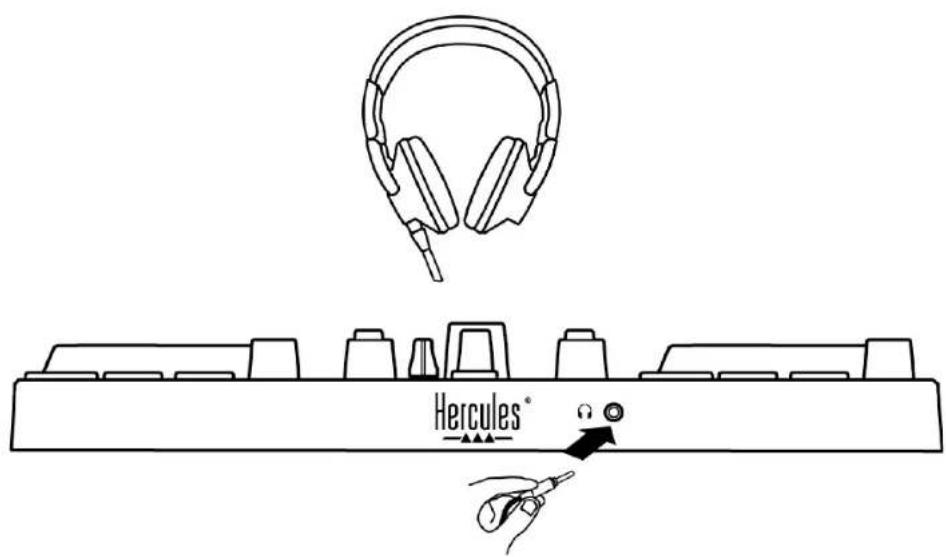

No sound comes from my headphones. What to do?

Check that your headphones are plugged into the 3.5 mm jack on the front of the controller. Make sure the pre-listening buttons (1 or 2) are activated in the software. You can also press the MASTER button to listen to the mix in the headphones.

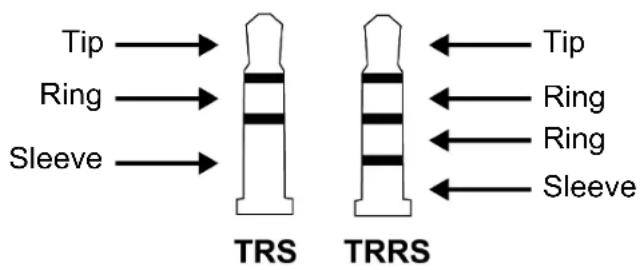

Headphone sound is distorted. Why?

The DJControl Inpulse 200 MK2 controller expects a TRS jack connector (standard headphones). Do not use a TRRS connector (headset with microphone) as it is not compatible and may cause distortion.

No sound comes from my speakers. How to fix?

Connect your active speakers to the RCA connectors (Master output) on the back of the controller. In the software, check that the Master output is assigned to outputs 1&2. You can test the sound via the ASIO control panel by clicking the speaker icon in the ABOUT tab.

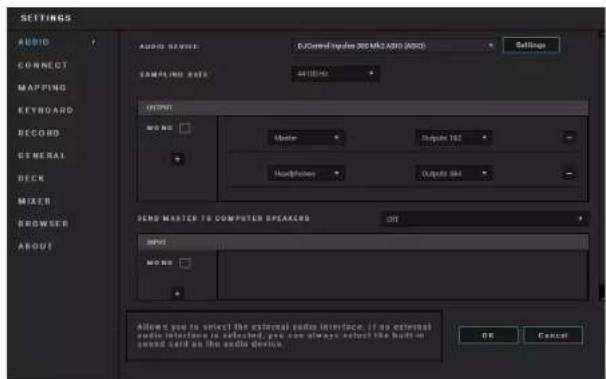

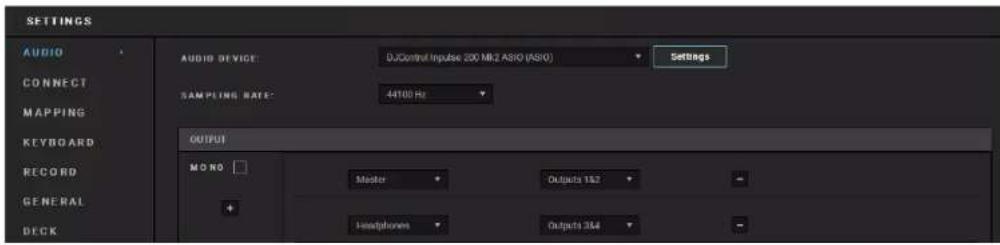

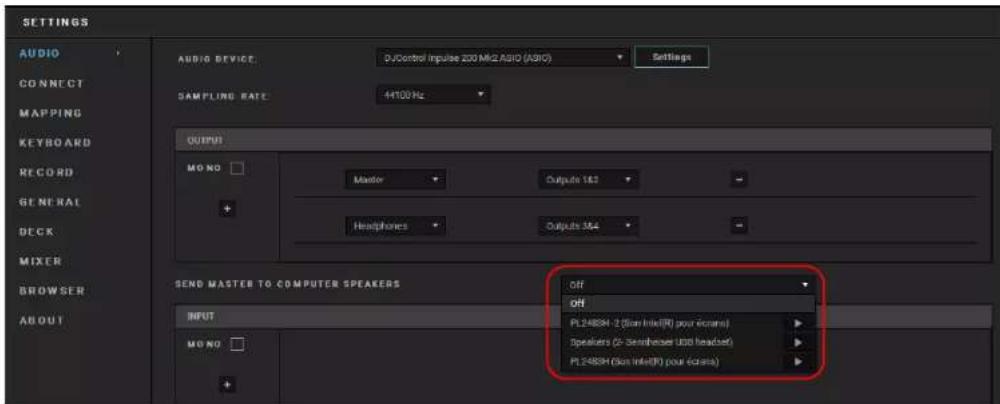

No sound comes from my laptop speakers. What to do?

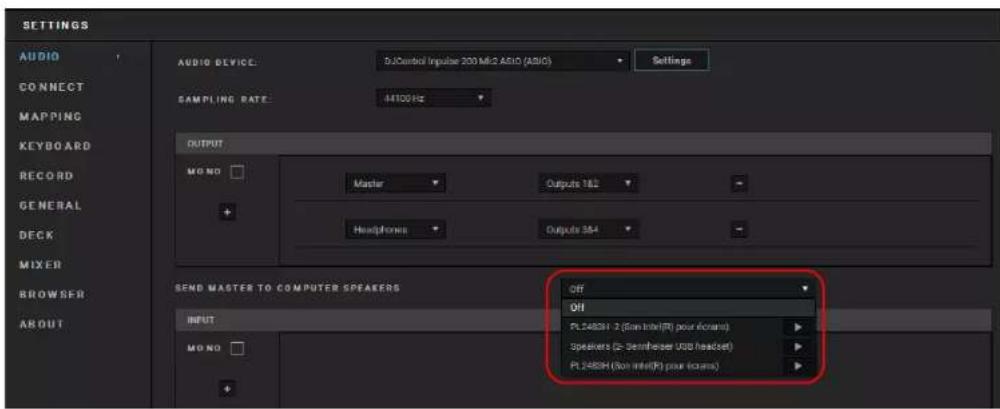

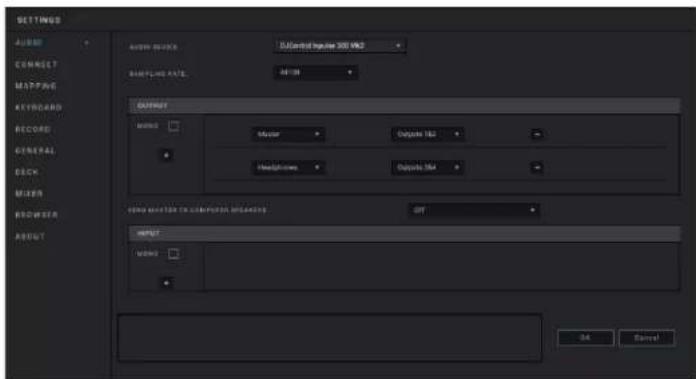

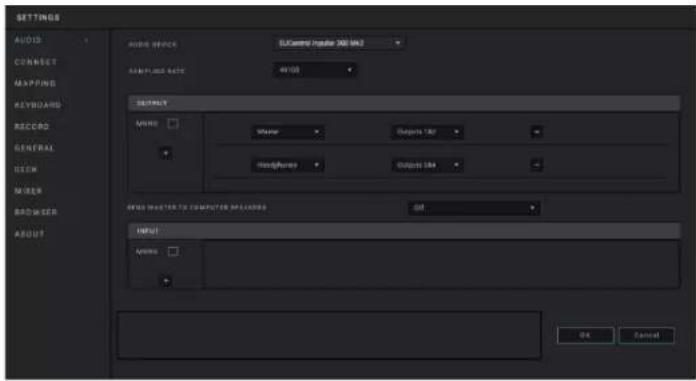

In DJUCED®, go to audio settings and enable 'SEND MASTER TO COMPUTER SPEAKERS'. In Serato DJ Lite, go to the Audio tab and check 'Use Laptop Speakers'.

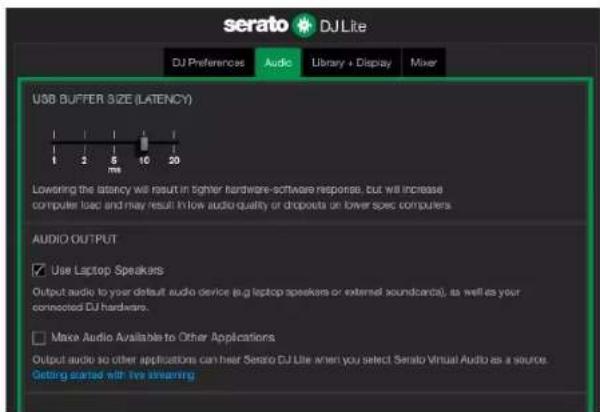

No sound comes from my headphones nor my laptop speakers. What to do?

By default, sound only comes out of the Master output and headphone output. To use the computer speakers, enable the corresponding option in the software's audio settings (DJUCED® or Serato DJ Lite). Plug your headphones into the controller for pre-listening.

I can't connect my multimedia speakers. What to do?

If your speakers don't have an RCA input, use an RCA to 3.5 mm mini-jack adapter (not included). You can also connect your speakers to the headphone output and press the MASTER button to route the 1-2 output to the headphone output.

Is the DJControl Inpulse 200 MK2 controller compatible with an iPad or iPhone?

No, this controller is not compatible with iOS devices. It works only on PC (Windows) and Mac (macOS).

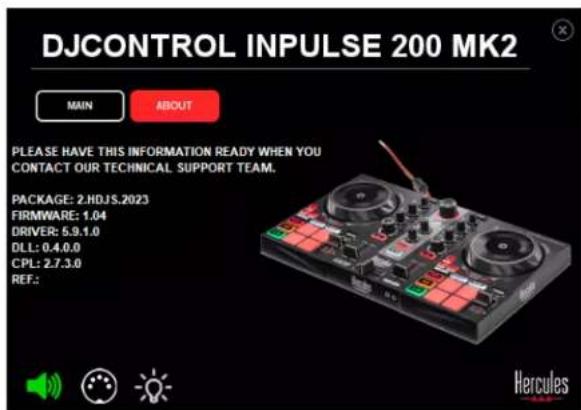

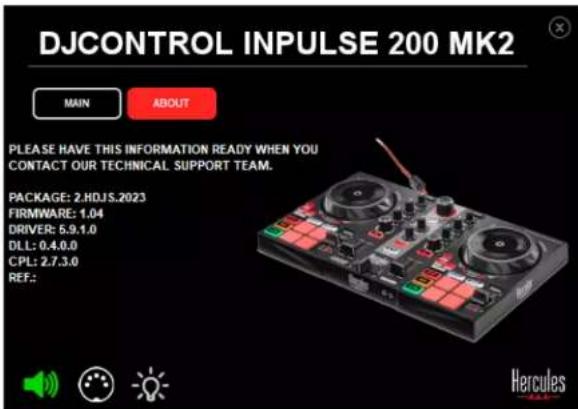

How to update the controller's firmware?

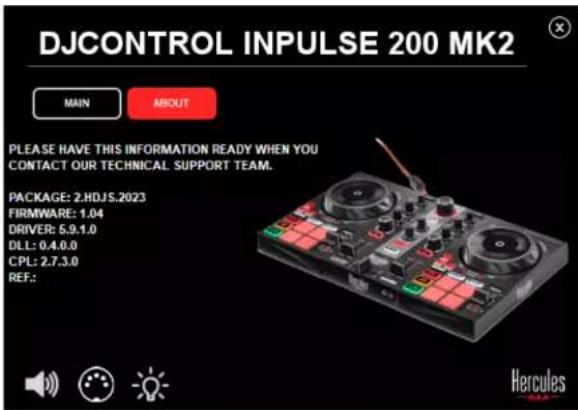

Firmware update is done automatically when installing Hercules drivers. Download the latest drivers from the Hercules website, install them, and the update will proceed automatically. You can check the firmware version in the control panel, ABOUT tab.

How to use the Beatmatch Guide?

Press the BEATMATCH GUIDE button to activate the visual guides. The TEMPO arrows next to the tempo fader indicate which direction to move the fader to match the BPM. The BEAT ALIGN arrows under the jog wheels indicate which direction to turn the jog to align the beats. When the arrows are off, the tempos are synchronized.

Which software is compatible with this controller?

The controller comes with a license for Serato DJ Lite and is also compatible with DJUCED®. It also works with Serato DJ Pro in trial period. Download and install the Hercules drivers for optimal latency.

USER MANUAL DJControl Inpulse 200 MK2 HERCULES

Black Herculas audio synthesizer with red and black buttons, no visible text or symbols on the device itself.

TABLE OF CONTENTS

1. BOX CONTENTS ....5
2. TECHNICAL SPECIFICATIONS......6
3. FEATURES ......7

Overview....7

Decks 8

Mixing 18

Connectors....26

1. INSTALLATION......27

Connections......27

Downloading the software 29

DJUCED ^® 29

Serato DJ Lite....32

Master output for speakers (output 1-2).....42

Headphones output (output 3-4) ....43

7. COMPATIBILITY......44

USB Audio / USB MIDI 44

ASIO and Windows® control panel ......44

Firmware update....47

8. DEMO MODE 48

9. FAQs....49

DJCONTROL INPUTULSE 200 MK2

Hercules DJControl Inpulse 200 MK2 is a full-featured controller designed for getting started DJing thanks to dedicated features, video tutorials and integration with the DJUCED® and Serato DJ Lite software.

Hercules DJControl Inpulse 200 MK2 includes a license for Serato DJ Lite, not a license for Serato DJ Pro. If you install Serato DJ Pro instead of Serato DJ Lite, Serato DJ Pro will work with your DJControl Inpulse 200 MK2 for the duration of a trial period. At the end of this trial period, if you want to continue using Serato DJ Pro, you must purchase a Serato DJ Pro license.

1. Box contents

– Hercules DJControl Inpulse 200 MK2
- Hercules, Serato and DJUCED ^ stickers
- Warranty flyer

You can remove the protective film covering the VU meter on the Hercules DJControl Inpulse 200 MK2 controller. You can also leave the protective film in place, as it does not affect the use of the VU meter.

2. Technical specifications

System requirements:

- DJUCED®:

https://www.djuced.com/downloaddjudced/

- Serato DJ Lite:

https://serato.com/dj/lite/downloads?systemreq

uirements#system-requirements

Master output for speakers (output 1-2) via two RCA connectors:

- Maximum output power = 5 dBU @ 1 kΩ

- THD+N @1 kHz < 0.01%

- Resolution = 24-bit

- Sample rate = 44.1 kHz

Headphones output (output 3-4) via one 3.5 mm stereo mini-jack connector:

- Maximum output power = 5 dBU for 32Ω @ 1 kHz

- THD+N @1kHz < 0.017%

- Resolution = 24-bit

- Sample rate = 44.1 kHz

3. Features

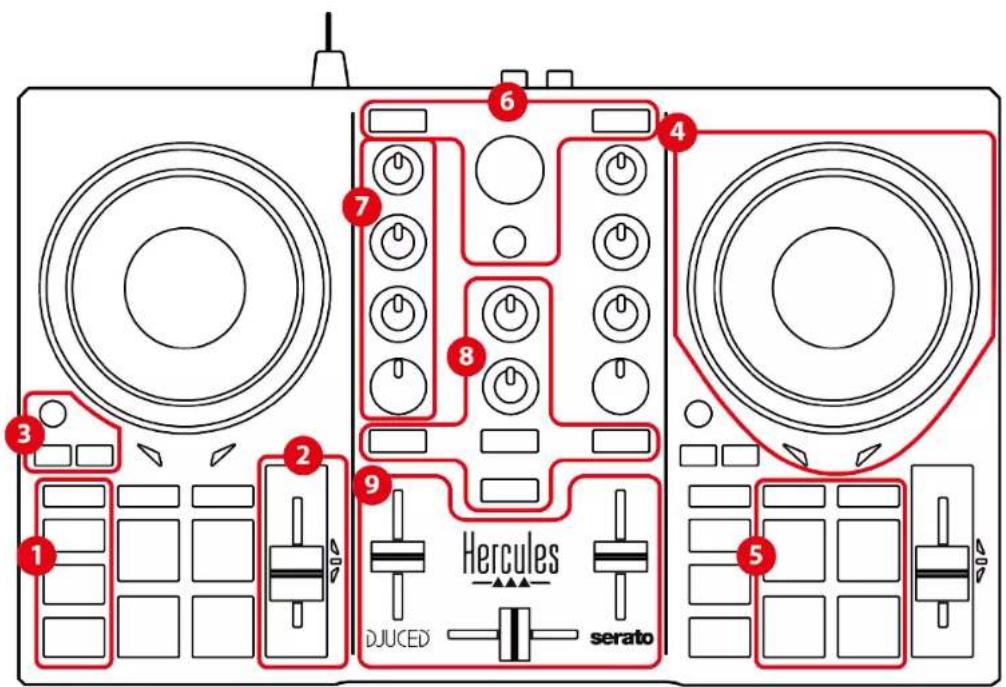

Overview

1. Transport buttons (Play, Cue, Sync, Shift)

2. Tempo fader (Pitch fader)

3. Loop controls (Loop)

4. Jog wheel

5. Pads and modes

6. Track selection controls (Browser, Load, Assist./Prep.)

7. Mixing section (Gain, EQ, Filter)

8. Monitoring, volumes (Master and Headphones) and Beatmatch Guide

9. Mixer (Crossfader, volume faders)

Decks

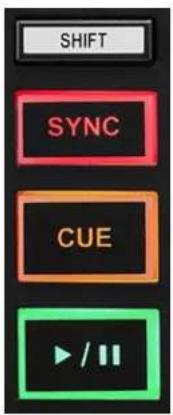

1. Transport buttons

SHIFT: combined control. For example:

- SHIFT + 1/2: enables a loop by choosing the in point.

- SHIFT + LOOP: enables Vinyl (Scratch) mode.

SYNC: enables or disables automatic synchronization of the BPM (beats per minute) values of two tracks.

- SHIFT + SYNC:

○ In DJUCED®: makes the deck the master synchronization (Master Sync) deck.

- In Serato DJ Lite: disables synchronization on the deck.

CUE: inserts a Cue point in the track to identify a specific instant, or moves the deck playhead to the Cue point's position.

- Track paused: inserts a Cue point at the spot where the track is stopped. - Track playing: stops playback of the track and moves the deck playhead to the Cue point.

• In DJUCED ^ , if no Cue point has been defined, pressing CUE stops playback and places a Cue point at the playhead's location.
• In Serato DJ Lite, if no Cue point has been defined, pressing CUE stops playback and places a Cue point at the beginning of the track.

- CUE + PLAY: moves the playhead to the Cue point and plays the track from that point.

- SHIFT + CUE:

• In DJUCED®: moves the playhead to the start of the track, and stops playback.
• In Serato DJ Lite: moves the playhead to the start of the track, and starts playback.

Play/Pause: plays or pauses the track.

- SHIFT + PLAY: in Serato DJ Lite, moves the playhead to the Cue point and plays the track from this marker.

2. Tempo fader

Tempo fader: sets the track's playback speed by adjusting the number of BPM.

• Move up: slows down the track.
• Move down: speeds up the track.
• Tempo fader in the middle: the track's original speed. The green LED is lit up.

When the Beatmatch Guide function is enabled, the TEMPO visual guides indicate whether you need to move the tempo fader up or down, in order to slow down or speed up the track. When the two red arrows are off, the tempo on that deck is identical to the tempo on the other deck.

For more information on the Beatmatch Guide function, please read the Beatmatch Guide section on page 22.

In Serato DJ Lite and Serato DJ Pro, when Sync mode is enabled, pressing SHIFT and moving the tempo fader at the same time lets you move the tempo fader's values while maintaining the amplitude.

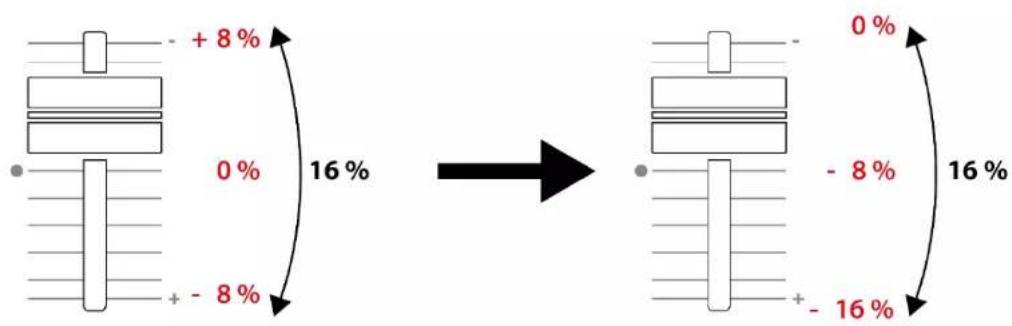

For example, with a tempo scale of ± 8% , or 16% amplitude, you can move the tempo fader's values to cover from 0% (maximum) to -16% (minimum), which still results in 16% amplitude, with -8% in the center.

3. Loop controls

LOOP: enables or disables playback of the loop.

1/2 / X2: divides by two or multiplies by two the size of the active loop.

- SHIFT + 12 (LOOP IN): enables a loop by choosing the in point.

- SHIFT + X2 (LOOP OUT): enables a loop by choosing the out point.

When the loop is active:

- SHIFT + 12 : turn the jog wheel to move the start of the loop. To set this start of the loop, press SHIFT + 12 again.

- SHIFT + X2: turn the jog wheel to move the end of the loop. To set this end of the loop, press SHIFT + X2 again.

To exit the loop, press LOOP.

4. Jog wheel

Jog wheel: lets you move within the track, modify the track's playback, and scratch.

When the Beatmatch Guide function is enabled, the BEAT ALIGN visual guides indicate the direction in which you need to turn the ring (i.e. the edge) of the jog wheel in order to align the beat grids of the two tracks. When the two red arrows are off, the beat grids are aligned.

For more information on the Beatmatch Guide function, please read the Beatmatch Guide section on page 22.

The action carried out depends on three criteria:

• Vinyl (Scratch) mode enabled or disabled;
• track playing or paused;

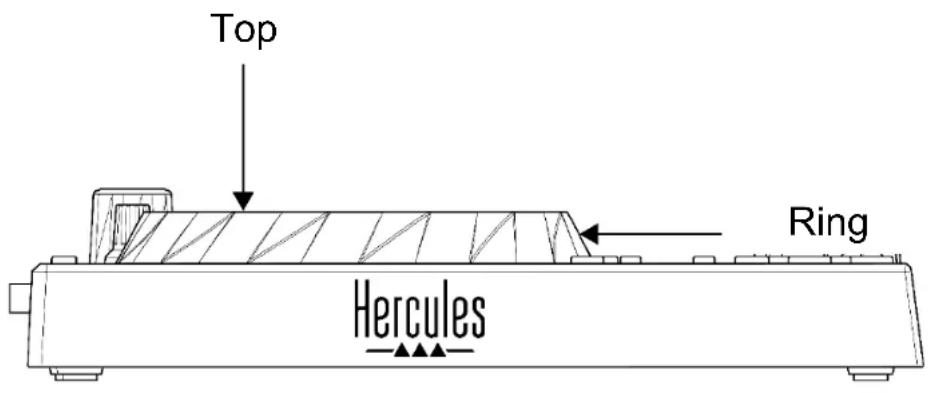

• the spot where you are touching the jog wheel (top or ring).

To enable Vinyl (Scratch) mode, press SHIFT and LOOP at the same time. To make sure that Vinyl mode is enabled, press SHIFT. The LOOP button is lit up.

Actions of the jog wheels with Serato DJ Lite and Serato DJ Pro:

Vinyl mode	Play/Pause	Jog wheel	SHIFT button
Scratching
Enabled	Play	Top	-
Enabled	Pause	Top	-
Disabled	Pause	Top	-
Speed up or slow down playback
Disabled	Play	Top or ring	-
Move slowly within the track
Disabled	Pause	Ring	-
Move quickly within the track
Enabled	Play	Top or ring	Press and hold
Enabled Pause Top or ring			Press and hold
Disabled	Play	Top or ring	Press and hold
Disabled Pause Top or ring			Press and hold

Actions of the jog wheels with DJUCED®:

Vinyl mode	Play/Pause	Jog wheel	SHIFT button
Scratching
Enabled	Play	Top	-
Enabled	Pause	Top or ring	-
Speed up or slow down playback
Enabled	Play	Ring	-
Disabled	Play	Top or ring	-
Move quickly within the track
Disabled	Pause	Top	-
Move very quickly within the track
Enabled Play Ring			Press and hold
Enabled Pause Ring			Press and hold
Disabled Play Ring			Press and hold

DJUCED®

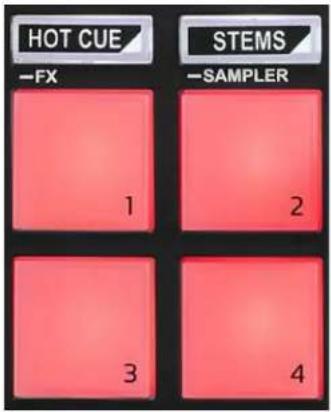

5. Pads and modes

Mode buttons: let you enable up to four modes.

To enable a main mode, press HOT CUE or STEMS.

To enable a secondary mode (FX and SAMPLER), simultaneously press SHIFT and HOT CUE or STEMS.

The mode button flashes.

For more information about the different modes with DJUCED ^® , Serato DJ Lite and Serato DJ Pro, please read the Modes and pads section on page 34.

Performance pads: a pad performs an action.

Mixing

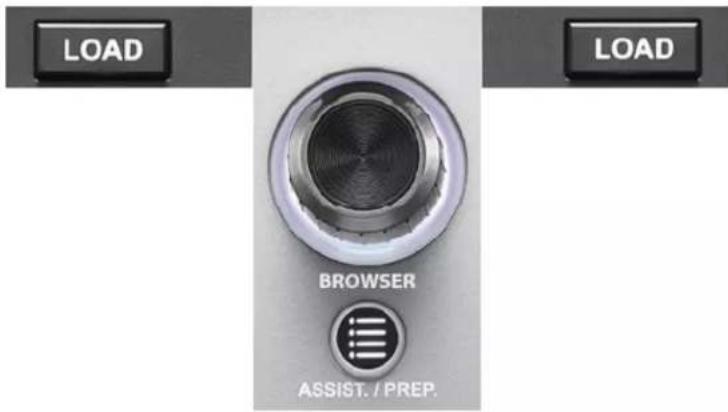

6. Track selection controls

LOAD*: loads the selected track on the destination deck. In DJUCED®, collapses or expands folders.

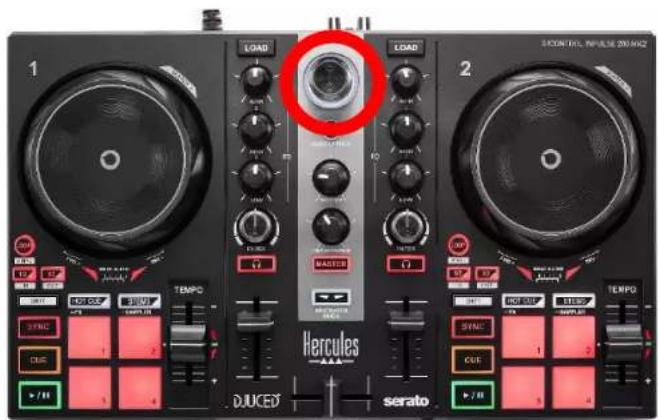

BROWSER encoder: lets you browse through your music library by turning the encoder to the left (up) or to the right (down).

Press the encoder to select folders and files.

In DJUCED ^® , press SHIFT and the encoder to return to the root of your music library.

*The functionality is identical on decks 1 and 2.

Illuminated ring:

• In DJUCED ^ , shows the energy level of the master track for the tempo.
• In Serato DJ Lite, shows the rhythm. The light flashes to the beat of the track.

ASSIST./PREP.:

- In DJUCED ^ , displays the panel suggesting the best upcoming tracks for your mix.

Press ASSIST./PREP. and turn the encoder to adjust the energy level of the tracks being suggested.

- In Serato DJ Lite, adds the track currently being played to the Prepare list.

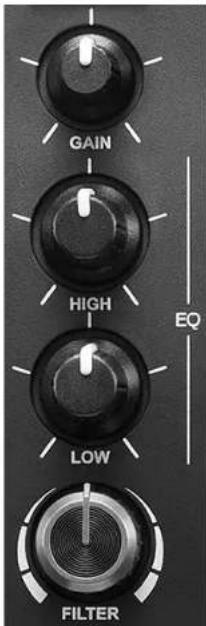

7. Mixing section

GAIN knob*: adjusts the gain (i.e. the volume level before the volume fader).

2-band equalizer (EQ)*: controls the intensity of the EQ. A knob is associated with each band: HIGH and LOW.

FILTER knob*: adjusts the frequency of the dual filter (high-pass and low-pass).

*The functionality is identical on decks 1 and 2.

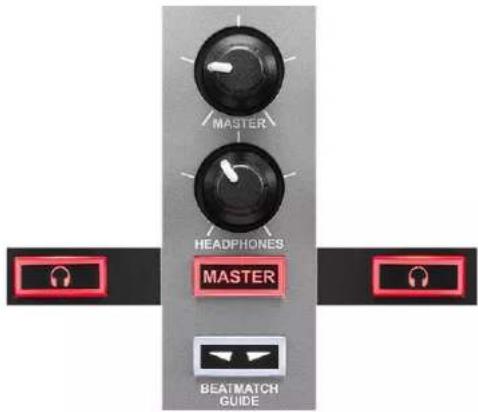

8. Monitoring, volume and Beatmatch Guide

MASTER volume: adjusts the volume of the mix being played on your speakers.

HEADPHONES volume: adjusts the volume of the headphones output.

Monitoring: selects the sound source played on your headphones.

• ☐*: plays the sound from deck 1 or deck 2.
• MASTER: plays the sound of the mix being played out loud for the audience.

*The functionality is identical on decks 1 and 2.

BEATMATCH GUIDE: enables or disables the light guides to adjust the tempo and align the beat grids of the two tracks. There are four red arrows per deck.

DJUCED ^® defines one of the decks as the master synchronization (Master Sync) deck, and the other as the slave deck. The red arrows only light up on the slave deck, as this deck follows the tempo of the master synchronization deck.

Serato DJ Lite does not define a master synchronization deck. The red arrows light up on both decks.

- TEMPO visual guides: if one of the two red arrows located to the right of a tempo fader is lit up, this means that the tempo (i.e. number of beats per minute) of the track being played on this deck is different than the tempo of the other deck.

The arrows indicate the direction in which you need to move the tempo fader in order to adjust the tempo of the track being played to match the tempo on the other deck.

• Top arrow lit up: move the tempo fader up. This will slow down the tempo.
• Bottom arrow lit up: move the tempo fader down. This will speed up the tempo.
• Arrows not lit up: the deck's tempo is identical to the tempo of the other deck.

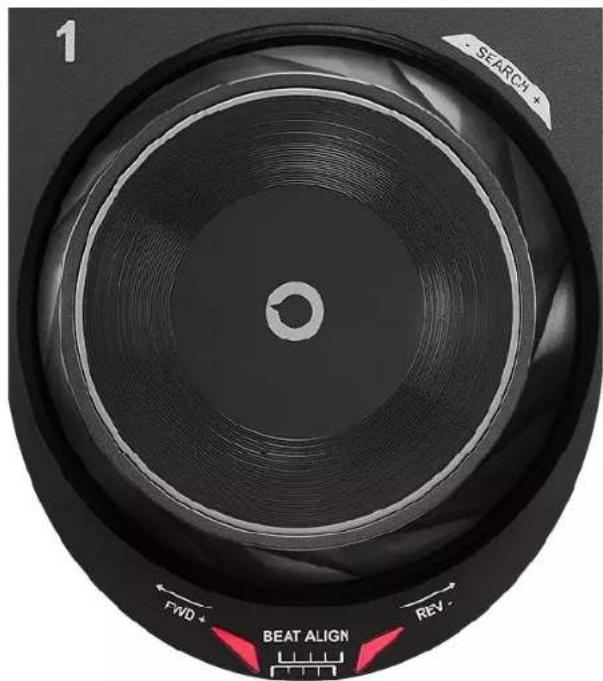

- BEAT ALIGN visual guides: if one of the two red arrows located below a jog wheel is lit up, this means that the beats of the track being played on this deck are not aligned with the beats of the other deck.

The arrows indicate the direction in which you need to turn the jog wheel in order to align the beats of the track being played with the beats of the other deck.

○ Left arrow lit up: turn the jog wheel clockwise. This speeds up the playback speed.

- Right arrow lit up: turn the jog wheel counterclockwise. This slows down the playback speed.

- Arrows not lit up: the deck's beats are aligned with the beats of the other deck.

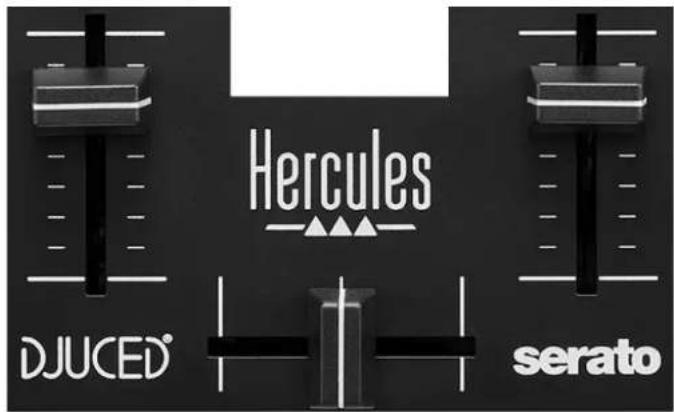

9. Mixer

Volume fader*: adjusts the deck's volume.

Crossfader: lets you make a transition between two tracks by increasing the volume of one of the decks, while decreasing the volume of the other deck.

- Crossfader all the way to the left: you only hear the track on deck 1.

- Crossfader all the way to the right: you only hear the track on deck 2.

- Crossfader in the middle: you hear the tracks on both decks 1 and 2 at the same time.

*The functionality is identical on decks 1 and 2.

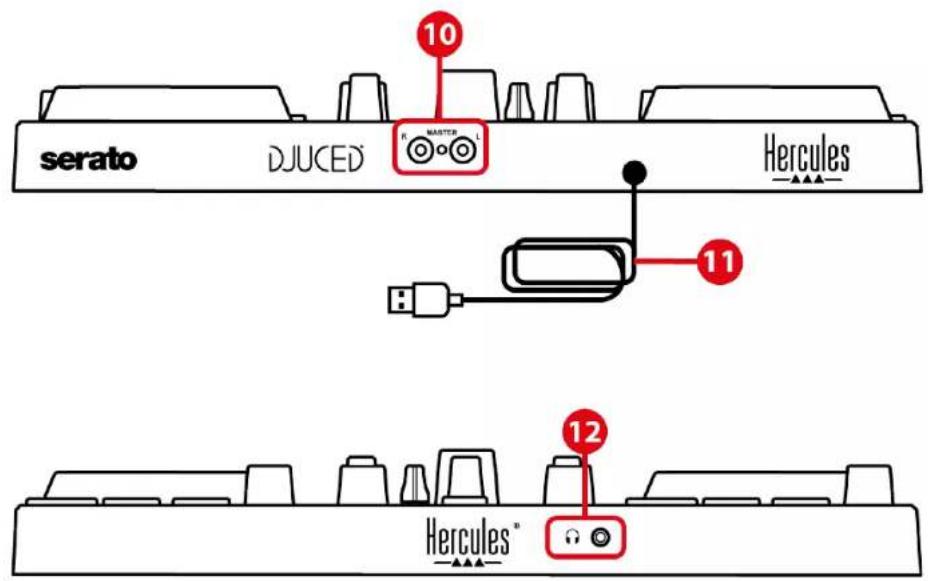

Connectors

1. Master output for speakers (output 1-2)
2. USB-B 2.0 cable
3. Headphones output (output 3-4)

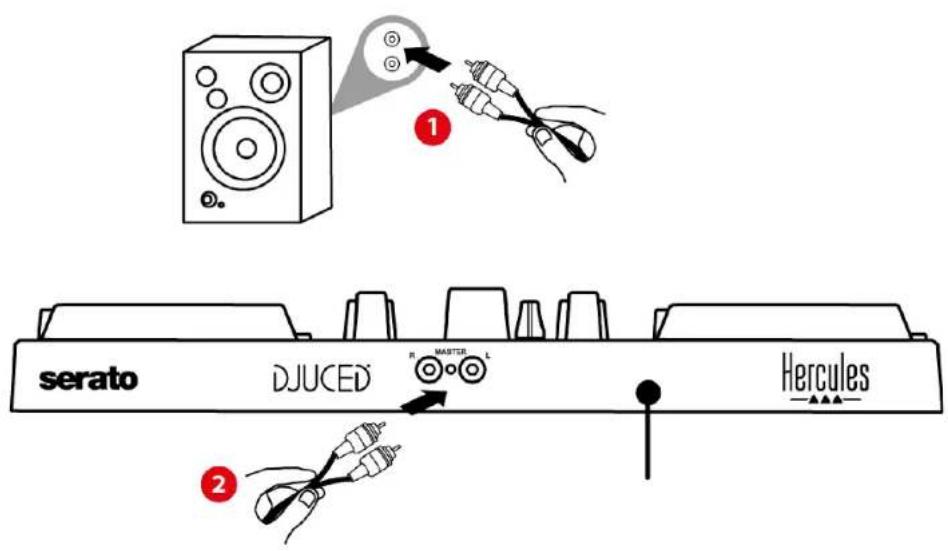

Master output for speakers (output 1-2): lets you connect active speakers.

Format: 2 x RCA (Cinch)

USB-B 2.0 cable: lets you connect the controller to a computer.

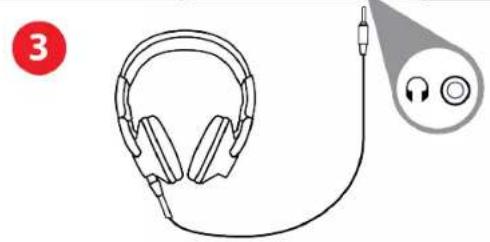

Headphones output (output 3-4): lets you connect headphones in order to monitor tracks.

Format: 3.5 mm stereo mini-jack connector

4. Installation

Connections

1. Connect the DJControl Inpulse 200 MK2 controller to your computer with the USB cable.
2. Connect the inputs on your active speakers to the speaker outputs on DJControl Inpulse 200 MK2 (2 RCA).
3. Connect your headphones to the 3.5 mm stereo mini-jack connector at the front of DJControl Inpulse 200 MK2.

An LED illumination sequence, called Vegas Mode, starts up each time you connect the device to your computer. Vegas Mode takes place in four phases, allowing it to light up all of the LEDs and display different possible colors for the multicolored backlit energy ring.

Downloading the software

DJUCED®

1. Please visit: https://www.djuded.com/hercules.
2. Download and install DJUCED ^® .
3. Please visit:

https://support.hercules.com/product/djcontrolinpulse200mk2/.

1. Download and install the driver pack for your computer's operating system.

○ macOS®: HDJC Series Mac
- Windows®: HDJC Series PC

Windows ^® requires that you install the drivers in order to use DJControl Inpulse 200 MK2 in ASIO mode, which reduces the latency compared to WASAPI mode and is generally more stable.

The drivers also let you test your DJControl Inpulse 200 MK2 and verify the firmware version in both Windows ^® and macOS ^® .

1. Launch the DJUCED ^® software. A window appears, indicating that your product has been successfully detected and is ready to use.

When you run the software for the first time, DJUCED® guides you through connecting your headphones and active speakers (or lets you use the speakers built into your computer, if you don't have external active speakers). Follow the on-screen information step by step before getting started.

Audio settings:

In DJUCED ^® , to modify the sound card settings, click the gear wheel icon ⚙ in the upper right-hand part of the screen. The Settings menu is displayed.

Select the Audio tab to choose the sound card, and assign the outputs for headphones and speakers.

The standard setup for Windows ^® is as follows:

- Audio device: DJControl Inpulse 200 MK2 ASIO (ASIO)

- Output:

• Master: Outputs 1&2
  ○ Headphones: Outputs 3&4

The standard setup for macOS ^® is as follows:

– Audio device: DJControl Inpulse 200 MK2

- Output:

- Master: Outputs 1&2

○ Headphones: Outputs 3&4

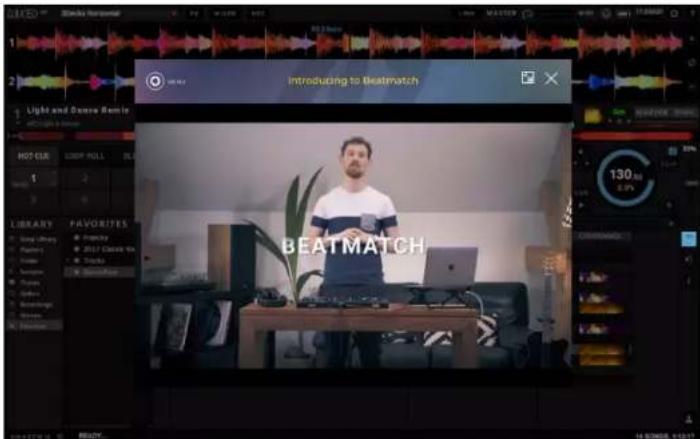

Follow the Hercules DJ Academy tutorials integrated into DJUCED ^® , which you can access by clicking the

icon.

The tutorials are also available here, on the DJUCED® YouTube channel.

Serato DJ Lite

1. Please visit: https://serato.com/dj/lite/downloads.
2. Download and install Serato DJ Lite.
3. Please visit:

https://support.hercules.com/product/djcontrolinpulse200mk2/.

1. Download and install the driver pack for your computer's operating system.

○ macOS®: HDJC Series Mac
- Windows®: HDJC Series PC

Windows ^® requires that you install the drivers in order to use DJControl Inpulse 200 MK2 in ASIO mode, which reduces the latency compared to WASAPI mode and is generally more stable.

The drivers also let you test your DJControl Inpulse 200 MK2 and verify the firmware version in both Windows ^® and macOS ^® .

Hercules DJControl Inpulse 200 MK2 includes a license for Serato DJ Lite, not a license for Serato DJ Pro. If you install Serato DJ Pro instead of Serato DJ Lite, Serato DJ Pro will work with your DJControl Inpulse 200 MK2 for the duration of a trial period. At the end of this trial period, if you want to continue using Serato DJ Pro, you must purchase a Serato DJ Pro license.

5. Livening up your mix

There are different ways to liven up your mix.

Modes and pads

The pads

Pads 1 to 4 carry out the actions corresponding to the mode currently enabled.

The modes enabled on the pads are the following:

Modes	DJUCED® / Serato DJ Lite / Serato DJ Pro**
1	Hot Cue
2	Stems
3	FX
4	Sampler

**Serato DJ Pro license not included.

Hot Cue mode

A Hot Cue point is a marker (like a bookmark) that you can place in a track to easily locate this moment in the track again, and instantly return to it afterwards.

Four Hot Cue points can be set per track.

1. To access Hot Cue mode, press HOT CUE. The HOT CUE button's light stays lit up.
2. To set a Hot Cue point, press a pad.
3. To play the track from a Hot Cue point, press the corresponding pad.
4. To remove a Hot Cue point, press SHIFT and the pad at the same time.

Stems mode

Stems mode lets you separate a track into four different parts (vocals and instruments), called “stems”.

1. To access Stems mode, press STEMS. The STEMS button's light stays lit up.
2. Pads 1 to 4 are each associated with a stem. To stop playing a stem, press the corresponding pad. The pad's light turns off.
3. To resume playing the stem, press the corresponding pad. The pad lights up.

Stems:

Deck 1 / Deck 2	Stem
Pad 1	Vocals
Pad 2	Melody
Pad 3	Bass
Pad 4	Drums

FX mode

FX mode lets you control the effects on the pads. An effect is sometimes a filter or a combination of filters applied to a track to modify its sound (echo, reverb...).

In DJUCED ^® , the pads control the effects rack's effects.

To display the effects rack, click FX

In Serato DJ Lite and Serato DJ Pro, the pads control four effects that cannot be modified. These effects are not in the Serato DJ effects racks, and consequently you do not see the action of the pads in the software.

1. To access FX mode, press SHIFT and HOT CUE at the same time. The HOT CUE button flashes.
2. To carry out an action, press a pad.

Possible actions:

Deck 1 / Deck 2	DJUCED®	Serato DJ Lite
Pad 1	Effect 1 of the rack	Echo
Pad 2	Effect 2 of the rack	Flanger
Pad 3	Effect 3 of the rack	Reverb
Pad 4	Displays/hides the effects rack	Repeater

Sampler mode

A sample is a short sound played over the track that is currently playing: it can be played either once or in repetition.

In DJUCED ^® , pads 1 to 4 let you play the four samples found on the first line of the multilayer sampler.

To display the multilayer sampler, select 2Decks Horizontal + 2 Samplers in the drop-down menu in the upper left-hand part of the screen in DJUCED ^® .

In Serato DJ Lite, pads 1 to 4 let you play a sample.

To display the samples panel, click 📄 in Serato DJ Lite.

1. To access Sampler mode, press SHIFT and STEMS at the same time. The STEMS button flashes.
2. To play a sample, press a pad.
3. To stop playing a sample, press SHIFT and the corresponding pad at the same time.

Scratching

Scratching consists of producing a sound effect from a track, by turning the jog wheel.

1. To enable the scratch function, press SHIFT and LOOP at the same time.

In order to ensure that the scratch function (Vinyl mode) is enabled, press SHIFT. The LOOP button is lit up.

1. Place your index finger on top of the jog wheel and make small, quick movements to the right and to the left.

You can repeat this scratch multiple times to create a rhythm.

Filters

Adjustment of the track's filter lets you attenuate certain frequencies.

• Attenuate the high frequencies (known as a low-pass filter or high-cut filter): turn the filter knob (FILTER) to the left.
• Attenuate the low frequencies (known as a high-pass filter or low-cut filter): turn the filter knob (FILTER) to the right.

6. Multichannel sound card

The product includes a built-in multichannel sound card, allowing you to play your mix on speakers for the audience (Master output for speakers) and monitor the next track that you're preparing on your headphones (headphones output).

Master output for speakers (output 1-2)

Your active speakers should be connected to the Master output for speakers located at the back of your product.

Headphones output (output 3-4)

Your headphones should be connected to the headphones output 🔒 located at the front of your product.

By default, each time your product is connected, the headphones output is assigned to output 3-4 so that it can work with all DJing software available on the market — including DJUCED® and Serato DJ Lite, in particular.

However, if you wish to use your product's headphones output to listen to music on your computer using iTunes, for example, you must route output 1-2 to the headphones output. To do this, press the MASTER button.

7. Compatibility

USB Audio / USB MIDI

This product is Plug & Play and can work without drivers on any PC or Mac, as it complies with the USB Audio and USB MIDI standards.

ASIO and Windows® control panel

To use the DJControl Inpulse 200 MK2 controller with Serato DJ Lite, you must install the ASIO drivers. The ASIO drivers are available here:

https://support.hercules.com/product/djcontrolinpulse200mk2/.

If you are using DJUCED ^® , you can also download the ASIO drivers in order to take advantage of lower latency on your PC.

The ASIO drivers come with a control panel accessible in the taskbar on PC, or in the C:\Program Files\DJHERCULESMIX\Audio\DJ Console Series\ directory. This panel lets you adjust the ASIO buffer size, and thus the latency.

To adjust the ASIO settings:

• Set the ASIO buffer size to 4 or 8 ms.
• Start up your software (e.g.: DJUCED®) and select the DJControl Inpulse 200 Mk2 ASIO driver:

Once the software begins using the ASIO driver, the ASIO settings can no longer be modified in the control panel. This is perfectly normal, and indicates that the ASIO driver is in use.

Use your software and listen for any artifacts, audio glitches (clicks, pops) and latency problems: should any of these issues arise, you will need to adjust the buffer sizes accordingly.

Close your software and adjust your ASIO buffer by one value at a time:

• Reduce the buffer size to reduce latency.
• Increase the buffer size if you notice glitches or artifacts in the audio.

You will need to repeat this procedure until you find the optimal buffer size for your system.

The drivers are available here:

https://support.hercules.com/product/djcontrolinpulse200mk2/.

Firmware update

Your product features an automatic firmware update mode. This requires installing the Hercules drivers and following the on-screen instructions. The firmware update will occur automatically.

The drivers are available here:

https://support.hercules.com/product/djcontrolinputse200mk2/.

The control panel also allows you to access this information and display the driver versions installed on your computer in the ABOUT tab. Have this information ready if you need to contact Hercules' technical support.

8. Demo mode

This mode is available when you connect your product to a USB power supply, and is used in-store, in particular. In this case, the product is not operational but is in demo mode: a demo sequence lighting up the controller's different lights keeps repeating itself.

9. FAQs

1. No sound is coming out of my headphones.

Make sure that you have connected your headphones at the front of the product, as your product is equipped with a multichannel sound card preconfigured to work with DJUCED ^® and Serato DJ Lite.

By default, the two monitoring buttons are enabled when the software is first launched. You can then select either deck that you want to listen to on your headphones, or use the MASTER button to listen to the results of your mix.

2. The sound on my headphones is distorted.

Make sure that your headphones feature a TRS connector (standard headphones) and not a TRRS connector (headphones + microphone).

TRRS connectors are not compatible with the DJControl Inpulse 200 MK2 controller.

3. No sound is coming out of my speakers.

Make sure that you have connected your speakers to the RCA connectors at the back of the product, as your product is equipped with a multichannel sound card preconfigured to work with DJUCED® and Serato DJ Lite.

In order to test (without using DJ software) whether the audio interface of the DJControl Inpulse 200 MK2 controller is producing sound, you can display the DJ controller's control panel. Click the ABOUT tab, and then click the speaker icon. The icon turns green when sound is being played.

4. No sound is coming out of my laptop computer speakers.

Your product is equipped with a preconfigured multichannel sound card. If you want to use the speakers built into your laptop computer:

- In DJUCED®, access the settings and tick the SEND MASTER TO COMPUTER SPEAKERS option.

- In Serato DJ Lite, access the settings, open the Audio tab and tick the Use Laptop Speakers option.

5. No sound is coming out of my headphones, or my laptop computer speakers.

By default, the sound comes from the Master output for speakers, and the headphones output. It is therefore normal that no sound is coming out of your laptop computer.

If you want to use the speakers built into your laptop computer:

- In DJUCED®, access the settings and tick the SEND MASTER TO COMPUTER SPEAKERS option. You must connect your headphones to the DJControl Impulse 200 MK2 controller.

- In Serato DJ Lite, access the settings, open the Audio tab and tick the Use Laptop Speakers option. You must connect your headphones to the DJControl Inpulse 200 MK2 controller.

In order to test (without using DJ software) whether the audio interface of the DJControl Inpulse 200 MK2 controller is producing sound, you can display the DJ controller's control panel. Click the ABOUT tab, and then click the speaker icon. The icon turns green when sound is being played.

6. I can't connect my multimedia speakers to my DJControl Inpulse 200 MK2.

If your speakers' connectors differ from the connectors on DJControl Inpulse 200 MK2, you can use a dual RCA to 3.5 mm mini-jack adapter (not included) or any other adapter format corresponding to your speakers.

You can also connect your speakers to the headphones output and route output 1-2 to output 3-4 by pressing the MASTER button.

7. Is the DJControl Inpulse 200 MK2 controller compatible with an iPad or iPhone?

No, the DJControl Inpulse 200 MK2 controller is not compatible with an iPad or iPhone. It only works with a PC or Mac.

Hercules

TECHNICAL SUPPORT

https://support.hercules.com

Trademarks

Intel® and Intel Core™ are trademarks or registered trademarks of Intel Corporation.

Microsoft® Windows® 10/11 is a registered trademark or trademark of Microsoft Corporation in the U.S. and/or in other countries.

Mac® and macOS® are trademarks of Apple Inc., registered in the U.S. and other countries.

Serato, Serato DJ Lite and Serato DJ Pro are registered trademarks of Serato Audio Research Limited.

The DJUCED® brand and DJUCED®'s graphic elements are the property of Guillemot Corporation.

ASIO is a trademark of Steinberg Media Technologies GmbH.

All other trademarks and trade names are hereby acknowledged in this document and are the property of their respective owners. Illustrations not binding. Contents, designs and specifications in this document are subject to change without notice and may vary from one country to another.

Copyright

No part of this manual may be reproduced, summarized, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, manual, via photocopying, recording, or other, without the express written consent of Guillemot Corporation S.A.

DJUCED® and Serato DJ Lite End User License Agreement

Please read the License Agreement displayed during installation of DJUCED ^® and Serato DJ Lite carefully.

DJCONTROL INPUTULSE 200 MK2

Black and red Hercules diper with control knobs and a red cable, no visible text or symbols on the device itself.

TABLE DES MATIÈRES

1. CONTENU DE LA BOITE ....5
2. CARACTERISTIQUES TECHNIQUES ......6
3. FONCTIONS......7

Vue d'ensemble....7

Platines (Decks)......8

Mixage....18

Branchements 26

1. INSTALLATION......27

Branchements 27

Serato DJ Lite....32

1. AGREMENTER SON MIX ....34

Modes et pads....34

Les pads....34

Mode Hot Cue 35

Mode Stems 36

Mode FX....37

Mode Sampler....39

Le scratch....40

Les filtres....41

1. CARTE SON MULTICANAL 42

https://www.djuced.com/telecharger/?lang=fr

- Serato DJ Lite :

https://serato.com/dj/lite/downloads?systemreq

- Puissance max = 5 dBU @ 1 kΩ

- THD+N @1 kHz < 0,01 %

- Résolution = 24 bits

https://www.djuced.com/telecharger/?lang=fr.

https://support.hercules.com/product/djcontrolinpulse200mk2/.

- Windows®: HDJC Series PC

https://support.hercules.com/product/djcontrolinpulse200mk2/.

○ macOS®: HDJC Series Mac

○ Windows® : HDJC Series PC

https://support.hercules.com/product/djcontrolinpulse200mk2/.

https://support.hercules.com/product/djcontrolinpulse200mk2/.

https://support.hercules.com/product/djcontrolinputse200mk2/.

Black Herculas audio synthesizer with red and black buttons, no visible text or symbols on the device itself.

INHALTSVERZEICHNIS

Serato DJ Lite....34

1. DEN EIGENEN MIX LEBENDIGER MACHEN 36

https://www.djuced.com/downloaddjudced/

(in Englisch)

- Serato DJ Lite:

https://serato.com/dj/lite/downloads?systemreq

3. Loop-Steuerungen

○ macOS®: HDJC Series Mac

- Windows®: HDJC Series PC

○ macOS®: HDJC Series Mac

- Windows®: HDJC Series PC

https://support.hercules.com/product/djcontrolinpulse200mk2/.

https://support.hercules.com/product/djcontrolinpulse200mk2/.

https://support.hercules.com/product/djcontrolinpulse200mk2/.

Black and red Hercules diper with control knobs and a red cable, no visible text or symbols on the device itself.

INHOUDSOPGAVE

1. INHOUD VAN DE VERPAKKING ....5
2. TECHNISCHE SPECIFICATIES ......6
3. FUNCTIONS....7

Overzicht....7

Decks 8

Mixen 19

Aansluitingen 27

1. INSTALLATIE......28

Aansluitingen 28

De software downloaden.... 30

DJUCED ^® 30

Serato DJ Lite....34

1. BRENG EXTRA LEVEN IN UW MIX......36

Modi en pads 36

De pads....36

Hot Cue-modus 37

Stems-modus 38

FX-modus....39

Sampler-modus 41

Scratchen 42

Filters....43

6. MEERKANAALS AUDIOVERSTERKER....44

https://www.djuced.com/downloaddjuded/

(in het Engels)

- Serato DJ Lite:

https://serato.com/dj/lite/downloads?systemreq

- SHIFT + LOOP: schakelt Vinyl (Scratch)-modus in.

3. Lusbedieningen

De software downloaden

DJUCED®

https://support.hercules.com/product/djcontrolin pulse200mk2/.

○ macOS®: HDJC Series Mac

- Windows®: HDJC Series PC

https://support.hercules.com/product/djcontrolinpulse200mk2/.

○ macOS®: HDJC Series Mac

- Windows®: HDJC Series PC

Deck 1 / deck 2	Stem
Pad 1	Zang
Pad 2	Melodie
Pad 3	Bas
Pad 4	Drums

FX-modus

https://support.hercules.com/product/djcontrolinpulse200mk2/.

https://support.hercules.com/product/djcontrolinpul se200mk2/.

Firmware-update

https://support.hercules.com/product/djcontrolinpul se200mk2/.

Black and red Hercules diper with control knobs and a red cable, no visible text or symbols on the device itself.

INDICE

1. CONTENUTO DELLA CONFEZIONE......5
2. CARATTERISTICHE TECNICHE......6
3. CARATTERISTICHE......7

Panoramica 7

Banchi (Decks) 8

Mixaggio 19

Connettori 27

1. INSTALLAZIONE 28

Connessioni....28

Serato DJ Lite....34

1. RAVVIVARE IL TUO MIX....36

https://www.djuced.com/downloaddjuded/

(in inglese)

- Serato DJ Lite:

https://serato.com/dj/lite/downloads?systemreq

uirements#system-requirements (in inglese)

3. Controlli loop

https://support.hercules.com/product/djcontrolin pulse200mk2/.

○ macOS®: HDJC Series Mac

- Windows®: HDJC Series PC

https://support.hercules.com/product/djcontrolinpulse200mk2/.

○ macOS®: HDJC Series Mac

- Windows®: HDJC Series PC

https://support.hercules.com/product/djcontrolinpulse200mk2/.

https://support.hercules.com/product/djcontrolinpulse200mk2/.

https://support.hercules.com/product/djcontrolinpulse200mk2/.

Black Herculas audio synthesizer with red and black buttons, no visible text or symbols on the device itself.

TABLA DE CONTENIDO

1. CONTENIDO DE LA CAJA......5
2. ESPECIFICACIONES TÉCNICAS ......6
3. CARACTERÍSTICAS......7

Serato DJ Lite....32

1. CÓMO ANIMAR TUS MEZCLAS......34

Modos y pads....34

Los pads....34

Modo Hot Cue 35

Modo Stems 36

Modo FX....37

Modo Sampler 39

Scratching 40

Filtros....41

1. TARJETA DE SONIDO MULTICANAL.....42

Salida Master para altavoces (salida 1-2)...42

Salida de auriculares (salida 3-4) ......43

1. COMPATIBILIDAD......44

USB Audio / USB MIDI 44

Panel de control de ASIO y Windows ^® ......44

https://www.djuced.com/downloaddjudced/

(en inglés)

- Serato DJ Lite:

https://serato.com/dj/lite/downloads?systemreq

3. Controles de bucle

https://support.hercules.com/product/djcontrolin pulse200mk2/.

○ macOS®: HDJC Series Mac

- Windows®: HDJC Series PC

https://support.hercules.com/product/djcontrolinpulse200mk2/.

○ macOS®: HDJC Series Mac

- Windows®: HDJC Series PC

https://support.hercules.com/product/djcontrolinpulse200mk2/.

https://support.hercules.com/product/djcontrolinpulse200mk2/.

https://support.hercules.com/product/djcontrolinpul se200mk2/.

Black Herculas audio synthesizer with dual dials and control knobs (no visible text or symbols)

ÍNDICE

1. CONTEÚDO DA EMBALAGEM......5
2. ESPECIFICAÇÕES TÉCNICAS ......6
3. CARACTERÍSTICAS......7

Vista geral....7

Decks....8

Misturar....18

Conectores....26

1. INSTALAÇÃO......27

Ligações 27

Transferir o software 29

DJUCED ^® 29

Serato DJ Lite 32

1. ANIMAR A SUA MISTURA ....34

Modos e pads....34

Pads....34

Modo Hot Cue....35

Modo Stems....36

Modo FX 37

Modo Sampler....39

Fazer scratch....40

Filtros 41

1. PLACA DE SOM MULTICANAL .....42

1. MODO DEMO......48

2. PERGUNTAS FREQUENTES .....49

DJCONTROL INPUTULSE 200 MK2

https://www.djuced.com/downloaddjuded/

(em inglês)

- Serato DJ Lite:

https://serato.com/dj/lite/downloads?systemreq

3. Controlos dos loops

https://support.hercules.com/product/djcontrolinpulse200mk2/.

○ macOS®: HDJC Series Mac
- Windows®: HDJC Series PC

https://support.hercules.com/product/djcontrolinpulse200mk2/.

○ macOS®: HDJC Series Mac

- Windows®: HDJC Series PC

https://support.hercules.com/product/djcontrolinpulse200mk2/.

https://support.hercules.com/product/djcontrolinpulse200mk2/.

https://support.hercules.com/product/djcontrolinpulse200mk2/.

Black and red Herviades audio synthesizer with two dials, no visible text or symbols on the device itself.

ОГЛАВЛЕНИЕ

https://www.djuced.com/downloaddjudced/

https://serato.com/dj/lite/downloads?systemreq

- THD+N @ 1 kHz < 0.01%

- THD+N @ 1 kHz < 0.017%

Line drawing of a pair of headphones connected to a speaker (no text or symbols)

○ macOS®: HDJC Series Mac

- Windows®: HDJC Series PC

○ macOS®: HDJC Series Mac
- Windows®: HDJC Series PC

https://support.hercules.com/product/djcontrolinpulse200mk2/

https://support.hercules.com/product/djcontrolinpulse200mk2/

Обновление прошивки

Black and red Herviades audio synthesizer with two dials, no visible text or symbols on the device itself.

OBSAH

1. OBSAH BALENÍ......5
2. TECHNICKÉ VLASTNOSTI......6
3. VLASTNOSTI......7

Přehled....7

Decky (Decks) 8

Mixování....18

Konektory 26

1. INSTALACE......27

Připojení......27

https://www.djuced.com/downloaddjuded/

(v angličtině)

- Serato DJ Lite:

https://serato.com/dj/lite/downloads?systemreq

- THD+N @1 kHz < 0.01%

3. Loop ovladače

○ macOS®: HDJC Series Mac

- Windows®: HDJC Series PC

○ macOS®: HDJC Series Mac

- Windows®: HDJC Series PC

https://support.hercules.com/product/djcontrolinpulse200mk2/.

https://support.hercules.com/product/djcontrolinpulse200mk2/.

https://support.hercules.com/product/djcontrolinputse200mk2/.

Black Herculas audio synthesizer with two dials and control knobs, no visible text or symbols on the device itself.

içİNDEKİLER

1. DEMO MODU....48

2. SSS 49

https://www.djuced.com/downloaddjuded/

(İngilizce)

- Serato DJ Lite:

https://serato.com/dj/lite/downloads?systemreq

uirements#system-requirements (Ingilizce)

3. Loop kontrolleri

○ macOS®: HDJC Series Mac
- Windows®: HDJC Series PC

○ macOS®: HDJC Series Mac

- Windows®: HDJC Series PC

https://support.hercules.com/product/djcontrolinpulse200mk2/.

https://support.hercules.com/product/djcontrolinpulse200mk2/.

https://support.hercules.com/product/djcontrolinputse200mk2/.

Black and red Herculas audio synthesizer with dual dials and control knobs (no visible text or symbols)

SPIS TREŚCI

1. ZAWARTOŚĆ OPAKOWANIA....5
2. DANE TECHNICZNE 6
3. ELEMENTY....7

Widok ogólny 7

Decki (Decks) 8

Miksowanie.... 19

Złącza.... 27

1. INSTALACJA....28

Połączenia 28

https://www.djuced.com/downloaddjuded/

https://serato.com/dj/lite/downloads?systemreq

3. Sterowanie pętłą

○ macOS®: HDJC Series Mac

- Windows®: HDJC Series PC

○ macOS®: HDJC Series Mac

- Windows®: HDJC Series PC

https://support.hercules.com/product/djcontrolinpulse200mk2/.

https://support.hercules.com/product/djcontrolinputse200mk2/.

Black Herculas audio synthesizer with red and black buttons, no visible text or symbols on the device itself.

目次

3. ループコントロール

○ macOS®: HDJC Series Mac
○ Windows®: HDJC Series PC

○ macOS®: HDJC Series Mac

○ Windows®: HDJC Series PC

https://support.hercules.com/product/djcontrolinpulse200mk2/

https://support.hercules.com/product/djcontrolinpulse200mk2/

ファームウェアのアップデート

https://support.hercules.com/product/djcontrolinpulse200mk2/.

Black Herculas audio synthesizer with red and black buttons, no visible text or symbols on the device itself.

目錄

https://www.djuced.com/downloaddjudced/

(英語版)

- Serato DJ Lite :

https://serato.com/dj/lite/downloads?systemreq

- THD+N @1 kHz < 0.01%

- 解析度 = 24 位

- 採樣頻率 = 44.1 kHz

3. 迴圈控制项

LOOP：啟用或停用迴圈播放。

○ macOS®:HDJC Series Mac

- Windows®:HDJC Series PC

針對 macOS® 的標準設定如下：

- Audio device（音訊裝置）：DJControl Inpulse 200 MK2

- Output（輸出）：

○ Master:Outputs 1&2
○ Headphones: Outputs 3&4

○ macOS®:HDJC Series Mac
- Windows®:HDJC Series PC

https://support.hercules.com/product/djcontrolinpulse200mk2/.

https://support.hercules.com/product/djcontrolinpulse200mk2/.

韌體更新

https://support.hercules.com/product/djcontrolinpulse200mk2/.

5. 我的耳機或筆記型電腦音箱不出聲。

Black and red Hercules instrument with dials, buttons, and a red cable (no readable text or symbols)

目录

- DJUCED®
https://www.djuded.com/downloadduced/
(英语版)

- Serato DJ Lite: https://serato.com/dj/lite/downloads?systemrequirements#system-requirements (英语版)

3. 循环控件

LOOP: 启用或禁用循环播放。

○ macOS®:HDJC Series Mac

- Windows®:HDJC Series PC

○ macOS®:HDJC Series Mac

- Windows®:HDJC Series PC

5. 我的耳机或笔记本电脑音箱不出声。

Black Herculas audio synthesizer with red and black buttons, no visible text or symbols on the device itself.

목차

- DJUCED®: https://www.djuced.com/downloaddjuded/ (영어)

- Serato DJ Lite: https://serato.com/dj/lite/downloads?systemrequirements#system-requirements (영어)

3. 루프 컨트롤

1. https://www.djuced.com/hercules(영어)를

방문하시기 바랍니다.

https://support.hercules.com/product/djcontrolin pulse200mk2/ (영어).

○ macOS®: HDJC Series Mac

○ Windows®: HDJC Series PC

https://serato.com/dj/lite/downloads (영어).

https://support.hercules.com/product/djcontrolin pulse200mk2/ (영어).

○ macOS®: HDJC Series Mac

○ Windows®: HDJC Series PC

https://support.hercules.com/product/djcontrolinpulse200mk2/.

https://support.hercules.com/product/djcontrolinputse200mk2/.

펌웨어 업데이트

https://support.hercules.com/product/djcontrolinpulse200mk2/.

Black Herculas audio synthesizer with two dials and control knobs, no visible text or symbols on the device itself.

INNEHÅLLSFÖRTECKNING

1. INNEHÅLL I FÖRPACKNINGEN ....5
2. TEKNISKA SPECIFIKATIONER 6
3. FUNKTIONER......7

Översikt....7

Däck (Decks) 8

Mixning....18

Kontakter 26

1. INSTALLATION......27

Anslutningar......27

Ladda ner programvaran 29

DJUCED ^® 29

Serato DJ Lite 32

1. LIVA UPP DIN MIX ....34

Lägen och pads 34

Pads....34

Hot Cue-läget....35

Stems-läget....36

FX-läget 37

Sampler-läget....39

Scratcha....40

Filter....41

6. FLERKANALIGT LJUDKORT......42

https://www.djuced.com/downloaddjudced/

(på engelska)

- Serato DJ Lite:

https://serato.com/dj/lite/downloads?systemreq

uirements#system-requirements

(på engelska)

3. Loopkontroller

○ macOS®: HDJC Series Mac
- Windows®: HDJC Series PC

○ macOS®: HDJC Series Mac
- Windows®: HDJC Series PC

https://support.hercules.com/product/djcontrolinpulse200mk2/.

https://support.hercules.com/product/djcontrolinpulse200mk2/.

Firmwareuppdatering

https://support.hercules.com/product/djcontrolinpulse200mk2/.

Black and red Herculas audio synthesizer with dual dials and control knobs (no visible text or symbols)

SISÄLLYSLUETTELO

1. LAATIKON SISÄLTÖ 5
2. TEKNISET TIEDOT ......6
3. OMINAISUUDET......7

Yleiskatsaus....7

Dekit (Decks) 8

Miksaaminen 18

Liittimet 26

1. ASENNUS....27

Liittimet 27

https://www.djuced.com/downloaddjuded/

(englanniksi)

- Serato DJ Lite:

https://serato.com/dj/lite/downloads?systemreq

uirements#system-requirements (englanniksi)

3. Luuppikomennot

○ macOS®: HDJC Series Mac

- Windows®: HDJC Series PC

○ macOS®: HDJC Series Mac

- Windows®: HDJC Series PC
