| Product type | Cordless blower |
| Brand | KRESS |
| Model | KG560E.9 |
| Rated voltage | 54 V (max 60 V) |
| Battery type | Lithium-ion (Li-ion) |
| Maximum air flow | 1275 m³/h |
| Maximum air speed | 215 km/h |
| Blowing modes | Air flow mode and air speed mode |
| Turbo button | Yes (maximum power) |
| Variable speed dial | Yes (3 speeds) |
| Weight | 2.3 kg |
| Sound pressure level (LpA) | 86.5 dB(A) |
| Sound power level (LwA) | 98.1 dB(A) |
| Vibration value | < 2.5 m/s² |
| Hearing protection required | Yes |
| Eye protection required | Yes |
| Outdoor use | Yes (indoor use prohibited) |
| Maintenance | Cleaning with damp cloth and mild soap |
| Repairability | Original spare parts recommended |
| Included accessories | Blower tube |
| Power source | Cordless battery |
Frequently Asked Questions - KG560E.9 KRESS
User questions about KG560E.9 KRESS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Blower in PDF format for free! Find your manual KG560E.9 - KRESS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KG560E.9 by KRESS.
USER MANUAL KG560E.9 KRESS

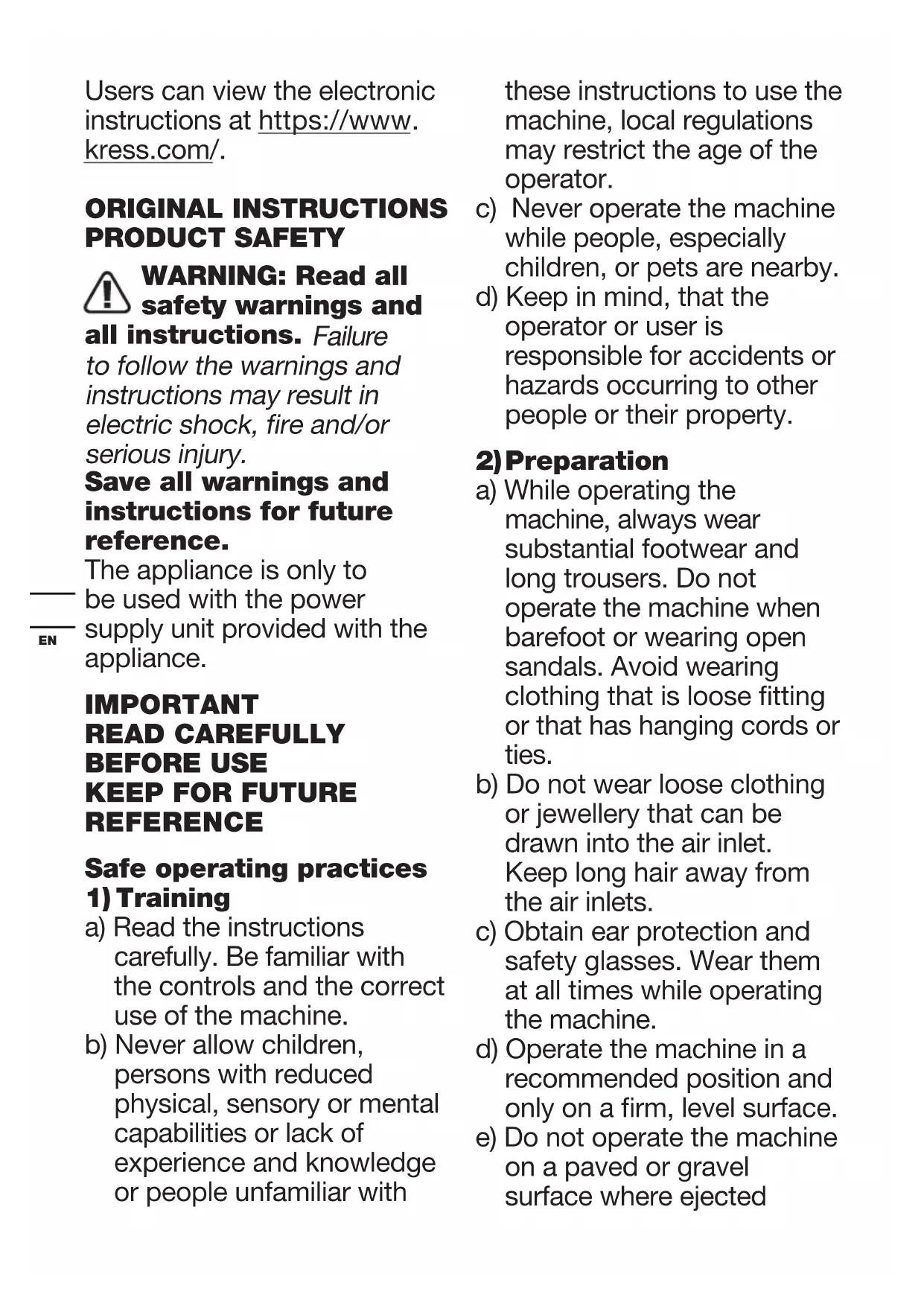

Users can view the electronic instructions at https://www.kress.com/.
ORIGINAL INSTRUCTIONS PRODUCT SAFETY
WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The appliance is only to be used with the power supply unit provided with the appliance.
IMPORTANT
READ CAREFULLY
BEFORE USE
KEEP FOR FUTURE
REFERENCE
Safe operating practices 1) Training
a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine.
b) Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with
these instructions to use the machine, local regulations may restrict the age of the operator.
c) Never operate the machine while people, especially children, or pets are nearby.
d) Keep in mind, that the operator or user is responsible for accidents or hazards occurring to other people or their property.
2) Preparation
a) While operating the machine, always wear substantial footwear and long trousers. Do not operate the machine when barefoot or wearing open sandals. Avoid wearing clothing that is loose fitting or that has hanging cords or ties.
b) Do not wear loose clothing or jewellery that can be drawn into the air inlet.
Keep long hair away from the air inlets.
c) Obtain ear protection and safety glasses. Wear them at all times while operating the machine.
d) Operate the machine in a recommended position and only on a firm, level surface.
e) Do not operate the machine on a paved or gravel surface where ejected
material could cause injury.
f) Before using, always visually inspect to see, that the fasteners are secure, the housing is undamaged and that guards and screens are in place. Replace worn or damaged components in sets to preserve balance. Replace damaged or unreadable labels.
3) Operation
a) Before starting the machine, make certain that the feeding chamber is empty.
b) Keep your face and body away from the feed intake opening.
c) Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part.
d) Keep proper balance and footing at all times. Do not overreach.
e) Always stand clear of the discharge zone when operating this machine.
f) If the machine should start making any unusual noise or vibration, immediately shut off the power source and allow the machine to stop. Remove the battery pack from the machine and take the following
steps before restarting and operating the machine:
i)inspect for damage;
ii)replace or repair any damaged parts;
iii)check for and tighten any loose parts.
g) Do not allow processed material to build up in the discharge zone; this may prevent proper discharge and can result in kickback of material through the intake opening.
h) If the machine becomes clogged, shut-off the power source and remove the battery pack from the machine before cleaning debris.
i) Never operate the machine with defective guards or shields, or without safety devices.
j) Keep the power source clean of debris and other accumulations to prevent damage to the power source or possible fire.
k) Do not transport this machine while the power source is running.
I) Always disconnect the machine from the power supply (e.g. remove the battery pack from the machine)
whenever you leave the machine,
-before clearing blockages or unclogging chute,
-before checking, cleaning or working on the machine.
m) Avoid using the machine in bad weather conditions especially when there is a risk of lightning.
4) Maintenance and storage
a) keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition.
b) Replace worn or damaged parts.
c) Use only genuine replacement parts and accessories.
d) Store the machine in a dry place out of the reach of children.
e) When the machine is stopped for servicing, inspection, or storage, or to change an accessory, shut off the power source, disconnect the machine from the supply and make sure that all moving parts have come to a complete stop. Allow the machine to cool before making any inspections, adjustments, etc. Maintain the machine with care and keep it clean.
f) Store the machine in a dry place out of the reach of
children.
g) Always allow the machine to cool before storing.
h) Never attempt to override the interlocked feature of the guard.
SAFETY WARNINGS FOR BATTERY PACK
a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Recharge only with the charger specified by Kress. Do not use any
charger other than that specifically provided for use with the equipment.
m)Do not use any battery pack which is not designed for use with the equipment.
n) Keep battery pack out of the reach of children.
o) Retain the original product literature for future reference.
p) Remove the battery from the equipment when not in use.
q) Dispose of properly.
r) Do not mix cells of different manufacture, capacity, size or type within a device.
s) Do not remove battery pack from its original packaging until required for use.
t) Observe the plus (+) and minus (-) marks on the battery and ensure correct use.
SYMBOLS
| ! | Read the operator's manual |
| ! | Warning |
| Wear eye protection |
| Do not expose to rain |
| Wear ear protection |
| Keep bystanders away |
| Warning of hazard |
| Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. |
| Remove battery from the socket before carrying out any adjustment, servicing or maintenance. |
| Li-lon battery. This product has been marked with a symbol relating to 'separate collection' for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances. |
| Do not burn |
| Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. |
COMPONENT LIST
- AIRSPEED SELECTOR NOZZLE
- BLOWER TUBE
-
TUBE RELEASE BUTTON
-
VARIABLE SPEED DIAL
- TURBO BUTTON FOR POWER BOOSTING
- HANDLE
- BATTERY PACK RELEASE BUTTON
- TRIGGER
- MOTOR HOUSING
- NOZZLE RELEASE BUTTON
Not all the accessories illustrated or described are included in standard delivery.
TECHNICAL DATA
Type Designation KG560E.9 (5- designation of machinery, representative of blower)
| KG560E .9 | |
| Voltage 60 V Max.* | --- |
| Maximum air volume | 1275 m3/h (Air volume mode) |
| Maximum air speed | 215 km/h (Air speed mode) |
| Machine weight | 2.3 kg |
- Voltage measured without workload. Initial battery voltage reaches maximum of 60 volts. Nominal voltage is 54 volts.
NOISE DATA
| A weighted sound pressure L | pA= 86.5 dB(A) |
| KpA | 3.0 dB(A) |
| A weighted sound power L | wA= 98.1 dB(A) |
| KwA | 3.0 dB(A) |
| Wear ear protection. | |
VIBRATION INFORMATION
| Typical weighted vibration a | \( {}_{\mathrm{h}} < {2.5}\mathrm{\;m}/{\mathrm{s}}^{2} \) |
| Uncertainty | \( \mathrm{K} = {1.5}\mathrm{\;m}/{\mathrm{s}}^{2} \) |
The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.
WARNING: The vibration emission value during actual use of the power tool can differ from the
declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used The tool being in good condition and well maintained Using the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and if any anti vibration accessories are used. And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Helping to minimise your vibration exposure risk. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate) If the tool is to be used regularly then invest in anti vibration accessories.
Plan your work schedule to spread any high vibration tool use across a number of days.
INTENDED USE
The blower is intended for residential use only. Use the blower outdoors to move yard debris as needed.
BEFORE OPERATION
ASSEMBLING & DISASSEMBLING THE BLOWER TUBE
To Assemble (Fig. A)
- Align the groove and push the tube onto the blower housing until you hear a "click".
To Disassemble (Fig. B)
- Press the tube-release button and pull the tube out.
INSTALLING & REMOVING THE BATTERY PACK
To Install (Fig. C)
- After recharging, insert the battery pack into tool's battery port. A simple push and slight pressure will be sufficient.
To Remove (Fig. D)
- Press the battery release button to release battery pack from your tool.
OPERATION
AIR SPEED MODE (FIG.E)
NOTE: The blower is in the air speed mode as packed in the box.
Air speed mode is recommended for cleaning on grass, as shown in Fig. G1.
AIR VOLUME MODE (FIG.F1, F2)
Depress the nozzle release button and slide forward for air volume mode.
Air volume mode is recommended for cleaning on hard ground such as cement, as shown in Fig.G2.
NOTE: To change modes, slide backward for air speed mode.
To start
Variable Speed Dial control (Fig. G1, G2)
Turn the Variable Speed Dial clockwise or anticlockwise to increase or decrease the blowing speed / air volume with 3-speed switch.
NOTE: When Variable Speed Dial is in "O" position, the blower cannot be started. Turn the Variable Speed Dial to the desired speed selection which will start the blower.
To stop (Fig. G3)
Turn the Variable Speed Dial clockwise to "O" or depress the Trigger and release it to have a quick stop. Turn the Variable Speed Dial clockwise to "O" position after each use.
NOTE: After completing the quick stop, Variable Speed Dial will not work until you have the throttle trigger fully depressed.
USER TIPS
-
Hold the blower tube approximately 8" above the ground when operating the tool. Use a sweeping motion from side to side. Advance slowly keeping the accumulated debris/leaves in front of you.
-
After blowing the debris/leaves into a pile, it is easy to dispose of the pile.
CAUTION!
- Do not blow hard objects such as nails, bolts, or rocks.
- Do not operate the blower near bystanders or pets.
- Use extra care when cleaning debris from stairs or other tight areas.
- Wear safety goggles or other suitable eye protection, long pants, and shoes.
TURBO BUTTON FOR POWER BOOSTING (FIG. H)
- Press the turbo button for power boosting while working to temporarily increase the air flow to the maximum level
- Release the Turbo button, the blower will return to the previously selected speed.
NOTE: Turbo button for power boosting can increase air flow significantly, and it can be used for clearing heavy or wet debris.
CLEANING THE TOOL
Clean the tool regularly.
WARNING! Keep your product dry. Under no circumstances spray with water.
- To clean the tool, use only mild soap and a damp cloth.
- Do not use any type of detergent, cleaner or solvent which may contain chemicals that could seriously damage the plastic.
Self lubricating bearings are used in your product, therefore lubrication is not required.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or
retailer for recycling advice.
DECLARATION OF CONFORMITY
We,
Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany
On behalf of Positec declare that the product
Description Battery-operated Blower
Type KG560E.9 (5 - designation of machinery, representative of battery-operated Blower) Function Blowing
Complies with the following Directives:
2006/42/EC, 2014/30/EU
2011/65/EU&(EU)2015/863,
2000/14/EC amended by 2005/88/EC
2000/14/EC amended by 2005/88/EC:
-
Conformity Assessment Procedure as per Annex V
-
Measured Sound Power Level 98.1 dB (A)
-
Declared Guaranteed Sound Power Level 101 dB (A)
Standards conform to
EN 60335-1, EN 50636-2-100, EN 62233, EN
ISO 3744, EN IEC 55014-1, EN IEC 55014-2
The person authorized to compile the technical file, Name Marcel Filz
Address Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany
2021/01/21
Allen Ding
Deputy Chief Engineer, Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
INFORMATIONS RELATIVES AU BRUIT
INFORMATIONS RELATIVES AUX VIBRATIONS
DECLARATION CONFORMITE
Nos,
Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany
2000/14/EC amendeepar 2005/88/EC:
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
LUCHTSNELHEIDSMODUS (FIG.E)
DE MACHINE SCHOOLMAKEN
Maak de machine geregeld schoon.
Standards in overeenstemming met,
EN 60335-1, EN 50636-2-100,
EN 62233, EN ISO 3744, EN IEC 55014-1,
EN IEC 55014-2
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Brugere kan se den elektroniske vegledning på https://www.kress.com/.
ORIGINAL BRUGSANVIS- NING PRODUKTSIKKERHED
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Rutiner for trygg bruk 1) TRENING
4)VEDLIKEHOLD OG OPPBEVARING
| KG560E .9 | |
| Spenning 60 V | Max.* --- |
| Maksimalt luftvolum | 1275 m³/h (Luftvolummodus) |
| Maksimal lufthastiget | 215 km/h (Lufthastighetsmodus) |
| Maskinvekt 2.3 kg |
LUFTHASTIGHT MODUS (FIG.E)
MERK:Blaseren leveres pakket i lufthastighetsmodus.
- Lufthastighetsmodus anbefales for rengjoring i gresset, som vist i Fig. G1.
LUFTVOLUMMODUS (FIG.F1,F2)
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Oi xpnoTeC o p o u v va ouuoueutov Ta
nEKTPOVIKA EYXeipidia OTN i u u v o n https://www.kress. com/.
PQPOTYNO OADHRIQN XPHES AΣΦΑΛEIA PPOIONTOZ PQPOTYNO OADHRIQN XPHES
IPOEIAOIOIHSH!
Δiaβáστε ðλες TIG
UIOB6I6Ic. H mTnpnON TwV TApakatw UTOB6I6ewv MTOpei va exe i oauVEIIa nEKTPOITNxiia, kivduvo TTupkaiac n/Kai Ooapouc Tpaumatiouc.
XPHESHYMΦΩNA METONIPOOPIEMO
O quontnpac npoopiEeai atokkoiotika yia oikiakn xphon. Xpnoiopoioinote to quontnpa eEgwtepiKO xwpo ia va eTakivnoe utoalemuata oTov KnTIO.
PIN ANOTH AETOYPTIA
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
A felhasznalok az elektronikusutasitsokat a https://www.kress.com/.
EREDETI HASZNÁLATI UTASITÁS BIZTONSAGOS TERMÉKHASZNÁLAT
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Utilizatori pot vizualiza instruţiunile in format electronic la https://www.kress.com/.
INSTRUCTIUNI ORIGINALE SECURITATEA PRODUSULUI
AVERTISMENT Citi
toate averismentele
de siguranta si toate
instructiunile. In caz de
nerespectare a averismentelor
si instructiunilor, exista
riscul electrocutarii,
izbucnirii incendiilor si/sau al
accidentarii grave.
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
USCHOVEJTE TYTOPOKYNY
PRO BUDOUCI ODKAZY
Pokyny pro bezpećnou obsluhu
1) Prüprava
INFORMACE TYKAJICI SE HLUČNOSTI
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Kress
Copyright © 2023, Positec. All Rights Reserved.
AR01569602
