USER MANUAL KG584.9 KRESS

Black Kress-branded brush tool with handle and spout (no visible text or symbols)

40V Cordless Blower	EN	P02
40V Akku-Laubblasgerät	D	P12
Souffleur sans fil 40 V	F	P24
Soffiatore senza filo da 40 V	I	P35
Soplador inalámbrico de 40 V	ES	P46
40V Accu Blower	NL	P59
40V Ledningsfri blæser	DK	P68
Аккумуляторная воздуходувка 40В	RU	P78
40V Sladdlös lövblås	SV	P90
KG584 KG584.X

TABLE OF CONTENTS

Introduction....2

Component List....3

Safety Instructions....4

Assembly & Operation....8

Cleaning....10

Technical Data....11

Environmental Protection....11

Declaration of Conformity....11

INTRODUCTION

Dear Customer,

Thank you for buying this Kress product. We are dedicated to developing high quality products to meet your landscaping requirements.

The Kress brand is synonymous with premium quality service. Over the years of your products life, if you have any questions or concerns about your product, please contact your location of purchase or our Customer Service Team for assistance.

We are confident you will enjoy working with your Kress product for years to come.

INTENDED USE

The blower is intended for residential use only. Use the blower outdoors to move yard debris as needed.

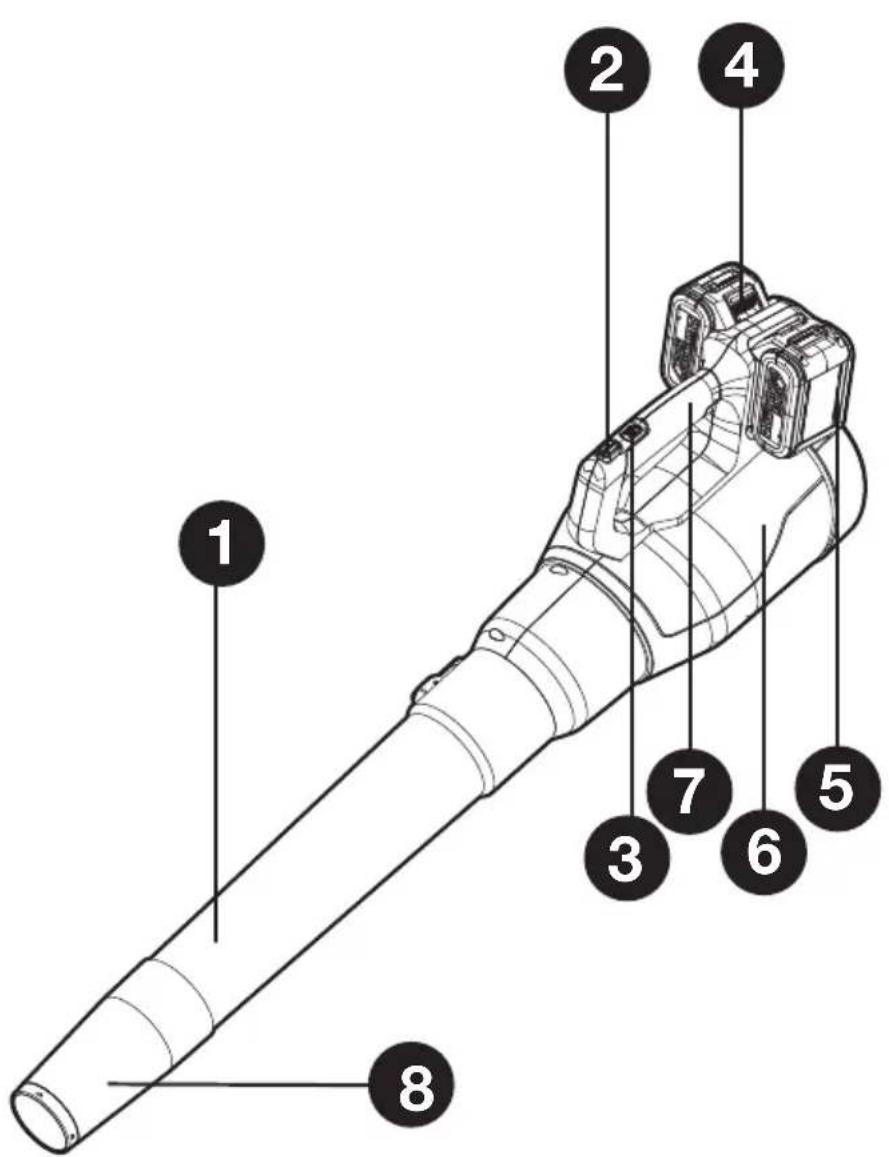

Labeled diagram of a mechanical device with numbered parts for identification

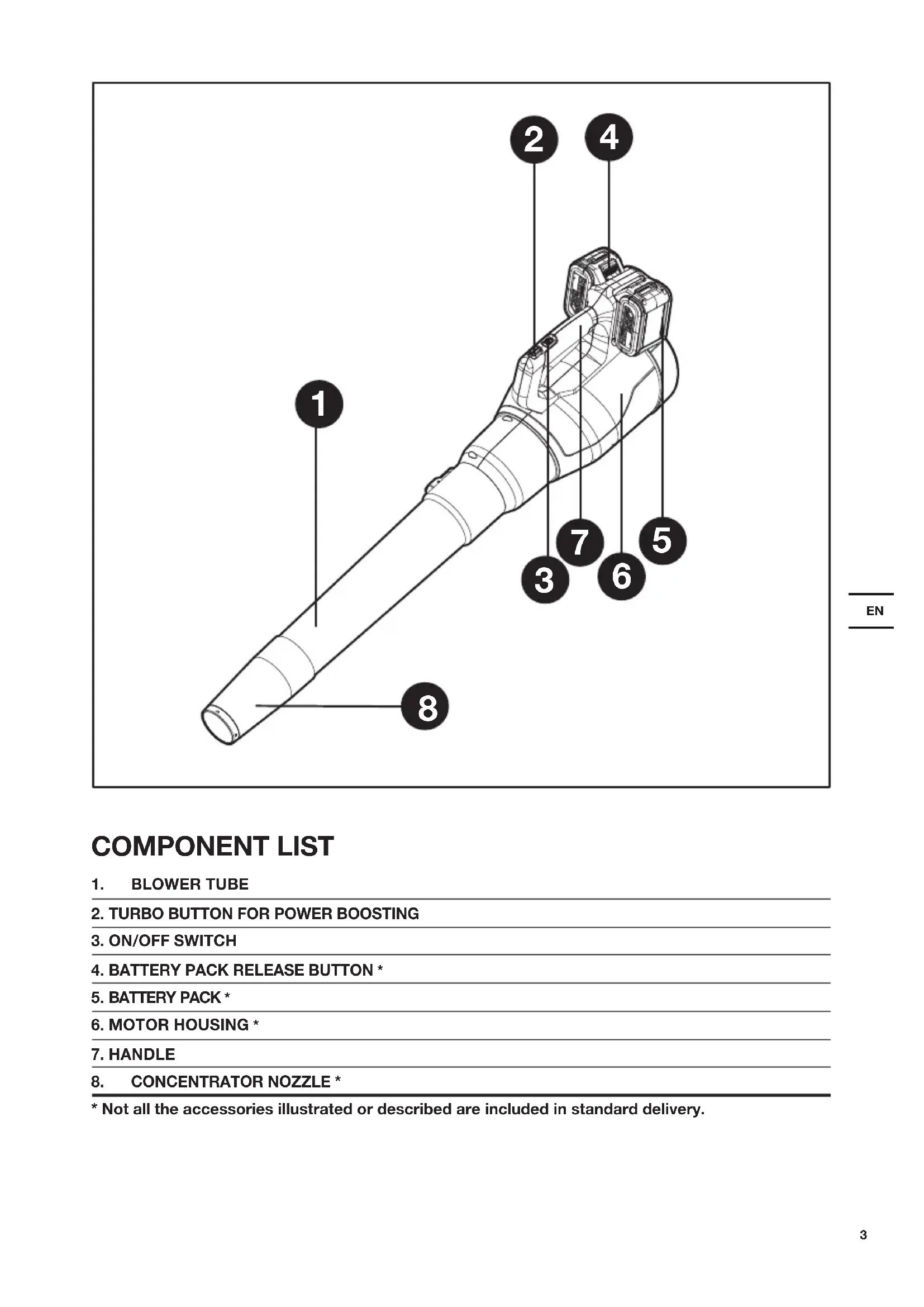

COMPONENT LIST

1. BLOWER TUBE
2. TURBO BUTTON FOR POWER BOOSTING
3. ON/OFF SWITCH
4. BATTERY PACK RELEASE BUTTON *
5. BATTERY PACK *
6. MOTOR HOUSING *
7. HANDLE
8. CONCENTRATOR NOZZLE *

PRODUCT SAFETY

WARNING Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The appliance is only to be used with the power supply unit provided with the appliance.

IMPORTANT

READ CAREFULLY BEFORE USE.

KEEP FOR FUTURE REFERENCE.

Safe operating practices

1) TRAINING

a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine.
b) Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator.

c) Never operate the machine

while people, especially children, or pets are nearby.

d) Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

2) PREPARATION

a) While operating the machine, always wear substantial footwear and long trousers. Do not operate the machine when barefoot or wearing open sandals. Avoid wearing clothing that is loose fitting or that has hanging cords or ties.

b) Do not wear loose clothing or jewellery that can be drawn into the air inlet. Keep long hair away from the air inlets.

c) Obtain ear protection and safety glasses. Wear them at all times while operating the machine.

d) Operate the machine in a recommended position and only on a firm, level surface.

e) Do not operate the machine on a paved or gravel surface where ejected material could cause injury.

f) Before using, always

visually inspect to see, that the fasteners are secure, the housing is undamaged and that guards and screens are in place. Replace worn or damaged components in sets to preserve balance. Replace damaged or unreadable labels.

3) OPERATION

a) Before starting the machine, make certain that the feeding chamber is empty.
b) Keep your face and body away from the feed intake opening.
c) Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part.
d) Keep proper balance and footing at all times. Do not overreach. Never stand at a higher level than the base of the machine when feeding material into it.
e) Always stand clear of the discharge zone when operating this machine.
f) If the machine should start making any unusual noise or vibration, immediately shut off the power source and allow the machine to stop. Remove the battery

pack from the machine and take the following steps before restarting and operating the machine:

i) inspect for damage;
ii) replace or repair any damaged parts;
iii) check for and tighten any loose parts.
g) Do not allow processed material to build up in the discharge zone; this may prevent proper discharge and can result in kickback of material through the intake opening.
h) If the machine becomes clogged, shut-off the power source and remove the battery pack from the machine before cleaning debris.
i) Never operate the machine with defective guards or shields, or without safety devices.
j) Keep the power source clean of debris and other accumulations to prevent damage to the power source or possible fire.
k) Do not transport this machine while the power source is running.
I) Always disconnect the machine from the power supply (e.g. remove the battery pack from the machine)

• whenever you leave the machine,
• before clearing blockages or unclogging chute,
• before checking, cleaning or working on the machine.
  m) Avoid using the machine in bad weather conditions especially when there is a risk of lightning.

a) keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition.
b) Replace worn or damaged parts.
c) Use only genuine replacement parts and accessories.
d) Store the machine in a dry place out of the reach of children.
e) When the machine is stopped for servicing, inspection, or storage, or to change an accessory, shut off the power source, disconnect the machine from the supply and make sure that all moving parts are come to a complete stop. Allow the machine to cool before making any inspections, adjustments, etc. Maintain the machine with care and keep it clean.

f) Store the machine in a dry place out of the reach of children.
g) Always allow the machine to cool before storing.
h) Never attempt to override the interlocked feature of the guard.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight. d) Do not subject battery pack to mechanical shock.

e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

f) Keep battery pack clean and dry.

g) Wipe the battery pack terminals with a clean dry cloth if they become dirty.

h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.

i) Do not maintain battery pack on charge when not in use.

j) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.

k) Recharge only with the charger specified by Kress. Do not use any charger other than that specifically provided for use with the equipment.

I) Do not use any battery pack which is not designed for use with the

equipment.

m) Keep battery pack out of the reach of children.
n) Retain the original product literature for future reference.
o) Remove the battery from the equipment when not in use.
p) Dispose of properly.
q) Do not mix cells of different manufacture, capacity, size or type within a device.
r) Keep the battery away from microwaves and high pressure.

SYMBOL

	Read the operator's manual
	Wear eye protection
	Wear ear protection
	Do not expose to rain
	Warning of hazard
	Keep bystanders away
	Make sure the battery is removed prior to changing accessories.
	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.
	Li-lon battery This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.
	Do not burn
	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.

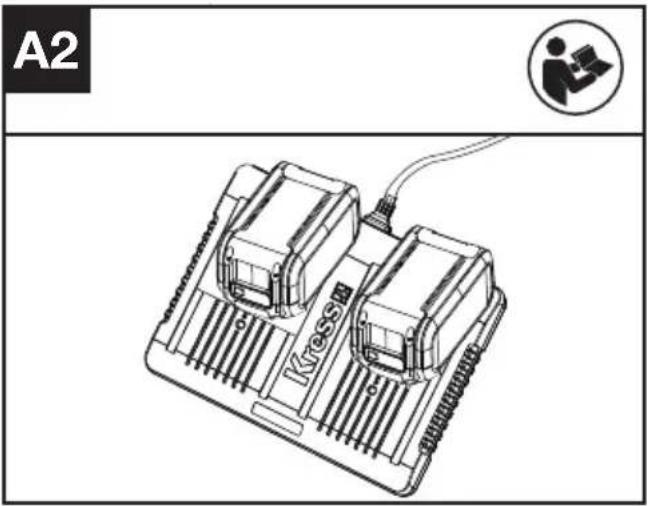

Charging the battery pack (See Fig. A2)

NOTE:

• The batteries are shipped uncharged. Each battery must be fully charged before the first use.
• Always fully charge the two batteries at same time. More details can be found in charger's manual.

WARNING! The charger and battery pack are specially designed to work together, so do not opt to use any other devices. Never insert or allow bic objects into your charger or battery pack sections because of an electrical failure and hazard occur.

A2 Kress

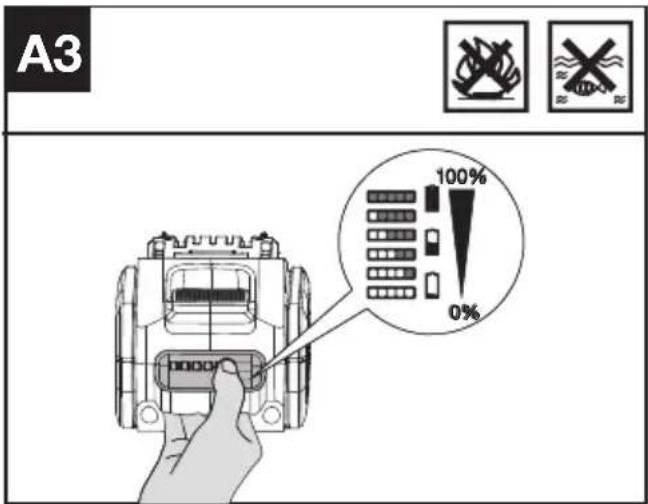

Checking the battery condition (See Fig. A3)

NOTE: Fig. A3 only applies for the battery pack with battery indicator light.

A3 100% 0%

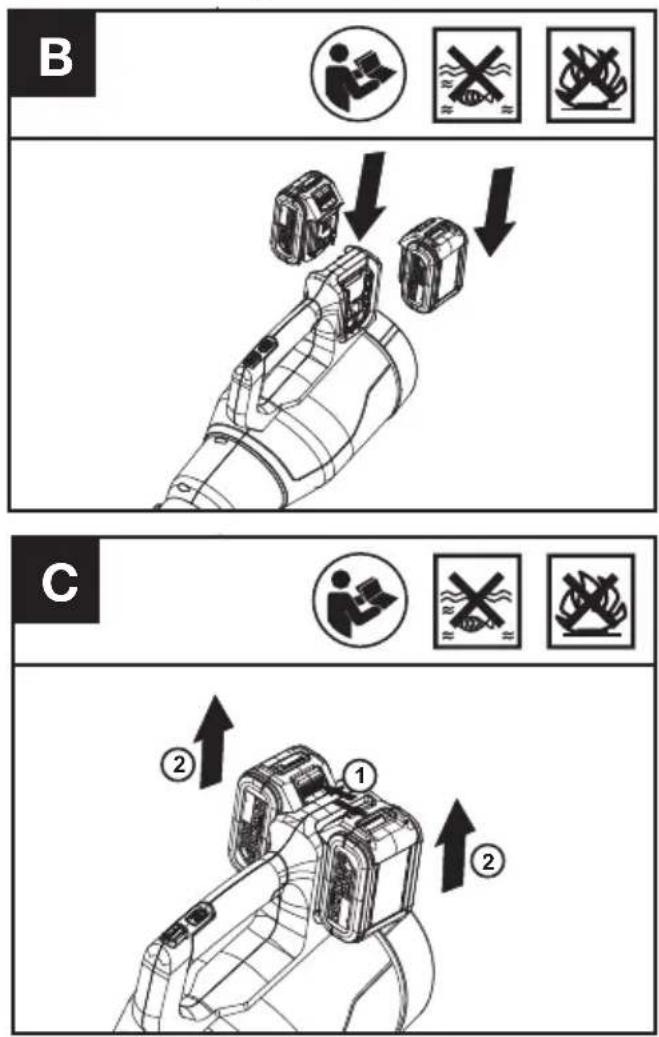

Installing & removing the battery pack (See Fig. B, C)

NOTE:

- This machine will only run when 2 batteries are installed. It is recommended to use the same two batteries and charge the two batteries at the same time.

- When you use two batteries with different power, the machine will only run to the level of the lowest charged battery.

OPERATION

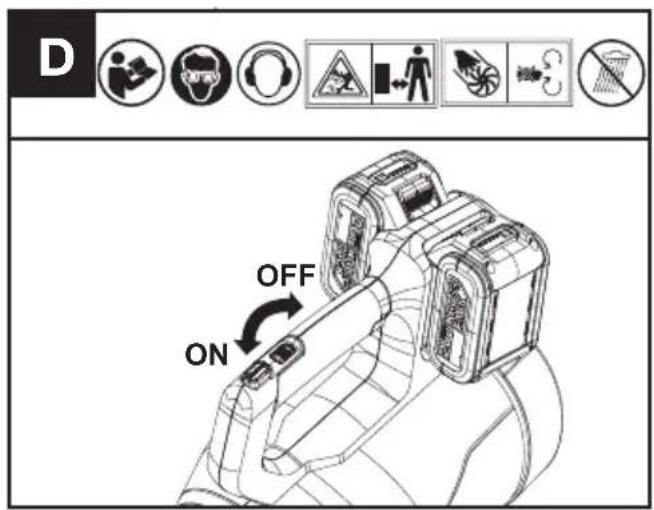

Starting & Stopping (See Fig. D)

WARNING! The tool runs for a few seconds after it has been switched off.

Let the motor come to a complete standstill before setting the tool down.

D OFF ON

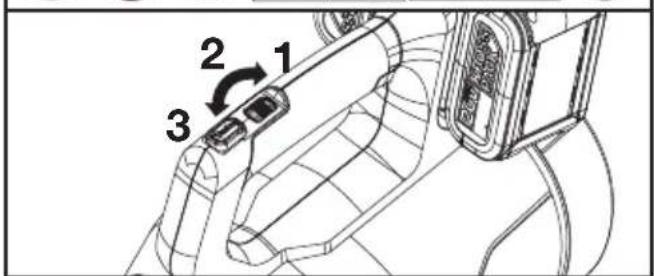

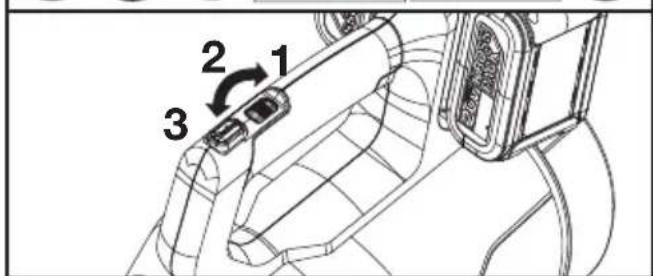

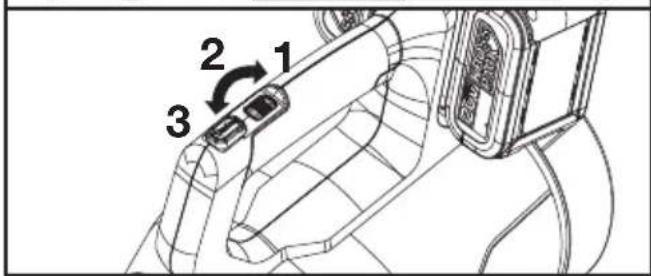

Adjusting the blowing speed / air volume with 3-speed switch (See Fig. E)

USER TIPS

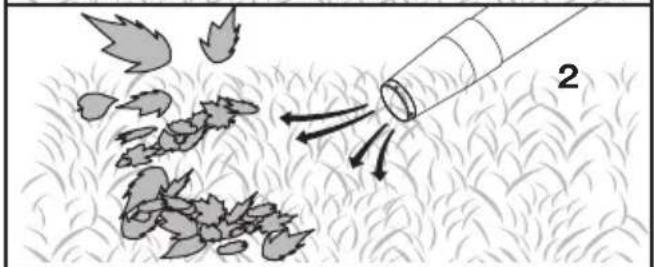

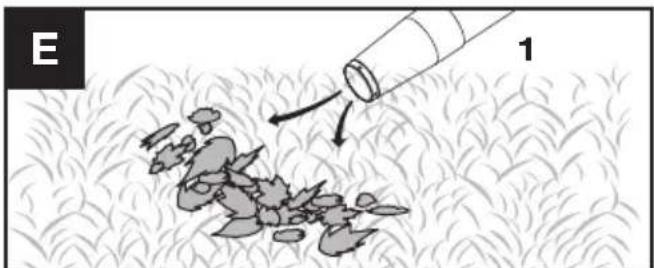

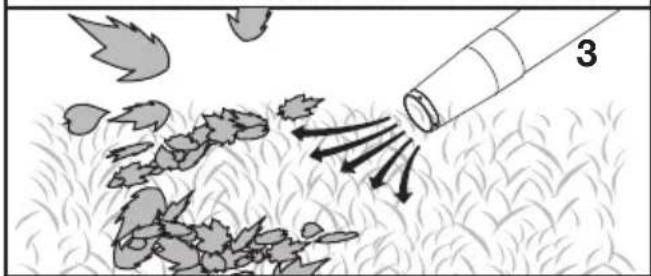

• Hold the blower tube approximately 8" above the ground when operating the tool. Use a sweeping motion from side to side.
• After blowing the debris/leaves into a pile, it is easy to dispose of the pile.

Caution!

• Do not blow hard objects such as nails, bolts, or rocks.
• Do not operate the blower near bystanders or pets.
• Use extra care when cleaning debris from stairs or other tight areas.
• Wear safety goggles or other suitable eye protection, long pants, and shoes.

Diagram showing a container pouring liquid into a pile of plants on a textured surface (no text or symbols)

Illustration of a pipe spraying water onto a textured surface with scattered debris (no text or symbols)

Illustration of a spray gun emitting particles from a surface, with no visible text or symbols

Collection of safety and hazard symbols including pictograms, headphones, warning signs, and no recorded incidents

Technical diagram showing labeled components of a mechanical or electrical component with numbered parts 1, 2, and 3.

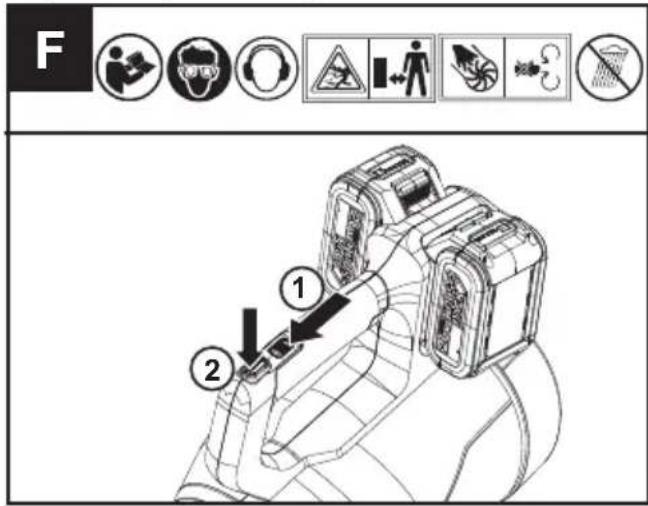

Turbo button for power boosting

NOTE:

• Turbo button for power boosting can increase air flow significantly, and it can be used for clearing heavy or wet debris.
• First switch on the blower and select a speed control (speed 1, 2 or 3), then depress the turbo button and hold it.

Release the Turbo button, the blower will return to

the previously selected speed.

F ① ②

FOR BATTERY TOOLS

The ambient temperature range for the use and storage of tool and battery is 0 °C-45 °C (32 °F-113 °F). The recommended ambient temperature range for the charging system during charging is 0 °C-40 °C (32 °F-104 °F).

CLEANING THE TOOL

Clean the tool regularly.

WARNING! Keep your product dry. Under no circumstances spray with water.

• To clean the tool, use only mild soap and a damp cloth.
• Do not use any type of detergent, cleaner or solvent which may contain chemicals that could seriously damage the plastic.
• Self lubricating bearings are used in your product, therefore lubrication is not required.

TECHNICAL DATA

Type KG584 KG584.X (5 - designation of machinery, representative of Cordless Blower)

	KG584 KG584.X **
Voltage	40 V=MAX.(2x20 V Max.) ***
Maximum air volume 900 m	3/h
Maximum air velocity	290 km/h(with concentrator nozzle)
Machine weight(Bare tool)	1.9 kg

**X=1-999, A-Z, M1-M9 there are only used for different customers, there are no safe relevant changes between these models.

***Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

SUGGESTED BATTERIES AND CHARGERS

Category	Type Capacity
20V Battery KAB04 4.0Ah
20V Charger	KAC04 4.0A

We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

NOISE INFORMATION

A weighted sound pressure L	_pA = 71.18 dB(A)
K_pA	3.0 dB(A)
A weighted sound power L	_wA = 80.1 dB(A)
K_wA	3.0 dB(A)
Wear ear protection.

VIBRATION INFORMATION

Typical weighted vibration a	_h < 1.24 m/s^2
Uncertainty K=3 m/s ^2

The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained.

Using the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce

the exposure level over the total working period.

Helping to minimise your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). If the tool is to be used regularly then invest in anti vibration accessories.

Plan your work schedule to spread any high vibration tool use across a number of days.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be

disposed of with household waste. Please

recycle where facilities exist. Check with your

local authorities or retailer for recycling advice.

DECLARATION OF CONFORMITY

We,

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

Declare that the product

Description Kress Cordless blower

Type KG584 KG584.X (5 - designation of machinery, representative of Cordless blower)

Function blowing

Complies with the following Directives:

2006/42/EC, 2014/30/EU

2011/65/EU&(EU)2015/863

2000/14/EC amended by 2005/88/EC

2000/14/EC amended by 2005/88/EC:

- Conformity Assessment Procedure as per Annex V

- Measured Sound Power Level 80.1 dB(A)

- Declared Guaranteed Sound Power Level 81 dB(A)

Standards conform to:

EN 60335-1, EN 50636-2-100, EN 62233, EN ISO

3744, EN 55014-1, EN 55014-2

The person authorized to compile the technical file,

Name Marcel Filz

Address Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

A##

2022/12/9

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INHALTSVERZEICHNIS

Einführung....12

Komponenten....13

Labeled diagram of a mechanical device with numbered parts for identification

KOMPONENTEN

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SOMMAIRE

Introduction....24

Labeled diagram of a mechanical device with numbered parts for identification

LISTE DES COMPOSANTS

1. TUBE DE SOUFFLERIE
2. BOUTON TURBO POUR AUGMENTER LA PUISSANCE
3. INTERRUPTEUR DE MARCHE/ARRET
4. BOUTONS DE DÉTACHEMENT DU BLOC DE BATTERIE *
5. BATTERIE *
6. LOGEMENT MOTEUR *
7. POIGNÉE
8. BUSE DE CONCENTRATEUR *

SÉCURITÉ DU PRODUIT

Technical line drawing of a mechanical device with an arrow indicating assembly direction (no text or symbols present)

Technical line drawing of two electronic components with cooling fins and a cable (no text or symbols)

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVES AUX VIBRATIONS

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INDICE

Introduzione....35

Labeled diagram of a mechanical device with numbered parts for identification

ELENCO COMPONENTI

1. TUBO DEL SOFFIANTE
2. PULSANTE TURBO PER AUMENTARE LA POTENZA
3. INTERRUTTORE D'ACCENSIONE/SPEGNIMENTO
4. PULSANTI SGANCIO BATTERIA *
5. BATTERIA *
6. ALLOGGIAMENTO MOTORE *
7. IMPUGNATURA
8. UGELLO CONCENTRATORE *

SICUREZZA DEL PRODOTTO

A3 100% 0%

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

ÍNDICE

Labeled diagram of a mechanical device with numbered parts for identification

A3 100% 0%

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INHOUDSOPGAVE

Inleiding....57

Labeled diagram of a mechanical device with numbered parts for identification

DRIE SNELHEIDSINSTELLINGEN

1. BLAASBUIS
2. TURBO KNOP VOOR POWER BOOSTING
3. AAN/UITSCHAKELAAR
4. KNOP OM BATTERIJ LOS TE MAKEN *
5. ACCUPACK *
6. MOTORBEHUIZING
7. HANDVAT
8. CONCENTRATORMONDSTUK *

PRODUCTVEILIGHEID

WAARSCHUWING Lees alle instructies

A3 100% 0%

WAARSCHUWING: Voor de

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INDHOLDSFORTEGNELSE

Introduktion....68

Lista de componentes....69

Labeled diagram of a mechanical device with numbered parts for identification

AGGREGATELEMENTER

1. BLÆSERR∅R
2. TURBO-KNAP TIL POWER BOOST
3. TÆND-SLUK-KNAP
4. UDL∅SERKNAPPER TIL BATTERIENHEDEN *
5. BATTERIENHED *
6. MOTORHUS
7. HANDLE
8. KONCENTRATORDYSE *

PRODUKTSIKKERHED

A3 100% 0%

Turbo-knap til power boost BEMÆRK:

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

СОДЕРЖАНИЕ

Введение....78

Labeled diagram of a mechanical device with numbered parts for identification

СПИСОК СОСТАВЛЯЮЩИХ

A3 100% 0%

Illustration of a pipe spraying water onto a pile of debris (no text or symbols)

Illustration of a spray nozzle emitting particles from a pile of debris (no text or symbols)

Row of eight safety and hazard symbols including pictogram, helmet, warning sign, triangular warning sign, person silhouette, bicycle, insect, and cloud.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

2000/14/EC amended by 2005/88/EC

2000/14/EC изменена 2005/88/EC:

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INNEHÅLLSFÖRTECKNING

Introduktion....90

Komponenter....91

Labeled diagram of a mechanical device with numbered parts for identification

KOMPONENTER

1. BLÅSRÖR
2. TURBÖKNAPP FÖR EXTRA KRAFT
3. TILL/FRÅN-STRÖMBRYTAREN
4. KNAPPAR FÖR LÖSGÖRANDE AV BATTERIPACKEN *
5. BATTERIPAKET *
6. MOTORHUS
7. HANDTAG
8. KONCENTRATORMUNSTYCKE *

PRODUKTSÄKERHET

Technical line drawing of a mechanical device with a cylindrical shaft and attached connector (no text or symbols)

Laddning av batteripaketet (Se Fig. A2)

OBS:

A3 100% 0%

Illustration of a pipe spraying water onto leafy ground, with arrows indicating flow direction (no text or symbols)

Illustration of a spray gun emitting particles from a pile of debris (no text or symbols)

Row of eight black-and-white safety and hazard symbols including person, helmet, warning sign, and pollution-related icons

Technical diagram showing labeled components of a mechanical or electronic device with numbered parts 1, 2, and 3.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

MILJÖSKYDD
